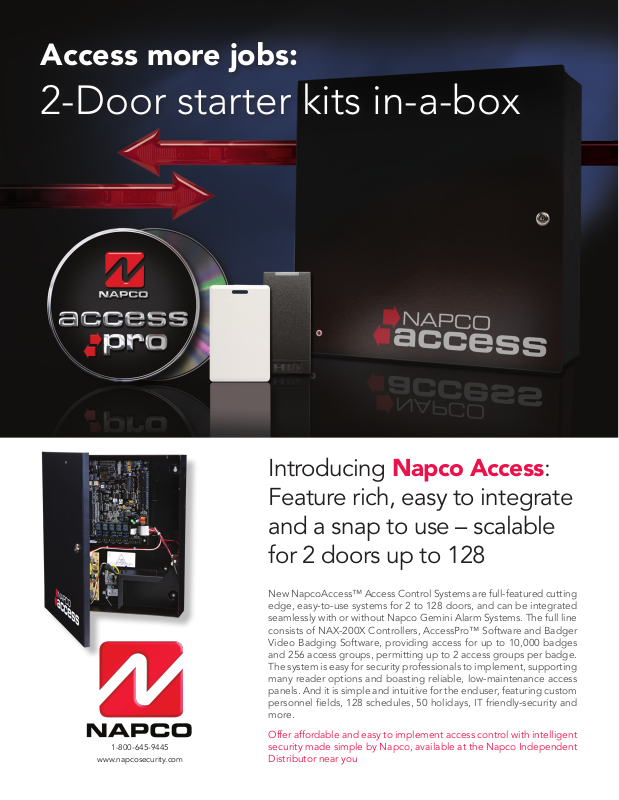

Page 1
Access more jobs:
2-Door starter kits in-a-box
1-800-645-9445
www.napcosecurity.com
Introducing Napco Access:
Feature rich, easy to integrate
and a snap to use – scalable
for 2 doors up to 128
New NapcoAccess™ Access Control Systems are full-featured cutting
edge, easy-to-use systems for 2 to 128 doors, and can be integrated
seamlessly with or without Napco Gemini Alarm Systems. The full line
consists of NAX-200X Controllers, AccessPro™ Software and Badger
Video Badging Software, providing access for up to 10,000 badges
and 256 access groups, permitting up to 2 access groups per badge.
The system is easy for security professionals to implement, supporting
many reader options and boasting reliable, low-maintenance access
panels. And it is simple and intuitive for the enduser, featuring custom
personnel fields, 128 schedules, 50 holidays, IT friendly-security and
more.
Offer affordable and easy to implement access control with intelligent
security made simple by Napco, available at the Napco Independent
Distributor near you
Page 2
2-Door access controller with power
supply
NAX-200X
• 2 door access controller panel, supports 2 readers and up to
10,000 cards. 8 EOL supervised alarm inputs, tamper, 5 relay
outputs. Locking metal enclosure, includes power supply and
serial comm. cable. UL294 and CUL listed.
• Expandable up to 128 doors, 64 panels, maximum capacity
• Integrates seamlessly with Napco Gemini Alarm Systems
(GEM-P3200, -P9600, X255)
• Includes serial communication cable for PC-to-panel
connnection
• Also supports network/LAN commmunications using
optional NAX-ENET ethernet adapter interface board (for
communcications over TCP/IP).
Expansion for NAX-200X
NAX-200XIO Expansion Board in
Enclosure
• 16 supervised inputs, 16 relay output
expansion board and locking enclosure
with power supply/charger for NAX200X.
• Includes 1 NAX-200XIOBD (16
supervised alarm inputs, 16 relay
outputs.) For added expansion,
doubling inputs/outputs, add 2nd IO
Board, below.
NAX-200XIOBD Secondary Add-on Board
• Additional 16 supervised inputs, 16 relay outputs expansion
board for use in NAX-200XIO.
• For up to 32 supervised alarm inputs & 32 relay outputs,
max.
Access Pro user-friendly software
NAX-2000
• For up to 10,000 cardholders, 256 access
groups, permits up to 2 access groups per
badge
• Features custom personnel fields, 128
schedules, 50 holidays
• Built-in system configuration templates for quick starts
• IT friendly; supports up to 5 workstations
NAX-BADGE - Badge creation software
• Badger photo badge creation software with easy to
use templates for use with Access Pro software
Prox reader with alarm status
indicators
GEM-PX
• Economical, attractive, weatherproof reader with
unique alarm system status leds on face – Access the
door and disarm the system with a card!
• LED indicators enable users to know alarm system
status before arming/disarming system with prox card
• Purchase individual GEM-PX affordable proprietary
reader supporting economical
GEM-PXC proprietary Gemini Prox Cards
Turnkey 2-door kits each with choice of
2 readers & 50 cards:
Napco Access Starter Kit
MODEL: NAX-KIT-PX
(1) NAX-200X 2-door access controller
(1) PC-to-panel serial communications cable
(1) Access Pro Software
(2) GEM-PX Proximity Readers
• Indoor/outdoor
• Unique alarm status indicator for Armed/Disarmed
(see above).
(50) GEM-PXC Gemini Prox Cards
• Durable, affordable prox cards with holder die-out
Napco Access HID Starter Kit
MODEL: NAX-KIT-A
(1) NAX-200X 2-door access controller
(1) PC-to-panel serial communications cable
(1) Access Pro Software
(2) HID Proxpoint Plus Proximity Readers
• Indoor/outdoor, including mounting on metal
• Features a beeper and multicolor LED
(50) HID Prox Card II Cards
• Durable clamshell cards, dependable read range, and an external
number for easy identification & control
333 Bayview Avenue, Amityville, New York 11701 USA • 1-800-645-9445 • www.napcosecurity.com
© NAPCO, Preliminary specifications - subject to change 8/07 A563A
