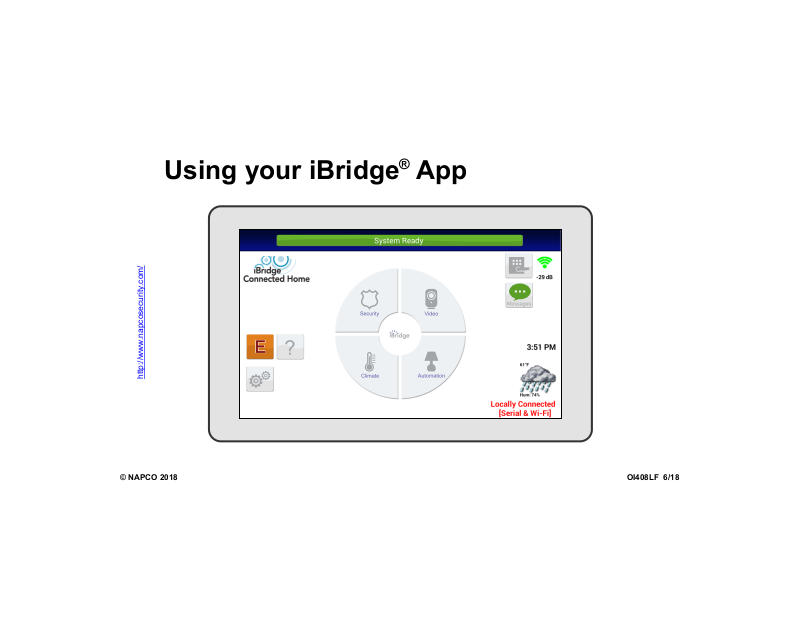

Using your iBridge® App

http://www.napcosecurity.com/

Page 2

INTRODUCTION

The iBridge® App is a "smart" user

-friendly, interactive app designed for your Napco security system. Its interactive touch screens will not only display the status of your system, but will also give you step-by-step instructions to guide you through all operations.

This booklet contains important

information about the operation of your system with the iBridge

App; read it

carefully and keep it handy for future

reference. Check the Glossary for terms that may be unfamiliar to you.

You'll probably find subjects or screens mentioned in this booklet that do not apply to your system. Napco keypads and control panels have such a wide variety of features that few security systems, if any, will ever need them all. Your alarm professional has chosen appropriate features for your particular needs.

Regardless of how your system

IMPORTANT - TEST YOUR SYSTEM WEEKLY

Test your sounding device and backup battery

(These tests should only be performed on weekends or at a time

designated by your alarm company.)

1. While disarmed, tap Security, Other Options, Keypad Mode,

2. Answer NO (tap

window.

3. Tap YES (

two seconds.

Q) until "ACTIVATE SIREN TEST" appears in the

P) to execute the test. The alarm will sound for about

 If the alarm does not sound, call for service.  If the battery is low, "LOW BATTERY E02-00 SERVICE" will appear in

the display indicating a low battery condition. Allow 24 hours for the battery to recharge. If the trouble continues, call for service.

has been configured, rest assured that it has been carefully designed and engineered to the highest industry standards. To assure optimum safety and security, familiarize yourself with this equipment. Periodically check its condition and state of readiness by testing it at least once a week in both the ac/battery and battery-only modes (ask your alarm professional how to make these tests).

Test your central station communicator

(Activate Dialer Test programmed? YES NO)

1. Notify your Central Station of the impending test.

2. While disarmed, enter your User Code and tap R.

3. Answer NO (tap

the window.

4. Tap YES (

Q) until "ACTIVATE DIALER TEST" appears in

P) to send a test code to the central station.

 If the test is not successful, "COMM FAIL E03-00 SERVICE" will

display, indicating a communication failure. Call for service.

Note: Any subsequent successful transmission will clear a "Failure to Communicate" system trouble

Page 3

TABLE OF CONTENTS

SECTION PAGE

GETTING STARTED ............................................................................................................5

HOME SCREEN ICONS ......................................................................................................6

ENTER YOUR SECURITY SYSTEM ...................................................................................7

"K SERIES" KEYPAD MODE: CONTROLS & INDICATORS ..............................................8

"CLASSIC" KEYPAD MODE: CONTROLS & INDICATORS .............................................. 10

ARMING AWAY: SETTING THE ALARM WHEN LEAVING .............................................. 12

ARMING STAY: PROTECTING YOURSELF AT HOME ................................................... 14

EASY EXIT / EMERGENCY BUTTONS ............................................................................. 15

DISARMING (TURNING OFF THE ALARM) WHEN RETURNING .................................... 16

ARMING "NIGHT": PROTECTING YOURSELF WHEN SLEEPING .................................. 17

BYPASSING ZONES ......................................................................................................... 18

FIRE PROTECTION ........................................................................................................... 20

FUNCTION MENU ............................................................................................................. 24

CENTRAL-STATION MONITORING .................................................................................. 29

ADVANCED FEATURES ................................................................................................... 30

PROGRAMMING USER CODES ....................................................................................... 31

ENTER ZONE DESCRIPTIONS -- "CELL PHONE STYLE" ......................................... 33-34

KEYPAD MESSAGES ........................................................................................................ 36

USING THE ONSCREEN KEYBOARD .............................................................................. 39

USER SETTINGS MENU ................................................................................................... 42

"VIDEO" BUTTON .............................................................................................................. 47

"VIDEO" BUTTON > ENROLL CAMERAS ......................................................................... 48

GLOSSARY ....................................................................................................................... 52

SYSTEM TROUBLE ERROR CODES ............................................................................... 55

TROUBLESHOOTING ....................................................................................................... 60

LIMITED WARRANTY ........................................................................................................ 64

TO SILENCE AN ALARM, ENTER YOUR

CODE, AND TAP

FOR SERVICE, CALL: ____________________

CENTRAL STATION: ____________________

EXIT DELAY: ___________________________

ENTRY DELAY: _________________________

FIRE ALARM SOUND

____________________________________

BURGLAR ALARM SOUND

____________________________________

KEYPAD FIRE ENABLED? YES NO

KEYPAD PANIC ENABLED?

KEYPAD AUX. ENABLED?

YES NO

FIRE HAS PRIORITY OVER BURGLARY.

Page 4

INTRODUCTION

THANK YOU FOR CHOOSING NAPCO

This guide will introduce you to the features of your new

iBridge® App. For assistance, please go to:

 http://www.napcosecurity.com/

For User Guides and other documentation, go to:

 http://tech.napcosecurity.com/

Note: Screen images, icons and instructions shown in this guide may vary depending on the firmware version installed.

IMPORTANT CUSTOMER INFORMATION

With regard to non-Napco software applications, if you use, link to or download a service or software application such as a nonNapco location-based GPS type service, chat room, marketplace or social network from this device, you should carefully

review the terms of service or application. If you use any of these non-Napco services or applications, personal information you submit may be read, collected, or used by the service or application provider and/or other users of those services. Napco is not responsible for your use of those applications or for the information you choose to share with others. Specific terms and conditions, privacy polices and terms of use apply to those non-Napco applications and services. Please carefully review all conditions and terms applicable to those services and software applications for all privacy policies, risks or waivers. Your Napco Limited Warrantee and other terms and conditions govern your use of all Napco wireless products and services.

Before using your iBridge

App for the first time, please read

and understand the important safety and legal information packaged with your device.

IMPORTANT NOTE

Although the instructions in this guide are depicted using the GEM-K1CA "K Series" keypad buttons, this guide can also be used with the "classic" GEM-RP1CAe2 keypad. If your system uses the "classic" GEM-RP1CAe2 keypad, the "classic" INTERI-

OR, INSTANT, FUNCTION and ON/OFF buttons can be used in place of the "K Series" model STAY, AWAY, MENU and ENTER buttons respectively. Refer to the User Guide that came with your wired keypad for more information. Most

of the screen images in this guide were created using the Android operating system; most of the corresponding iOS screens are similar. Changes to the app may occur over time, so keep in mind that all images and text are subject to change without notice.

Page 5

GETTING STARTED

Before using your iBridge

App for the first time, please read the important legal and safety information included with your

app.

When First Starting Your

iBridge® App

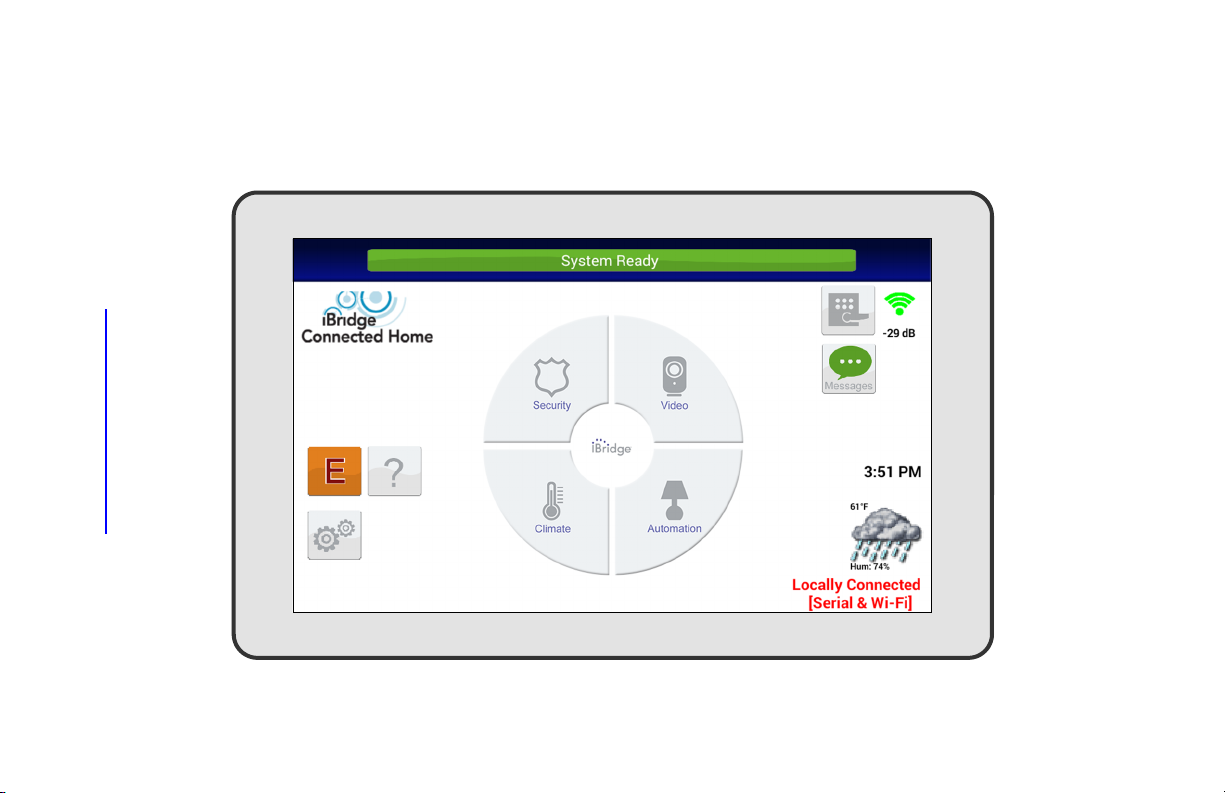

After a few seconds, the Napco Security Application Home Screen appears. From this screen, tap any of several buttons, including:

Security: Tap to display the status of your Napco alarm system. Allows the control of all system operations, just like a standard wired keypad.

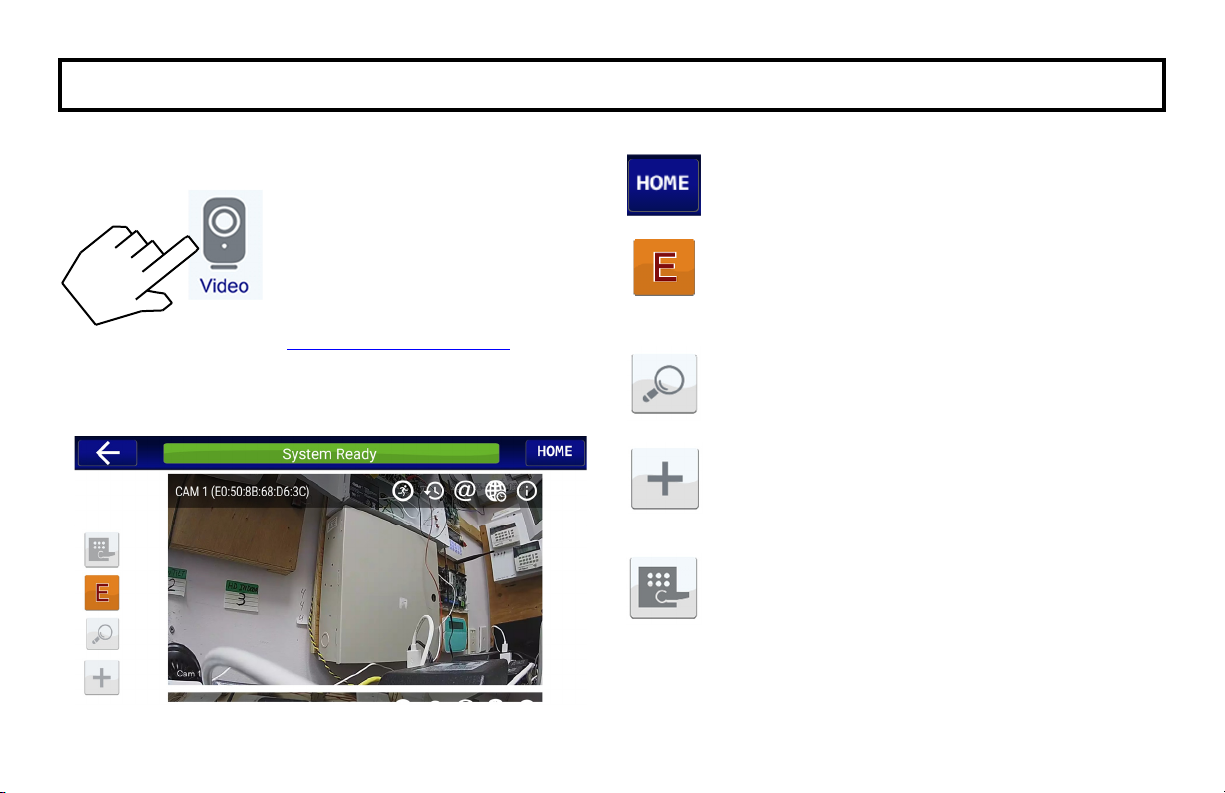

Video: (optional) Tap to discover and view the camera transmissions in your system.

Automation: (optional) Tap to control the home automation system components, including lighting and

other devices.

Climate: (optional) Tap to control the home automation thermostats and other climate control devices.

Page 6

HOME SCREEN ICONS

The "Home Screen" may contain other touchable icons, including:

SECURITY: This icon is your

gateway to your alarm system. From here you can arm, disarm, bypass and control all system operations.

VIDEO: (optional) Tap to discover and view the camera transmissions in your system.

AUTOMATION: (optional) Tap to control the Z-Wave home automation system components, including lighting and other devices.

CLIMATE: (optional) Tap to control the Z-Wave home automation thermostats and other climate control devices.

LOCKING DEVICES: (optional) Tap to access the Z-Wave door locking devices in your system.

TROUBLES: Appears if a problem occurs in the system that may prevent arming (see SYSTEM TROUBLE ERROR CODES). If you are unable to clear the trouble to allow the system to be armed, call for service immediately.

EMERGENCY Buttons: Used to signal a Fire, Police or Auxiliary emergency.

USER SETTINGS: Tap to access the screens to allow changes to the way your app operates (see USER SETTINGS MENU).

HELP: On-screen instructions for Z-Wave functions.

HOME: Tap to return directly to the Home Screen.

SIGNAL: Displays the wireless signal power. The indicator displays 3 bars maximum; the more bars lit, the stronger the wireless signal. A red "X" appears when the device is not connected.

MESSAGES: Tap to open the iBridge Messenger login screen. The iBridge Messenger SMS/ MMS Notification Service keeps you informed and in control of your protected premises through emails, SMS messaging, or video alerts (10-second MMS video clips) sent to your smart phone.

Page 7

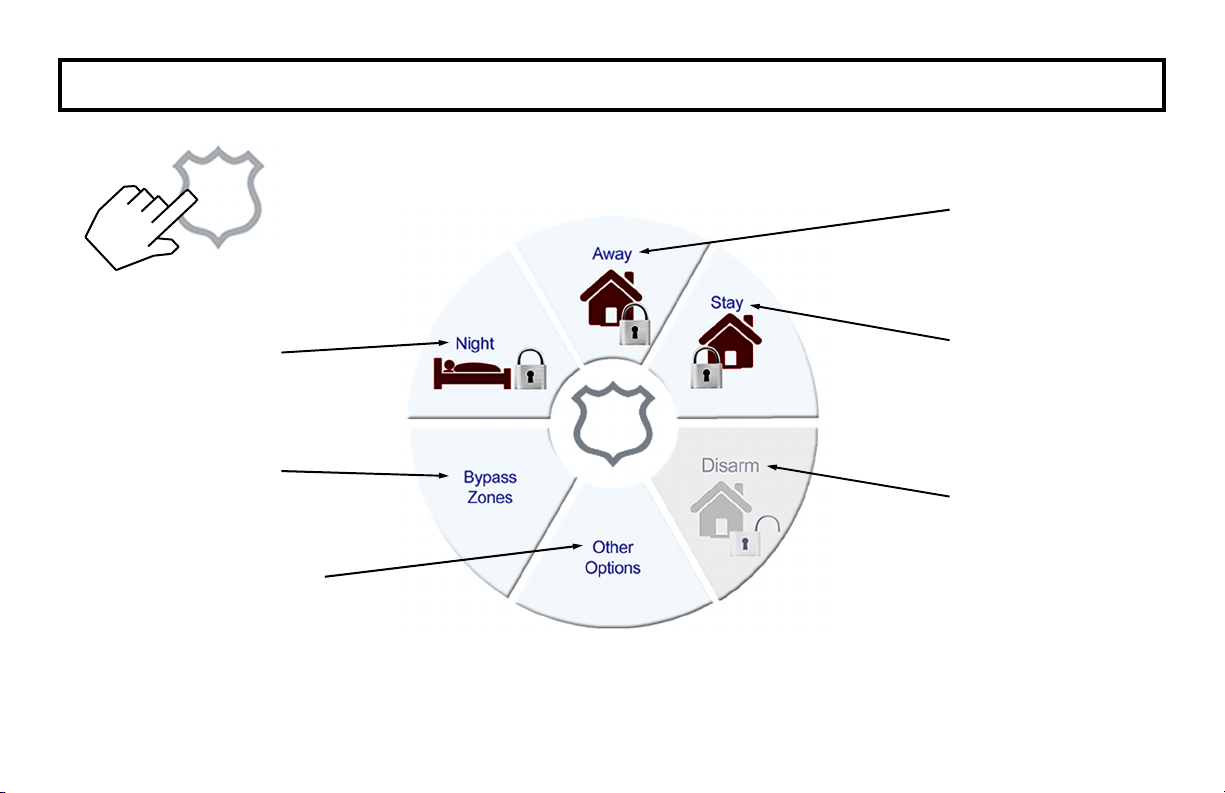

ENTER YOUR SECURITY SYSTEM

Tap to arm "Away" when leaving (page 12)

Tap to arm "Night"

when sleeping

(page 17)

Tap to selectively

bypass zones

(page 18)

Tap for other options:

 Keypad Mode  Zone Directory  Dealer Servicing

Information

(page 19)

Tap to arm "Stay" to protect yourself at home (page 14)

Tap to disarm the system (icon active only when armed) (page 16)

Page 8

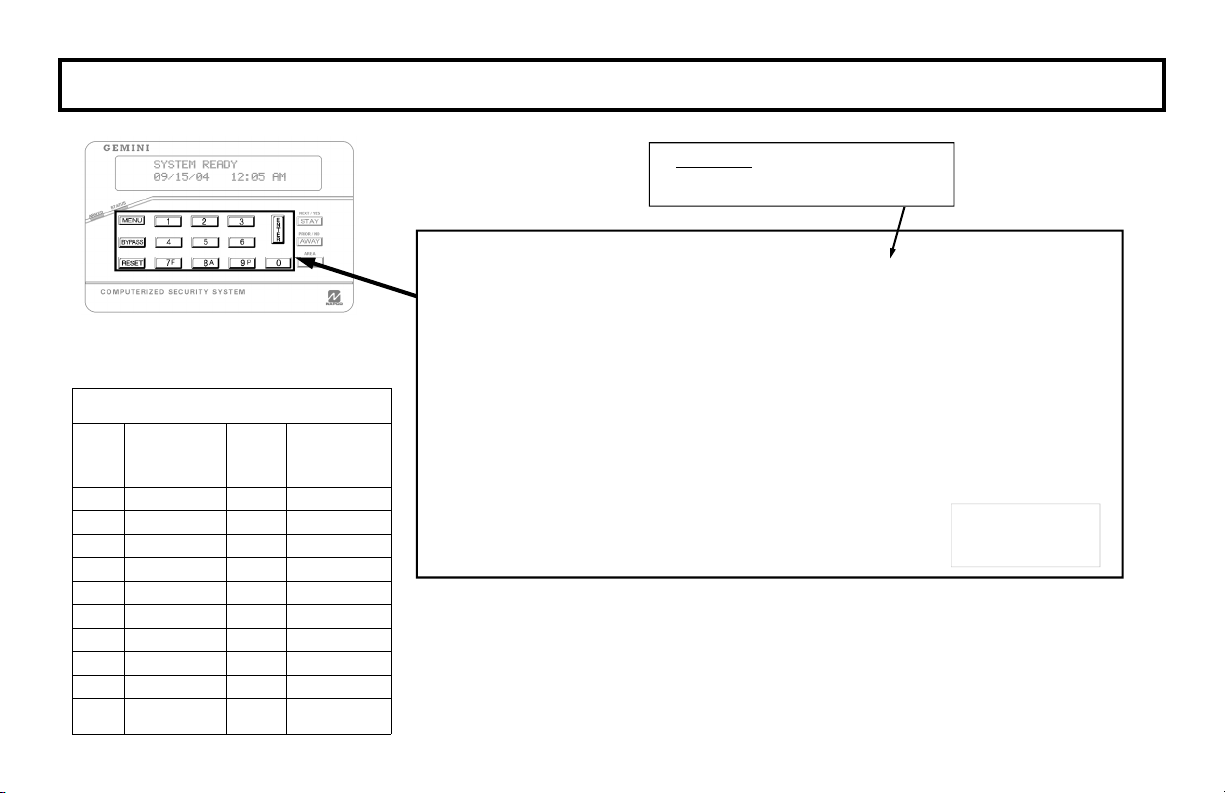

"K SERIES" KEYPAD MODE: CONTROLS & INDICATORS

7 8

Page 9

"K SERIES" KEYPAD MODE: CONTROLS & INDICATORS

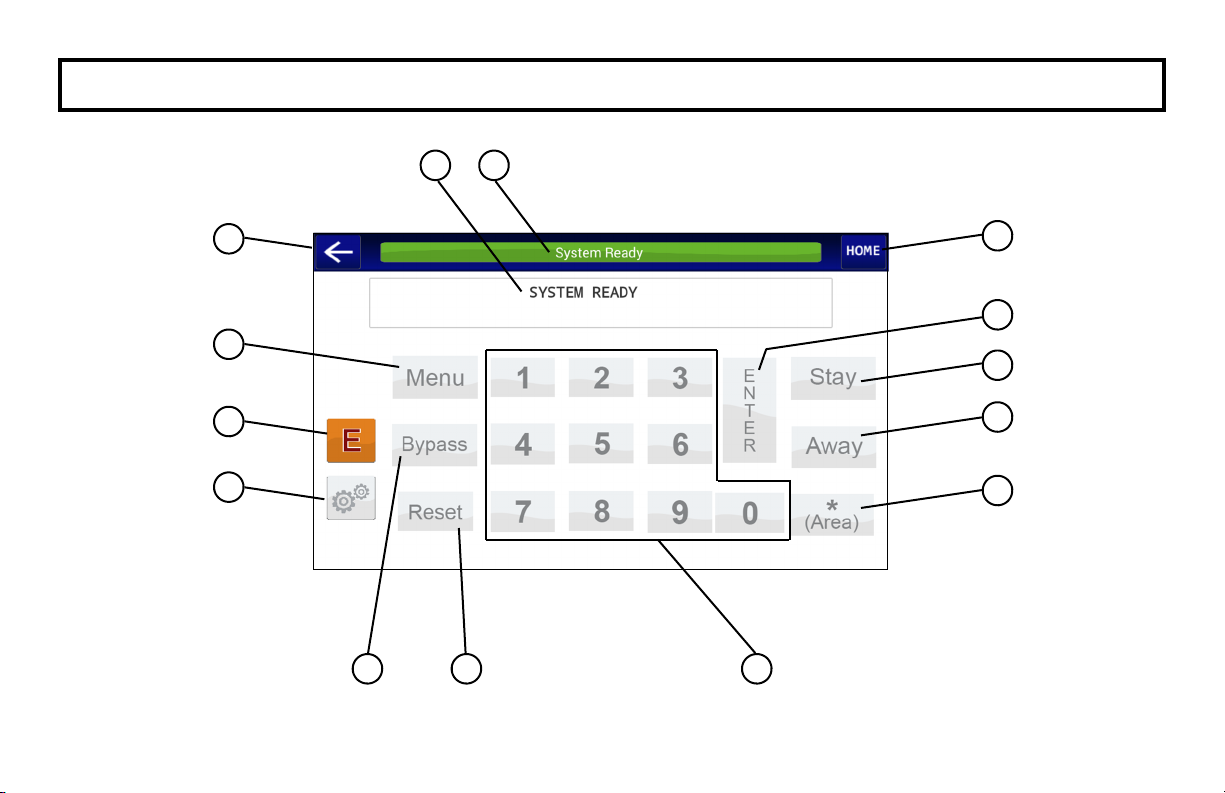

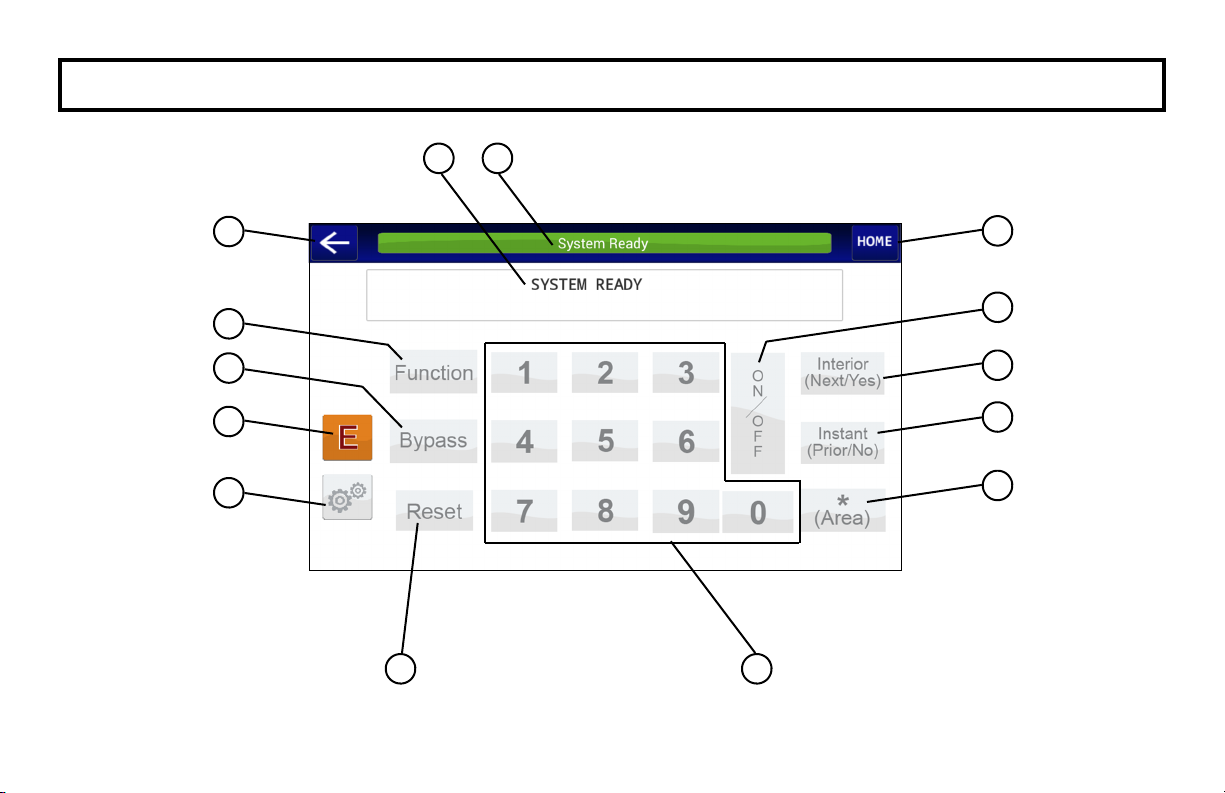

1. Banner: Displays system status

messages, zone descriptions, etc.

2. Keypad Window: Displays

system status messages, zone descriptions, etc.

3. BACK Button: Tap to return

to the previously selected screen.

4. EMERGENCY Buttons: Used

to signal a Fire, Police or Auxiliary emergency (for example, a medical emergency).

5. USER SETTINGS: Tap to

access the screens to allow changes to the way your app operates (see USER SETTINGS MENU).

6. MENU Button: Selects

available system functions as displayed in the window. The selected function is executed by

tapping the

U button.

7. BYPASS Button: (1)

Deactivates selected zones from the system. (2) Unbypasses a bypassed zone (GEM-

12. STAY Button: (1) Bypasses all

P816/1632/1664/3200/9600/ X255 panels only).

8. RESET Button: (1) Resets

various system troubles, displays, etc. (see text). (2) Resets residential smoke detectors.

9. Numerical Keys (1-9, 0): Used

to enter codes, zone numbers, etc.

10. AREA Button (

other areas (see Manager's

G): Selects

13. ENTER Button: Input entry

Mode on page 13).

11. AWAY Button: (1) Arms all

zones in the system, with display indicating the exit time

14. HOME: Tap to return directly

remaining. (2) Scrolls window display backward (PRIOR). (3) Answers "No" to questions in the window display.

Interior Zones simultaneously ("STAY Mode") to allow free movement within the premises. Hold down

P when the

system is armed in "STAY Mode" to cancel entry delay on Exit/Entry zones, causing an instant alarm upon violation. (2) Scrolls the window display forward (NEXT). (3) Answers "Yes" to questions in the window display.

key. Causes the entered code or selected function to be executed.

to the Home Screen.

Page 10

"CLASSIC" KEYPAD MODE: CONTROLS & INDICATORS

Page 11

"CLASSIC" KEYPAD MODE: CONTROLS & INDICATORS

1. Banner: Displays system status

messages, zone descriptions, etc.

2. Keypad Window: Displays

system status messages, zone descriptions, etc.

3. BACK Button: Tap to return

to the previously selected screen.

4. FUNCTION Button: Selects

available system functions as displayed in the window. The selected function is executed by

tapping the

5. BYPASS Button: (1)

Deactivates selected zones from the system. (2) Unbypasses a bypassed zone (GEMP3200/9600/X255 panels only).

J button.

6. EMERGENCY Buttons: Used

7. USER SETTINGS: Tap to

8. RESET Button: (1) Resets

9. Numerical Keys (1-9, 0): Used

10. AREA Button (

11. INSTANT Button: (1) Cancels

to signal a Fire, Police or Auxiliary emergency (for example, a medical emergency).

access the screens to allow changes to the way your app operates (see USER SETTINGS MENU).

various system troubles, displays, etc. (see text). (2) Resets residential smoke detectors.

to enter codes, zone numbers, etc.

G): Selects

other areas (see Manager's Mode on page 13).

12. INTERIOR Button: (1)

13. ON/OFF Button: Input entry

14. HOME: Tap to return directly

entry delay on Exit/Entry Zones, causing an instant alarm upon violation. (2) Scrolls window display backward (PRIOR). (3) Answers "NO" to questions in the window display.

Bypasses all Interior Zones simultaneously to allow free movement within the premises. (2) Scrolls the window display forward (NEXT). (3) Answers "YES" to questions in the window display.

key. Causes the entered code or selected function to be executed.

to the Home Screen.

Page 12

ARMING "AWAY": SETTING THE ALARM WHEN LEAVING

If the feature "EZ-ARM" is programmed, the arming steps will change. Ask your alarm installer if EZ-ARM is enabled.

(Optional - Is EZ-ARM programmed? YES NO)

1 Close all perimeter windows and doors before arming. The words "System Ready" mus t appear in order to arm. If "Zones

Faulted" displays followed by the number and description of each faulted zone, then note each problem zone and secure it by closing a window, door, etc. When all zones are secure, the window will display "System Ready".

2 From the Home Screen, tap Security.

3 Tap Away.

 If EZ-ARM is enabled: The  If EZ-ARM is NOT enabled:

will display.

The Keypad Window will display "PLEASE EXIT IN XXX SECONDS" (where "XXX" represents the exit time remaining, in 10second steps).

4 Leave the premises. Leave through the exit door before the exit time expires.

If you are unable to arm…

If you attempt to arm with a faulted Zone, a 3-second tone will sound at the tablet. The audible message "There is a Zone open, please secure and try again" and the text "CAN'T ARM SYSTEM, ZONE FAULTED" will display in the window,

indicating that the faulted zone(s) must be secured before the panel can be armed.

If you cannot secure the faulted zone(s), cannot locate or repair the problem yourself, either call your alarm installer for assistance, or you can temporarily bypass the problem zone(s) from the system (see Bypassing Zones on page 18).

Exit Delay countdown takes place, during which time you are permitted to leave through the exit door.

Enter your code and tap U. Note: If you enter a wrong code, "INVALID ENTRY, TRY AGAIN"

Page 13

ARMING "AWAY": SETTING THE ALARM WHEN LEAVING

Arming with a System Trouble

If you attempt to arm with a "SYSTEM TROUBLE" display alternating with an indicated trouble code (e.g. "E02-00" (low battery); see SYSTEM TROUBLE ERROR CODES), a 3-second tone will sound at the keypad. The window will display "CAN'T ARM SYSTEM, PRESS RESET KEY". If you cannot correct the problem immediately, tapping C will enable you to arm in this

condition. Be sure to call for service as soon as possible.

Area Arming (Optional)

Some systems may be divided, or partitioned, into smaller independent subsystems, which are referred to as Areas. In a system that has been partitioned into multiple areas, one or more area may be armed while others remain disarmed.

Manager's Mode (Optional)

The Manager's Mode allows the user to arm / disarm other areas in a partitioned system. To arm/disarm a different area:

1. While disarmed, tap Security, Other Options, Keypad Mode. Tap the numerical key representing the other area

number.

2. Tap G followed by

U. The keypad will now provide status and control of that area.

3. Enter your User Code followed by Q (use

4. Tap G followed by

Global Arming (Opt ional) (Available only with the GEM-P1632/1664/3200/9600/X255 panels)

To arm all areas simultaneously, tap 9, G and enter your code followed by U. To disarm all areas simultaneously, tap 0, G and enter your code followed by U.

U to return to the home area.

D for "Classic" keypad configurations) to arm or disarm the area.

 The User Code must be valid in all area(s).  If any zone is not secured, the keypad will display "CAN'T ARM SYSTEM, AREA X IN TROUBLE" , where X indicates

the number of the Area in trouble. All faulted zones in the respective area(s) must be secured or bypassed. Note: If a system trouble is indicated, the system cannot be armed using this method.

Page 14

ARMING "STAY": PROTECTING YOURSELF AT HOME

Interior Zones, when bypassed, allow free movement within the home while the protection of armed perimeter zones is maintained. If the feature "EZ-ARM" is programmed, the arming steps will change. Ask your alarm installer if EZ-ARM is enabled.

(Optional - Is EZ-ARM programmed? YES NO)

1 Close all perimeter windows and doors before arming. The words "System Ready" mus t appear in order to arm. If "Zones

2 From the Home Screen, tap Security.

3 Tap Stay.



If EZ-ARM is enabled: The Exit Delay countdown takes place, during which time you are permitted to leave through the exit door.

 If EZ-ARM is NOT enabled: Enter your code and tap U. Note: If you enter a wrong code, "INVALID ENTRY, TRY AGAIN" will

display.

The Keypad Window will display "PLEASE EXIT IN XXX SECONDS" (where "XXX" represents the exit time remaining, in 10-

second steps).

4 Remain inside the premises. Persons wishing to exit can leave through the exit door before the exit time expires.

If you are unable to arm…

indicating that the faulted zone(s) must be secured before the panel can be armed.

If you cannot secure the faulted zone(s), cannot locate or repair the problem yourself, either call your alarm installer for assis-

tance, or you can temporarily bypass the problem zone(s) from the system (see Bypassing Zones on page 18).

Page 15

EASY EXIT / EMERGENCY BUTTONS

Easy Exit (Optional - Easy Exit programmed? YES NO)

Your system may have been programmed for Easy Exit, which allows a user to exit the premises while the system is armed STAY. By activating Easy Exit while the system is armed STAY, the Exit Delay countdown will take place, during which time you are permitted to leave through the exit door. The Easy Exit Delay time will be identical to the Exit Delay time the system gives you each time it is armed STAY. This will allow, for example, an early morning commuter to exit the house, without having to disarm and rearm the system, awaking the family.

 With the system armed STAY, open the keypad screen by pressing and holding the Disarm button.

 At the keypad, tap

Emergency Buttons (Only available if programmed with the User Settings button)

The Emergency Buttons, if programmed, are always active, whether the system is armed or disarmed.

 Fire Emergency: From the Home Screen, tap the "E" button, then tap the button marked "Fire" (shown at left) to alert the

central station of a fire emergency. *(Is Fire Emergency programmed? YES NO)

 Auxiliary Emergency: From the Home Screen, tap the "E" button, then tap "Aux." (shown at left) to alert the central station

of an auxiliary emergency (for example, a medical emergency). *(Is Aux. Emergency programmed? YES NO)

 Police Emergency: From the Home Screen, tap the "E" button, then tap the button marked "Police " (shown at left) to alert

the central station of a police emergency. *(Is Police Emergency programmed? YES NO)

U to activate Easy Exit on your system. (GEM-P3200/9600/X255 V20 or greater, GEM-P816/P1632/P1664 V9A or greater)

Page 16

DISARMING (TURNING OFF THE ALARM) WHEN RETURNING

Disarming the System

1 Enter your premises through the Entry/Exit door. The keypad will sound a steady tone to remind you to disarm the system

before your Entry Delay time expires. The keypad automatically appears.

2 Enter your User Code and tap U. The Keypad Window will read "System Ready", indicating that the system has been

disarmed. If you enter an invalid code, the keypad will beep 4 times, signifying an error. Re-enter your code immediately. 10 seconds before Entry Delay expires, the keypad will emit a pulsing warning tone.

Alarm Indication / Silencing an Alarm

If "ALARM" is displayed, an alarm occurred while you were out. Proceed with caution! If you suspect that an intruder may still be on the premises, leave immediately and call authorities from a neighbor's telephone.

To silence an audible alarm:

1 At the keypad screen, enter your code and tap U. After the system is disarmed, the window will continue to display

"ALARM" followed by the zone(s) violated.

2 To reset the display, note the zones violated, then tap C.

Ambush (Optional) Your Ambush Code Type is: TYPE 1 (Pref ix) TYPE 2 (Unique)

My Ambush Code is ___________________

If an intruder forces you to disarm your system, enter your Ambush Code and tap

digit code (prefix) entered just prior to your normal User Code and (2) A separate and unique User Code.

 Example Type 1 (Prefix): If your User Code is 1234 and your Ambush Code is 99, tap

U. There are two types of Ambush Codes: (1) A 2-

991234U.

 Example Type 2 (Unique): If your User Code is 1234 and your Ambush Code is 8899, tap 8899U

Using your Ambush Code will send a silent alarm to the central station. The window will display "SYSTEM READY" as if the system were normally disarmed. There will be no indication that a silent alarm has been sent.

Page 17

ARMING "NIGHT": PROTECTING YOURSELF WHEN SLEEPING

Night Mode: Instant Protection

When retiring for the evening, after all family members are home, you can cancel the entry delay on the Entry Zone(s) and arm the system in "Night Mode" to allow for "Instant Protection". When armed in Night Mode, opening any entry door will cause an immediate alarm.

When arming with instant Night Mode protection, the exit delay will remain in effect, allowing exiting of the premises just after arming. While armed, the window will display "SYSTEM ARMED" ("SYSTEM ARMED I" will display with the GEM-P3200/9600/X255 control panels) and the red colored Banner will read "Night" to indicate instant protection.

But once armed with instant Night Mode, opening any entry door will cause an immediate alarm.

Tap Night.

 If EZ-ARM is enabled: The Exit Delay countdown takes place, during which time you are

permitted to leave through the exit door.

 If EZ-ARM is NOT enabled: Enter your code and tap

"INVALID ENTRY, TRY AGAIN" will display.

The Keypad Window will display "EXIT TIME XXX", "PLEASE LEAVE NOW" (where "XXX" represents the exit time remaining, in 10-second steps).

U. Note: If you enter a wrong code,

Page 18

BYPASS

CAN’T ARM SYSTEM ZONES FAULTED

ZONES FAULTED

BYPASSED

BYPASSING ZONES

If you attempt to arm with a faulted Zone, a 3-second tone will sound at the tablet. The audible message "There is a Zone open, please secure and try again" and the text "ZONES FAULTED" will display in the window, indicating that the faulted zone(s) must be secured before the panel can be armed.

If you cannot locate or repair the problem yourself, call your alarm installer for assistance.

If you cannot get immediate help, bypass the problem zone(s) from the system as follows:

Selectively Bypassing Zones

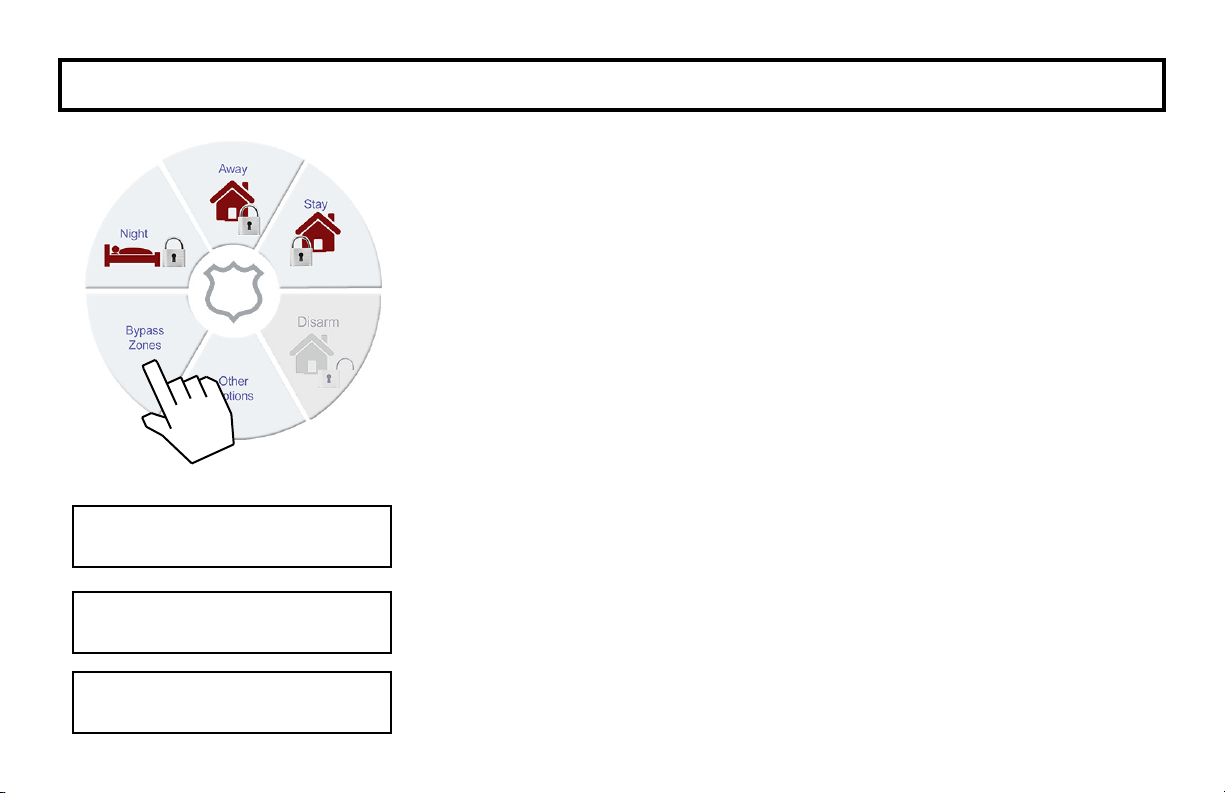

From the Home Screen, tap Security, then tap Bypass Zones.

Bypass the problem zone(s) from the system by tapping B, then the zone number (or vice versa).

Note: Bypassed zones are unprotected. If armed with zones bypassed, be sure to have the system checked and corrected as soon as possible.

With the problem zone(s) bypassed from the system, you can:

 Arm "Away" (see page 12)

 Arm "Stay" (see page 14)

 Arm "Night" (see page 17)

Page 19

OTHER OPTIONS

Your app includes a wide variety of features. Tap Othe r Options to access the following:

 Keypad Mode: Tap to open the keypad screen, allowing your app to behave just

like a standard wired keypad, but with the added benefit of the Banner at the top of the screen, providing additional guidance to control system conditions.

 Zone Directory

: Tap to display a listing of all protected zones in the Area. If

needed, tap the up or down arrow buttons (located on the right side) to scroll through the zone directory (

required for GEM-P816/1632/1664/3200/9600/X255 panels). If

faulted zones exist in your system, the faulted zone will appear in the Keypad Window. To bypass a zone

vice versa).

firmware version 9a or later).

(Note: This func tion available wit h GEM-P1632 and GEM-P1664 control panel

from the system, tap B, then the zone number (or

 Service: For installer use only.

Page 20

FIRE PROTECTION

(Applicable only where local ordinance permits use of this alarm control panel for fire protection.)

FIRE

FIRE ALARM

FIRE TROUBLE

*Exact messages and behavior varies d epending on control panel.

Fire-Zone Alarm*

If a fire is detected, "FIRE ALARM" will be displayed and the keypad sounder will pulse. In

addition, the "System Trouble" icon will flash.

1. If a fire is in progress, evacuate the premises immediately! If necessary, call the Fire

Department from an outside phone.

2. Tap the C button to silence the keypad sounder.

3. If there is no evidence of a fire, enter your User Code and tap U to turn off the alarm.

4. Check smoke detector(s). If a smoke detector tripped, its red alarm indicator light will

be on.

After the alarm condition is corrected (thermostat cooled down; smoke cleared from

detector; etc.), tapping

NOTE: When the Fire Zone is reset, the FIRE icon on the left side of the display will

go out. If the FIRE icon is still displayed, the fire zone has not been properly reset. If you cannot clear this condition by tapping

C again will reset the keypad within about 10 seconds.

C, call for service.

Fire-Zone Trouble*

If a problem in the fire-circuit is detected, "FIRE TROUBLE" and the Zone number will display and the sounder will pulse to signal a malfunction. The "System Trouble" icon will flash, and the audible message "System has detected trouble condition" will sound.

2. Tap C to silence the sounder. Call for service immediately!

Page 21

FIRE PROTECTION

Preparing a Fire Escape Plan

Even with the most advanced fire alarm system, adequate protection requires an escape plan.

To prepare your plan, draw floor plans of your building. (Space is provided on the next page). Show two exits - a front or back door and a window from each room. (Make sure the window works. You may need a special fire-escape ladder if the window is high up). Write down your outside meeting place.

Family Rehearsal

Rehearse each of the following activities:

1. Everyone in his room with the doors closed.

2. One person sounds the alarm.

3. Each person tests his door.

4. Pretend the door is hot and use the alternate escape exit.

5. Everyone meets outdoors at the assigned spot.

Important! - Read Carefully

Discuss these escape procedures with all

those who use the building:

1. In a residence, sleep with the bedroom door closed. A closed door will hold back deadly smoke while you escape.

2. When the fire alarm signals, escape quickly. Do not stop to pack.

3. Test the door. If it is hot, use your alternate route through the window.

Would You Like More Safety Information?

For more information on home fire detection, burn safety, and home fire safety, write to the National Fire Protection Association, Public Affairs Dept. 05A, Batterymarch Plaza, Quincy, MA 02269.

If the door is cool, brace your shoulder against it and open it cautiously. Be ready to slam the door if smoke or heat rushes in. Crawl through smoke, holding your breath. Close the doors again on leaving to help prevent the fire from spreading.

4. Go to your specific outdoor meeting place so you can see that everyone is safe.

5. Assign someone to make sure nobody returns to the burning building.

6. Call the Fire Department from a neighbor's telephone.

Page 22

FIRE PROTECTION

Floorplan

Draw a plan of your premises in the space provided below.

Floorplan

Page 23

FIRE PROTECTION

LIMITATIONS OF FIRE ALARM WARNING SYSTEM

Although a fire alarm system may be of a reliable and state-of- the-art design, neither it nor its peripheral detection devices can offer guaranteed protection against fire. Any such equipment may fail to warn for a variety of reasons:

Control panels, communicators, dialers, smoke detectors, and many other sensing devices will not work without power. Battery- operated devices will not work without batteries, with dead batteries, or with improperly-installed batteries. Devices powered solely by AC will not work if their power source is cut off for any reason.

Fires often cause a failure of electrical power. If the system does not contain a working battery backup power supply, and if the electrical circuit feeding the devices is cut or is not providing power for any reason, the system will not detect heat or smoke or provide any warning of a possible fire.

Telephone lines needed to transmit alarm signals to a central monitoring station may be out of service.

Smoke detectors, though highly

effective in reducing fire deaths, may not activate or provide early-enough warning for a variety of reasons: (a) they may not sense fires that start where smoke cannot reach them, such as in chimneys, walls, roofs, behind closed doors, etc.; (b) they may not sense a fire on a different level of the residence or building; (c) they have sensing limitations; no smoke detector can sense every kind of fire every time.

Thermostatic heat detectors do not always detect fires because the fire may be a slow smoldering low-heat type (producing smoke); because they may not be near the fire; or because the heat of the fire may bypass them. These detectors will not detect oxygen levels, smoke, toxic gases, or flames. Therefore, they may only be used as part of a comprehensive firedetection system in conjunction with other devices. Under no circumstances should thermostatic heat detectors be relied upon as the sole measure to ensure fire safety.

Alarm warning devices such as sirens, bells, or horns may not alert someone behind a closed or partially-opened door. Warning devices located on one level are

less likely to alert those on a different level. Even those who are awake may not hear the warning if the alarm is obscured by noise from a stereo, radio, air conditioner, or other appliance, or by passing traffic, etc. Alarm warning devices, however loud, may fail to warn the hearing impaired.

Alarm products, as all electrical devices, are subject to component failure. Even though the equipment is designed for many years of trouble-free performance, electronic components could fail at any time.

Above are some of the reasons that fire alarm equipment could fail. The most common cause of an alarm system not functioning when a fire occurs is inadequate testing and maintenance. The system should be tested at least weekly to ensure that all the equipment is working properly.

While an alarm system may make one eligible for lower insurance rates, it is not a substitute for insurance. Homeowners, property owners, and renters are therefore urged to maintain adequate insurance coverage of life and property.

Page 24

FUNCTION MENU

The keypad can provide access to a wide assortment of utility functions. The functions are displayed in a prompting "YES/NO" format. From the Home Screen, tap Security, Other Options, Keypad Mode, then p roceed as follow s:

1 To enter the Function Menu, tap R.

 In all UL-listed or high-security installations, a valid User Code must first be entered followed by R.

2 To skip a function, answer NO (

3 To select and execute a function, answer YES (

 Functions may be manually scrolled forward or backward using R and B, respectively.  To return to normal keypad operation, tap the C button. The keypad will automatically return to its normal operating

mode if no activity is detected for longer than one minute.

Q) or R.

P) or U.

DISPLAY ZN FAULTS Y/N

Display Zone Faults? Displays the zone number of zones that are not secured. If

needed, tap the NEXT and PRIOR Buttons, as displayed on-screen, to scroll faulted zones (required for GEM-P3200/9600/X255 panels. GEM-P816/1632 panels will auto-scroll).

DISPLAY ZN BYPASSED Y/N

Display Zones Bypassed? Displays bypassed zones. If needed, tap NEXT (P)

and PRIOR (

GEM-P816/1632 panels will auto-scroll).

Q) to scroll bypassed zones (required for GEM-P3200/9600/X255 panels.

DISPLAY ZN DIRECTORY Y/N

Display Zone Directory? Displays a listing of all zones in the Area. If needed, tap

(P) and PRIOR (Q) to scroll zone directory (required for GEM-P3200/9600/

X255 panels. GEM-P816/1632 panels will auto-scroll). (Note: This function available with

GEM-P1632 control panel firmware version 9a or later).

Page 25

FUNCTION MENU

ACTIVATE SIREN TEST Y/N

Activate Siren Test? Activates the alarm (while disarmed) for about 2 seconds and

performs a battery test. If the alarm does not sound, call for service.

 If the battery is low, a "LOW BATTERY E02-00 SERVICE" will appear in the display

indicating a low battery condition. Allow 24 hours for the battery to recharge. If the trouble continues, call for service.

SYSTEM TBL Y/N

DISPLAY FIRE ALARM Y/N

DISPLAY FIRE TRBL Y/N

ACTIVATE CHIME Y/N

ACTIVATE WATCH Y/N

Display System Troubles? Displays 1- or 2-digit error code along with a description of

a problem detected in the system. (See SYSTEM TROUBLE ERROR CODES for a full description of these codes). Use NEXT (

troubles. (For GEM-P3200/9600/X255 panels only).

P) and PRIOR (Q) to scroll system

Display Fire Alarms? Displays alarms that have occurred on the Fire Zone(s). Tap the

NEXT and PRIOR Buttons to scroll zones (required for GEM-P3200/9600/X255 panels. GEM-P816/1632 panels will auto-scroll).

Display Fire Troubles? Displays trouble conditions that have been detected on the Fire

Zone(s). Use NEXT (

P3200/9600/X255 panels. GEM-P816/1632 panels will auto-scroll).

P) and PRIOR (Q) to scroll zones (required for GEM-

Activate Chime? The Chime Mode will sound a tone at the keypad when the

programmed zone is faulted while disarmed. To deactivate the Chime Mode, re-enter the Function Mode and when "DEACTIVATE CHIME" is displayed, tap YES (

The Chime Mode is disabled while armed.

P). Note:

Activate Watch Mode? (Optional - Watch Mode programmed? YES NO) This

optional feature simultaneously turns on all zones designated as Day Zones, which will cause an indication at the keypad if a zone is opened while the system is disarmed. To deactivate the Watch Mode, arm, then disarm. All Day Zones will revert to regular Burglary Zones. Note: The Watch Mode is disabled while armed.

with GEM-P9600 and GEM-P3200 control panels only).

(Note: This function available

Page 26

FUNCTION MENU

RESET SYS TRBL Y/N

Reset System Trouble? System troubles display and sound at the keypad. Correcting the trouble will clear most indications, however the following error codes will require manual reset: E13; E19; E20 and E22. (See SYSTEM TROUBLE ERROR CODES for a description of error codes.)

RESET SENSOR MSG Y/N

Reset Sensor Watch Failure? (Sensor Watch programmed? YES NO). Your system may have been programmed for Sensor Watch, a feature which supervises the motion sensors in the system. If a Sensor Watch failure occurs, a System Trouble E22-NN will result, where NN represents the zone number of the sensor in question. To reset, tap

scroll to "RESET SENSOR MSG" and tap

service.

START EXIT TIME Y/N

Start Exit Time? (Optional) (Start Exit Time programmed? YES NO) In Commercial Burglary systems, exit delay may have been programmed to start after a

(Note: This fu nctio n availab le w ith GEM-P9600 and GEM-P3200 control panels only).

C to clear the display, enter the Function Menu,

U. If you cannot correct the problem, call for

central-station "ringback" (verification) signal has been received. If the ringback tone has not been received within about 30 seconds after arming, a communication problem may exist. Use this function to start exit delay manually, then exit the premises immediately. Be sure to have your alarm specialist check communications with the central station as soon as possible.

P3200 control panels only).

(Note: Thi s func tion available wit h GEM-P9600 and GEM-

Page 27

FUNCTION MENU

ACTIVATE DIALER TEST Y/N

communicator test to the central station. A communication failure will be indicated at the keypad by a system trouble "E03-FAIL TO COMM" display. Repeat the test to attempt to correct a communication failure, as any successful communication will clear this display.

Delay Arming 1-4 hours. (Not for UL-listed systems). Your system may be set to

Activate Telephone Test? (Telephone Test programmed? YES NO). Sends a

TO ARM IN 1-4 HRS PRESS 1-4 /N

arm automatically after a delay period of 1 to 4 hours.

To Delay Arm the system:

 With the function "TO ARM IN 1-4 HRS" displayed in the window, enter the

desired Delay Arming time in hours (

1, 2, 3,or 4), followed by U.

TO DELAY AUTOARM PRESS 1-4 /N

(display for GEM-P3200 / 9600 / X2 55)

At the end of this 1 - 4 hour Delay Arming period, the siren will sound a 2-second warning and the keypad will begin a 15-minute arming countdown with the sounder pulsing. The sounder may be silenced at this time by tapping

C, but it will turn

back on with a steady warning tone 1 minute prior to arming, at which time the building must be exited.

The same steps can be used to delay a scheduled Auto Arming, if your system has been programmed as such.

Page 28

FUNCTION MENU

ACTIVATE PROGRAM Y/N

ACTIVATE DOWNLOAD Y/N

RELAY CONTROL Y/N

Activate Program? Activates the Program Mode from Keypad No. 1. Note: This feature is disabled while armed. (See PROGRAMMING USER CODES)

Activate Download? For installer's use only. If accidentally enabled, tap C to exit. Note: This feature is disabled while armed.

Relay Control? (Relay Control programmed? YES NO). Turns ON or OFF one or more programmed Relay Groups. Tap

displayed group on or off; tap NEXT PRIOR (

This function available with GEM-P3200/9600/X255 control panels only).

Q) to scroll back to the previous group. Tap C when done. (Note:

(P) to proceed to the next group, or

U to turn the

 Relay Group 01: [ ____________________________________ ]

 Relay Group 02: [ ____________________________________ ]

 Relay Group 03: [ ____________________________________ ]

 Relay Group 04: [ ____________________________________ ]

 Relay Group 05: [ ____________________________________ ]

 Relay Group 06: [ ____________________________________ ]

 Relay Group 07: [ ____________________________________ ]

 Relay Group 08: [ ____________________________________ ]

Page 29

CENTRAL STATION MONITORING

Your alarm specialist may have programmed your system to be monitored by a central station. The builtin digital communicator can transmit emergency signals and status reports to the central station 24 hours a day.

Communicator Features

Abort Delay. Ask your installer

which of your zones have Abort Delay, a delay that enables you to reset the system before it communicates to the central station. Your system has a SIA CP-01 required Abort Delay of 30 seconds. It may be removed or increased up to 45 seconds (at your option) by consulting with your installer.

Regular Burglary (Non-24-Hour)

Zone reports are aborted by disarming within the delay period. 24-Hour Zones and zones programmed to report restores must be restored first, then the panel armed and disarmed, all within the delay period.

Opening and/or Closing Reporting.

Your system can notify the central station every time it is disarmed or armed. Any or all of up to 96 different users can each be identified. If your system reports on

arming (Closing Report), the central station will acknowledge arming. This will signal at the keypad as a “ringback” beep. Note: If the ringback signal is not heard, call for service.

Page 30

ADVANCED FEATURES

Security Bypass/Unbypass

(Security Bypass programmed? YES NO). In high-security applications, zones may be bypassed (or unbypassed) only if a valid code is entered first, as follows:

1. Enter a User Code valid for bypass, then tap

2. Tap

Similarly, a bypassed zone may be unbypassed using the same procedure. (This feature available for GEM-P3200/9600/X255 panels only).

Start Exit Time After Ringback (for Commercial Burglary Systems only) (Optional - Start Exit Time programmed? YES NO). If your system reports to a central station, your panel may have been programmed to start exit delay after the central-station ringback (verification) signal. Then, after arming, your system will communicate to the central station. After the central station acknowledges receipt (ringback), exit delay will start. If ringback is not heard within about 30 seconds, a communication problem may exist; call for service. Function 11 (Start Exit Time) may then be used to manually start the exit delay, however reporting capability may be sacrificed. (If your system does not report or the ringback feature was not programmed, exit delay will start as soon as your code is entered. Also note that if an exception window is programmed, and the closing is within that window, no ringback is provided. Ask your alarm professional if this feature is enabled.) (This feature available for GEMP3200/9600/X255 panels only).

Exit-Delay Restart (Exit-Delay Restart programmed? YES NO). On arming, the programmed exit delay will start. After the exit/entry door has been opened and then closed, exit delay will restart if the door is opened again. The Exit-Delay Restart feature will occur one time only in any arming period. (This feature available for GEM-P3200/9600/X255 panels only).

B then the zone number (or vice versa) to deactivate that zone.

Page 31

PROGRAMMING (OPTIONAL)

User Program Mode

Your Installer has programmed into your system a special User Program Code which can be used to not only Arm and Disarm the system, but also to enter the User Program Mode, where you can program other User Codes, Zone Descriptions and also set the system Time and Date. The following explains how you will use this code to program or erase additional User Codes:

ACTIVATE PROGRAM Y/N

Enter the User Program Mode

1. Enter your User Code, then tap R to enter the Function Mode.

2. Answer NO until “ACTIVATE PROGRAM Y/N” is displayed, then tap YES. “ENTER USER CODE” will display indicating that the system is ready for User Code programming.

ENTER USER CODE 123 - -

ENTER USER CODE

- -

ENTER USER CODE 4567 - -

Note: The GEM-X255 panel will display

users in 3 digits, for example:

001 4567 - -

Programming / Reprogramming a User Code

1. Enter the digits of the user number to be programmed, followed by RR. (Example: For User 4, enter "04

RR"). (For the GEM-X255 panel, enter all three digits of the user number).

2. Enter the new User Code. Note: User Codes may be up to 6 digits in length.

3. Tap U to save the new User Code. Duplicate Codes are not allowed; therefore a duplicate Code entered in the LCD Window will erase when U is tapped.

Repeat Steps 1 through 3 for each User Code to be programmed.

Erasing a User Code

1. Enter the digits of the user number to be erased followed by RR.

2. Tap

G0 to erase each digit of the User Code and then tap U.

 Example: Erase User 3’s 4-digit User Code: (For the GEM-X255 panel, enter all three digits of the User #).

 Tap 03RRG0G0G0G0 U.

Page 32

PROGRAMMING (OPTIONAL)

Reviewing a Programmed User Code

To review an existing User Code, enter the user number and the corresponding User Code will display. (For the GEM-X255 panel, always enter all three digits of the user number).

Exiting the User Program Mode

When you have completed programming or erasing User Codes, tap C to exit the User Program Mode.

Programming Example:

Program the User 3 Code to "3784".

1. Enter your User Code, followed by R.

2. Answer NO (tap Q ) repeatedly until "ACTIVATE PROGRAM Y/N" is displayed, then tap YES (P). The

display will read: "ENTER USER CODE"

3. Tap 03 for User No. 3, then tap R, R, followed by 3784. (For the GEM-X255 panel,

enter all three digits of the user number).

4. Tap U to save the code. Note: Duplicate Codes are not allowed; therefore a duplicate Code entered in

the LCD Window will erase when

Notes:

f the system contains more than one keypad, only the keypad designated "No. 1" may be used for programming (if in

 I

doubt which is No. 1, ask your installer).

 While in Program Mode, burglar and fire alarm functions are disabled.  In selecting your codes, do not program repetitive numbers (1111), consecutive numbers (1234), your birth date, address, or other

obvious combinations. Choose a code of up to six digits (a minimum of four is recommended, and required in UL installations). If the keypad detects no Program Mode activity for more than about 4 minutes, three short beeps will sound. Tap

U is tapped. Tap C to exit the Program Mode.

C to silence.

Page 33

PROGRAMMING (OPTIONAL)

Programming Zone Descriptions

The zone descriptions which appear on the keypad display may be programmed using the standard wired keypad in the User Program Mode.

Enter the User Program Mode

ACTIVATE PROGRAM Y/N

01- FRONT DOOR

CELL PHONE-STYLE ENTRY

TAP

CHARAC TERS

DISPLAYED

IN SEQUENCE

ABC1

DEF2

GHI3

JKL4

MNO5

PQR6

STU7

VWX8

YZ90

(SPACE) • - .

( ) , / : ? #

HOLD

AND TAP

CHARAC TERS

DISPLAYED

IN SEQUENCE

abc1

def2

ghi3

jkl4

mno5

pqr6

stu7

vwx8

yz90

(Reserved)

1. Enter your User Code, then tap R to enter the Function Mode.

2. Answer NO (tap Q) until "ACTIVATE PROGRAM Y/N" is displayed, then tap

YES (

P).

3. "ENTER USER CODE" will display, tap NEXT (P) and the keypad will display

the Zone 1 Description.

Entering a new zone description (Cell Phone-Style Entry)

 Use buttons R and B to move the cursor under the letter to be changed.

 Tap 0 through 9 and G to select letters. The first tap will display the first

character, the next tap will display the next character. See the table at left and the next page for more information.

 Use buttons R and B to move the cursor as needed. Tap U to save.

To advance to the next zone (or to any other zone):

 Move the cursor to the displayed zone number (i.e., "01") using R and B.

 Change the zone number using keys 0 through 9. Enter two digits for the

zone number (after entering the first digit, the cursor will automatically advance to the second digit). When the second zone number digit is entered, the cursor will automatically advance to the right, allowing the description locations to be entered.

 Always tap U to save each zone description.

Page 34

ENTER ZONE DESCRIPTIONS -- "CELL PHONE STYLE"

EXAMPLE: Repeatedly tap 3

to display "G H I 3" in sequence

CELL PHONE-STYLE ENTRY

TAP

CHARAC TERS

DISPLAYED

IN SEQUENCE

ABC1

DEF2

GHI3

JKL4

MNO5

PQR6

STU7

VWX8

YZ90

(SPACE) • - .

( ) , / : ? #

HOLD

AND TAP

CHARAC TERS

DISPLAYED

IN SEQUENCE

abc1

def2

ghi3

jkl4

mno5

pqr6

stu7

vwx8

yz90

(Reserved)

(RIGHT)

(LEFT)

ABC1

JKL4

STU7

DEF2

MNO5

VWX8

GHI3

PQR6

YZ90

(SAVE)

(SPACE)

• - . ( ) , / : ? #

Use R and B buttons to move the cursor as needed. Tap U to save.

Hold G and tap the number to display lowercase letters in sequence.

Page 35

PROGRAMMING (OPTIONAL)

Programming the system Date and Time.

The User Program Mode may also be used to set the system Date and Time which display on the keypad.

ACTIVATE PROGRAM Y/N

Enter the User Program Mode

1. Enter your User Code, then tap R to enter the Function Mode.

2. Answer NO (Q) until "ACTIVATE PROGRAM Y/N" is displayed, then

ENTER DATE 00/00/00

tap YES

3. "ENTER USER CODE" will display, tap NEXT (P) until the keypad

displays the "Enter Date" screen.

Programming the Date

ENTER DATE 07/29/18

1. At the Enter Date screen, simply punch in the correct date using the numeric

keypad buttons.

(P).

 For example, for July 29, 2018, enter: 07 29 18

2. Tap U to save the Date.

ENTER TIME

(12:00A)

ENTER TIME

(06:30P)

Programming the Time

After entering in the Date, tap NEXT (P) for the Time Entry screen.

1. At the Enter Time screen, simply punch in the correct time using the numeric

keypad buttons and if necessary, tap any numeric button to change the AM display to PM (or vice versa).

For example, for 6:30 PM, enter: 06 30 (0if necessary)

2. Tap U to save the Time.

Page 36

KEYPAD MESSAGES

The keypad can display the following functional messages. Other diagnostic messages are available for the installer

or servicer. Should any unfamiliar messages appear, call your dealer for service.

SYSTEM READY C (DATE) (TIME)

PLEASE WAIT FOR RINGBACK

All zones operating; system can be armed. If displayed, "C" denotes Chime Mode on. (Note: Thi s message may have been cu stomized by your i ns taller.)

Panel reporting to central station on arming. If necessary, wait for ringback signal before exiting.

EXIT TIME XXX PLEASE LEAVE NOW

ENTRY TIME XXX DISARM NOW

ARMED STAY I (DATE) (TIME)

ZONES FAULTED

ZONES NOT NORMAL CAN'T ARM SYSTEM

*DAY ZONE TRBL*

Exit delay in progress. XXX denotes exit time remaining, in seconds. If displayed, "S" indicates Service Code active; "I" indicates arming with Instant protection.

Entry delay in progress. XXX shows entry time remaining, in seconds.

System armed. With the GEM-P3200/9600/X255 panels, the "I" indicates arming with Instant protection.

Zones not secured (doors or windows may be open). Faulted zone(s) will scroll.

Arming attempted with faulted zone. The display will scroll the zone faults. Secure the zone(s) and arm system.

(With pulsing sounder). Trouble condition on a Day Zone (followed by one or more zone descriptions). Tap the

C button to silence sounder.

Page 37

KEYPAD MESSAGES

****ALARM****

***FIRE TRBL***

***FIRE ALARM***

Alarm condition, followed by zone description(s). “ALARM” and zones will display after system is disarmed. Note zones, then tap

C to clear keypad.

(With pulsing sounder.) Trouble condition on a Fire Zone. Tap C to silence

sounder. Correct trouble or call for service.

(With pulsing sounder.) Alarm condition on a Fire Zone. Tap C to silence sounder.

Evacuate premises or correct cause of alarm.

CODE DENIED INCORRECT AREA

INVALID ENTRY TRY AGAIN

CAN’T ARM SYSTEM/ AREA # IN TROUBLE

(For partitioned systems only); code not valid for area.

Wrong code entered.

(In Manager's Mode.) Arming prevented due to unsecured zone. “#” represents number

of area with unsecured zone. Tap the area number, then the

G button, then U to

view zones in that area. Correct problem, then arm as normal. (For GEMP1632/1664/3200/9600/X255 panels only).

Page 38

KEYPAD MESSAGES

ATTEMPTING TO CANCEL

ALARM CANCELED

*SYSTEM TROUBLE*

AC POWER FAIL E01-00 SERVICE

LOW BATTERY E02-00 SERVICE

COMM FAIL E03-00 SERVICE

The system is in the process of reporting a cancel signal to central station which will cancel the alarm which it has just reported.

The alarm signal has been cancelled during the Abort Delay (before an alarm signal report was sent to the central station). If cancelled after the alarm signal report was sent, this message appears when the system receives an acknowledgment from the central station of the cancellation of the alarm signal.

Indicates problem(s) detected on system. (See examples below and SYSTEM TROUBLE ERROR CODES for a complete list of system troubles and corrective actions.)

Check power transformer. Check for blown fuse or circuit breaker; general power outage.

Battery weak. If not recharged within 24 hours, replace battery.

Communication failure to central station.

Page 39

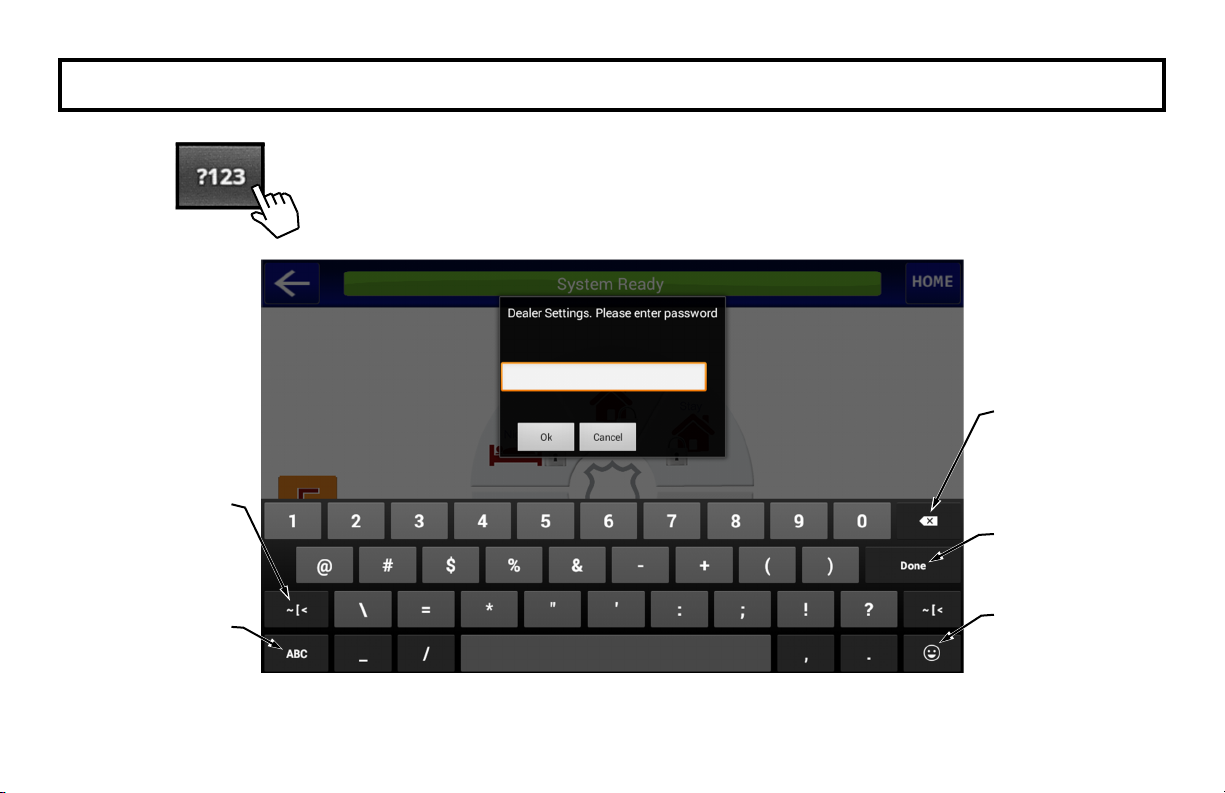

USING THE ONSCREEN KEYBOARD

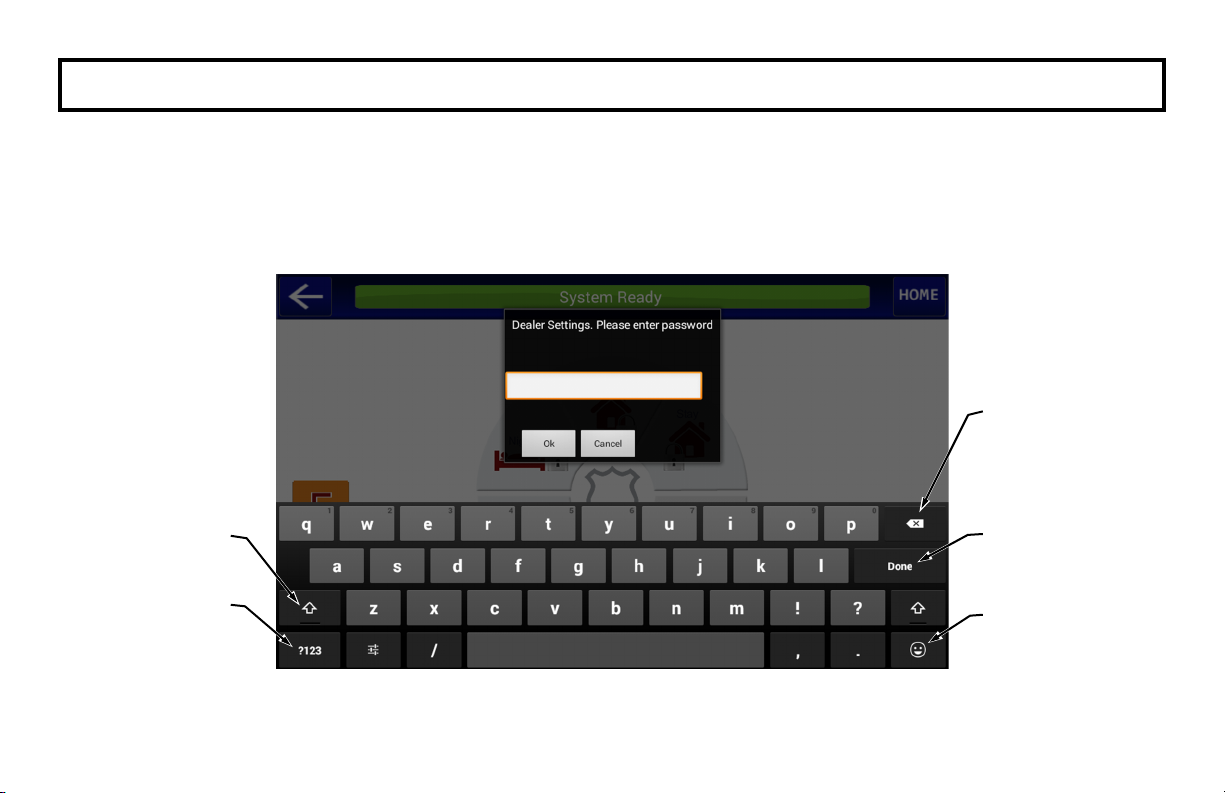

Standard Keyboard

The "Standard" onscreen keyboard allows you to type text, numbers and other characters. With some applications, the onscreen keyboard opens automatically; most other applications require you to tap a text field to open the keyboard.

Backspace (Moves cursor one column to the left, deleting the character in that position)

Tap for ALL CAPS

Shift

(Arrow turns all white)

Symbols

Tap to switch to the

numbers and symbols

keyboard (see next

page for more options)

Tap to save when finished typing

Tap for emoticons (pictorial expressions of feelings)

Page 40

Tap for additional

~[<

symbols shown on

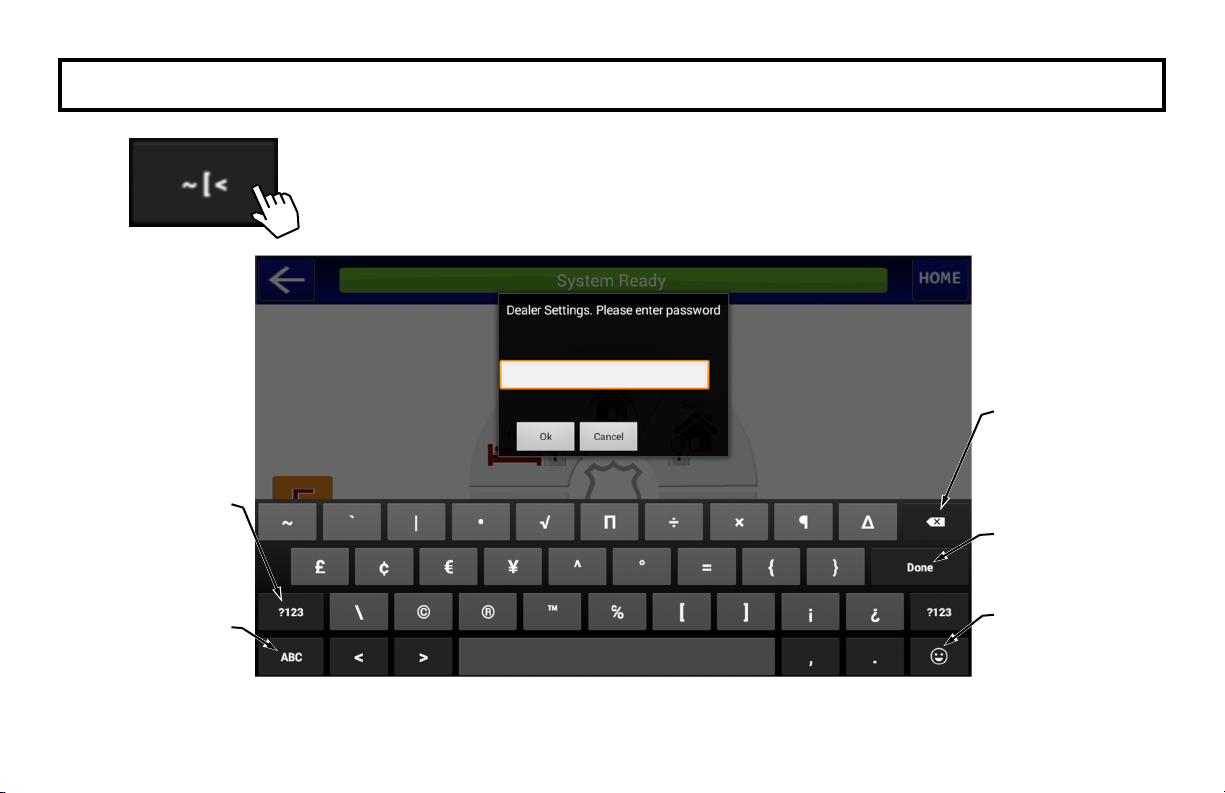

USING THE ONSCREEN KEYBOARD (CONT'D)

Numbers and Symbols

On the "Standard" keyboard shown on the previous page, tap the "?123" key and switch to the "Numbers and Symbols" keyboard shown below.

Backspace (Moves cursor one column to the left, deleting the character in that position)

Tap to save when finished typing

Tap to switch back to

the "Standard"

keyboard (shown on

previous page)

ABC

Tap for emoticons (pictorial expressions of feelings)

Page 41

Tap to return to the

?123

"Numbers and Sym-

bols" keyboard shown

on previous page

USING THE ONSCREEN KEYBOARD (CONT'D)

Additional Symbols

On the "Numbers and Symbols" keyboard shown on the previous page, tap the "~[<" key and switch to the "Additional Symbols" keyboard shown below.

Backspace (Moves cursor one column to the left, deleting the character in that position)

Tap to save when finished typing

Tap to switch back to

ABC

the "Standard"

ALL CAPS keyboard

Tap for emoticons (pictorial expressions of feelings)

Page 42

USER SETTINGS MENU

Home

Startup Wizard

Z-Wave

Enable KeySwitch Arming

Configure Remote Logins

Tap the

"User Settings"

Button

Voice

Remote Login Mode

App Version

Page 43

USER SETTINGS

Setup Wizard

Tap to re-start the Setup Wizard to configure how the

app will be used, its Wi-Fi connection settings to the customer's Wi-Fi network and iBridge radio, and optionally the NAPCO StarLink account(s). See the NAP-

CO iBridge IBR-TOUCH & IBR-TOUCH-WL Quick Start Guide (WI2297) for step-by-step instructions to

help guide you through the Wizard.

Run Diagnostics Tap to run a system diagnostics test for components

selected the last time the Setup W izard was run (typically when the touchscreen was first powered). Functional components are marked with a check; items not configured or not enabled are marked with an "x". Selections are blank when the Wizard is run for the first time. If you wish to continue through the Setup Wizard (described below), tap Configure ; otherwise tap Contin-

ue to App to return to the Home screen (or Test Again to repeat the test). See the NAPCO iBridge IBR-TOUCH & IBR-TOUCH-WL Quick Start Guide

(WI2297) for step-by-step instructions to help guide you through the Wizard.

Test Wi-Fi connection Tap to analyze the strength of the wireless connection

between the device running the app and the customer's router (and/or ISEE-WAP). When installing, be sure the large "Wi-Fi Icon" is colored green (OK) to ensure a strong wireless signal. In addition, the signal strength in dBm units (signal level relative to 1 milliwatt) is provided for those more familiar with readings expressed using standard radio communication terminology. The dBm units are expressed in negative numbers; therefore the higher the negative number, the weaker the signal. For example, a reading of -20 is stronger than -

30.

Clean Tablet Screen Allows you to safely clean the touchscreen display sur-

face without making changes to the system. Tap to set a length of time during which all inputs to the system through the touchscreen are disabled. Enter a time in seconds, tap Yes, and the screen will turn black with dark gray numbers counting up to the number of seconds entered, then will count down to zero and return to normal operation. For example, entering "20" will disable the keypad for a total of 40 seconds.

Page 44

USER SETTINGS (cont'd)

Change LED Level

Provides a sliding bar to control the brightness of the

red and green LEDs located on the face of the tablet.

Tablet Settings Sound: Controls sound intensity and feedback

settings (unavailable with some models).

Volumes: Set the sound for video, Notifica-

tions and Alarms.

Touch sounds: Check to enable feedb ack

sound made when certain onscreen items are touched.

Display: Allows changes to the display screen

Brightness: Tap to open a sliding status bar

control. Increase or decrease the screen brightness by sliding your finger left or right across the status bar

Sleep: Specifies how much user idle time

(touchscreen is operational but not being used) must elapse before the screen dims. The default setting is "never". Note: When this feature is enabled and the screen dims, the app also enters "sleep mode", an inactive state to save power. To re-awaken, simply touch the screen or a non-screen button. Screen timeout selections include 15 seconds,

30 seconds, 1 minute, 2 minutes, 10 minutes, 30 minutes and never.

Font size: Controls the size of the lettering

that appears in the Dealer and User Settings menus.

Date & Time:

Automatic: When checked to enable, retrieves

date/time data automatically from network resources. When enabled, the next two selections are ghosted ("grayed out" and not selectable).

Set date: Tap to open a dialog that allows the

month, day and year to be manually set in the app. Note : The "Automatic" menu selection (above) must be unchecked to enable this menu item.

Set time: Tap to open a dialog that allows the

current time to be manually set in the app. Note: The "Automatic" menu selection (above) must be unchecked to enable this menu item.

Select time zone: Tap to select a time zone to

be used in the touchpad.

Use 24-hour format: Check to display 24-hour

military time, as measured in hours numbered

Page 45

USER SETTINGS (cont'd)

to twenty-four from one midnight to the next. For example, 3:23 pm would be displayed as "15:23".

About Tablet:

Update OS via USB: Select to update the An-

droid operating system. Be sure the update .zip file (WinZip) is located in the top root directory of the USB drive (such as a thumb drive, portable hard drive, memory stick, etc.). Use a USB socket to install the OS. Once inserted into the USB socket, tap this selection (if already inserted, remove and re-insert). Allow up to 15 seconds for the update process to begin; once started, DO NOT remove the USB drive!

Kernel version: For NAPCO use only. Details

the version of the kernel within the operating system of the device running the app.

Build Number: The file name of the firmware

currently running.

Reboot Tablet Tap (and tap OK to the warning popup) to re-start the

app.

Home

Weather Options - Local weather reports can be

displayed on the Home Screen.

Refresh Frequency: Tap to set how often to

automatically update the weather report feed. Selections include 5, 10, 15, 20, 30, 40, 50, 70, 80, 90 and 100 minutes. More frequent updates increase data use and slightly decrease battery life between charges.

Weather Feed: Check to display a weather re-

port feed on the Home Screen. Uncheck to remove the weather feed from the Home Screen. Note: To customize the weather report feed to a particular Zip Code, see the following menu entries below.

Zip code entry: Check to associate the weather

report feed to the area of the United States specified by the Zip Code entered in the field below. Uncheck to disassociate the weather feed from this Zip Code.

Zip Code: Tap to set the Zip Code to which the

Weather Feed is associated.

Update Z-Remote Clock - Synchronizes the IBR-

ZREMOTE module or StarLink radio internal clock with the same time as the app.

Page 46

USER SETTINGS (cont'd)

Lock Display on Keypad View - Enabled (checked)

when "Keypad Only" is selected in the Setup Wizard (see below). When enabled, pressing Security in the Home screen immediately displays the virtu- al security system Gemini keypad, and not the intermediary "pie wedges" that are displayed when "Full Functionality" is selected in the Setup Wizard.

Set Keypad as the Only View - When enabled, press-

ing the Home button immediately and continually displays the virtual security system Gemini keypad. Note: The User Setting "Enable KeySwitch Arming" (detailed above) must first be disabled.

Automation Management Opens the Automation Management screen, allowing

the configuration of Z-Wave devices, including the assignment of devices to Groups, the creation of Z-Wave Events, etc. See the Using your iBridge

Series Z-Wave

Home Automation System (OI409)

IBR-TOUCH

for more information.

Enable KeySwitch Arming When checked (enabled), allows a zone input to be

used to arm/disarm the security system. The Area will

arm/disarm when the programmed zone is momentarily shorted through use of a momentary switch. See the setting Home > Set Keypad as the Only View, below.

Voice Check to enable (or uncheck to disable) touchscreen

voice prompts.

App Version Displays the current version number of the app firm-

ware.

Page 47

"VIDEO" BUTTON

If your system has video cameras, tap the Video button to view realtime video feed. You can tap one of the images to enlarge, or scroll down and tap one of the other images. If you want to enroll a camera, first activate the camera at

www.NapcoComNet.com, then

click the "+" icon (see next page for step by step instructions).

Live video feed of multiple ISV2 cameras in your iBridge system

Home - Tap to go to the app Home Screen.

Emergency Buttons - Tap to signal a Fire, Po-

lice or Auxiliary (for example, medical) emergency. Only available if programmed, then always active.

Camera Discovery - Tap to initiate the network scanning process to find all cameras attached to the iBridge network.

Add Camera - Jumps directly to the iBridge Wifi Config screen (shown on the next page),

where you can select a method to enroll an ISV2 series camera into your iBridge app.

Locking Devices - (optional) Tap to access the Z-Wave door locking devices in your system.

Page 48

"VIDEO" BUTTON > ENROLL CAMERAS

Camera Enrollment

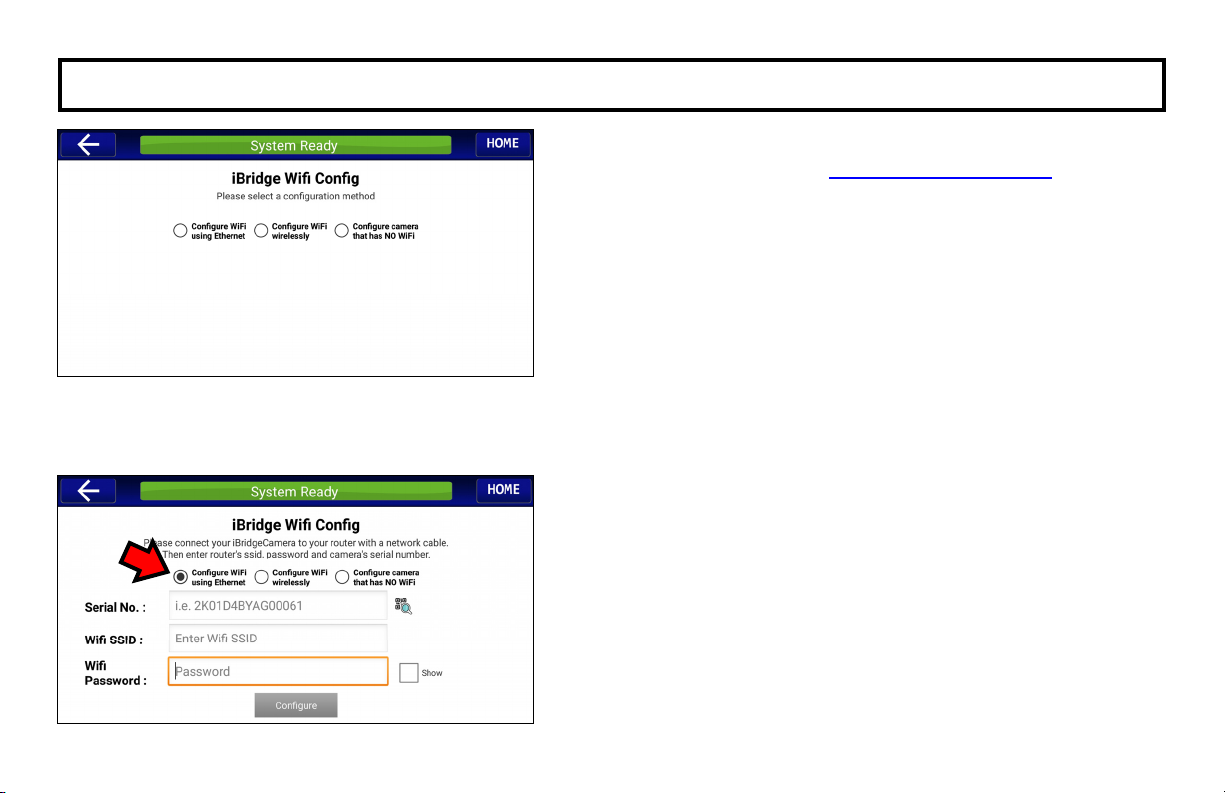

After activating the camera at www.NapcoComNet.com, there are 3 configuration methods that can be used to enroll your ISV2 series camera into your iBridge app:

A. Configure Wi-Fi using an Ethernet Cable B. Configure Wi-Fi wirelessly C. Configure camera that has NO Wi-Fi

Tap one of the 3 radio buttons to select the configuration method (full instructions for each detailed below). If cameras will be configured to your subscriber's Wi-Fi router using an Ethernet cable (method "A", above), we recommend performing this procedure with your mobile device in the same room as the wireless router or access point before mounting the camera (also be sure the final mounting location is within wireless range of the router / access point). Perform the enrollment procedure with your mobile device connected to the local

2.4GHz Wi-Fi network and after logging into your iBridge app:

A. Configure Wi-Fi using an Ethernet Cable

This method requires temporary use of an RJ-45 Ethernet network cable to make the network connection to the camera.

1. Power camera. Wait for the camera green LED to flash slowly.

2. Connect the camera to the router using the RJ-45 cable.

3. Tap the "QR Code Magnifying Glass" icon (located to the right

of the Serial No. field). Use the mobile device's camera to scan the QR code of the video camera you wish to enroll (or

Page 49

"VIDEO" BUTTON > ENROLL CAMERAS (CONT'D)

Live video feed of multiple ISV2 cameras in your iBridge system

tap within the Serial No. field to type the characters manually).

4. Type the Wifi SSID and Wifi Password of the Wi-Fi network to which your mobile device is connected, then tap CONFIGURE.

Important: Be sure the password is typed correctly or the

camera will not connect to your wireless network (tap Show if you wish to view the characters).

5. Wait for the Wi-Fi connection to complete. When finished, the live video feed will appear.

If Camera Does Not Connect As you enroll multiple cameras, keep the cameras physically sepa-

rated to avoid Wi-Fi signal interference. Move the mobile device closer to the router and retry. Verify the Wi-Fi password and SSID are on 2.4GHz wireless network. Reset the camera (see the Fac- tory Reset section in the instructions that came with the camera), then repeat the above steps.

B. Configure Wi-Fi wirelessly

With this method, the network connection to the camera is configured wirelessly.

1. Power camera. Wait for the camera green LED to flash slowly.

2. Tap the "QR Code Magnifying Glass" icon (located to the right of the Serial No. field). Use the mobile device's camera to scan the QR code of the video camera you wish to enroll (or tap within the Serial No. field to type the characters manually).

3. Type the Wifi SSID and Wifi Password of the Wi-Fi network to

Page 50

"VIDEO" BUTTON > ENROLL CAMERAS (CONT'D)

which your mobile device is connected, then tap CONFIGURE.

Important: Be sure the password is typed correctly or the

camera will not connect to your wireless network (tap Show if you wish to view the characters).

4. Wait for the Wi-Fi connection to complete. When finished, the live video feed will appear.

If Camera Does Not Connect As you enroll multiple cameras, keep the cameras physically sepa-

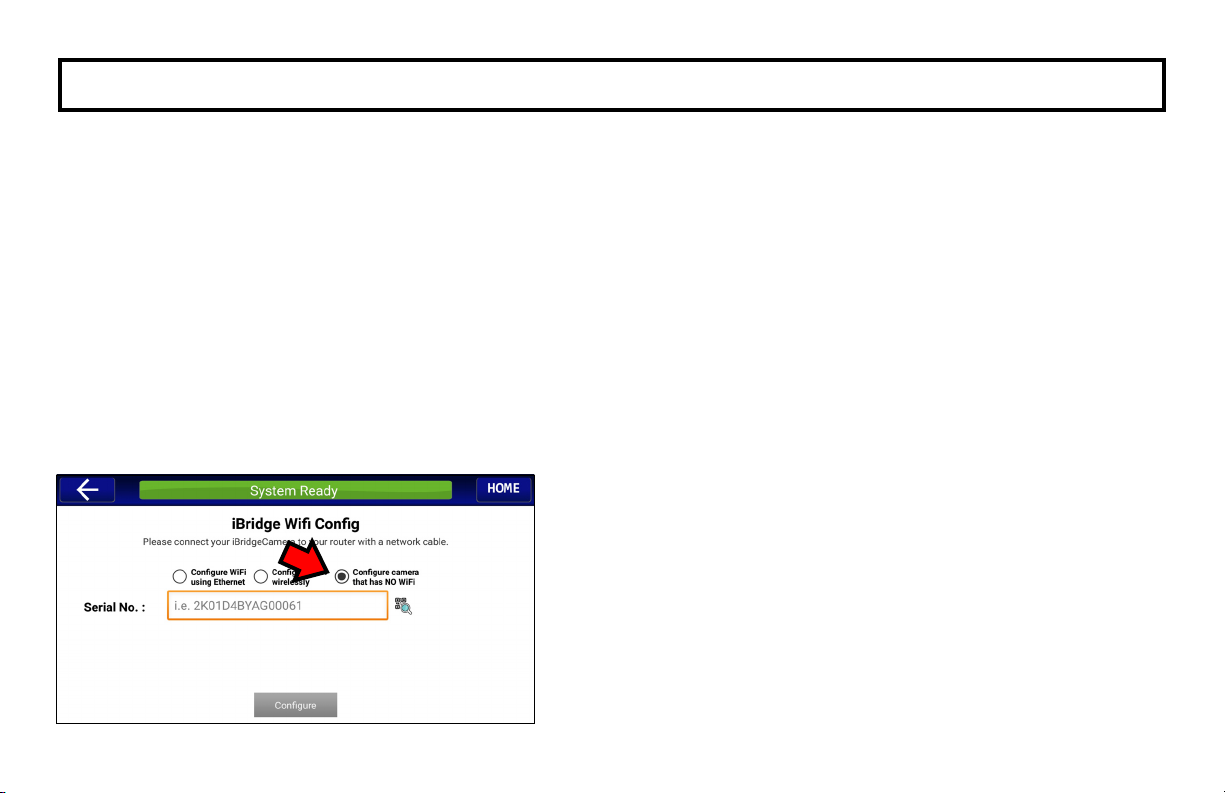

C. Configure camera that has NO Wi-Fi

Use this method when you wish to connect the camera to the subscriber's router using a permanently installed Ethernet cable.

1. Power camera. Wait for the camera green LED to flash slowly.

2. Tap within the Serial No. field and manually type the characters of the video camera serial number.

3. Tap CONFIGURE. Wait for the connection to complete. When finished, the live video feed will appear.

If Camera Does Not Connect Verify all physical plug/socket and power connections. Verify the

Page 51

"VIDEO" BUTTON > ENROLL CAMERAS (CONT'D)

serial number was typed correctly. If the camera still does not connect, verify the subscriber's router is not limiting the number of IP addresses it can assign to a device, or limiting the MAC addresses to which it can communicate ("MAC address filtering"). If still unable to connect, try rebooting the camera and the subscriber's router, then verify the Wi-Fi password and SSID are on

2.4GHz wireless network. Reset the camera (see the Factory Re-

set section in the instructions that came with the camera), then repeat the above steps.

Page 52

GLOSSARY

Following are brief descriptions of terms and features used herein that may be unfamiliar to you. Some of the features are programmable options that may or may not apply to your particular system.

Abort Delay - A delay period that

allows the control panel to be reset, thus aborting a report to a central station.

Access Code - A code (up to 6

digits) used to remotely unlock a door.

Ambush Code - A code entered

when forced to disarm. Sends a silent alarm to the central station with no indication at the keypad. There are two types: (1) A 2-digit code (prefix) entered just prior to your normal User Code and (2) A separate and unique User Code used in place of your normal User Code.

Area - Some systems may be

divided, or partitioned, into smaller independent subsystems, which are referred to as Areas. Each Area may be controlled by its own keypad or by

a keypad of a different Area through Managers Mode.

Arming/Disarming - Turning the

system on/off by entering your code at the keypad, then tapping

Battery - Backup power source in

the control-panel enclosure to provide protection in the event of a power failure.

BYPASS Button - Enables you to

manually remove one or more protective zones from the system.

Central Station - Monitors

incoming reports and emergency messages from a digital communicator and notifies the proper authorities.

Chime - A keypad beep while

disarmed alerting that the

programmed zone has been opened.

Closing Window - (Optional.) A

time interval within which closing (arming) is permitted without reporting to the central station.

Communicator - Reports

intrusions, emergencies, openings, closings, etc. directly to the central station over telephone lines.

Control Panel - The brain of the

system, it controls all system functions.

Directory - A listing of the

programmed zone descriptions stored in memory.

Easy Arming - Quick arming by

tapping

U (optional).

Page 53

GLOSSARY (CONT'D)

Exit/Entry Delays - Separate

delays that let you exit and enter your premises without setting off an alarm when the system is armed.

Instant Protection - Arming

without entry delay using the Q button while remaining on the

premises.

Keypad - Puts control-panel

functions at your fingertips. It can be mounted anywhere in your premises.

Manager's Mode - In a partitioned

system, a low-security operating mode that allows arming by area.

Panic Buttons - Used to signal a

Fire, Police or Auxiliary emergency (for example, a medical emergency).

Partitioned System - A system

that has been subdivided into two or more (up to eight) independent subsystems (areas).

Pre-Alarm Warning - A keypad

sounder alert of an impending alarm. This option is programmable by zone for the same duration as that programmed for Abort Delay (see Abort Delay).

Report - A transmission to a central

station notifying of a change in the status of the system (alarm, trouble, low battery, etc.).

RF Low Battery - (Wireless sys-

tems only) Weak transmitter battery.

RF Check In - (Wireless systems

only) Periodic test report from transmitter (if a report is not received on time, a supervisory-failure system trouble will result).

Ringback - A beep after arming

verifying the central-station's receipt of a closing report.

Service Code - A code intended for

temporary use.

Sounder - A local warning device

at each keypad to alert that (a) entry delay has started; (b) an attempt was made to arm with a zone in trouble; (c) a Day-Zone condition exists (see Zones: Day Zone); (d) 10 seconds exit time remaining; (e) invalid code entered; or (f) central station acknowledged arming (see Ringback).

System Trouble - A problem (low

battery, power failure, etc.) detected in the system.

Trouble - A zone fault; an open

door, window, or other problem that may prevent arming.

User Code - Your personalized

code for arming and disarming the system. It may contain up to six digits.

Page 54

GLOSSARY (CONT'D)

Zones - Independent circuits that

protect specific areas of the premises:

Auto-Bypass Zone: A zone

that will be automatically bypassed from the protection system if it is in trouble (faulty) when the system is armed.

Burglary Zone: Detects

intrusion.

Day Zone: A zone that will

cause a visual and audible indication at the keypad if it is in trouble while disarmed.

Exit/Entry Follower Zone:

Provides exit and entry delay for interior devices. Entry

delay only occurs if re-entry takes place through the normal exit/entry door first.

Fire Zone: Detects fire alarms

or trouble conditions.

Interior Zones: Circuits within

the premises, usually including space-protection devices, interior doors, etc.; but not exterior doors or windows. These can all be bypassed simultaneously using the

P button.

Priority Zone: A zone that

prevents arming if in trouble.

Priority Zone with Bypass: A

Priority Zone that can be bypassed using the

button.

Selective-Bypassed Zone: A

zone that can be individually bypassed using the

button.

24-Hour Zone: A zone that is

armed and ready at all times to respond to an emergency situation.

Page 55

SYSTEM TROUBLE ERROR CODES

Your control panel is capable of detecting a variety of troubles that may affect system performance. In the unlikely event that a problem should occur, the SYS TBL (system trouble) icon will display on the left side of keypad window along with one or more of the following error codes. If the problem is related to a specific zone or device, the corresponding number will also be indicated. Below is a list of the most common troubles along with the necessary corrective action, if any. If a message appears that is not listed below, call your security professional for service. When a system trouble occurs, the keypad can be silenced and the display can be cleared by tapping

Note: If you cannot clear a system trouble yourself, call installing company for service as soon as possible.

C. The system can then be armed and disarmed as usual.

Trouble

Indication

E01-00

E02-00

E03-00

System Trouble

Condition

AC Power Failure

Low Battery

Communication

Failure

Action

This trouble will occur if AC power is not present. Make sure system transformer is plugged into AC receptacle and check the circuit breaker, otherwise call installing company for service.

If there has been a recent power failure, the battery may be partially depleted and must be recharged by the control panel. The control panel performs an automatic daily test of the battery, at which time the trouble will clear if the battery has been recharged.

If the trouble does not clear in 24 hours, call installing company for service.

The system was not able to report to central station. If this is due to a temporary interruption in the telephone service, the trouble can be cleared when the service is restored by performing a Communication Test:

1 While disarmed, enter your User Code followed by R. 2 Answer NO (Q) until “ACTIVATE DIALER TEST” appears in the window. 3 Tap YES (P) to send a test signal to the central station.

If the trouble continues, call installing company for service.

Page 56

SYSTEM TROUBLE ERROR CODES (CONT'D)

Indication

Trouble

E04-NN

E05-NN

E06-NN

E07-00

E08-00

E09-00

System Trouble

Condition

Wireless Transmitter

Supervisory Failure

Wireless Transmitter

Low Battery

Receiver Response

Failure

Download Failure Call installing company for service.

Telephone Line Cut

System Cold Start --

A problem has been detected with a wireless transmitter. Call installing company for service

The battery in a wireless transmitter is low and should be replaced. This transmitter is on the zone corresponding to the number NN. The replacement battery for the GEM-TRANS2 door/ window transmitter, GEM-PIR motion detector and GEM-GB glass break detector is the Duracell DL123A 3 volt lithium. (2 required for the GEM-PIR and GEM-GB.) The replacement battery for the GEM-SMK is the Duracell MN1604 9 Volt Alkaline (2 required). The GEM-DT Dual Technology Sensor requires 4 C cell alkaline batteries.

Warning: Replace batteries only with the same type as specified above. Use of another battery may present a risk of fire or explosion. Do not recharge or disassemble battery, or dispose of in fire.

Call installing company for service.

The telephone line has failed. If telephone service has been temporarily interrupted, the trouble will clear automatically when it is restored. Otherwise, call installing company for service.

Action

Page 57

SYSTEM TROUBLE ERROR CODES (CONT'D)

Trouble

Indication

E10-NN

E11-NN

E12-NN

E13-NN

E14-NN

E15-NN

E16-NN

E17-NN

E18-NN

System Trouble

Condition

Keypad Response Failure Call installing company for service.

Keypad Tamper

Expansion Zone Module

Response Failure

Expansion Module Tamper

Relay Board Response Fail-

ure

RF Transmitter Tamper

Wireless Receiver Jam

Receiver Tamper Condition Call installing company for service.

KeyFob Transmitter Low

Battery

A keypad has been removed from the wall. Call installing company for service if problem cannot be repaired.

Call installing company for service.

The cover has been removed from a zone expansion module. A problem has been detected with an Expansion Module. Call installing company for service.

NN= Relay Board Number. Call installing company for service.

Wireless Transmitter Tamper Cover removed. NN=Transmitter Number. Call installing company for service.

A problem has been detected with the wireless receiver. Call installing company for service.

The batteries (2) in the wireless KeyFob transmitter indicated are low and should be replaced. The replacement battery is the #386 watch battery.

Warning: Replace batteries only with the same type as specified above. Use of another battery may present a risk of fire or explosion. Do not recharge or disassemble battery, or dispose of in fire.

Action

Page 58

SYSTEM TROUBLE ERROR CODES (CONT'D)

Indication

Trouble

E19-00

E20-00

E21-00

E22-NN

E23-00

E24-00

E27-00

E39-00

System Trouble

Condition

User Program Memory

Error

Dealer Program

Memory Error

System Shutdown Call installing company for service.

Sensor Watch Activity

Failure

Burglary Bus Failure Call installing company for service.

Service Message

Printer Failure Call installing company for service.

Receiver Capacity

Error

Call installing company for service.

A Motion Sensor on the zone indicated has failed the programmed Sensor Watch activity test. Insure that the sensor is able to detect activity in the area; clear any obstacles which may be blocking the sensor from detecting activity. Tap C to clear the display, and then use the

Function Menu to Reset Sensor Watch Failure (see page 26). If you cannot correct the problem yourself, call installing company for service.

The system is in need of a preventive maintenance service call. Call installing company for service.

Call installing company for service.

Action

Page 59

SYSTEM TROUBLE ERROR CODES (CONT'D)

Trouble

Indication

E40-00

E41-NN

E51-00

E58-00

E59-00

E66-00

E99-00

System Trouble

Condition

RF Self Test Failure

Fire Trouble

Bell/Siren Trouble There is a problem with the Bell or Siren. Call installing company for service.

Telemetry Trouble Call installing company for service.

Telemetry Failure Call installing company for service.

Dirty Smoke Detector "Clean Me" indication (Smoke Detector dirty). Call installing company for service.

Keypad Panic Shorted

too Long

A wireless motion sensor on the zone indicated has failed its automatic self test routine. Call installing company for service.

A problem has been detected on the Fire zone indicated. Call installing company for service. (GEM-P1632 and GEM-P816 panels only).

Call installing company for service.

Action

Page 60

TROUBLESHOOTING

What do I do if... For more info...

I try to arm my system but the keypad just displays “ZONES FAULTED” and “CAN’T ARM SYSTEM” and beeps at me.

A zone is open. Find and secure the open window or door. See Page 12

I try to arm my system but the keypad displays “SYSTEM TROUBLE” and beeps at me. The Error Codes numbers are displayed.

A System Trouble has been detected. Note the scrolling error codes, which represent the trouble. Tap C and you will now be able arm to the system, but the trouble must be

fixed as soon as possible.

The Fire Alarm is sounding and I don’t know how to turn it off.

If a fire is in progress, evacuate the premises immediately! If necessary, call the Fire Department from

an outside phone. If there is no evidence of a fire, enter your code and tap

Note the Zone Number displayed. Check the smoke detector(s). If a smoke detector tripped, its red alarm indicator light will be on. Tap C to silence the keypad sounder.

U to silence the alarm.

See Page 18, 2425 and 55

See Page 20

Page 61

Napco Security Technologies, Inc. 333 Bayview Avenue Amityville, New York 11701 For Sales and Repairs, (800) 645-9445 For Technical Service, (800) 645-9440 or visit us at http://tech.napcosecurity.com/

(Note: Technical Service is for security professionals only) Publicly traded on NASDAQ Symbol: NSSC

www.napcosecurity.com

Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your Internet service provider for details. All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Napco reserves the right to change or modify any information or specifications without notice or obligation. Note: The diagrams and images in this guide are provided for illustrative purposes only.

Important: Microsoft® and Windows® are trademarks the Microsoft Corporation. All other trademarks, service marks, and product or service names described in this manual are for identification purposes only and may be trademarks or registered trademarks of their respective owners. The absence of a name or logo in this document does not constitute

a waiver of any and all intellectual property rights that Napco Security Technologies, Inc. has established in any of its product, feature, or service names or logos.

Caution: Napco does not take responsibility for changes/modifications to the transceiver.

Page 62

NOTES

Page 63

NOTES

Page 64

NAPCO LIMITED WARRANTY

NAPCO SECURITY SYSTEMS, INC. (NAPCO) warrants its products to be free from manufacturing defects in materials and workmanship for thirty-six months following the date of manufacture. NAPCO will, within said period, at its option, repair or replace any product failing to operate correctly without charge to the original purchaser or user.

This warranty shall not apply to any equipment, or any part thereof, which has been repaired by others, improperly installed, improperly used, abused, altered, damaged, subjected to acts of God, or on which any serial numbers have been altered, defaced or removed. Seller will not be responsible for any dismantling or reinstallation charges.

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. THERE IS NO EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY OR A WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. ADDITIONALLY, THIS WARRANTY IS IN LIEU OF ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF NAPCO.

Any action for breach of warranty, including but not limited to any implied warranty of merchantability, must be brought within the six months following the end of the warranty period.

IN NO CASE SHALL NAPCO BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE SELLER'S OWN NEGLIGENCE OR FAULT.

In case of defect, contact the security professional who installed and maintains your security system. In order to exercise the warranty, the product must be returned by the security professional, shipping costs prepaid and insured to NAPCO. After repair or replacement, NAPCO assumes the cost of returning products under warranty. NAPCO shall have no obligation under this warranty, or otherwise, if the product has been repaired by others, improperly installed, improperly used, abused, altered, damaged, subjected to accident, nuisance, flood, fire or acts of God, or on which any serial numbers have been altered, defaced or removed. NAPCO will not be responsible for any dismantling, reassembly or reinstallation charges.

This warranty contains the entire warranty. It is the sole warranty and any prior agreements or

THE FOLLOWING STATEMENT IS REQUIRED BY THE FCC.

This equipment generates and uses radio-frequency energy and, if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class-B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning

Napco Security Technologies, 333 Bayview Avenue, Amityville, NY 11701

representations, whether oral or written, are either merged herein or are expressly canceled. NAPCO neither assumes, nor authorizes any other person purporting to act on its behalf to modify, to change, or to assume for it, any other warranty or liability concerning its products.

In no event shall NAPCO be liable for an amount in excess of NAPCO's original selling price of the product, for any loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any failure of the product. Seller's warranty, as hereinabove set forth, shall not be enlarged, diminished or affected by and no obligation or liability shall arise or grow out of Seller's rendering of technical advice or service in connection with Buyer's order of the goods furnished hereunder.

NAPCO RECOMMENDS THAT THE ENTIRE SYSTEM BE COMPLETELY TESTED WEEKLY.

Warning: Despite frequent testing, and due to, but not limited to, any or all of the following; criminal tampering, electrical or communications disruption, it is possible for the system to fail to perform as expected. NAPCO does not represent that the product/system may not be compromised or circumvented; or that the product or system will prevent any personal injury or property loss by burglary, robbery, fire or otherwise; nor that the product or system will in all cases provide adequate warning or protection. A properly installed and maintained alarm may only reduce risk of burglary, robbery, fire or otherwise but it is not insurance or a guarantee that these events will not occur. CONSEQUENTLY, SELLER SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY DAMAGE, OR OTHER LOSS BASED ON A CLAIM THE PRODUCT FAILED TO GIVE WARNING. Therefore, the installer should in turn advise the consumer to take any and all precautions for his or her safety including, but not limited to, fleeing the premises and calling police or fire department, in order to mitigate the possibilities of harm and/or damage.

NAPCO is not an insurer of either the property or safety of the user's family or employees, and limits its liability for any loss or damage including incidental or consequential damages to NAPCO's original selling price of the product regardless of the cause of such loss or damage.

Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or consequential damages, or differentiate in their treatment of limitations of liability for ordinary or gross negligence, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient the receiving antenna; relocate the computer with respect to the receiver; move the computer away from the receiver; plug the computer into a different outlet so that computer and receiver are on different branch circuits. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference Problems”. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402; Stock No. 004-000-00345-4.
