Contents MCD381 8cm CD/MP3/WMA PLAYER-FM TUNER

Dear Customer

Thanks for your purchase of the NAPA MCD381, a portable player that plays 8cm WMA, MP3 and CD. The MCD381 support a FM tuner and provides up to 120 seconds Electronic shock Protection (ESP)

for Audio CDs and 960/480 seconds for WMA/MP3 CDs to eliminate skipping during playback. For optimum performance and safety, please read these instructions carefully. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual CD for future reference.

Notice: All manuals, quick start guide and packing text is based on English version. If there is any discrepancy, please use the English version as reference.

Navigating the User’s Guide

This User’s Guide is in Adobe Acrobat (.PDF) file format.

Important:

We recommend that you use Adobe Acrobat Reader version 4.0 or higher to view and print the NAPA User’s Guide. Acrobat Reader 4.0 is available on the NAPA Manual CD.

Click blue, underlined text links to jump to another location in the document or to a location on the Internet. Click the Contents

link at the top of any page to go to the list of User’s Guide contents.

Using Acrobat

Click the navigation buttons

 

in the Acrobat toolbar to go to the first page, previous page, next page, or last page of the User’s

Guide.

Click the print button

in the Acrobat toolbar to print the User’s Guide.

Click the show/hide navigation pane button in the Acrobat toolbar to show a list of bookmarks.

Bookmarks are links to the contents of the User’s Guide. Click any bookmark in the list to jump to the page in the User’s Guide that contains the topic.

Contents MCD381 8cm CD/MP3/WMA PLAYER-FM TUNER

IInnttrroodduuccttiioonn

11..11 PPaacckkaaggee

11..22 TToouurr ooff tthhee NNAAPPAA PPllaayyeerr

11..33 KKeeyy nnaammee

UUssiinngg tthhee PPllaayyeerr

22..11 GGeettttiinngg SSttaarrtteedd

22..22 PPllaayyiinngg MMuussiicc

FFuunnccttiioonn

33..11 LLCCDD DDiissppllaayy

33..22 GGeenneerraall FFuunnccttiioonn

33..33 AAddvvaanncceedd FFuunnccttiioonn

33..33..11 SSeettuupp mmeennuu

33..33..22 SSkkiipp MMooddee

33..33..33 NNaavviiggaattiioonn

33..33..44 FFMM MMooddee

33..33..55 PPrrooggrraammmmaabbllee PPllaayybbaacckk

FFAAQQ && TTrroouubblleesshhoooottiinng

44..11 FFAAQQ

44..22 TTrroouubblleesshhoooottiinngg

SSppeecciiffiiccaattiioonnss

55..11 AAuuddiioo

55..22 II//OO

55..33 PPoowweerr

RReemmiinnddeerr

66..11 CCaauuttiioonn

66..22 WWaarrnniinngg

66..33 CCuussttoommeerr CCaarree

Table of content s

Contents MCD381 8cm CD/MP3/WMA PLAYER-FM TUNER

Introduction

Package

Introduction

Package

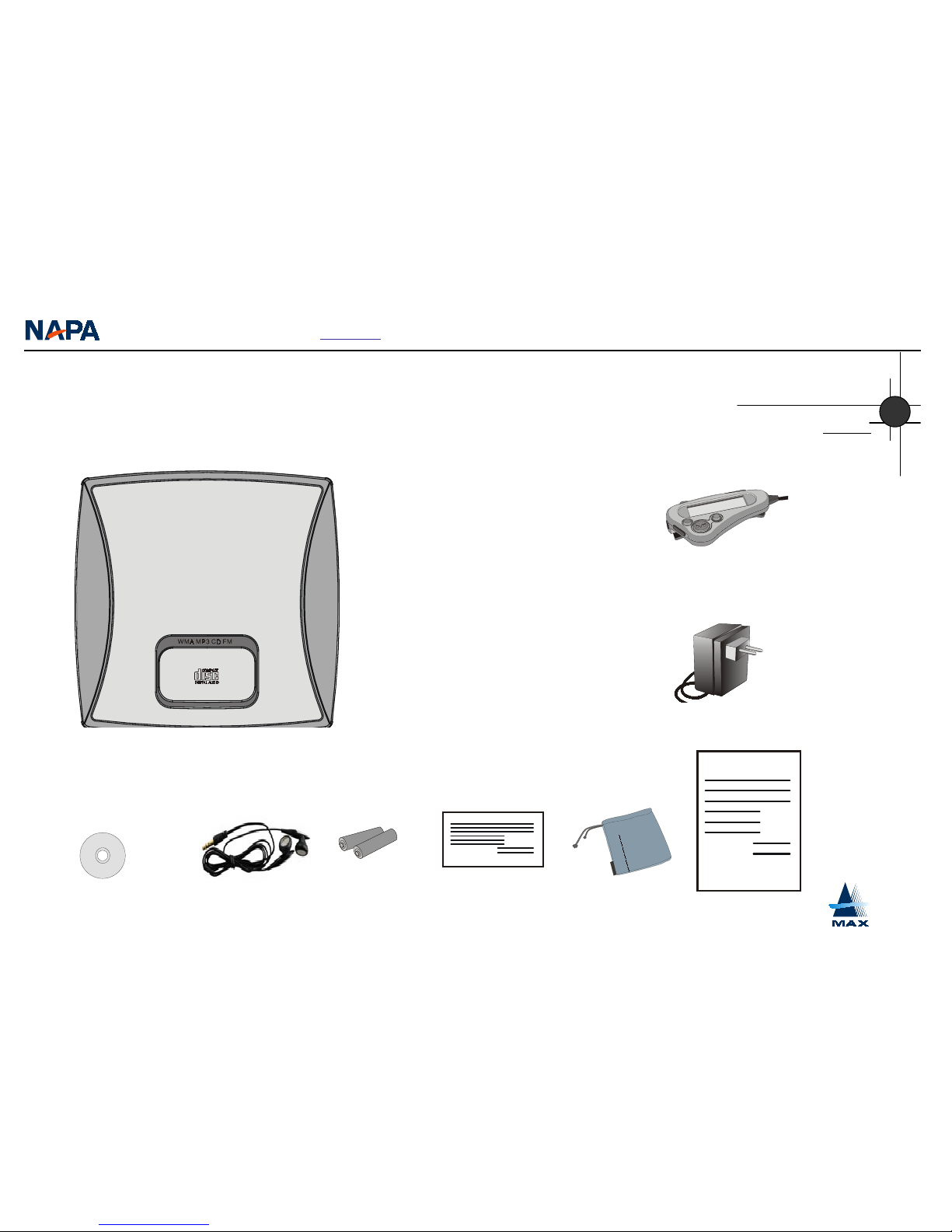

MCD381 8cm MP3/WMA CD Player

Manual CD

Carry Case

Earphone

LCD Line Remote

Quick Start Guide

Adaptor

Warranty card

2AAA batteries

Contents MCD381 8cm CD/MP3/WMA PLAYER-FM TUNER

Tour of NAPA player

Indicators

Controls

Functions

1 Mode

Enter setup main menu/enter FM mode

2 Previous

Skip backward to previous track / directory

3 Next Skip forward to next track / directory

4 Volume Decrease the Volume level

5 Volume Increase the volume level

6 Stop J Stop playback / power off

PLAY /

PAUSE

Start playback / pause / power on

8 Hold Lock the keys of the player.

9 Open Open or lock the door of the player.

A DC4.5V DC4.5V jack to connect with mains adapter.

B Line Out Line out jack to connect with other amplifiers.

Earphone

Line Remote

Earphone/Line Remote jack on the unit

D Clip Secure the line remote while jogging.

E Earphone Earphone jack on the line remote control.

F Cord Cord to connect the remote and the unit.

G LCD Liquid Crystal Display

6 7 8 9

Introduction

Tour of NAPA player

Contents MCD381 8cm CD/MP3/WMA PLAYER-FM TUNER

Using player

Getting Started

Unpack

Make sure your player includes the following accessories:

•

MCD381 MP3/WMA CD player with FM tuner

•

Earphones • Carry case

•

Quick Start Guide

• 1

Manual CD • Line Remote control with LCD

•

Power Adapter • Warranty Card • Two AAA NI-MH rechargeable batteries

Install batteries

1 Press the OPEN button to release the latch and lift the top of the MCD381 player. 2 Remove the battery compartment cover on the inside of the MCD381. 3 Insert the two supplied batteries. Ensure the batteries are inserted properly by matching the + and –symbols on the battery with

the symbols on the MCD381. 4 Replace the battery compartment cover and close the MCD381 player. 5 Plug the supplied Adaptor into DC IN port on the side of MCD381 and into a power outlet. NOTICE: When using the MCD381 for the first time, the Ni-MH battery should be charged for 10 hours. The battery charge mechanism of MCD381 is designed to be

slow charge mode

. This

slow charge mode

aims to extend the durability of the Ni-MH battery

and to ensure that they are always fully charged. However, you are advised to restrict the charging time within 10 hours from

time to time.

Connect External Devices

1. Connect the supplied earphones to the EARPHONE jack on the side of the player.

2. To use the Remote Control, plug the earphone cable to into the Remote Control, then plug the Remote Control cable into the

EARPHONE port on the side of player

Using player

Getting started

Contents MCD381 8cm CD/MP3/WMA PLAYER-FM TUNER

Playing Music

Insert Disc

1 Slide the Open button to release the latch, and open the CD cover. 2 Remove the cardboard insert. 3 Insert an 8cm audio CD or MP3/WMA CD into the player, label side up. 4 Close the CD cover.

NOTE: The NAPA Player can play CDs with the following logos:

Play Music

1 Press and hold the Play/Pause



button to turn on the player and begin playback.

NOTE: There will be a short delay while the player loads your music tracks and track information.

2 Press the Stop

button to stop playback. Press and hold Stop for 1.5 seconds to turn off the player.

NOTE: If the player displays ‘Lock’ and power off automatically when you press the Play/Pause



button, chec

the HOLD switch on the player and on the line remote to make sure the switch is released.

Using player

Play music

Contents MCD381 8cm CD/MP3/WMA PLAYER-FM TUNER

LCD display

Function

LCD display
