NANOGRID NL22 User Manual

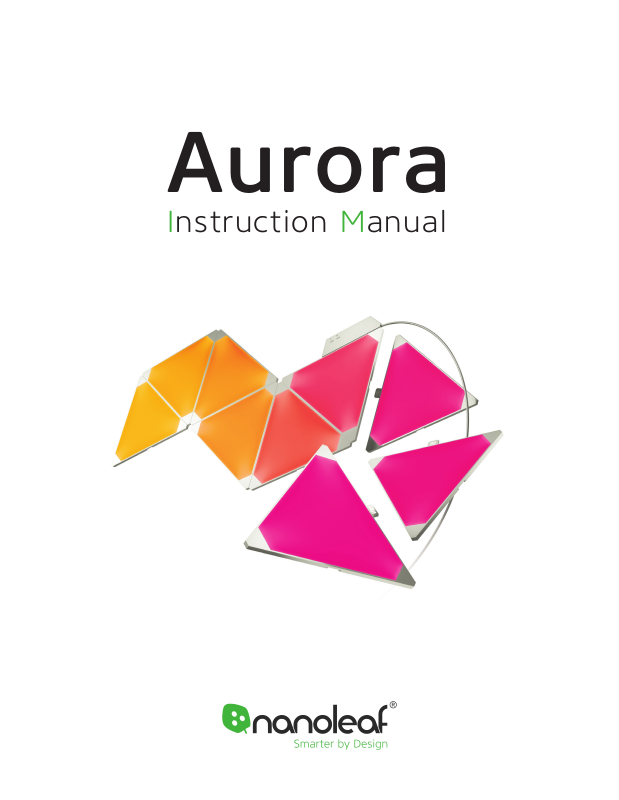

Aurora
Instruction Manual
WELCOME
Congratulations on becoming an
ocial owner of the Nanoleaf Aurora,
a product that will let you create
in c re d i b l e l i g ht i ng di s pl a ys by
snapping together panels with ease.
Re m e m b e r, y o u c a n p u r c h a s e
expansion packs to grow the Aurora,
and unleash your creativity to the
fullest! Without further ado, let the
excitement begin!
WHAT’S IN THE BOX?
x9 x9
Panels Stencil Paper
x1
Controller
x1
x9
Linkers
x28
Mounting TapePower Supply
HARDWARE SET-UP
Slow down tiger! Before you stick the panels onto the wall, be sure to plug it in and try
it out on a table rst.
Linker
Toggle Button:
cycle through existing
scenes/animations
Power Button:
Turn the Aurora
panels on or o
To connect the panels together, insert a linker into the linker port on
the reverse of the Aurora panels. Ensure that the metal contacts are
aligned, and gently snap the panels together.
Connect the controller to any free edge on any panel. Then connect the power supply to the wire coming out of the controller. Use the included
mounting tape to securely attach the panels and controller to your desired at surface. Click here to watch an instructional video on how to install
the panels using the provided mounting tape. Once everything is set up. Connect the power cable to an AC outlet in order to power up your Aurora.
Recommended Installation Requirements
This device should only be installed in an indoor environment on a at surface that can withstand the weight of the panels. Make sure that the
surface is dry and clean from any dust or oil. For optimal performance it is recommended that Nanoleaf Aurora be installed in a location that provides sucient airow around the panels. It is recommended that the Nanoleaf Aurora be installed away from other devices designed to receive or
transmit radio signals. Locate your Aurora within 20 meters from your home wireless (Wi) router with at most one wall between them.
SOFTWARE SET-UP
The software setup will be easiest if your Aurora is powered on and you see colors moving
across it. Boot up time for your Aurora is about 1 minute.
1. Download the “Nanoleaf Smarter Series” app from the Apple App Store or Google Play
Store and launch it.
2. Go through the setup steps in the App to connect your Aurora to your home network
and pair with your device.
CONTROL VIA APP
Animations make up the core of the Aurora software experience. Animations are saved
settings for your Aurora to display. There are 3 main components to an Animation:
1. Layout: The conguration of the
2. Palette: this is a set of colors you use to
Aurora panels is automatically detected and shown in the App. With
two ngers, you can pinch to zoom
and rotate the Aurora so it matches
the panels’ physical orientation.
create your animation. We’ve included a few in
the App, but you can create as many Palettes as
you like. You can use up to 20 colors in a Palette.
