Namco Controls EA170 Catalog Page

Double Pole

Limit

Butt

Standard Environment

Switches

Standard (EA170)

Double pole, double break, double
throw, heavy duty limit switch having
mechanical travel of 10° to trip and with
two normally open and two normally
closed circuits. Can be furnished with
standard, wide or long mounting.

Short Travel (EA170)

Limit Switches

With mechanical travel of 6-1/2°
required to trip, this heavy duty limit
switch operates with two normally open

and two normally closed circuits. Can be
furnished with standard, wide or long
mounting.

Reverse Shaft (EA170)

Designed for applications where a
reverse shaft is essential in operation.
This series provides the same snap
locking action of the other series of
EA170 Snap-Lock Switches. Can be
furnished with standard, wide or long
mounting.

Contacts

EA700 (Standard)

The versatility of the Snap-Lock
mechanism is gained through the use of
a series of uniquely designed cams. The
cam and cam mechanism allow features
such as bi-directional operation and
generous overtravel. These features make
the EA700 Series one of the most
popular. Can be furnished with Standard,
Wide or Long mounting.

EA170 Double Pole 2 N.O. - 2 N.C. / Butt Contacts / Rocker Type

Standard Wide Long A B C D E F
Mounting Mounting Mounting Dir. Of Trip Reset Recom. Total Min. Travel Overall Torque Contact Data

Model No. Model No. Model No. Operation Travel Travel Travel Travel to Maintain Travel (inch lbs) Config. Drawing

STANDARD TRAVEL

EA170-11100 EA170-21100 EA170-31100 CW 10° 8 ° 13° 37° --23A1
EA170-12100 EA170-22100 EA170-32100 CCW 10° 8° 13° 37° --23B1
EA170-13100 EA170-23100 EA170-33100 Maintain 10° 8° 13° 37° --10-1

SHORT TRAVEL

EA170-14100 EA170-24100 EA170-34100 CW 6° 30’ 4° 7° 36° --32A1
EA170-15100 EA170-25100 EA170-35100 CCW 6° 30’ 4° 7° 36° --32B1
EA170-16100 EA170-26100 EA170-36100 Maintain 6° 30’ 4° 7° 36° - - 10.5 - 1

STANDARD TRAVEL - REVERSE SHAFT

EA170-41100 EA170-51100 EA170-61100 CW 10° 8 ° 13° 37° --30A1
EA170-42100 EA170-52100 EA170-62100 CCW 10° 8° 13° 37° --30B1
EA170-43100 EA170-53100 EA170-63100 Maintain 10° 8° 13° 37° --23-1

Angle Angle Angle Angle Angle Angle

254

EA700 Double Pole Standard 2 N.O. - 2 N.C. / Neutral Position 4 N.O. or 4 N.C. / Butt Contacts

Standard Wide Long A B C D E F
Mounting Mounting Mounting Dir. Of Trip Reset Recom. Total Min. Travel Overall Torque Contact Data

Model No. Model No. Model No. Operation Travel Travel Travel Travel to Maintain Travel (inch lbs) Config. Drawing

STANDARD TRAVEL / CAM ACTION

EA700-20000 EA700-50000 EA700-80000 CW 18° 14° 30° 90° --27C1
EA700-20001 EA700-50001 EA700-80001 CCW 18° 14° 30° 90° --27D1
EA700-20100 EA700-50100 EA700-80100 CW/CCW 18° 14° 30° 90° --27E1

NEUTRAL POSITION / CAM ACTION - ALL CONTACTS OPEN

EA700-25000 EA700-55000 EA700-85000

See Operating Levers Section

CW 11° 9° 45 ° 90° - - 19.5

CCW 35° 13° 45° 90° --15

Angle Angle Angle Angle Angle Angle

F1

Namco Controls Corporation • Mayfield Village, OH 44143 • [phone] • Fax: [phone]

EA700 Double Pole Standard

EA170/EA700

2 N.O. - 2 N.C. / Neutral Position 4 N.O. or 4 N.C. / Butt Contacts / Cam Action

Standard Wide Long A B C D E F

Mounting Mounting Mounting Dir. Of Trip Reset Recom. Total Min. Travel Overall Torque Contact Data

Model No. Model No. Model No. Operation Travel Travel Travel Travel to Maintain Travel (inch lbs) Config. Drawing

NEUTRAL POSITION - ALL CONTACTS OPEN

EA700-25102 EA700-55102 EA700-85102

NEUTRAL POSITION - ALL CONTACTS CLOSED

EA700-25108 EA700-55108 EA700-85108

MAINTAINED CONTACT - MAINTAINED CONTACTS & LEVER POSITION

EA700-26000 EA700-56000 EA700-86000

MAINTAINED CONTACT - MAINTAINED CONTACTS - LEVER RETURNED

EA700-26700 EA700-56700 EA700-86700

CCW 31° 12° 45° 90° - - 20.5

CCW 31° 12° 45° 90° - - 20.5

CCW 25° 25° 60° 124° 54° 56° 12

CCW 16° 30° 45° 90° 26 ° - 16.5

Contact Configurations

CIRCUIT A

CW

H
F

D
B

Initial

CCW

G
E

C
A

CIRCUIT B

CW

Angle Angle Angle Angle Angle Angle

CW 31° 22° 45 ° 90° - - 16.5

CW 31° 22° 45 ° 90° - - 16.5

CW 55° 22° 60 ° 116° 55° 64° 6

CW 30° 26° 45 ° 90° 30° -15

Operational Data Drawings

H
F

D
B

Initial

DRAWING #1

CCW

G

D

E
C

A

C

C

A

A

B

D

B

G1

H1

I2

I3

DRAWING #2

CIRCUIT C

CW

H
F

D
B

Initial

CCW

G
E

C
A

CIRCUIT D

CW

H
F

D
B

Initial

CW OperatingCCW Operating

CCW

G
E

C
A

Initial
Position

C

A

E

D

F

B

Initial
Position

F

A

Limit Switches

E

C

B

D

CIRCUIT E CIRCUIT F

CW

Initial

H
F

D
B

CCW

CW

G
E

C
A

CIRCUIT G CIRCUIT H

CW

Initial

H
F

D
B

CCW

CW

G
E

C
A

CIRCUIT I

CCW Operating

CW

Initial

H
F

D
B

CCW

CW

G
E

C
A

Initial

H
F

D
B

G
E

C
A

Initial

H
F

D
B

G
E

C
A

CW Operating

Initial

H
F

D
B

G
E

C
A

CCW

CCW

CCW

To change switch operation from CW operating to CCW
operating, operate switch through angle E. Remove lever
and reset at initial position.

DRAWING #3

CW OperatingCCW Operating

D

Initial
Position

C

B

A

D

D

Initial
Position

EE

B

C

A

To change switch operation from CW operating to CCW
operating, operate switch through angle E.

Namco Controls Corporation

[phone] • FAX [phone] • namcocontrols.com

Mayfield Village, OH 44143

For technical assistance, call 1-800-NAMTECH

D

255

Double Pole

Limit

Butt

Standard Environment

Switches

Common Switch Characteristics

DOUBLE POLE, STANDARD ENVIRONMENT, BUTT CONTACTS

EA170 EA700

NEMA Enclosure Type 1, 4, 13
Housing Material Zinc/Al. Zinc
Ambient Temperature Range* -20°C to +90°C

Limit Switches

Shipping Weight 3.5 lbs. approx. 4 lbs. approx.
Lever Adjustment EA170 Std. Shaft:

Contacts Butt, Silver Alloy, Form Z

*Some high temperature (+20°C to 180°C) and low temperature

(-40°C to +90°C) versions available. Contact factory.

7°30’ Increments
thru 167° 7°30’ Increments

EA170 Rev. Shaft:

7°30’ Increments
thru 360°

Contacts

Continuous Current Rating - Amperes

VOLTAGE AC DC

125 20.0 5.0
250 15.0 1.5
480 10.0 ­600 5.0 -

75-100% Power Factor

thru 360°

EA170 (Standard) Series Drawings

STANDARD MOUNTING PLATE

2.25"
5/16 - 18NC

(57.2)

0.56 Deep
Four Holes

0.375"
(9.5)

4.13"

(104.9)

0.56"

(14.2)

0.093"
(2.4)

0.093"
(2.4)

3.04"

(77.2)

0.95"

1.03"

(24.1)

(26.2)

6.58"

(167.1)

0.81"

(20.6)

1 – 11-1/2 NPT
7-1/2 Threads

(167.1)

0.125"
(3.2)

6.58"

0.125"
(3.2)

0.99"

(25.1)

1.56"

(39.6)

2.56"

(65.0)

1.55"

(39.4)

WIDE MOUNTING PLATE

48 Serrations - Equally Spaced

1.56"

0.495/0.490 O.D.

(39.6)

0.255/0.260 Dia.
Four Holes

3.69"

0.32 R.

(93.7)

Dimensions: inches/(mm)

4.31"

(109.5)

0.94"

(23.9)

3.81"

(96.8)

0.69"
(17.5)

1.63"

(41.4)

LONG MOUNTING PLATE

6.58"

(167.1)

1.56"
(39.6)

0.125"
(3.2)

0.255/0.260 Dia.
Four Holes

2.25"

(57.2)

2.87"

(72.9)

0.50"

(12.7)

5.63"

(143.0)

0.44"
(11.2)

(167.1)

6.58"

256

Namco Controls Corporation • Mayfield Village, OH 44143 • [phone] • Fax: [phone]

EA170 (Reverse Shaft) Series Drawings

WIDE MOUNTING PLATESTANDARD MOUNTING PLATE

EA170/EA700

LONG MOUNTING PLATE

0.093"
(2.4)

3.40"

5/16 - 18NC

(86.4)

0.75"

(19.1)

0.75"

(19.1)

0.125"
(3.2)

0.99"

(25.1)

1.56"

(39.6)

2.56"

(65.0)

1.55"

(39.4)

0.56 Deep
Four Holes

0.375"
(9.5)

4.13"

(104.9)

0.56"

(14.2)

0.093"
(2.4)

0.093"
(2.4)

3.04"

(77.2)

EA700 Series Drawings

STANDARD MOUNTING PLATE

0.44"

(11.2)

0.92"

(23.4)

3.19"

(81.0)

0.50"

(12.7)

0.68"

(17.3)

48 Serrations
Equally Spaced

0.495/0.490 O.D.

0.95"

1.03"

(24.1)

(26.2)

6.58"

(167.1)

0.81"

(20.6)

1 – 11-1/2 NPT
7-1/2 Threads

48 Serrations - Equally Spaced

0.495/0.490 O.D.

1.56"

(39.6)

6.58"

(167.1)

0.125"
(3.2)

1.31"

1.06"

(33.3)

(26.9)

0.255/0.260 Dia.
Four Holes

3.69"

0.32 R.

(93.7)

(109.5)

Dimensions: inches/(mm)

0.53"

(13.5)

0.94"

(23.9)

0.69"

(17.5)

3.81"
(96.8)

4.31"

0.260/0.255 Dia.
Four Holes

0.28"
(7.1)

1.63"
(41.4)

6.58"

(167.1)

1.56"

(39.6)

0.125"
(3.2)

LONG MOUNTING PLATEWIDE MOUNTING PLATE

0.66"

(16.8)

0.255/0.260 Dia.
Four Holes

0.260/0.255 Dia.
Four Holes

2.25"

(57.2)

2.87"
(72.9)

0.41"
(10.4)

0.50"

(12.7)

5.63"

(143.0)

0.44"
(11.2)

(167.1)

6.58"

Limit Switches

(66.8)

7.06"

(179.3)

0.125"

2.63"

(3.2)

1/4–20 Thd.

0.38 Deep

Four Holes

1.59"

(40.4)

2.60" Max.
(66.0)

1-11 1/2 NPT

Pipe T ap

1.12"

(28.4)

2.25"

(57.2)

2.28"

(57.9)

4.94"

(125.5)

0.02"

(0.51)

0.81"

(20.6)

2.81"

(71.4)

3.25"

(82.6)

Dimensions: inches/(mm)

4.38"

(111.3)

0.22"
(5.6)

4.94"

(125.5)

2.25"

(57.2)

1.81"

(46.0)

6.41"

(162.8)

0.22"
(5.6)

7.06"

(179.3)

Namco Controls Corporation

Mayfield Village, OH 44143

[phone] • FAX [phone] • namcocontrols.com

For technical assistance, call 1-800-NAMTECH

257

Miscellaneous

Operating

Butt

Types

0.50"
(12.7)

Limit Switches

0.25"
(6.4)

Standard Operating Lever

EL010-53420 (D-1260)
(for .500 Dia. Shaft Switches)

Levers

1.50"

(38.1)

0.88"

(22.2)

Contacts

For Series:
EA040, EA060, EA080,
EA130, EA140, EA170,
EA700, EA710, EA730,
EA760, EA770, EA780,
EA790, EA800, EA880,
EA990

Select the operating lever for your
application with regards to dimensions
and materials required.

Requests for operating levers not
shown should include lever style and all
pertinent information as to limit switch
number, dimensions, materials, etc.

Depending upon your application,
levers are available in cold rolled steel,
stainless steel, or bronze. Rollers are
available in steel, nylon, Bryl. Cop.,
stainless steel or steel ball bearings.
Please consult materials column of the
lever of your choice.

This style and size operating lever
is considered standard for the majority of
snap-lock switch installations. The
EL010-53420 (D1260) lever is steel with
a nylon roller and a stainless steel roller
pin. Like all snap-lock levers, the serrated
mounting hole matches the serrated lever
shaft of the switches to provide fixed
adjustment of the lever in 7.5° increments.

294

Namco Controls Corporation • Mayfield Village, OH 44143 • [phone] • Fax: [phone]

For Series EA040, 060, 080,
130, 140, 170, 700, 710,
730, 760, 770, 780, 790,
800, 880, 990

L

B

B

A

L

A

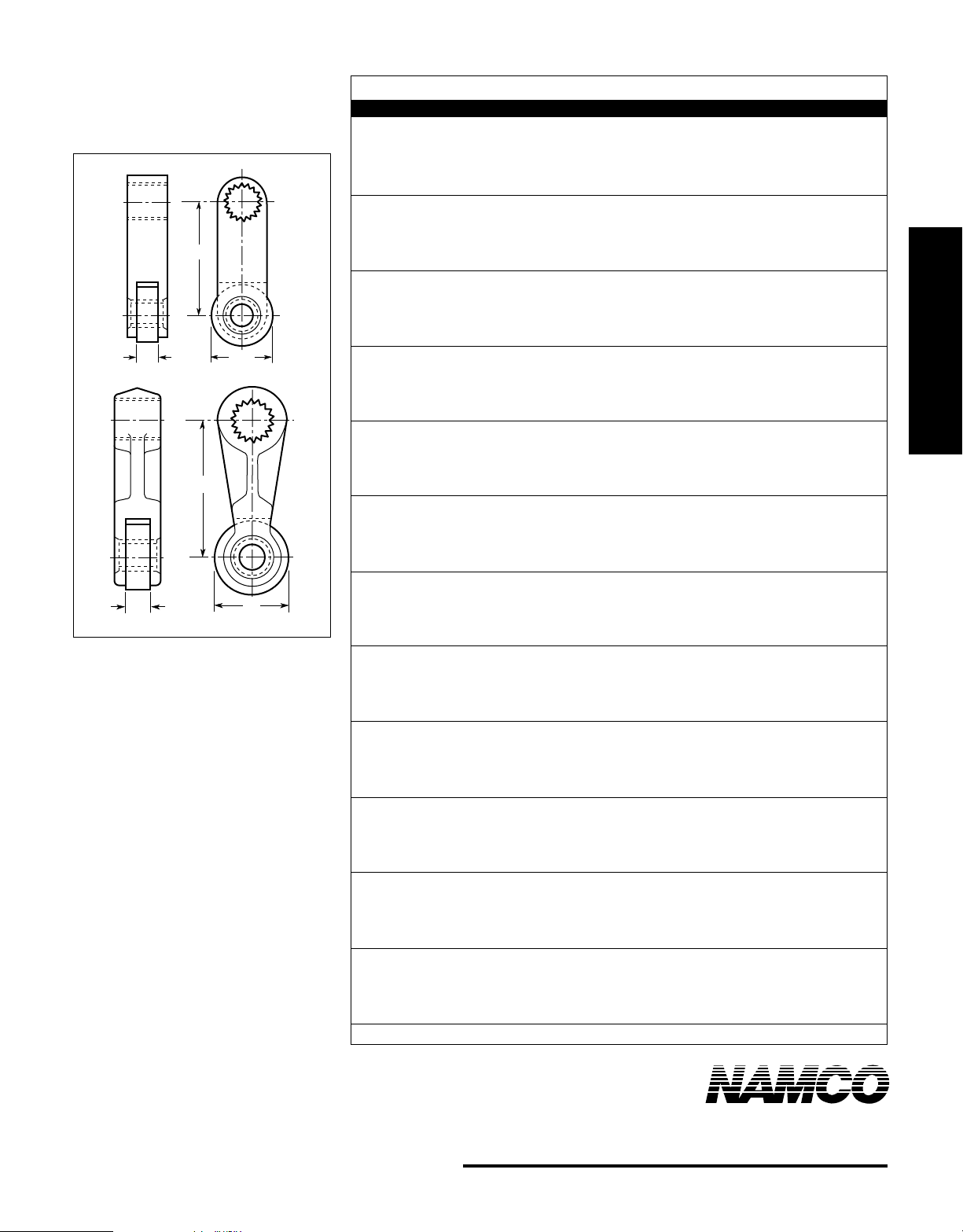

Style R - Regular Straight Type

Ordering Numbers Material

Part Number Reference L A B Lever Roller

EL060-50320 D1260BA 3/4 3/4 1/4 C.R.S. C.R.S.
EL060-51319 — 1 3/4 1/4 C.R.S. Bryl. Cop.
EL060-52321 D1260GQ 1-1/4 3/4 1/4 C.R.S. C.R.S.
EL060-53923 D1260BH 1-1/2 1-1/4 1/4 C.R.S. C.R.S.
EL010-53338 DS1260 1-1/2 3/4 1/4 Steel C.R.S.

EL060-53300 — 1-1/2 3/4 1/4 Brass Bryl. Cop.
EL010-53336 — 1-1/2 3/4 1/4 Steel S.S.
EL010-53337 — 1-1/2 3/4 1/4 Steel Bryl. Cop.
EL060-53401 D126ORF 1-1/2 7/8 9/32 Brass Nylon
EL060-53402 — 1-1/2 7/8 9/32 Brass Bryl. Cop.

EL010-53420 D1260 1-1/2 7/8 9/32 Steel Nylon
EL010-53429 D1260Y 1-1/2 7/8 9/32 Steel B.B.
EL060-53536 D1260Z 1-1/2 1 1/4 C.R.S. C.R.S.
EL060-53926 D1260CL 1-1/2 1-3/8 1/4 C.R.S. C.R.S.
EL060-55327 D1260E 2 3/4 1/4 C.R.S. C.R.S.

EL060-55300 — 2 3/4 1/4 C.R.S. Bryl. Cop.
EL060-55520 D1260AC 2 1 1/4 C.R.S. C.R.S.
EL060-55601 — 2 1 1/4 C.R.S. Bryl. Cop.
EL060-55530 D1260RT 2 1 1/4 Brass Bryl. Cop.
EL060-55927 D1260GT 2 1-1/2 1/4 C.R.S. C.R.S.

EL060-50321 D1260BC 2-1/8 3/4 1/4 C.R.S. C.R.S.
EL060-50501 D1260B 2-1/8 1 1/4 C.R.S. C.R.S.
EL060-50334 D1260M 2-1/4 3/4 1/4 C.R.S. C.R.S.
EL060-59300 D1260KC 2-3/8 3/4 1/4 C.R.S. C.R.S.
EL010-56427 D1260K 2-1/2 7/8 9/32 Steel Nylon

EL010-56334 DS1260K 2-1/2 3/4 1/4 Steel C.R.S.
EL010-55421 D1260DF 2-1/2 1 1/4 C.R.S. C.R.S.
EL060-56500 D1260RR 2-1/2 1 1/4 Brass Bryl. Cop.
EL060-56920 D1260CP 2-1/2 1-1/2 1/4 C.R.S. C.R.S.
EL060-50322 D1260BD 2-3/4 3/4 1/4 C.R.S. C.R.S.

EL060-57300 — 2-3/4 3/4 1/4 C.R.S. Bryl. Cop.
EL010-58300 — 3 3/4 1/4 Steel Bryl. Cop.
EL010-58337 DS1260L 3 3/4 1/4 Steel C.R.S.
EL060-58305 — 3 3/4 1/4 Brass Bryl. Cop.
EL010-58400 — 3 7/8 9/32 Steel Bryl. Cop.

EL010-58423 D1260L 3 7/8 9/32 Steel Nylon
EL010-58451 — 3 7/8 9/32 Steel C.R.S.
EL060-58401 — 3 7/8 9/32 Brass Nylon
EL060-58403 D1260VQ 3 7/8 9/32 S.S. Bryl. Cop.
EL010-58521 D1260CJ 3 1 1/4 Steel C.R.S.

EL010-58522 — 3 1 1/4 C.R.S. Bryl. Cop.
EL010-58923 D1260CN 3 1-1/4 1/4 Steel C.R.S.
EL060-58923 — 3 1-1/4 1/4 Brass Steel
EL010-58900 D1260VR 3 1-1/2 1/4 Steel Nylon
EL010-58920 D1260AE 3 1-1/2 1/4 Steel C.R.S.

EL060-58320 D1260BB 3-1/2 3/4 1/4 C.R.S. C.R.S.
EL060-58431 D1260AP 3-1/2 1 1/4 C.R.S. C.R.S.
EL060-58932 — 3-1/2 3/4 1/4 Brass Bryl. Cop.
EL060-58930 — 3-1/2 1-1/2 1/4 Brass Bryl. Cop.
EL060-58326 D1260C 4 3/4 1/4 C.R.S. C.R.S.

EL060-58304 D1260WD 4 3/4 1/4 C.R.S. Bryl. Cop.
EL060-50523 D1260BL 4 1 1/4 C.R.S. C.R.S.
EL060-58925 — 4 1-1/4 1/4 Brass Bryl. Cop.
EL060-58920 D1260AB 4 1-1/2 1/4 C.R.S. C.R.S.
EL060-58901 — 4 1-1/2 9/32 C.R.S. Nylon

EL060-50335 D1260N 5 3/4 1/4 C.R.S. C.R.S.
EL060-50925 D1260BW 5 1-1/2 1/4 C.R.S. C.R.S.
EL060-50305 D1260CQ 6 3/4 1/4 C.R.S. C.R.S.
EL060-50338 — 6 3/4 1/4 C.R.S. Bryl. Cop
EL060-50930 D1260JE 6 1-1/4 1/4 C.R.S. C.R.S.

EL060-50703 D1260KD 6 3 1/4 C.R.S. C.R.S.

EL Series

All dimensions are in inches.

Limit Switches

Namco Controls Corporation

Mayfield Village, OH 44143

[phone] • FAX [phone] • namcocontrols.com

For technical assistance, call 1-800-NAMTECH

295

Miscellaneous

Operating

Butt

Types

Levers

For Series EA040, 060, 080, 130,
140, 170, 700, 710, 730, 760,
770, 780, 790, 800, 880, 990 Only

Limit Switches

L

C

B

Offset lever with straddle-supported roller.

A

Contacts

Style RLO - Regular Lever Offset Type

Ordering Numbers Material

Part Number Reference L A B C Lever Roller

*EL020-53326 D1260GX 1-1/2 3/4 1/4 1-1/4 Mang. Br. Steel
*EL020-53325 D1260GU 1-1/2 3/4 1/4 1-3/16 Mang. Br. Steel
EL020 55327 D1260HZ 2 3/4 1/4 1-1/8 Mang. Br. Steel
*EL020-55300 D1260JD 2 3/4 1/4 1-1/2 Mang. Br. Steel
EL020-56320 D1260BT 2-1/2 3/4 1/4 1 Mang. Br. Steel

*EL020-56321 D1260DW 2-1/2 3/4 1/4 2-1/4 Mang. Br. Steel
EL020-56421 D1260DG 2-1/2 1 1/4 1 Mang. Br. Steel
EL020-58922 D1260FT 3 1-1/4 1/4 1-1/4 Mang. Br. Steel
EL020-58923 — 3 1-1/4 1/4 1-1/4 Mang. Br. S.S.
EL020-59900 D1260AY 5-1/2 1-1/2 1/4 1-3/4 C.R.S. Steel

*On Series EA040/060/080/170, Lever will not clear top of switch when mounted with Roller facing the rear.

L

B

Machined lever with wide roller straddle­supported directly in line with the serrated
mounting hole.

C

B

Lever provides straddle-type support for wide
roller, which is offset from serrated lever
hub. Side toward switch is machined straight.

A

L

A

Style RW - Wide Roller Regular Type

Ordering Numbers Material

Part Number Reference L A B Lever Roller

EL070-53501 D1260AJ 1-1/2 1 1/2 C.R.S. Bryl. Cop.
EL070-50507 D1260CY 1-5/8 1 1/2 C.R.S. Bryl. Cop.
EL070-56921 D1260DY 2-1/2 1-1/4 1/2 C.R.S. Steel
EL060-00024 D1260AL 3 1-1/2 1/2 C.R.S. Steel
EL070-50921 D1260BE 4 1-1/4 1/2 C.R.S. Steel

Style RWO - Wide Roller Offset Type

Ordering Numbers Material

Part Number Reference L A B C Lever Roller

EL080-53329 D1260R 1-1/2 3/4 1/2 3/8 Mang. Br Steel
EL080-53932 D1260P 1-1/2 1-1/2 1/2 3/8 C.R.S. Steel
EL080-55323 D1260FR 2 3/4 1/2 3/8 C.R.S. Steel

EL080-54905 D1260DD 2 1-1/2 1/2 3/8 C.R.S. C.R.S.
EL080-56301 D1260AH 2-1/2 3/4 1/2 3/8 C.R.S. Steel
EL080-56305 — 2-1/2 3/4 1/2 3/8 C.R.S. Bryl. Cop.
EL080-58322 D1260GN 3 3/4 1/2 3/8 C.R.S. Steel

EL080-58901 D1260DE 3 1-1/2 1/2 3/8 C.R.S. Steel
EL080-58906 D1260DZ 3-1/2 1-1/2 1/2 3/8 C.R.S. Steel
EL080-58909 D1260HA 4 1-1/2 1/2 3/8 C.R.S. Steel
EL080-50924 D1260BS 6 1-1/2 1/2 3/8 C.R.S. Steel

296

Namco Controls Corporation • Mayfield Village, OH 44143 • [phone] • Fax: [phone]

For Series EA040, 060, 080, 130,
140, 170, 700, 710, 730, 760,
770, 780, 790, 800, 880, 990 Only

Style S - Side Roller Type

Part Number Reference L A B C Lever Roller

EL150-53303 — 1-1/2 3/4 3/4 7/8 C.R.S. Bryl. Cop.

C

Side supported roller offset on front side
of lever machined with straight sides

C

L

B

A

L

EL150-53301 D1260A 1-1/2 3/4 1/4 5/8 C.R.S. Steel
EL150-53300 D1260DU 1-1/2 3/4 3/4 7/8 C.R.S. Steel
EL150-53901 D1260HV 1-1/2 1-1/4 1/4 5/8 C.R.S. Steel
EL150-55300 — 2 3/4 1/2 3/4 C.R.S. Bryl. Cop.
EL150-55303 D1260DT 2 3/4 1/4 5/8 C.R.S. Steel

EL150-55301 D1260JJ 2 3/4 1/2 3/4 C.R.S. C.R.S.
EL150-56300 D1260DX 2-1/2 3/4 1/4 5/8 C.R.S. C.R.S.
EL150-56500 — 2-1/2 1 1/2 3/4 C.R.S. S.S.
EL150-57300 D1260DO 2-3/4 3/4 1/4 5/8 C.R.S. C.R.S.
EL150-58901 — 4 1-1/4 1/4 5/8 Bronze Nylon
EL150-58902 — 4 1-1/4 1/4 5/8 Bronze Steel

Style SLO - Side Roller Lever Offset Type

Part Number Reference L A B C Lever Roller

EL090-53324 D1260GZ 1-1/2 3/4 1/4 1 Bronze Steel
EL090-53336 — 1-1/2 3/4 1/4 1-3/8 Bronze Nylon
EL090-53321 D1260CT 1-1/2 3/4 1/4 1-3/8 Bronze Steel
EL090-53322 — 1-1/2 3/4 1/4 1-3/8 Bronze Bryl. Cop.
EL090-53328 D1260GV 1-1/2 3/4 1/4 2 Bronze Steel

EL Series

Ordering Numbers Material

Limit Switches

Ordering Numbers Material

B

Right angle offset lever has side­supported roller mounted on end.

B

A

E

D

Angle type rocker arm has both side­supported rollers mounted on same side.

A

†

C

R

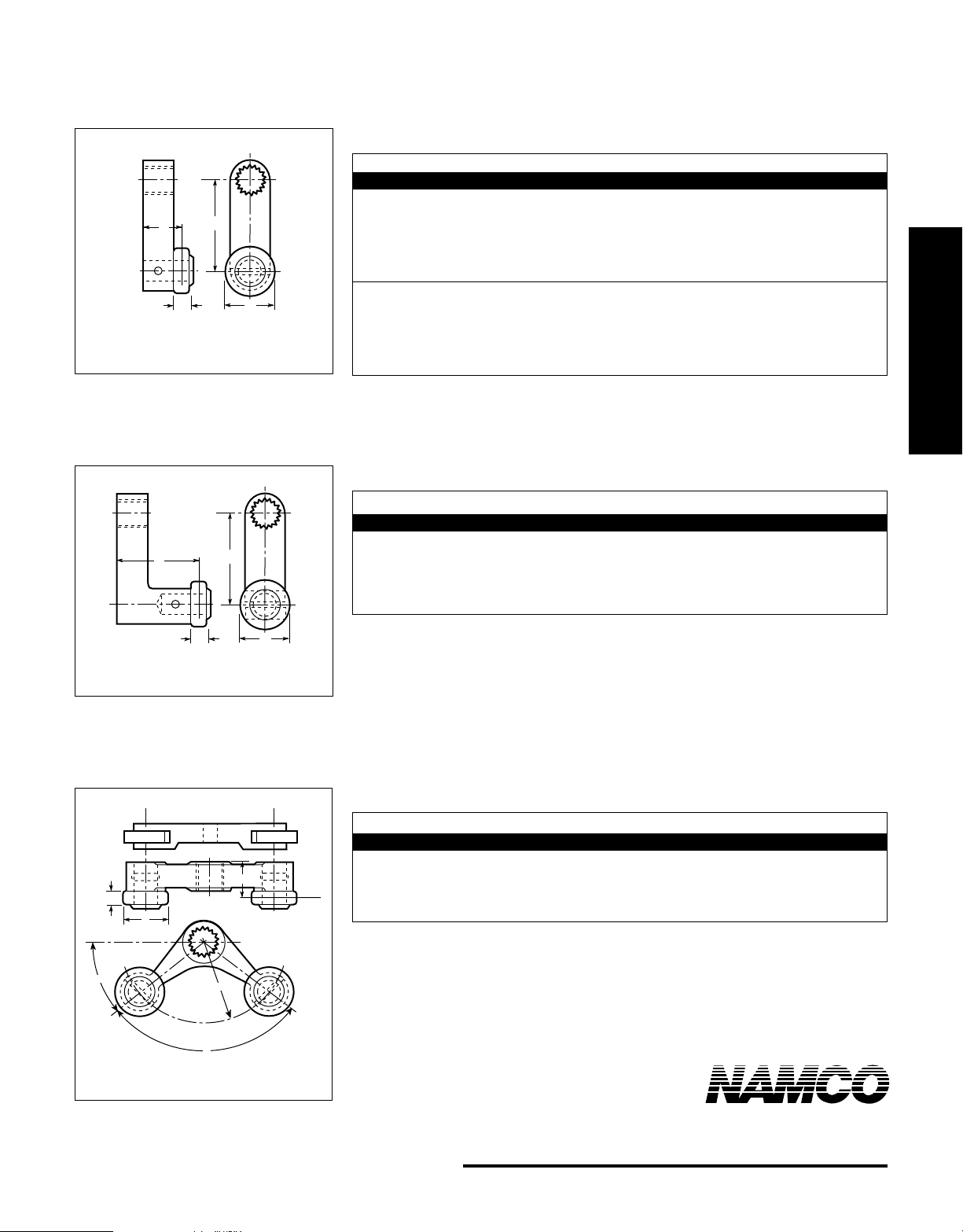

Style TS - Two Roller Same Side

Ordering Numbers Material

Part Number Reference R A B C D E Lever Roller

EL040-50327 D1260CM 1-3/8 3/4 1/4 5/8 107°34’ 36° Bronze Steel
EL040-50328 D1260JQ 1-3/8 3/4 1/2 3/4 107°34’ 36° Bronze Steel

†EL040-58904 D1260JH 3 1-1/2 1/2 3/4 150° 15° Bronze Steel
†EL040-58905 — 3 1-1/2 1/2 3/4 150° 15° Bronze Bryl. Cop.

Namco Controls Corporation

Mayfield Village, OH 44143

[phone] • FAX [phone] • namcocontrols.com

For technical assistance, call 1-800-NAMTECH

297

Miscellaneous

Operating

Butt

Types

Levers

For Series EA040, 060, 080, 130,
140, 170, 700, 710, 730, 760,
770, 780, 790, 800, 880, 990 Only

A

B

Limit Switches

E

Angle type rocker lever has side-supported
rollers mounted on opposite sides

C

R

D

Contacts

Style TSO - Two Roller Opposite Side

Ordering Numbers Material

Part Number Reference R A B C D E Lever Roller

EL030-50301 D1260AA 1-3/8 3/4 1/4 3/4 107°34’ 36°13’ Bronze Steel
EL030-50302 D1260DH 1-3/8 3/4 1/2 1 107°34’ 36°13’ Bronze Steel
EL030-52322 D1260DQ 1-1/2 3/4 3/4 1-1/4 90° 45° Bronze Steel

L

R

A

B

Single-loaded lever with straddle-supported roller.
Used where switch action is required in one
direction only—return movement of actuating
mechanism does not operate the switch.

L

D

R

D

A

E

B

Style KR - Knee Action Straight Type

Ordering Numbers Material

Part Number Reference R A B D L Lever Roller

EL100-55401 D1260JM 1 7/8 1/4 90° 2 Steel Steel
EL100-55402 — 1 7/8 1/4 90 ° 2 Steel Bryl. Cop.
EL100-55403 — 1 7/8 1/4 90 ° 2 Steel S.S.

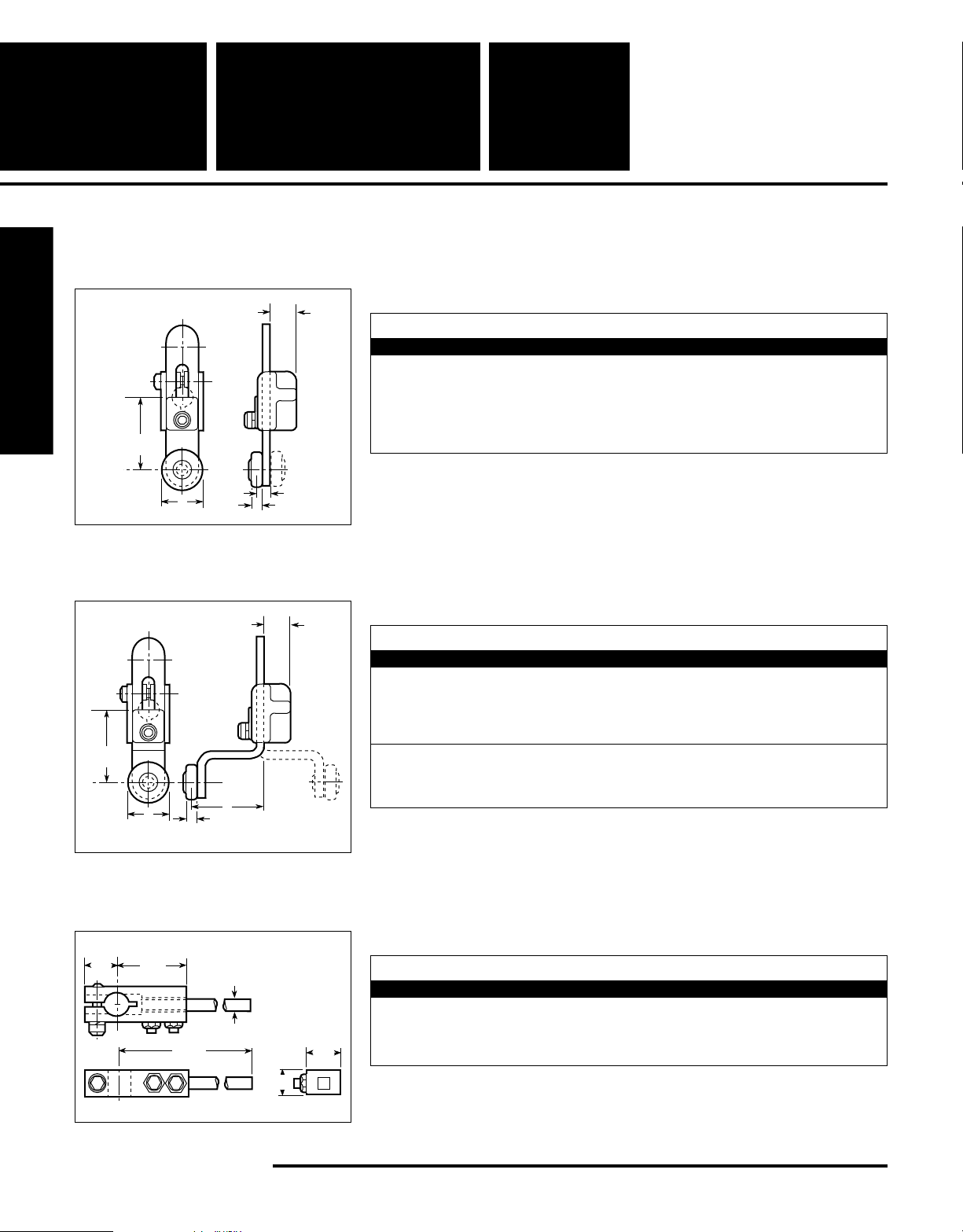

Style KRO - Knee Action Offset Type

Ordering Numbers Material

Part Number Reference R A B D E L Lever Roller

EL110-50401 D1260JV 1-1/8 7/8 1/4 41°30’ 67°30’ 1-7/8 Steel Steel

298

Spring-loaded offset lever with straddle-supported
roller. Used where switch action is required in one
direction only—return movement of actuating
mechanism does not operate switch.

Namco Controls Corporation • Mayfield Village, OH 44143 • [phone] • Fax: [phone]

For Series EA040, 060, 080, 130,
140, 170, 700, 710, 730, 760,
770, 780, 790, 800, 880, 990 Only

A

L

Steel shaft with bakelite knob.

For Series EA700, 710, 730, 760,
770, 780, 790, 800, 880, 990 Only

EL Series

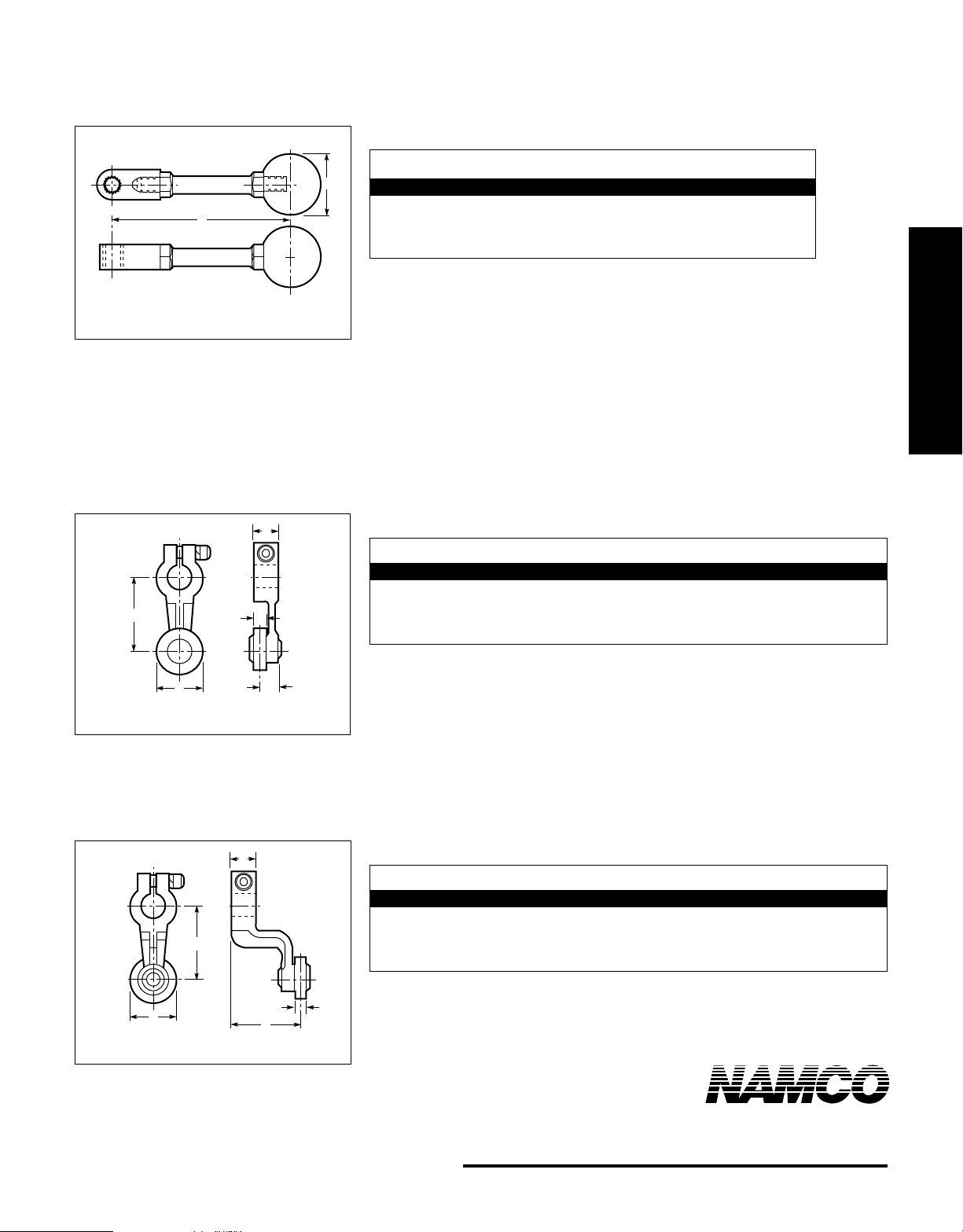

Style M - Manual Type

Ordering Numbers Material

Part Number Reference L A Lever Knob

EL050-58900 D1260EP-3 3 1-3/8 Steel Bakelite
EL050-59901 D1260EP-1 4-1/16 1-3/8 Steel Bakelite
EL050-59900 D1260EP 6-5/16 1-3/8 Steel Bakelite

Limit Switches

B

A

C

Nickel Plate Steel (N.P.S.) Lever Nickel Plated

A

D

E

B

Straight

Ordering Numbers Material

Part Number Reference A B C D E Lever Roller

EL010-62401 SL-160 1-1/2 1/2 7/8 9/32 25/64 Zinc Steel
EL010-63414 SL-160K 1-1/2 1/2 7/8 9/32 25/64 Zinc S.S.
EL010-63415 SL-160N 1-1/2 1/2 7/8 9/32 25/64 Zinc Nylon

Offset

Ordering Numbers Material

Part Number Reference A B C D E Lever Roller

EL020-63412 SL-160C 1-1/2 1/2 7/8 9/32 1-7/16 Zinc Steel
EL020-63414 SL-160L 1-1/2 1/2 7/8 9/32 1-7/16 Zinc Nylon
EL020-63415 SL-160S 1-1/2 1/2 7/8 9/32 1-7/16 Zinc S.S.

C

Lever Nickel Plated

D

E

Namco Controls Corporation

Mayfield Village, OH 44143

[phone] • FAX [phone] • namcocontrols.com

For technical assistance, call 1-800-NAMTECH

299

Miscellaneous

Operating

Butt

Types

Levers

For Series EA700, 710, 730, 760,
770, 780, 790, 800, 880, 990 Only

B

Limit Switches

A

Adjustable

C

E

D

Contacts

Adjustable Straight

Ordering Numbers Material

Part Number Reference A B C D E Lever Roller

EL120-60400 SL-170A 1-3/4-3 21/32 7/8 9/32 11/32 Steel Steel
EL120-60600 SL-170C 1-7/8-3 21/32 2 9/32 11/32 Steel Steel
EL120-69415 SL-170K 1-3/4-3 21/32 7/8 9/32 11/32 Steel Nylon
EL120-69421 SL-170R 3-3/4-5 21/32 7/8 9/32 11/32 Steel Steel
EL120-60601 — 3-3/4-5 21/32 2 9/32 11/32 Steel Steel

A

Adjustable

3/4"

C

1 1/2"

10 1/2"

D

E

1/4" Square

B

Adjustable Offset

Ordering Numbers Material

Part Number Reference A B C D E Lever Roller

EL130-64410 SL-170 1-3/4-3 21/32 7/8 9/32 1-25/32 Steel Steel
EL130-69410 SL-170D 1-3/4-3 21/32 7/8 9/32 1-25/32 Steel Nylon
EL130-69412 SL-170F 1-3/4-3 21/32 7/8 9/32 2-3/8 Steel Steel
EL130-69413 SL-170G 1-3/4-3 21/32 7/8 9/32 3-1/2 Steel Steel

EL130-69414 SL-170J 1-3/4-3 21/32 7/8 9/32 15/16 Steel Steel
*EL130-69411 SL-170E 1-3/4-3 21/32 7/8 9/32 1-9/32 Steel Steel
EL130-20401 — 1-3/4-3 21/32 7/8 17/64 3-1/2 Steel Nylon

*Roller mounted on opposite side

Rod Lever

Ordering Numbers

Part Number Reference Dimensions Material

EL140-69917 SL170M-1 Other rod lengths available to suit requirements Steel Rod

3/4"

300

1/2"

Namco Controls Corporation • Mayfield Village, OH 44143 • [phone] • Fax: [phone]

For Series EA040, 060, 080, 130,
140, 170, 700, 710, 730, 760, 770,
780, 790, 800, 880, 990 Only

A

2"

B

5/8"

3 3/4"

Dia.

1/2"

EL Series

Style VR - Belt Mis-Alignment Lever-Adjustable

“A” “B” “C” Material

Ordering Number (Adjustable) Max. Dia. Lever Roller

C

EL140-58500 4.45/3.82” 8.38” 1.50” Steel Delrin
EL140-58600 4.45/3.82” 8.38” 2.50” Steel Delrin

B

3"

Square Corners Only
EL160-58500

Style YR - Belt Mis-Alignment Lever

“A” “B” “C” Material

A

C

Dia.

Ordering Number Max. Dia. Lever Roller

EL160-58500 2.24” 5.64” 1.25” Steel Nylon
EL160-58600 3.50” 6.90” 2.50” Steel Nylon

Limit Switches

Namco Controls Corporation

Mayfield Village, OH 44143

[phone] • FAX [phone] • namcocontrols.com

For technical assistance, call 1-800-NAMTECH

301
