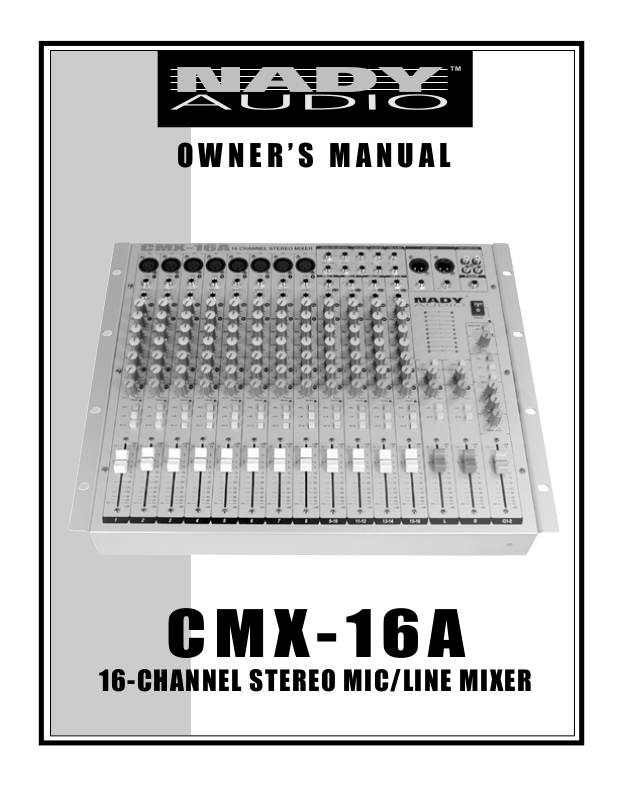

CMX-16A

16-CHANNEL STEREO MIC/LINE MIXER

OWNER’S MANUAL

2

CMX-16A

16-CHANNEL STEREO MIC/LINE MIXER

Congratulations on your choice of mixers — you have pur­chased one of the finest compact mixing consoles on the
market today. This unit was developed using the expertise of
professional sound engineers and working musicians. You
will find that your new NADY AUDIO CMX-16A has superior
performance and greater flexibility than any other mixer in its
price range. Please read this manual carefully to get the
most out of your new unit.

Thanks for selecting NADY AUDIO as your choice in mixing
consoles.

Date of Purchase

Dealer’s Name

City

State

Zip

Model #

Serial #

CONTENTS

WARNING ..........................................................................................................................................................3

FEATURES ...................................................................................................................................................... 4

INSTALLATION.................................................................................................................................................. 5

1. Inspection ...................................................................................................................................................... 5

2. Rackmounting ................................................................................................................................................ 5

3. Power Connection ............................................................................................................ .............................. 5

CONTROLS AND CONNECTIONS .................................................................................................................. 6

1. Mono Input Section ........................................................................................................................................6

2. Stereo Input Section........................................................................................................................................8

3. Master Section ................................................................................................................................................9

a. Aux Sends/Returns Function and Operation .......................................................................................... 9

b. G1-2 Group Functions and Operation .................................................................................................. 10

c. Main Mix Function and Operation ..........................................................................................................10

d. Monitor Function and Operation ............................................................................................................11

e. Power Switches ......................................................................................................................................11

4. Connections ................................................................................................................................................12

SPECIFICATIONS............................................................................................................................................ 13

BLOCK DIAGRAM ..........................................................................................................................................14

WARNING

3

IMPORTANT SAFETY INSTRUCTIONS

When using this electronic device, basic precautions should always be taken, including the following:

1. Read all instructions before using the product.

2. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a
swimming pool, etc.).

3. This product should be used only with a cart or stand that will keep it level and stable and prevent wobbling.

4. This product, in combination with headphones or speakers, may be capable of producing sound levels that
could cause permanent hearing loss. Do not operate for a long period of time at a high volume level or at a
level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an
audiologist.

5. The product should be positioned so that proper ventilation is maintained.

6. The product should be located away from heat sources such as radiators, heat vents, or other devices
(including amplifiers) that produce heat.

7. The product should be connected to a power supply only of the type described in the operating instructions or
as marked on the product. Replace the fuse only with one of the specified type, size, and correct rating.

8. The power supply cord should: (1) be undamaged, (2) never share an outlet or extension cord with other
devices so that the outlet’s or extension cord’s power rating is exceeded, and (3) never be left plugged into
the outlet when not being used for a long period of time.

9. Care should be taken so that objects do not fall into, and liquids are not spilled through, the enclosure’s
openings.

10. The product should be serviced by qualified service personnel if:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen into, or liquid has been spilled onto the product.
C. The product has been exposed to rain.
D. The product does not appear to operate normally or exhibits a marked change in performance.
E. The product has been dropped, or the enclosure damaged.

11. Do not attempt to service the product beyond what is described in the user maintenance instructions. All
other servicing should be referred to qualified service personnel.

ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

An equilateral triangle enclosing a lightening flash/arrowhead symbol is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure which may be of sufficient
magnitude to constitute a risk of electric shock.

An equilateral triangle enclosing an exclamation point is intended to alert
the user to the presence of important operating and service instructions in
the literature enclosed with this unit.

FEATURES

4

Offering up to 20 channels (including aux returns) plus 2 RCA tape inputs, this compact console and rackmountable
mixer delivers top performance, full-functioned flexibility, and ultimate value and is ideal for even the most demand­ing mixing applications.

• Full frequency response, wide dynamic range and ultra low
noise assures natural, transparent sound with maximum
headroom

• 8 mono balanced (XLR and 1/4" TRS) and 8 stereo (1/4"
TRS) inputs (16 total)

• L-R Main Mix and G1-2 Group Submix buses, with L-R,
and G1-2 functions selectable on all channels and sepa­rately assignable to master mixes with separate master
faders

• 2 Aux Sends and 2 stereo Aux Returns with Aux Send and
Aux Return controls

• 8 mono input channel Inserts allow independent connection
of effects devices for each mono channel

• Tape In and Record Out RCAjacks with Tape Input Level
control

• Separate Control Room and Headphone Outputs

• PFL, L-R, and G1-2 mixes separately assignable to

Headphone and Control Room outputs for versatile moni­toring capability

• Input Trim controls on all channel inputs

• Balanced XLR and unbalanced 1/4" TRS Stereo Outputs

• 3-band EQ on all channels

• Tape In and Record Out RCA jacks with Tape inputs

assignable to Master Mix or stereo Control
Room/Headphone outputs

• Switchable +48V phantom power for all mono XLR Mic
inputs

• Pan pots on each mono channel and Balance pots on each
stereo channel

• 60 mm faders on all channels and master L/R and G1-2
bus mix for precise level control

• High quality sealed pots with center detents for all
Pan/Balance and EQ controls

• Peak LEDs on all input channels

• Super accurate 10-stage LED display bargraph meters

switchable to display L/R or G1/G2 mix levels

• High strength steel casing and superior construction with
only highest quality components for longest life and maxi­mum reliability. Rack ears for rackmounting supplied.

• External AC supply (PSU) for optimum signal integrity and
superior transient response

• Dimensions & Weight: 15" x 17.5" x 3.75" (381 x 495 x 95
mm), 14.85 lbs (6.75 Kg)

5

INSTALLATION

To ensure years of enjoyment from your NADY AUDIO CMX-16A mixing console, please read and understand this manual
thoroughly before using the unit.

1. INSPECTION

Your NADY AUDIO CMX-16A was carefully packed at the
factory in packaging designed to protect the units in ship­ment. Before installing and using your unit, carefully
examine the packaging and all contents for any signs of
physical damage that may have occurred in transit.

[Please note: Nady Systems is not responsible for ship­ping damage. If your unit is damaged, do not return to
Nady, but notify your dealer and the shipping company (if
shipped to you) immediately to make a claim. Such claims
must be made by the consignee in a timely manner.]

2. RACK MOUNTING

Enclosed in the shipping box you will find a rackmount kit.
If you want to make your CMX-16A a rack mixer, remove
the screws from the side panels and use them to fix the
rack ears (note that there is a left and a right one).

Parts of the mixer and the power supply unit can become
very warm during use. This is normal during operation.
Care should be taken to ensure that there is enough
space around the unit for cooling. Also, do not place the
CMX-16A on high temperature devices such as power
amplifiers etc. or the unit may overheat in operation.

Although the unit's chassis is shielded against radio fre­quency (RF) and electromagnetic interference (EMI),
extremely high fields of RF and EMI should be avoided.

3. POWER CONNECTION

The CMX-16A is designed to operate with the supplied
external power supply unit (PSU). Please make sure that
the power unit supplied is marked for the correct voltage
in your area (120VAC/60 Hz or 230VAC/50Hz). Power
requirements for electrical equipment differ from area to
area. In new installations and portable sound systems, or
any situation in which the AC power is in question, it is
wise to confirm the voltage and use the appropriate
power supply unit before connecting it to power sources.

Check to see that the PSU is set to the voltage for your
area by referring to the table below:

Europe (except UK): 230V, 50Hz

UK and Australia: 240V, 50Hz

USA and Canada: 120V, 60 Hz

For other areas, please check with local authorities.

Do not connect the PSU to the CMX-16A while the PSU
is connected to the AC mains supply. Connect the
switched-off CMX-16A and PSU first before you connect
the PSU to the mains supply. Lastly switch on the CMX­16A with the power switch on the front panel. Use only
the correct NADY power supply unit to connect the CMX­16A to the Mains AC power.
