Nady Audio P-Cab PCS-10 Technical Data

BLACK

Features, Instructions
& Technical Information

P-Cab™ Powered Speaker

PCS-10

Powered Full Range Speaker

Thank you for choosing Nady’s PCS-10. You have just purchased one of the
finest powered speakers on the market today. The P-Cab Series™ was
developed using the expertise of professional sound engineers and working
musicians, and will find your new NADY AUDIO powered speaker to have
superior performance and greater flexibility than any other powered speaker in
its price range.

We recommend that you read this instruction sheet carefully to get the most
out of your new unit. The PCS-10’s state-of-the-art versatile design and
uprecedented affordability makes it perfect for all small venue applications.

FEATURES

• Full-range, 2-way 360W Peak (180W RMS) powered speaker utilizing
10" woofer and 5.5" x 8" compression horn

• Molded, high-impact, mineral-loaded polypropylene trapezoid speaker
enclosures with built-in carrying handle — durable yet lightweight

• Extremely flexible design — flyable, stackable, pole mountable, or can
be used as a floor monitor when laid on its side with supplied brace
mounts

• Easy-to-use built-in 2-channel mixer with XLR, 1/4", and RCA inputs;
1/4" and XLR Line Out

WARNINGS

When using this speaker, basic precautions should always be taken, including the following:

• Read all instructions before using the product.

• This product may be capable of producing sound levels that could cause
permanent hearing loss. Do not operate for a long period of time at a high
volume level or at a level that is uncomfortable. If you experience any
hearing loss or prolonged ringing in the ears, you should consult an
audiologist.

• To avoid damage to the drivers, never overload the speaker.

• To avoid the risk of fire, do not ever expose the speaker to a source of
naked flames. Also, it should be placed away from heat sources such as
radiators, heat vents, or other devices that produce heat (including
amplifiers).

• The product should be positioned so that proper ventilation is maintained.

• This speaker is designed for indoor use only. Do not expose to rain, high
humidity or other damaging weather conditions.

• Care should be taken so that objects do not fall into, and liquids are not
spilled through, the enclosure’s openings. Do not place containers of liquids
on the speaker.

AND SPECIFICATIONS

• Channel and Master Level controls, Treble and Bass EQ's, and Power
On and amp Clipping LED indicators

• Frequency Response 70 Hz - 20 KHz (-3dB) and high SPL output
capability

• 10" Woofer: 2" diameter, 4 Ohms; Tweeter: 1" diameter voice coil

• Fused IEC power cord jack and a 115VAC(60Hz) / 230VAC(50Hz)
select switch

IMPORTANT SAFETY INSTRUCTIONS

• Do not place any heavy appliance or object (>130lbs/60kg) on the speaker
enclosure.

• This unit is to be installed by qualified personnel only.

• This speaker is only to be used with power amplifiers complying with the
safety requirement of EN or IEC60065.

• This product should be serviced by qualified service personnel if:

• Do not attempt to service this unit. All servicing should be referred to
qualified service personnel.

a. Objects have fallen into, or liquid has been spilled onto the product.
b. The product has been exposed to rain.
c. The product does not seem to operate normally or exhibits

a marked change in performance.

d. The product has been dropped, or the enclosure damaged.

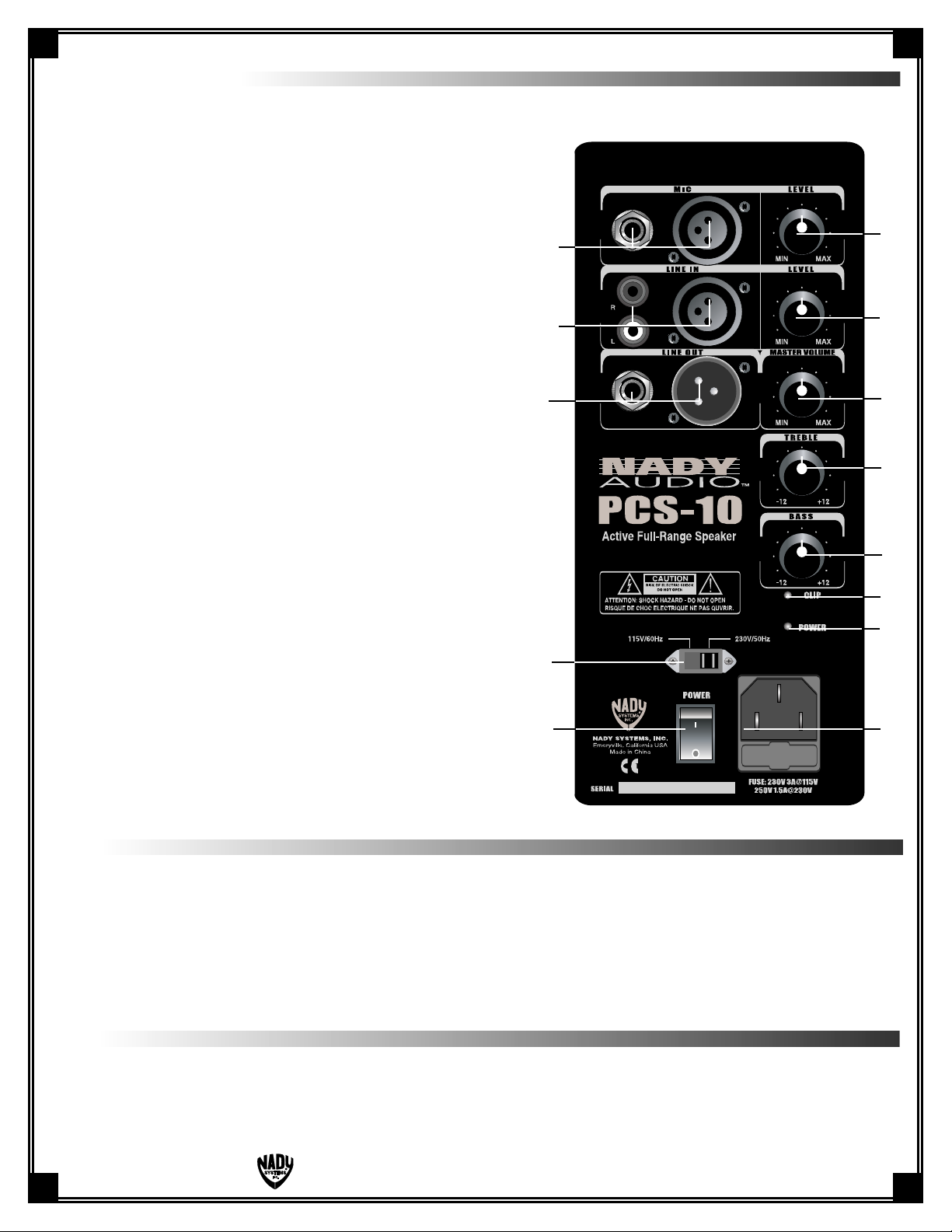

REAR CONTROLS

Pantone 185 Red/Black

Black

(1) POWER ON/OFF SWITCH

(2) AC POWER CORD IEC CONNECTOR w/ internal fuse holder

Connects to the AC power cable. Fuse: 115VAC ~ 3A 250V 20mm glass tube

230VAC ~ 2A 250V 20mm glass tube

(3) AC SELECTOR SWITCH

Before plugging in the power cord, check to see that this switch is set to the proper
voltage for your area: ~115V (60Hz) or ~230V (50Hz).

Note: Units damaged due to powering up with the wrong voltage are not covered
under warranty.

(4) POWER ON LED

(5) CLIPPING LED

This LED turns red when the output signal is clipping. It is acceptable if the red LED
lights occasionally. If the red LED lights more than occasionally, you should turn
down the volume to avoid audible distortion and damage to the speaker.

Note: Speakers damaged due to hard clipping are not covered under warranty.

(6) MIC INPUTS

Balanced XLR and 1/4" TRS inputs for use with a mic level input signal.

(7) MIC LEVEL CONTROL

(8) LINE INPUTS

Balanced XLR and dual RCA inputs for use with line level input signals.

(9) LINE LEVEL CONTROL

(10) LINE OUTPUTS

Balanced XLR and 1/4" TRS outputs. Master Volume/Bass/Treble controls do not
affect these outputs.

(11) MASTER VOLUME CONTROL

This controls the volume sent to the speaker. Adjust as needed.

(12) TREBLE EQ

Adjusts treble frequencies +/-12dB.

(13) BASS EQ

Adjusts bass frequencies +/-12dB.

(10)

(3)

(1)

(6)

(8)

(7)

(9)

(11)

(12)

(13)

(5)

(4)

(2)

SPECIFICATIONS

Power: 360W Peak (180W RMS)
Frequency Response: 70 Hz - 20 KHz (+/-3 dB)
Treble EQ: ±12 dB @ 10 KHz
Bass EQ: ±12 dB @ 100 Hz
LF Driver: 10” woofer, 4 Ohms (2” voice coil)
HF Driver: 5.5” x 8” horn, compression tweeter, 4 Ohms (1” voice coil)

SERVICE

(U.S.) Should your NADY AUDIO product require service, please contact the Nady Service Department by telephone at [phone]
or e-mail at [e-mail].

(International) For service, please contact the NADY AUDIO distributor in your country through the dealer from whom you purchased
this product.

FOR YOUR NADY AUDIO PRODUCT

NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608
Tel: [phone] • Fax: [phone] • www.nady.com

Max SPL: 101dB @1M
Total THD: <2%
Weight: 27.6 lbs (12.6 Kg)
Dimensions (HWD): 19.4” x 14” x 11.4” (49.3 x 35.6 x 29cm)
