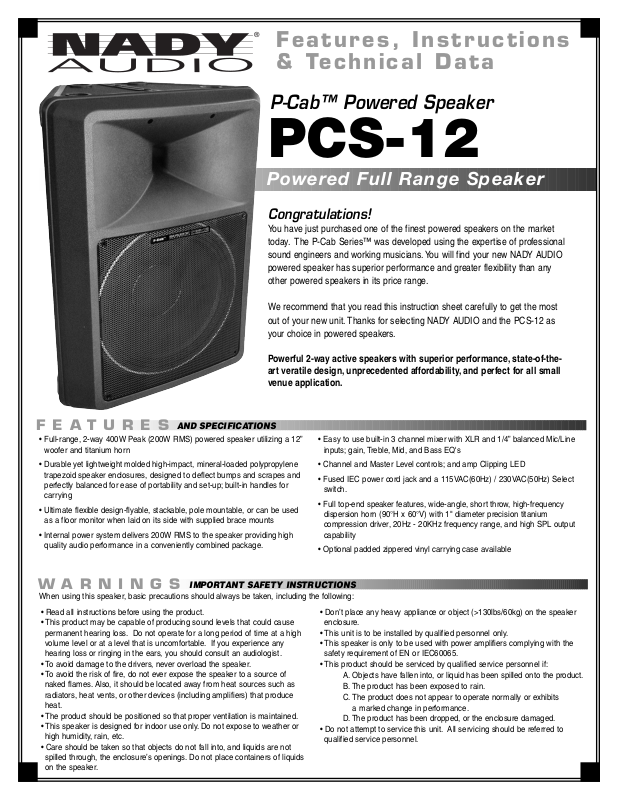

Nady PCS-12 User Guide

BLACK

Features, Instructions
& Technical Data

P-Cab™ Powered Speaker

PCS-12

Powered Full Range Speaker

Congratulations!

You have just purchased one of the finest powered speakers on the market
today. The P-Cab Series™ was developed using the expertise of professional
sound engineers and working musicians. You will find your new NADY AUDIO

wered speaker has superior performance and greater flexibility than any

po
other powered speakers in its price range.

We recommend that you read this instruction sheet carefully to get the most
out of your new unit. Thanks for selecting NADY AUDIO and the PCS-12 as
your choice in powered speakers.

FEATURES

• Full-range, 2-way 400W Peak (200W RMS) powered speaker utilizing a 12”
woofer and titanium horn

• Durable yet lightw
trapezoid speaker enclosures, designed to deflect bumps and scrapes and
perfectly balanced for ease of portability and set-up; built-in handles for
carrying

• Ultimate flexible design-flyable, stackable, pole mountable, or can be used
as a floor monitor when laid on its side with supplied br

• Internal power system delivers 200W RMS to the speaker providing high
quality audio performance in a conveniently combined package.

eight molded high-impact, mineral-loaded polypropylene

W ARNINGS

When using this speaker, basic precautions should always be taken, including the following:

uctions bef

• Read all instr

• This product may be capable of producing sound levels that could cause
permanent hearing loss. Do not operate for a long period of time at a high
volume level or at a level that is uncomfortable. If you experience any
hearing loss or ringing in the ears, you should consult an audiologist.

• To avoid damage to the drivers, never overload the speaker.

• To avoid the risk of fire, do not ever expose the speaker to a source of
naked flames. Also, it should be located away from heat sources such as
radiators, heat vents, or other de
heat.

• The product should be positioned so that proper ventilation is maintained.

• This speaker is designed for indoor use only. Do not expose to weather or
high humidity, rain, etc.

• Care should be taken so that objects do not fall into, and liquids are not
spilled through, the enclosure’s openings. Do not place containers of liquids
on the speaker.

AND SPECIFICATIONS

ace mounts

ANT SAFETY INSTRUCTIONS

T

IMPOR

ore using the product.

vices (including amplifiers) that produce

Powerful 2-way active speakers with superior performance, state-of-the­art veratile design, unprecedented affordability, and perfect for all small
venue application.

• Easy to use built-in 3 channel mixer with XLR and 1/4” balanced Mic/Line
inputs; gain, Treble, Mid, and Bass EQ's

• Channel and Master Level controls; and amp Clipping LED

• Fused IEC power cord jack and a 115VAC(60Hz) / 230VAC(50Hz) Select
switch.

• Full top-end speaker features, wide-angle, short throw, high-frequency
dispersion horn (90°H x 60°V) with 1" diameter precision titanium

er, 20Hz - 20KHz frequency range, and high SPL output

compression dr
capability

• Optional padded zippered vinyl carrying case available

• Don’t place an
enclosure.

• This unit is to be installed by qualified personnel only.

• This speaker is only to be used with power amplifiers complying with the
safety requirement of EN or IEC60065.
This product should be ser

•

A. Objects have fallen into, or liquid has been spilled onto the product.
B. The product has been exposed to rain.
C

D. The product has been dropped, or the enclosure damaged.

• Do not attempt to service this unit. All servicing should be referred to
qualified service personnel.

iv

vy appliance or object (>130lbs/60kg) on the speak

y hea

viced by qualified service personnel if:

. The product does not appear to operate normally or exhibits

mance.

ed change in perf

k

a mar

or

er

SPECIFICATIONS

(1) POWER ON/OFF SWITCH

(2) AC POWER CORD IEC CONNECTOR w/ internal fuse holder

Connects to the AC power cable. Fuse: 115VAC ~ 5A 250V 20mm glass tube

230VAC ~ 3A 250V 20mm glass tube

(3) AC SELECTOR SWITCH

Before plugging in the power cord, check to see that this switch is set to the proper voltage for
your area: ~115V (60Hz) or ~230V (50Hz).

Note: Units damaged due to powering up with the wrong voltage are not covered under warranty.

(4) POWER ON LED

(5) CLIPPING LED

This LED turns red when the output signal is clipping. It is acceptable if the red LED lights
occasionally. If the red LED lights more than occasionally, you should turn down the volume to
avoid audible distortion and damage to the speaker.

Note: Speakers damaged due to hard clipping are not covered under warranty.

(6) MIC INPUTS

Balanced XLR and 1/4" TRS inputs for use with a mic level input signal.

(7) MIC LEVEL CONTROL

(8) LINE 1 INPUTS

Balanced XLR and 1/4" TRS inputs for use with a line level input signal.

(9) LINE 1 LEVEL CONTROL

(10) LINE 2 INPUTS

Balanced XLR and dual RCA inputs for use with line level input signals.

(11) LINE 2 LEVEL CONTROL

(12) LINE OUTPUTS

Balanced XLR and 1/4" TRS outputs. Master Volume/Bass/Treble controls do not effect these
outputs.

(13) MASTER VOLUME CONTROL

This controls the volume sent to the speaker. Make sure to turn this

(14) TREBLE EQ

Adjusts treble frequencies +/-12dB.

(15) BASS EQ

Adjusts bass frequencies +/-12dB.

TECHNICAL DATA

(6)

(10)

(12)

8)

(

SPECIFICATIONS

Frequency Range: <20 Hz - 20 kHz (0dB/-10 dB)
Frequency Response: 20 Hz - 12 kHz (±3 dB)

12 dB @ 6 kHz

±

le EQ:

reb

T

12 dB @ 55 Hz

Bass EQ:
LF Driver: 15" (380 mm) driver
HF Dr
Amplifier P
Speaker Power Handling: 600W Peak (300 W RMS)
Max SPL:
Sensitivity (1W/1M):
Total THD: <5%
W
Dimensions (WDH):

±

Titanium compression driver 1” voice coil

:

er

iv

eak (200

400W P

:

er

w

o

102dB @1M

96dB

50.1 lbs (22.7 Kg)

eight:

x 26.6”

17.3”

W RMS) @8 ohms

(43.9 cm x 67.6 cm x 34.5 cm)

x 13.6”

(7)

(9)

(11)

(13)

(14)

(15)

(5)
(4)

(1)

(2)

(3)

YOUR NADY AUDIO PRODUCT

SERVICE

FOR

(U.S.) Should your NADY AUDIO product require service, please contact the Nady Service Department via telephone at (510) 652­2411 or e-mail at [e-mail].

(International) For service, please contact the NADY AUDIO distributor in your country through the dealer from whom you purchased
this product.

Y SYSTEMS, INC.

NAD

Tel: [phone] • Fax: [phone] • www.nady.com

• 6701 SHELLMOUND STREET

, EMERYVILLE, CA 94608
