NaceCare Solutions WVD902 User Manual

Owner Instructions

Warning! Read instructions before using the machine

www.numatic.com

Original Instructions

Operating Instructions WV 570 WVD 570 WV 750 WV 750T WVD 750 WVD 750T WV 900 WVD 900 WVD 1800-DH WVD 1800-PH WVD 1800-AP

WVD

1800DH

Contents / Kits - BS7 - BS8

WVD 1800DH WVD 1800PH WVD 1800AP

BS7BS8

WV 570 WV 900

WVD 570 WVD 900

X 4

Handle Assembly 900

WV 900 / WVD 900

1 2

3 4

WVD 1800PH WVD 1800AP

Wet - Assembling the machine

Vac

WVD 1800DH

WVD 1800PH WVD 1800AP

Vac

WD 570

WVD 570

WV 900

WVD 900

WV 570 / WVD 570

WV 570 / WVD 570 WV 900 / WVD 900

Wet - Emptying the machine

WV 900 / WVD 900

WV 750T / WVD 750T

WVD 1800DH

WVD 1800 PH

Wet - Emptying the machine

WVD 1800PH

Pump

4 5

Vac

WVD 1800AP

WVD 1800DH / WVD 1800PH / WVD 1800AP

Pump

Wet - Emptying the machine

WVD 1800 AP

Cleaning the lter

WV 570

WVD 570

WV 900

WVD 900

WV 570 / WVD 570

NVM - 3BH

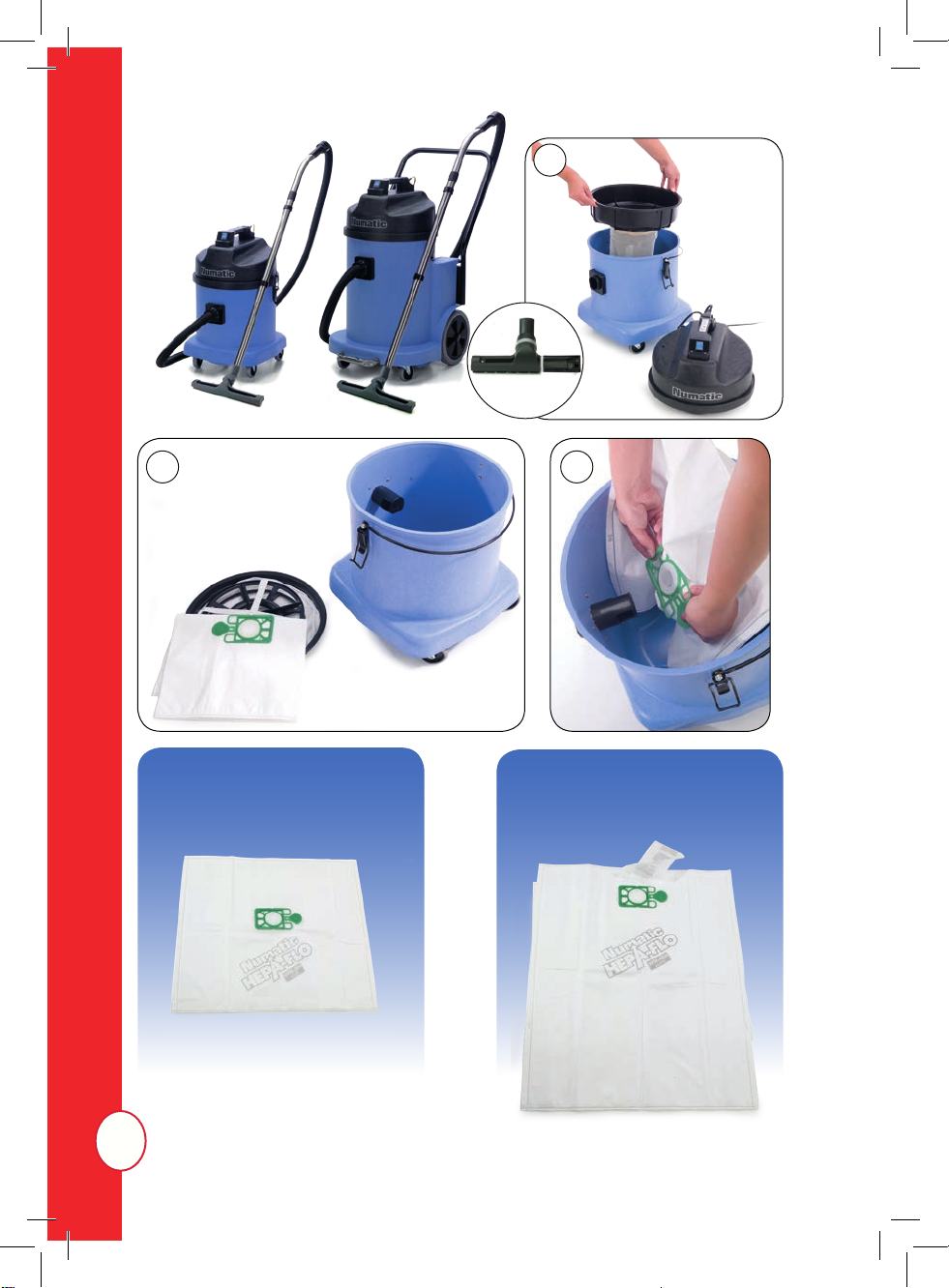

Dry use - Fitting the bag and lter

WV 900 / WVD 900

NVM - 4BH

1 2

3 4

5 6

Changing the Cable

7 8

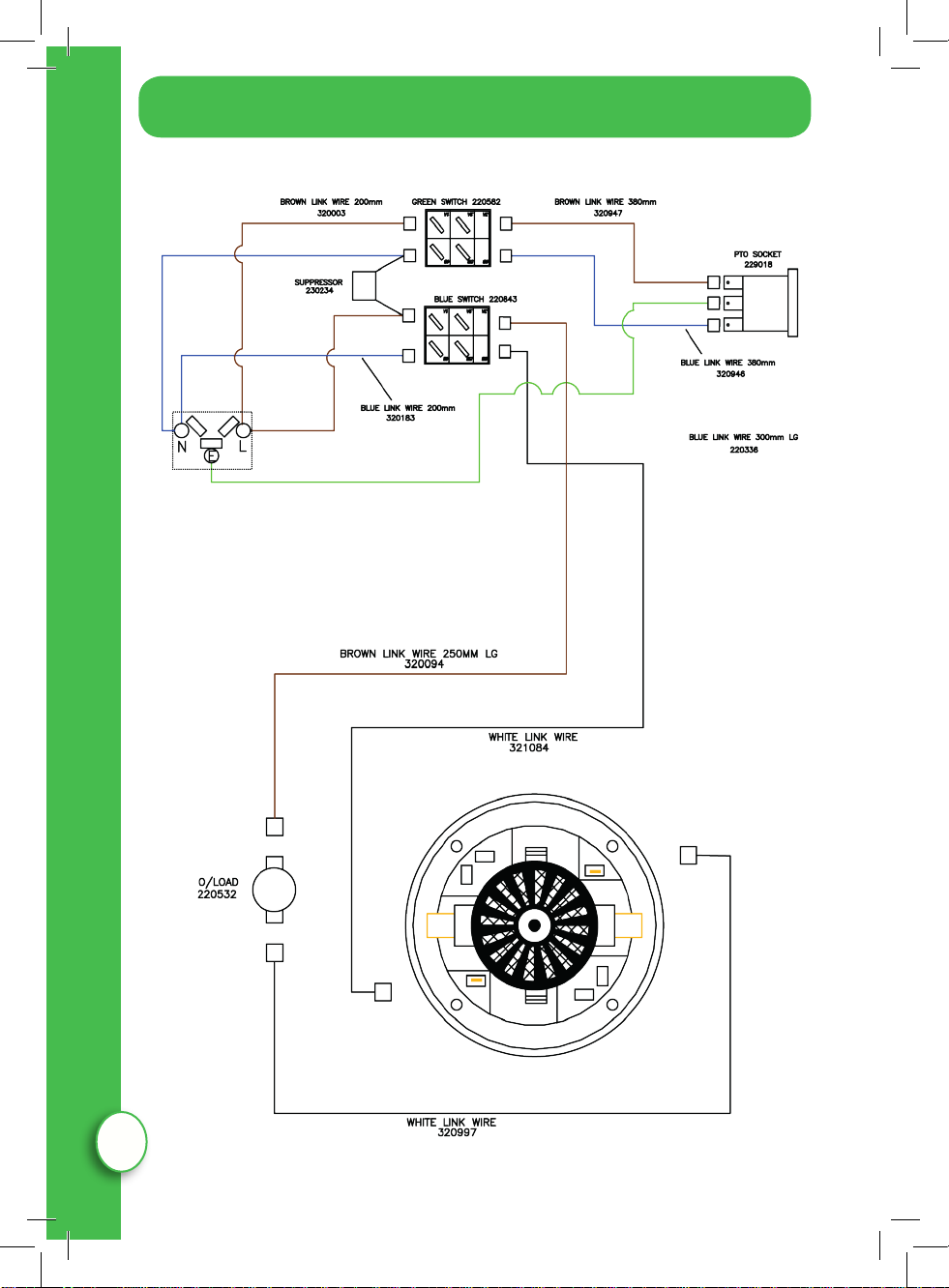

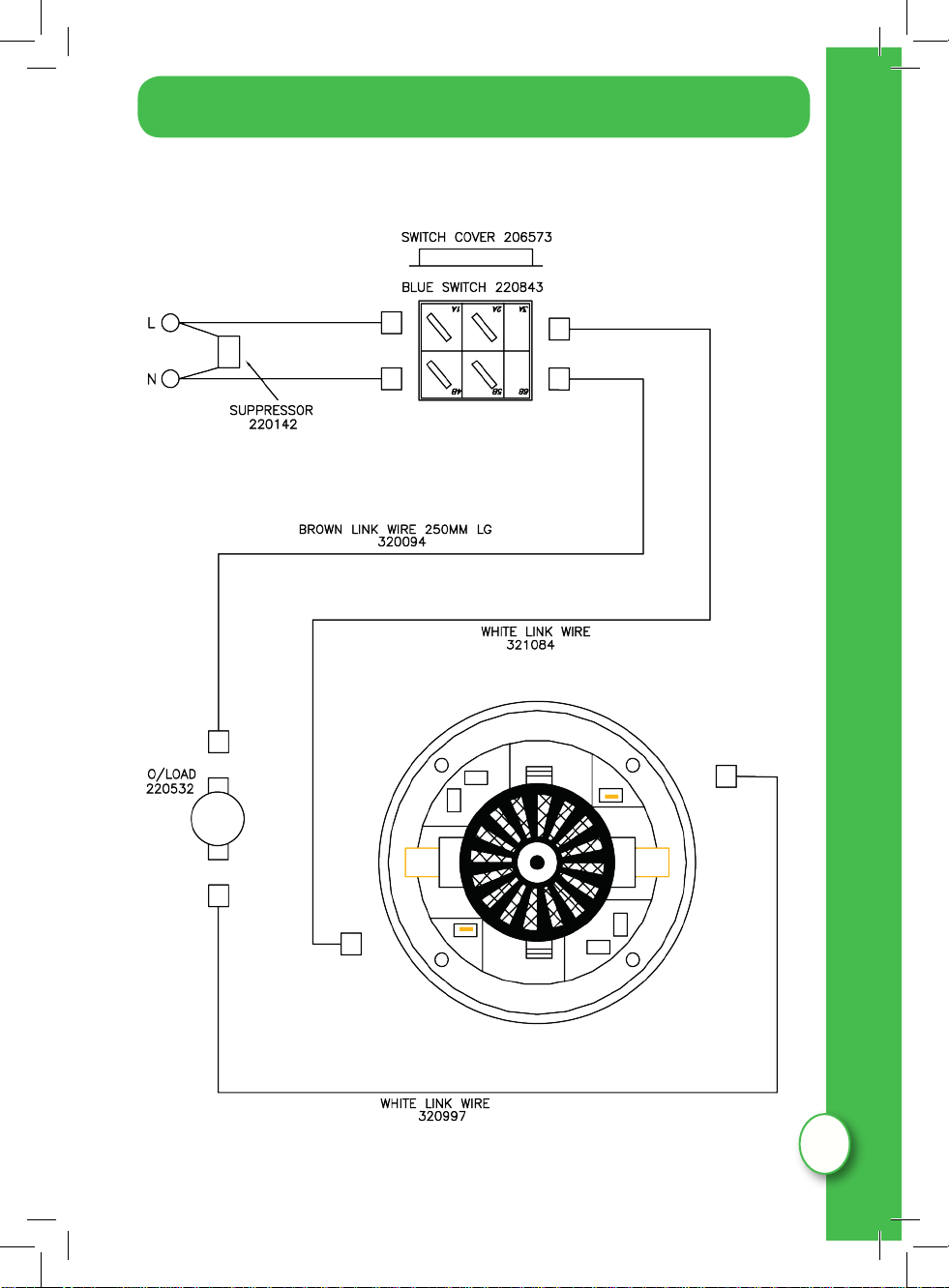

Data

WV / WVD 570

Data

WV570

WVD 570

WV 570

WVD 570

WV750

WVD 750

WVD 750 T

WV750

WVD 750

WVD 750 T

WV900

WVD 900

WV 900

WVD 900

Motor AirFlo Suction Cleaning

1200W 2400W

Capacity

Dry

23 Ltrs 23 Ltrs

38 L/sec 76 L/sec

Capacity

Wet

15 Ltrs 15 Ltrs

2400 mm w.g. 2400 mm w.g.

Size Weight Sound Pressure

415x415x645 13.6 Kgs

Range

26.8m

15.8 Kgs

WV / WVD 750 (T)

Motor AirFlo Suction Cleaning

1200W 2400W 1200W

Capacity

Dry

35 Ltrs 35 Ltrs 35 Ltrs

38 L/sec 76 L/sec 38 L/sec

Capacity

Wet

25 Ltrs 25 Ltrs 25 Ltrs

2400 mm w.g. 2400 mm w.g.

2400 mm w.g

Size Weight Sound Pressure

680x550x940 21.4 Kgs 77.5-76.9 dB

Range

26.8m

WV / WVD 900

Motor AirFlo Suction Cleaning

1200W 2400W

Capacity

Dry

40 Ltrs 40 Ltrs

38 L/sec 76 L/sec

Capacity

Wet

32 Ltrs 32 Ltrs

2400 mm w.g. 2400 mm w.g.

Size Weight Sound Pressure

800x490x880 22.5 Kgs

Range

26.8m

25.0 Kgs

Class

73.6-79 dB

(IEC 60704-2-1)

Uncertainty: 0.2 dB (A)

Class

II II II

(IEC 60704-2-1)

Uncertainty: 0.2 dB (A)

Class

II II

73.6-79 dB

(IEC 60704-2-1)

Uncertainty: 0.2 dB (A)

WV 1800DH

WVD 1800DH

WV 1800PH

WVD 1800PH

WV 1800AP

WVD 1800AP

WV / WVD 1800DH WV / WVD 1800PH

WV / WVD 1800AP

WV / WVD 1800 DH / PH / AP

Motor AirFlo Suction Cleaning

1200W 2400W 1200W 2400W 1200W 2400W

PH / AP

Pump Motor

----

50W

500W

38 L/sec 76 L/sec 38 L/sec 76 L/sec 38 L/sec 76 L/sec

Capacity

Wet

70 Ltrs 70 Ltrs 70 Ltrs

2400 mm w.g. 2400 mm w.g. 2400 mm w.g. 2400 mm w.g. 2400 mm w.g. 2400 mm w.g.

Size Weight Sound Pressure

684x785x935 31.2 Kgs

32.2 Kgs

35.0 Kgs

Range

26.8m

Class

II II

I I I I

73-77 dB

(IEC 60704-2-1)

Uncertainty: 0.2 dB (A)

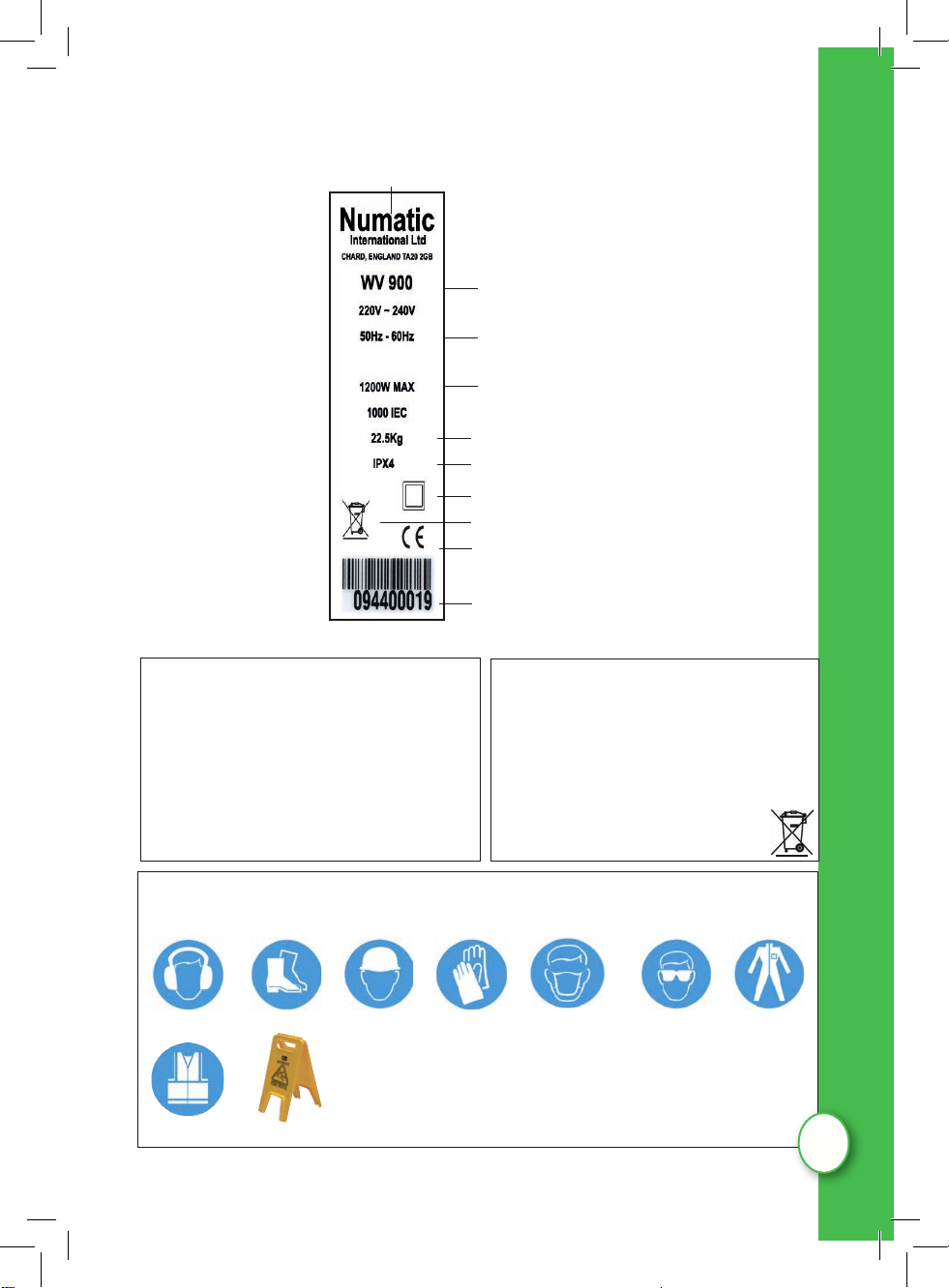

About the machine

Company name and address

Machine Description

Voltage / Frequency

Power Rating

Weight (Ready to use)

Splash Proof Rating Class 2 Symbol

WEEE Logo CE Mark

Yr / Wk / Serial Number

Safety Critical Components Mains lead

HO5VV-F x 10m x 2 x 1.00mm

Filter Bag NVM-3 BH >pp< construction 99.6%@0.3µm NVM-4 BH >pp< construction 99.6%@0.3µm

Filter

Permatex NVM 604116 >pp< construction 96.0%@0.3µm

PPE

Personal protective equipment that may be required for certain operations.

HO5VV-F x 10m x 3 x 1.50mm

(Waste, Electrical and Electronic Equipment)

Vacuum cleaner , accessories and packaging should

be sorted for environmental-friendly recycling.

Only for EU countries: Do not dispose of Vacuum cleaner into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

Rating Label - WEEE - PPE - Safety Critical Components

WEEE Legislation

Ear Protection Safety Footwear Head Protection Safety Gloves Dust / Allergens Protection Eye Protection Protective Clothing

NOTE:

A risk assessment should be conducted to determine which PPE should be worn.

Hi Viz Jacket

Caution Floorsign

Information for Wet & Dry Use Vacuum Cleaners

WARNING

Read the instruction manual before using the machine. Operators shall be adequately instructed on the use of these machines. As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation. Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect. The machine shall be disconnected from the mains by removing the plug from the supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function. The machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction. Children being supervised are NOT to play with the machine. This appliance is intended to be assembled, cleaned and maintained by an adult. This machine is not a toy.

Only use the socket outlet on the machine for purposes specied in the instructions.

CAUTION!

If foam/liquid comes out of machine exhaust, switch off immediately. Allow the accumulated liquid to drain out

through the machine exhaust, check the oat assembly to ensure correct operation, empty the container if full

of liquid, reassemble the machine. Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will be quickly discharged after which the machine should function normally. Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content. This machine is not suitable for the collection of biological hazards, hazardous or explosive dust. You should contact your local distributor if you require a machine capable of performing these tasks.

Ensure that the ltration system tted to the machine is suitable for the material being collected.

This machine is for indoor use only. This machine shall be stored indoors only This product complies with the requirements IEC 60335 -2.69. When moving from one place to another, consider the weight of the machine. NOTE: This machine is also suitable for commercial use, for example in hotels, schools, hospitals, factories,

shops and ofces for other than normal housekeeping purposes.

• Use a bag and lter at all times when using ‘dry’.

• Keep your machine clean.

• Keep lters clean.

• Regularly clean the water level limiting oat safety valve and examine

for signs of damage or correct operation.

• Keep hoses and tubes clear.

• Replace any worn or damaged parts immediately.

Information for wet and dry machines

• Regularly examine the power cord, if damage is found, power cord must be replaced by a qualied person using the correct Numatic original part.

• Empty dust container frequently.

• Keep diffuser lter (where tted) clean.

DON’T

• Use steam cleaners or pressure washers to clean the machine

or use the machine in the rain.

• Immerse in water for cleaning.

• Allow any inexperienced repairs. Call the experts.

• Use wet if oat valve is not functioning or tted.

• Use to suck up hot ashes, or lighted cigarette ends.

• Suck up liquid before emptying dirt from container.

• Suck up dirt before emptying liquid from container.

• Run the machine over the power cable during operation as a hazard may occur.

• Pull on the cable to unplug the machine from the power supply.

• Walk over-wet carpets, upholstery or fabrics.

• Walk on clean carpets until fully dry.

• Spray onto people or animals.

• Attempt machine maintenance or cleaning unless the power supply plug

has been removed from the supply outlet.

This machine can be used for wet and dry pick up.

EU DECLARATION

CONFORMITY

We hereby declare under our sole responsibility that the

following equipment ful ls all the relevant provisions of the

following EU Directives:

Machine Description: Vacuum Cleaner Type: CVC, WV, WX series

Relevant standards upon which conformity is declared include:

IEC60335-1:1991+A1+A2 IEC60335-2-2:1993+A1+A2 IEC60335-2-69:1997+A1

EN 55014-1 2001 +A1 2001, +A2 2002 EN 55014-2 1997 + A1 2001 (Cat II) EN 50366 2003 + A1 2006

A technical construction  le for this equipment is retained at the manufacturer’s address under the authorisation of the

following signatory:

Signed:

Date: 01 /01/2013

Numatic International Limited, Chard , Somerset. TA20 2GB www.numatic.co.uk

Position: Technical ManagerName:Allyn Boyes

Manufactured by: Numatic International Limited

Machinery Directive 2006/42/EC EMC Directive 2004/108/EC RoHS Directive 2011/65/EU

Dry Mode maintenance / fault nding

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.

If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug from the wall,

inspect the oor tool, wands and hose for blockages, if no blockages are found, the dust bag may be full if the dust bag is not full the lter may be blocked.

Wet mode / fault nding

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.

If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the wall,

has the oat valve operated, this will shut off the suction and the pitch of the vacuum motor will change Remove the power head and empty the liquid out of the container, if the container is empty, check that the oor tool

wands and hose are not blocked. After use always inspect the machine for damage.

Fault Finding - Dry - Wet - Declaration Document
