Nac HotShot User Manual

HOTSHOT

Version 1.0

User Manual

NAC Image Technology Inc

Pixoft Diagnostic Imaging Ltd

Feb 2005

Contents

Introduction....................................................................................................................3

Installation......................................................................................................................3

Software Installation ..................................................................................................3

Microsoft™ DirectX..............................................................................................3

HotShot Link Software Installation .......................................................................7

Hardware Installation...............................................................................................10

HotShot PCI controller configuration..................................................................13

Connections..............................................................................................................17

The software.................................................................................................................18

The Main Window ...................................................................................................18

Connecting a Camera...........................................................................................19

Recovering Data from the Buffer ........................................................................21

Making a Recording............................................................................................. 21

Record Controls ...................................................................................................22

The Trigger ..........................................................................................................22

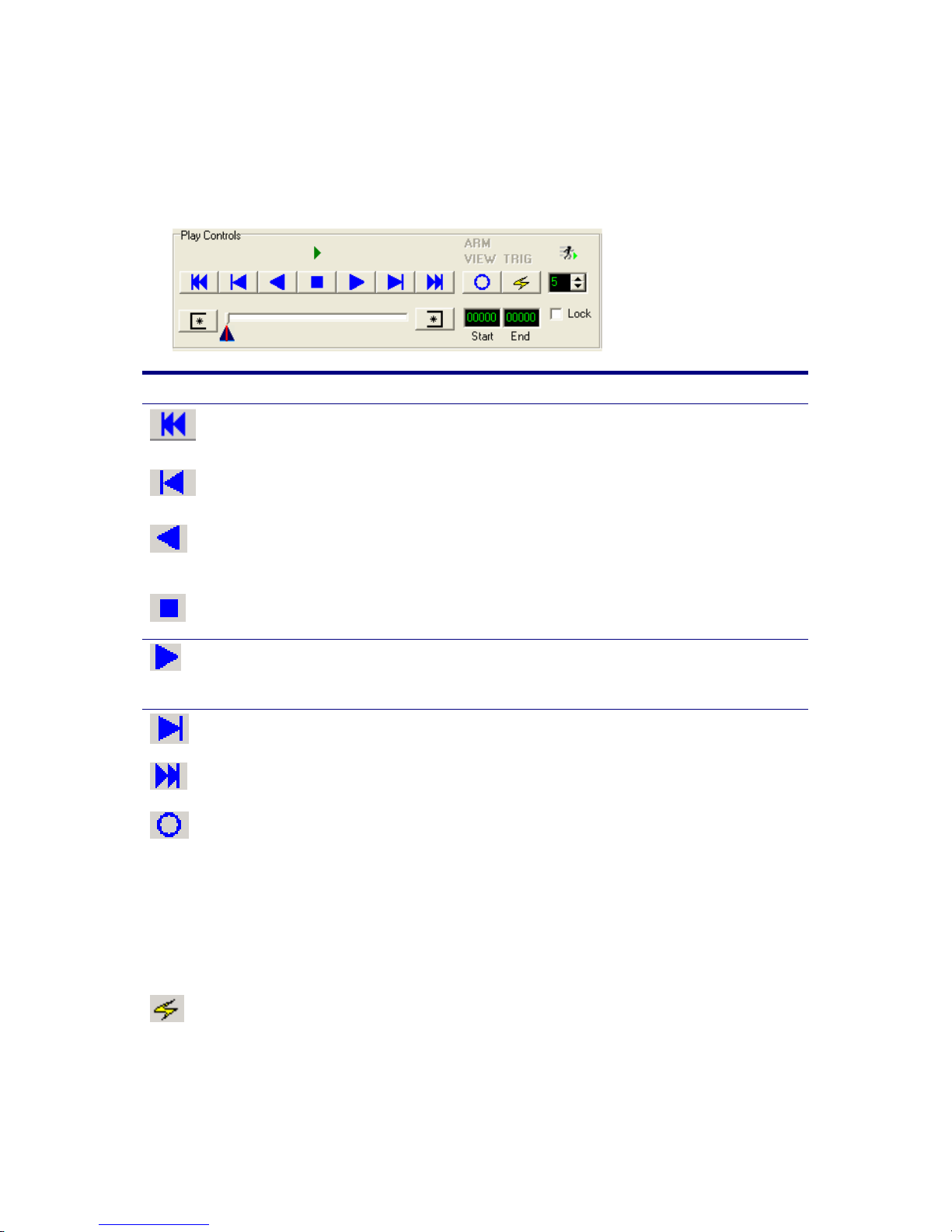

Play Controls........................................................................................................ 23

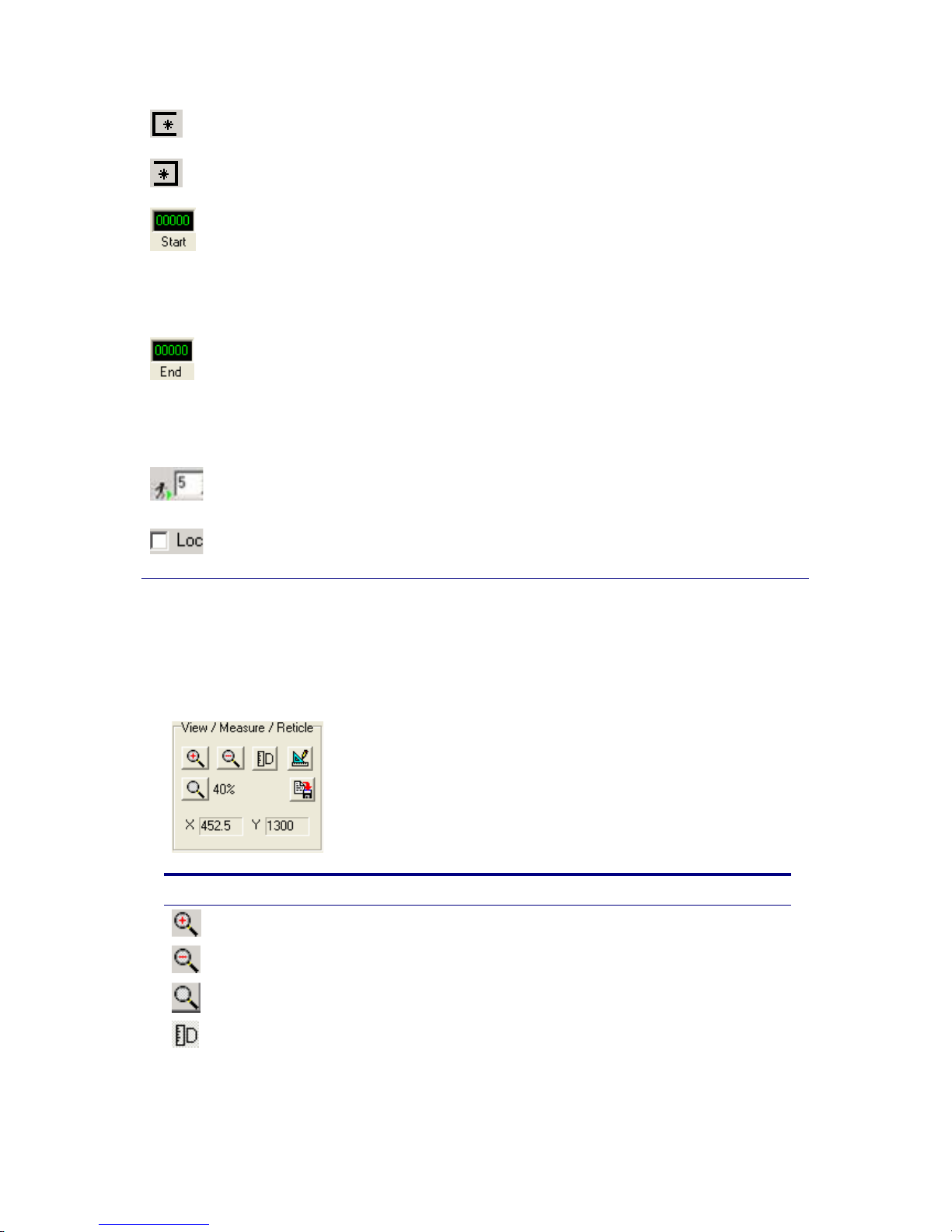

View / Measure / Reticle Functions.....................................................................24

Image Quality Settings......................................................................................... 25

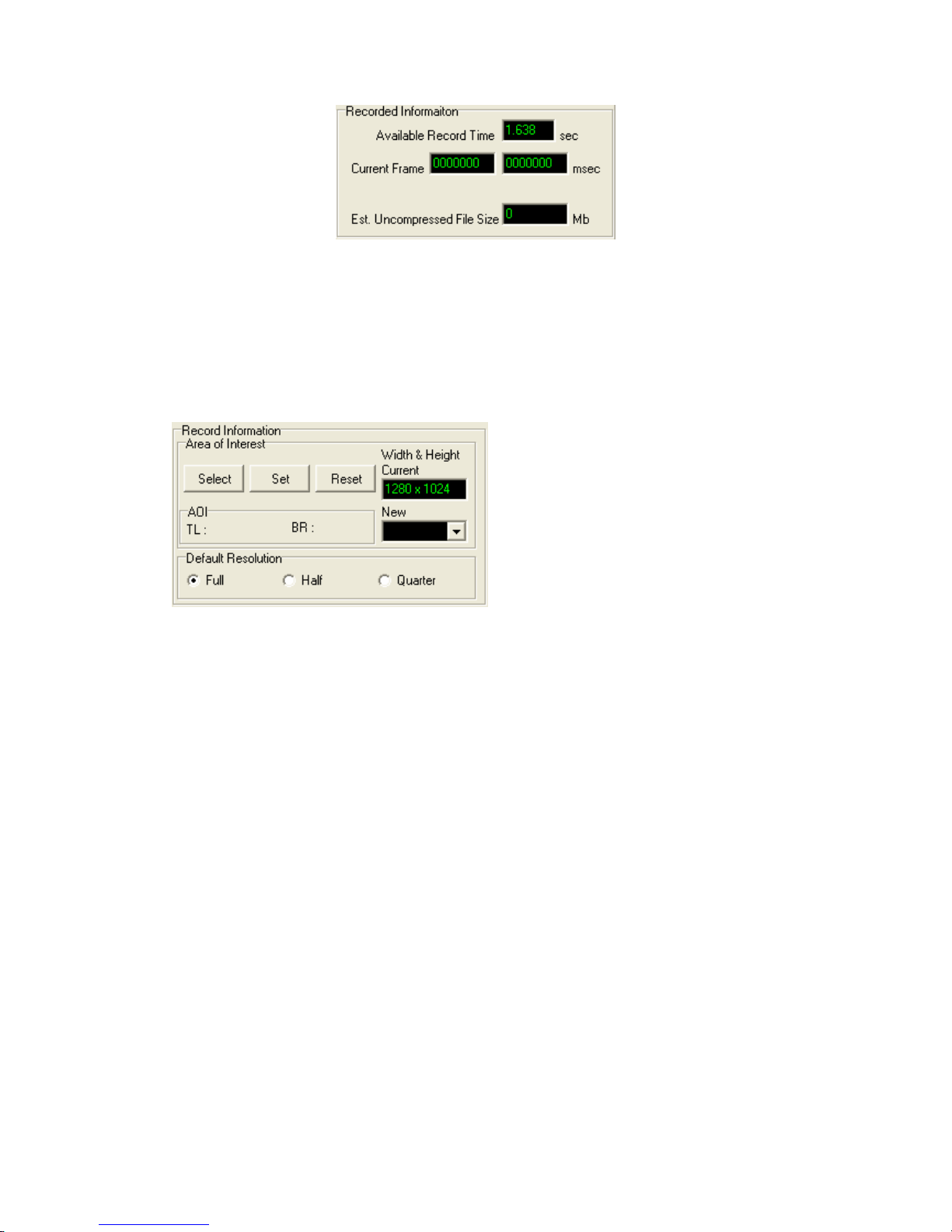

Recorded Information ..........................................................................................25

Record Information.............................................................................................. 26

Saving Out ...........................................................................................................27

Tools ........................................................................................................................30

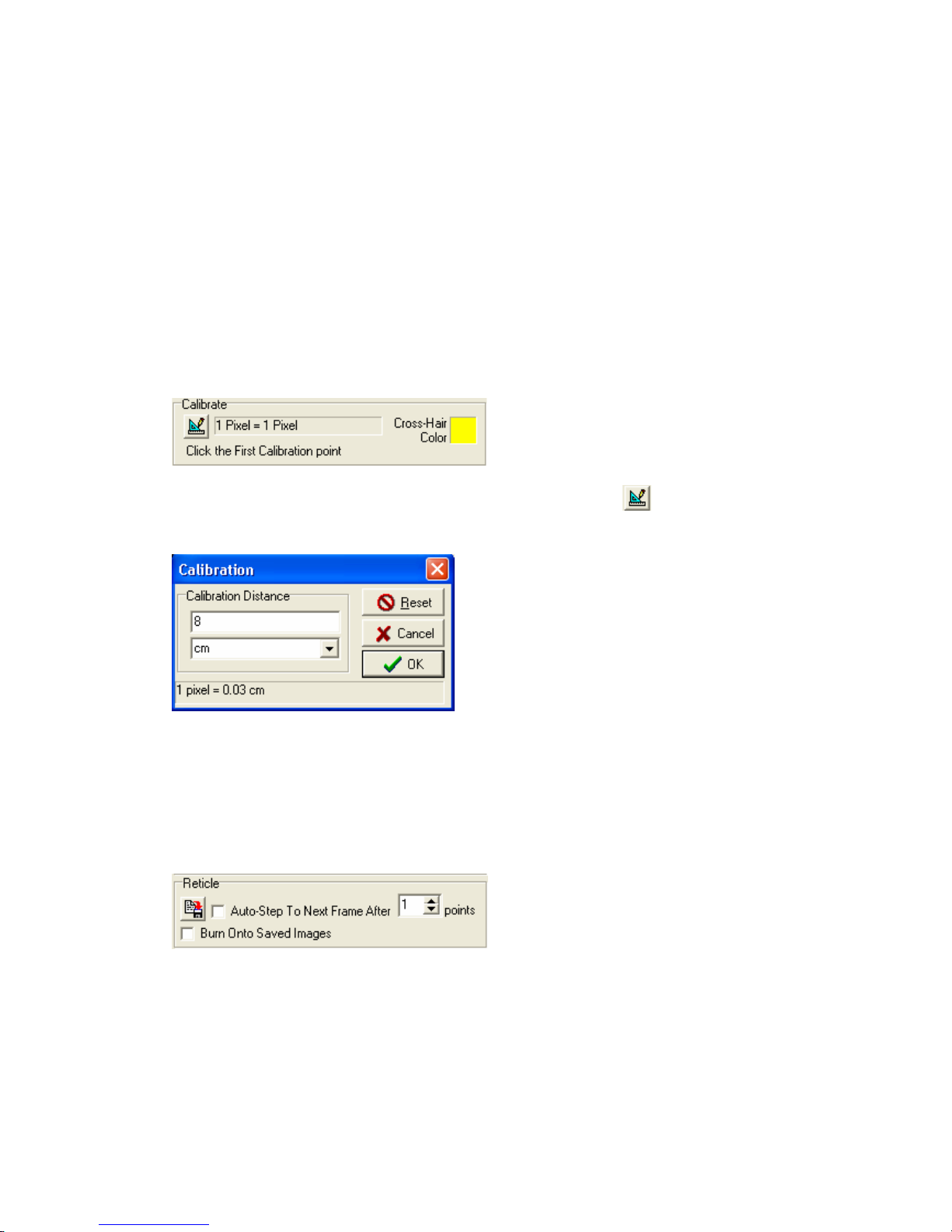

Calibration............................................................................................................30

Reticle ..................................................................................................................30

Grid ......................................................................................................................31

Pixel Analysis ..........................................................................................................32

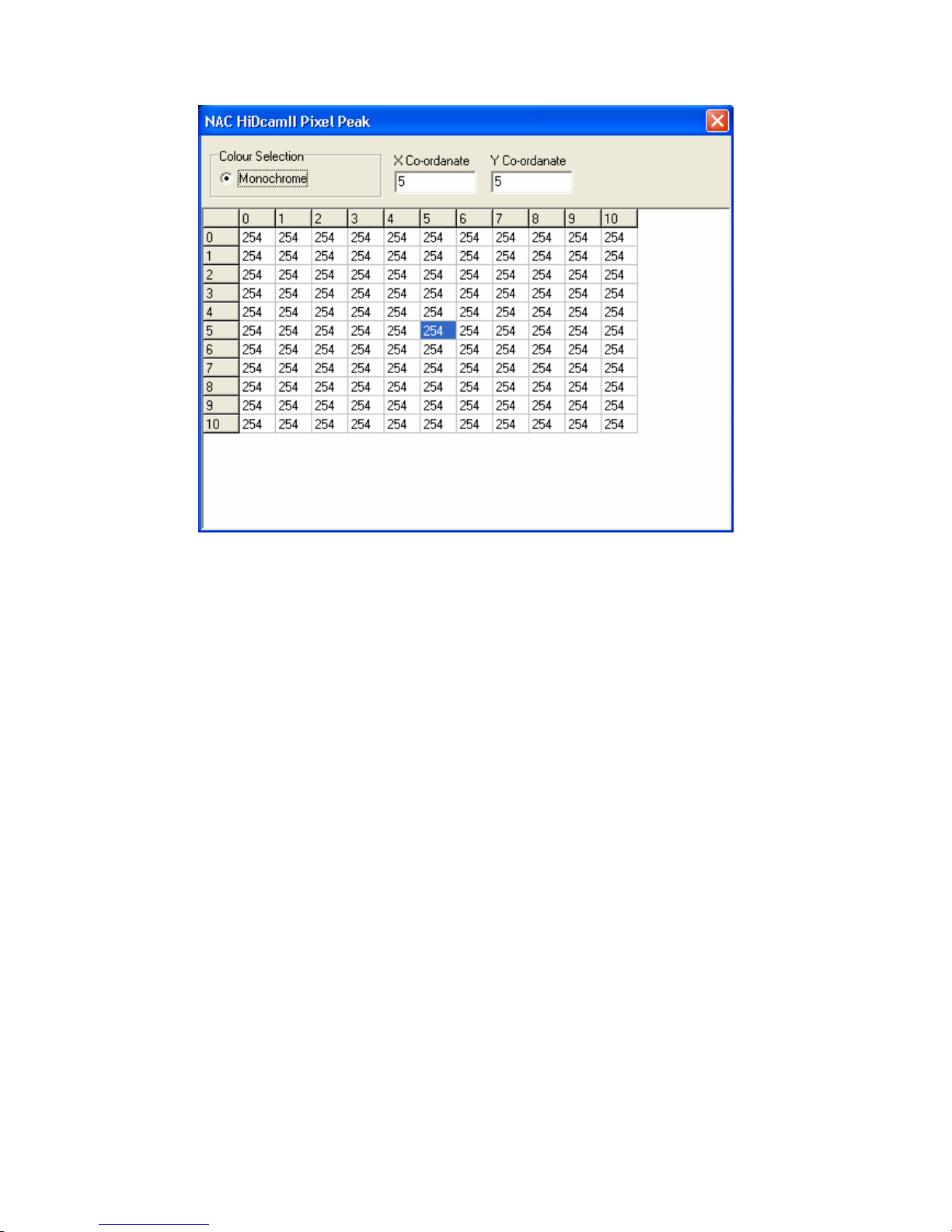

Pixel Peak.............................................................................................................32

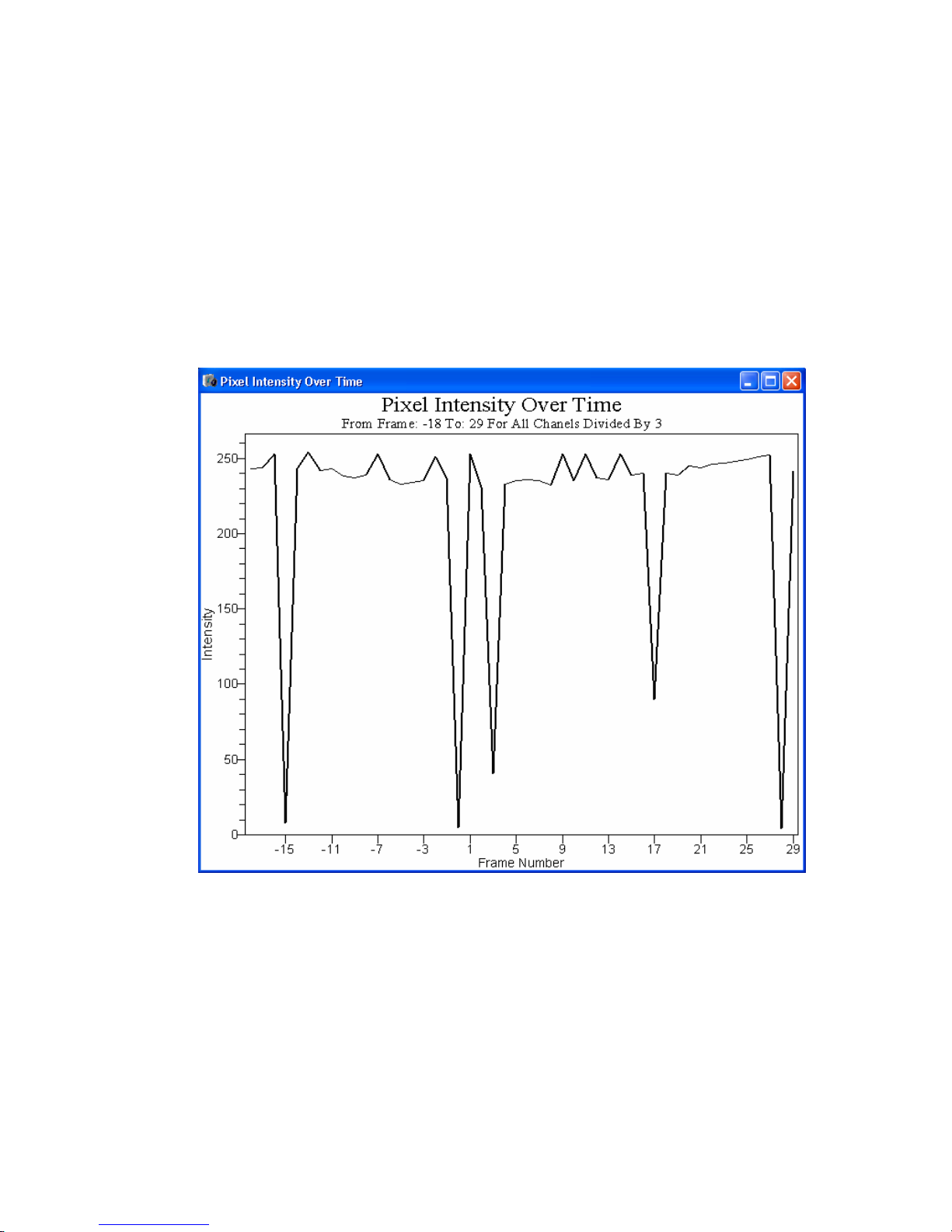

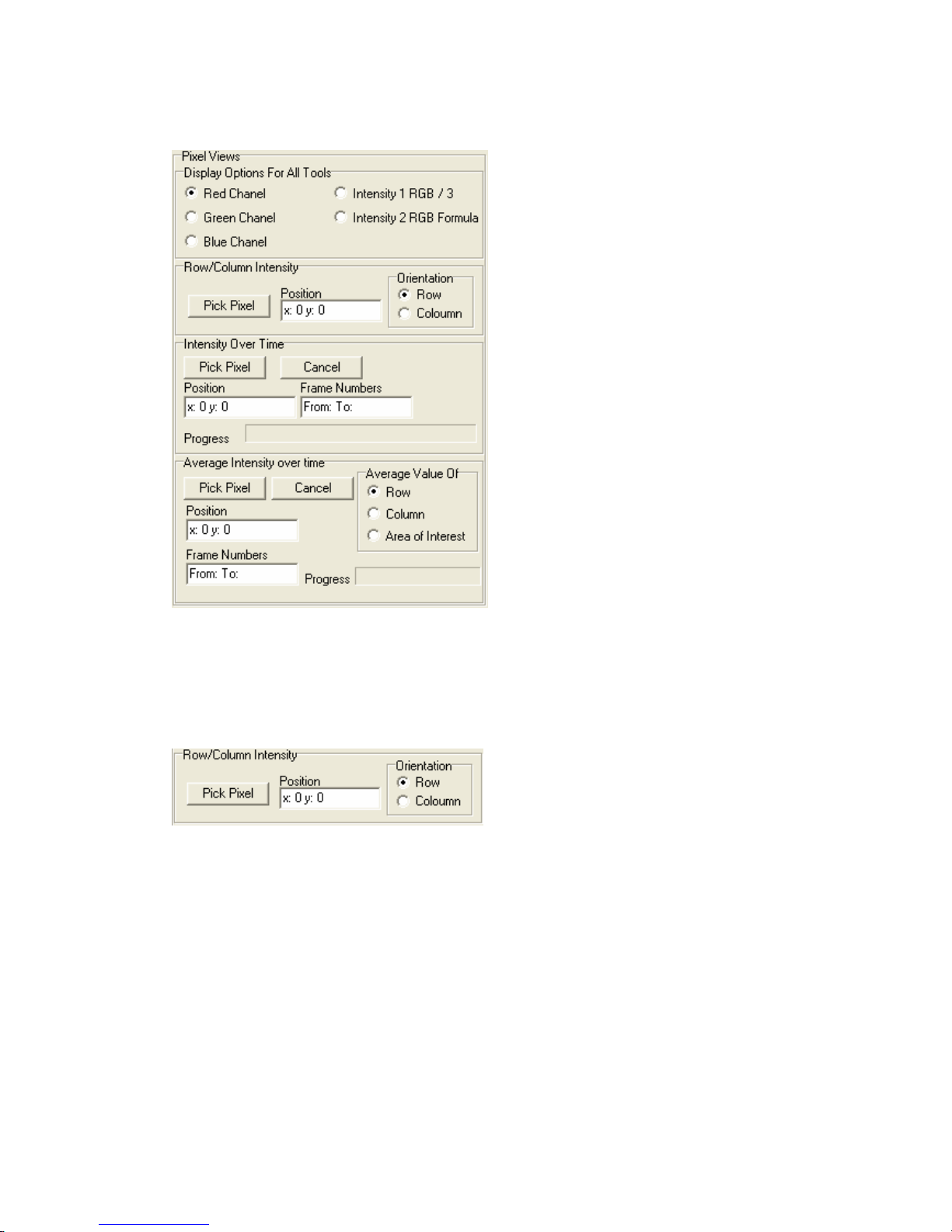

Pixel Views ..........................................................................................................36

Miscellaneous ..............................................................................................................40

Preferences............................................................................................................... 40

Start End Trigger Offset.......................................................................................41

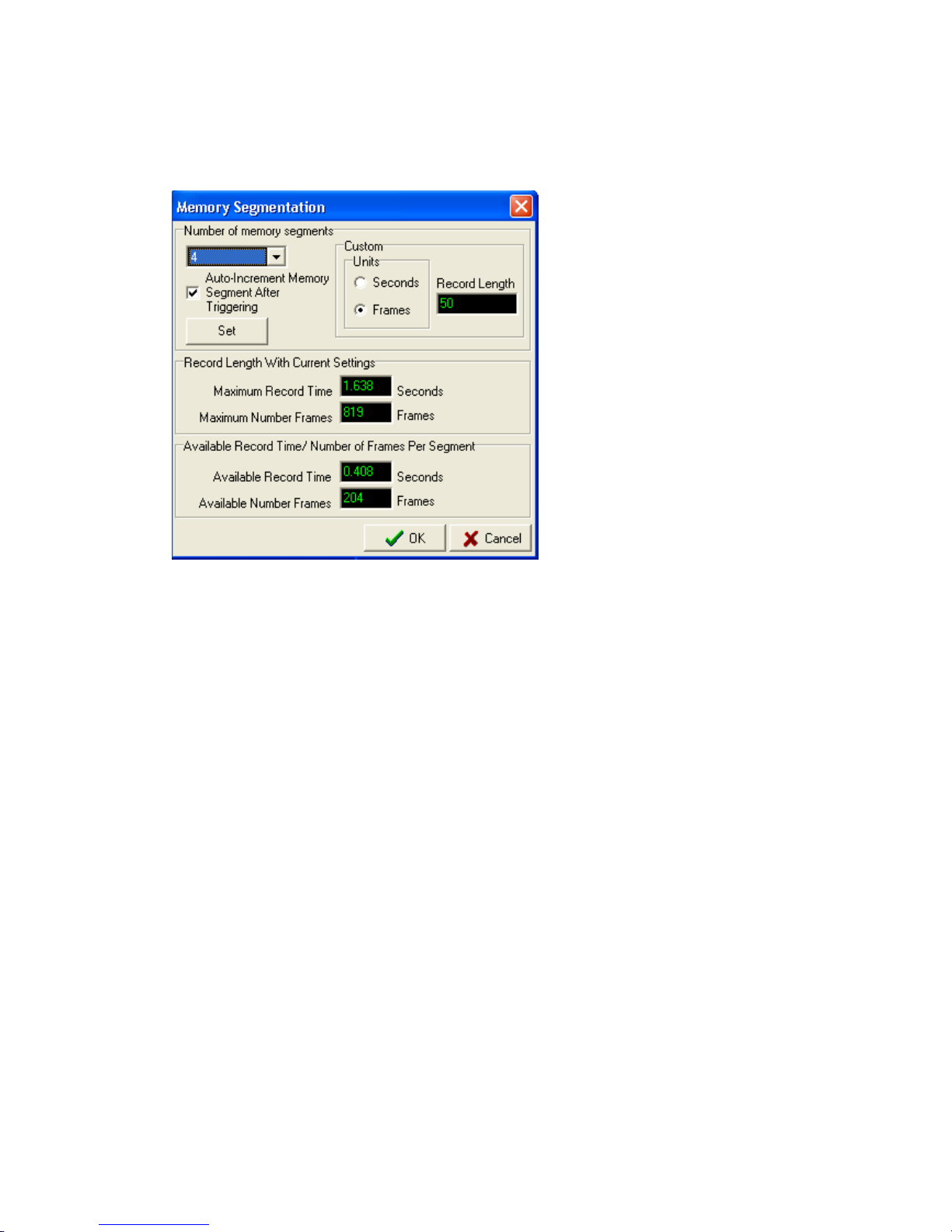

Memory Segmentation.........................................................................................42

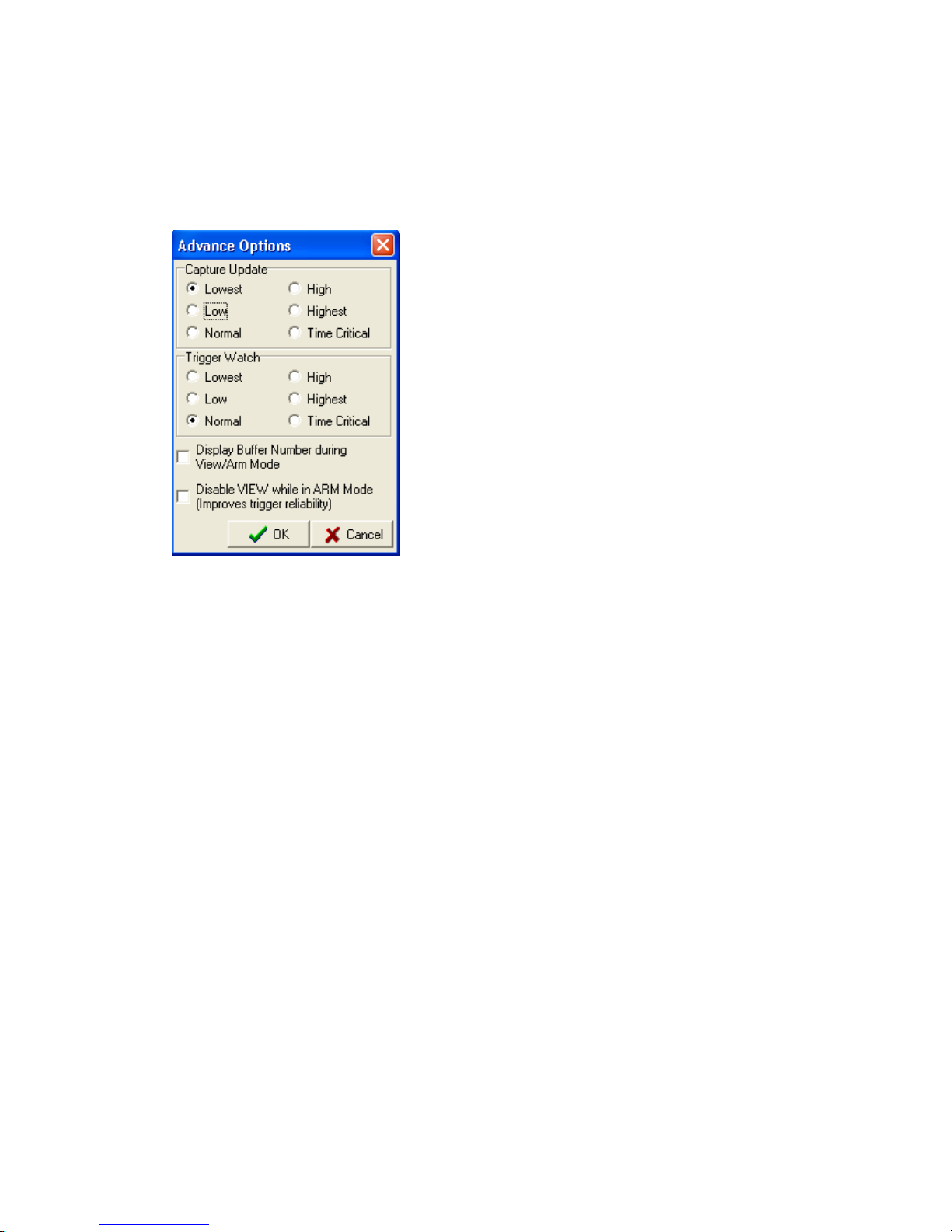

Advance Options.................................................................................................. 43

About........................................................................................................................44

2

Introduction

This manual describes the operational procedures for NAC HotShot high-speed
cameras.

Installation

Software Installation

For a trouble free installation you should first install the HotShot Link software and
then the HotShot PCI Board.

Microsoft™ DirectX

NOTE: Microsoft™ DirectX® version 8.1 is required. The following steps will guide
you through the inspection and update process of DirectX®.

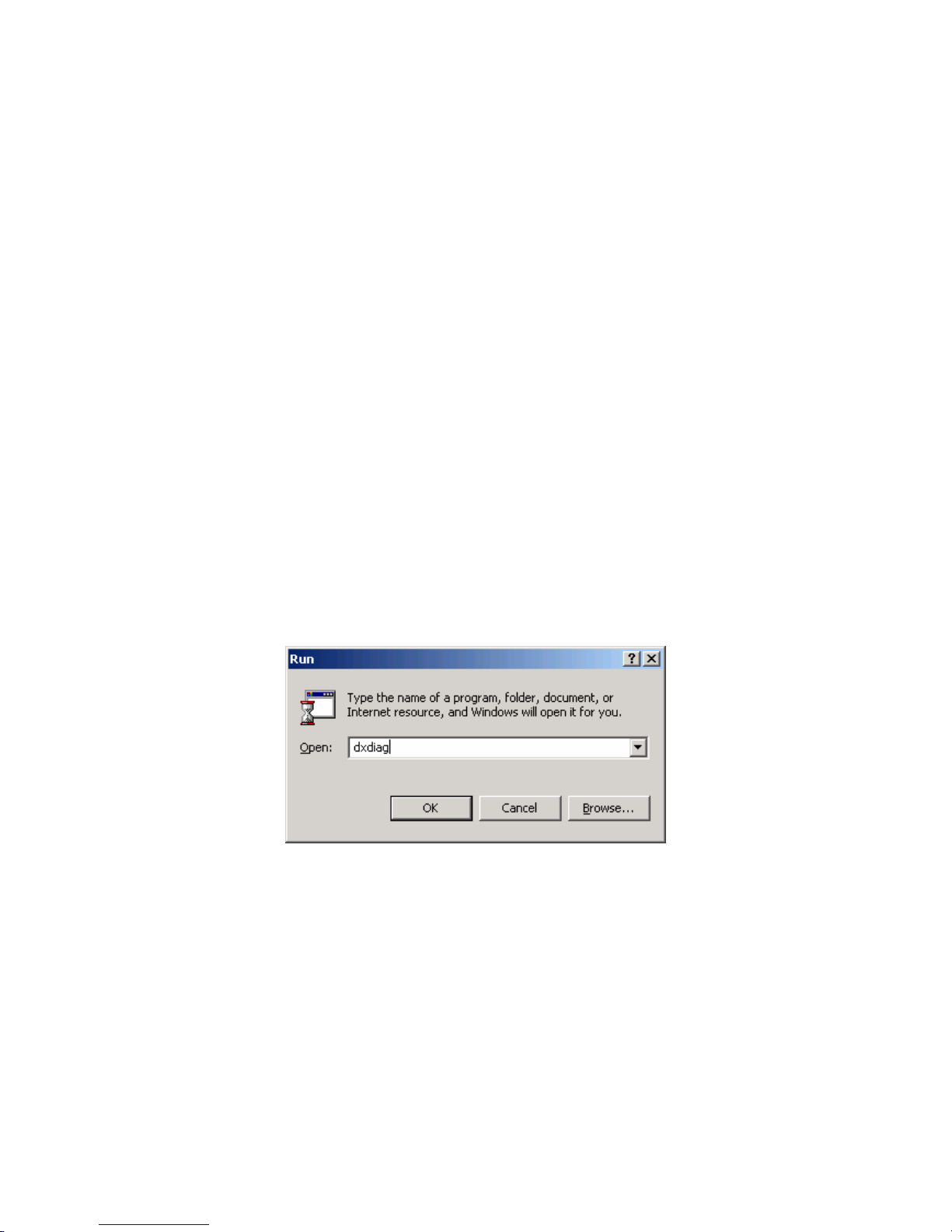

1. From the Start Menu run the DirectX® diagnostic utility with the command
dxdiag. Click the [OK] button.

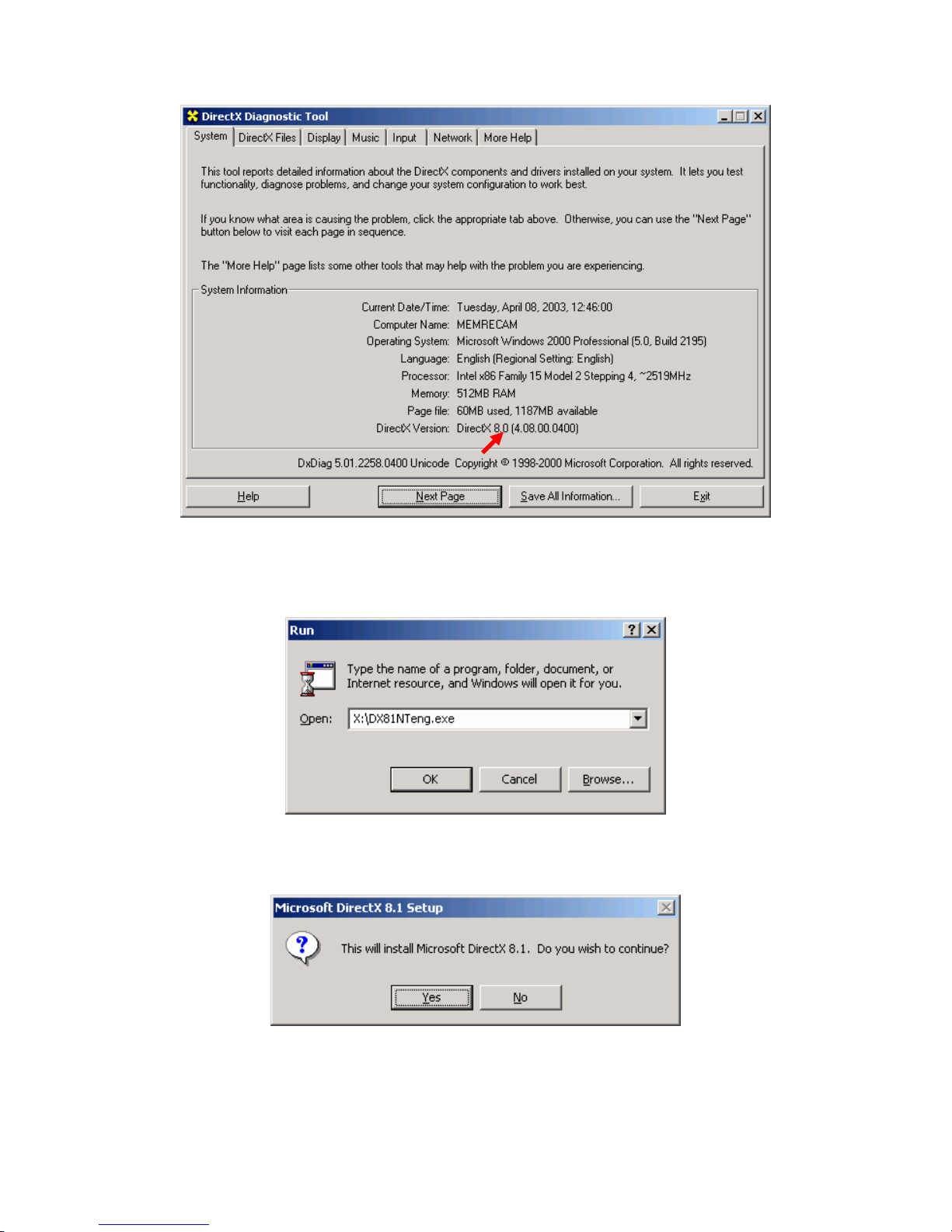

2. Inspect which version of DirectX® is installed in your computer. If the current
version is older than DirectX® 8.1 continue the update process. If DirectX® 8.1 or
newer is shown move onto the HotShot Link software installation. Click the
[Exit] button.

3

3. From the Start Menu run the DirectX® 8.1 installation file at X:\dx81NTeng.exe
where X represents the CD-ROM drive letter for your particular computer. Click the
[OK] button.

4. In the “Microsoft DirectX 8.1 Setup” window click the [Yes] button to begin
installation.

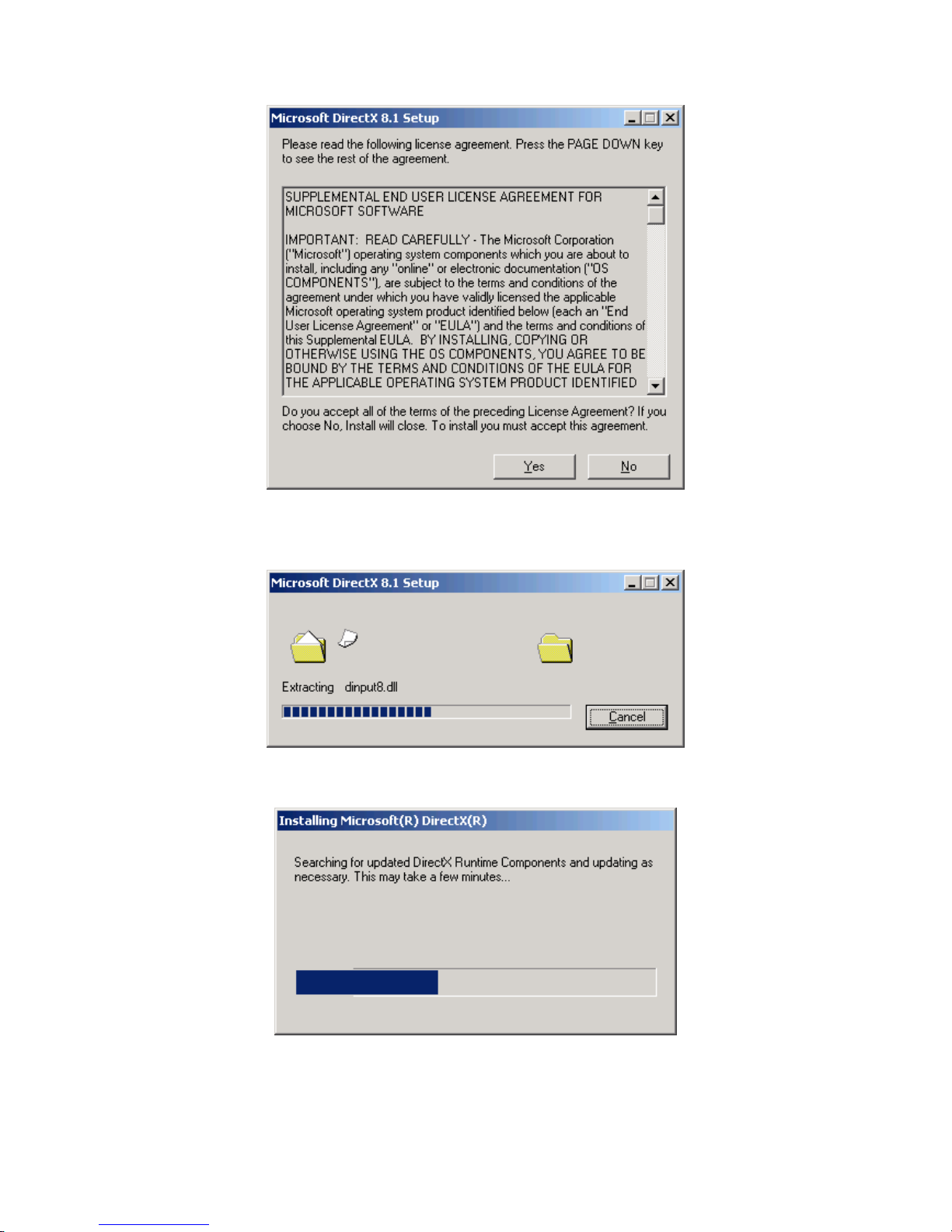

5. In the “Microsoft DirectX 8.1 Setup” window read the License Agreement. Click
the [Yes] button to accept the agreement.

4

6. Please wait while the DirectX® components and drivers are extracted and installed.

5

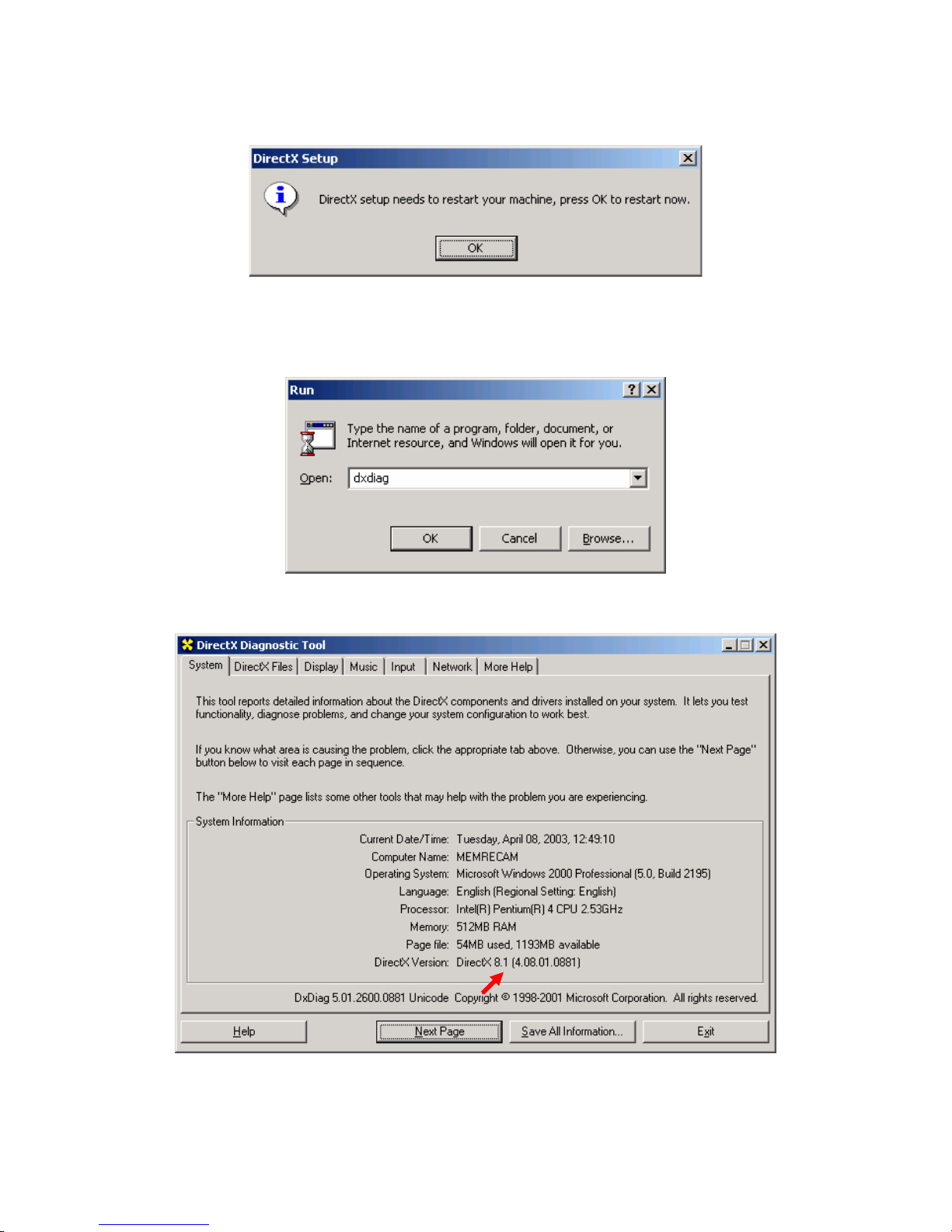

7. In the “DirectX Setup” window click the [OK] button to reboot.

8. Once Windows® restarts verify that DirectX® was updated by running the
diagnostic utility again. From the Start menu run the command dxdiag. Click the
[OK] button.

9. Verify that DirectX® 8.1 is now shown. Click the [Exit] button.

6

HotShot Link Software Installation

Follow these steps before installing the PCI boards:

1. From Windows Explorer or My Computer look inside the CD-Rom and find the
install program called HotShotInstall.exe.

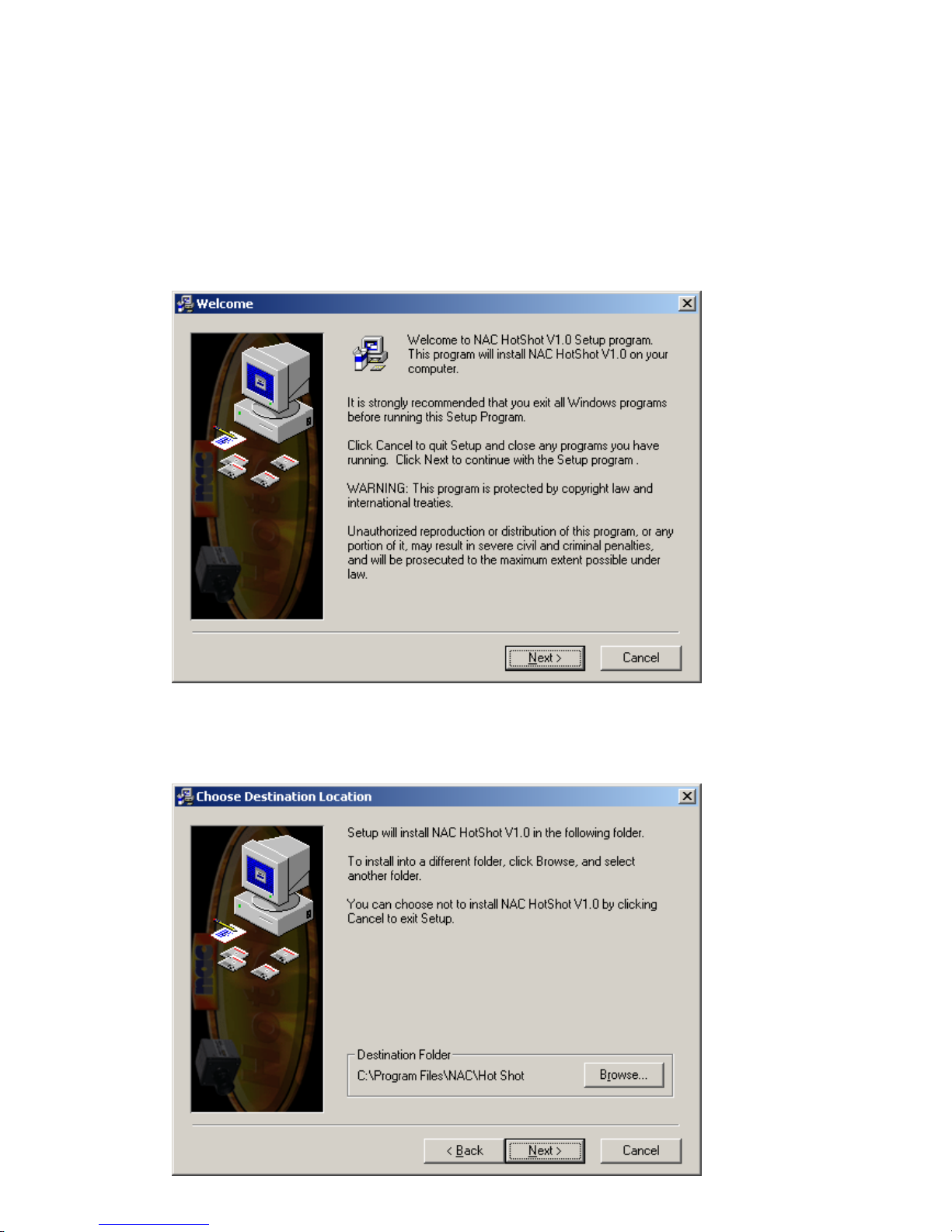

2. In the “Welcome” window click the [Next] button.

3. In the “Choose Destination Location” window click the [Next] button to accept the
default target directory.

7

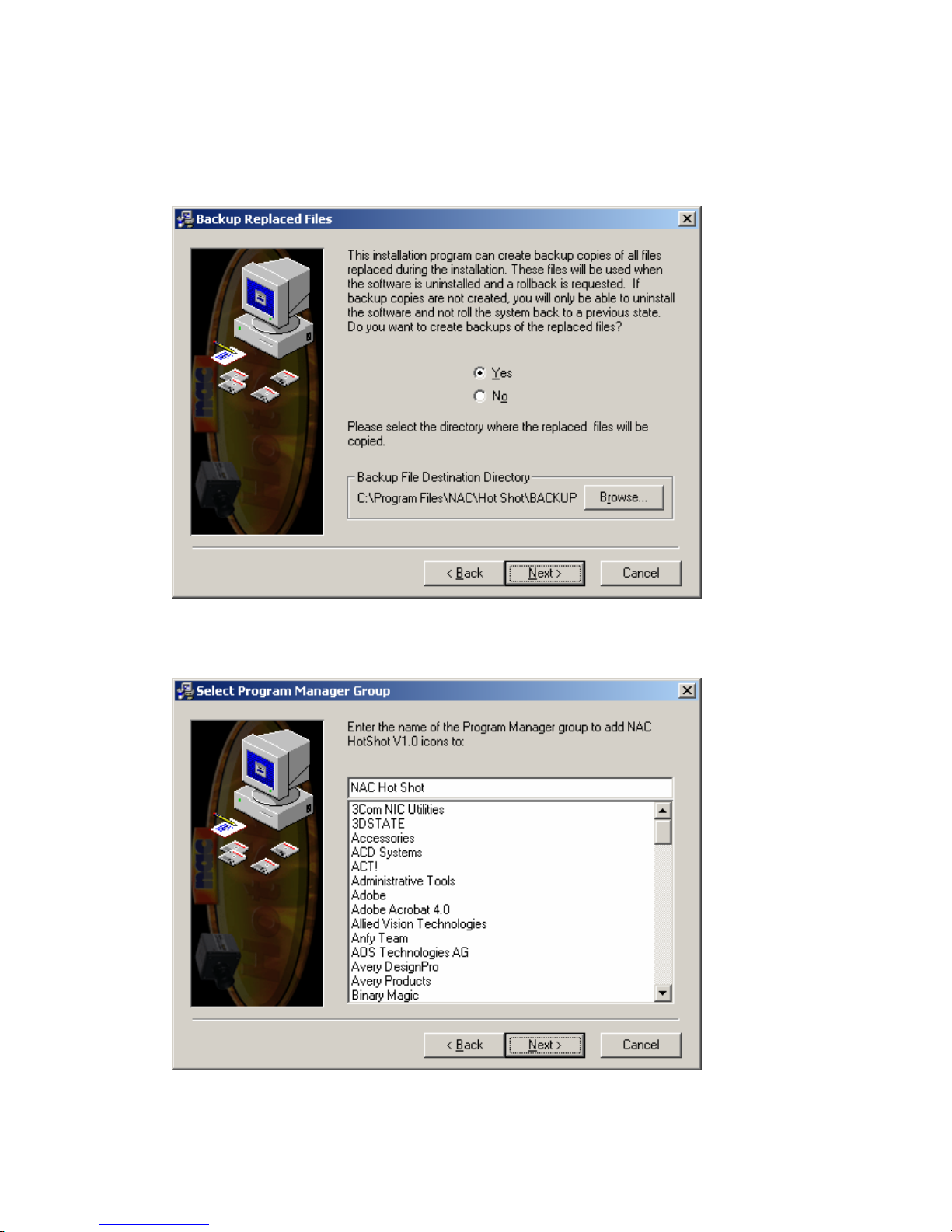

4. In the “Backup Replaced Files” window click the [Next] button to backup all
replaced files. If you do not wish to backup these files, click the No radio button and
then click the [Next] button.

5. In the “Select Program Manager Group” window click the [Next] button to accept
the default program folder.

8

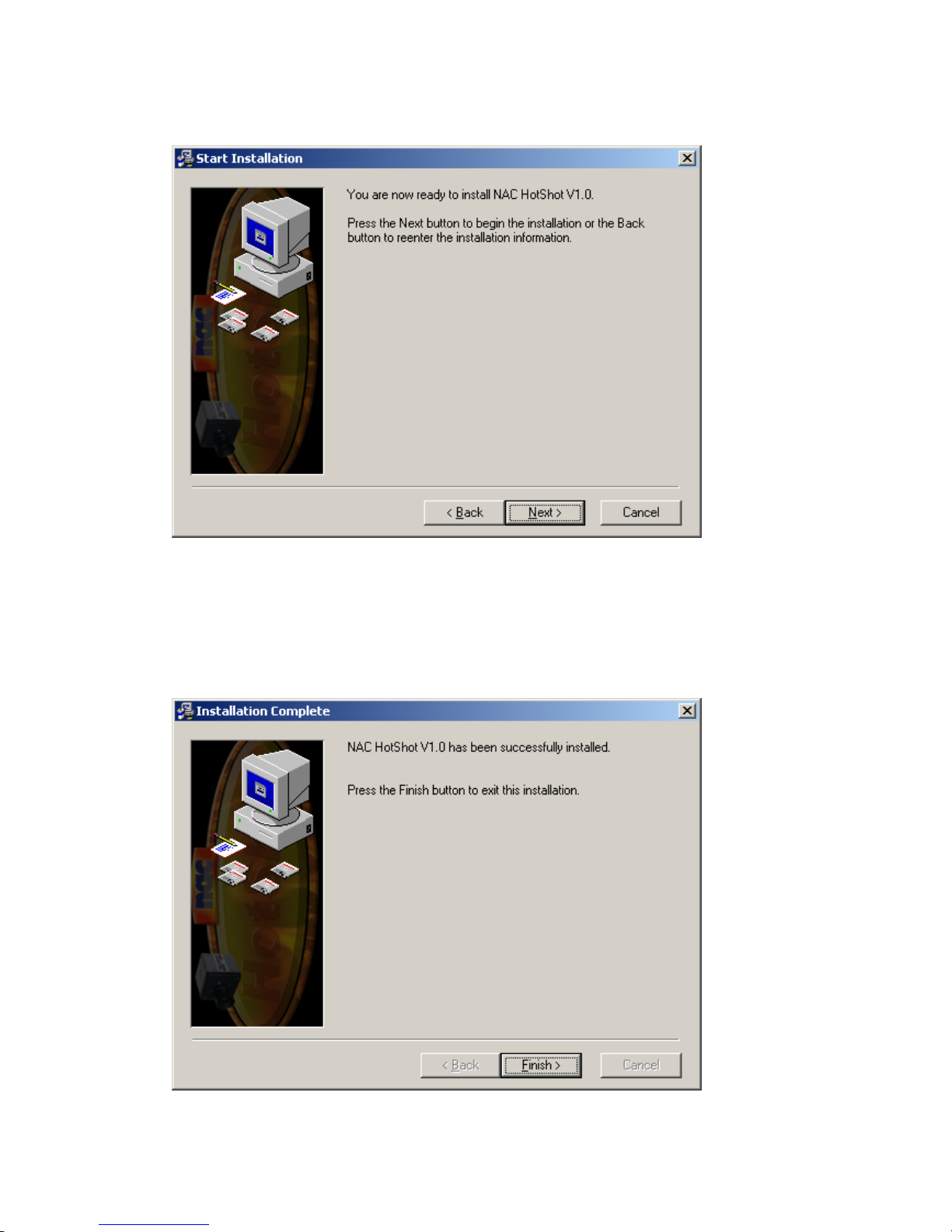

6. In the “Start Installation” window click the [Next] button to begin the installation.

7. Please wait for the software components to be installed.

8. In the “Installation Complete” window click the [Finish] button to exit.

9

9. Finally shut down the computer from the Start menu.

Hardware Installation

CAUTION: Power down your system before opening the computer case. Handle
electronic devices with care.

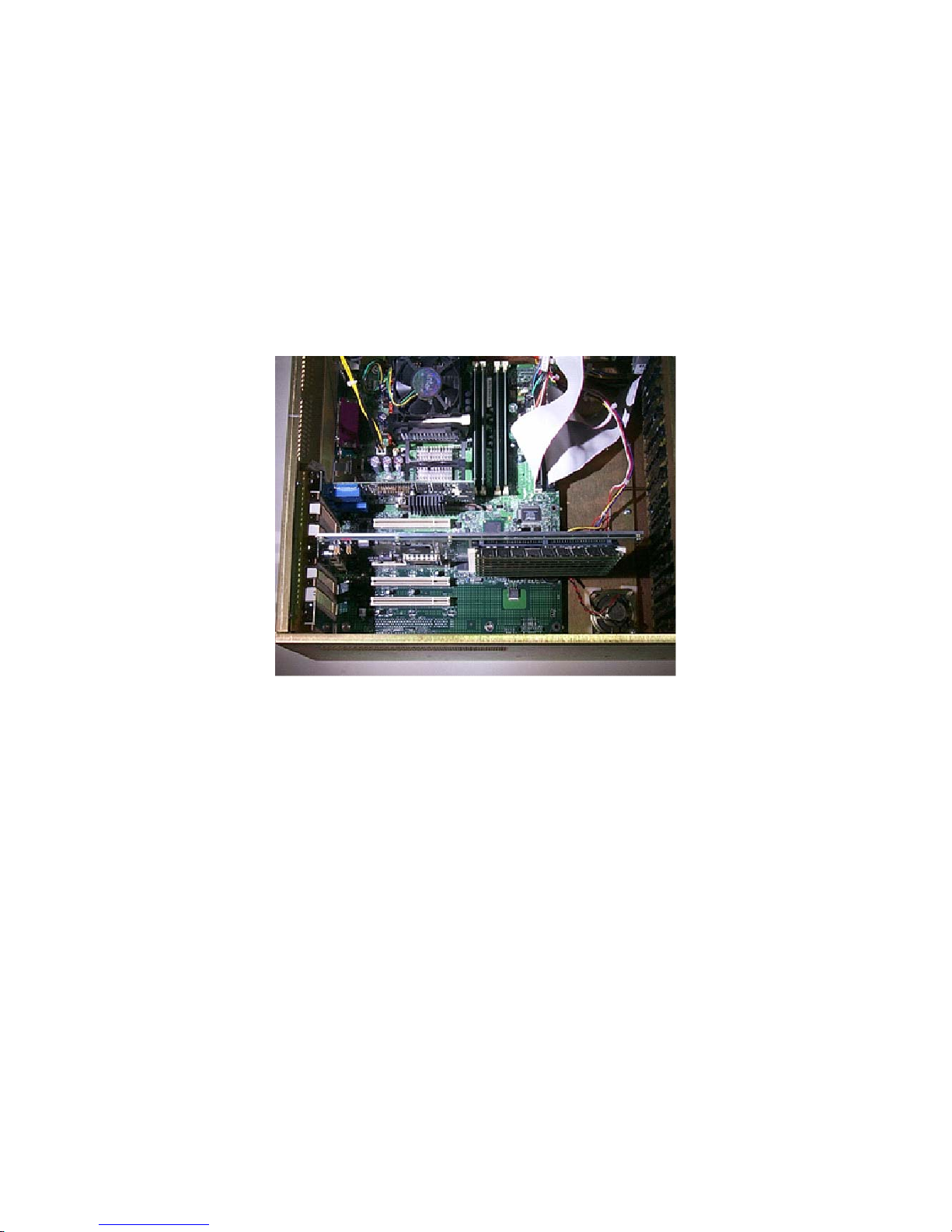

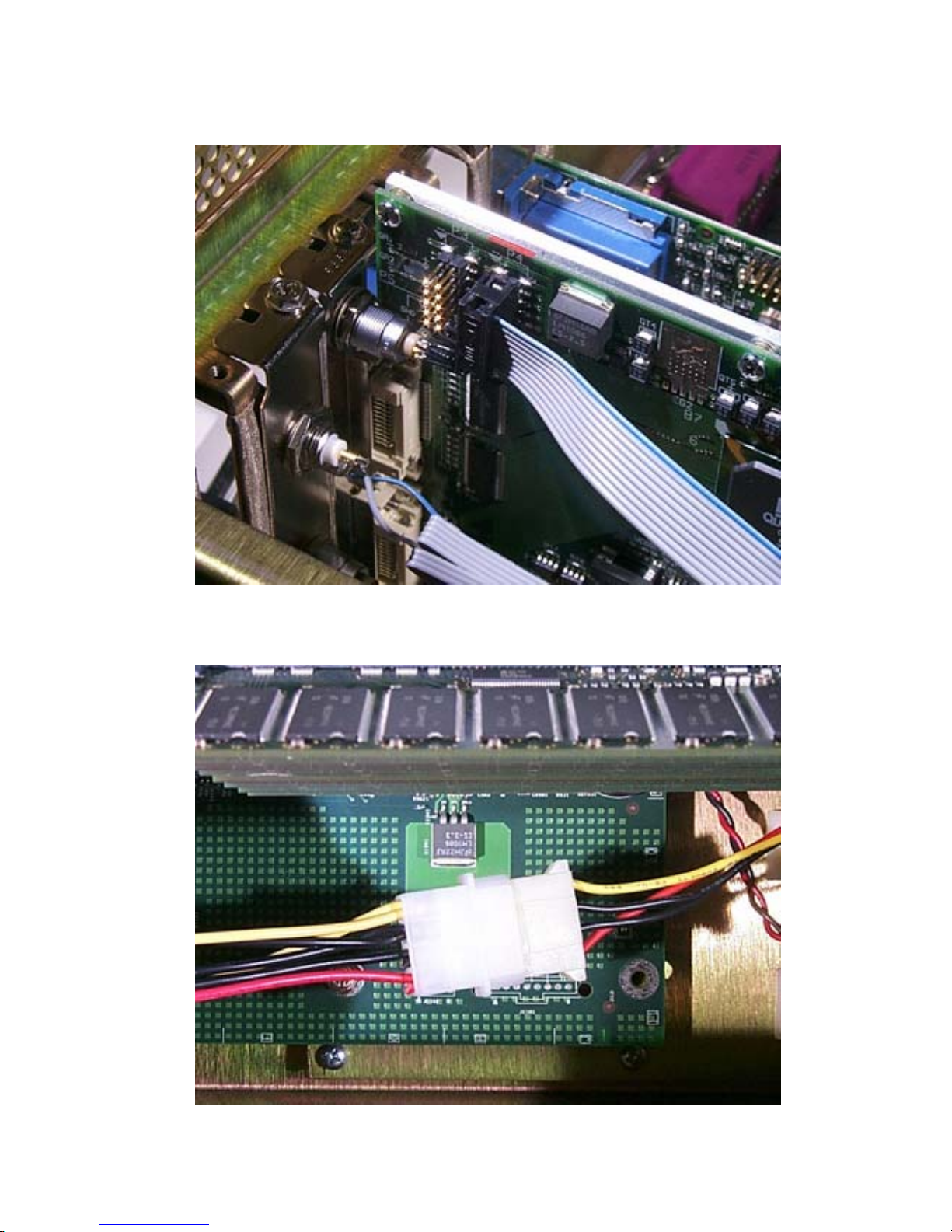

1. Remove the computer case cover. Install the HotShot PCI Controller in any empty
PCI slot on your system board.

10

2. Connect the trigger ribbon cable to connector P4 on the HotShot PCI Controller.

3. Connect the power cable to the power supply.

11

4. Connect the HotShot PCI Controller to the Camera Head using the supplied Data
and Power cables.

Connect P1 on the PCI Controller to P1 on the Camera Head
Connect P2 on the PCI Controller to P2 on the Camera Head
Connect Power on the Power / Trigger Panel to Power on the Camera Head

Restore the computer case cover. Connect Power and turn computer system on.

External Signal Input/Output

These two connectors, on the camera head, are used to synchronise two or more
cameras together.

12

HotShot PCI controller configuration

NOTE: These steps assume that all software and hardware have been installed. Please
wait while the PCI card is recognized and the “Found New Hardware Wizard”
window appears.

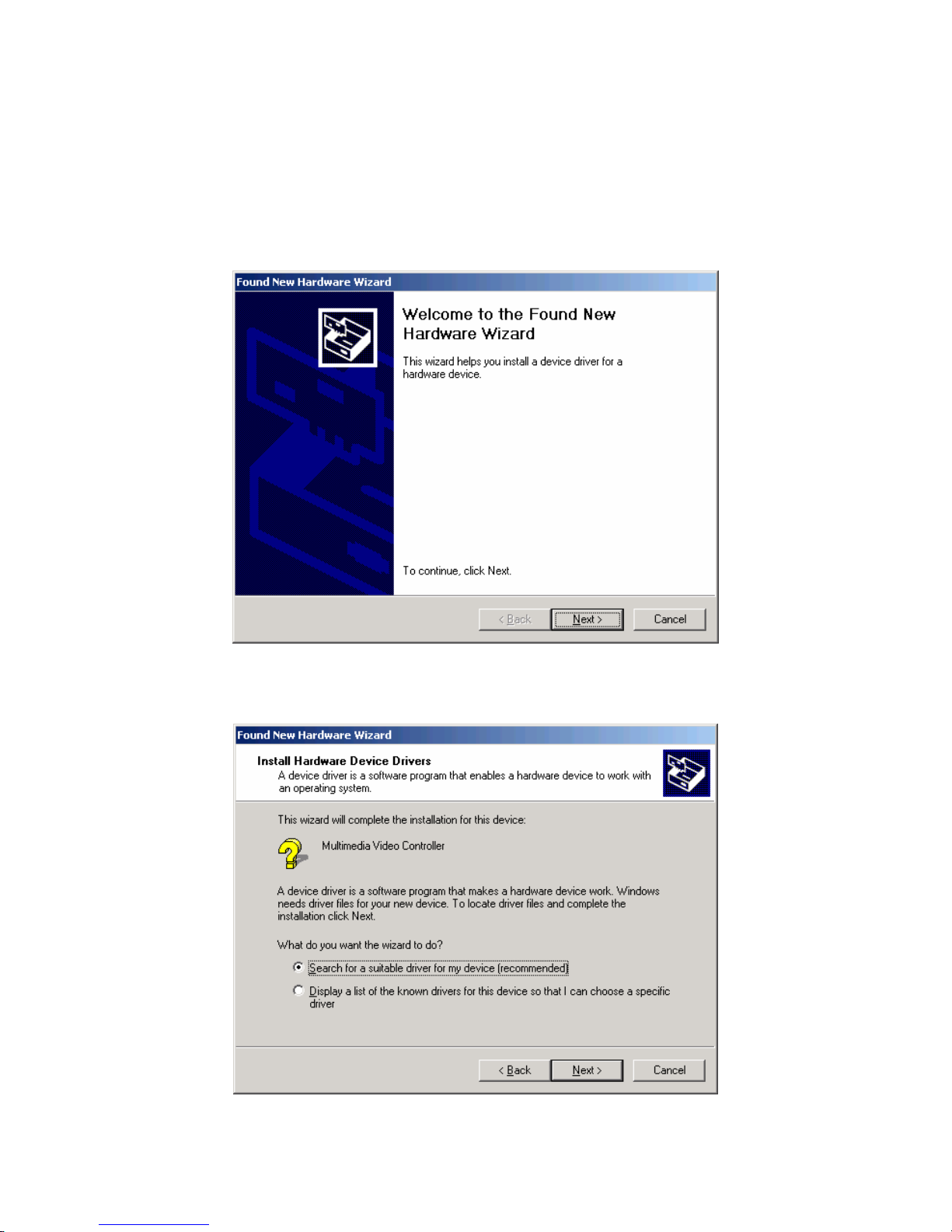

1. In the “Found New Hardware Wizard” window click the [Next] button.

2. In the “Found New Hardware Wizard” window verify that the “Search for suitable
driver for my device” radio button is selected. Click the [Next] button.

13

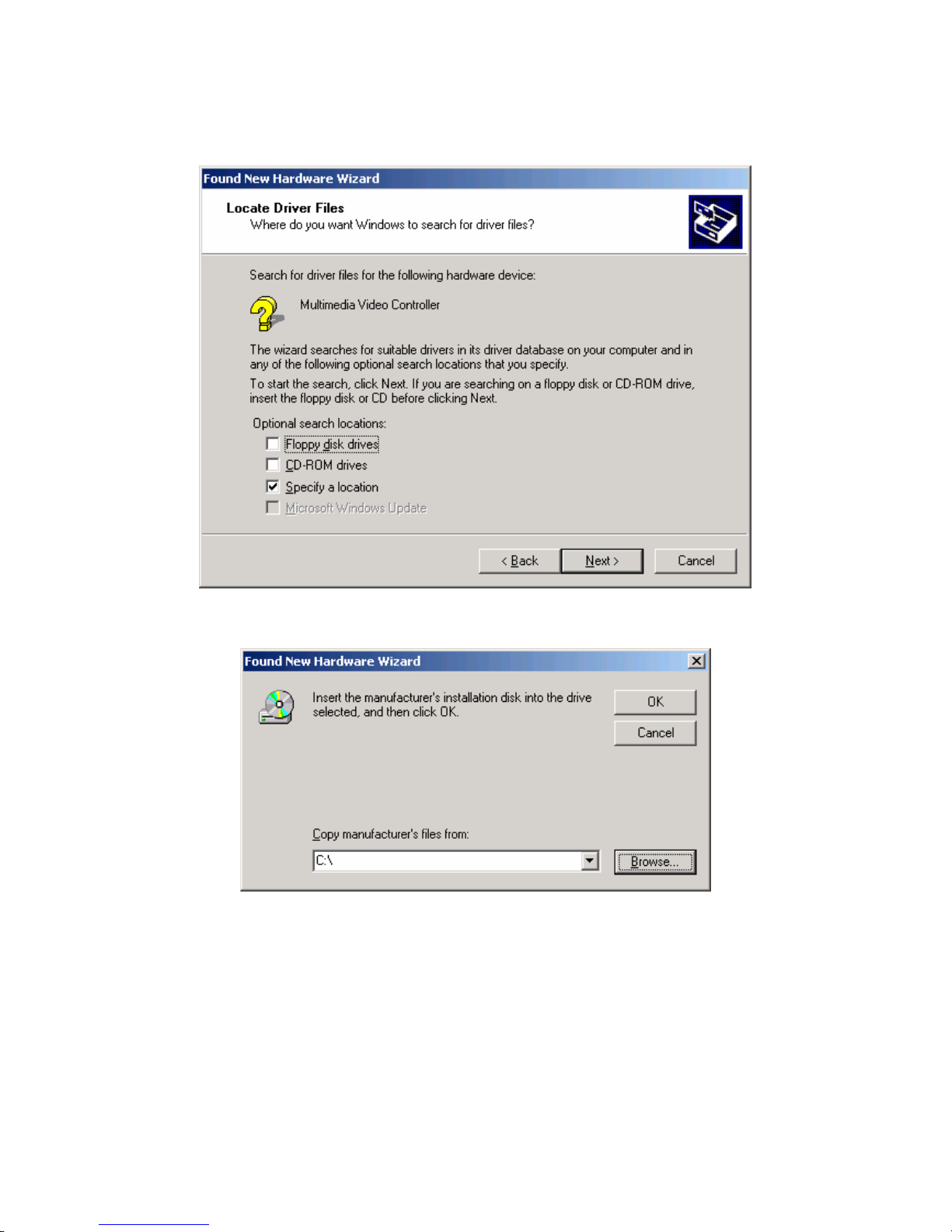

3. In the “Found New Hardware Wizard” window check the “Specify a location” box.
Click the [Next] button.

4. In the “Found New Hardware Wizard” window click the [Browse] button.

14

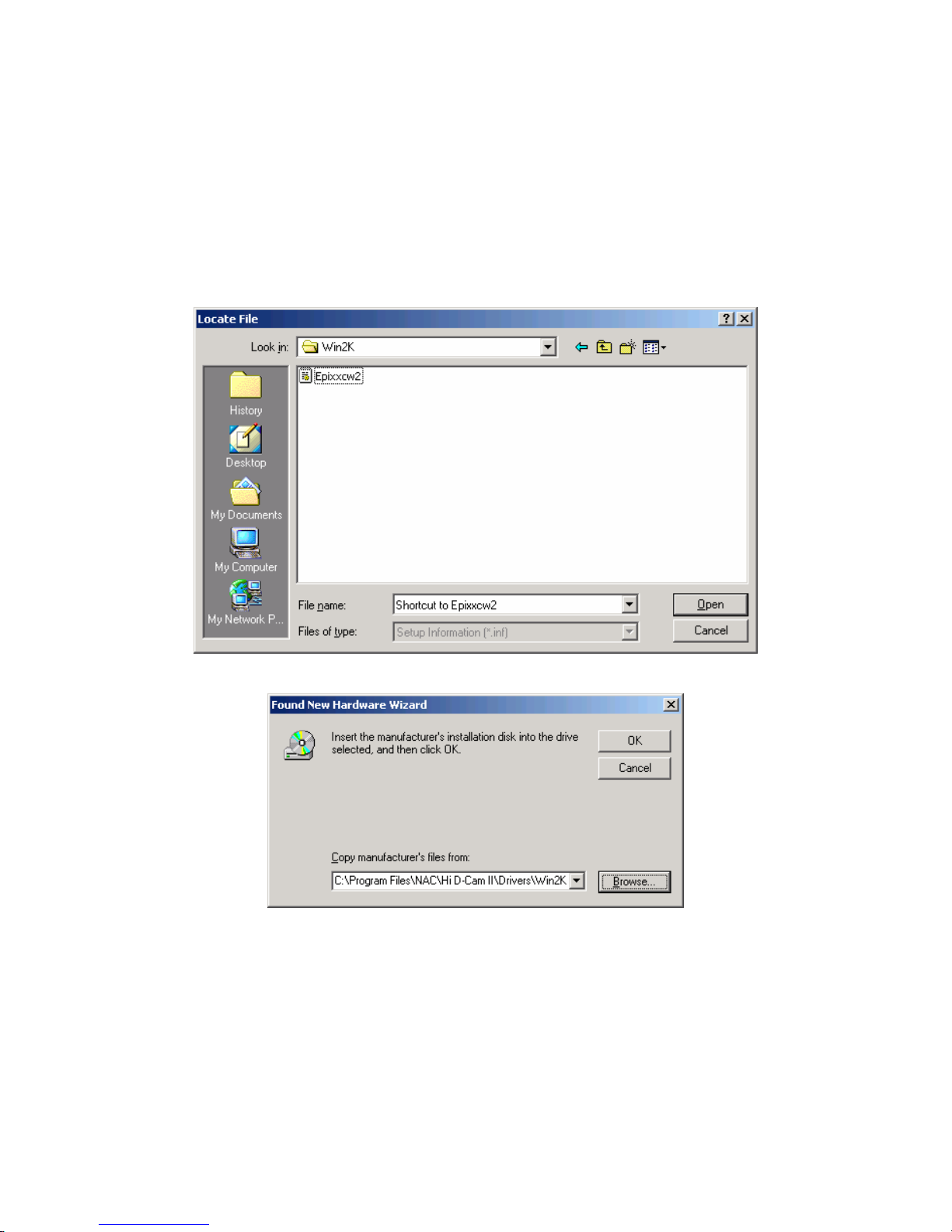

5. In the “the “Found New Hardware Wizard” window click the [Browse] button.
Search for the driver located here:

C:\Program Files\NAC\HotShot\Drivers\Win2K\Epixxcw2.inf

Select the “Epixxcw2.inf” file and click to [Open] button.

You may however have specified somewhere different when you installed the
software. In the drivers folder there are also different folders for different operating
systems.

6. In the “Found New Hardware Wizard” window click the [OK] button.

7. In the “Found New Hardware Wizard” window click the [Next] button.

15

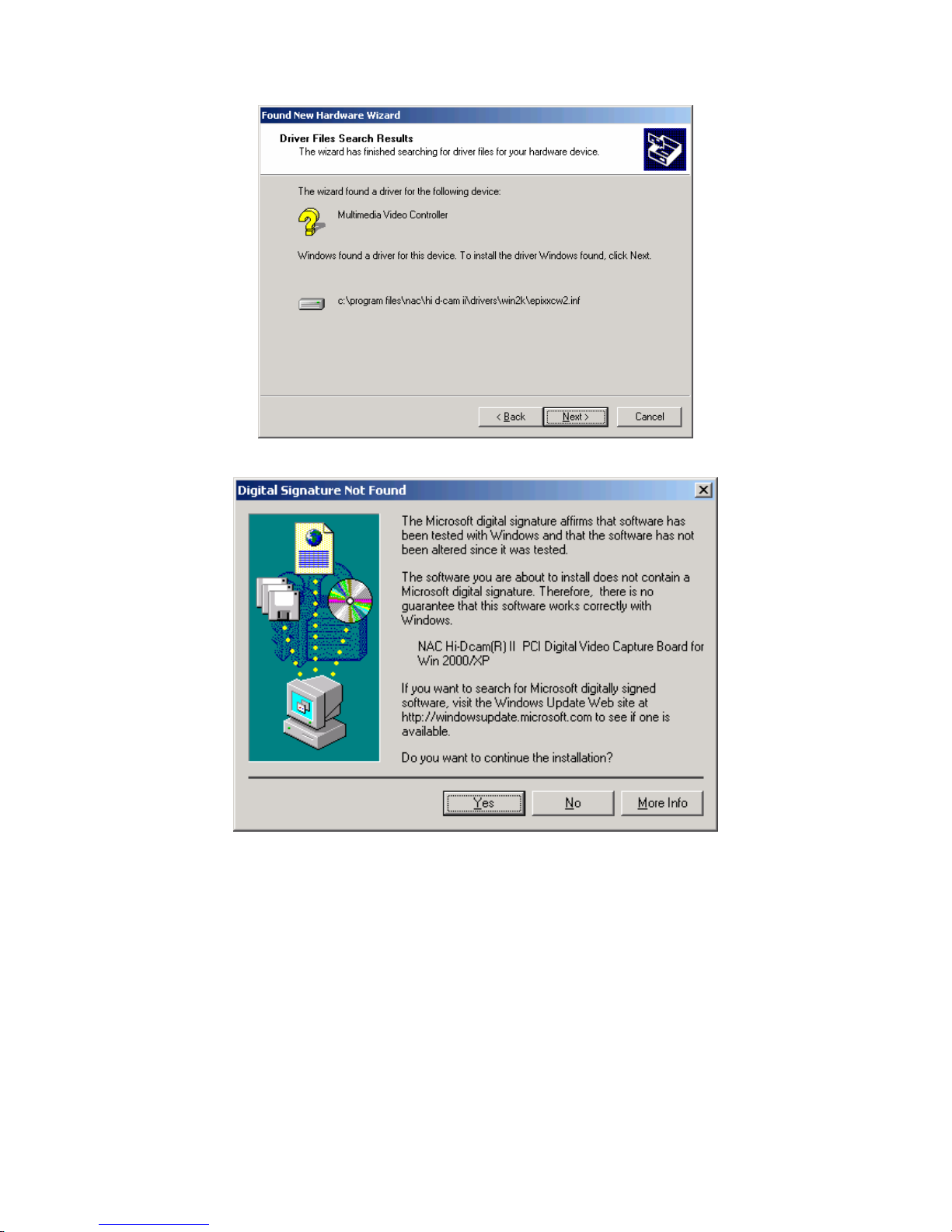

8. In the “Digital Signature Not Found” window click the [Yes] button.

16

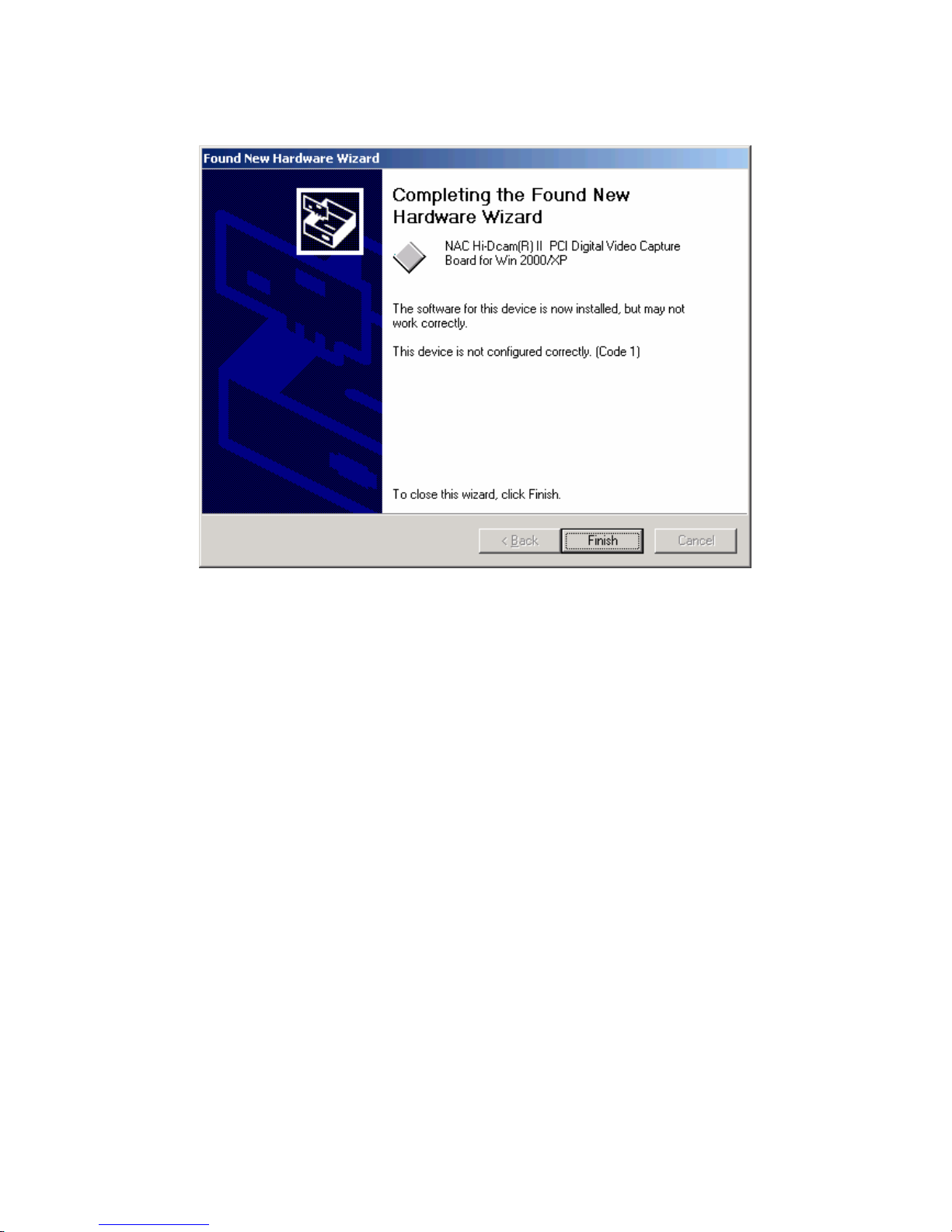

9. In the “Found New Hardware Wizard” window click the [Finish] button.

10. Restart the computer from the Start menu.

Connections

If the installation above was followed correctly the computer is now setup to operate
in single camera mode. The trigger input on the power / trigger back plate needs to be
connected to a BNC trigger cable to provide an external triggering to stop/start
recordings.

17

The software

You can open the software from the following location:

START MENU|Programs|NAC HotShot|ShotShot

If you like you can copy this short cut to your desktop. See your Windows
for how to do this.

The Main Window

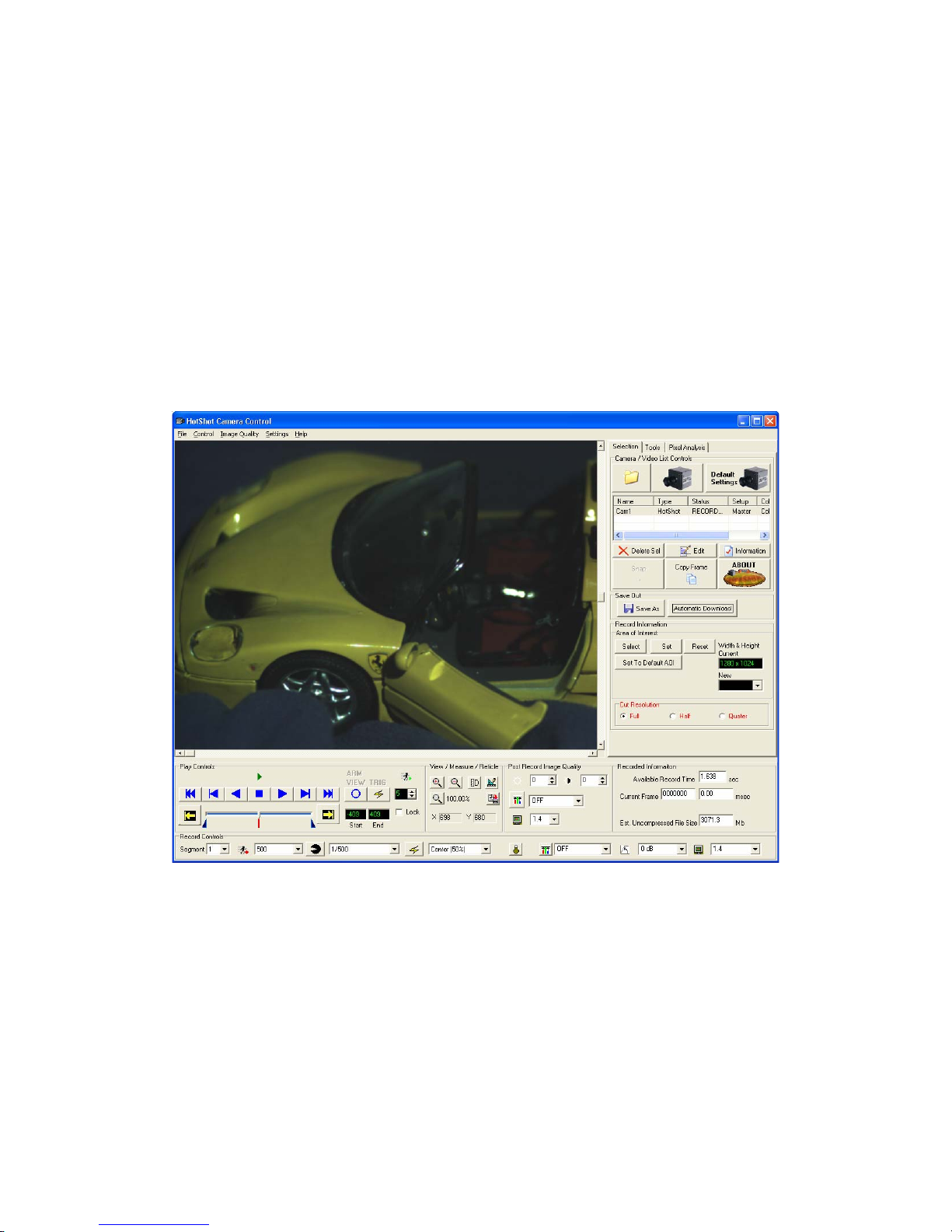

When the software starts it will look like the screen shot below:

TM

Guide

This window is divided into three areas. The first is the video window, which is the
black area in the top left. The area at the bottom is the play and record controls. The
area on the right is the Main controls and tools. The area on the right is split up into 3
tabbed pages, called Selection, Measure Tools and Pixel Analysis.

18

Connecting a Camera

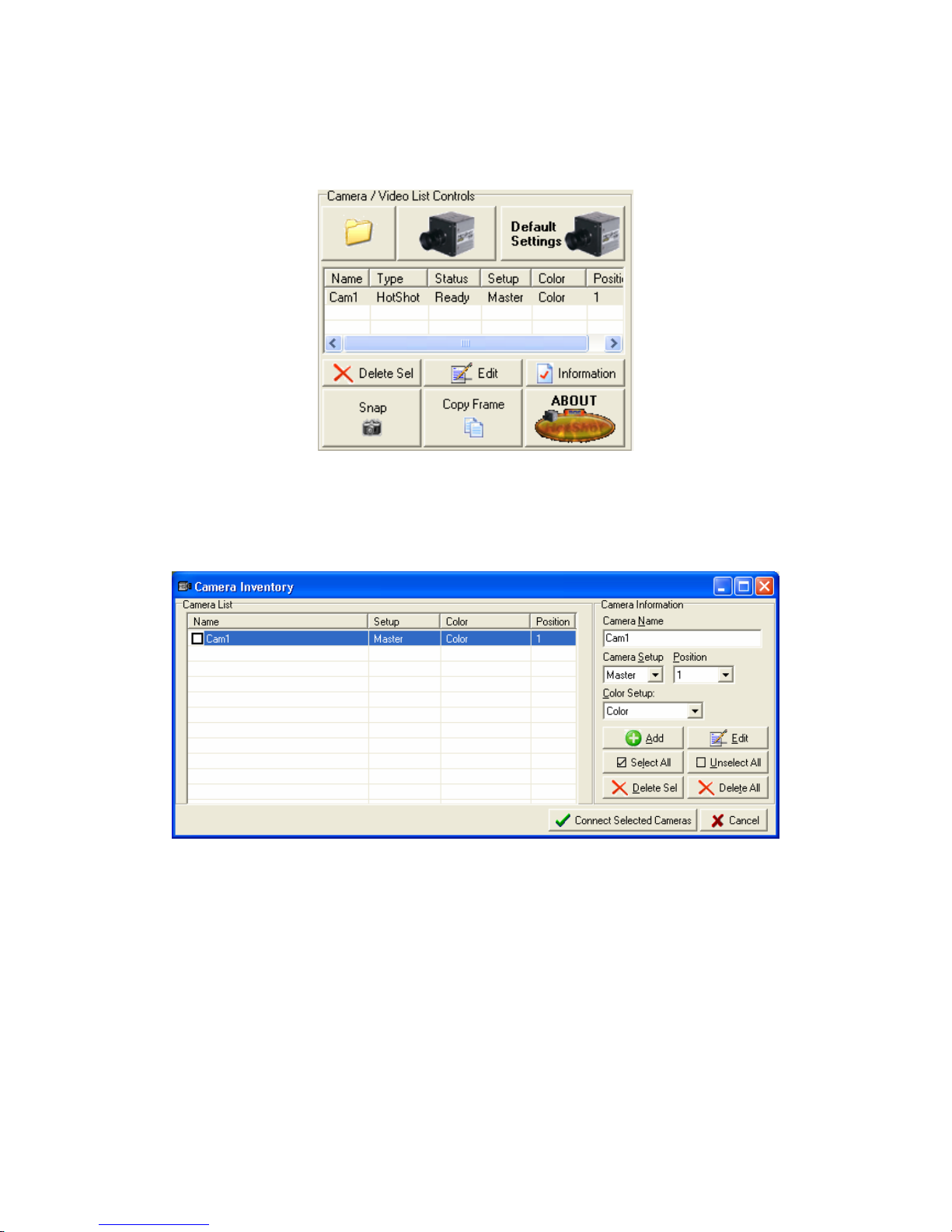

On the selection tab there is a box at the top called ‘Camera / video list controls’, here
is a grid, and some control buttons.

To add a camera:

1. Click the Camera button on the top row in the middle.

2. Another window will appear called ‘Camera Inventory’; this will load up any

previously used cameras into the grid.

3. If the camera that is required for use is already in the list and the settings are

correct tick the box next to the camera’s name and click the ‘Connect Selected
Cameras’ button. This will then connect the camera and make it ready for use.

4. If however there is no camera in the list or another camera is needed, enter the

new camera information in the camera information boxes and click the ‘Add’
button. This will add the new camera to the list, and then tick the box next to
the camera’s name click the ‘Connect Selected Cameras’ button. This will
connect the camera and make it ready for use.

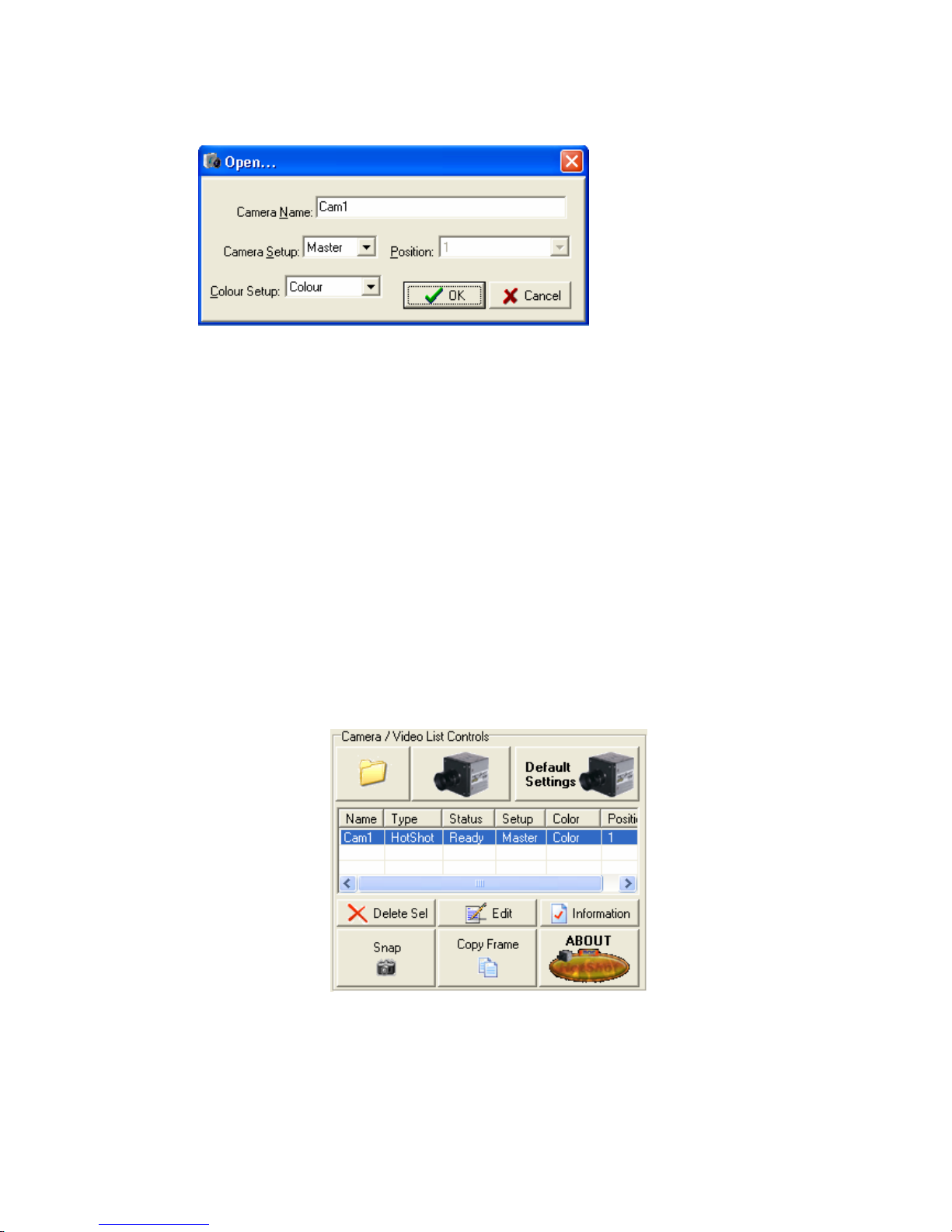

5. If the camera is already information is incorrect, select the camera in the list

and a blue bar will change position and highlight the newly selected camera.
Then click the ‘Edit’ Button this will then display the window below, here any
of the information can be changed and the changes saved by clicking the

19

‘Connect Selected Cameras’ button or disregarded by clicking the ‘Cancel’
button. Note the ‘Position’ field can not be changed.

6. After any changes have been made the camera can be connected by ticking the

camera’s name and clicking the ‘Connect Selected Cameras’ button, this will
also save all the cameras in the list even if not checked to memory for future
use. Clicking the ‘Cancel’ button will not connect any camera and disregard
any changed made.

The camera setup options are, Master and Slave, Master cameras will generate its own
timings and export them. Slave cameras will require timings from another camera.
The ‘Slave’ mode is used to frame synchronizes two or more camera. Colour Setup
applies a Bayer RGB pattern if it’s a colour camera or uses a single monochrome
channel if monochrome is chosen. Depending on the colour setup of the camera in
position 1 will determine which colour setup gets applied to all subsequent cameras.

7. The ‘Camera / video list controls’ box will now look like this. The status

column in the grid will show what tasks the camera is performing while the
software attempts to connect it. If more than one camera was checked in the
camera inventory window the software will attempt connection which each
camera in the position order starting with the camera connected to the PCI
board closest to the CPU on the motherboard, Position 1.

There are two other buttons above the grid:

1. The Folder icon on the button on the top left can open up AVI’s, streams of

BMPs, TIFs and JPEGs, and BIN’s (Raw Binary data from the PCI control
board’s buffers for review.

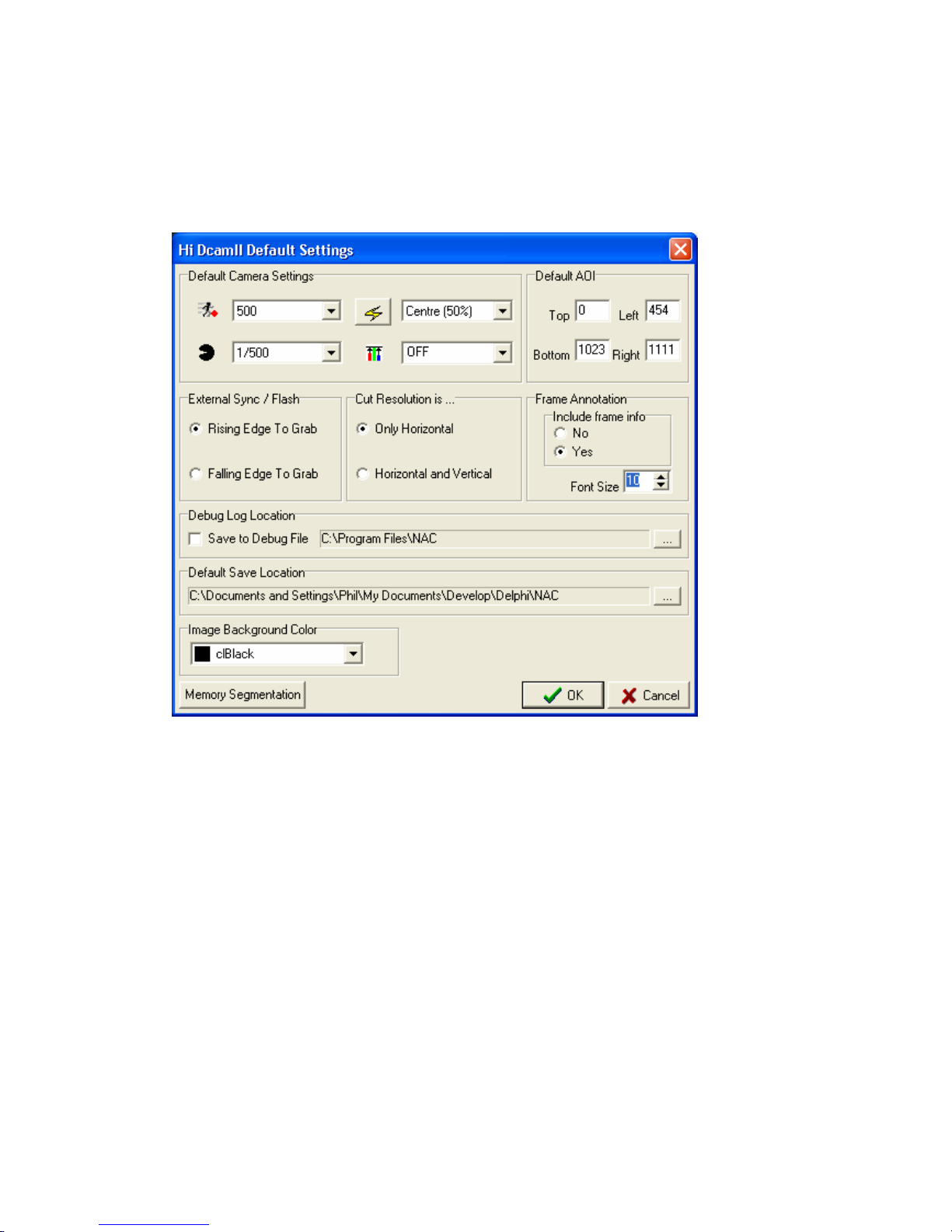

2. The ‘Default Settings’ button opens up the ‘Preferences’ window, see below.

20

Also there are some other buttons below the grid:

1. ‘Delete Sel’ - Deletes the highlighted camera or video in the grid list.

2. ‘Edit’ – Brings up the Edit box as before in the camera inventory window. It

allows the camera’s mode, colour and name to be changed.

3. ‘Information’ – Opens another window displaying the camera’s information.

4. ‘Snap’ – Takes an image from the highlighted camera and displays them to the

screen.

5. ‘Copy Frame’ – Copies the frame showing in the image window and places on

the Windows™ clipboard.

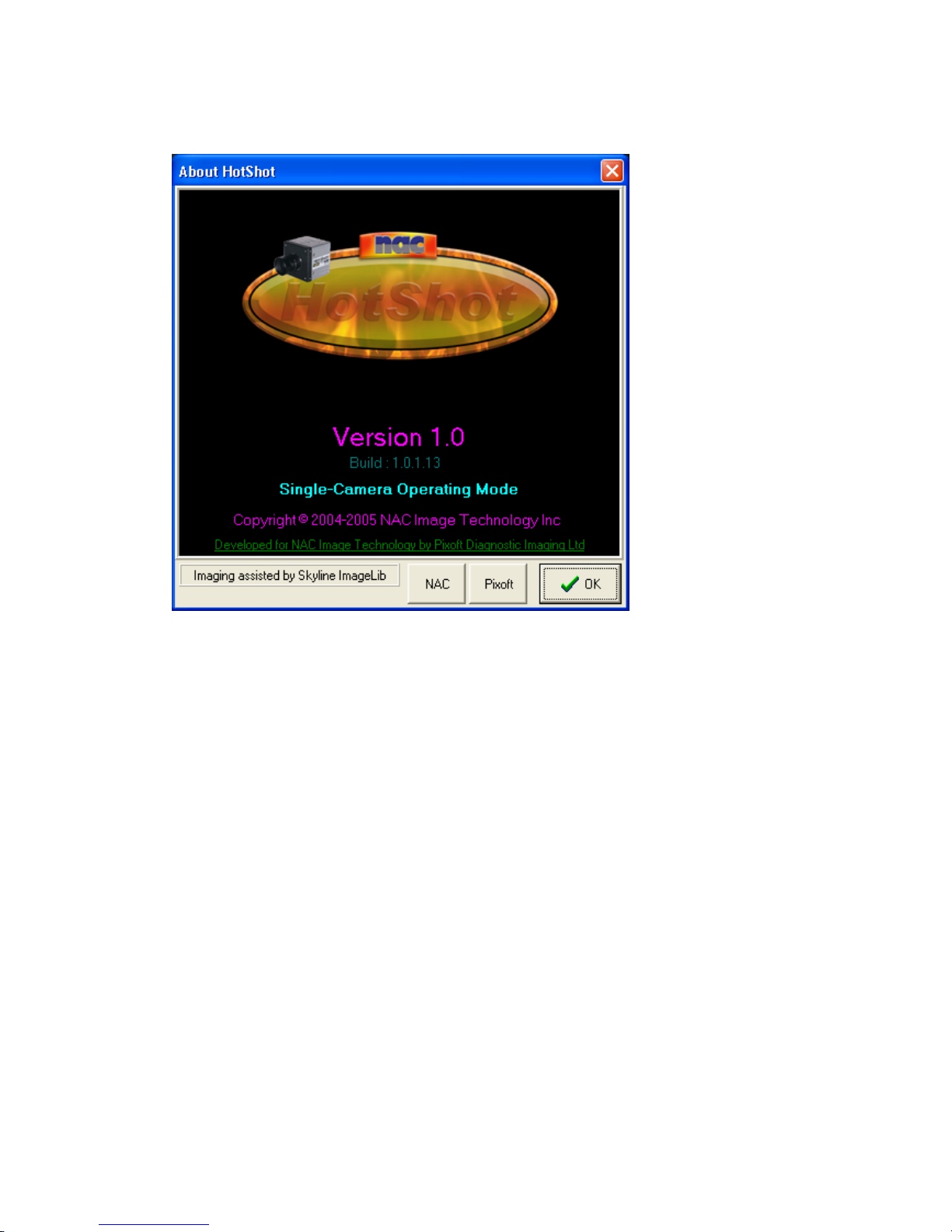

6. ‘About’ – Displays information relating to the HotShot Link software.

Recovering Data from the Buffer

To recover data from the buffer perform the following:

1. Open up the ‘Camera Inventory’ window as above.

2. Tick the camera whose data needs to be recovered.

3. Click the ‘Recover data from Buffer’ button this will connect the camera and

attempt to recover any data on the board and load up the trigger frame as it
would after making a recording. Then the camera is ready for normal use.

Data can only be recovered from a full restart if the computer has not lost power. If it
has lost power the RAM on the PCI board will be wiped clean.

Making a Recording

To make a recording do the following, after connecting to a camera:

1) Select the Memory Segment: This box will be filled up with the number of

memory segments the board has been made into. To change this see below.

2) Select recording parameters: Use the Record Info to set the Frames per

second, shutter speed and trigger mode.

3) Push the View/Arm Button: You are in view mode. You can set up the shot

and focus either using the on screen display (slow update) or via the VGA
output from the camera head.

4) Push the View/Arm button again: you are in ARM Mode. The system is

waiting for a trigger.

5) Trigger: Either from the software or the external hardware trigger.

6) Review the recording: When the system has finished the recording you will

be back in ready mode. You can review the recording using the VCR controls.

7) Set the save range: use the scroll bar to set the range of interest.

8) Save the images: push Save as, you can save as a series of images or as an

AVI or save out the entire board’s buffer data which is an efficient means of
downloading all of the recording quickly which then can be loaded back into
the board for post-record operations. Depending on the Image size will depend
on what AVI Codec’s are allowed. You can ALWAYS use uncompressed and
NAC MJPEG or Pixoft’s Squeeze codec as available.

21

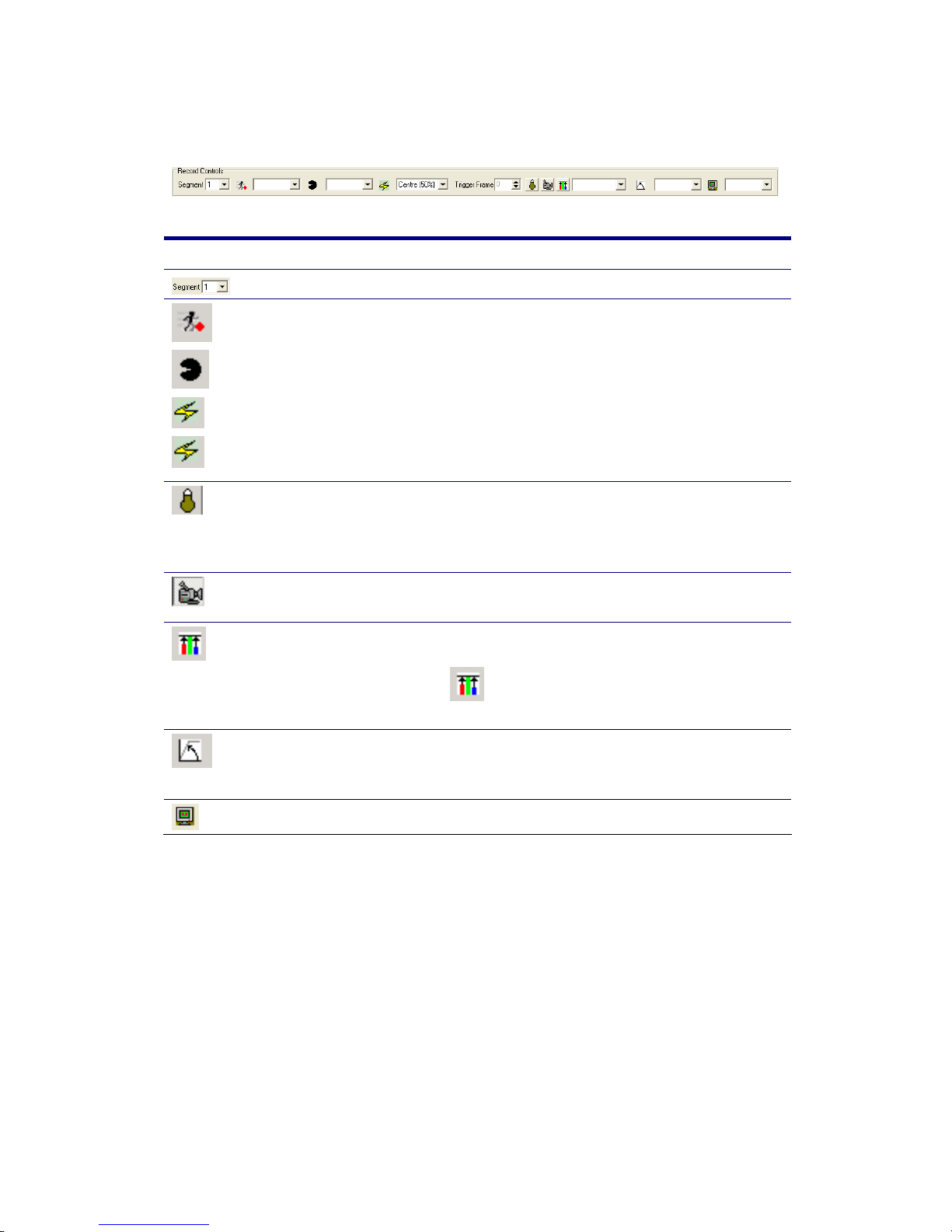

Record Controls

Use this … To do this…

Memory Segment

Frame Rate

Set the memory segment in use.

Set the Frames Per second (Pictures Per Second)

Shutter Set the Shutter Speed (Exposure Time)

Trigger To Set the Trigger Mode

Trigger Frame Sets the number of “Pre Trigger frames” when using a

Low Light Mode Switch the camera to Low Light Mode. In View Mode

custom trigger

the camera will operate at the equivalent of 1/60
Shutter regardless of settings. This is used to set up the
view without the need for bright lighting

sVGA Out Switch ON and OFF the sVGA out signal from the

camera head.

White Balance Set the White balance. Select from the Drop down list.

If you select CUSTOM then you should push the

button (

) and then click the image to set the white

balance at the clicked pixel

Gain Set the Gain. Increasing the gain will assist with low

light situations but it will begin to introduce noise if
used above 6dB.

Gamma Sets the gamma from with either 1, 1.8 or 2.2

Notes once a recording has been made the ‘Record info’ settings are ‘disabled’ and
cannot be changed. To re-enable them you must put the camera back into VIEW
mode. WARNING: This will ERASE any recording already made.

The Trigger

When armed the system in constantly recording in a loop. The trigger is used to STOP
recording. A start trigger would have the effect of recording “one more entire
memory” and then stopping recording. An end trigger would have the effect of
stopping recording immediately. A centre or custom trigger would be somewhere

22

between these two extremes. See ‘Preferences’ for further details. After data has been
captured clicking the trigger button will load the trigger frame into the viewing area.

Play Controls

Use this … To do this… When?

Rewind

Jump to the first frame of the recording, or the first
frame of the sub range (see below)

After a
recording

Step
Backwards

Play
Backwards

Step one frame backwards After a

recording

Play the capture sequence backwards. Pushing this
button 2x will put the system into LOOP mode. The

After a
recording

system will keep looping about the sub range

Stop
playback

Play
Forwards

Stop playback or looping playback After a

recording

Play the capture sequence Forwards. Pushing this
button 2x will put the system into LOOP mode. The

After a
recording

system will keep looping about the sub range

Step
Forwards

Fast Forward

VIEW/ARM Put the camera(s) into VIEW or ARM Mode.

Step one frame forwards After a

recording

Jump to the last frame of the recording, or the last
frame of the sub range (see below)

After a
recording

Pushing this button once will put the camera into
VIEW Mode. A Live image will be displayed on the
screen and also through the sVGA Output of the
camera head if turned on.

Pushing the button a second time will put the camera
into ARM Mode. The camera is recording and waiting
for a trigger

When
you are
preparing
to make a
recording

TRIGGER

(software)

Triggers the recording. This button will initiate a “stop
recording” sequence. Depending on the trigger settings
this will be immediate or after a given delay.

A hardware trigger via the BNC connection has the
same effect.

When
you want
to record

23

Mark IN Sets the Start position of the sub-range of images After a

Mark OUT Sets the End position of the sub-range of images After a

recording

recording

Mark IN
Frame Num

When the Mark IN button is pressed or the slider-bar
sub-range triangle is used the current frame number is
displays in here as the sub-range start frame. A frame
number can also be typed in here and set by either
hitting the ‘Enter’ key or by clicking the Mark IN
button.

Mark OUT
Frame Num

When the Mark Out button is pressed or the slider-bar
sub-range triangle is used the current frame number is
displays in here as the sub-range End frame. A frame
number can also be typed in here and set by either
hitting the ‘Enter’ key or by clicking the Mark OUT
button.

Replay Speed Sets the requested FPS replay speed After a

Lock Speed Maintains the requested replay speed by skipping

frames if necessary

The slider bar below the above button is used to indicate the current position, with a
thick grey tick running along the bar. The red line indicates the trigger frame. The
triangles below can help set the sub-range of the images.

After a
recording

After a
recording

recording

After a
recording

View / Measure / Reticle Functions

Use this … To do this…

Zoom IN

Zoom OUT Zoom out the image in 10% steps

Zoom into the image in 10% steps

Reset Zoom Resets the image to 100% Zoom

Measure
Distance

Measure Distances. After depressing this button you can
click and drag on the image. The info box to the right of the
screen will display the distance of the line you are dragging.
If the image has been calibrated then this will be a calibrated
measurement, if it has not been calibrated then it will be

24

given in pixels. The same function is also available from the
‘Tools’ Tab Page

Calibrate
Scene

Calibrate the Scene. After depressing this button you will be
required to click on two points in the image for which you
know the distance apart. You will then have to enter this
distance into a dialog as shown below. This information will
be used for measuring tools.

Save to
reticle file

Saves data to a reticle file. You will be prompted for a
filename for a reticle file. Now wherever you click the
image the position of the click will be saved in a comma
separated format to the file specified and displayed on the
image with a cross-hair. This will continue until you depress
the reticle button again. See below under ‘Tool’ For more
in-depth instructions.

Calibrate and Reticle functions are repeated on the Measure Tools Tab.

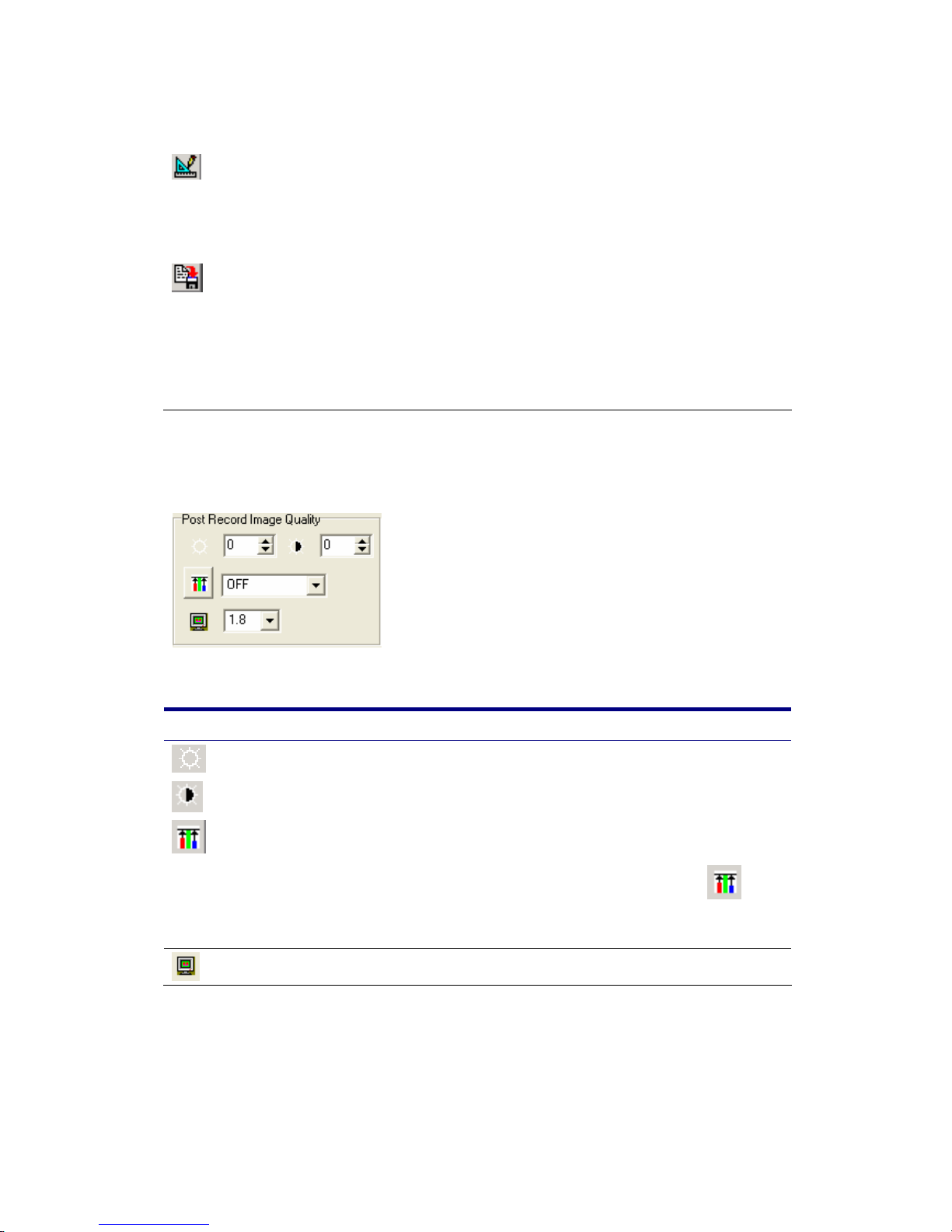

Image Quality Settings

Image quality settings are only available AFTER a recording has been made.

Use this … To do this…

Adjust the brightness of the image

Brightness

Contrast Adjust the contrast of the image

White Balance Adjust the White Balance of the image.

Select from the Drop down list. If you select

CUSTOM then you should push the button (
then click the image to set the white balance at the
clicked pixel

Gamma Sets the gamma from with either 1, 1.8 or 2.2

Recorded Information

) and

25

This section is for information purposes only. It displays the following:

1. Available record time.

2. The current frame number and time of the frame (relative to trigger).

3. The estimated uncompressed file size.

Record Information

Area of Interest

You do not need to record the full resolution image. You have the option to select an
area of interest. This will benefit you with longer record times and also smaller image
files.

To select an area of Interest you should be in READY Mode. (Not VIEW or ARM):

1. Update the image by clicking the ‘SNAP’ Button.

2. Push the ‘Select’ Button. The image will automatically ‘zoom to fit’.

3. Use your mouse to drag an area of interest.

4. When you let go of the mouse button the ‘background’ will be tinted RED to

show you the area of interest selected.

5. If you are happy with the selection then click ‘SET’.

6. If not then Drag again.

7. To reset a previously set Area of Interest, click the ‘Reset’ Button.

There are some predefined resolutions to choose from in the ‘New’ drop down combo
box. Selecting one of these will alter the resolution on all cameras.
Once a new resolution has been chosen the computer will work out the available
record time. This will increase as the resolution gets smaller.

Note this AOI is applied to all cameras in the PC.

26

Default Resolution

The default resolution allows you to reduce the Horizontal (and Vertical- optional)
resolution without needing to specify an AREA of Interest. This is useful if you are
using a Frame rate of more than 500fps and wish to avoid the “letter box” effect, or if
you wish to gain extra record time. Depending on you preferences, this option will
make the horizontal (or horizontal and vertical) resolution either half or quarter of the
maximum allowed. See also Preferences.

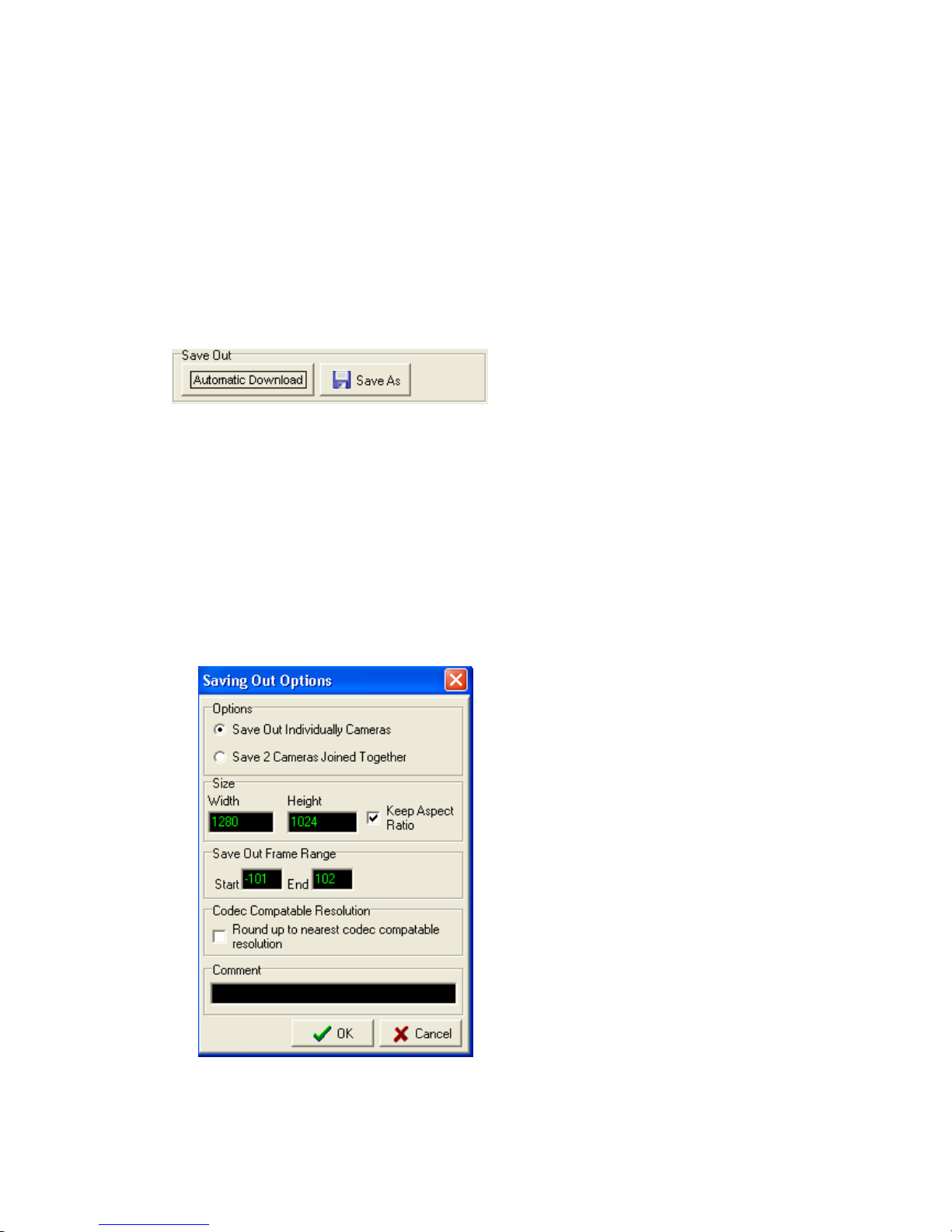

Saving Out

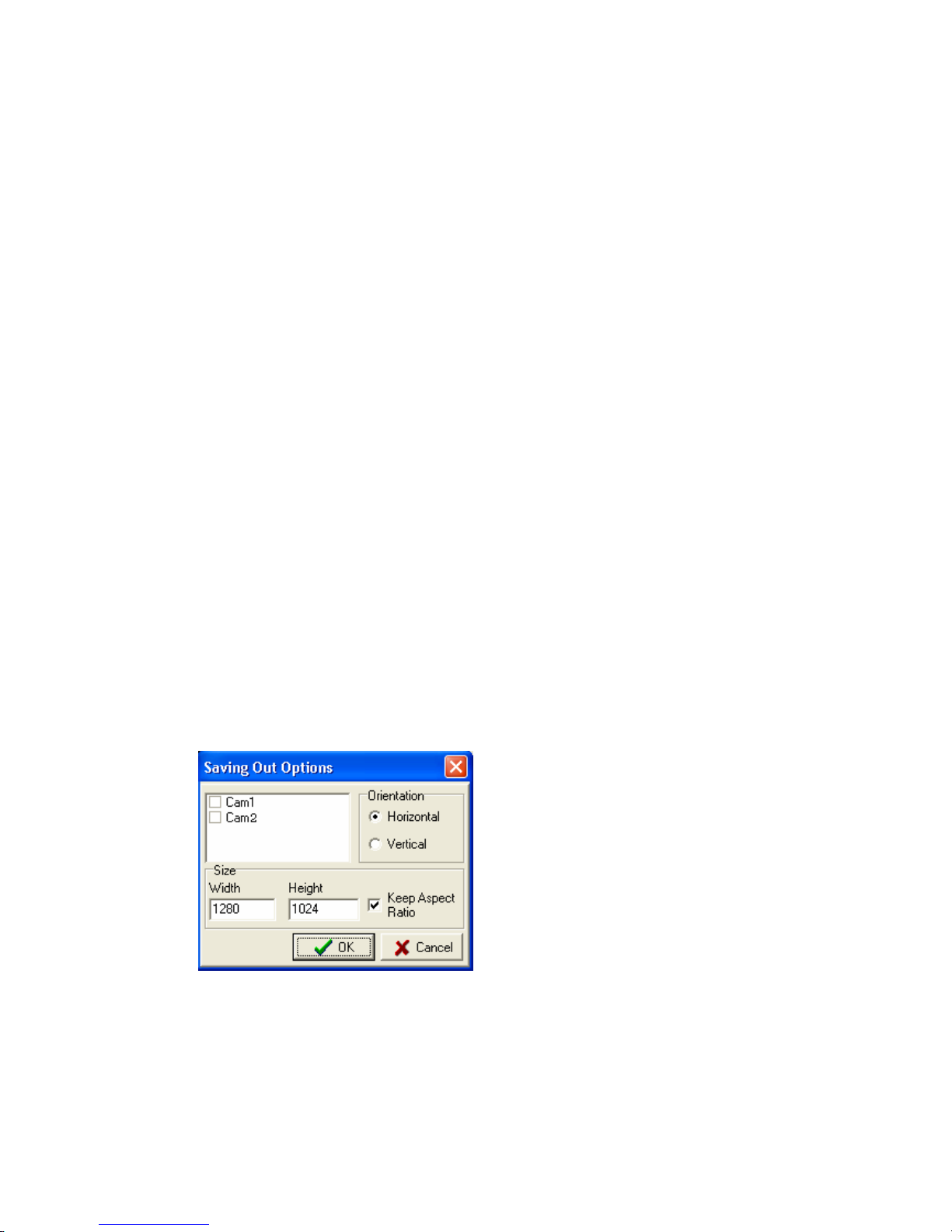

HotShot Link allows the saving out of recorded images, either separately or if there
are two cameras in the PC, two recorded images can be saved out joined together. A
comment typed here will be added to the frame information if frame information is
included on the image output. See ‘Preferences’ below.

To save out from a single camera:

1. First the range needs to be set of which frames are required to be saved out.

This can be changed by using the slider controls or the ‘Mark In’ and ‘Mark
Out’ button in the ‘Play Controls’.

2. Click the ‘Save As’ button

3. The above window will appear, choose the ‘Save Out Individually checked

Files’ bullet, this is the default option. If the image size is too big, there is an

27

option to reduce the size of the images saved out, in these boxes are the
current width and height, if new figures are added into these boxes then the
images will be first reduced before saved out into an AVI files. The ‘Keep
Aspect Ration’ checkbox if checked will keep the images from appearing
stretched, by altering the width or height accordingly.

4. If the range was not set before clicking the ‘Save As’ button the range can be

altered here if need be.

5. If the chosen resolution is not a codec compatible one, ticking the checkbox

will place a black edge around the bottom and right side of the image
increasing width and height to make the resolution compatible, without stretch
or enlarging the image.

6. There is the option to enter a text comment associated with the recording.

7. When the required settings are set, click the ‘Ok’ button.

8. Another window will appear asking for a filename and a location.

9. Then another window will appear asking if the AVI is to be compressed, if so

select on in the drop down list and click ‘Ok’.

10. Now the AVI will be saved out, and the progress will be indicated in the

progress bar.

If at anytime the save needs to be stop, clicking the ‘Cancel’ button will stop the
saving out.

To save out two camera’s images:

1. Select the required range as with the single camera, but take note that the

range will be applied to both cameras’ images.

2. Then click the ‘Save As’ button.

3. Select the ‘Save 2 Files Joined Together’ bullet; the re-size option will now be

shaded out.

4. Make sure the range is correct and click the ‘Ok’ button.

5. Then the window will change to:

6. If there are more than 2 cameras in the PC, they will also be displayed in this

list box. But only 2 can be ticked.

7. Select whether the images are to be placed side-by-side (Horizontal) or on top

of one another (Vertical).

8. Then if the images need to be reduced select the required measurement as with

the Single camera saves out.

28

9. Once the required settings have been entered, click the ‘Ok’ button.

10. Then input a filename and location when the next window appears.

11. When another window appears select the compression if any.

12. Then watch the progress bar as the AVI is made.

Note Other file format can be saved out along with AVI; BMPs, TIFs and JPEGs
images stream can be saved out also. One important file format is the raw binary data
(BIN) format. This saves out the entire PCI board’s buffers to a file with ‘.bin.’
extension. Another file is also created with the extension ‘.hdc’. These two files need
to be kept together as one with out the other will mean that the data can not be loaded
back into the PCI board’s buffers at a later date.

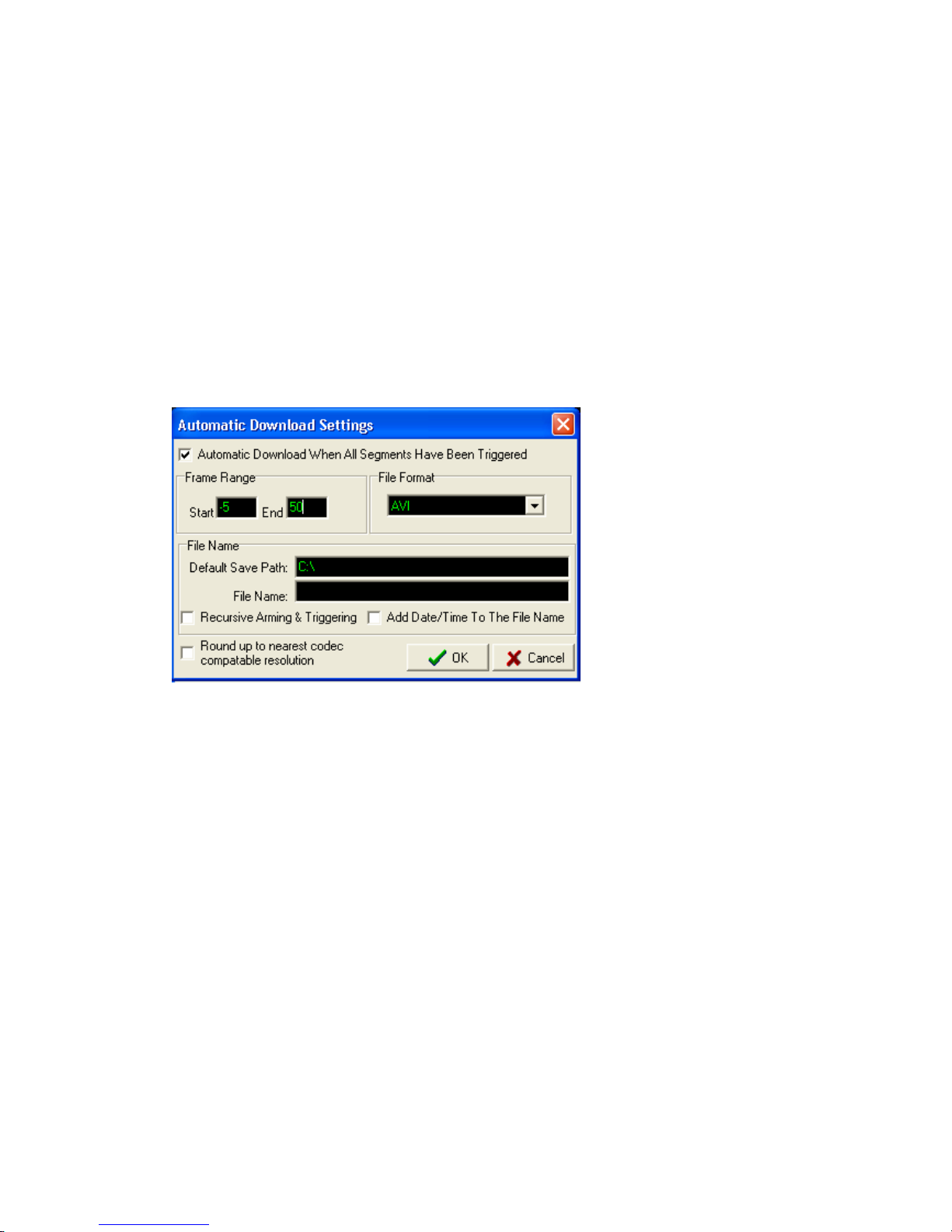

Automatic Download

Click this button will display the above options. These options affect how the
software operates after it has recorded into to all of memory segments. When the last
memory segment has been triggered and recorded into, if the Automatic Download is
checked then the software automatically saves out segments into the required format
and range in the pre-defined location. If the selected file format was BIN (Raw binary
data direct from the PCI memory buffers) the entire memory is saves out in one file,
not by segments, when it comes to loading this BIN file back into the PCI board’s
memory all the segments used will be setup accordingly. Save as BIN reduces the
time spent downloading from the board as there is no conversion or compression to
perform. It takes approximately 90 seconds to download 1GB of data.

The Recursive Arming & Triggering check box is used after download has taken
place; if it’s ticked the software resets the segments and goes into arm mode in the
first segment waiting for a trigger.

29

Tools

Calibration

This tool is used to calculate basic depth correction. Click the

button will allow

the user to select two points on the image that the distance apart is known.

After clicking two points on the image you will see the dialog above. Enter the
distance apart of the two points and the units of measure. You can select the unit from
the drop down list or enter it manually. Click OK when you have finished. To reset
the calibration (to 1 pixel = 1 pixel) push the reset button.

Reticle

This tool is used to mark the image at specific points of interest. There are some
options available to aid the user. The user can have the software step through to the
next frame automatically by checking the ‘Auto-Step to Next Frame’ checkbox, then
the number of points on the image before stepping to the next frame, and whether to
burn the point’s crosshairs onto the images when saving out and reviewing.

30

Grid

HotShot Link allows the overlay of a grid onto the images.

Use this … To do this…

Grid On

Toggle the grid ON and OFF

Set Start

Set the start point of the grid. Both Polar and Line
grids will begin at the point set. Press the button and
then click the image.

Grid Type Different types of Grid to draw. Y is Vertical Lines, X

is Horizontal Lines. Polar will be concentric circles
moving out from the Start Position

Rotate Rotates the Grid by the degrees set. No use for polar

grid function

Frequency The spacing of the grid lines. This value will relate to

the calibration. If no calibration is performed than it
will be in pixels

31

Pixel Analysis

Note for multi-camera systems. For all pixel tools the first camera that is ticked is the
camera used to provide images for the tools. Any subsequent cameras ticked will be
ignored. To view there camera’s pixel values make sure that camera’s name is ticked
and no other.

Pixel Peak

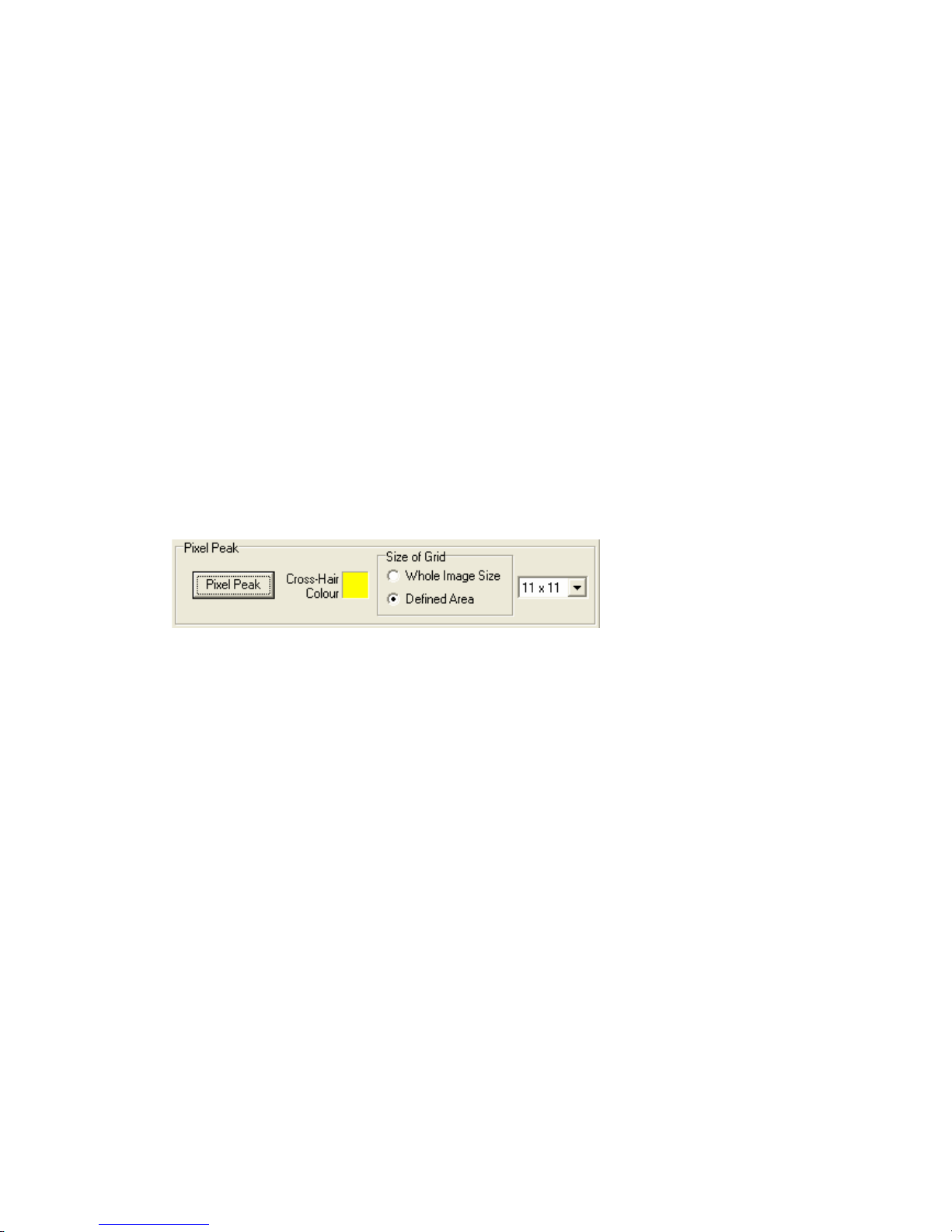

The pixel peak group box at the top of the tabbed page allows the pixel values to be
extracted from the current images displayed in the video window.

There are various options to choose from, to have a look at a defined area of 11 pixels
by 11 pixels:

1. Select the ‘Defined Area’ bullet, its default position.

2. Then select the ‘11x11’ option in the drop down box. This is only enabled

when ‘Defined Area’ is selected.

3. The click the ‘Pixel Peak’ button.

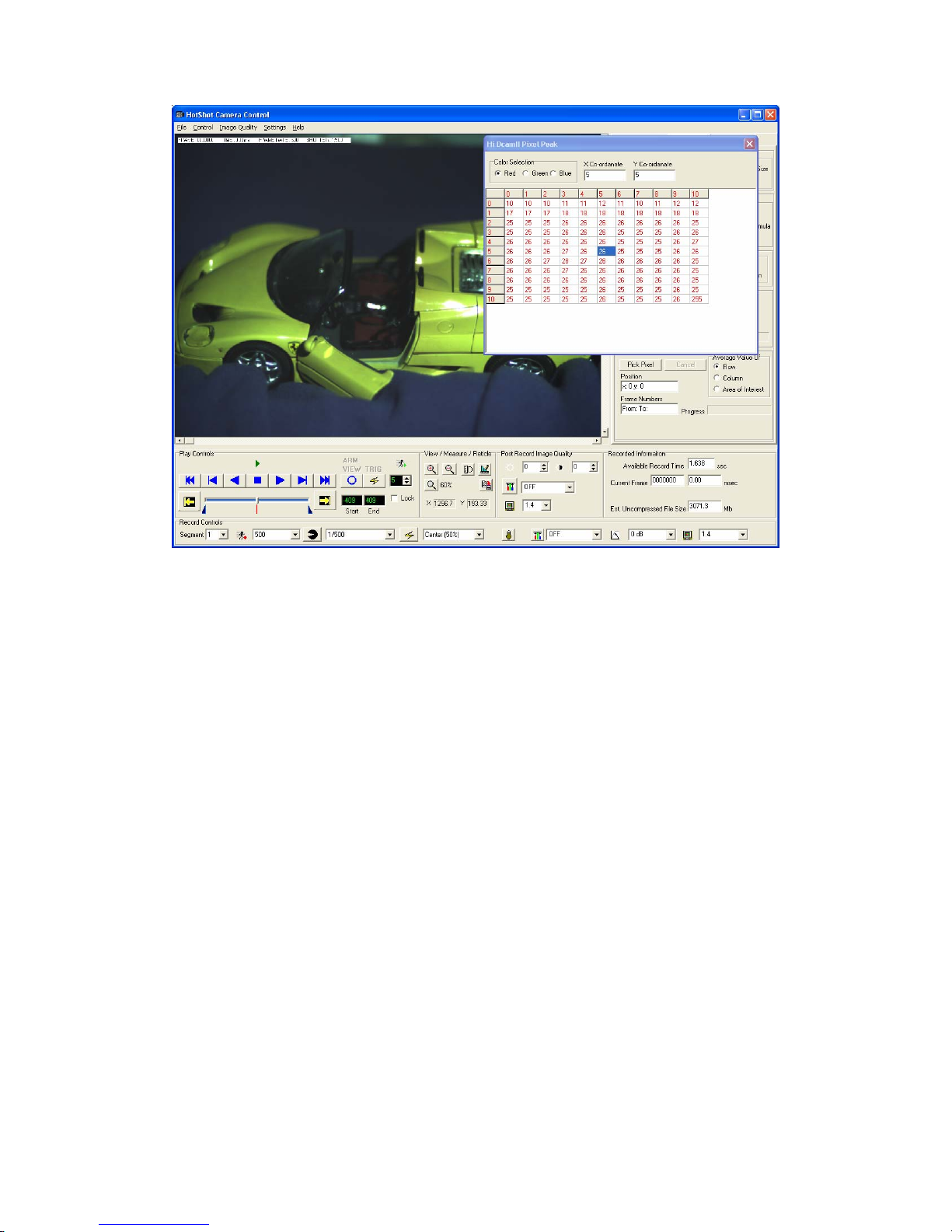

4. A new window will appear:

32

5. This window contains a colour selection option at the top along with the

middle x and y co-ordinates highlighted by the blue box on the grid below.

6. Because the camera is monochrome, there will be no colour options, it the

camera was a colour model; there would be the option to view the Red, Green
and Blue Channels. The Grid contains the pixel values at the pixel position
marked at the top and left sides.

To select a different area to peak at click on a new location on the current images:

33

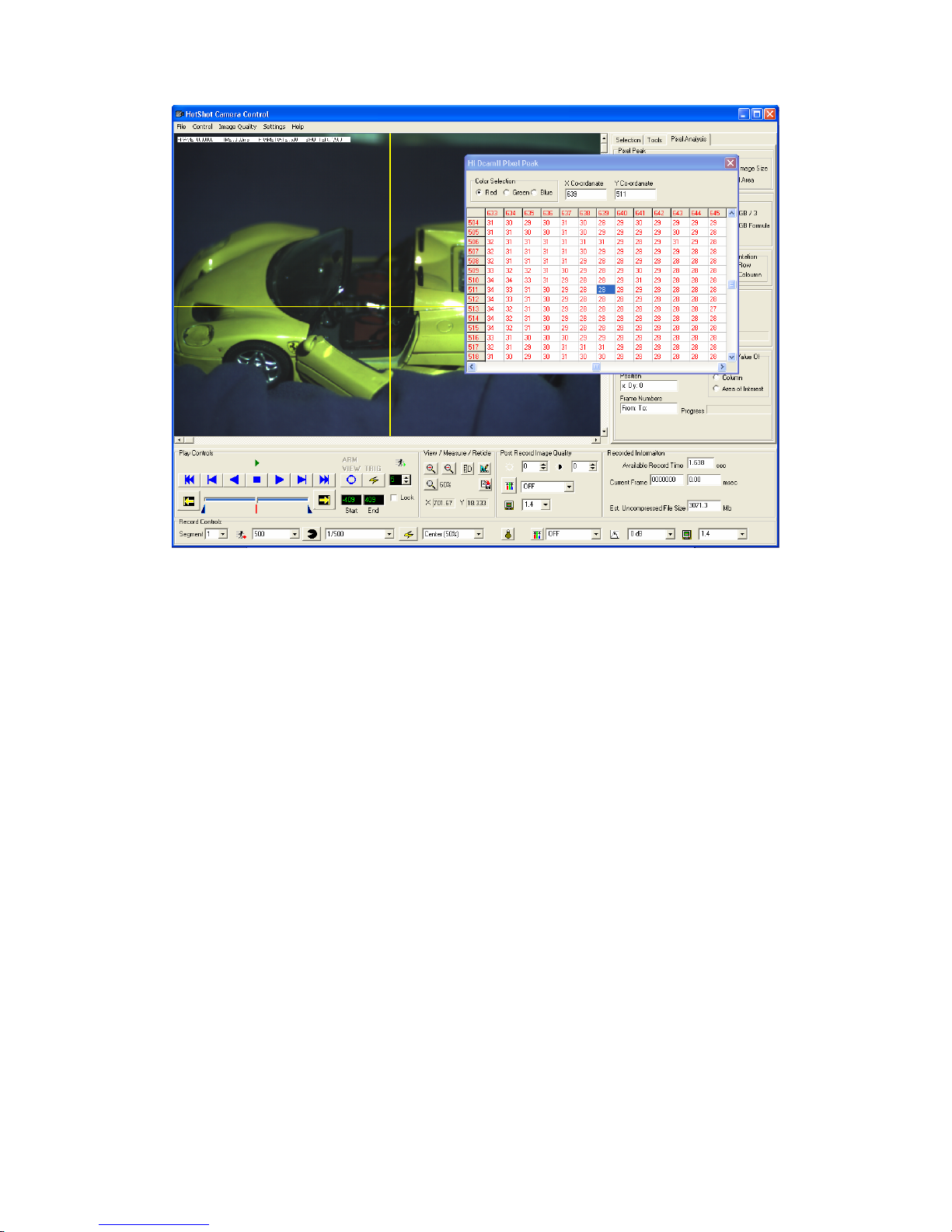

7. A yellow square will now indicate the pixels being looked at in the grid, and

the grid will update to view the pixel’s values. The centre x and y position is
the pixel that was click on the images, and the co-ordinates are stored in the
edit boxes above.

The grid will keep updates as long as its window is open, closing the window will
stop displaying the pixel’s values.

There is another option in the Pixel Peak box, ‘Whole Image Size’. If this option is
select the drop down box is disabled. Then click the ‘Pixel Peak’ button will open
another window and fill the grid with the whole images pixel’s values.

Note if the image size is big, filling the grid may take some time.

34

With this option select the grid automatically goes to the centre of the images and
highlights the centre pixel. Again click on the image will display the pixel values
around the area click with the area clicked being at the centre display of the grid and
the co-ordinates being displayed in the edit boxes above. A yellow cross hair will
appear on the image indicating the co-ordinates chosen.

Note to change the colour used on the image to show the user the area being viewed,
click the ‘Cross-Hair Colour’ box, a colour dialog box will appear and another colour
can be chosen. The default is yellow.

35

Pixel Views

At the top of this box is ‘Display Options For All Tools’, this box changes settings for
the following three pixel functions. This option with the bullet in will only display
that channel in the graphs.

Row/ Column Intensity

This function extracts from the current frame the pixel values (intensity’s) along a
pre-selected Row or Column. To use:

1. Select whether you wish to view a row or column.

2. Click the ‘Pick Pixel’ button.

3. Next click on the image of the requested row/ column.

4. A new window will appear and line will be drawn representing the row or

column.

36

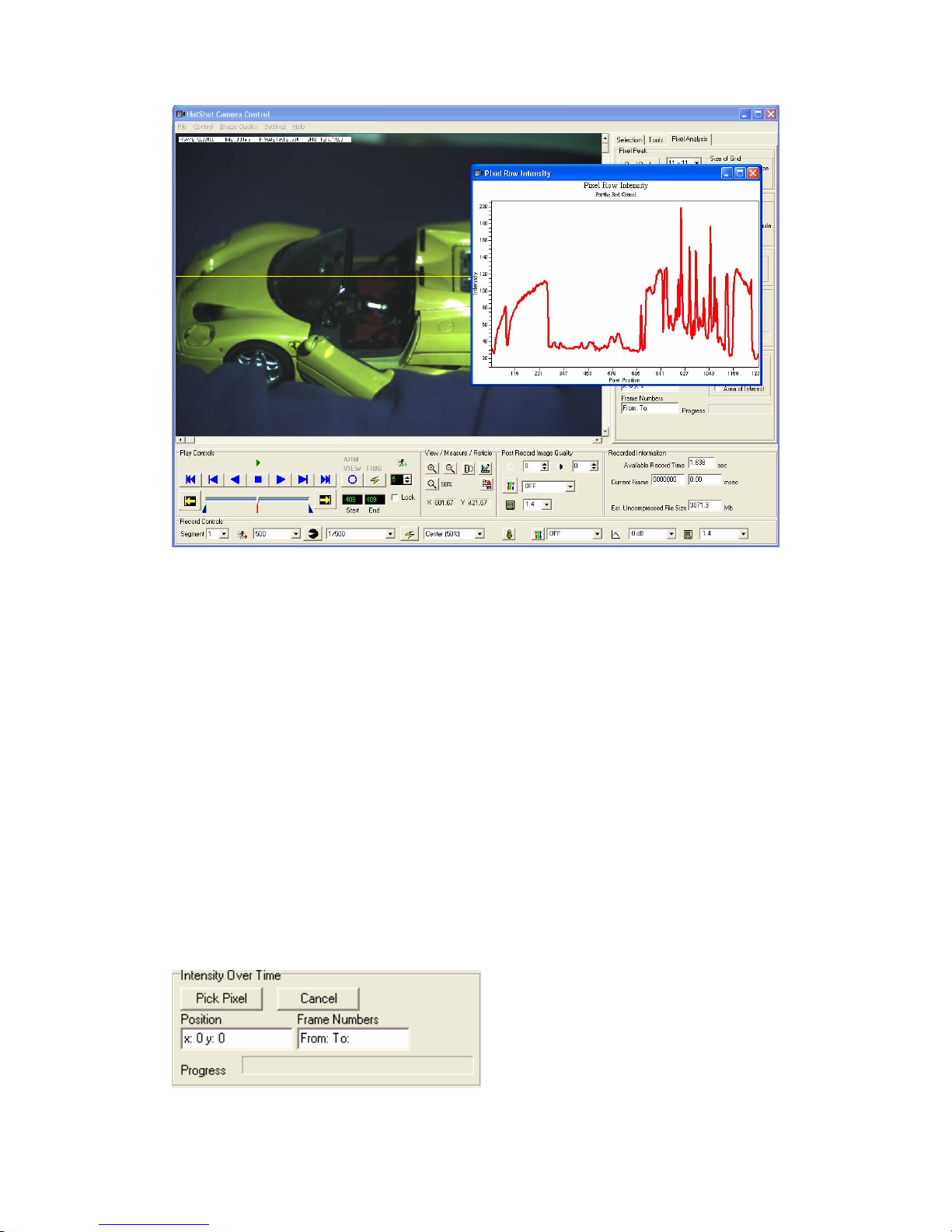

5. The window contains a graph show the pixel intensity on the left ranging from

0 to 155, and on the bottom the pixel’s position. In the case of a row from left
to right or if a viewing a column from top to bottom.

6. The graph represents the pixel value for what every channel is select in the

‘Display Options for All Tools’.

7. To change the selected channel, simply choose another bullet.

8. The programme also allows the change of orientation from row to column or

vice versa.

Note for monochrome camera, changing the to Red, green or blue channels will
produce incorrect values, choice RGB /3 or use the formula to obtain the correct pixel
values.

Intensity over Time

This function can only be carried out after recording. It takes the pixel’s values
depending on what is selected in the ‘Display Options for All Tools’ box at the given
co-ordinates, and then finds out that intensity over the range selected in the ‘Play
Controls’ box on the sub range slider.

37

To use this function:

1. Select the channel to be viewed in the ‘Display Options for All Tools’ box.

2. Select the correct range using the ‘Play Controls’ sub range slider.

3. Click the ‘Pick Time’ button.

4. Select the required pixel by click on its location with the mouse.

5. The cursor will change to an hourglass and the programme will run through

each frame and decode the selected pixel’s value.

6. The progress bar will indicate the progress of the function.

7. To cancel this function at any time, click the ‘Cancel’ button.

8. When the programme has finished gathering the results, a new window will

open:

9. Once the graph is open the window needs to be closed before any other

functions can be used.

10. To change the channel or ranges close the window and start again.

38

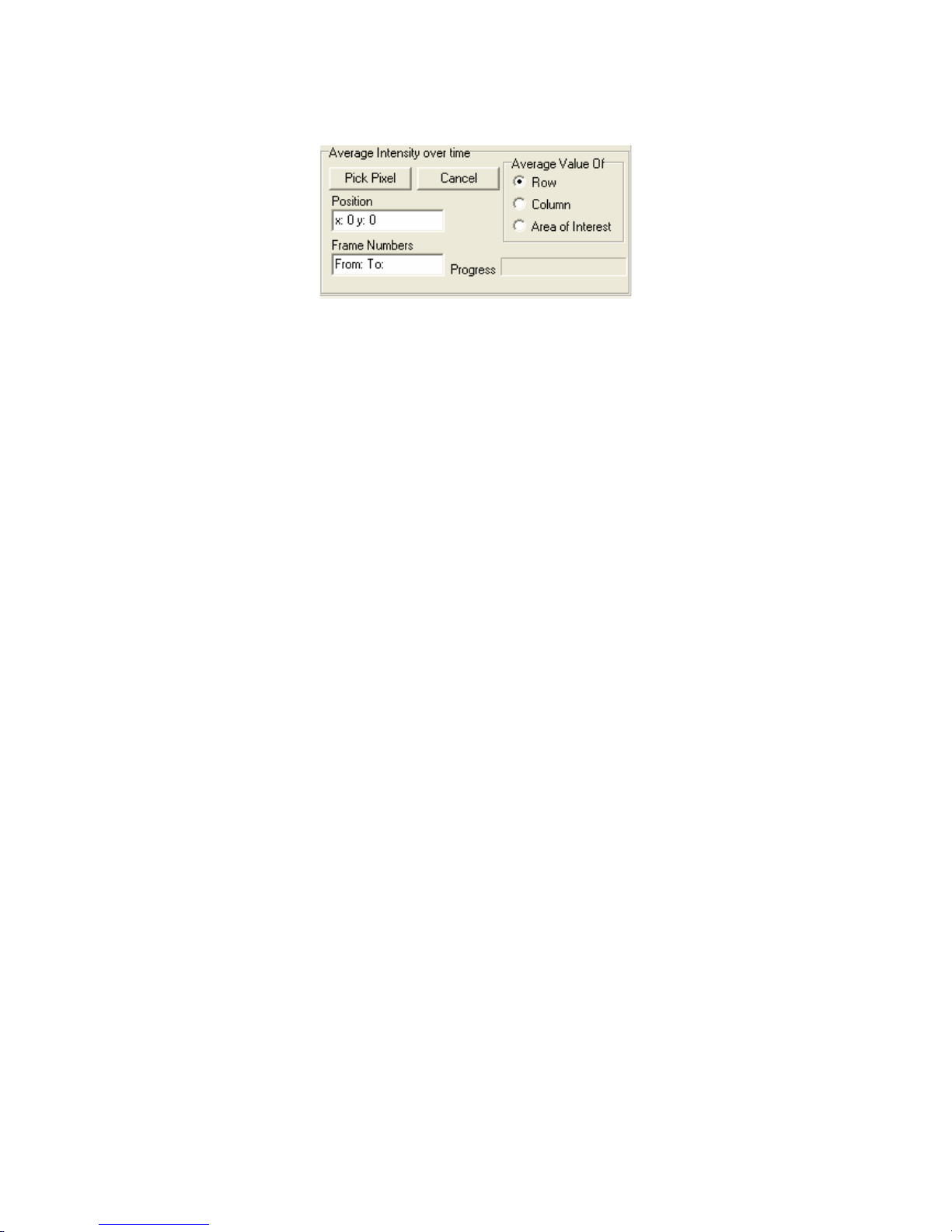

Average Intensity Over Time

This function is very similar to the above function, but instead of just finding out a
specific pixel’s value, this function will work out the average intensity for a row,
column or area on each image within the ranges set. To use this function on a row or
column:

1. Select the channel via the ‘Display Options for All Tools’ box.

2. Select whether a row, column or area is required.

3. Select the range required by moving the mark IN and mark OUT slider

triangles or inputting the frame number direct.

4. Clicking the Pick Pixel’ button.

5. The click the pixel on the image which the row or column goes through.

6. The progress bar will indicate the progress of the function.

7. To cancel this function at any time, click the ‘Cancel’ button.

8. When the programme has finished gathering the results, a new window

displaying the average intensities over time for the row column.

To use an area of interest follow the above except select the ‘Area of Interest’ bullet
and then drag the area of interest on the image after clicking the ‘Pick Pixel’.

39

Miscellaneous

Preferences

The ‘Default Settings’ button will show the preferences screen.

40

Use this … To do this…

Start/End
Trigger
Offset

External
Sync / Flash

The % of memory to “delay” when using a Start or
End trigger. (see Below)

Set the state of the External Sync from the camera
head.

Include
frame info

Frame Info
Font Size

Debug Log
File

Default Save
Location

Background
Colour

Cut
Resolution

Denote whether frame information (Frame Number,

time, shutter, trigger, comments) are displayed on the
output images.

Set the Font size of the Frame Info

Save Debug Information to a specified log file

Select and save a default folder to save video files to

Sets the colour for the image window

Set the default cut resolution mode

Frame Rate Set the Default Frame rate

Shutter Set the Default Shutter

Trigger Set the default trigger Mode

White

Set the Default White Balance

Balance

Start End Trigger Offset

Example {1} if you have 100 frames available a start trigger would normal cause a
further 100 frames to be recorded before recording stops. A 10% offset would cause a
further 90frames to be recorded.

Example {2} if you have 200 frames available an end trigger would normal cause a
recording to stop immediately. A 10% offset would cause a further 20 frames to be
recorded.

41

Memory Segmentation

On clicking this button will open up the following window:

This window controls the number of segments the PCI board is made into. A segment
is part of the total available video memory. The top half of the window is where the
user can select how many segments there are. This can be inputted either by selecting
how many from the drop down list, which are 1, 2, 4, 8, 16 or custom. Selecting
custom from the drop down list enables the custom box on the right; here the user can
input the number of seconds or frames required per segment. If a camera is connected
the user can click the Set button which will set the new memory segmentation settings
and update the boxes below.

These boxes contain the maximum record time in seconds and frames and the
available record time in seconds and frames per segment.

If ‘Auto-Increment Memory Segment After triggering’ is check then once the trigger
has been received whilst recording in the current segment the software will
automatically jump to the next segment and re-arm itself awaiting the next trigger.
This will keep happening until the user clicks the stop button or it’s the last segment
been used. If it’s the last segment on of two things will occur. The first is that the
software will stop and await further instructions from the user; the second is that if the
Auto-Download feature is turn on then it will begin download the cameras segment
one at a time one camera at a time. Please see the ‘Auto Download’ section for more
advice.

42

Advance Options

This button will display the following advanced options. Note a good understanding
of how operating systems handle multitasking is recommended, if in any doubt leave
to the default settings as shown below.

This window contains options to control the software threads that are polled to keep
the capture (display) and trigger watch continuously updating the screen and watching
the trigger to stop recording.

The Capture update control how often the image window is updated with the latest
image captured from the HotShot, the higher the setting the quicker its updated,
however the slower the software responds as the operating system allocates more time
to the capture thread instead of processing messages from the mouse and keyboard.
The same goes for the trigger watch except that this watches for a state change on the
trigger cable to stop recording.

The higher the trigger watch setting the more time the operating system allocates to
check for a state change on the trigger cable. So a higher setting will mean a more
accurate trigger, but with less time processing messages from the keyboard or mouse
the software will not be easily controlled, i.e. pressing the stop or trigger buttons.

The display buffer number option show the current buffer being used above the play
controls.

The ‘Disable VIEW while in ARM mode’ options turns of the capture thread while in
ARM mode regardless of the setting. This will ensure a more reliable trigger.

Note any setting above normal, especially on the trigger watch will seriously slow
down the operating system response to messages to the extent it will look like the
software has hung.

43

About

The about box displays, the current version, and build number underneath, and what
operating mode the programme is working in:

1. Multi-Camera.

2. Single Camera.

44
