Nac Hi-Moiton II Quick Manual

1

Ultra Slow Motion Camera

3-Chip High Definition High Speed Camera System

Quick Guide

Mar 14, 2014

2

Table of Contents

1 Firmware Version
2 Quick Overview of Specifications
3 Setup and Connections
4 CCU Quick Guide
5 Format Selection and H / V Phase Adjustment
6 Capture Size
7 Monitor Information Caption
8 OCP Quick Guide
9 Slow Controller Quick Guide
10 Table of Recording S p eed and Ti me
11 Camera Head Menu
12 Trouble Shooting
13 Precautions when using SHED-HDX Systems of Telecast Fiber Systems, Inc.

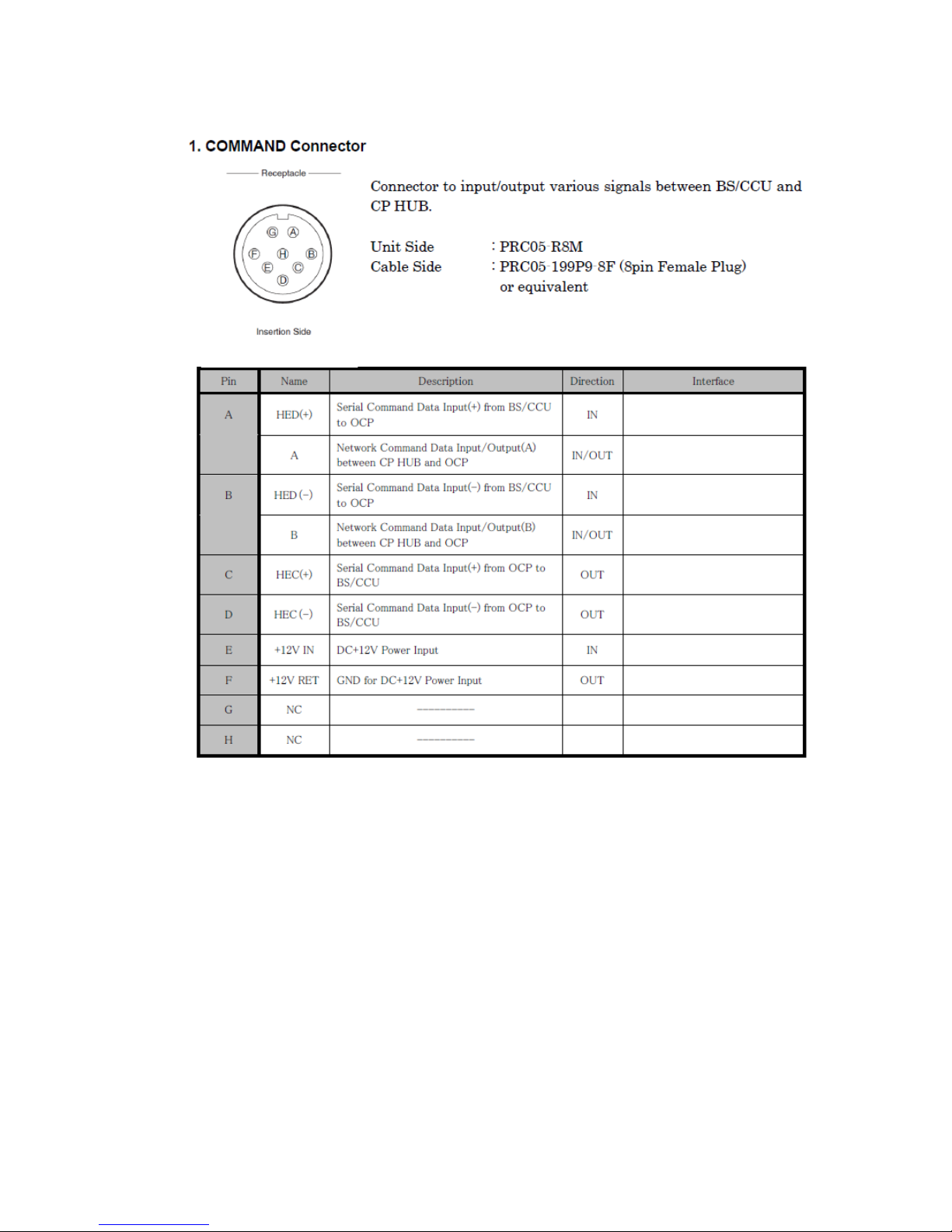

14 Camera Head / CCU / OCP / Slow Controller / Pin Assignment of Connectors

3

1 Firmware Version

This document is based on the following firmware versions.
Please refer to the versions before you read this document.

・ Version : Camera Head

You can check the versions at MENU(1/2) > OTHER INFO > VERSION in 11. Camera Head Menu

I/F PART UPDATE

・ FW ：01.08.19

・ PIF ：01.00.07
・ MEM ：02.04.00

・ SNS ：02.07.00

PROC PART UPDATE

・ FW ：01.12.05
・ PROC1 ：01.37.41
・ PROC2 ：01.74.00

・ Version : OCP

Press INFO button on OCP

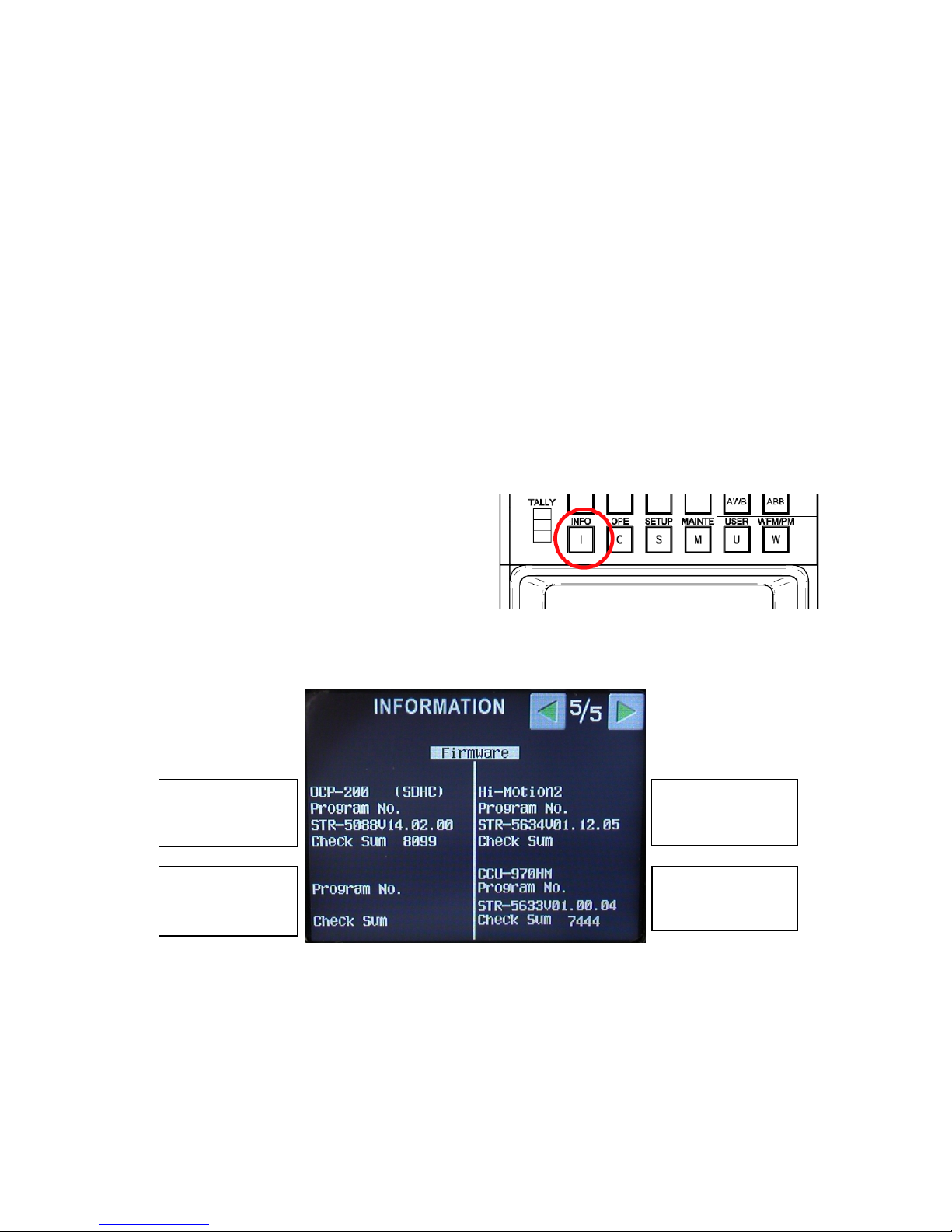

You can check the versions at INFORMATION 5/5 on the touch screen.
Please check if the versions and Check Sum of OCP-200 / CCU-970HM are as follows.

・ Version : Slow Controller

Version information is displayed on t he LCD panel approx. 2secs after turning on the power and
“initialize…” message. Please confirm the version is “MDC50T-NAC09 S0130-53”.

CCU-970HM

Program No.
STR-5633V01.00.04

Check Sum 7444

OCP-200 (SDHC)

Program No.
STR-5088V14.02.00
Check Sum 8099

Program No.
Check Sum

Hi-Moiton2

Program No.
STR-5634V01.12.05
Check Sum

4

2 Quick Overview of Specifications

2.1. Camera Head
1 Image Sensor 3x CMOS (Global Shutter), 2/3-inch Optical System

2 Effective picture elements 1920x1080
3 Lens Mount B4 Mount
4 Sensitivity F8 at 2000lx (5600K, 89.9% reflectance, at 1080 mode)
5 Signal-to-noise ratio 61.9dB at LIVE, 58.5dB at REPLAY*
*FRCR-ON, FRGA-4, FRTH-3 at 1080 mode
6 Operation temperature -15 to +40 degrees C
7 Storage temperature -30 to +60 degrees C
8 Memory 96GB (32GB x 3ch)
9 Frame rate 24 to 1000 fps, 1fps step
10 Recording time 38 Sec. (300fps)
11 Power Consumption 186W (with Lens and 2”VF)
12 Dimensions (W x H x D) 146 x 326 x 456 mm
13 Weight 7 Kg (without VF and lens)

2.2. CCU
1 FORMAT 1080i or 720p / 59.94 or 50Hz

2 Power suppl y AC 100 / 110 / 117 / 220 / 240 V ±10%
3 Power consumption approx. 290 - 510VA (Camera , 9"VF and CCU)
4 Operating temperature -0 to +45 degrees C
5 Storage temperature -30 to +60 degrees C
6 Dimensions (W x H x D) 483 x 133 x 454 mm
7 Weight 28 Kg

5

3 Setup and Connections

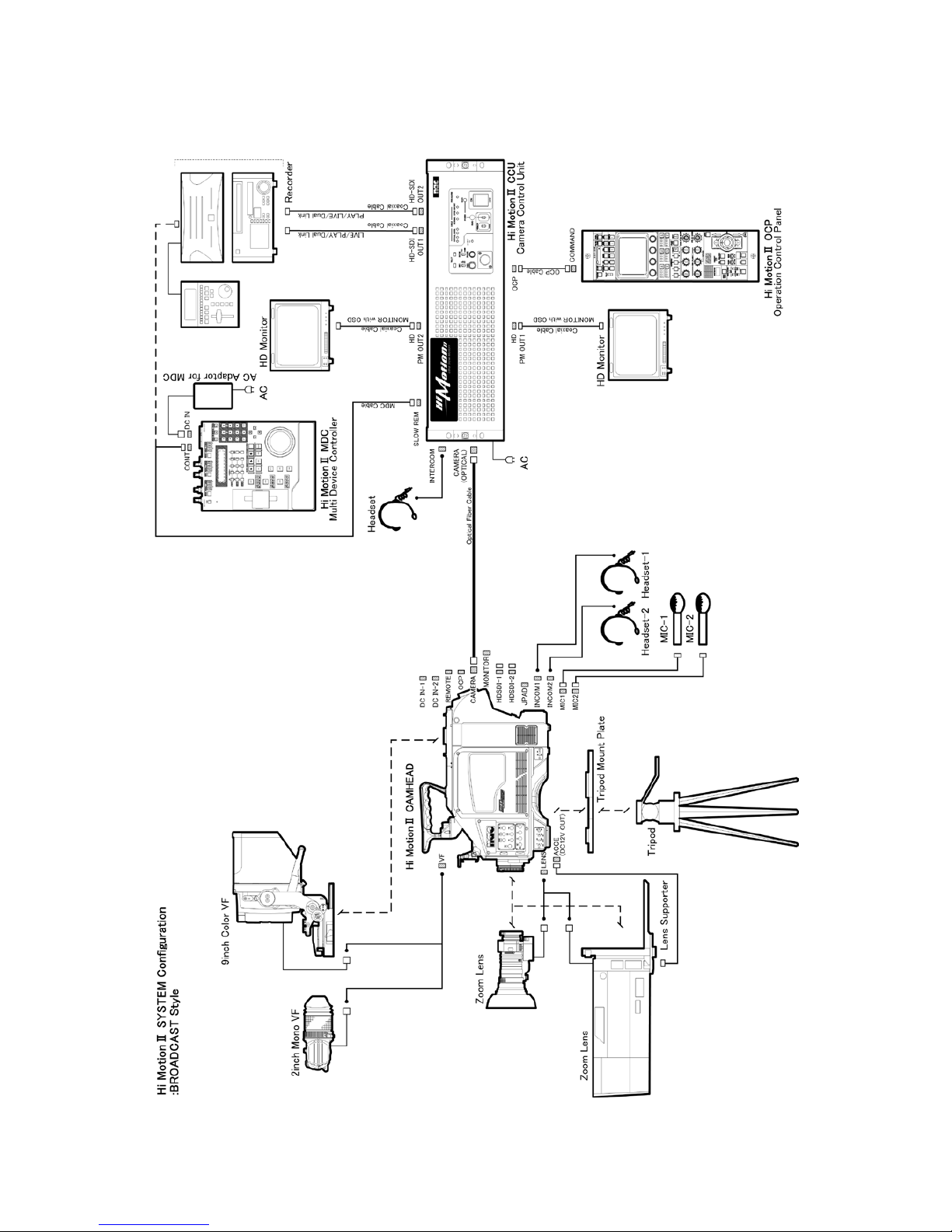

3.1 OB Style

6

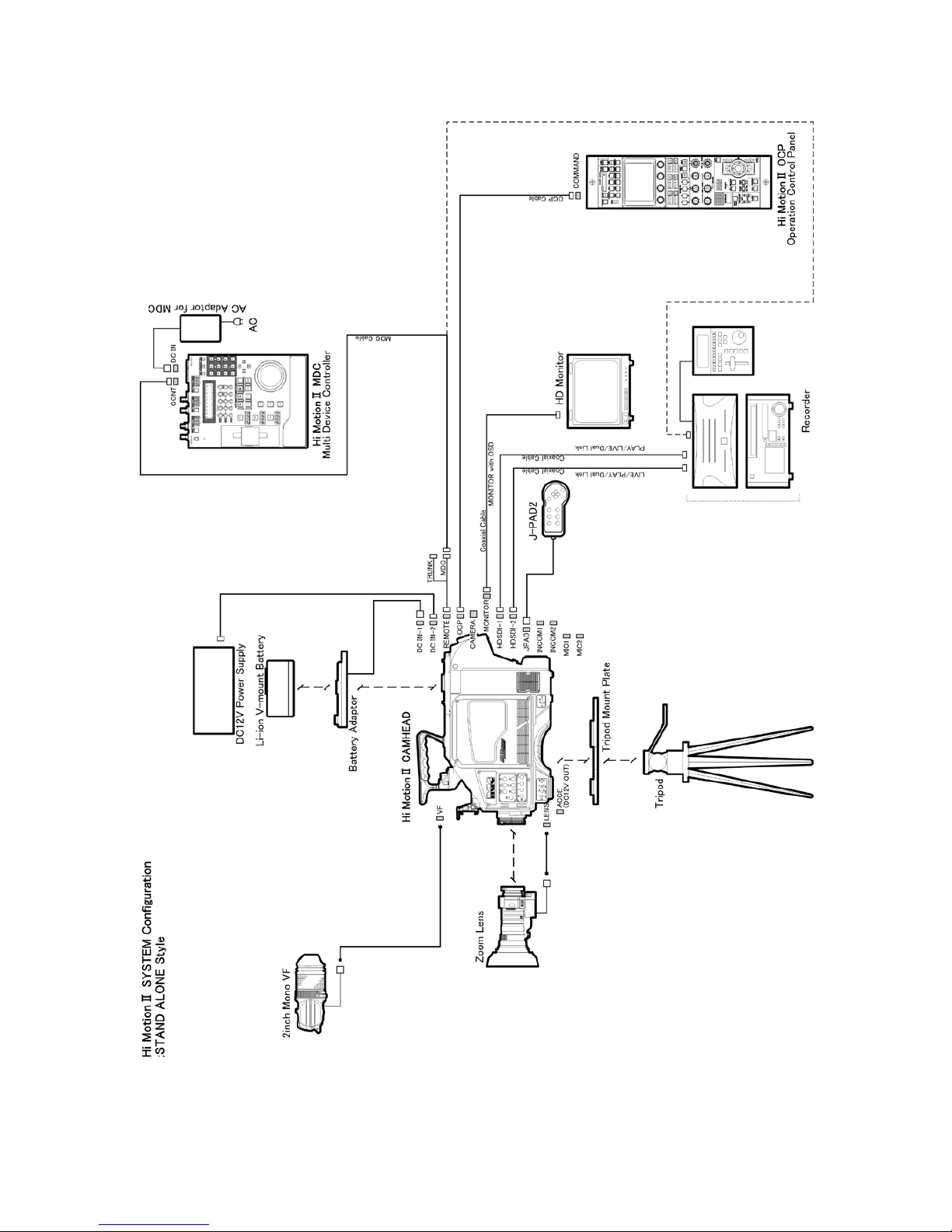

3.2 Standalone Style

7

4 CCU Quick Guide

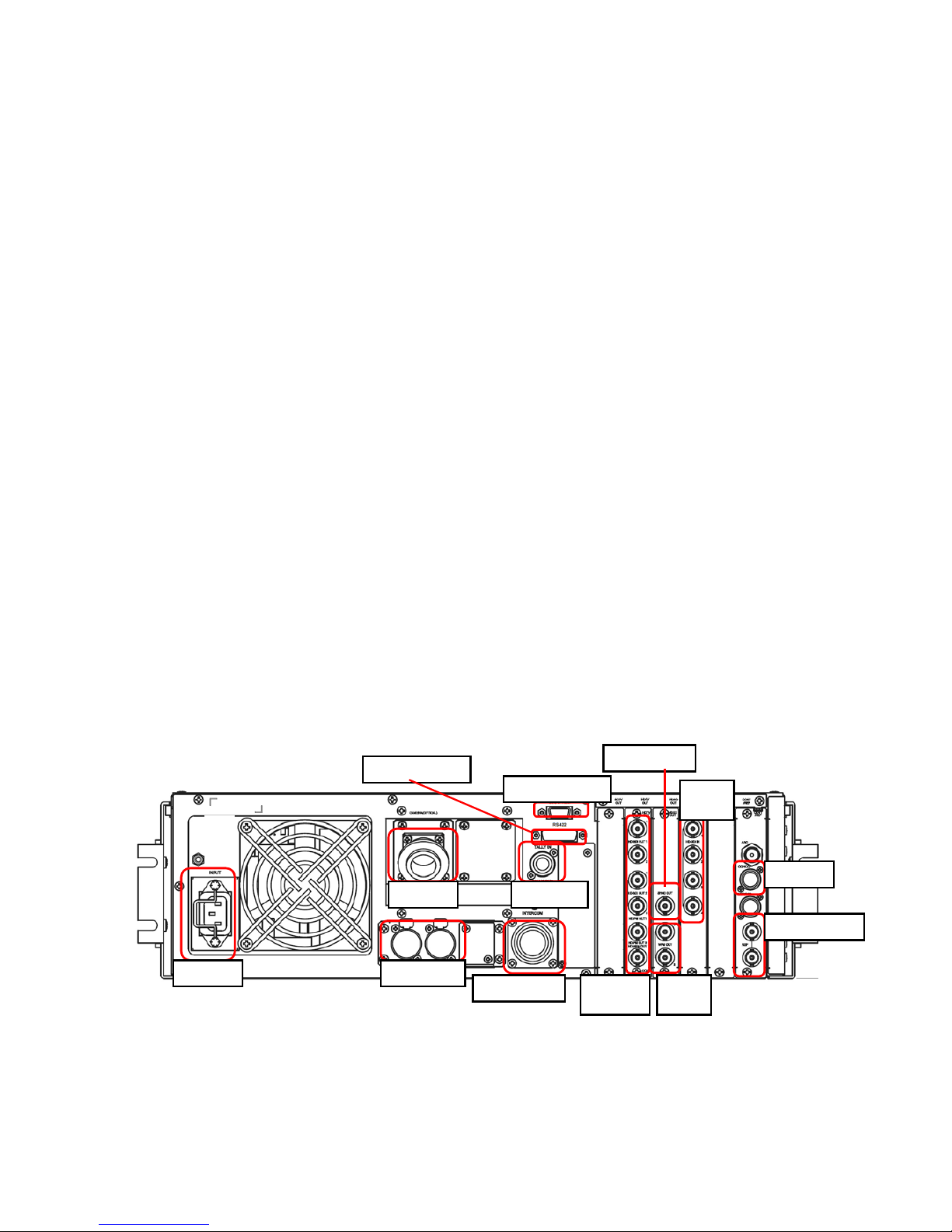

4.1 Rear Panel

A AC IN AC100V/110V/117V/220V/240V ±10%
B OPT Optical Fiber Connection
C MIC OUT MIC Direct Output from the MIC Input of Camera
D SLOW-CTRL Slow Controller Connection
E TRUNK RS-422 Communication with Camera Head(Optional)
F TALLY IN Tally Signal Input
G INTERCOM Intercom Signal Connection
H RET IN Return Signal Inputs via max. 4ch x HD-SDI
I OCP OCP Cable Connection
J GENLOCK Genlock Signal Connection for either HD Tri-sync or SD-BB Signal
K SYNC OUT HDTV tri-level Signal Output for external devices
L WFM WFM Connection, 1 for LIVE-OUT, 2 for REPLAY-OUT (*)
M HD-SDI OUT There are 6 (six) BNC Connections as follows

1 HD-SDI 1 Live Output at All Times (*)
2 HD-SDI 1 Live Output at All Times (*)
3 HD-SDI 2 Replay Output (*)
4 HD-SDI 2 Replay Output (*)
5 PM1(Picture Monitor 1) Output for OCP Operator. Characters Signal is overlaid
6 PM2(Picture Monitor 2) Output for V/T Operator. Characters Signal is overlaid

(*) When the system format is set in 1080I59/720P59/1080I50/720P50, the output image

becomes this.
When the system format is set in 1080P59/1080P50, all the output images are Live or
replay.

AC IN

MIC OUT

OPT

INTERCOM

TALLY IN

SLOW-CTRL

HD-SDI

OUT

OCP

GENLOCK

RET

IN

WFM

SYNC OUT

TRUNK

8

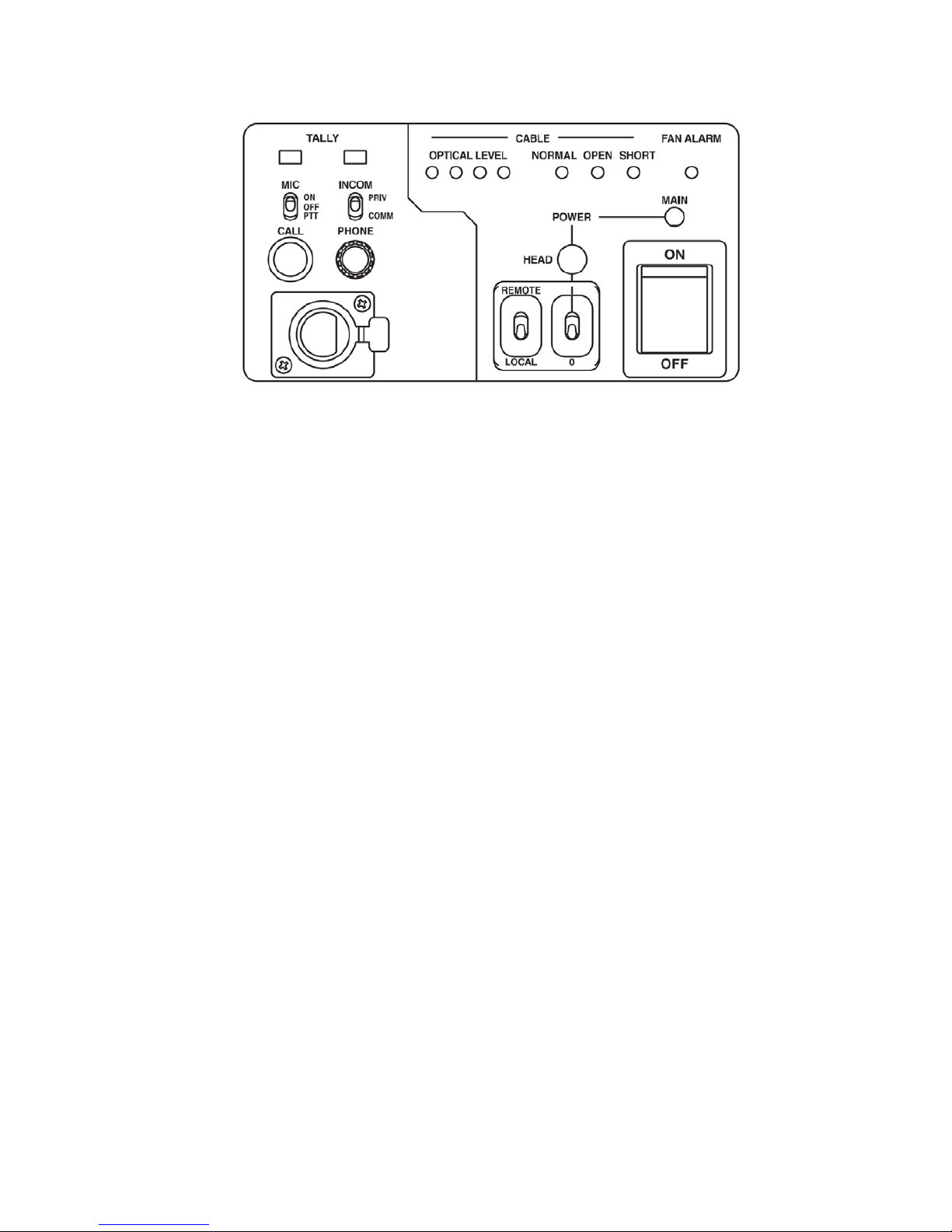

4.2 Front Panel

A POWER

1 MAIN Power switch of CCU
2 HEAD Power switch of Camera Head

B CABLE Indicator

1 OPTICAL LEVEL Status of Optical communication of camera cable

・ ○●●● 1.OK The cable is in good condition
・ ○●●○ 2.ATTENTION Cleaning recommended, but still usable
・ ○●○○ 3.WARNING Problem in communi cat ion. Must clean the cable
・ ●○○○ 4.NG Not usable. Change the cable.

2 CAMERA CABLE Status of camera cable

・ ●NORMAL Status is normal.
・ ●OPEN The cable may be disconnected or snapped
・ ●SHORT The cable may be short-circuited.

C MIC

1 ON Turns ON Sound communication from MIC of CCU front to Camera Head
2 OFF Turns OFF Sound communication from MIC of CCU front to Camera Head
3 PTT Turns ON MIC of CCU front only while the switch is at PTT position.

D INCOM

1 PRIV Deactivates Engineer line of INTER COM connector on the rear panel of the CCU.
2 COMM Activates Engineer line of INTER COM connector on the rear panel of the CCU

E REMOTE / LOCAL

Please set to LOCAL. REMOTE is inactive.

F FAN ALARM

The indicator lights on when CCU fan stops.

9

5 Format Selection and H / V Phase Adjustment

5.1 Format Selection

The Hi-Motion II supports 1080I59, 720P59, 1080P59, 1080I50, 720P50 and 1080P50 system
format. These are selectable as the image signal output.

A How to change System Format of different frequency (e.g. 1080/59.94i <-> 1080/50i)

Change both settings on the Camera Head and the CCU as follows. The Camera must be
changed first and the CCU second.

NOTE: GENLOCK must be disconnected before the setting.

1. Open the HEAD MENU on the VF output and change the FORMAT SELECT of CAMERA HEAD

FORMAT on ENGINEER(1//2).

2. Turn off the power of the Camera

3. Show the color bar on PM1 output of the CCU by pressing BARS button on the OCP.

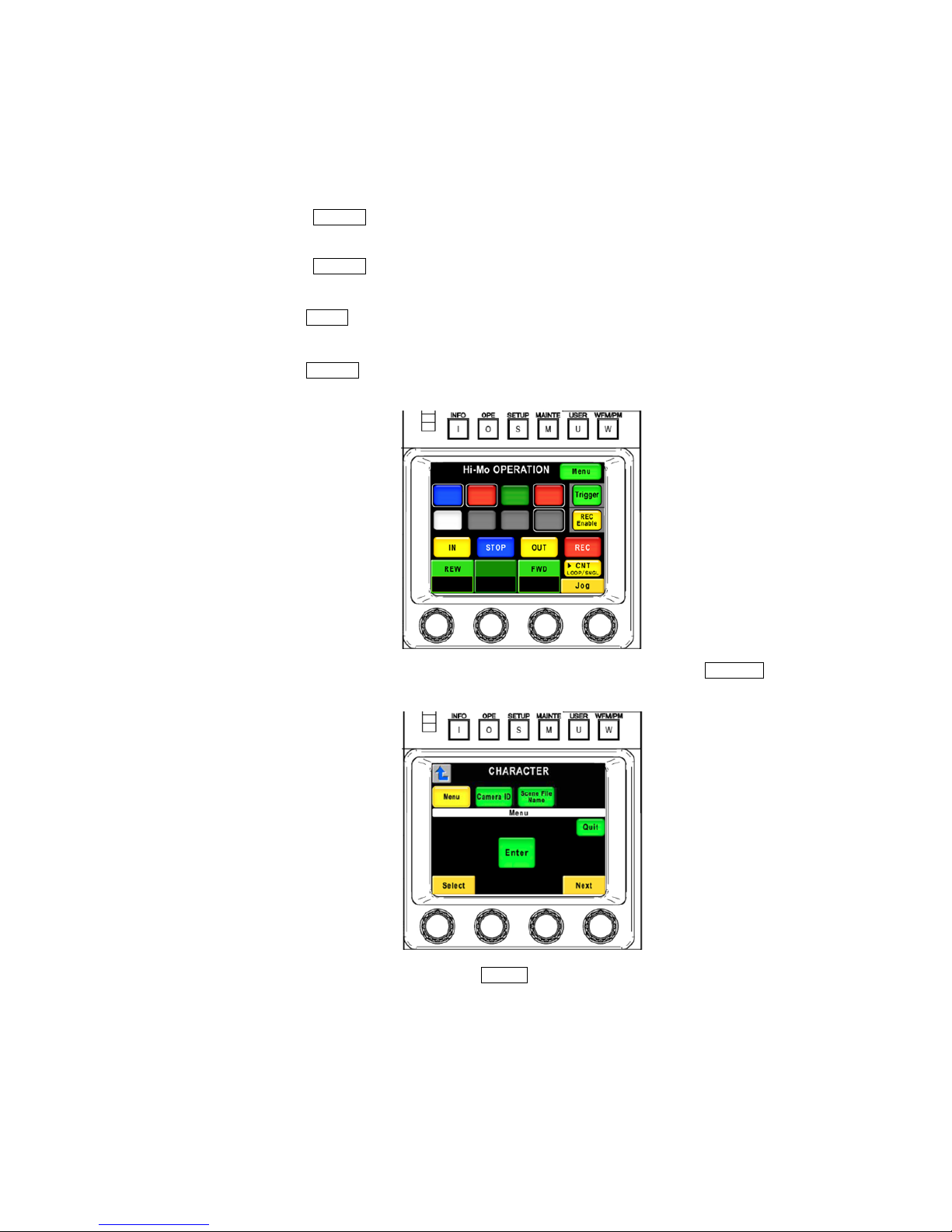

4. Press SETUP button on the OCP and press CHARACTER button on the touch screen.

5. Keep pressing MENU button on the OCP to open the Main Menu of the CCU

6. Select one in the SYSTEM FORMAT by turning the Select Knob or the Next Knob, and press
ENTER button.

7. Change the Frame Rate that is the same as the Camera Format.

8. Turn off the power of the CCU and reboot the system to complete the settings.

B How to change System Format of the same frequency (e.g. 1080/59.94i <-> 720/59.94p)

Change settings on the CCU as follows, so that the Camera settings are changed
automatically.

NOTE: GENLOCK must be disconnected before the setting.

1. Show the color bar on PM1 output of the CCU by pressing BARS button on the OCP.

2. Press SETUP button on the OCP and press CHARACTER button on the touch screen.

3. Keep pressing MENU button on the OCP to open the Main Menu of the CCU

4. Select one in the SYSTEM FORMAT by turning the Select Knob or the Next Knob, and press
ENTER button.

5. Change the Frame Rate. At that time, the camera reboots automatically.

6. Turn off the power of CCU and reboot the system to complete the settings.

10

5.2. Output video when set to 1080P

When the system format is set to 1080P, unlike 1080I/720P setting, all output images of the
camera head and CCU become the common image.

- When select the LIVE image, all output images become the LIVE image.

- When select the PLAY image, all output images become the PLAY image.
This section explains the switching the output image when set to 1080P.

A Switching between LIVE and PLAY images

The Switching between LIVE and PLAY images is applied to all output images by
performing the following operation.

1. Set the value of the selection item [PM1] of the OCP to either LIVE or PLAY.

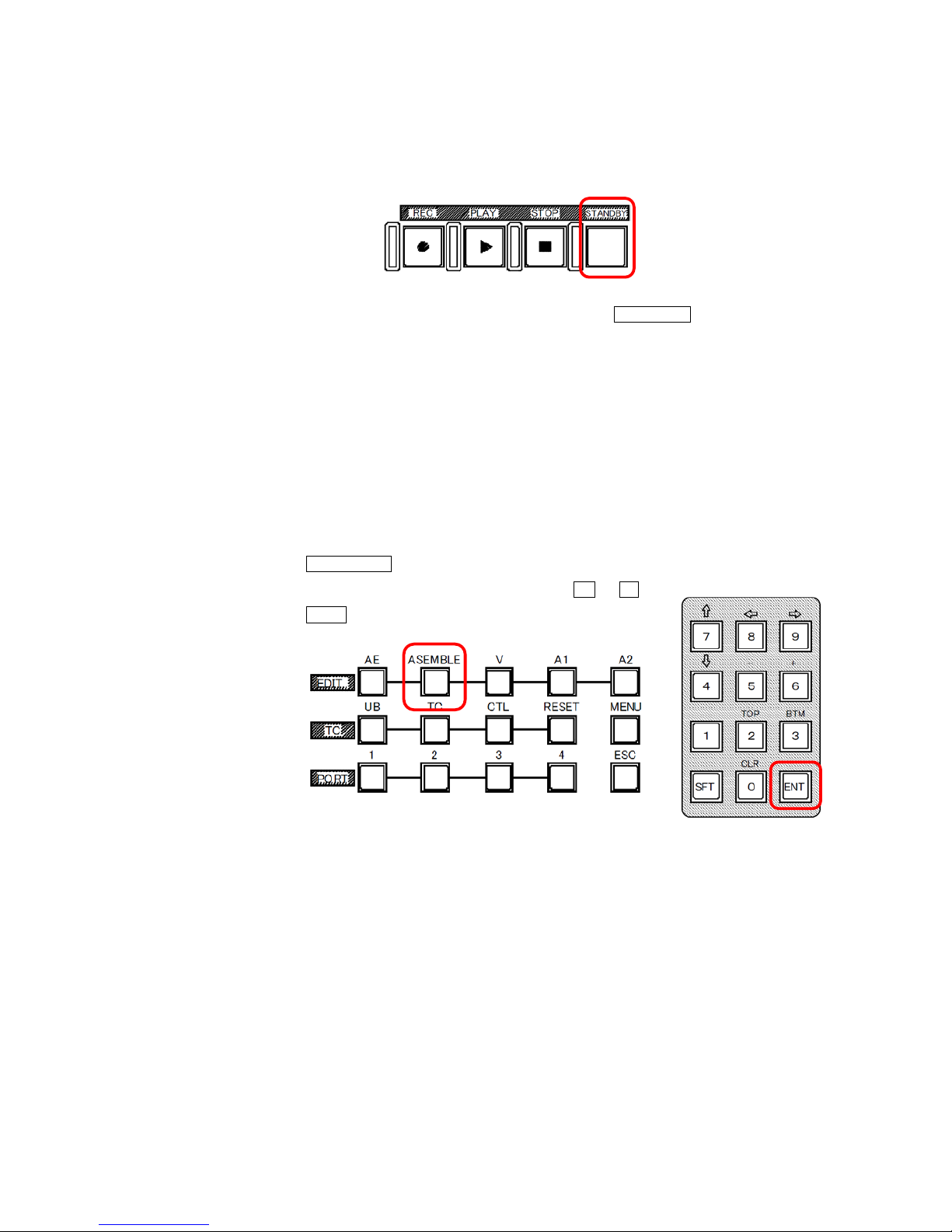

2. Press the STANDBY button on the slow controller, and set LIVE or PLAY image.

3. Select VIDEO OUTPUT MODE on the head menu MENU (1/2) page, select VF OUT
SEL, and then set LIVE or PLAY.

4. Select VIDEO OUT PU T MODE on the h ead m enu MENU ( 1/2) page , select MON OU T
SEL, and then set LIVE or PLAY.

* When set the PLAY image, VF output becomes the same PLAY image.

Like 1080I/720P setting, you cannot always output LIVE image.

B Switching between recording and playing

When operating recording and playing, the output image is sometimes different from the

image set in 1080l/720P.

●Operation when outputting LIVE image

1. Showing a selected block which is on recording

- Once the trigger is inputted, recording ends and the image switches from LIVE to PLAY
showing still image of the block.

2. Showing a selected block which has been already recorded

- Press STOP button and then switches from LIVE to PLAY showing still image of the
block.

- Press PLAY button and then switc hes fr om LIVE to PLAY showing replay image of
the block.

- Operate b y JOG/SHTL/T-Bar and then switches from LIVE to PLAY showing replay
image of the variable speed of the block.

3. Moving to the other block

- When the other block is selected, LIVE/PLAY image swit ches a ccording to the status of
the selected block.

- During recording or not recording a selected block, LIVE image output remains.

- If a selected block has been alread y recor ded, the image switches f rom LIVE to PLAY
showing still image of the block.

●Operation when outputting play image

1. Showing selected block which is on playing

- When the other block is selected, LIVE/PLAY image switches according to the status of
the selected block.

- Dur ing recording or not recor ding a selected block , the image switches from P L AY t o
LIVE image output remains.

- If the selected block has been already recorded, a still image of the block is shown.

- If you switch to LIVE image output, PLAY image stops and switch from PLAY to LIVE.

11

* When setting on 1080P, if there is a block on playing, the image always moves to PLAY

image.

Also, the setting of output im age right after recording in Section 6.7.7 is alwa ys in a
condition of the PLAY image [LIVE AFTER REC OFF : Play image (frame image set
on the play start image)].

12

5.3. How to adjust H / V Phase

1. Show the color bar on PM1 output of the CCU by pressing BARS button on the

OCP.

2. Press SETUP button on the OCP and press CHARACTER button on the touch

screen.

3. Keep pressing MENU button on the OCP to open the Main Menu of the CCU.

4. Select PHASE CONTROL by turning the Select Knob or the Next Knob, and press

ENTER button to show the following menu.

Adjust them according to the actual environment of the OB van.

 HD MASTER V PHASE Adjusts V Phase of all the HD-SDI OUT
 HD OUT H TRACK Adjusts H Phase of HD-SDI1 and HD-SDI2
 HD PM H TRACK Adjusts V Phase of Picture Monitor
 SYNC OUT H PHASE Adjusts H Phase of SYNC OUT
 SYNC OUT V PHASE Adjusts V Phase of SYNC OUT

13

6 Capture Size

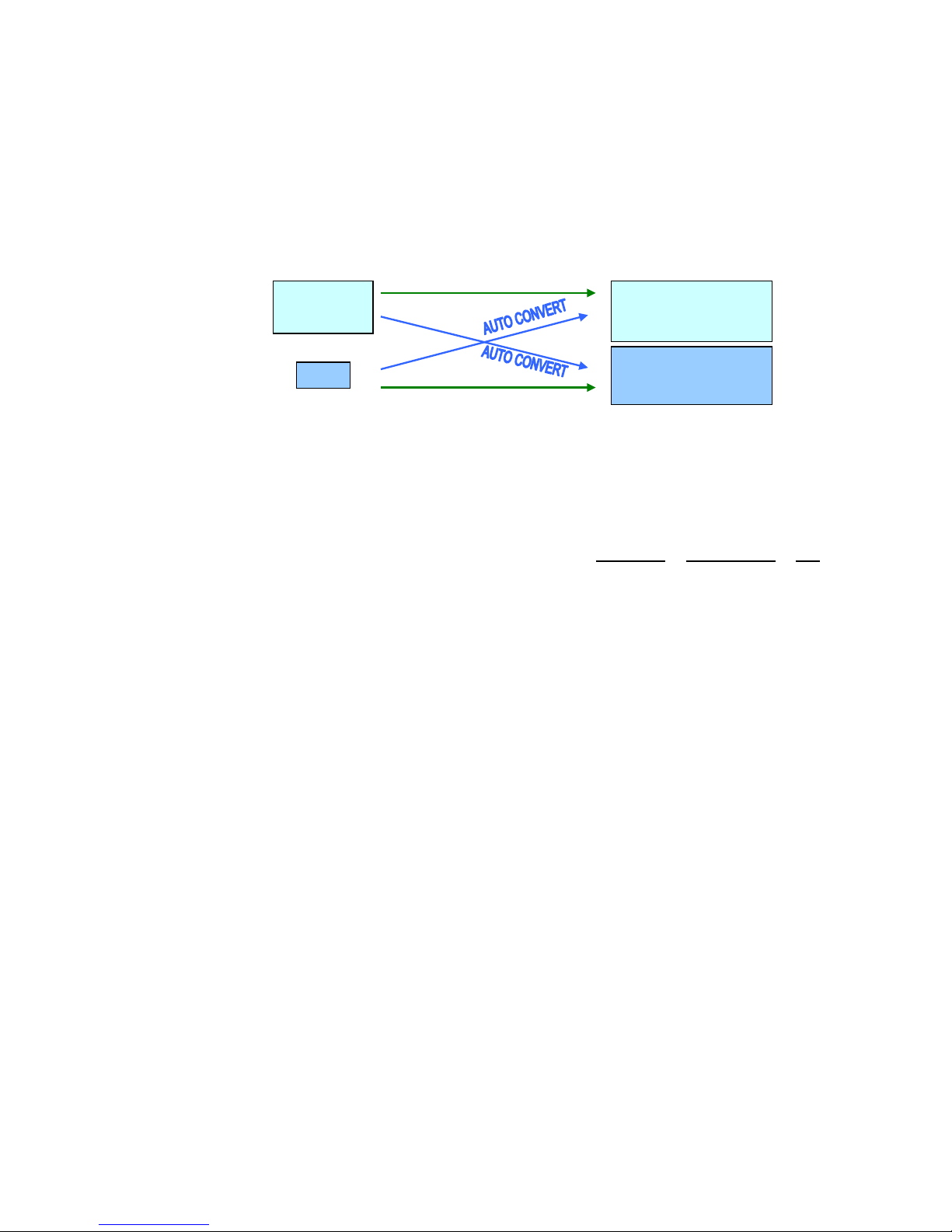

6.1 Either 1080 or 720 is selectable for the capture size. In either case, the capture size is
automatically converted depending on the HD OUT format setting.

Selecting “720” and unloading the magnification optics make images approx. 1-stop brighter than
“1080”.

Selecting “1080” and loading the magnification optics provide higher resolution images than
“720”.

6.2 How to change Capture Size
Change the capture size on the HEAD MENU and Load/Unload the Magnification Optics

A Change Capture Size on the HEAD MENU

1. Open the HEAD MENU on the VF output and change CAPTURE of RECORDING to 720
in MENU (2/2)

2. Reboot the camera.

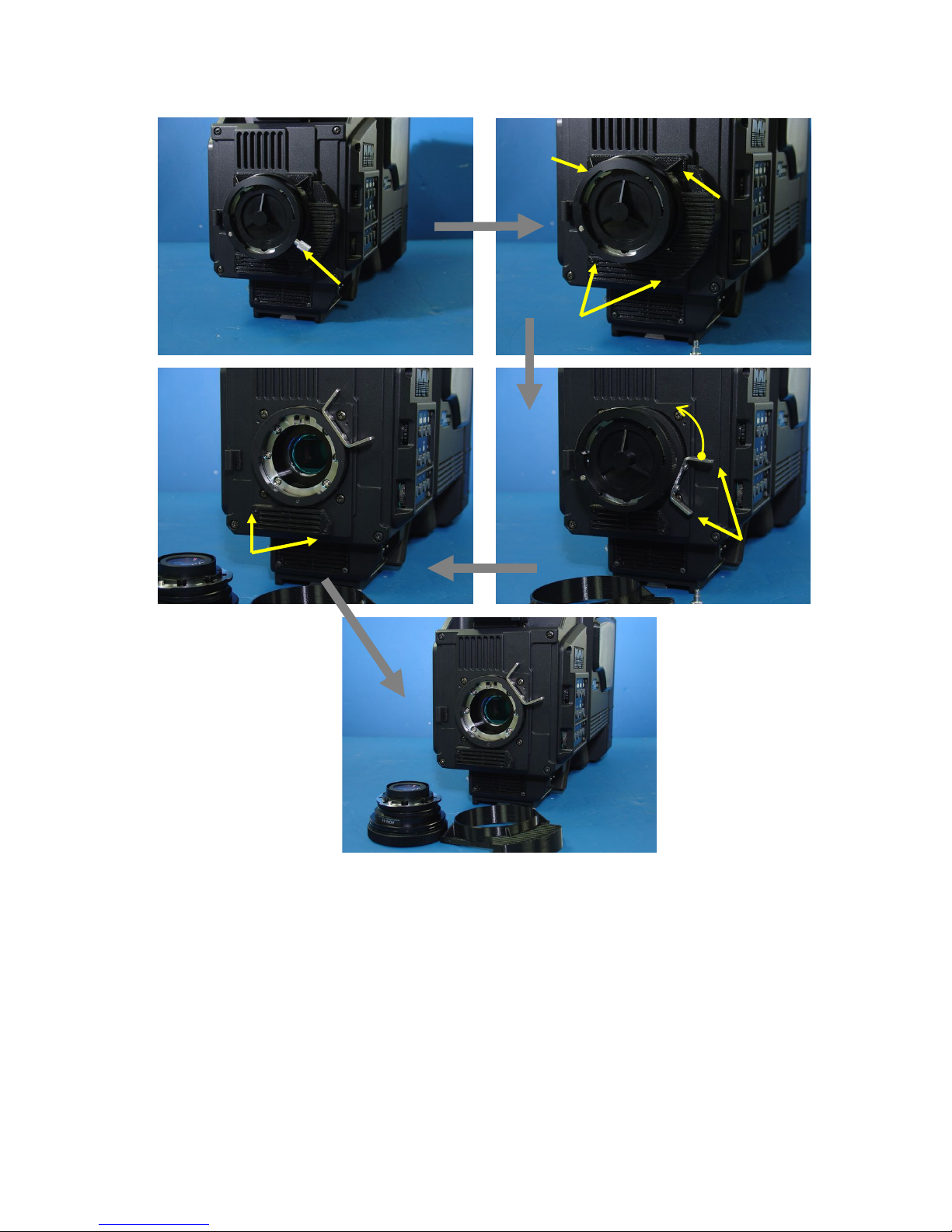

B When changing to 720, unload the magnification optics as follows (See pictures on page 14)

1. Remove the lever on the mount ring of the magnification optics.

2. Loosen the screws of the air filter cover.

3. Remove the screws on the mount ring cover of the camera body and take off the cover.

4. Turn the lever on the mount ring of the camera body counter-clock wise.

5. Remove the magnification optics and tighten the screws of the air filter cover.

6. Done.

C NOTE

1. When changing to 1080, load the magnification optics in reverse order.

2. Unloaded magnification optics must be treated carefully with soft cloth to prevent it from
scratch and dirt.

3. The mount ring cover can be damaged by too much torque.

4. The screws are small tiny parts (2pcs of M2x5) and easily lost. Keep them carefully.

With Magnification Optics

CAPTURE

HD OUT

1080 / 59.94i or 50i

720 / 59.94p or 50p

1080

720

Without Magnification Optics

14

How to unload the magnifier

1 2 3

3

4 5 6

Magnification

Optics

Mount

Ring Cover

15

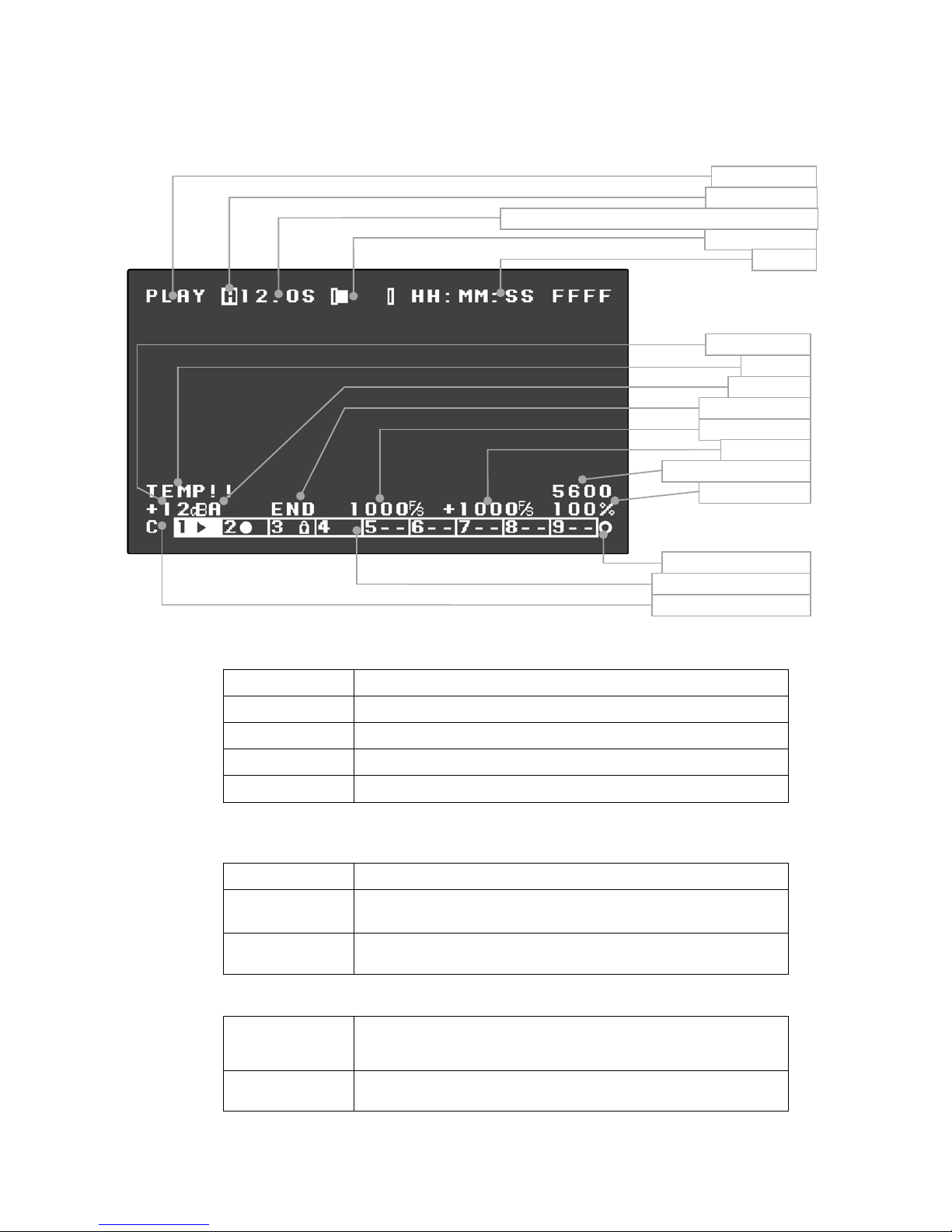

7 Monitor Information Caption

Picture Monitor 1 of CCU rear panel, Picture Monitor 2 on the rear panel of CCU, and Monitor Output,
VF Output of the Camera have Information Caption for each Camera Status overlaid.

1 Block Status : Display the status of the selected Block

STOP Playback Stop
VIEW Live Image Display
REC in Recording
PLAY in Playback
LOOP in Loop Playback (LOOP only available by Camera or J-PAD control)

2 Available Recording Time / Remaining Playback Time : Display Available Recording Time or Remaining

Playback Time dep endi ng on t he selected Block status

VIEW, REC Shows Available Recording Time(Sec) on the selected Block.

PLAY, LOOP

Shows Remaining Playback Time (Sec) from the current position to the
end of the frames with the selected playback speed.

STOP

Shows Remaining Playback Time (Sec) from the current position to the
end of frames at PLAY REF SPEED.

3 Progress Bar : Display the status of the Memory in each Camera Mode

REC

Shows the status of the Memory in Recording Mode. The left end is the
start position of th e recording, and the r i ght end i s t he e nd position of the
recording.

PLAY, LOOP

Displays Playback position out of all the recorded image clips on the
Blocks.

16 .AUTO PLAY

2. Available Recording Time / Remaining Playback Time

3. Progress Bar

4. Time

11. Alert

5. Block Recording Mode

12. Digital Gain

10. Memory Block Status

15. Back Ground Image

9. Shutter Speed

13. AWB ch

6. Trigger Mode

7. Frame Rate

8. Play Rate

14. Color Te mperature

1. Block Status

16

4 TIME : Displays the Time for the selected Block status and Frame Numbers in HH : MM : SS : FFFF

5 Block Recording Mode : Displays Block Recording mode (Refer to Chapter 9.3.F).

S SINGLE MODE
C CONTINUOUS MODE
L LOOP MODE

6 Trigger Mode : Display the Trigger Mode (Refer to Chapter 9.3.D).

STRT Star t Trigger Mode
CENT Center Trigger Mode
END End Trigger M ode
0 – 100% Custom Trigger M ode

7 Frame Rate : Displays the Recording Frame Rate

8 Play Rate : Displays Playback Rate (29.97 and 59.94 or any numbers with decimal point are displayed as

integer numbers as 30 or 60).

9 Shutter Speed : Displays Shutter Speed. e.g. Exposure time for each frame is 1/400sec when the Frame

Rate is set 400fps and the Shutter Speed is set 100%

10 Memory Block Status : Displays the status of divided Blocks. The box of the current selected Block has its

color turned white.

PLAY

REC

Recorded Block Nothing displayed

LOCK

Empty Block

11 Alert :

TEMP!!!

Appears when temperature of each part inside the camera exceeds the
TEMP LIMIT values on the HEAD MENU. When it appears, output
images and other functions of the camera can be instable. Please turn
off the power of the camera, cool it down away from direct sunlight, and
then reboot the camera.

12 Digital GAIN :

1 Displays Gain setting on the OCP when the OCP is connected to the CCU or the Camera Head.
2 W hen the OCP is not connected to the Camera Head (Standalone Style), display the setting of

Gain switch (0,M,H) on the right side of the camera body.

13 AWB Ch :

17

1 Displays Auto White Balance setting on the OCP when the OCP is connected to the CCU or the

Camera Head.

2 W hen the OCP is not connected to the Camera Head (Standalone Style), display the setting of

AWB switch (A, B, OFF) on the right side of the camera body.

14 Color Temperature : Displays the setting value of electric color temperature filter.

15 Background Image：Displays the setting of the images output from PM1/PM2 output of the CCU and VF/

MON OUT of the Camera Head. Refer to Chapter 8.3. 1 for how to switch images of Picture Monitor 1, and
Chapter 9.2.A for Picture Monitor 2.

Displays Live image
Displays Playback image

16 AUTO PLAY : Displays the setting of AUTO PLAY mode.

When _A_ is displayed, AUTO PLAY is set to ON. If not displayed, AUTO PLAY is set to OFF.

18

8 OCP Quick Guide

8.1. Camera Function Portion

① CAM PWR Switch

ON/OFF control of power supply to the camera head available with this switch. Keep pushing
this switch 2 seconds for power supply OFF from power supply ON.
This switch is disabled in the Standalone mode.

② VF PWR Switch

This switch is invalid with the Hi-Motion II.

③ Memory Card Slot

This slot is used to save/load the data of Camera Head or CCU setting parameter to/from
memory card (SD Card).
Slot should be used for dust pr oof w hen memory card i s not used. A ccess i ndictor l amp on t he
side of slot lights in saving/loading. Do not remove memory card when access indicator is
lighting. There is a possibility to damage data of not only memory card but Camera Head and
CCU.

④ PM IND/PAGE Switch

Various information of characters is overlaid on CCU PM output. Each of information is
indicated sequentially as following by pressing this switch.
Self diagnostic information screen >>> Auto setup execution screen >>> Scene file
information >>> Hi-Motion II operation screen >>> Camera ID screen

⑤ PANEL ENABLE Switch

Enables to OCP operation. OCP control is available when Switch light is ON.

⑥ TALLY Indicator

Red, Green and Yellow Tally indicator.

⑦ MODE Switch

・ STANDARD Switch

To clear all Camera and CCU data to standard setting. P ress this switc h to come u p LCD
menu and operation is possible with touch panel.

By pressing this switch while pressing KNOB FREE switch, changed parameter by
control knob rotation can be cleared.

・ CAP Switch

Sets optical filter to CAP position or Iris close.

・ BARS Switch

Outputs Color Bar Signal to Video Output.

・ CAL Switch

100% or 200% CAL signal is generated for the Calibration of the Video Processing
Circuit.

19

CAL OFF(Light OFF) -> CAL100% (Light ON) -> CAL200% (Blink) -> CA L OFF (Light
OFF)

⑧ AWB / ABB Switch

Executes AWB (Auto White Balance) or ABB (Auto Black Balance). After completing
execution, lamp turns off when the result is good, but lamp blinks when the result is no good.
In case of NG, press this switch to clear lamp blinking.

8.2. LCD Menu Portion

① F UNCTION Switch

・ INFO Switch

Indicates status information such as ON/OFF setting condition of Camera Head or
BS/CCU on LCD display.

・ OPE Switch

Simplified Operation of the Slow Controller and MENU button to show the HEAD
MENU.

・ SETUP Switch

Enables LCD menu to setup mode.

・ MAINTE Switch

Enables LCD menu to maintenance mode.

・ USER Switch

Can be recalled one function to the LCD screen. User can assign one function to this
switch and it can be recalled by pressing this switch.

・ WFM / PM Switch

Calls WFM (Waveform Monitor) / PM (Picture Monitor) selection switch on LCD display.

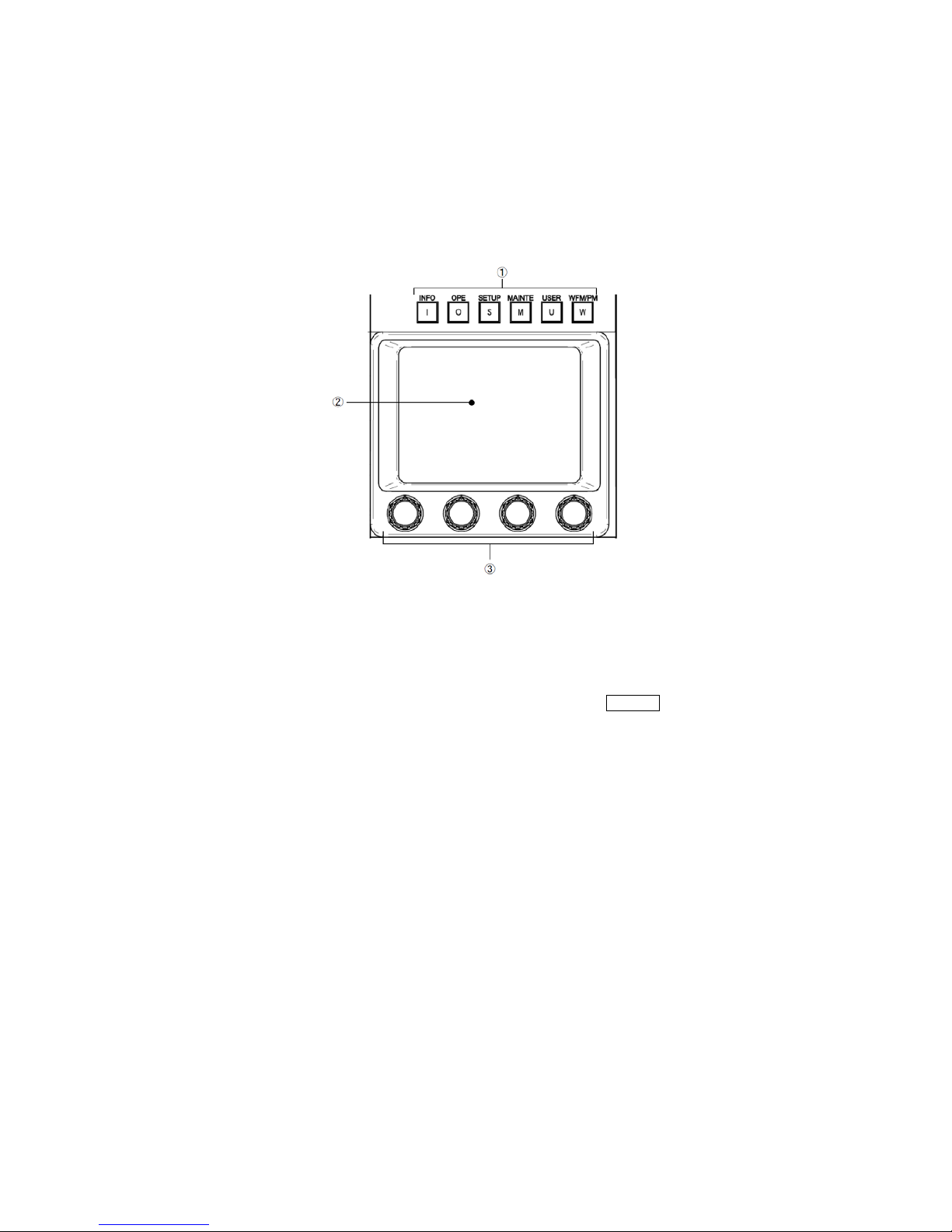

② LCD Touch Screen

Combines LCD panel and touch sensor. It has both display function and switch function to use for
various camera control setting.

③ Rotary Encoder Knob

Used to control parameters when function switches are displayed on LCD display.

20

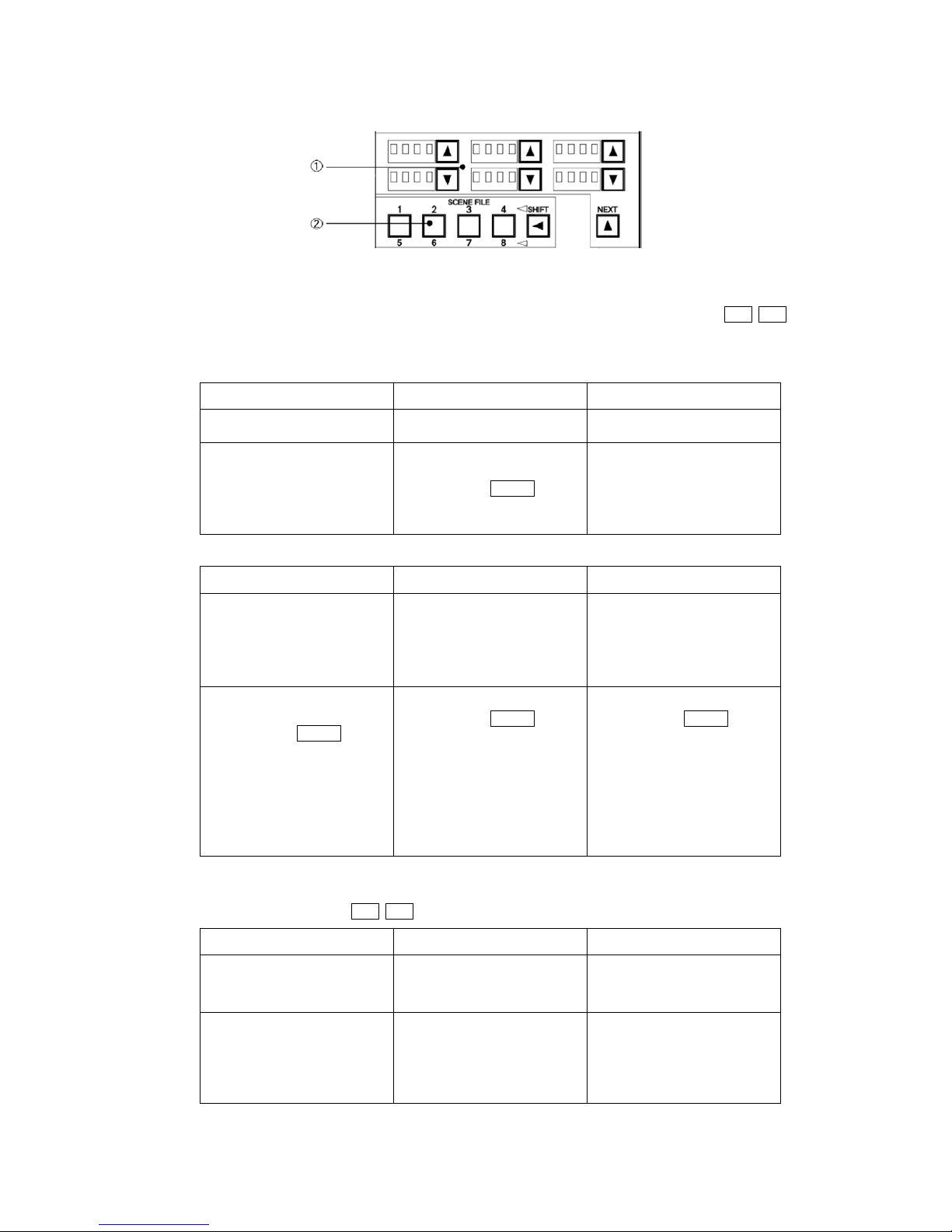

8.3. Select Function Portion

①. SELECT Switch, NEXT Switch

Provides shortcut features to some of the HEAD MENU with SELECT switch (   ) and
NEXT switch. You can switch displaying the following 4 pages with NEXT switch and change
parameters with SELECT switch.

PM1 CC Gain

LIVE, PLAY 3200, 5600, 6300, 7500 -3, 0 +3, +6, +9, +12

Background image on Picture
Monitor 1 output can be
changed between LIVE and
PLAY.

Color Temperature of sensor
is selectable.
Please press ABB button
on OCP when the settings are
changed.

Digital Gain Image Processing
to intensify sensitivity.

SENS SHUT FPS

-3, 0, +3, +6 100, 50, 25, 6.3, 1.6, CSTM

24, 30, 50, 60, 100, 120, 150,
180, 240, 300, 400, 500, 600,
700, 750, 800, 900, 1000,

1100*, 1200*, 1300*, 1400*,

1500*, CSTM

The sensor sensitivity can be
adjusted.
Please press ABB button
on OCP when the settings are
changed.
SENS should be adjusted
prior to Gain in order to
achieve the better image
quality.

Shutter speed adjustment.
Please press ABB button
on OCP when the settings are
changed.
Unit is “%” and the shutter
speed can be calculated with
a formula, “1/FPS x SHUT”.
For example, if

the settings

are 400FPS and 50%, 1/400 x
50% = 1/800 sec.

Frame Rate adjustment.
Please press ABB button
on OCP when the settings are
changed.
When the custom value is
selected, it displays “CSTM”.

*1100 to1500 can be set only
with CAPTURE 720 in HEAD
MENU.

With OCP, only preset values can be selected for the above SNS, SHUT, and FPS parameters.
When the custom value is set with HEAD MENU, it displays “CSTM”.

When pressing   buttons at that time, it jumps to the closest preset values.

AWB Gamm Bkst

HAch, Ach, Bch, OFF OFF, 0.45, 0.40, 0.35

-11, -9, -7, -5, -3, OFF,
+3, +5, +7, +9, +11

Channel selection to save

AWB value.
Ach operation on the Camera
Head has the prior

ity over

HAch.

Gamma curve setting

Black stretch/press setting

-Black stretch : +3, +5, +7, +9,
+11%

- Black press : -3, -5, -7, -9,

-11%

21

FLCR FLGA FLTH

OFF, ON 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 1, 2, 3, 4, 5, 6, 7, 8, 9, 10

Flicker Correction ON/OFF
Selection. Valid only for the
playback images.

Specify intensity of Flicker
Correction.
This is valid when FLCR is ON.
Larger value gives more effect in
reducing flicker and noise but also
in increasing motion blur.
Please select appropriate one
depending on application /object.

Specify threshold of Flicker
Correction.
This is valid when FLCR is ON.
Smaller value gives more effect in
reducing motion blur but also in
increasing flicker and noise.
This parameter should be
changed for fine-adjustment with
larger value of GAIN. When GAIN
value is small, this does not affect
images remarkably.

②. SCENE FILE Switch

Saves / loads scene file 1 to 8. file group 1 to 4 and group 5 to 8 are selected by SHIFT switch.

Save : Press file a number button 1 to 8 in 2 seconds.
Load : Push file a number button 1 to 8.

Following parameters can be saved / loaded in each scene fil e.

・ SCENE 1-4 [GRAY SCALE], [DETAIL], [COLOR]
・ SCENE 5-8 [GRAY SCALE], [DETAIL], [COLOR], [FLCR], [FLGA], [FLTH]
・ SCENE OFF Return to the settings when SCENE switch is OFF.

22

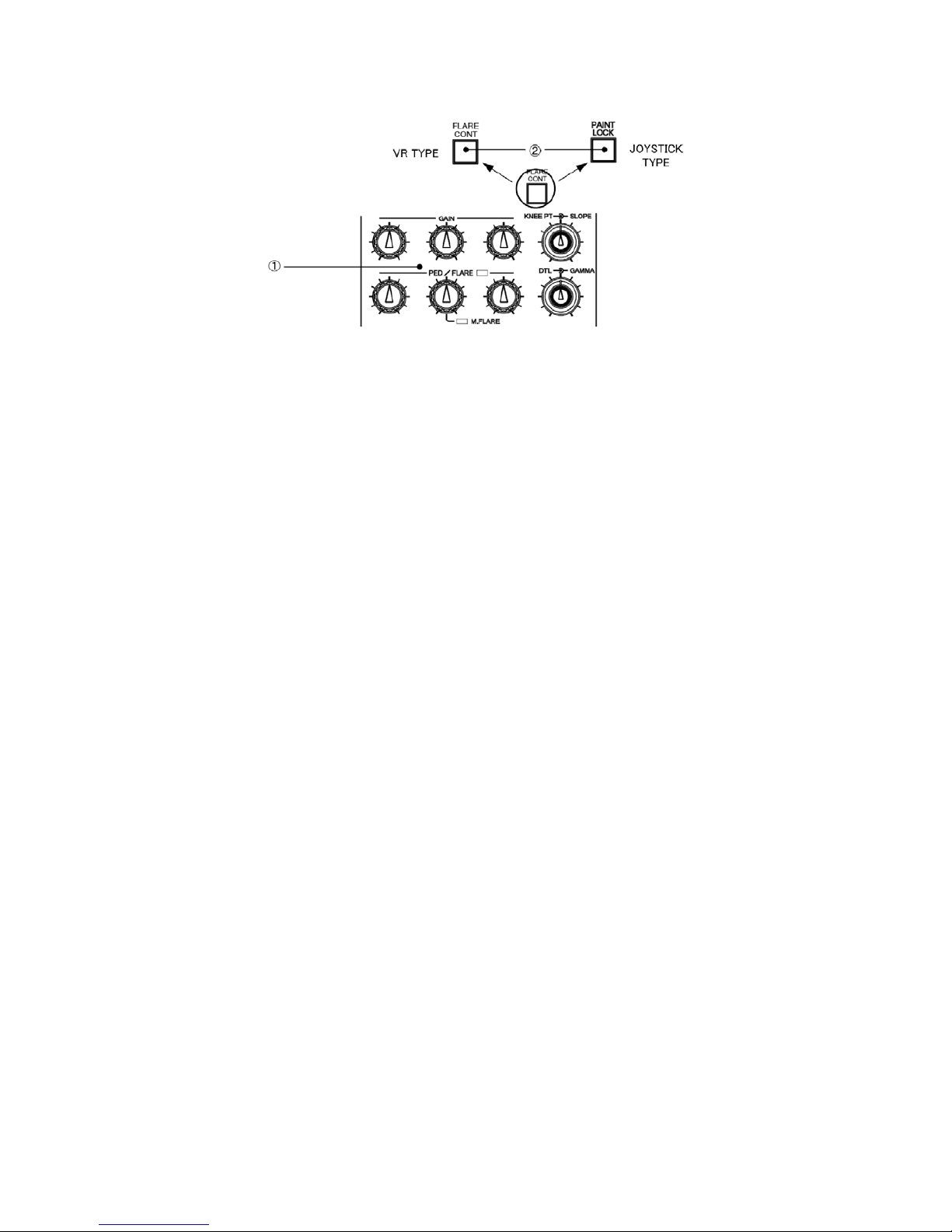

8.4. Control Knob Portion

①. Control Knob

・ R/G/B GAIN Control Knob

To control R/G/B gain. G gain control reacts R, B gain control.

・ R/G/B PED/FLARE Control Knob

To control R/G/B of Pedestal or Flare.
Switching of Pedestal/Flare can be done with _FLARE CONT Switch (VR TYPE）or PAINT
LOCK Switch (JOYSTICK TYPE).

If center knob is assigned for master flare control, M.FLARE indicator lamp turns on.
The selection of Master Flare or G.Flare can be done by “Panel Set-up (Panel Config.)

Menu”. If “Auto” mode is selected, it activates either “Master Flare” for the camera has
Master Flare function or “G.Flare” for the other camera has not Master Flare function.

・ KNEE POINT/SLOPE Control Knob

To set KNEE SLOPE and KNEE POINT by manual (hand).

・ DTL/GAMMA Control Knob

To set DTL level and MASTER GAMMA level.

②. FLARE CONT Switch (VR TYPE)

To set R/G/B PED/FLARE Knob for Pedestal control or Flare control. LED and this switch
lights in case of Flare control mode.

③. PAINT LOCK Switch (JOYSTICK TYPE)

If this switch is pressed to ON , ① all Control Knobs are inhibited and Control Knob rotation
doesn’t affect. If this switch pressed to OFF, Inhibit of Control Knob is released without data

jump regardless the Knob position.
By pressing this switch while pressing KNOB FREE Switch, R/G/B PED/FLARE Control
Knob can be set Pedesta l Control or Flare Control. LED l ight s when the switch is set to Flare
Control.

23

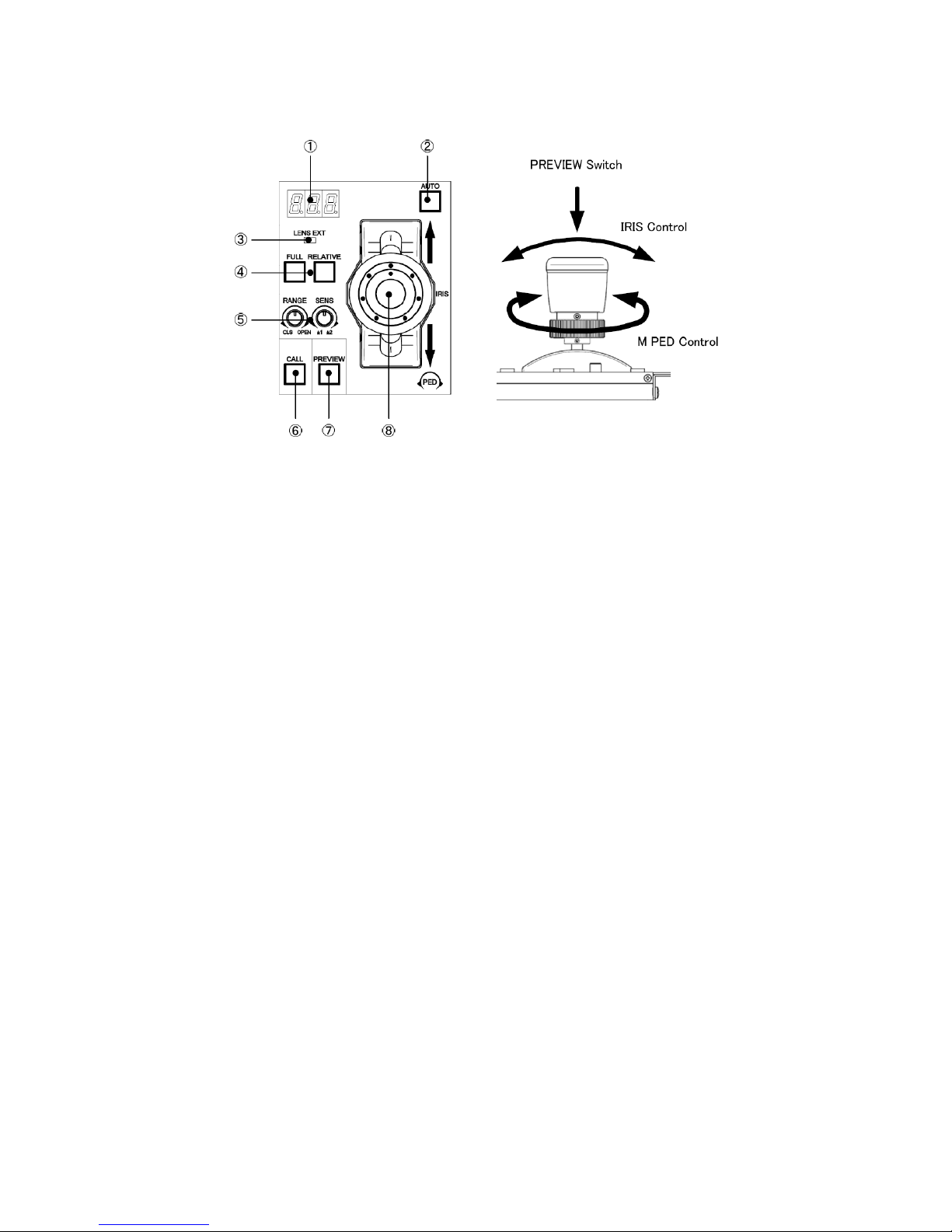

8.5. IRIS / PEDESTAL Control Portion

①. IRIS Indicator

To display F number of lens. Indicate “---” without F number at F16 to Close.

②. AUTO IRIS Switch

To set AUTO IRIS mode.

③. LENS EXT Indicator

Lights up when the lens extender is ON.

④. FULL / RELATIVE Switch

・ FULL Switch

To fi x “IRIS Control” to FULL Range.

・ RELATIVE Switch

To set “IRIS Control” to Relative Mode.

⑤. RANGE / SENS Control Knob

・ RANGE Control Knob

To set center position of Item” IRIS Control”.

・ SENS Control Knob

To set knob rotation sensitivity of Item “IRIS Control”.
Sensitivity can be set from +/- 1 F stop to +/- 2 F stop.

⑥. CALL Switch

To press to light RED TALLY of camera head and CCU.
Call switch will light when call switch of camera head and BS/CCU is pressed.

⑦. PREVIEW Switch

When this switch is operated, the PREVIEW signal is output from the EXT-2(PREVIEW)
connector. And, the PREVIEW signal is output from networked BS hub and CCU.

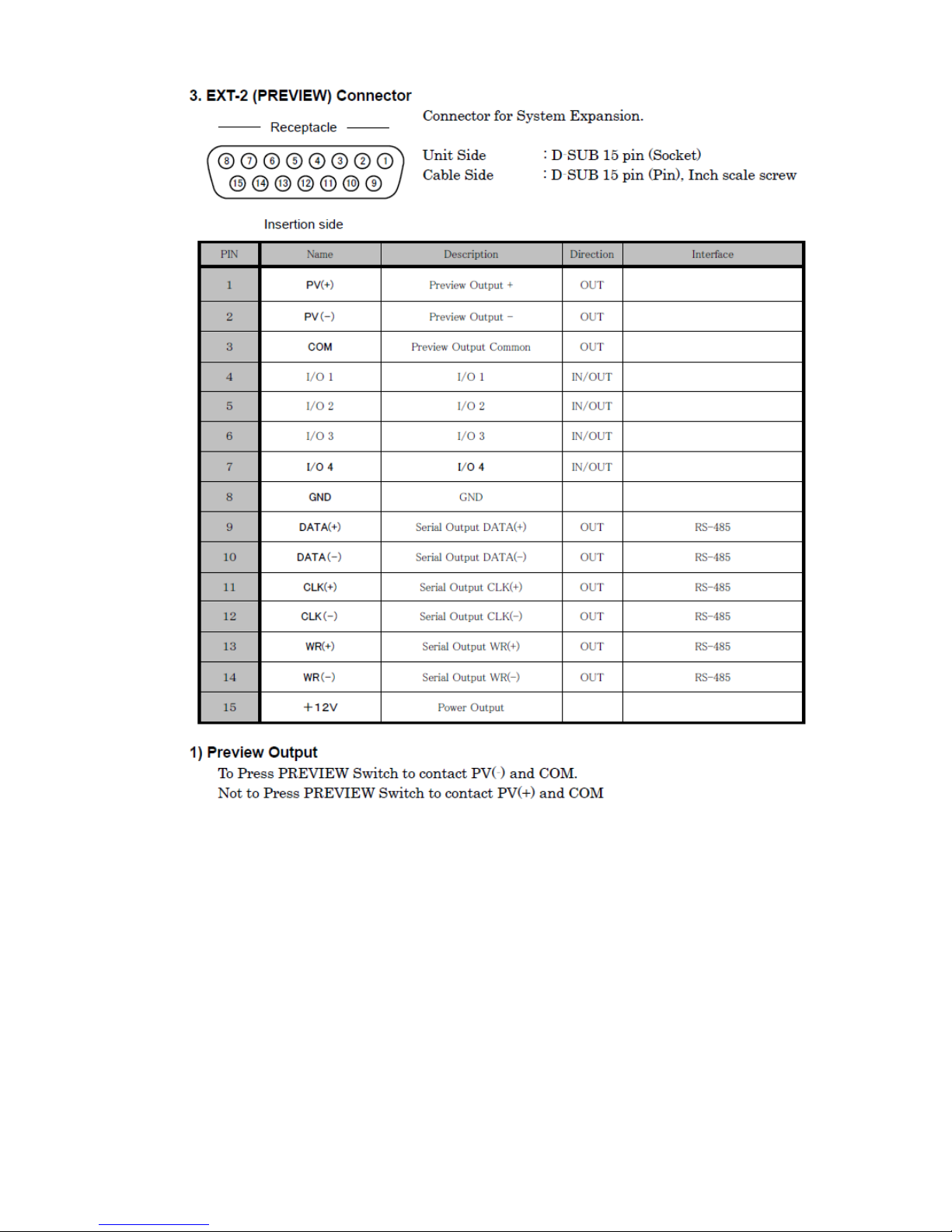

While pressing PREVIEW Switch, PV(-) and COM of EXT-2(PREVIEW) Connector are

contacted. But PREVIEW Switch is not pressed, PV(+) and COM of EXT-2(PREVIEW)
connector are contacted.

⑧. JOYSTICK

To control IRIS and Master PEDESTAL by joystick. At the AUTO IRIS mode, IRIS can be
controlled with +/- 1 stop of F number . Pres s joy stick h ead to PREV IE W switch "ON". C ontro l
action is parallel operation with PREVIEW Switch.

24

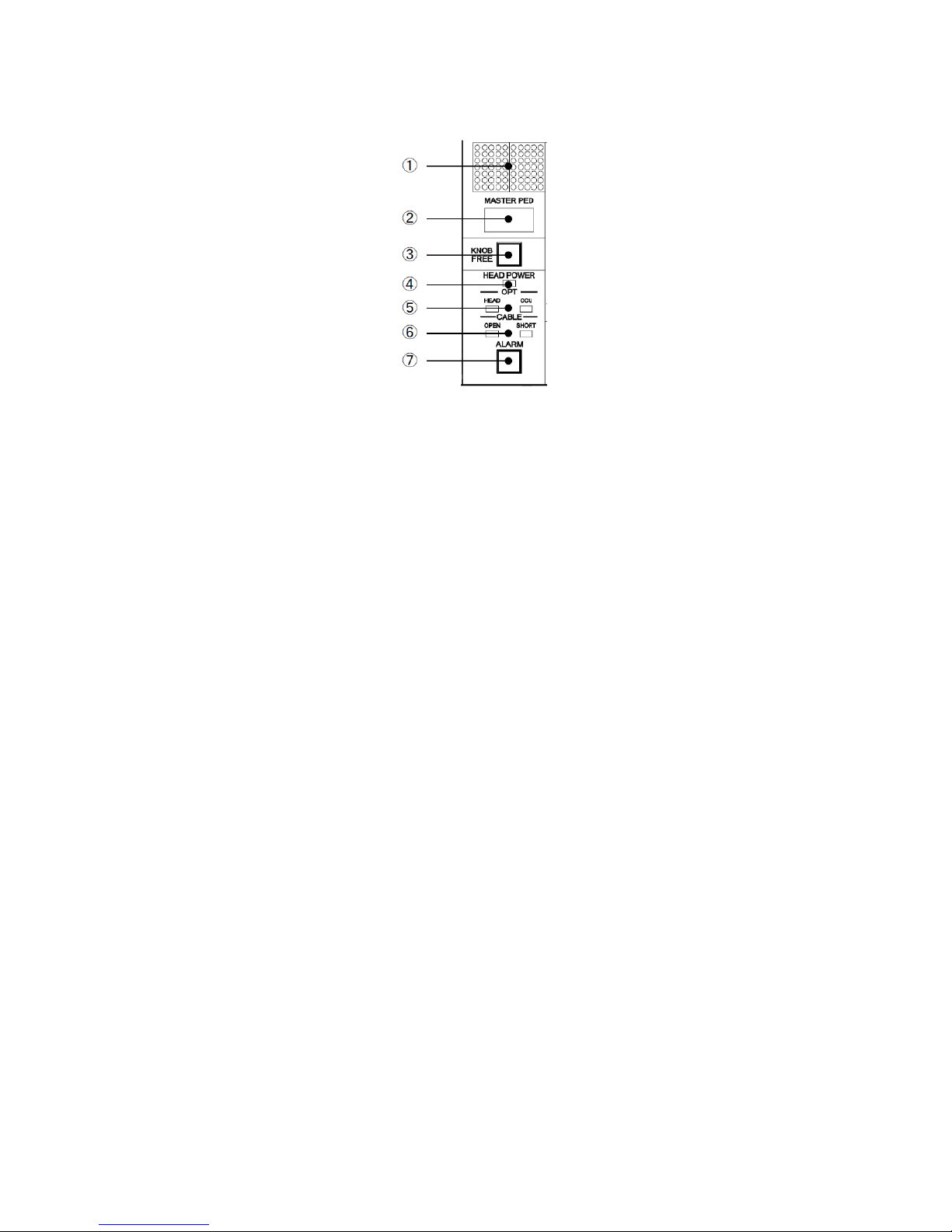

8.6. Status Indicate Portion

①. Camera Number Indicator

Program Camera Number of connected is displayed.

②. MASTER PED Indicator

Indicates MASTER PEDSTAL parameter.

③. KNOB FREE Switch

While pressing this switch, following mentioned knobs set FREE to hold control parameter if
knobs are rotated.
In case of AWB or Auto S etup i s ex ecuted w hen R/G/B GAIN knob center is offset, or ABB or
Auto Setup is executed when R/G/B of PED/M.PED is offset, Knob center will be offset from
mechanical center position. Those offset of each parameter can be cleared if you rotate
Knob to mechanical center with pressing this switch.

④. HEAD POWER Indicator

When the power supply of the camera head is “ON", it lights.

⑤. OPT Indicator

To indicate optic signal l evel at fiber opti c cable t rans mission. Opt ic signal level fr om Ca mera
Head to CCU shows on CCU Indicator and the signal level from CCU to Camera Head that
shows on Head Indicator.
Each indicator express five levels of optical signal co ndit ion with combination of Green / R ed
/ Amber color and ON / OFF / BLINK.

・ OK Green ON
・ ATTENTION Amber ON
・ WARNING Amber Blink
・ NG Red ON
・ NON CONNECTION OFF

⑥ CABLE Indicator

To indicate optic fiber cable condition between Camera Head and CCU. If any problem is
detected, each indicator turns on.

・ OPEN Disconnection or breaking cable
・ SHORT Short circuited

⑦ ALARM Indicator (Switch)

Alarm lamp will blink when any NG is found on the system by the detection of self-diagnosis
function. When the switch is p ushe d when blinking, simple Diagno s is di spl ay ed on the LCD.

25

8.7. Other functions and operations of OCP
A Color Space Setting for SMPTE / EBU / ITU-709

①. How to change with OCP

Press SET UP on the OCP and go to COLOR , Matrix on the touch screen menu.
Select one from EBU, SMPTE, or ITU with a rotary encoder under Matrix Select .

②. How to change with HEAD MENU

Select one from ITU / EBU / SMPTE / OFF at MATRIX of PROCESS MODE in MENU(1/2) of the
HEAD MENU.

B How to use AUTO SET UP

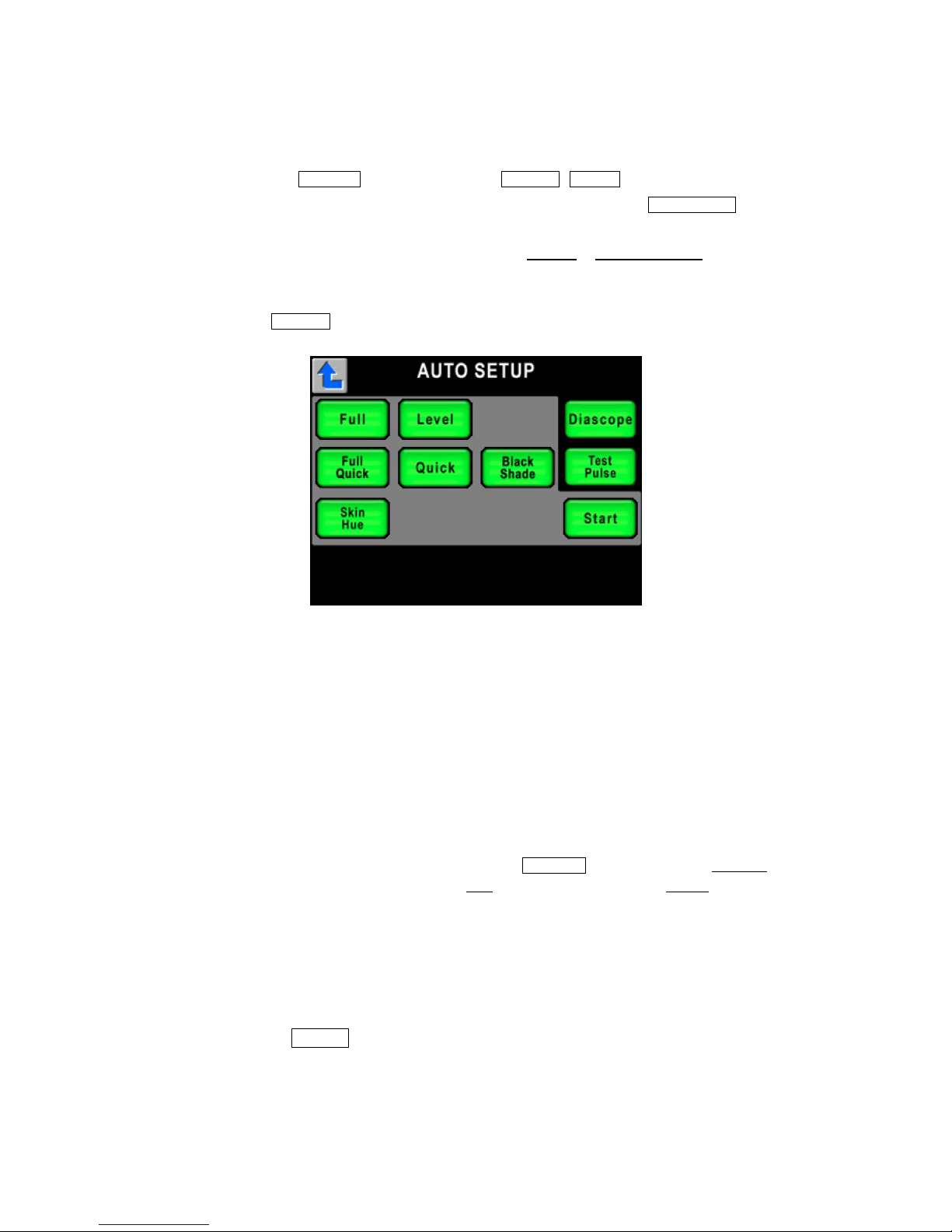

Press SETUP switch on the LCD display and press AUTO SET UP to show the following display.

When using the Hi-Motion II, functions and operations of each button are as follows.

・ Full ( Full Auto Setup) Enables Auto White Shading
・ Level (Level Auto Setup) Invalid ( “STOP” is displayed on VF)
・ Full Quick (Full Quick Auto Setup) Invalid (beep)
・ Quick (Quick Auto Setup) Invalid ( “Stop” is displayed on VF)
・ Black Shade (Auto Black Shade) Enables Auto Black Balance
・ Skin Hue (Auto Hue Detect) Invalid ( “STOP” is displayed on VF)

C How to adjust MASTER PED reference value

MASTER PED value retur ns to “0” (z ero) af ter ABB, as defaul t. If y ou want to se t it ot her tha n “0” (zero),
adjust the MASTER PED value first. Then press MAINTE button on OCP and REF.SET button to
display ABB button. Keep pressing the ABB button until beep and press START button. When b oth
ABB and START buttons turn from Yellow to Green, the setup finished. After that the MASTER PED
returns to the set value after ABB.

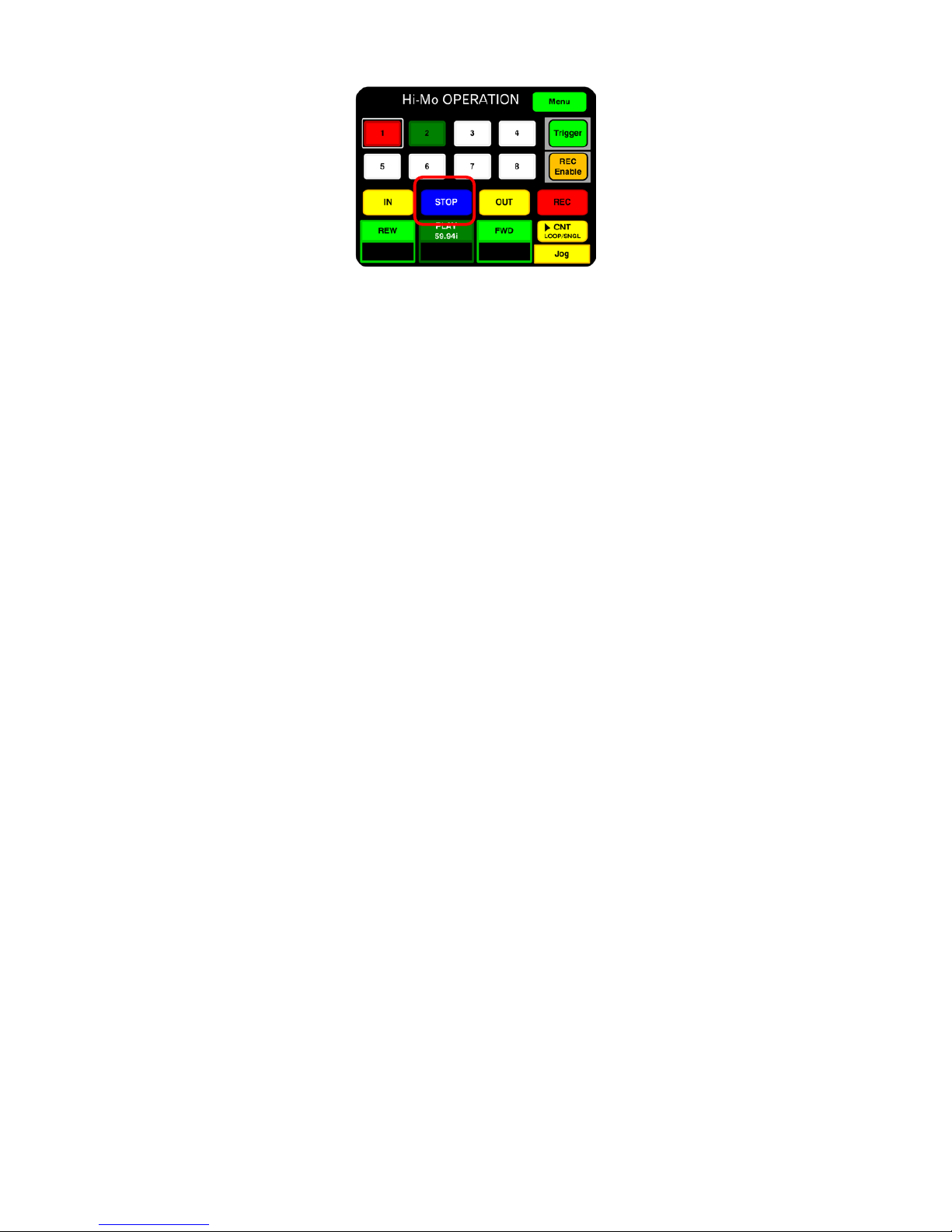

D Collective stop operation for recording and playing

Yo u perf orm the fol lowin g o peration to s top a ll b y one operat ion when p erf orm ing rec ording
and playing at the same time.

- Press STOP button of Slow Controller and hold it for a few seconds.
All blocks being on recordi ng or playing become stop stat us.

26

27

9 Slow Controller Quick Guide

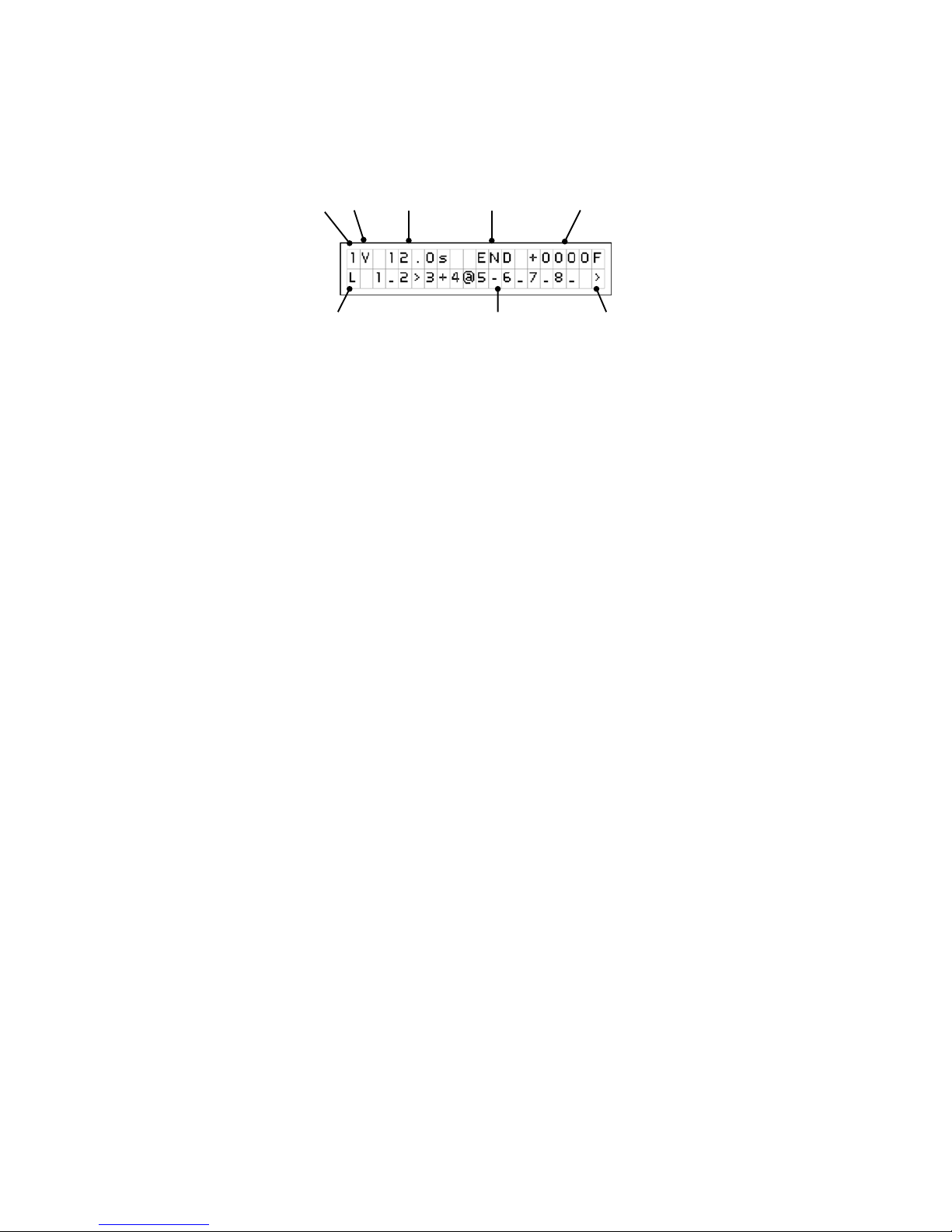

9.1. LCD indication section

After startup, block selection mode is indicated.

① Number of the active block

Indicates the number of the currently selected block.

② Block status

Indicates the status of the selected memory block.
“S” : STOP / “V” : VIEW / “R” : REC / “P” : PLAY / “L” : LOOP
③ Available recording time / Remaining playing time

Indicates the availab le recording time or rem aining pla ying time of the selected m emor y

block.
④ Trigger mode

Indicates the selected trigger mode.
“START” / “CENT” / “END” / “**%”

⑤ Play speed

Indicates the play speed.

⑥ Block recording mode

Indicates the recording mode of the selected memory block.
“S” : SINGLE / “C” : CONTINUOUS / “L” : LOOP

⑦ Memory block status
Indicates the status of each of the divided memory blocks.

“>” Blinking : PLAY / “@” Blinking : REC / “-“ : Recording completed / “_”: Not recorded
“+”: Overwrite disabled

⑧ Display channel

“-“: LIVE image / “>”: PLAY image

1 2 3 4 5

8 7 6

28

9.2. How to Switch between LIVE and REPLAY
A T he operator of the Slow Controller opera tes by looking at PM2 output of the CC U. At this

time, select either LIVE or REPLAY image for the overlaid image of PM2 output.

1 How to change LIVE and REPLAY on PM2 output.
2 LIVE and REPLAY image switches alternatively every time STANDBY button is pressed.

3 ○displays when in LIVE and  displays when in REPLAY at the lower right of PM2 output.
4 You can confirm even the display channel of the LCD indication section of the slow controller.

For LIVE image, “-“ appears. For PLAY image, “>” appears.

9.3 Block Recording
A The memory can be divided max. 8 Blocks.

B The number of Blocks can be set by the following procedure. Please note that all the

recorded memory is deleted when the number of Blocks is changed.

1 How to change the number of Blocks
2 Press ASSEMBLE button.
3 Press the desired number of Blocks and select from 1 to 8 .
4 Press ENT button to complete the settings.

C Pressing the numeric key selects the desired Block.

29

9.4 Recording
A Select one of Blocks you want to start recording with by pressing the numeric key.

B Press REC and PLAY buttons at the same time to start recording, and you will see ●

blinks on the Block on Block Status Character on PM2 output.
The block status on the LCD indicati on section of the slow controller s witches to R and “ @”
mark blinks.

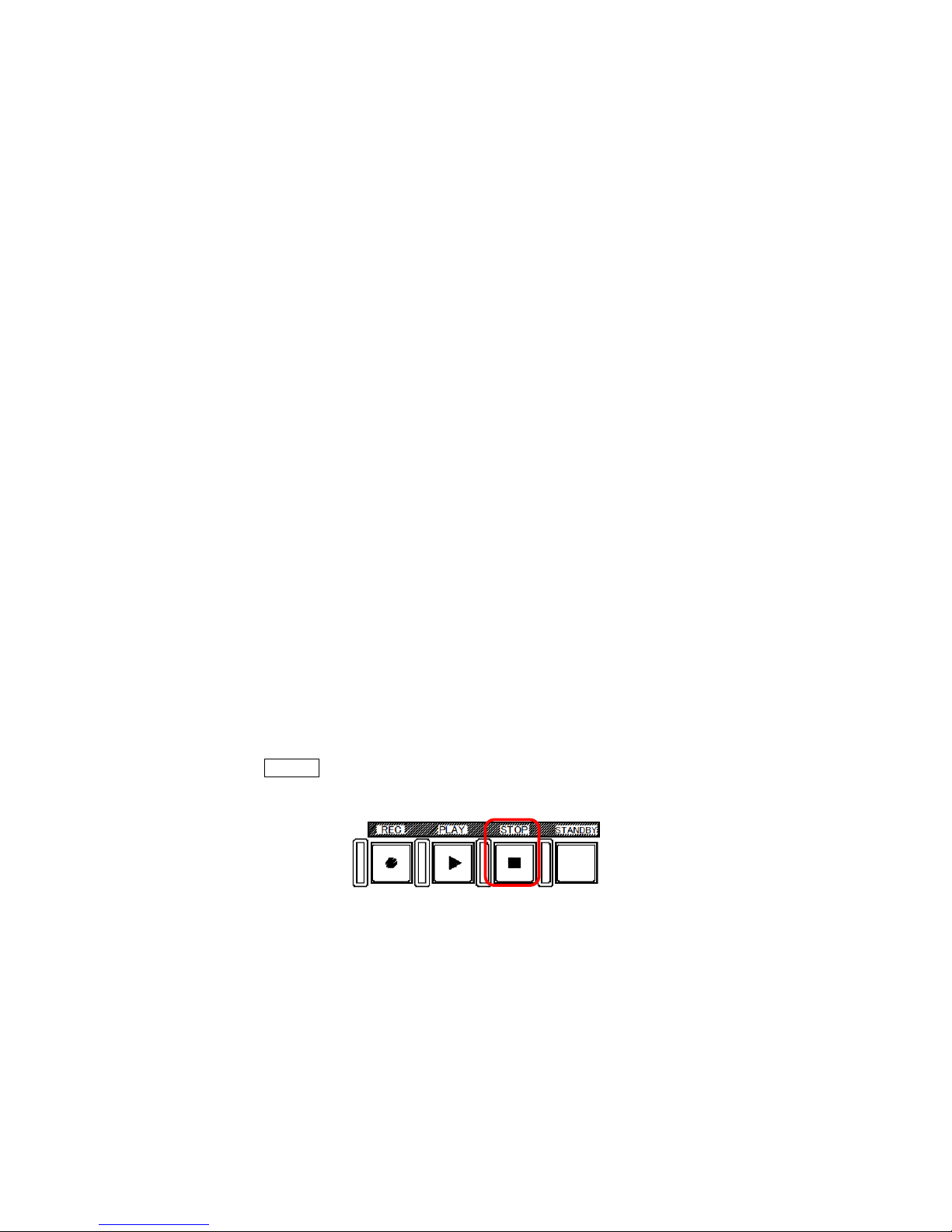

C Press either REC or STOP button to stop recording. REC button functions on

whatever the Block that is being selected, but STOP button only functions on the
selected Block.

D When REC button is pres sed, th e Bl ock Recor ding stops accor ding to th e Tr igger M ode

Setting (Refer to the following setting), and starts a new Block Recording according to
Recording Mode Setting (Refer to Chapter 9.3 F).

How to change Trigger Mode Settings (Regularly, END is selected).

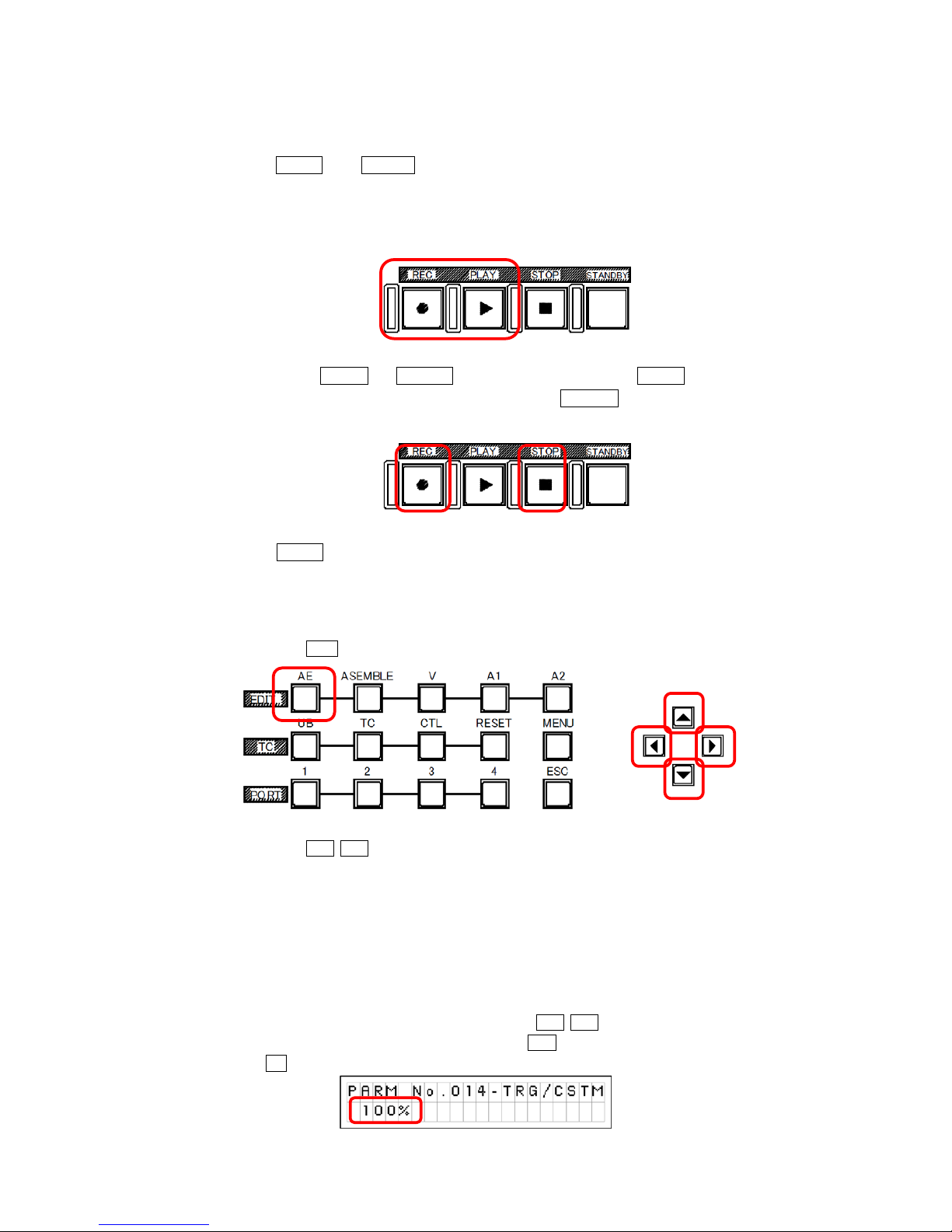

1 Press AE button.

2 Press   buttons to call a desired Trigger Mode as you see on the display of the Slow

Controller.

・ 011 TRG/STRT Records after the Triggered point
・ 012 TRG/CENT Records 50% before&after the Triggered Point
・ 013 TRG/END Records before the Triggered point
・ 014 TRG/CSTM Records before&after according to the desired Triggered point

3 When TRIG/CSTM is selected, value setting is displayed at left below of the LCD indication

section.
You can change the value setting by pressing   of the cross-shaped button.

A numerical value decreases by pressing  , a numerical value increases by pressing

 .

30

4 Press ENT button to complete the settings.

E When STOP button is pressed, the Block Recording stops as END Trigger Mode even in

whatever the Trigger Mode is selected, and the Block does not jump to the next Block
Recording even in CONTINUOUS or LOOP Mode. (Refer to Chapter 9.3 F)

F Recording Mode has three types; SINGLE, CO NTINUES and LOOP. In SINGLE Mode,

it only records in a Bl ock and does not jum p to the next Block Recording. In CONT INUES
Mode, it jumps to the n ex t Block Recordings ever y time REC button is pressed an d ends
after one round of all the divided Block (For exam ple, if the Block s are divided a s 4 Blocks
and started with the 3rd Block, it ends at the 2nd Block after one round).

In LOOP Mode, it jumps to the next Bl ock Recordings every time REC button is pressed,
and it continues until STOP button is pressed. When in CONTINUES or LOOP Mode, the
Blocks that are being in LOCK and PLAY will not be overwritten. (Refer to Chapter 9.5)

1 How to change Recording Mode Settings.
2 SINGLE, CONTINUES, LOOP mode changes every time 0 button is pressed.
3 Status of 0 and Display of PM2 output at each Mode.

・ SINGLE Mode No light on 0 (S displays at the lower left on PM2 output)

・ CONTINUOUS Mode Light On on 0 (C displays at the lower left on PM2 output)

・ LOOP Mode Light Blinks on 0 (L displays at the lower left on PM2 output)

4 You can confirm even the block recording mode of the LCD indication section of the slow

controller. “S” : SINGLE / “C” : CONTINUOUS / “L” : LOOP

31

9.5 Playback

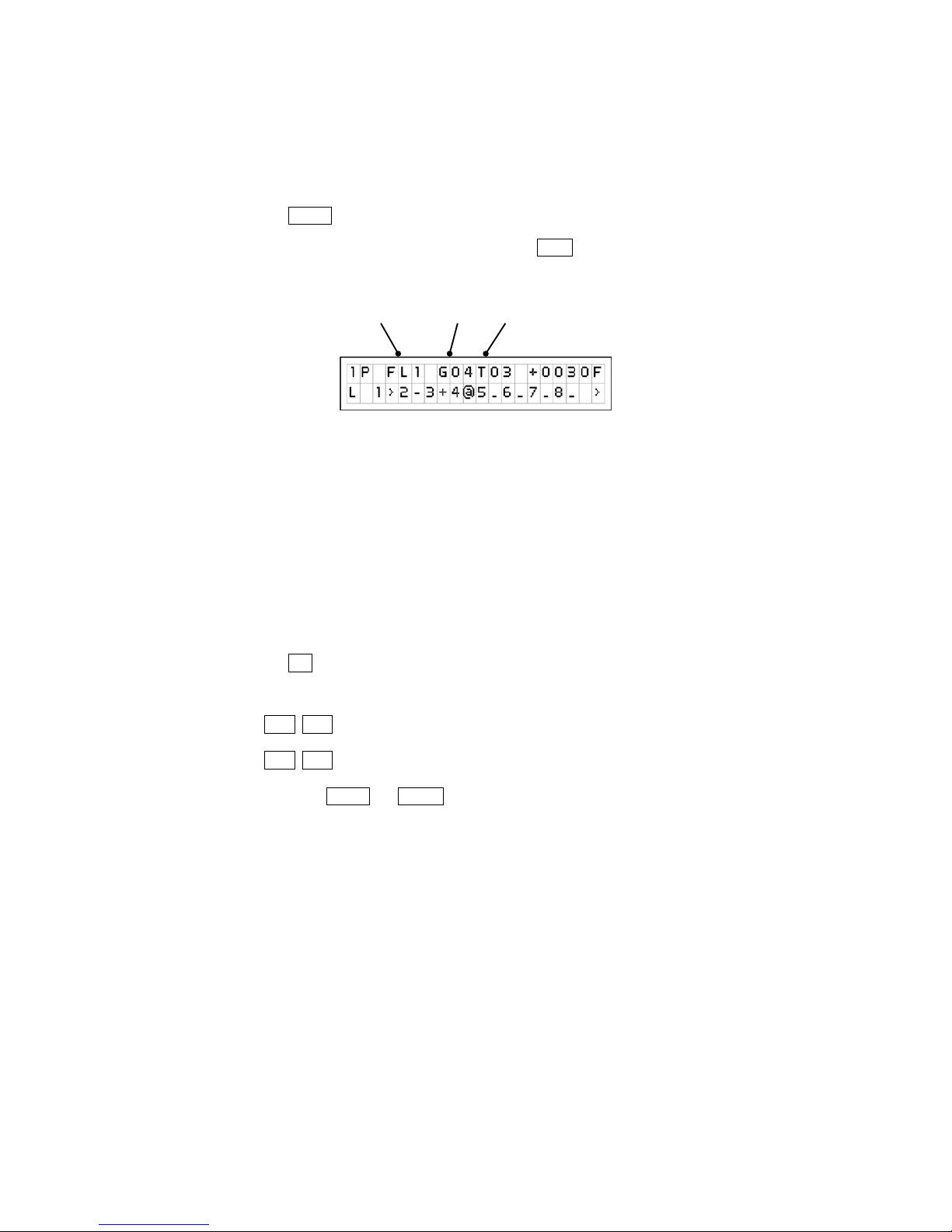

A Select the Block you want to play back by the numeric key. Once the desired Block is

selected, the Block that has not been played back will display as a still image with a setting of
PLAY POSITIO N (Ref er to the follow ing setti ngs.), and the Block that has been pl ayed back
will displa y with a s till imag e that has be en stoppe d at previous p layback . There ar e 5 ways
to play back as B, C, D, E, F and the Block Status displays during playback.
The block status on the LCD indication section of the slow controller s witches to P and “>”
mark blinks.
Ongoing playback continues when the Block is just selected. Then press the PLAY button or
the Jog wheel to actually start playing back the selected Block.

How to change PLAY POSITION settings
1 Press AE button.

2 Press   buttons to call the desired PLAY POSITION as you see on the display on the

Slow Controller.

・ 041-POS/STRT Displays the head of the image clip
・ 042-POS/CENT Displays the middle(50%) of the image clip
・ 043-POS/END Displays the end of the image clip
・ 044-POS/CSTM Displays the desired PLAY POSITION of the image clip
・ 045-POS/TRIG Displays the Triggered point
・ 046-POS/CUE The frame of the CUE point registered last

3 When POS/CSTM is selected, value setting is displayed at left below of the LCD indication

section.
You can change the value setting by pressing   of the cross-shaped button.
A numerical value decreases by pressing  , a numerical value increases by pressing

 .

4 Press ENT button to complete the settings.

B When PLAY button is pressed, the im age clip star ts playback acc ording to the settin g of

PLAY REF SPEED (Refer to the following settings)

How to change PLAY REF SPEED Settings (Select 60 at 1080/59.94i and 720/59.94p, 50 at
1080/50i. Select 30 or 25 for more slow motion effect)

1 Press AE button.
2 Press   buttons to call the desired PLAY REF SPEED as you see on the display on

the Slow Controller.

・ 033-PREF/25 25FPS

・ 034-PREF/30 30FPS

・ 035-PREF/50 50FPS

・ 036-PREF/60 60FPS

3 Press ENT button to complete the settings.

32

C For T-Bar control after VAR button is pressed, the image clip can be played back

according to the des ired T-Bar position. For T-Bar playback speed, the playback stops at
End posit ion and it pla ys back with T-Bar Top Speed at Top positio n.(Refer to the f ollowing
settings)

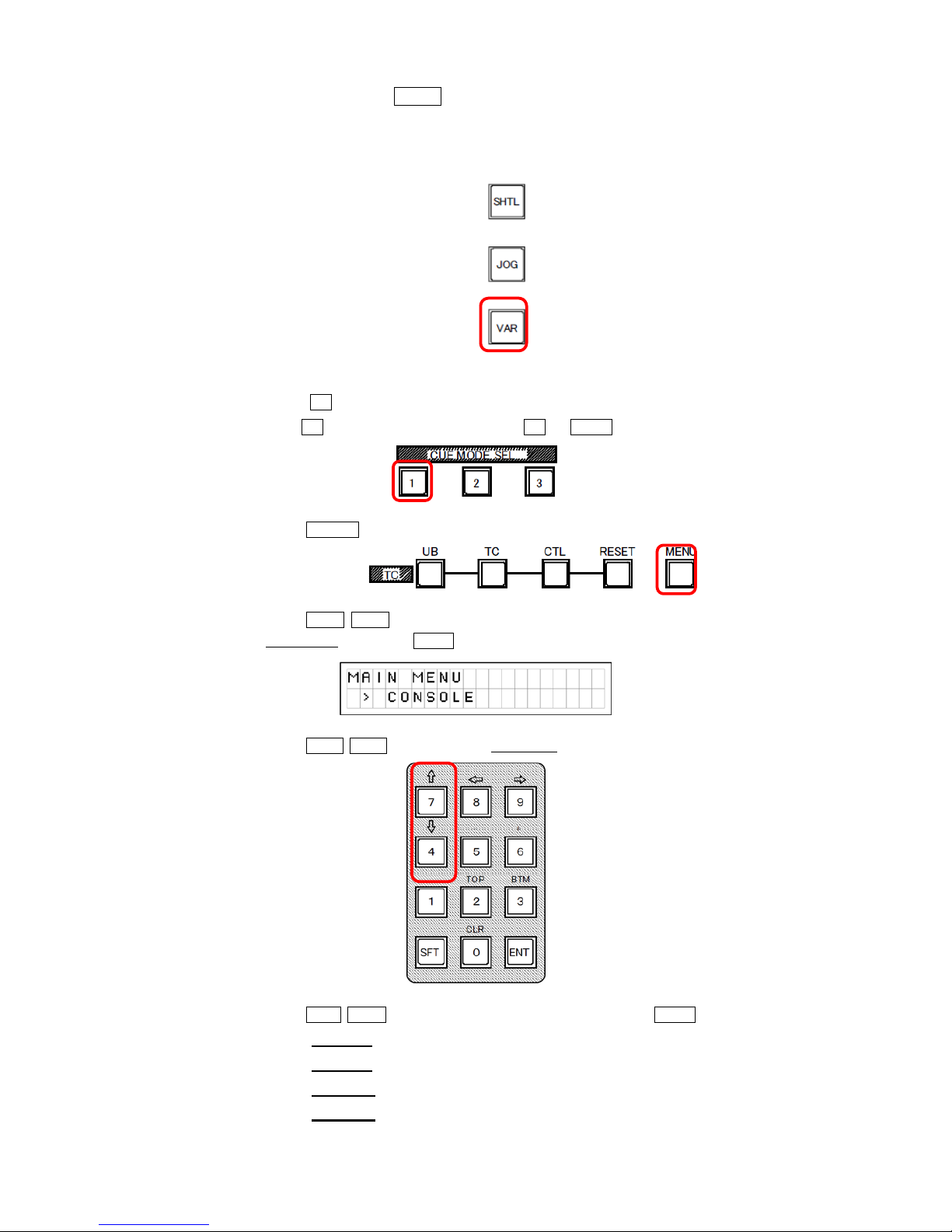

How to change T-Bar Top Speed Settings

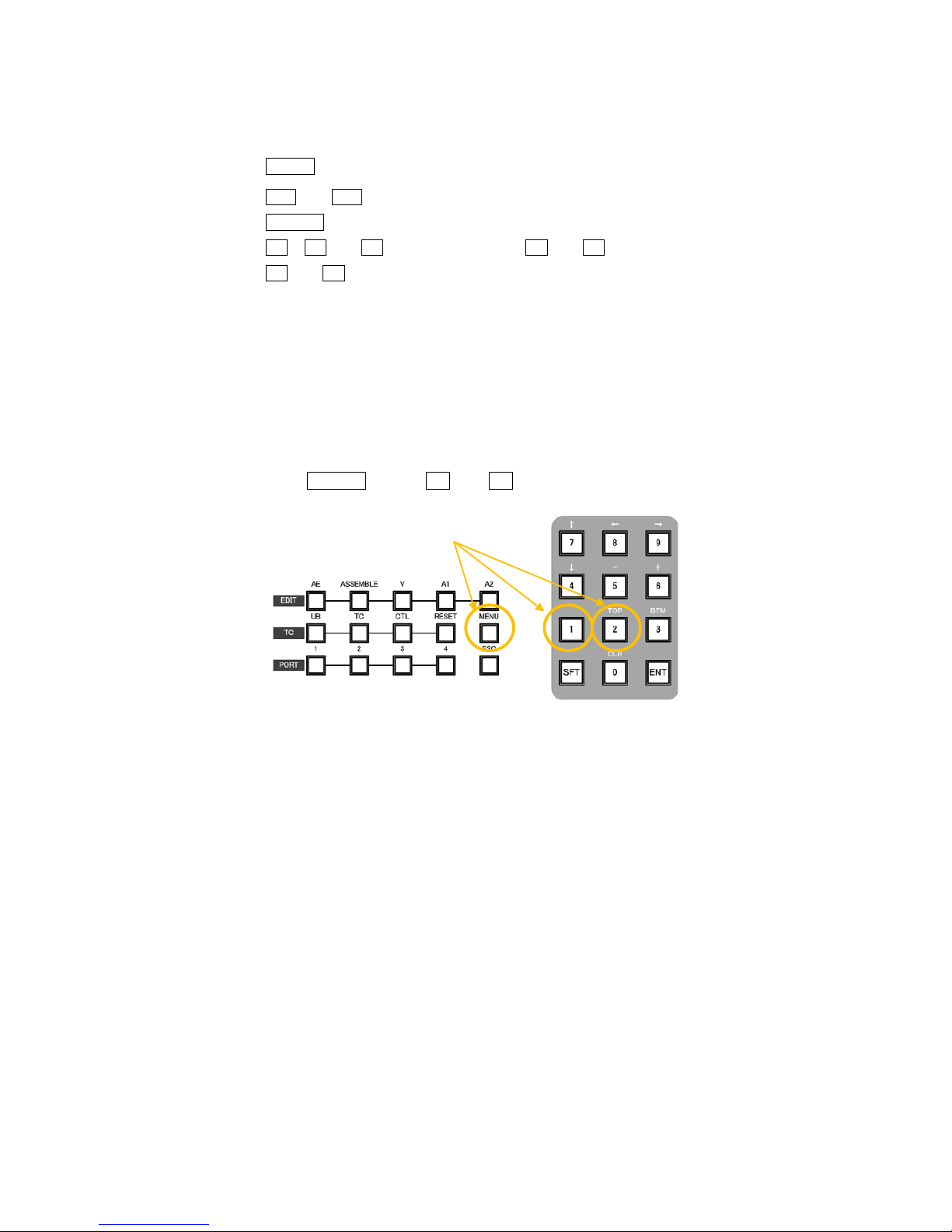

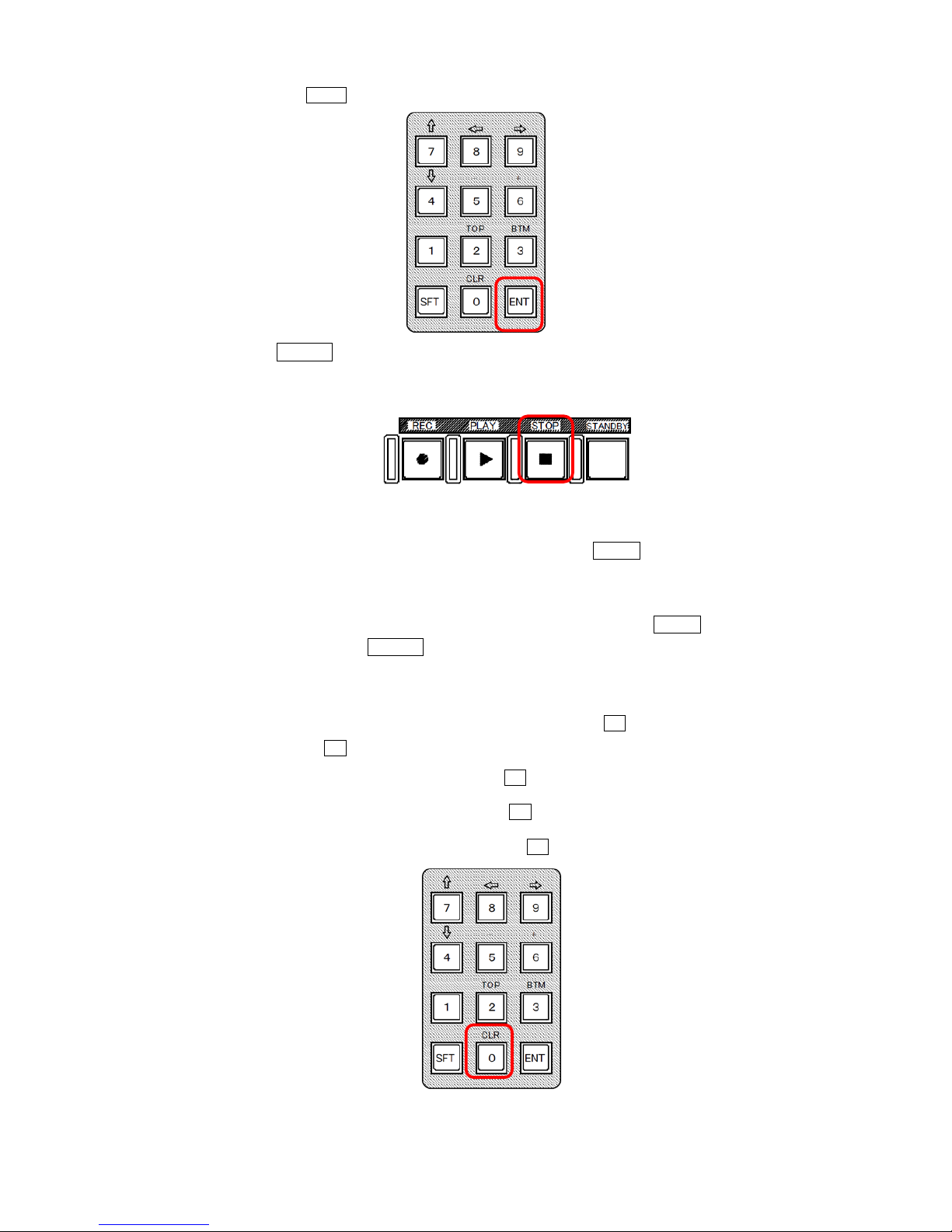

1 Check 1 button of the CUE MODE SEL button’s light is On on the top of the Slow Controller.

If the 1 button’s light blinks, press either 1 or ESC button to make it On.

2 Press MENU button.

3 Press 7(↑) 4(↓) buttons as you see on the display of the Slow Controller and select

>CONSOLE, then press ENT button.

4 Press 7(↑) 4(↓) buttons and find Hi2TbarPtn.

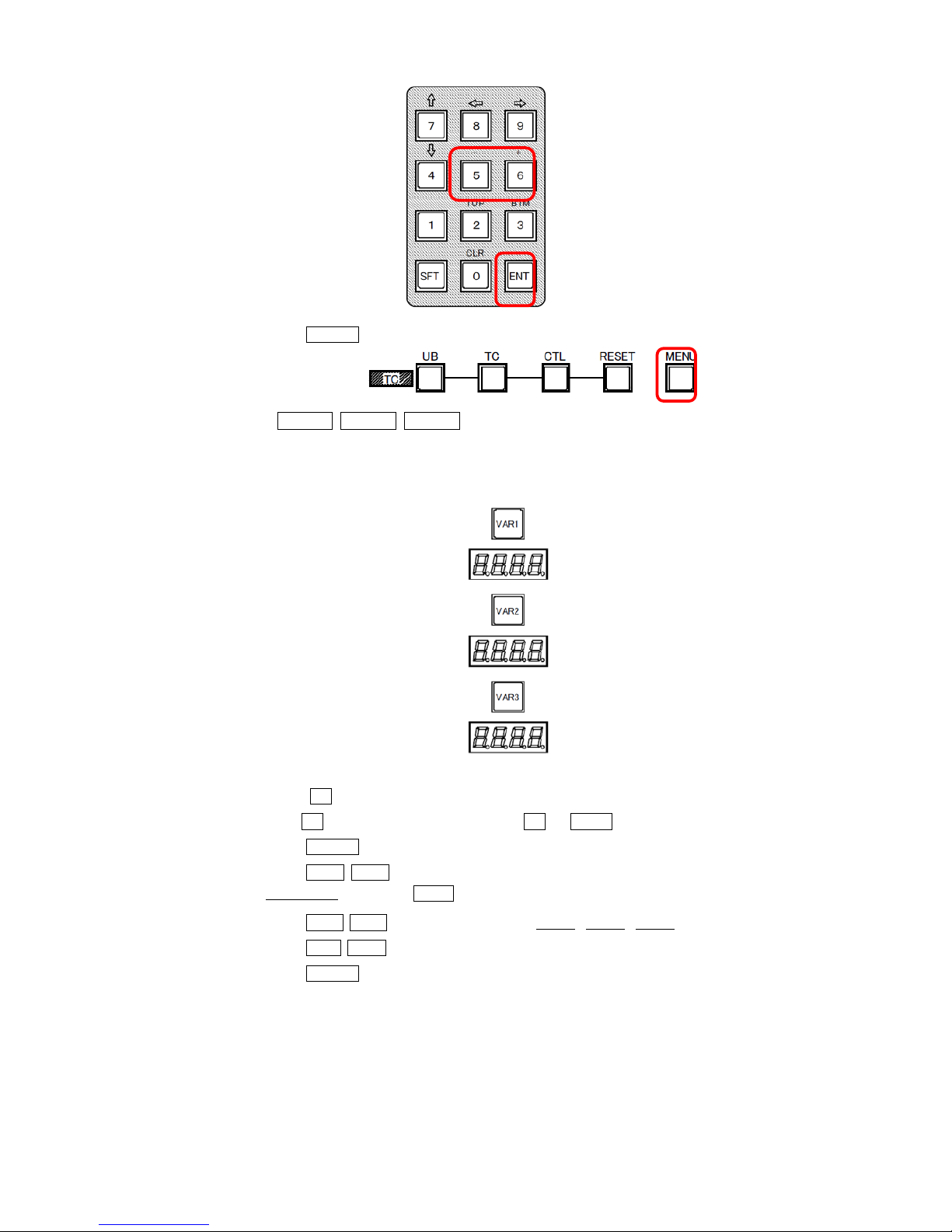

5 Press 5(-) 6(+) buttons and select the followings, and press ENT button to confirm.

・ PLAY 0.5x 0 . 5x faster than PLAY REF SPEED
・ PLAY 1.0x 1x faster than PLAY REF SPEED
・ FRAME 1x 1x faster than FRAME RATE
・ FRAME 2x 2x faster than FRAME RATE

33

6 Press MENU button to complete the settings.

D When VAR1 VAR2 VAR3 buttons are pressed, the image clip is played back

according to the FPS Setting value stated on the below of the each buttons.(Ref er to the
following settings) It ran ges f rom -1200 t o +12 00. It m eans Pla y in Bac kwards when all dots
of 4 digits blink.

How to change each VAR Settings
1 Check 1 button of the CUE MODE SEL button’s light is On on the top of the Slow Controller.
2 If the 1 button’s light blinks, press either 1 or ESC button to make it On.
3 Press MENU button.
4 Press 7(↑) 4(↓) buttons as you see on the display of the Slow Controller and select

>CONSOLE, then press ENT button.

5 Press 7(↑) 4(↓) buttons and select each VAR-1 / VAR-2 / VAR-3.
6 Press 5(-) 6(+) buttons and select value, and press ENT button to confirm.
7 Press MENU button to complete the settings.

34

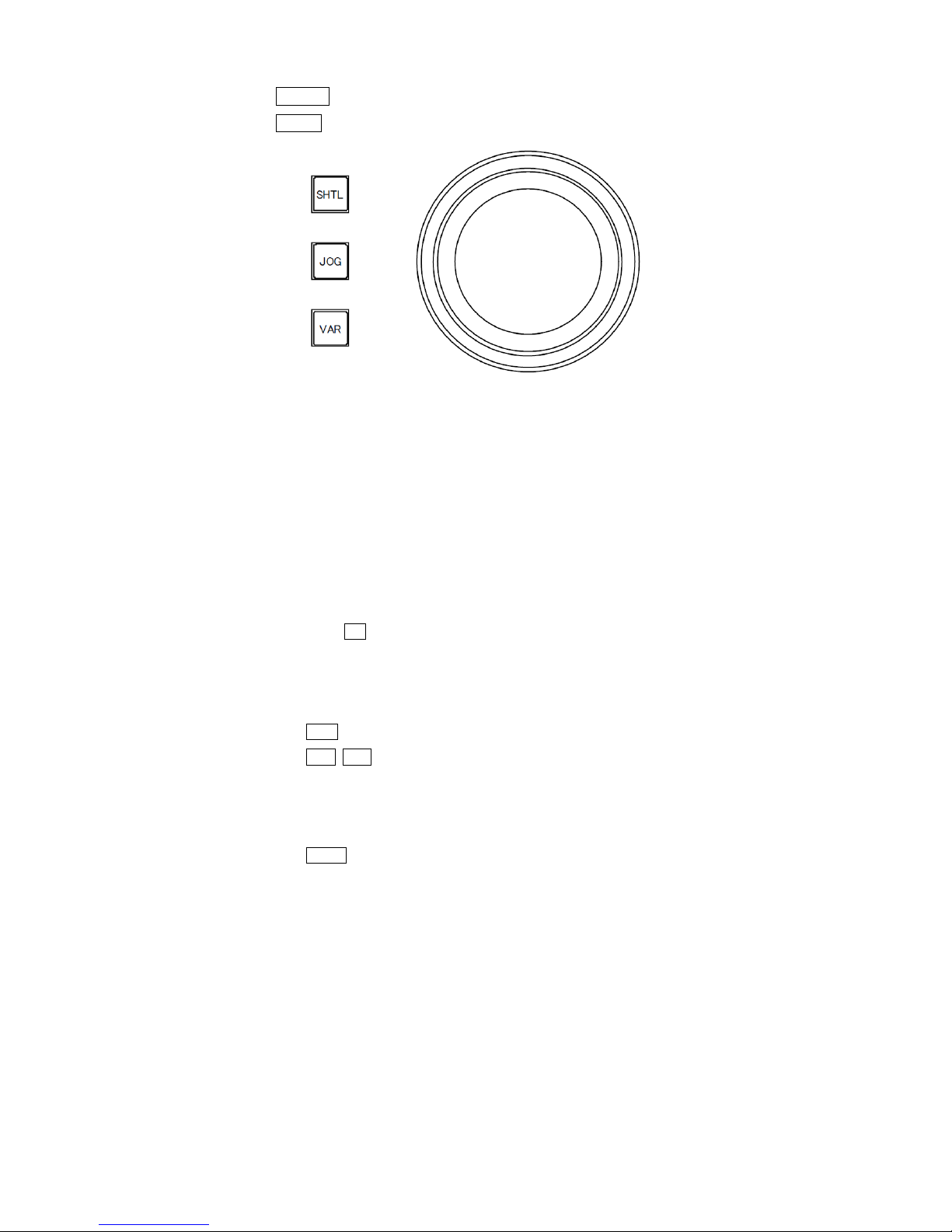

E Press SHTL button and rotate the jog wheel, it plays back as shuttle playback.
F Press JOG button and rotate the jpg wheel, it plays back as jog playback.

9.6 Block LOCK Function
A T he Blocks you do not want t o delete can b e prevente d from overwriting b y lock ing Blocks.

(Refer to the following settings)

1 How to lock and unlock the Blocks
2 Double-click the Block you want to lock and the Blocks and the Block changes in LOCK and

UNLOCK alternatively. The Block Status on Character display shows key mark when the Block
is in LOCK, and does not show key mark in UNLOCK.
You can confirm even the memory block status of the LCD indication section of the slow
controller.
When the Block is in LOCK , “+” appears.

3 Double-click 0 and it unlocks all the Block.

B For the other way to lock the Blocks, there is a Auto LOCK Function after recording. See the

following settings.

1 How to set Auto LOCK
2 Press AE button.
3 Press   buttons and select the function as you see on the display of the Slow

Controller.

・ 021-LOCK/ON Locks automatically after recording
・ 022-LOCK/OFF Does not lock automatically after recording

4 Press ENT button and complete the settings.

35

9.7 CUE / SEARCH

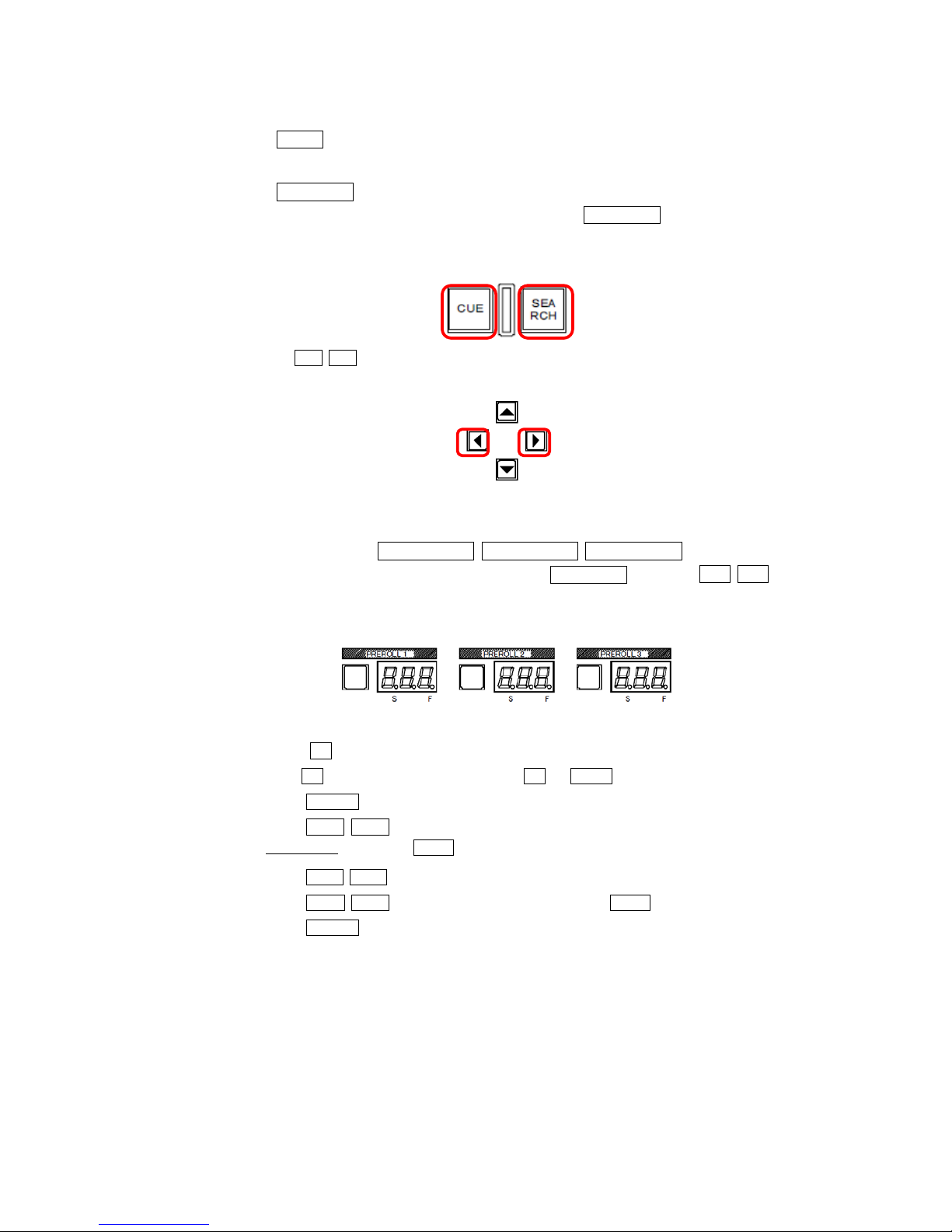

A When CUE button is pressed during recor d in g, it m emorizes the position of the time and

the time can be called easily in playback.

B When SEARCH button i s pressed, it j umps to the l ast CUE point in the select ed Block,

and to the next CUE p oint with a sec o nd press. Ever y SEARCH press jumps back to the
former CUE point and once it reaches to the first CUE point in the selected Block, it jumps to
the last CUE point of the Block.

C Pressing   buttons instead of pressing SE ARCH button jumps to the C UE points

between Blocks.

D CUE point can be assigned max. 10 points per a Block.
E PRERO LL Sett in g is avai la ble (Refer to the following settings).

Pressing either one of PREROLL 1 PREROLL 2 PREROLL 3 buttons on the to p of
the Slow Controller as each light is On, pr essing SEARCH button or   buttons

jumps by offsetting the second of 3 digits that are set (0.1sec) to the past. Press each button
that is lit On again to release PREROLL function.

How to change each PREROLL Settings
1 Check 1 button of the CUE MODE SEL button’s light is On on the top of the Slow Controller.

If the 1 button’s light blinks, press either 1 or ESC button to make it On.
2 Press MENU button.
3 Press 7(↑) 4(↓) buttons as you see on the display of the Slow Controller and select

>CONSOLE, then press ENT button.

4 Press 7(↑) 4(↓) buttons and select each Hi2Preroll-1 / Hi2Preroll-2 / Hi2Preroll-3.
5 Press 5 (-) 6(+) buttons and select value, and press ENT button to confirm.
6 Press MENU button to complete the settings.

36

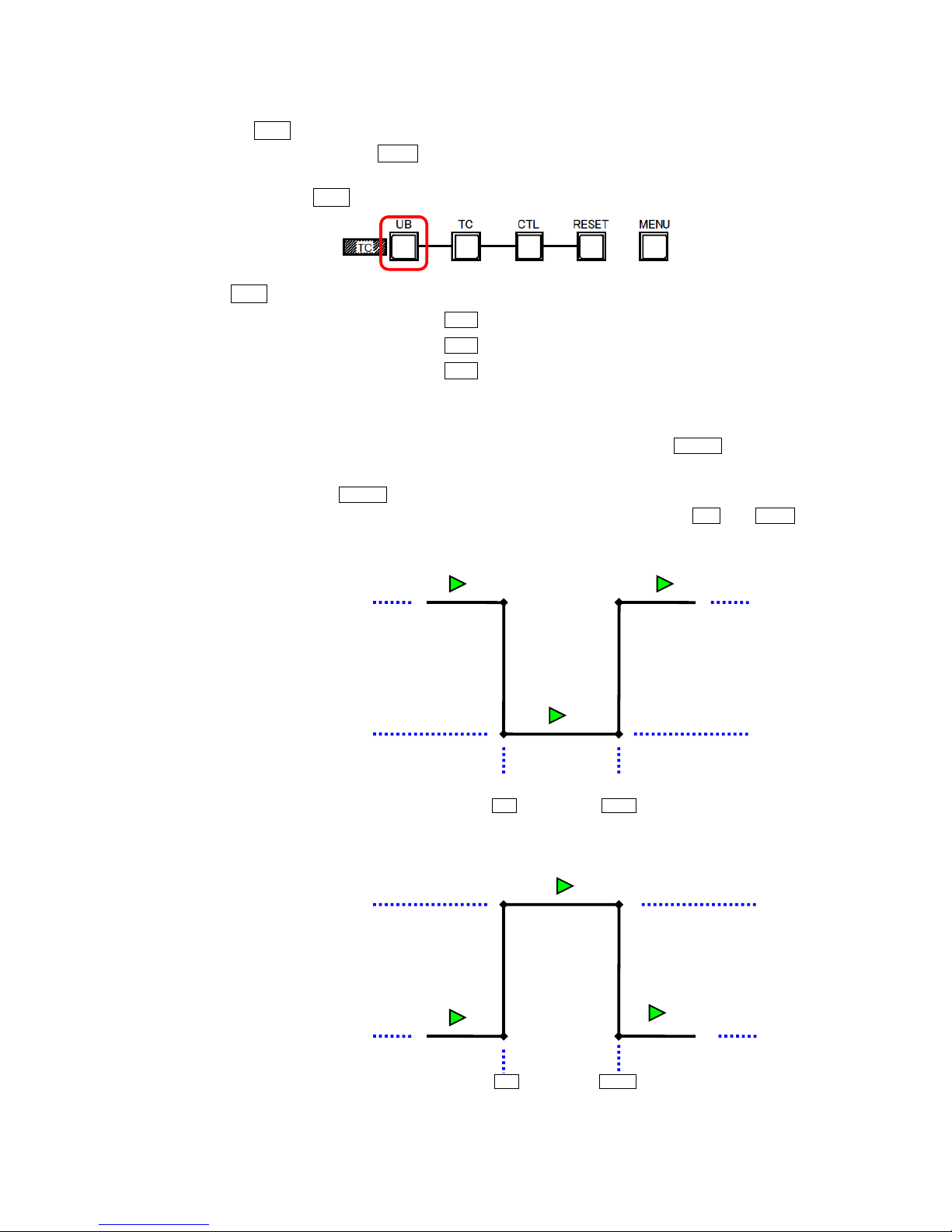

9.8 Program Replay Mode
Pressing UB button can select normal replay mode, program replay mode1, and program

replay mode2. Each time UB button is pressed, the mode changes as normal replay
mode>program replay mode1>program replay mode2>normal replay mode. The following
description shows UB button lamp status for each mode.

A UB button status for each mode

1 Normal Replay Mode : UB button off
2 Program Replay Mode1 : UB button on
3 Program Replay Mode2 : UB button blink

B Description of each mode

1 Normal Replay Mode

 Traditional replay mode. It starts to replay at set PLAY REF SPEED when PLAY is pressed.

2 Program Replay Mode1 and Program Replay Mode 2

Pressing PLAY when the mode is at Program Replay Mode1 or Program Replay Mode2
starts to replay as follows when the Time Code reaches where you hit IN and OUT .

Program Replay Mode1

Program Replay Mode2

PLAY REF SPEED

IN

OUT

FRAME RATE
FRAME RATE

PLA Y REF SP EED

OUT

IN

e.g. 50 fps

e.g. 50 fps

e.g. 400 fps

e.g. 400 fps

e.g. 400 fps

e.g. 50 fps

37

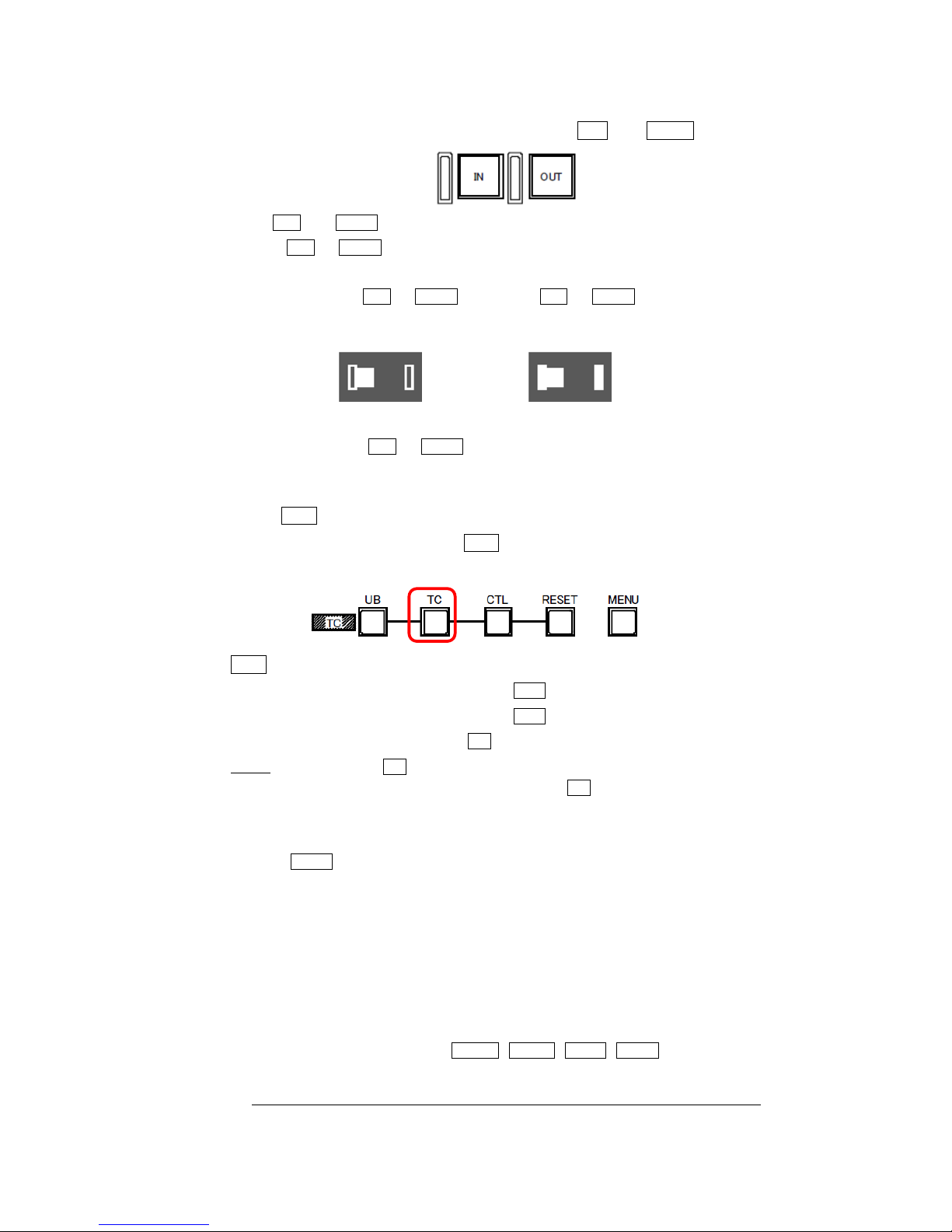

C How to assign IN point and OUT point

IN point and OUT point can be assigned by pressing IN and OUT of Slow Controller.

1 IN and OUT can be assi gned one poi nt for each.
2 If IN or OUT is pressed after assigning IN and OUT , the last press point in Time Code

base becomes valid and all the past Time Code will be deleted.

3 When there is IN or OUT information, IN or OUT on Slow Controller turns on as

well as the side bar on PM1 and PM2 monitor as follows.

No IN or OUT information IN or OUT information

4 Double-clicking IN or OUT will remove the stored Time Code.

9.9 Auto Play Mode
Please press TC button to turn ON/OFF the Auto Play mode.

The mode is changed with every press of TC button,
e.g. Auto Play ON > Auto Play OFF > Auto Play ON...

A TC button status in Auto Play mode

1 Auto Play mode OFF : Indicator of TC button is OFF
2 Auto Play mode ON : Indicator of TC button is ON

and A mark appears on the PM display

NOTE : Default setting of A mark display is OFF f or all th e out puts (VF, M ONITO R, PM 1, and PM 2)
when the firmware is updated. In order to show or hide A mark, please set it up manually at the
HEAD MENU: MENU(1/2)>VF DISPLAY>CHARACTER SET>[AUTO PLAY].

B General Operation in Auto Play mode

1 Press REC button to start recording.
2 At that time, a recording Block w ill move t o t he n ext and the recorded Block i s au tom atically locked.

The LOCK mark appears in the Memory Block Status and the camera automatically starts playing
back the data in the Block.

3 Playback range will be from the starting point specified with the PLAY POSITION (selected in the

HEAD MENU) to the last frame in the Block.

4 After playing back all the range, the LOCK mark disappear and the camera starts playing back the

data in the next Block, not played yet.

5 During the Auto Play, buttons like STOP , PLAY , FWD , REW , numerical keypad, and Jog

wheel operations are valid.
When playing back until the last frame, playback of the Block is regarded as com plet ed.

38

C Tips and Advices on Auto Play mode

1 Playback range in the Auto Play is from the startin g poi nt s pe cifi ed with the PLAY POSITION to the

last frame. If you want to stop the playback in the middle of Block, double-click STOP button on
the slow controller, so that the LOCK mark disappears and the camera starts playing back the next
Block. Double-clicking STOP buttons on the side panel of the camera head and the J-Pad2 are
invalid.

2 If there is no Block to play (not yet played), the camera stands by until the recorded Block is ready.
3 Basically the camera starts playing back the recorded Blocks automatically from the oldest Block

with LOCK mark. cannot be locked or unlocked.

4 “LOCK AFTER REC” is forced to turn ON and prohibited to turn it OFF. Also an individual Block

cannot be locked or unlocked.

5 All the Blocks are unlocked when t he A uto Play mode is turne d O N f ro m O FF. The unlocked Bloc k s

remain unlocked even if the mode is turned OFF again.

6 The camera automatically plays back the recorded Blocks that are recorded after the Auto Play

mode is turned ON.

7 If there is no Block to play (not yet played), the r ec ordi ng Block becomes activ e an d liv e ima ges a re

output from the REPLAY port (HD-SDI2). If there is no Block to play and no recording Block, the
camera stops at the Block played at last.

8 W hen the Auto Play mode is turned ON from OFF, the PLAY POSITION is forced to be START to

prevent erroneous operation. However the PLAY POSITION can be set to others later. If END or
CUSOTM >90% is selected, the starting point to playback is automatically set at the 150

th frame to

the last frame.

9 Automatic playback starts when PLAY button is pressed while the Auto Play mode is ON.

In the Auto Play mode, playback-related operations, such as REW , STOP , FWD buttons,
JOG wheel, T-bar, VAR are valid in the same Block. In order to move to the next Block to play
(not yet played) automatically, press PLAY button.

10 If any Block is selected with the numerical keypad and PLAY button is pressed, the camera

starts playing back the selected Block. At that time, all the recorded Blocks in-between are ski ppe d
and not played.

11 Setting of the Auto Play mode (ON or OFF) remains when the camera is rebooted. Default setting

of the Auto Play mode is OFF.

12 During the Loop Playback operation with J-Pad2 or the side panel of the camera head, the local

operation has a priority over the Auto Play.

39

9.10 Setting the playing flicker correction
Set the flicker and noise suppression function for the video being played.

The playing flicker correction function is reflected on the playing video.
Yo u can adjus t the val ue wi th watch in g the playing video.

A Press the CTL button on the slow controller to enter the flicker correction mode.

While the flicker correction mode is in effect, the AE button lights.

B The flicker correction setting indication appears in the LCD indication section of the slow

controller.

① ON/OFF setting of the flicker correction function

FL1 : Flicker Correction : ON
FL0 : Flicker Correction : OFF

② GAIN value of the flicker correction

G00 ~ G10 : 10 level
③ Threshold of the flicker correction
T00 ~ T10 : 10 level

C Press the 0 button and turn ON/OFF setting of the flicker correction function.

The setting switches by each press like ON -> OFF -> ON ....

D Press   of the cross-shaped button, and set a GAIN value of the flicker correction.

E Press   of the cross-shaped button and set a threshold of the flicker correction.
F If you press the CTL or ESC button, you can exit from Flicker Correction mode.

1 3 2

40

9.11 Setting of output image right after recording
You can select the replay output images which recorded just after that.

- The repla y output images : (HD-SDI OUT2 of back face of CCU / HDSDI-2 of back of camer a
head / the connectors that indication is set in [PLAY] : MONITOR, HD-PM OUT1, HD-PM
OUT2)

A You can set on head menu.

SLOW CONTROLLER on head m enu MENU(1/2)page > Set in the pages of LIVE AFTER
REC.

1 LIVE AFTER REC ON : LIVE image
2 LIVE AFTER REC OFF : Play image (frame image set on the play start image)

B Behavior with LIVE AFTER REC ON

Yo u can us e this when you rec or d m ultiple b loc ks in a row or you want to avoid outputting still
images with LIVE image output after recording.
When this mode is ON, the display switches from LIVE image to Play image by pressing PLAY
switch or so.
Also, when you move to the other block which is already recorded, still images of the selected
block are outputted instead of the LIVE image.

C Behavior with LIVE AFTER REC OFF

After recording, a still image which is set with Play start frame is displayed.

* When the system format is set in 1080I59/720P59/1080I50/720P50, this setting functions.

* W hen the system f ormat is set in 1080P59/1080 P50, this setting is fixed to the setting in LIVE

AFTER REC : OFF without depending on the menu setting.

9.12 Collective stop operation of recording and playing
If you want to stop by one operation collectivel y when you are recording and playing at the sam e

time, you can do the following operation.

A Press STOP button of Slow Controller and hold it for a few seconds.

All blocks being on recording or playing become stop status.

41

9.13 Non Functional Buttons

The following buttons are not functional.

1 SAVE button空白
2 A1 and A2 buttons on EDIT line

3 RESET button on TC line
4 2 , 3 and 4 buttons in PORT line ( 1 and 2 buttons are used in 3D application)
5 2 and 3 buttons in CUE MODE SEL line

9.14 FACTORY SET of the slow controller MDC

When set FACTORY SET (factory shipment setting) of the slow controller, you perform the
following operation.
You can perform FACTORY SET of the slow controller only with the slow controller.

1. Set the POWER switch of the slow controller to OFF.

2. Set the POWER switch on the back surfac e of the slow contr oller to ON while pres sing three

buttons (the MENU button, 1 and 2 buttons in the ten-key button section) at the
same time.

3. Continue pressing three buttons until LCD indication section shows [Initialize …] indication.

4. Separate your hand from three buttons, and the indication of LCD indication section advances

with [Initialize …] -> [Version] -> [SysCfg int …] -> [Event int …] -> [System Setup] and confirm
that the slow controller starts normally.

*All the items to per form by the menu operatio n of the slow controller are replaced by factory
shipment setting when set FACTORY SET of the slow controller.
It is necessary to set the ite ms (such as “ the max imum speed of the T-bar”, “fixed VAR speed “,
“PREROLL time “) which changed the set value once again.

As for the slow controller, even in the case of the previous version (MDC50T-NAC08
S0130-52), there is not the problem with operation.
But there are following functions restrictions.

The firmware of the slow contr oller cannot update by the user, so contact your rental agent or
supplier.

42

The functions restrictions

Item

Version

MDC50T-NAC09 S0130-53

Version

MDC50T-NAC08 S0130-52

LCD indication

section

Block status information is displayed.

See Section 9.1 “LCD indication section”.

Block status information is not displayed.

See Section 9.1 “LCD indication section”.

Trigger mode

The change of the value of TRIG/CSTM is possible.
See Section 9.4 “Recording D-

How to change

Trigger Mode Settings”.

The change of the value of TRIG/CSTM is not

possible.
See Section 9.4 “Recording D

How to change

Trigger Mode Settings”.

Playing

start frame

The change of the value of POS/CSTM is possible.
See Section 9.5 “Playback A-How to change PLAY
POSITION settings”.

The change of the value of POS/CSTM is not

possible.
See Section 9.5 “Playback A-How to change PLAY
POSITION settings”.

Playing flicker

correction

The adjustment of setting the playing flicker

correction is possible.
See Section 9.10

“Setting the playing flicker

correction”.

The adjustment of setting the playing flicker

correction is not possible.
See Section 9.10 “Setting the playing flicker
correction”.

Stop operation

for recording and
playing

Collective stop operation for recording and playing is

possible.
See Section 9.12 “Collective stop

operation for

recording and playing”.

Collective stop operation for recording and playing is

not possible.
See Section 9.12 “Collective stop

operation for

recording and playing”.

43

10 Table of Recording Speed and Time

See the following table when recording with preset recording speed. Each box shows the recording time
in sec when the Memory is not divided into Blocks.

CAPTURE 1080 720

Available Recording

Frames

11425 25441

REC TIME EXT EN D ED OFF(default) ON OFF(default) ON

Recording

Speed

24 476 952 1060 2120
30 380 761 848 1696
50 228 457 508 1017

60 190 380 424 848
100 114 228 254 508
120 95 190 212 424
150 76 152 169 339
180 63 126 141 282
240 47 95 106 212
300 38 76 84 169
400 28 57 63 127
500 22 45 50 101
600 38 38 42 84
700 32 32 36 72
800 28 28 63 63
900 25 25 56 56

1000 22 22 50 50
1200 --- --- 42 42
1500 --- --- 33 33

The setting of REC TIME EXTENDED ON/OFF is at ENGINEER MENU (1/2) > SYSTEM MAINTENANCE.
The recording time can be extended by NAC’s proprietary image process with minimum image deterioration.

44

11 Camera Head Menu

11.1 Operating the head menu function

A How to set the Camera Head Menu from Camera Head

1 Check the SIDE PANEL switch on the rear of Camera Head is ON.
2 Press MENU button and HEAD MENU Character appears on the VF.
3 Rotate the Jog Wheel to select, and push down the Jog Wheel to confirm the setting.
4 Press MENU button to clear the HEAD MENU Character after all the setting is completed.

B How to set the Camera Head Menu with OCP

1 Press OPE button on OCP as you see on Picture Monitor 1 output.
2 Stop all the Block Recording and Playback as it displays Camera Operation Screen.

3 Press MENU button on the top right of the OCP screen and PM1 and HEAD MENU appears

on PIM1/PM2.

4 Go to the desired menu by using Select Knob or Next Knob, and press ENTER button to

confirm.

5 After all the setting is finished, press QUIT button to complete the settings. No need to reboot

the system.

45

11.2 Descriptions for each Camera Head Menu

MENU (1/2)

 RECORDING：

 Here explains the setting of Imager for recording. The FPN changes if these settings are changed,

therefore please do not forget to perform Auto Black Balance by pressing ABB button after any
setting has changed.

FRAME RATE

PRESET, CUSTOM 24F/S - 1500F/S
Changes the recording Frame Rate. 24-1500fps is available at CAPTURE

720. Variable Frame Rate setting

(every 1 frame) is available when

CUSTOM is selected.

SENSITIVITY

-3dB, 0dB, +3dB, +6dB
Changes the Sensitivity. Lower noise level is achieved than the Gain

setting on OCP therefore this setting is recommended to be done before
the Gain setting on OCP for night games.

SHUTTER SPEED

PRESET, CUSTOM 1.0% - 100.0%
Changes the Shutter Speed. Variable setting(every 1% step) is available

when CUSTOM is selected.

COLOR TEMP

3200K, 5600K, 6300K, 7500K
Changes the Color Temperature electrically.

CAPTURE

1080, 720
Changes Capture Size of the sensor. Refer to Chapter 6.

Please reboot the system every time the Capture Size is changed.

IMAGE FLIP

NORMAL, L-R, T-B, LRTB
Image Output is flappable without delay when 3D application.

L-R for Left/Right flip, T-B for Top/Bottom flip, and LRTB for Top/Bottom,
Left/Right. When the camera boots up, NORMAL is automatically set,
regardless of the last setting.

 SLOW CONTROLLER

 Refer to Chapter 9 for more details.

TRIGGER MODE

START, CENTER, END, CUSTOM 0% - 100%
Trigger timing setting when the Trigger button(REC) is pressed.

BLOCK REC MODE

CONT , SINGLE, LOOP
Setting for Block Recording Mode.

LOCK AFTER REC

ON, OFF
Auto Lock Function for the Blocks after recording.

LIVE AFTER REC

ON, OFF
Sets the playing output video when the REC mode ends.

ON: LIVE video output / OFF: Replay video output (the frame designated
by PLAY POSITION)

AUTO PLAY

ON, OFF

AUTO PLAY is a function that automatically starts playing of a freshly
recorded block.

PLAY REF SPEED

25.00F/S, 29.97F/S, 50.00F/S, 59.94F/S
Setting for Playback speed when PLAY button is pressed.

46

PLAY POSITION

START, CENTER, END, CUSTOM, CUE, TRIG 0% - 100%
Setting for the Playback position that displays as the first when the Block is

selected.

MEMORY BLOCK

PARTITION 1 – 8
SELECT 1 – 8 FREE, LOCK
Setting for the number of Blocks, selection, and Lock/Unlock function.

JPAD2 CONTROL

ACC, CONST ***F/S
In

STOP mode, sets the playing speed when the FWD/REV switch of

J-PAD2 or the FWD/REW switch of the camera head is pressed for long.
ACC :
Sets the maximum value of the playing speed (ACCELERATION)
CONST :
Sets the constant value of the playing speed (CONSTANT)

 VF DISPLAY

 Settings for images on VF and no effect on main output.

CHARACTER SET

Setting for ON/OFF of Characters displayed on each VF, MON, Picture
Monitor 1, Picture Monitor 2

VF DTL

0 – 100
Setting for details for VF output image.

MARKER/CHAR LVL

0 – 100

Setting for the Brightness of Marker and Character that is overlaid on the
screen.

FRAME MARKER

ON-16:9, ON-14:9, ON-13:9, ON-4:3, OFF
Setting for Aspect Ratio of Frame Marker.

VF ASPECT

16:9, 4:3
Setting for Aspect Ratio of VF.

SIDE MASK

OFF, ON-4:3, ON-13:9, ON16:9
Setting for Aspect Ratio of Side Mask.

CONTRAST

0 – 100
Setting for Aspect Ratio of Contrast on Side Mask.

BRIGHT

0 – 100
Setting for Brightness on Side Mask.

SAFETY AREA

ACTION, TITLE
Setting for SAFETY AREA. 93% for ACTION, 89% for TITLE.

SAFETY MARKER

ON-4:3, ON-16:9, OFF
Setting for Aspect Ratio of S afety Marker. It als o clears the li ne that i s s et

at SAFETY AREA when it is OFF.

CENTER MARKER

ON, OFF
Setting for ON/OFF of Center Marker.

ZEBRA INDICATOR

ZEBRA1 DETECT 30% - 109%
Setting for the detection level of ZEBRA 1.
ZEBRA2 IND OFF, ON
Setting for ON/OFF of ZEBRA2 Indicator.

47

ZEBRA2 DETECT 30% - 109%
Setting for the detection level of ZEBRA 2.
ZEBRA IND LVL 1 – 100
Setting for Brightness of ZEBRA Indicator.

VF REC TALLY

G, R, OFF
Setting for Tally color on VF when recording.

COLOR VF

AUTO, ON
Setting for Automatic Recognition Function when Color VF is connected.

FRONT TALLY

ENABLE, DISABLE

Setting for Front Tally on Color VF. ENABLE/DISABLE can only be
changed when COLOR VF ON. ENABLE is only selectable when COLOR
VF OFF (DISABLE is not displayed).

 VIDEO OUTPUT MODE

VF OUT SEL

LIVE, PLAY
VF Output can be selected from LIVE or REPLAY.

MON OUT SEL

LIVE, PLAY, RET IN

LIVE, PLAY：MON OUT from Camera can be selected.
RET IN：This feature only available when in Stand Alone Style. Image that

is input can be displayed on the viewfinder by pressing RET keys

on the lenses.
*The displayable image is only one channel no matter the position of the
RET SEL or RET key 1/2, and this does not function when CCU is
connected.
*The system retains the setting made before the power in turned OFF,
even if the power is turned OFF after operation.

UNDER 0%

DISABLE, ENABLE

Setting for the cut of output image’s video level.

 LEVEL ADJUST

 LEVEL ADJUST cannot be changed when CCU is connected. This only works when in Stand Alone

Style.

When OCP is connected with Camera Head, LEVEL ADJSUT can be changed only with OCP.

MASTER GAMMA

-100 - +100
Setting for Master Gamma.

MASTER PED

-100 - +100
Setting for Master Pedestal.

MASTER FLARE

-100 - +100
Setting for Master Flare.

DTL GAIN

-100 - +100
Setting for DTL Gain.

ADJ CLR

READY/PUSH_SET→CLR/CANCEL

Set the value that is selected in LEVEL ADJUST to default.

48

 PROCESS MODE

MATRIX

OFF, ITU, EBU, SMPTE
Select desired color space.

HI-LIGHT DTL

ON, OFF
Setting for highlight DTL effect.
GAIN -100 - +100
Setting for highlight DTL GAIN.
LIMIT -100 - +100
Setting for highlight DTL LIMIT.

DTV V FILTER

ON, OFF
Setting for DTV V FILTER effect.

 TIME

TIME

YEAR

Edits the current time. Set it to the local time as this
Time Code displays on Picture Monitors.

MONTH
DAY
HOUR
MINUTE
SECOND

 TEMP I NFO

TEMP (LIMIT)

Display the temperature information
and the fan rotation information in
the camera head.
(LIMIT) is setting of the values to
notify of temperature abnormality.
FAN STATUS

shows the rotary

speed of the fan.

PRISM

**℃ (50℃)

SNS(R)

**℃ (70℃)

SNS(G)

**℃ (70℃)

SNS(B)

**℃ (70℃)

PROC1

**℃ (70℃)

PROC2

**℃ (70℃)

FA N STATUS

FAST, NORMAL,
SLOW, OFF

(**％)

 OTHER INFO

 Display the following status information.

WORKING TIME Total Operating Time
SUB TIME Resettable Operating Time
MEM SIZE Memory Size on each RGB channel
INPUT VOLTAGE DC-Input voltage
VERSION Firmware Version on each part

49

MENU (2/2)

 AUTO IRIS SET

IRIS SET MODE

OFF, ON
Setting for ON/OFF of each Auto Iris Control.

IRIS LEVEL SET

-100 - +100
Setting for Auto Iris Range.

PEAK RATIO SET

-100 - +100
Setting for Iris Correction when the Contrast is high.

IRIS GAIN

1 - 100
Setting for Iris Response Sensitivity.

IRIS SPEED

1 - 100
Setting for Iris Response Speed.

IRIS LIMIT

F22, F20, F18, F16
Setting for Iris Limit Value in close direction when in Auto Iris Mode.

LENS ADJUST

OFF, F2.8, F16
Setting for Control Voltage Output of Lens Iris Adjustment.

 AUTO SETUP MODE

AWB WITH A.IRIS

ON, OFF
Setting for ON/OFF of Auto Iris Control when AWB performed.

AWB REFERENCE

ON, OFF
Setting for validity of AWB converge value.

REFERENCE SET

AWB, ABB

Performing this command after desired B/W setting stores the R/G and B/G
as Reference.
Note: DIP-SW must be set with the Camera Head prior to this change.

 SW ASSIGN

RET-1 (HANDLE)

RET-1, ZOOM-, FOCUS-, NONE
Assigns the selected functions on RET-1 (HANDLE).

RET-2 (HANDLE)

RET-2, ZOOM+, FOC US+, NONE
Assigns the selected functions on RET-2 (HANDLE).

ZOOM SPEED

1 - 100
Setting for Zoom Speed when RET1 and 2 is assigned for.

FOCUS SPEED

1 - 100
Setting for Focus Speed when RET1 and 2 is assigned for.

RET (LENS)

OFF, RET-1, PROD MIC, ENG MIC, ENG+PROD MIC, TRIG, VF OUT,
VF CHAR

Assigns a function when pressing the RET button on an ENG lens.

VTR (LENS)

OFF, PROD MIC, ENG MIC, ENG+PROD MIC, TRIG, RET-2, VF OUT,
VF CHAR

Assigns a function when pressing the VTR button on an ENG lens.

50

MID GAIN

-3dB, +3dB
Setting for Gain when Gain switch was set as “M”.

HIGH GAIN

+3dB, +6dB, +9dB, +12dB
Setting for Gain when Gain switch was set as "H".

FUNC SW SET

FUNC1 - 6

Assigns the Short Cut functions on Function Switches. SHIFT key + 1-3 will
be 4-6. Assignable functions are:

FRAME RATE UP :

[24F/S -> … -> 1500F/S (-> 24F/S …)]

FRAME RATE DOWN :

[1500F/S -> … -> 24F/S (-> 1500F/S -> …)]

SENSITIVITY U P :

[-3dB -> 0dB -> +3dB -> +6dB (-> -3dB …)]
SENSITIVITY DOWN :
[+6dB -> +3dB -> 0dB -> -3dB (-> +6dB …)]
SHUTTER SPEED UP :

[1.6% -> 6.3% -> 25% -> 50% -> 100% (-> 1. 6% …)]
SHUTTER SPEED DOWN :
[100% -> 50% -> 25% -> 6.3% -> 1.6% (-> 100% …)]
COLOR TEMP :

[3200K -> 5600K -> 6300K -> 7500K (-> 3200K …)]
IMAGE FLIP :

[NORMAL -> LR -> TB -> LRTB (-> NORMAL …)]
TRIGGER MODE :
[START -> CENTE R -> END -> CUSTOM (-> START …)]
REC MODE :
[SINGLE -> CONT -> LOOP (-> SINGLE …)]
LOCK AFTER REC :
[ON -> OFF (-> ON …)]
LIVE AFTER REC :
[ON -> OFF (-> ON …)]
AUTO PLAY :
[ON -> OFF (-> ON …)]
PLAY REF SPEED :
[25F/S -> 29.97F/S -> 50F/S -> 59.94F/S (-> 25F/S …)]
PLAY POSITION :
[TRIG -> START -> CENT -> END -> CUSTOM -> CUE (-> TRIG …)]
FLICKER CORRECTION :
[ON -> OFF (-> ON …)]
FAN STOP 1MIN :
The fan rotation stops. After one minut e, however, the mode automatical ly

returns to AUTO mode.
VF CHAR :
[ON -> OFF (-> ON …)]
VF OUT SEL :

LIVE -> PLAY (-> LIVE …)]

51

 MIC GAIN CONTROL

MIC1 STEP

-60dB, -50dB, -40dB, -30dB, -20dB, -10dB, 0dB, +4dB
Setting of Gain for MIC1 at Camera rear panel.

MIC1 FINE

-100 - 100 STEP:1
Fine-tuning of Gain for MIC1 at Camera rear panel.

MIC2 STEP

-60dB, -50dB, -40dB, -30dB, -20dB, -10dB, 0dB, +4dB
Setting of Gain for MIC2 at Camera rear panel.

MIC2 FINE

-100 - 100 STEP:1
Fine-tuning of Gain for MIC2 at Camera rear panel.

 H PHASE CONTROL

H PHASE

-100 - +100
Setting for Horizontal Phase of GENLOCK and this is available for HD-SDI

out from the rear of Camera Head when in Stand Alone Style.
H PHASE can be controlled from CCU Menu when CCU is connected.

 LENS SELECT

LENS SERIAL I/F

ON, OFF
Setting for ON/OFF of Lens Serial Interface. Set it ON usually

 SYSTEM

BATTERY
WARNING

BATT WARN VOLT 10.5 - 13.5V
Warning displays on VF/PM1/PM2 when the selected Input Voltage on DC IN

Connector recognizes lower voltage

BARS MODE

BARS MODE FULL, MULTI
Setting for Color Bar Signal
BARS ON ON, OFF
Setting for ON/OFF of Color Bar output

CPU SYSTEM
CONTROL

SEMI SELF MODE ON, OFF
Setting ON keeps the following parameters when OCP is disconnected.

Setting OFF turns all the parameters to defaults when OCP is disconnected.

ON/OFF of CAP, BARS, CAL, IRIS, AWB CH, GAMMA, FLARE, MATRIX,

MATRIX CH, BLACK PRESS/STRETCH, KNEE, WHITE CL

IP, COLOR SAT,

COLOR CORR, DTL, SOFT DTL, STEP GAIN

Number of GAIN, GAMMA, BLACK GAMMA, FLARE, TOTAL KNEE, R/G/B

KNEE, WHT CLIP, DTL, HI-LIGHT DTL, SOFT DTL, SKIN DTL, MATRIX,
COLOR CORR, COLOR SAT, WHT SHADE, BLK SET, PED

SEMI REMOTE MO D E ON, OFF
Setting for side switches “GAIN”,”AWB”,“OUTPUT” when in Stand Alone

style. When ON, side switches become valid, but no control from OCP.
When OFF, no control from camera head, but only from OCP is valid.

52

ENGINEER MENU (1/2)

 CAMERA HEAD FORMAT

FORMAT SELECT

1080I59, 720P59, 1080P59, 1080I50, 720P50, 1080P50

Changes Image Output Format of the Camera. The Format has to be
identical with CCU Format when Camera is connected to CCU.

 SENSOR MAINTENANCE

 Specify Sensor BIAS settings

BIAS SET

DEFAULT, USER

Usually set to DEFAULT. Set to USER when you change R/G/Bch gain or
offset value as the following chart shows.

USER SET

COLOR TEMP 3200K, 5600K, 6300K, 7500K
SENSITIVITY -3dB, 0dB, +3dB, +6dB
R AMPLITUDE

0.00 - 4.20

R SETUP
G AMPLITUDE
G SETUP

B AMPLITUDE

B SETUP

Changes R/G/Bch gain and offset value at selected COLOR TEMP,
SENSITIVITY. If these values are changed, the system memorizes this value
even the camera is turned off.

DEFAULT ALL

YES, NO

The above settings become DEFAULT＝Factory Set.

 SYSTEM MAINTENANCE

DOT
NOISE CANCEL

DOT NOISE CANCEL ON, OFF

LEVEL 0 - 1023

Normally CANCEL ON and set LEVEL as 256.

LIVE IMAGE

FLICKER A VER AGE OFF, ON
Flicker Correction in Live view. DEFAULT is ON.

PLAY IMAGE

FLICKER CORRECTION OFF, ON
Flicker Correction in Play view.
GAIN 1 - 10

Specifies intensity of Flicker Correction. Larger value gives more effect in
reducing flicker and noise but also in increasing motion blur.

THRESH 1 - 10

Specifies threshold of Flicker Correcti on. Smaller value gives more effect in
reducing motion blur but in increasing flicker and noise. This parameter
should be changed for fine-adjustment with higher value of GAIN. When
GAIN value is small, this does not affect images remarkably.

3D CONTROL MASTER, SLAVE

53

Synchronizes 2 Cameras as Master and Slave in 3D application. When the
camera boots up, MASTER is automatically set, regardless of the last setting.

REC TIME EXT EN D

ON, OFF

OFF prioritizes the image quality at all the Frame Rate setting.
ON prioritizes the Recording Time at all the Recording Speed.

 AUTO DPC

 Function to correct defect pixels

DPC

ON, OFF
ON / OFF Defect Pixel Correction. This is automatically turned ON when

booted up, completed DPC correction, and changed CAPTURE. Two DPC
data can be saved, one each for 1080 and 720 CAPTURE.

DPC START

Creates Correction data by specifying a defect pixel.
AUTO DPC is enabled only after ABB correction. Perform ABB and then
manually close a lens before AUTO DPC.
In order to validate the correction data when re-booted, the data must be
saved in DPC SAVE.

DPC SAVE Saves the defect pixel correction data created in DPC START.

LOW THRESH

0 – 1023 DEFAULT：16

Corrects pixels that video level is darker than LOW THRESH.
Set to “LOW THRESH < UPPER THRESH”.

UPPER THRESH

0 – 1023 DEFAULT：128

Corrects pixels that video level is brighter than UPPER THRESH.
Set to “LOW THRESH < UPPER THRESH”.

 CAMERA ID SETUP

PROGRAM NO. OFF, 1 - 99

Setting for Program and ID number value

ID NO. 1 - 40

 IRIS CIRCUIT ADJUST

ADJUST MODE

ON, OFF

Menu to correct an error between the iris value shown on OCP and the
actual index on a lens. When turning ON, the wizard appears. According to
the wizard, adjust the iris value to F2.8 and F16 with the Menu Dial on the
camera head or the Rotary Encoder on OCP. After setting, press
EXECUTE on OCP display. At that time, selecting TEMPORARY m akes
the setting to default.

54

ENGINEER MENU (2/2)

 PRESET FILE LOAD

FILE SELECT

ENGINEER, FACTORY

Selection of the file for uploading. E NGI NEER is for User Setting File, and
FACTORY is for Factory Setting.

LOAD START

READY, START, CANCEL
Uploads the Preset File selected in FILE SELECT

 ENGINEER SET FILE RENEW

DATA RENEW MODE Saves al l the setti ng value as ENGINEER setting

 UPDATE

I/F PART UPDATE FW, PIF, MEM, SNS

Updates each part from USB interface
on the side of the Camera Body

PROC PART UPDATE FW, PROC1, PROC2

55

12 Trouble Shooting

12.1 Possible troubles during system initialization

A No image output

1 Reboot Camera and CCU as a whole system.

B Noise on image output. There are three ways to perform trouble shooting.

Try the following three measures.

1 Press ABB button on OCP.
2 If 1 does not solve the problem, reboot Camera and CCU as a whole system.

3 If 2 does not solve the problem, change the setting of FRAME RATE、SENSITIVITY、COLOR

TEMP etc. temporarily to see if the problem will be solved, and set it back to the previous
settings if solved.

C CCU repeats booting

1 Disconnect the GENLOCK signal. When the System Format and the GENLOCK signal are not

identical, the system does not boot up correctly when the GENLOCK signal is in. Check both
are identical first as you disconnect the GENLOCK signal after the system is initialized.

2 At normal mode when the System Format and the GENLOCK signal are identical, the system

does the second BOOTING… because the system first initializes with internal signal and then
initializes with external signal by recognizing GENLOCK signal.

3 When the Camera System Format is at 1080/50i or 720/59.94p, there will be BOOTING… for

two time after initialization, but this is not a failure. This is because Hi-MotionII first initializes
with 1080/59.94i then changes to the selected format after the system check.

D Screen Burn-In

1 Close the lens iris and press ABB button.

The lens iris automatically closed by pressing ABB button when the lens cable is properly
connected to the Camera.

12.2 Noise from Intercom on CCU
If you hear noise from the Intercom of CCU, check the following setting.

1 Turn ON LENS SERIAL I/F on the Camera Head ( MENU (2/2) > LENS SELECT > LENS

SERIAL I / F ).

2 Turn ON a serial communication switch of a box lens.

56

13 Precautions when using SHED-HDX. Systems of Telecast Fiber Systems, Inc.

13.1 Setup

A Hi-MotionII supports SHED-HDX. Systems of Telecast Fiber Systems, Inc. for IKEGAMI system.
B Set up and connect all the necessary cables according to its User Manual.
C Open the front panel of CCU and find AUX board. There are two red switches in the front part of AUX

board and set the one of the switch at upper part as “SINGLE MODE ON”.

13.2 Order turn on the power
When using the SHED-HDX. Systems, you can turn on the power of either the CCU or the

Camera Head first but check the following notes.

・ CCU : Turn ON both MAIN POWER switch and HEAD POWER switch on the front panel of CCU. As well as the

process without the SHED-HDX. Systems, HEAD POWER switch must be turned ON. When the switch is OFF, the
Camera Head does not boot up even if turning ON the power on the Camera Head side.

・ Camera :

Either the Camera Head or the SHED-HDX. Systems can be turned ON first.

13.3 Precautions

A When the system is powered on as SINGLE MODE switch on the AUX board is off, it starts to show

“alert” on Picture Monitors and OCP.
In this case, set the SINGLE MODE switch on the AUX board On, then reboot CCU so the “alert”

disappears.

B Depending on the timin g, it i s p oss ibl e that the Camera contr o l c anno t b e re cog niz ed as sh o wing “OFF

LINE” on the Slow Controller display. In this case, reboot the Slwo Controller first.
If it boots up prop er ly , Time Code is displ ay ed on the Slow Contr oll er. If it does not work, please reboot

all the system including the CCU.

57

14 Camera Head / CCU / OCP / Slow Controller / Pin Assignment of Connectors

14.1 Camera Head

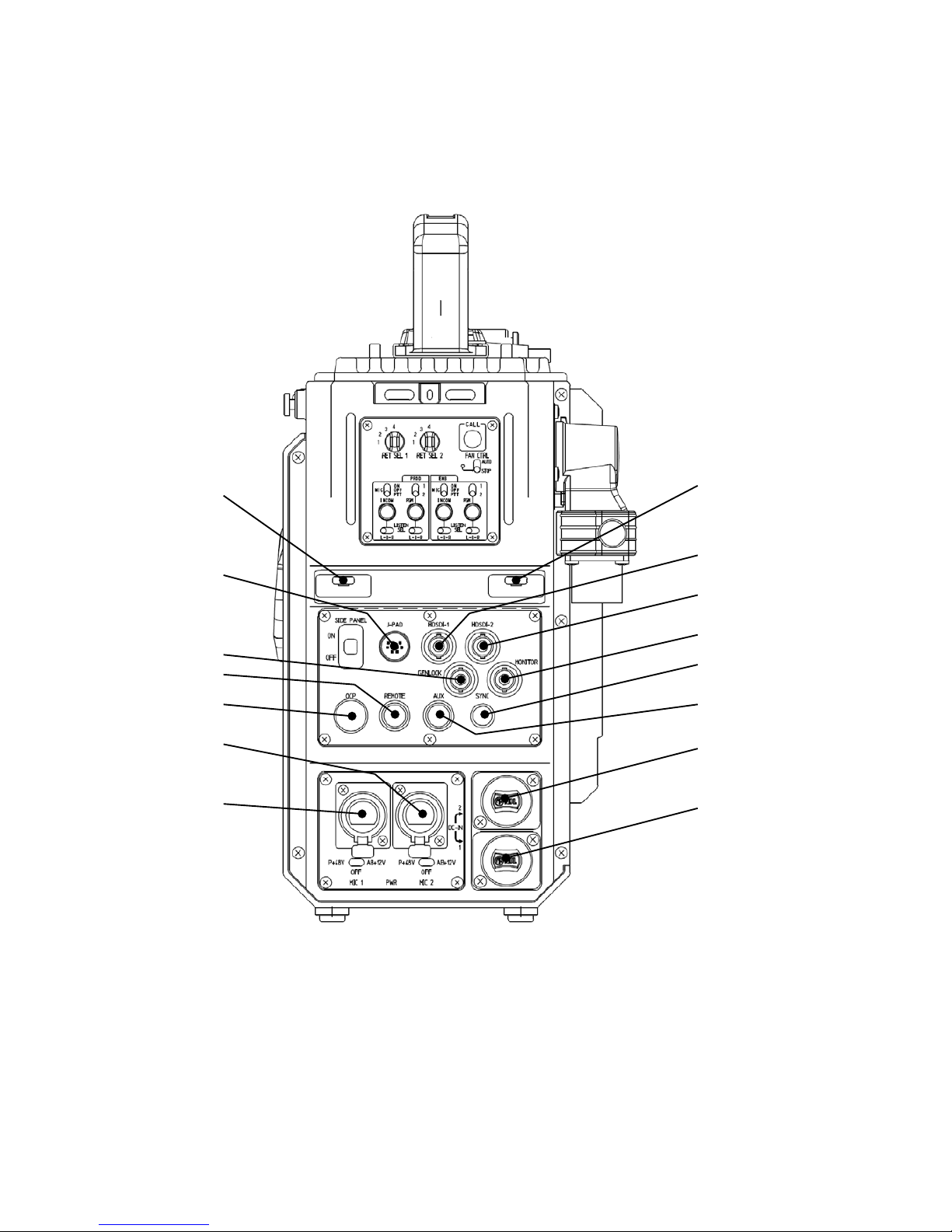

A Rear View of CAM HEAD

2

3

4

5

6

7 8 9

10

11

12

13

14

15

1

58

1 INCOM1 Connector (Monaural Signal)

Connect a headset to the intercom sy st e m.

No. Name Direction Function & In/Out Level Note

1 TALK(C) GND Shield for Intercom Microphone Input (H)
2 TALK(H) IN Input for Intercom Microphone
3 LISTEN (C) GND Shield for LISTEN (H) Output
4 LISTEN (H) OUT LISTEN (H) Output

・ Connector : XLR-4-32-F77 (ITT CANNON) *4 pin male
・ Applicable Plug : XLR-4-11C or compatible *4 pin female

2 INCOM2 Connector (Stereo Signal)

Connect a headset to the intercom system.

No. Name Direction Funct i on & In/Out Level Note

1 TALK(C) GND Shield for Intercom Microphone Input (H)
2 TALK(H) IN Input for Intercom Microphone
3 SHIELD GND Shield for LISTEN L/LISTEN R Outputs
4 LISTEN Lch (H) OUT LISTEN L Output (H)
5 LISTEN Rch (H) OUT LISTEN R Output (H)

・ Connector : XLR-5-31-F77 (ITT CANNON) *5 pin female
・ Applicable Plug : XLR-5-12C or compatible *5 pin male

3 HD SDI-1 Connector

LIVE video without captions are output as HD SDI signal.

・ Connector : 75ohm BNC Receptacle
・ Applicable Plug : 75ohm BNC Plug
・ Function : Y, Pb, Pr 4:2:2 Digital Serial
・ Direction : OUT
・ Note : In conformity to BTA S-004B

4 HD SDI-2 Connector

REPLAY video without captions are output as HD SDI signal.

・ Connector : 75ohm BNC Receptacle
・ Applicable Plug : 75ohm BNC Plug
・ Function : Y, Pb, Pr 4:2:2 Digital Serial
・ Direction : OUT
・ Note : In conformity to BTA S-004B

5 MONITOR / RET Connector

Outputs the HD SDI monitor signals via a BNC connector. MON or RETURN signals can be selected.
LIVE/REPLAY video with captions are sele ctab le w it h the S T BY button on MDC-50Tb and the select fun ction
of OCP.

・ Connector : 75ohm BNC Receptacle
・ Applicable Plug : 75ohm BNC Plug
・ Function : Y, Pb, Pr 4:2:2 Digita l Serial
・ Direction : OUT (IN when RET is s el ected)
・ Note : In conformity to BTA S-004B

6 SYNC Connector

The complex connector has the following features.

VD IN : Use to sy nc hroniz e the frame sync of the se nsor with an external signal.

For 3D shooting with 2 cameras, VD OUT of one camera must be input
into VD IN of the other camera for frame synchronization.

VD OUT : Output the frame sync signal to drive the sensor
TRIGGER IN : Input the trigger signal

59

No. Name Direction Funct i on & In/Out Level Note

1 VD IN IN

Input for External Sync signal

3.3VCMOS / Low active

2 VD IN RET GND Return
3 VD OUT OUT

Output of Frame Sync signal

3.3VCMOS / Low active
4 VD OUT RET GND Return
5 TRIG IN IN Make contact or 3.3VCMOS / Falling edge
6 TRIG IN RET GND Return

・ Connector : HR10G-7R-6S(73) (HIROSE)
・ Applicable Plug : HR10A-7R-6P(73) or HR10A-7R-6PC(73) (HIROSE)

7 AUX Connector

The complex connector controls RETURN and TALLY signals.

・ RET 1 IN : Display RETURN video selected by “RET 1” on VF
・ RET 2 IN : Display RETURN video selected by “RET 2” on VF

・ G TALLY OUT : Show status of G TALLY
・ R TALLY OUT : Show status of R TALLY

No. Name Direction Function & In/Out Level Note

1 RET 1 IN Open Drain
2 RET 2 IN Open Drain
3 G TALLY OUT Open Drain
4 R TALLY OUT Open Drain
5 N.C
6 N.C
7 N.C
8 N.C
9 GND GND

10 GND GND

・ Connector : HR10G-10R-10S(71) (HIROSE)
・ Applicable Plug : HR10A-10R-10P(73) or HR10A-10R-10PC(73) (HIROSE) OUT

8-9 DC IN 1, 2 Connector

+12V Input connector for Ca m er a Head. Power can be supplied t o th e C amer a Head via DC IN 1, DC IN 2 or
AC/DC Power Supply inside the Camera Head through optical fiber cable. When power is supplied by all the
connectors, the Camera Head is run by the highest voltage input.

No. Name Direction Function & In/Out Level Note

L +12V IN +11V to +16V

DC IN 1, DC 2 IN and internal
AC/DC power unit output are
connected by ORing.

N +12V RET GND Return

FG N.C

・ Connector : NAC3MPA-1 (NEUTRIK)
・ Applicable Plug : NAC3FCA (NEUTRIK)
・ Input voltage : DC+11V to DC+17V

10-11 MIC 1, 2 Connector

Connect an external micr oph o ne. Audio signal input into the connector is output from M I C O U T on the rear of
CCU and also is embedded in HD-SDI signal when selected with the CCU menu (LIVE audio is embedded).

No. Name Direction Function & In/Out Level Note

1 SHIELD Phantom power : DC 48V Return

2 MIC (HOT) IN

600 ohm balance in.

AB power : DC 12V
Phantom power : DC 48V

60

3 MIC (COLD) IN

600 ohm balance in.
AB power : DC 0V
Phantom power : DC 48V

・ Connector : XLR-3-31-F77 (ITT CANNON)
・ Applicable Plug : XLR-3-12C or compatible *3 pin male

12 OCP Connector

Connect the OCP-200 (Operation Control Panel)

No. Name Direction Funct i on & In/Out Level Note

A TXD+ OUT Signal GND
B TXD- OUT Signal GND

C RXD+ IN RS-422 compliant
D RXD- IN RS-422 compliant

E +12V OUT DC+12V (1A max)
F +12V RET GND DC+12V Return

G REM LISTEN OUT Signal GND
H REM TALK IN RS-422 compliant

・ Connector : PRC05-R8F (TAJIMI)
・ Applicable Plug : PRC05-P8M (TAJIMI )

13 REMOTE Connector

The complex connector has in terfaces for Slow C ontrol ler (MDC-50Tb), TRUN K line (R S-422 communication
with AUX connector on the rear of CCU).

No. Name Direction Function & In/Out Level Note

1 SLOCON TXD+ OUT RS-422 compliant

Connect to Slow Controller
(MDC-50Tb)

2 SLOCON TXD- OUT RS-422 compliant
3 SLOCON RXD+ IN RS-422 compliant
4 SLOCON RXD- IN RS-422 compliant
5 NC
6 TRUNK DA T TX + OUT RS-422 c om pliant

RS-422 communication with
AUX connector on the rear
of CCU

7

TRUNK DAT TX-

OUT

RS-422 compliant

8 TRUNK DAT RX+ IN RS-422 compliant
9 TRUNK DAT RX- IN RS-422 compliant

10 TRUNK SG GND Signal GND
11 SLOCO N SG GND Signal GND
12 N.C

・ Connector : HR10G-10R-12S(71) (HIROSE)
・ Applicable Plug : HR10A-10R-12P(73) or HR10A-10R-12PC(73) (HIROSE)

14 GENLOCK Connector

Input external sync signal into the connector

・ HDTV format : Tri level SYNC, Picture on Sync
・ Standard : VBS, BBS
・ Connector : 75 ohm BNC Receptacle
・ Applicable Plug : 75 ohm BNC Plug
・ Direction : IN

・ Function : HDTV format : Tri level SYNC 0.6Vp-p±6dB, Picture on Sync

15 J-PAD Connector

Connect a handheld controller, J-PAD2

No. Name Direction Funct i on & In/Out Level Note

1 RTS OUT RS-232C compliant
2 CTS IN RS-232C c om pliant
3 TXD OUT RS-232C compliant

61

4 GND GND
5 +5V OUT 100mA (MAX)
6 RXD IN RS-232C compliant
7 N.C
8 N.C
9 N.C

・ Connector : TCS7963-01-201 (HOSHIDEN)
・ Applicable Plug : MINI DIN 9 pin

62

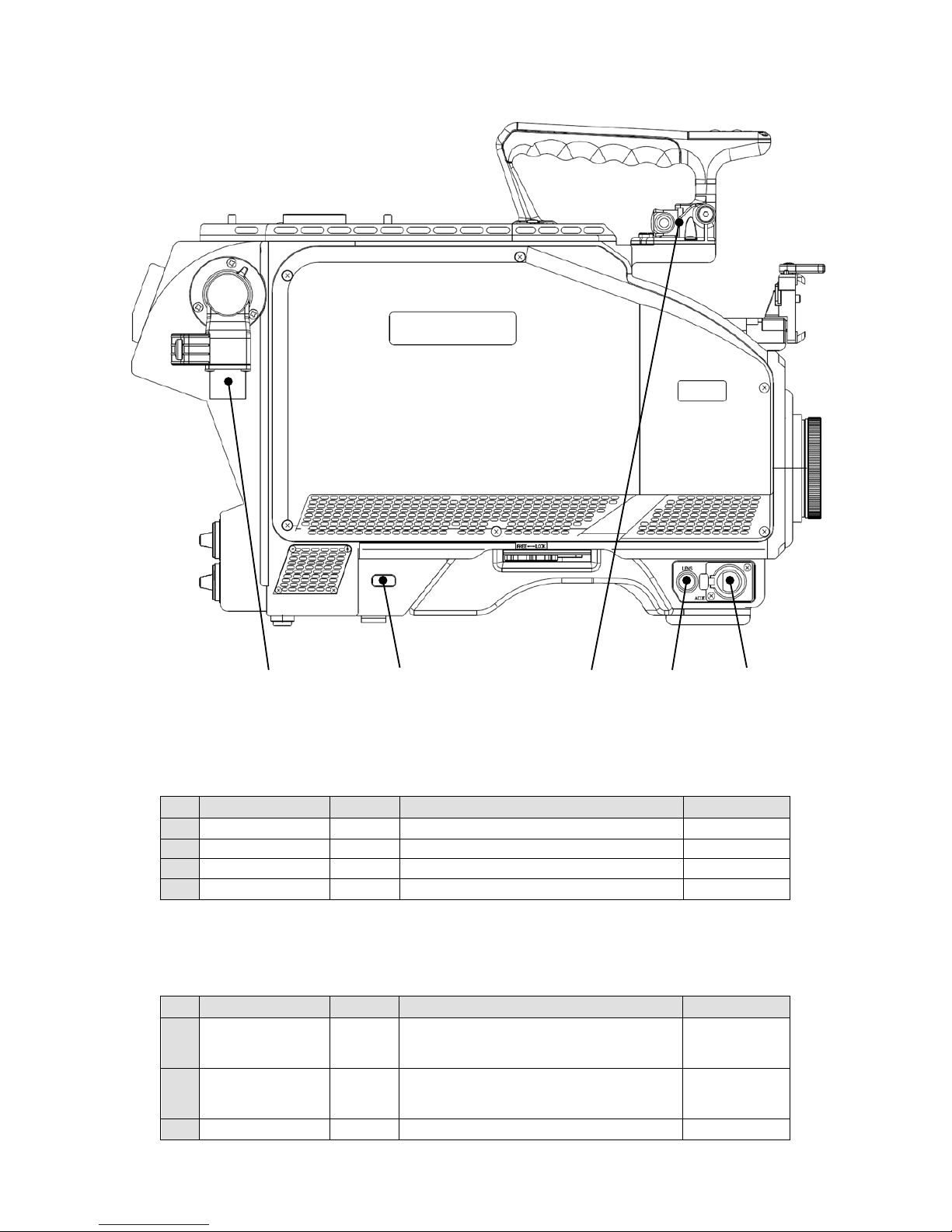

B Left View of CAM HEAD

16 ACCE Connector

This connector outputs +12VDC power for various accessories. When the Camera Head is driven by the
power od DC IN or DC IN 2, the output voltage varies according to the input voltage.

No. Name Direction Function & In/Out Level Note

1 +12V RET GND +12V Return
2 N.C
3 N.C
4 +12V OUT (2A max)

・ Connector : XLR-4-31-F77 (ITT CANNON)
・ Applicable Plug : XLR-4-12C or compatible

17 LENS Connector

Connect the lens cable (12-pin).

No. Name Direction Funct i on & In/Out Level Note

1 RET SW IN

RETURN VIDEO ON/OFF signal

ON : =/<0.5V OFF : OPEN
Zin=100k ohm ± 5%

2 VTR SW IN

VTR ST AR/STOP signal

STAR : =/<0.5V STOP : OPEN
Zin=100k ohm ± 5%

3 GND GND Ground Line for LENS

17

16

19

18

20

63

4 IRIS SERVO OUT

Forced ON/OFF of IRIS servo motor

ON : 5V±0.5V OFF : =/<0.5V

5 IRIS CONT OUT

IRIS Control signal

F2.8 : 6.2V±0.05V F16 : 3.4V±0.05V
CLOSE : 2.5V±0.2V

6 LENS +12V OUT

DC+12V (1.5A max) for LENS
Normal Operating Range : +10V to +20V

7 IRIS FOLLOW IN

RIS Control signal

F2.8 : 6.2V±0.05V F16 : 3.4V±0.05V
CLOSE : 2.5V±0.2V

Zin=100K ohm

8 IRIS REM/AUTO OUT

Switch REMOTE/AUTO of IRIS

REMOTE : 5V±0.5V AUTO : =/<0.5V

9 EXT ANS IN/OUT

In/Out of Answer signal from External System

IN : =/<0.5V OUT : OPEN

Zin=100K ohm

10 ZOOM FOLLOW IN

ZOOM Control signal

WIDE : 2.0V±0.05V TELE : 7.0V±0.05V

Zin=100K ohm

11 FOCUS FOLLOW IN

FOCUS Control signal

Nearest : 2.0V±0.05V Furthest : 7.0V±0.05V

Zin=100K ohm

12 LENS SER TX OUT

Serial Data Transmission signal
5V CMOS

・ Connector : HR10A-10R-12S(71) (HIROSE)
・ Applicable Plug : HR10A-10P-12P(71) or HR10A-10P-12PC(73) (HIROSE)

18 VF Connector

Connect either 2” MONO VF or 9” COLOR VF

No. Name Direction Functi on & In/Out Level Note

1 +12V OUT

DC +12V (2.2A max)

2 +12V OUT
3 N.C
4 +12V RET GND DC +12V Return
5 +12V RET GND DC +12V Return

6 G/Y VF VIDEO OUT

G/Y VF Analog VIDEO
Zo=75 ohm

7 G/Y VF VIDEO RET GND G/Y VF Analog VIDEO Return
8 VF M CLK OUT Master Clock for Serial Communication signal
9 SP WR OUT Serial/Parallel Conversion Data Readout Timing Pulse

10 VF SP DATA OUT Serial Data for Serial/Parallel Conversion
11 +12V RET GND DC +12V Return
12 ZEBRA ON IN ON/OFF Zebra signal
13 ZOOM POSI OUT Zoom Position Control
14 (+9V) ------ -------­15 COLOR ON IN COLOR VF Control

16 B/Pb VF VIDEO OUT

B/Pb VF Analog VIDEO
Zo=75 ohm

17 B/Pb VF VIDEO RET GND B/Pb VF Analog VIDEO Return
18 R/Pr VF VIDEO OUT

R/Pr VF Analog VIDEO
Zo=75 ohm

19 R/Pr VF VIDEO RET GND R/Pr VF Analog VIDEO Return
20 +12V RET GND DC +12V Return

・ Connector : HR12-14RA-20SC (HIROSE)
・ Applicable Plug : HR12-14LA20PC300(71) (HIROSE)

64

19 USB Connector

USB 2.0 connector for the firmware update and maintenance purpose

No. Name Direction Funct i on & In/Out Level Note

1 Vsub OUT +5V

USB 2.0

compliant

2 D- BI DIR Differential serial data ­3 D+ BI DIR Differential serial data +
4 GND GND GND

・ Connector : XM7A-0442(OMRON) *Standard A
・ Applicable Plug : Standard A plug

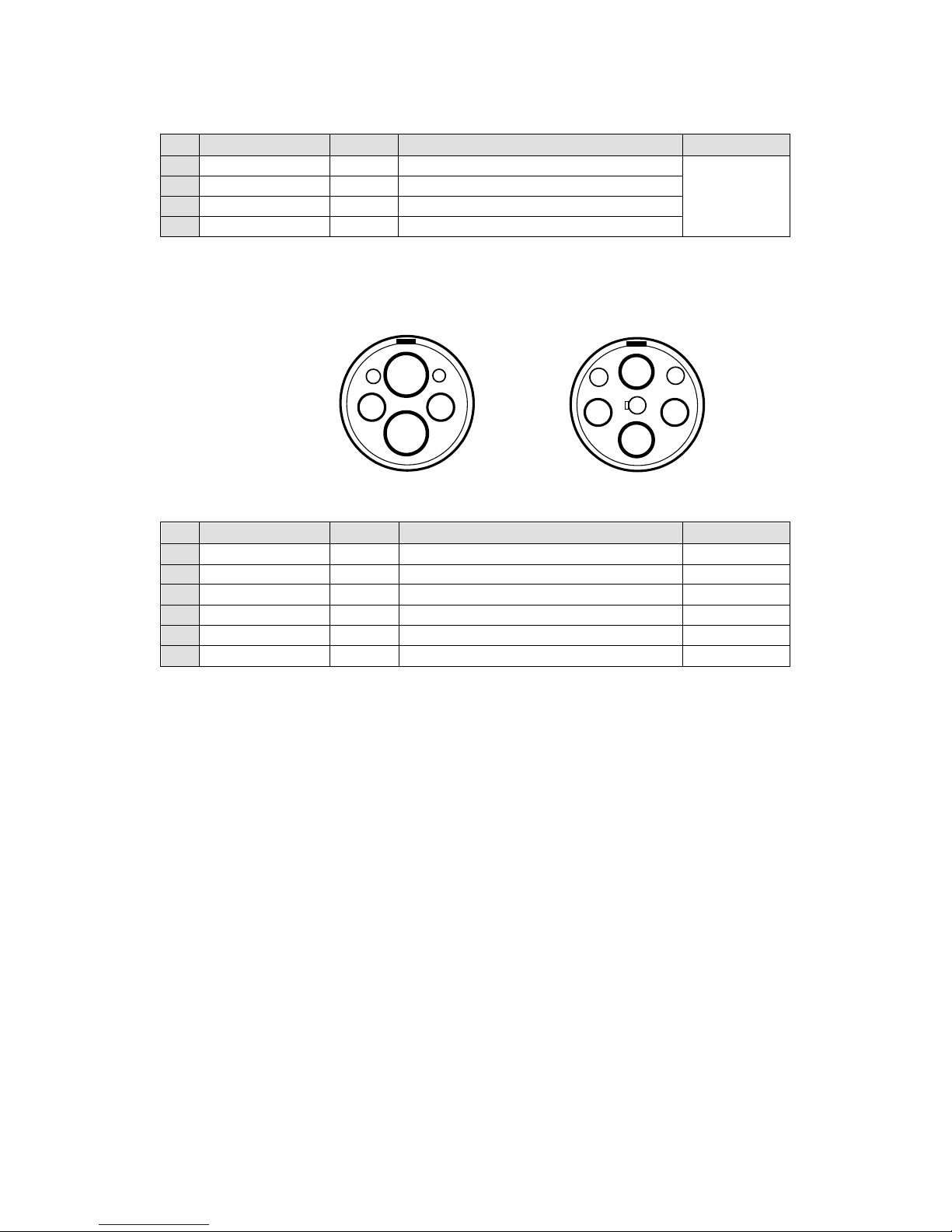

20 CAMERA Connector

Connect the camera head and CCU with a fiber cable.

2

1

3

4

5

6

Mating view

EDW.3K. (LEMO)

2

1

6

5

43

Mating view

OPS-R (TAJIMI

)

No. Name Direction Funct i on & In/Out Level Note

1 O PT H-C OUT Optical contact CAMHEAD to CCU
2 O PT C-H IN Optical contact CCU to CAMHEAD
3 CONTROL(H) IN Control(H) signal CCU to CAMHEAD
4 CONTROL(C) OUT Control(C) signal CAMHEAD to CCU
5 POWER(H) IN AC Power (H) from CCU
6 POWER(C) IN AC Power (C) from CCU

・ Connector : EDW.3K.93C.TLC (LEMO) or OPS2402-R (TAJIMI)
・ Applicable Plug : FUW.3K. (LEMO) or OPS-P (TAJIMI) selectable.

65

14.2 CCU

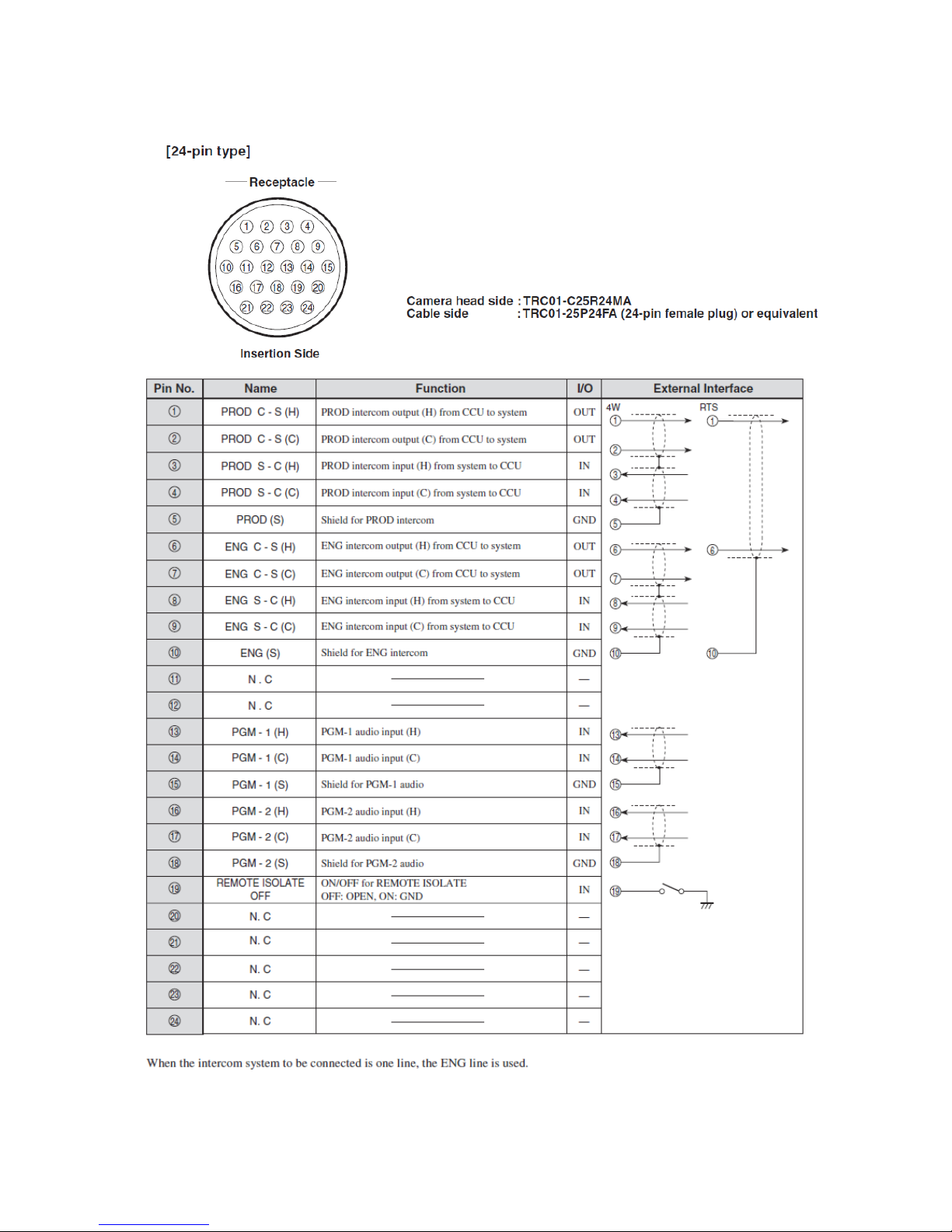

■ INTERCOM

66

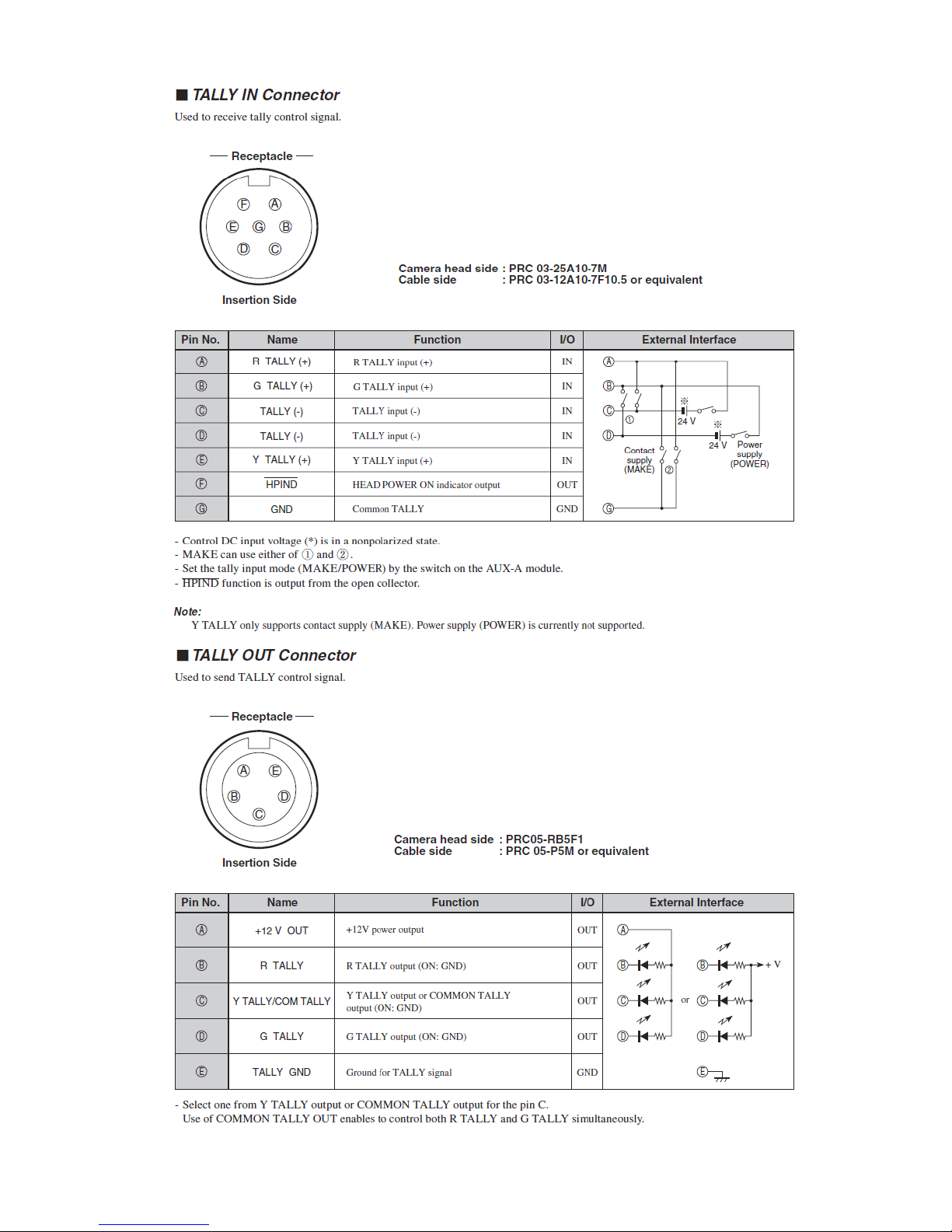

67

■TRUNK (RS-422)

No. Name Direction Function & In/Out Level Note

1 TR2 OUT(+) OUT Di gi tal Data Out (+)
2 TR2 OUT(-) OUT Digital Data Out (-)
3 OUT(S) SHIELD
4 N.C
5 N.C
6 N.C
7 N.C
8 N.C
9 GND GND GND f or In/Out signals

10 N.C
11 N.C
12 N.C
13 IN(S) SHIELD
14 T R2 IN(+) IN Digi tal Data In (+)
15 T R2 IN(-) IN Digital Data In (-)

・ Connector : DA-15SF-T-N (JAE)
・ Applicable Plug : 15-pin Male Plug, Inch scale screw

68

14.3 OCP

69

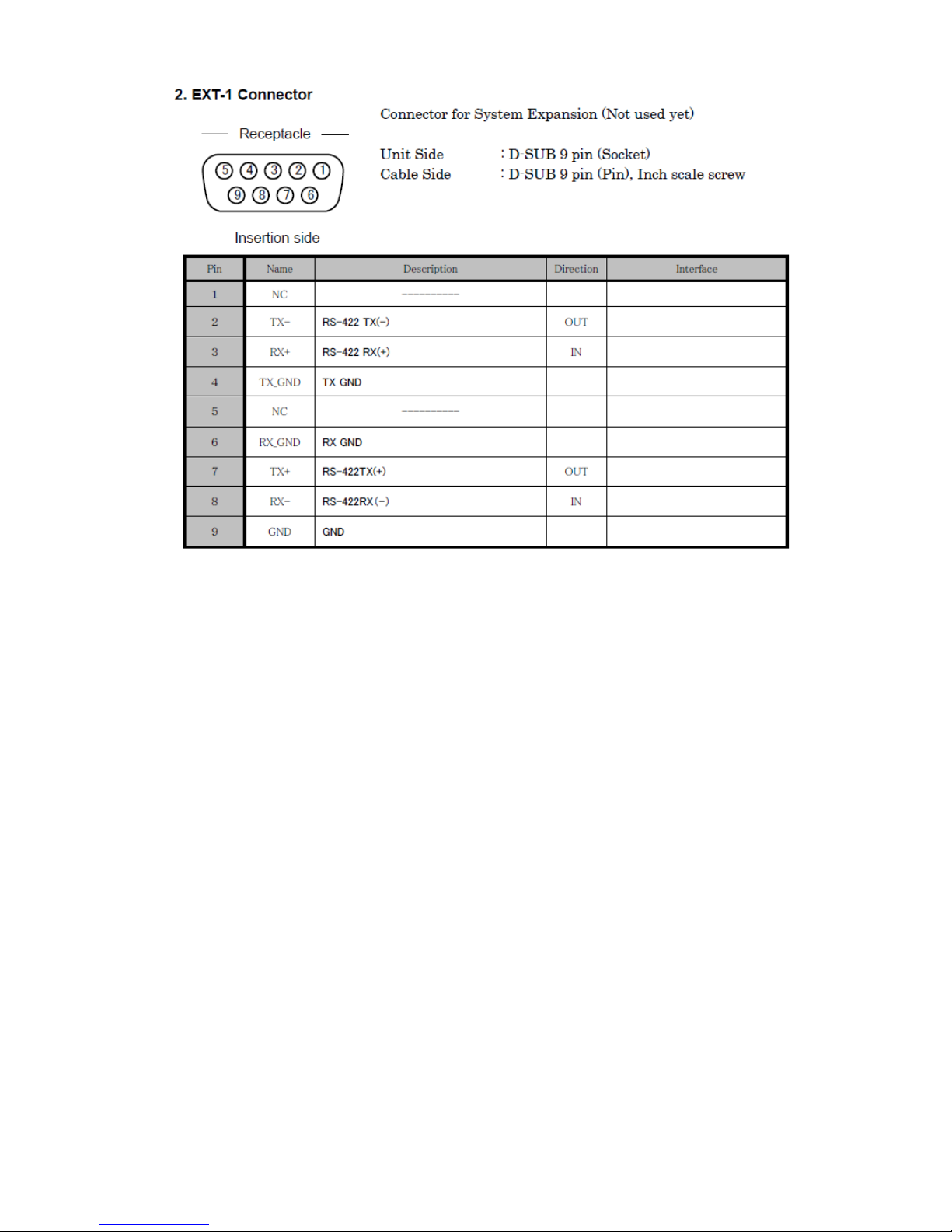

70

71

14.4 Slow Controller MUS A SHI MDC-50Tb

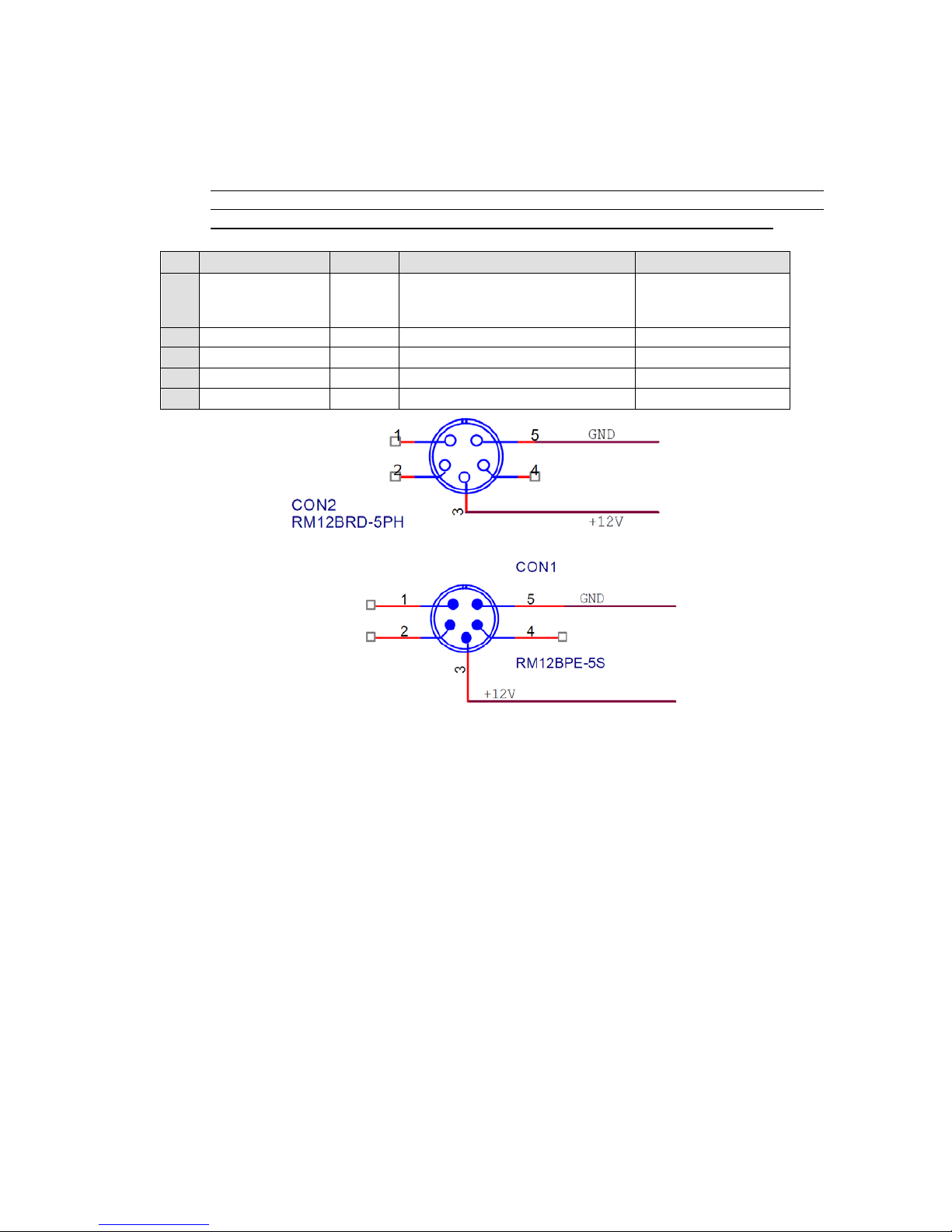

MDC-50Tb DC-IN Connector
Input +12VDC for accessories

Caution : The maximum acceptable voltage is +16V according to its design and a capacitor inside
the unit can be broken by the higher voltage. Please make sure of the appropriate poles (GND and
+12V). No protection circuit is installe and the wrong connection may damage the circuits.

No. Name Direction Function & In/Out Level Note

1 IN +11V to +16V

DC IN 1, DC 2 IN and

internal AC/DC power unit

output are connected by
ORing.

2 Return
3 +12V
4
5 GND

 Connector : RM12BRD-5PH (HOROSE)

 Applicable Plug : RM12BPE-5S (HOROSE)
