Page 1
User Manual
N1C L-Series(1-3kVA) UPS
Page 2
Page 3
N1C L-Series(1-3kVA) UPS
User Manual
Foreword
i
Foreword
Summaries
Thank you for choosing N1C L-Series UPS!
This document gives a description of the N1C L-Series(1-3kVA) UPS (hereinafter referred to as UPS),
including the features, performance, appearance, structure, working principles, installation, operation,
maintenance, transportation and storage, etc.
Please save the manual after reading, in order to consult in the future.
The figures in this manual are just for reference, for details please see the actual product.

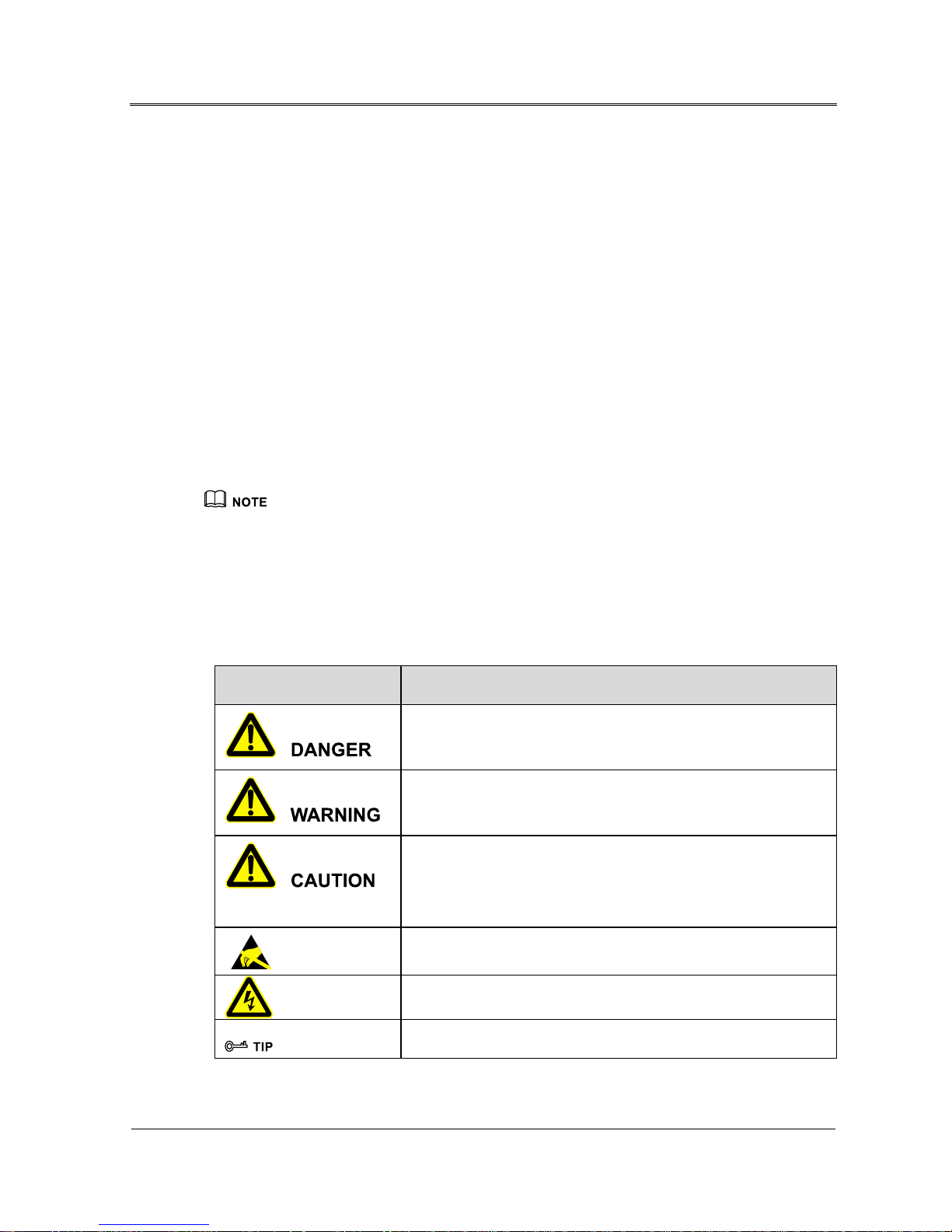

Symbol Conventions
The manual quotes the safety symbols, these symbols used to prompt users to comply with safety
matters during installation, operation and maintenance. Safety symbol meaning as follows.
Symbol Description
Alerts you to a high-risk hazard that could, if not avoided, result in
serious injury or death.
Alerts you to a medium or low ri sk hazar d that could, i f n ot a v oided,
result in moderate or minor injury.
Alerts
you to a potentially hazardous situation that could, if not
avoided, result in equipment damage, data loss, performance
deterioration, or unanticipated results.
Anti-static prompting.
Be care electric shock prompting.
Provides a tip that may help you solve a problem or save time.
Page 4
Foreword
N1C L-Series(1-3kVA) UPS
User Manual
ii
Symbol Description
Provides additional
information to emphasize or supplement
important points in the main text.
Change History
Changes between document issues are cumulative. The latest document issue contains all the changes
made in earlier issues.
Issue 001 (2018-01-06)
First issue.
Page 5
N1C L-Series(1-3kVA) UPS
User Manual
Contents
iii
Contents
1 Safety Description......................................................................................................................... 1
1.1 Safety Announcements ..................................................................................................................................... 1
1.1.1 UPS Announcements............................................................................................................................... 2
1.1.2 Battery Announcements .......................................................................................................................... 3
1.1.3 ESD Protection ........................................................................................................................................ 4
1.1.4 Measurement When Power On ............................................................................................................... 4
1.2 Operation Announ cements ............................................................................................................................... 5
1.3 Operation Environment Requi rements ............................................................................................................. 6
2 Overview ......................................................................................................................................... 7
2.1 Product Intro..................................................................................................................................................... 7
2.1.1 Model Meaning ....................................................................................................................................... 7
2.1.2 Features ................................................................................................................................................... 7
2.2 Appearance ....................................................................................................................................................... 8
2.2.1 Operation Panel ....................................................................................................................................... 9
2.2.2 Rear Panel View .................................................................................................................................... 11
2.2.3 EPO Connector ..................................................................................................................................... 13
2.2.4 Intelligent Slot ....................................................................................................................................... 13
2.3 Working Princip l es ......................................................................................................................................... 14
2.3.1 Fault Status............................................................................................................................................ 15
2.3.2 UPS Parameters Setting ........................................................................................................................ 16
3 Installation.................................................................................................................................... 19
3.1 Installation Announcements ........................................................................................................................... 19
3.2 Installation Preparation .................................................................................................................................. 20
3.2.1 Installation Place and Environment Requirements ............................................................................... 20
Page 6
Contents
N1C L-Series(1-3kVA) UPS
User Manual
iv
3.2.2 Input Breaker Selection ......................................................................................................................... 21
3.2.3 Selection of the Cross Sectional Area of Wire ...................................................................................... 22
3.3 Unpacking and Checking ............................................................................................................................... 22
3.4 Installation Procedures ................................................................................................................................... 23
3.4.1 UPS Installation .................................................................................................................................... 23
3.4.2 Intelligent Slot Replacement ................................................................................................................. 25
3.5 Electrical Connection ..................................................................................................................................... 26
3.5.1 N1C1000 ............................................................................................................................................... 27
3.5.2 N1C2000 ............................................................................................................................................... 27
3.5.3 N1C2200 ............................................................................................................................................... 28
3.5.4 N1C3000 ............................................................................................................................................... 29
3.5.5 N1C2000G/ N1C2200G/ N1C3000G ................................................................................................... 30
3.6 Electrical Connection Checking ..................................................................................................................... 31
4 Operation Guide ......................................................................................................................... 32
4.1 Checking Before Startup ................................................................................................................................ 32
4.2 Startup Operation ........................................................................................................................................... 32
4.3 Shutdown Operation ....................................................................................................................................... 32
5 Maintenance and Troubleshooting ......................................................................................... 34
5.1 Maintenance Guide ........................................................................................................................................ 34
5.1.1 Safety Precautions ................................................................................................................................. 34
5.1.2 Preventive Maintenance ........................................................................................................................ 34
5.2 Daily Battery Maintenance ............................................................................................................................. 34
5.3 Replacing Battery Announcements ................................................................................................................ 35
5.4 Troubleshooting .............................................................................................................................................. 36
6 Package, Transportation, Storage ............................................................................................. 39
6.1 Package .......................................................................................................................................................... 39
6.2 Transportation ................................................................................................................................................ 39
6.3 Storage ........................................................................................................................................................... 39
A Technical Specifications ........................................................................................................... 40
Page 7
N1C L-Series(1-3kVA) UPS
User Manual
Contents
v
B Acronyms and Abbreviations .................................................................................................. 45
Page 8
Page 9
N1C L-Series(1-3kVA) UPS
User Manual
1 Safety Description
1
1 Safety Description
This chapter mainly describes safety announcements. Prior to performing any work on device, please
read user manual carefully, follow operation and installation instructions and observe all danger,
warning and safety information, which is to avoid human injury and device damage by irregular
operations.
1.1 Safety Announcements
This section mainly describes safety announcements during operation and maintenance. For details,
please refer to safety instructions in the relevant chapters.
Before attempting to operate device, please read safety announcements and operation instructions in
this section carefully to avoid accident.
The promptings in the user manual, such as "Danger", "Warning", "Caution", etc. don't include all
safety announcements. They are just only the supplement of safety announcements during operation.
Any device damage caused by violating the general safety operation requirements or safety standards
of design, p roduction, and usage will be out of warranty range.
Page 10
1 Safety Description
N1C L-Series(1-3kVA) UPS
User Manual
2
1.1.1 UPS Announcements
The input voltage and output voltage of device are da ngerous high voltage. Touching high voltage will
endanger human life. Before at tem pting to instal l or operat e device, car efully read this manual and pay
attention to all warning signs in the device. Only authorized professionals are allowed to dismantle
power device.
Device damage or device failure may cause electric shock or fire!
Before attempting to operate device, check that there is no damage or other potential danger in
the device visually.
Check that other external devices or circuit connection is safe.
During a thunderstorm, don't perfor m high voltage operation, AC power operation or o perat ions in t he
tower or mast. Besides, in order to avoid device struck by lightning, for the atmosphere will generate
a strong electromagnetic field during a thunderstorm, it should prepare lightning protection and
grounding system in time.
Don't connect wit h unbalance load, half-wave rectification load or i nductiv e load in the output of UPS,
such as air-condition, blower, starter, electric drill, motor, daylight lamp, etc.
Page 11
N1C L-Series(1-3kVA) UPS
User Manual
1 Safety Description
3
Don't put finger or tool into rotating fans to avoid human injury or device damage.
In case of fire, please use dry power fire extinguisher. If using liquid fire extinguisher, it may cause
electric shock.
Make sure that there is no object in the air inlet, air outlet, as well as in the front of fans to keep device
with good ventilation.
No liquid or other objects are allowed to enter device.
The device is level A UPS! When it applies to residential building, additional m easur es shoul d be took
to inhibit the harassment.
1.1.2 Battery Announcements
It should use specified battery! Non-specified battery will damage UPS.
Page 12
1 Safety Description
N1C L-Series(1-3kVA) UPS
User Manual
4
The required charging voltage of different brands and different types of battery are different. Before
using battery , ensure that t he charging volt age of UPS is suitable for battery. If any doubt, please consult
manufacturer for support.
Battery operation must be performed in accordance with battery instructions, especially battery wiring.
Irregular operation will cause battery damage, even human injury.
It is prohibited to connect battery+ with battery-. The wiring for battery must be tightened. It is
prohibited to touch any two wiring terminals of battery or the bare terminals for wiring
simultaneously, or it may cause battery damage or human injury.
Prevent electrolyte leaking from battery, or the metal objects and circuit board will be corroded
by overflowing electrolyte, which will cause device damage and circuit board short circuit.
Battery should be placed far away from fire and all electrical equipment which can easily cause
sparks to avoid human injury or unnecessary loss.
1.1.3 ESD Protection
To prevent human electrostatic damaging sensitive components on the circuit board, before touching
sensitive components, please wear a anti-static ring, and well connect the other end of the anti-static
ring to ground.
1.1.4 Measurement When Power On
There has dangerous high voltage in the device. If touching device accidently, it may cause electric
shock. So, when performing measurement when power on, it must take protection measures (such as
wear insulated gloves, etc.)
The measuring device must meet following requirements:
Page 13
N1C L-Series(1-3kVA) UPS
User Manual
1 Safety Description
5
The range and operation requirements of measuring device meets site requirements;
The connections for measuring device should be correct and standard to avoid arcing.
1.2 Operation Announcements
There exists high temperature and high voltage inside UPS. During installation, operation and
maintenance, please comply with the relevant safety regulations and operation procedures to avoid
human injury or device damage. The safety announcements mentioned in the user manual is only as a
supplement to the local safety regulations.
The operation and wiring for UPS should be pe rform ed by quali fied person, w hich is to ensure t hat the
electrical connection meets the related standards.
The installer should be trained stri ctly, know all kinds of safety announcements and get right operation
methods before performing installation, operation or maintenance.
Don't mount and dismantle power wires before switching off power switch. Besides, ensure that wires,
wire labels are in accordance with the practical installation before performing wiring.
Touching high voltage or mains directly or through damp objects will lead to lethal risk.
Only authorized professionals are allowed to open UPS! The input and output of UPS are
dangerous high voltage. Touching high voltage will lead to lethal risk.
Before maintenance, please disconnect AC power and battery to isolate power input and measure
the output by a voltmeter to ensure that the input power is disconnected and in a safe condition.
Page 14
1 Safety Description
N1C L-Series(1-3kVA) UPS
User Manual
6
Even if all external power are disconnected, there still exists residual charge inside UPS, which
may endanger human life. It is necessary to set UPS aside for enough time (≥10 min) to release
all charge before dismantling UPS.
As the battery doesn't isolate with AC input, there may exist dangerous voltage between battery
terminal and ground terminal. The battery pack should be insulated when installing or using it for
high voltage hazard concern.
Do not wear conductive objects, such as watches, bracelets and rings during operation.
The installer should have the operation qualification of high voltage and AC power. Maintenance
and repair for power system only can be done by qualified persons.
High leakage risk! Before performing electrical connection, device must be grounded.
Don't drill holes in the device! Inappropriate drilling will damage components inside device. Metal
debris generated by drilling entering device will lead to circuit board short circuit.
Any change of system configuration, structure or components will affect UPS performance. If the user
wants to make any change, p l ease consu lt manu fac tur er in advance.
1.3 Operation Environment Requirements
Operation environment makes a certain difference in the life span and reliability of device. So, please
avoid using the device in following environment:
The place where the operating temperature and relative humidity are beyond technical
specifications (Generally, the operating temperature is -5℃～40℃ and the relative humidity is
0%-95%).
The place where it is exposed to direct sunshine or in rain.
The place where it is with vibration or impact.
The place where it is dust, corrosive material, salt or burnable gas.
The place where it is in the poor ventilation or closed place.
Page 15
N1C L-Series(1-3kVA) UPS
User Manual
2 Overview
7
2 Overview
This chapter mainly describes the model meaning, features, structure and working principle, etc.
2.1 Product Intro
The N1C L-Series(1-3kVA) UPS are with all high frequency, pure online, double-conversion,
intelligent features. They are the perfect power security for file server, enterprise server, center server,
micro-computer, concentrator, telecom system, data center and others that require high quality power
protection. They are widely applied to the many key business areas, such as post, finance, network,
stock, railway, etc.
The N1C L-Series(1-3kVA) UPS are with the single-phase AC input and single-phase AC output.
2.1.1 Model Meaning
N1C L □□□□ -G
High voltage model
Output power
N1C L-
Series online UPS
Figure2-1 The m odel m eaning of N1C series(1-3kVA) UPS
The model meaning of N1C L-Series(1-3kVA) UPS is as shown in Figure2-1. "N1C L" means the
product is the N1C L-Series online UPS; "□□□□" means the output power. When "□□□□" is
"1000", it means the output power is 1kVA. When "□□□□" is "3000", it means the output pow er i s
3kVA. "G" means the product is high voltage model, if there is no " G" sym bol , it means the produc t i s
low voltage model.
2.1.2 Features
USB communication
Through USB standard data port and UPS pow er managem ent softw are, it can realize the three-remote
function between the computer and UPS, monitor the running and electrical data of UPS on the
computer, perform ON/OFF operation remotely and support SNMP network adaptor, which makes
UPS be a network new member.
Page 16
2 Overview
N1C L-Series(1-3kVA) UPS
User Manual
8
High input power factor
Adopt the advanced activ e PFC technology, which eases load in the power grid. It is the ne w generation
green power.
High cost performance
Adopt many kinds of power conversations and high frequency PWM technologies, which is with high
efficiency, small volume, light weight, improves the running reliability and reduces cost.
Perfect protection
Equipped with the functions, such as output over-voltage protection, battery under-voltage protection,
input over-voltage protection, triple over-current protection, etc. and solve the problems of the high
frequency UPS, such as poor adaptability in the power grid and weak anti-impact ability.
Low mains input voltage
Adopt the independent rapid detection technol ogy. When the mains input voltage is 120V, which is the
lower limit, the battery still doesn' t discharge. There fore, in the mains mode, al l output power gets from
the power grid, which is to ensure the battery is still in the 100% energy storage status, reduce the
battery discharge times and prolong the working life.

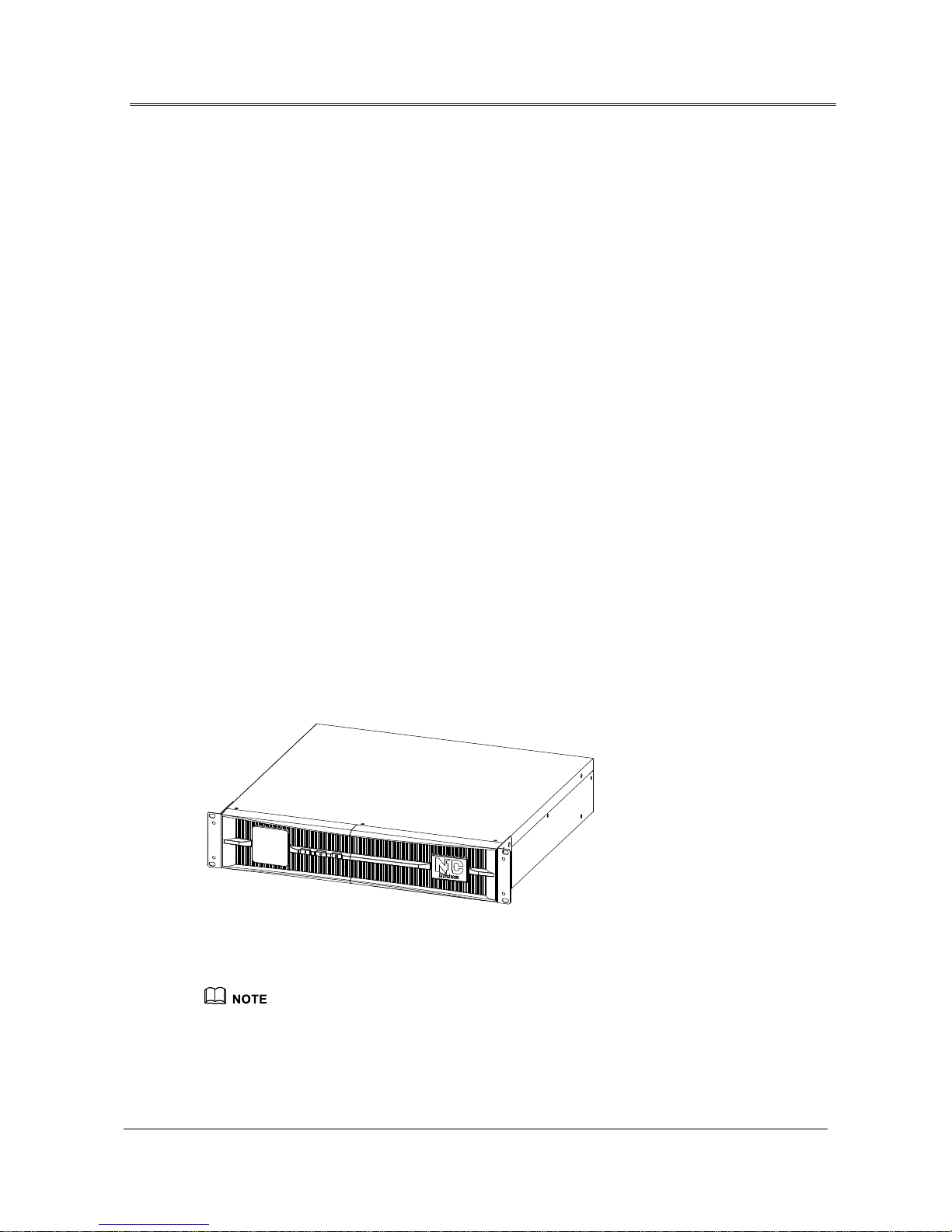

2.2 Appearance
Figure2-2 Appearance of N1C.L1000
The appearance of N1C L-Series(1-3kVA) UPS is similar, Figure2-2 takes N1C.L1000 for an example.
Page 17
N1C L-Series(1-3kVA) UPS
User Manual
2 Overview
9
2.2.1 Operation Panel

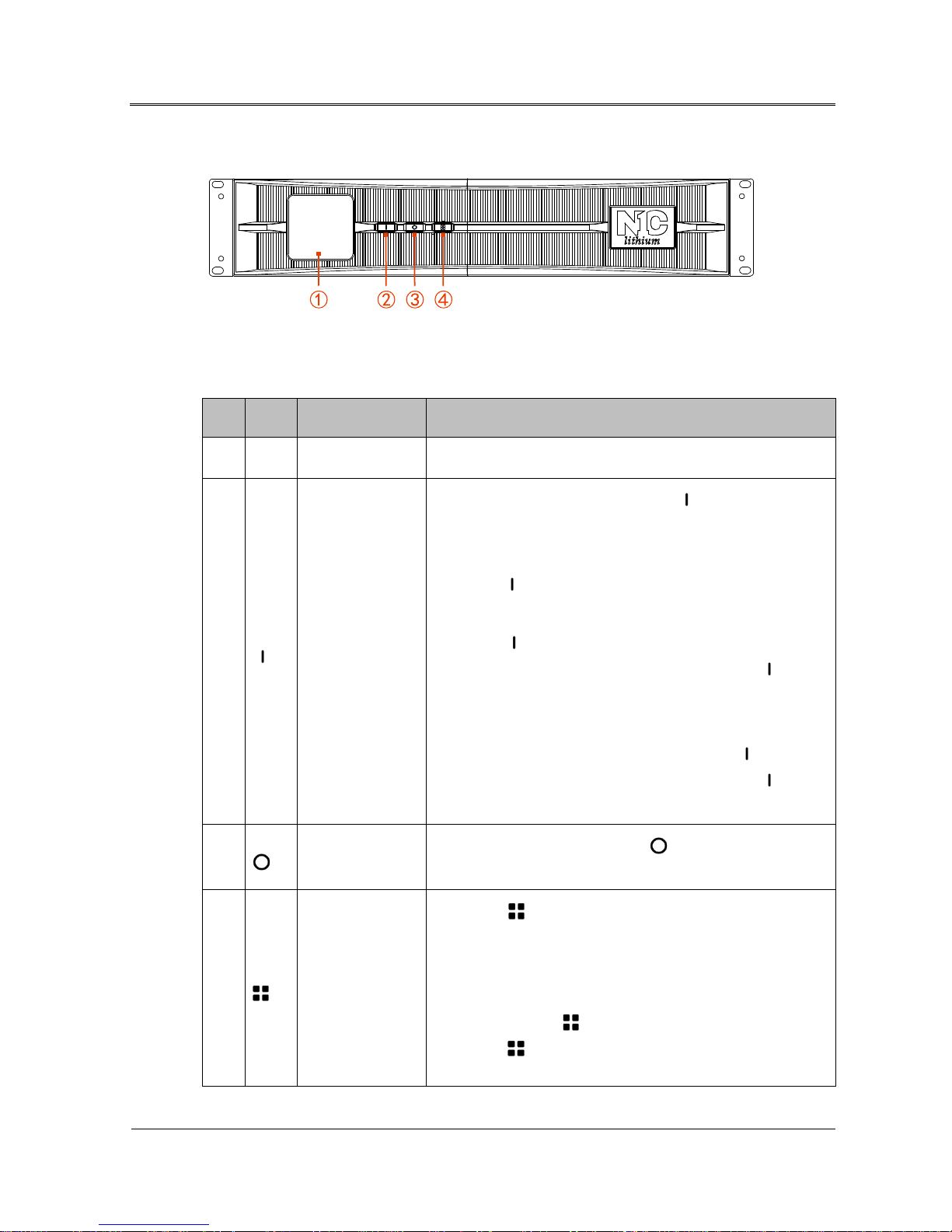

Figure2-3 Operation panel
Table2-1 The illustration of operation panel
No. Icon Name Illustration
○
1
- LCD Display the working status and setting of UPS.
○
2
"ON" button
When UPS is off, press and hold " " button for 1s to turn
on UPS.
When UPS is on and works in the mains mode, press and
hold " " button for 3s to do the battery test.
When UPS is on and works in the battery mode, press and
hold " " button for 3s to silence the buzzer (cancel the
mains abnormal al arm). Then press and hold " " button
for 3s again to cancel silence.
When UPS is on and works in the battery mode and with
battery low-voltage alarm, press and hold " " button for
3s to silence the buzzer. Then press and hold " " button
for 3s again to cancel silence.
○
3
"OFF" button
When UPS is on, press and hold " " button for 1s to turn off
UPS.
○
4
"SELECT" button
Press " " button to transfer the display information, such
as output voltage, output frequency, input
voltage, input
frequency, battery voltage, inner temperature, load
percentage, fault information, etc.
Press and hold " " button for 5s to enter the set page. Then
press "
" button to transfer the setting information, such
as ECO/INV mode, TWR/RCK (TWR: tower-mounting;
Page 18
2 Overview
N1C L-Series(1-3kVA) UPS
User Manual
10
No. Icon Name Illustration
RCK: rack-mounting) mode (
the default setting is RCK
mode) or
the inverting output voltage that is
208V/230V
(high voltage model) or 110V/120V(low
voltage model), and press "
" button to confirm the
setting.

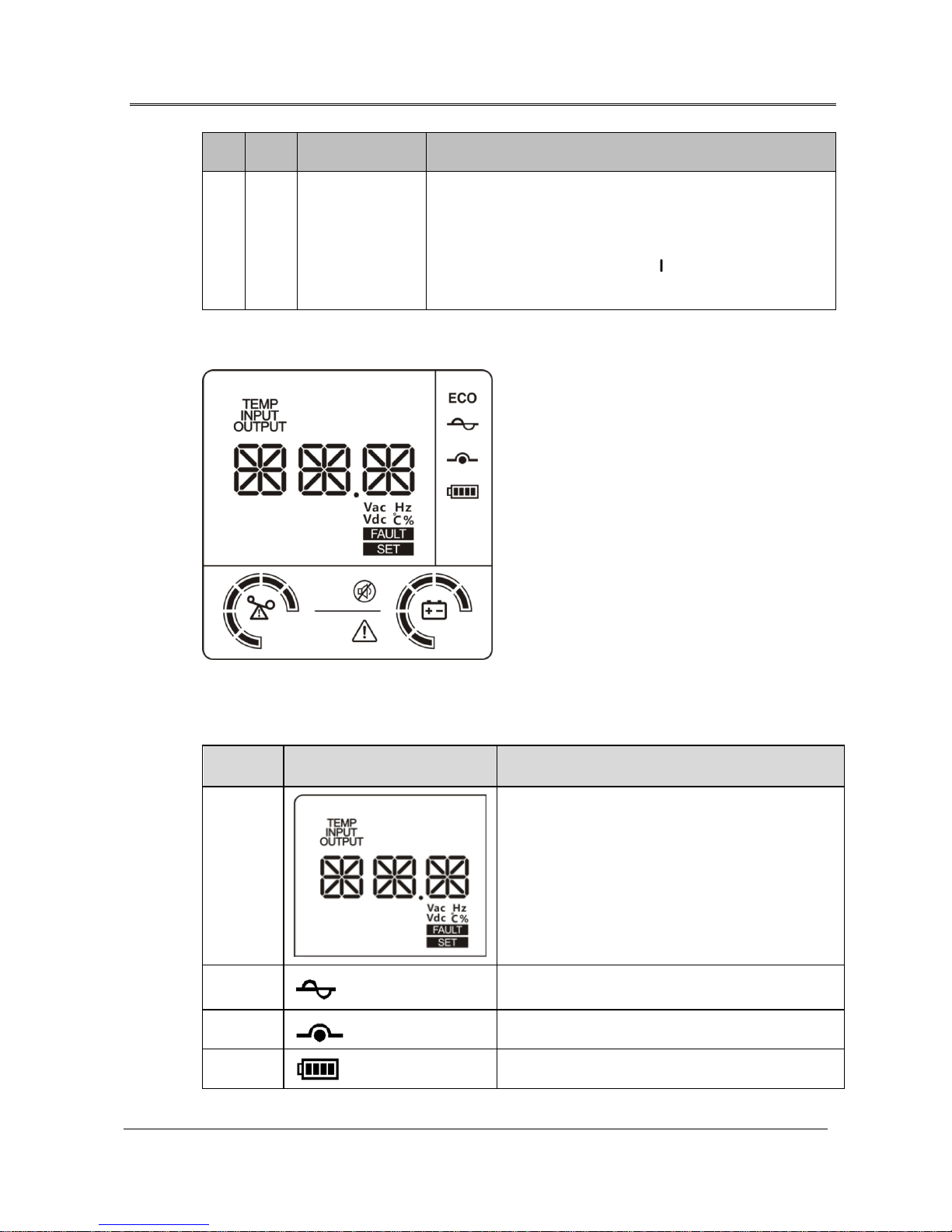

LCD panel
Figure2-4 LCD panel (rack-mounting display way)
Table2-2 The illustration of LCD panel
No. Icon Illustration
1
It shows input voltage, input frequency, output
voltage, output frequency, load percent, temperature,
fault code, parameters or working mode, etc.
2
UPS works in the mains mode
3
UPS works in the bypass mode
4
UPS works in the battery mode
Page 19
N1C L-Series(1-3kVA) UPS
User Manual
2 Overview
11
No. Icon Illustration
5
UPS works in the ECO mode
6
Buzzer is in the silence status
7
UPS failure

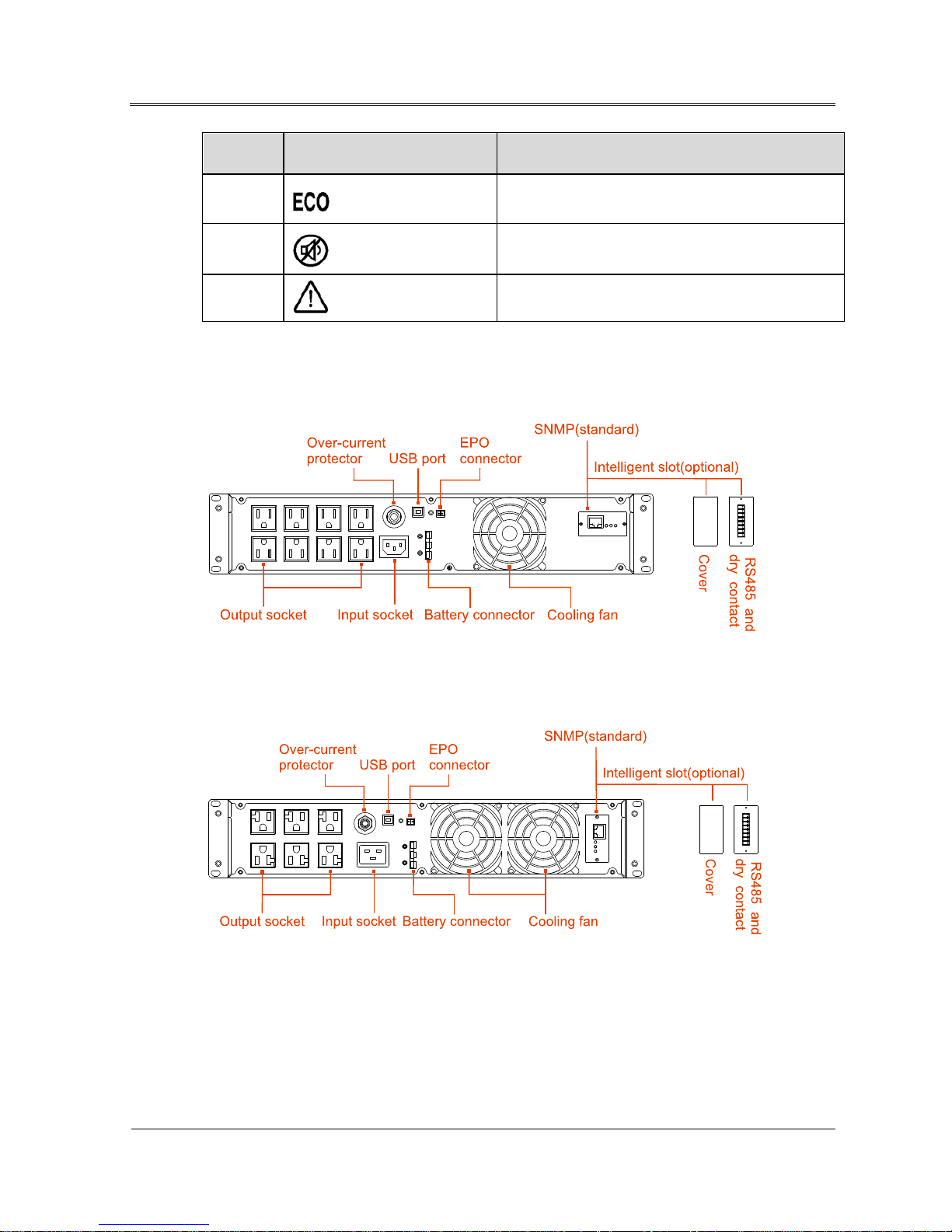

2.2.2 Rear Panel View
N1C.L1000
Figure2-5 Rear panel of N1C.L1000
N1C.L2000
Figure2-6 Rear panel of N1C.L2000
Page 20
2 Overview
N1C L-Series(1-3kVA) UPS
User Manual
12

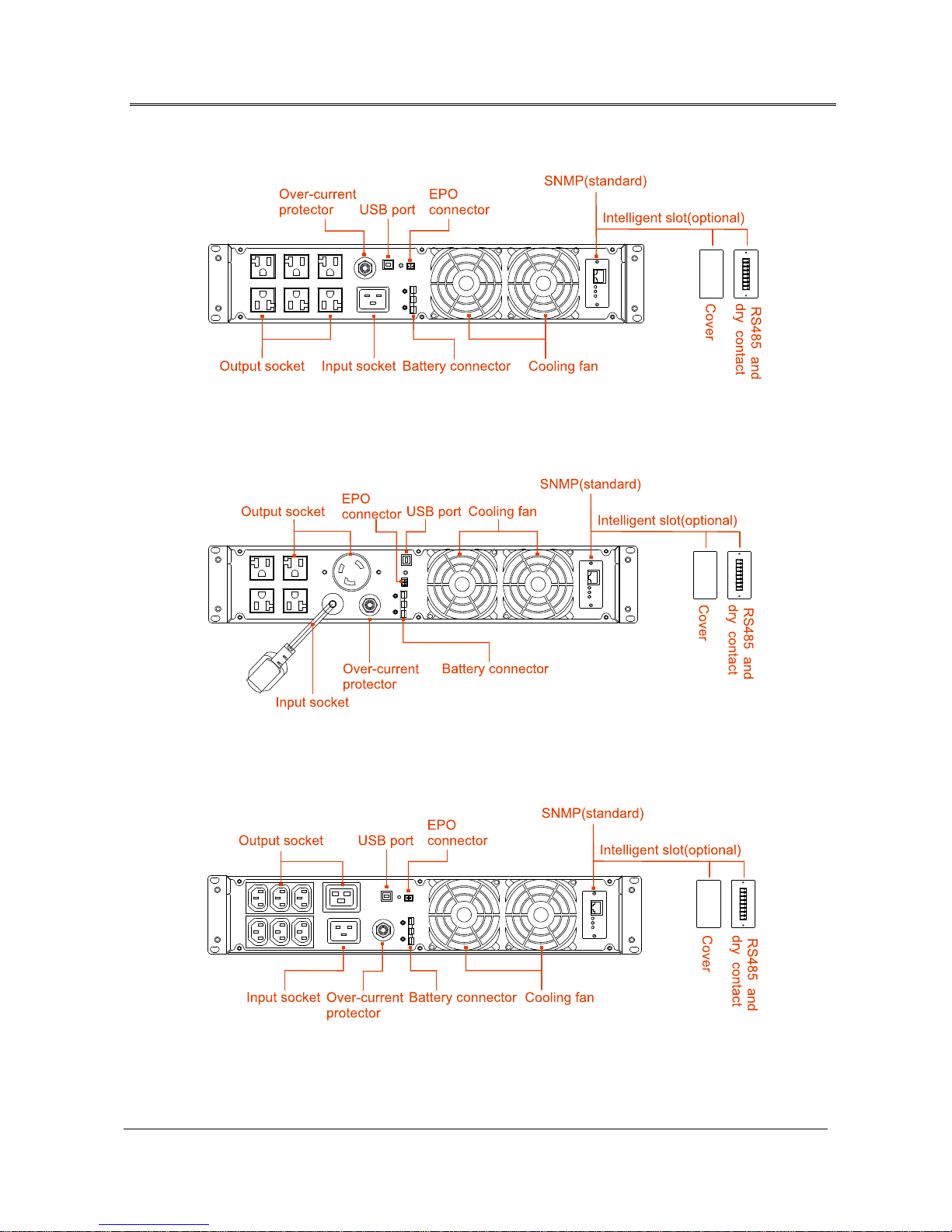

N1C.L2200
Figure2-7 Rear panel of N1C.L2200
N1C.L3000
Figure2-8 Rear panel of N1C.L3000
N1C.L2000G/ N1C.L2200G/ N1C.L3000G
Figure2-9 Rear panel of N1C.L2000G/ N1C.L2200G/ N1C.L3000G
Page 21
N1C L-Series(1-3kVA) UPS
User Manual
2 Overview
13
2.2.3 EPO Connector
When connecting two ports in t he EPO connect or together, UPS will close output. If it needs to recover
output, disconnect two ports in the EPO connector and power UPS off, and then restart UPS.
2.2.4 Intelligent Slot

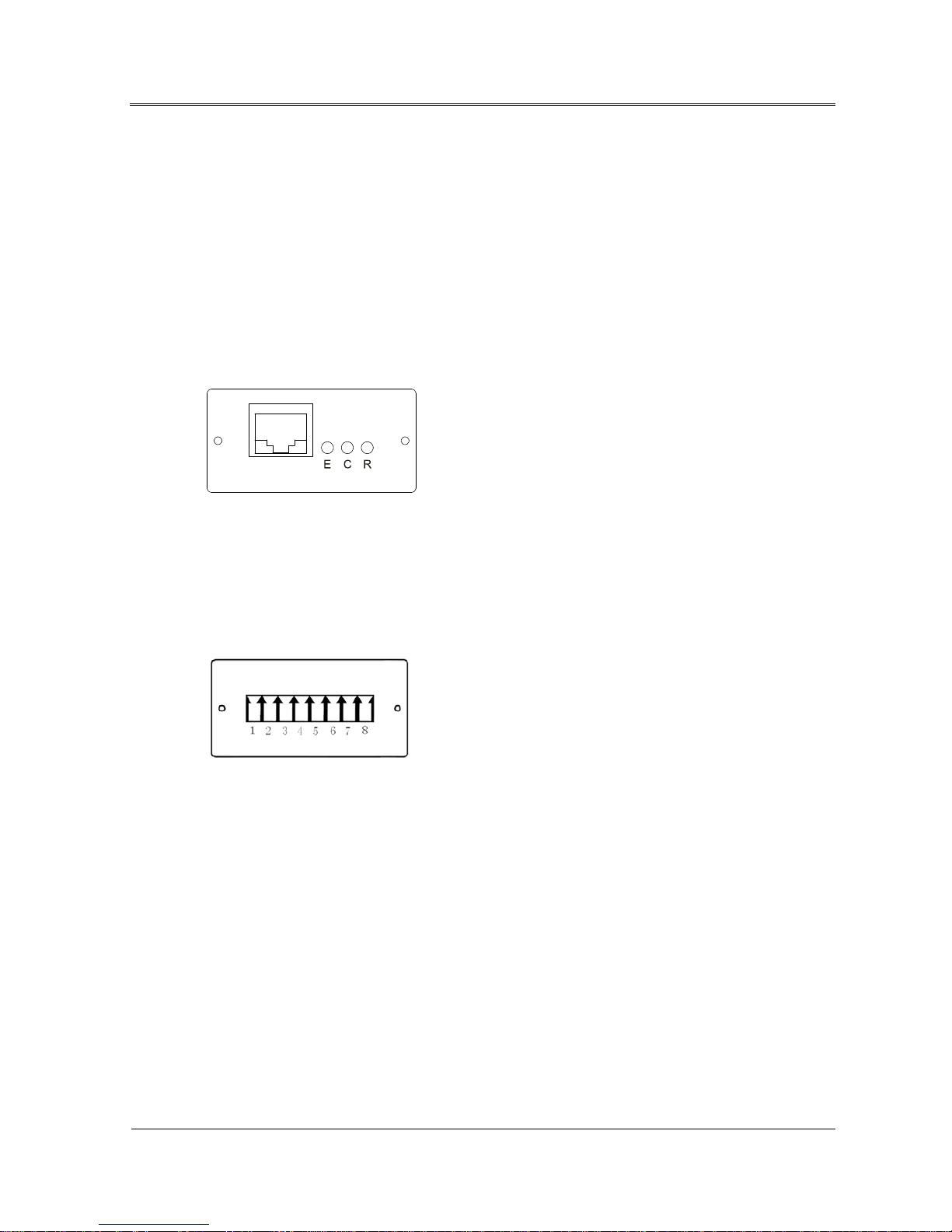

SNMP card
SNMP card can achieve the remote monitor for the input voltage and frequency, output voltage and
frequency, load, etc. of the UPS and remote ON/OFF operation, as shown in Figure2-10.
Figure2-10 SNMP card
RS485 and dry contact(optional)
The pin sequence and pin definition of RS485 and dry contact is as shown in Figure2-11 and Figure2-
12.
Figure2-11 RS485 and dry contact
Page 22
2 Overview
N1C L-Series(1-3kVA) UPS
User Manual
14

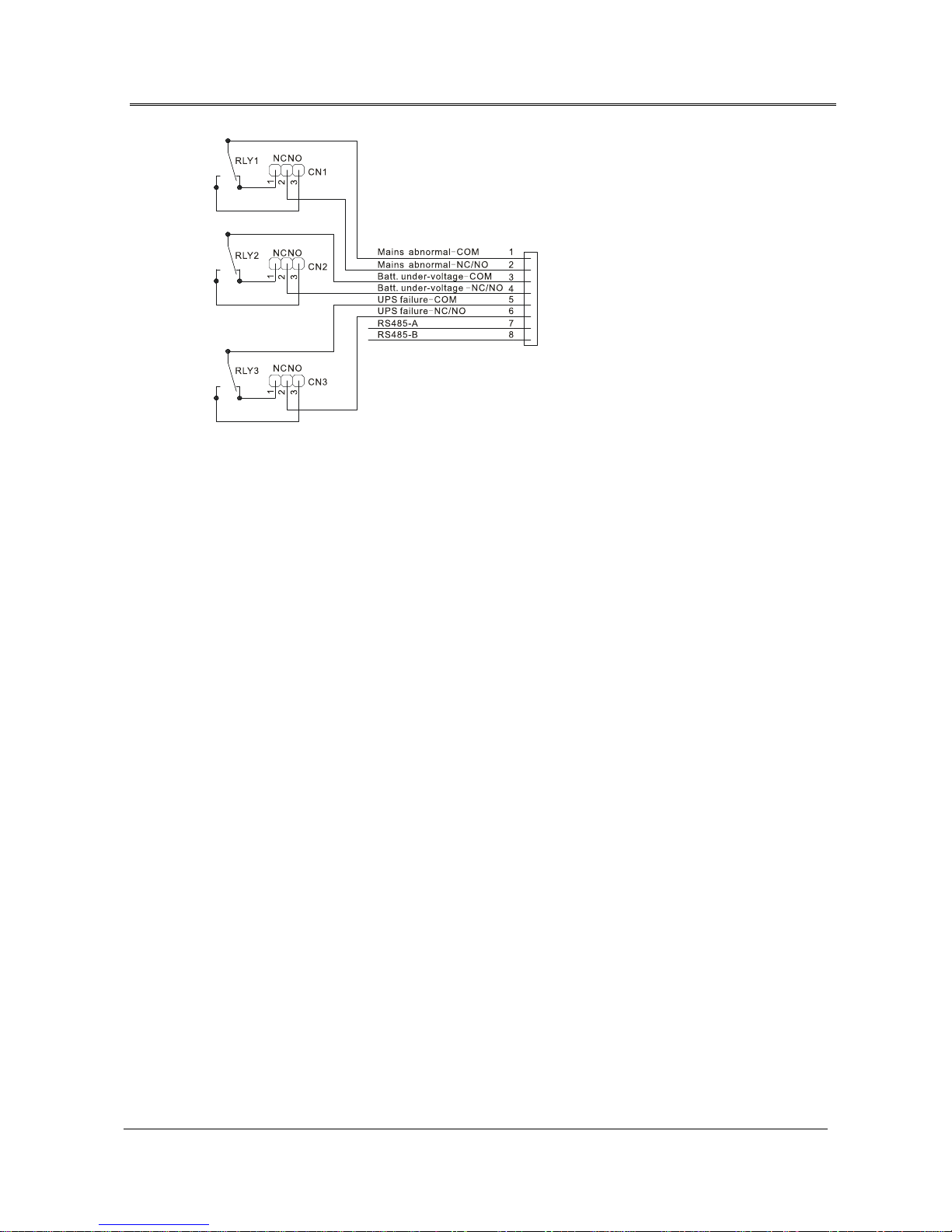

Figure2-12 Pin definition of RS485 and dry contact
The illustration of dry contact is as below:
1. CN1, CN2, CN3 determine that dry contact output signal is normal open or normal close. In
default, dry contact output signal is normal close, that is PIN1 connects with PIN2. If one route
signal needs to set to normal open, connect PIN2 with PIN3.
2. The requirements for input signal of dry contact: the voltage should be less than 60Vdc or 42Vac
RMS and the current should be less than 1.25A.
2.3 Working Principles
When the mains is normal, the input of N1C L-Series(1-3kVA) UPS converts into the ±360V steady
DC voltage through PFC, which supplies power for DC/AC inverter to output steady 220V AC and
charges battery at the same time. When the mains is abnormal, the battery will boost into the ±360V
DC voltage for DC/AC inverter through DC/DC.
The working principles of N1C L-Series(1-3kVA) UPS is as shown in Figure2-13. The DC/AC inverter
adopts half bridge structure and the DC/DC boost adopts the push-pull circuit or boost circuit. PFC is
the correction circuit for active power factor.
Page 23
N1C L-Series(1-3kVA) UPS
User Manual
2 Overview
15

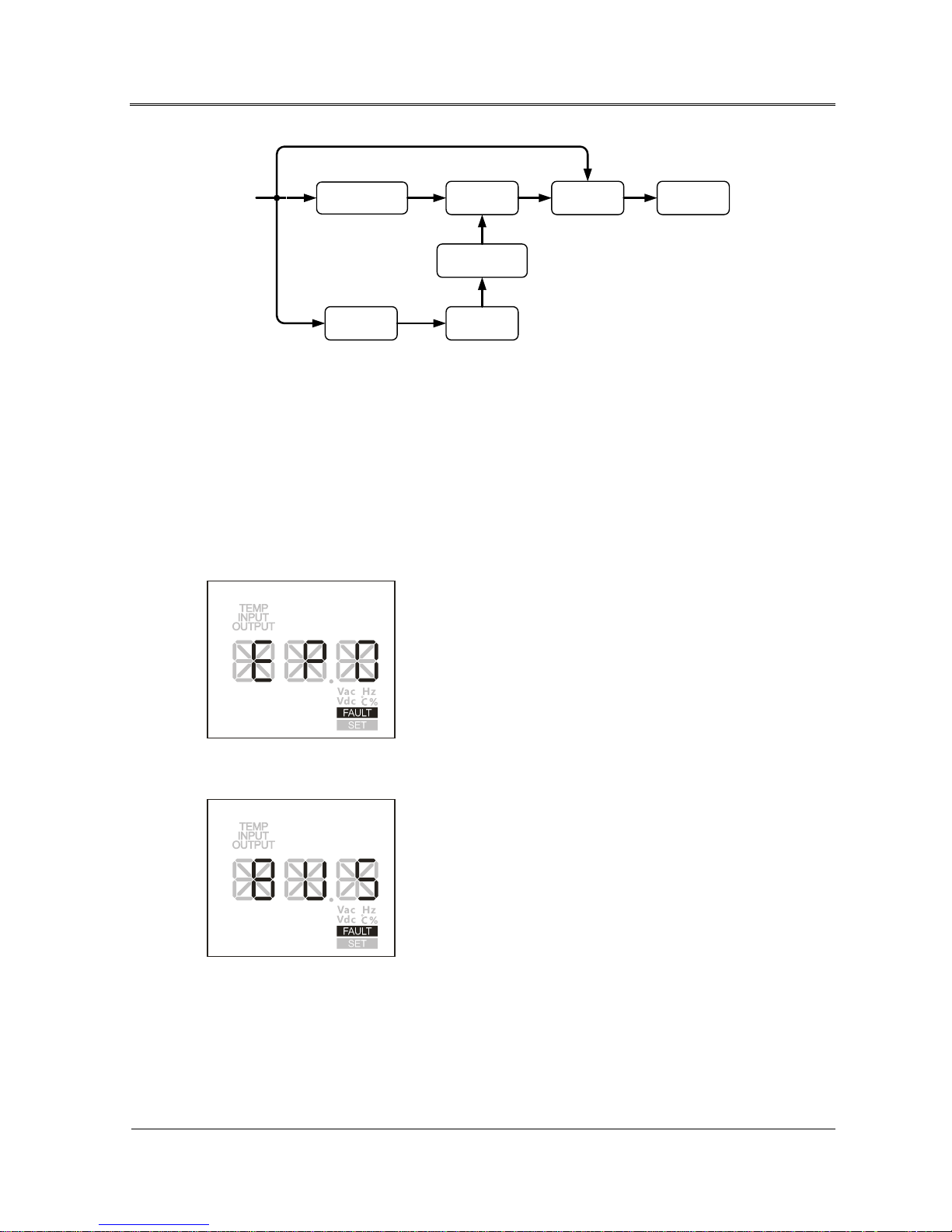

Mains
220Vac
PFC AC/DC
DC/AC
Transfer
switch
Load
DC/DC
Battery
Charger
Figure2-13 The working principle of N1C L-Series(1-3kVA) UPS
2.3.1 Fault Status
UPS faults include: EPO protection, busbar voltage fault, IGBT over-temperature fault, fan fault
(including fan blocked, fan damage, etc.), output fault (including output overload protection, output
short-circuit, etc.), battery fault (including battery over-voltage protection, battery under-voltage
protection, etc.), etc. The corre sponding fault status displa yed in the LCD (rack-mounting display way)
is as shown in Figure2-14 to Figure2-19.
Figure2-14 EPO protection
Figure2-15 Busbar voltage fault
Page 24
2 Overview
N1C L-Series(1-3kVA) UPS
User Manual
16

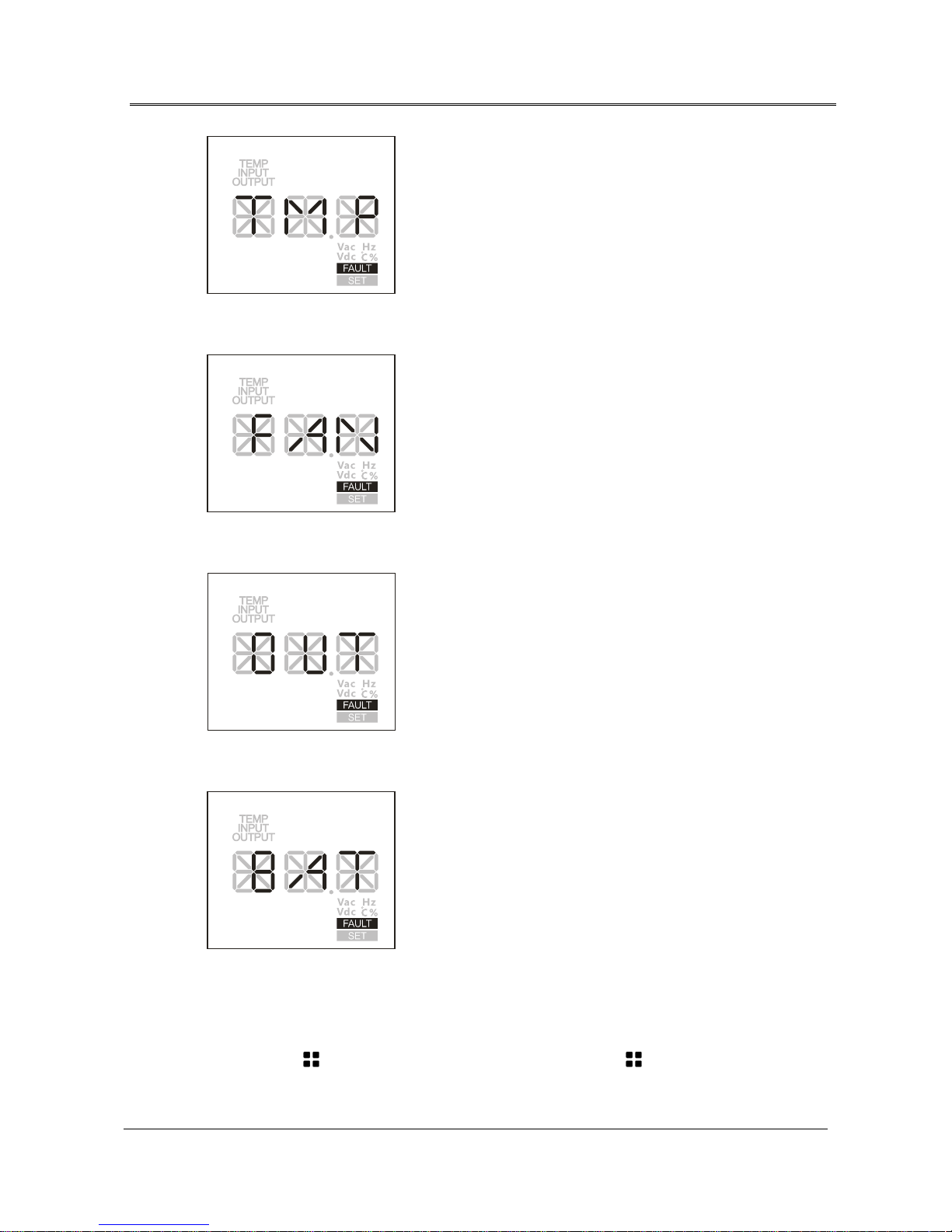

Figure2-16 IGBT over-temperature fault
Figure2-17 Fan fault
Figure2-18 Output fault
Figure2-19 Battery fault
2.3.2 UPS Parameters Setting
Press and hold " " button for 5s to enter the set page. Then press " " button to transfer the setting
information, such as ECO/INV mode, TWR/RCK (TWR: tower-mounting; RCK: rack-mounting)
Page 25
N1C L-Series(1-3kVA) UPS
User Manual
2 Overview
17
mode (the default setting is RCK mode) or the inverting output voltage that is 208V/230V(high voltage
model) or 110V/120V(low voltage model), and press " " button to confirm the setting.

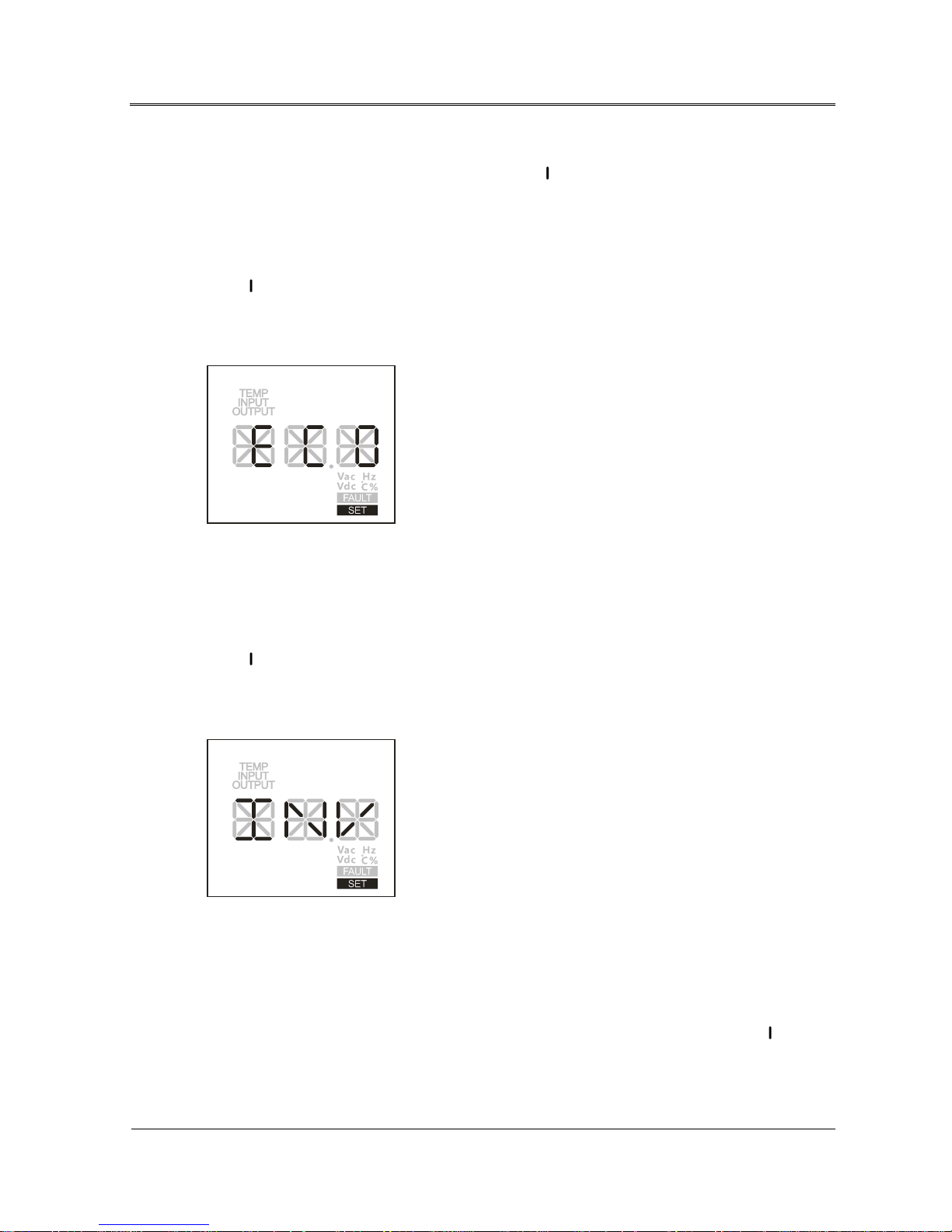

ECO mode
"ECO" set page: In the set page, three characters " ECO" flicker. If you confirm the selection, press and
hold " " button more than 1s to quit the set page, the setting is successful. If you aren't sure the
selection, it will quit the set p age 20s later automatically. In the ECO mode, the LCD display is as
shown Figure2-20.
Figure2-20 ECO mode
INV mode
"INV" set page: In the set page, three charters "INV" flicker. If you confirm the selection, press and
hold " " button more than 1s to quit the set page, the setting is successful. If you aren't sure the
selection, it will quit the set page 20s later automatically . In the INV m ode, the LCD display is as shown
Figure2-21.
Figure2-21 INV mode

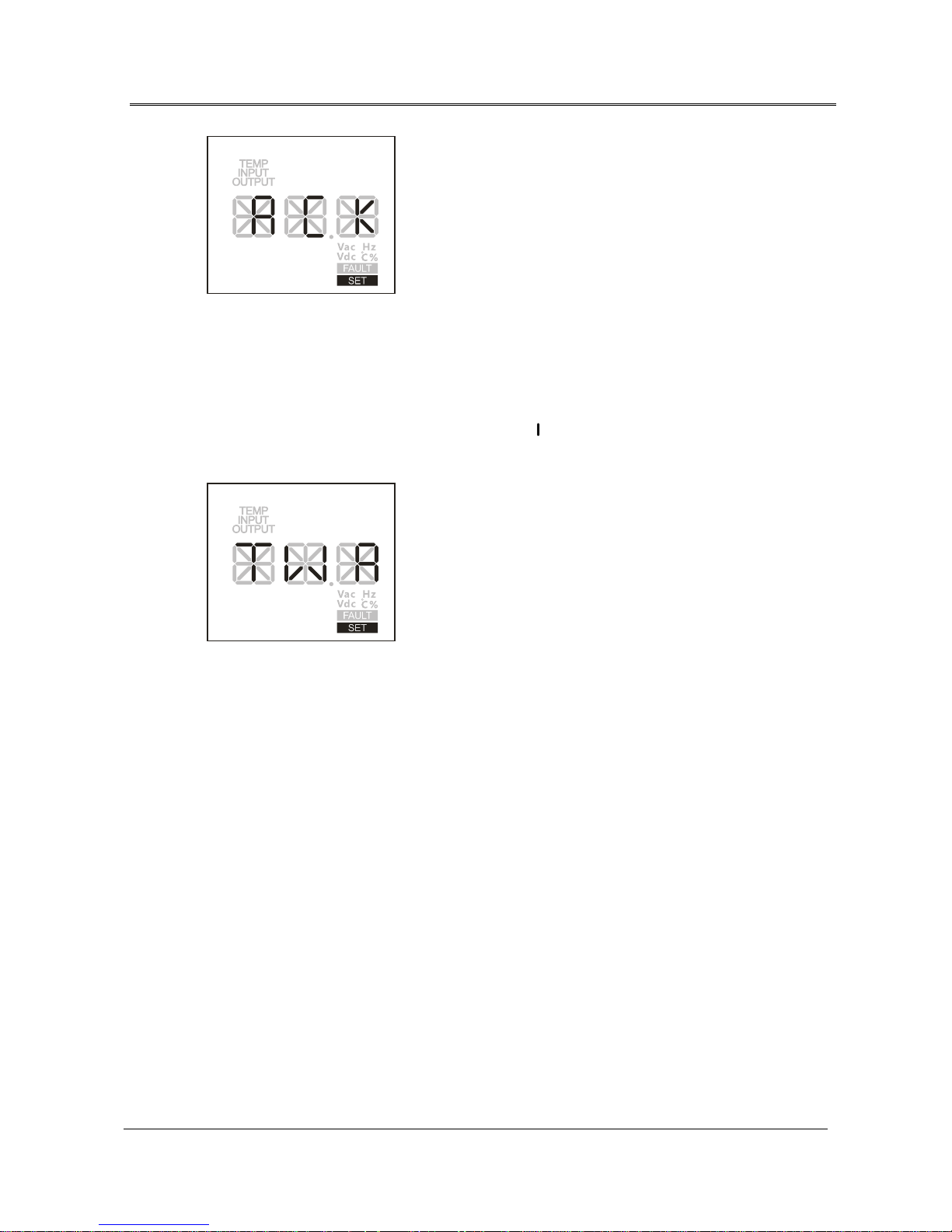

RCK mode
The default setting is RCK mode. When LCD displays TWR mode and it has to set to RCK mode, in
the set page, three characters "RCK" flicker. If you confirm the selection, press and hold " " button
more than 1s to quit the set page, the setting is successful. In the RCK mode, the LCD display is as
shown Figure2-22.
Page 26
2 Overview
N1C L-Series(1-3kVA) UPS
User Manual
18
Figure2-22 RCK mode
TWR mode
When LCD displays RCK mode and it has to set to TWR m ode, in the set page, three characters "TW R"
flicker. If you confirm the selection, press and hold " " button more than 1s to quit the set page, the
setting is successful. In the TWR mode, the LCD display is as shown Figure2-23.
Figure2-23 TWR mode
The setting of the inverting output voltage that is 208V/230V (high v olt age model) or 110V/120V(low
voltage model) is the same to the above method.
Page 27
N1C L-Series(1-3kVA) UPS
User Manual
3 Installation
19
3 Installation
This chapter mainly describes installation, including installation announcements, installation
preparation, unpacking and checking, installation procedures, electrical connection, electrical
connection checking, etc.
3.1 Installation Announcements
As the N1C L-Series(1-3kVA) UPS is small, it can put UPS on the flat surface directly without o ther
fixed or installation. Keep a clearance at least 300mm～500mm around UPS and 500mm on the top of
UPS, which is good for operation or maintenance or heat dissipa tion. Keep UPS with good v entilat ion.
In the room temperatur e (20℃), the working life of battery is the longes t. Therefore, i f conditions allow,
it is recommended to install air-condition. The installation announcements for UPS is as shown in
Figure3-1.
Put UPS on the flat floor (do not put it on the tilted or uneven floor).
Don't put objects on the top of UPS or around UPS to avoid blocking air vent. People can't sit on
the top of UPS.
Avoid putting UPS in the direct sunshine, rain or damp place.
Don't put UPS in the place with corrosive gas.
Don't put UPS near fire or all electrical equipment which easily cause sparks to avoid human
injury or unnecessary loss.
Page 28
3 Installation
N1C L-Series(1-3kVA) UPS
User Manual
20

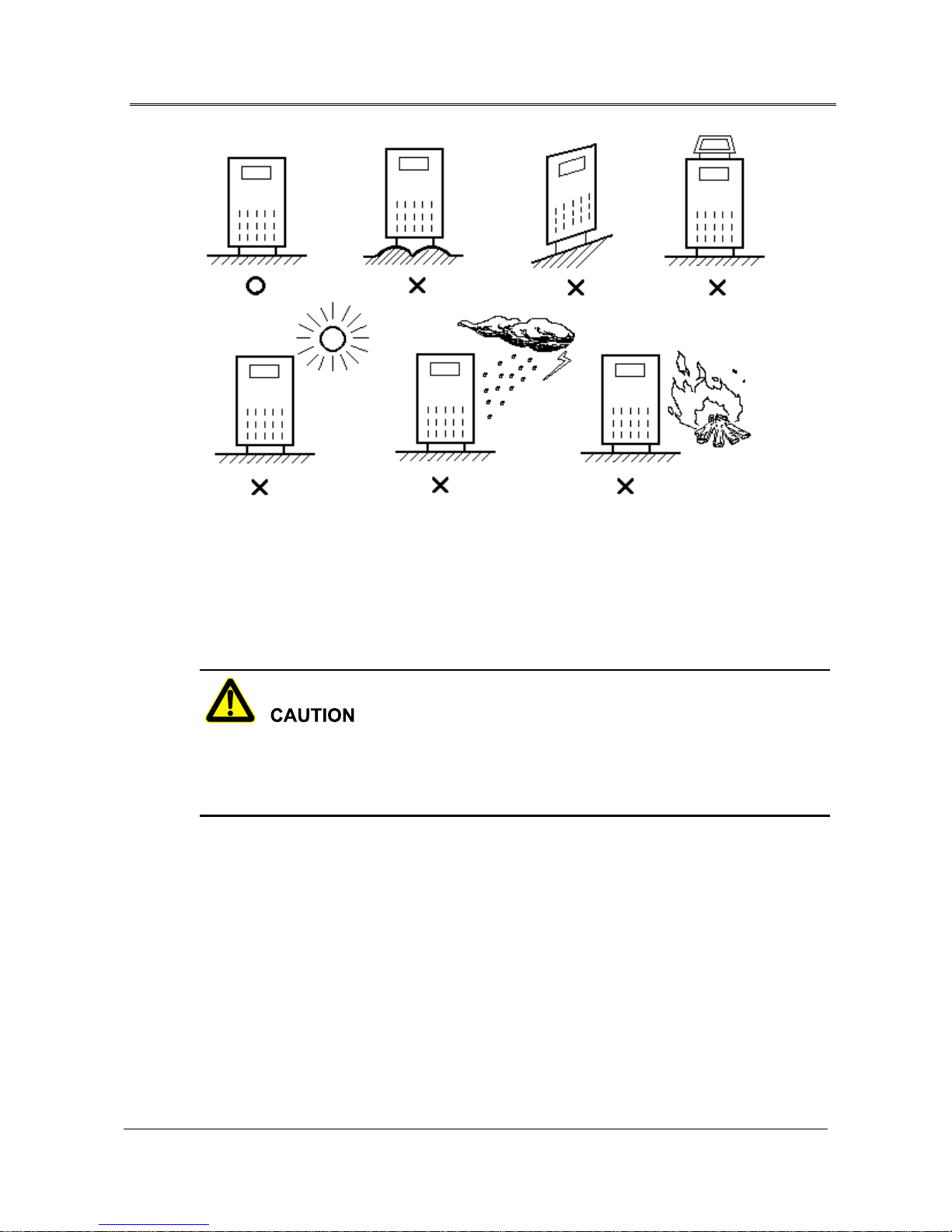

Figure3-1 The installation announcements for UPS
3.2 Installation Preparation
3.2.1 Installation Place and Environment Requirements
Before attempting to install UPS, the installation place and environment should meet the basic
condition for safety and normal running. If not, please do the corresponding change. If the basic
conditions are all met, install UPS.
Installation place requirements
The installation place must be equipped with firefighting equipment.
The mains supplying power for UPS should be equipped with specified breaker or multi-
functional sockets.
It is prohibited to put flammable and explosive objects in the installation place.
Before attempting to install UPS, it should do the grounding preparation. The Neutral-to- Ground
voltage in the mains should be less than 5V.
Page 29
N1C L-Series(1-3kVA) UPS
User Manual
3 Installation
21
The construction of installation place should have been finished and the floor has been hardened.
The installation place should be clean and without dust.
Installation environment requirements
Operating temperature: 0℃～+60℃;
Relative humidity: 0%RH～95%RH, with no condensation;
Cooling way: air-cooling;
Operating altitude: meet GB3859.2-93 requirements;
Verticality: without vibration and the vertical gradient should be not more than 5º;
Pollution grade: gradeⅡ.
UPS should be installed in the place where is with good ventilation, proper temperature and humidity,
and without dust. The recommend environment temperature is 20~25℃ and humidity is about 50%.
Don't install UPS in the place with metal conductive dust. UPS is only suitable to use in the non-tropical
climate conditions.
3.2.2 Input Breaker Selection
Add a breaker or a power distribution box in the input wire of UPS, which matches with the power of
UPS, to isolate the mains. Consider the charging power of UPS and the transient current impact when
power on, the current of the selecte d breaker s hould be 1.5～2 times of the max. input current of U PS.
Besides, the selected breaker should be without the power leakage protection to avoid maloperation.
The distribution box is better to be made by the professional company. The selection of input breaker
refers to Table3-1.
Table3-1 The recommended input breaker of N1C series(1-3k VA) UPS
Model
AC input
Max. current(A) Recommended breaker(A)
N1C.L1000 12 20
N1C.L2000 24 32
Page 30
3 Installation
N1C L-Series(1-3kVA) UPS
User Manual
22
Model
AC input
Max. current(A) Recommended breaker(A)
N1C.L2200 26 32
N1C.L3000 36 50
N1C.L2000G 12 20
N1C.L2200G 12 20
N1C.L3000G 18 32
3.2.3 Selection of the Cross Sectional Area of Wire
For the selection of the cross-sectional area of AC input w ir e, AC output wire and battery wire of N1C
L-Series(1-3kVA) UPS, please refer to Table3-2 for the corresponding recomm ended value and choose
upwards.
Table3-2 The recommended cross-sectional area of wire
Cross-sectional area(mm2)
1 1.5 2.5 4 6 10 16 25
Ampacity(A)
Rubber
(25℃)
8 12 20 28 42 70 96 125
Plastic
(25℃)
6 9 15 20 30 50 64 100
The equipped wires are with good quality and meet safety requirements, which pass international
authentication and UL authentication. If user prepares wires by themselves, please refers to the
recommended cross-sectional area of wire that is about 5m length listed in Table3-2. Lo nger wires
require larger cross-sectional areas.
3.3 Unpacking and Checking
Unpacking UPS and conduct the following items:
Inspect the appearance for shipping damage. If any shipping damage is found, report it to the
carrier immediately.
Page 31
N1C L-Series(1-3kVA) UPS
User Manual
3 Installation
23
Check the delivery list to see if the types of accessories are complete and correct. If there is any
discrepancy, contact the distributor immediately.
3.4 Installation Procedures
3.4.1 UPS Installation
The UPS installation and battery installation for N1C L-Series(1-3kVA) UPS are similar, the following
take N1C.L1000 for an example.

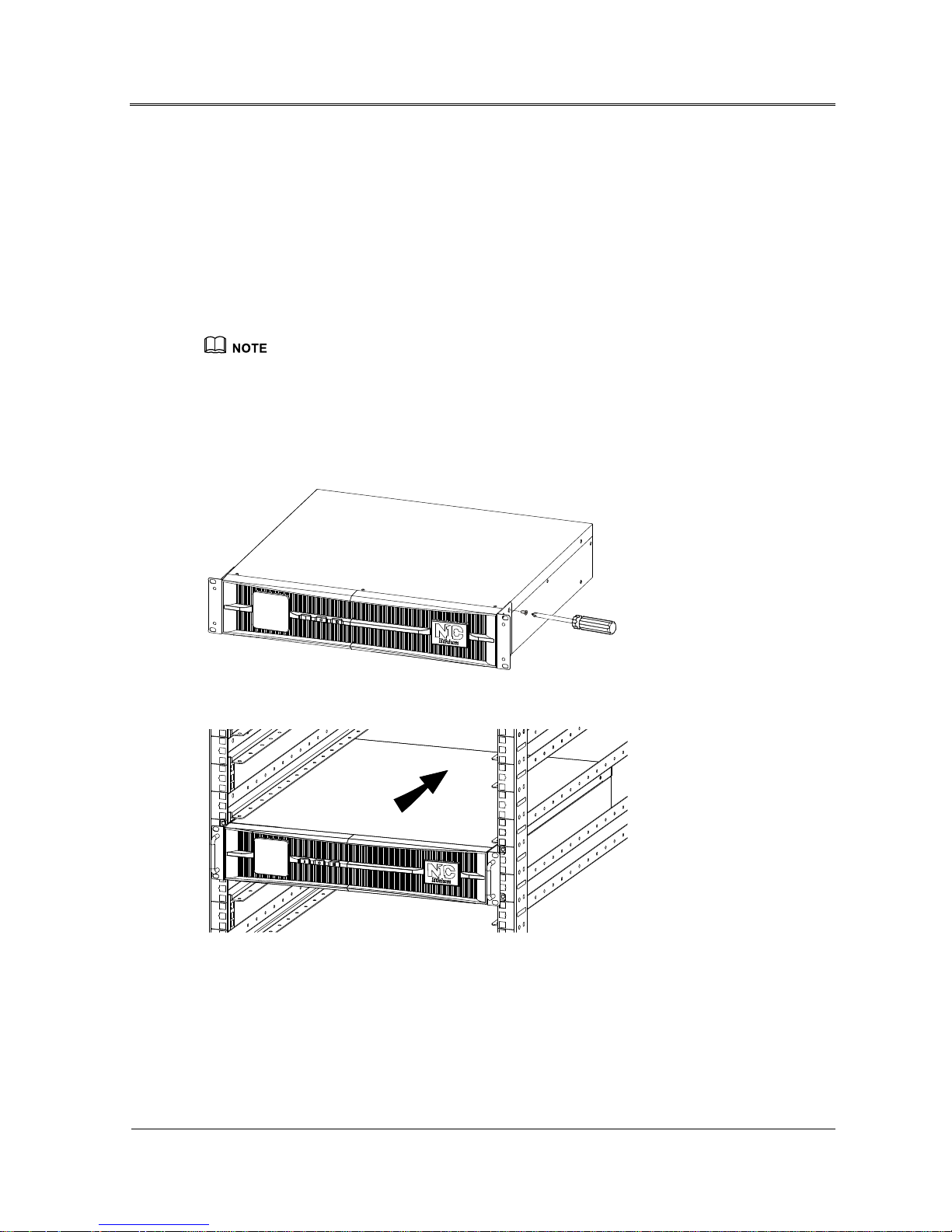

Rack-mounting
Step 1 Install angle iron(two pieces) on UPS by four pieces of M4*8FMC screws.
Step 2 Push UPS into rack.
Step 3 Fix UPS on the rack by screws.
Page 32
3 Installation
N1C L-Series(1-3kVA) UPS
User Manual
24
----End

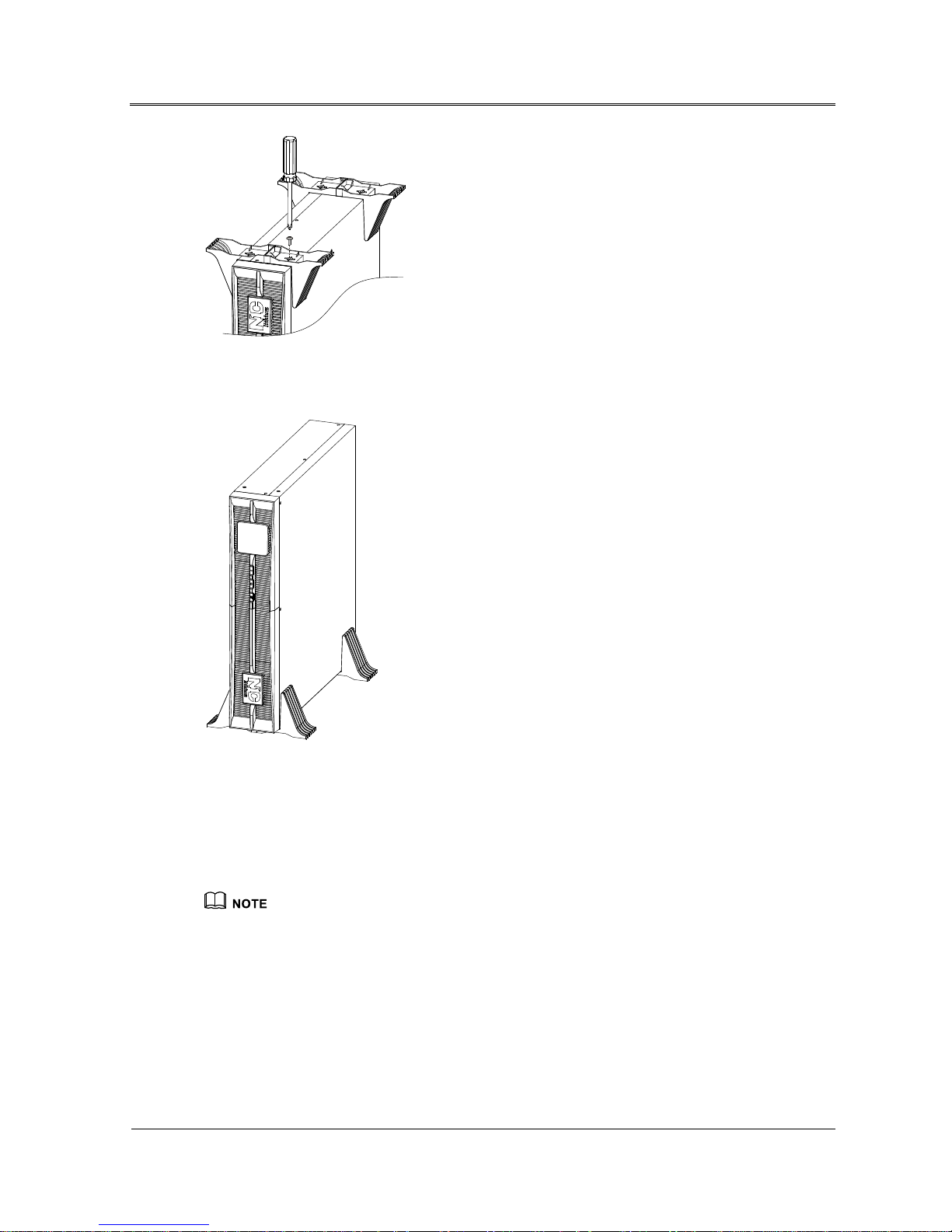

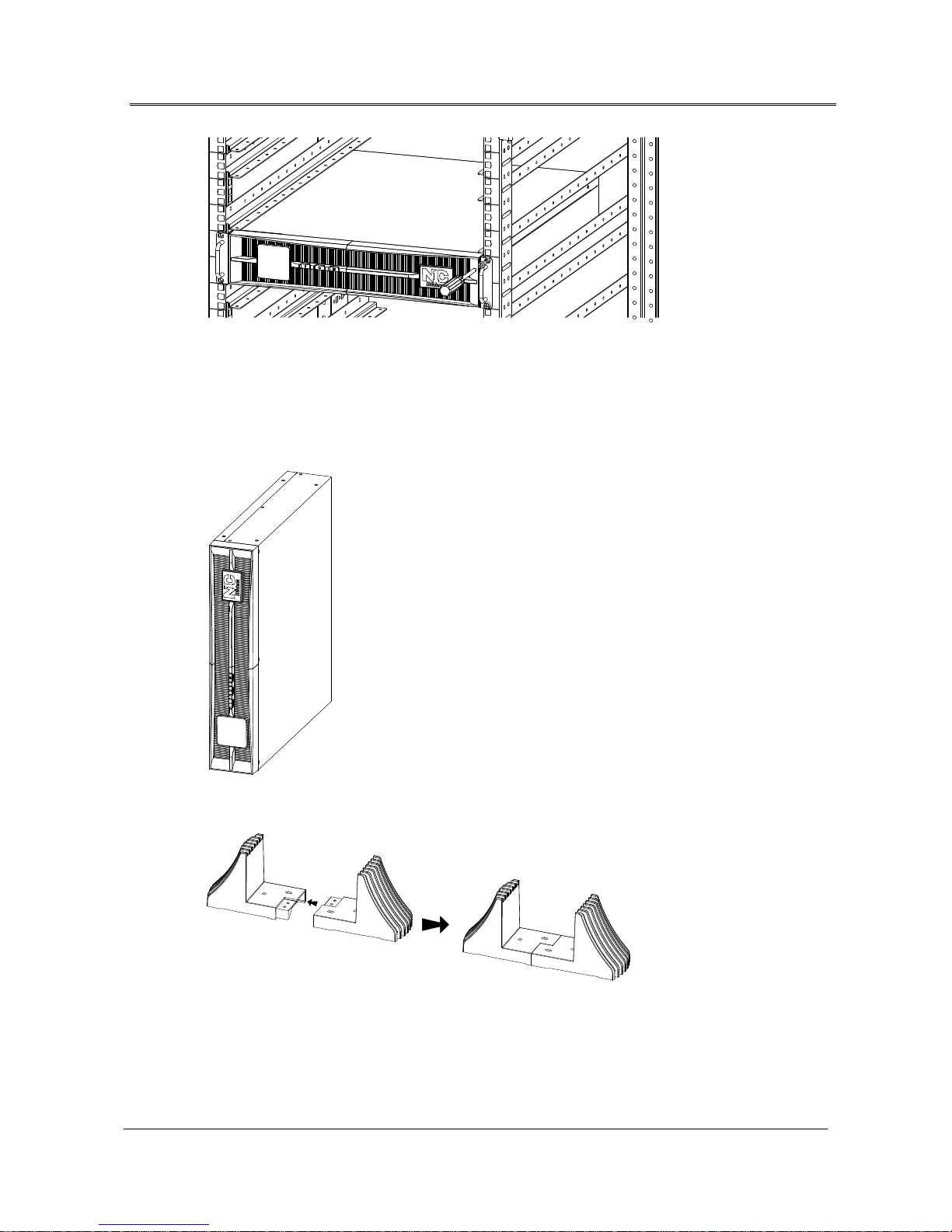

Tower-mounting
Step 1 Keep UPS upright, the side with battery should be up.
Step 2 Install two bearings together.
Step 3 Fix the bearing(two pieces) on UPS by two pieces of M4*10TMC screws.
Page 33
N1C L-Series(1-3kVA) UPS
User Manual
3 Installation
25
Step 4 Place UPS with bearings as below and set the display ways as tower-mounting, the detail refers to
2.2.1 .
----End
3.4.2 Intelligent Slot Replacement
The intelligent slot repl acement for N1C L-Series(1-3kVA) UPS are similar , the fol lowing take N1C .L1000
for an example.
Step 1 Dismantle standard intelligent slot.
Page 34
3 Installation
N1C L-Series(1-3kVA) UPS
User Manual
26

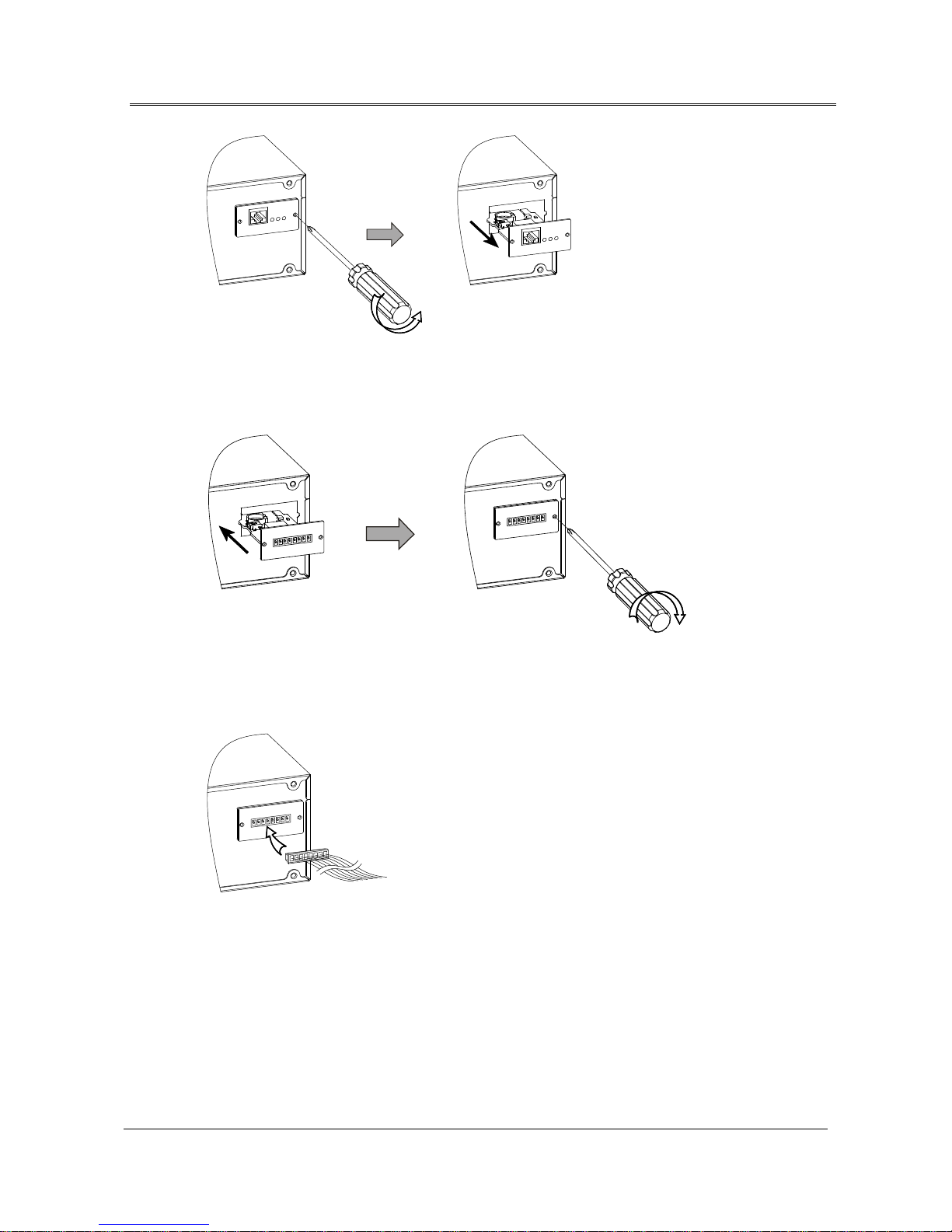

Figure3-2 Dismantle standard intelligent slot
Step 2 Install optional intelligent slot and fix it.
Figure3-3 Install optional intelligent slot
Step 3 Connect communication cable.
Figure3-4 Connect communication cable
----End
3.5 Electrical Connection
Use sockets in the AC input and output of N1C L-Series(1～3kVA) UPS . Connect input socket with
mains socket by power wire and plug load power wire in the output socket.
Page 35
N1C L-Series(1-3kVA) UPS
User Manual
3 Installation
27
Mains socket should be installed near UPS and it is convenient to operate.
3.5.1 N1C.L1000

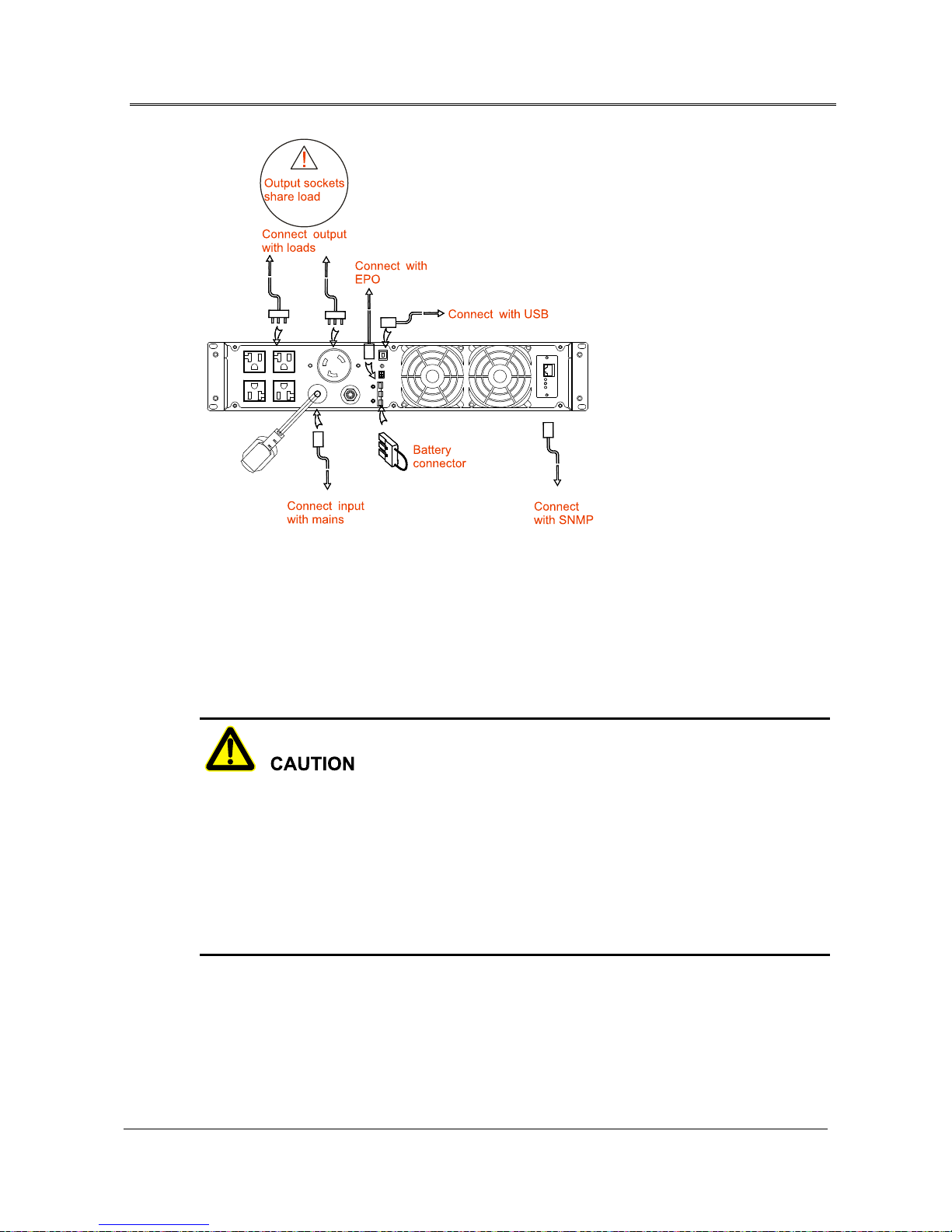

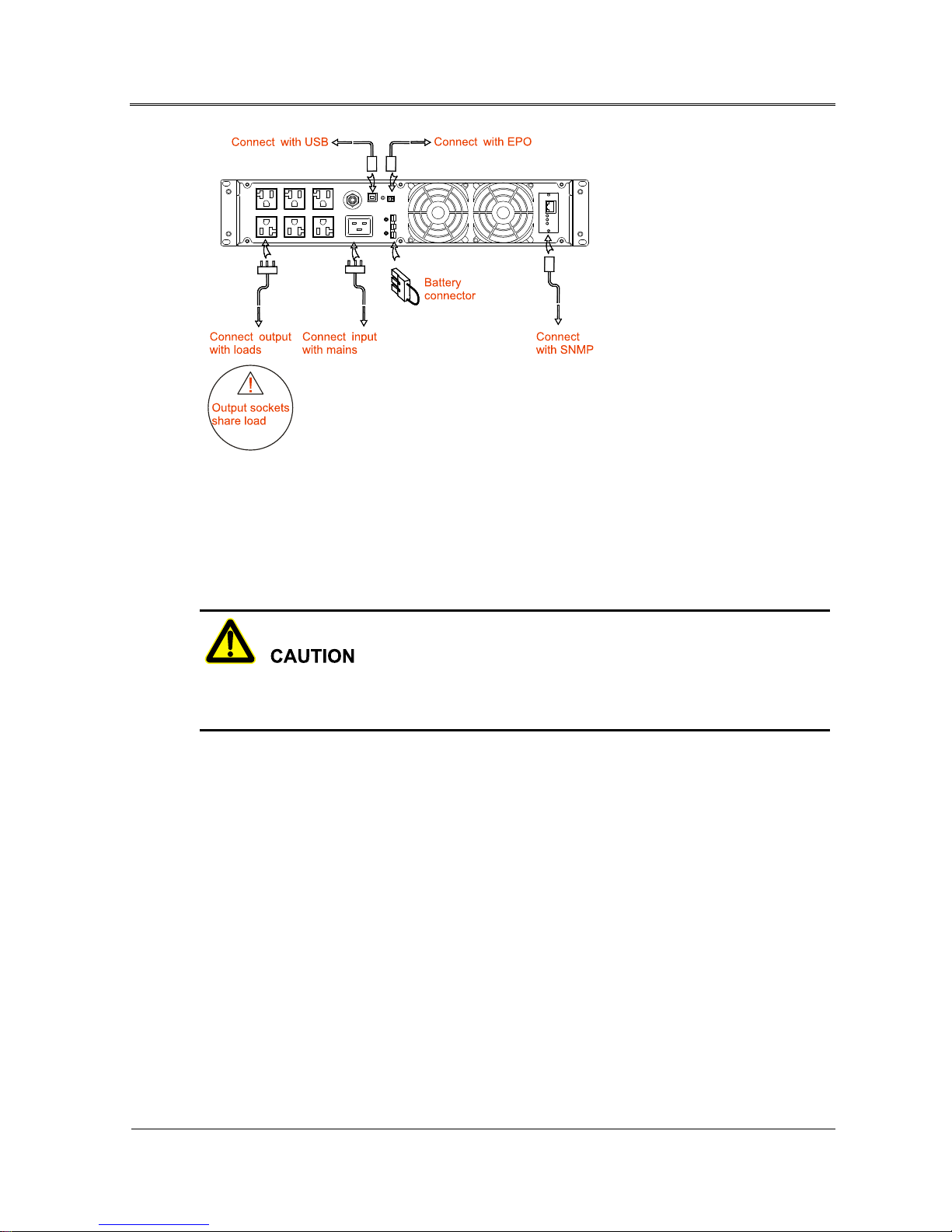

The wiring for the input and output of the N1C.L1000 UPS is as shown in Figure3-5.
Each output socket current s houldn't be more than 15A，the t otal output curr ent shouldn't be m ore than
9A.
Figure3-5 Wiring diagram of N1C.L1000

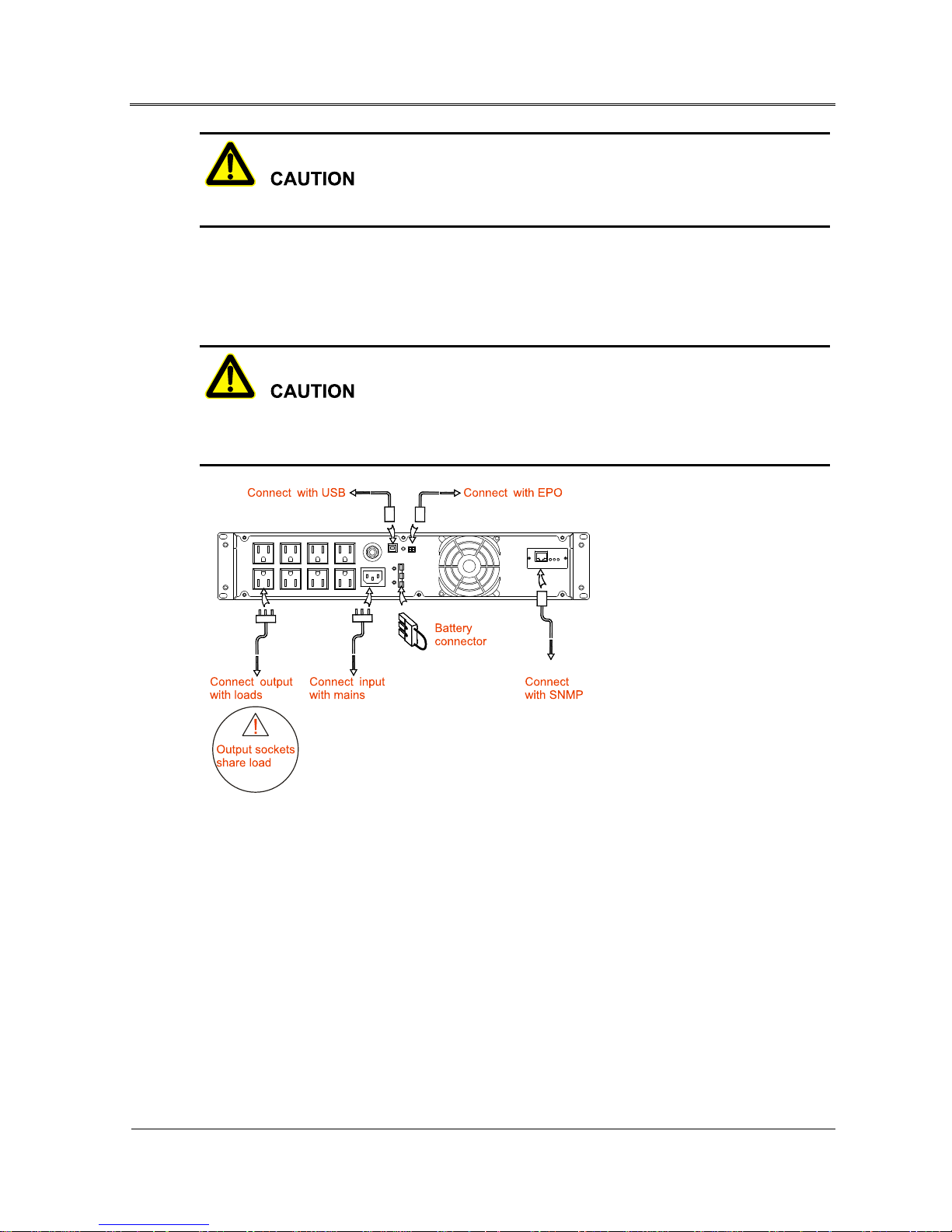

3.5.2 N1C.L2000
The wiring for the input and output of the N1C.L2000 UPS are as shown in Figure3-6.
Page 36
3 Installation
N1C L-Series(1-3kVA) UPS
User Manual
28
Each output socket current s houldn't be more than 20A，the t otal output curr ent shouldn't be m ore than
18A.
Figure3-6 Wiring diagram of N1C.L2000
3.5.3 N1C.L2200
The wiring for the input and output of the N1C.L2200 UPS are as shown in Figure3-7.
Each output socket current s houldn't be more than 20A，the t otal output curr ent shouldn't be m ore than
20A.
Page 37
N1C L-Series(1-3kVA) UPS
User Manual
3 Installation
29
Figure3-7 Wiring diagram of N1C.L2200

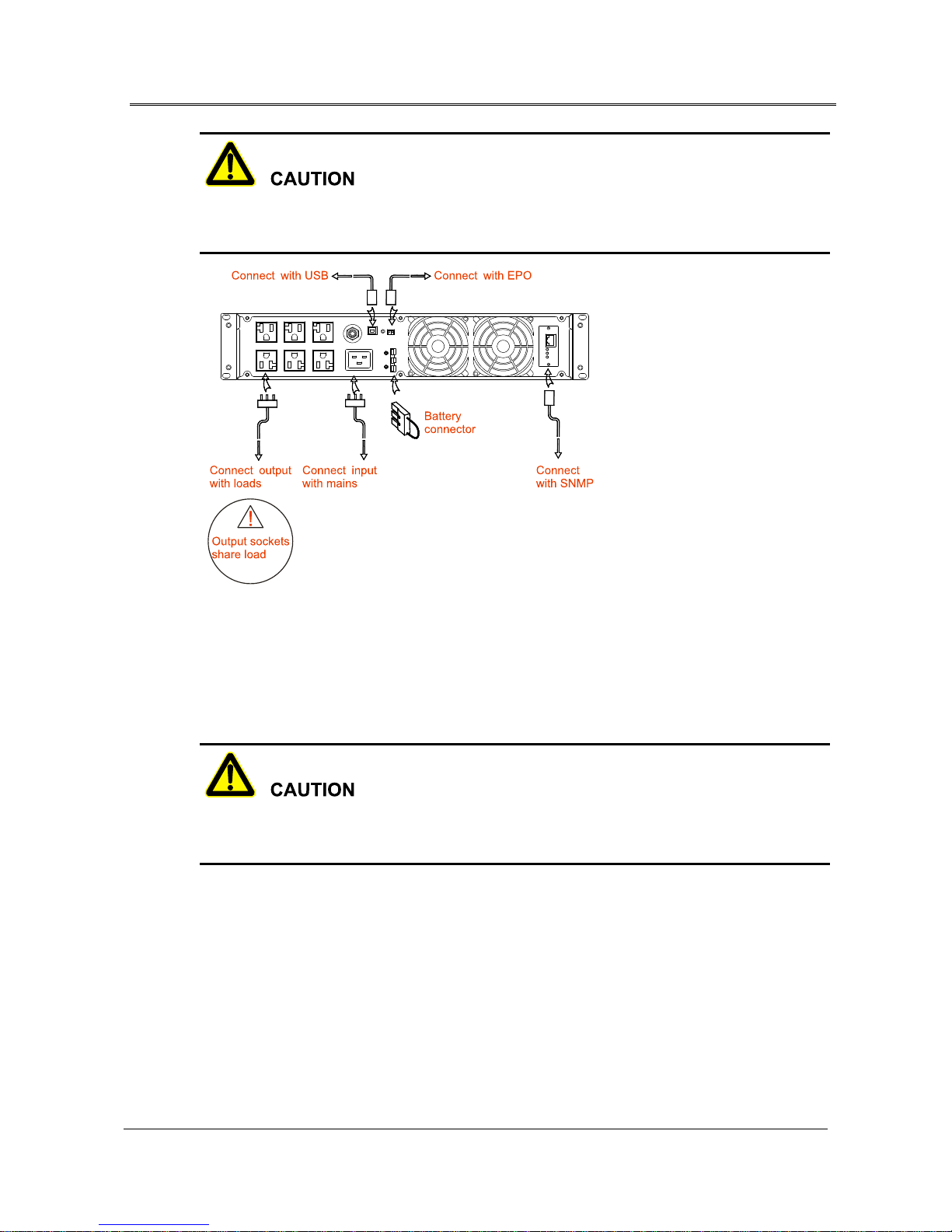

3.5.4 N1C.L3000
The wiring for the input and output of the N1C.L3000 UPS are as shown in Figure3-8.
Each output socket current s houldn't be more than 20A，the t otal output curr ent shouldn't be m ore than
27A.
Page 38
3 Installation
N1C L-Series(1-3kVA) UPS
User Manual
30
Figure3-8 Wiring diagram of N1C.L3000
3.5.5 N1C.L2000G/ N1C.L2200G/ N1C.L3000G
The wiring for the input and output of the N1C.L2000G/ N1C.L2200G/ N1C.L3000G UPS are as
shown in Figure3-9.
N1C.L2000G: Each output socket current shouldn't be more than 10A，the total output current
shouldn't be more than 9.6A.
N1C.L2200G: Each output socket current shouldn't be more than 10A，the total output current
shouldn't be more than 10.5A.
N1C.L3000G: Each output socket current shouldn't be more than 10A，
the total output current
shouldn't be more than 14A.
Page 39
N1C L-Series(1-3kVA) UPS
User Manual
3 Installation
31

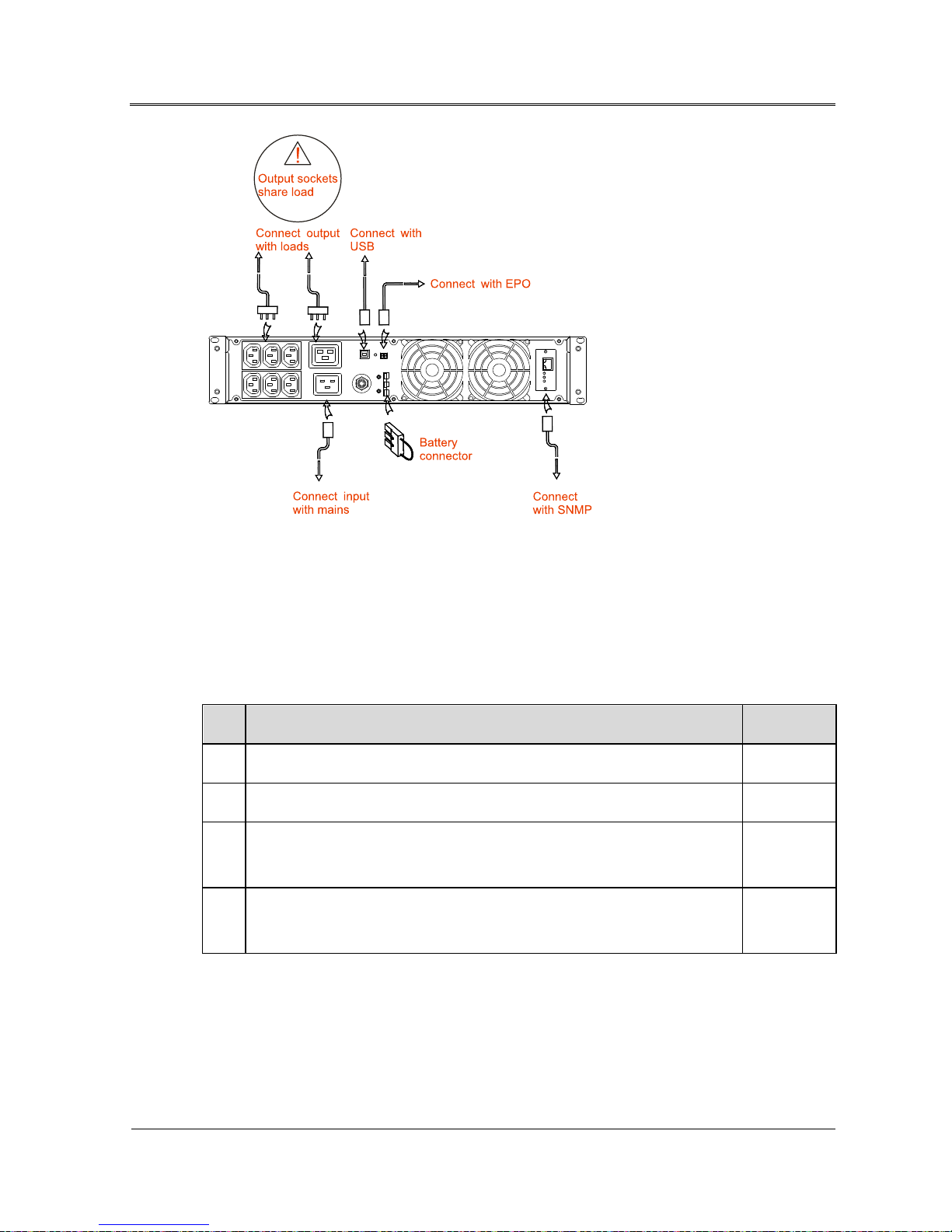

Figure3-9 Wiring diagram of N1C.L2000G/ N1C.L2200G/ N1C.L3000G
3.6 Electrical Connection Checking
After finishing electrical connection, perform electrical connection checking according to Table3-3.
Table3-3 Electrical connection checking
No. Check items Result
1 Check whether the wires are connected firmly.
Yes□No□
2 Check whether the Neutral-to Ground voltage is less than 5Vac.
Yes□No□
3
Check whether the wiring is neat, and the wire binding
is in accordance with
process specification.
Yes□No□
4
Check whether the installation and wiring are good for system reformation,
expansion and maintenance in future.
Yes□No□
Page 40
4 Operation Guide
N1C L-Series(1-3kVA) UPS
User Manual
32
4 Operation Guide
This chapter mainly describes the checking before startup, startup and shutdown operation, etc.
4.1 Checking Before Startup
Before using UPS, check the following items to ensure that UPS works normally.
The installation of input and output are correct.
The input power connects with the rated input power.
There is no short-circuit in the output and the load capacity is not beyond the UPS capacity.
Whether computer or other equipment are switched off.
Whether the battery voltage is normal.
It isn't recommended to connect with the inductive load in the output. Generally, grid supplies
power for the inductive load directly.
4.2 Startup Operation
Step 1 Connect UPS with mains socket.
Step 2 Press " " button on the panel for 1s to start UPS.
Step 3 About 10s later, if the UPS works steadily, start loads, such as PC, etc.
Start load with the sequence that "high power dev ice→sm all power dev ice", which i s to av oid overloa d
protection when starting high power device.
----End
4.3 Shutdown Operation
Step 1 Close load and keep UPS running without load for about10 minutes to exhaust heat.
Step 2 Press " " button on the panel for 1s to shut down UPS.
Page 41
N1C L-Series(1-3kVA) UPS
User Manual
4 Operation Guide
33
Step 3 Unplug mains socket.
----End
Page 42
5 Maintenance and Troubleshooting
N1C L-Series(1-3kVA) UPS
User Manual
34
5 Maintenance and Troubleshooting
This chapter mainly describes maintenance guide, daily battery maintenance, replacing battery
announcements and troubleshooting.
5.1 Maintenance Guide
Proper maintenance is the key that the device works on the best status and with a longer service life.
5.1.1 Safety Precautions
To ensure human safety and device security, observe the following precautions.
Remember that even though UPS doesn't work, there may still exist dangerous voltage inside
UPS. Before maintenance, use a multi-meter to check the voltage and make sure that UPS is
completely shut down and stay in safe status.
The operator should be familiar with UPS and user manual.
Before operating UPS, take off conductive objects, such as rings, watches.
Observe safety regulations strictly. If any doubt, consult professionals.
Before maintenance, use a voltmeter to check the power is turned off and in a safety condition.
5.1.2 Preventive Maintenance
To improve the efficiency and reliability of UPS, do the following maintenance tasks regularly.
Keep operation environment free from dust and chemical pollutant.
Check whether fans work properly, and air vents are not blocked. If some fans stop working,
replace them in time.
Check whether battery voltage is normal.
Check whether UPS works normally.
5.2 Daily Battery Maintenance
Charging requirements of battery.
Page 43
N1C L-Series(1-3kVA) UPS
User Manual
5 Maintenance and Troubleshooting
35
− When using battery for the first time, start UPS to charge b attery for ten hours. During char ging,
you still can use UPS. If UPS and batte ry are pow er down sim ultaneously, the discharging time
of battery may be lower than standard this time.
− Generally, charge and discharge battery once every four to six months. Discharging battery until
UPS turns off. Then charge them. The charging time should be no less than ten hours.
− In high-temperature areas, charge and discharge battery once every two months. The charging
time should be no less than ten hours.
− If battery have not been used for a long time, charge and discharge them once every three
months. The charging time should be no less than ten hours.
Clean battery shells by water-dipped cloth. Oil and organic solvents, such as petrol and diluents
are prohibited.
To avoid explosion, keep battery far away from fire sources and devices that easily generate
sparks.
When using the battery pack connected with UPS, check whether charger is OK regularly, which
is to avoid battery on the overcharging status or incomplete charging status. It should avoid over
discharging battery. After discharging, it should charge battery completely (The time should be
less than 24h). It is prohibited that the incomplete charging battery discharges again, which will
reduce the battery capacity, even damage battery.
Press " " button to shut down UPS which is to avoid battery discharging for a long time after
mains powers down. If UPS stops working for a long time, it should charge and discharge battery
periodically, which is to avoid battery damage for self-discharge.
5.3 Replacing Battery Announcements
Don't put battery into fire to avoid explosion.
Don't open or dismantle battery. The inner electrolyte is harmful to our skin and eyes.
Recycle battery according to the instructions appropriately.
Consult professionals for replacing battery.
A new battery should be with the same capacity, model, and manufacturer as the replaced one.
Check whether there exists dangerous voltage between battery terminals and ground before
touching, which is to avoid human injury. It is prohibited to touch the battery’s two wire
connectors or bare terminals for wiring simultaneously.
Page 44
5 Maintenance and Troubleshooting
N1C L-Series(1-3kVA) UPS
User Manual
36
5.4 Troubleshooting
After starting UPS, if UPS works abnormally, please refer to Table5-1 to find possible reason.
Meanwhile, check whether the fault is caused by external environment, such as temperature, humidity
are not accordance with requirements or UPS is overload.
Table5-1 only includes some simple diagnosis. If the diagnosis is not clear, or not sufficient to solve
problem, please contact with local agency or dealer to deal with.
Table5-1 Troubleshooting
No. Phenomenon Possible reasons
1
The mains is normal. When starting
UPS, it can output 220V AC. But
UPS works in the b attery inverting
status, and the buzzer beeps
intermittently.
Make poor connection in the contacts of grid feeding
circuit or sockets, which will lead to power input is
not expedite.
2
When
starting UPS, it can output
220V AC. But UPS works in the
bypass status (" " indicator is
always on.)
(1) The load exceeds the rated output cap
acity of
UPS. It should reduce load or select UPS with more
larger output capacity.
(2) It is normal that shock from load startup leads to
turn into bypass mode temporarily
and recovery
automatically
3
After starting UPS, output is normal.
But when starti
ng load, UPS will
stop output immediately.
(1) If UPS is serious overload or output is short
circuit, it should reduce load to proper or find reason
of short circuit. The com m on reason i s that the out put
multi-tap is short circuit, or the input is short circuit
after device is damaged,
(2) If you do not follow the startup s equence that is
"high power device →
small power device" to start
load, restart UPS. When UPS works steadily, restart
load following the sequence.
4
After starting UPS, UPS works
normally. After a while, UPS will
shut down automatically.
In the battery mode, it is normal that UPS turns off
automatically when battery runs out and takes battery
low voltage protection. When mains is normal,
system will start automatically and charge battery.
Page 45
N1C L-Series(1-3kVA) UPS
User Manual
5 Maintenance and Troubleshooting
37
No. Phenomenon Possible reasons
5
Buzzer long beeps, fault indicator is
on, inverter failure and UPS turns to
bypass mode.
(1) Load overload or output short circuit, UPS will
turn off automatically.
(2) Drive or power transistor failure.
(3) Main control board failure.
(4) UPS over-temperature protection
6
After starting UPS, UPS works
normally. When mains powers
down, UPS has no output.
(1) Battery failure.
(2) Battery charger failure. Generally, it can't charge
battery.
(3) Battery haven't been
connected with UPS or
battery has been damaged seriously.
7
The input is normal, but buzzer still
beeps intermittently.
The mains voltage or frequency is out of the range of
UPS requirements.
8 Indicators on the panel are all off. The wiring for display board is unreliable or fault.
If UPS failure, press " " button. It can view the UPS failur e prompt ing on the L CD, whi ch is good for
finding the fault source quickly.
The meaning of fault symbol and buzzer status in Table5-2.
Table5-2 The meaning of fault symbol and buzzer status
Fault symbol Buzzer status Meaning
Fault info.
page (page up
or page down
by " "
button)
EPO Long beep
UPS has emergency protection (if equipped with
EPO function), Bypass output and inverting
output are all closed.
BUS Long beep
The
re has busbar voltage fault in the UPS, the
inverting output is closed.
TMP Long beep
UPS has over-temperature protection; the
inverting output is closed. Please check if cooling
fan damage and air vents blocked.
OUT Long beep
Output fault, please check if output is shortcircuited or the load is too large.
Page 46
5 Maintenance and Troubleshooting
N1C L-Series(1-3kVA) UPS
User Manual
38
Fault symbol Buzzer status Meaning
BAT Long beep
Battery fault, battery voltage too low or too high
protection.
FAN
Rapid beep (Alarm
once about every 0.2s)
Fan fault alarm prompting, the inverting output is
going to protect. Please
check if cooling fan
damage.
Load energy bars all
flicker
Rapid beep (Alarm
once about every 0.2s)
Output overload alarm. the output is going to
close, please reduce load.
Battery energy bar all
flicker
Slow beep (Alarm
once about every 2.0s)
Battery voltage is too high. Please check if battery
or charger failure.
Battery energy bars are
all off and the frame
flickers
Rapid beep (Alarm
once about every 0.2s)
Battery is about to run out. Pl ease pay attention to
protect device and save you data in the PC.
Page 47
N1C L-Series(1-3kVA) UPS
User Manual
6 Package, Transportation, Storage
39
6 Package, Transportation, Storage
This chapter mainly describes the announcements about the package, transportation, storage.
6.1 Package
The package of product is carton. When packing, pay attention to the placing direction requirements.
On one side of the carton, it should print warning icons, including keep dry, handle with care, this end
up, stacking layer limit, etc. On the other side of carton, paste the model type, etc.
6.2 Transportation
When transportation, UPS should be handled with care. Don't impact it severely. It should strictly
follow the placement direction that shows on the carton to avoid UPS damage.
6.3 Storage
UPS should be stored in the dry warehouse. Don't put it under the sunshine or in the rain. It should
follow the placement direction that shows on the carton. The storage environment temperature is 25℃～+55℃ (no battery). If it is t he st andard U PS or th e s tor age batt eri es, the r ecom mended storage
temperature is 0～40℃, the relative humidity is 20%～80%. In warehouse, it’s prohibited that there
has poisonous gas, objects that inflammable and explosive, corrosive chemical objects. Besides, it
shouldn't have too strong mechanical shaking, impact and strong magnetic field. Under the storage
conditions above, the storage per iod is six months . If it is long time storage, i t should charge the storage
battery every three months.
Page 48
A Technical Specifications
N1C L-Series(1-3kVA) UPS
User Manual
40
A Technical Specifications
A.1 N1C.L1000/ N1C.L2000/ N1C.L2200/ N1C.L3000
Model
Index
N1C.L1000 N1C.L2000 N1C.L2200 N1C.L3000
Input features
Voltage range(V)
When the voltage range is 88Vac～148Vac, it can connect with more than 75%
load; when the voltage range is 77Vac～88Vac, it can connect with 50～75%
load; when the voltage range is 60Vac～77Vac, it can connect with less than 50%
load.
Frequency range(Hz)
50/60±10%(50/60 self-adaption)
Input method Single phase three wire
Battery voltage(V) 24 48 72 72
Output features
Power
capacity(VA/W)
1000/900 2000/1800 2200/1980 3000/2700
Voltage(V) 110/120±1%(settable)
Frequency(Hz) 50/60±0.2%(battery mode)
Wave Sine-wave
Voltage distortion THD <3%(linear load)
Power factor 0.9
Transfer time
between battery mode
0
Page 49
N1C L-Series(1-3kVA) UPS
User Manual
A Technical Specifications
41
Model
Index
N1C.L1000 N1C.L2000 N1C.L2200 N1C.L3000
and mains mode(ms)
Overload ability
Low overload
for 1min
1000VA/900W ＜
Load ≤
1300VA/1040W
2000VA/1800W
＜ Load ≤
2600VA/2080W
2200VA/1980W
＜ Load ≤
2860VA/2080W
3000VA/2700W
＜ Load ≤
3900VA/3120W
Medium
overload for 1s
1300VA/1040W
＜ Load ≤
1500VA/1200W
2600VA/2080W
＜ Load ≤
3000VA/2400W
2860VA/2080W
＜ Load ≤
3300VA/2080W
3900VA/3120W
＜ Load ≤
4500VA/3600W
High overload
for 200ms
1500VA/1200W
＜Load
3000VA/2400W
＜Load
3300VA/2080W
＜Load
4500VA/3600W
＜Load
Output receptacles
Eight 5-15R
sockets with 15A
Six 5-20R sockets
with 20A
Six 5-20R sockets
with 20A
Four 5-20R
sockets with 20A
and one L5-30R
with 30A
Other features
Backup time 11 mins
Charge time Depend on battery capacity
Communication
interface
Standard: SNMP adapter and USB port supp ort UPS power m anagement software;
Optional: RS485 and dry contact.
Display LCD displays the running status of UPS.
Alarm function Battery low-voltage, mains abnormal, UPS fault, output overload
Protection function
Battery under-voltage protection, overload protection, short-
circuit protection,
over-temperature protection, input over-voltage protection
Noise(dB) <55
Working temperature
(℃)
0～60
Page 50
A Technical Specifications
N1C L-Series(1-3kVA) UPS
User Manual
42
Model
Index
N1C.L1000 N1C.L2000 N1C.L2200 N1C.L3000
Relative humidity
0～95%, non-condensation
Dimensions(mm)
(width*depth*height)
438*420*87 438*570*87
Weight(kg) 8.89 13.6 19.9
17.1
A.2 N1C.L2000G/ N1C.L2200G/ N1C.L3300G
Model
Index
N1C.L2000G N1C.L2200G N1C.L3000G
Input features
Voltage range(V)
When the voltage range is 176Vac～295Vac, it can connect with more than 75%
load; when the voltage range is 154Vac～176Vac, it can connect with 50～75%
load; when the voltage range is 120Vac～154Vac, it can connect with less than
50% load.
Frequency range(Hz)
50/60±10%(50/60 self-adaption)
Input method Single phase three wire
Battery voltage(V) 48 72 72
Output features
Power
capacity(VA/W)
2000/1800 2200/1980 3000/2700
Voltage(V) 208/230±1%(settable)
Frequency(Hz) 50/60±0.2%(battery mode)
Wave Sine-wave
Voltage distortion THD <3%(linear load)
Power factor 0.9
Page 51
N1C L-Series(1-3kVA) UPS
User Manual
A Technical Specifications
43
Model
Index
N1C.L2000G N1C.L2200G N1C.L3000G
Transfer time
between battery mode
and mains mode(ms)
0
Overload ability
Low
overload for
1min
2000VA/1800W＜Load
≤2600VA/2080W
2200VA/1980W ＜ Load
≤2860VA/2080W
3000VA/2700W＜ Load
≤3900VA/3120W
Medium
overload for
1s
2600VA/2080W＜Load
≤3000VA/2400W
2860VA/2080W ＜ Load
≤3300VA/2080W
3900VA/3120W＜ Load
≤4500VA/3600W
High
overload for
200ms
3000VA/2400W＜Load 3300VA/2080W＜Load 4500VA/3600W＜Load
Output receptacles One IEC C19 socket with 16A and six IEC C13 sockets with 10A
Other features
Backup time 11 mins
Charge recovery time Depend on battery capacity
Communication
interface
Standard: SNMP adapter and
USB port support UPS power management
software;
Optional: RS485 and dry contact.
Display LCD displays the running status of UPS.
Alarm function Battery low-voltage, mains abnormal, UPS fault, output overload
Protection function
Battery under-voltage protection, overload protection, short-circuit protection,
over-temperature protection, input over-voltage protection
Noise(dB) <55
Working temperature
(℃)
0～60
Page 52
A Technical Specifications
N1C L-Series(1-3kVA) UPS
User Manual
44
Model
Index
N1C.L2000G N1C.L2200G N1C.L3000G
Relative humidity
0～95%, non-condensation
Dimensions(mm)
(width*depth*height)
438*420*87 438*570*87
Weight(kg) 13.6 19.9 16.1
Specifications are subject to change without prior notice.
Page 53
N1C L-Series(1-3kVA) UPS
User Manual
B Acronyms and Abbreviations
45
B Acronyms and Abbreviations
A
AC Alternating Current
D
DC Direct Current
E
ECO Energy Control Operation
EPO Emergency Power Off
I
IEC International Electrotechnical Commission
L
LCD Liquid Crystal Display
P
PE Protective Earthing
Page 54
B A cronyms and Abbreviati ons
N1C L-Series(1-3kVA) UPS
User Manual
46
R
RS232 Recommend Standard232
S
SNMP Simple Network Management Protocol
U
UPS Uninterruptible Power System
USB Universal Serial Bus
Page 55
