myWall GHYZ1007 Installation & Assembly

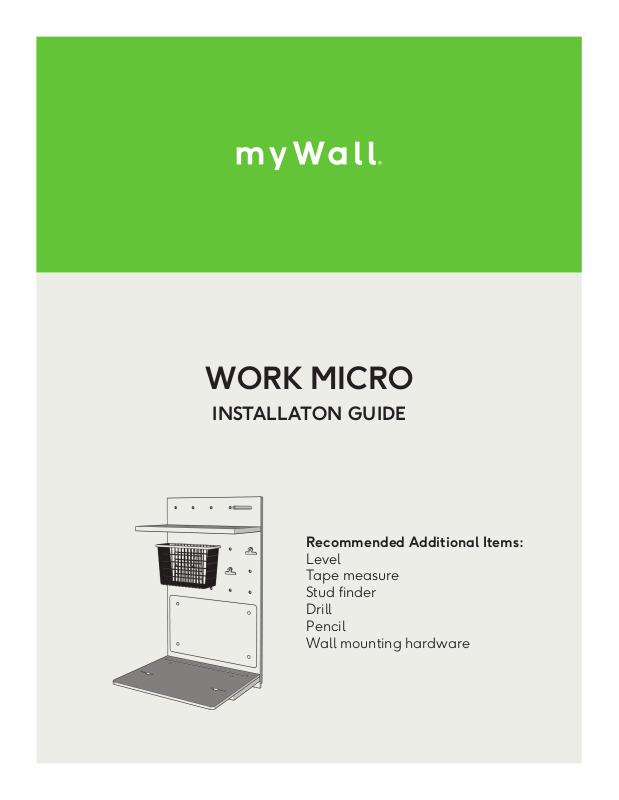

INSTALLATON GUIDE
Recommended Additional Items:
Level Tape measure Stud finder Drill Pencil Wall mounting hardware
WARNING:
Prior to mounting french cleat onto wall, check for proper mounting anchors to use. (drywall, metal studs, wood studs, or concrete block will all need different hardware)
WARNING:
Recommended use of side locking plate on walls after installation of each individual panel (this ensures the safety of panel attaching securely to french cleat)
STEP
1 Folder Holder
(includes 2 ­locking pins)
Unpack boxes
1
(Ensure all parts are included for your wall installation)
Shelf
(includes 3 pins)
130mm Pin
French Mounting Cleat
(mounting hardware NOT included)
Locking Plate
(includes 2 screws)
2 Small Paper Clips
(includes 2 - locking pins)
Magnetic Whiteboard
(includes 4 - locking pins)
myWall Panel
2 White PVC end-caps
(includes velcro)
Desk
(includes 3 pins)
Locate metal or wood stud locations on wall for mounting.
2
3
(Recommended use of a stud finder)
WARNING: Check for plumbing or electrical locations within wall.
Mark location for French Cleat.
French cleat height from floor to base of cleat can depend on use of panels.
Recommended height is 52.5 inches from floor to bottom of french cleat.
(Ensure that French Cleat mounts level)
(Ensure to shim if needed for cleat to be perfectly flat on wall)
4
5
Secure French Cleat to desired location with correct mounting hardware. (not supplied)
Ensure that your cleat mounts level
(Correct mounting hardware will depend on overall wall structure used for mounting. Mount directly into wood studs, metal studs, concrete block etc.) (Do not mount into drywall only) (use any hole or slot on french cleat to mount) (mount with a minimum of 2 screws)
Place your myWall panel on french cleat.
6
7
Attach safety locking plate to left or right side of mywall panels.
(Locking plate is only needed on one side of the panel)
Attach white PVC end-caps to each side of your myWall panel.
(Use supplied velcro to attach on each side) (The end-caps are used to hide the view of the hanging cleat hardware)
8
Attach your accessories to the panel and ENJOY.
RENEWABLE RESOURCES
The myWall system uses rubber wood, a renewable and sustainable byproduct of the latex industry.
Reduce: We work with our manufacturing partners to ensure we are leaving as small a carbon footprint as possible.
Re-use: Our products are durable and designed to last, cutting down the need to discard our products and purchase new ones.
Recycle: Our products and components use recycleable materials.
myWall is a registered trademark and patented product of Thinkterior Co. Ltd, Thailand.
All Rights Reserved. ©2020
AdaptivDC 42395 Ryan Road Suite 112 / PMB 212 Ashburn, VA 20148
800. 693. 0068 hello@adaptivdc.com adaptivdc.com
