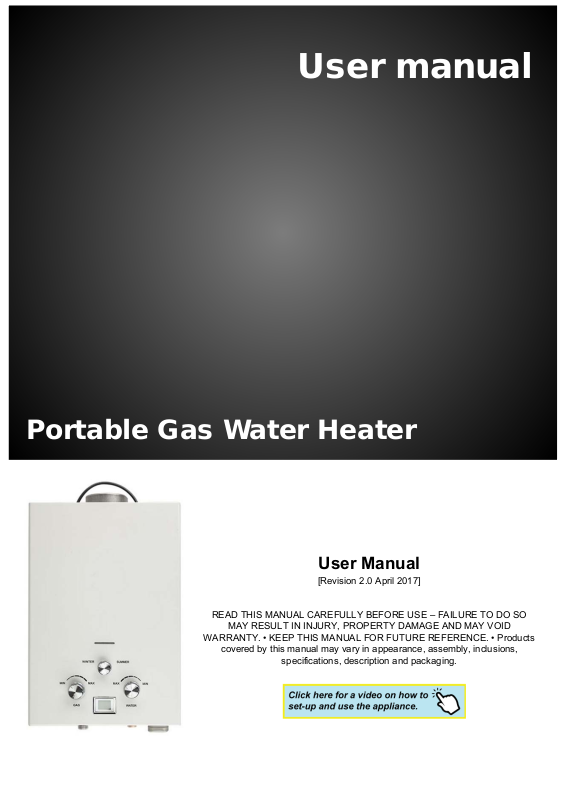

User manual
Portable G as Water Heater
User Manual
[Revision 2.0 April 2017]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO
MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID
WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products
covered by this manual may vary in appearance, assembly, inclusions,
specifications, description and packaging.
Table of Contents
Safety .................................................................................................................................................................. 2
Parts Identification.............................................................................................................................................. 7
Preparing the Unit for Use.................................................................................................................................. 8
Operation ........................................................................................................................................................... 9
Maintenance ..................................................................................................................................................... 10
Transporting / Stor age ..................................................................................................................................... 10
Troubleshooting ............................................................................................................................................... 11
Specifications ................................................................................................................................................... 12
2
2
Safety
General Safety Warnings
It is important you read and
understand the instruction manual
before first use and keep the
manual in a safe place for future
reference.
Safety precautions must be
observed to reduce the risk of
personal injury when operating
this appliance. If the information in
this manual is not followed, a fire
or explosion may result and may
cause death, serious injury or
property dam ag e.
CARBON MONOXIDE HAZARD!
This appliance can produce
carbon monox ide which has no
odour. Using it in an enclosed
space (for example, caravan, tent,
boat or car may cause death.
Hot water can scald: always check
the water temperature before
using this product water from the
heater may be very hot.
Propane Gas is extremely
flammable. Keep clear of naked
flames. Do not smoke near the gas
container or the water heater.
− Do not use the product if it is leaking,
damaged or it does not operate properly.
− This appliance shall only be used with the
Australian approved 1200mm propane gas
hose & regulator assembly supplied with the
appliance and must be connected only to a
propane gas cylinder certified to AS2469
standards fitted with POL connections only.
− It may be hazardous to attempt to fit other
types of gas con tainers.
− This appliance is to be stored in a dry & wellventilated location free from direct sunlight.
− Do not store when still connected to the
cylinder. Make sure that the cylinder is
disconnected and is stored in a wellventilated area, free from direct sunlight, heat
and ignition sources.
− This appliance must only be serviced or
repaired by an authorised service agent.
− T his applianc e is not intended for the suppl y
of drinking water. This appliance is intended
for the supply of heated water for the purpose
of washing and cleaning only.
− Check and confirm safe water temperature
before using this appliance. Water from this
appliance may be very hot.
− This appliance must be protected from rain at
all times.
− This appliance is designed for outdoor use
only.
− Use only i n well ventilated area s.
− A ccess ible part s may be very hot, keep
young children away.
− Do not use adaptors or modify the appliance
to fit other connectors or cylinders.
− Never leave children unsupervised near this
product.
− Never leave appliance unattended when
operating.
− Do not use as a cooking appliance or modify
for any other reason.
− The appliance must only be used outdoors
and is to be operated no closer than 500mm
from the sides and 1000mm from above to all
combustible surfaces, fabrics, flammable
materials & people.
− During operation ensure that both air inlets
and the top exhaust are kept free from
obstructions and closure.
− This appliance is designed to be hung upright
against a non-com b ustib le vertica l surface.
Do not operate from a non-upright position.
Doing so can be dangerous and will damage
the appliance.
− Do not expose yourself or others to danger.
− Do not permit others to use this product
unless they have read this manual and are
trained in its operation.
− Do not operate if the water heater is damaged
or in an excessively worn state.
− Do not use the unit if it is damaged or poorly
adjusted. Never remove the water heater’s
coverings. Serious injury to the operator or
bystanders could result as well as damage to
the water heater.
− Do not use this unit for any purpose other
than those for which it is intended as
described in this manual.
− Do not operate the water heater in the rain or
under wet conditions.
− Always ensure all handles and guards ar e
fitted when using the water heater.
− Always keep the water heater away from
naked flame or sparks.
− Always disconnect the gas and water supply
when moving between areas and when
transporting or storing the water heater.
− This product is only to be used with approved
gas hoses and regulators and must be
connected to a certified Propane gas cylinder
with AS2469 standard fittings.
− Keep all flammable material and liquids away
from the appliance.
140916130400
3
3
Gas Safety
- Never run the product indoors or in poorly
ventilated locations.
- To reduce the risk of serious or fatal injury from
breathing toxic fumes, ensure proper
ventilation when working in confined locations.
- This product produces toxic exhaust fumes as
soon as the water heater is running. These
fumes may be colourless and odourless and
contain unburned hydrocarbons and benzole.
- If you smell gas immediately turn the gas off at
the cylinder and move the appliance & cylinder
to a well-ventilated area outside, keeping well
away from sources of heat such as naked
flames & pilot lights.
- Do not attempt to move or relocate the
appliance while it is still operating. Extinguish
the burner and cool it down. Disengage the
gas cylinder then move the heater in desired
position.
- NEVER check for leaks near open fire, heat or
pilot light. Using soapy water, coat all
connections, if bubbles appear, turn the
cylinder gas control off and re-tighten
the connection before re-testing.
- If symptoms such as overheating of the
burners, issues with lighting, damages to
hoses or connections or leaks from seals or
gas controls are identified do not attempt to
repair, contact customer service.
- Do not attempt to fit other types of gas
containers or cartridges.
- Check all t he connections a nd make s ure all
the connectors are tight, double check the gas
cylinder connection if it is well tightened before
you turn the cylinder gas valve on.
- Check that seals betw een the appliance a nd
the gas container are in place and in good
condition before connecting the gas container.
- When using this product, children must be
supervised by an adult at all times. Never
leave the heater unattended while operating.
- Avoid twisting & kinking the Propane gas
hose.
- Do not attempt to move or relocate the
appliance when it is operating. Extinguish the
burner & allow it to cool. Disengage the gas
cylinder then move the appliance.
connection to the ga s cylinder in a clockw ise
direction.
- Check that al l connections are tig ht and that
the gas cylinder connection has been
tightened before you turn the cylinder gas
valve on.
- To check if gas remains in the cylinder,
disconnect from the appliance and hold the
cylinder in a vertical po sition t hen shak e from
side to side, if there is a sound or feel of liquid
movement inside the cylinder contains gas.
- When changing ga s cylinders ensure this is
conducted outside in a well-ventilated location
free from people, animals & ignition sources
such as naked flames, pilot lights & electrical
equipment such as heaters or elements.
- Inspect the appliance regularly for signs of
wear, leaks or incorrect operation. If symptoms
such as flaring of the burners, issues with
lighting, damages to ho ses or connections or
leaks from seals or ga s control s are identif ied
do not attempt to repair, contact customer
service.
- Always shut off the water heater before
attaching or changing gas bottles.
- To reduce the risk of serious or fatal burn
injuries, check for ga s leakag e. If gas leak age
is found, do not start or run the water heater
until leak is fixed.
- When changing gas cylinders make sure you
do so outside in a well-ventilated location
which is away from people, animals and
ignition sources such as open fire, pilot
lights and electrical equipment such as
heaters and cookers.
- Prior to disconnecting the gas cylinder check
that the appliance is fully extinguished, the gas
cylinder control valve is in the fully ‘off’ position
and all surfaces are cool. Loosen the
140916130400
4
4
Safety (continued)
This appliance must only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage is rapidly
dispersed by wind and natural convection. The following figures are diagrammatical representations of outdoor areas suitable for use with this appliance.
Rectangular areas have been used in these figures – the same principles apply to any other shaped areas.
CAUTION! Accessible parts may be very hot. Keep young children away.
WARNING! USE OUTDOORS ONLY
IMPORTANT! This appliance shall only be used in an above ground open air situation with natural ventilation, without stagnant areas, where gas leakage
and products of combustion are rapidly dispersed by wind and natural convention.
FIGURE 3 – Outdoor Area. With both ends open.
FIGURE 1 – Outdoor Area
FIGURE 2 – Outdoor Area
140916130400
FIGURE 4 – Outdoor Area. With the open side at least 25% of total wall area
and 30% or more in total of the remaining wall area is open and unrestricted.
5
5
FIGURE 5 – Outdoor Area. With the open side at least 25% of the total wall
area and 30% or more in total of the remaining wall area is open and
unrestricted.
140916130400
6
6
140916130400
7
7
Parts Identification
140916130400
8
8
Preparing the Unit for Use
This unit is not to be permanently plumbed into a
mains water system.
Before using the appliance, it is important to prepare
it by installing the correct adaptors to suit the
intended use
Gas fittings are standard 3/4" POL type. Water
fittings are standard 3/4". When replacing parts, use
approved replacements of the correct type only.
1. Remove all the components from the packaging.
2. Insert 2 D-size batteries into the battery compartment on the underside of the unit and close the compartment.
The appliance cannot be operated without batteries.
3. Wrap 6 to 8 rotations of plumbers / Teflon tape (available from
the thread of the gas connection on the underside of the unit, then fit the supplied "joiner" to it - ensure that the
rubber washer/seal is in the joiner before installing it. Use 2 suitable spanners - one to hold the nut on the
gas connector and prevent it from twisting, and the other to tighten the "joiner". Take care not to over-tighten as
this may damage the unit.
4. Wrap 6 to 8 rotations of plumbers / Teflon tape clockwise around the thread of the "joiner", then connect the gas
bottle hose to it. Use 2 suitable spanners - one to hold the joiner and prevent it from rotating, and the other to
tighten the gas bottle hose.
5. Connect the regulator end of the gas bottle hose to the gas bottle - ensure that the regulator has the rubber
seal installed. Rotate the securing nut on the regulator left (anti-clockwise) to connect to the gas bottle. Firmly
tighten by hand only.
6. Wrap 6 to 8 rotations of plumbers / Teflon tape clockwise around the thread of the cold water inlet, then connect
the water supply hose to it. If you are using spanners to connect the water supply hose - use 2 spanners - one to
hold the nut on the cold water inlet connector and prevent it from twisting, and the other to tighten the hose
connector. Take care not to over-tighten as this could damage the unit. If the water supply uses a standard
garden hose fitting, install the supplied male garden hose connection to the cold water inlet and tighten by hand.
7. Connect the shower head hose to the hot water outlet. It is optional but recommended to use plumbers / Teflon
tape. Firmly tighten by hand only.
(for example, mains water supply).
If using a water input source through a low voltage
pump, refer to the pump instruction manual.
Typically, connect the pump inlet to the water supply
(for example, bucket of water) and connect the pump
outlet to the appliance cold water inlet connection.
Connect the pump to the power supply (for example,
vehicle 12V system) and switch it on.
It is recommended to use a shower hose no less than
2 meters long.
hardware or plumbing supplies) clockwise around
140916130400
9
9
Operation
CAUTION: Position the gas cylinder away and to the side of the appliance; never place the gas cylinder
directly beside or above the appliance.
CAUTION: Use a suitable and sturdy, non-combustible object to hang the appliance from. The appliance must
have a minimum clearance of 500mm on each side and 1000mm from the top to any combustible surface,
fabric, flammable material, people etc.
IMPORTANT: Before use, check the gas connections for leaks - do NOT use a flame. Coat all connections
with soapy water, then turn the gas supply ON (rotate gas bottle valve left / anti-clockwise 1 full turn), and
observe the connections; if any bubbling can be seen, gas is leaking. If a leak is detected, turn the gas supply
OFF and check and re-tighten all connections, then re-test. Once you determine that there are no leaks
present, turn the gas supply OFF.
IMPORTANT: The appliance requires sufficient water pressure in order to ignite the burners. If the water
supply pressure drops or is turned off, the burners will shut off automatically. • The appliance is designed for
source water temperatures of 20°C or less, and is generally capable of raising the water temperature by
approximately 25°C, up to a maximum of 50°C. • If the output water temperature exceeds 50°C, the burners
will shut off automatically. To re-ignite the burners, turn off the water supply off, then on again.
CAUTION: Some accessible parts of the appliance may be very hot after use.
1. Ensure that the gas and water supplies are correctly connected and there are no gas leaks.
2. Place the flow regulation switch on the shower head in the OFF position.
3. Turn the gas supply ON (rotate gas bottle valve 1 left / anti-clockwise 1 full turn).
4. Set the gas flow rate control to the MAX position, and the water outlet flow rate control to the MIN position.
5. Set the water temperature
WINTER if the temperature is below 6°C.
6. Place the ON / OFF switch in the ON position.
7. Turn the water supply ON (for example, tap or pump). Water should NOT flow from the shower head.
8. When ready, place the flow regulation switch on the shower head in the ON position. Water will start to flow
through the shower head within a few seconds. Once there is sufficient water pressure and flow through the
appliance, the burners will ignite automatically (you should hear a series of clicks as they are ignited). The
burner flame can be seen through the appliance "viewing window".
9. After a short time, the output water temperature will increase - the temperature display shows the current water
temperature - adjust the temperature as required using the gas and water flow rate controls - for higher
temperatures, increase the gas flow rate and decrease the water flow rate. Caution: Test the water temperature
at the shower head, as it may be hot enough to cause injury.
10. When finished, turn OFF the gas supply, however, leave the water flowing through the shower head - when the
burners shut off, all gas has been removed from the plumbing. Then, place the flow regulation switch on the
shower head in the OFF position and turn the water supply OFF. Place the appliance ON / OFF switch in the
OFF position.
limiter control to the SUMMER position of the ambient temperature is above 6°C, or
140916130400
10
10
Maintenance
• Before each use, check that the screen filter on the ‘gas inlet’ and ‘water inlet’ pipes is in place and
cleaned of any particles.
• Inspect the appliance regularly for signs of wear, leaks or incorrect operation.
• Do not attempt any maintenance or repair work not described in the instruction manual. Have all other
work performed by a servicing dealer.
• All servicing and repair work must be performed by authorised service agents only.
• Using warm water and mild detergent to clean the surfaces of the appliance. Take care not to allow water to
enter the appliance, especially the burner outlets.
Do NOT submerge the appliance in
any liquid.
Do NOT use abrasives, bleach, harsh
detergents or flammable cleaners.
Transporting / Storage
1. Ensure the gas and water supplies are turned OFF and no gas remains in the plumbing or app
appliance and shower hose of any water etc.
2. Ensure the appliance ON / OFF switch is in the OFF position.
3. Carefully disconnect the gas and water connections from the appliance. For connections tightened with
spanners - use 2 spanners - one to hold the nut on the appliance connector and prevent it from twisting, and
the other to loosen the hose connector.
4. Disconnect the regulator and gas bottle hose assembly from the gas cylinder.
Propane gas cylinders
should be stored outdoors
in a well-ventilated area.
Propane gas cylinders
should not be stored
indoors.
Propane gas cylinders must
be stored upright.
Treat any gas cylinder that
has ever been filled as a full
cylinder, even if you believe
it to be empty.
Propane gas storage areas
must be free from sources of
ignition.
This appliance shall be
installed and operated in
accordance with (1) this
manual, (2) AS 5601 "Gas
Installations" and (3) any
other local relevant statutory
regulation.
Propane gas cylinders must
be installed and positioned
to conform with AS/NZS
1596.
liance. Drain the
140916130400
11
11
Troubleshooting
This guide should be followed in case of failure of the appliance to operate correctly. If symptoms persist, contact
customer service from where the appliance was purchased.
WARNING! DO NOT ATTEMPT TO REPAIR OR MODIFY THE APPLI ANCE
Problem Solution
Make sure you have new batteries installed in the correct position. Check the cap of the
battery case for instructions on how they should be installed.
The burners will
not ignite
Check for sufficient water pressure. The unit must have a minimum of approximately
15 kPa of sustained water pressure to activate the burners.
Check that the water inlet filter screen is clean. To flush the system you can reverse
the water
outlet pipe.
Check that the appliance ON / OFF switch and shower head flow regulator is in the
ON
New batteries may be required for the ignition switch. Verify that the batteries are
aligned in the proper polarity (+-). Check the battery case for instructions on how to
install the batteries properly.
connections by taking the water inlet pipe and connecting it to the water
position.
Water flows
through the unit
but is not hot.
Water is not hot
enough.
The unit starts for
a short amount of
time and then
shuts off
Check that the water pressure is at least 15 kPa to activate the burners.
Ensure that the gas supply is correctly connected and that there is adequate gas in
the cylinder.
Verify that the water supply inlet and outlet are connected properly. The shower head
should be attached to the water outlet and the water supply connected to the water
nlet.
i
Adjust the gas regulator and water regulator to the desired temperature. To
increase temperature;
regulator control toward MIN.
Check the source water tem
you may need to "cycle" the water through the system back into the water source
reservoir then through the appliance again to reach desired temperature.
Check if there is a blue flame in the "
could mean a breakdown in the gas regulator. If this is the case, STOP
appliance immediately and contact customer service.
Ensure the gas cylinder is not em pty. If using a new cylinder
and off several times by using the shower head switch to purge any air from the gas
lines.
This unit activates at a sustained water pressure of 25 kPa. If your water supplies water
pressure is below the minimum the unit will not ignite.
turn the gas regulator control toward MAX and the water
perature. If the source water temperature is too cold then
viewing window". If you see a yellow flame it
using the
; cycle the appliance on
140916130400
ake sure the water heater is protected from strong winds that may be extinguishing
M
the
burners.
12
12
Specifications
140916130400
Some experts believe the incorrect or prolonged use of almost any
product could cause serious injury or death. For information that
may re
duc
e your risk of serious injury or death consult thepoints
below and additionally, the information available at
www.datastreamserver.com/safety
- Consult all documentation, packaging and
product labelling before use. Note that some
products feature online documentation which
should be printed and kept with the p roduct.
- Check product for loose / broken / damaged /
missing parts, wear or leaks (if applicable) before
each use. Never use a product with loose / broken
/ damaged / missing pa rts, wear or leaks (if
applicable).
- Products must be inspected and serviced (if
applicable) by a qualified specialist every 6
months assuming average residential use by a
person of average weight and strength, ab ove
average technical aptitude, on a property
matching average metropolitan specification.
Intended use outside these guidelines could
indicate the product is not suitable for intended
use or may require more regular inspection or
servicing.
- Ensure all possible users of the p roduct have
completed an industry recognised training course
before being given access to the product.
- The product has been supplied by a general merchandise
retailer that may not be familiar with your specific applic ation or
your description of the applic ation. Be sure to attain third party
approval for your application from a qualified specialist before use
regardless of prior assurances by the retailer or its representatives.
- This product is not intended for use where fail-safe operation is
required. As with any product (take an automobile, aircraft,
computer or ball point pen for example) there is always a small
chance of a technical issue that needs to be repaired or may
require replacement of the product or a part. If the possibility of
such failure and the associated time it takes to rectify could in any
situation inconvenience the user, business or employee or could
financially affect the user, business or employee then the product
is not suitable for your requirements. This p roduct is not for use
where incorrect operation or a failure of any kind, including but
not limited to a condition requiring product return, replacement,
service by a technician or replacement of parts could cause a
financial loss, loss of employee time or an inc
onvenienc
e
requiring compensation.
- If this item has been purchased in error considering the poi nts
above simply contact the retailer directly for details of their
returns policies if required.
©2017 Red Track / Gecko / Termo Mate. All rights reserved. No part of this document, including
descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form
or by any means, electronic or mechanical, including photocopying, scanning or recording, or any
information storage and retrieval system, without express permission or consent from the publisher.
Loading...
