Mytek Protools-HD DIO Card – User Manual
Mytek Protools HD DIO Card
User Manual
ver. 1.1 / Oct 2010
© Mytek 2006
Mytek Protools-HD DIO Card – User Manual
This manual may be updated
Download the newest version at:
http://www.mytekdigital.com/documents library/
For technical support, technical tips and support check:
http://www.mytekdigital.com
or contact Mytek tech support at:
highend@mytekdigital.com
or at:
tel. (646)-613 1822
fax.(212)-202 5331
Mytek
151 Lafayette Street
New York NY 10013
USA
Digidesign Pro Tools ® is a trademark of Digidesign/Avid
Mytek Protools-HD DIO Card – User Manual
Content
Content..............................................................................3
Introduction......................................................................4
Before You Begin..............................................................4
Quick Start.........................................................................5
Card Installation...............................................................7
Connecting Clock Signal Line.......................................12
Input Connection............................................................14
Signal Routing................................................................15
Launch and Configuration............................................17
Typical Configurations..................................................19
Software Update.............................................................26
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 3 / 29
Mytek Protools-HD DIO Card – User Manual
Introduction
The Mytek Protools-HD DIO Card is a physical card that plugs
into the back of the Mytek 8X192 ADDA converter.
With this card installed the Mytek 8X192 ADDA can be directly
connected to the Core, Process or Accel interface cards of
Digidesign Pro Tools HD ® systems.
The card may be installed by the user as described further in the
manual. The 8X192ADDA with the card installed will be
recognized by Protools HD® software as an emulated HD192
interface.
Before You Begin
Before connecting the DIO-HD card check if the most current
firmware (version 4.5.3 or later) is installed in the
8X192 converter. To verify the version locate the firmware chip
on the main converter board, or please contact Mytek for
additional assistance.
(If necessary contact Mytek to request appropriate firmware.)
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 4 / 29
Mytek Protools-HD DIO Card – User Manual
Quick Start
1. DIO-HD card installation
Remove the top cover from the converter, unscrew
DIOCARD1 slot plate (first slot from the right while looking
at the rear panel) and install the DIO-HD card using
provided screws. Double check that all the connector pins
match properly with the pins of the connector on the main
converter board.
2. Connecting the card to Protools HD ® system
The Pro Tools card must be connected to the Primary Port of
the DIO-HD card. A maximum of two converters (which can
be of different brands) can be connected to each Protools
card. In the case of more than one converter, the second one
should be daisy chained from the Expansion Port of the first
converter to the Primary Port of the second.
3. Connecting the clock signal
The first converter in the Pro Tools system must operate on
internal clock and is the system clock master. We
recommend always making Mytek the master as it
incorporates a superior clock generator with multiple
wordclock outputs. When a 192 I/O Digidesign interface is
connected in the slave configuration, WCK on the front
panel of Mytek converter must be set to FS/4.
4. Hardware Setup Configuration
Choose Setup > Hardware Setup and check sampling
frequency, clock signal (should be set to Internal) and
confirm Input and Output interfaces are present. Every
converter in the menu should be Set to Default
Remember to turn off
power, and disconnect
power and signal cables
while working with the top
cover removed.
Turn down the amplifier
and speakers connected to
the computer while
launching the Pro Tools
application.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 5 / 29
Mytek Protools-HD DIO Card – User Manual
5. Routing configuration within converters
The Mytek 8X192 ADDA SOURCE TO DIGITAL OUT
defines sources of audio signals that are sent from the
converter to the ProTools system and all other digital
outputs (all digital outputs are simultaneous). SOURCE TO
ANALOG OUT defines sources of audio signals that are
transmitted to the DAC in the converter.
6. I/O signal configuration

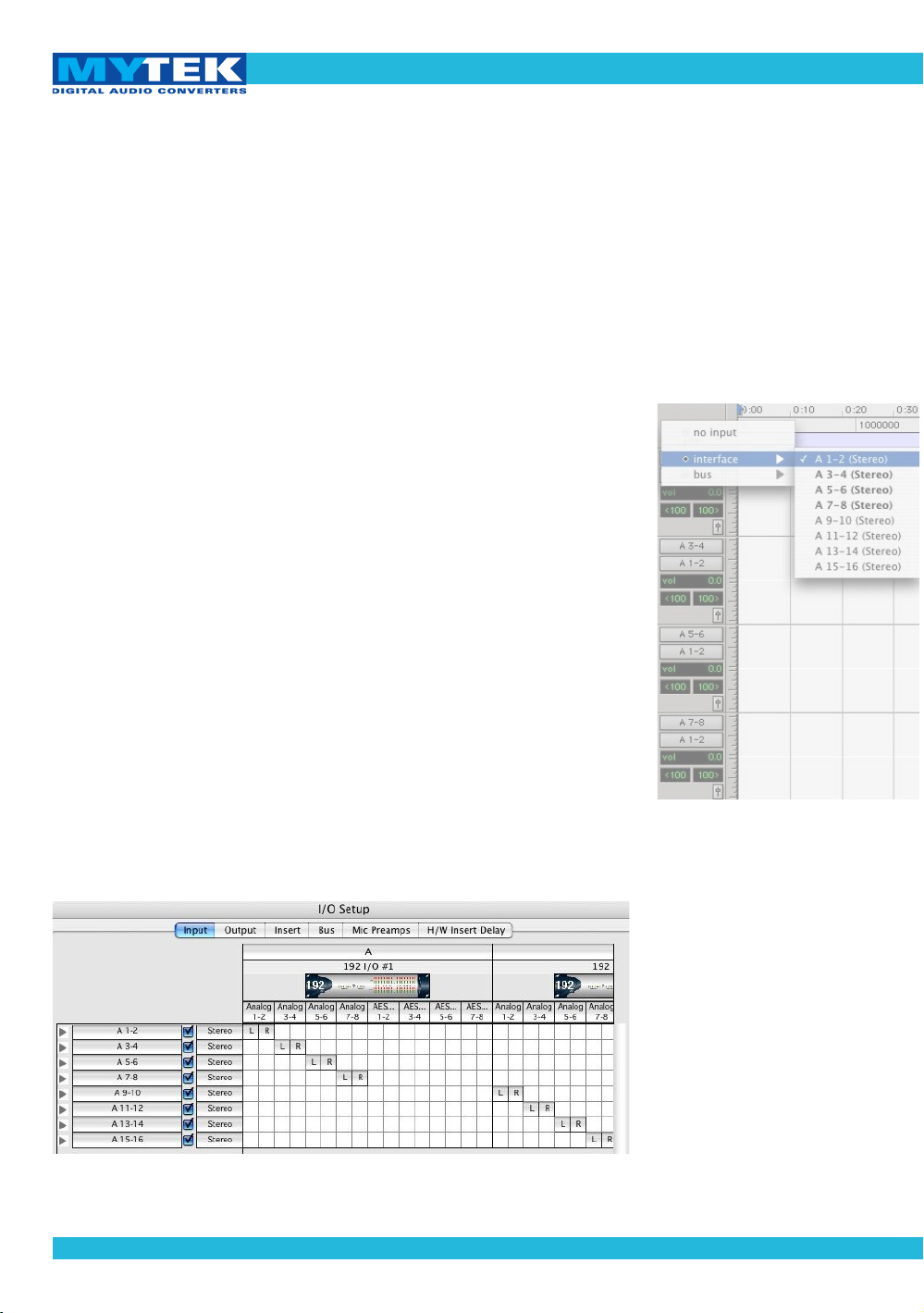

In Setup > I/O Setup you can assign signal sources to
interfaces.
7. Input selection – start of recording
Choose preconfigured inputs and outputs in Pro Tools, test
record, and then playback of selected audio tracks.
Remember that 8x192
ADDA converter has eight
channels. Selecting
channels 9-16 as audio
sources will result in no
signal (digital silence).
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 6 / 29
Mytek Protools-HD DIO Card – User Manual
Card Installation
Only a single Protools-HD DIO Card can be installed in one
converter. A different format card can be installed in the second
slot. The HD DIO card must be installed in the DIOCARD1 slot,
which is first from the right at the converter’s rear panel.
8x192 ADDA converter’s rear panel
WARNING!
Remember to follow basic safety rules about handling of
electronic devices while opening the converter:
✔ keep your hands dry,
✔ turn off power and detach power and signal cables
while working with the top cover removed.
To install DIO-HD card:
1. Find the DIOCARD1 expansion slot at the mainboard’s
layout
2. Check if the power cord and all signal and clock lines
are disconnected.
Before you install the card
in the converter, check if
converter’s firmware
supports DIO-HD card
(version v.4.5.3 or later). If
not, contact your Mytek to
request current version.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 7 / 29
Mytek Protools-HD DIO Card – User Manual
3. Remove top cover.
4. Locate the DIOCARD1 expansion slot on the mainboard.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 8 / 29
Mytek Protools-HD DIO Card – User Manual

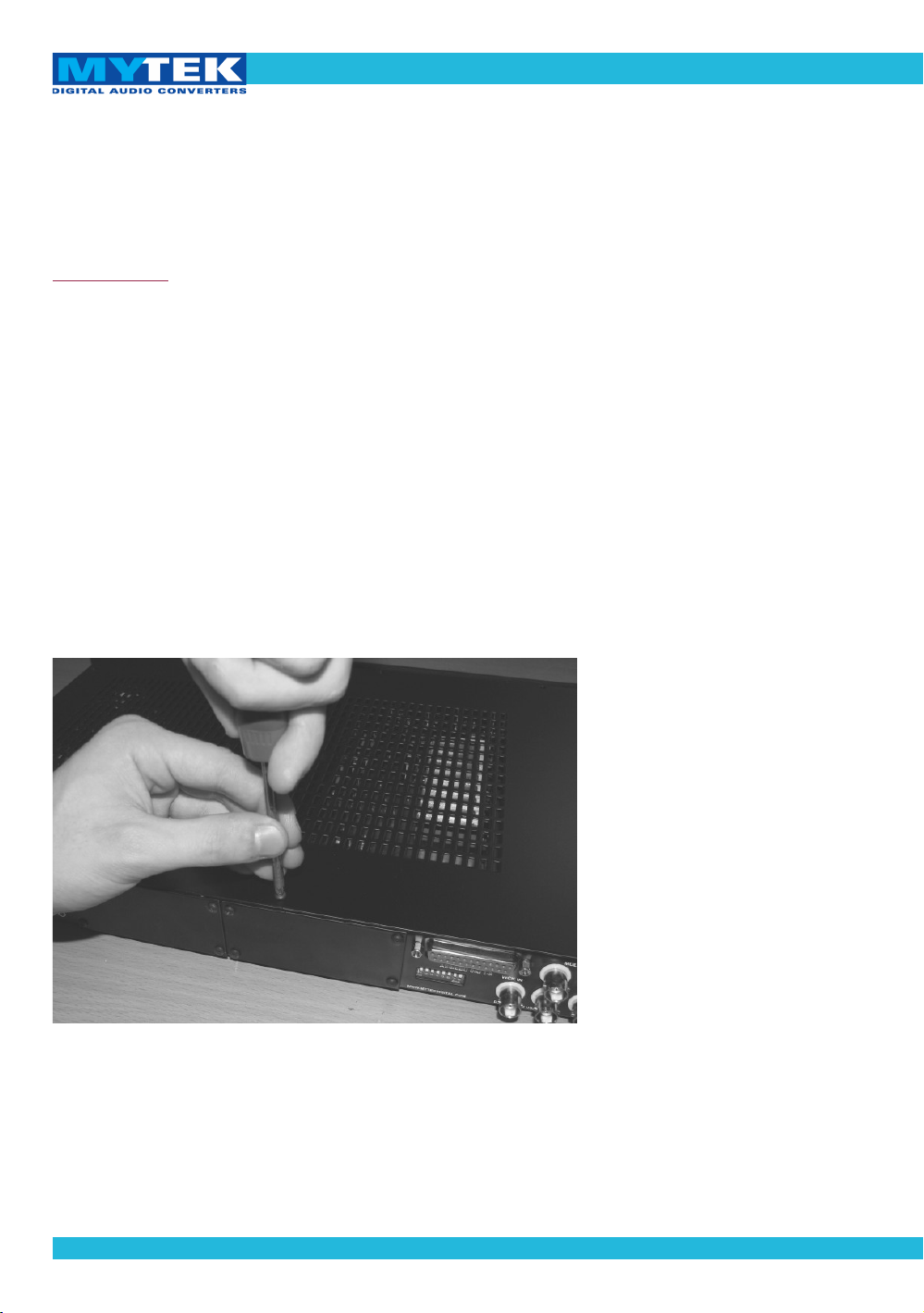

5. Unscrew cover plate of DIOCARD1 slot from the rear
panel.
6. Partially insert the card from the back of the converter.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 9 / 29
Mytek Protools-HD DIO Card – User Manual

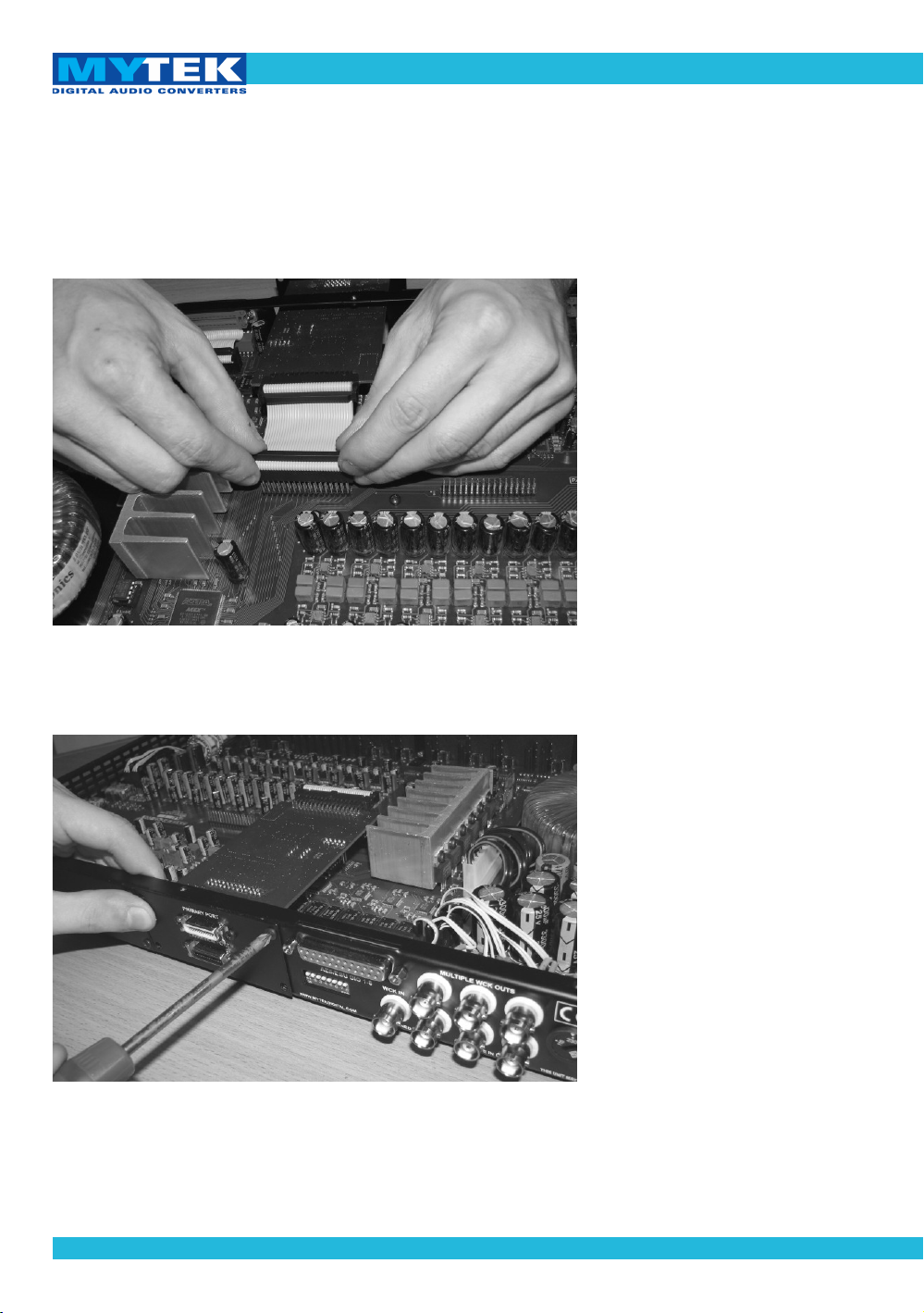

7. Attach card ribbon cable to DIOCARD1 connector on the
mainboard.
8. Gently push the card inside and secure it using four
screws
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 10 / 29
Mytek Protools-HD DIO Card – User Manual

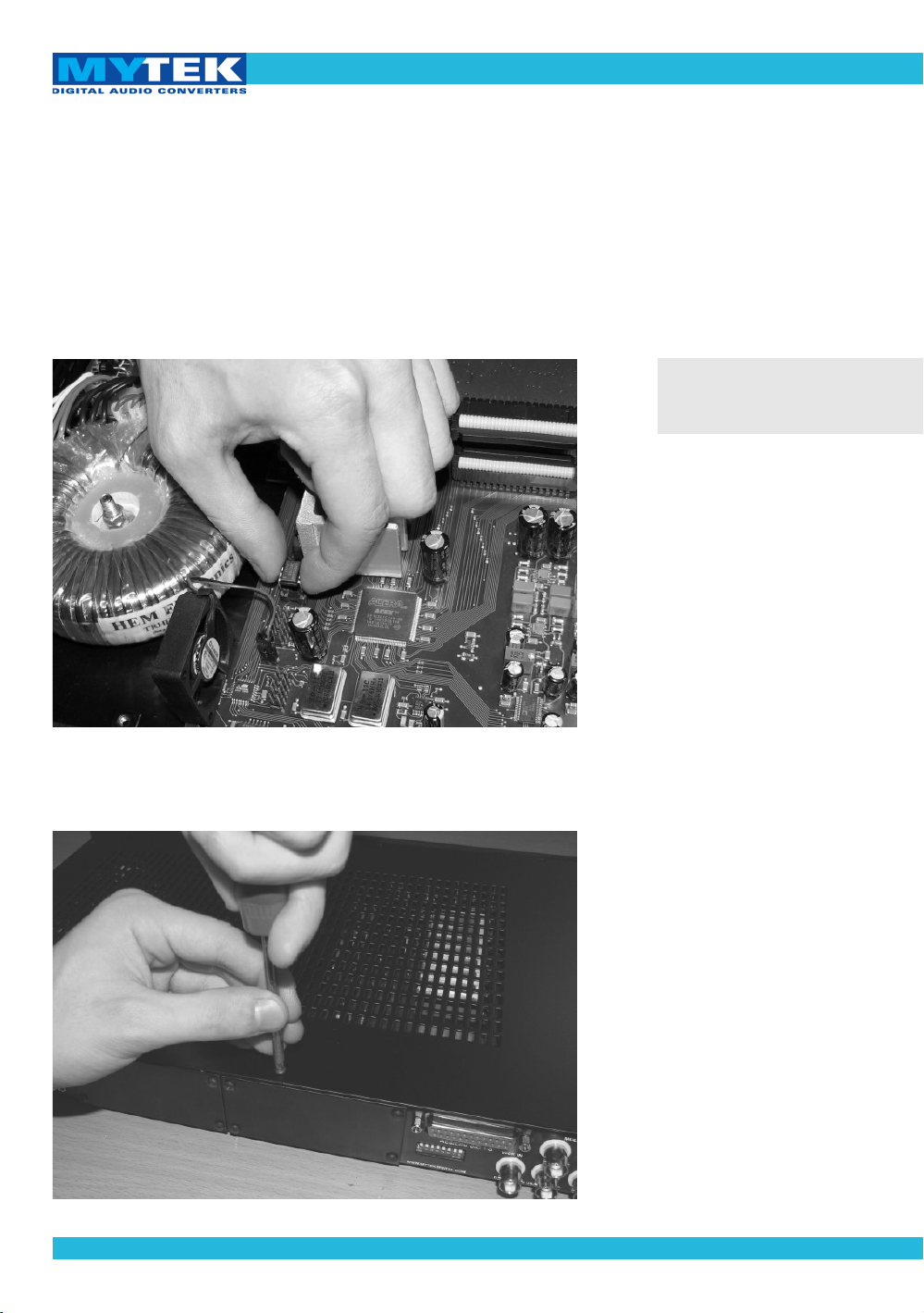

9. Screw in converter top cover.
10. Connect power and signal lines.
11. Turn the converter on.
After boot up (which takes approx 20 sec) converter will switch
to regular mode, and Protools-HD DIO Card (DIOCARD1) can
now be selected as signal source.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 11 / 29
Mytek Protools-HD DIO Card – User Manual
Connecting Clock Signal Line
Single converter
If a single converter is used in the system, choosing internal
clock is the best solution. If external clock is used for
synchronization, SAMPLE RATE must be set to EXT. To do this,
press and hold EXT CLOCK SOURCE switch.
Regardless of synchronization source, choose in Pro Tools
software: Setup > Hardware Setup and select Internal on the Clock
Source tab.

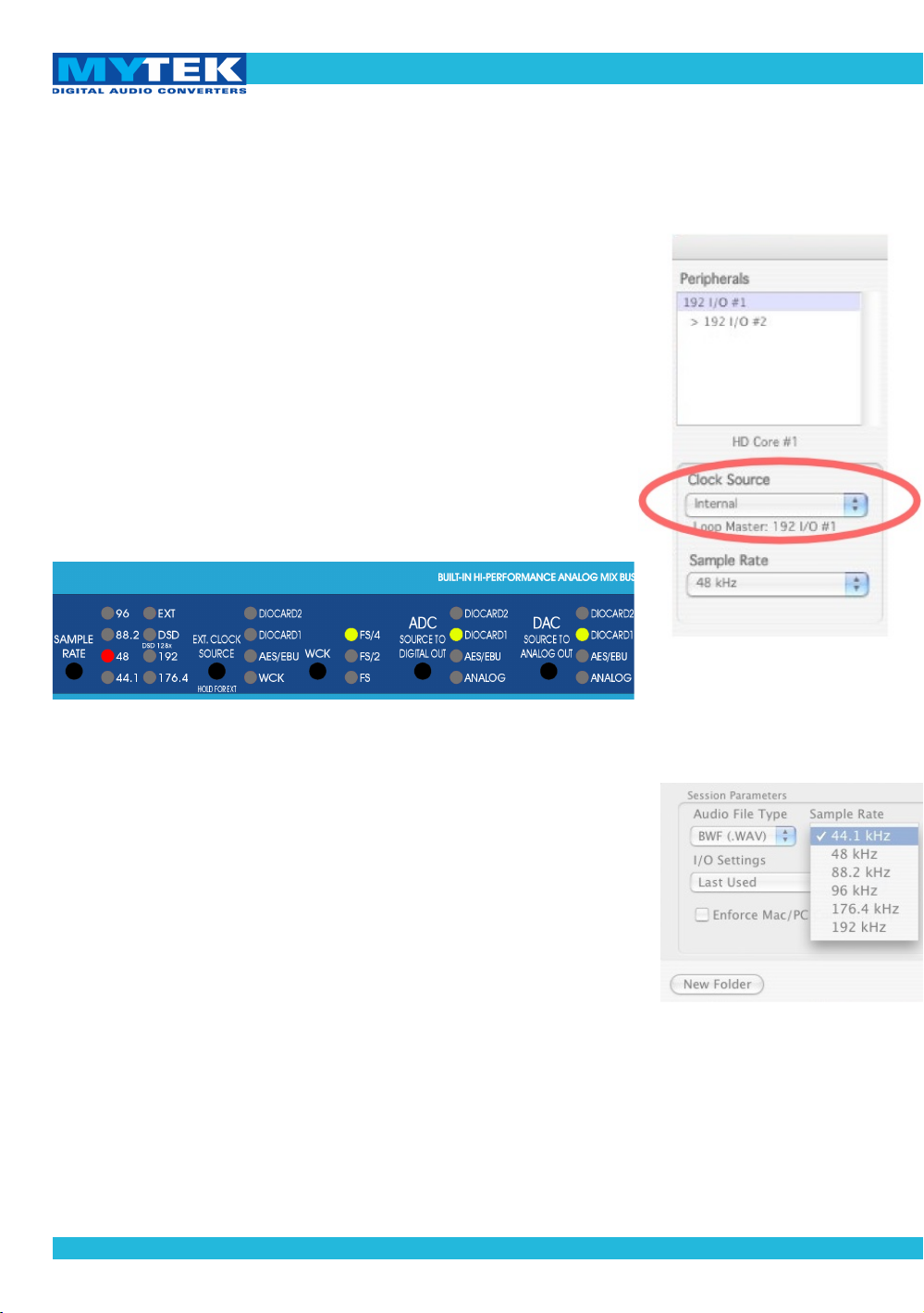

Master 8x192 ADDA converter’s front panel
Clock source is typically internal, choose external only if you must
use it for systemic reasons.
Check if the selected sampling frequency of the converter (FS)
matches the sampling frequency in Pro Tools. If FS is double or
quadruple of external clocks frequency, WCK option must be set
to FS/4. FS/4 is the default setting and must be used whenever
multiple Digidesign I/O units are used in addition to master
8X192ADDA.

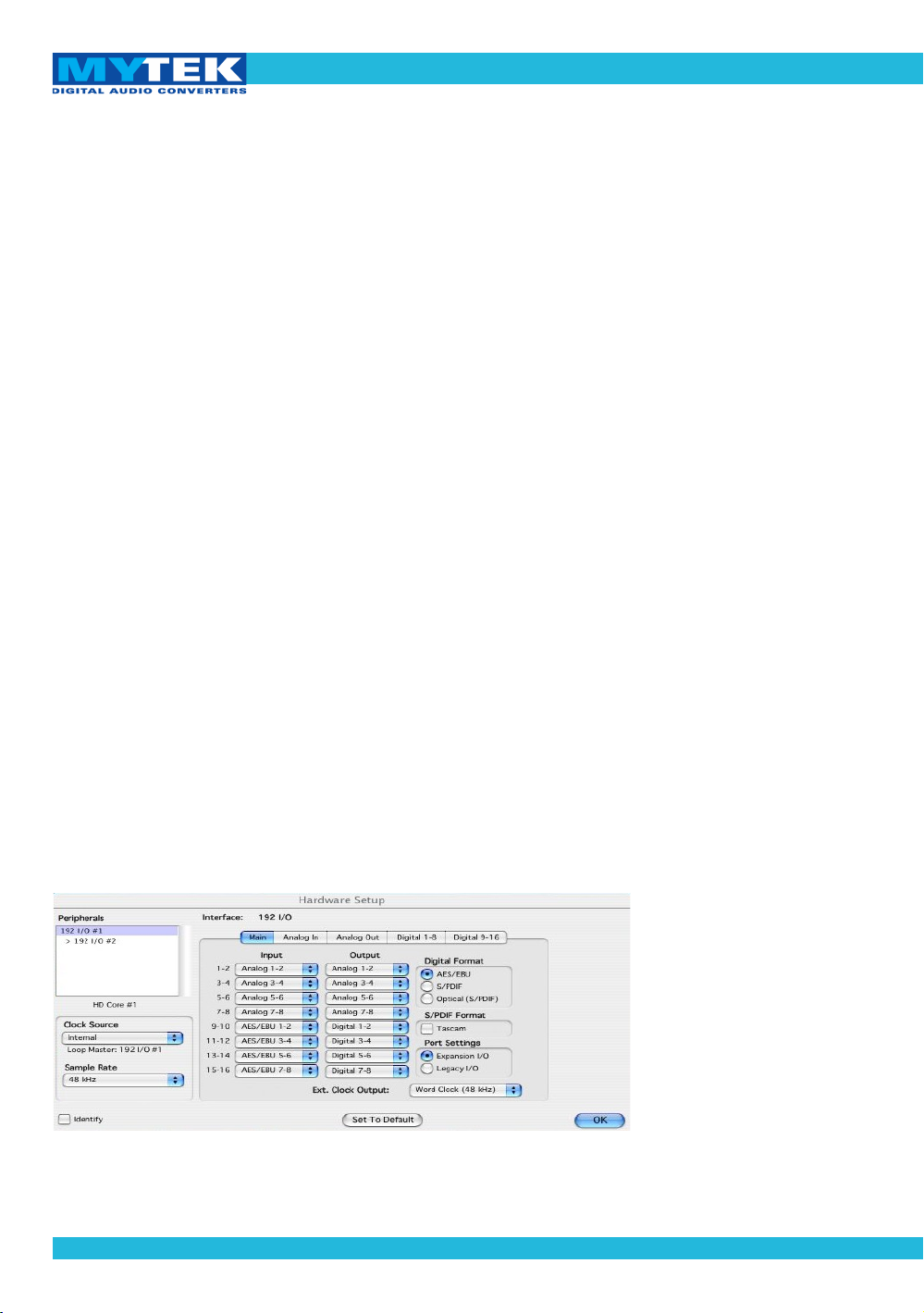

Setup > Hardware Setup
File > New Session
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 12 / 29
Mytek Protools-HD DIO Card – User Manual
Multiple converters
A Protools HD system can accept up to two converters
connected to each card. Various brands can be mixed as long as
they are all capable of emulating the Digidesign HD192 I/O
interface. If multiple converters are used, one serves as a source
of the clock signal (Master), with the rest of the devices receiving
it (Slave).
Our recommended setup is to use the Mytek 8X192ADDA as
the clock source feeding all other converters from multiple
wordclock outputs to all slave devices in a star configuration.
8X192 ADDA converter has 6 clock outputs. Clock signal
originates from the very precise CX797 module. Because of
that 8X192 ADDA converter is the best clock signal source
in the majority of multiple devices configurations

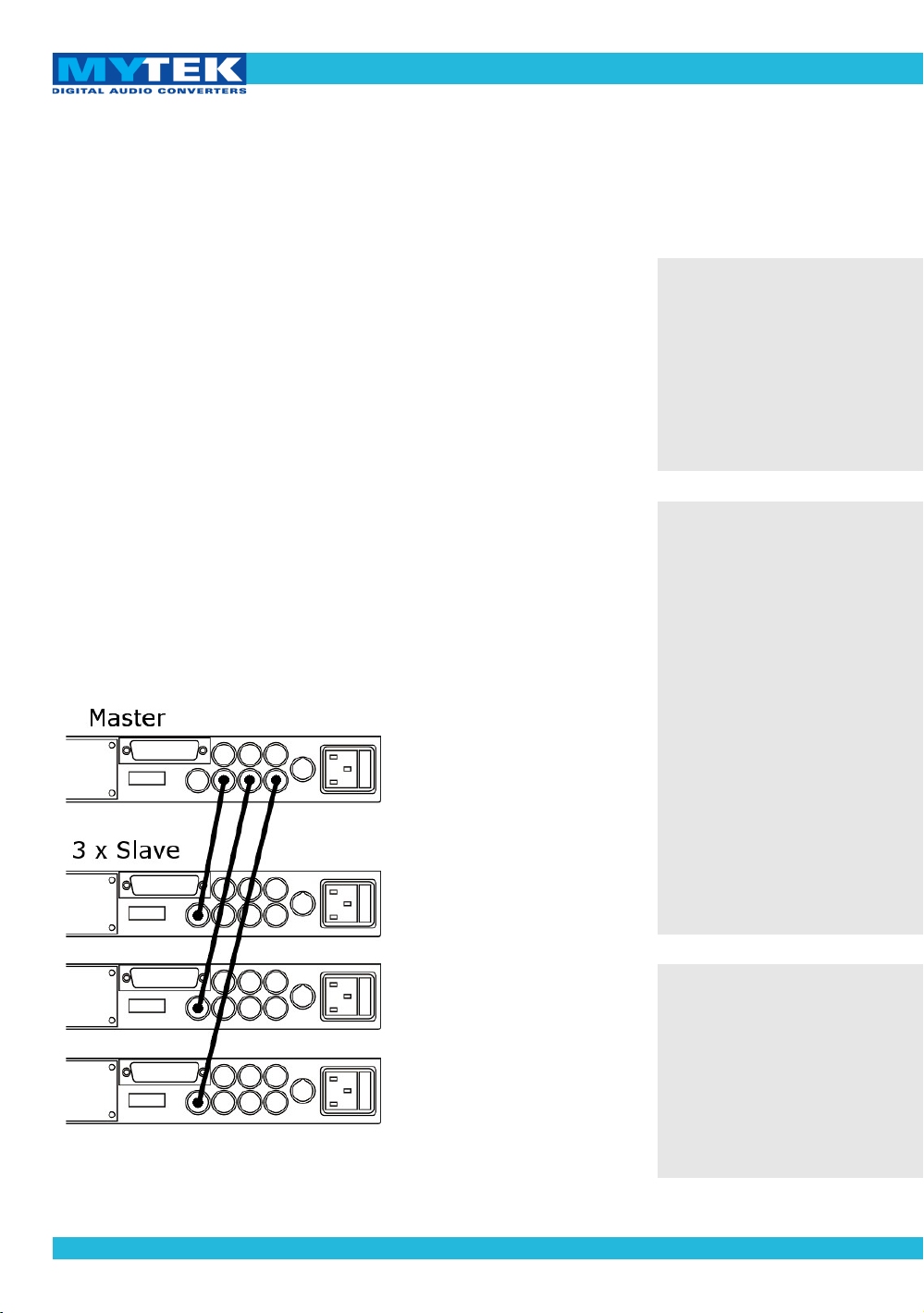

Wordclock connections in a Protools HD system with 3 Mytek 8X192
ADDAs
In system with multiple
units, double check that the
configuration of clock signal
lines, synchronization
sources and sampling
frequency’s of all converters
in the system are correct.
Correct clock configuration
is necessary for proper
operation of converters and
for best sound quality.
Make 1st Mytek in the chain
the clock master for the
whole studio. There is no
benefit of using a dedicated
house clock generator.
Clocking off Mytek internal
clock generator produces
superior results because the
clock and clock line high
current drivers are the best
in the industry.
Changing external
synchronization source
while the program is
running may result in
improper operation of
converters and loud cracks
in the analog section.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 13 / 29
Mytek Protools-HD DIO Card – User Manual
Input Connection
The Protools DIO-HD card features two connectors: Primary
Port and Expansion Port. Functionality of these connectors is
identical to Pro Tools system. Up to 8 8X192 ADDA Mytek
Digital converters can be daisy chained or mixed with
Digidesign HD-192 and other brands that emulate an HD-192.
Output connectors on the back of Ptools-HD-DIO card.
Protools computer interface card should always be connected to
the Primary Port in the Master device, which operates as a clock
signal source. Then, Expansion Port can be connected with
Primary Port of a different Slave device. Devices are visible in
Setup > Hardware Setup menu of the Pro Tools application.
Setup > Hardware Setup
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 14 / 29
Mytek Protools-HD DIO Card – User Manual
Signal Routing
While Protools software allows for up to 16 channels of input or
output, only 8 inputs and outputs are active when Mytek 8X192
ADDA is used.
Input
Audio signals transmitted from the 8X192 ADDA converter
originate from the source selected by the switch SOURCE TO
DIGITAL OUT. If ANALOG is selected, 8 analog channels will
show up as inputs in Protools software. If AES/EBU is selected,
8 digital channels will be present as inputs (only 4 if dual wire
AES/EBU mode is used!). Similarly other types of digital inputs
depending on the second DIO CARD2 installed can also be
used. If DIO CARD1 is selected as input, signal output from
Protools will be routed back into Protools inputs. The actual
signal flow in the 8X192ADDA is available in a form of
schematics in the 8X192ADDA manual.
After selecting channel sources in the converter, you can choose
channels selected for recording in the Pro Tools application. In
Setup > I/O Setup you can freely assign track sources to each
interface channels and then assign them to particular tracks.
Setup > I/O Setup
Editing panel – selecting input
interfaces
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 15 / 29
Mytek Protools-HD DIO Card – User Manual
Output
To playback signal from Protools to the converter's analog
outputs DIOCARD 1 SOURCE TO ANALOG OUT should be
selected. If SOURCE TO DIGITAL OUT is set to DIOCARD1 as
well audio is relayed from the Pro Tools system to the converter
DAC (analog out) and to AES/EBU outputs as well as other
digital outputs if installed.
The actual signal flow in the 8X192ADDA is available in the
form of schematics in the 8X192ADDA manual.
The Protools tracks to be sent to the 8X192 ADDA can be
selected in the ProTools software. In Setup > I/O Setup you can
assign interfaces to signal outputs, later assigned to tracks in the
Pro Tools application.
While track outputs are assigned to channels in the Protools
software, the actual signal routing of the incoming 8 channels to
the converter's physical inputs and outputs must be done
manually on the converter front panel ( SOURCE TO ANALOG
OUT and SOURCE TO DIGITAL OUT). This routing may
initially appear confusing, but after studying the signal flow
diagram in the 8X192ADDA manual you will find it makes a lot
of sense by providing very useful system flexibility.
Editing panel – assigning
output channels
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 16 / 29
Mytek Protools-HD DIO Card – User Manual
Launch and Configuration
After the card installation in the converter, and after each
hardware configuration change, interface controls must be
configured in the Pro Tools application during the first launch.
This is performed the following way:
1. Double check the cables connecting the converter with
the Pro Tools card are properly attached.
2. Turn the converter on.
3. Check if clock signals are properly configured and active
(solid lock, in case they are transmitted from an external
device).
4. Launch the Pro Tools application.
5. In Setup > Hardware Setup check if attached converters
were properly detected. 8X192 ADDA Mytek Converter
with Protools DIO-HD card is detected as 192/IO in the
Pro Tools system.
Setup > Hardware Setup
When the Pro Tools
applicatin is running do not
turn the converter on or off.
Always quit the application
before turning off converter.
Take special precautions
and turn down the output
or volume to the amplifier
and speakers while
launching the ProTools
application.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 17 / 29
Mytek Protools-HD DIO Card – User Manual
6. Select each converter and press Set to Default to set the
application in the normal work mode.
7. In Setup > I/O Setup configure the routing according to
your needs, while keeping in mind the 8X192 ADDA
converter has only eight channels.
Setup > I/O Setup
If the converter is not attached to the Pro Tools systems, it can
be used as a standalone device as if no DIO-HD card was
installed. The DIO-HD card is disabled until it is connected to
the Pro Tools systems and the application is launched on a
computer.
When the application is launched, control over converter’s
sampling frequency is assigned to software. It is the only
available option in Setup > Hardware Setup which influences
converter’s configuration. Other settings, such as selection of
input or format of digital signal are ignored and should not be
changed. Before launching the application pay special attention
to clock signal source setting in the converter.
Remember that 8x192
ADDA converter has eight
channels. Selecting
channels 9-16 as audio
sources will result in no
signal (silence).
Setup > Hardware Setup
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 18 / 29
Mytek Protools-HD DIO Card – User Manual
Typical Configurations
Single 8x192 ADDA converter
1. Connect the 8X192 ADDA (through Primary Port) to the
Pro Tools interface card in a computer.
2. Turn on the computer and converter.
3. Set the converter to work with internal clock.
✔ EXT LED shouldn’t be lit.
✗ If LED is lit, press and hold EXT CLOCK SOURCE
button.
4. Launch the Pro Tools application.
5. Open Setup > Hardware Setup and check:
✔ Is the 8X192 ADDA Mytek Digital converter
properly detected as 192 I/O?
✔ Are input and output signals assigned in the Input
and Output tab?
✗ If not, close the Pro Tools application, turn off the
converter and check connection between the HDDIO card and the computer.
Setup > Hardware Setup
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 19 / 29
Mytek Protools-HD DIO Card – User Manual
6. If hardware configuration was changed, open Setup >
Hardware Setup and press Set To Default.
7. Set Clock Source as Internal.
8. Open or create new project with a chosen frequency.
✔ LED indicating operation on the chosen frequency
should lit on the front panel of the converter.
✗ If LED is not lit or other frequency is indicated,
check the connection between the DIO-HD card and
the computer.
9. Use SOURCE TO DIGITAL OUT and SOURCE TO
ANALOG OUT buttons to set the correct signal flow in
the system.
✔ Use SOURCE TO DIGITAL OUT button to select
audio signals relayed from the 8X192 ADDA
converter to the Pro Tools system and converter’s
digital outputs.
✔ Use SOURCE TO ANALOG OUT to select signals
relayed to converter’s analog outputs.
10. In Setup > I/O Setup configure the routing according to
your needs, keeping in mind that the 8X192 ADDA
converter has eight channels.
Setup > I/O Setup
File > New Session
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 20 / 29
Mytek Protools-HD DIO Card – User Manual
11. In the editing panel assign input and output channels
according to the I/O Setup configuration and converter’s
front panel.
Editing panel – selecting input interfaces
Editing panel – selecting output interfaces
12. The converter is ready to work.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 21 / 29
Mytek Protools-HD DIO Card – User Manual
Two 8x192 ADDA converters, first on internal clock
(clock master), second as slave
1. Connect 8X192 ADDA converters to the Pro Tools card
in a computer.
✔ Computer should be connected to the Primary Port of
the first converter, while its Expansion Port should be
connected to the Primary Port of the second
converter.
2. Choose which converter will operate as a clock signal
source (Master).
3. Use a BNC cable to connect the clock signal output of
the Master converter to the clock input of the second
converter (Slave).
4. Turn on the computer and converters.
5. Set the Master converter to work with internal clock.
✔ EXT LED should not be lit.
✗ If LED is lit, press and hold EXT CLOCK SOURCE
button.
6. Set the Slave converter to work with the external clock.
✔ Press and hold the EXT. CLOCK SOURCE button.
✗ If EXT LED is lit and WCK LED flashes, check if
clock inputs and outputs in converters were
correctly connected and the same SAMPLE RATE
sampling frequency and WCK frequency split rate is
set in both converters.
7. Launch the Pro Tools application.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 22 / 29
Mytek Protools-HD DIO Card – User Manual
8. Open Setup > Hardware Setup and check:
✔ Are 8X192 ADDA Mytek Digital converters properly
detected as 192 I/O?
✔ Are signals input and output of each converter
assigned in the Input and Output tab?
✗ If not, turn off the Pro Tools application and
converters and check the connections of clock signals
between converters as well as the connections
between DIO-HD cards and with computer.
Setup > Hardware Setup
9. If the hardware configuration was changed, open Setup >
Hardware Setup and press Set To Default.
10. Set Clock Source as Internal.
11. Open or create new project with a chosen frequency.
✔ LED indicating operation at the chosen frequency
should be lit on the front panel.
✗ If LED is not lit or another frequency is indicated,
check the connection between DIO-HD cards and
with the computer.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 23 / 29
Mytek Protools-HD DIO Card – User Manual
12. Use SOURCE TO DIGITAL OUT and SOURCE TO
ANALOG OUT buttons to set desired signal flow in the
system.
✔ Use SOURCE TO DIGITAL OUT button to select
which audio signals are sent from the 8X192 ADDA
converter to the Pro Tools system and converter’s
digital outputs.
✔ Choose the signal transmitted to converter’s analog
output by pressing SOURCE TO ANALOG OUT
button.
13. In Setup > I/O Setup configure the routing according to
your needs, keeping in mind that 8X192 ADDA
converter has eight channels.
Setup > I/O Setup
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 24 / 29
Mytek Protools-HD DIO Card – User Manual
14. In the editing panel assign input and output channels,
according to the I/O Setup configuration and converter’s
front panel.
Editing panel – selecting input interfaces
Editing panel – selecting output interfaces
15. Converters are ready to work
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 25 / 29
Mytek Protools-HD DIO Card – User Manual
Software update
WARNING!
Remember to follow basic safety rules about the handling of
electronic devices while opening the converter:
✔ keep your hands dry,
✔ remember to turn off power and disconnect power
and signal cables while working with the top cover
removed.
To perform firmware update of 8X192 ADDA converter:
1. Check if the power cord and signal and clock lines are
disconnected.
2. Remove the top cover.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 26 / 29
Mytek Protools-HD DIO Card – User Manual
3. Locate the memory socket on the converter main board.
4. Gently remove old memory chip.
To avoid damaging memory
pins, remove the chip
vertically. Retain old
memory chip.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 27 / 29
Mytek Protools-HD DIO Card – User Manual
5. Carefully insert new memory chip in the socket. The
chip slot (pin1) should be matching the socket slot ie
must be facing back of the unit. If necessary gently
manually bend pins inward, to match the holes in the
slot.
6. Mount the top cover back.
During installation check
correct chip orientation.
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 28 / 29
Mytek Protools-HD DIO Card – User Manual
7. Attach power cord and other cabling.
8. Turn on the converter.
For about 2 seconds no LED's should be lit on the
converter’s front panel, as new software is copied from
memory to the main board chips. Then, all LED's should
turn on momentarily for about 10-20sec, and subsequently
the unit should begin normal operation.
The Protools HD DIO card also contains a similar EPROM
memory chip that may require future upgrades should
such a need arise due to Protools software revisions or
implementation of additional features.
Check Mytek webpage for information on the latest
firmware versions.
www.mytekdigital.com
User Manual ver. 1.1 / oct 2010 www.mytekdigital.com Page: 29 / 29
Loading...
