Instructions for
®
Speedster
Please read before use.
Register your product
at www.mytee.com/help
LTD3, LTD5 & LTD12
LTD3 p.2
LTD5 p.9
LTD12 p.16
General & Maintenance information p.23
Model #
Serial #
Form # ADM-SLTD
3-12
13655 Stowe Dr., Poway, Ca. 92064
1
Page 2
SPEEDSTER® LTD3
12
SPEEDSTER® LTD3 BACKSPEEDSTER® LTD3 FRONT
1
2
13
11
10
9
8
1. Switch Plate
2. 2” Male Cuff-Lynx™ Inlet
3. Prime Value
4. Female Quick Disconnect (QD)
5. Front Handle
6. Pressure Regulator
7. Front Fan
8. Side Vents
9. Solution Lid
10. PSI Gauge
11. Recovery Lid
12. Push Handle
3
4
23
14
5
22
21
20
6
15
7
19
18
17
13. Recovery Tank
14. Solution Tank
15. 4” Locking Casters
16. 10” foam lled
semi-pneumatic wheels
17. Hour Meter
18. Power Cords
16
19. Auto Fill/Pump Out
Hose Connections
20. Solution Tank Drain
21. Service Latches
22. Rear Vacuum Exhaust
Optional Mufer Port
23. Recovery Tank Drain Valve
SPEEDSTER® LTD3 ITEMS INCLUDED
H110 Cuff-Lynx™ H141 Cuff-Lynx™
2” x 2” Hose Adapter 2” x 1.5” Hose Reducer
FILTERS
G008 - Pack of Piglet™
lters
H375- Hose Hanger H226 Drain Elbow
(4) screws
SPEEDSTER® LTD3 CORD
(Primary) Right Cord: Plug in yellow-tagged power cable
for Power To Vac 1, Pump, & 600W Heater.
(Secondary) Left Cord: Plug in power cable for Vac 2,
Pump-Out & 1,000W Heater.
Yellow tag
indicates primary
cord.
Plug each power cord into a separate, 20A grounded wall outlet.
Outlets must be on two separate breakers. When the amber
light on the switch plate illuminates and the audible tone sounds,
the machine is on separate circuits (not necessarily 20A circuits).
You can identify the primary cord by the yellow tag.
2
Page 3
SPEEDSTER® LTD3
SPEEDSTER® LTD3 VAC/SOL
HOSE CONNECTIONS
Attach female end of a solution hose to a wand or tool and the
male end to the LTD’s QD. Then connect a vacuum hose to a
wand and the 2” male Cuff-Lynx™ hose port. (If using the optional
de-foamer, install the kit onto the vacuum port according to the
instructions that come with the de-foamer kit.)
SPEEDSTER® LTD3 SWITCHES
Vac 1 Vac 2 Pump
To use vacuum, turn on Vac 1 and Vac 2. To use pump, turn on
Pump. To use pump-out, turn on Pump-Out switch. To use Heater,
turn on Heater.
Pump
out
Heater
SPEEDSTER® LTD3 PRIME VALVE &
PRESSURE REGULATOR
Prime the pump by having the Prime Valve parallel with its pipe
and turn it clock-wise to run the pump. Turning the Pressure Regulator to its left will decrease water pressure and turning to the right
will increase water pressure.
*Please refer to the Pressure Gauge to monitor your water pressure.
SPEEDSTER® LTD3 FILL SOLUTION TANK
You can lift the lid to manually ll the tank or follow the “Operating
Instructions” for auto-ll use.
3
Page 4
SPEEDSTER® LTD3
SPEEDSTER® LTD3
FLOAT SWITCHES
Electronic shut-off
switches prevents
water from getting
into the vacuum stack
& monitors water level
in solution tank.
VAC STACK
The LTD is equipped with an electronic oat switch inside the
recovery and solution tank. The recovery oat switch is activated
by rising water to prevent suction into the vacuum stacks damaging the motors. The solution oat switch shuts off the auto-ll once
water lever reaches switch.
SPEEDSTER® LTD3 AUTO-FILL CONECTIONS
Using one end of a ½” garden hose, attach it to the mounted
connection behind the LTD unit, then attach the other end to the
desired faucet connection. Turn on the faucet water and let the
auto-ll begin to ll. It will shut off when the water level reaches
the LTD’s electronic oat switch.
SPEEDSTER® LTD3 PUMP-OUT CONNETIONS
Using a separate ½” garden hose, attach one end to the LTD’s
mounted pump-out connection and lay the other end of the hose
in a drainable location. With the pump-out switch activated and
the valve parallel with its pipe, the unit will automatically drain
water from the ll tank while the auto-ll maintains water levels.
Make sure ball valve is open!

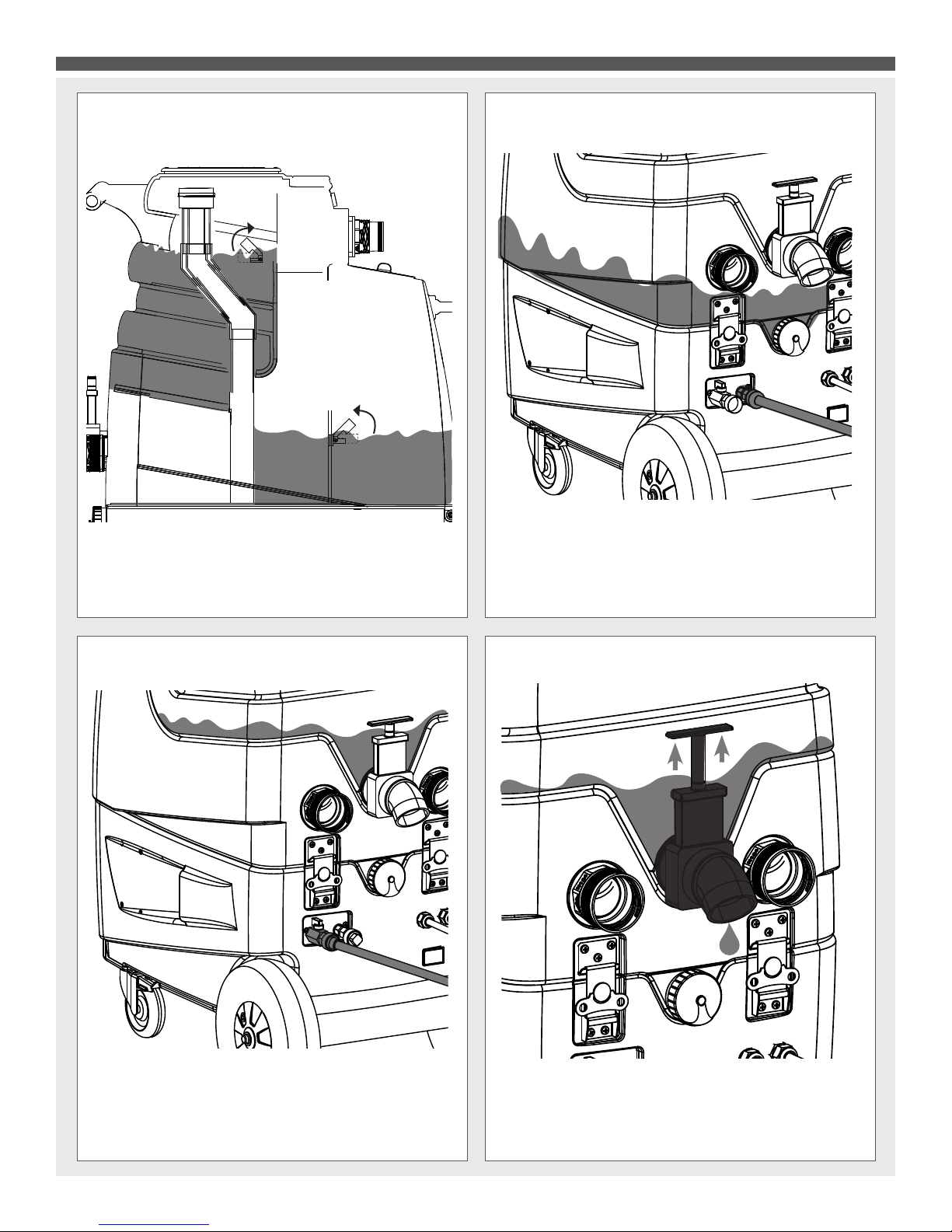

SPEEDSTER® LTD3 RECOVERY DRAIN VALVE
Make sure the Auto-Fill is turned off and then locate and lift the
bucket high drain valve on the rear of the LTD unit to empty
the tank.
4
Page 5
SPEEDSTER® LTD3
SPEEDSTER® LTD3 SOLUTION TANK DRAIN VALVE
LOOSEN
TIGHTEN
To remove any remaining water in the solution tank, located
on the back of the unit is a cap, twist and remove cap to
empty tank.
SPEEDSTER® LTD3
FILTER MAINTENANCE
VACUUM
STACK
FILTERS
(2)
PUMP OUT
FILTER
INTAKE
REGULATOR
BY PASS FILTER
The LTD’s ve internal lters must be cleaned regularly and are
located in the locations listed in the following diagram. Twist the
lters to remove them then clean and replace in original locations.
If a lter is torn or damaged, replace with a new one.
FILTER
SPEEDSTER® LTD3 TANK LATCHES
& PUMP HOUR METER
The rear latches can be unlatched from the lower half of the
unit to open it for internal repairs and cleaning. To unlatch, ip
and twist latches. The hour meter activates when the pump
is turned on. This helps monitor usage and when to make oil
changes. Refer to p. 24 for oil maintenance instructions.
MYTEE® SYSTEM MAINTAINER
Weekly ushing of the solution system with Mytee System Maintainer helps keep lines clean and prevents chemical build-up,
improving pump life, performance, and pressure.
5
Page 6
2
2
NAME
DATE
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MYTEE PRODUCTS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MYTEE PRODUCTS, INC. IS PROHIBITED.
D.Cano
02/23/12

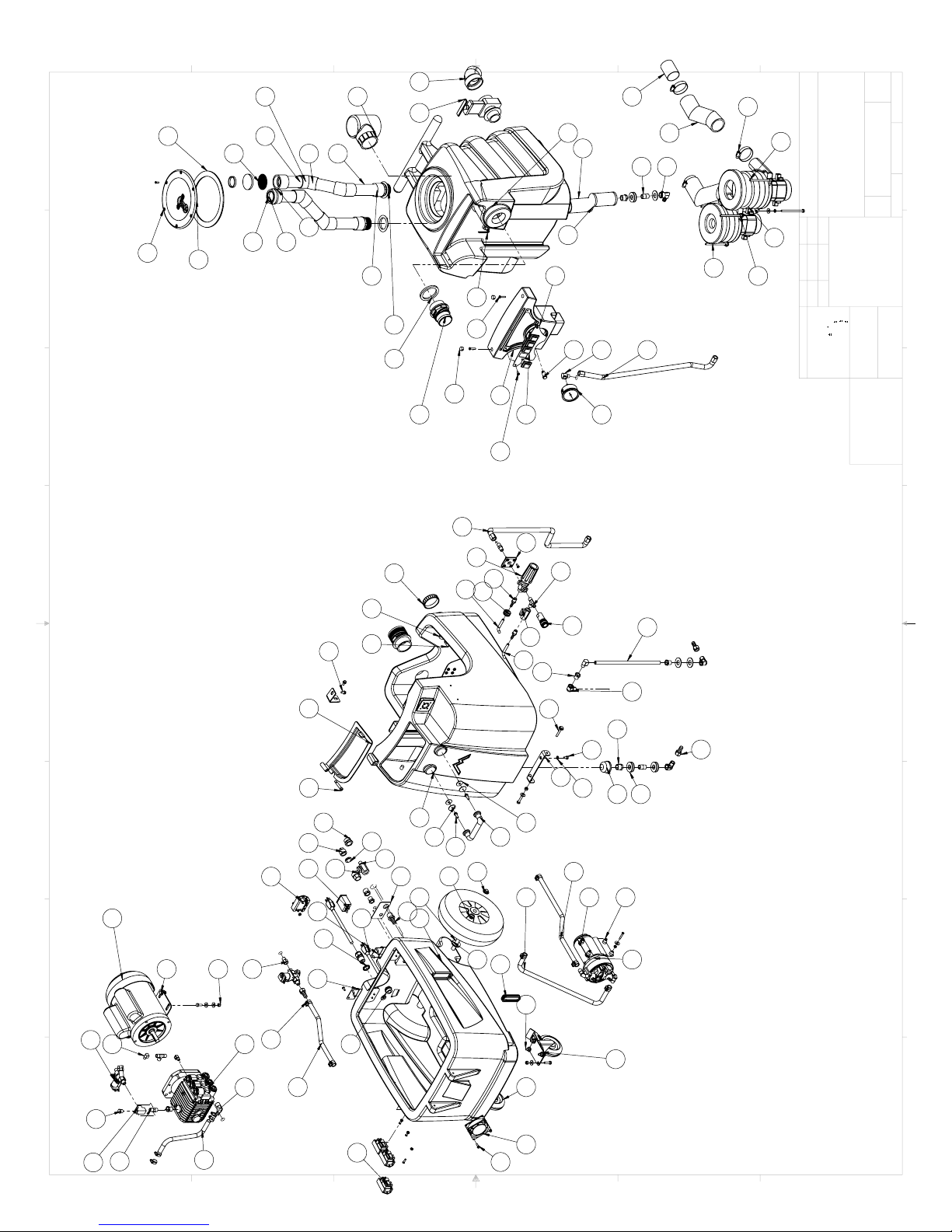

SPEEDSTER® LTD3 PARTS & PRICING
MSRP
1 $24.49 ea
3
4
QTY
DESCRIPTION
strip, LED indicator lights
ITEMS NOT SHOWN
E512C
PART NO.
$6.29 pak
1
1 $3.99 ea
1 $3.99 ea
1
1 $3.99 ea
2 $74.99 ea
1
piglet filter
Cuff-Lynx, 2: x 1.5" reducer
Cuff-Lynx instruction guide
power cord, ext 50', 12/3, black
stop sign, register your product
Cuff-Lynx, 2" hose x 2" fem swivel
Cuff-Lynx, female swivel x female thread, 2"
E530
H141
H140
H110
G008
AD127
ADM-Cuff Lynx
3
4
5
MSRP
$4.99 ft
$4.99 ft
4 $4.99 ea
2 $2.99 ea
2
QTY.
DESCRIPTION
6
adapter, pvc, 1-1/2" mpt x 1-1/2" fms
P520
PART NO.
67
NO.
ITEM
MSRP
7
18 $1.99 ea
QTY.
1 $11.99 ea
pipe, pvc, 1.5"
pipe, pvc, 1.5" 2
gasket, 7", vac lid
adapter, 1.5" pvc, 45 deg, fslip x fslip
P503
4.375
G091
PH633-
PH633-6
70
69
68
71
ea
$8.99 ft
$8.99 ft
$187.49
1
1
1
24 $0.99 ea
$4.99 ft
2 $4.99 ea
2 $4.99 ea
2 $2.99 ea
1 $36.99 ea
6 $0.99 ea
pipe, pvc, 1.5" 2
lid, vac tank, black, 7"
screw, #8 x 5/8 phil oval, s/s
adapter, 1.5" pvc, fslip x fslip
screen, mesh filter, 2-3/8" dia
P502
H304
G090
72
73
2 $0.99 ea
2 $79.99 ea
4.125
G021
G022 filter, foam, 2-3/8" x 1"
PH633-
77
76
75
74
2 $19.49 ea
1 $9.99 ea
6 $0.99
2 $2.99 ea
1 $13.99 ea
1 $15.99 ea
1 $99.99 ea
LX series vac tank
elbow, inlet assembly 2"
1 $9.99 ea
1 $20.99 ea
1 $3.19 ea
sleeve, mesh, filter
valve, drain, 1-1/2"
spout, drain, 45 degree
mesh filter, auto dump, 1/2" npt
A926
78
P510
79
H225
80
H226
81
G028
82
H333
83
$8.99 ft
3 $3.19 ea
1
1 $21.49 ea
1 $9.49 ea
ea
$8.99 ft
$139.99
2 $4.48 ea
3 $91.99
1 $62.49 ea
2 $14.69 ea
1 $14.49 ea
2 $8.99 ea
gasket, vacuum motor
check valve, vac motor
elbow, brass, 90 deg, 1/2" barb x 3/8" fpt
B236
P504
G004
86
85
84
ea
ea
$569.99
$359.99
1
1
1 $29.99 ea
2
2
4 $1.49 ea
2 $9.99 ea
Level Switch Control
clamp, hose, 2-1/4 dia
vac hose, 2", black, wire reinforced
H217
H194 coupler, 2" dia x 2.5"
PH628-7
87
88
89
controller, circuit light
plug, vent, heyco, 1/2"
vac motor, 3 stage, low amp
E628
E564
H434
C302LP
93
92
91
90
$8.99 ft
1 $49.99 ea
2 $17.99 ea
2 $16.49 ea
2 $78.99 ea
1 $51.99 ea
1
1 $27.99
1 $4.49 ea
1 $27.99
2 $4.99 ea
2 $0.99
1 $6.99 ea
tee, brass, 1/4" fpt
plug, brass, 1/4"mpt, hex
bracket, regulator, panel mount
coupling, brass, 1/4" fpt x 1/4" fpt
elbow, brass, 90 deg, 1/4" mpt x 1/4" mpt
B136
B142
B127
B113
H044
AH184 hose, 3/8" x 14-1/2" (OAL), f
98
97
99
96
95
94
ea
$196.99
2 $13.99 ea
1
2 $1.99 ea
3 $3.49 ea
2 $3.19 ea
$6.49/ft
1 $35.99
2 $22.99 ea
1 $5.99 ea
2 $8.99 ea
4 $0.99
28 $0.99
1 $3.99 ea
1 $3.99 ea
1
oxide
filter, strainer, 1/4"
ball valve, 1/2" m x 1/2" f 1 $13.49 ea
sol hose, 1/4", 300psi, black
fitting, brass, 3/4" mgh x 1/2" fpt
hour meter, panel mount, analog
adapter, brass, 1/4" sw barb x 1/4" fpt, w/gasket
E369
PH634-23
102
103
B196
B656A
104
105
3 $8.99 ea
9 $0.99 ea
B119
B110
100
101
2 $11.49 ea
1 $9.49 ea
washer, 1/4" flat, s/s
bolt, 1/4-20 x 1" hex head, s/s 8 $0.99
level switch, vacuum shut-off, rear threads
hose, pulse, blk, 49" (OAL), 1/4" fsw x 1/4" fsw
screw, 10-32 x 1-1/4", phil flat full thread, black
E373
H185
H210
108
109
3 $2.49 ea
110
1 $8.99 ea
1 $6.49 ea
H342
111
1 $6.99 ea
AH117
106
2 $1.99 ea
2 $0.99
1 $23.99 ea
2 $0.99
4 $0.99
10 $0.99
14 $0.99
nut, lock, 1/4-20, nylon insert, s/s
screw, 10-32 x 3/4, phil flat full thread
H186
H216
113
112
1 $8.99 ea
2 $1.99 ea
10 $0.99
screw, 10-32 x 1" phil pan
bolt, 1/4x20x3/4" hex head
H202
H231
114
115
1 $141.99
2 $6.99 ea
bolt, 1/4-20 x 1/2", hex head, zinc
screw, 10-32 x 1/2" phil pan head, s/s 20 $0.99
hose, 3/8" x 6.5", (OAL), f x fsw, 5400 Gray
screw, #6 x 3/16, phil pan head, self-tapping
H201
H274
H230
AH156
119
118
116
117
1 $3.49 ea
1 $86.99 ea
2 $3.99 ea
1 $4.99 ea
$6.49 ft
4 $0.99
1
4 $0.99
2 $0.99
1 $0.99
2 $0.99
8 $0.99
washer, 1/4" lock, s/s
washer, 1/4"id x 1"od, flat, s/s
bolt, 5/16" shoulder x 1-1/2" lg, alloy
bolt, 1/4-20 x 1/2" serrated hex flange, zinc
bolt, 1/4-20 x 3/4" serrated hex flange, zinc
H650
H770
H211
H768
H213
121
120
1 $13.49 ea
2 $1.99 ea
123
122
1 $17.99 ea
2 $5.49 ea
PH634-36 sol hose, 1/4", 300 PSI
125
124
1 $23.99 ea
1 $38.99 ea
2 $0.99
6 $0.99
2 $0.99
bolt 1/4-20 x 4, s/s
plastite screw, 10 x 1"
screw, 10 x 5/8" hex head, zinc
bolt, 1/4-20 x 1 3/4" hex head, s/s
H204
H031
H343
H096
129
127
128
126
2 $5.99 ea
1 $14.99 ea
4 $13.99 ea
1 $7.99 ea
1 $1.99 ea
1 $26.49
1 $9.99
1 $9.99 ea
plate, back, LTD
filter, 60 mesh, garden hose
sol hose, 1/4" x 24 1/2", (OAL)
light, indicator, 125v (amber)
B640
H039
E512B
AH108S
130
131
133
132
2 $1.99 ea
1 $23.99 ea
1 $3.99 ea
1 $2.49 ea
5
6
7
DESCRIPTION
8
PART NO.
ITEM
pump out, 115v
nut, kep, #10-32 zinc
clamp, hose, 5/16-29/32
sol hose, 1/2", 3045psi, black
sol hose, 1/2", 3045psi, black
H347
H273
C381
PH615-9
PH615-37
1
2
3
4
NO.
5
wheel, 10", pneumatic
H109
H219 cap, axle, 1/2"
H232 axle, 19.75" x .50"
7
6
8
F
LX series side vent
fan, cooling, 115V
washer, axle, cut 1/2" id
P514
H254
9
10
sol hose, 1/2", 3045psi, black
caster, 4", black hub & gray tread
H668
11
bushing, brass, 3/8"mpt x 1/4" 4 $3.19 ea
elbow, brass, 90 deg, 1/2" barb x 3/8"mpt
B105
B172
C317
PH615-18
14
15
12
13
nipple, brass, 1/4"m, hex
valve, solenoid, 1/4", 115V 1 $89.99 ea
B197
B107
17
16
E
heating rod, 600W, 115V
pump head, general, 2.1 GPM
bracket, heater mounting, dual
motor, for pump, 0.5 HP, 1725 RPM
E571
H528
C332
C330
18
19
20
21
heating rod, 1000W, 115V
Thermostat, 200°, Auto, 1/4"
heater, aluminum cast, single
Thermostat, 310°F ± 10°F, Manual, 1/4"
elbow, brass, 90 deg, 1/4"mpt x 1/4" fpt 6 $4.49 ea
E574
E573
B103
H903A
22
23
24
25
valve, solenoid, 1/4", 115V 1 $89.99 ea
sol hose, 1/2", 3045psi, black
adapter, brass, 1/2" barb x 3/8" fsw, ball end
E519
B197
B160
PH615-26
26
29
27
28
D
LX series base
latch, front breeze
nut, lock, 1/2" steel
P511
H486
H221
31
32
30
fitting, strain relief, cord
swivel, brass, 3/4" fgh x 1/2" fpt 1 $5.49 ea
power cord, pigtail, 30", 12/3, black
adapter, brass, 1/2" barb x 1/2" mpt
E550
B642
B132
H220
33
34
36
35
nipple, brass, 3/8" x close
plug, brass, 3/4", garden hose 1 13.99 ea
washer, 11/16"id x 1-1/2"od x .075, s/s
elbow, brass, 90 deg, 3/8"mpt x 3/8" fmpt
B216
B186
B221
H299
39
40
38
37
C
6
filter, strainer, 1/2"
handle, breeze and dx
bracket, front hinge, sp/fb
bushing, brass, 1/2"mpt x 3/8" fpt, hex
B210
H485
H378
B119A
44
43
42
41
LX series sol tank
LX series sol tank lid
bracket, "L" (all extracters)
washer, buna 1-1/8" od x 3/16" id
P513
G052
46
45
cap, 2.5" threaded, tethered
Cuff-Lynx, 2" mpt x 2" female cuff
P509
H124
G036
H390A
50
49
47
48
Part prices are subject to change.Order parts at: www.mytee.com/products/product.php?id=LTD3
ball valve, 1/4''
qd, brass, 1/4" f
tee, brass, 1/4" mpt
plate, mounting, QD
regulator, 450 psi, silver spring
adapter, brass, 1/4" barb x 1/4" mpt
B109
H484
C313C
51
52
53
B
nipple, 12" x 1/4" npt, m x m
B102
B115
B656
B135
56
57
54
55
light, red, 250v
gauge, pressure, 2000 PSI
E511
H308D
58
59
LX series switchbox
switch plate, lx, 5 hole
switch, rocker, 3 position
switch, rocker, 2 position
E516
E515
P512
H075
60
61
62
63
A
gasket, 2" inlet
nut, lock, 1-1/2", steel
Cuff-Lynx, 2" m cuff x 2" mpt
8
H314
H135
G083
66
64
65
Page 7
SPEEDSTER® LTD3 PARTS & PRICING
F
1
73
2
3
72 71
E
D
C
8180
78
74
76
7750706768
75
69
82
79
83
66
108
65
B
89
88
86
40
A
PRODUCTS, INC.
858-679-1191
speedster
mytee
TITLE:
DATE
02/24/12
NAME
D.Cano
CHECKED
DRAWN
REV
SHEET 2 OF 2
DO NOT SCALE
DRAWING
LTD 3
DWG. NO.
D
SCALE: 1:32
SIZE
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MYTEE PRODUCTS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MYTEE PRODUCTS, INC. IS PROHIBITED.
1
84 87
41
39
90
85
126
110
120
2
62
64
91
63
127
118
59
22
106
131
60
61
58
3
52
107
4
49
108
124
47
5
37
6
23
117
21
24
26
7
133
29
116
22
115
3
20
34
93
113
3
28
1
114
25
46
123
105
36
103
33
122
45
104
41
121
7
130
35
8
15
32
31
118
27
110
112
92
3
55
19
17
94
8
95
15
14
113
18
98
1
13
1
118
16
96
55
54
125
56
53
57
22
28
4
48
100
16
43
44
129
15
9
38
22
15
101
119
110
42
120
41
40
39
38
39
5
28
38
112
1
6
2
1
30
5
10
109
110
3
6
4
11
110
111
112
7
12
22
128
97
3
113
53
95
51
102
98
99
8
F
E
D
C
B
A
7
Page 8
SPEEDSTER® LTD3 WIRING DIAGRAM
Color diagram at: www.mytee.com/products/product.php?id=LTD3
8
Page 9
SPEEDSTER® LTD5
SPEEDSTER® LTD5 FRONT
12
11
10
1. Switch Plate
2. PSI Gauge
3. 2” Male Cuff-Lynx™ Inlet
4. Pressure Regulator
5. Prime Value
6. Female Quick Disconnect
1
2
3
4
7. Front Handle
8. Solution Tank
9. Front Vent
10. 4” Locking Casters
11. Solution Lid
12. Recovery Lid
SPEEDSTER® LTD5 BACK
13
14
5
6
7
8
24
15
16
17
18
23
9
22
21
13. Push Handle
14. Recovery Tank
15. Recovery Tank Drain Valve
16. Rear Vacuum Exhaust
Optional Mufer Port
17. Service Latches
18. Power cords
19. Hour Meter
20.10” foam lled
semi-pneumatic wheels
21. Auto Fill Connection
22. Pump Out Hose Connection
23. Solution Tank Drain
24. Side vent
19
20
SPEEDSTER® LTD5 ITEMS INCLUDED
H110 Cuff-Lynx™ H141 Cuff-Lynx™
2” x 2” Hose Adapter 2” x 1.5” Hose Reducer
FILTERS
G008 - Pack of Piglet™
lters
H375- Hose Hanger H226 Drain Elbow
(4) screws
SPEEDSTER® LTD5 CORDS
(Primary) Right Cord: Plug in yellow-tagged power cable
for Power To Vac 1, & Pump.
(Secondary) Left Cord: Plug in power cable for
Vac 2 and the Pump-Out.
Yellow tag
indicates primary
cord.
Plug each power cord into a separate, 20A grounded wall outlet.
Outlets must be on two separate breakers. When the amber
light on the switch plate illuminates, the machine is on separate
circuits (not necessarily 20A circuits). You can identify the primary
cord by the yellow tag.
9
Page 10
SPEEDSTER® LTD5
SPEEDSTER® LTD5 VAC/SOL
HOSE CONNECTIONS
Attach female end of a solution hose to a wand or tool and the
male end to the LTD’s QD. Then connect a vacuum hose to a
wand and the 2” male Cuff-Lynx™ hose port. (If using the optional
de-foamer, install the kit onto the vacuum port according to the
instructions that come with the de-foamer kit.)
SPEEDSTER® LTD5 SWITCHES
Vac 1 Vac 2 Pump Pump
out
To use vacuum, turn on Vac 1 and Vac 2. To use pump, turn on
Pump. To use pump-out, turn on Pump-Out switch.
SPEEDSTER® LTD5 PRIME VALVE &
PRESSURE REGULATOR
Prime the pump by having the Prime Valve parallel with its pipe
and turn it clock-wise to run the pump. Turning the Pressure Regulator to its left will decrease water pressure and turning to the right
will increase water pressure.
*Please refer to the Pressure Gauge to monitor your water pressure.
SPEEDSTER® LTD5 FILL SOLUTION TANK
You can lift the lid to manually ll the tank or follow the “Operating
Instructions” for auto-ll use.
10
Page 11
SPEEDSTER® LTD5
SPEEDSTER® LTD5
FLOAT SWITCHES
Electronic shut-off
switches prevents
water from getting
into the vacuum stack
& monitors water level
in soultion tank.
VAC STACK
The LTD is equipped with an electronic oat switch inside the
recovery and solution tank. The recovery oat switch is activated
by rising water to prevent suction into the vacuum stacks damaging the motors. The solution oat switch shuts off the auto-ll once
water lever reaches switch.
SPEEDSTER® LTD5 AUTO-FILL CONECTIONS
Using one end of a ½” garden hose, attach it to the mounted
connection behind the LTD unit, then attach the other end to
the desired faucet connection. Turn on the faucet water and
let the auto-ll begin to ll. It will shut off when the water level
reaches the LTD’s electronic oat switch.
SPEEDSTER® LTD5 PUMP-OUT CONNETIONS
Using a separate ½” garden hose, attach one end to the LTD’s
mounted pump-out connection and lay the other end of the hose
in a drainable location. With the pump-out switch activated and
the valve parallel with its pipe, the unit will automatically drain
water from the ll tank while the auto-ll maintains water levels.
Make sure ball valve is open!
SPEEDSTER® LTD5 RECOVERY DRAIN VALVE
Make sure the Auto-Fill is turned off and then locate and lift the
bucket high drain valve on the rear of the LTD unit to empty
the tanks.
11
Page 12
SPEEDSTER® LTD5
SPEEDSTER® LTD5 SOLUTION TANK DRAIN VALVE
LOOSEN
TIGHTEN
To remove any remaining water in the solution tank, located on
the back of the unit is a cap, twist and remove cap to
empty tank.
SPEEDSTER® LTD5
FILTER MAINTENANCE
VACUUM
STACK
FILTERS
(2)
PUMP OUT
FILTER
INTAKE
REGULATOR
BY PASS FILTER
The LTD’s ve internal lters must be cleaned regularly and are
located in the locations listed in the following diagram. Twist the
lters to remove them then clean and replace in original locations.
If a lter is torn or damaged, replace with a new one.
FILTER
SPEEDSTER® LTD5 TANK LATCHES
& PUMP HOUR METER
The rear latches can be unlatched from the lower half of the
unit to open it for internal repairs and cleaning. To unlatch, ip
and twist latches. The hour meter activates when the pump
is turned on. This helps monitor usage and when to make oil
changes. Refer to p. 24 for oil maintenance instructions.
MYTEE® SYSTEM MAINTAINER
Weekly ushing of the solution system with Mytee System Maintainer helps keep lines clean and prevents chemical build-up,
improving pump life, performance, and pressure.
12
Page 13
1
2
APPROVED
DATE
REVISIONS
DESCRIPTION
REV.
F
JFL
ORIGINAL DRAFT
OD
MSRP
QTY
DESCRIPTION
ITEMS NOT SHOWN
PART NO
$3.99 ea
$6.29 pak
$74.99 ea
$24.49 ea
2
1
1
1
piglet filter
strip, LED indicator lights
power cord, ext 50', 12/3, black
Cuff-Lynx, 2" hose x 2" fem swivel
E530
H110
G008
E512C
E
n/a
n/a
$3.99 ea
$3.99 ea
1
1
1
1
Cuff-Lynx, 2: x 1.5" reducer
Cuff-Lynx instruction guide
stop sign, register your product
Cuff-Lynx, female swivel x female thread
H140
H141
AD127
ADM Cuff Lynx
SPEEDSTER® LTD5 PARTS & PRICING
D
C
B
A
PRODUCTS, INC.
858-679-1191
speedster
mytee
TITLE:
DATE
2/27/12
NAME
D. Cano
COMMENTS:
CHECKED
DRAWN
.05
.003
.03
.5
ONE PLACE DECIMAL
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
TWO PLACE DECIMAL
THREE PLACE DECIMAL
UNLESS OTHERWISE SPECIFIED:
MATERIAL
REV
LTD 5
DWG. NO.
C
SIZE
FINISH
SHEET 1 OF 2
1
DO NOT
SCALE DRAWING
SCALE: 1:32
2
3
MSRP
$1.99 ea
2
QTY.
4
DESCRIPTION
$13.49 ea
ball valve, 1/4'' 1
$6.49 ft
$5.49 ea
$0.99 ea
$23.99 ea
$17.99 ea
2
tee, brass, 1/4" mpt
1
1
1
1
qd, brass, 1/4" f
sol hose, 1/4", 300 PSI
nipple, 12" x 1/4" npt, m x m
adapter, brass, 1/4" barb x 1/4" mpt
5
B109
PART NO.
62
NO.
ITEM
6
MSRP
$1.99 ea
16
QTY.
grommet, rubber, 3/4" ID x 1-5/8" OD
B135
B102
65
10 $0.99
G034
66
30 $0.99
B115
PH634-20
67
68
$0.99 ea
18
B656
64
63
$8.99 ft
$187.49
1
1
ea
$9.99 ea
$5.99 ea
$38.99 ea
1
1
gauge, pressure, 2000 PSI
light, indicator, 125v (amber)
E512B
H308D
69
70
$8.99 ft
$0.99 ea
$79.99 ea
1
2
2
$3.99 ea
$23.99 ea
$13.99 ea
4
1
1
1
LX series switchbox
switch plate, lx, 4 hole
switch, rocker, 2 position
Cuff-Lynx, 2" m cuff x 2" mpt
E515
P512
H074
H135
71
72
73
74
$9.99 ea
$0.99 ea
$2.99 ea
$19.49 ea
1
4
2
2
$4.99 ft
$4.99 ft
$2.49 ea
$1.99 ea
$2.99 ea
$4.99 ea
1
2
2
4
pipe, pvc, 1.5" 2
gasket, 2" inlet
nut, lock, 1-1/2", steel
adapter, 1.5" pvc, 45 deg, fslip x fslip
adapter, pvc, 1-1/2" mpt x 1-1/2" fms
P520
P503
H314
G083
PH633-6
76
77
78
75
79
$21.49 ea
1
4 $0.99
4 $0.99
14 $0.99
$0.99 ea
$11.99 ea
$36.99 ea
1
1
6
pipe, pvc, 1.5" 2
gasket, 7", vac lid
lid, vac tank, black, 7"
screw, #8 x 5/8 phil oval, s/s
H304
4.375
G090
G091
PH633-
82
83
80
81
ea
$569.99
$3.19 ea
$8.99 ea
$4.49 ea
4
1
3
2
$4.99 ft
2
pipe, pvc, 1-1/2"
PH633-1
84
$89.99 ea
2
$4.99 ft
$2.99 ea
$4.99 ea
$4.99 ea
2
$15.99 ea
2
2
1
pipe, pvc, 1.5" 2
filter, foam, 2-3/8" x 1"
G022
85
$359.99
1
elbow, inlet assembly 2"
adapter, 1.5" pvc, fslip x fslip
screen, mesh filter, 2-3/8" dia
P502
A926
4.125
G021
PH633-
86
87
88
89
$8.99 ft
$3.49 ea
1
3
ea
$196.99
$3.49 ea
1
1
ea
$3.19 ea
$99.99 ea
$20.99 ea
1
1
1
LX series vac tank
valve, drain, 1-1/2"
spout, drain, 45 degree
P510
H225
H226
90
91
92
$13.99 ea
2
18 $0.99
$8.99 ft
$9.99 ea
$8.99 ea
$14.49 ea
1
1
2
1
gasket, vacuum motor
mesh filter, auto dump, 1/2" npt
vac hose, 2", black, wire reinforced
elbow, brass, 90 deg, 1/2" barb x 3/8" fpt
B236
H333
G004
PH628-7
93
94
95
96
$1.99 ea
$3.19 ea
$11.49 ea
2 $0.99
2
2
2
ea
$148.99
$9.99 ea
$8.99 ea
$1.49 ea
4
2
2
clamp, hose, 2-1/4 dia
$4.48 ea
6 $0.99
2
2 $0.99
2
bolt 1/4-20 x 4, s/s
plastite screw, 10 x 1"
plug, vent, heyco, 1/2"
motor, 3-stage, 115 cfm,14.5 amps
level switch, vacuum shut-off, rear threads
H217
97
$9.49 ea
$5.49 ea
1
1
E373
H194 coupler, 2" dia x 2.5"
H096
H031
101
100
$1.99 ea
$2.49 ea
2
3
H434
103
102
$6.49 ea
1
2 $0.99
C302A
98
99
13.99 ea
$0.99 ea
9
$6.99 ea
$62.49 ea
3 $91.99
2 $19.99
Level Switch Control
$13.99 ea
1
1 $0.99
1
1
tee, brass, 1/4" fpt
sleeve, mesh, filter
controller, circuit light
plug, brass, 1/4"mpt, hex
$13.49 ea
ball valve, 1/2" m x 1/2" f 1
$8.99 ft
$5.99 ea
$9.49 ea
$1.99 ea
1
1 $9.99
1
1
1
1 $35.99
plate, back, LTD
filter, 60 mesh, garden hose
sol hose, 1/2", 3045psi, black
fitting, brass, 3/4" mgh x 1/2" fpt
hour meter, panel mount, analog
elbow, brass, 90 deg, 1/2" barb x 3/8"mpt
hose, pulse, black, 1/4" fswl x 1/4" fswl, 48" (OAL)
E628
104
8 $0.99
B113
AH117
105
106
$8.99 ea
1
2 $0.99
E564
B127
109
107
$6.99 ea
1
2 $0.99
G028
B656A
110
111
$1.99 ea
2
2 $0.99
B196
112
1 $0.99
B172
H039
114
113
$8.99 ea
$3.49 ea
1
1
B640
PH615-23
115
116
$6.99 ea
2
4 $0.99
E369
117
1 $141.99
$3.99 ea
2
$4.99 ea
$3.19 ea
$86.99 ea
1
1
2
3
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MYTEE PRODUCTS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MYTEE PRODUCTS, INC. IS
PROHIBITED.
4
5
6
$6.49 ft
$4.49 ea
2
1
7
DESCRIPTION
pump out, 115v
clamp, hose, 5/16-29/32
sol hose, 1/2", 3045psi, black
8
H347
C381
PH615-21
PART NO.
1
2
3
NO.
ITEM
washer, 1/4" flat, s/s
nut, kep, #10-32 zinc
sol hose, 1/2", 3045psi, black
screw, 10-32 x 3/4, phil flat full thread
H186
H210
H273
H219 cap, axle, 1/2"
PH615-37
4
6
5
7
8
F
LX series side vent
wheel, 10", pneumatic
washer, axle, cut 1/2" id
bolt, 1/4-20 x 1" hex head, s/s 8 $0.99
nut, lock, 1/4-20, nylon insert, s/s
caster, 4", black hub & gray tread
P514
H109
H232 axle, 19.75" x .50"
H254
H668
H342
H216
9
10
11
12
13
14
15
E
fan, cooling, 115V
bolt, 1/4x20x3/4" hex head
screw, 10 x 5/8" hex head, zinc
pump head, general, 2.1 GPM
H343
H202
C317
C332
17
16
18
19
LX series base
latch, front breeze
valve, solenoid, 1/4", 115V
sol hose, 1/2", 3045psi, black
bushing, brass, 3/8"mpt x 1/4"
street elbow, 90 degrees, 1/8"
elbow, brass, 90 deg, 3/8"mpt x 3/8" fmpt
B186
20
motor, for pump, 0.5 HP, 1725 RPM
adapter, brass, 1/2" barb x 3/8" fsw, ball end
adapter, brass, extender, 1/4" mpt x 1/4" fpt, hex
B197
B160
C330
24
B111
PH615-32
25
26
27
D
B143
21
B105
22
23
plastite screw, 10 x 1/2"
screw, 10-32 x 1/2" phil pan head, s/s
P511
H486
H230
H029
28
29
30
31
13
nut, lock, 1/2" steel
fitting, strain relief, cord
power cord, pigtail, 30", 12/3, black
adapter, brass, 1/2" barb x 1/2" mpt
E550
B132
H221
H220
33
34
32
35
nipple, brass, 3/8" x close
plug, brass, 3/4", garden hose 1
swivel, brass, 3/4" fgh x 1/2" fpt
washer, 11/16"id x 1-1/2"od x .075, s/s
bushing, brass, 1/2"mpt x 3/8" fpt, hex
B221
37
H299
38
B216
39
B210
40
B642
36
C
filter, strainer, 1/2"
washer, 1/4" lock, s/s
handle, breeze and dx
bracket, front hinge, sp/fb
bolt, 1/4-20 x 1 3/4" hex head, s/s
bolt, 1/4-20 x 1/2", hex head, zinc
washer, 1/4"id x 1"od, flat, s/s
washer, buna 1-1/8" od x 3/16" id
bolt, 1/4-20 x 3/4" serrated hex flange, zinc
H201
H213
H378
H204
H485
H768
H211
B119A
41
42
43
44
G052
45
46
47
49
48
B
Part prices are subject to change.Order parts at: www.mytee.com/products/product.php?id=LTD5
LX series sol tank lid
bolt, 5/16" shoulder x 1-1/2" lg, alloy
P513
H650
50
51
LX series sol tank
bracket, "L" (all extracters)
cap, 2.5" threaded, tethered
bolt, 1/4-20 x 1/2" serrated hex flange, zinc
H770
G036
H390A
52
53
54
plate, mounting, QD
regulator, 450 psi, silver spring
Cuff-Lynx, 2" mpt x 2" female cuff
elbow, brass, 90 deg, 1/4"mpt x 1/4" fpt
B107 nipple, brass, 1/4"m, hex
H484
C313C
57
58
A
B103
59
60
P509
55
H124
56
7
sol hose, 1/4", 300 PSI
8
PH634-36
61
Page 14
SPEEDSTER® LTD5 PARTS & PRICING
F
1
81
83
82
2
3
E
D
89
86
77
78
79
87
88
84
85
80
76
75
74
C
91
92
93
97 98
90
B
96
97
38
94
38
40
99
5
43
95
101
103
110
72
102
70
60
73
71
31
105
69
A
PRODUCTS, INC.
858-679-1191
100
mytee
TITLE:
DATE
2/27/12
NAME
D. Cano
COMMENTS:
CHECKED
DRAWN
.05
.03
.5
ONE PLACE DECIMAL
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
TWO PLACE DECIMAL
UNLESS OTHERWISE SPECIFIED:
REV
SHEET 2 OF 2
1
DO NOT
SCALE DRAWING
LTD 5
speedster
DWG. NO.
C
SCALE: 1:32
SIZE
2
.003
THREE PLACE DECIMAL
MATERIAL
FINISH
3
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MYTEE PRODUCTS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MYTEE PRODUCTS, INC. IS
PROHIBITED.
108
59
4
52
56
58
66
67
54
5
6
4
109
24
7
18
27
5
15
21
64
23
107
8
22
106
59
1
F
19
114
115
53
51
50
112
37
36
34
117
111
113
55
49
48
47
35
11
6
33
23
26
22
32
29
30
28
10
1
25
6
104
E
D
17
4
30
57
62
64
65
60
63
61
22
45
43
41
42
68
20
38
22
40
39
26
4
5
44
15
5
46
47
8
38
20
6
5
4
2
9
7
12
6
3
7
1
14
5
15
13
8
16
C
B
A
14
Page 15
SPEEDSTER® LTD5 WIRING DIAGRAM
Color diagram at: www.mytee.com/products/product.php?id=LTD5
15
Page 16
SPEEDSTER® LTD12
SPEEDSTER® LTD12 FRONT
12
11
10
1. Switch Plate
2. PSI Gauge
3. 2” Male Cuff-Lynx™ Inlet
4. Pressure Regulator
5. Prime Value
6. Female Quick Disconnect
1
2
3
4
7. Front Handle
8. Solution Tank
9. Front Vent
10. 4” Locking Casters
11. Solution Lid
12. Recovery Lid
SPEEDSTER® LTD12 BACK
13
14
5
6
7
8
23
15
16
17
18
22
9
20
13. Push Handle
14. Recovery Tank
15. Recovery Tank Drain Valve
16. Rear Vacuum Exhaust
Optional Mufer Port
17. Service Latches
18. Power cords
21
19. 10” foam lled
semi-pneumatic wheels
20. Auto Fill Connection
21. Pump Out Hose Connection
22. Solution Tank Drain
23. Side vent
19
SPEEDSTER® LTD12 ITEMS INCLUDED
H110 Cuff-Lynx™ H141 Cuff-Lynx™
2” x 2” Hose Adapter 2” x 1.5” Hose Reducer
FILTERS
G008 - Pack of Piglet™
lters
H375- Hose Hanger H226 Drain Elbow
(4) screws
SPEEDSTER® LTD12 CORDS
(Primary) Right Cord: Plug in yellow-tagged power cable
for Power To Vac 1, & Pump.
(Secondary) Left Cord: Plug in power cable for
Vac 2 and the Pump-out.
Yellow tag
indicates primary
cord.
Plug each power cord into a separate, 20A grounded wall outlet.
Outlets must be on two separate breakers. When the amber
light on the switch plate illuminates, the machine is on separate
circuits (not necessarily 20A circuits). You can identify the primary
cord by the yellow tag.
16
Page 17
SPEEDSTER® LTD12
SPEEDSTER® LTD12 VAC/SOL
HOSE CONNECTIONS
Attach female end of a solution hose to a wand or tool and the
male end to the LTD’s QD. Then connect a vacuum hose to a
wand and the 2” male Cuff-Lynx™ hose port. (If using the optional
de-foamer, install the kit onto the vacuum port according to the
instructions that come with the de-foamer kit.)
SPEEDSTER® LTD12 SWITCHES
Vac 1 Vac 2 Pump Pump
out
To use vacuum, turn on Vac 1 and Vac 2. To use pump, turn on
Pump. To use pump-out, turn on Pump-Out switch.
SPEEDSTER® LTD12 PRIME VALVE &
PRESSURE REGULATOR
Prime the pump by having the Prime Valve parallel with its pipe
and turn it clock-wise to run the pump. Turning the Pressure
Regulator to its left will decrease water pressure and turning to
the right will increase water pressure.
*Please refer to the Pressure Gauge to monitor your water pressure.
SPEEDSTER® LTD12 FILL SOLUTION TANK
You can lift the lid to manually ll the tank or follow the “Operating
Instructions” for auto-ll use.
17
Page 18
SPEEDSTER® LTD12
SPEEDSTER® LTD12
FLOAT SWITCHES
Electronic shut-off
switches prevents
water from getting
into the vacuum stack
& monitors water level
in soultion tank.
VAC STACK
The LTD is equipped with an electronic oat switch inside the
recovery and solution tank. The recovery oat switch is activated
by rising water to prevent suction into the vacuum stacks damaging the motors. The solution oat switch shuts off the auto-ll once
water lever reaches switch.
SPEEDSTER® LTD12 AUTO-FILL CONECTIONS
Using one end of a ½” garden hose, attach it to the mounted
connection behind the LTD unit, then attach the other end to
the desired faucet connection. With the auto-pump switch
activated, turn on the faucet water and let the auto-ll begin
to ll. It will shut off when the water level reaches the LTD’s
electronic oat switch.
SPEEDSTER® LTD12 PUMP-OUT CONNETIONS
Using a separate ½” garden hose, attach one end to the LTD’s
mounted pump-out connection and lay the other end of the hose
in a drainable location. With the pump-out switch activated and
the valve parallel with its pipe, the unit will automatically drain
water from the ll tank while the auto-ll maintains water levels.
Make sure ball valve is open!
SPEEDSTER® LTD12 RECOVERY DRAIN VALVE
Make sure the Auto-Fill is turned off and then locate and lift the
bucket high drain valve on the rear of the LTD unit to empty
the tanks.
18
Page 19
SPEEDSTER® LTD12
SPEEDSTER® LTD12 SOLUTION TANK
DRAIN VALVE
LOOSEN
TIGHTEN
To remove any remaining water in the solution tank, located on
the back of the unit is a cap, twist and remove cap to
empty tank.
SPEEDSTER® LTD12
FILTER MAINTENANCE
VACUUM
STACK
FILTERS
(2)
PUMP OUT
FILTER
INTAKE
REGULATOR
BY PASS FILTER
The LTD’s ve internal lters must be cleaned regularly and are
located in the locations listed in the following diagram. Twist the
lters to remove them then clean and replace in original locations.
If a lter is torn or damaged, replace with a new one.
FILTER
SPEEDSTER® LTD12 TANK LATCHES
& PUMP HOUR METER
The rear latches can be unlatched from the lower half of the
unit to open it for internal repairs and cleaning. To unlatch, ip
and twist latches. The hour meter activates when the pump
is turned on. This helps monitor usage and when to make oil
changes. Refer to p. 24 for oil maintenance instructions.
MYTEE® SYSTEM MAINTAINER
Weekly ushing of the solution system with Mytee System Maintainer helps keep lines clean and prevents chemical build-up,
improving pump life, performance, and pressure.
19
Page 20
SPEEDSTER® LTD12 PARTS & PRICING
1
2
3
APPROVED
DATE
REVISIONS
DESCRIPTION
REV.
MSRP
1 $11.99 ea
QTY.
F
JFL
ORIGINAL DRAFT
OD
$4.99 ft
2
1 $36.99 ea
6 $0.99 ea
ITEMS NOT SHOWN
$4.99 ft
2 $2.99 ea
2 $4.99 ea
2 $4.99 ea
1 $99.99 ea
1 $20.99 ea
1 $15.99 ea
MSRP
QTY
DESCRIPTION
PART NO.
E
$6.29 pak
1
1 $3.99 ea
1 $3.99 ea
1 $3.99 ea
1 $24.49 ea
2 $74.99 ea
1 $62.49 ea
piglet filter
controller, circuit light
strip, LED indicator lights
power cord, ext 50', 12/3, black
Cuff-Lynx, 2: x 1.5" reducer
Cuff-Lynx, 2" hose x 2" fem swivel
Cuff-Lynx, female swivel x female thread, 2"
E530
E564
H110
H140
H141
G008
E512C
$8.99 ft
1 $3.19 ea
1 $9.99 ea
1 $14.49 ea
2 $8.99 ea
1
4 $1.49 ea
2 $9.99 ea
2 $4.48 ea
D
n/a
n/a
1
1
Cuff-Lynx instruction guide
stop sign, register your product
AD127
ADM-Cuff Lynx
$8.99 ft
3 $91.99
1
2 $19.99
1 $6.99 ea
1 $62.49 ea
1 $0.99
1 $13.99 ea
6 $0.99
30 $0.99
14 $0.99
4 $0.99
4 $0.99
2 $0.99
8 $0.99
2 $0.99
C
1 $0.99
$6.49 ft
$6.49 ft
1
1
6 $0.99
2 $0.99
$8.99 ft
1
2 $0.99
2 $0.99
B
4 $0.99
1 $86.99 ea
ea
$139.99
2 $8.99 ea
2
1 $5.99 ea
1 $9.99
1 $9.49 ea
4 $0.99
A
PRODUCTS, INC.
858-679-1191
mytee
TITLE:
DATE
2/28/12
NAME
D. Cano
COMMENTS:
CHECKED
DRAWN
.03
.5
ONE PLACE DECIMAL
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
UNLESS OTHERWISE SPECIFIED:
1 $1.99 ea
1 $35.99
REV
SHEET 1 OF 2
DO NOT
SCALE DRAWING
LTD 12
speedster
DWG. NO.
C
SCALE: 1:12
SIZE
.05
.003
TWO PLACE DECIMAL
THREE PLACE DECIMAL
MATERIAL
FINISH
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MYTEE PRODUCTS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MYTEE PRODUCTS, INC. IS
PROHIBITED.
1
2
3
4
DESCRIPTION
5
PART
NUMBER
NO.
ITEM
6
MSRP
QTY.
7
gasket, 7", vac lid
G091
62
16 $1.99 ea
pipe, pvc, 1-1/2"
lid, vac tank, black, 7"
screw, #8 x 5/8 phil oval, s/s
H304
G090
PH633-1
64
65
63
ea
$8.99 ft
$187.49
1
1
18 $0.99 ea
pipe, pvc, 1.5" 2
filter, foam, 2-3/8" x 1"
adapter, 1.5" pvc, fslip x fslip
screen, mesh filter, 2-3/8" dia
P502
G021
G022
PH633-4.125
67
66
68
69
4 $0.99 ea
1 $9.99 ea
2 $79.99 ea
2 $0.99 ea
LX series vac tank
valve, drain, 1-1/2"
elbow, inlet assembly 2"
gasket, vacuum motor
spout, drain, 45 degree
mesh filter, auto dump, 1/2" npt
elbow, brass, 90 deg, 1/2" barb x 3/8" fpt
H225
H226
72
73
ea
$569.99
1 $21.49 ea
1
B236
H333
74
75
3 $8.99 ea
G004
76
2 $4.49 ea
P510
A926
70
71
2 $2.99 ea
2 $19.49 ea
tee, brass, 1/4" fpt
Level Switch Control
clamp, hose, 2-1/4 dia
plug, vent, heyco, 1/2"
sol hose, 1/2", 3045psi, black
sleeve, mesh, filter
controller, circuit light
plug, brass, 1/4"mpt, hex
vac hose, 2", black, wire reinforced
hose, pulse, black, 1/4" fswl x 1/4" fswl, 48" (OAL)
H217
H194 coupler, 2" dia x 2.5"
H434
PH628-7
77
78
79
80
ea
$8.99 ft
$359.99
1
1
E628
PH615-23
82
81
1 $3.49 ea
3 $3.49 ea
B113
AH117
84
83
ea
$196.99
1
2 $13.99 ea
E564
B127
87
85
2 $1.99 ea
2 $3.19 ea
G028
88
2 $11.49 ea
washer, 1/4" flat, s/s
bolt, 1/4-20 x 1" hex head, s/s 8 $0.99
screw, 10 x 5/8" hex head, zinc
nut, lock, 1/4-20, nylon insert, s/s
screw, 10-32 x 3/4, phil flat full thread
H186
H210
H342
H216
H343
91
93
90
92
89
2 $1.99 ea
9 $0.99 ea
1 $9.49 ea
washer, 1/4" lock, s/s
bolt, 1/4x20x3/4" hex head
H202
94
3 $2.49 ea
washer, 1/4"id x 1"od, flat, s/s
bolt, 1/4-20 x 1/2", hex head, zinc
screw, 10-32 x 1/2" phil pan head, s/s 18 $0.99
H230
95
1 $6.49 ea
bolt, 5/16" shoulder x 1-1/2" lg, alloy
H201
H213
H211
H650
96
97
98
99
1 $6.99 ea
2 $1.99 ea
1 $8.99 ea
1 $8.99 ea
bolt 1/4-20 x 4, s/s
sol hose, 1/4", 300 PSI
sol hose, 1/4", 300 PSI
plastite screw, 10 x 1"
ball valve, 1/2" m x 1/2" f 1 $13.49 ea
sol hose, 1/2", 3045psi, black
H096
H031
PH634-20
101
103
102
2 $6.99 ea
1 $141.99
B656A
104
2 $3.99 ea
1 $4.99 ea
PH615-21
105
2 $3.19 ea
PH634-36
100
1 $3.49 ea
plastite screw, 10 x 1/2" 2 $0.99
bolt, 1/4-20 x 1 3/4" hex head, s/s
H029
H204
107
106
2 $1.99 ea
vac motor, 3 stage, low amp
regulator, 1000 psi, white spring
fitting, brass, 3/4" mgh x 1/2" fpt
elbow, brass, 90 deg, 1/2" barb x 3/8"mpt
bolt, 1/4-20 x 3/4" serrated hex flange, zinc
H768
108
1 $13.49 ea
level switch, vacuum shut-off, rear threads
bolt, 1/4-20 x 1/2" serrated hex flange, zinc
E373
H770
C359C
C302LP
109
110
111
112
1 $23.99 ea
2 $5.49 ea
1 $0.99 ea
1 $17.99 ea
screw, 10-32 x 1-1/4", phil flat full thread, black
B172
B196
H185
H039
116
115
114
113
1 $9.99 ea
4 $13.99 ea
1 $5.99 ea
1 $38.99 ea
plate, back, LTD
oxide
filter, 60 mesh, garden hose
hour meter, panel mount, analog
E369
B640
118
117
$4.99 ft
$4.99 ft
1 $2.49 ea
2 $1.99 ea
1 $3.99 ea
2 $2.99 ea
4 $4.99 ea
1 $23.99 ea
4
5
6
7
DESCRIPTION
pump out, 115v
nut, kep, #10-32 zinc
clamp, hose, 5/16-29/32
sol hose, 1/2", 3045psi, black
LX series side vent
wheel, 10", pneumatic
fan, cooling, 115V
washer, axle, cut 1/2" id
pump head, general, 2.1 GPM
caster, 4", black hub & gray tread
valve, solenoid, 1/4", 115V 2 $89.99 ea
sol hose, 1/2", 3045psi, black
bushing, brass, 3/8"mpt x 1/4" 4 $3.19 ea
street elbow, 90 degrees, 1/8"
motor, for pump, 1 HP, 1725 RPM
elbow, brass, 90 deg, 3/8"mpt x 3/8" fmpt
8
B197
B186
B143
PART
NUMBER
NO.
ITEM
H347
1
C381
2
H273
PH615-37
4
3
H254
H232 axle, 19.75" x .50"
H219 cap, axle, 1/2"
H109
8
7
5
6
F
P514
9
H668
10
C317
11
C332
12
B105
C329
PH615-32
16
17
13
14
E
18
15
LX series base
latch, front breeze
nut, lock, 1/2" steel
fitting, strain relief, cord
adapter, brass, 1/2" barb x 3/8" fsw, ball end
adapter, brass, extender, 1/4" mpt x 1/4" fpt, hex
B160
B111
P511
H486
H221
H220
21
22
23
19
20
24
plug, brass, 3/4", garden hose 1 13.99 ea
swivel, brass, 3/4" fgh x 1/2" fpt 1 $5.49 ea
power cord, pigtail, 30", 12/3, black
adapter, brass, 1/2" barb x 1/2" mpt
E550
B642
B221
B132
27
28
25
26
D
filter, strainer, 1/2"
nipple, brass, 3/8" x close
washer, 11/16"id x 1-1/2"od x .075, s/s
bushing, brass, 1/2"mpt x 3/8" fpt, hex
B210
B216
H299
B119A
31
32
30
29
20
handle, breeze and dx
bracket, front hinge, sp/fb
H378
H485
33
34
bracket, "L" (all extracters)
cap, 2.5" threaded, tethered
washer, buna 1-1/8" od x 3/16" id
P513
G052
35
36
C
Cuff-Lynx, 2" mpt x 2" female cuff
P509
H124
G036
H390A
40
37
38
39
LX series sol tank
LX series sol tank lid
ball valve, 1/4''
qd, brass, 1/4" f
plate, mounting, QD
nipple, brass, 1/4"m, hex
B107
H484
41
42
tee, brass, 1/4" mpt
adapter, brass, 1/4" barb x 1/4" mpt
elbow, brass, 90 deg, 1/4"mpt x 1/4" fpt 2 $4.49 ea
B103
B109
44
43
grommet, rubber, 3/4" ID x 1-5/8" OD
B135
B102
B656
G034
46
47
48
45
B
Part prices are subject to change.Order parts at: www.mytee.com/products/product.php?id=LTD12
gasket, 2" inlet
LX series switchbox
switch plate, lx, 4 hole
switch, rocker, 2 position
gauge, pressure, 2000 PSI
nipple, 12" x 1/4" npt, m x m
light, indicator, 125v (amber)
B115
E512B
H308D
50
51
49
Cuff-Lynx, 2" m cuff x 2" mpt
E515
P512
H074
H135
G083
52
53
54
55
56
pipe, pvc, 1.5" 2
pipe, pvc, 1.5" 2
nut, lock, 1-1/2", steel
adapter, 1.5" pvc, 45 deg, fslip x fslip
adapter, pvc, 1-1/2" mpt x 1-1/2" fms
8
P520
P503
H314
PH633-6
PH633-4.375
57
58
59
60
61
A
Page 21
SPEEDSTER® LTD12 PARTS & PRICING
F
1
2
3
62
64
63
E
D
C
7372
70
69 60
61
67
59
68
65
66
58
71
88
74
53
79
112103
57
43
56
80
54
55
52
51
50
B
78
77
30
75
102
111
76
90
A
PRODUCTS, INC.
858-679-1191
speedster
mytee
TITLE:
DATE
2/15/2012
NAME
D. Cano
COMMENTS:
CHECKED
DRAWN
.05
.003
.03
.5
REV
DO NOT
LTD 12
DWG. NO.
C
SIZE
SHEET 2 OF 2
1
SCALE DRAWING
SCALE: 1:12
2
83
ONE PLACE DECIMAL
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
TWO PLACE DECIMAL
THREE PLACE DECIMAL
UNLESS OTHERWISE SPECIFIED:
MATERIAL
FINISH
3
106
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MYTEE PRODUCTS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MYTEE PRODUCTS, INC. IS
PROHIBITED.
86
4
110
37
101
41
44
46
48
4
40
47
100
45
15
107
38
109
5
36
49
13
5
31
96
99
104
114
39
108
34
5
35
6
28
118
113
117
27
6
87
7
17
95
26
25
21
33
97
29
32
98
105
4
3
116
19
6
23
8
7
94
20
92
22
9
2
7
91
16
14
8
12
115
1
18
85
42
84
F
82
E
24
90
10
8
81
D
11
93
C
B
A
21
Page 22
SPEEDSTER® LTD12 WIRING DIAGRAM
Color diagram at: www.mytee.com/products/product.php?id=LTD12
22
Page 23
GENERAL INFORMATION
Dear Customer:
Congratulations on the purchase of your new LTD Speedster® extractor.
As technology continues to develop you can work condently knowing
that both Mytee Products Inc. and its employees are equally dedicated to
developing with the industry and its advances.
Like any other piece of machinery or technology, the LTDs also requires
the proper maintenance and care to keep the product working over
extended use. Neglecting your machine, abusing it or not operating it
properly can void its warranty and prevent the machine from performing to
the quality and standard you’d expect out of the Mytee Products Inc. line.
If you have any warranty concerns or questions, please review this manual
thoroughly or do not hesitate to contact your distributor. If there are questions regarding maintenance, replacement or ordering parts please contact
an authorized Mytee Products Inc. Service Center. To see an updated list
please visit our website at www.mytee.com/help/service.php
Before using your Mytee Product, please read this manually thoroughly.
Sincerely,
Mytee Customer Care Dept.
Grounding Instructions
This machine must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electrical shock. This machine is equipped with a cord having an equipment-grounding conductor
and grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed in accordance with all local code and ordinances.
Do not remove ground pin; if missing, replace plug before use.
Improper installation of the equipment-grounding conductor can result
in a risk of electric shock. Be sure to check with a qualied electrician
or service person if you are in doubt as to whether the outlet is properly
grounded. If the plug will not t in the outlet do not modify either the plug
nor the machine’s cord, instead have a proper outlet installed by a qualied technician.
This machine is for use on a nominal 120-volt circuit and with a grounding
plug similar to the one in Figure 1 below. If a proper outlet is not available,
follow the illustrations of Figure 2 & 3 to install a temporary-grounding
plug. This temporary work-around should be used only until a proper outlet
(Figure 1) can be installed by a qualied electrician. When and if this type
of adapter is employed, screw the adapter’s extended tab into place with
a metal screw. However, grounding adapters are not approved for use in
Canada.
Again, be sure to check the grounding pin for damages and replace if
necessary.
The Green, or Green-Yellow, wire in the cord is the grounding wire. When
replacing a plug, this wire must be attached to only the grounding pin.
DO NOT use extension cords.
Please Note for America use only
Grounding Pin
Figure 1
Grounded Outlet
Metal
Screw
Grounded Outlet Box
Figure 2 Figure 3
Adapter
Tab for Grounding
Screw
Parts and Service
Please contact a Mytee service personnel or Mytee authorized Service
Center using Mytee original replacement parts and accessories for repairs
are needing to be performed. When and if calling Mytee for support,
please have your Model and Serial Number available for faster assistance.
Name Plate
The Model and Serial Number are located on the lower half of the back
of the machine near the power plugs and will be required for ordering
replacement parts. You can use the space provided on the front of this
manual to note down both for future referencing.
Unpacking the Machine
When your new machine is delivered, please carefully inspect both the
shipping carton and the machine for damages. If damage is evident, save
both the shipping carton and machine so that the delivering carrier can
inspect it. Contact the carrier immediately to le a freight claim if there has
been any damage.
Caution and Warnings
Symbols
Mytee uses the symbols below to signal potentially dangerous conditions.
Always read this information carefully and take the necessary steps to
protect personnel and property.
Is used to warn of immediate hazards that will cause severe personal
injury or death.
Is used to call attention to a situation that could cause severe personal
injury.
Is used to call attention to a situation that could cause minor personal
injury or damage to the machine or other property. When using an electrical appliance, basic precautions should always be followed, including the
following: Read all instructions before using this machine. This product is
intended for commercial use only.
To reduce the risk of re, electrical shock, or injury:
1. Read all instructions before using equipment.
2. Use only as described in this manual. Use only manufacturer’s recommended attachments.
3. Always unplug power cord from electrical outlet before attempting any
adjustments or repairs.
4. Do not unplug by pulling on cord. To unplug, grasp the plug, not the
cord.
5. Do not pull or carry by cord. Do not close a door on cord or pull cord
around sharp edges or corners.
6. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not use with damaged cord or plug. If cord is damaged, repair
immediately.
8. Do not use outdoors or on wet surfaces and or standing water.
9. Always unplug or disconnect the appliance from power supply when
not in use.
10. Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
11. Do not use in areas where ammable or combustible material may
be present.
12. Do not leave the unit exposed to harsh weather elements. Temperatures below freezing may damage components and void warranty.
13. Use only the appropriate handles to move and lift unit. Do not use any
other parts of this machine for this purpose.
14. Keep hair, loose clothing, ngers, and all parts of the body away from
23
Page 24
GENERAL INFORMATION
all openings and moving parts.
15. Use extra care when using on stairs.
16. To reduce the risk of re or electric shock, do not use this machine with
a solid-state speed control device.
17. The voltage and frequency indicated on the name plate must correspond to the wall receptacle supply voltage.
18. When cleaning and servicing the machine, local or national regulations
may apply to the safe disposal of liquids which may contain: chemicals,
grease, oil, acid, alkalines, or other dangerous liquids.
19. Do not leave operating unattended.
Preparation
1. Remove furniture and other items from the area you are going to clean.
2. Vacuum carpet and upholstery, and remove debris.
3. Protect cabinets, walls and painted surfaces with drop cloths or plastic.
4. Inspect power cords for damages.
Operating Instructions
1. Fill the solution tank.
2. Attach female end of a solution hose to a wand or other tool and the
male end to the LTD’s Quick Disconnect (QD).
3. Attach one end of a vacuum hose to a wand or other tool and the other
end to the LTD’s 2” Cuff-Lynx vacuum hose ports.
4. Plug in power cords:
LTD3/5/12 Model: Using two separate circuits/breakers, plug in the
grounded power cables as previously instructed using the appropriate
grounding techniques.
The amber indicator to the left of the PSI gauge will illuminate and sound
a tone when plugged into separate circuits/breakers.
1. Activate the switches using the following steps:
2. When the hoses are attached, turn Pump-Out Switche.
3. The Prime Valve and Pressure Regulator are located on the front right
side of the solution tank and should be primed prior to use. To prime the
pump turn the valve to the Prime position for 30 seconds, and then turn
horizontally to the Run position.
4. Pull your wand’s trigger to ensure water is running through the lines to
avoid damage to the Pump and Heating unit (LTD3).
5. (LTD3) The heater switch has three positions: Off (Middle); 1,000 watts
using 1 heater (Top); 600 watts & 1,600 watts using 2 heaters (Bottom)
If the water heater is to be used, prime system and turn it on to the desired
wattage and wait ve minutes for the water to reach temperature.
6. To clean, make two dry passes for every one wet pass while working away from the power cords. For optimal use or heavily soiled areas,
repeat wash steps in the opposite direction.
7. To prevent motor or internal damage, use a preferred foam control
solution in the recovery tank. Remember to check for build-up in both the
recovery and solution tanks!
8. Empty the Recovery Tank when the internal shut off disengages the
vacuum. Attach the 45º drain elbow to the drain spout located in the back
and lift the dump valve to empty the tank.
9. Squeeze the wand or tool’s trigger for ve seconds after turning the
power switches off to relieve any existing line pressure.
10. When the machine is off: unplug the power cables, remove solution
and vacuum hoses, and empty the recovery tank by attaching the 45º
drain elbow.
11. To empty the solution tank, twist off the solution tank drain cap located
on the back of the machine.
After Use
1. Before storing the machine, drain, rinse and dry both the tanks and
vacuum hoses of any residual water or solution.
2. Store standing upright in a dry, enclosed location.
3. Leave the recovery tank lid open for better air circulation.
4. If storing in freezing temperatures, take extra precautions to make sure
the machine and solution systems are completely drained and dry.
mended daily and weekly maintenance procedures. Relief valves should
be replaced annually.
Maintenance item Daily Once a week
Clean and inspect tanks.
Clean and inspect hoses.
Check and clean internal lters by twisting
off, rinsing with clean water and replacing.
Check power supply cable.
Clean machine with all-purpose cleaner
and cloth.
Check spray nozzles.
Flush solution system with Mytee® System
Maintainer.
Remove and oat shut-off screen from
tank and clean. Simply pull off.
Inspect vacuum hoses for holes and loose
cuffs.
Inspect spray pattern for clogging. If
clogged, remove spray tips and soak them
in a recommended liquid neutralizer for
up to six hours. To remove spray tip, twist
spray tip body counter-clockwise.
Lubricate wheels with water resistant oil.
Inspect machine for water leaks and loose
hardware.
x
x
x
x
x
x
x
x
x
x
x
x
Oil Maintenance
Each machine using the General Pump Head(add TM or C icon) will need
its rst its rst oil change within 50-100 hours of use, then every three
months for 500 hours after that. Regular lubrication is the easiest, most
efcient and least expensive element in preventative maintenance
according to the manufacturer, General Pump.
Required Equipment:
1. 9/16” Wrench or socket.
2. 7/8” Socket with ratchet to t.
3. 11 oz SAE 30w Oil
4. Oil catch pan capable of holding 11 oz of oil (Height ≤ 2”)
5. Oil funnel capable of tting oil port on top of General Pump head brass
tee (3/8” diameter)
6. Flash light (Optional)
Instructions:
1. Cover ground with cardboard or any available scrap material to prevent
unwanted spills and stains.
2. Slide ≤ 2” oil catch pan under the ball valve located under the bottom
front of the machine and to the left of the solution tank drain.
3. Release the two rear latches by turning its wings to the left then open
top half of the machine completely to expose the main pump.
4. Remove the 9/16” oil cap from the brass tee on top of the General
Pump head.
5. Unscrew then 7/8” oil plug from under the machine until nger loose.
6. Once the oil has stopped or slowed to a few drips, replace the lower oil
plug then tighten it with a 7/8” socket.
7. Using a funnel, pour 11oz of SAE 30w oil into the top of the General
Pump head through the brass tee.
8. Use a ashlight to check the side of the General Head to ensure the oil
level reaches the midpoint of the view glass. Add or remove oil as needed.
9. Replace the 9/16” plug on top of the brass tee using a wrench or socket.
10. Close the machine and re-latch its rear to avoid any separation during
transport.
11. Dispose of any old oil and continue normal use of the machine.
Filter Maintenance
All LTD models have six lters that need to be checked and cleaned after
each week of use. Regular lter maintenance is a simple way to extend
the life of your machines.
Maintenance Schedule
Latches are located in the back to open the tank for internal maintenance.
To keep machine in good working condition, follow the below recom-
Vacuum Stack Filters:
Located inside of the black vacuum tank are two pvc vacuum stacks. Each
stack has one foam lter to help prevent waste material from getting into
24
Page 25
GENERAL INFORMATION
the vacuums and cause damage. To maintain these lters:
1. Remove the 7” clear vacuum lid.
2. Reach in and pull out the two black lters located in the top of the
vacuum stacks.
3. Clean the lters under a faucet of any debris and check for damage.
If the lters are not damaged, place them back in the stacks. If lters are
damaged and falling apart, replace them.
Pump-Out Filters
The pump-out lter is located on the inside bottom of the black vacuum
tank. It is recognizable by its cylindrical shape. To maintain lter:
1. Remove the 7” clear vacuum tank lid.
2. Reach in and unthread the cylindrical lter by rotating it counter clockwise. A ashlight may be needed to locate the lter.
3. Once the lter is out, slide off foam sleeve that surrounds the wire
screen. Check for debris and damage. Rinse lter of any debris or replace
if damaged.
4. Place lter back into vacuum tank by rotating it clockwise onto the brass
nipple.
Pump Filters
The pump is a half-circle shaped screen located on the inside bottom of
the blue solution tank. To maintain lter:
1. Open black solution tank lid.
2. Reach into solution tank and rotate the dome-shaped lter from its
brass nipple by rotating it counter clockwise.
3. Check lter for any debris or damage to screen. Rinse lter of any
debris or replace if damaged.
4. Place new or cleaned lter back onto brass nipple by rotating it
clockwise.
Auto-Fill Solenoid Filter
The solenoid lter is located inside of the auto-ll solenoid, which is inside
the base of the machine. The lter will be connected to the auto-ll male
QD that extends from the back of the machine. To maintain the lter:
Required Tools:
7/8” Wrench or crescent wrench.
¾” Wrench
1. Open the machine by undoing the rear latches and rocking the top of
the unit forward until it is resting on the ground and the internals of the
base are exposed.
2. Locate the solenoid attached to the rear auto-ll and pump-out plate.
3. Place the 7/8” wrench of crescent wrench on the rear part of the
solenoid closest to the inside of the auto-ll plate to help prevent rotation
during steps 4 & 6.
4. Use the ¾” wrench to loosen the ¾” plug on the front of the solenoid.
5. Remove the solenoid screen and check for any debris or damage to
screen. Rinse the screen of any debris or replace if damaged.
6. Replace the ¾” brass plug and screen then you can continue use as
normal.
Oil Vent Solenoid Filter
The oil vent’s solenoid lter is located on top of the general pump head
inside the base of the machine. It will be connected to the brass tee
coming out of the oil ll hole. To maintain ler:
Required Tools:
7/8” Wrench or crescent wrench.
¾” Wrench
1. Open the machine by undoing the rear latches and rocking the top of
the unit forward until it is resting on the ground and the internals of the
base are exposed.
2. Locate the solenoid attached to the brass tee on top of the pump head.
3. Place the 7/8” wrench of crescent wrench on the rear part of the solenoid closet to the inside of the auto-ll plate to help prevent rotation during
steps 4 & 6.
4. Use the ¾” wrench to loosen the ¾” plug on the front of the solenoid.
5. Remove the solenoid screen and check for any debris or damage to
screen. Rinse the screen of any debris or replace if damaged.
6. Replace the ¾” brass plug and screen then you can continue use as
normal.
Trouble Shooting
There is no power.
1. Plug power cord(s) in proper outlet(s).
2. If using two cords, make sure each is plugged into a separate circuit.
3. Check circuit breaker and reset if tripped. There should not be any
additional items in use on the same circuit as the machine and the outlet
must be a 20-amp circuit.
LTD Float Switch Maintenance
Each LTD machine contains two water level oat switches. These oat
switches control specic functions of the machine. The rst oat switch will
control the auto-ll feature while the second oat switch controls power
to the vacuums. These levers prevent water from getting into the vacuum
stacks and spilling out from the solution tank.
Vacuum Tank Float Switch Maintenance & Replacement
Cleaning and maintaining oat switches will help extend the life of your
machine. Regular cleaning is required for proper functionality. To clean the
level switch:
1. Remove the 7” clear vacuum tank lid located on top of the tank.
2. Use a ashlight to locate the oat switch that will be located on the front
wall of the vacuum tank.
3. Once located, reach in and hold the oat switch nger all the way to one
side by pushing on the opposite side.
4. Using your other hand, or nger, roll the clip off of its tabs by pulling on
the bottom of the opposite tab from which you are pushing. It should not
take a lot of pressure to remove the switch, so be careful not to break it.
5. Check the oat nger and where it attaches for debris or any other
damage and if dirty, clean. If one of the male tabs where the oat hooks is
damaged, refer to the oat switch replacement section.
6. Once cleaned, replace the oat nger at side down onto the male position tabs located on the oat switch neck in the vacuum tank. First, hook
one loop of the nger on one tab then roll and pull the other tab with your
index nger until it snaps back into place.
7. Check to ensure the oat switch still works by turning on both vacuums
with the vacuum tank lid off. Reach inside and lift the oat nger. If
vacuums turn off, the oat works. If the vacuums stay on, the oat body
may need replacing, or the oat nger is installed upside down.
Vacuum Tank Float Switch Replacement
Required:
-Colored tape
-New oat switch, rubber washer and plastic nut
-Silicone
-Medium/deep depth 13/16” socket and ratchet
-Medium crescent wrench
-Long shaft Phillips screw driver
-Flathead screwdriver
Instructions:
1. In a clear and open space, lay down a piece of cardboard or scrap
material.
2. Undo the rear latches of LTD machine by turning them counter
clockwise
3. Open the machine until it is resting on the scrap material previously
placed on the oor, which will help minimize scratching and damage to
the front of the LTD machine.
4. Locate the vacuum tank’s oat switch wires coming out of the black
vacuum tank and disconnect the two oat switch wires that are plugged
into the system. At this point, use the colored tape to mark the wires that
the oat switch was unplugged from.
5. Close the machine.
6. Locate blue switch plate box that holds the switches. Using the at head
screwdriver, remove the two black caps covering the Philips head screws
that hold the switch box.
25
Page 26
GENERAL INFORMATION
7. Using the Philips head screw driver, remove the two Philips head
screws and pull the blue face box out.
8. Once the blue switch box is removed, the back end of the vacuum oat
switch should be visible.
9. Remove the 7” clear vacuum tank lid located on top of the vacuum tank.
Use a ashlight to locate the position of the oat switch on the front wall
inside of the tank.
10. Once located, reach in and hold the oat switch lever all the way to
one side by pushing on the opposite side.
11. Using your other hand, or nger, roll the clip off of its tabs by pulling on
the bottom of the opposite tab from which you are pushing. It should not
take a lot of pressure to remove the switch, so be careful not to break it.
12. Place the medium crescent wrench on the back nut of the oat switch
and the 13/16” socket on its inside nut. Loosen the oat by rotating the
ratchet counter clockwise until completely loose. Make sure not to lose
any nuts or rubber washers in case they are needed in the future.
13. On the new oat switch, hold the oat switch lever all the way to one
side by pushing on the opposite side.
14. Using your other hand, or nger, roll the clip off of its tabs by pulling on
the bottom of the opposite tab from which you are pushing. It should not
take a lot of pressure to remove the switch, so be careful not to break it
15. Place the rubber washer over the threads of the new switch and all the
way down to the 13/16” nut side.
16. Place a thin layer of silicone on the rubber washer.
17. Thread oat switch-with actuating nger off-wires back through
vacuum tank hole and thread it in using the 13/16” socket. Make sure the
wires go down into the base of the machine.
18. Using your hand, thread the plastic nut onto the backside of the oat
switch placing the medium crescent wrench on the nut to hold in place
19. Tighten the 13/16” oat until snug. Make sure the at side of the body
is facing towards the top of the vacuum tank.
20 . Replace oat nger, at side down, onto the male position tabs
located on the oat switch body in the vacuum tank. First, hook one side
of the nger to one tab. Then roll and pull the tab with index nger until
other clip snaps into place.
21. Replace blue switch box with two Philips screws.
22. Return the black plugs back over the screw holes for a clean and
professional appearance.
23. Open the machine until it is resting on the scrap material previously
placed on the oor.
24. Locate the vacuum tank oat switch wires coming out of the black
vacuum tank and re-connect the two oat switch wires into the previously
marked ones. It will not matter which wire you plug into each port, just
make sure both wires are re-connected.
25. Close the machine and re-latch.
26. Check to ensure the new oat switch works by turning on both vacuums with the vacuum tank lid off. Reach inside and lift the oat nger. If
vacuums turn off, the oat works. If the vacuums stay on or will not turn
on, the oat nger may be installed upside down or wires were not connected completely.
Auto-ll Float Switch Maintenance and Replacement
Cleaning and maintaining oat switches will help extend the life your
machine. Regular cleaning is required for proper functionality. To clean
auto-ll level switch:
1. Open the black lid on the blue solution tank.
2. Use a ashlight to locate the auto-ll tank’s oat switch, which is on the
back wall of the blue tank about 5” from the bottom of the tank.
3. Once located, reach in and hold the oat switch nger all the way to one
side by pushing on the opposite side.
4. Using your other hand, or nger, roll the clip off of its tabs by pulling on
the bottom of the opposite tab from which you are pushing. It should not
take a lot of pressure to remove the switch, so be careful not to break it.
5. Check the oat nger and where it attaches for debris or any other
damage and if dirty, clean. If one of the male tabs where the oat hooks is
damaged, refer to the oat switch replacement section.
6. Once cleaned, replace the oat nger at side down onto the male position tabs located on the oat switch neck in the vacuum tank. First, hook
one loop of the nger on one tab then roll and pull the other tab with your
index nger until it snaps back into place.
7. Check to ensure the oat switch still works by turning on both vacuums
with the vacuum tank lid off. Reach inside and lift the oat nger. If vacuums turn off, the oat works. If the vacuums stay on, the oat body may
need replacing, or the oat nger is installed upside down.
Auto-ll Float Switch Replacement
Required:
-Colored tape
-New oat switch, rubber washer, and plastic nut
-Silicone
-Medium/deep depth 13/16” socket and ratchet
-Medium crescent wrench
1. In a clear and open space, lay down a piece of cardboard or scrap
material.
2. Undo rear latches of LTD machine by turning them counter clockwise
3. Open the machine until it is resting on the scrap material previously
placed on the oor, which will help minimize scratching and damage to the
front of the LTD machine.
4. Locate auto-ll oat switch wires coming out of the blue solution tank
and disconnect the two oat switch wires that are plugged into the system.
At this point, use the colored tape to mark the wires that the oat switch
was unplugged from.
5. Close the machine halfway by setting the handle on a 5-gallon bucket
or stand of similar height.
6. Locate the position of the oat switch inside of the solution tank on the
back wall of the tank.
7. Once located, reach in and hold the oat switch lever all the way to one
side by pushing on the opposite side.
8. Using your other hand, or nger, roll the clip off of its tabs by pulling on
the bottom of the opposite tab from which you are pushing. It should not
take a lot of pressure to remove the switch, so be careful not to break it.
9. Place the medium crescent wrench on the back nut of the oat switch
and the 13/16” socket on its inside nut. Loosen the oat by rotating the
ratchet counter clockwise until completely loose. Make sure not to lose
any nuts or rubber washers in case they are needed in the future.
10. On the new oat switch, hold the oat switch lever all the way to one
side by pushing on the opposite side.
11. Using your other hand, or nger, roll the clip off of its tabs by pulling on
the bottom of the opposite tab from which you are pushing. It should not
take a lot of pressure to remove the switch, so be careful not to break it
12. Place the rubber washer over the threads of the new switch and all the
way down to the 13/16” nut side.
13. Place a thin layer of silicone on the rubber washer where it will be
contacting the solution tank wall.
14. Thread oat switch-with actuating nger off-wires back through
vacuum tank hole and thread it in using the 13/16” socket. Make sure the
wires go down into the base of the machine.
15. Using your hand, thread the plastic nut onto the back side of the oat
switch placing the medium crescent wrench on the nut to hold in place
16. Tighten the 13/16” oat until snug. Make sure at side of the oat body
is facing towards the top of the solution tank.
17. Replace oat nger, at side down, onto the male position tabs located
on the oat switch body in the vacuum tank. First, hook one side of the
nger to one tab. Then roll and pull the tab with index nger until other clip
snaps into place.
18. Locate auto-ll oat switch wires coming out of the blue solution tank
into the machine. Re-connect the two-oat switch wires to the previously
marked wires. It will not make a difference which wires you plug into each
port, just make sure both wires are re-connected.
19. Close the machine and re-latch.
20. Check to ensure the oat still works by hooking up the auto-ll feature
like normal. Turn on water. Reach inside and lift the oat nger. If water
stops coming into the tank, the oat works. If the water keeps pouring in,
oat nger may be installed upside down or wires may not be connected
completely.
Pump does not work properly
1. Snap quick disconnects rmly together.
2. Check solution tank; may be empty.
26
Page 27
GENERAL INFORMATION
3. Jets clogged, remove jet and ush clean.
4. Filters clogged, remove lters and rinse clean with water.
5. Heater is blocked; ush out with Mytee’s® System Maintainer.
6. If brass check valve is stuck, replace valve.
7. Check pump wire. May need to reconnect wire.
8. Switch plate may need to be replaced.
9. If pump motor brushes are worn, replace pump.
Speedster® LTD3 heater does not work properly
1. If sensor mounted on the heater has popped, reset sensor by pushing
in button.
2. Heating element may need to be replaced.
Vacuum motor does not work properly
1. Check that hose is tightly connected.
2. Close drain hose valve completely.
3. Secure the vacuum tank tightly.
4. If water is coming out of the vacuum motor, use a low foaming
detergent.
5. Clean upholstery tool or oor wand jets.
FAQs
Q: How much do the Speedster® LTD Series extractors weigh and what
are the dimensions?
A: All Speedster® LTDs
Machine Dimensions: 30” x 20” x 42”
Shipping Dimensions: 37 ¼” x 21” x 50 ¾”
LTD3 – Machine Weight: 145 lbs.
Shipping Weight: 185 lbs.
TIES, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. MYTEE SHALL IN NO WAY BE RESPONSIBLE FOR THE
PROPER USE AND APPLICATION OF THE GOODS. MYTEE NEITHER
ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME
FOR MYTEE ANY OTHER LIABILITY IN CONNECTION WITH THE
SALE OF MYTEES GOODS. THIS LIMITED WARRANTY POLICY MAY
BE CHANGED OR WITHDRAWN BY MYTEE AT ANY TIME WITHOUT
NOTICE.
90-DAY PARTS AND LABOR LIMITED WARRANTY: Mytee will cover
parts and labor on all components for 90 days from the date of original
purchase. This warranty covers the cost of replacement and labor only,
and does not cover shipping costs.
WEAR PARTS 90-DAY LIMITED WARRANTY: Mytee will replace all
wear parts for 90 days from the date of original purchase. Wear parts are
items which wear out as a result of usage or the passage of time and are
consumed despite attempts to maintain them, such as gaskets, wheels,
brass, cords, wires, electrical terminals, hoses, switches, thermostats,
plastisol parts, lters, bearings, brushes, solenoids, o-rings, bulbs, heating elements, castors, or other parts deemed wear items in Mytees sole
discretion. This warranty covers the cost of replacement only and does not
cover shipping or labor costs.
1-YEAR MAJOR COMPONENTS WARRANTY: Mytee warrants that
pumps, vacuum and oor machine motors, and heaters are covered for a
one (1) year limited warranty from the date of original purchase. This warranty does not apply and is void if the pump, vacuum motor, or heater has
worn brush motors, water damage, chemical build-up, chemical damage,
or evidence of abuse, neglect or tampering. This warranty covers the cost
of replacement only, and does not cover shipping or labor costs.
LTD5 – Machine Weight: 135 lbs.
Shipping Weight: 175 lbs.
LTD12 – Machine Weight: 140 lbs.
Shipping Weight: 180 lbs.
Q: What comes standard with Speedster® LTDs?
A: Two 50’ power cords, hose hanger with screws, two Cuff-Lynx™ Model
Numbers: H141 Reducer and H110 Coupler Swivel, pack of Piglets™ and
45˚ drain elbow.
Q: Does Mytee® recommend tools for this machine?
A: All upholstery tools and wands can be used with the
Speedster® LTD series.
Q: Is there anything I can do to increase the expected life of my machine?
A: Running the vacuum motors with the tank empty and lid off will allow
excess moisture in the vacs to dry off. You should also run Mytee’s®
System Maintainer through the system to keep the hoses, pump, and
heater clean and free of debris.
Mytee Limited Warranty Policy
Mytee Products, Inc. endeavors to provide high quality products and product support to its customers and therefore backs up all of its new products
purchased from Mytee Products Inc. (Mytee) or any authorized Mytee
distributor/service center with this limited warranty.
This limited warranty begins on the date of the customer purchase and is
valid and available to the original purchaser only. Mytee products are for
commercial use only and are not intended for personal, family or household uses.
HOWEVER, OTHER THAN SET FORTH HEREIN, MYTEE GIVES NO
WARRANTY, EXPRESS OR IMPLIED, AS TO DESCRIPTION, QUALITY, MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE,
PRODUCTIVENESS, INFRINGEMENT, OR OTHER MATTER, OF ANY
GOODS WHICH MYTEE SHALL SUPPLY. THERE ARE NO WARRAN-
HOUSING LIFETIME LIMITED WARRANTY: Mytee warrants that all rotationally molded housing and tanks will be free from manufacturing defects,
defects in workmanship, and defects in material for the life of the part.
Replacement cost does not include the cost of shipping or labor.
LIMITATION OF DAMAGES: THE REMEDY OF REPLACEMENT OR
REPAIR OF ANY DEFECTIVE GOODS SHALL BE THE EXCLUSIVE
REMEDY UNDER ANY WARRANTY MADE BY MYTEE, WHETHER
EXPRESS OR IMPLIED. IN NO EVENT SHALL MYTEE BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, PROPERTY DAMAGES, OR PERSONAL INJURIES.
All limited warranties are void for, and Mytee does not warrant in any way,
any product that evidences misapplication, improper installation, abuse,
lack of maintenance, negligence in use or care, abnormal use, alteration of design, use of incompatible or corrosive chemicals, use in a rental
service, and/or servicing, installation of parts, or repairs by anyone other
than Mytee or a Mytee authorized distributor or service center. Mytee may
make changes in products it manufactures and markets at any time; these
changes are made without obligation to change, retrot, or upgrade any
product previously sold or manufactured.
Mytee has no obligation to honor the limited warranties set forth herein
unless the original purchaser, promptly upon discovering the warranty
claim and prior to continuing to use the product, contacts Mytee or a
Mytee authorized distributor or service center to describe the claim and to
receive and follow instructions for documenting and resolving the claim.
In addition, the purchaser must provide the product to which the claim
applies to Mytee or a Mytee authorized distributor or service center for a
thorough inspection.
If any provision or portion of this limited warranty policy is found to be
unenforceable, then the remaining provisions and portions shall remain
valid and enforceable. If any provision or portion of this limited warranty
policy is found to be limited by law, then that provision or portion shall
be construed to make it effective within the bounds of law. For example,
if there are legal limitations on the duration of warranties, the warranties
made herein shall be construed to have the minimum duration required by
law, or, if there are legal limitations of exclusion of remedies, the exclu-
27
Page 28
GENERAL INFORMATION
sions made herein shall be construed to apply to the fullest extent possible
without violating the law.
The validity, construction and performance of this warranty policy shall be
governed by the laws of the State of California, without respect to conicts
of laws principles. The exclusive jurisdiction of any legal action arising
from or related to this warranty policy shall be in the State of California and
no legal action shall be commenced elsewhere.
Return Material Authorization Procedure
It is the responsibility of any Authorized Service Center (ASC) or Distributor with
written authorization to ensure the Customers equipment is repaired as soon as
possible. Only Mytee Products Inc. or it’s authorized dealers with written authorization, service centers, and agents may make warranty repairs on these products. All
others do so at their own risk and expense.
NOTES
The Distributor must follow Mytee Products, Inc. standard RMA procedure:
1. When a repair falls within the Warranty time period for a piece of equipment, the
Distributor will ll out a RMA/Warranty claim form. This form will act as a repair order
to replace any defective parts.
2. All defective parts must be returned to Mytee Products, Inc. with the RMA/claim
form for evaluation at the customer’s expense. This shipping is non-refundable. All
warranty claims are subject to an evaluation by Mytee Products, Inc. to determine if
warranty will be approved. Any credit for repair and/or parts will only be issued upon
evaluation and approval from Mytee Products, Inc.
3. When Warranty is approved, the Distributor’s account will be credited for the
replacement part(s). Mytee Products, Inc. will ship the warranted replacement part(s)
to the Distributor prepaid. If Warranty is denied the Distributor’s account will not be
credited for any parts sent for this claim.
Mytee Produc ts I nc.
13655 Stowe Dr.
Poway, C a. 92064
www.mytee.com
PH 858.679. 1191
F X 8 58.679.7814
© 2012 Mytee Pr odu cts Inc.
Printed in the U.S.A.
28
Loading...
