Mytee Lite 8070 User Manual

User Manual

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

MYTEE LITE

Model: 8070
Carpet & Upholstery Spotter

REV. 2/15/18

13655 Stowe Dr. Poway, CA 92064 • P: [phone] • F: [phone]

INTRODUCTION

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

Dear Customer:

Congratulations on the purchase of your new Mytee Lite™ Carpet & Upholstery
Spotter.

As technology continues to develop you can work condently knowing that

both Mytee Products and its employees are equally dedicated to developing
with the industry and its advances.

Like any other piece of machinery or technology, the Mytee Lite™ also requires
the proper maintenance and care to keep the product working over extended
use. Neglecting your machine, abusing it or not operating it properly can void
its warranty and prevent the machine from performing to the quality and stan­dard you’d expect out of the Mytee Products line.

If you have any warranty concerns or questions, please review this manual
thoroughly or do not hesitate to contact your distributor. If there are questions
regarding maintenance, replacement, or ordering parts please contact an
authorized Mytee Products Service Center. To see an updated list please visit

our website at http://www.mytee.com/support/service-centers.

Before using your Mytee product, please read this manual thoroughly.

Sincerely,
Mytee Customer Care Dept.

2

TABLE OF CONTENTS

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

IMPORTANT SAFETY INFORMATION

1

2

AT A GLANCE 6

1.1 - Technical Specications 6

1.2 - Included with the Mytee Lite™ 6

1.3 - Mytee Lite™ Front View 7

1.4 - Mytee Lite™ Rear View 8

1.5 - Switch Plate 9

1.6 - Exploded View & Parts List 10

MACHINE OPERATION 12

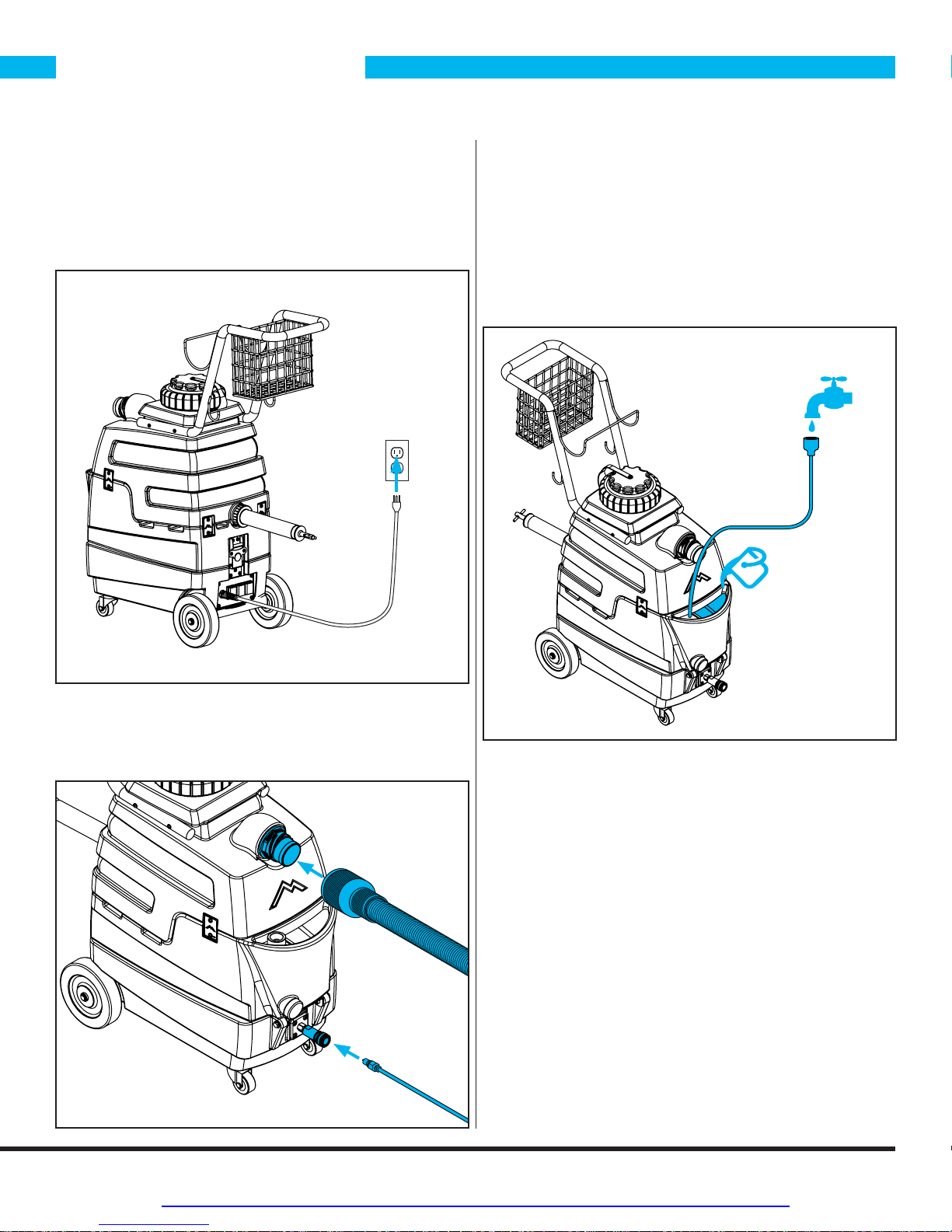

2.1 - Powering the Mytee Lite™ 12

2.2 - Connecting Hoses & Cleaning Tools 12

2.3 - Filling the Solution Tank 12

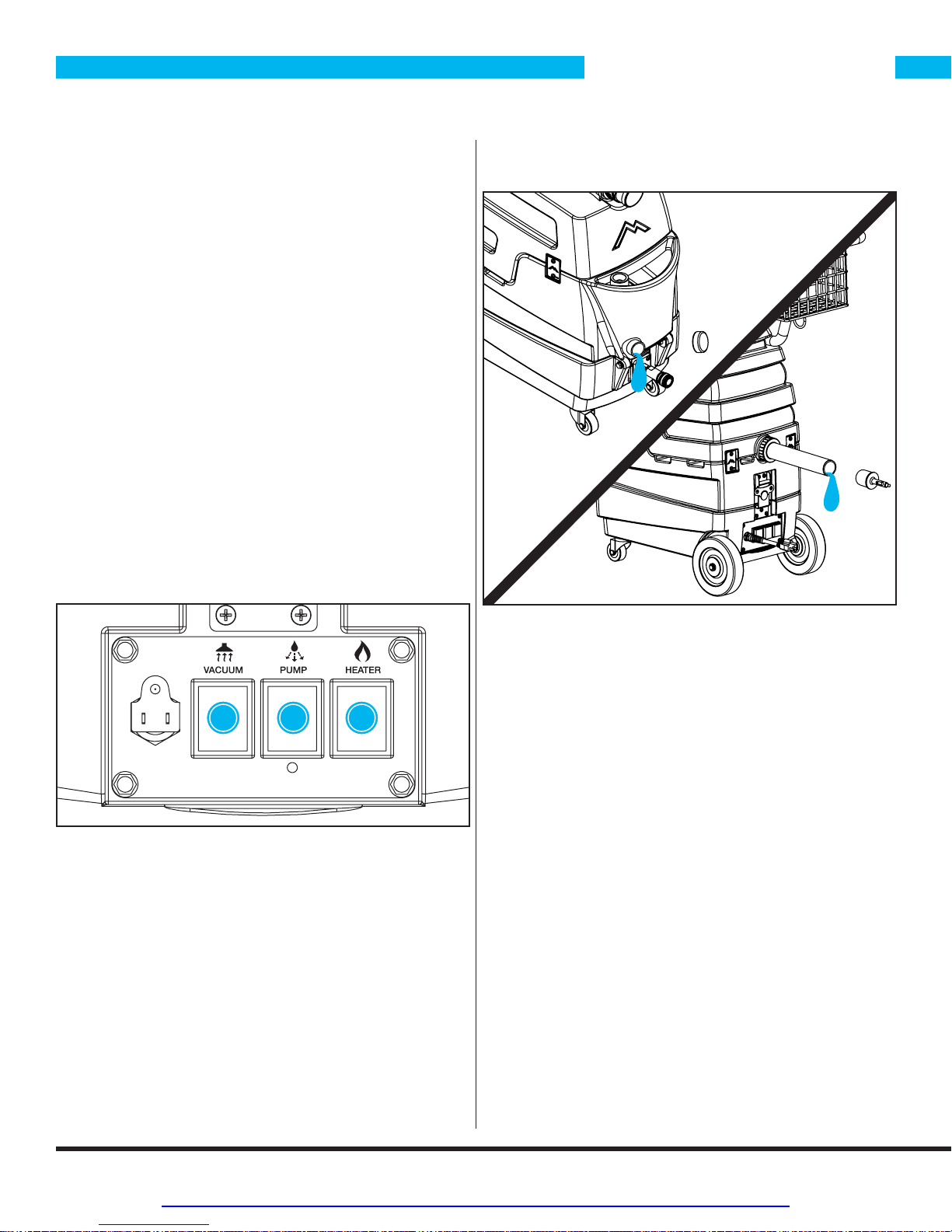

2.4 - Operating the Mytee Lite™ 13

2.5 - Emptying the Solution & Recovery Tanks 13

4

3

4

5

MACHINE MAINTENANCE 14

3.1 - Filter Maintenance 14

3.2 - System Maintainer 14

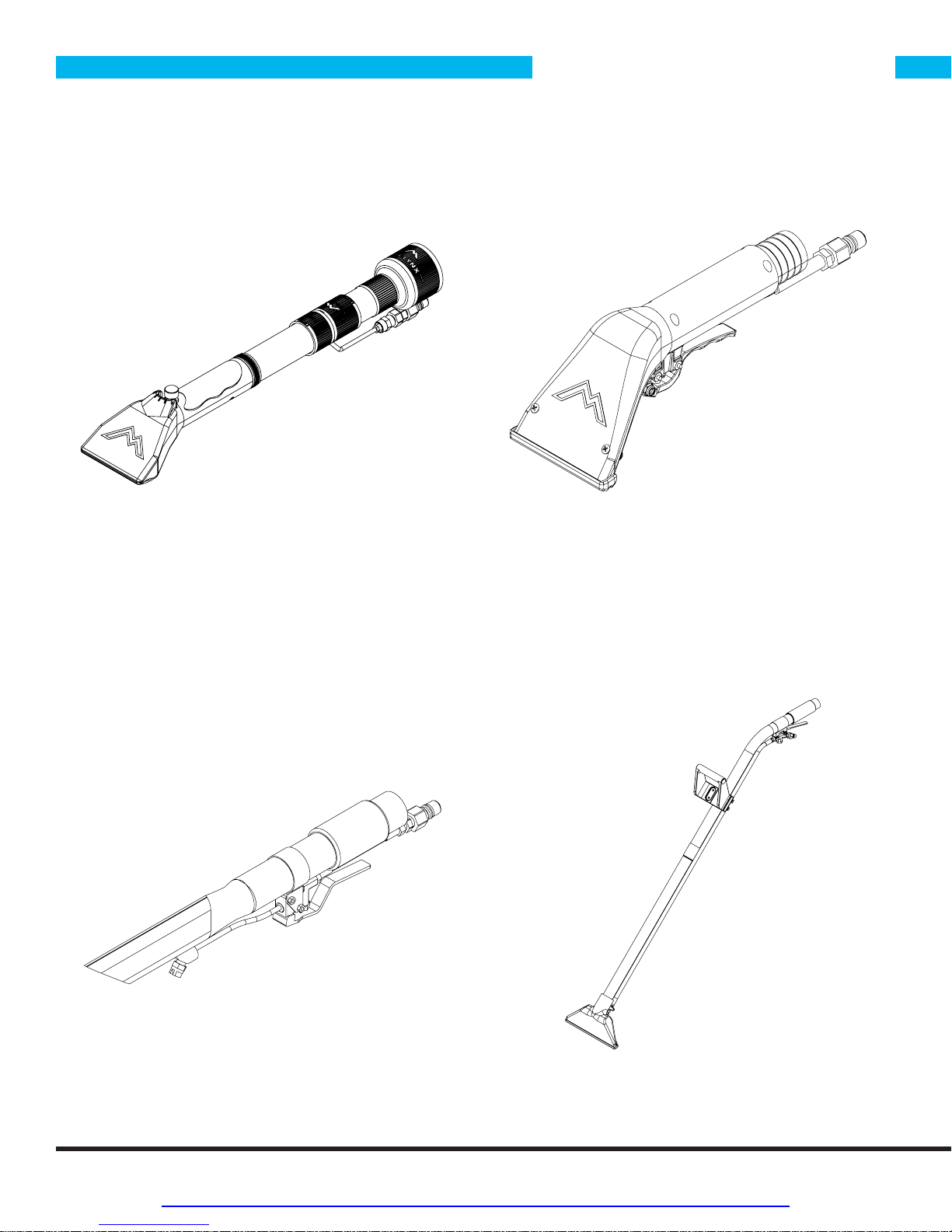

AVAILABLE ACCESSORIES 15

TROUBLESHOOTING 16

3

IMPORTANT SAFETY INFORMATION

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

Grounding Instructions

This machine must be grounded. If it should malfunction
or breakdown, grounding provides a path of least resis­tance for electrical shock. This machine is equipped with

a cord having an equipment-grounding conductor and

grounding plug. The plug must be plugged into an appro­priate outlet that is properly installed in accordance with
all local code and ordinances. Do not remove ground pin;
if missing, replace plug before use.

Improper installation of the equipment-grounding conduc-

tor can result in a risk of electric shock. Be sure to check

with a qualied electrician or service person if you are in

doubt as to whether the outlet is properly grounded. If

the plug will not t in the outlet do not modify either the

plug nor the machine’s cord, instead have a proper outlet

installed by a qualied technician.

This machine is for use on a nominal 120-volt circuit and
with a grounding plug similar to the one in Figure 1 below.

If a proper outlet is not available, follow the illustrations of

Figure 2 & 3 to install a temporary-grounding plug. This
temporary work-around should be used only until a proper
outlet (Figure 1) can be installed by a qualied electrician.

When and if this type of adapter is employed, screw the
adapter’s extended tab into place with a metal screw.

However, grounding adapters are not approved for use in

Canada.

Again, be sure to check the grounding pin for damages
and replace if necessary.

The Green, or Green-Yellow, wire in the cord is the

grounding wire. When replacing a plug, this wire must be
attached to only the grounding pin.

Parts and Service

Please contact a Mytee service personnel or Mytee
authorized Service Center using Mytee original replace­ment parts and accessories for repairs are needing to be
performed. When and if calling Mytee for support, please
have your Model and Serial Number available for faster
assistance.

Name Plate

The Model and Serial Number are located on the lower
half of the back of the machine near the power plugs and

will be required for ordering replacement parts. You can

use the space provided on the front of this manual to note
down both for future referencing.

Unpacking the Machine

When your new machine is delivered, please carefully in­spect both the shipping carton and the machine for dam­ages. If damage is evident, save both the shipping carton
and machine so that the delivering carrier can inspect it.

Contact the carrier immediately to le a freight claim if

there has been any damage.

Caution and Warnings

Symbols

Mytee uses the symbols below to signal potentially dan­gerous conditions. Always read this information carefully
and take the necessary steps to protect personnel and
pr operty.

Is used to warn of immediate hazards that will cause se­vere personal injury or death.

DO NOT use extension cords.

Please Note for America use only.

Grounded Outlet

Metal
Screw

Grounding Pin

Figure 1

Grounded Outlet Box

Figure 2 Figure 3

Adapter

Tab for Grounding
Screw

Is used to call attention to a situation that could cause
severe personal injury.

Is used to call attention to a situation that could cause
minor personal injury or damage to the machine or other
property. When using an electrical appliance, basic pre­cautions should always be followed, including the follow-

ing: Read all instructions before using this machine. This

4

IMPORTANT SAFETY INFORMATION

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

product is intended for commercial use only.

To reduce the risk of re, electrical shock, or injury:

1. Read all instructions before using equipment.

2. Use only as described in this manual. Use only manu-

facturer’s recommended attachments.

3. Always unplug power cord from electrical outlet before
attempting any adjustments or repairs.

4. Do not unplug by pulling on cord. To unplug, grasp the
plug, not the cord.

5. Do not pull or carry by cord. Do not close a door on
cord or pull cord around sharp edges or corners.

6. Do not run appliance over cord. Keep cord away from
heated surfaces.

7. Do not use with damaged cord or plug. If cord is dam­aged, repair immediately.

8. Do not use outdoors or on wet surfaces and or stand­in g wate r.

9. Always unplug or disconnect the appliance from power
supply when not in use.

tional regulations may apply to the safe disposal of liquids

which may contain: chemicals, grease, oil, acid, alkalines,

or other dangerous liquids.

19. Do not leave operating unattended.

10. Do not allow to be used as a toy. Close attention is

necessary when used by or near children.

11. Do not use in areas where ammable or combustible

material may be present.

12. Do not leave the unit exposed to harsh weather ele­ments. Temperatures below freezing may damage compo­nents and void warranty.

13. Use only the appropriate handles to move and lift unit.
Do not use any other parts of this machine for this pur­pose.

14. Keep hair, loose clothing, ngers, and all parts of the

body away from all openings and moving parts.

15. Use extra care when using on stairs.

16. To reduce the risk of re or electric shock, do not use

this machine with a solid-state speed control device.

17. The voltage and frequency indicated on the name
plate must correspond to the wall receptacle supply volt­age.

18. When cleaning and servicing the machine, local or na-

5

1 - AT A GLANCE

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

1.1 - Technical Specications

Solution Tank

Recovery Tank

Vacuum

CFM

Water Lift

Pump PSI

Pump GPM

Power Consumption

Machine Weight

Machine Dimensions

Power Cord

4 Gallons

4 Gallons

Single 3-Stage

100

130”

120

1.3

19 amps @ 115V

48 lbs.

With handle: 33” x 12” x 36.5”

Without handle: 18” x 12” x 28.5”

Single 25’ 12/3

1.2 - Included with the Mytee Lite™

8501 15’ x 1.25” Vacuum & Solution

Hose

Easy-Push Handle

8400 4” Stainless Steel Upholstery

Tool

6

Heatguard™ Hose Wrap

A110 Drain Hose

1 - AT A GLANCE

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

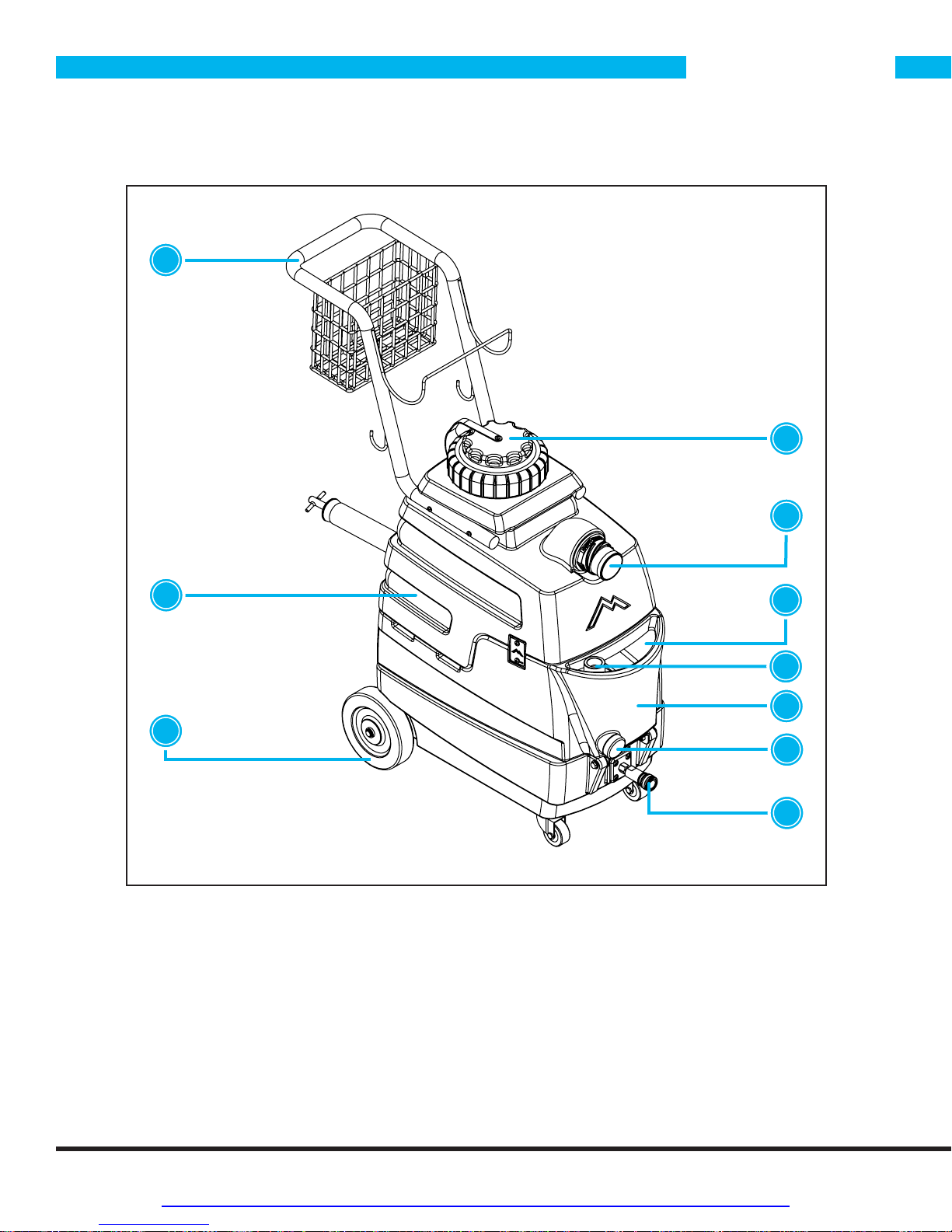

1.3 - Mytee Lite™ Front View

1

10

9

2

3

1. Easy-Push Handle

2. Recovery Tank

3. 10” Wheels

4. Quick Disconnect

5. Solution Tank Drain

8

7

6

5

4

6. Solution Tank

7. Faucet Fill Hose

8. Bucket Fill Opening

9. Cu-Lynx™ Hose Connection

10. Recovery Tank Lid

7

1 - AT A GLANCE

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

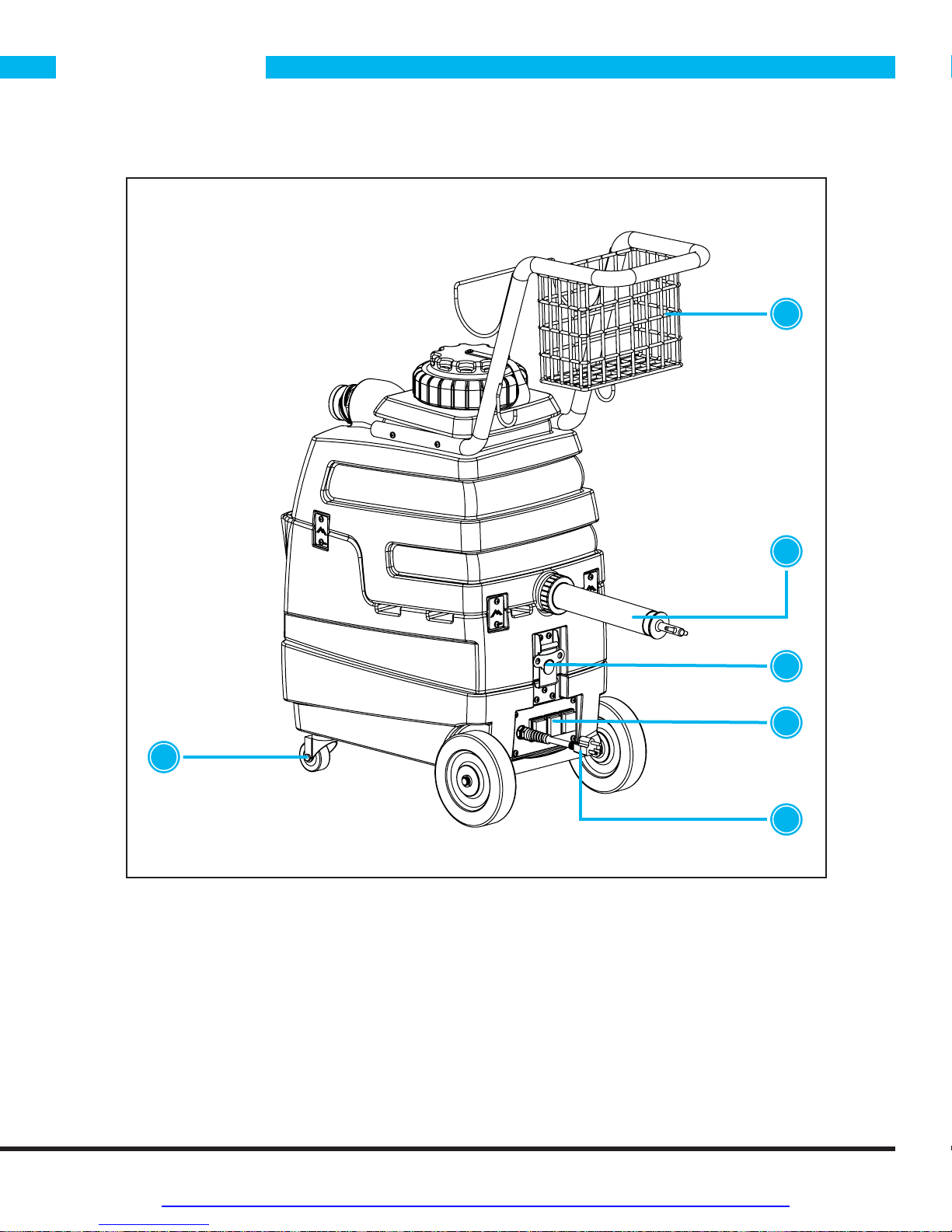

1.4 - Mytee Lite™ Rear View

5

1

1. 3” Locking Front Casters

2. 25’ 12/3 Power Cord

3. Switch Plate

5

4

3

2

4. Opening Latch

5. Recovery Tank Drain Hose

6. Storage Basket

8

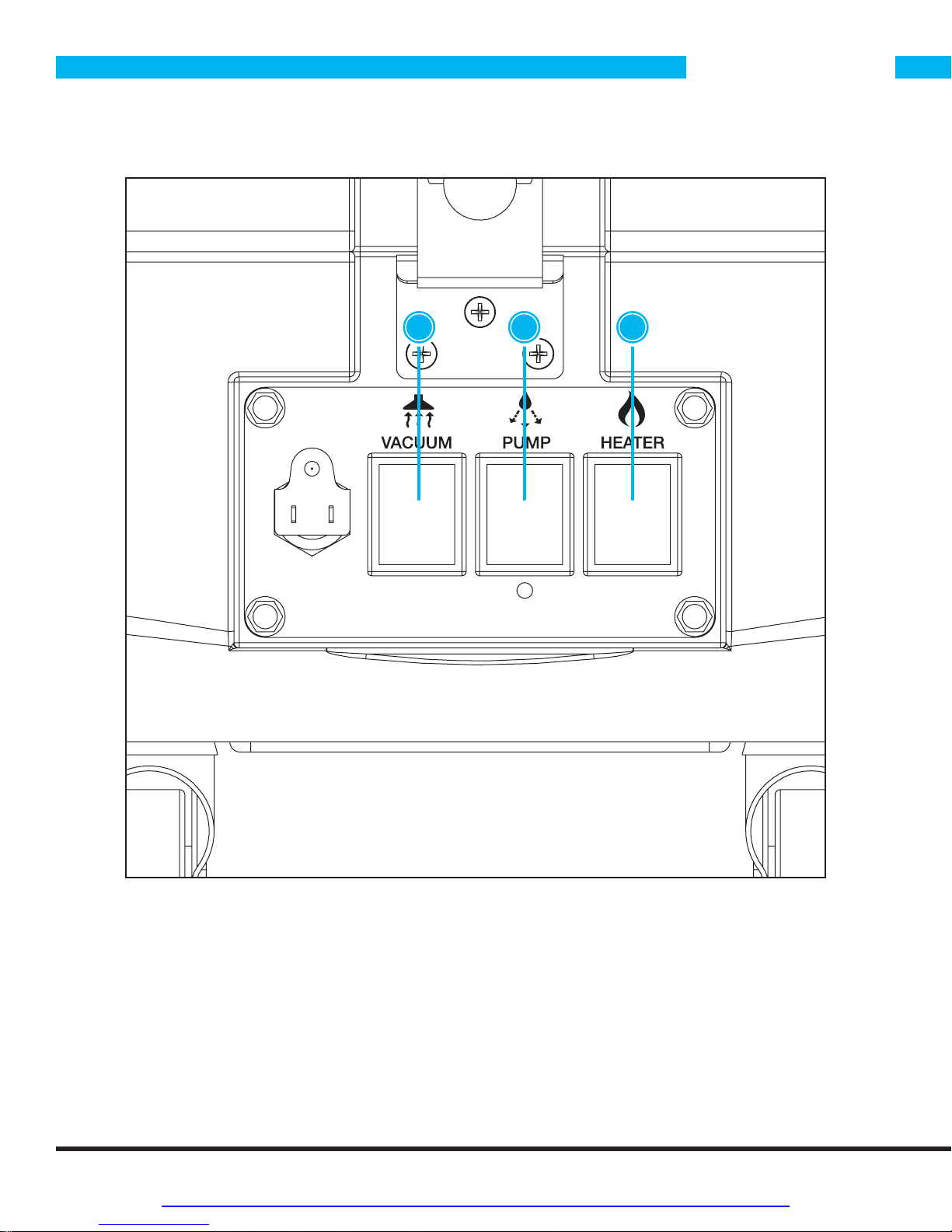

1.5 - Switch Plate

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

1 2 3

1 - AT A GLANCE

1. Vacuum Switch

Activates the vacuum motor.

2. Pump Switch

Activates the solution pump.

9

3. Heater Switch

Activates the heater.

1 - AT A GLANCE

D

C

B

8

7

6

5

4

3

2

1

E

F

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

10

9

7

8

6

5

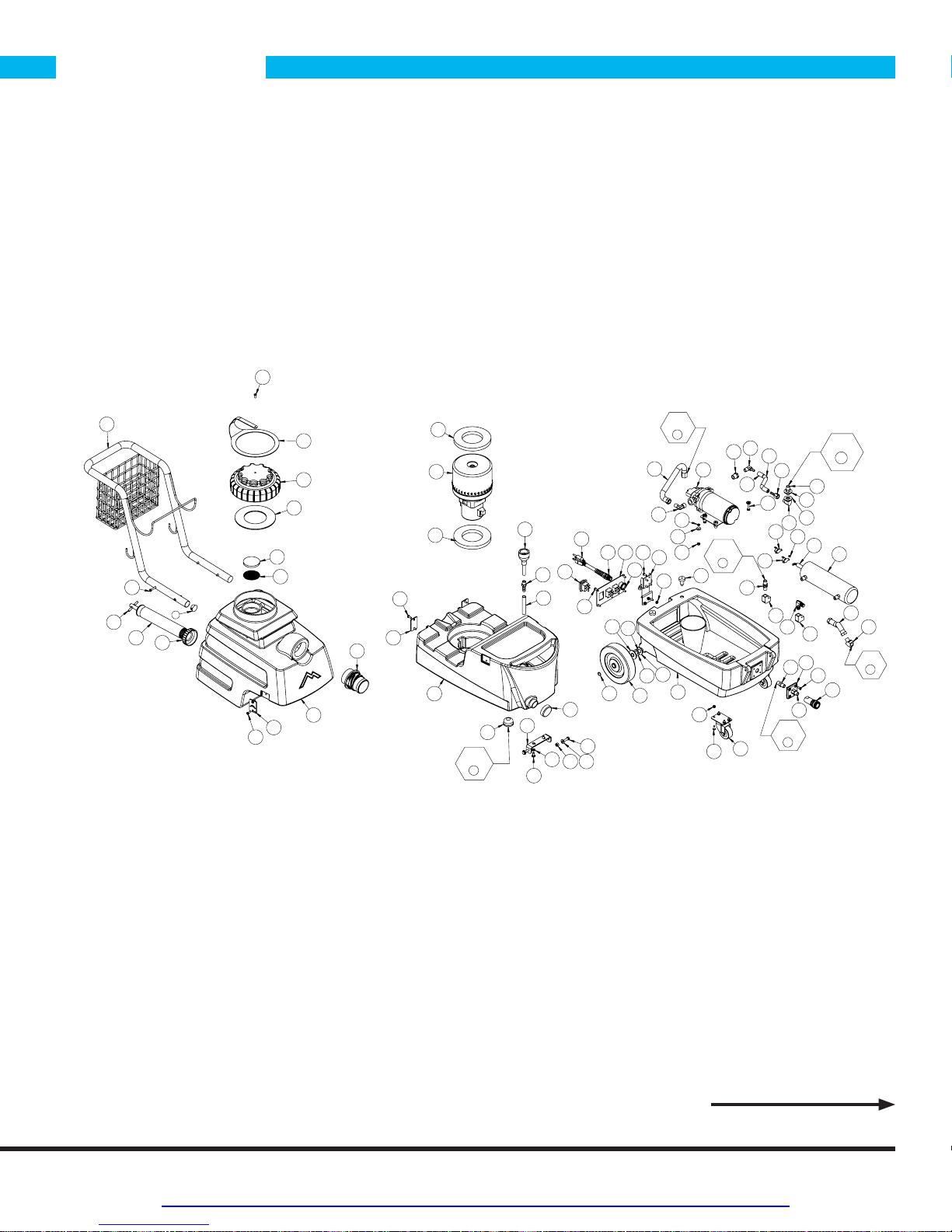

1.6 - Exploded View & Parts List

4

to heater

"IN"

11

12

25

26

13

25

14

15

4

3

1

24

2

3

4

to pump

"IN"

thru B106A

56

27

41

42

43

40

28

29

39

37

38

36

21

22

23

16

19

20

1718

thru

63

49

50

53

52

54

55

51

48

47

17

to pump

4

45

44

31

"OUT"

31

thru AH157

46

9

61

60

49

63

64

33

34

32

35

31

4

to heater

"OUT"

30

to sol tank
thru B119

23

56

33

33

57

62

59

58

66

65

64

68

56

4

67

to QD

thru B107

56

70

69

thru

67

10

Corresponding part descriptions on
next page.

1 - AT A GLANCE

ITEMS NOT SHOWN

ITEM

NO.

PART NO.

DESCRIPTION

QTY.

MSRP

1

H135

Cuff-Lynx, 2" m cuff x 2" mpt

1

$3.99 ea

2

P583

vac tank, MyteeLite

1

$159.99 ea

3

H312

plate, connecting, MyteeLite

4

$6.99 ea

4

H230

screw, 10-32 x 1/2" phil pan head, s/s 28

$0.99 ea

5

G103

cap, 2.5" threaded, w barb

1

$4.99 ea

6

H303

hose, drain, 14"

1

$15.99 ea

7

H350

drain, hose plug, 1-1/2"

1

$9.99 ea

8

H423

plug, 7/8", black, heyco

2

$0.99 ea

9

H222

screw, 10-32 x 1-1/4" phil pan head, s/s 6

$0.99 ea

10

H688-A

handle, MyteeLite

1

$65.99 ea

11

G055

tether, cap, 6 1/2"

1

$12.99 ea

12

P560

cap, 6", threaded

1

$23.99 ea

13

G031

gasket, 3.25" i.d. x 5.88" o.d.

1

$6.99 ea

14

G022

filter, foam, 2-3/8" x 1"

1

$2.99 ea

15

G021

screen, mesh filter, 2-3/8" dia

1

$4.99 ea

16

H203

bolt, 1/4-20 x 1-1/4" hex head, s/s

2

$0.99 ea

17

H210

washer, 1/4" flat, s/s

6

$0.99 ea

18

H216

nut, lock, 1/4-20, nylon insert, s/s

2

$0.99 ea

19

H213

washer, 1/4" lock, s/s

2

$0.99 ea

20

H201

bolt, 1/4-20 x 1/2" hex head, zinc

2

$0.99 ea

21

H846B cap, gallon jug, 1-5/8"

1

$0.99 ea

22

H379

bracket, front, small

1

$3.99 ea

23

B119

filter, strainer, 1/4"

1

$3.99 ea

24

P584

sol tank, MyteeLite

1

$149.99 ea

25

G004

gasket, vacuum motor

2

$8.99 ea

26

C302P

vac motor, 3 stage

1

$148.99 ea

27

H178

faucet fill

1

$10.99 ea

28

B241

adapter, brass, 3/8" barb x 1/4"mpt

1

$1.99 ea

29

PH612-60

clear tubing, 1/2" OD x 3/8" ID, faucet fill

1

$1.99 ft

30

H681

caster, 2", black hub, gray tread

2

$8.99 ea

31

H273

nut, kep, #10-32 zinc

15

$0.99 ea

32

P585

base, MyteeLite

1

$89.99 ea

33

H212

flat washer, 9/16"ID x 1 1/16"OD, AN960-C916

4

$0.99 ea

34

H427

washer, wave, axle

2

$1.49 ea

35

H279

wheel, 6"

2

$25.99 ea

36

H042

c-clip, 12mm, external

2

$0.99 ea

37

H254

washer, axle, cut 1/2" id

2

$0.99 ea

38

H241

axle, 13.63" x .50" dia

1

$15.99 ea

39

H029

plastite screw, 10 x 1/2"

4

$0.99 ea

40

E515

switch, rocker, 2 position

3

$13.99 ea

41

E531

power cord, end, 25', 12/3 black

1

$52.99 ea

42

H445

fitting, strain relief, w/ spring, 1/2" npt

1

$8.99 ea

43

H310

plate, switch, MyteeLite, 3 hole

1

$6.99 ea

44

H221

nut, lock, 1/2" steel

1

$1.99 ea

45

H486

latch, front

1

$13.99 ea

46

G068

bumper, 7/8" x 1/4" head 2

$1.99 ea

47

H256

screw, 10-32 x 3/4" phil pan head, zinc

2

$0.99 ea

48

B652

elbow, brass, 90 deg, 3/8"mpt x 1/4"mpt

1

$8.49 ea

49

AH157

hose, 3/8" x9" (OAL), f x fsw

1

$25.99 ea

50

C305

pump, 120 psi, 115V

1

$151.99 ea

51

B170

ferrule, 1/4" brass

2

$0.99 ea

52

B105

bushing, brass, 3/8"mpt x 1/4"

1

$3.19 ea

53

B152

elbow, brass, 90 deg, 1/4" barb x 1/4" mpt

1

$5.49 ea

54

PH634-13 sol hose, 1/4" silicone braided, clear

1

$6.49 ft

55

B110

adapter, brass, 1/4" sw barb x 1/4" fpt, w/gasket

1

$3.99 ea

56

B107

nipple, brass, 1/4"m, hex

2

$3.19 ea

PART NO.

DESCRIPTION

QTY.

MSRP

A997

harness, electrical

1

$47.99 ea

B101

quick disconnect, male, 1/4" male x 1/4" fpt

2

$8.49 ea

B102

quick disconnect, 1/4" female x 1/4" fpt

1

$17.49 ea

B104

bushing, hex, 1/4" mpt x 1/8" fpt

1

$1.99 ea

AH136

sol hose, 1/5" x 15', 1/8 mpt x 1/4 mpt

1

$44.99 ea

G036

cap, 2.5" threaded, tethered

1

$3.99 ea

G079 hose wrap, heat guard

1

$2.99 ea

A935

sol hose, pigtail, 1/8 x 7 1/2

1

$14.99 ea

H701

hose, vac, 15' x 1-1/4" w/ 1 1/2 black cuffs

1

$43.99 ea

H282

tool, upholstery w/valve

1

$98.99 ea

H122

Cuff-Lynx, 1.25" hose cuff x 2" female cuff

1

$3.99 ea

H133

Cuff-Lynx, 1-1/4" hose x male & female

2

$9.99 ea

P590

cuties, 1/4" qd, strandard pack of 2

1

$2.99 ea

ADM-8070

manaul, Mytee-Lite

1

ITEM
NO.

PART NO.

DESCRIPTION

QTY.

MSRP

57

B103

elbow, brass, 90 deg, 1/4"mpt x 1/4" fpt

1

$4.49 ea

58

H903A

heater, aluminum cast, single

1

$78.99 ea

59

E519

heating rod, 1000W, 115V

1

$51.99 ea

60

E573

Thermostat, 200°, Auto, 1/4"

1

$16.49 ea

61

E574

Thermostat, 310°F ± 10°F, Manual, 1/4"

1

$17.99 ea

62

H274

screw, 6 x 3/16, phil pan head, self-tapping

5

$0.99 ea

63

B108

valve, brass, 1/4" check

1

$13.99 ea

64

B207

elbow, brass, 90 deg, 1/4" fpt x 1/4" fpt 2

$5.99 ea

65

B136

elbow, brass, 90 deg, 1/4" mpt x 1/4" mpt

1

$4.99 ea

66

AH184

hose, pulse, 3/8" x 14-1/2" (OAL), f

1

$27.99 ea

67

B130

45 deg, street elbow, brass, 1/4" male

1

$5.49 ea

68

H484

plate, mounting, QD

1

$4.99 ea

69

B111

adapter, brass, extender, 1/4" mpt x 1/4" fpt, hex

1

$3.49 ea

70

B102

qd, brass, 1/4" f x 1/4" fpt

1

$17.99 ea

8

7

6

5

4

3

COMMENTS:

CHECKED

DRAWN

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MYTEE PRODUCTS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

11

2 - MACHINE OPERATION

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

2.1 - Powering the Mytee Lite™

To power the Mytee Lite™, plug the power cord into a
grounded 20 amp outlet. ♦

Vacuum & Solution Hoses

The Mytee Lite™ features a 2” Cu-Lynx™ vacuum hose

connection as well as a standard 1/4” quick disconnect

tting for solution hoses. ♦

2.3 - Filling the Solution Tank

2.2 - Connecting Hoses & Cleaning Tools

The Mytee Lite™ solution tank can be lled up via the fau­cet ll hose or from a bucket via the opening. ♦

12

2 - MACHINE OPERATION

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

2.4 - Operating the Mytee Lite™

Switching On The Unit

In order to avoid vapor locking the unit, the Mytee Lite’s™
components should be switched on by following the pro-

cedure below:

1. Turn pump switch on.

2. Pull the lever on the cleaning tool to release air in the

line. Hold lever until a steady ow of water comes out of

the wand.

3. Once pump is primed and there is pressure in the solu-

tion line, turn on heater switch and wait a few minutes for
water to heat up.

4. Once water is heated, turn on vacuum and begin clean-

ing.

Note: When cleaning upholstery, always check manufac-

turer’s cleaning instructions.

2.5 - Emptying the Solution & Recovery Tanks

13 2

Cleaning With The Mytee Lite™

For best results when extracting, do one wet pass followed
by two dry passes. This ensures you’re not over-soaking

the material and also gives the heater time to catch up.

The solution tank drain is located on the front, lower left
corner of the solution tank.

The recovery tank drain is located on the back of the
machine at the bottom of the recovery tank. Attach the
included recovery tank drain hose in order to easily empty
into a bucket or other receptacle. ♦

13

3 - MACHINE MAINTENANCE

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

In order to keep the Mytee Lite™ running smoothly and
reduce the risk of damage to the machine and subsequent
downtime, Mytee recommends following the maintenance

schedule below:

Maintenance Item Daily Weekly

Clean and inspect tanks.

Clean and inspect hoses.

Check and clean internal lters.

Check power supply cable.

Clean machine with all-purpose

cleaner and cloth.

Check spray nozzles.

Flush solution system with Mytee

System Maintainer.

Inspect vacuum hoses for holes and

loose cus.

Inspect spray pattern for clogging.
If clogged, remove spray tips and
soak them in a recommended liquid
neutralizer for up to six hours. To re­move spray tip, twist spray tip body

counter-clockwise.

Lubricate wheels with water resis­tant oil.

Inspect machine for water leaks and
loose hardware.

X

X

X

X

X

X

X

X

X

X

X

3.2 - System Maintainer

Weekly ushing of the solution system with Mytee®

System Maintainer helps keep lines clean and prevents

chemical build-up, improving pump life, performance and

pressure.

How to use System Maintainer:

1. Mix 1-quart 3601 System Maintainer with 1-quart of

warm water.

2. After thoroughly mixing, pour this solution into the solu­tion tank.

3. Turn the pump on FIRST, and run solution through your
cleaning tool. NOTE: The jet should be removed from the
cleaning tool in order to prevent clogging due to loosening
of deposits in line.

4. Next, turn on the heater. If the heater is turned on rst,
it will result in a vapor lock, which will aect the machine’s

operation.

5. Next, with both the pump and heater on, begin running
the solution through the machine. This allows the solution
to break down any build up in the lines.

6. After running all of the solution through the machine, ll

the tank with clean, warm water. Run the water through the
machine to clear the solution completely out of the tank &
lines. ♦

3.1 - Filter Maintenance

The Mytee Lite™ has a small lter on the top of the vac­uum stack in the recovery tank. This lter should be

checked and cleaned after each use. ♦

14

4 - AVAILABLE ACCESSORIES

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

8400DX Mytee Dry™ Upholstery Tool 8400P Air Lite™ Upholstery Tool

8700 Crevice Tool 8390EZ 10” Single Jet Carpet Cleaning Wand

15

5 - TROUBLESHOOTING

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

5.1 - Vacuum Troubleshooting

Vacuum is not turning on.

Possible Cause Solution

Vacuum may not be getting
power.

Check the electrical con­nections and the switch.
Look for loose or damaged
wires.

To check the switch:

Unbolt the switch plate.
Take a picture of the layout
of the wires or tagging the
wires for future reference.
Switch the wires from the
vacuum switch with the
wires from either the pump
or heater switch. Turn on
the pump or heater switch

(whichever one you ex­changed wires with). If the

vacuum turns on, then you
know the vacuum switch is
bad.

Drain valve/cap is loose
and is causing air leakage.

Hose cus are loose and

causing air leakage.

Lid on tank is loose and is
causing air leakage.

Vacuum blows water out the exhaust.

Possible Causes Solutions

Foam building up in the

recovery tank.

There is a loud grinding noise coming from the

Possible Cause Solution

Debris has been sucked
into the vacuum motor
chamber. Usually results
from dry vacuuming.

Click here for more detailed information.

Tighten the drain valve/cap.

Tighten all hose cus reg-

ularly as may loosen over
time. Use a glue to prevent

cus from coming loose
(optional).

Make sure the lid is tight.

Use a defoaming solution
in the recovery tank.

vacuum.

Replace the vacuum motor.
To avoid repeat problem,

DO NOT dry vacuum with

your extractor.

Vacuum is not producing suction.

Possible Causes Solutions

Recovery tank is full. Empty the recovery tank.

If the vacuum exhausts but
there is no suction, then
the hose from the recovery
tank to the vacuum motor
is disconnected.

Vacuum hose blockage

(if there is no suction or
exhaust).

Clogged lter in vacuum

tank.

Open the machine and nd

the hose running from the
recovery tank to the vacu­um motor. Check if it is dis­connected. If so, reconnect
it. If it has a leak, replace

the hose (Part # PH627 if

1.5”, PH628 if 2”).

Check for blockage in the
hose, starting from the
cleaning tool to the ma­chine.

Clean out lter regularly.

16

5 - TROUBLESHOOTING

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

5.2 - Pump Troubleshooting

Pump doesn’t turn on.

Possible Causes Solutions

Bad switch at control
panel.

Loose or disconnected
wire.

Unbolt the switch plate.
We recommend taking a
picture of the layout of the
wires or tagging the wires
for future reference. Switch
the wires from the pump
switch with the wires from
either the vacuum or heater
switch. Turn on the vacuum

or heater switch (whichever

one you exchanged wires

with). If the pump turns on,

the pump switch is bad.

Disconnect the power cord
from the electrical outlet.

Open up the machine and
look for any loose or dis­connected wires. Re-at-

tach or replace wires.

Pump runs but there is no spray.

Possible Causes Solutions

On a new unit, the check

valve between the pump
and heater may hang up,

causing the ow of water to

be impeded or stop entire­ly.

Remove the check valve
temporarily and check to

see if the pump will ow

water out of the pump out­let hose when the pump is
turned on for a brief instant
in order to verify cause.
The remedy is to install a

new check valve. Observe
the proper orientation (ow
direction) of the check

valve.

Tip: the check valve may

be able to be temporari­ly returned to service by

un-sticking the check valve

poppet with manipulation
of the poppet ball with a
thin tool, like a straightened
paperclip. Replace the
check valve in unit assem­bl y.

Pump runs but there is no spray.

Possible Causes Solutions

Blockage or kink some­where in the line.

Air is in the pump. Prime the pump.

See chart on page 4 of the

Diaphragm Pump Trouble­shooting Guide to diagnose

the location of the block­age.

Remove QD o the ma-

chine and solution hose.

Make sure that the three-

prong clip on the inside of
the threaded end is evenly
aligned below the thread of
the QD.

NEVER OPERATE A UNIT
WITHOUT A CHECK
VALVE IN PLACE.

Pump runs for a second then shuts down.

Possible Causes Solutions

QD is pressure locked. Relieve pressure from be-

hind the QD by pressing in
the button inside the QD.

Low PSI.

Possible Causes Solutions

The jet nozzle could be too
large.

Replace the jet with one
that has a smaller opening.

17

5 - TROUBLESHOOTING

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

Pump doesn’t stop running.

Possible Causes Solutions

Leak somewhere in the
line.

Cracks or vacuum leaks on
inlet side of pump.

Seals have been degraded
by chemical.

Debris blocking inlet lter

or pump head.

Pump trips circuit breaker when turned on.

Possible Causes Solutions

Short in power switch. Test by swapping vacuum

Short in electrical harness.

Disconnect the solution
hose from the machine. If
this causes the pump to
stop running then the prob­lem is outside the machine,
either in the solution hose
or tool. If it continues run­ning on, open the machine
and check for leaks. Repair
the leak. If there are no
leaks, run Mytee’s System

Maintainer™ (Part # 3601)

through the machine to
clear blockages.

Make sure hoses are
secured tightly. If the inlet
side of the pump is cracked
or damaged, replace the
pump.

Install seal repair kit.

Clean lter and/or pump

head.

and pump switch. If prob­lem resolves, but vacuum
begins tripping breaker, re-

place switch (Part #E515).

Risk of electric shock. Do
this at your own risk.

Remove pump from circuit
by attaching power leads
together. If breaker still
pops when switch is tog­gled, then there is a short
to the ground in the circuit.
Replace wires as needed.

Short in pump motor. If switch and harness

check is OK, the short

may be in the pump motor.
Replace pump.

Click here for more detailed information.

5.3 - Heater Troubleshooting

Heater is not heating water.

Possible Causes Solutions

Loose electrical connec­tion.

Automatic sensor has
failed, causing manual
sensor to trip.

Heater element has failed. Check for continuity

Bad power switch. If the element, sensors,

Check all electrical con­nections, including power
cord and harness.

Reset the manual sensor
button by pressing the
small white and yellow
button in the center of the
sensor. If this works, but
heater continues to trip the
manual sensor, replace

the automatic sensor (Part
#E573) on the heater.

through the element by
reading the amperage. If
amps are low, only part of
the element may be heat­ing up – in this case, the
element is damaged and
needs to be replaced.

and wiring all check out
okay, there may be a bad

switch on the switch-plate.

18

Running out of hot water too fast.

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

Possible Causes Solutions

5 - TROUBLESHOOTING

Too much water owing

through the heater.

Jets being used are too
large.

Water in tank is very cold. If possible, ll your solu-

Heater has hard water

buildup inside, leading to

lost eciency.

Remember, when using
your machine, it is rec­ommended you do one
wet pass followed by two
dry passes. This way you
are not spraying as much
and the hot water will last
longer.

If your machine has a
1,000W or 1,200W heating
system, make sure your
cleaning tool has 0.02 jets.

tion tank with warm water
in order to shorten the
amount of time it takes for
the water to heat up. The
pumps are usually rated for

140°F water.

Run Mytee System Main­tainer™ (Part # 3601)

through the machine regu­larly in order to clear hard
water or chemical residue

that can block water ow

and reduce heating abil­ity. See product label for
instructions.

Unit has vapor locked and there is no water pumping

out of the unit.

Possible Cause Solution

Turning on the heater
before turning on the pump
and priming the unit.

Click here for more detailed information.

Turn o the heater and

allow the unit to cool com­pletely. When machine has
cooled, turn on the pump

rst. Prime the unit by

spraying solution out of the
cleaning tool. Then, turn on
the heater.

19

NOTES

New & Reconditioned Equipment & Parts - www.southeasternequipment.net

Mytee Products, Inc.

13655 Stowe Dr.

Poway, CA 92064

www.mytee.com

© 2018 Mytee Products, Inc.

Printed in the USA
