User Manual
Focus
™
Model:
1600
REV. 9/18/19
13655 Stowe Dr. Poway, CA 92064
P: (858) 679-1191
F: (858) 726-6005
www.mytee.com
Page 2
Introduction
Dear Customer:
Congratulations on the purchase of your new Focus™ Vapor Steamer. As
technology continues to develop you can work condently knowing that both
Mytee Products and its employees are equally dedicated to developing with the
industry and its advances.
Like any other piece of machinery or technology, the Focus™ also requires
proper maintenance and care to keep the product working over extended use.
Neglecting your machine, abusing it or not operating it properly can void its
warranty and prevent the machine from performing to the quality and standard
you’d expect out of the Mytee Products line.
If you have any warranty concerns or questions, please review this manual
thoroughly or do not hesitate to contact your distributor. If there are questions
regarding maintenance, replacement, or ordering parts please contact an
authorized Mytee Products Service Center. To see an updated list please visit
our website at http://www.mytee.com/support/service-centers.
Before using your Mytee product, please read this manual thoroughly.
Sincerely,
Mytee Customer Care Dept.
2
Page 3
Table of Contents
Important Safety Information 4
1
2
3
At a Glance 6
1.1 - Technical Specications 6
1.2 - Included with the Focus™ 6
1.3 - Focus™ Front View 7
1.4 - Focus™ Rear View 8
Machine Operation 9
2.1 - Powering the Focus™ 9
2.2 - Filling the Water Tank 9
2.3 - Using Attachments 9
2.4 - Operating the Focus™ 9
2.5 - Storage 9
Machine Maintenance 10
3
Page 4
Important Safety Information
Grounding Instructions
This machine must be grounded. If it should malfunction or
break down, grounding provides a path of least resistance
for electrical shock. This machine is equipped with a cord
having an equipment-grounding conductor and grounding
plug. The plug must be plugged into an appropriate outlet
that is properly installed in accordance with all local code
and ordinances. Do not remove ground pin; if missing,
replace plug before use.
Improper installation of the equipment-grounding
conductor can result in a risk of electric shock. Be sure to
check with a qualied electrician or service person if you
are in doubt as to whether the outlet is properly grounded.
If the plug will not t in the outlet do not modify the plug or
the machine’s cord, instead have a proper outlet installed
by a qualied technician.
This machine is for use on a nominal 120-volt circuit and
with a grounding plug similar to the one in Figure 1 below.
If a proper outlet is not available, follow the illustrations of
Figure 2 & 3 to install a temporary-grounding plug. This
temporary work-around should be used only until a proper
outlet (Figure 1) can be installed by a qualied electrician.
When and if this type of adapter is employed, screw the
adapter’s extended tab into place with a metal screw.
However, grounding adapters are not approved for use in
Canada.
Again, be sure to check the grounding pin for damages
and replace if necessary.
The Green, or Green-Yellow, wire in the cord is the
grounding wire. When replacing a plug, this wire must be
attached to only the grounding pin.
DO NOT use extension cords.
Parts and Service
Please contact Mytee service personnel or a Mytee authorized Service Center using Mytee original replacement
parts and accessories if repairs need to be performed.
When and if calling Mytee for support, please have your
Model and Serial Number available for faster assistance.
Name Plate
The Model and Serial Number are located on the lower half
of the back of the machine near the power plug and will be
required for ordering replacement parts. You can use the
space provided in this manual to note down both for future
referencing.
Unpacking the Machine
When your new machine is delivered, please carefully
inspect both the shipping carton and the machine for
damages. If damage is evident, save both the shipping
carton and machine so that the delivering carrier can
inspect it. Contact the carrier immediately to le a freight
claim if there has been any damage.
Caution and Warnings
Symbols
Mytee uses the symbols below to signal potentially dangerous conditions. Always read this information
carefully and take the necessary steps to protect personnel
and property.
Is used to warn of immediate hazards that will cause
severe personal injury or death.
Is used to call attention to a situation that could cause
severe personal injury.
Please Note for America use only.
Grounding Pin
Figure 1
Grounded Outlet
Metal
Screw
Grounded Outlet Box
Figure 2 Figure 3
Adapter
Tab for Grounding
Screw
Is used to call attention to a situation that could cause
minor personal injury or damage to the machine or other
property. When using an electrical appliance, basic
precautions should always be followed, including the
following: Read all instructions before using this machine.
This product is intended for commercial use only.
To reduce the risk of re, electrical shock, or injury:
1. Read all instructions before using equipment.
2. Use only as described in this manual. Use only manu-
facturer’s recommended attachments.
4
Page 5
3. Always unplug power cord from electrical outlet before
attempting any adjustments or repairs.
4. Do not unplug by pulling on cord. To unplug, grasp the
plug, not the cord.
5. Do not pull or carry by cord. Do not close a door on
cord or pull cord around sharp edges or corners.
6. Do not run appliance over cord. Keep cord away from
heated surfaces.
7. Do not use with damaged cord or plug. If cord is
damaged, repair immediately.
8. Do not use outdoors or on wet surfaces and/or standing
water.
9. Always unplug or disconnect the appliance from power
supply when not in use.
Important Safety Information
10. Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
11. Do not use in areas where ammable or combustible
material may be present.
12. Do not leave the unit exposed to harsh weather
elements. Temperatures below freezing may damage components and void warranty.
13. Use only the appropriate handles to move and lift
unit. Do not use any other parts of this machine for this
purpose.
14. Keep hair, loose clothing, ngers, and all parts of the
body away from all openings and moving parts.
15. Use extra care when using on stairs.
16. To reduce the risk of re or electric shock, do not use
this machine with a solid-state speed control device.
17. The voltage and frequency indicated on the name plate
must correspond to the wall receptacle supply voltage.
18. When cleaning and servicing the machine, local or
national regulations may apply to the safe disposal of
liquids which may contain: chemicals, grease, oil, acid,
alkalines, or other dangerous liquids.
19. Do not leave operating unattended.
5
Page 6
1 - At a Glance
1.1 - Technical Specications
Solution Tank
Heating
Element
Pump
Amp Draw
Power Cord
Machine
Weight
Shipping
Weight
Machine
Dimensions
Shipping
Dimensions
55 PSI, 0.37 GPM solenoid pump
5 gallon capacity
1,750 watts
16 amps
25' 12/3
32 lbs.
50 lbs.
24" x 12" x 19.5"
31" x 14" x 36"

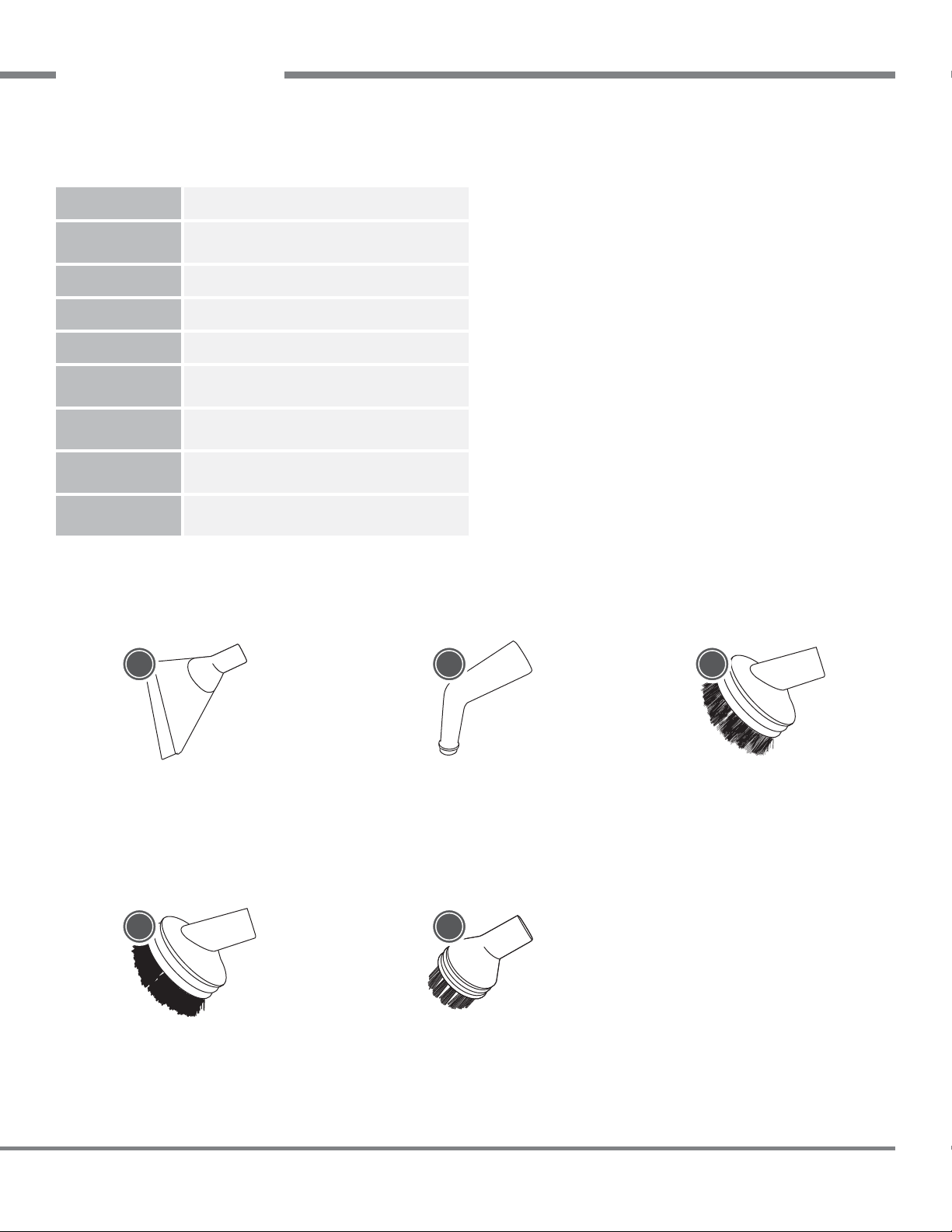

1.2 - Included with the Focus™
3x
3x VS16 Gum Scraper
3x
3x VS05 Large Nylon Brush 3x VS04 Small Nylon Brush
3x
3x VS07 Jet Nozzle 3x VS15 Metal Brush
3x
3x
6
Page 7

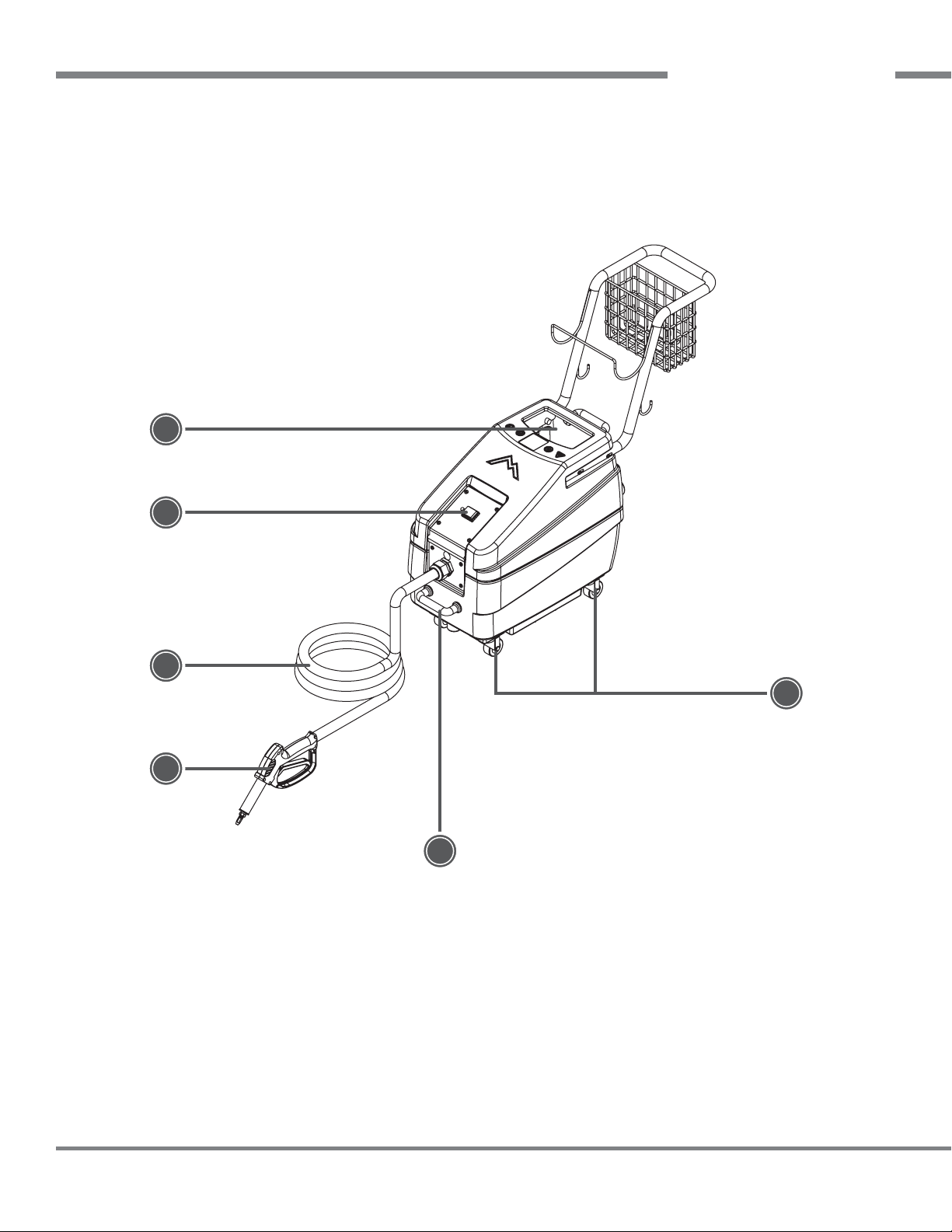

1.3 - Focus™ Front View
1
2
1 - At a Glance
3
4
1. Water Tank Opening
2. Power Switch
3. 15' High Pressure Hose
6
5
4. Professional Steam Gun
5. Front Lift Handle
6. 2" Locking Casters
7
Page 8
1 - At a Glance

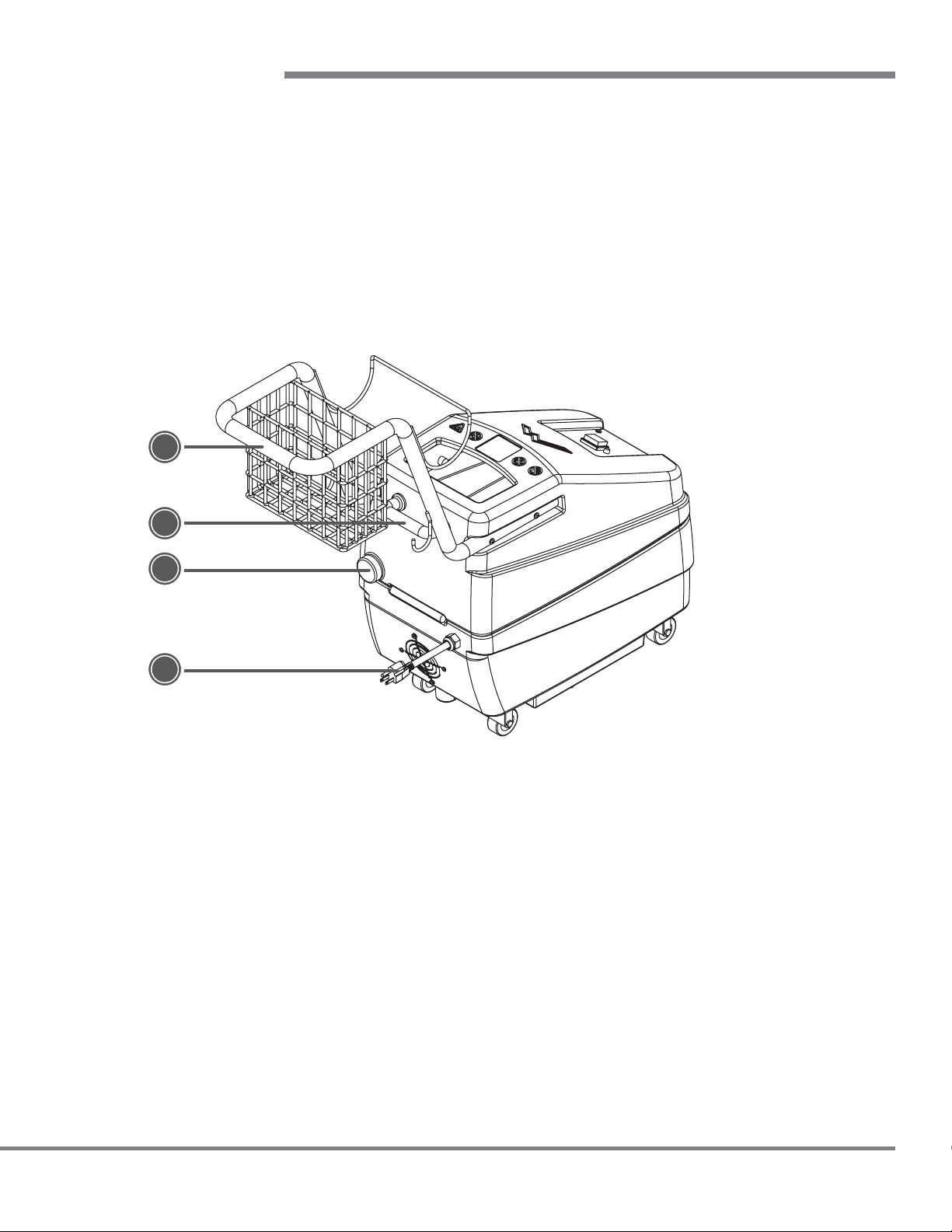

1.4 - Focus™ Rear View
1
2
3
4
1. Handle With Deep Basket
2. Rear Lift Handle
3. Water Tank Drain Cap
4. 25' Power Cord
8
Page 9

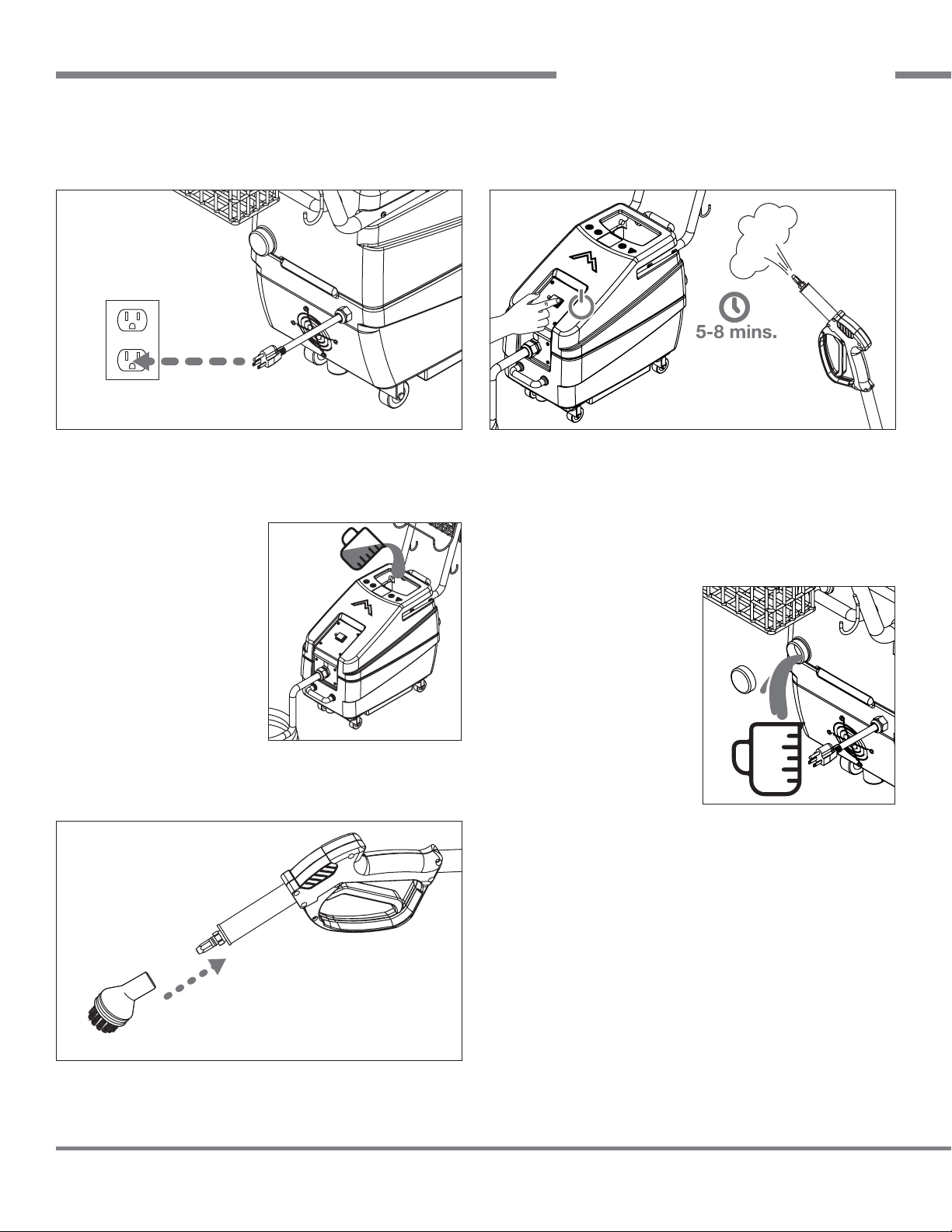

2 - Machine Operation
2.1 - Powering the Focus™
Plug the power cord from the Focus™ into a standard
grounded wall outlet. ♦
2.2 - Filling the Water
Tank
Using a bucket or bottle, ll
the 5 gallon water tank via
the opening on top of the
Focus™.
NOTE: Use distilled water
only. Failure to do so will
result in mineral buildup
and void the warranty. ♦
Distilled
water
only
2.4 - Operating the Focus™
Flip the power switch ON. The light next to the switch will
light up. Wait about 5-8 minutes for steam to build up.
Once the steam kettle is up to temperature, the light will
turn o. Squeeze the trigger on the gun until there is a
steady supply of steam and begin cleaning. ♦
2.5 - Storage
After operating, ip the
power switch OFF. Drain
unused water from the
water tank via the drain cap
on the rear of the machine. ♦
2.3 - Using Attachments
To connect one of the attachments to the gun, slide the
attachment onto the tip of the gun until it’s snug. ♦
9
Page 10
3 - Machine Maintenance
In order to keep the Focus™ running smoothly and
reduce the risk of damage to the machine and subsequent
downtime, Mytee recommends following the maintenance
schedule below:
Maintenance Item Daily Weekly
Check inside of water tank
for debris.
Check power cable.
Clean machine with
all-purpose cleaner and
cloth.
Lubricate wheels with
water resistant oil.
Inspect machine for loose
hardware.
X
X
X
X
X
10
Page 11
NOTES
11
Page 12
NOTES
Mytee Products, Inc.
13655 Stowe Dr.
Poway, CA 92064
www.mytee.com
© 2019 Mytee Products, Inc.
Printed in the USA
