User Manual
AIR HOG
Model: 7303LX
Vacuum Booster
REV. 3/20/18
13655 Stowe Dr. Poway, CA 92064 • P: (858) 679-1191 • F: (858) 726-6005
INTRODUCTION
Dear Customer:
Congratulations on the purchase of your new Air Hog™ Vacuum Booster.
As technology continues to develop you can work condently knowing that
both Mytee Products and its employees are equally dedicated to developing
with the industry and its advances.
Like any other piece of machinery or technology, the 7303LX also requires
proper maintenance and care to keep the product working over extended use.
Neglecting your machine, abusing it or not operating it properly can void its
warranty and prevent the machine from performing to the quality and standard
you’d expect out of the Mytee Products line.
If you have any warranty concerns or questions, please review this manual
thoroughly or do not hesitate to contact your distributor. If there are questions
regarding maintenance, replacement, or ordering parts please contact an
authorized Mytee Products Service Center. To see an updated list please visit
our website at http://www.mytee.com/support/service-centers.
Before using your Mytee product, please read this manual thoroughly.
Sincerely,
Mytee Customer Care Dept.
2
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION
1
2
AT A GLANCE 6
1.1 - Technical Specications 6
1.2 - Included with the Air Hog™ 6
1.3 - Air Hog™ Front View 7
1.4 - Air Hog™ Rear View 8
1.5 - Switch Plate 9
MACHINE OPERATION 10
2.1 - Powering the Air Hog™ 10
2.2 - Connecting Hoses 10
2.3 - Air Hog™ Booster Congurations 10
2.4 - Using the Air Hog™ as a Stand-Alone Extractor 10
2.5 - Emptying the Recovery Tank 10
2.6 - Setting Up the Air Hog™ as a Booster 11
4
2.7 - Setting Up the Air Hog™ as a Stand-Alone Extractor 12
3
4
5
MACHINE MAINTENANCE 13
3.1 - Filter Maintenance 13
3.2 - Ball Float Maintenance 13

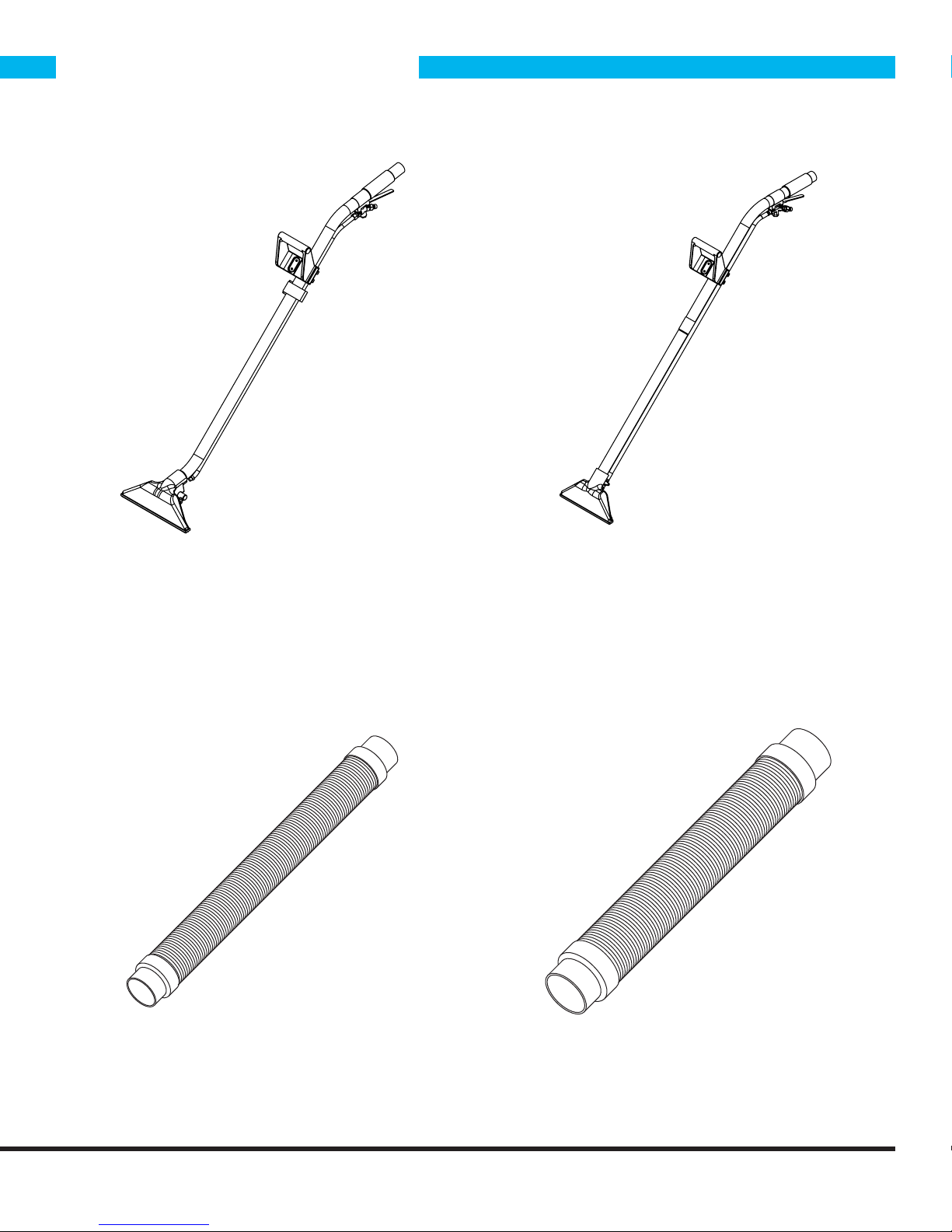

ACCESSORIES FOR YOUR AIR HOG™ 14
TROUBLESHOOTING 15
3
IMPORTANT SAFETY INFORMATION
Grounding Instructions
This machine must be grounded. If it should malfunction
or break down, grounding provides a path of least resistance for electrical shock. This machine is equipped with
a cord having an equipment-grounding conductor and
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed in accordance with
all local code and ordinances. Do not remove ground pin;
if missing, replace plug before use.
Improper installation of the equipment-grounding
conductor can result in a risk of electric shock. Be sure to
check with a qualied electrician or service person if you
are in doubt as to whether the outlet is properly grounded.
If the plug will not t in the outlet do not modify the plug or
the machine’s cord, instead have a proper outlet installed
by a qualied technician.
This machine is for use on a nominal 120-volt circuit and
with a grounding plug similar to the one in Figure 1 below.
If a proper outlet is not available, follow the illustrations of
Figure 2 & 3 to install a temporary-grounding plug. This
temporary work-around should be used only until a proper
outlet (Figure 1) can be installed by a qualied electrician.
When and if this type of adapter is employed, screw the
adapter’s extended tab into place with a metal screw.
However, grounding adapters are not approved for use in
Canada.
Again, be sure to check the grounding pin for damages
and replace if necessary.
The Green, or Green-Yellow, wire in the cord is the
grounding wire. When replacing a plug, this wire must be
attached to only the grounding pin.
DO NOT use extension cords.
Please Note for America use only.
Grounded Outlet
Adapter
Parts and Service
Please contact Mytee service personnel or a Mytee authorized Service Center using Mytee original replacement
parts and accessories if repairs need to be performed.
When and if calling Mytee for support, please have your
Model and Serial Number available for faster assistance.
Name Plate
The Model and Serial Number are located on the lower
half of the back of the machine near the power plug and
will be required for ordering replacement parts. You can
use the space provided in this manual to note down both
for future referencing.
Unpacking the Machine
When your new machine is delivered, please carefully
inspect both the shipping carton and the machine for
damages. If damage is evident, save both the shipping
carton and machine so that the delivering carrier can
inspect it. Contact the carrier immediately to le a freight
claim if there has been any damage.
Caution and Warnings
Symbols
Mytee uses the symbols below to signal potentially dangerous conditions. Always read this information carefully and take the necessary steps to protect
personnel and property.
Is used to warn of immediate hazards that will cause
severe personal injury or death.
Metal
Screw
Grounding Pin
Figure 1
Grounded Outlet Box
Figure 2 Figure 3
Is used to call attention to a situation that could cause
severe personal injury.
Tab for Grounding
Screw
Is used to call attention to a situation that could cause
minor personal injury or damage to the machine or other
property. When using an electrical appliance, basic
precautions should always be followed, including the
following: Read all instructions before using this machine.
4
This product is intended for commercial use only.
To reduce the risk of re, electrical shock, or injury:
1. Read all instructions before using equipment.
2. Use only as described in this manual. Use only manu-
facturer’s recommended attachments.
3. Always unplug power cord from electrical outlet before
attempting any adjustments or repairs.
4. Do not unplug by pulling on cord. To unplug, grasp the
plug, not the cord.
5. Do not pull or carry by cord. Do not close a door on
cord or pull cord around sharp edges or corners.
6. Do not run appliance over cord. Keep cord away from
heated surfaces.
7. Do not use with damaged cord or plug. If cord is
damaged, repair immediately.
8. Do not use outdoors or on wet surfaces and/or
standing water.
9. Always unplug or disconnect the appliance from power
supply when not in use.
10. Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
11. Do not use in areas where ammable or combustible
material may be present.
12. Do not leave the unit exposed to harsh weather
elements. Temperatures below freezing may damage
components and void warranty.
13. Use only the appropriate handles to move and lift
unit. Do not use any other parts of this machine for this
purpose.
14. Keep hair, loose clothing, ngers, and all parts of the
body away from all openings and moving parts.
15. Use extra care when using on stairs.
16. To reduce the risk of re or electric shock, do not use
this machine with a solid-state speed control device.
17. The voltage and frequency indicated on the name
plate must correspond to the wall receptacle supply
voltage.
18. When cleaning and servicing the machine, local or
national regulations may apply to the safe disposal of
liquids which may contain: chemicals, grease, oil, acid,
alkalines, or other dangerous liquids.
19. Do not leave operating unattended.
IMPORTANT SAFETY INFORMATION
5
1 - AT A GLANCE
1.1 - Technical Specications
Recovery Tank
Vacuum
CFM
Water Lift
Pump-Out GPM
Power Consumption
Machine Weight
Machine Dimensions
Power Cord
1.2 - Included with the Air Hog™
4 Gallons
Mytee® Hybrid Ametek vacuum motor
180
113 ”
3.3
15 amps @ 115V 60Hz
50 lbs.
32” x 21.25” x 36”
25’ 16/3
H141V Cu-Lynx™ (2” Female
Cu-Lynx™ x 1.5” Female Hose)
2x H121V Cu-Lynx™ Plugs G076 Pump-Out Filter G008 Pack of 25 Piglet™ Filters
H110V Cu-Lynx™ (2” Female
Cu-Lynx™ x 2” Female Hose)
6
H136V Cu-Lynx™ (2” Male
Cu-Lynx™ x 2” Female Hose)
1.3 - Air Hog™ Front View
1
2
1 - AT A GLANCE
6
3
4
1. 4 Gallon Recovery Tank
2. 2” Male Cu-Lynx™ Starter
3. Pump-Out Hose Fitting
5
4. 2” Front Casters
5. 6” Rear Wheels
6. See-Thru Recovery Tank Lid
7
1 - AT A GLANCE
1.4 - Air Hog™ Rear View
1
2
1. Rear Lift Handle
2. Access Latch
3. 25’ Power Cord
4. Switchplate
5. Female Exhaust Cu-Lynx™ with Plugs
5
4
3
8
1.5 - Switch Plate
1 - AT A GLANCE
1 2
1. Vacuum Switch 2. Pump-Out Switch
9
2 - MACHINE OPERATION
2.1 - Powering the Air Hog™
To power the Air Hog™, plug the power cord into a
grounded 15 amp outlet. ♦
2.2 - Connecting Hoses
2.3 - Air Hog™ Booster Congurations
The Air Hog™ can be set up as a booster in multiple
congurations on its own or daisy-chained with other
Air Hogs™. See page 11 for more details. ♦
2.4 - Using the Air Hog™ as a Stand-Alone
Extractor
The Air Hog™ can also be set up as a stand-alone
extractor. See page 12 for more details. ♦
2.5 - Emptying the Recovery Tank
Female garden hose
quick connect
Use the included H141V or H110V female Cu-Lynx™ Hose
Connectors to connect 1.5” or 2” vacuum hose to the
Cu-Lynx™ starter on the front of the Air Hog™. The
included H136V male Cu-Lynx™ Connector can be used
to connect 2” vacuum hose to either rear exhaust port.
To attach a garden hose for use with the pump-out, a
female garden hose quick connect will be required. Thread
the quick connect onto the garden hose. The hose can
then easily snap onto the Air Hog’s™ pump-out tting. ♦
The recovery tank can be emptied using the pump-out
feature. Attach a garden hose to the pump-out tting,
place the other end of the hose in a drain or receptacle,
and press the PUMP-OUT switch on the switchplate. ♦
10
2.6 - Setting Up the Air Hog™ as a Booster
Using One Booster
If pump-out is to be used.
2 - MACHINE OPERATION
Always cap
unused exhaust
port.
If pump-out will be used, connect vacuum hose from extractor to top exhaust port and cap bottom one.
If not, connect hose to bottom exhaust port and cap top one. Recovered water will ow through Air Hog™ to extractor.
Daisy-Chaining Multiple Boosters
If pump-out is to be used.
Always cap
unused exhaust
port.
If pump-out will be used, connect vacuum hose from extractor to top exhaust port and cap bottom one.
If not, connect hose to bottom exhaust port and cap top one. Recovered water will ow through Air Hog™ to extractor.
Place each Air Hog™ after at least 50 feet of hose in order to maintain suction on very long hose runs.
11
2 - MACHINE OPERATION
2.7 - Setting Up the Air Hog™ as a Stand-Alone Extractor
Both exhaust
ports plugged.
The Air Hog™ does not have a solution tank or solution pump. However, it can be used to extract pre-sprayed solution
from carpet.
With both exhaust ports plugged, attach a carpet wand via vacuum hose and attach a garden hose to the pump-out
tting (if pump-out is to be used). Switch on the vacuum (and pump-out, if desired) and begin extraction.
12
3 - MACHINE MAINTENANCE
In order to keep the Air Hog™ running smoothly and
reduce the risk of damage to the machine and subsequent
downtime, Mytee recommends following the maintenance
schedule below:
Maintenance Item Daily Weekly
Clean and inspect tanks.
Clean and inspect hoses.
Check and clean internal lters.
Check power cable.
Clean machine with all-purpose
cleaner and cloth.
Remove mesh lter bag from
recovery tank and clean.
Inspect vacuum hoses for holes and
loose cus.
Lubricate wheels with water
resistant oil.
Inspect machine for water leaks and
loose hardware.
X
X
X
X
X
X
X
X
X
3.2 - Ball Float Maintenance
The ball oat prevents recovered dirty water from rising
too high and damaging the vacuum motors. Check
regularly to make sure the mesh screen is free of debris. ♦
Ball oat
Mesh screen
lter
3.1 - Filter Maintenance
The Air Hog™ has a small mesh screen lter on the end of
the intake for the pump-out in the recovery tank. This lter
should be checked and cleaned after each use. ♦
13
4 - AVAILABLE ACCESSORIES
8300-EZ - 12” Dual Jet Wand 8390-EZ - 10” Single Jet Wand
H294 - 1.5” x 25’ Vacuum Hose H184 - 2” x 25’ Vacuum Hose
14
5 - TROUBLESHOOTING
5.1 - Vacuum Troubleshooting
Vacuum is not turning on.
Possible Cause Solution
Vacuum may not be getting
power.
Vacuum is not producing suction.
Possible Causes Solutions
Recovery tank is full. Empty the recovery tank.
If the vacuum exhausts but
there is no suction, then
the hose from the recovery
tank to the vacuum motor
is disconnected.
Check the electrical connections and the switch.
Look for loose or damaged
wires.
To check the switch:
Unbolt the switch plate.
Take a picture of the layout
of the wires or tag the wires
for future reference. Switch
the wires from the vacuum
switch with the wires from
the pump-out switch. Turn
on the pump-out switch.
If the vacuum turns on,
then you know the vacuum
switch is bad.
Open the machine and
nd the hose running from
the recovery tank to the
vacuum motor. Check if
it is disconnected. If so,
reconnect it. If it has a leak,
replace the hose (Part #
PH627 if 1.5”, PH628 if 2”).
Vacuum blows water out the exhaust.
Possible Causes Solutions
Foam building up in the
recovery tank.
Boot behind vacuum port
is turned the wrong way.
There is a loud grinding noise coming from the
Possible Cause Solution
Debris has been sucked
into the vacuum motor
chamber. Usually results
from dry vacuuming.
Use Mytee’s Auto
Defoamer Kit (Part # A688).
Make sure this plastic boot
is turned toward the right
wall of the machine and not
toward the ball oat.
vacuum.
Replace the vacuum motor.
To avoid repeat problem,
DO NOT dry vacuum with
your extractor.
5.2 - Pump-Out Troubleshooting
No water ow from pump-out.
Possible Causes Solutions
Filter is clogged. Clean the lter.
Kinked hose inside the
machine.
Open the machine and
check hoses. If any hoses
are kinked, undo the kink.
Vacuum hose blockage
(if there is no suction or
exhaust).
Clogged lter in vacuum
tank.
Hose cus are loose and
causing air leakage.
Lid on tank is loose and is
causing air leakage.
Check for blockage in
the hose, starting from
the cleaning tool to the
machine.
Clean out lter regularly.
Tighten all hose cus
regularly as may loosen
over time. Use a glue to
prevet cus from coming
loose (optional).
Make sure the lid is tight.
15
NOTES
Mytee Products, Inc.
13655 Stowe Dr.
Poway, CA 92064
www.mytee.com
© 2018 Mytee Products, Inc.
Printed in the USA
Loading...
