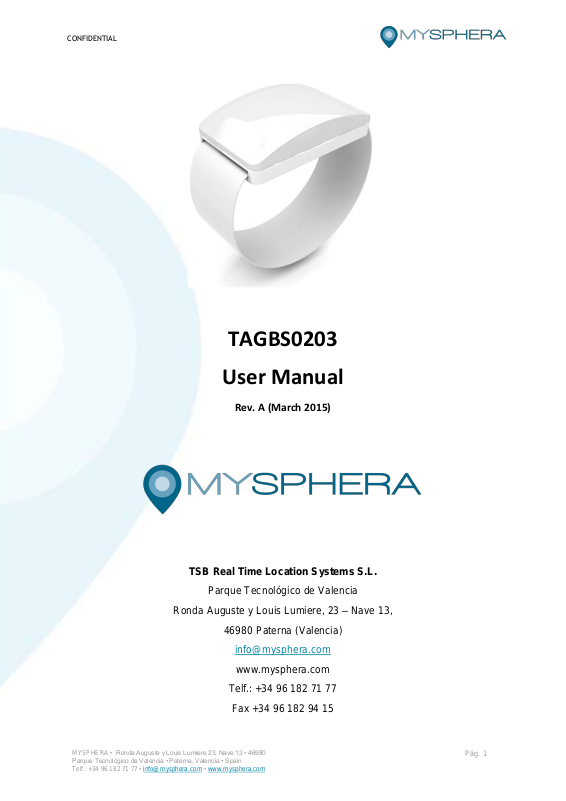

TAGBS0203

User Manual

Rev. A (March 2015)

TSB Real Time Location Systems S.L.

Parque Tecnológico de Valencia

Ronda Auguste y Louis Lumiere, 23 – Nave 13,

46980 Paterna (Valencia)

[email protected]

www.mysphera.com

Telf.: [phone]

Fax [phone]

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 2

Content

Content ................................................................................................................................. 2

1. Summary .................................................................................................................... 3

2. Copyright & trademarks .............................................................................................. 3

3. FCC Compliance ........................................................................................................ 3

4. Declaration of Conformity ........................................................................................... 3

5. Characteristics and applications ................................................................................. 3

6. Tag assignment .......................................................................................................... 5

7. Tag use for assets ...................................................................................................... 6

8. Tag use for patients .................................................................................................... 8

9. Tag use for professionals ............................................................................................ 9

10. Cleaning and disinfecting ...........................................................................................10

10.1. Chemical solutions ..............................................................................................10

10.2. The process ................................ ................................................................ ........12

11. Storage and disposal .................................................................................................12

11.1. Storage ...............................................................................................................12

11.2. Disposal ..............................................................................................................12

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 3

1. Summary

This manual describes the characteristics and applications of the MYSPHERA TAGBS0203
FCC ID: 2ACLYTAGBS0203.

2. Copyright & trademarks

These specifications may change without notice. Copyright © 2014 TSB Real Time Location
Systems, S.L. All rights reserved. SPHERAone®, TSB RTLS, MySPHERA and its logos are
trademarks by TSB Real Time Location Systems, S.L.

3. FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause

undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.
The MySphera TAGBS0203 has been designed and complies with the safety requirements for

portable (<20cm) RF exposure in accordance with FCC rule part §2.1093 and KDB 447498
D01.”

4. Declaration of Conformity

MYSPHERA hereby declares that this TAGBS0203 is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration
of Conformity can be found at mysphera.com/declaration-of-conformity

5. Characteristics and applications

MYSPHERA Tag (TAGBS0203) is a fundamental part among MYSPHERA location system.
This device transmits an identification frame which includes an Organizationally Unique
Identifier (OUI) every few seconds (3 seconds by default). This period can be modified upon
request for longer battery life when 3 seconds location precision is not required.

Any other device in MYSPHERA family is capable of receiving and processing identification
frames, and either identify a certain Tag when approached inside a pre-determined range, or
send information about its position to MYSPHERA Location Platform server which will calculate
its location inside a monitored area.

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 4

Thanks to the ultra-low-power technology used in the design of MYSPHERA Tracking Sensor,
its CR2354 coin battery life reaches values higher than 4 years, with a location period of 10
seconds.

MYSPHERA Tag is prepared to fit the most common hospitalary plastic identification bands
for patients. It also can be stuck to any asset assuring fixation during the whole life of the tag.

It meets the IP-67 normative, guaranteeing 1 meter immersion up to 30 minutes without internal
leakages. It allows the user to wear the device while washing hands or taking a shower without
further consequences. This is also important during the cleaning procedure, where water or
common disinfectants can be used to keep the Tag as clean as possible.

Two versions of the Tag are available: with or without button. The button may be used for
emitting several alerts to the system. Both versions have 3 LED indicators (green, yellow, red)
to give notifications to the user.

MYSPHERA Tag can be also used to locate assets (furniture, other devices…). This is done
by attaching the Tag to the asset by using a fixing bracket that allows replacing the sensor
when the battery is low. The Tag is able to detect automatically if it is set or removed from the
bracket.

FEATURES

 Personal and asset location.
 Battery life:

o Up to 1 year at high responsiveness location.
o Up to 4 years at low responsiveness location.

 User interface including a press button with configurable function and LEDs to indicate

user-defined states such as: battery low, in use, identify…

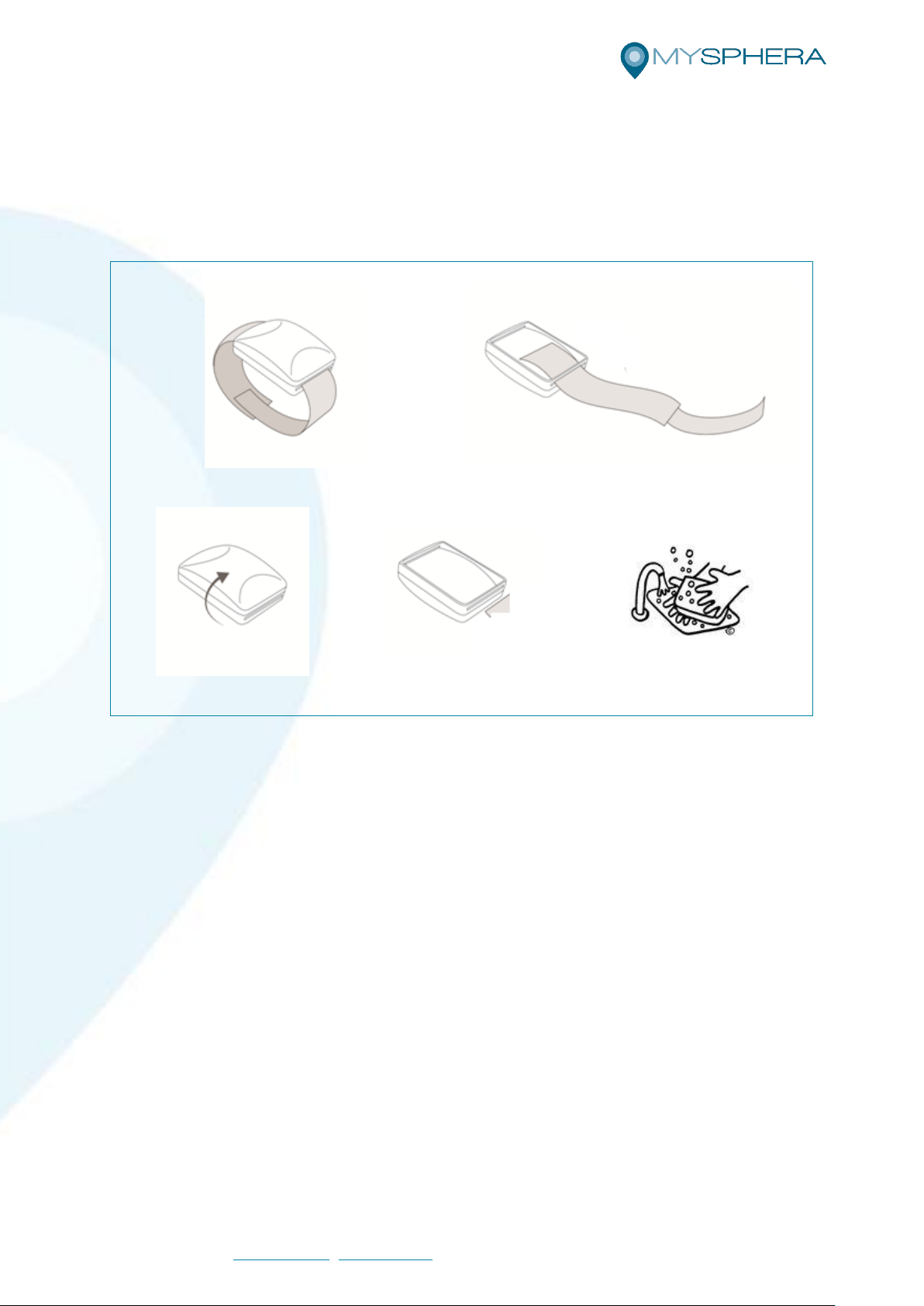

Figure 1 MYSPHERA Tags

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 5

Blue indicator:
Reader ready to read Tags (unlocked).

Orange indicator:
Tag read correctly. Reader locked.
To unlock the Reader remove the Tag until the indicator

becomes blue.

Red indicator:
Tag with low battery. Reader locked.
To unlock the Reader remove the Tag until the indicator

becomes blue.

6. Tag assignment

A specific Tag can be added to the system, in order to locate its position, by assigning it to a
patient or asset. This procedure can be done using several applications: the MYSPHERA
software (MYHOSPITAL), the hospital’s own HIS and a specific software for assets logistics
(by an integration with MYHOSPITAL).

To add a new Tag from the assignment feature of the specific software, select the person or
asset to locate and then read the tag using a MYSPHERA Reader.

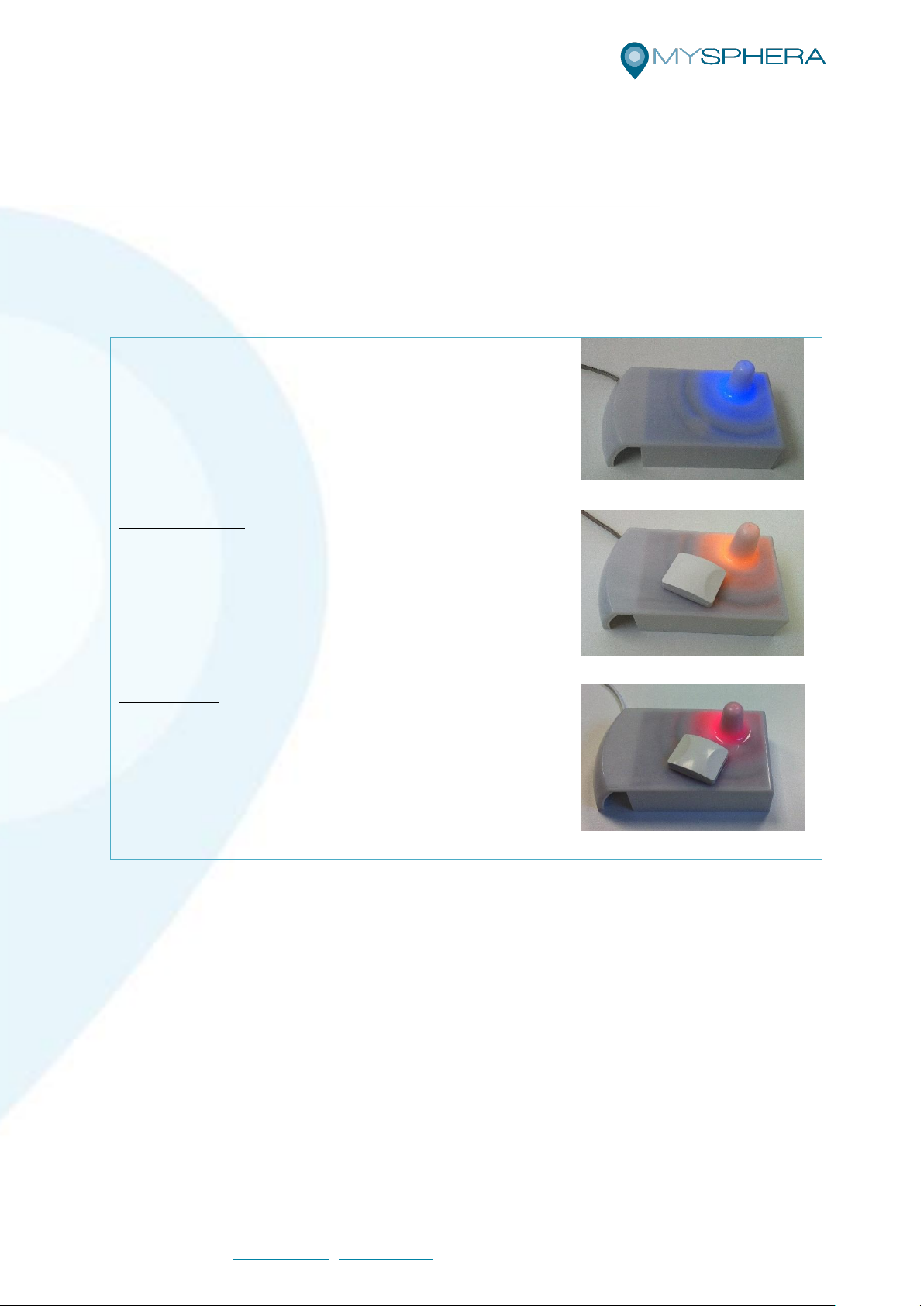

Figure 2 MYSPHERA Reader states.

Once the assignment is completed, the system starts tracking the Tag, storing every position
of the person or asset.

For assets or professional (physician, nurses…) tags, they are assigned only once until the
end of the battery life, when the Tag shall be replaced.

For patient tags, they are assigned to the person until the moment it leaves the hospital, when
the device shall be freed in the application and cleaned to be ready for a new user.

Depending on the desired security level, the Tag may only be freed by reading it with the
Reader in the application.

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 6

7. Tag use for assets

MYSPHERA Tags are designed to be attached to assets by using a fixing bracket. Although
due to the different forms of every asset and the diversity of the surfaces and materials, as well
as the different security measures required in every scenario, the procedure to attach the
device may vary from one asset to another.

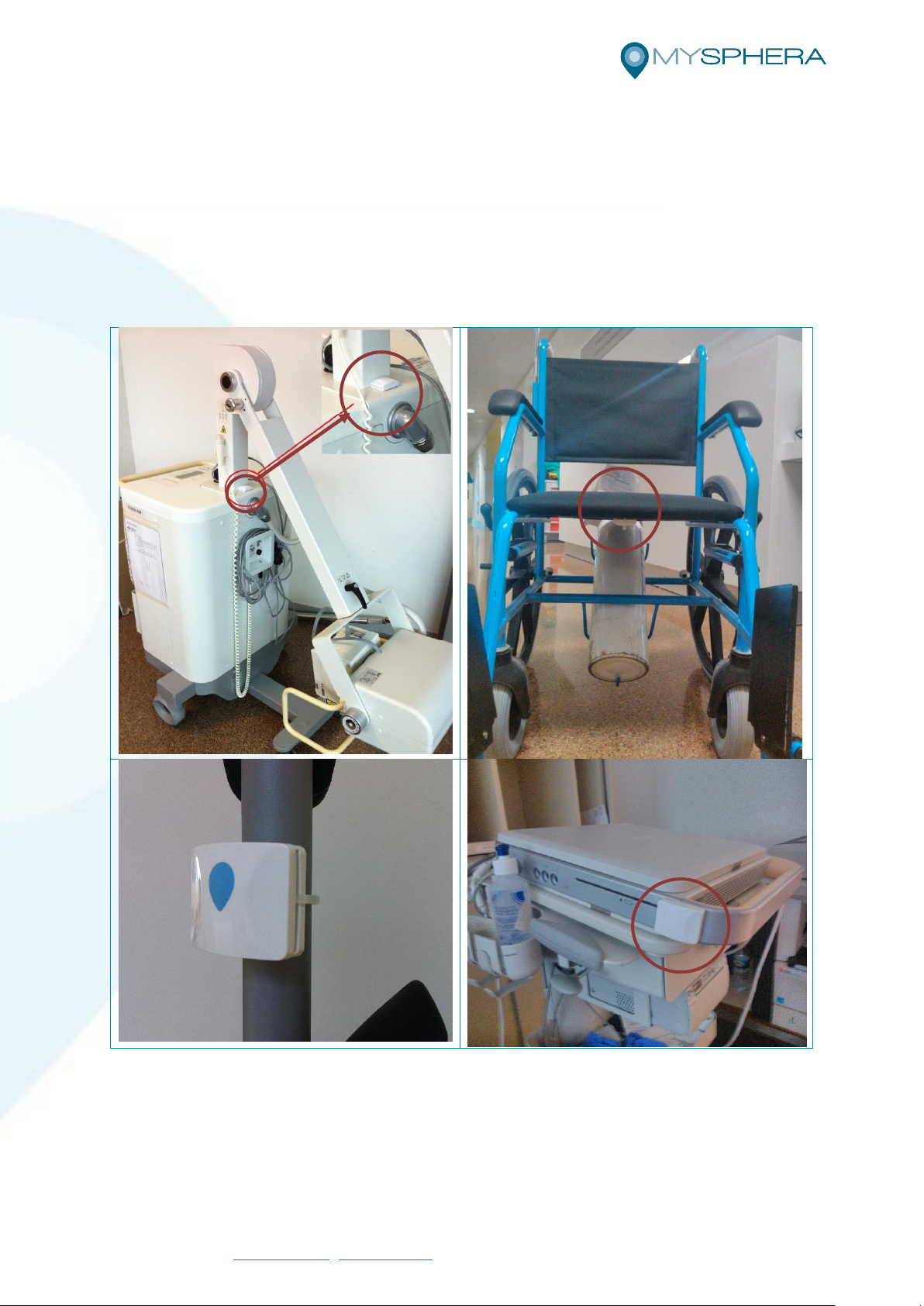

In the pictures below, there are some examples of installations in different assets:

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 7

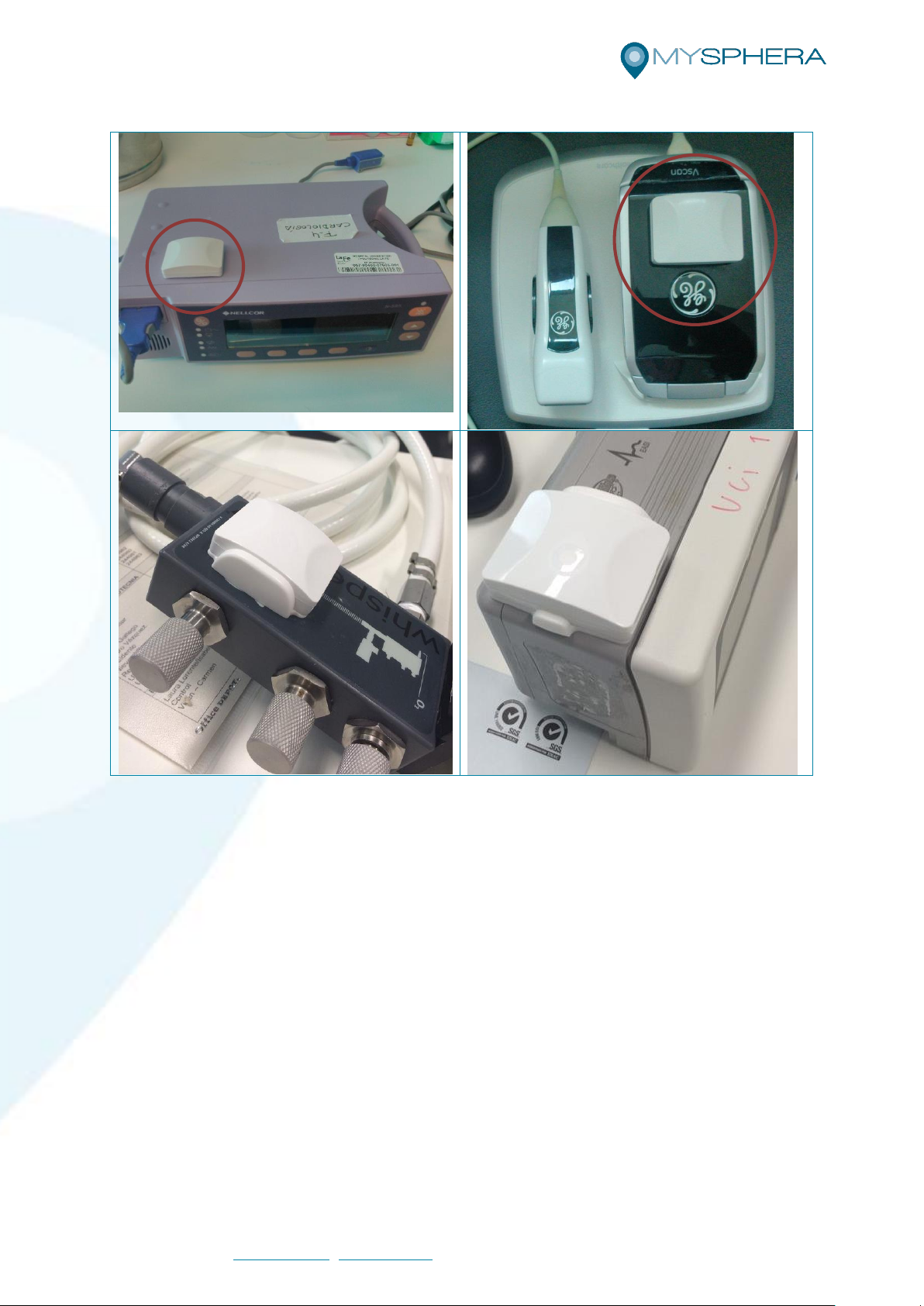

Figure 3 Tag installation examples

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 8

8. Tag use for patients

MYSPHERA Tags are designed to be wrist worn as a bracelet using a paper or plastic band.
The band can be introduced through the slots in the lower part of the case as shown in the
picture below.

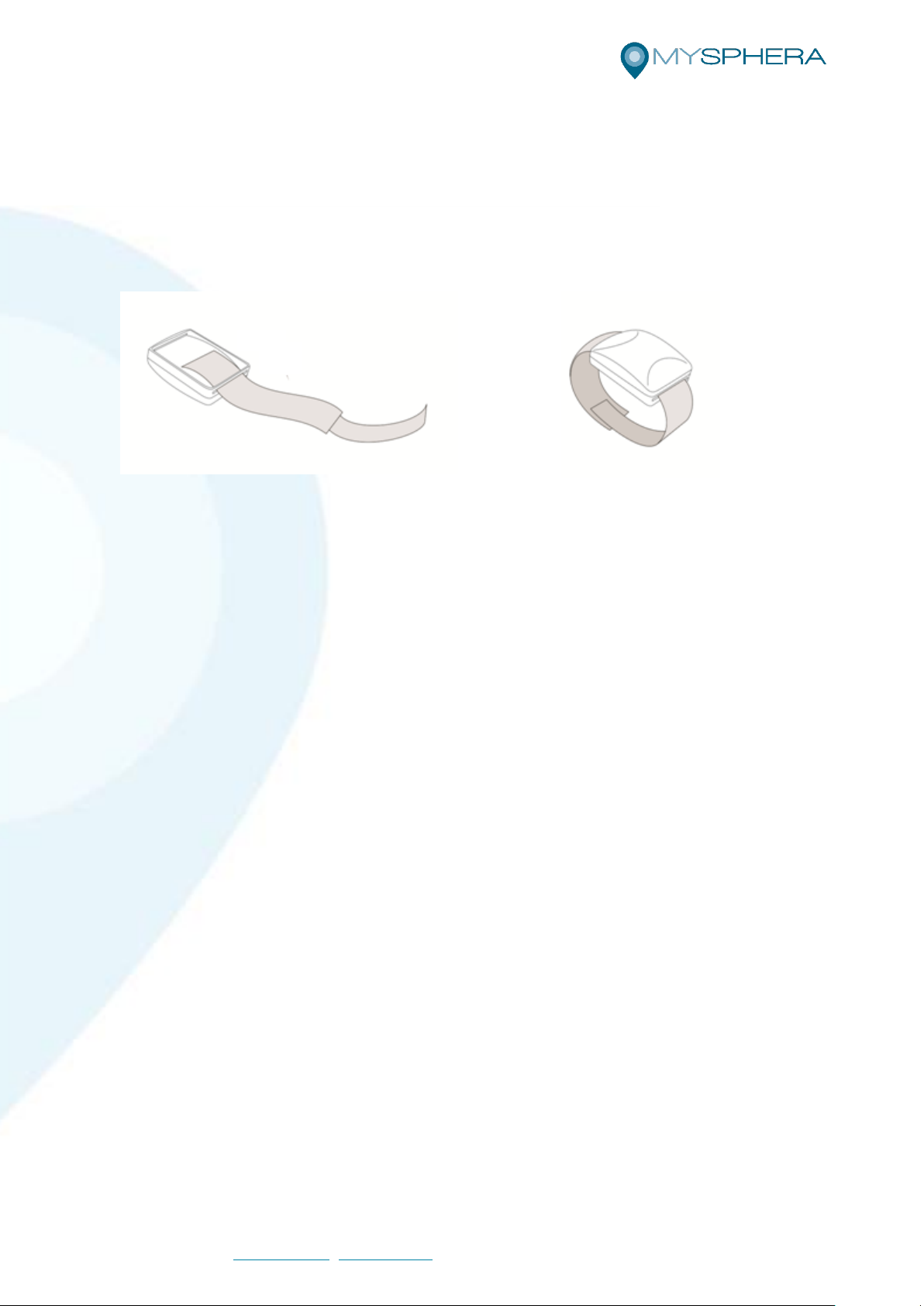

Figure 4 Patients Tag

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 9

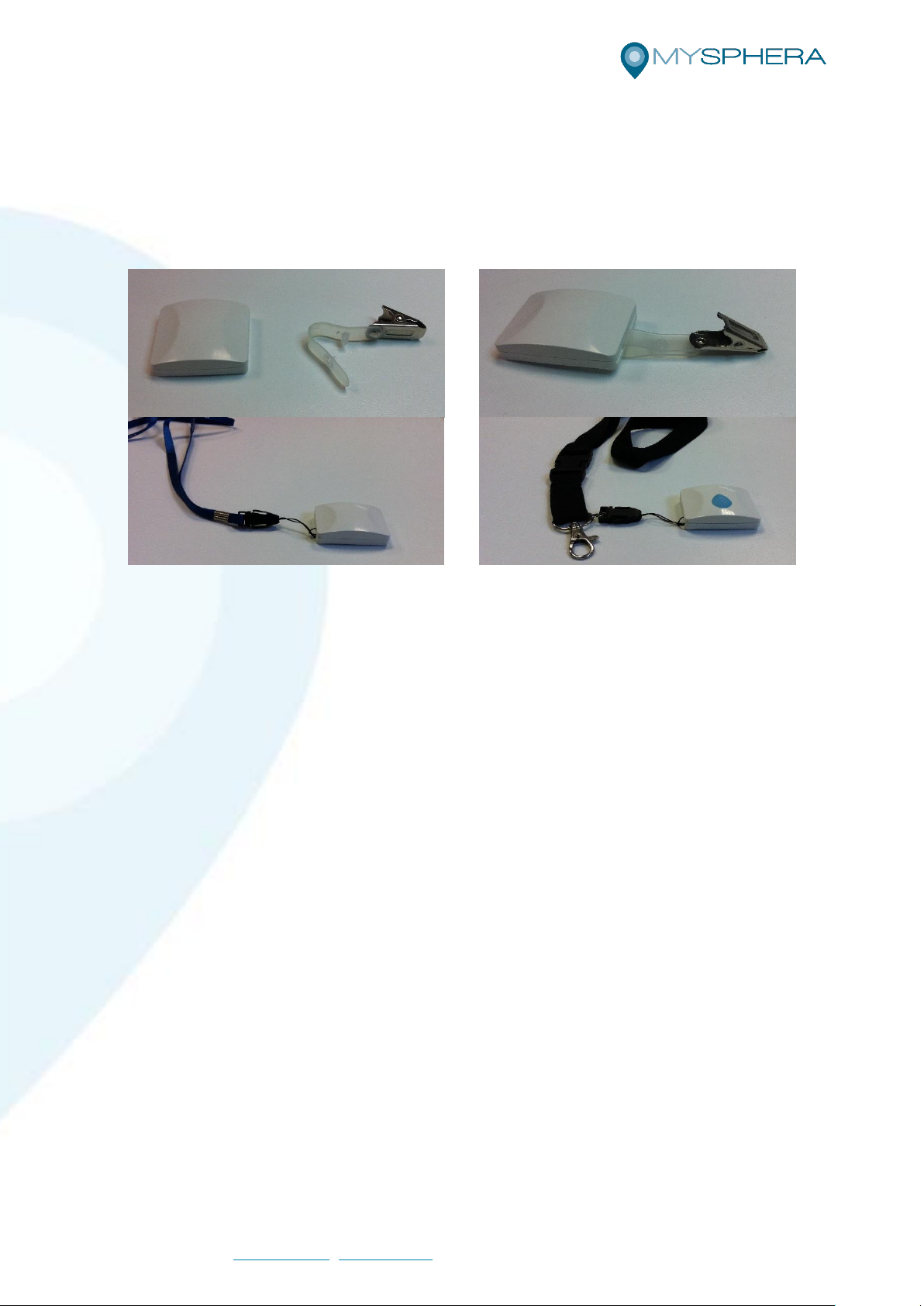

9. Tag use for professionals

MYSPHERA tags can be also be worn in a neck lace using a setup as showed in the pictures
below.

Figure 3 Setup examples for professionals

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 10

Disinfectants

Disinfectants

Disinfectants

Didecylmethylammoniumchloride
based product

e.g. Instrunet spray®, Meliseptol

rapid

Quick action
Ready-to-use, fast-acting
alcoholic spray disinfectant

For medical equipment such as
hospital beds, mattress covers,
treatment chairs, and other
small sized alcohol-resistant

surfaces

10. Cleaning and disinfecting

These general cleaning instructions are indicated for active tags of the TSB-SPHERAhospital
solution. It is important that you clean the tags according to the following procedures.

Disinfection and sterilization are essential for ensuring that medical and surgical instruments
do not transmit infectious pathogens to patients. Because sterilization of all patient-care items
is not necessary, health-care policies must identify, primarily on the basis of the items' intended
use, whether cleaning, disinfection, or sterilization is indicated.

Disinfection describes a process that eliminates many or all pathogenic microorganisms,
except bacterial spores, on inanimate objects. In health-care settings, objects usually are
disinfected by liquid chemicals or wet pasteurization. Each of the various factors that affect the
efficacy of disinfection can nullify or limit the efficacy of the process.

Cleaning is the removal of visible soil (e.g., organic and inorganic material) from objects and
surfaces and normally is accomplished manually or mechanically using water with detergents
or enzymatic products. Thorough cleaning is essential before high-level disinfection and
sterilization because inorganic and organic materials that remain on the surfaces of
instruments interfere with the effectiveness of these processes. Decontamination removes
pathogenic microorganisms from objects so they are safe to handle, use, or discard.

The methods followed for TSB-SPHERAhospital tags are similar to the one used to disinfect
oral and rectal thermometers, hospital pagers, scissors, stethoscopes,…

The tag fulfills IP-67 normative, allowing be disinfected by liquids and fluids. IP67 signifies
protection against the effects of immersion from 15 cm to 1 m for 30 min without water ingress.
The tag can be worn permanently by the patient during hospitalization, even getting shower or
any washing activities.

10.1. Chemical solutions

Disinfection is a process by which vegetative growing forms of pathogenic organisms are killed.
Four types of chemical solutions are recommended to be used during disinfection, depending

of the kind of action: quick or medium/slow action

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 11

Alcohol (70%)

Isopropyl, ethyl alcohol,
methylated spirit.

Quick action

Smooth metal surfaces, table
tops and other surfaces on

which bleach cannot be used.

Flammable, toxic, to be used in
well- ventilated area, avoid
inhalation.

To be kept away from heat
sources. electrical equipment,
flames, hot surfaces.

Should be allowed to dry
completely, particularly when
using diathermy as it can cause
diathermy burns.

Glutaraldehyde(2%)

Medium/slow action

For disinfection of endoscopes,
respiratory therapy equipment
and for materials that are
destroyed by heat. Can work as
a sterilant if contact time is 6-8
hrs and if used under strictly

controlled condition.

Eye and nasal irritant, may
cause asthma and skin allergies,
hence should be used in well
ventilated area, keep covered
with well fitting lids.

Eye protection, plastic apron
and gloves should be worn while
handling

Bis-(3-Aminopropyl)­dodecylamine (9,9%)-Propinato
Didecilmetilpolioxietilammonium
12%
e.g. Darodor Sinaldehyd 2000

Disinfectant cold - high –
dumping

Cold chemical disinfectant
immersion high. Without
aldehydes. Bactericidal.
Fungicide. Virucidal.
Application for Hospital
Hygiene, Pharmaceutical,
Medical and Health
Consultation Livestock

It is a corrosive liquid and can
cause injury to the skin and
mucosa. Some cases of allergic
contact dermatitis have also
been reported among health
care workers.

Reference: Blood Safety and Laboratory Technology. Guidelines on Prevention and Control of Hospital Associated Infections. World Health Organization (WHO)

Before equipment is to be disinfected or sterilized, it should be thoroughly cleaned to remove
any visible dirt or secretions. This involves washing with water and detergent (soap). Protective
clothing (an apron, gloves and a facemask) should be worn.

Each tag shall be wiped with chemical disinfectant solutions described on the table above. In
case of glutaraldehyde-based disinfectant dilution, the tag shall be wiped by immersion several
minutes.

Glutaraldehyde is a high-level disinfectant most frequently used as a disinfectant for heat­sensitive equipment such as dialysis instruments, surgical instruments, suction bottles,
bronchoscopes, endoscopes, and ear, nose, and throat instruments. Glutaraldehyde is also
used as a tissue fixative in histology and pathology laboratories and as a hardening agent in
the development of x-rays. Glutaraldehyde products are marketed under a variety of brand
names and are available in a variety of concentrations (solutions range in concentration from
2 – 3.4%), with and without surfactants.

Disinfect tags with an EPA (US Environmental Protection Agency) - registered hospital
disinfectant using the label's safety precautions and use directions. Most EPA-registered
hospital disinfectants have a label contact time of 10 minutes. However, multiple scientific
studies have demonstrated the efficacy of hospital disinfectants against pathogens with a
contact time of at least 1 minute.

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 12

1. Remove the band or fixing bracket of the Tag.

2. Clean the tag (both sides) to remove any visible dirt or secretions. This involves washing
with water and detergent (soap). It is recommended to use a brush to enhance cleaning.

3. Wipe the tag with chemical disinfectant products as described in the table above

following the instructions of the product label.

10.2. The process

Disinfect any tag after using it on a patient who is on contact precautions before using this
equipment on another patient.

Figure 6 Cleaning process

11. Storage and disposal

11.1. Storage

When the Tags are not being used, they should be stored in a clean, dry area. Otherwise it
may become a source of contamination.

Store the tags under the following ambien conditions:

 Temperature: -10°C to 50C° (14°F to 122°F)
 Relative Humidity: 20% to 80% (no condensation)

11.2. Disposal

DO NOT OPEN ANY TAG

CONFIDENTIAL

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 46980
Parque Tecnológico de Valencia • Paterna, Valencia • Spain

Telf.: [phone] • [email protected] • www.mysphera.com

Pág. 13

At the end of the battery life, the Tag shall be returned to the manufacturer for battery
replacement. Contact MYSPHERA before disposing of the Tags. This product should not be
treated as household waste.

By ensuring that this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste-handling of this product.
