Page 1
1

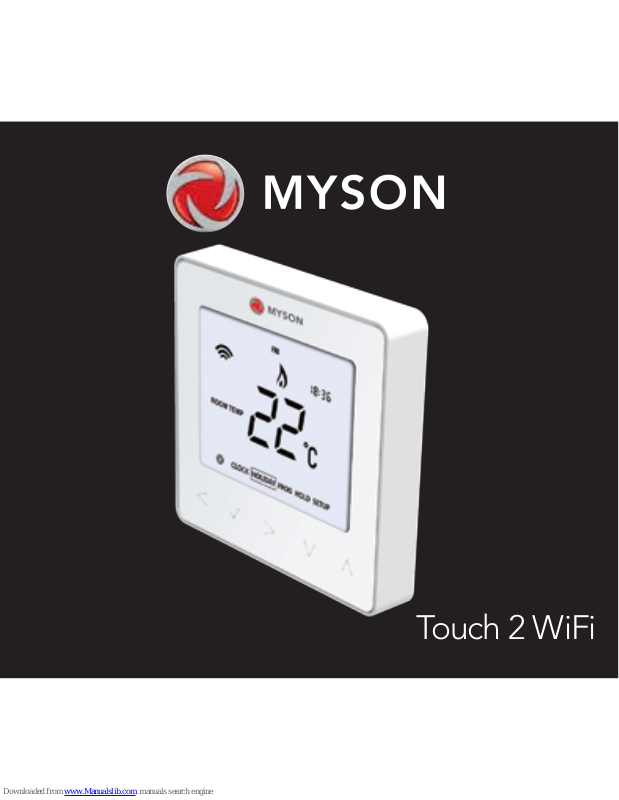

Touch 2 WiFi
Page 2
2
Model:
1
Touch 2 WiFi
Touch 2 WiFi
Page 3
2
Table of Contents
1
2
3-4
5-6
7
8
8-9
9
Product Image
Table of Contents
What is a Programmable
Room Thermostat?
Installation Procedure
Mode Select
Pairing the Touch 2 Hub
Pairing the Touch 2 WiFi
What is a Mesh Network?
33-34
35
36
37
37
38
LCD Display
Setting the Switching Times
Timer Override

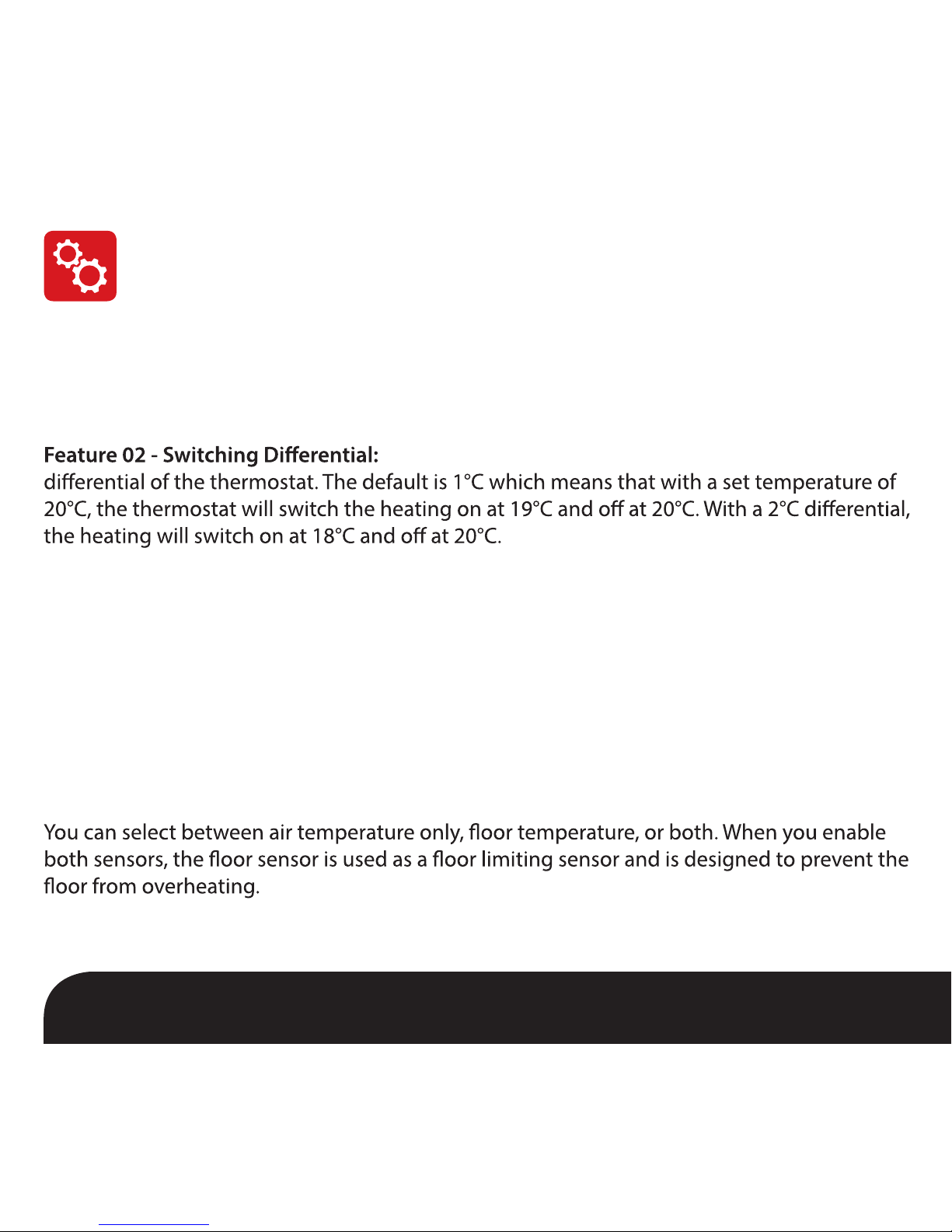

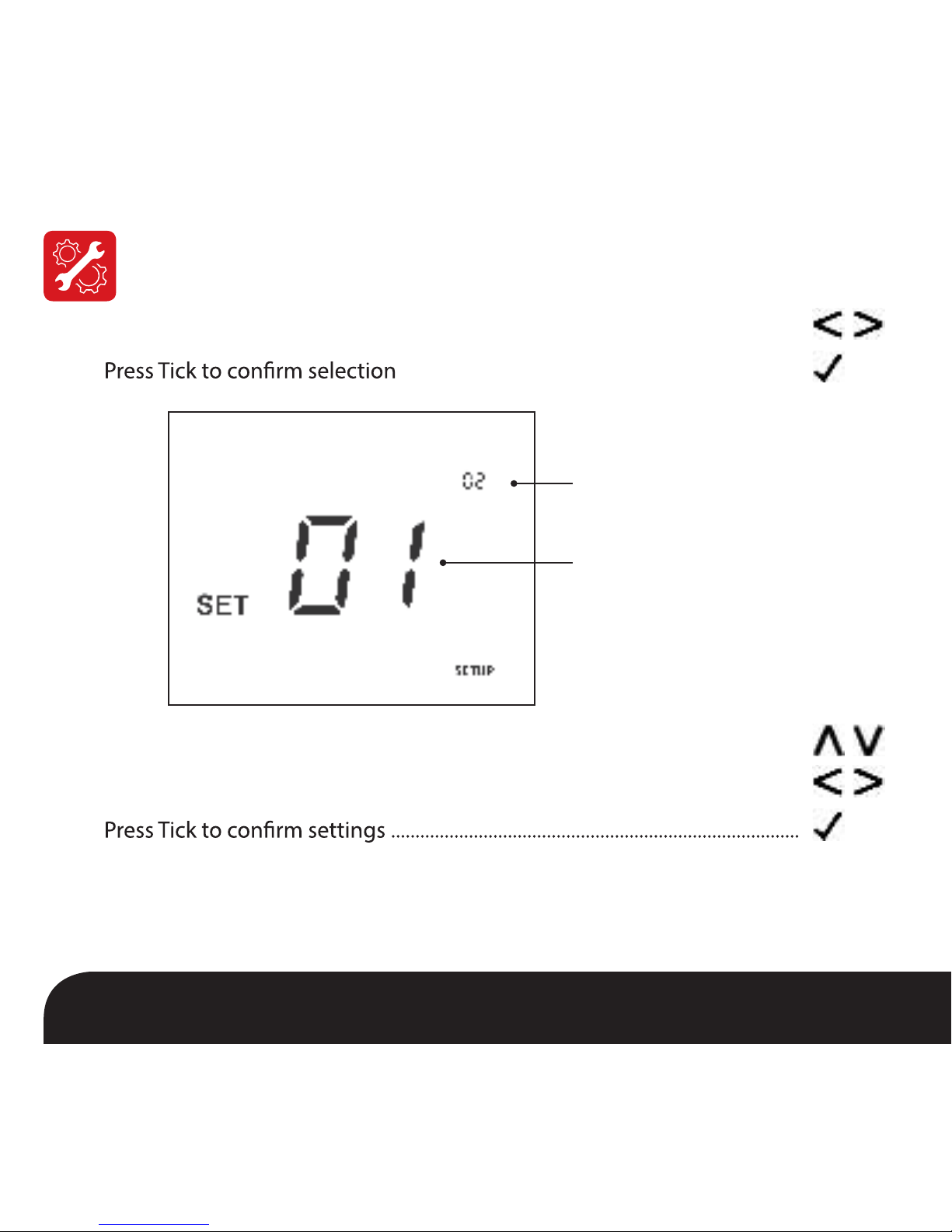

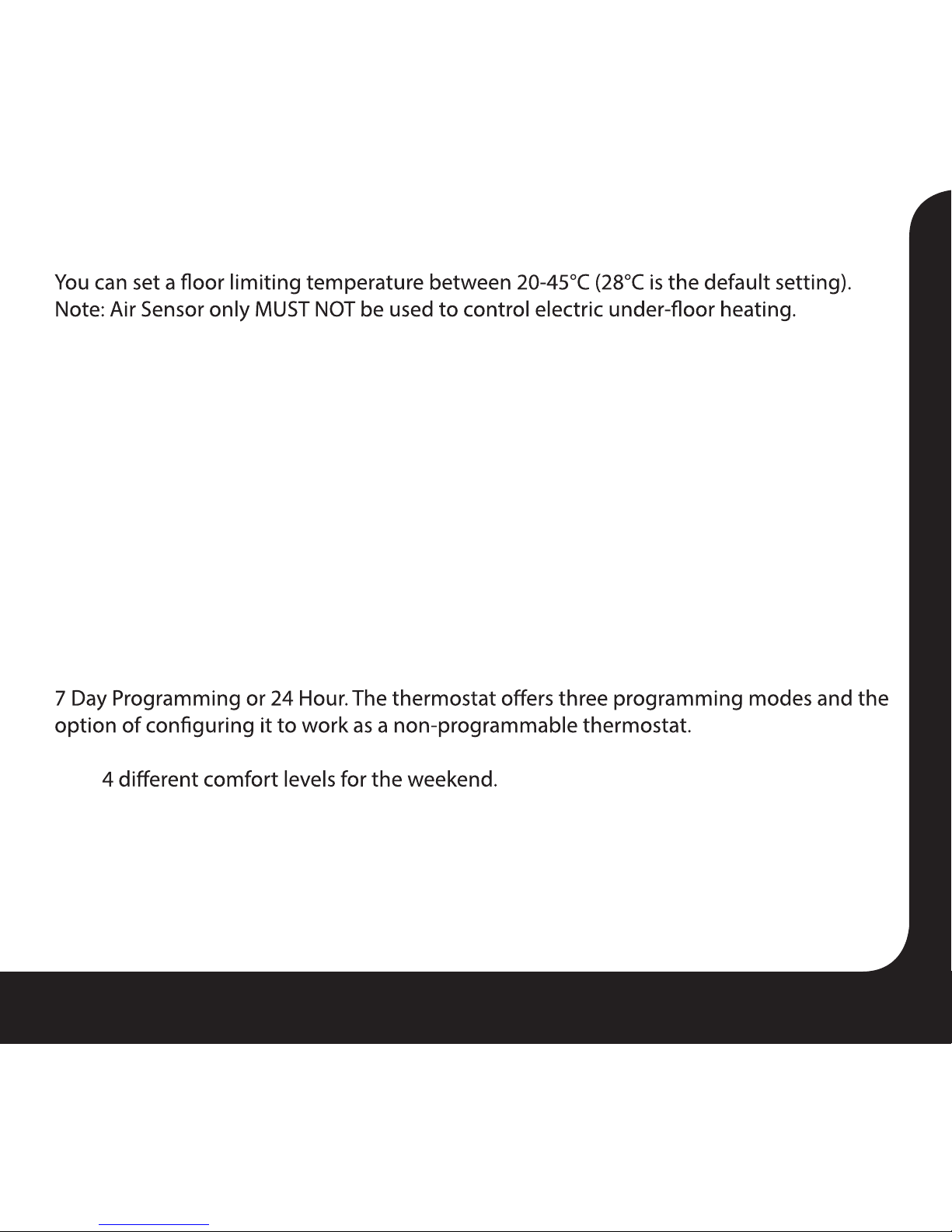

Optional Features

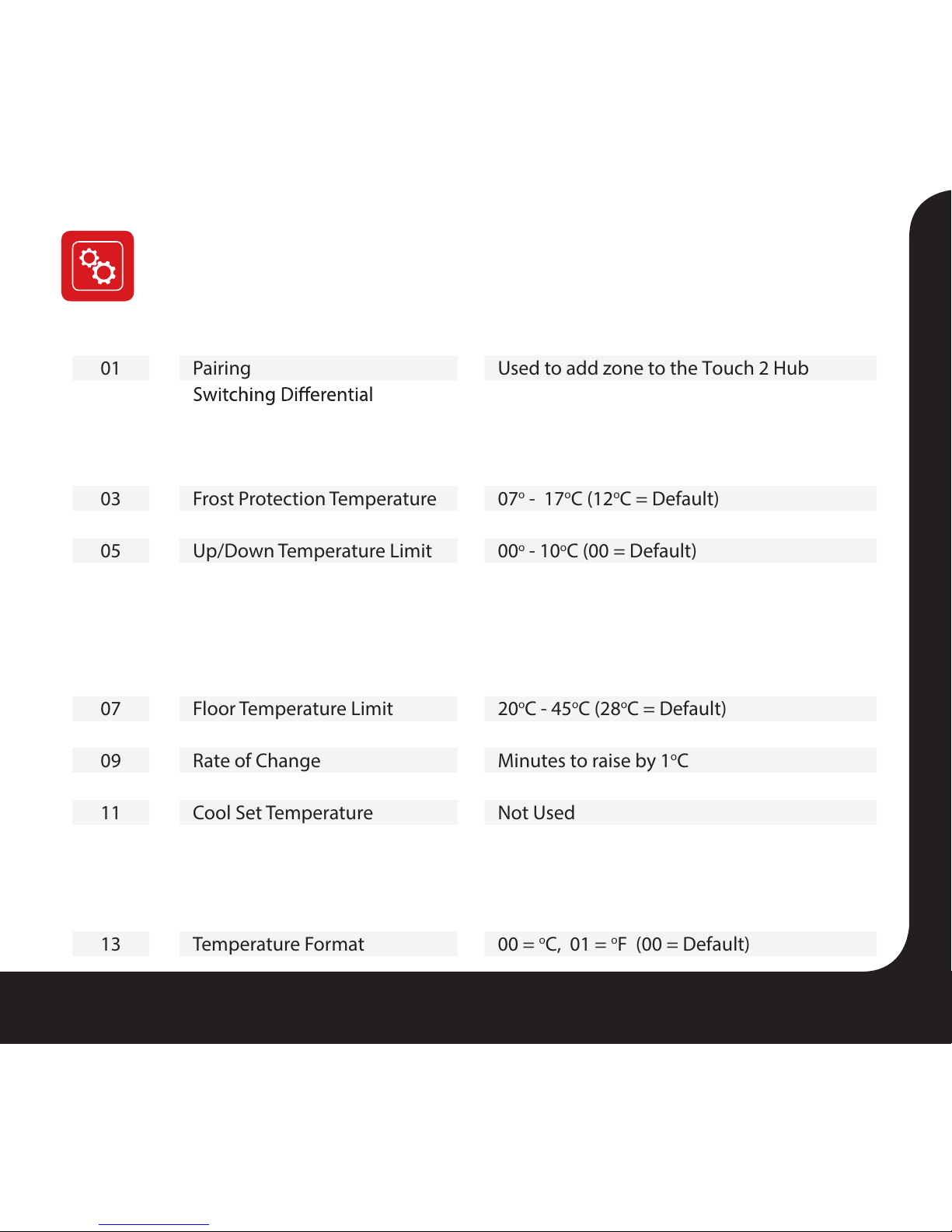

Optional Features Table
Time Clock Mode Wiring Diagram

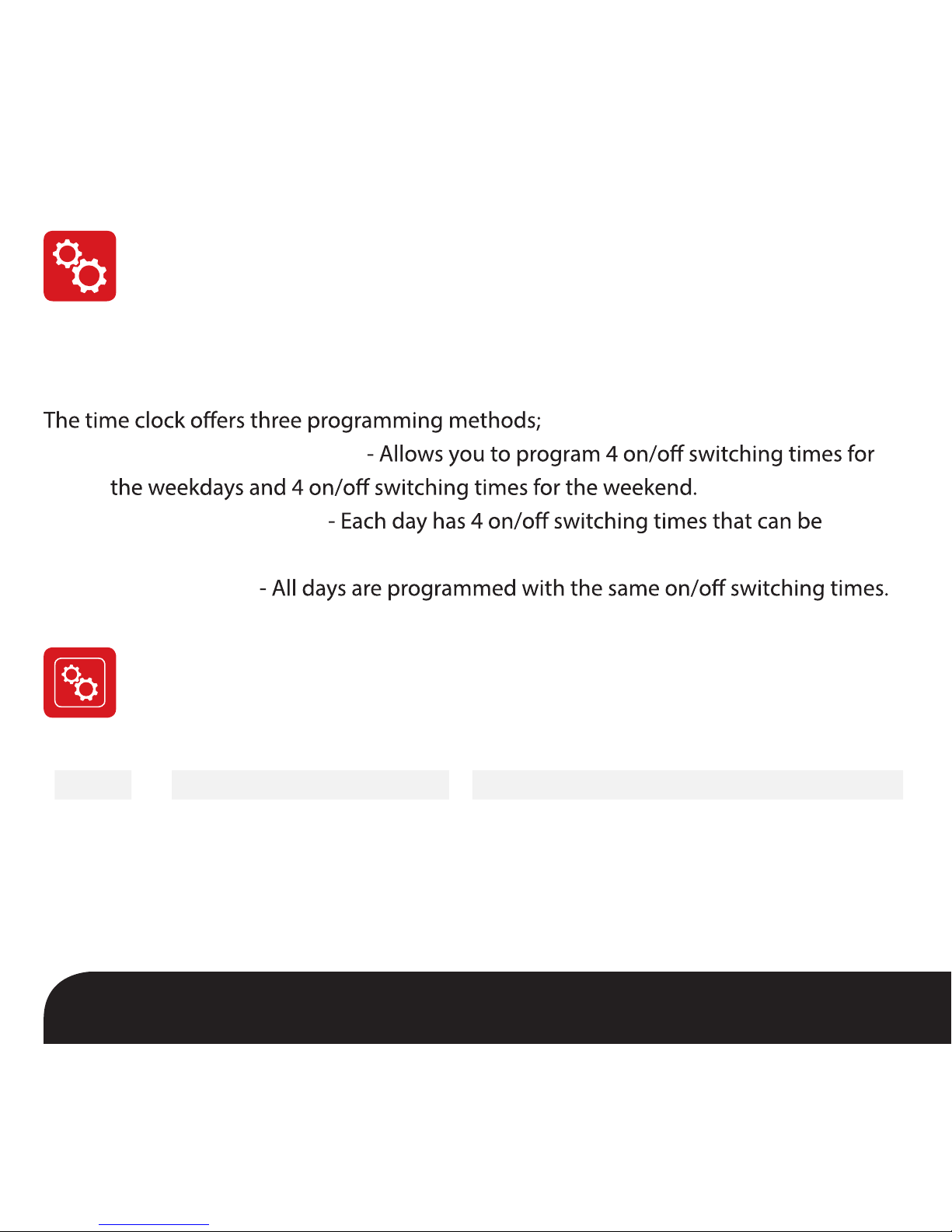

Mode 2 - Time Clock
LCD Display
Temperature Display
Setting the Clock
Setting the Comfort Levels
Setting the Temperature
Temperature Hold
Locking/Unlocking the Touch 2 WiFi
33
Mode 1 - Thermostat 10
11-12
13
14
15-16
17
18
19

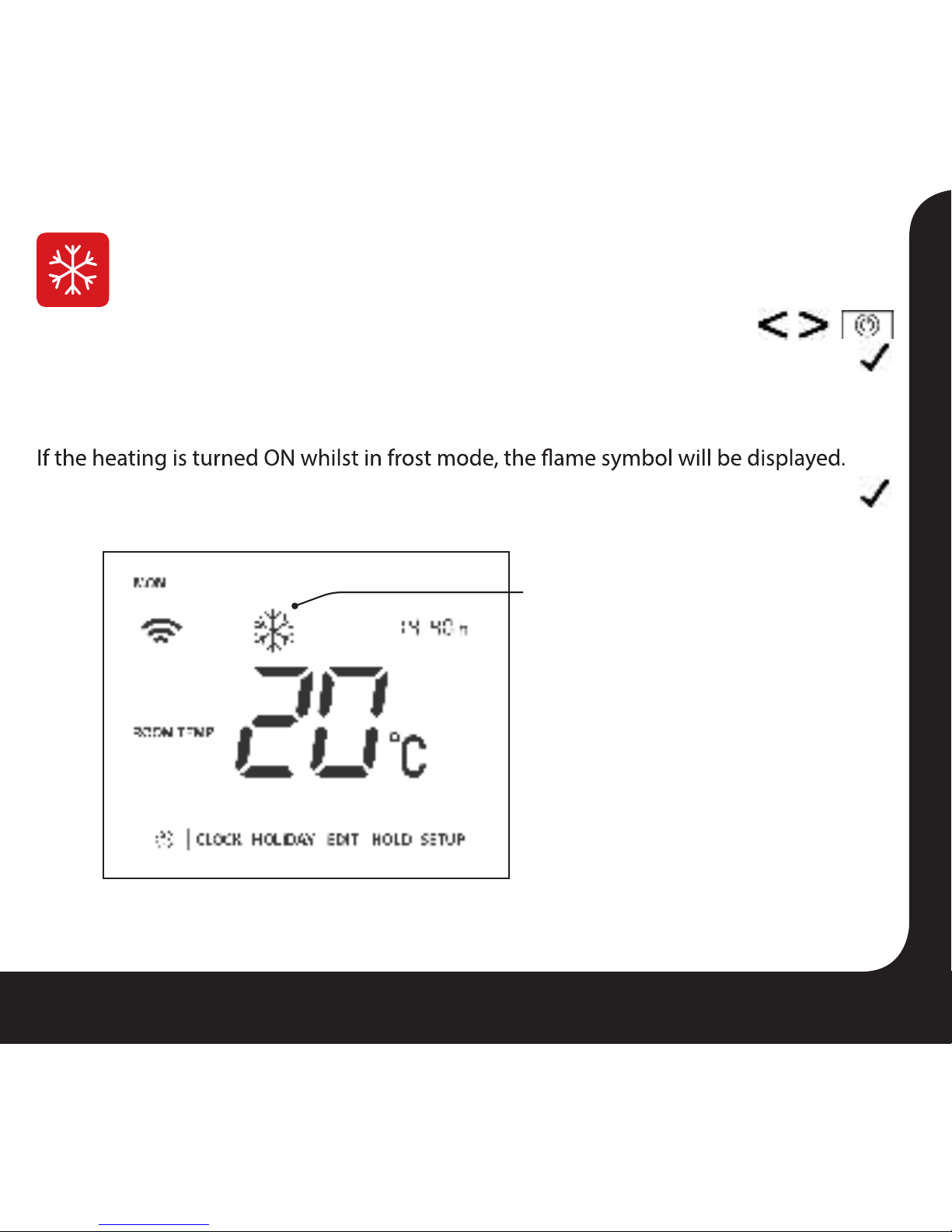

Frost Protection

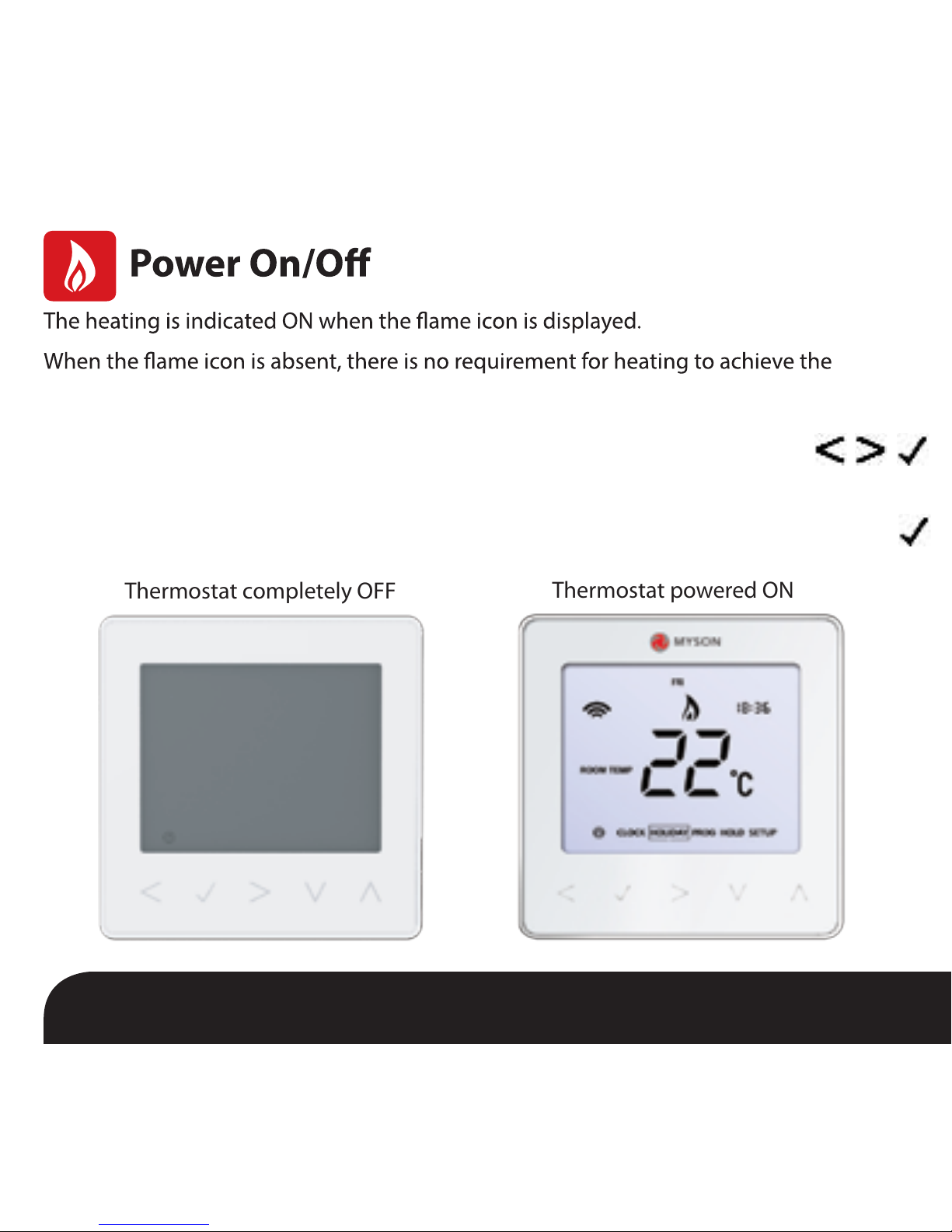

Power ON/OFF

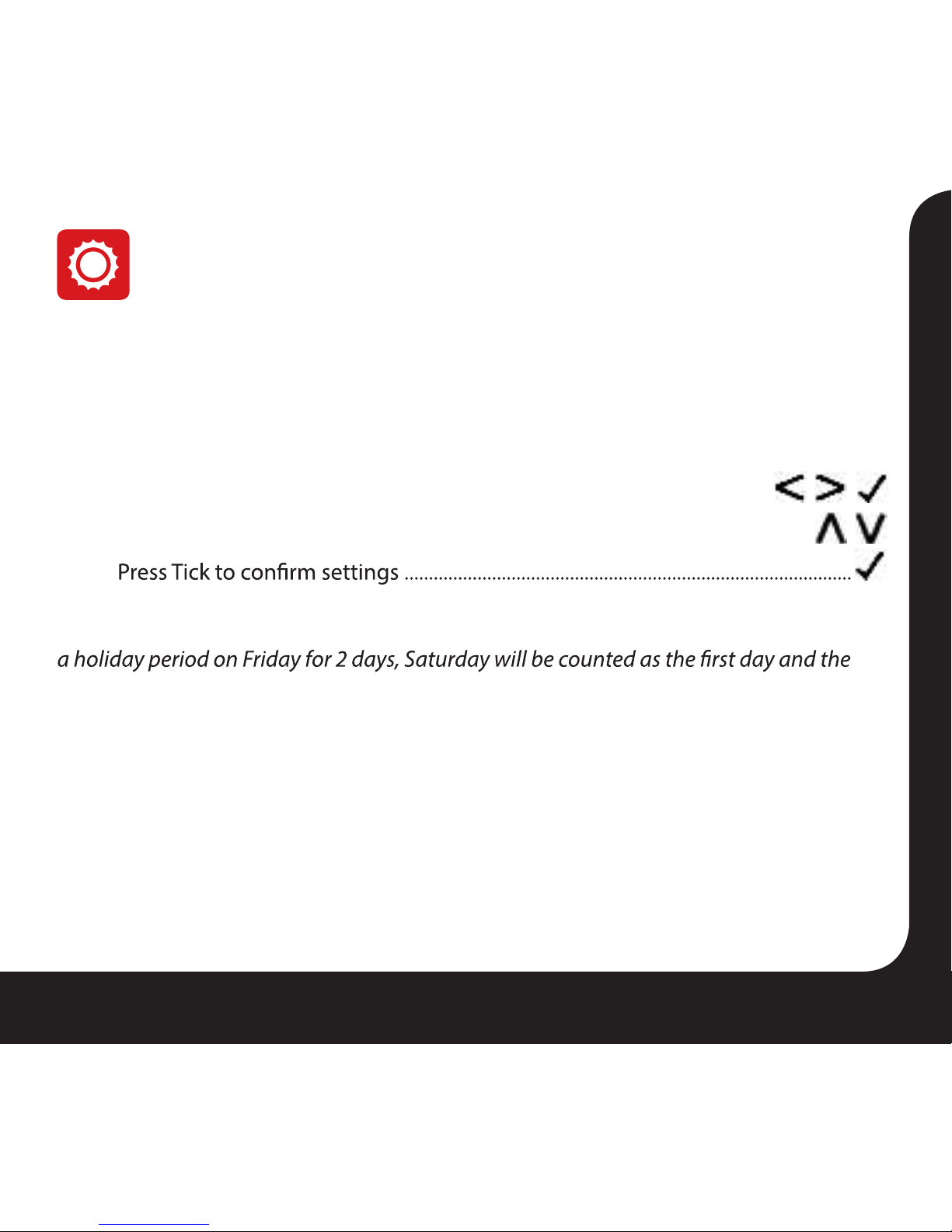

Holiday Programming
Optional Features
Re-calibrating the Thermostat
Error Codes

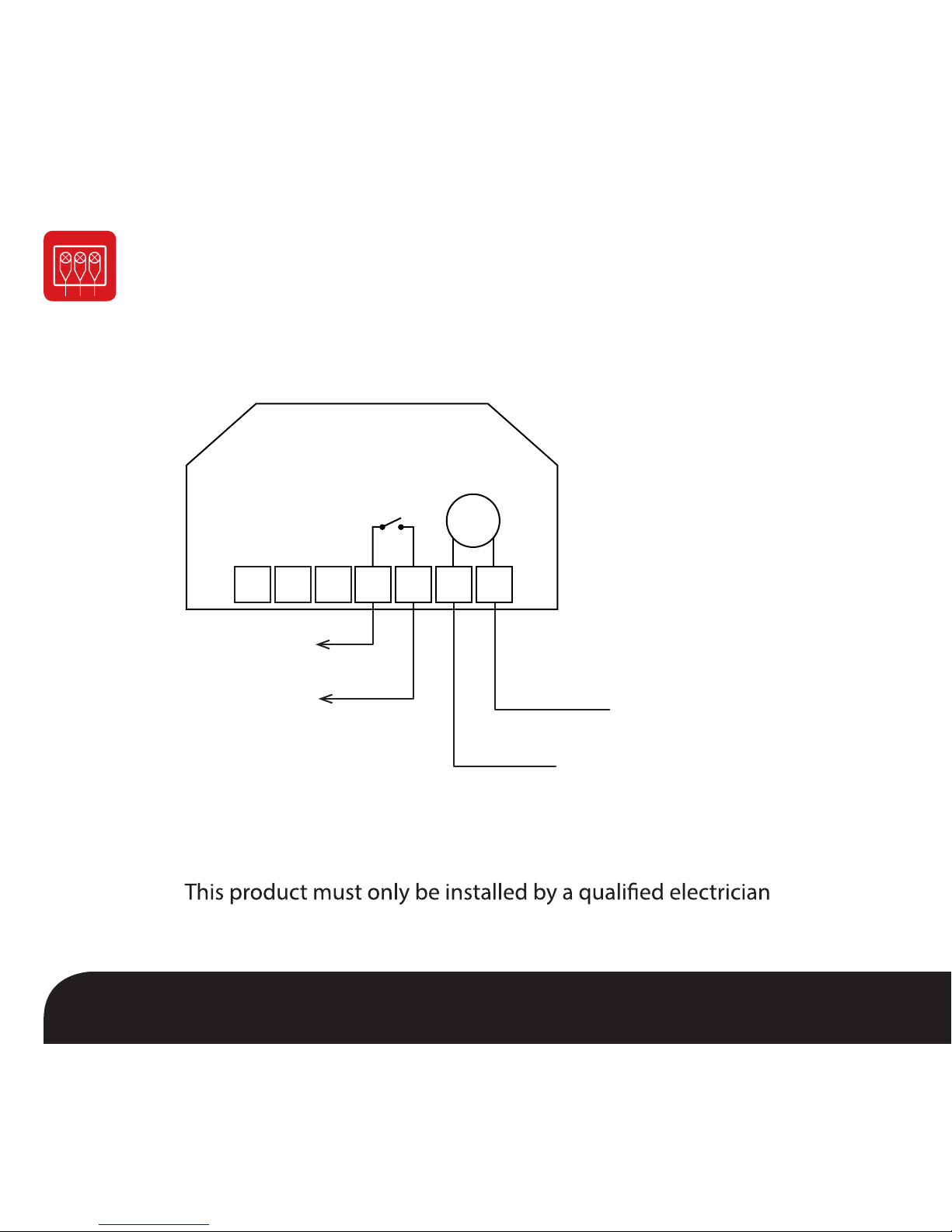

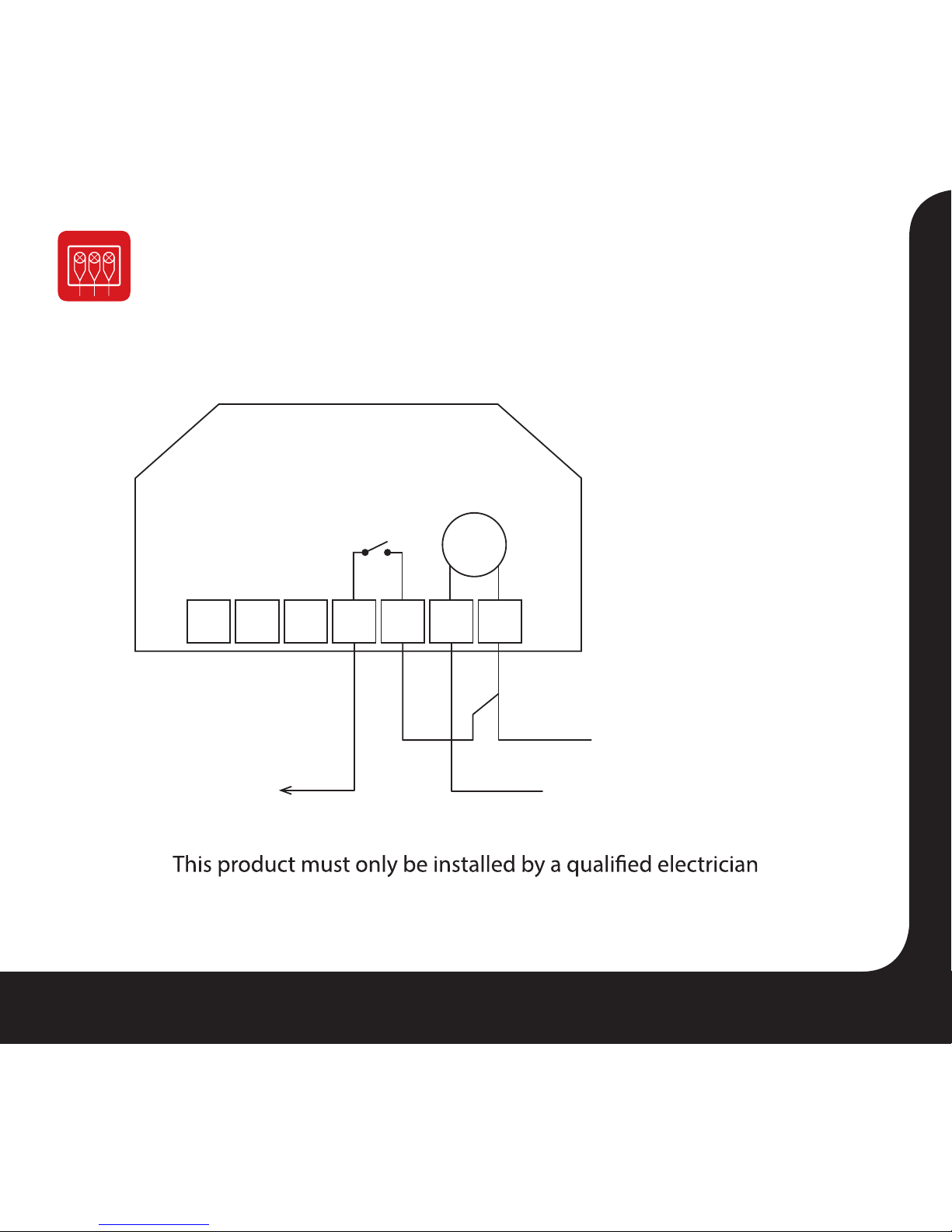

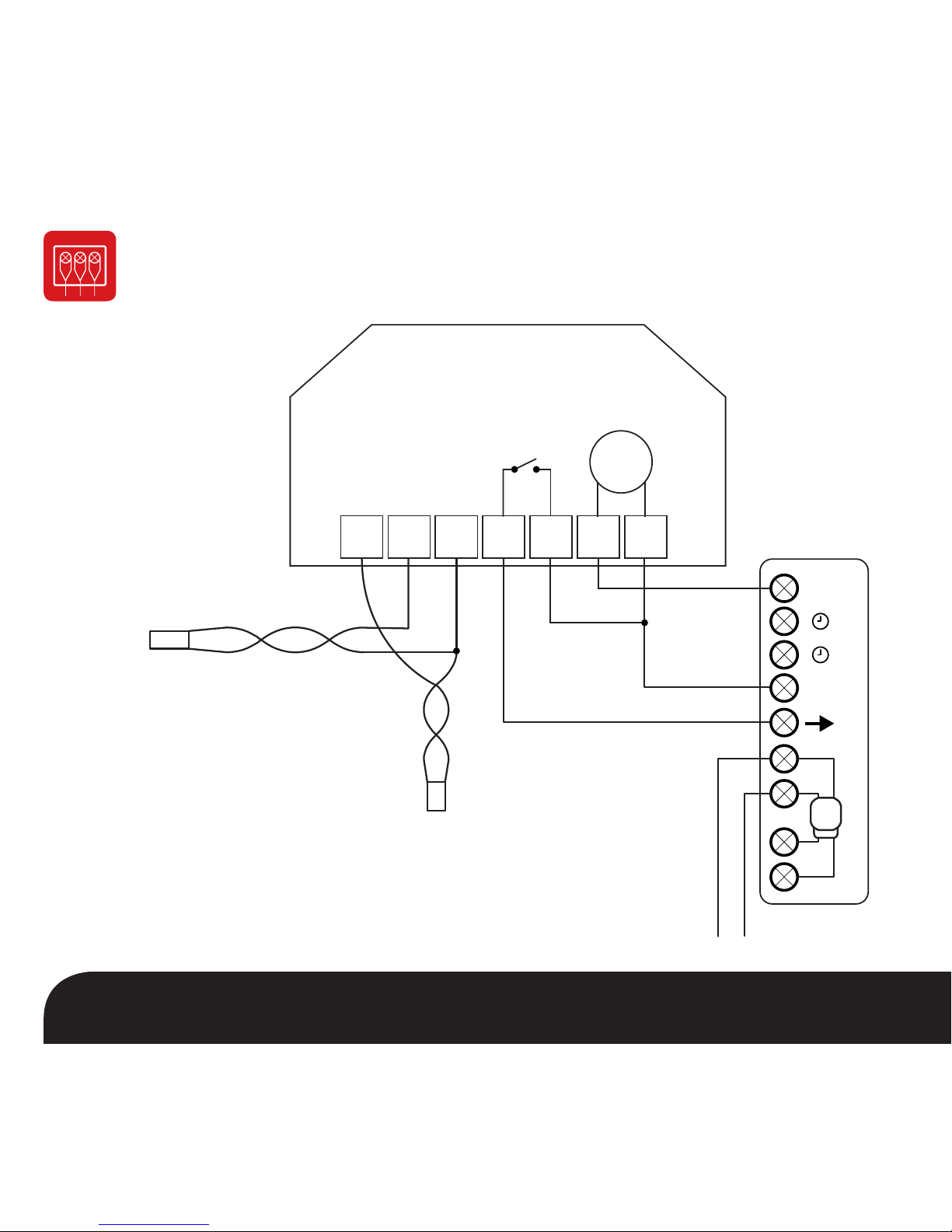

Thermostat Mode Wiring Diagrams

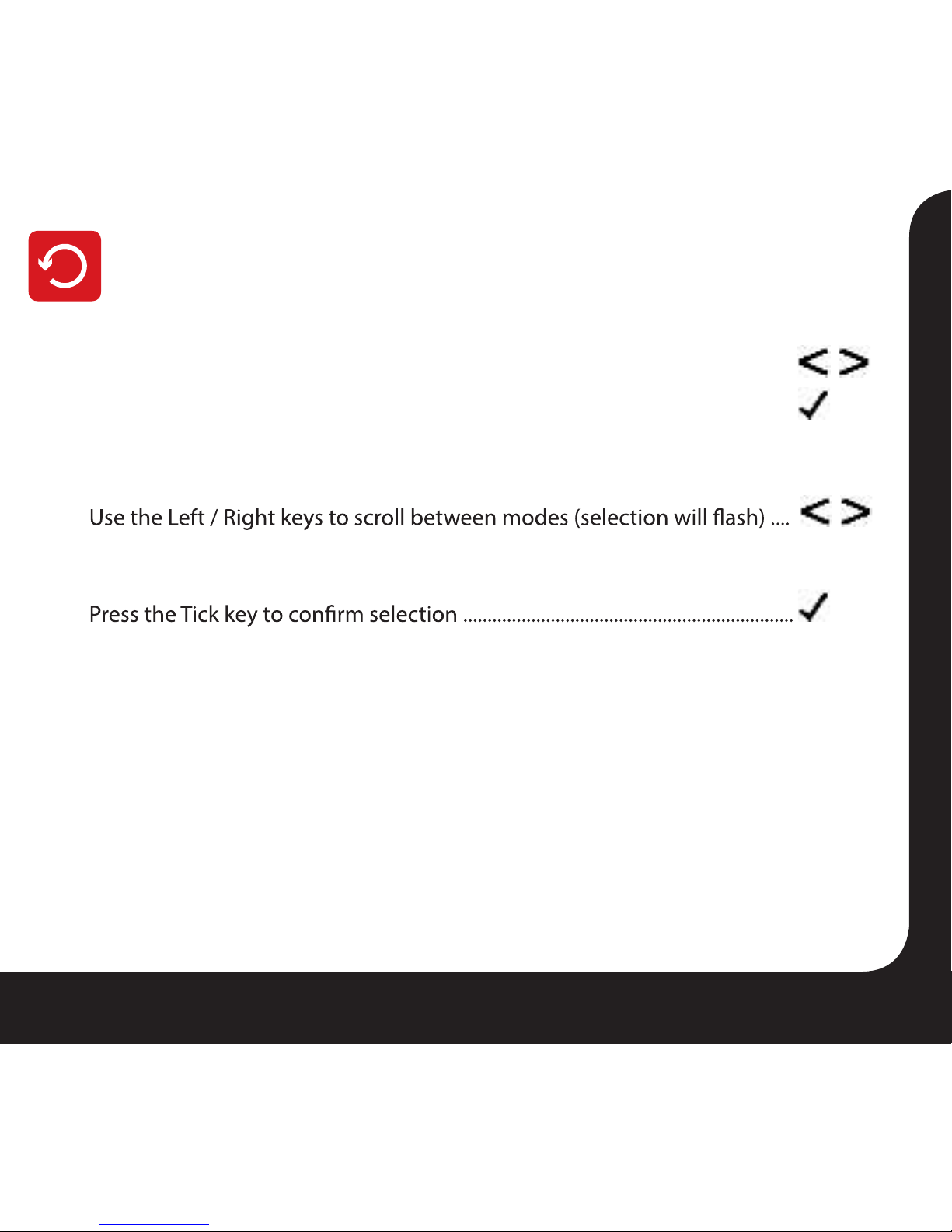

Factory Reset
20
21
22
23-26
27
27
28-31
32
Touch 2 WiFi
Page 4
3
What is a Programmable Room Thermostat?
A programmable room thermostat is both a programmer and a room thermostat.
A room thermostat works by sensing the air temperature, switching on the heating
this set temperature has been reached.
So a programmable room thermostat lets you choose what times you want the heating
to be on, and what temperature it should reach while it is on. It will allow you to select
to meet your particular needs and preferences.
Setting a programmable room thermostat to a higher temperature will not make the
room heat up any faster. How quickly the room heats up depends on the design and
size of the heating system.
down. Setting a programmable room thermostat to a lower temperature will result in
the room being controlled at a lower temperature, and saves energy.
Touch 2 WiFi
Page 5
Touch 2 WiFi
4
chosen, and then leave it alone to do its job.
The best way to do this is to set the room thermostat to a low temperature
– say 18°C , and then turn it up by 1°C each day until you are comfortable with the
temperature. You won’t have to adjust the thermostat further. Any adjustment above
this setting will waste energy and cost you more money.
You are able to temporarily adjust the heating program by overriding or using the
temperature hold feature. These features are explained further on pages 17 and 18
of this manual.
so they must not be covered by curtains or blocked by furniture. Nearby electric
properly.
Page 6
Touch 2 WiFi
5
Installation Procedure
35mm (minimum depth) to be sunk into the wall prior to installation.
Step 1
Remove the screw from the bottom face of the thermostat then carefully separate
the front half from the back plate.
Step 2
Place the thermostat front somewhere safe.

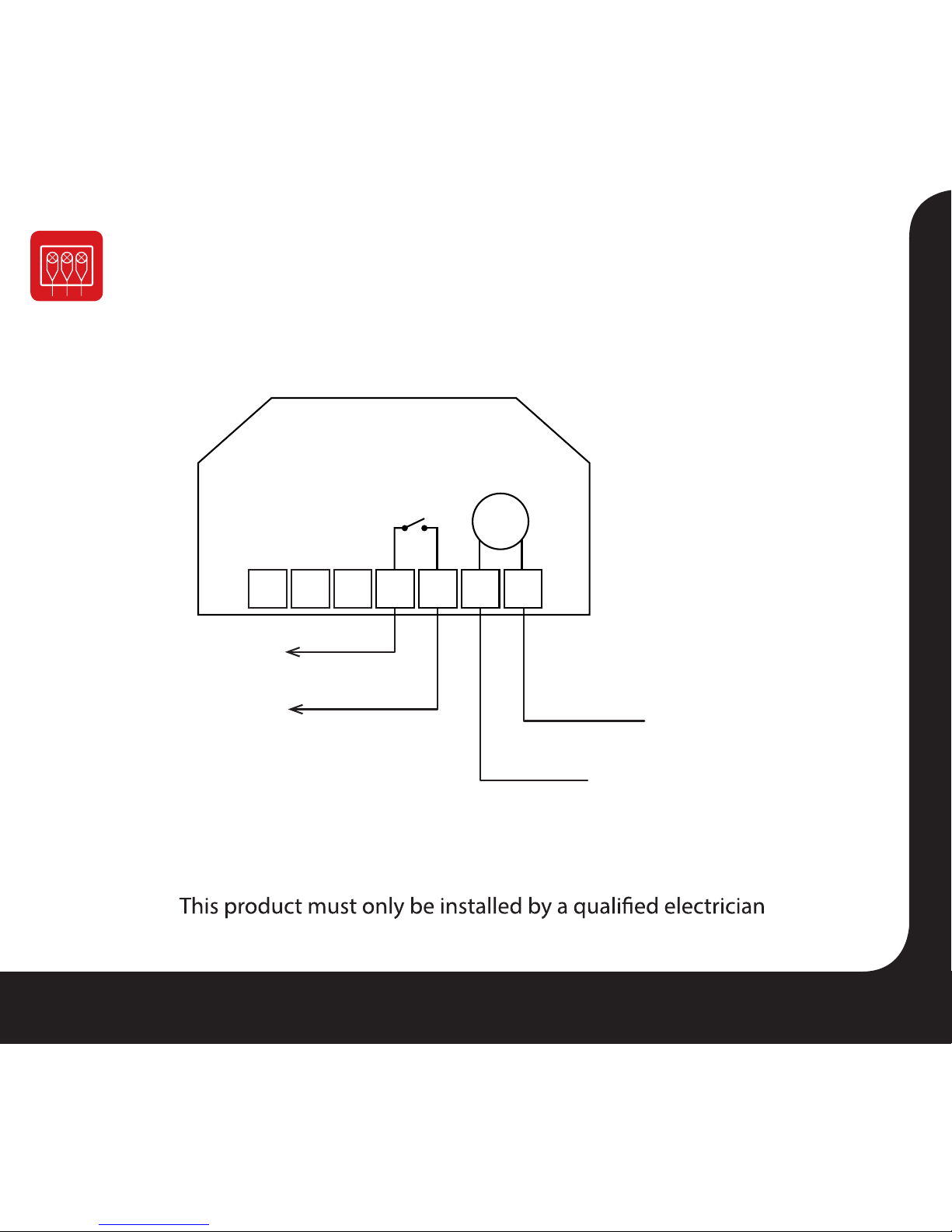

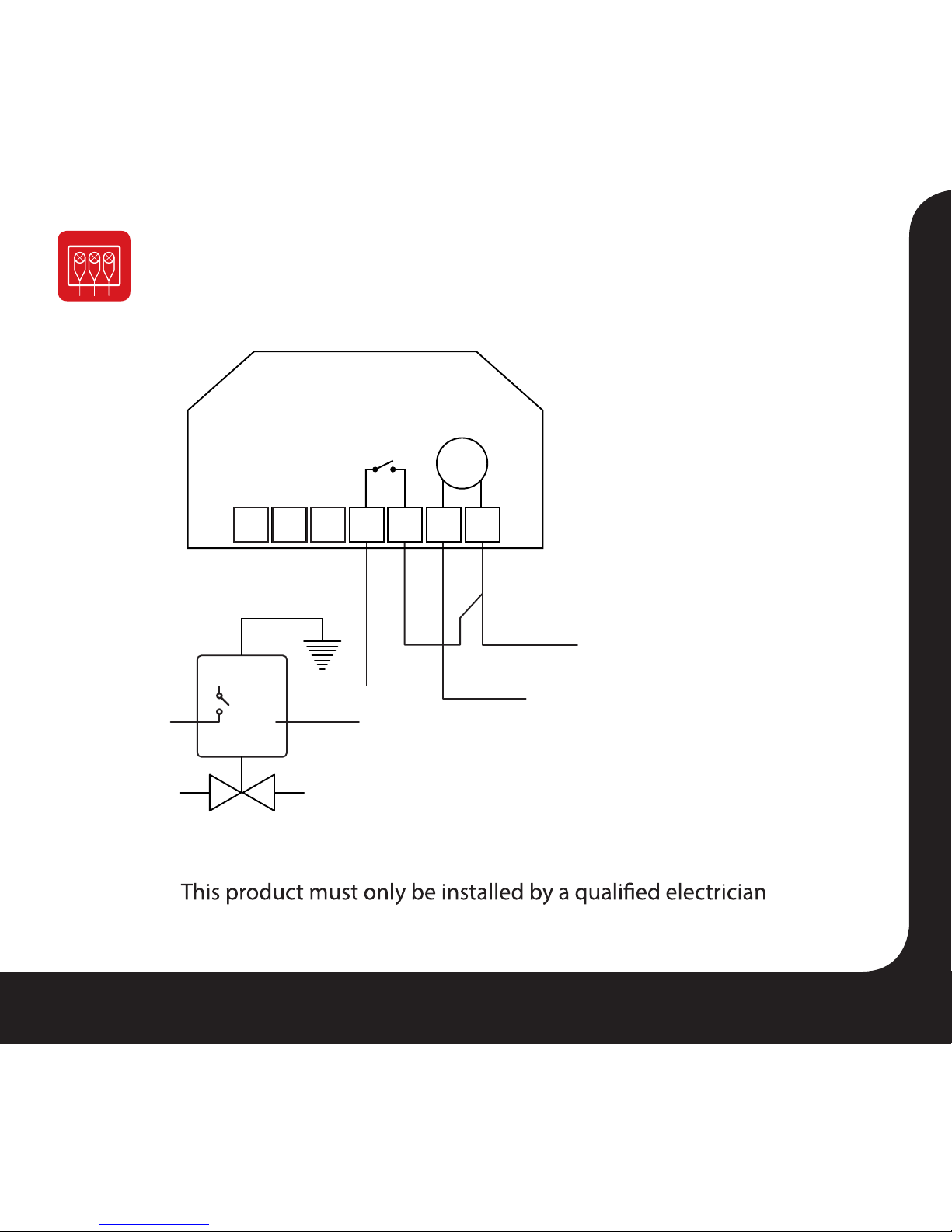

Terminate the thermostat as shown in the diagrams on pages 28-31 of this booklet.
Note: For time clock wiring connections, terminate as shown on page 38.
Step 3
Screw the thermostat back plate securely into the back box.
Step 4
Clip the front of the thermostat onto the back plate, securing it in place with the
retaining screw.
Do
Mount the thermostat at eye level.
Read the instructions fully so you get the best from our product.
Don’t
Do not push hard on the LCD screen as this may cause irreparable damage.
This Touch 2 WiFi is designed to be ush mounted and requires a back box of
Page 7
Touch 2 WiFi
6
1 2
3 4
Page 8
Touch 2 WiFi
7
Mode Select
This Touch 2 WiFi can either be used as a thermostat or a time clock.
Thermostat mode is the default setting.
To change between thermostat or time clock modes, follow these steps.
• Use the Left / Right keys to scroll to SETUP ...............................................................
• Press and hold the Tick button for 10 seconds ..........................................................
• Use the Left / Right keys to scroll between modes ..................................................
Mode 1 = Thermostat
Mode 2 = Time Clock
•
The Touch 2 WiFi will revert to the main display screen for the selected mode.
explained on page 8, then turn to page 33.
For time clock mode instructions, first pair the time clock with the Touch 2 Hub as
Page 9
Touch 2 WiFi
8
The next step is to join the Touch 2 WiFi to the Touch 2 Hub, we recommend joining the
Touch 2 WiFi located nearest to the Touch 2 Hub first.
To add a Touch 2 WiFi, follow these steps;
• Select Add Zone, enter a zone title and press Add Zone again.
• You now have two minutes to join the Touch 2 Wifi to the Touch 2 Hub.
• On the Touch 2 Wifi, use the Left / Right keys to select SETUP and press Tick ...
• Feature 01 is displayed on screen.
Pairing the Touch 2 WiFi
Pairing the Touch 2 Hub
To pair the Touch 2 Hub with the Myson Touch 2 App, follow these steps.
• Power the Touch 2 Hub with the power supply provided.
• Connect the Touch 2 Hub to your router with the Ethernet cable provided. The router
will automatically assign an IP address to the Touch 2 Hub, the Link LED will light up
once the Touch 2 Hub has connected to your network.
• Connect your smartphone or tablet device to the same WiFi network as your router.
• Download the FREE Myson Touch 2 App from the Apple App Store,
Google Play Store and register an account.
• Once you have registered your account, press the Login button then press the
Add Location option.
• Press the connect button on the Touch 2 Hub to add the location to your account.
• When successfully connected, enter a title for the new location (e.g. Home) and
Page 10
Touch 2 WiFi
What is a Mesh Network
Touch 2 WiFi work using a mesh network, meaning Touch 2 WiFi have the ability to send
& receive signals via other thermostats on the network. This signal is relayed from one
thermostat to another until it reaches its destination. This communication method
compared with standard RF thermostats.
The Mesh symbol is shown when the device is communicating with the Touch 2 Hub, if the
mesh symbol disappears this indicates connection to the Touch 2 Hub has been lost.
• Press the Tick key to pair the Touch 2 WiFi to the Touch 2 Hub ......................
•
• When the Touch 2 WiFi successfully connects to the Touch 2 Hub the MESH
symbol will be permanently displayed.
• Press Next to add more zone or press Finish to complete the setup.
Please note, you only have to pair the hub to your account once. To pair any additional Touch 2
WiFi Thermostats, select Add Zones from the Manage Zones option in the Myson Touch 2 App.
9
9
Page 11
Touch 2 WiFi
10
Mode 1 - Thermostat
Page 12
Touch 2 WiFi
11
2
31 4
7
8
9
5
17
16
13
12
10
11
15
6
14
MORNING DAY EVENING NIGHT DONE
Page 13
Touch 2 WiFi
12
1. Day Indicator - Displays the day of the week.
2. Mesh Symbol - Displayed when connected to the Touch 2 Hub.
3.
temperature limit set on feature 07.
4. Frost Symbol - Displayed when frost protection mode is active.
5.
Smart Start is active.
6. Heat/Cool - Indicates the current operation mode.

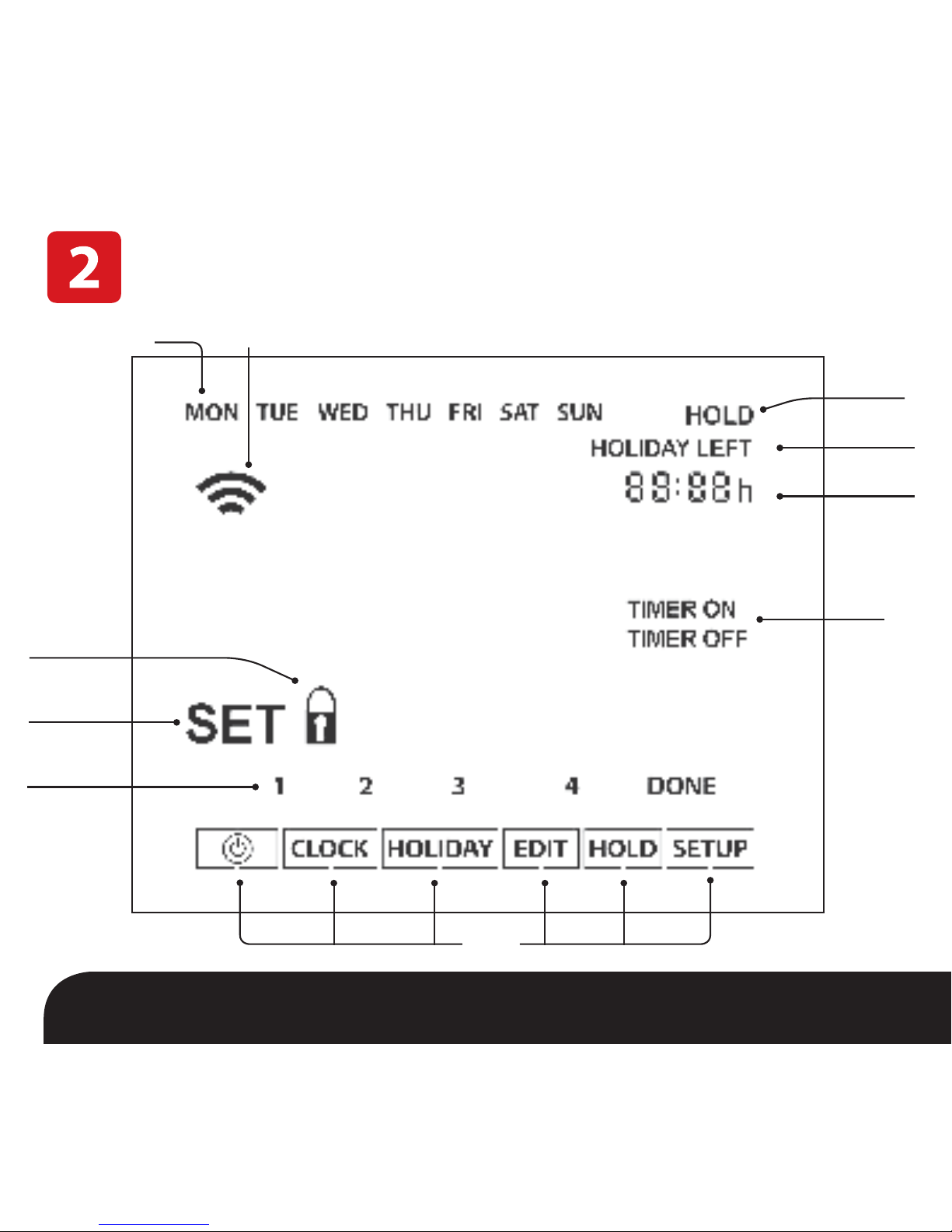

LCD Display
7. Floor/Room Temp - Indicates the current sensor mode.
8. Set - Displayed when changes are being made to the program schedule or
current set point.
9. Key Lock Indicator - Displayed when the KeyLock is Locked.
10. Program Indicator - Displayed during programming to show which period is
being altered.
11. Main Menu - Displays which option is currently selected.
12. Temperature Format - Degrees Celsius or Fahrenheit.
13. Temperature - Displays the current sensor temperature.
14. Cool On - Displayed when cooling is active.
15. Clock - Time displayed in 24 hour format.
16. Holiday Left - Displayed when the thermostat is in holiday mode.
17. Hold Left - Displayed when a temperature hold is active, the remaining time
will be shown.
Page 14
Touch 2 WiFi
13

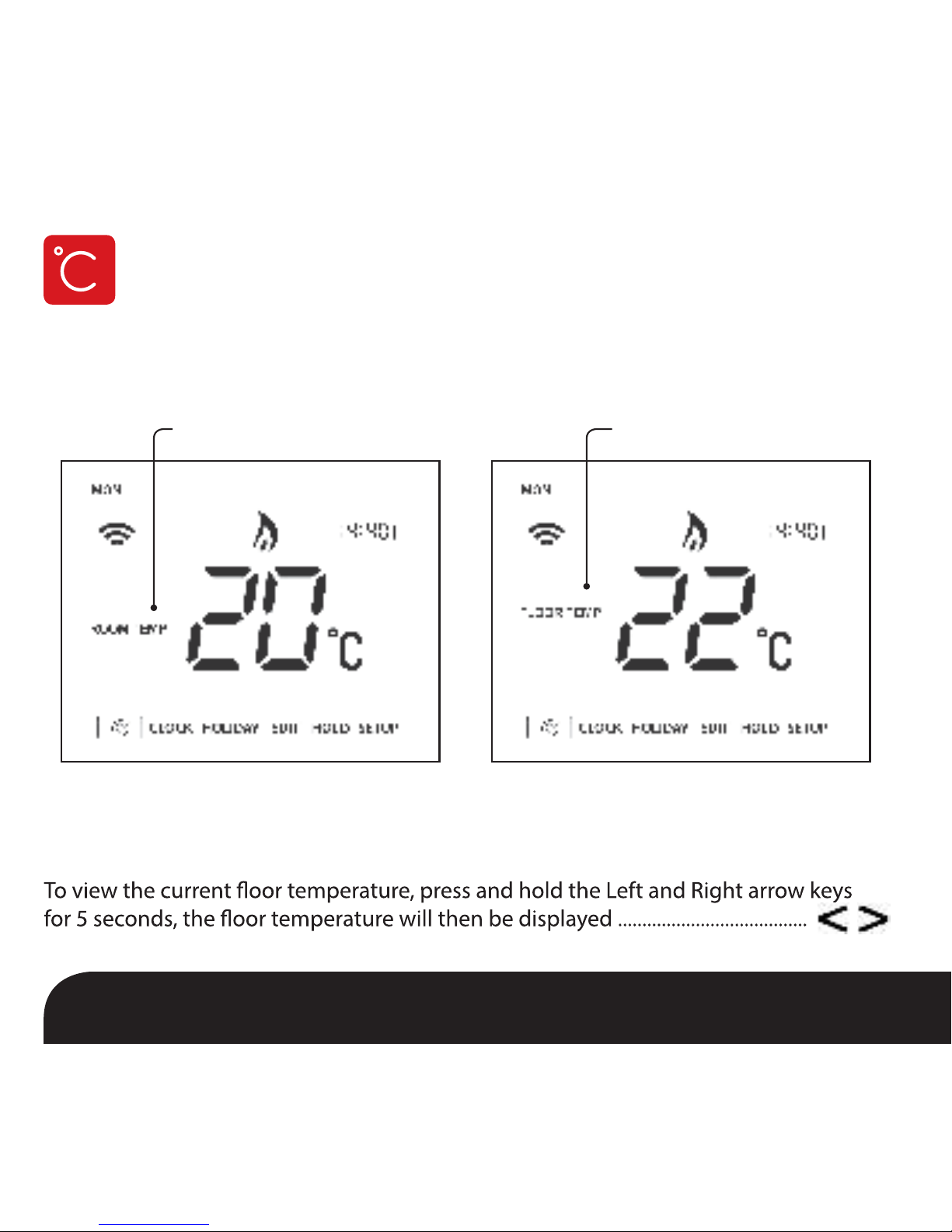

Temperature Display
Room Temperature Floor Temperature
This Touch 2 WiFi can be configured for different sensor options such as built in air sensor,
floor sensor or both. The display will clearly indicate which sensor is being used by
showing either “Room Temp” or “Floor Temp” before the actual temperature value.
When the Touch 2 WiFi is set to use both the air & the floor sensor, the room temperature
will be dispalyed by default.
Page 15

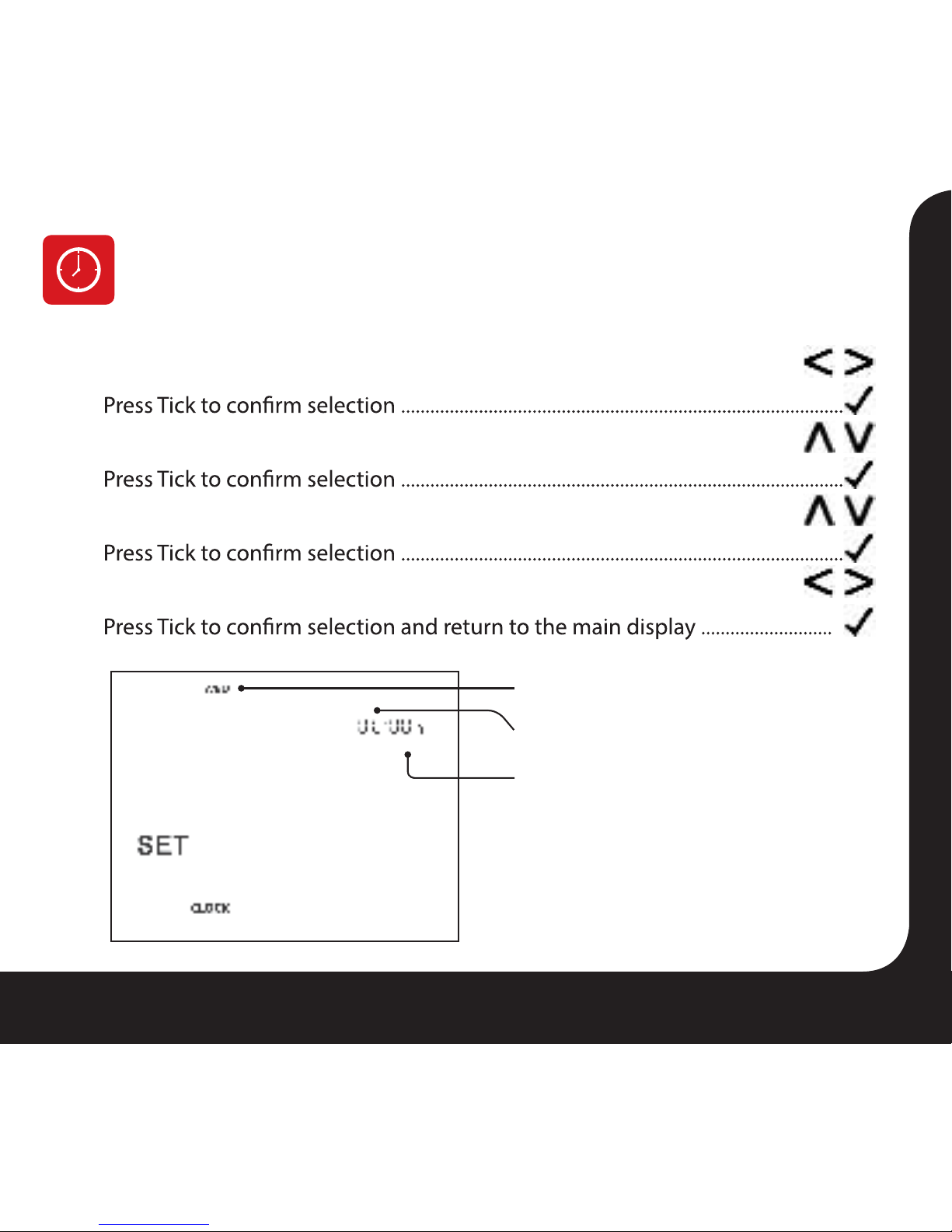

Setting the Clock
To set the clock, follow these steps.
• Use the Left / Right keys to scroll to CLOCK .........................................................
•
• Use the Up / Down keys to set the hours (24 hour format) ............................
•
• Use Up / Down keys to set the minutes ................................................................
•
• Use Left / Right keys to set the the day .................................................................
•
Day
Minutes
Hours
Touch 2 WiFi
14
Page 16
Touch 2 WiFi
15
Comfort Levels Explained
The thermostat is supplied with comfort levels already programmed, but these can be
changed easily. The default times and temperature settings are;
07:00 - 21°C (Morning) 09:00 - 16°C (Day) 16:00 - 21°C (Evening) 22:00 - 16°C (Night)
If you only want to use 2 levels, you should program the unused levels to
--:--

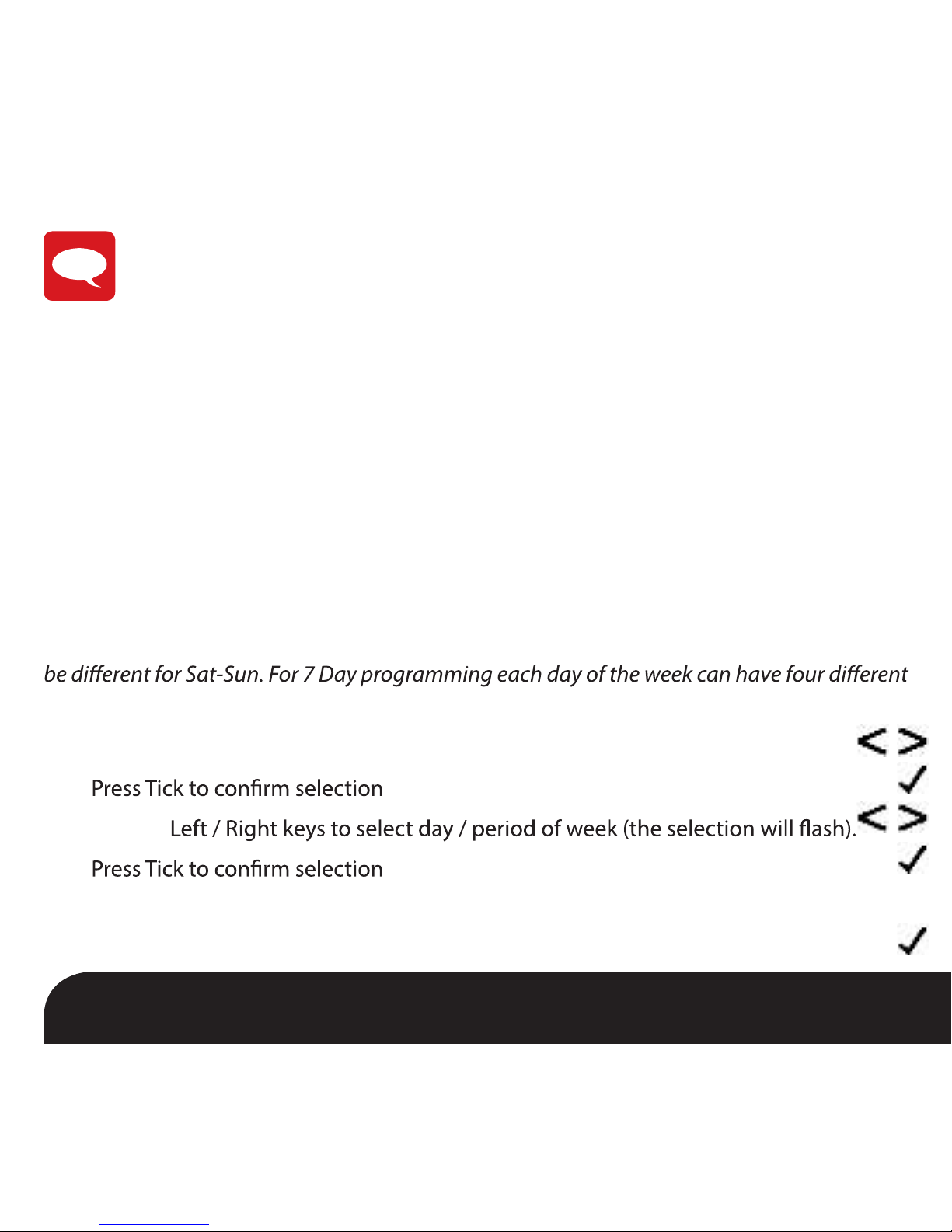

For Weekday/Weekend programming, the four comfort levels are the same for Mon-Fri, but can
comfort levels. In 24 Hour mode all days are programmed with the same comfort levels.
• To program the comfort levels, use the Left / Right keys to scroll to EDIT .............
•
.......................................................................................................
• Use the
• .......................................................................................................
•
• Press Tick to alter MORNING settings ............................................................................................
The Touch 2 Wifi oers three program mode options; Weekday/Weekend programming,
7 Day programming and 24 Hour programming. There is also the option to
use the thermostat as a Non-Programmable thermostat.
When thermostats are connected to the mesh network, the program mode for
the system is congured by using the Myson Touch 2 App.
MORNING will now ash and the current time and temperature setting will be shown.
Page 17
Touch 2 WiFi
16
• Use the Up / Down keys to set the hours ..............................................................
•
• Use the Up / Down keys to set the minutes .........................................................
•
• Use the Up / Down keys to set the temperature .................................................
•
• Press the right arrow key .....................................................................................................
•
• Press Tick to alter DAY settings ..........................................................................................
• Repeat these steps to set all comfort levels.
• For any unused periods set time to
--:--
• Use the Left / Right keys to scroll to DONE and press Tick .......................
DAY will now flash and the current settings will be displayed.
Page 18
Touch 2 WiFi
17

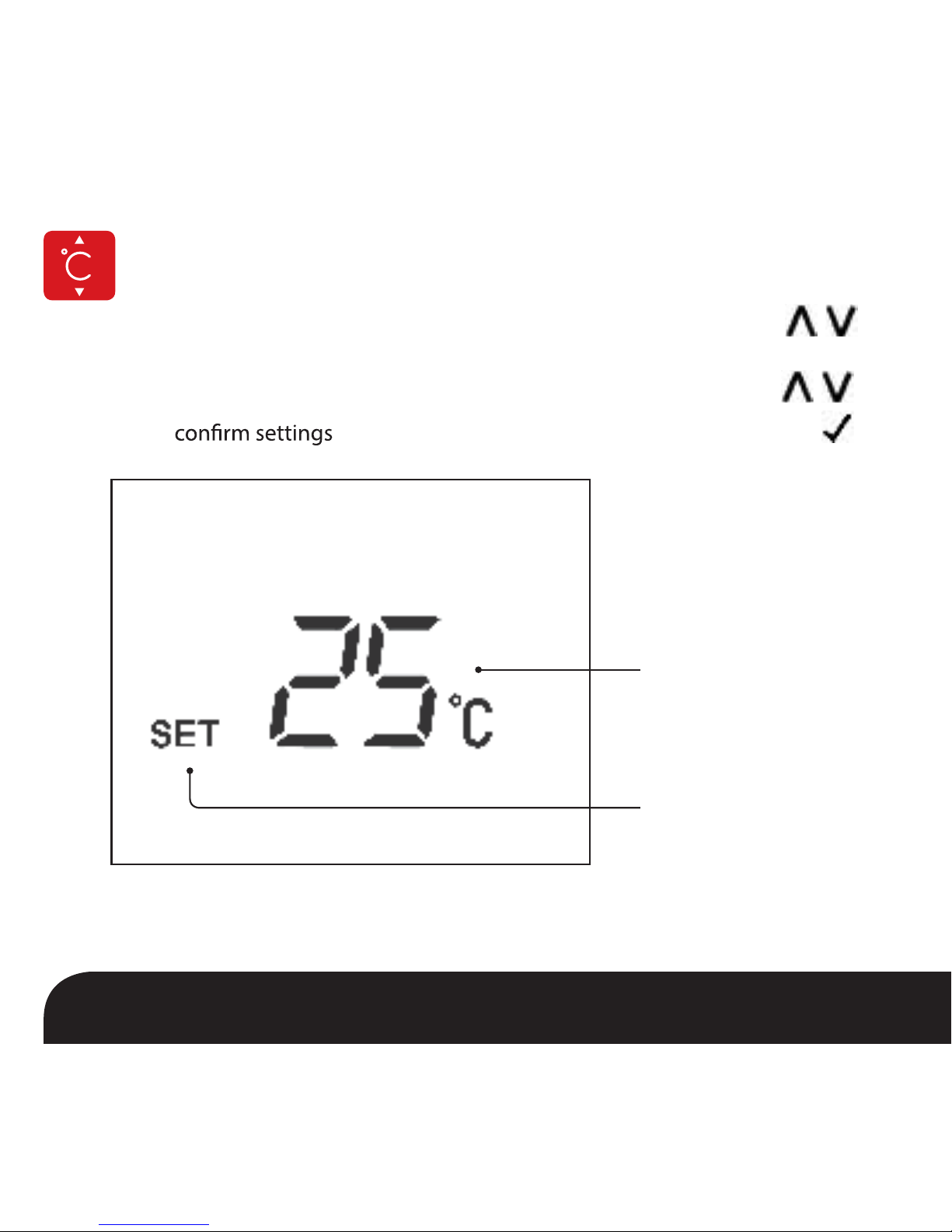

Temperature Control
The Up / Down keys allow you to adjust the set temperature .............................
When you press either key, you will see the word SET and the desired
temperature value. Use the Up / Down keys to adjust the SET value ...............
Press Tick to
and return to the main display .....................................
Note: This new temperature is maintained only until the next programmed comfort level.
At this time, the thermostat will revert back to the programmed levels.
Set Temperature
Set Icon
Page 19
Touch 2 WiFi
18

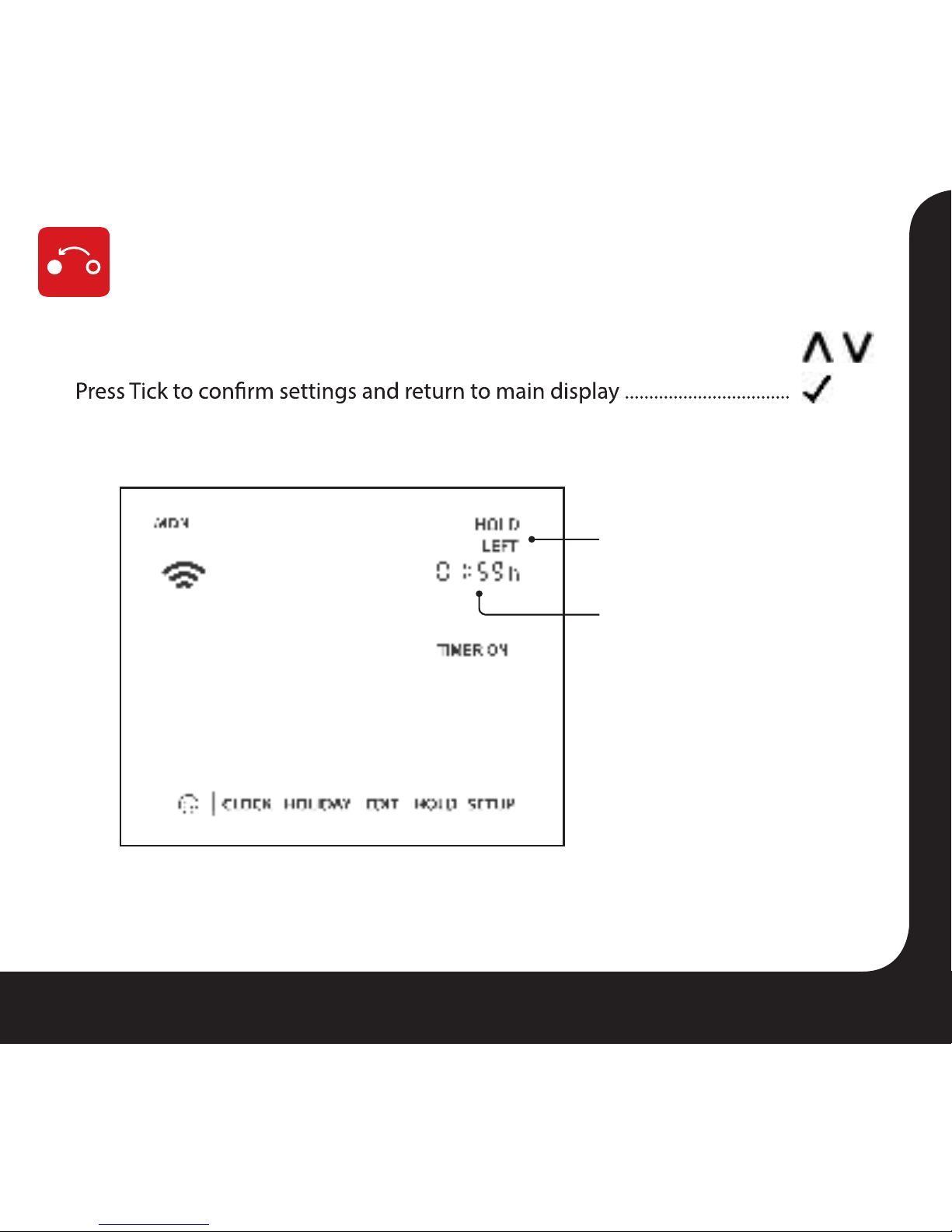

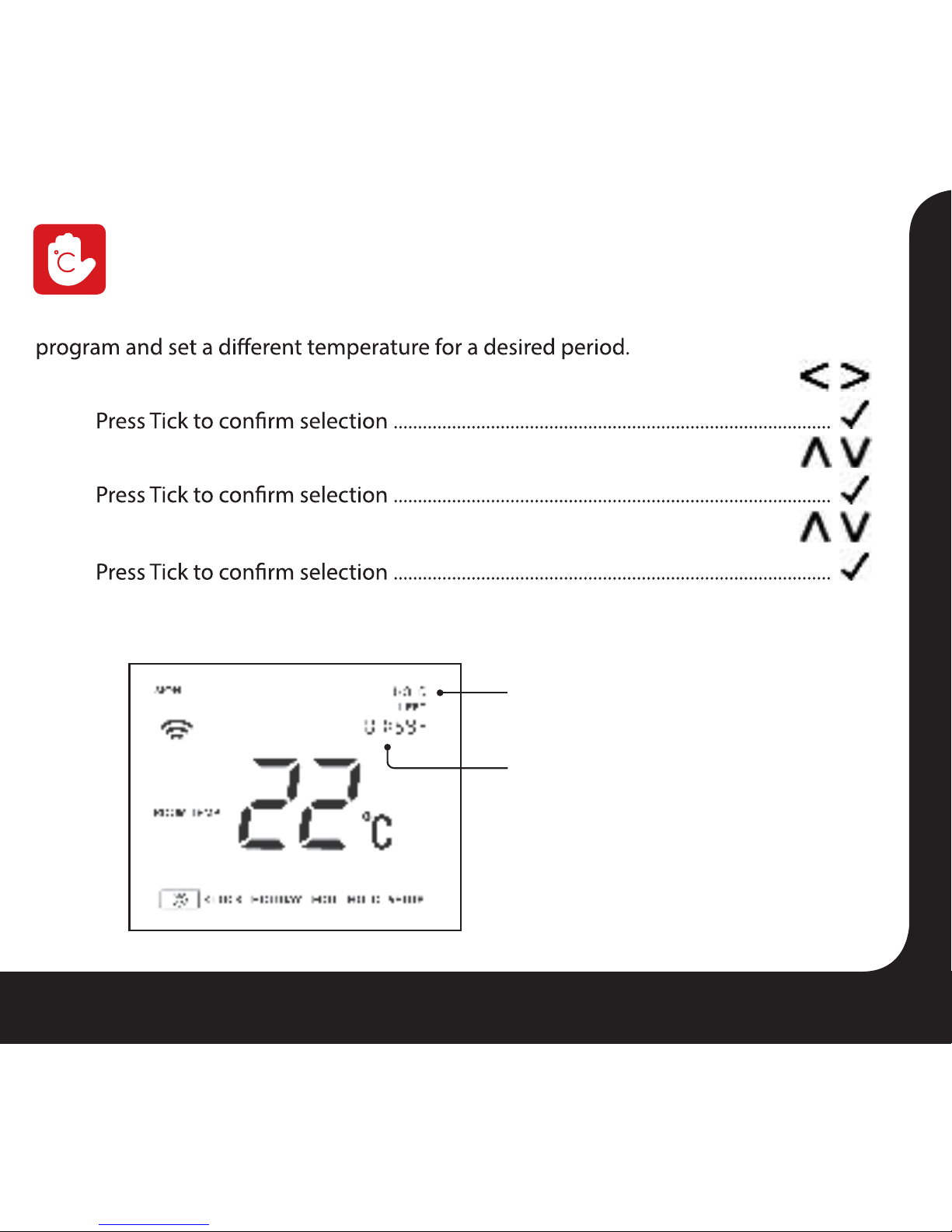

Temperature Hold
The temperature hold function allows you to manually override the current operating
• Use the Left / Right keys to scroll to HOLD ..........................................................
•
• Use the Up / Down keys to set the desired Hold period .................................
•
• Use the Up / Down keys to set the desired Hold temperature ......................
•
You will see the HOLD LEFT indication is displayed on screen.
The time will countdown the set duration and then revert to the normal program.
To cancel a temperature Hold, repeat these steps but reduce the Hold time to 00:00 hrs.
HOLD LEFT Indicator
Hold Time Remaining
Page 20
Touch 2 WiFi
19

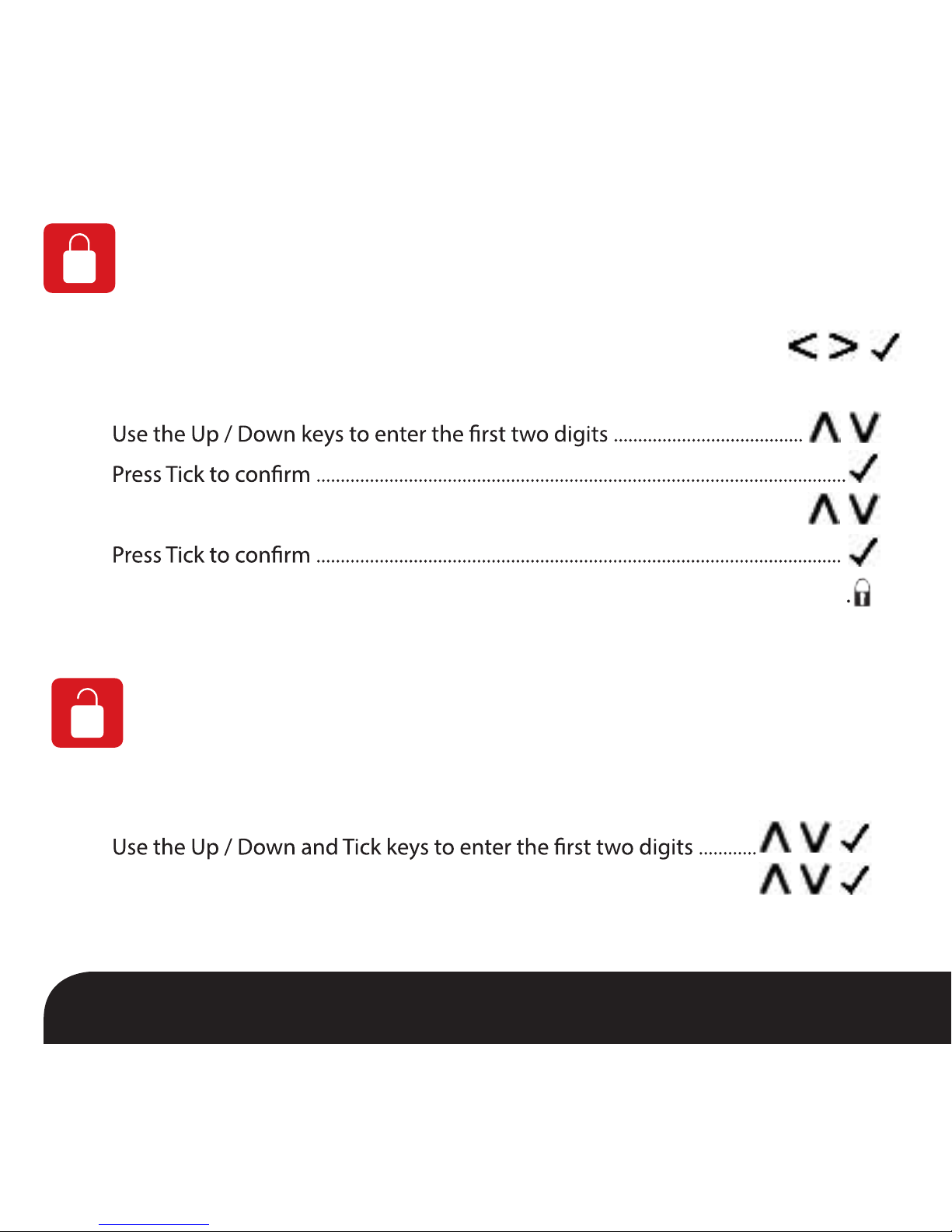

Locking the Touch 2 Wifi
The thermostat has a keypad lock facility. To activate the lock follow these steps.
• Use the Left / Right keys to scroll to HOLD & press Tick for 10 seconds.
• The display will show 00:00 and you will need to enter a four digit pin number.
•
•
• Use the Up / Down keys to enter the second two digits ................................
•
The display will return to the main screen and display the keypad lock indicator .....
Note: The keypad lock indicator is only displayed when the lock is active.
Unlocking the Touch 2 Wifi
To unlock the Touch 2 Wifi press Tick once. The display will show 00:00 and you will need
to enter the four digit pin number you set previously.
•
• Use the Up / Down and Tick keys to enter the second two digits .....
The display will unlock and return to the main screen.
Page 21
Touch 2 WiFi
20
Use the Left / Right keys to scroll to the Power Icon .............................................
The frost icon will toggle ON/OFF each time Tick is pressed ..................................................
In this mode, the Touch 2 Wifi will display the frost icon and will only turn the heating
ON should the room temperature drop below the set frost temperature (see page 23).
To cancel the frost protect mode, navigate to the Power button again and press Tick.
Frost Protection Mode Enabled
Frost Mode
Page 22
Touch 2 WiFi
21
set
temperature but the Touch 2 Wifi remains active.
the Tick key for approximately 4 seconds until the display goes blank ...................
The display and heating output will be turned OFF.
To turn the thermostat back ON, press the Tick key once .............................................................
Thermostat completely OFF
Thermostat powered ON
To turn the Touch 2 Wifi off completely, scroll to the Power Icon and hold
Page 23
Touch 2 WiFi
22
Holiday
In thermostat mode, the holiday function reduces the set temperature in your home
to the frost protection temperature setting (see page 23).
In time clock mode, the holiday function maintains the timed output as OFF.
The thermostat will maintain this temperature for the duration of the holiday and will
then automatically return to the program mode on your return.
• Use the Left / Right keys to scroll to HOLIDAY and press Tick ...............
• Using the Up / Down keys enter the number of days holiday .....................
•
To cancel, repeat these steps but reduce the Holiday duration to 00 days.
Note: A holiday period does not start until 00:00 the next day. For example, if you set
thermostat will revert back to the programmed schedule at 00:00 on Monday.
Page 24
Touch 2 WiFi
23
Optional Features Explained
THE FOLLOWING SETTINGS ARE OPTIONAL AND IN MOST CASES
NEED NOT BE ADJUSTED
Feature 01 – Pairing To Touch 2 Hub: This function is used to connect the thermostat to the
Touch 2 Hub.
This function allows you to increase the switching
Feature 03 - Frost Protect Temperature: This is the temperature maintained when the
thermostat is in Frost Mode. The range is 07 - 17°C. The default is 12°C and is suitable for most
applications.
Feature 04 – Output Delay: To prevent rapid switching, an output delay can be entered.
This can be set from 00 - 15 minutes. The default is 00 which means there is no delay.
Feature 05 – Temperature Up/Down Limit: This function allows you to limit the use of the up
and down temperature arrow keys. This limit is also applicable when the thermostat is locked
and so allows you to give others limited control over the heating system.
Feature 06 – Sensor Selection: On this Touch 2 Wifi, you can select which sensor should be used.
Page 25
Touch 2 WiFi
24
Feature 07 – Floor Temp Limit: This function is available when mode 07 is set to 03 or 04.
Floor Sensor or Both should be used.
Feature 08 – Smart Start:
Smart start will delay the start up of the heating
system to the latest possible moment to avoid unnecessary heating and ensure
the building is warm at the programmed time. The thermostat uses the rate of
change information to calculate how long the heating needs to raise the building
temperature 1°C (with a rate of change of 20, the thermostat has calculated the
heating needs 20 minutes to raise the building temperature 1°C) and starts the
heating accordingly.
Feature 09 - Rate of Change: Number of minutes for 1°C temperature rise.
Feature 10 – Cool Enable: Not Used.
Feature 11 – Cool Set Temperature: Not Used.
Feature 12 – Program Mode: Non-Programmable, Weekday/Weekend (5/2),
Weekday/ Weekend - allows you to program 4 comfort levels for the weekday and
7 Day Program Mode - Each day has 4 comfort levels that can be programmed
independently.
24 Hour Mode - All days are programmed the same and repeat continuously.
Feature 13 - Temperature Format: This function allows you to select between °C and °F.
Page 26
Touch 2 WiFi
25
Adjusting the Optional Settings
• Use the Left / Right keys to select SETUP ..............................................................
•
..................................................................................
• Use the Up / Down keys to scroll through features ..........................................
• Use the Left / Right keys to adjust the setting within each feature ...........
•
Feature Number
Setting Value
Page 27
Touch 2 WiFi
26
Optional Settings - Feature Table
01
02
03
04
05
06
07
08
09
10
11
12
13
FEATURE
Pairing
Frost Protection Temperature
Output Delay
Up/Down Temperature Limit
Sensor Selection
Floor Temperature Limit
Smart Start
Rate of Change
Cool Enable
Cool Set Temperature
Program Mode
Temperature Format
DESCRIPTION
Used to add zone to the Touch 2 Hub
00 = 0.5
o
C
01 = 1.0
o
C (Default)
02 = 2.0
o
C
03 = 3.0
o
C
07
o
- 17oC (12oC = Default)
00 - 15 Minutes (00 = Default)
00
o
- 10oC (00 = Default)
00 = Built in Sensor (Default)
01 = Remote Air Sensor
02 = Floor Sensor Only
03 = Built in & Floor Sensor
04 = Remote Air & Floor Sensor
20
o
C - 45oC (28oC = Default)
00 - 05 Hours (00 = Default)
Minutes to raise by 1
o
C
Not Used
Not Used
00 = Non - Programmable
01 = Weekday/Weekend (Default)
02 = 7 Day Programming
03 = 24 Hour Mode
00 =
o
C, 01 = oF (00 = Default)
SETTING
Page 28
Touch 2 WiFi
27
Re-calibrating the Thermostat
If you need to re-calibrate the thermostat, follow these steps.
• Use the Left / Right keys to scroll to the Power Icon ............................
• Press and hold Tick to turn the display OFF ...........................................................
• Press and hold the Tick and Down keys together for 10 seconds ..................
• The current temperature will appear on the display.
•
•
• Press the Tick key once to turn the thermostat ON ............................................
Error Codes
E0 = The internal sensor has developed a fault.
E1 = The remote FLOOR probe has not been connected.
The remote FLOOR probe has not been wired correctly.
The remote FLOOR probe is faulty.
E2 = The remote AIR probe has not been connected.
The remote AIR probe has not been wired correctly.
The remote AIR probe is faulty.
When terminated for thermostat operation the screen will display an error code if a fault
is detected.
SWITCHED LIVE TO BOILER
Page 29
Touch 2 WiFi
Touch 2 WiFi
28
Wiring Diagram - Touch 2 WiFi to Boiler S/L
and comply with local installation regulations.
TO CONNECT BOILER CONSULT
BOILER MAKERS DIAGRAM
NEUTRAL
LIVE
230V SUPPLY IN
SWITCHED LIVE TO BOILER
A1A2RT1
-
RT2
LN
230VAC
Page 30
Touch 2 WiFi
Touch 2 WiFi
29
Wiring Diagram - Touch 2 WiFi to Boiler Voltfree
TO CONNECT BOILER CONSULT
BOILER MAKERS DIAGRAM
NEUTRAL
LIVE
LS
LR
230V SUPPLY IN
LS & LR ARE NORMALLY THE
ROOM THERMOSTAT CONNECTIONS
VOLT FREE TO BOILER
A1A2
LN
230VAC
RT1
-
RT2
TO BOILER
and comply with local installation regulations.
Page 31
Touch 2 WiFi
Touch 2 WiFi
30
Wiring Diagram - Touch 2 WiFi to Valve
TO CONNECT BOILER CONSULT
BOILER MAKERS DIAGRAM
L
N
LS
LR
LS & LR ARE NORMALLY THE
ROOM THERMOSTAT CONNECTIONS
TO BOILER
HEATING VALVE
NEUTRAL
NEUTRAL
LIVE
230V SUPPLY IN
A1A2
LN
230VAC
RT1
-
RT2
and comply with local installation regulations.
Page 32
Touch 2 WiFi
Touch 2 WiFi
31
Wiring Diagram
Touch 2 WiFi to UFH Wiring Centre 230V & optional probe connections
A1A2RT1
-
RT2
LN
230VAC
REMOTE AIR PROBE
(Optional)
FLOOR PROBE
(Optional)
TC-M
A1A2RT1
-
RT2
LN
230VAC
REMOTE AIR PROBE
(Optional)
TC-M
A1A2RT1
-
RT2
LN
230VAC
FLOOR PROBE
(Optional)
L N SL
L
N
This product must only be installed by a qualified electrician
and comply with local installation regulations.
Zone 1
To thermal actuator
Page 33
Touch 2 WiFi
32
Factory Reset
To reset the device to factory default settings, follow these steps:
• Use the Left / Right keys to scroll to SETUP ...........................................................
• Press and hold the Tick key for 10 seconds ...........................................................
• All of the icons on the display will appear for 2 seconds, then the display
will show option 1 or 2.
•
Mode 1 = Thermostat
Mode 2 = Time Clock
•
The thermostat will revert to the main display screen for the selected mode.
Note: Factory reset will cancel all parameters that were entered during the set-up and
pairing operations. These processes must be repeated after factory reset is completed.
Page 34
Touch 2 WiFi
1
4
5
2
10
7
9
3
8
33
6
Mode 2 - Time Clock
Page 35
Touch 2 WiFi
34
1. Day Indicator - Displays the day of the week.
2. Mesh Symbol – Displayed when connected to the Touch 2 Hub.
3. Key Lock Indicator – Displayed when the KeyLock is Locked.
4. Set – Displayed when changes are being made to the program schedule or
current set point.
5. Program Indicator – Displayed during programming to show which period is
being altered.
6. Main Menu – Displays which option is currently selected.
7. Timer Status – Displays the current state of the timed output.
8. Clock - Time displayed in 24 hour format.
9. Holiday Left – Displayed when the thermostat is in holiday mode.
10. Hold Left – Displayed when a temperature hold is active, the remaining time
will be shown.
LCD Display
Page 36
Touch 2 WiFi
35
Setting the Switching Times
To program the switching times, follow these steps.
• Use the Left / Right keys to scroll to EDIT and press Tick .................................
• Use the Left / Right keys to select day/period of the week .............................
•
•
The OFF time can be viewed by pressing the Down key ................................
• Select a switching time and press the Tick key ....................................................
• Use the Up / Down keys to select the ON time HOURS and press Tick .......
• Use the Up / Down keys to select the ON time MINUTES ................................
•
• Use the Up / Down keys to select the OFF time HOURS and press Tick .....
• Use the Up / Down keys to select the OFF time MINUTES ..............................
•
• Press the Right arrow key ............................................................................................
•
• Repeat the steps above to set all periods. For any unused periods enter -- : --
• When complete, use the Left / Right keys to scroll to DONE and press
Page 37
Touch 2 WiFi
36
To override the timed output on, follow these steps.
• Use the Up / Down keys to set the override duration e.g. 02:00 hours ..........
•
Hold Left and the remaining time will now be displayed.
Timer Override
HOLD LEFT Indicator
Hold Time Remaining
Page 38
Touch 2 WiFi
37
Optional Settings - Feature Table
02
FEATURE
Program Mode
DESCRIPTION
01 = Weekday/Weekend Programming (Default)
02 = 7 Day Programming
03 = 24 Hour Mode
SETTING
Used to pair to the Touch 2 Hub
01
Optional Features Explained
Feature 01 – Pairing To Touch 2 Wifi: This function is used to connect the time clock to
the Touch 2 Hub.
Feature 02 - Weekday/Weekend (5/2), 7 Day Programming or 24 Hour Mode:
Weekday/ Weekend (5/2)
7 Day Program Mode
programmed independently.
24 Hour Mode
Pairing
Page 39
Touch 2 WiFi
Touch 2 WiFi
38
Wiring Diagram - Time Clock Mode
NEUTRAL
LIVE
230V SUPPLY IN
FOR 230V OUTPUT ON A2
LINK LIVE TO A1
VOLT FREE OUTPUT
A1A2
LN
230VAC
RT1
-
RT2
and comply with local installation regulations.
Page 40
Series
Want More Information?
Call our support team on: +44 (0)845 402 3434
www.myson.co.uk
MYSON
Eastern Avenue, Team Valley,
Gateshead, Tyne & Wear NE11 0PG, UK
T: +44 (0)845 402 3434
F: +44 (0)191 491 7568
[email protected]
www.myson.co.uk
Loading...
