General Specifications
Approval and Certification
All MYSON ULOW-E2 radiators are
manufactured and tested to BS EN 442. Every
radiator carries the BS Kitemark which
certifies independent approval of heat output
and verifies production under a quality system
to BS EN ISO 9001.
All MYSON ULOW-E2 radiators carry a two
year guarantee from date of manufacture
against defects caused by faulty materials or
manufacture.
Paint Finish
Every MYSON ULOW-E2 radiator is primer coated.
An epoxy polyester finishing coat in white (RAL 9016) is applied
to all front and rear surfaces allowing the radiator to be fitted
without further painting
*
.
Packaging
Every MYSON ULOW-E2 radiator is wrapped in paper and has
strong cardboard corners. The front side of the radiator is double
protected with an additional hard cardboard and then wrapped
together in shrink wrap. Each radiator is clearly labelled with size
and type, and packed with the appropriate number of brackets.
An assembly instruction, and instruction manual is also included.
Fixings
All MYSON ULOW-E2 radiators are supplied with concealed
wall mounting brackets. The table of dimensions gives further
details.
For the correct installation of radiators it is essential that the
fixing of the radiator is carried out in such a way that it is suitable
for intended use AND predictable misuse. A number of elements
need to be taken into consideration including the fixing method
used to secure the radiator to the wall, the type and condition of
the wall itself, and any additional potential forces or weights that
may happen to be applied to the radiator, prior to finalising
installation. IN ALL CASES IT IS STRONGLY RECOMMENDED
THAT A SUITABLY QUALIFIED PROFESSIONAL INSTALLER OR
SIMILAR TRADESPERSON CARRIES OUT THE INSTALLATION.
PLEASE NOTE: The fixing materials provided are only intended for installation on
walls made of solid wood, bricks, concrete or on timber-frame stud walls where the
fixing is into the timber. All walls being considered should have no more than a
maximum of 3mm wall finishing. For walls made of other materials, for example
hollow bricks, please consult your installer and/or specialist supplier. ONCE AGAIN,
IF YOU ARE UNSURE, IT IS STRONGLY RECOMMENDED THAT A SUITABLY
QUALIFIED PROFESSIONAL INSTALLER OR SIMILAR TRADESPERSON CARRIES
OUT THE INSTALLATION.
Application
MYSON ULOW-E2 radiators are for use on two pipe pumped
indirect domestic and commercial central heating installations,
with a maximum working temperature of 60
o
C. The system
should be designed in accordance with BS EN 12828:2003 or
BS EN 12831:2003 as appropriate, with particular care taken to
avoid air entry or water discharge.
We do not recommend the use of single feed indirect cylinders,
as the possibility of aeration due to water interchange may lead
to corrosion.
The installation work must be carried out in accordance with
recognised good practice, and precautions taken to avoid
contamination which could lead to corrosion. If a corrosion
inhibitor or other water treatment is to be used, the
Manufacturer’s Instructions must be strictly followed.
The recommendations of BS 7593, Code of Practice for
treatment of water in domestic hot water central heating
systems, should be followed where appropriate.
Safety Precautions
Radiators are hot when in use, and as such, present a risk of
burns to users on prolonged contact. The temperature of a
radiator is dependent on the temperature of the system water,
as set by the system installer or user. Installers and users should
ensure that those who may come into close proximity to hot
radiators are aware of the risk of burns. Installers and users
should take all necessary steps to minimise the risks of burns.
If the risk is significant, consideration should be given to
installing low surface temperature radiators, or to placing guards
in front of the radiators.
Electrical Data
All ULOW-E2 models require an electrical supply of 220-240V50Hz.
BS EN 442
2
2
2
*Specification is correct for white version only.
05
ULOW-E2 General Specifications
ULOW-E2
Length
(mm)
Weight (kg)
Water
Content (l)
No. of Fans Comfort Boost
Power
(W)
Sound Pressure
(dBA) (at 2.5m)
B M8
B M6
A M8
A M6
Sound levels tested in accordance with ISO 3741.
07
ULOW-E2 Heat Outputs & Accessories
The ULOW-E2 comes with a thermostatic radiator valve as standard. The twin entry valve and nut & olive pack should be purchased separately.
Order CodeProduct
Twin Entry Valve (Straight)
Twin Entry Valve (Angled)
Twin Entry Reversible Flow Valve (Straight)
Twin Entry Reversible Flow Valve (Angled)
Nut & Olive Pack (10mm)
Nut & Olive Pack (15mm)
E2TEVS
E2TEVA
E2TERVS
E2TERVA
E2NOP10
E2NOP15
E2TEVS
E2TEVA
E2TERVS E2TERVA
E2NOP10 / E2NOP15
Operating Pressures
Every MYSON ULOW-E2 radiator is tested to a pressure of 10 bar and
is suitable for a working pressure of up to 13 bar.
Maximum operating temperature: 60°C (because of the fan units).
Nominal
Height
600 mm
ULOW-E2 - Type 22
(with factory fitted top grille and side panels)
400
600
800
1000
1200
1400
1600
Nominal
Length
(mm)
Static
Comfort
Boost
Static
Comfort
Boost
Static
Comfort
Boost
Static
Comfort
Boost
Static
Comfort
Boost
Static
Comfort
Boost
Static
Comfort
Boost
Operation
Mode
Heat Outputs
@ ΔT 10°C
Heat Outputs
@ ΔT 20°C
Heat Outputs
@ ΔT 30°C
Heat Outputs
@ ΔT 40°C
Heat Outputs
@ ΔT 50°C
Watts Btu/h Watts Btu/h Watts Btu/h Watts Btu/h Watts Btu/h
Order Code
(White)
*
74 252 184 628 314 1071 459 1566 616 2102
125 427 272 928 430 1467 595 2030 766 2614 ULOW 040
147 502 317 1082 498 1699 686 2341 879 2999
111 379 276 942 471 1607 688 2347 923 3149
188 641 409 1396 647 2208 895 3054 1151 3927 ULOW 060
220 751 475 1621 746 2545 1027 3504 1316 4490
148 505 368 1256 628 2143 917 3129 1231 4200
250 853 545 1860 862 2941 1192 4067 1534 5234 ULOW 080
294 1003 634 2163 996 3398 1371 4678 1757 5995
185 631 460 1570 785 2678 1147 3914 1538 5248
312 1065 681 2324 1077 3675 1490 5084 1917 6541 ULOW 100
367 1252 792 2702 1244 4245 1712 5841 2194 7486
222 757 552 1883 942 3214 1376 4695 1846 6299
374 1276 817 2788 1292 4408 1787 6097 2299 7844 ULOW 120
440 1501 950 3241 1492 5091 2054 7008 2632 8980
259 884 644 2197 1099 3750 1605 5476 2153 7346
436 1488 953 3252 1507 5142 2085 7114 2682 9151 ULOW 140
514 1754 1109 3784 1741 5940 2398 8182 3073 10485
296 1010 736 2511 1256 4285 1834 6258 2461 8397
499 1703 1090 3719 1723 5879 2384 8134 3067 10465 ULOW 160
587 2003 1267 4323 1989 6786 2739 9345 3510 11976
*For the black model, simply add a ‘B’ to the end of the order code.
ULOW-E2
Accessories
Nominal Height
600
(mm)
143143
M6
157.5452.5
M8
B (mm) A (mm) B (mm)A (mm)
600mm Wall Bracket
Dimension Y =
Overall Length
2
09
FINESSE General Specifications
FINESSE
General Specifications
Approval and Certification
MYSON FINESSE electric panel radiators
are produced under a quality system to
BS EN ISO 9001.
MYSON FINESSE electric panel radiators
carry a ten year guarantee from date of
manufacture against defects caused by faulty
materials or manufacture except for the
electrical and electronic components that are
covered by a two year warranty.
Paint Finish
All FINESSE electric panel radiators are de-greased,
phosphated and primer coated. An epoxy polyester finishing
coat in white (RAL 9016) is applied to all front and rear surfaces
allowing the radiator to be fitted without further painting.
Packaging
Every MYSON FINESSE electric panel radiator is packed in
robust cardboard packaging specially designed to ensure that
the product reaches you in perfect condition. Each radiator is
clearly labeled with size and type, and packed with the
appropriate number of brackets.
Fixings
MYSON FINESSE electric panel radiators are supplied with
concealed wall mounting brackets. Please refer to the Bracket
Positions and Dimensions on page 10 for details. For the correct
installation of radiators it is essential that the fixing of the
radiator is carried out in such a way that it is suitable for
intended use AND predictable misuse. A number of elements
need to be taken into consideration including the fixing method
used to secure the radiator to the wall, the type and condition of
the wall itself, and any additional potential forces or weights that
may happen to be applied to the radiator, prior to finalising
installation. IN ALL CASES IT IS STRONGLY RECOMMENDED
THAT A SUITABLY QUALIFIED PROFESSIONAL INSTALLER OR
SIMILAR TRADESPERSON CARRIES OUT THE INSTALLATION.
PLEASE NOTE: The fixing materials provided are only intended for installation on
walls made of solid wood, bricks, concrete or on timber-frame stud walls where the
fixing is into the timber. All walls being considered should have no more than a
maximum of 3mm wall finishing. For walls made of other materials, for example
hollow bricks, please consult your installer and/or specialist supplier. ONCE AGAIN,
IF YOU ARE UNSURE, IT IS STRONGLY RECOMMENDED THAT A SUITABLY
QUALIFIED PROFESSIONAL INSTALLER OR SIMILAR TRADESPERSON CARRIES
OUT THE INSTALLATION.
Accessories
Touch up Paint
A handy 12ml container of touch up paint with
integral brush applicator in RAL 9016 is
available on request.
RF Programmer
The MYSON FINESSE radiator can be used as
a stand alone radiator or can be connected to
a radio frequency programmer via a wireless
wall receiver.
Application
All installation work and wiring work related to the radiators,
thermostats and programmers must be carried out only when
de-energized. The appliance should be commissioned by
qualified professionals only. Make sure to adhere to valid safety
regulations. Any repairs or maintenance within the warranty
period should be carried out only by approved service engineers
confirmed by MYSON.
Safety Precautions
Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and
vulnerable people are present. Installers and users should take
all necessary steps to minimise the risks of burns. If the risk is
significant, consideration should be given to placing guards in
front of the radiators.
In order to avoid overheating, do not cover the radiator. “Do not
cover” means that the radiator must not be used for drying
clothes, for example, by placing them directly on the radiator.
BS EN 442
2
2
2
11
FINESSE Heat Outputs & Technical Characteristics
FINESSE
l
MYSON FINESSE is class 2 and splash resistant (IP44).
l
MYSON FINESSE complies with the European Directive
2004/108/EC (CE Marking on all appliances).
Length (mm)
Technical Characteristics Optional Extra - RF Programmer
Waste Disposal According to The WEEE Directive (2002/96/EC)
Safety Clip-on Brackets
300 500
135
90
205
163
Nominal
Height (mm)
C
D
C
D
L
Waste disposal according to the WEEE Directive
(2002/96/EC). The symbol on the product label
indicates that the product may not be handled as
domestic waste, but must be sorted separately.
When it reaches the end of its useful life, it shall be
returned to a collection facility for electrical and
electronic products. By returning the product, you will help to
prevent possible negative effects on the environment and health
to which the product can contribute if it is disposed of as ordinary
domestic waste. For information about recycling and collection
facilities, you should contact your local authority/municipality or
refuse collection service or the business from which you
purchased the product. Applicable to countries where this
Directive has been adopted.
Nominal Height
300 mm
FINESSE
Double Panel “Xtra”
500
800
1000
1300
1600
2000
Nominal Length
(mm)
Heat Outputs
(Rated Watts)
Order Code
500 FE 30 DX 50
750 FE 30 DX 80
1000 FE 30 DX 100
1250 FE 30 DX 130
1500 FE 30 DX 160
2000 FE 30 DX 200
Nominal Height
500 mm
400
500
650
800
950
1250
500 FE 50 DX 40
750 FE 50 DX 50
1000 FE 50 DX 65
1250 FE 50 DX 80
1500 FE 50 DX 95
2000 FE 50 DX 125
0.1°C
-10°C + 50°C
+5°C + 30°C
PWM
Class 1 – IP44
230 VAC – 50 Hz
~3.5 W
TRIAC 230 VAC 8A
l
EN 60730-01
l
EN 61000-6-1
l
EN 61000-6-3
l
EN 61000-4-2
l
LV Directive
2006/95/CE
l
EMC Directive
2004/108/CE
Measured temperature precision
Operating temperature
Setting temperature range
Control characteristics
Electrical protection
Power supply
Controls consumption
Output
The thermostat has been
designed to comply with the
following Directives and
Standards.
l
Install and plug the radiator into a switched fuse spur along
with the wireless wall receiver. NB: The RF programmer will
not work without the wireless wall receiver.
l
Install the RF programmer in a suitable location.
l
Connect the wireless wall receiver to the RF programmer
using the manufacturers instructions on both products.
PLEASE REFER TO THE MANUFACTURERS MANUAL FOR
FULL INSTALLATION INSTRUCTIONS.
Switched Fuse Spur*
RF Programmer
Wireless
Wall
Receiver
Wall
.
.
.
.
Wall
500mm Wall Bracket
300mm Wall Bracket
Step 1 Step 2
*When installing in a bathroom or wet room, please refer to the FINESSE
Installation, Operating & Instruction Manual.
13
PREMIER & SELECT General Specifications
General Specifications
Approval and Certification
All MYSON Panel radiators are manufactured
and tested to BS EN 442. Every radiator
carries the BS Kitemark which certifies
independent approval of heat output and
verifies production under a quality system
to BS EN ISO 9001.
All MYSON Panel radiators carry a ten year
guarantee from date of manufacture against
defects caused by faulty materials or
manufacture.
Paint Finish
Every MYSON Panel radiator is de-greased, phosphated and
primer coated.
An epoxy polyester finishing coat in white (RAL 9016) is applied
to all front and rear surfaces allowing the radiator to be fitted
without further painting.
Packaging
Every MYSON Panel radiator has plastic corner protection with
durable cardboard edge packaging as well as being fully
wrapped in strong polythene. Each radiator is clearly labelled
with size and type, and packed with the appropriate number of
brackets.
Fixings
All MYSON Panel radiators are supplied with concealed wall
mounting brackets. The table of dimensions gives further details.
For the correct installation of radiators it is essential that the
fixing of the radiator is carried out in such a way that it is suitable
for intended use AND predictable misuse. A number of elements
need to be taken into consideration including the fixing method
used to secure the radiator to the wall, the type and condition of
the wall itself, and any additional potential forces or weights that
may happen to be applied to the radiator, prior to finalising
installation. IN ALL CASES IT IS STRONGLY RECOMMENDED
THAT A SUITABLY QUALIFIED PROFESSIONAL INSTALLER OR
SIMILAR TRADESPERSON CARRIES OUT THE INSTALLATION.
PLEASE NOTE: The fixing materials provided are only intended for installation on
walls made of solid wood, bricks, concrete or on timber-frame stud walls where the
fixing is into the timber. All walls being considered should have no more than a
maximum of 3mm wall finishing. For walls made of other materials, for example
hollow bricks, please consult your installer and/or specialist supplier. ONCE AGAIN,
IF YOU ARE UNSURE, IT IS STRONGLY RECOMMENDED THAT A SUITABLY
QUALIFIED PROFESSIONAL INSTALLER OR SIMILAR TRADESPERSON CARRIES
OUT THE INSTALLATION.
Accessories
Touch up Paint
A handy 12ml container of touch up paint with integral brush
applicator in RAL 9016 is available on request.
Air Vent Key
An alloy key for bleeding and venting is available on request.
Order Code: PREMRADKEY
Application
MYSON Panel radiators are for use on two pipe pumped
indirect domestic and commercial central heating installations,
with a maximum working temperature of 100
o
C. The system
should be designed in accordance with BS EN 12828:2003 or
BS EN 12831:2003 as appropriate, with particular care taken to
avoid air entry or water discharge.
We do not recommend the use of single feed indirect cylinders,
as the possibility of aeration due to water interchange may lead
to corrosion.
The installation work must be carried out in accordance with
recognised good practice, and precautions taken to avoid
contamination which could lead to corrosion. If a corrosion
inhibitor or other water treatment is to be used, the
Manufacturer’s Instructions must be strictly followed.
The recommendations of BS 7593, Code of Practice for
treatment of water in domestic hot water central heating
systems, should be followed where appropriate.
Safety Precautions
Radiators are hot when in use, and as such, present a risk of
burns to users on prolonged contact. The temperature of a
radiator is dependent on the temperature of the system water,
as set by the system installer or user. Installers and users should
ensure that those who may come into close proximity to hot
radiators are aware of the risk of burns. Installers and users
should take all necessary steps to minimise the risks of burns.
If the risk is significant, consideration should be given to
installing low surface temperature radiators, or to placing guards
in front of the radiators.
Heat Output
Careful design of an optimum profile for the convector plate,
and welding directly onto the wet and dry sections of the
radiator, have combined to give high heat output per surface
area of radiator.
The heat outputs shown in the table below are based on a mean
water to air temperature difference of 50
o
C. When the
difference is not 50
o
C, the output should be multiplied by the
appropriate factor from within the table:
BS EN 442
Centigrade Factor Fahrenheit
Example:
Heat emission required: 2000 Watts
Room air temperature required: 20
o
C
Mean water temperature in radiator: 65
o
C
1. Temperature difference = 65-20 = 45
o
C
2. From Factor Table 45
o
C gives a factor of: 0.87
3. Divide required heat emission
by factor = 2000 = 2298 Watts
4. From selection tables choose any
radiator rated at 2298 Watts or more.
0.87
20°C 0.30 36°F
25°C 0.41 45°F
30°C 0.51 54°F
35°C 0.63 63°F
40°C 0.75 72°F
45°C 0.87 81°F
50°C 1.00 90°F
55°C 1.13 99°F
60°C 1.27 108°F
65°C 1.41 117°F
70°C 1.55 126°F
PREMIER & SELECT
SELECT Compact
15
PREMIER HE (Imperial) Technical Information
1
/2inch
Operating Pressures
Every MYSON PREMIER Compact radiator is tested to a pressure
of 7 bar (101.5 psi) and is suitable for a working pressure of up to
5.4 bar (78 psi).
Height (mm)
300
450 600 700
Water
Content (l)
Weight (kg)
Water
Content (l)
Weight (kg)
Water
Content (l)
Weight (kg)
Water
Content (l)
A
B
(mm)
245
395
545
645
170
237
320
410
N.B. Long leg suitable
for hanging Type 11
(SC) radiators only.
Short leg suitable for
radiator Types 11, 21
& 22.
C
E
Bracket Plan View
52
37
A
DPX
111
A
31
70
100M in
DC
135
A
31
83
100Min
(View from back of radiator)
C
(mm)
D
(mm)
300
450
600
700
70
137
220
310
Nominal
Height (mm)
300
450
600
700
E
(mm)
762
864
Nominal
Length (mm)
1800
2000
N.B. Only radiators 1800mm & 2000mm long have
3 sets of brackets as shown, with the 3rd set in the
middle of the radiator.
Height (in)
Typ e
12
Weight
per Section
Water Content
per Section
(kg) (l)
15
Weight
per Section
Water Content
per Section
(kg) (l)
21
Weight
per Section
Water Content
per Section
(kg) (l)
27
Weight
per Section
Water Content
per Section
(kg) (l)
11 SC 0.37 0.14 0.49 0.16 0.69 0.20 0.90 0.25
21 DPX 0.84 0.32 1.18 0.41 1.54 0.49
22 DC 0.74 0.29 0.97 0.32 1.38 0.41 1.81 0.49
Weight and Water Contents per Section

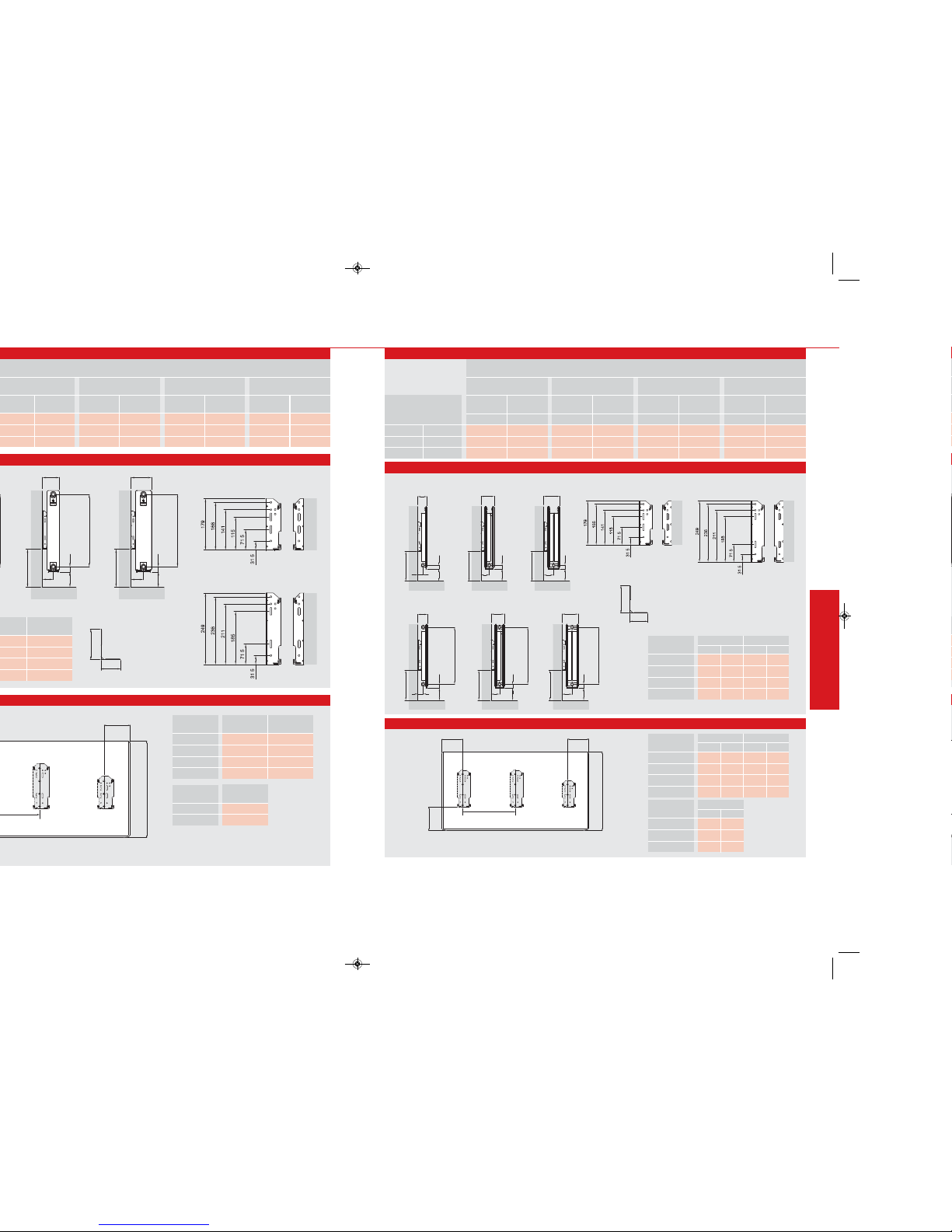

Mounting Positions, Dimensions and Wall Brackets
*Available for full range **Available for selected sizes
Bracket Positions and Dimensions
Connections
All MYSON PREMIER HE radiators are fitted with 2 - 1/2inch BSP
connections. Selected sizes are available with 4 -
1
/2inch BSP connections,
please refer to size guide, pages 20-21.
Air Vents
An integral air vent is situated at the top right-hand corner of each panel.
Operating Presssures
Every MYSON PREMIER HE radiator is tested to a pressure of 7 bar
(101.5 psi) and is suitable for a working pressure of up to 5.4 bar (78 psi).
CD
11.8 300
15.4 390
20.9 530
27.2 690
2.75 70
3.03 77
5.91 150
12.20 310
Nominal
Height (in)
12
15
21
27
(in) (mm) (in) (mm)
AB
6.65 170
6.93 177
9.81 250
16.10 410
N/A N/A
13.2 335
18.7 475
25.0 635
Nominal
Height (in)
12
15
21
27
(in) (mm) (in) (mm)
E
34 864
35 889
38 965
Nominal
Length (in)
77
79
85
(in) (mm)
N.B. Radiators up to and including 69" long have two brackets. Radiators 77" and longer
have three brackets. The position of the centre bracket is given in the above table.
D
143 143
C
E
Bracket Plan View
52
37
N.B. Figures in brackets apply
when hanging with long leg.
Long leg suitable for hanging
Type 11 (SC) radiators only.
Short leg suitable for radiator
Types 11, 21 & 22.
SC
79
(94)
31
45
(60)
100Min
3.1"
(3.7")
3.9"
1.8"
(2.4")
1.2"
DPX
111
31
70
100Min
4.4"
3.9"
2.8"
1.2"
DC
135
31
83
100Min
5.3"
3.9"
3.3"
1.2"
AAA
SC
79
(94)
B
31
45
(60)
100Min
3.1"
(3.7")
3.9"
1.8"
(2.4")
1.2"
DPX
111
B
31
70
100Min
4.4"
3.9"
2.8"
1.2"
DC
135
B
31
83
100Min
5.3"
3.9"
3.3"
1.2"
A A A
2 connections
*
4 connections
**
(View from back of radiator)
PREMIER HE
† †
†
118mm from
each end for 11"
(286mm) long
radiators only.
Wall
.
.
.
.
Wall
450/600/700mm Wall Bracket
300mm Wall Bracket
Wall
.
.
.
.
Wall
15/21/27" Wall Bracket
12" Wall Bracket
17
SELECT Compact Technical Information
Height (mm)
300
Weight
Water
Content
(kg) (l)
1
/2inch BSP
1
/2inch BSP connections,
Operating Pressures
Every MYSON PREMIER Metric radiator is tested to a pressure of 7 bar
(101.5 psi) and is suitable for a working pressure of up to 5.4 bar (78 psi).
CD
300 70
450 137
600 220
700 310
Nominal
Height (mm)
300
450
600
700
(mm) (mm)
AB
170 243
237 393
320 543
410 643
Nominal
Height (mm)
300
450
600
700
(mm) (mm)
E
762
864
965
1067
1168
1270
1372
Nominal
Length (mm)
1800
2000
2200
2400
2600
2800
3000
(mm)
450
Weight
Water
Content
(kg) (l)
600
Weight
Water
Content
(kg) (l)
700
Weight
Water
Content
(kg) (l)
111
31
70
100Min
DC
135
31
83
100Min
111
B
31
70
100Min
DC
135
B
31
83
100Min
Bracket Plan View
52
37
N.B. Figures in brackets apply
when hanging with long leg.
Long leg suitable for hanging
Type 11 (SC) radiators only.
Short leg suitable for radiator
Types 11, 21 & 22.
C
E
(View from back of radiator)
Mounting Positions, Dimensions and Wall Brackets
Height (mm)
Typ e
300
Weight
(kg)
Water
Content (l)
Weight and Water Contents per Metre Length
Connections
All MYSON SELECT Compact radiators are fitted with 4 -1/2 inch BSP
connections.
Air Vents
An air vent and plug are packed with every radiator.
Operating Pressures
Every MYSON SELECT Compact radiator is tested to a pressure of
10.5 bar (152.5 psi) and is suitable for a working pressure of up to 8.0 bar
(117.1psi).
Bracket Positions and Dimensions
C
(mm)
Nominal
Height (mm)
A
(mm)
B
(mm)
Nominal
Height (mm)
400
Weight
(kg)
Water
Content (l)
450
Weight
(kg)
Water
Content (l)
500
Weight
(kg)
Water
Content (l)
600
Weight
(kg)
Water
Content (l)
700
Weight
(kg)
Water
Content (l)
11G SSG 8.4 1.7 11.2 2.1 N/A N/A 13.8 2.6 16.7 3.0 19.3 3.5
21G SXG 14.1 3.4 18.7 4.3 N/A N/A 23.2 5.2 27.9 6.2 32.3 7.0
22G SDG 15.8 3.4 21.2 4.3 N/A N/A 26.6 5.2 32.0 6.2 37.3 7.0
33G STG 24.5 5.1 N/A N/A 37.4 7.5 N/A N/A 50.2 9.8 N/A N/A
Type 11 Type 21 Type 22 Type 33
Wall Brackets
A
100
Min
69
170
152
158
Min
A
100
Min
78
129
102
190
Min
A
100
Min
62
97
70
190
Min
100
Min
A
78
46
62
190
Min
100
C
83
117
150
1800 & above = (L / 2) - 50mm
150
117
83
1800 & above = (L / 2) - 17mm
1800 & above = (L / 2) + 17mm
L
100
133.3
166.6
1800 & above =L / 2
166.6
133.3
100
1800 & above = (L / 2) + 33mm
1800 & above = (L / 2) - 33mm
L
Type 11
Type 21, 22 & 33
Supplied with Type11,21, 22 Supplied with Type33 only
300
400
450
500
600
700
250
350
400
450
550
650
142
242
292
342
442
542
300
400
450
500
600
700
120
220
270
320
420
520
WALL
23
32
14
22.5
22.5
79
10
B+11
12
15
32.5
Type21& 22
WALL
23
SS
9.6
5.6
WALL
B
24
22
39
17
69
32
SX
&
SD
14.6
Type11
only
Fixing Hole
Dimensions
Type33
only
SELECT COMPACT
Wall
.
.
.
.
Wall
450/600/700mm Wall Bracket
300mm Wall Bracket
Single Convector - Type 11
(with factory fitted top grille and side panels)
Double Panel “Xtra” - Type 21
(with factory fitted top grille and side panels)
Double Convector - Type 22
(with factory fitted top grille and side panels)
272 927 141 480 45 SC 40 G
343 1171 178 607 45 SC 50 G
415 1416 215 733 45 SC 60 G
486 1657 252 859 45 SC 70 G
557 1902 289 985 45 SC 80 G
628 2144 325 1110 45 SC 90 G
700 2388 363 1237 45 SC 100 G
771 2632 400 1363 45 SC 110 G
842 2874 436 1489 45 SC 120 G
985 3360 510 1741 45 SC 140 G
1128 3849 584 1994 45 SC 160 G
1271 4335 658 2246 45 SC 180 G
1413 4822 732 2497 45 SC 200 G
354 1210 182 621 60 SC 40 G
448 1528 230 785 60 SC 50 G
541 1847 278 949 60 SC 60 G
634 2163 326 1111 60 SC 70 G
727 2482 374 1275 60 SC 80 G
820 2797 421 1437 60 SC 90 G
913 3116 469 1601 60 SC 100 G
1007 3435 517 1764 60 SC 110 G
1099 3750 565 1926 60 SC 120 G
1285 4385 660 2252 60 SC 140 G
1472 5023 756 2580 60 SC 160 G
1658 5657 852 2906 60 SC 180 G
1844 6291 947 3232 60 SC 200 G
300 1023 152 520 70 SC 30 G
411 1404 209 714 70 SC 40 G
520 1774 264 902 70 SC 50 G
628 2144 320 1090 70 SC 60 G
736 2510 374 1276 70 SC 70 G
844 2880 429 1465 70 SC 80 G
951 3246 484 1651 70 SC 90 G
1060 3616 539 1839 70 SC 100 G
1168 3986 594 2027 70 SC 110 G
1276 4352 649 2214 70 SC 120 G
1491 5089 758 2588 70 SC 140 G
1708 5829 869 2964 70 SC 160 G
796 2715 418 1425 45 DPX 80 G
897 3060 471 1606 45 DPX 90 G
999 3409 524 1789 45 DPX 100 G
1101 3757 578 1972 45 DPX 110 G
1202 4103 631 2153 45 DPX 120 G
1406 4797 738 2517 45 DPX 140 G
1610 5494 845 2883 45 DPX 160 G
1814 6188 952 3247 45 DPX 180 G
491 1674 254 865 60 DPX 40 G
620 2116 320 1093 60 DPX 50 G
749 2557 387 1321 60 DPX 60 G
877 2994 453 1547 60 DPX 70 G
1007 3435 520 1775 60 DPX 80 G
1135 3872 586 2001 60 DPX 90 G
1264 4313 653 2229 60 DPX 100 G
1394 4755 720 2457 60 DPX 110 G
1522 5192 786 2683 60 DPX 120 G
1779 6070 919 3137 60 DPX 140 G
2038 6953 1053 3593 60 DPX 160 G
2295 7831 1186 4046 60 DPX 180 G
2552 8709 1319 4500 60 DPX 200 G
561 1915 288 983 70 DPX 40 G
709 2419 364 1242 70 DPX 50 G
857 2924 440 1501 70 DPX 60 G
1003 3424 515 1758 70 DPX 70 G
1151 3928 591 2017 70 DPX 80 G
1298 4428 666 2274 70 DPX 90 G
1446 4933 742 2533 70 DPX 100 G
1594 5437 818 2792 70 DPX 110 G
1740 5937 893 3048 70 DPX 120 G
2034 6941 1045 3564 70 DPX 140 G
2330 7950 1196 4082 70 DPX 160 G
518 1767 267 912 45 DC 40 G
654 2232 338 1152 45 DC 50 G
791 2698 408 1392 45 DC 60 G
926 3159 478 1630 45 DC 70 G
1062 3625 548 1871 45 DC 80 G
1198 4086 618 2108 45 DC 90 G
1334 4552 688 2349 45 DC 100 G
1470 5017 759 2589 45 DC 110 G
1606 5478 829 2827 45 DC 120 G
1877 6405 969 3305 45 DC 140 G
2150 7336 1110 3786 45 DC 160 G
2422 8263 1250 4264 45 DC 180 G
2693 9190 1390 4742 45 DC 200 G
662 2258 335 1144 60 DC 40 G
836 2853 424 1446 60 DC 50 G
1011 3448 512 1747 60 DC 60 G
1183 4037 600 2046 60 DC 70 G
1358 4633 688 2348 60 DC 80 G
1530 5222 776 2646 60 DC 90 G
1705 5817 864 2948 60 DC 100 G
1879 6412 952 3249 60 DC 110 G
2052 7001 1040 3548 60 DC 120 G
2399 8186 1216 4148 60 DC 140 G
2748 9376 1393 4751 60 DC 160 G
3095 10560 1568 5351 60 DC 180 G
3442 11745 1744 5952 60 DC 200 G
545 1861 274 934 70 DC 30 G
746 2546 375 1278 70 DC 40 G
943 3217 473 1615 70 DC 50 G
1139 3888 572 1952 70 DC 60 G
1334 4552 670 2285 70 DC 70 G
1531 5223 769 2622 70 DC 80 G
1726 5888 866 2956 70 DC 90 G
1922 6559 965 3293 70 DC 100 G
2119 7230 1064 3630 70 DC 110 G
2314 7894 1162 3963 70 DC 120 G
2705 9229 1358 4634 70 DC 140 G
3098 10571 1556 5307 70 DC 160 G
Nominal Length (mm - inches)
400 - 16
500 - 20
600 - 24
700 - 28
800 - 31
900 - 35
1000 - 39
1100 - 43
1200 - 47
1400 - 55
1600 - 63
1800 - 71
2000 - 79
400 - 16
500 - 20
600 - 24
700 - 28
800 - 31
900 - 35
1000 - 39
1100 - 43
1200 - 47
1400 - 55
1600 - 63
1800 - 71
2000 - 79
286 - 11
438 - 17
540 - 21
641 - 25
743 - 29
844 - 33
946 - 37
1047 - 41
1149 - 45
1352 - 53
1556 - 61
1759 - 69
300 - 12
400 - 16
500 - 20
600 - 24
700 - 28
800 - 31
900 - 35
1000 - 39
1100 - 43
1200 - 47
1400 - 55
1600 - 63
19
PREMIER Compact Heat Outputs
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
400 - 16
800 - 31
1000 - 39
1200 - 47
1600 - 63
2000 - 79
353 1206 186 636 30 DC 40 G
725 2473 382 1305 30 DC 80 G
910 3106 480 1638 30 DC 100 G
1096 3738 578 1972 30 DC 120 G
1467 5006 774 2641 30 DC 160 G
1838 6271 969 3308 30 DC 200 G
584 1991 313 1067 30 DPX 80 G
882 3009 473 1612 30 DPX 120 G
1181 4030 633 2159 30 DPX 160 G
191 652 99 339 30 SC 40 G
392 1338 204 695 30 SC 80 G
593 2023 308 1051 30 SC 120 G
794 2709 412 1407 30 SC 160 G
994 3393 516 1762 30 SC 200 G
N.B. The tabulated heat outputs are quoted at a mean water to air temperature difference of 50oC and 30oC.
PREMIER COMPACT
199 680 104 356 12 SC 15
409 1395 214 730 12 SC 31
618 2109 323 1103 12 SC 47
828 2824 433 1477 12 SC 63
354 1207 185 630 15 SC 21
420 1433 219 748 15 SC 25
487 1661 254 867 15 SC 29
620 2114 323 1104 15 SC 37
*
686 2342 358 1222 15 SC 41
*
753 2568 393 1340 15 SC 45
*
819 2796 428 1459 15 SC 49
*
886 3024 463 1578 15 SC 53
*
952 3249 497 1696 15 SC 57
1019 3477 532 1815 15 SC 61
1152 3931 601 2052 15 SC 69
1285 4385 671 2289 15 SC 77
375 1281 195 667 21 SC 17
*
463 1579 241 822 21 SC 21
*
549 1874 286 976 21 SC 25
*
637 2173 331 1131 21 SC 29
*
724 2471 377 1286 21 SC 33
*
811 2766 422 1440 21 SC 37
*
898 3064 467 1595 21 SC 41
*
985 3360 513 1749 21 SC 45
*
1072 3658 558 1904 21 SC 49
*
1160 3956 604 2059 21 SC 53
*
1246 4252 649 2213 21 SC 57
*
1333 4550 694 2368 21 SC 61
*
1507 5143 785 2677 21 SC 69
*
1681 5737 875 2986 21 SC 77
1855 6331 966 3295 21 SC 85
305 1042 157 534 27 SC 11
*
468 1596 240 818 27 SC 17
*
577 1968 296 1009 27 SC 21
*
685 2336 351 1198 27 SC 25
*
794 2708 407 1388 27 SC 29
*
902 3079 463 1579 27 SC 33
*
1010 3447 518 1767 27 SC 37
*
1119 3819 574 1958 27 SC 41
*
1227 4187 629 2147 27 SC 45
*
1445 4930 741 2528 27 SC 53
1662 5670 852 2907 27 SC 61
1879 6410 963 3286 27 SC 69
723 2467 375 1279 15 DPX 29
920 3141 477 1629 15 DPX 37
*
1020 3479 529 1805 15 DPX 41
*
1118 3815 580 1979 15 DPX 45
*
1217 4153 631 2154 15 DPX 49
*
1316 4492 683 2330 15 DPX 53
*
1415 4827 734 2504 15 DPX 57
*
1514 5166 785 2680 15 DPX 61
1712 5840 888 3029 15 DPX 69
1909 6514 990 3379 15 DPX 77
550 1876 283 966 21 DPX 17
*
678 2312 349 1191 21 DPX 21
*
804 2745 414 1413 21 DPX 25
*
932 3182 480 1638 21 DPX 29
*
1060 3618 546 1863 21 DPX 33
*
1187 4051 611 2086 21 DPX 37
*
1315 4488 677 2311 21 DPX 41
*
1442 4920 742 2533 21 DPX 45
*
1570 5357 808 2758 21 DPX 49
*
1698 5794 874 2983 21 DPX 53
*
1825 6226 940 3206 21 DPX 57
1953 6663 1005 3431 21 DPX 61
2208 7532 1137 3878 21 DPX 69
2462 8401 1268 4326 21 DPX 77
687 2343 351 1198 27 DPX 17
*
847 2889 433 1477 27 DPX 21
*
1005 3429 514 1753 27 DPX 25
*
1165 3975 596 2032 27 DPX 29
*
1325 4521 677 2311 27 DPX 33
*
1483 5061 758 2587 27 DPX 37
*
1643 5607 840 2866 27 DPX 41
1802 6147 921 3142 27 DPX 45
2122 7239 1084 3700 27 DPX 53
2440 8325 1247 4255 27 DPX 61
795 2712 413 1408 12 DC 31
1201 4098 624 2129 12 DC 47
1609 5489 835 2851 12 DC 63
2015 6875 1047 3571 12 DC 79
675 2303 348 1186 15 DC 21
801 2734 413 1408 15 DC 25
929 3169 478 1632 15 DC 29
*
1183 4035 609 2078 15 DC 37
*
1310 4470 675 2302 15 DC 41
*
1436 4900 740 2524 15 DC 45
*
1564 5336 805 2748 15 DC 49
*
1691 5771 871 2972 15 DC 53
*
1818 6201 936 3194 15 DC 57
1945 6636 1002 3418 15 DC 61
2199 7502 1133 3864 15 DC 69
2453 8368 1263 4310 15 DC 77
2706 9234 1394 4756 15 DC 85
706 2411 359 1226 21 DC 17
*
871 2972 443 1511 21 DC 21
*
1034 3528 526 1794 21 DC 25
*
1198 4089 609 2079 21 DC 29
*
1363 4651 693 2365 21 DC 33
*
1526 5206 776 2647 21 DC 37
*
1690 5768 859 2933 21 DC 41
*
1853 6324 942 3215 21 DC 45
*
2018 6885 1026 3501 21 DC 49
*
2182 7446 1110 3786 21 DC 53
*
2345 8002 1192 4069 21 DC 57
2510 8564 1276 4354 21 DC 61
2837 9681 1443 4922 21 DC 69
3165 10798 1609 5490 21 DC 77
3492 11915 1776 6058 21 DC 85
572 1951 291 992 27 DC 11
*
876 2987 445 1519 27 DC 17
*
1079 3683 549 1872 27 DC 21
*
1281 4372 651 2222 27 DC 25
*
1485 5068 755 2576 27 DC 29
*
1689 5763 859 2930 27 DC 33
*
1891 6452 961 3280 27 DC 37
*
2095 7148 1065 3633 27 DC 41
*
2297 7837 1168 3984 27 DC 45
*
2705 9228 1375 4691 27 DC 53
3110 10613 1581 5395 27 DC 61
3516 11997 1787 6099 27 DC 69
15 - 400
31 - 800
47 - 1200
63 - 1600
79 - 2000
8
16
24
32
40
21 - 540
25 - 641
29 - 743
37 - 946
41 - 1047
45 - 1149
49 - 1251
53 - 1352
57 - 1454
61 - 1556
69 - 1759
77 - 1962
85 - 2165
11
13
15
19
21
23
25
27
29
31
35
39
43
17 - 438
21 - 540
25 - 641
29 - 743
33 - 844
37 - 946
41 - 1047
45 - 1149
49 - 1251
53 - 1352
57 - 1454
61 - 1556
69 - 1759
77 - 1962
85 - 2165
286 - 11
438 - 17
540 - 21
641 - 25
743 - 29
844 - 33
946 - 37
1047 - 41
1149 - 45
1352 - 53
1556 - 61
1759 - 69
11 - 286
17 - 438
21 - 540
25 - 641
29 - 743
33 - 844
37 - 946
41 - 1047
45 - 1149
53 - 1352
61 - 1556
69 - 1759
6
9
11
13
15
17
19
21
23
27
31
35
9
11
13
15
17
19
21
23
25
27
29
31
35
39
43
21
PREMIER HE (Imperial) Heat Outputs
Single Convector - Type 11
Double Panel “Xtra” - Type 21 Double Convector - Type 22
Nominal Length
(inches - mm)
No. of sections
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
PREMIER HE
N.B. The tabulated heat outputs are quoted at a mean water to air temperature difference of 50oC and 30oC. *Available as 4 tap option.
199 680 104 356 PM 30 SC 40
409 1395 214 730 PM 30 SC 80
618 2109 323 1103 PM 30 SC 120
828 2824 433 1477 PM 30 SC 160
1037 3537 542 1850 PM 30 SC 200
288 982 150 512 PM 45 SC 40
364 1241 190 647 PM 45 SC 50
440 1500 229 782 PM 45 SC 60
515 1757 268 916 PM 45 SC 70
591 2016 308 1051 PM 45 SC 80
666 2272 247 1184 PM 45 SC 90
742 2531 387 1319 PM 45 SC 100
818 2790 426 1454 PM 45 SC 110
893 3046 465 1588 PM 45 SC 120
1044 3562 544 1857 PM 45 SC 140
1196 4079 623 2127 PM 45 SC 160
1347 4595 702 2395 PM 45 SC 180
1498 5110 781 2664 PM 45 SC 200
368 1257 190 650 PM 60 SC 40
466 1588 241 821 PM 60 SC 50
563 1920 291 993 PM 60 SC 60
659 2248 341 1162 PM 60 SC 70
756 2579 391 1334 PM 60 SC 80
852 2907 441 1503 PM 60 SC 90
949 3238 491 1674 PM 60 SC 100
1046 3570 541 1846 PM 60 SC 110
1142 3898 591 2015 PM 60 SC 120
1336 4557 691 2356 PM 60 SC 140
1530 5220 791 2699 PM 60 SC 160
1723 5879 891 3040 PM 60 SC 180
1916 6539 991 3381 PM 60 SC 200
305 1042 156 534 PM 70 SC 30
418 1426 214 730 PM 70 SC 40
528 1802 270 923 PM 70 SC 50
638 2178 327 1115 PM 70 SC 60
747 2550 383 1306 PM 70 SC 70
858 2926 439 1499 PM 70 SC 80
967 3298 495 1689 PM 70 SC 90
1077 3674 551 1882 PM 70 SC 100
1187 4050 608 2074 PM 70 SC 110
1296 4422 664 2265 PM 70 SC 120
1515 5170 776 2648 PM 70 SC 140
1736 5922 889 3033 PM 70 SC 160
1955 6670 1001 3416 PM 70 SC 180
2174 7418 1113 3799 PM 70 SC 200
304 1037 158 540 PM 30 DPX 40
623 2127 325 1108 PM 30 DPX 80
942 3214 491 1675 PM 30 DPX 120
1261 4304 657 2243 PM 30 DPX 160
1580 5392 824 2810 PM 30 DPX 200
424 1446 219 748 PM 45 DPX 40
535 1827 277 945 PM 45 DPX 50
647 2208 335 1142 PM 45 DPX 60
758 2585 392 1337 PM 45 DPX 70
869 2966 450 1534 PM 45 DPX 80
980 3344 507 1729 PM 45 DPX 90
1092 3725 564 1926 PM 45 DPX 100
1203 4106 622 2123 PM 45 DPX 110
1314 4483 679 2318 PM 45 DPX 120
1536 5242 794 2710 PM 45 DPX 140
1760 6004 910 3104 PM 45 DPX 160
1982 6762 1025 3497 PM 45 DPX 180
2204 7521 1140 3889 PM 45 DPX 200
539 1839 277 944 PM 60 DPX 40
681 2324 350 1193 PM 60 DPX 50
823 2809 423 1442 PM 60 DPX 60
964 3289 495 1688 PM 60 DPX 70
1106 3774 568 1937 PM 60 DPX 80
1247 4254 640 2183 PM 60 DPX 90
1389 4739 713 2432 PM 60 DPX 100
1531 5223 786 2681 PM 60 DPX 110
1672 5703 858 2927 PM 60 DPX 120
1954 6668 1003 3423 PM 60 DPX 140
2239 7638 1149 3920 PM 60 DPX 160
2521 8603 1294 4415 PM 60 DPX 180
2804 9568 1439 4911 PM 60 DPX 200
615 2097 314 1071 PM 70 DPX 40
777 2650 397 1354 PM 70 DPX 50
939 3202 480 1636 PM 70 DPX 60
1099 3749 561 1916 PM 70 DPX 70
1261 4302 644 2198 PM 70 DPX 80
1421 4849 726 2478 PM 70 DPX 90
1583 5402 809 2760 PM 70 DPX 100
1745 5955 892 3043 PM 70 DPX 110
1906 6502 974 3322 PM 70 DPX 120
2228 7602 1138 3884 PM 70 DPX 140
2552 8707 1304 4449 PM 70 DPX 160
2874 9807 1469 5011 PM 70 DPX 180
3197 10907 1633 5573 PM 70 DPX 200
387 1322 201 686 PM 30 DC 40
795 2712 413 1408 PM 30 DC 80
1201 4098 624 2129 PM 30 DC 120
1609 5489 835 2851 PM 30 DC 160
2015 6875 1047 3571 PM 30 DC 200
545 1861 279 953 PM 45 DC 40
689 2351 353 1204 PM 45 DC 50
833 2841 427 1455 PM 45 DC 60
975 3327 499 1704 PM 45 DC 70
1119 3817 573 1955 PM 45 DC 80
1261 4303 646 2204 PM 45 DC 90
1405 4793 720 2455 PM 45 DC 100
1548 5283 793 2706 PM 45 DC 110
1691 5769 866 2955 PM 45 DC 120
1977 6745 1013 3455 PM 45 DC 140
2264 7726 1160 3957 PM 45 DC 160
2550 8702 1306 4457 PM 45 DC 180
2836 9678 1453 4957 PM 45 DC 200
691 2357 351 1198 PM 60 DC 40
873 2978 444 1514 PM 60 DC 50
1055 3599 536 1830 PM 60 DC 60
1235 4215 628 2143 PM 60 DC 70
1417 4836 721 2459 PM 60 DC 80
1598 5451 812 2771 PM 60 DC 90
1780 6072 905 3087 PM 60 DC 100
1962 6693 997 3403 PM 60 DC 110
2142 7309 1089 3716 PM 60 DC 120
2504 8545 1273 4344 PM 60 DC 140
2868 9787 1458 4976 PM 60 DC 160
3231 11024 1643 5604 PM 60 DC 180
3593 12260 1827 6233 PM 60 DC 200
572 1951 291 992 PM 70 DC 30
783 2670 398 1357 PM 70 DC 40
989 3374 503 1715 PM 70 DC 50
1195 4077 607 2073 PM 70 DC 60
1399 4774 711 2427 PM 70 DC 70
1605 5478 816 2785 PM 70 DC 80
1810 6175 920 3139 PM 70 DC 90
2016 6878 1025 3496 PM 70 DC 100
2222 7582 1130 3854 PM 70 DC 110
2426 8279 1233 4208 PM 70 DC 120
2837 9679 1442 4920 PM 70 DC 140
3249 11087 1652 5636 PM 70 DC 160
3660 12487 1860 6348 PM 70 DC 180
4070 13888 2069 7059 PM 70 DC 200
400
800
1200
1600
2000
400
500
600
700
800
900
1000
1100
1200
1400
1600
1800
2000
400
500
600
700
800
900
1000
1100
1200
1400
1600
1800
2000
300
400
500
600
700
800
900
1000
1100
1200
1400
1600
1800
2000
23
PREMIER Metric (2 Tap) Heat Outputs
Double Panel “Xtra” -
Type 21 Double Convector - Type 22
Single Convector - Type 11
Nominal Length (mm)
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
N.B. The tabulated heat outputs are quoted at a mean water to air temperature difference of 50oC and 30oC.
PREMIER METRIC
199 680 104 356 4PM 30 SC 40
409 1395 214 730 4PM 30 SC 80
618 2109 323 1103 4PM 30 SC 120
828 2824 433 1477 4PM 30 SC 160
1037 3537 542 1850 4PM 30 SC 200
1246 4251 651 2223 4PM 30 SC 240
1560 5322 816 2783 4PM 30 SC 300
288 982 150 512 4PM 45 SC 40
364 1241 190 647 4PM 45 SC 50
440 1500 229 782 4PM 45 SC 60
515 1757 268 916 4PM 45 SC 70
591 2016 308 1051 4PM 45 SC 80
666 2272 347 1184 4PM 45 SC 90
742 2531 387 1319 4PM 45 SC 100
818 2790 426 1454 4PM 45 SC 110
893 3046 465 1588 4PM 45 SC 120
1044 3562 544 1857 4PM 45 SC 140
1196 4079 623 2127 4PM 45 SC 160
1347 4595 702 2395 4PM 45 SC 180
1498 5110 781 2664 4PM 45 SC 200
1649 5626 860 2933 4PM 45 SC 220
1800 6142 938 3202 4PM 45 SC 240
1951 6657 1017 3471 4PM 45 SC 260
2102 7173 1096 3740 4PM 45 SC 280
2254 7689 1175 4009 4PM 45 SC 300
368 1257 190 650 4PM 60 SC 40
466 1588 241 821 4PM 60 SC 50
563 1920 291 993 4PM 60 SC 60
659 2248 341 1162 4PM 60 SC 70
756 2579 391 1334 4PM 60 SC 80
852 2907 441 1503 4PM 60 SC 90
949 3238 491 1674 4PM 60 SC 100
1046 3570 541 1846 4PM 60 SC 110
1142 3898 591 2015 4PM 60 SC 120
1336 4557 691 2356 4PM 60 SC 140
1530 5220 791 2699 4PM 60 SC 160
1723 5879 891 3040 4PM 60 SC 180
1916 6539 991 3381 4PM 60 SC 200
2110 7199 1091 3722 4PM 60 SC 220
2303 7857 1191 4063 4PM 60 SC 240
2497 8520 1291 4405 4PM 60 SC 260
2690 9179 1391 4746 4PM 60 SC 280
2884 9839 1491 5087 4PM 60 SC 300
305 1042 156 534 4PM 70 SC 30
418 1426 214 730 4PM 70 SC 40
528 1802 270 923 4PM 70 SC 50
638 2178 327 1115 4PM 70 SC 60
747 2550 383 1306 4PM 70 SC 70
858 2926 439 1499 4PM 70 SC 80
967 3298 495 1689 4PM 70 SC 90
1077 3674 551 1882 4PM 70 SC 100
1187 4050 608 2074 4PM 70 SC 110
1296 4422 664 2265 4PM 70 SC 120
1515 5170 776 2648 4PM 70 SC 140
1736 5922 889 3033 4PM 70 SC 160
1955 6670 1001 3416 4PM 70 SC 180
2174 7418 1113 3799 4PM 70 SC 200
2393 8166 1226 4182 4PM 70 SC 220
2613 8914 1338 4566 4PM 70 SC 240
2833 9666 1451 4951 4PM 70 SC 260
3052 10414 1563 5334 4PM 70 SC 280
3271 11162 1676 5717 4PM 70 SC 300
304 1037 158 540 4PM 30 DPX 40
623 2127 325 1108 4PM 30 DPX 80
942 3214 491 1675 4PM 30 DPX 120
1261 4304 657 2243 4PM 30 DPX 160
1580 5392 824 2810 4PM 30 DPX 200
424 1446 219 748 4PM 45 DPX 40
535 1827 277 945 4PM 45 DPX 50
647 2208 335 1142 4PM 45 DPX 60
758 2585 392 1337 4PM 45 DPX 70
869 2966 450 1534 4PM 45 DPX 80
980 3344 507 1729 4PM 45 DPX 90
1092 3725 564 1926 4PM 45 DPX 100
1203 4106 622 2123 4PM 45 DPX 110
1314 4483 679 2318 4PM 45 DPX 120
1536 5242 794 2710 4PM 45 DPX 140
1760 6004 910 3104 4PM 45 DPX 160
1982 6762 1025 3497 4PM 45 DPX 180
2204 7521 1140 3889 4PM 45 DPX 200
539 1839 277 944 4PM 60 DPX 40
681 2324 350 1193 4PM 60 DPX 50
823 2809 423 1442 4PM 60 DPX 60
964 3289 495 1688 4PM 60 DPX 70
1106 3774 568 1937 4PM 60 DPX 80
1247 4254 640 2183 4PM 60 DPX 90
1389 4739 713 2432 4PM 60 DPX 100
1531 5223 786 2681 4PM 60 DPX 110
1672 5703 858 2927 4PM 60 DPX 120
1954 6668 1003 3423 4PM 60 DPX 140
2239 7638 1149 3920 4PM 60 DPX 160
2521 8603 1294 4415 4PM 60 DPX 180
2804 9568 1439 4911 4PM 60 DPX 200
615 2097 314 1071 4PM 70 DPX 40
777 2650 397 1354 4PM 70 DPX 50
939 3202 480 1636 4PM 70 DPX 60
1099 3749 561 1916 4PM 70 DPX 70
1261 4302 644 2198 4PM 70 DPX 80
1421 4849 726 2478 4PM 70 DPX 90
1583 5402 809 2760 4PM 70 DPX 100
1745 5955 892 3043 4PM 70 DPX 110
1906 6502 974 3322 4PM 70 DPX 120
2228 7602 1138 3884 4PM 70 DPX 140
2552 8707 1304 4449 4PM 70 DPX 160
2874 9807 1469 5011 4PM 70 DPX 180
3197 10907 1633 5573 4PM 70 DPX 200
387 1322 201 686 4PM 30 DC 40
795 2712 413 1408 4PM 30 DC 80
1201 4098 624 2129 4PM 30 DC 120
1609 5489 835 2851 4PM 30 DC 160
2015 6875 1047 3571 4PM 30 DC 200
2421 8262 1258 4291 4PM 30 DC 240
3032 10345 1575 5373 4PM 30 DC 300
545 1861 279 953 4PM 45 DC 40
689 2351 353 1204 4PM 45 DC 50
833 2841 427 1455 4PM 45 DC 60
975 3327 499 1704 4PM 45 DC 70
1119 3817 573 1955 4PM 45 DC 80
1261 4303 646 2204 4PM 45 DC 90
1405 4793 720 2455 4PM 45 DC 100
1548 5283 793 2706 4PM 45 DC 110
1691 5769 866 2955 4PM 45 DC 120
1977 6745 1013 3455 4PM 45 DC 140
2264 7726 1160 3957 4PM 45 DC 160
2550 8702 1306 4457 4PM 45 DC 180
2836 9678 1453 4957 4PM 45 DC 200
3123 10654 1600 5458 4PM 45 DC 220
3409 11631 1746 5958 4PM 45 DC 240
3695 12608 1893 6458 4PM 45 DC 260
3981 13585 2039 6959 4PM 45 DC 280
4268 14562 2186 7459 4PM 45 DC 300
691 2357 351 1198 4PM 60 DC 40
873 2978 444 1514 4PM 60 DC 50
1055 3599 536 1830 4PM 60 DC 60
1235 4215 628 2143 4PM 60 DC 70
1417 4836 721 2459 4PM 60 DC 80
1598 5451 812 2771 4PM 60 DC 90
1780 6072 905 3087 4PM 60 DC 100
1962 6693 997 3403 4PM 60 DC 110
2142 7309 1089 3716 4PM 60 DC 120
2504 8545 1273 4344 4PM 60 DC 140
2868 9787 1458 4976 4PM 60 DC 160
3231 11024 1643 5604 4PM 60 DC 180
3593 12260 1827 6233 4PM 60 DC 200
3956 13496 2011 6862 4PM 60 DC 220
4318 14733 2195 7490 4PM 60 DC 240
4682 15975 2380 8122 4PM 60 DC 260
5044 17212 2565 8750 4PM 60 DC 280
5407 18448 2749 9379 4PM 60 DC 300
572 1951 291 992 4PM 70 DC 30
783 2670 398 1357 4PM 70 DC 40
989 3374 503 1715 4PM 70 DC 50
1195 4077 607 2073 4PM 70 DC 60
1399 4774 711 2427 4PM 70 DC 70
1605 5478 816 2785 4PM 70 DC 80
1810 6175 920 3139 4PM 70 DC 90
2016 6878 1025 3496 4PM 70 DC 100
2222 7582 1130 3854 4PM 70 DC 110
2426 8279 1233 4208 4PM 70 DC 120
2837 9679 1442 4920 4PM 70 DC 140
3249 11087 1652 5636 4PM 70 DC 160
3660 12487 1860 6348 4PM 70 DC 180
4070 13888 2069 7059 4PM 70 DC 200
4481 15288 2278 7771 4PM 70 DC 220
4891 16689 2486 8483 4PM 70 DC 240
5304 18096 2696 9199 4PM 70 DC 260
5714 19497 2905 9911 4PM 70 DC 280
6125 20897 3113 10623 4PM 70 DC 300
400
800
1200
1600
2000
2400
3000
400
500
600
700
800
900
1000
1100
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
400
500
600
700
800
900
1000
1100
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
300
400
500
600
700
800
900
1000
1100
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
25
PREMIER Metric (4 Tap) Heat Outputs
Double Panel “Xtra” -
Type 21 Double Convector - Type 22
Single Convector - Type 11
Nominal Length (mm)
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
N.B. The tabulated heat outputs are quoted at a mean water to air temperature difference of 50oC and 30oC.
PREMIER METRIC
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
218 745 113 386 SS 30 40G
328 1119 169 576 SS 30 60G
546 1863 281 958 SS 30 100G
764 2607 393 1341 SS 30 140G
983 3354 506 1726 SS 30 180G
1092 3726 562 1917 SS 30 200G
1310 4470 674 2300 SS 30 240G
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
461 1572 238 813 SX 30 60G
768 2620 397 1355 SX 30 100G
1075 3669 556 1897 SX 30 140G
1382 4717 715 2439 SX 30 180G
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
580 1978 297 1012 SD 30 60G
676 2307 346 1181 SD 30 70G
773 2637 396 1351 SD 30 80G
966 3296 494 1687 SD 30 100G
1352 4614 692 2362 SD 30 140G
1739 5933 890 3037 SD 30 180G
1932 6592 989 3374 SD 30 200G
2318 7910 1187 4049 SD 30 240G
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
808 2758 413 1409 ST 30 60G
1347 4597 688 2349 ST 30 100G
2694 9195 1377 4698 ST 30 200G
Watts Btu/h Watts Btu/h
Order Code
27
SELECT Compact Heat Outputs
Single Convector - Type 11G
(with factory fitted top grille and side panels)
Double Panel “Xtra” - Type 21G
(with factory fitted top grille and side panels)
Double Convector - Type 22G
(with factory fitted top grille and side panels)
Triple Convector - Type 33G
(with factory fitted top grille and side panels)
Nominal Length (mm - inches)
300 - 12
600 - 24
700 - 28
800 - 31
1000 - 39
1400 - 55
1800 - 71
2000 - 79
2400 - 94
500 - 20
600 - 24
700 - 28
800 - 31
900 - 35
1000 - 39
1100 - 43
1200 - 47
1300 - 51
1400 - 55
1600 - 63
1800 - 71
400 - 16
500 - 20
600 - 24
700 - 28
800 - 31
900 - 35
1000 - 39
1100 - 43
1200 - 47
1400 - 55
1600 - 63
1800 - 71
2000 - 79
2400 - 94
400 - 16
500 - 20
600 - 24
700 - 28
800 - 31
900 - 35
1000 - 39
1100 - 43
1200 - 47
1300 - 51
1400 - 55
1600 - 63
1800 - 71
2000 - 79
2400 - 94
300 - 12
400 - 16
500 - 20
600 - 24
700 - 28
800 - 31
900 - 35
1000 - 39
1200 - 47
1400 - 55
1600 - 63
600 - 24
800 - 31
1000 - 39
1200 - 47
1400 - 55
1600 - 63
1800 - 71
2000 - 79
Nominal Height
300 mm
Nominal Height
400 mm
Nominal Height
450 mm
Nominal Height
500 mm
Nominal Height
600 mm
Nominal Height
700 mm
356 1215 183 625 SS 40 50G
427 1457 220 749 SS 40 60G
498 1699 256 874 SS 40 70G
569 1941 293 998 SS 40 80G
640 2184 329 1123 SS 40 90G
711 2426 366 1247 SS 40 100G
782 2668 402 1372 SS 40 110G
853 2910 439 1496 SS 40 120G
924 3153 475 1621 SS 40 130G
995 3395 512 1746 SS 40 140G
1138 3883 585 1996 SS 40 160G
1280 4367 658 2246 SS 40 180G
347 1184 178 608 SS 50 40G
434 1481 223 761 SS 50 50G
521 1778 268 914 SS 50 60G
608 2074 312 1066 SS 50 70G
694 2368 357 1217 SS 50 80G
781 2665 401 1369 SS 50 90G
868 2962 446 1522 SS 50 100G
955 3258 491 1674 SS 50 110G
1042 3555 535 1827 SS 50 120G
1215 4146 624 2130 SS 50 140G
1389 4739 714 2435 SS 50 160G
1562 5330 803 2739 SS 50 180G
1736 5923 892 3044 SS 50 200G
2083 7107 1070 3652 SS 50 240G
407 1389 208 711 SS 60 40G
509 1737 261 890 SS 60 50G
611 2085 313 1068 SS 60 60G
713 2433 365 1246 SS 60 70G
814 2777 417 1423 SS 60 80G
916 3125 469 1601 SS 60 90G
1018 3473 521 1779 SS 60 100G
1120 3821 574 1957 SS 60 110G
1222 4169 626 2136 SS 60 120G
1323 4514 678 2312 SS 60 130G
1425 4862 730 2491 SS 60 140G
1629 5558 834 2847 SS 60 160G
1832 6251 938 3202 SS 60 180G
2036 6947 1043 3558 SS 60 200G
2440 7643 1251 4270 SS 60 240G
348 118 178 608 SS 70 30G
464 1583 237 808 SS 70 40G
581 1982 297 1012 SS 70 50G
697 2378 356 1214 SS 70 60G
813 2774 415 1416 SS 70 70G
929 3170 474 1619 SS 70 80G
1045 3566 534 1821 SS 70 90G
1161 3961 593 2023 SS 70 100G
1393 4753 711 2427 SS 70 120G
1625 5545 830 2831 SS 70 140G
1858 6339 949 3237 SS 70 160G
486 1658 250 853 SX 40 50G
583 1990 300 1024 SX 40 60G
680 2322 350 1195 SX 40 70G
778 2653 400 1366 SX 40 80G
875 2985 450 1536 SX 40 90G
972 3316 500 1707 SX 40 100G
1069 3648 550 1878 SX 40 110G
1166 3980 600 2048 SX 40 120G
1264 4311 650 2219 SX 40 130G
1361 4643 700 2390 SX 40 140G
1555 5306 800 2731 SX 40 160G
1750 5970 901 3073 SX 40 180G
467 1593 239 816 SX 50 40G
584 1991 299 1020 SX 50 50G
700 2389 359 1224 SX 50 60G
817 2787 418 1428 SX 50 70G
934 3185 478 1632 SX 50 80G
1050 3584 538 1836 SX 50 90G
1167 3982 598 2040 SX 50 100G
1400 4778 717 2448 SX 50 120G
1634 5575 837 2856 SX 50 140G
1867 6371 957 3264 SX 50 160G
2101 7167 1076 3672 SX 50 180G
542 1849 276 943 SX 60 40G
678 2312 345 1179 SX 60 50G
813 2774 415 1414 SX 60 60G
949 3236 484 1650 SX 60 70G
1084 3699 553 1886 SX 60 80G
1220 4161 622 2122 SX 60 90G
1355 4623 691 2357 SX 60 100G
1491 5086 760 2593 SX 60 110G
1626 5548 829 2829 SX 60 120G
1762 6010 898 3065 SX 60 130G
1897 6473 967 3300 SX 60 140G
2168 7397 1105 3772 SX 60 160G
2439 8322 1244 4243 SX 60 180G
615 2098 312 1065 SX 70 40G
769 2622 390 1332 SX 70 50G
922 3147 468 1598 SX 70 60G
1076 3671 546 1864 SX 70 70G
1230 4195 624 2131 SX 70 80G
1383 4720 703 2397 SX 70 90G
1537 5244 781 2663 SX 70 100G
1844 6293 937 3196 SX 70 120G
2152 7342 1093 3729 SX 70 140G
2459 8391 1249 4262 SX 70 160G
616 2102 314 1070 SD 40 50G
739 2522 376 1284 SD 40 60G
862 2943 439 1498 SD 40 70G
986 3363 502 1712 SD 40 80G
1109 3783 564 1926 SD 40 90G
1232 4204 627 2140 SD 40 100G
1355 4624 690 2354 SD 40 110G
1478 5044 753 2568 SD 40 120G
1602 5465 815 2782 SD 40 130G
1725 5885 878 2996 SD 40 140G
1971 6726 1003 3424 SD 40 160G
2218 7566 1129 3852 SD 40 180G
594 2027 301 1026 SD 50 40G
743 2533 376 1283 SD 50 50G
891 3040 451 1539 SD 50 60G
1040 3547 526 1796 SD 50 70G
1188 4053 601 2052 SD 50 80G
1337 4560 677 2309 SD 50 90G
1485 5067 752 2565 SD 50 100G
1634 5574 827 2822 SD 50 110G
1782 6080 902 3078 SD 50 120G
2079 7094 1053 3591 SD 50 140G
2376 8107 1203 4104 SD 50 160G
2673 9120 1353 4617 SD 50 180G
2970 10134 1504 5130 SD 50 200G
3564 12160 1804 6156 SD 50 240G
691 2357 348 1187 SD 60 40G
864 2946 435 1483 SD 60 50G
1036 3536 522 1780 SD 60 60G
1209 4125 609 2077 SD 60 70G
1382 4714 696 2374 SD 60 80G
1554 5303 783 2670 SD 60 90G
1727 5893 870 2967 SD 60 100G
1900 6482 957 3264 SD 60 110G
2072 7071 1043 3560 SD 60 120G
2245 7660 1130 3857 SD 60 130G
2418 8250 1217 4154 SD 60 140G
2763 9428 1391 4747 SD 60 160G
3109 10607 1565 5341 SD 60 180G
3454 11785 1739 5934 SD 60 200G
4145 14142 2087 7121 SD 60 240G
783 2672 393 1342 SD 70 40G
979 3340 492 1678 SD 70 50G
1175 4008 590 2013 SD 70 60G
1371 4676 688 2349 SD 70 70G
1566 5345 787 2684 SD 70 80G
1762 6013 885 3020 SD 70 90G
1958 6681 983 3355 SD 70 100G
2350 8017 1180 4026 SD 70 120G
2741 9353 1377 4697 SD 70 140G
3133 10689 1573 5368 SD 70 160G
1019 3479 518 1767 ST 45 60G
1359 4639 690 2356 ST 45 80G
1699 5799 863 2945 ST 45 100G
2039 6958 1036 3535 ST 45 120G
2379 8118 1209 4124 ST 45 140G
2718 9278 1381 4712 ST 45 160G
3058 10438 1554 5301 ST 45 180G
3398 11597 1726 5891 ST 45 200G
942 3216 473 1614 ST 60 40G
1414 4825 710 2423 ST 60 60G
1885 6433 947 3229 ST 60 80G
2356 8041 1183 4036 ST 60 100G
2827 9649 1420 4843 ST 60 120G
3298 11257 1656 5650 ST 60 140G
3770 12866 1893 6459 ST 60 160G
4241 14474 2130 7266 ST 60 180G
4712 16082 2366 8073 ST 60 200G
Type 33G
Coming
Soon!
N.B. The tabulated heat outputs are quoted at a mean water to air temperature difference of 50oC and 30oC.
SELECT COMPACT
29
LST (Low Surface Temperature) General Specifications
LST
General Specifications
Approval and Certification
All MYSON LST (low surface temperature)
radiators are manufactured and tested to
BS EN 442. Every radiator carries the
BS Kitemark which certifies independent
approval of heat output and verifies
production under a quality system to
BS EN ISO 9001.
All MYSON LST radiators carry a ten year
guarantee from date of manufacture against
defects caused by faulty materials or
manufacture.
Description
MYSON LST radiators are ideal where a low surface
temperature is required for safety reasons. They comply with
NHS Estates Health Guidance Notes 1998 (less than 43
o
C with
inlet water at 82
o
C) and are widely used in hospitals, retirement
homes, schools, sports halls and private housing. They consist
of an efficient internal heat emitter in an attractive and robust
1.2mm steel enclosure that gives heat protection and conceals
pipework and valves. There are Super and Super Plus models,
available in 56 sizes, with heights of 550mm, 650mm, 850mm
and 950mm, and up to eight lengths from 600mm to 2000mm.
Packaging
Each LST radiator is individually packed in a single protective
cardboard carton which carries the unique model identification
code.
Fixings
For the correct installation of radiators it is essential that the
fixing of the radiator is carried out in such a way that it is suitable
for intended use AND predictable misuse. A number of elements
need to be taken into consideration including the fixing method
used to secure the radiator to the wall, the type and condition of
the wall itself, and any additional potential forces or weights that
may happen to be applied to the radiator, prior to finalising
installation. IN ALL CASES IT IS STRONGLY RECOMMENDED
THAT A SUITABLY QUALIFIED PROFESSIONAL INSTALLER OR
SIMILAR TRADESPERSON CARRIES OUT THE INSTALLATION.
PLEASE NOTE: The fixing materials provided are only intended for installation on
walls made of solid wood, bricks, concrete or on timber-frame stud walls where the
fixing is into the timber. All walls being considered should have no more than a
maximum of 3mm wall finishing. For walls made of other materials, for example
hollow bricks, please consult your installer and/or specialist supplier. ONCE AGAIN,
IF YOU ARE UNSURE, IT IS STRONGLY RECOMMENDED THAT A SUITABLY
QUALIFIED PROFESSIONAL INSTALLER OR SIMILAR TRADESPERSON CARRIES
OUT THE INSTALLATION.
Surface Temperatures
Surface temperatures are below 43oC with water inlet
temperature up to 82
o
C. Compliance with this requirement of
NHS Estates Health Guidance Notes 1998 has been verified by
independent tests carried out by BSRIA.
Application
MYSON LST radiators are for use on indirect systems only, with
a maximum working temperature of 82
o
C. The system should be
designed to follow the recommendations of BS EN 12828:2003
or BS EN 12831:2003, as appropriate, with particular care taken
to avoid air entry or water discharge through an open vent.
We do not recommend the use of single feed indirect cylinders,
as the possibility of aeration due to water interchange may lead
to corrosion.
The installation work must be carried out in accordance with
recognised good practice, and precautions taken to avoid
contamination which could lead to corrosion. If a corrosion
inhibitor or other water treatment is to be used, the
Manufacturer’s Instructions must be strictly followed.
The recommendations of BS 7593, Code of Practice for
treatment of water in domestic hot water central heating
systems, should be followed where appropriate.
Accessories
Concealed wall brackets, air vent key and plug are supplied
packed with every radiator. A fitting instruction leaflet and
installation template is also included.
Theft and vandal resistant ring and collar are available for
MYSON TRV’s, providing protection against interference and
theft of TRV’s.
Cleaning and Maintenance
MYSON LST radiators have been designed and constructed
to enable cleaning and maintenance to be carried out easily
without disturbance to plumbing.
The LST casing can be removed easily by simply taking out the
two security screws, lifting the enclosure out of the wall bracket
slots and pulling forward.
Safety Precautions
Radiators are hot when in use, and as such, present a risk of
burns to users on prolonged contact. The temperature of a
radiator is dependent on the temperature of the system water,
as set by the system installer or user. Installers and users should
ensure that those who may come into close proximity to hot
radiators are aware of the risk of burns. Installers and users
should take all necessary steps to minimise the risks of burns.
If the risk is significant, consideration should be given to
installing low surface temperature radiators, or to placing guards
in front of the radiators.
Heat Output
The heat outputs shown in the table below are based on a
mean water to air temperature difference of 50
o
C. When the
difference is not 50
o
C, the output should be multiplied by the
appropriate factor from within the table:
For an example of how to calculate this, please see page 13.
Centigrade Factor Fahrenheit
20°C 0.30 36°F
25°C 0.41 45°F
30°C 0.51 54°F
35°C 0.63 63°F
40°C 0.75 72°F
45°C 0.87 81°F
50°C 1.00 90°F
55°C 1.13 99°F
60°C 1.27 108°F
65°C 1.41 117°F
70°C 1.55 126°F
BS EN 442
31
LST (Low Surface Temperature) Heat Outputs
Height (mm)
Water Content
(l)
650
Weight
(kg)
Water Content
(l)
850
Weight
(kg)
Water Content
(l)
950
Weight
(kg)
Water Content
(l)
Height (mm)
Water Content
(l)
650
Weight
(kg)
Water Content
(l)
850
Weight
(kg)
Water Content
(l)
950
Weight
(kg)
Water Content
(l)
Heat
Emitter
Enclosure Length ‘A’
S=83
SP=100
S=83
SP=100
100
20
Emitter height ‘C’
Enclosure height ‘B’
Floor Level
84.5
107
6S=350
5S=250
9S=650
8S=550
212
46
55
114
34
157
6SP=350
5SP=250
9SP=650
8SP=550
212
78
55
114
34
LST Super Side Elevation
Looking Towards Wall
LST Super Plus
Side Elevation
Important:
It is advisable to leave
a further 5mm clearance above any
final floor covering to allow for easy
fitting and removal.
*
B (mm) 572 672 872 972
C (mm) 300 400 600 700
*Please ensure you add an extra 22mm to the height of the radiator to
account for the curvature of the top grille.
N.B. The tabulated heat outputs are quoted at a mean water to air temperature
difference of 50
o
C. The standard heat outputs are based on length of the internal
heat emitter, not the outer casing.
Connections
All MYSON LST radiators are fitted with 4 - 1/2inch BSP connections.
Operating Pressures
Every MYSON LST radiator is tested to a pressure of 10.5 bar (152.5 psi)
and is suitable for a working pressure of up to 8.0 bar (117.1 psi).
Nominal Height
*
550 mm
22 in
Nominal Height
*
650 mm
25 in
Nominal Height
*
850 mm
33 in
Nominal Height
*
950 mm
37 in
LST Super
Depth 107 mm / 4.21 in
LST Super Plus
Depth 157 mm / 6.18 in
800 - 31
1000 - 39
1200 - 47
1600 - 63
2000 - 79
600 - 24
800 - 31
1000 - 39
1200 - 47
1400 - 55
1600 - 63
1800 - 71
2000 - 79
600 - 24
800 - 31
1000 - 39
1200 - 47
1400 - 55
1600 - 63
1800 - 71
2000 - 79
600 - 24
800 - 31
1000 - 39
1200 - 47
1400 - 55
1600 - 63
1800 - 71
Outer Casing Length
(mm - inches)
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
Heat Outputs
@ ΔT 50°C
Heat Outputs
@ ΔT 30°C
Watts Btu/h Watts Btu/h
Order Code
277 946 139 475 5 LS 080
370 1261 186 634 5 LS 100
462 1576 232 792 5 LS 120
647 2207 325 1109 5 LS 160
832 2837 418 1426 5 LS 200
545 1861 276 942 5 LSP 080
727 2481 368 1256 5 LSP 100
909 3102 460 1571 5 LSP 120
1273 4342 644 2199 5 LSP 160
1636 5583 829 2827 5 LSP 200
468 1597 238 811 6 LSP 060
702 2395 357 1217 6 LSP 080
936 3194 475 1622 6 LSP 100
1170 3992 594 2028 6 LSP 120
1404 4790 713 2433 6 LSP 140
1638 5589 832 2839 6 LSP 160
1872 6387 951 3244 6 LSP 180
2106 7186 1070 3650 6 LSP 200
243 830 123 418 6 LS 060
365 1245 184 627 6 LS 080
486 1660 245 836 6 LS 100
608 2074 306 1045 6 LS 120
730 2489 368 1254 6 LS 140
851 2904 429 1463 6 LS 160
973 3319 490 1672 6 LS 180
1094 3734 551 1881 6 LS 200
353 1205 179 610 8 LS 060
530 1808 268 915 8 LS 080
706 2410 358 1221 8 LS 100
883 3013 447 1526 8 LS 120
1060 3615 537 1831 8 LS 140
1236 4218 626 2136 8 LS 160
1413 4820 716 2441 8 LS 180
1589 5423 805 2746 8 LS 200
659 2249 337 1150 8 LSP 060
989 3374 505 1724 8 LSP 080
1318 4498 674 2299 8 LSP 100
1648 5623 842 2874 8 LSP 120
1978 6748 1011 3449 8 LSP 140
2307 7872 1179 4023 8 LSP 160
2637 8997 1348 4598 8 LSP 180
2966 10121 1516 5173 8 LSP 200
405 1383 206 702 9 LS 060
608 2074 309 1053 9 LS 080
810 2765 412 1404 9 LS 100
1013 3456 514 1755 9 LS 120
1216 4148 617 2106 9 LS 140
1418 4839 720 2457 9 LS 160
1621 5530 823 2808 9 LS 180
747 2548 383 1306 9 LSP 060
1120 3822 574 1959 9 LSP 080
1494 5096 766 2613 9 LSP 100
1867 6370 957 3266 9 LSP 120
2240 7644 1149 3919 9 LSP 140
2614 8918 1340 4572 9 LSP 160
2987 10192 1531 5225 9 LSP 180
LST
(
UK Patent No 2259758
)

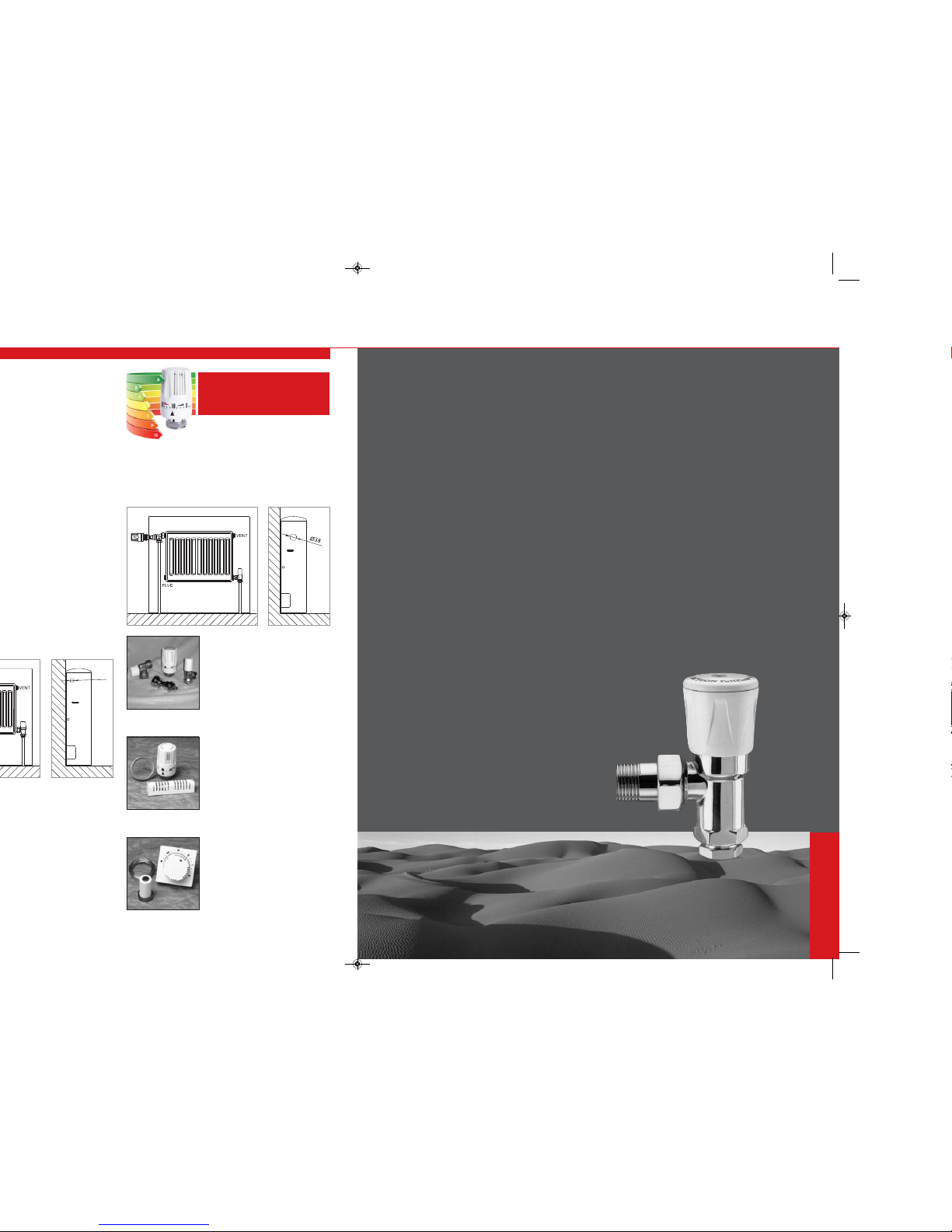

(ii) Direct Fit TRV Kit
Suitable for TBOE connection only.
This kit allows a MYSON TRV body to be directly fitted to the
radiator, with the thermostatic head projecting beyond the
enclosure.
Direct Fit TRV Kit comprises:
1 Horizontal angle TRV body
1 TRV head
1 Extension adaptor
1 Panel bush
1 Matchmaster lockshield valve
Order Code: DIRECTFIT
(iii) Remote Sensor
This allows the TRV head to be fitted
inside the LST casing. The TRV valve
body must be fitted on bottom
opposite end of the radiator. It is NOT
suitable for top end connection. The
sensor may be positioned up to
5 metres from the casing.
Order Code: 2TRVRSHEAD5 (5 METRE)
2TRVRSHEAD2 (2 METRE)
(iv) Remote Adjuster
Suitable for TBOE or BOE connections.
The TRV head/sensor is mounted
directly onto a wall plate and may be
fitted up to 5 metres from the emitter.
Order Code:
2TRVADJHEAD5 (5 METRE)
2TRVADJHEAD2 (2 METRE)
ø
23
TRV kits are now supplied with
‘A’ rated thermostatic radiator
valves for energy efficiency
33
Heating Controls
HEATING CONTROLS
Heating Controls.
l
Huge choice of valves including; manual, TRV,
plastic pipe and decorative
l
2-way flow technology
l
‘A’ rated TRV 2Way means it is more energy efficient
which reduces heating bills
l
Choice of finish
Large range of valves, thermostats and
programmers that are easy to install,
easy to use and totally reliable.
TRV 2Way - NEW ‘A’ Rated
Colour matched to MYSON radiators, 2-way design, easy to use and
the independent ‘ricability’ reports first choice for thermostat valves.
• Conforms to BS EN 215-1
• Available in 8mm,10mm,15mm or
1
/2 inch & 3/4 inch for iron pipe
• Chrome, Nickel or Brass finish
MATCHMATE
The no-nonsense dependable 10bar manual radiator valve.
• Pressure tested in accordance with BS 2767
• Available in 8mm, 10mm & 15mm sizes
• Supplied in either Nickel or Brass finish
MATCHMASTER
Chromium plated BS 2767-10 compliant valve. Ideal for local
authorities with its screw retained cap.
• Conforms to BS 2767-10
• Available in 8mm,10mm,15mm or
1
/2 inch for iron pipe
• Supplied in either Chrome or satin Brass finish
FULLFLOW
The commercial valve with a back seating arrangement, which enables
the valves to be serviced without draining the system.
• Conforms to BS 2767-10
• Available in 15mm:
1
/2 inch or 22mm: 3/4 inch sizes
• Double ‘O’ ring non-rising spindle
PPV
A complete range of valves dedicated to plastic pipe, with both
PUSHFIT and COMPRESSION 90 available.
• Available in MATCHMATE, MATCHMASTER, TRV 2Way and
decorative format
• 10mm, 15mm Standard PF or PF90 variants and 10mm
COMPRESSION 90 available
• Unique INTEGRAL 90 now standard on Chrome valves
MYSON...
more than just radiators.
For more information and to the see the full range visit
the MYSON website www.myson.co.uk or call customer
services on 0845 402 3434 for a brochure.
Underfloor Heating.Fan Convectors.Design Radiators.Towel Warmers.
MYSON offer a heating solution for every application.
Loading...
