Battery
Indicator
Range Switch
Cell Cup
Button
Upper Electrode
Meter Zero
Adjust
Pointer
Model EP10 shown
4&5 RANGE CONDUCTIVITY METERS
OPERATING INSTRUCTIONS
User’s Manual for Models EP
EP-10
DESCRIPTION
This manual describes your Myron L EP series meter,
tells you how to use it, and how to keep it working
accurately for many years.
Myron L EP & EP10 Meters are compact, multi-range
instruments which operate on the principle of electrical
conductivity. They each contain a built-in cell cup and will
quickly determine the conductivity of almost any solution.
Both have dials calibrated in micromhos (µmhos)
equivalent to the metric microsiemens (µS). Model EP
features a second dial scale calibrated in
megohms/resistivity for testing ultrapure water.
weigh less than one pound (0.45 kg). EP series meters are
completely self-contained. The built-in cell is automatically
temperature compensated. They are powered by one 9
volt battery good for at least 2000 tests, or one year shelf
life.
MODEL RANGES
EP 0-0.5, 0-5, 0-50, 0-500, 0-5,000 micromhos (µmhos)
2-30 Megohms
EP10 0-10, 0-100, 0-1,000, 0-10,000 micromhos (µmhos)
ACCURACY: (Both Models) ±2% of full scale
REPEATABILITY: (Both Models) ±1%
TEMPERATURE COMPENSATION TO 25ºC:
EP 32-120ºF (0-49ºC)
EP10 50-160ºF (10-71ºC)
Both are 3.4” x 4.5” x 4.0” (86 x 114 x 102mm) and
By using an RE-10 Range Extender (see
ACCESSORIES), the maximum range of each meter may
be increased ten times.
The pictures in this manual show the major operating
parts of your Myron L EP series meter. Handle your meter
and identify these parts to become familiar with it.
MODEL EP
MODEL EP
MODEL EP10
USING YOUR METER
1. Turn the Range Switch to the desired range. If you don’t
know which range to use, set it to 1000.
2. Rinse the cell cup three times with the sample you want
to test. (For very hot or very cold samples see
TEMPERATURE COMPENSATION below.)
NEVER FILL THE CELL BY DIPPING THE METER INTO
WATER!
3. Fill the cell with another sample to at least 1/4” (6mm)
above the upper electrode.
4. Press the black button.
5. Read the dial’s black scale value indicated by the
pointer. If the pointer is very low on the left or goes off
the scale to the right, try the next lower or higher range.
6. Multiply the dial’s black scale value by the range setting
to determine conductivity in micromhos (microsiemens).
7. If the pointer goes off the scale to the right on the x1000
range, use an RE-10 range extender (see
ACCESSORIES).
NOTE:
When you are nished with the meter, RINSE THE CELL
CUP with clean water, preferably distilled or deionized.
TEMPERATURE COMPENSATION: For very hot or very
cold solutions, let the three rinse samples each remain in
the cell for several seconds. Then immediately ll the cell
with the sample you want to test (step 3 above). This
allows the automatic temperature compensation feature
time to work properly.
RESISTIVITY MEASUREMENT: Model EP only. Accurate
measurement of high purity water is difcult even under
controlled conditions. Water temperature and even carbon
dioxide (CO
) in the atmosphere will greatly inuence
2
resistivity. Use the following
methods for best accuracy:
1. Turn the range switch to the x.1 range (with the “Ω”
symbol around it).
2. Hold your meter close to the high purity water outlet.
While pressing the button, allow the water to ow into
the Cell Cup and out again, continuously purging the
cell. Do not allow air bubbles to collect.
3. As the cell is washed clean of trace contamination, the
reading will drop and eventually stabilize. Read the
resistivity directly in megohms on the red scale. DO
NOT multiply the dial reading by the range switch value.
NOTE:
The closer the tested water temperature is to 25ºC
(77ºF), and the less it is exposed to air, the more accurate
your reading will be.
CAUTION
ALWAYS rinse the cell cup with pure water immediately
after use or cleaning. This will prevent the build-up of
unwanted deposits and possible contamination of the next
sample.
DO NOT use with samples hotter than specied. The
readings WILL NOT be accurate.
DO NOT splash solvents such as lacquer thinner, acetone,
benzene or chlorinated solvents on the plastic case.
DO NOT x or modify the meter. That will void your
warranty. See SERVICE for details or consult Myron L
Company
DO NOT DIP THE INSTRUMENT INTO WATER. If water
does get inside the instrument, see MAINTENANCE for
instructions on drying it.
Battery Strap
Calibration Control
Lower Electrode
(inside cell)
CALIBRATION/MAINTENANCE ACCESSORIES
STANDARD SOLUTIONS: A Standard Solution has a
known conductivity and ppm. Your meter was calibrated at
the factory using NIST Standard Solutions. You can keep
your meter accurate by using the same NIST Standard
Solutions. To pick the right Myron L Company Standard
Solution for your meter see ACCESSORIES.
How often you calibrate your meter depends on how
much you use it. For once a day use, recalibrate it every
three months.
CHECKING CALIBRATION
1. Turn the Range Switch to the x1000 range.
2. Test a sample of appropriate Standard Solution.
CAUTION: Throw the Standard Solution away as you use
it. Don’t put the used samples back in the bottle.
3. If the meter does not indicate the same value as is on
the Standard Solution bottle’s label, rst clean the cell.
For directions on how to do this see CELL CUP. Rinse
the cell thoroughly and test the Standard Solution again.
If the meter still does not indicate the correct value,
recalibrate it as described below.
TO RECALIBRATE THE METER
1. Remove the bottom cover using ngernails or a small
screwdriver to loosen the front or rear edge. Identify the
Calibration Control (see photo below) so you can nd it
by touch while calibrating.
2. Test another sample of the Standard Solution (be
careful to not splash solution inside the meter).
3. Adjust the Calibration Control until the meter indicates
the value that is on the Standard Solution label.
This ensures consistent results each time. With some
samples a small downward swing of the pointer is a result
of this conditioning action. This action is powerful and
removes normal lms of oil and dirt. However, if very dirty
samples — particularly scaling types — are allowed to dry
in the cell cup, a lm will build up. This lm reduces
accuracy. When there are visible lms of oil, dirt or scale
in the cell cup or on the electrodes, scrub them lightly with
a small brush and household cleanser. Rinse out the
cleanser and the meter is ready for accurate
measurements.
WATER INSIDE THE METER
Your Myron L EP meter is a rugged instrument and will
withstand water exposure around its cell, meter
movement, and switches. However, care should be taken
to keep water from leaking in around the bottom cover. It
is not sealed (to prevent condensation from forming).
If water is relatively clean (i.e., tap water or better), and
there are only a few drops inside the meter, dry it as
described below. Large amounts of water, or corrosive or
very dirty solutions will almost certainly damage the meter
movement or electronics. Such meters should be returned
to the Myron L Company for repair.
To dry your meter:
1. Shake excess water out of the inside of the meter.
2. Dab the exposed surfaces dry with an absorbent cloth
or tissue. Avoid pushing any water into the Calibration
Control or switches.
3. Air dry the meter in a warm area with the bottom cover
off. Allow several hours for thorough drying.
If the water entered through a leak in the case or cell, or
if the instrument shows erratic readings or other unusual
behavior, return it to the Myron L Company for servicing.
MAINTENANCE
BATTERY CHECK
Models EP and EP-10 have a battery indicator glow light
visible through the small hole on the lower right-hand
corner of the meter face plate. If this light fails to glow
when the black button is pressed, replace the battery.
BATTERY REPLACEMENT
To replace the battery detach the battery connector.
Pull on the plastic strap to remove the battery. Replace
with fresh zinc carbon or alkaline 9 volt battery. Reinsert
the plastic strap to secure battery.
CELL CUP
Self-conditioning of the built-in electrodes occurs each
time the button is pressed with a sample in the cell cup.
WARRANTY/SERVICE
Myron L EP and EP10 Meters have a limited two year warranty. If
your instrument fails to operate properly, check the battery and
calibration. If it still fails to function properly, return it prepaid to the
Myron L Company.
Faulty instruments may be returned to us without prior permission.
METERS WITHIN TWO YEAR WARRANTY PERIOD:
Failures due to materials or workmanship will be repaired or
replaced (our option) without charge if returned freight prepaid. If
failure is deemed by the factory to have been caused by abuse or
tampering, the following procedure will apply.
INSTRUMENTS/CONTROLS OUT OF WARRANTY:
Diagnosis will be made and repairs completed providing the repair
charges are $90.00 or less.
NOTE: Actual repair charges may be less than this amount.
We will diagnose (but not repair) a returned meter and fax an
estimate of charges if ANY of the following apply:
1. Repair charges will be more than $90.00.
2. You specically request an estimate of required repairs and
charges.
3. The cost of required repairs exceeds one-half the list price of a new
instrument.
4. The instrument is over ten years old. Because of component
changes and improvements, such instruments can no longer be
repaired.
NOTE: Unrepaired meters are discarded unless you want them
returned to you. If so, there is currently a $35.00 charge per
unrepaired instrument to cover diagnosis and handling.
This warranty is limited to the repair or replacement of the Myron L
EP or EP10 Meter only. The Myron L Company assumes no other
responsibility or liability.
STANDARD SOLUTIONS
Your EP Meter has been factory calibrated with the
appropriate NIST traceable Standard Solutions. All Myron L
Company Conductivity Standard Solutions are traceable to
the National Institute of Standards and Technology and are
within 1.0% of Potassium Chloride reference solutions.
The concentrations of the reference solutions are
calculated from data in the International Critical Tables,
Vol. 6.

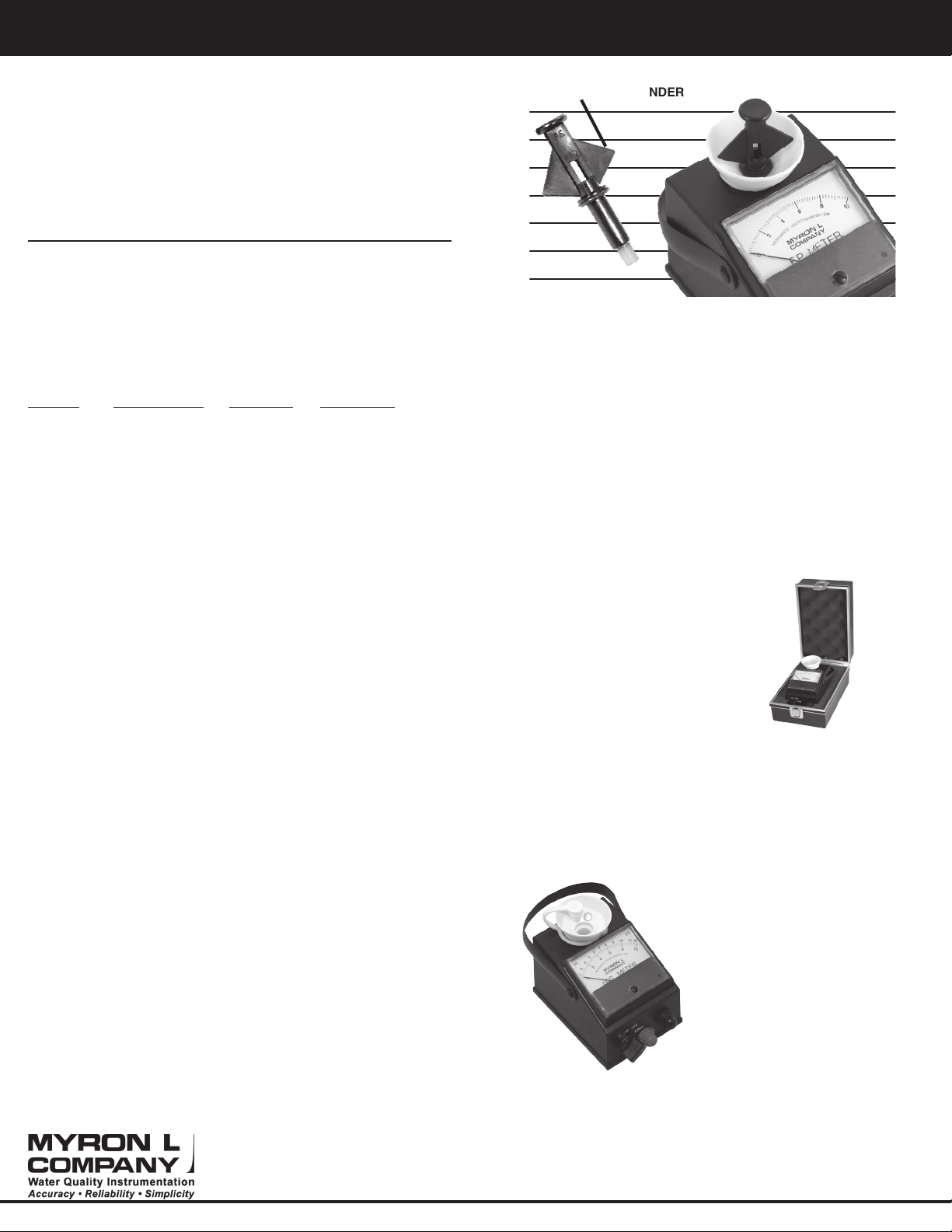

RE-10 RANGE EXTENDER
ACCESSORIES CONTINUED
RECOMMENDED STANDARD SOLUTIONS
MODEL/RANGE SOLUTION NUMBER
EP
x .1 None available
x 1 None available
x 10 442-30
x 100 442-300
x 1000 442-3000
with RE-10 442-30,000
EP-10
x 1 None available
x 10 KCl-70
x 100 KCl-700
x 1000 KCl-7000
with RE-10 KCl-70,000
STANDARD SOLUTION EQUIVALENT VALUES
Solution Micromhos
Number Microsiemens PPM/NaCl PPM/442™*
442-30 46.7 21.8 30
442-300 445 214 300
442-3000 3900 2027 3000
442-30,000 30,100 18,235 30,000
KCl-70 70 32.8 45
KCl-700 700 340 478
KCl-7000 7000 3740 5687
KCl-70,000 70,000 47,999 84,983
* Myron L Company proprietary Natural Water Standard
RANGE EXTENDER
The RE-10 Range Extender is a useful accessory for
testing high conductivity solutions beyond the normal
range of your EP meter. Inserting the RE-10 into a samplelled cell cup increases the maximum range ten times.
Use the Range Extender whenever the reading is off the
scale.
USING THE RE-10
1. Fill the cell cup three times to rinse it, but each time
insert the Range Extender to rinse it also.
2. Fill the cell cup with your sample. Push the Range
Extender into the cell cup, seating the O-ring seal.
3. Use and read the meter in the normal manner. Multiply
the reading by 10.
4. For best accuracy, repeat the complete test with a fresh
sample.
5. When you’re done testing, remove the Range Extender.
Thoroughly rinse the cell cup and Extender with clean
water (preferably distilled or deionized) to eliminate
dried salts build-up. This is extremely important when
the instrument will be used to test high purity water.
CALIBRATING THE RE-10
1. Calibrate your meter (without RE-10) using Standard
Solution number 442-3000 (EP) or KCL-7000 (EP10).
2. Fill the cell cup with 442-30,000 high conductivity
Standard Solution.
3. Insert RE-10 and press the button. Multiply the reading
by 10 and compare it with the value on the Standard
Solution label. It they are not the same the RE-10 must
be recalibrated.
NOTE: DO NOT adjust the Calibration Control in your
meter.
4. Adjust the white insert of the Extender as follows:
If the reading is too high — push or tap inward.
If the reading is too low — twist or pull outward with
pliers.
NOTE: Each Range Extender is calibrated to a particular
meter. It should be recalibrated if it is to be used with
another Myron L meter.
PORTA PAK
Carrying Case for use with all
Myron L portable meters, is foamlined and molded of sturdy ABS
plastic.
ORDERING
To order accessories or instruments contact your
nearest stocking distributor, or the Myron L Company.
IF YOU ALSO TEST pH
Our reliable Model EP11/pH pDS meter may be ideal for
your application.
• Same four conductivity
ranges as EP10 plus
2-12 pH
• pH sensor built-in for
maximum protection,
but is eld replaceable
• Automatic temperature
compensation
2450 Impala Drive
Carlsbad, CA 92010-7226
TELEPHONE: +1-760-438-2021
FAX: +1-760-931-9189
www.myronl.com
Specications subject to change without noticePrinted in the U.S.A.
© Myron L Company 2008
EPOM WEB 05-08
Loading...
