© 2014 myPhone. All rights reserved. myPhone Iron ENG

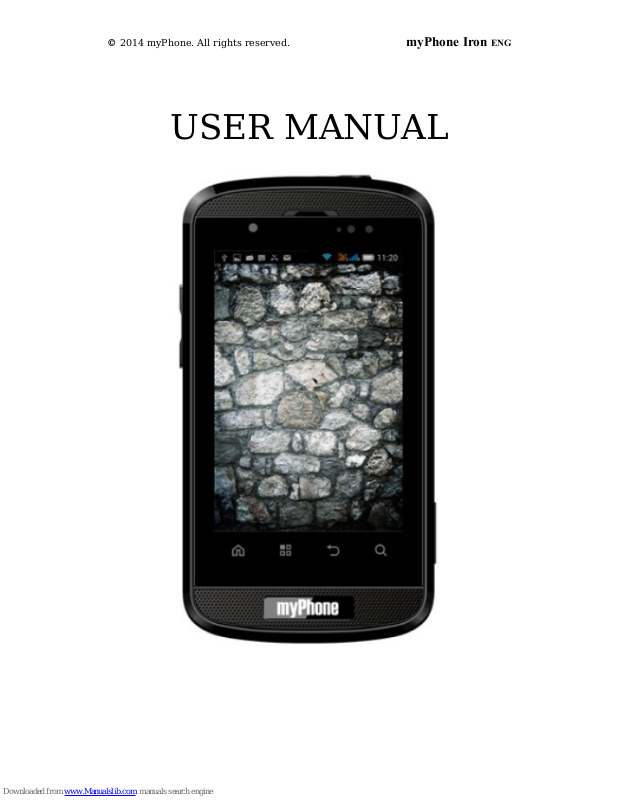

USER MANUAL
Page 2
Tech specification:
• RAM Memory: 1GB
• Dual Core Cortex A9 1.3GHz processor
• 3,5” capacitive touch screen with 320 x 480 px resolution
• 4GB internal memory
• 1800mAh battery
• Frontal camera resolution: 0.3 Mpx
• Rear camera resolution: 2.0 Mpx
• input and output charger parameters:
- input: 100-240V AC, 50/60Hz, 200mA
- output: 5V DC, 1000mA
• Netto weight: 157g, brutto weight 206g
SIM card inserting
myPhone CUBE is a mobile phone using
Dual SIM technology. Dual SIM allows you to use two mobile
networks at the same time. To insert the SIM card correctly follow
the instructions:
• Turn off the phone, remove the back cover (unscrew both bolts
located on back cover) and pull out the battery.
• Insert the SIM card into the slot following the pictures next to
the socket.
MICRO SIM ADAPTERS
Do not install hollow (with no card) micro-SIM card adapter in your
smartphone. This will cause a jam. Attempt to draw jammed adapter
back from the slot can cause mechanical damage of the phone. If
SIM card adapter deadlocks in the socket, you should contact an
authorized myPhone service!
Memory card inserting
Use only memory cards compatybile and approved by myPhone.
Incompatible memory card may damage itself and the device and
remove stored data. Incompatibility of memory card can be caused
by incorrect card format (micro SD format is required) or
unsupported card size (over 32GB). To insert the memory card
Page 3
correctly follow the directions:
• Turn off the phone and take off the back cover (unscrew both
bolts located on back cover).
• The memory card slot is located above the SIM slot on the
right. Following the drawing insert the memory card into the
slot.
Battery inserting
To insert the battery:
• Turn the phone back cover up.
• Take off the back cover (unscrew both bolts located on back
cover).
• Insert the battery (pay attention to the correct orientation of the
battery contacts and phone contacts – these should be
adjacent to each other).
• Replace the back cover and tighten both screws.
Battery charging
The battery should be charged prior to the first turning on the
device. Charge the battery with the kit charger. The device has a
battery capacity of 1800mAh. In case of any problems with the
battery - the device must be provided to myPhone service center.
Use only chargers and cables approved by myPhone. Using
unapproved chargers or cables could cause an explosion or
damage the battery in other way.
Page 4
Phone design
Page 5
The SIM card must be inserted in such a manner as shown
in the figures above and below the SIM socket.
Number Symbol Function
1 Touch screen 3,5"
2 Digital camera lens 0,3 Mpx
3 - Proximity and light sensor
4 Internal speaker
5 Microphone
6 Home button
7 Menu button
8 Back button
9 Search button
10 - On/off / keypad lock button
11 - Volume button
12 Multifunctional micro-B USB slot
13 Headphones slot mini jack 3.5mm
14
Digital camera lens 2,0 Mpx
15 LED light
16 External speaker
Page 6
Turning on/off the phone
To turn on the phone press and hold (for about 3 seconds)the
keypad lock key. To turn the phone off press and hold (for
about 3 seconds) the keypad lock key and select: [Power off].
Indicator icons
Icon Description
Battery status
Active connection to a Wi-Fi network
New e-mail
New SMS
Network signal strength
Active 3G network
Active 2G network
Missed call
Active call
Held call
The device is connected to a computer
Active Bluetooth mode
Active alarm
Flying mode
Speakerphone
Sound profile set to vibrations
Declaration of conformity with EU Directives
Page 7
myPhone Sp. z o.o. declares that this product is
compatible with the essential requirements and other
important recommendations of the European Directive
1999/5/EC – and all other EU directives.
Page 8
Attention: Some of the alerts in your phone may appear in
English.
