myPhone Fun 8 User Guide

User manual

myPhone FUN 8

Lot number: 201901

We create for you.

Thank you for choosing myPhone device. This product has been designed especially for you. We are doing everything to make its use pleasurable and comfortable. We made sure that elegance, functionality and convenience of use were combined with an affordable price. For the sake of your safety, please read this manual carefully.

Manufacturer

mPTech Ltd.

Nowogrodzka 31 street

00-511 Warsaw

Poland

website: www.myphone-mobile.com

Manufactured in China

User manual

The actual product, accompanying accessories and some of its features may differ from the presented in this manual images and descriptions. The latest manual or its more detailed version is available on the product website:

www.myphone.pl/qr/myphone-fun-8

To open this page, simply scan this QR Code.

1. Table of contents

1. Table of contents ......................... 2

2. Safety ............................................. 5

3. The use of the manual ............................................................................ 6

4. Important information ............................................................................ 6

5. Technical Specification ........................................................................... 6

5.1 Technical data ............................................................................................. 7

5.2 Package content ......................................................................................... 8

6. Appearance of the phone ...................................................................... 9

7. Before the first start ............................................................................. 11

7.1 Mounting the SIM card. ......................................................................... 11

7.2 Installation of the memory card ........................................................... 11

7.3 Inserting, removing and recharging the battery ............................... 11

8. Buttons ..................................................................................................... 12

9. Using the touch screen ......................................................................... 12

9.1. Touch ........................................................................................................ 13

9.2 Swipe .......................................................................................................... 13

9.3 Triple click ................................................................................................. 13

9.4 Hold and swipe ....................................................................................... 13

9.5 Slide in and out ........................................................................................ 13

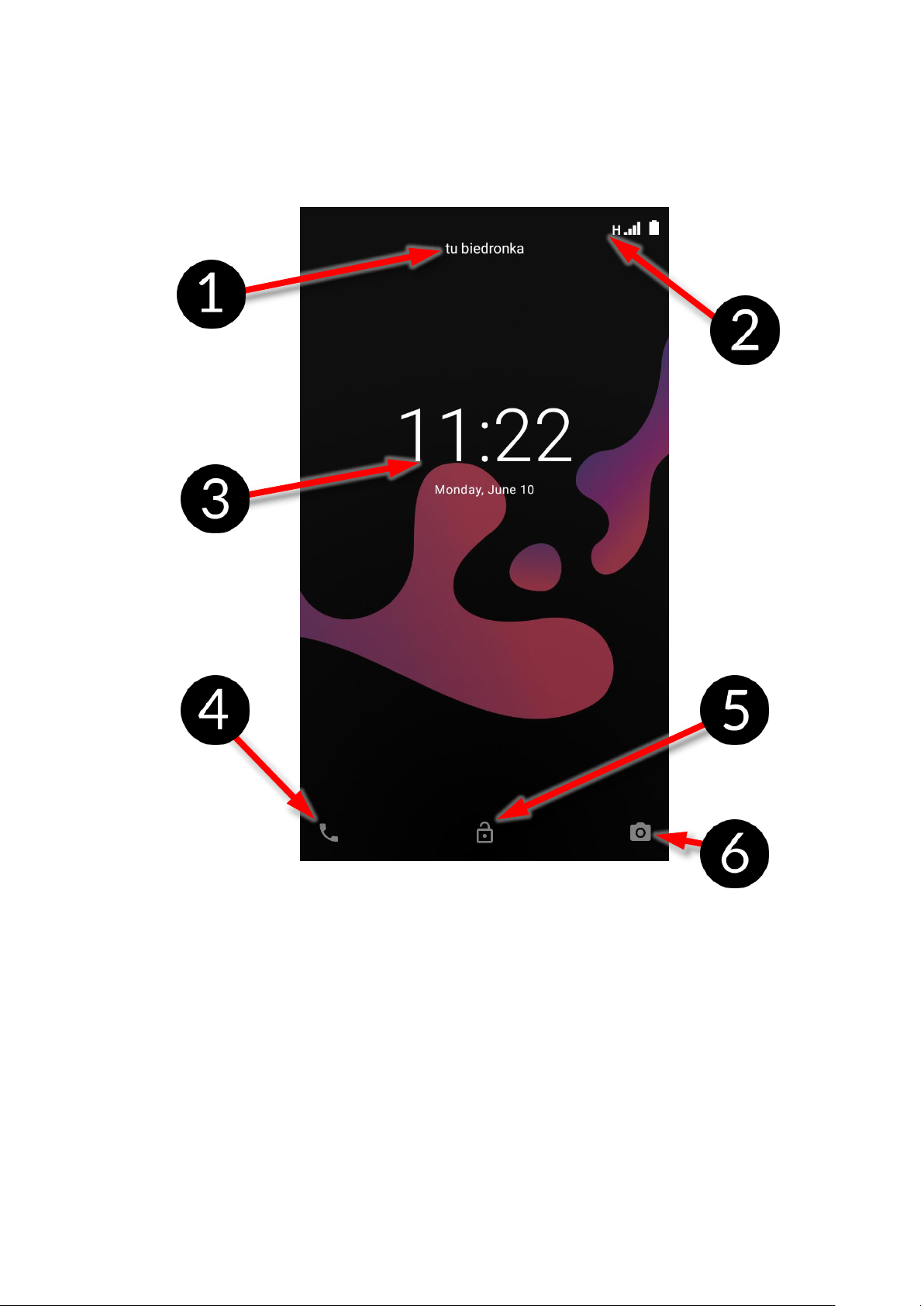

9.6 Screen lock ................................................................................................ 14

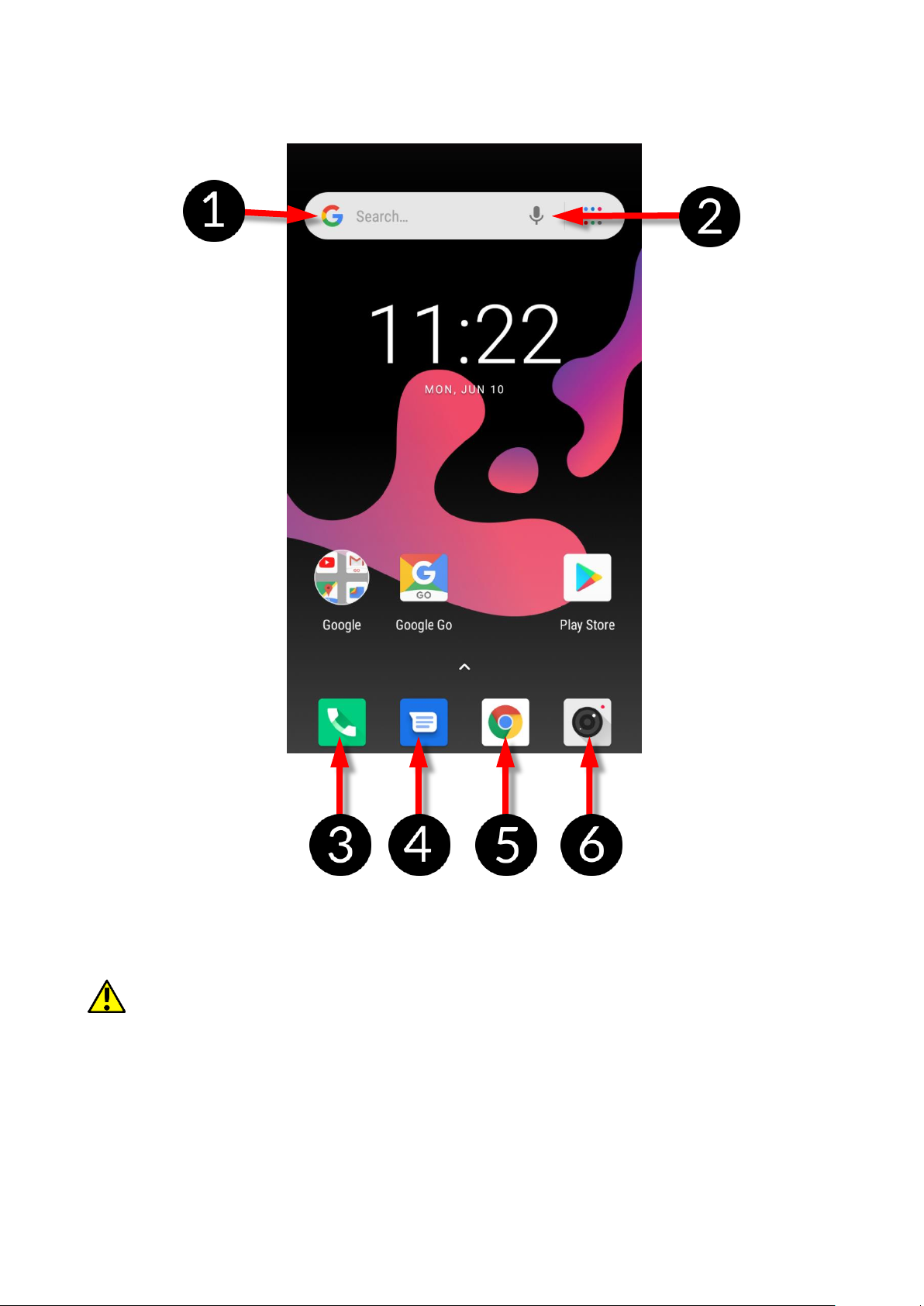

9.7 Device desktop screen ........................................................................... 15

9.8 Indicators icons ........................................................................................ 16

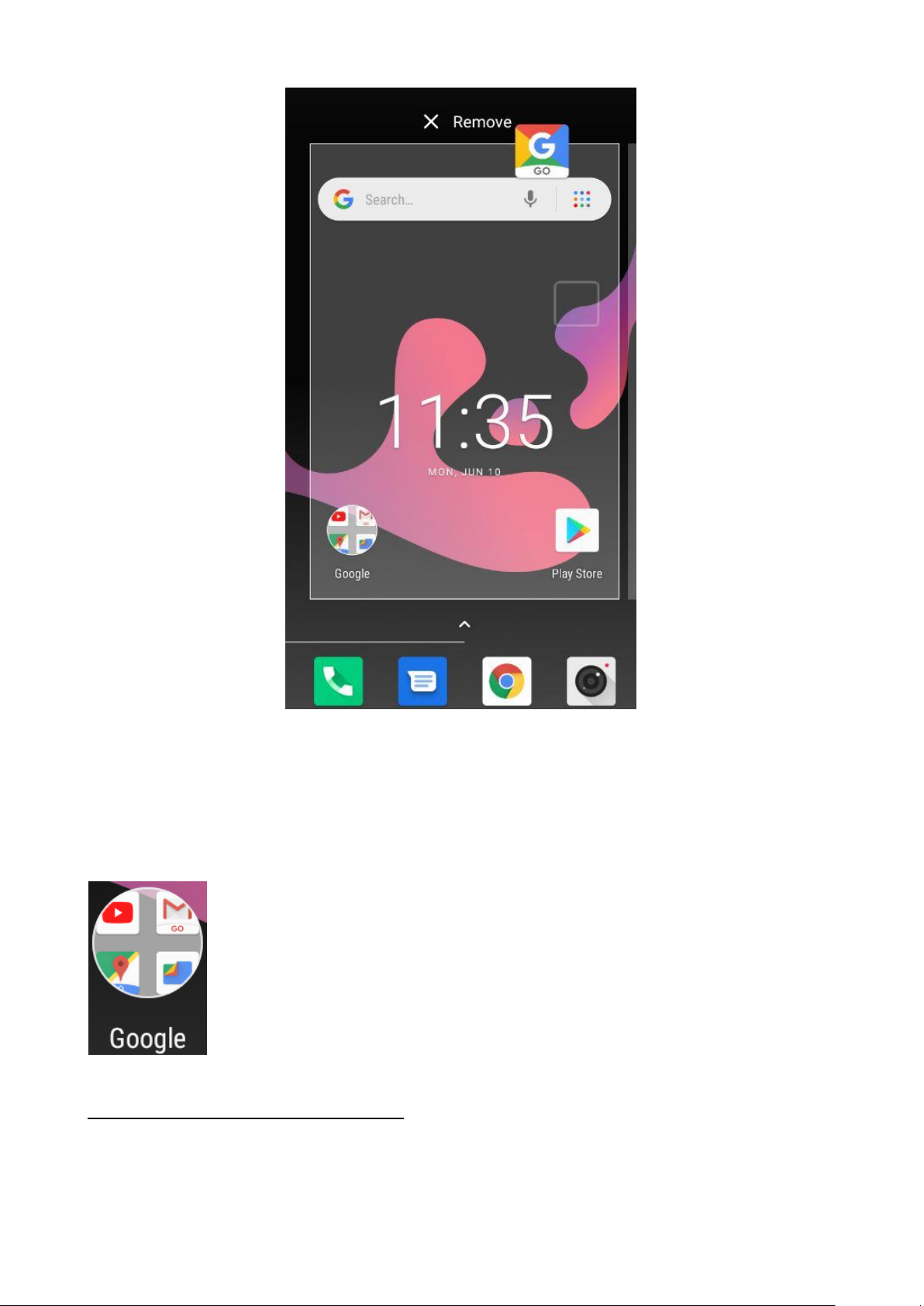

9.9 Removing elements from desktop screen ......................................... 16

9.10 Creating folders ..................................................................................... 17

10. Computer connection ......................................................................... 17

11. Text input .............................................................................................. 18

11.1 Text input - the virtual keyboard. ..................................................... 18

11.2 Copy and paste the text ...................................................................... 19

12. Applications .......................................................................................... 19

12.1 Application download .......................................................................... 20

12.2 Launching and disabling applications. .............................................. 20

12.3 Uninstall applications ........................................................................... 20

12.4 Managing applications ......................................................................... 21

13. Settings .................................................................................................. 21

13.1 Network and internet .......................................................................... 21

Wi-Fi ....................................................................................................................... 21

Mobile network .................................................................................................... 21

Data Usage ............................................................................................................ 21

Hotspot and tethering ......................................................................................... 21

SIM cards ............................................................................................................... 21

VPN ......................................................................................................................... 22

Aeroplane mode ................................................................................................... 22

13.2 Connected devices ............................................................................... 22

13.3 Applications and notifications ........................................................... 22

13.4 Battery ..................................................................................................... 22

13.5 Display ..................................................................................................... 22

13.6 Sheduled on/off .................................................................................... 22

13.7 Profiles .................................................................................................... 22

13.8 Internal memory .................................................................................... 23

13.9 Security and location ............................................................................ 23

13.10 Users and accounts ............................................................................ 23

13.11 Accessibility ......................................................................................... 23

13.12 Google ................................................................................................... 24

13.13 System ................................................................................................... 24

14. Phonebook ............................................................................................ 24

14.1. Adding contacts .................................................................................... 24

14.2 Editing contacts ..................................................................................... 25

14.3 Deleting contacts .................................................................................. 25

14.4 Contacts import/export. ..................................................................... 25

15. Communication .................................................................................... 25

15.1 Making calls ............................................................................................ 25

15.2 SMS - Messages .................................................................................... 26

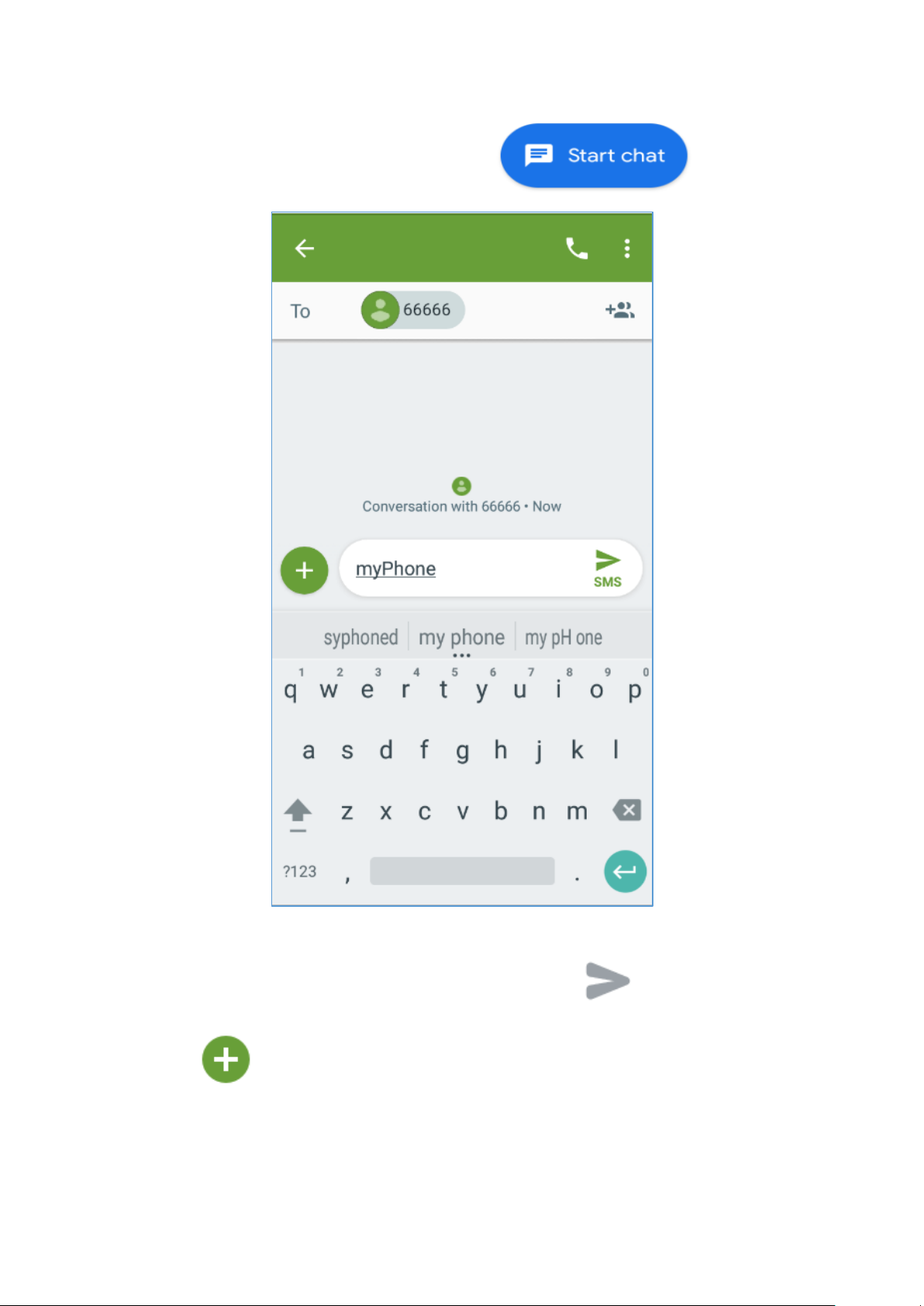

Generating message ............................................................................................ 26

16. Multimedia ............................................................................................ 28

16.1 Camera .................................................................................................... 28

16.2 Photos ..................................................................................................... 29

16.3 FM Radio ................................................................................................. 30

17. Bluetooth .............................................................................................. 31

17.1 Sending files ........................................................................................... 31

17.2 Receiving files ........................................................................................ 31

17.3 Connection a bluetooth headset ....................................................... 31

18. Internet .................................................................................................. 32

18.1 Wi-Fi ........................................................................................................ 32

18.2 Connecting with 3G/LTE (4G) network ........................................... 32

19. Adding APN access points ................................................................ 33

20. Location ................................................................................................. 34

21. Smartphone software update by OTA ........................................... 35

22. Safety remarks ..................................................................................... 35

22.1 Troubleshooting .................................................................................... 35

22.2 Protection of memory card data ....................................................... 36

22.3 Protection of personal data and important information .............. 36

22.4 Correct battery use remarks. .............................................................. 37

23. Maintenance of the device................................................................ 37

24. Surroundings security......................................................................... 38

25. The use of the manual ........................................................................ 38

25.1 Consents ................................................................................................. 38

25.2 Appearance ............................................................................................ 38

25.3 Trademarks ............................................................................................. 38

26. Correct disposal of used equipment ............................................... 39

27. Correct disposal of used battery ...................................................... 39

28. Specific absorption rate (SAR) .......................................................... 39

29. Declaration of conformity with European Union Directives ..... 40

2. Safety

Read these guidelines carefully. Not following them may be dangerous or illegal.

—WI-FI (WLAN)—

In the European Union Member States, a WLAN network may be used indoors without any restrictions. Please observe the national and local regulations at the place of use.

—CHILDREN AND PHYSICALLY OR MENTALLY DISABLED PEOPLE—

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety. This device is not a toy. Memory card and SIM card are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

—WATER AND OTHER LIQUIDS—

Protect the device from water and other liquids. It can influence work and the life span of electronic components. Avoid using the device in environments with high humidity like kitchens, bathrooms or during rainy weather. Particles of water can cause the liquefaction of moisture in the device, and this may have a negative impact on the work of electronic components.

—QUALIFIED SERVICE—

Only qualified personnel or an authorized service center may install or repair this product. Repairing by an unauthorized or unqualified service may cause device damage and warranty loss.

—BATTERY AND ACCESSORIES—

Avoid exposing the battery to very high/low temperatures (below 0°C/32°F

and over 40°C/104°F). Extreme temperatures may influence capacity and

battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery should be used according to its purpose. Do not destroy, impair or throw the battery into flames - it might be dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Excessive charging the battery can cause damage. Therefore, a single battery charge should not last longer than 1 day. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire damage, it should not be

repaired but replaced with a new one. Use the original manufacturer’s

accessories only.

—HEARING—

To avoid hearing damage, do not place the device directly on your ear when you have set a high volume of music or during a handsfree call.

—EYESIGHT—

To avoid eyesight damage do not look closely onto the flash light during its work. A strong bean of light may cause permanent eye damage!

3. The use of the manual

The device and screen shots contained in this manual may differ from the actual product. Accessories attached to the smartphone set may differ from the illustrations included in manual. Options described in the manual are found in Android system. Those descriptions may differ, depending on the version of the operating system and applications installed on the device.

4. Important information

The majority of applications which can be installed on the device are mobile apps. Modus operandi of such applications may be different from their counterparts installed on a personal computer. Apps installed on the device may vary depending on country, region, and hardware specifications. The manufacturer is not responsible for any problems caused by third party software, as well as by editing the registry settings and modifying the operating system software. Attempts to modify the operating system can cause malfunctions and problems with applications. It may cause a loss of warranty.

5. Technical Specification

Touchscreen 5” and 720x1280 px resolution

The modern display provides deep colors and a wide viewing angle, allowing you to appreciate movies, photos and games in real and juicy colors.

Dual SIM

The technology applied in the smartphone enables incredibly comfortable use of Dual SIM function - using 2 SIM cards simultaneously.

Procesor Quad Core ARM Cortex-A7

Super efficient quad-core processor for maximum efficiency of the phone. Demanding games, websites, emails - multitasking makes everything runs smoothly.

Wi-Fi

Smartphone myPhone FUN 8 is equipped with Wi-Fi technology, providing data transmission at speeds compatible with 802.11 a/b/g/n, so you can wirelessly connect to the the omnipresent hot spots and home network. Receive and send data, programs, and files to the network and other devices without restrictions.

LTE network

Smartphone myPhone FUN 8 enables the use the fourth generation LTE network, which allows you to make high-quality voice calls, the use of highspeed Internet, video conferencing and more.

Rear camera (main) 5 Mpx / Front (selfie) camera 2 Mpx

The front camera allows easy video calls and taking a high-quality photos (selfies). The rear camera allows taking pictures and making high resolution films wherever you are.

MicroSD card reader - up to 32 GB.

MyPhone FUN 8 smartphone does not have problems with memory capacity. Use microSD cards and do not worry about where you save the music, movies and photos.

Android System

Android operating system - incredible opportunities are within your hand - all applications are available at any time; the latest Gmail™ email client or browser, it is only the beginning of what you can find in this device - the rest you will find in the online Google Play.

Google Play

All manufacturer's smartphones can use the applications purchased in Google Play. To do this you should register a individual Google™ account providing email and password. After registration and acceptance of the rules you can use paid and free applications listed in the Google Play.

5.1 Technical data

Display

5" IPS, 720 x 1280 px

Processor (CPU / GPU)

Quad Core ARM Cortex-A7

Mali 820MP1

Rear Camera (main)

5 Mpx with LED lamp

Front Camera (selfie)

2 Mpx

RAM / Internal memory

1 GB / 16 GB

The card reader

microSD (up to 32 GB)

Operating system

Android 8.1 Oreo (GO edition)

Dual SIM open

2 x nanoSIM

Connectors

microUSB, minijack 3.5 mm

Connectivity

Wi-Fi 802.11 b/g/n 2.4 GHz

Bluetooth 4.0, GPS with A-GPS

GSM

850/900/1800/1900 MHz

UMTS (3G)

900/2100 MHz

LTE (4G)

800/1800/2100/2600 MHz

Battery

Li-po 2000 mAh

Input/output parameters chargers

100-240 V~, 50/60 Hz, 200 mA

Output parameters chargers

5V 1A

Dimensions

5.6 x 2.8 x 0.3 inches

Net weight

120g

5.2 Package content

• MyPhone FUN 8 Smartphone

• Charger (adapter + USB cable)

• 2000 mAh capacity battery

• Manual

If any of the above items is missing or damaged, please contact your dealer.

We advise to keep the container in case of any complaints. Keep the container out of reach of children. Dispose of container in accordance with local regulations when it is no longer needed.

6. Appearance of the phone

Function

1 Headphone port minijack 3.5 mm 2 Multifunctional microUSB port

3 2 Mpx digital camera lens (selfie)

4 Internal speaker

5 Brightness and proximity sensors

6 5 Mpx digital camera lens (main)

7 Camera flash/flashlight

8 Volume up / down button

9 Blockade on/off button

10 5" touch screen

11 External speaker

12 The spot of opening the cover

13 MENU button

14 HOME button

15 BACK button

16 Microphone

17 microSD card(s) slot

18 SIM cards slot

7. Before the first start

7.1 Mounting the SIM card.

The device is a cellular phone made in Dual SIM technology (2 SIM cards handling) allowing the use of two mobile networks simultaneously. To insert the SIM card(s) correctly, turn off the device, open it with your fingernail and gently remove the case. Insert the SIM card(s) into the slot(s) (18) as shown next to the slots. Then carefully replace the cover.

7.2 Installation of the memory card

To insert the memory card correctly, turn off the device, open it with your fingernail and gently remove the case. Insert the microSD card into the slot in accordance to the picture (17) placed next to the slot. Then carefully replace the cover.

Use only memory cards recommended by the manufacturer. Pay attention to

the selection of the proper format-the microSD card, capacity and type/class. Incompatible memory cards may damage the device and cause the stored data to be destroyed as well. Incompatibility of memory card can be caused, among others, by an incorrect card format (required format microSD) or an unsupported card capacity - above the value recommended by the manufacturer.

7.3 Inserting, removing and recharging the battery

Use only chargers and wires recommended by the manufacturer. Using incompatible chargers or cables can cause explosion of the battery or damage

to your device.

Incorrect charger connection (USB cable) can cause damage to the AC adapter or the device. The damages resulting from improper handling

are not covered by the warranty.

The device can heat up during charging. It is a regular occurrence and should not affect the stability or performance of the device. If the phone does not charge properly deliver it (with the charger) to a service center of the manufacturer.

Insert the battery and charge the phone before the first use. To insert the battery, turn off the device, open it with your fingernail and gently remove the case. Insert the battery - so that its three gold contacts touch the triple connector in the smartphone bay. Put on and gently press down the cover until you hear the click of the latches. To remove the battery, perform described actions in reverse order. The battery should be charged by the attached charger or another charger, intended for this type of equipment. If in doubt contact the seller or manufacturer service. When the battery is near a complete discharge, the notification is displayed on a low battery charge. To continue use of the device

charge the battery. If the battery is completely discharged the device can not be switched on even when the loading process is ongoing. Before the device can be turned on again, the battery has to be charged for at least a few minutes. In case of any problems with the battery or if in need of a replacement, the device should be delivered to the manufacturer's service center. To charge the battery one should:

1. Plug the microUSB plug of the cable from the set into the socket on the

device.

2. Plug the USB plug of the cable from the set into the charger and this plug

into the mains socket. When charging has started, a lightning symbol will appear in the top right corner of the screen on the battery icon, and when the device is turned off, an animation showing the battery charge level should appear.

3. When the charge reaches 100% it means that the battery is fully charged.

Finish the charging.

4. Disconnect the charger from the mains socket and the cables from the

charger and the phone.

8. Buttons

• Pressing it will cause the list of open apps to appear, where you can switch

in-between or turn them off.

• A double quick press switches to the previous application.

Home

• One quick press takes you to phone desktop.

• Pressing and holding activates Google Now.

Back

• Pressing <Back> will cause exit from the application/return to the previous

screen.

Blockade on/off button

• One quick press locks/unlocks the screen.

• Pressing the button for about 2 sec. will cause:

o If the smartphone is off - the device would switch on. o If the smart phone is on - displaying menu allowing you to shutdown,

reboot, enable airplane mode.

Volume increase and decrease buttons

• Pressing during a voice call will cause an increase or decrease of the audio

connection volume.

9. Using the touch screen

The touchscreen can be controlled by the following actions:

+ 28 hidden pages

myPhone Fun 8 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
