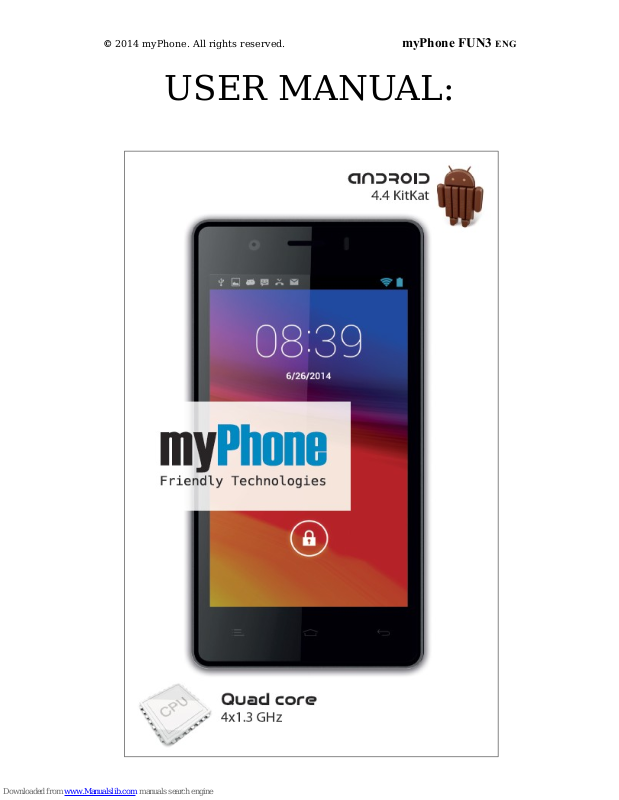

Page 1
© 2014 myPhone. All rights reserved. myPhone FUN3 ENG
USER MANUAL:
Page 2
© 2014 myPhone. All rights reserved. myPhone FUN3 ENG
SAFETY
Read these simple guidelines. Not following them may be
dangerous or illegal.
DO NOT RISK
Do not switch the telephone on when mobile phone use is
prohibited or if it may cause interference or danger.
ROAD SAFETY
Do not use the phone while driving a car.
RESTRICTED AREAS
Turn off the phone in aeroplane, as it may interfere with other
devices on the plane. Your phone can interfere with medical
equipment in hospitals and health care facilities. It should
apply to all kinds of prohibitions, regulations and warnings
provided by medical personnel.
SAFETY ON GAS STATION
Switch off your mobile phone while refuelling at a gas station.
Do not use it close to chemicals.
QUALIFIED SERVICE
Only qualified personnel may install software or repair this
product. Repairs by unqualified phone service or by an
unauthorized service centre may damage your phone and
cause a loss of your warranty.
BATTERY AND ACCESORIES
Always try to store the battery in temperatures between 15
and 25 degrees Celsius (59° and 77° F). Extreme
temperatures decrease battery’s capacity and vitality.
Avoid contact with liquids and metal objects. Such contact can
lead to total or partial damage of the battery.
Do not destroy, damage or dispose battery in a fire - this could
be dangerous and cause a fire.
Worn out or damaged battery should be stored in a special
container. Do not open the battery.
Page 3
© 2014 myPhone. All rights reserved. myPhone FUN3 ENG
Use the battery only for its intended purpose.
Overcharging can damage the battery. Therefore, it should not
be charged for more than 3 days. Unplug unused charger from
the power supply. Use only original myPhone accessories that
are available with your phone.
In case of charger`s wire damage - it should not be
to fixed. The charger must be replaced.
WI-FI (WLAN)
This device uses non-harmonized frequency of wireless
communication and is intended for use in all European
countries. In the European Union the WLAN can be used
indoors without any restriction. In France, the WLAN must not
be used outdoors.
WATERPROOF
This device is not waterproof. Protect it from moisture.
CHILDREN
Your phone is not a toy. Keep your device and its accessories
out of reach of children.
INTERFERANCE
All wireless devices may cause interference which can affect
the quality of work of any other equipment.
Page 4
© 2014 myPhone. All rights reserved. myPhone FUN3 ENG
Tech specification:
Quadcore Cortex ARM-A7 1,3 Ghz processor
RAM Memory: 1GB
8GB internal memory (3,68GB user)
4,5” 854 x 480px capacitive touchscreen LCD, 6:9 ratio
1800mAh battery
input and output charger parameters: 100-240V AC,
50/60Hz, 150mA
- output: 5V DC, 1000mA
Power the phone under standard conditions:
- 5V DC, 1000mA
Smartphone`s weight (with battery): 130g
SIM card inserting
myPhone FUN2 is a mobile phone using
Dual SIM technology. Dual SIM allows you to use two mobile
networks at the same time. To insert the SIM card correctly follow
the instructions:
Turn off the phone, remove the back cover (undermining the
slot located in the left corner of the base of the phone with
your nail) and pull out the battery.
Insert the SIM card into the slot following the pictures from
above and below the socket.
MICRO SIM ADAPTERS
Do not install hollow (with no card) micro-SIM card adapter in your
smartphone. This will cause a jam. Attempt to draw jammed adapter
back from the slot can cause mechanical damage of the phone. If
SIM card adapter deadlocks in the socket, you should contact an
authorized myPhone service!
Memory card inserting
Use only memory cards compatible and approved by myPhone.
Incompatible memory card may damage itself and the device and
remove stored data. Incompatibility of memory card can be caused
by incorrect card format (micro SD format is required) or
unsupported card size (over 32GB). To insert the memory card
Page 5
© 2014 myPhone. All rights reserved. myPhone FUN3 ENG
correctly follow the directions:
Turn off the phone and take off the back cover (undermining
the slot located in the left corner of the base of the phone with
your nail).
The memory card slot is located above the battery on the right.
Following the drawing insert the memory card into the slot.
Battery inserting
To insert the battery:
Turn the phone back cover up.
Take off the back cover (undermining the slot located in the left
corner of the base of the phone with your nail).
Insert the battery (pay attention to the correct orientation of the
battery contacts and phone contacts – these should be
adjacent to each other).
Replace the back cover.
Battery charging
The battery should be charged prior to the first turning on the
device. Charge the battery with the kit charger. The device has a
battery capacity of 1800mAh. In case of any problems with the
battery - the device must be provided to myPhone service center.
Use only chargers and cables approved by myPhone. Using
unapproved chargers or cables could cause an explosion or
damage the battery in other way.
Page 6
© 2014 myPhone. All rights reserved. myPhone FUN3 ENG
Phone overwiev:
Page 7
© 2014 myPhone. All rights reserved. myPhone FUN3 ENG
Number Symbol Function
1 Touch screen 4.5"
2 Multifunctional micro-B USB slot
3 Headphones slot mini jack 3.5mm
4 Internal speaker
5 External speaker
6 Menu Button
7 Home Button
8 Back Button
9 - Keypad lock
10 - Volume control
11 Multifunctional micro-B USB slot
11 Digital camera lens 2.0Mpx
12
LED light
13 Digital camera lens 5.0Mpx
The SIM card must be inserted in such a manner as shown
in the figures above and below the SIM socket.
Turning on/off the phone
To turn on the phone press and hold (for about 3 seconds)the
keypad lock key. To turn the phone off press and hold (for
about 3 seconds) the keypad lock key and select: [Power off].
Page 8
© 2014 myPhone. All rights reserved. myPhone FUN3 ENG
Indicator icons
Icon Description
Battery status
Active connection to a Wi-Fi network
New e-mail
New SMS
Network signal strength (1 or 2 is number of
simslot)
Active 3G network
Active 2G network
Missed call
Active call
Held call
The device is connected to a computer
Active Bluetooth mode
Active alarm
Flying mode
Headphones connected
Sound profile set to vibrations
Icon of weather widget
Active data download
Active audio player
Screenshot made
Video player in a background
Active Android keyboard
Page 9
© 2014 myPhone. All rights reserved. myPhone FUN3 ENG
Declaration of conformity with EU Directives
myPhone Sp. z o.o. declares that this product is
compatible with the essential requirements and other
important recommendations of the European Directive
1999/5/EC – and all other EU directives.
Attention: Some of the alerts in your phone may appear in
English.
