MyNetFone MNF VPBX Quick Start Manual

Your Broadband VoIP Phone Service

MNF VPBX

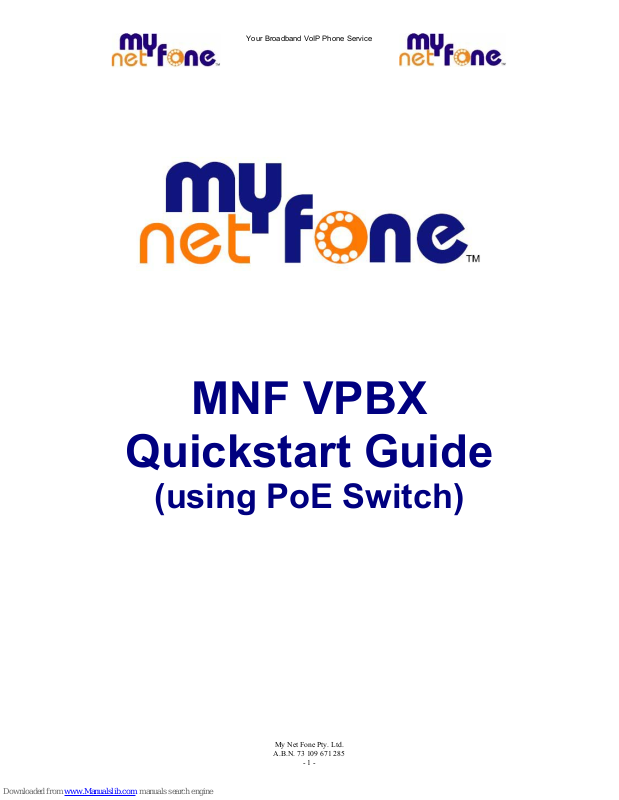

Quickstart Guide

(using PoE Switch)

My Net Fone Pty. Ltd.

A.B.N. 73 109 671 285

- 1 -

Your Broadband VoIP Phone Service

1. Setting up the PoE Switch

Upon taking delivery of the MNF Virtual PBX the first task is to connect the AC
power cord to the Power Port of the Linksys PoE Switch - SLM224P located
on rear panel using the power cable and connect the power adapter to an
electrical outlet. A Green lights up on the SYSTEM LED, indicating that the
switch is powered on. SYSTEM LED blinks the moment it powers up meaning
it is performing a self-test.

Power Port

Rear Panel of the Linksys SLM224P

G1 Port

SYSTEM LED

Front Panel of the Linksys SLM224P

The next step will be to physically connect the PoE Switch to the Internet.
Connect your Internet Ethernet cable to G1 Port.

My Net Fone Pty. Ltd.

A.B.N. 73 109 671 285

- 2 -

Your Broadband VoIP Phone Service

2. Connecting the Phone to the PoE Switch

2.1 Linksys Phone (SPA 922, 942, and 962)

1 - Find the end of the coiled phone cord that has the longer straightened end.

Plug that end into the back of the phone base (phone symbol).

2 - Plug in short straightened end of the handset cord into the jack at the
bottom of the handset (not shown).

3 - Plug the ethernet cable into the back of the base station. Plug the other
end of the Ethernet cable into your Linksys Switch (PoE Ports 1-6, 13-18).

4 - For SPA922, SPA942 and SPA962 a second ethernet port can be used to
connect a PC.

5 - The AUX RJ-11 port is reserved for Receptionist Console Sidecar of the
SPA962. It is not for use as a telephone line port.

DO NOT PLUG IN A TELEPHONE LINE CORD INTO THE AUX PORT.

5

Figure: Attaching the phone cords and network cables (steps 1 through 3)

4

3
1
