Mylex ACCELERAID 150 INSTALLATION GUIDE
AcceleRAID™
Installation Guide
AcceleRAID 150
PCI to Ultra2 SCSI
RAID Controller
P/N: 775020-01
AcceleRAID
™
Installation Guide
AcceleRAID™ 150
(
960
DAC
PCI to Ultra2 SCSI
RAID Controller
Part Number 775020-01
© Copyright 1999 Mylex Corporation.
All Rights Reserved.
All contents of this manual are copyrighted by Mylex
Corporation. The information contained herein is the
exclusive property of Mylex Corporation and shall not be
copied, transferred, photocopied, translated on paper, film,
electronic media, or computer-readable form; or otherwise
reproduced in any way, without the express written
permission of Mylex C orporation.
PRL
-1)
Greetings
Thank you for purchasing the Mylex AcceleRAID™ 150 controller. This manual
describes the installation of the Mylex AcceleRAID 150 controller. Requests for technical
information ab out this and other Mylex Corporation products should be made to your
Mylex authorized reseller or Mylex sales representative.
Please Notice
Mylex is a registered trademark, and AcceleRAID, DAC960PRL, and RAID EzAssist are
trademarks of Mylex Corporation.
Microsoft, MS-DOS and Windows are registered trademarks of the Micr osoft
Corporation. Novell is a r egis te re d t ra d emark of Novell corporati on. U n i xWare is a
registered trademark of Santa Cruz Ope rations. Other names that are trademarks may be
used herein for the purpose of identifying the products or services of their respective
owners.
Unless otherwise noted, companies, names and data used in examples herein are fictitious.
Our Policy
Although reason able efforts have been made to assure the accuracy of the inf o r m ation
contained herein, this publication could include technical inaccuracies or typographical
errors. Mylex Corporation expressly disclaims liability for any error in this information,
and for damages, w hether direct, indirec t, spe cial, exemplary, consequential or otherwi se,
that may result from such error, including but not limited to loss of profits resulting from
the use or misuse of the manual or information contained therein (even if Mylex
Corporation has been advised of the possibility of such damages). Any questions or
comments regarding this document or its contents should be addressed to Mylex
Corporation at the address shown on the cover.
The following paragraph does not apply to the United Kingdom or any country where such
provision s are inco n sistent with local l aw:
MYLEX CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
Some states do not allow disclaimer of express or implied warranties or the limitation or
exclusion of liability for indirect, special, exemplary, incidental or consequential damages
in certain transactions; therefore, this statement may not apply to you. Also, you may have
other rig hts which vary from jurisdiction to ju risdiction.
Information in this publication is subject to change without notice and does not represent a
commitment on the part of Mylex Corporation. Changes may be made periodically to the
information herein; th ese changes will be incorpora ted in new editions of the publ ic ation.
Mylex Corporatio n re serves the righ t to make i mpro v ement s and/ or ch ang es a t an y t ime in
the product(s) and/or program(s) described in this publication.
It is possible that this publication may contain reference to, or information about, Mylex
Corporation products (machines and programs), programming or services that are not
announced in your country. Such references or information must not be construed to mean
that Mylex Corporation intends to announce, provide, or make available such Mylex
products, programming, or services in your jurisdiction.
About This Manual
This installation guide covers hardware set-up and configuration procedu r es
necessary for the installation of the Mylex AcceleRAID 150 PCI to Ultra2
SCSI RAID controller.
Chapter 1 describes the controller, standard package contents, and usersupplied items necessary for installation.
Chapter 2 describes steps to be performed prior to controller installation
and the physical installation of the controller.
Chapter 3 describes controller board start-up and the RAID EzAssist
resident utilities.
Appendix A describes installation notes.
Appendix B describes hardware and environmental specifications.
Appendix C describes error messages and how to correct problems causing
errors.
Appendix D describes enclosure manag ement .
Appendix E provides regulatory information.
Conventions
Throughout the manual, the following conventions are used to describe user
interaction with the product:
prompt This style of type indicates screen display messages.
Enter Press the key labeled “Enter” (or “Delete”, etc.).
☛
Note
Supplementary information that can ha ve an effect on
system performance.
m Caution
Notification that a proscribed action has the potential
to adversely affect equipment operation, system
performance, or data integrity.
,
WARNING
Notification th at a proscribed action will
result i n equipment da mage, data los s , or p er s on al
injury .
definitely
Contents
Chapter 1
Introduction
Product Description ...........................................................................1-1
AcceleRAID 150 Controller Features .........................................1-3
Operating System Support ................................................................1-3
Standard Package Contents .............................................................1-4
Hardware ....................................................................................1-4
Software .....................................................................................1-4
User-supplied Items ..........................................................................1-5
Chapter 2
Installation
This chapter describes: .....................................................................2-1
AcceleRAID 150 with Standard PCI Bus ...........................................2-1
Before You Begin (Standard) ............................................................2-2
Standard Installation Checklist ..........................................................2-4
GET READY ..............................................................................2-4
GET SET ....................................................................................2-4
GO ..............................................................................................2-4

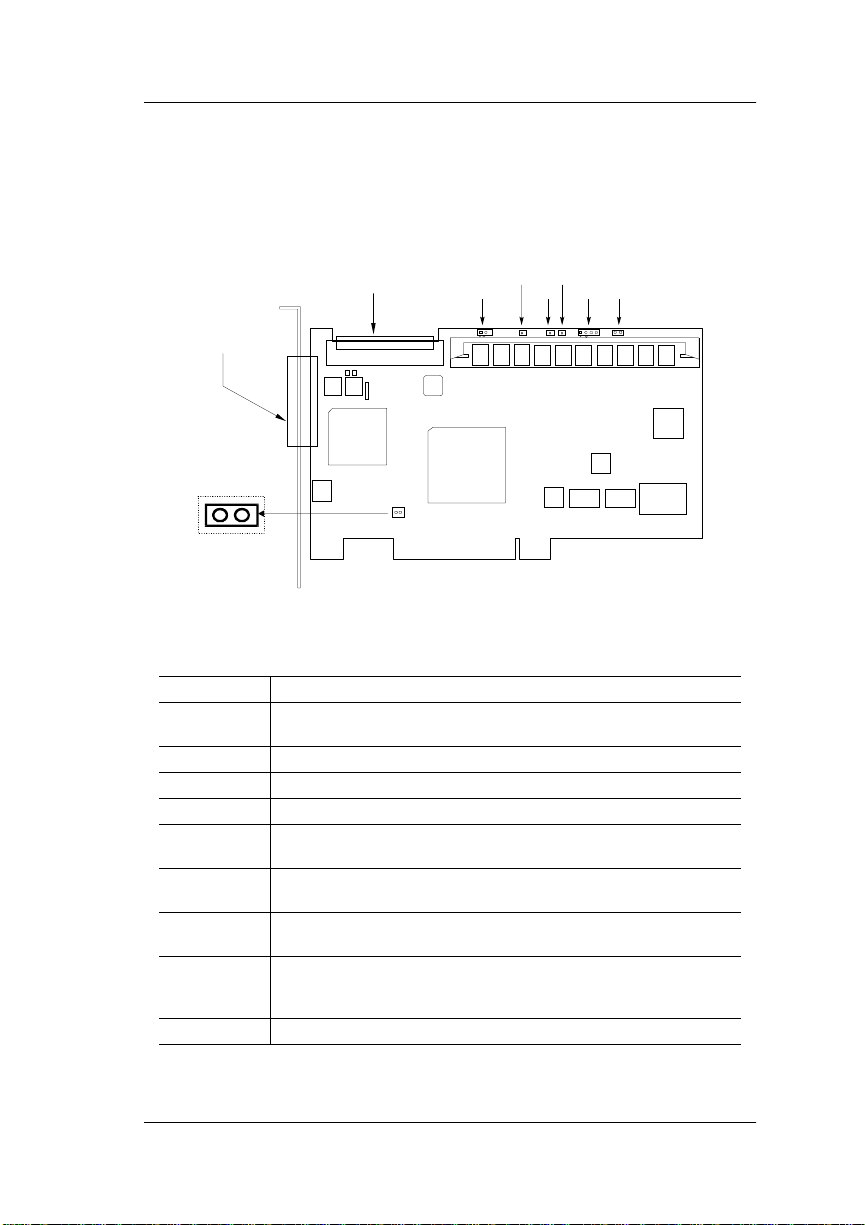

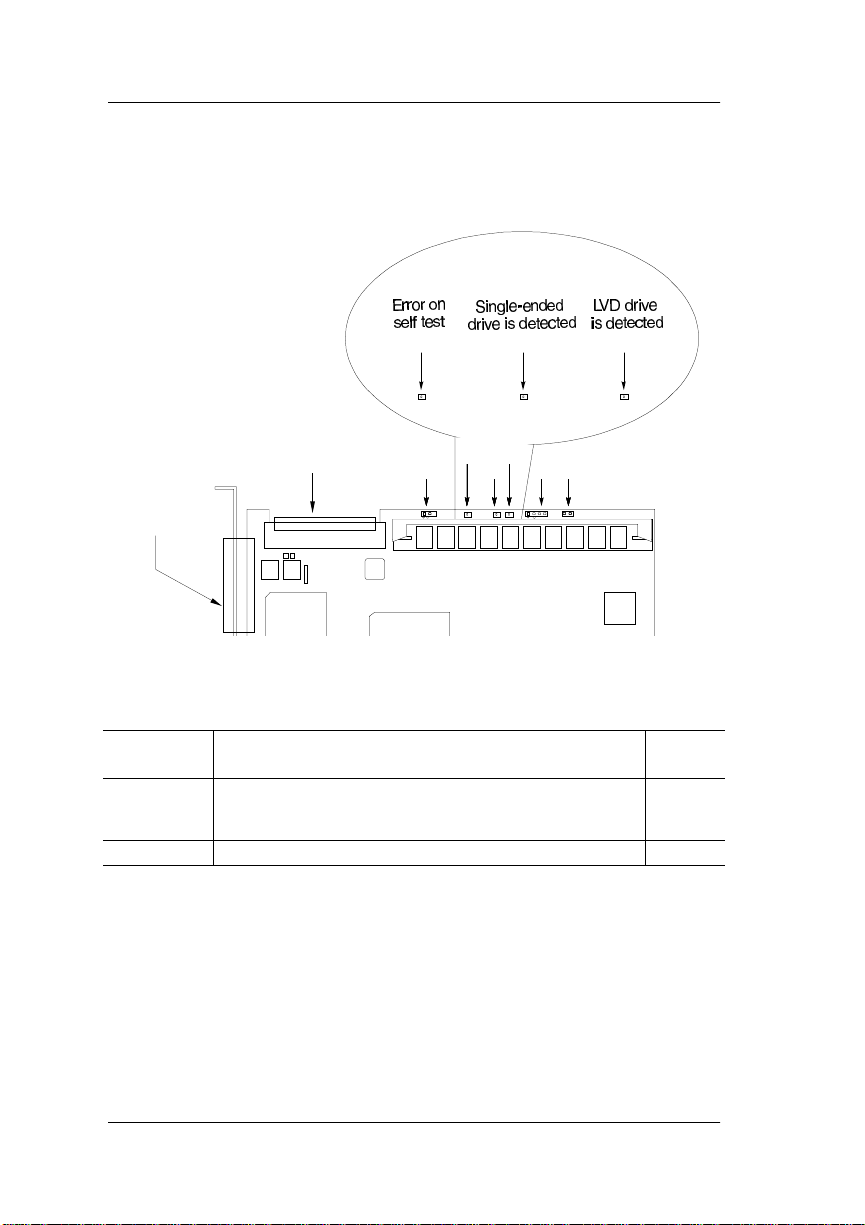

Connectors, Jumpers, and LED’s (Standard) .............................2-5

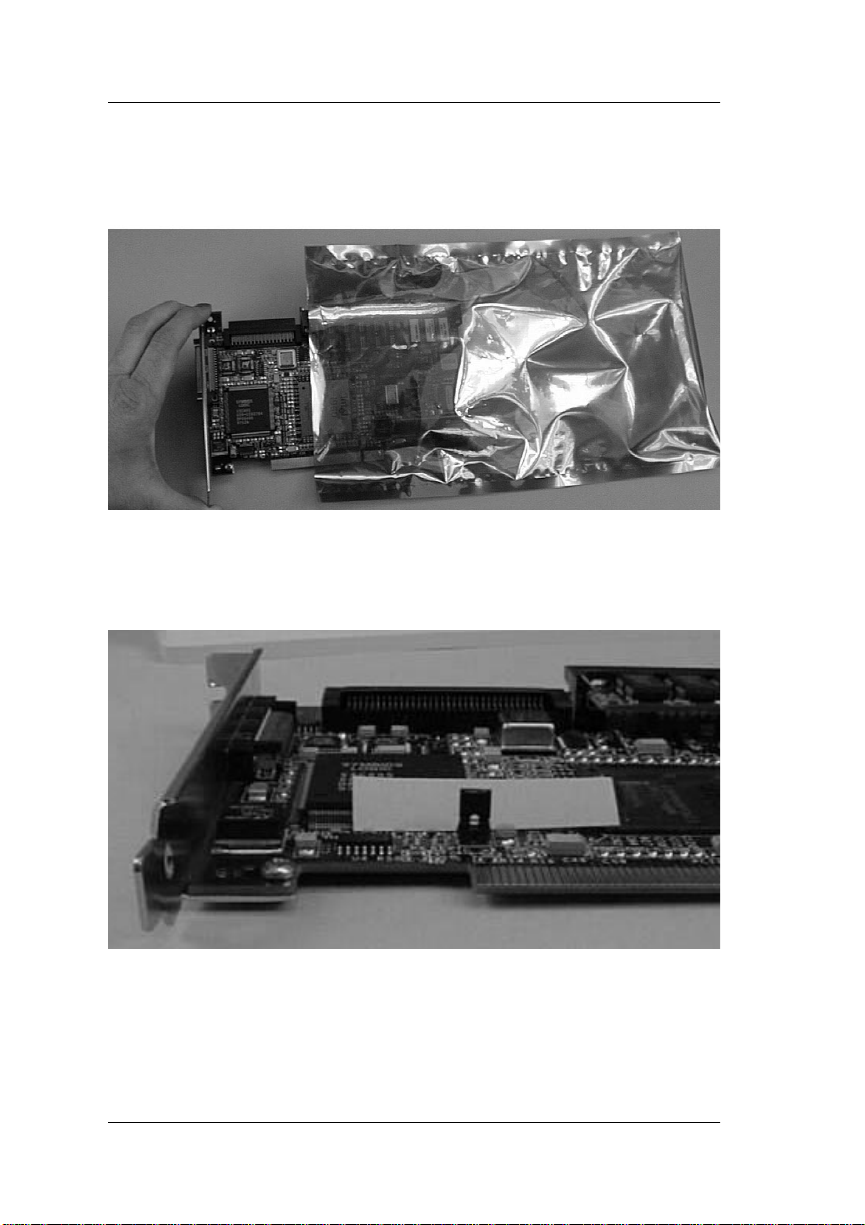

Controller Board Installation (Standard) ............................................2-6

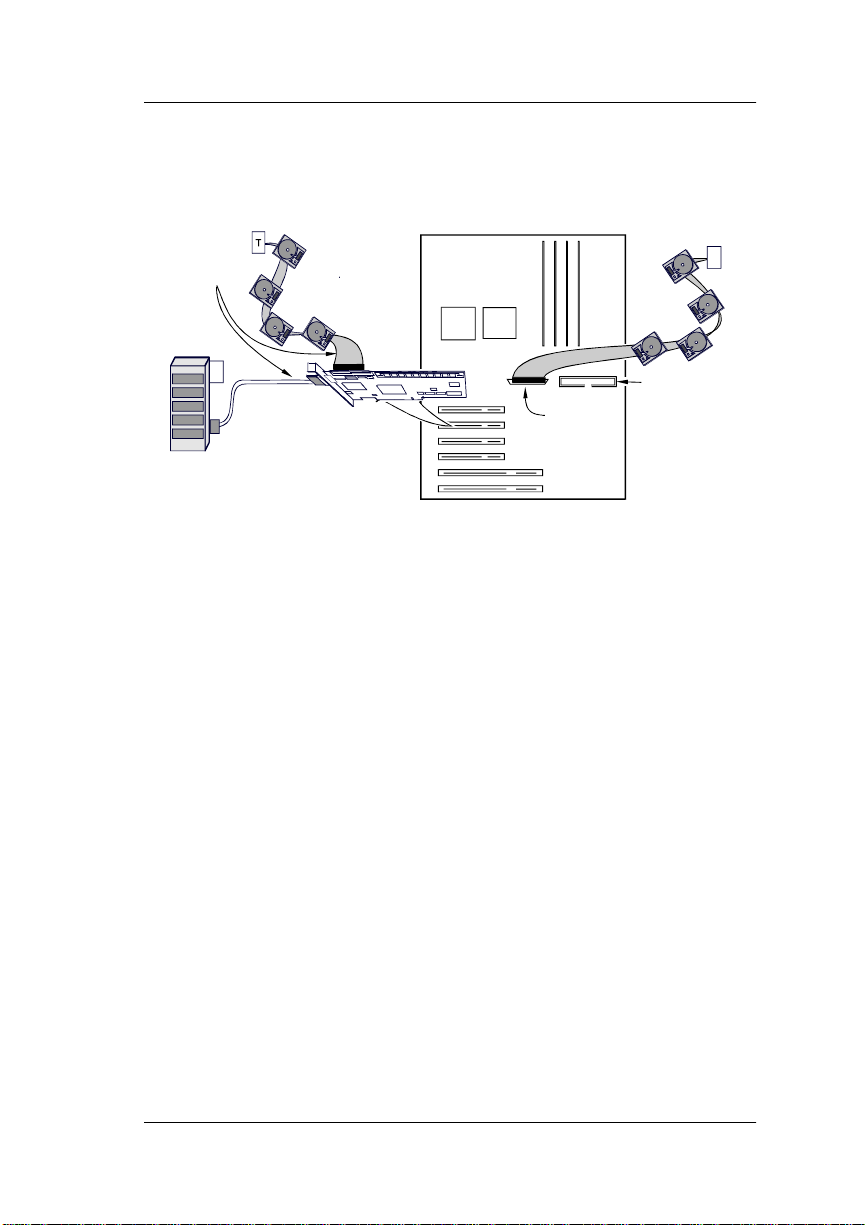

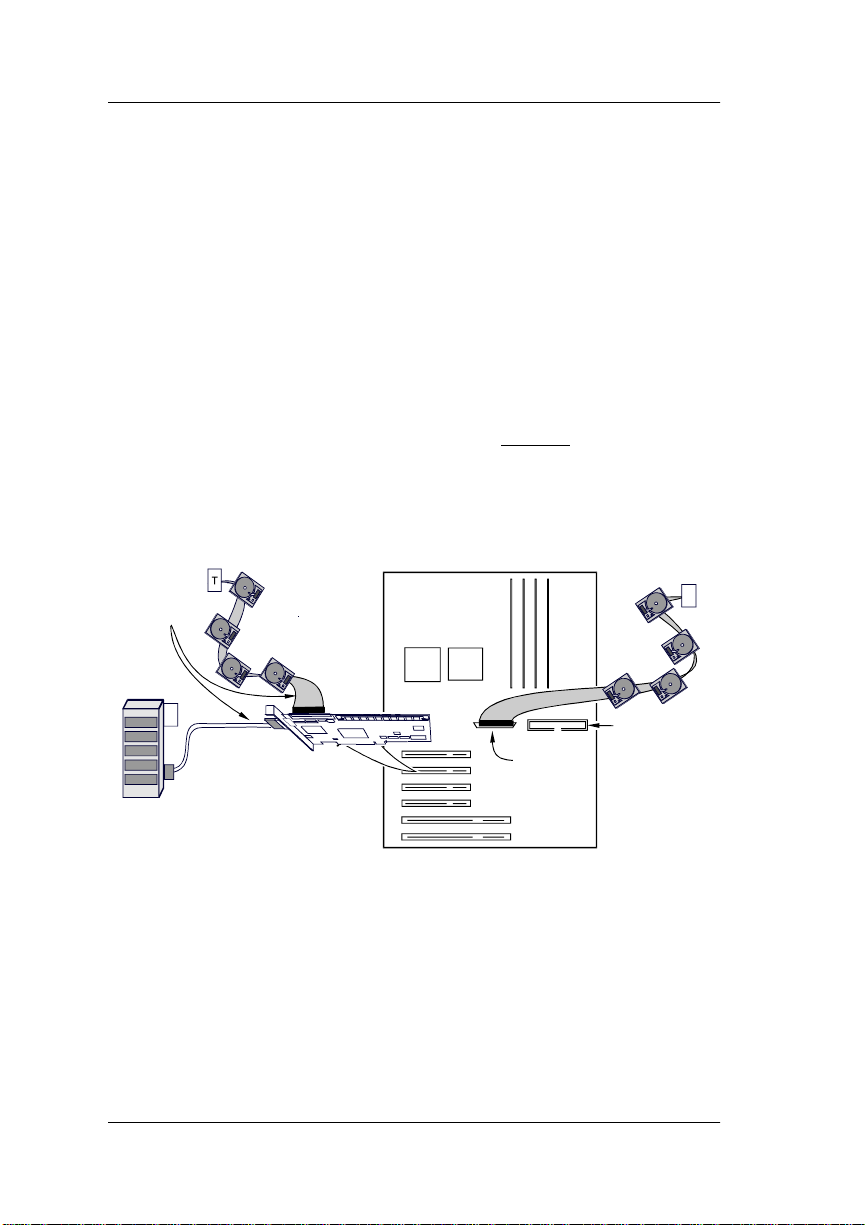

AcceleRAID 150 with SISL
(SCSI Interrupt Steering Logic) .....................................................2-15
Before You Begin (SISL) .................................................................2-16
SISL Installation Checklist ...............................................................2-18
GET READY ............................................................................2-18
GET SET ..................................................................................2-18
GO ............................................................................................2-18
Connectors, Jumpers, and LED’s (SISL) .........................................2-19
Controller Board Installation (SISL) .................................................2-20
Chapter 3
Controller Board Start-up
Procedural Overview .........................................................................3-1
Controller Board Start-up ..................................................................3-2
BIOS Options Sequence ...................................................................3-2

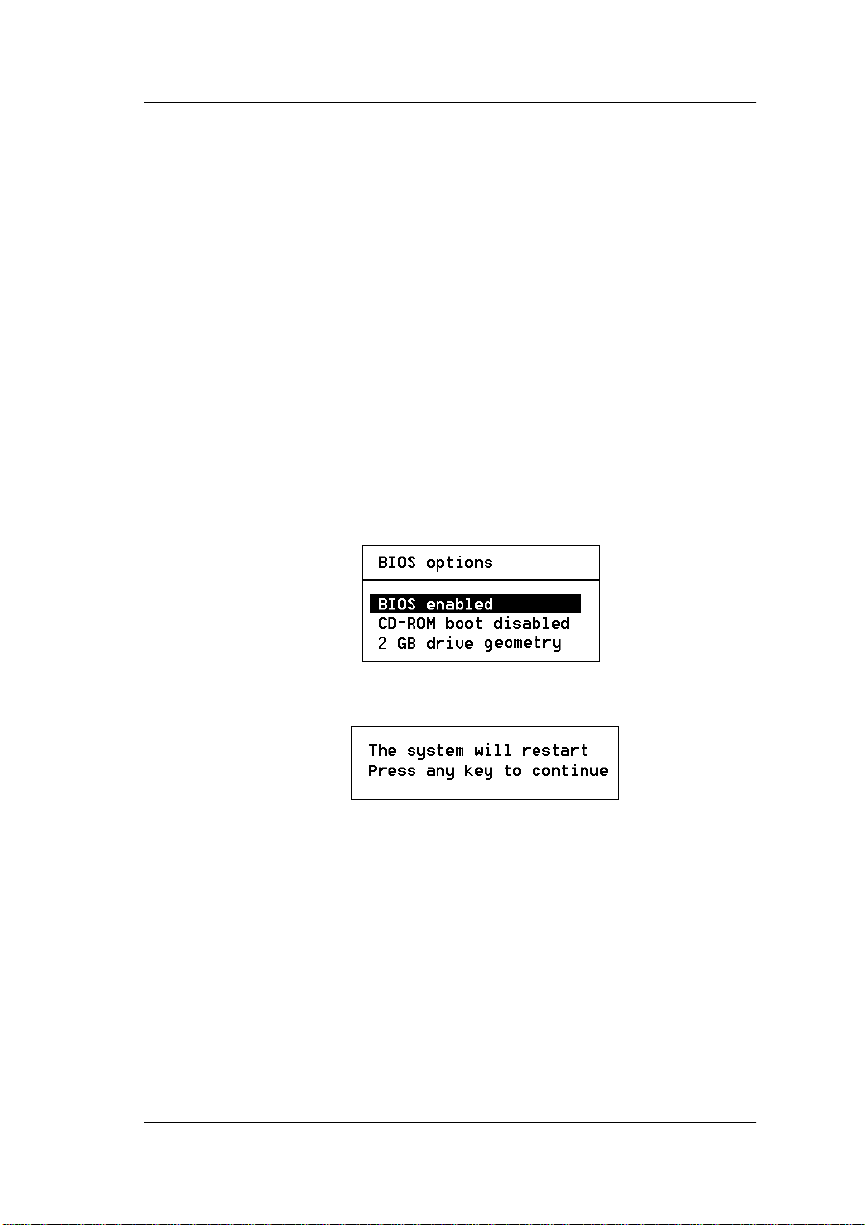

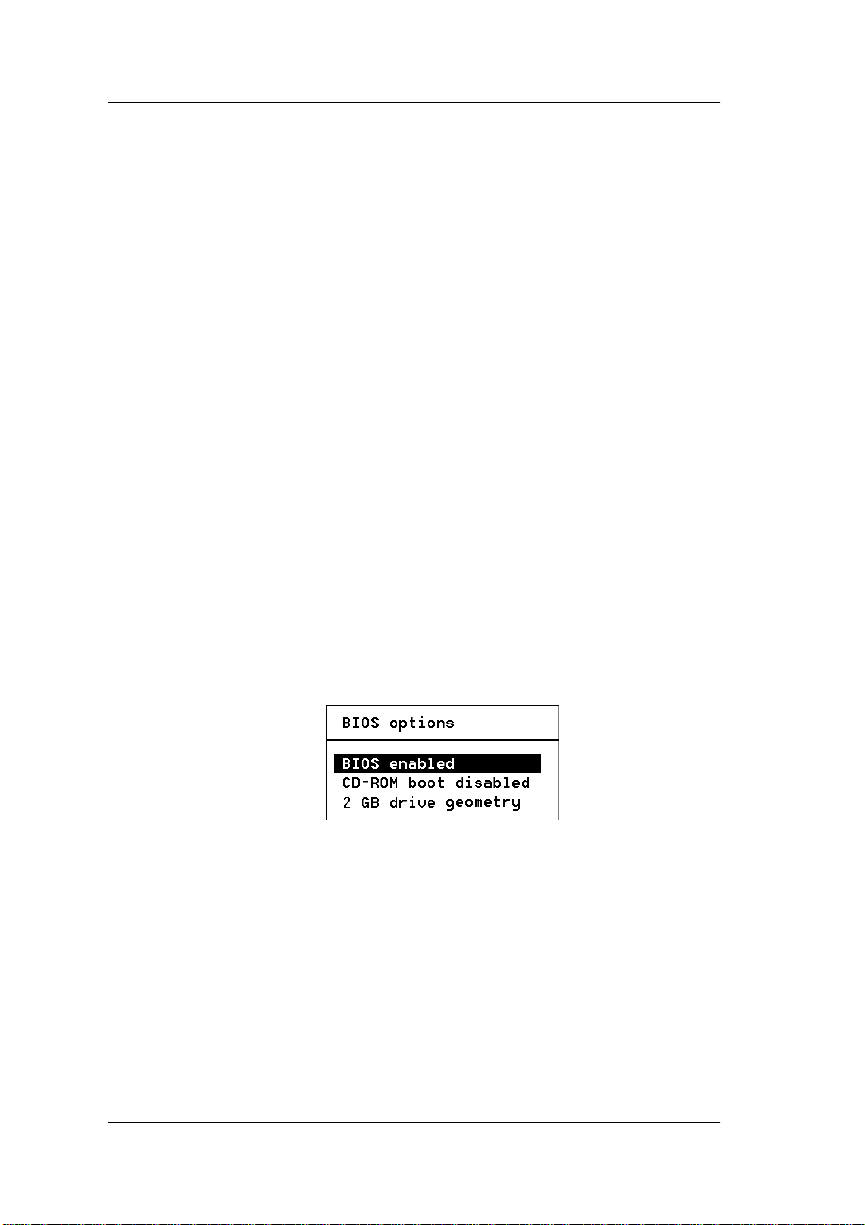

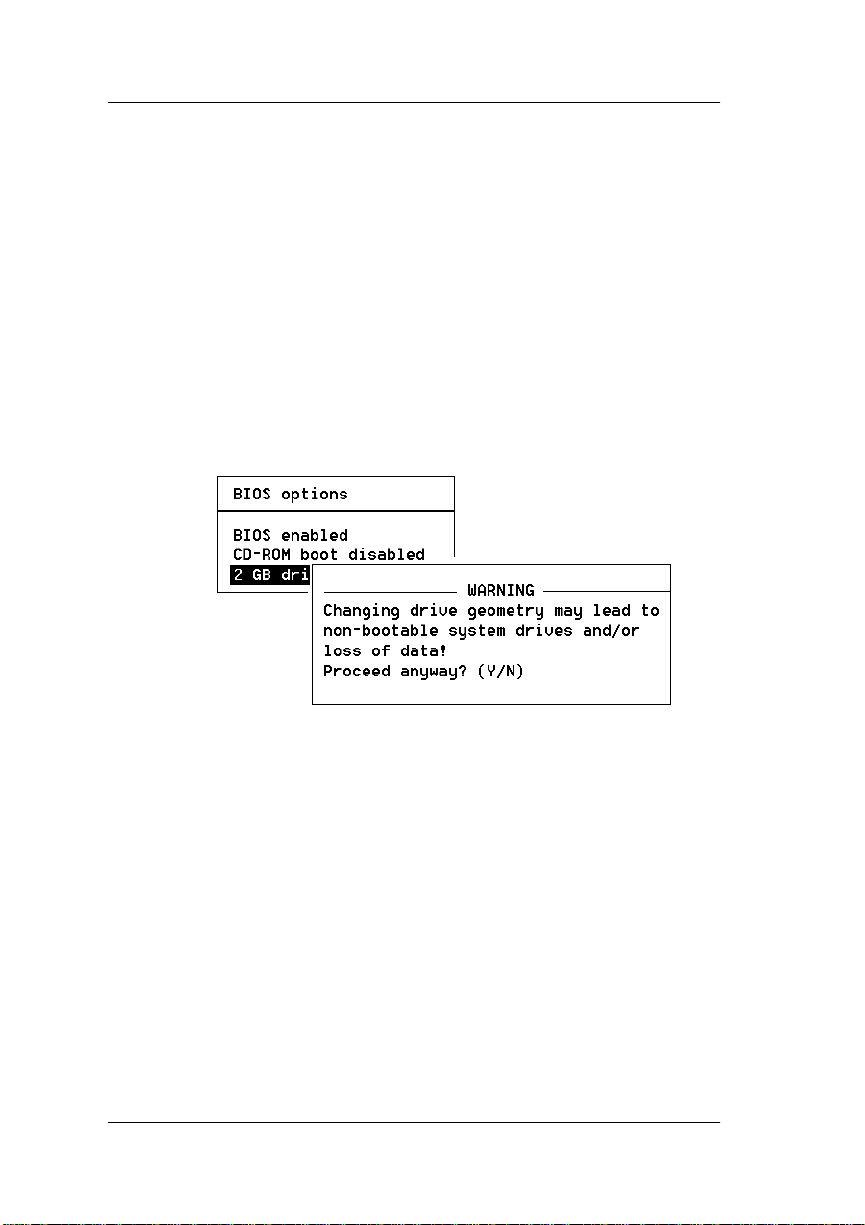

Setting BIOS Options ................................................................3-3
Manual No. 775020 v
RAID EzAssist Configuration Utility Sequence ..................................3-6
Operating System .................................................................. ...... ......3-7
Installing the AcceleRAID as the Primary Controller ..................3-7
Installing the AcceleRAID into an Existing System with a SCSI
Boot Device ..............................................................................3-7
Operating System Device Drivers ......................................................3-8
Global Array Manager (GAM) ............................................................3-8
In Case of Problems ..........................................................................3-9
Appendix A
Installation Notes
Helpful AcceleRAID Installation Notes ...............................................A-1

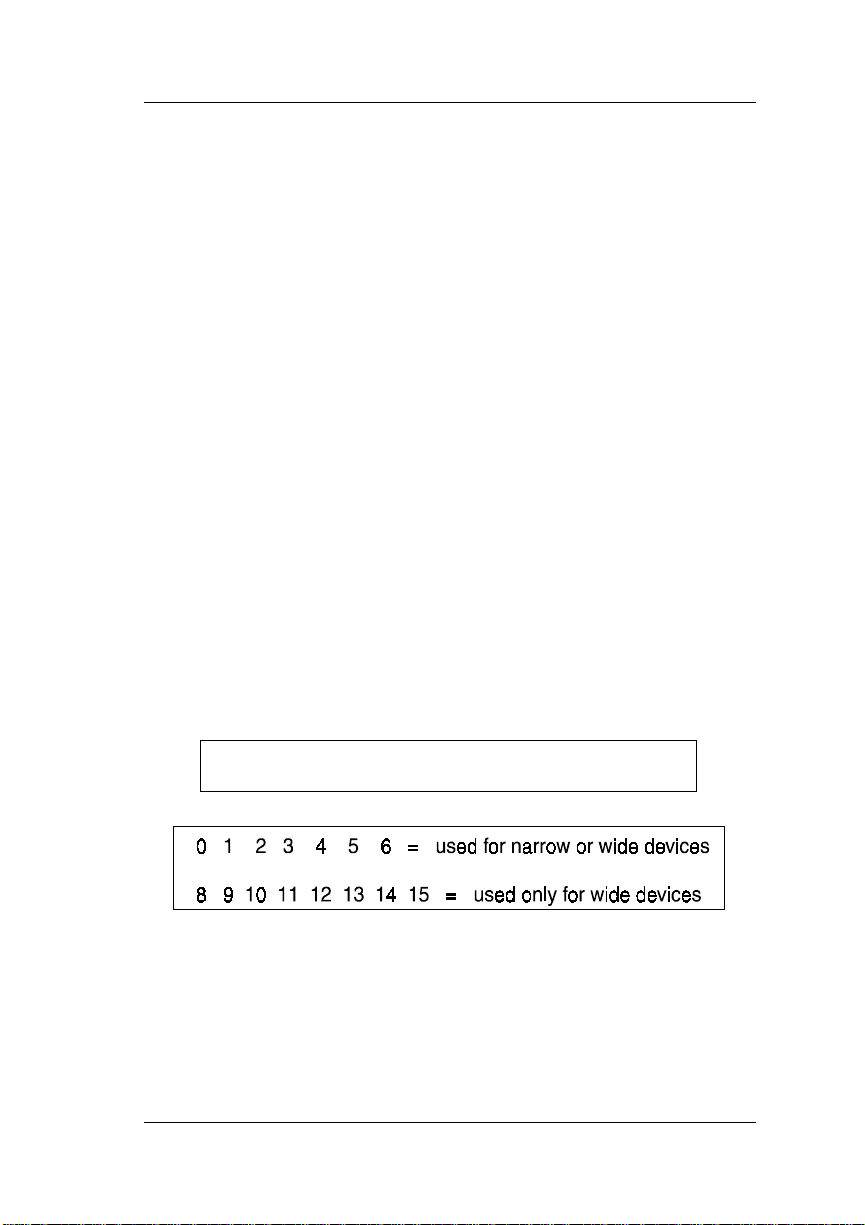

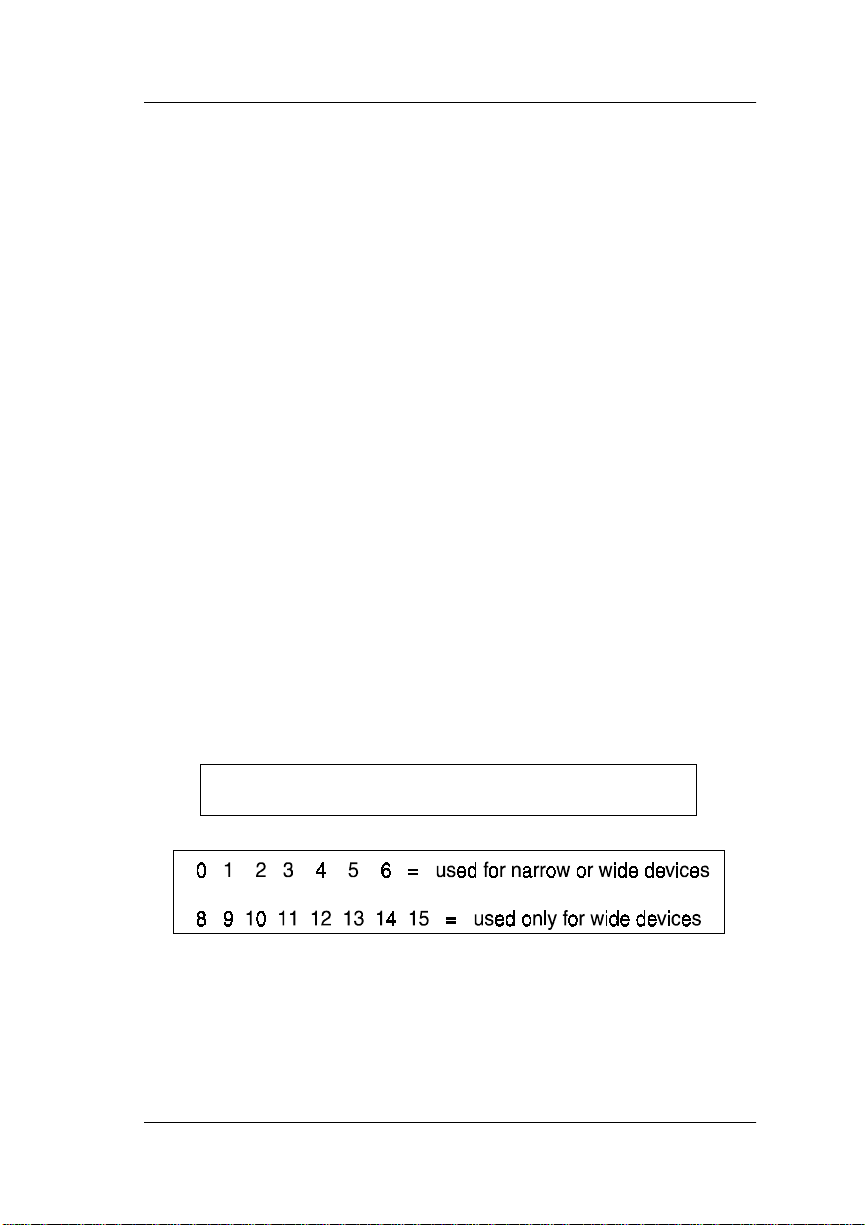

SCSI Formats and Bus Lengths ........................................................A-1

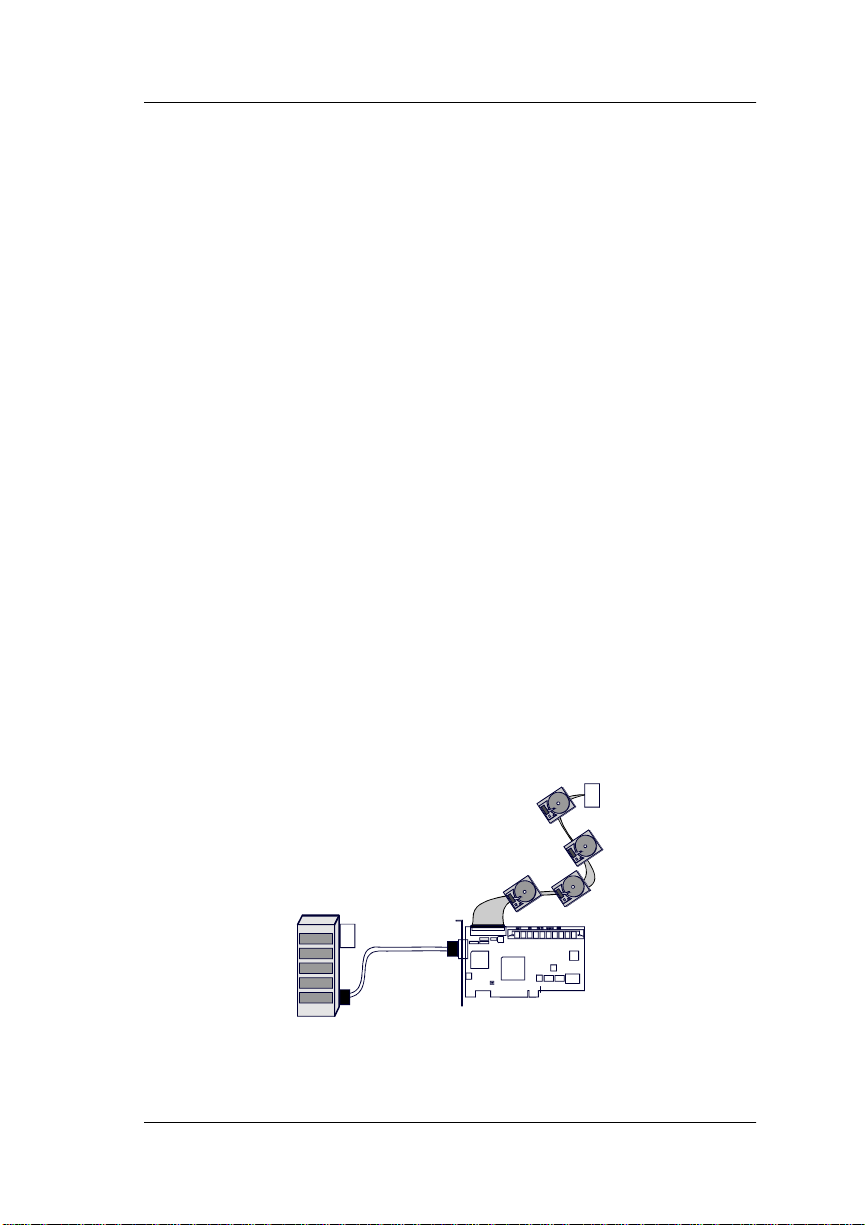

SCSI Cabling for AcceleRAID 150
(Standard and SISL) .................................. ...... ..... ...... .......................A-2
Appendix B
AcceleRAID Specifications
General Hardware Specifications ......................................................B-1
AcceleRAID ................................................................................B-1
Environmental Specifications ............................................................B-2

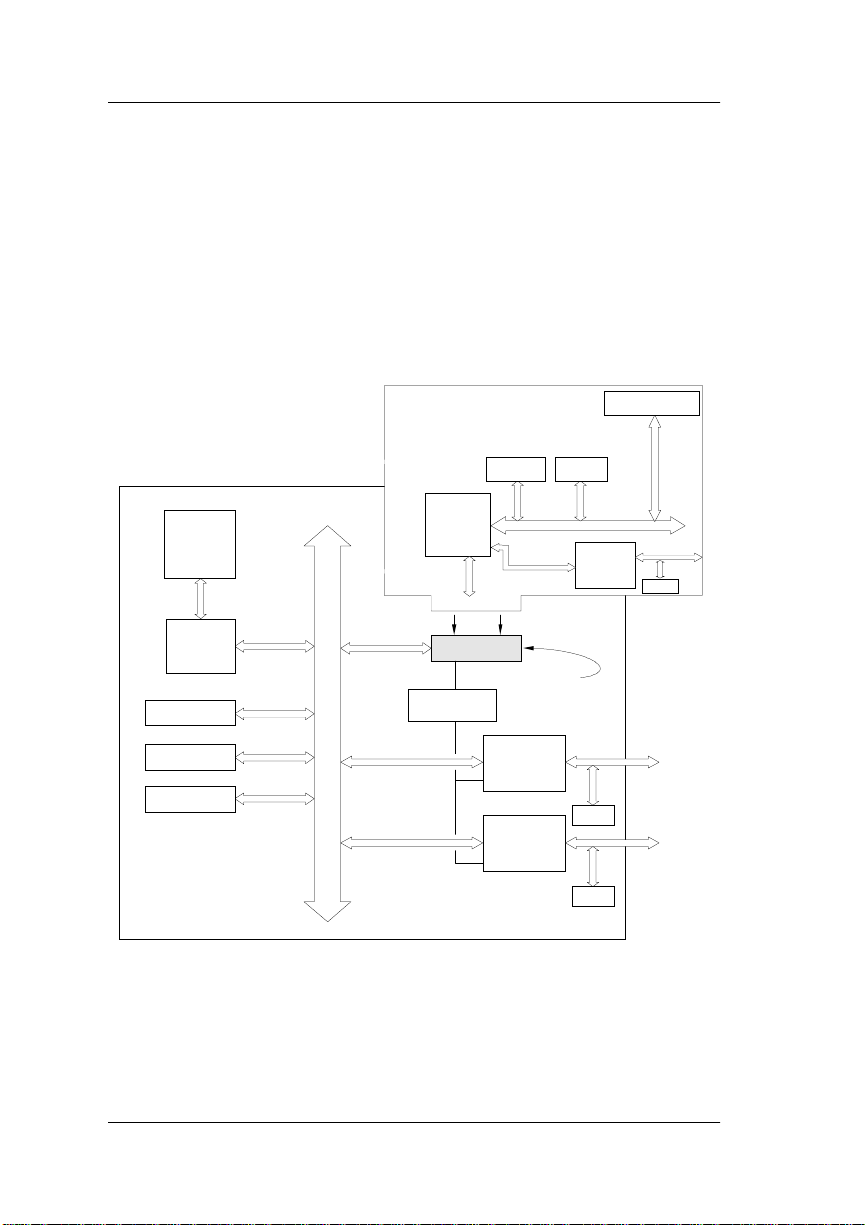

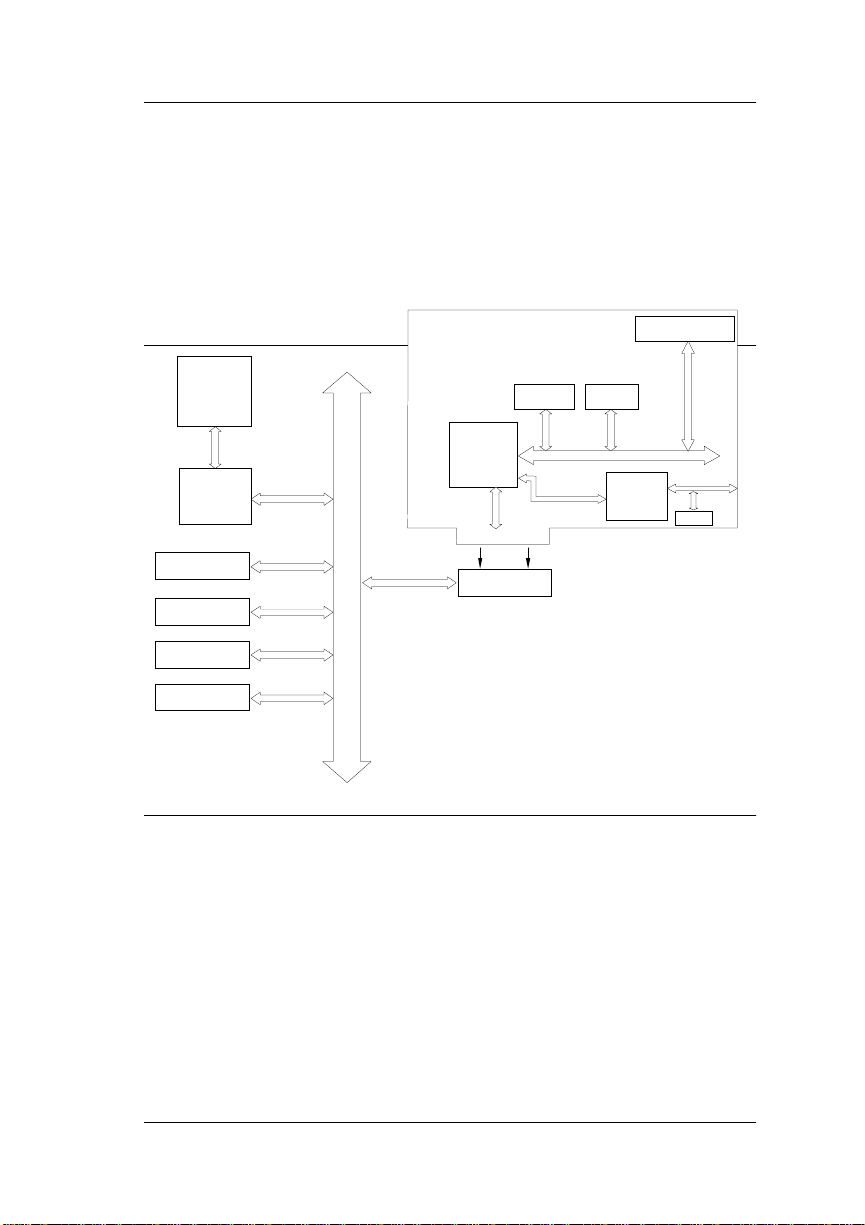

DAC960PRL Block Diagram (Standard) ............................................B-3
DAC960PRL Block Diagram (SISL) ...................................................B-4
Appendix C
AcceleRAID Error Messages
Error Messages ................................................................................C-1
Start-up: Error Messages ..........................................................C-1
Drive Check: Error Messages ........................ ...... ...... ..... ........... C-1
Aborted Installation ...........................................................................C-2
NVRAM Error ............................................................................ C-3
System Reboot or Power Down ........................................................C-3
Appendix D
Enclosure Management
Introduction ....................................................................................... D-1
SAF-TE ............................................................................................D-1
vi AcceleRAID 150 Installation Guide
Appendix E
Regulatory Information
Class B Compliance ...................................................................E-1
Declaration of Conformity ................................... ..... ...... ...... ..... ..E-2
Declaration of Conformity ................................... ..... ...... ...... ..... ..E-3
Community of Europe ................................................................E-4
Underwriters Laboratories ..........................................................E-4
Glossary
Manual No. 775020 vii
viii AcceleRAID 150 Installation Guide
This chapter describes:
• Product description
• Standard package contents
• User supplied items
Chapter 1
Introduction
Figure 1-1. AcceleRAID 150 Disk Array Controller
Product Description
The AcceleRAID™ 150 (DAC960PRL-1) is a single-channel PCI-to-Ultra2
SCSI, LVD (Low Voltage Differential) RAID Controller. It has all the
functions and performance characteristics of the Mylex line of RAID
controllers for several popular network operating systems.
The Mylex AcceleRAID 150 offers the ultimate flexibility in a controller
board, as a standard PCI configuration or as a SCSI I nterrupt Steering Logic
(SISL) configuration.
The AcceleRAID 150 controller board works on two different types of
system boards: a standard system or PC board that has the standard PCI bus
interface, or a system board with embedded SCSI that allows the
AcceleRAID 150 controller to steer RAID features (the SISL feature) onto
the embedded SCSI channel(s).
Manual No. 775020 1-1
Product Description
Mylex’s AcceleRAID 150 can be used in either one of the following two
situations:
1. A cost-effective, single-channel, standard PCI RAID controller board,
which may reside in any PCI slot (to implement a standard RAID
connection), or
2. A cost-effective PCI RAID controller board with SISL, which must
reside in the prewired, SISL-dedicated slot on a system board (to
implement a SISL connection). See your system board documentation
to identify your board’s specific PCI slot that supports SCSI Interrupt
Steering Logic (SISL).
In addition to the choice of any system board for one of the above situations,
note that some Intel
boards also give you the following flexibility:
®
1. Use the AcceleRAID 150 board plugged into a standard PCI slot as a
single-channel board, or
2. Use the AcceleRAID 150 board plugged into a SISL enhanced PCI
slot. The controller board takes control of the SCSI channels allowing
RAID configurations to be extended from the controller board to the
embedded SCSI channels on the system board.
The following Intel boards: N440BX, T440BX, NA440BX, NC440BX and
SC450NX are examples of the server boards and systems that support the
SISL feature of the AcceleRAID 150 controller.
A specially configured dedicated SISL slot is required to use SCSI Interrupt
Steering Logic (SISL).
Mylex AcceleRAID controllers supply the necessary signals that enable
SISL hardware to capture and control the embedded SCSI channel(s) on the
system board. This feature implements RAID capabilities on the SCSI
channels that reside on the system board.
1-2 AcceleRAID 150 Installation Guide
Introduction
AcceleRAID 150 Controller Features
Includes the following features:
• Ability to operate in an ordinary PCI slot as a single-channel RAID
controller in any PCI system.
• Ability to add the functionality of an additio nal RAID SCSI channel
which is a Wide Ultra2 SCSI RAID LVD channel (see the note below
for further explanation).
☛
Note
The AcceleRAID 150 will work as a single-channel,
Wide Ultra2 SCSI LVD RAID controller with a
system board that has an available PCI slot.
A specially configured, dedicated PCI slot is required
to enable SISL, which allows the controller to add
RAID capability to a system board’s built-in SCSI
channels.
See your system board document ation to identify your
board’s specific PCI slot that supports SCSI Interrupt
Steering Logic (SISL).
Operating System Support
MS-DOS 5.x, 6.x, and above are supported using dri ver s that are included in
the Disk Array Software Kit. Many other popular operating systems are
supported using software drivers in the Disk Array Controller Software Kit
that is included with the AcceleRAID controller (see the Disk Array
Controller Software Kit Installation Guide and User Manual – P/N 771929)
Manual No. 775020 1-3
Standard Package Contents
Standard Package Contents
The following items are supplied with the standard shipping package:
Hardware
• AcceleRAID 150 Disk Array Controller with documentation
Software
• Disk Array Controller Configuration (RAID EzAssist™) utility with
documentation on CD-ROM
• Disk Array Controller Software Kit with documentation on CD-ROM
• OS drivers (controller drivers) on diskette
• Global Array Manager (GAM client and GAM Server) with
documentation on CD-ROM
AcceleRAID 150 Controller
Manuals
Software
Utilities and
Drivers
Drivers
Quick
Installation
Guide
Figure 1-2. S t an dard Package Contents
1-4 AcceleRAID 150 Installation Guide
Introduction
User-supplied Items
The following user-supplied items are required to perform this installation:
• Host system with a PCI slot, or
• Host system with a prewired SISL supported PCI slot in order to use
the SISL feature
• SCSI cables to connect SCSI channels to disk drives
• Operating system sof t ware
• Static grounding strap or electrostatic discharge (ESD) safe work area
• Disk array enclosure (or equivalent) and SCSI disk drives
☛
Note
The supported SCSI drive types include Ultra2 SCSI
with LVD as well as the following single-ended SCSI
types: SCSI-1, Fast SCSI, Wide Fast SCSI, Ultra
SCSI, and Wide Ultra SCSI.
Figure 1-3. AcceleRAID 150 External Connector (0.8mm UHD Centronics 68F):
68-Pin Very High Density Cable Interconnect (VHDCI)

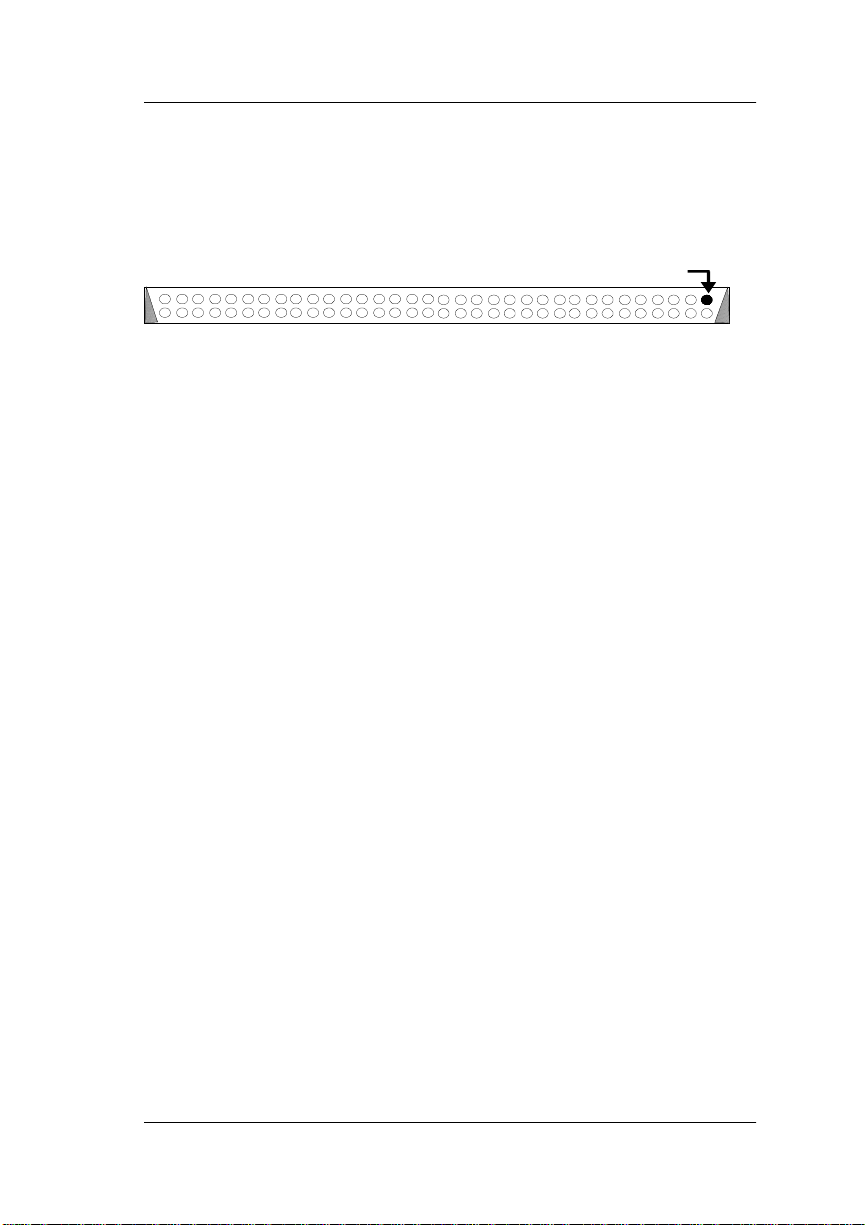

Figure 1-4. AcceleRAID 150 Internal Connector (HD DB68F):
68-Pin High Density
Manual No. 775020 1-5
User-supplied Items
1-6 AcceleRAID 150 Installation Guide
Chapter 2
Installation
This chapter describes:
• Before you begin
• Connectors, Jumpers, and LED’s
• Safety considerations:
• Installing the AcceleRAID 150 board (controller)
AcceleRAID 150 with Standard PCI Bus
☛
Note
If you will be installing the AcceleRAID 150
controller board with the SISL feature, please
go to the section titled “AcceleRAID 150 with SISL
(SCSI Interrupt Steering Logic)” on page 2-15.
m Caution
If an operating system or existing data resides on
drives already installed on the system, a full backup
should be performed on these drives prior to this
installation.
Caution and Warning notes
Manual No. 775020 2-1
Before You Begin (Standard)
Before You Begin (Standard)
Installing a standard AcceleRAID 150 PCI to Ultra2 SCSI RAID controller
board is no more difficult than installing any PCI adapter board. Follow
these steps and then follow the installation procedures in this chapter.
Occasionally, you may need to refer to the instructions that came with your
computer system.
, WARNING
Power OFF the system and disconnect the power
cord from the electrical wall outlet before opening
the system cabinet. Working with the system
covers off and power applied to the system can
result in shock and serious injury.
, WARNING
This controller board is furnished with a
nonvolatile RAM (NVRAM) chip that uses a sealed
lithium battery/crystal module. Replace the
module only with the same or equivalent type
recommended by the manufacturer.
Dispose of the used battery/crystal module
according to the manufacturer’s instructions.
Never incinerate a battery as it could explode and
cause serious injury.
2-2 AcceleRAID 150 Installation Guide
Installation
1. Power OFF the system and any enclosures, such as a tower, and
disconnect the power cord and cables before starting the installation.
Refer to the instructions provided in your system documentation. Do
not disconnect cables or power cords while system power is ON.
2. Read all of the instructions in this chapter completely b efore pro c eeding. Follow the Notes, Cautions, and Warnings described in this manual
and marked on the equipment.
3. Safety check the installation before powering ON the system:
• Make sure SCSI cables are properly connected.
• Make sure all SCSI conventions (cable type, cable length,
termination, and SCSI addresses) are followed. Examples of cable
types are: flat, rounded, shielded, or non-shielded -- use like types
together.
• For information about cable lengths and formats, please refer to
Table A-1 on page A-1.
Manual No. 775020 2-3
Standard Installation Checklist
Standard Installation Checklist
GET READY
☛
Note
It is recommended that you wear a grounded wrist
strap when working with hardware installation
procedures.
1. ____ Decide which available standard PCI slot will be used.
2. ____ Remove the plate from the I/O access port to the PCI slot.
3. ____ Remove the AcceleRAID 150 controller board from the antistatic bag.
4. ____ Check Jumper 10 (JP10). If it is installed on the jumper pins,
remove it according to Figure 2-6.
GET SET
5. ____ Plug the AcceleRAID 150 board into a standard PCI slot.
6. ____ Tighten the AcceleRAID 150 board into the mounting bracket.
7. ____ Connect the SCSI cable(s) drives and/or devices to the board.
8. ____ Check termination - Only internal or external devices.
9. ____ Check termination - Both internal and external devices.
10. ____ Remove or set termination jumpers to the disabled position on
the disk drive.
11. ____ Set SCSI ID on the disk drive.
12. ____ Enable termination power on disk drives.
13. ____ Safety check the installation.
☛
Note
Review Figure 2-1 and Table 2-1 to get familiar with
the layout of the AcceleRAID 150 controller board
and the Connectors, Jumpers, and LED descriptions.
GO
14. ____ Go to Chapter 3, Controller Board Start-up.
2-4 AcceleRAID 150 Installation Guide
Connectors, Jumpers, and LED’s ( Standard)
J
Figure 2-1 is a diagram of the AcceleRAID 150 Low Profile board.
1
Internal Connector
J2
External
Connector
(VHDCI)
(68-Pin High Density)
JP10
Note:
J1 and J2 are both on the same Channel.
Figure 2-1. AcceleRAID Connectors, Jumpers, a nd LED’s
Table 2-1. AcceleRAID Connectors, Jumpers, and LED Descriptions
Component Description
JP1 Two-pin header available for connection to a front panel LED
that indicates SCSI activity (user supplied).
JP4 Reserved
JP5 Not used / for maintenance only.
JP10 OFF = Disable SISL ON = Enable SISL
J1 Channel 0 Internal Ultra2 SCSI LVD Connector –
68-Pin High Density Cable
J2 Channel 0 External Ultra2 SCSI LVD Connector –
68-Pin Very High Density Cable Interconnect (VHDCI)
U1 LED, ON indicates the controller board failed internal diagnostics
during start-up.
LVD (D3) LED, ON = default; the light is always on unless a single-ended
device is connected. The light will turn OFF when a single-ended
device is detected*.
SE (D2) LED, ON indicates a single-ended drive is detected.
* The LVD and SE lights will not be ON or OFF at the same time.
JP1
U1
SE
LVD
JP4
JP5
Installation
Manual No. 775020 2-5
Controller Board Installation (Standard)
Controller Board Installation (Standard)
m Caution
Anti-static handling procedures are required. Leave
the controller board in its anti-static bag until it is time
to plug it into the PCI slot.
Wearing a grounded wrist strap (see Figure 2-2),
having the power cord pluged into an electric-ground
wall outlet, ha ving t he computer po wer turned off, and
following other ESD protective measures are highly
recommended. See warning below about unplug ing
the power cord when the computer cover is removed.

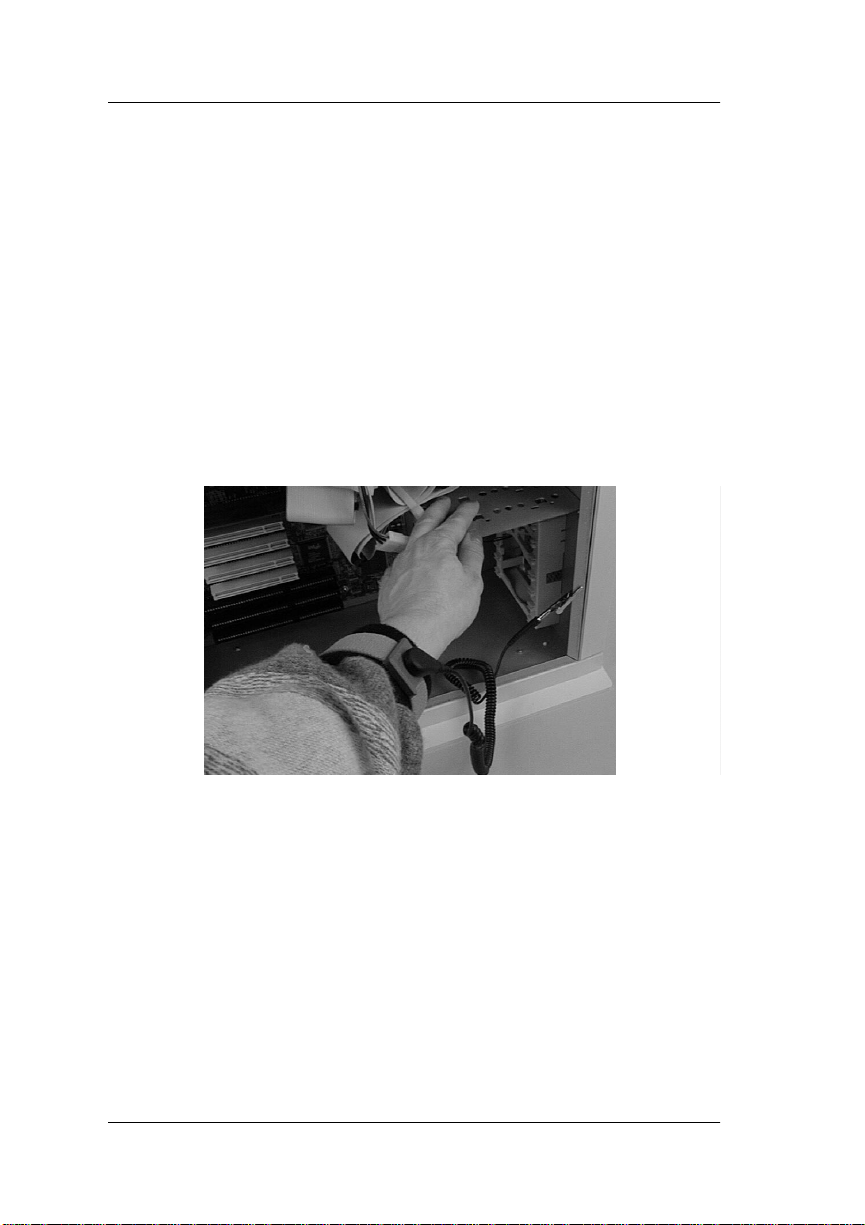

Figure 2-2. Wear a grounded wrist strap.
WARNING
,
Disconnect the system from the electrical wall
outlet before opening the system cabinet. Working
with the system covers off and power applied to the
system can result in shock and serious injury.
2-6 AcceleRAID 150 Installation Guide
Installation
Follow these installation steps:

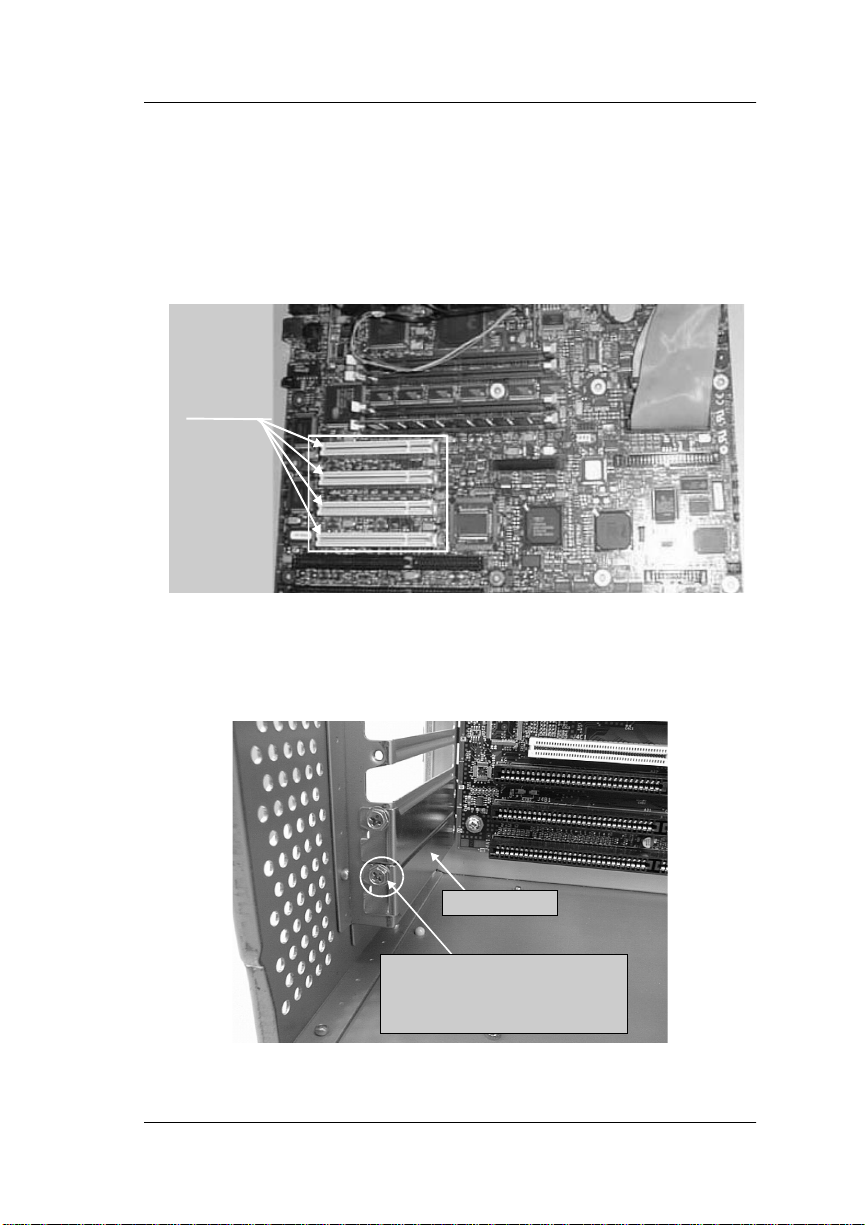

1. Choose any available standard PCI slot as shown in Figure 2-3.
Figure 2-3. Choose an Available PCI Slot
2. Remove the metal cov er plate fro m the slot’s access port (usually at the
back of the cabinet). Save the retaining screw as shown in Figure 2-4.
.
Metal Plate
Remove screw to remove
metal plate. Save screw to
tighten the controller board.
Figure 2-4. Remove the Metal Plate
Manual No. 775020 2-7
Controller Board Installation (Standard)
3. Remove the AcceleRAID 150 controller board from the anti-static bag
as shown in Figure 2-5.
Figure 2-5. Remove the Anti-static Bag
4. If Jumper 10 (JP10) is installed, place it on only one peg to the OFF
position, as shown in Figure 2-6, when using the standard AcceleRAID
150 configuration.
Figure 2-6. Jumper 10 (JP10) on one p e g, OFF position
2-8 AcceleRAID 150 Installation Guide
Installation
5. Plug the controller board firmly into the selected standard PCI slot as
shown in Figure 2-7.
System Board
Plug Controller
into any Available
PCI Slot
Figure 2-7. Plug Controller Board into any Standard PCI Slot
6. Use the retaining screw (see Figure 2-4) to tighten the controller board
by its mounting bracket. The controller board will go into the space
created when you removed the metal plate.
Manual No. 775020 2-9
Controller Board Installation (Standard)
7. Connect the SCSI cables from the disk drives to a SCSI connector on
the AcceleRAID 150 controller board, as shown in Figure 2-8.
(The controller board is already connected to the system board.)
If necessary, refer to Table A-1 on page A-1 for SCSI formats and bus
lengths.
☛
Note
In order to ensure an error free environment, the
proper cable type designed for a certain SCSI
speed must be used.
☛
Note
Wide and narrow SCSI disk
installed together (mixed) on any one channel, or the
AcceleRAID controller board may not work properly.
It is ok to mix wide and narrow connections for other
devices, but
do not mix SCSI disk drives.
drives
must not be
T
T

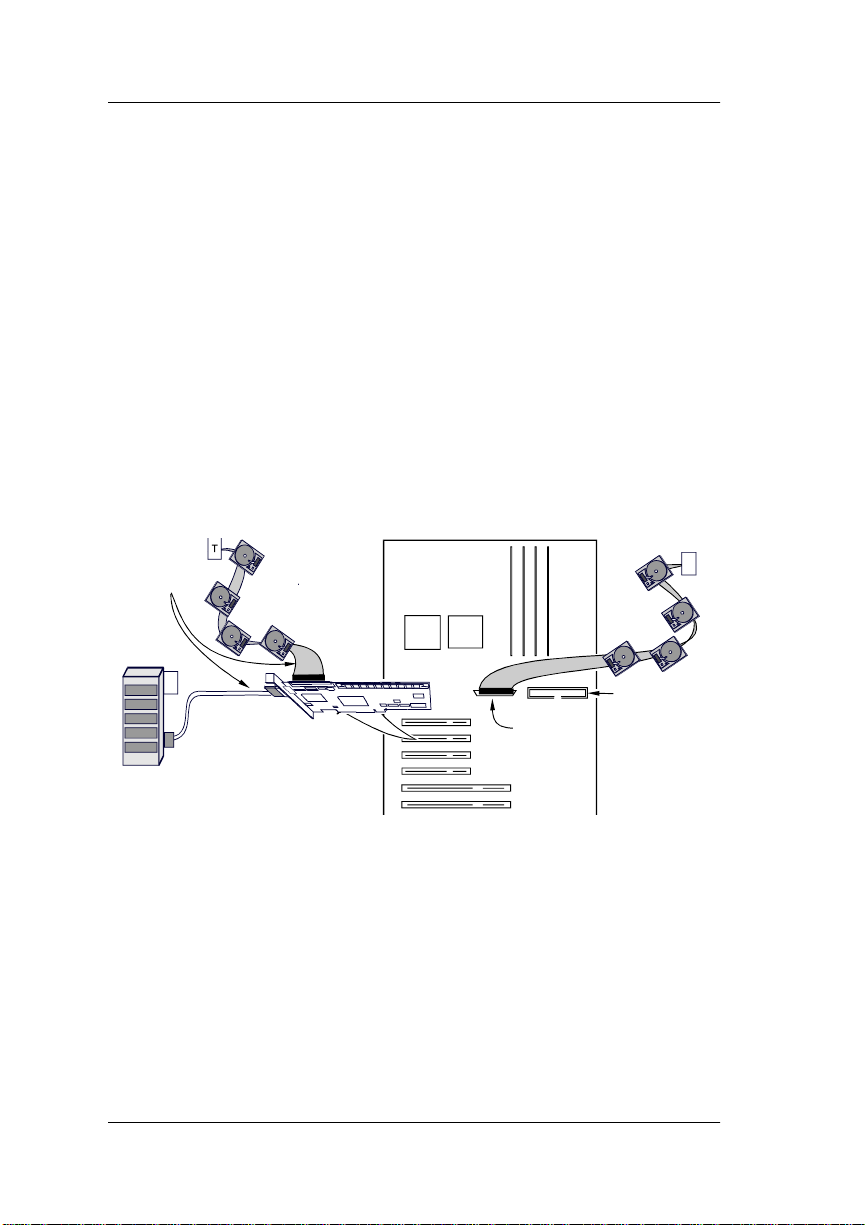

Figure 2-8. Connecting Disk Drives to the AcceleRAID 150
☛
Note
It is recommended that non-RAID SCSI devices be
connected to a separate SCSI channel, either on the
system board or furnished b y a SCSI hos t bus adapter
board, such as a Mylex FlashPoint board.
See Appendix A for information on LVD mode and
single-ended mode.
2-10 AcceleRAID 150 Installation Guide
Installation
8. Termination - Only Internal or External Devices (Standard)
Check that the drive channel is properly terminated according to
drawings below. The AcceleRAID 150 is equipped with automatic
SCSI termination circuitry which handles automatic enabling and
disabling of on-board termination. For example, if the controller board
is at the end of the SCSI bus, it automatically enables on-board
termination.
If all the SCSI devices on a channel are connected either to the
internal connector or to the external connector, the end of the SCSI
bus farthest from the controller board must have a terminator installed;
the controller board automatically enables on-board termination.
See Figure 2-9 for an example of an internal drive configuration.
See Figure 2-10 for an example of an external drive configuration.
T
T
AutoTermination
Enabled
Figure 2-9. Termination with Internal Drive Configuration
Auto Termination
T
Enabled
T

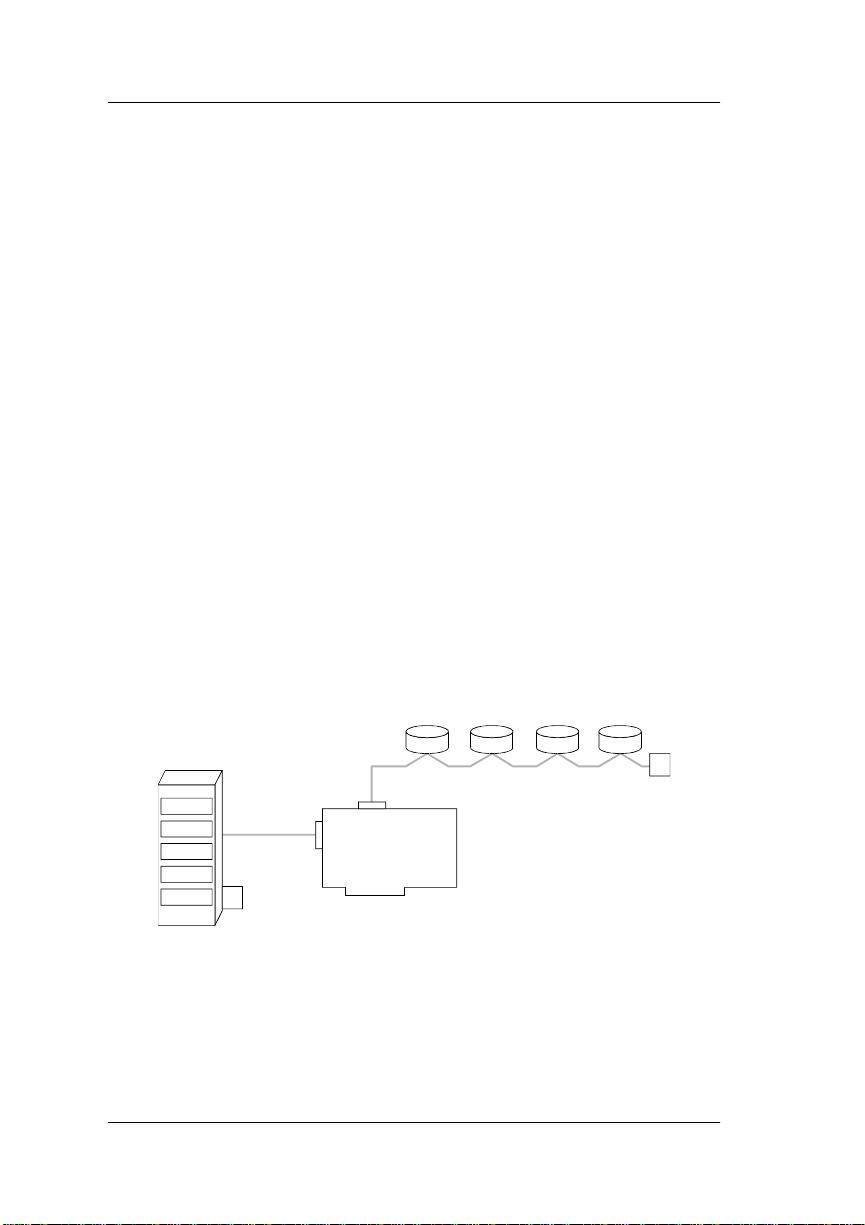

Figure 2-10. Termination with External Drive Configuration
Manual No. 775020 2-11
Internal Drive
Configuration
External Drive
Configuration
Loading...
