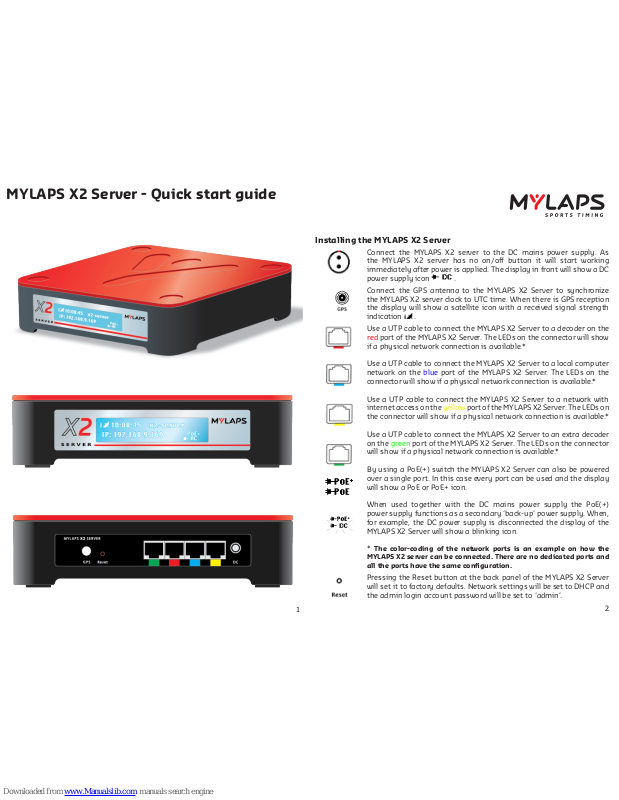

MYLAPS X2 Server - Quick start guide

Installing the MYLAPS X2 Server

Connect the MYLAPS X2 server to the DC mains power supply. As
the MYLAPS X2 server has no on/off button it will start working
immediately after power is applied. The display in front will show a DC
power supply icon .

Connect the GPS antenna to the MYLAPS X2 Server to synchronize
the MYLAPS X2 server clock to UTC time. When there is GPS reception
the display will show a satellite icon with a received signal strength
indication .

Use a UTP cable to connect the MYLAPS X2 Server to a decoder on the

red port of the MYLAPS X2 Server. The LEDs on the connector will show

if a physical network connection is available.*

Use a UTP cable to connect the MYLAPS X2 Server to a local computer
network on the blue port of the MYLAPS X2 Server. The LEDs on the
connector will show if a physical network connection is available.*

Use a UTP cable to connect the MYLAPS X2 Server to a network with
internet access on the yellow port of the MYLAPS X2 Server. The LEDs on
the connector will show if a physical network connection is available.*

Use a UTP cable to connect the MYLAPS X2 Server to an extra decoder
on the green port of the MYLAPS X2 Server. The LEDs on the connector
will show if a physical network connection is available.*

By using a PoE(+) switch the MYLAPS X2 Server can also be powered
over a single port. In this case every port can be used and the display
will show a PoE or PoE+ icon.

When used together with the DC mains power supply the PoE(+)
power supply functions as a secondary ‘back-up’ power supply. When,
for example, the DC power supply is disconnected the display of the
MYLAPS X2 Server will show a blinking icon.

* The color-coding of the network ports is an example on how the

MYLAPS X2 server can be connected. There are no dedicated ports and

all the ports have the same conguration.

Pressing the Reset button at the back panel of the MYLAPS X2 Server
will set it to factory defaults. Network settings will be set to DHCP and
the admin login account password will be set to ‘admin’.

1

2

The MYLAPS X2 Server will always shut down when both the DC mains power supply
and the PoE+ power supply are disconnected. Power down will take a few seconds as
the MYLAPS X2 Server will close down the database using its internal ‘close down’
power source. The display will show ‘powering down’.

Make sure your computer is congured to obtain an IP address automatically.

Check the display to see if the MYLAPS X2 Server obtained an IP address from a DHCP
server. If this is the case, proceed to ‘Start using the MYLAPS X2 Server’.

When there is no DHCP server available on the network the MYLAPS X2 Server will
obtain a ‘local link’ IP address itself. In this case the display will show an IP address in
the 169.254.x.x range. This will occur for example when the network port is connected
directly to a laptop via a UTP cable.

Technical Specications of the MYLAPS X2 Server

Dimensions 220x180x60mm•
Weight 1.8kg / 3.9lb•

GPS Receiver quick x, -160dB, 15nS•

GPS antenna connection SMA, active•
Power consumption max. 15W per connection•
Operating temperature range -20 to 50 °C / -4 to 122 °F•
Operating voltage range 10 to 14.4 VDC, Typical 12 VDC•
Network interface 10-100BT (RJ45)•
Storage 120 GB, Solid state•
Cooling Passive•
Internal battery 30 seconds soft power down after power loss•
