MYLAPS BASELINK User Manual

In case you encounter any issues,
please contact your sales oces:

QUICK START GUIDESUPPORT

MYLAPS EMEA Oce

Haarlem, The Netherlands

Tel: [phone]

Email: [e-mail]

MYLAPS Japan Oce

Tokyo, Japan

Tel: [phone]

Email: [e-mail]

MYLAPS Asia Oce

Selangor, Malaysia

Tel: [phone]

Email: [e-mail]

MYLAPS Americas Oce

Atlanta, USA

Tel: [phone]

Email: [e-mail]

MYLAPS APAC Oce

Sydney, Australia

Tel: [phone]

Email: info.asia.paci[e-mail]

BASELINK

version 1.0 | art. #1702030906

WHAT IS IN THE BOX?

Required, not included

X2 Decoder X2 Server Orbits 5.3 or higher

BASELINK

X2 BaseLink

Ethernet Cable 25m

Cable Strain Relief 1x 1x

Ethernet Cable 2m

Power Cable

POE Injector

2

QUICK START GUIDE

BASELINK

INSTALLING

1

An obstacle free line of sight is required.
The range is 500 - 1000 meters.

Obstacle can cause interference including
trees, buildings, dunes, water and steel
objects.

Pipe diameter is Ø 42.4 mm (1.74 inch/size 7).
Use a 8 mm allen wrench to mount BaseLink
on pipe.

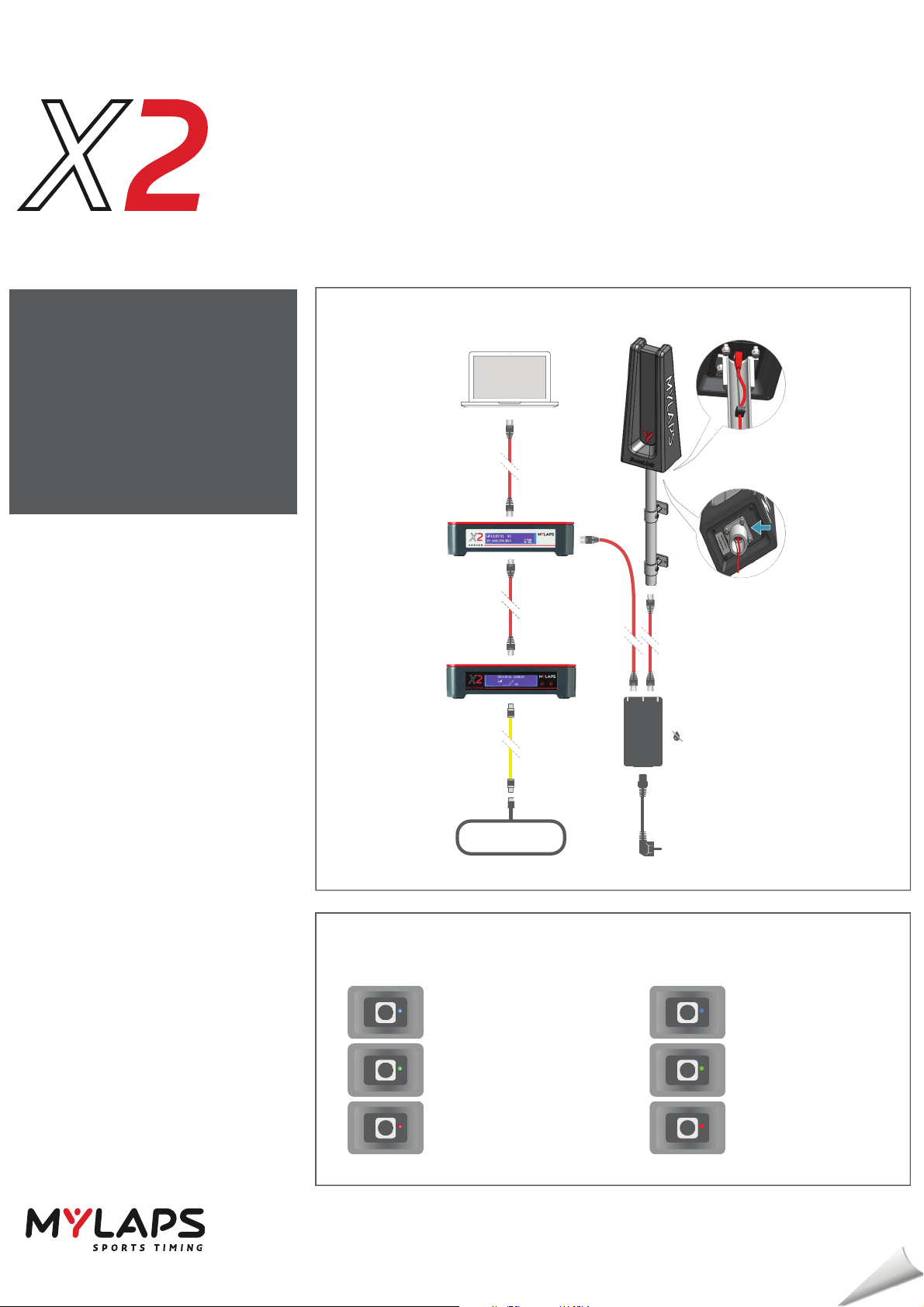

Installation Diagram

A

X2 Server*

X2 Decoder*

Timing Software*

Ethernet

Cable*

Ethernet

Ethernet

Cable*

Cable*

Coax*

X2 BaseLink

Ethernet

Cable

2m

POE

Injector

Use the Cable Strain
Relief to give the
Ethernet Cable
some slack

LED Status Indicator

Ethernet

Cable

25m

OUT -> BaseLink
IN -> X2 Server

Keep Dry

* Not included

Check BaseLink LED Lights

B

Loop*

Flashing Blue
BaseLink Startup Mode

Flashing Green
BaseLink Idle Mode
X2 Server Connected in Master Mode

Flashing Red
BaseLink Idle Mode
X2 Server Disconnected in Master Mode

Power Cable

Solid Blue
BaseLink Reset Mode
Press Reset Button 4 sec

Solid Green
BaseLink Broadcast Mode
X2 Server Connected in Master Mode

Solid Red
BaseLink Diagnostics Mode
X2 Server Connected in Master Mode

3

QUICK START GUIDE

BASELINK

CONNECTING

2

Connect the X2 BaseLink to the X2 Server.
Then enable the Onboard Feed to use the
Baselink to send messages to the Racers.
Use Orbits 5.3 or higher (or other supported
3rd party software).

Connect X2 server to the Timing Software

A

Enabling the Onboard Feed

C

Go to the Distribution tab (green = on, red = o)

Connect to the X2 BaseLink*

B

* If you can’t nd the X2 BaseLink check the “not congured” section

Open the Onboard Feed Setting

D

Click the Onboard Feed section to open the Settings window

Check the Enable Onboard Feed Checkbox

E

Check Onboard Feed and online App Feed status

F

4

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.

Warning (part 15.21)

Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.

Information to the User (Part 15.105 (b))

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

x Reorient or relocate the receiving antenna.
x Increase the separation between the equipment and receiver.
x Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

x Consult the dealer or an experienced radio/TV technician for help.

RF Exposure (OET Bulletin 65)

To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter
should only be used or installed at locations where there is at least 20cm separation distance
between the antenna and all persons.
