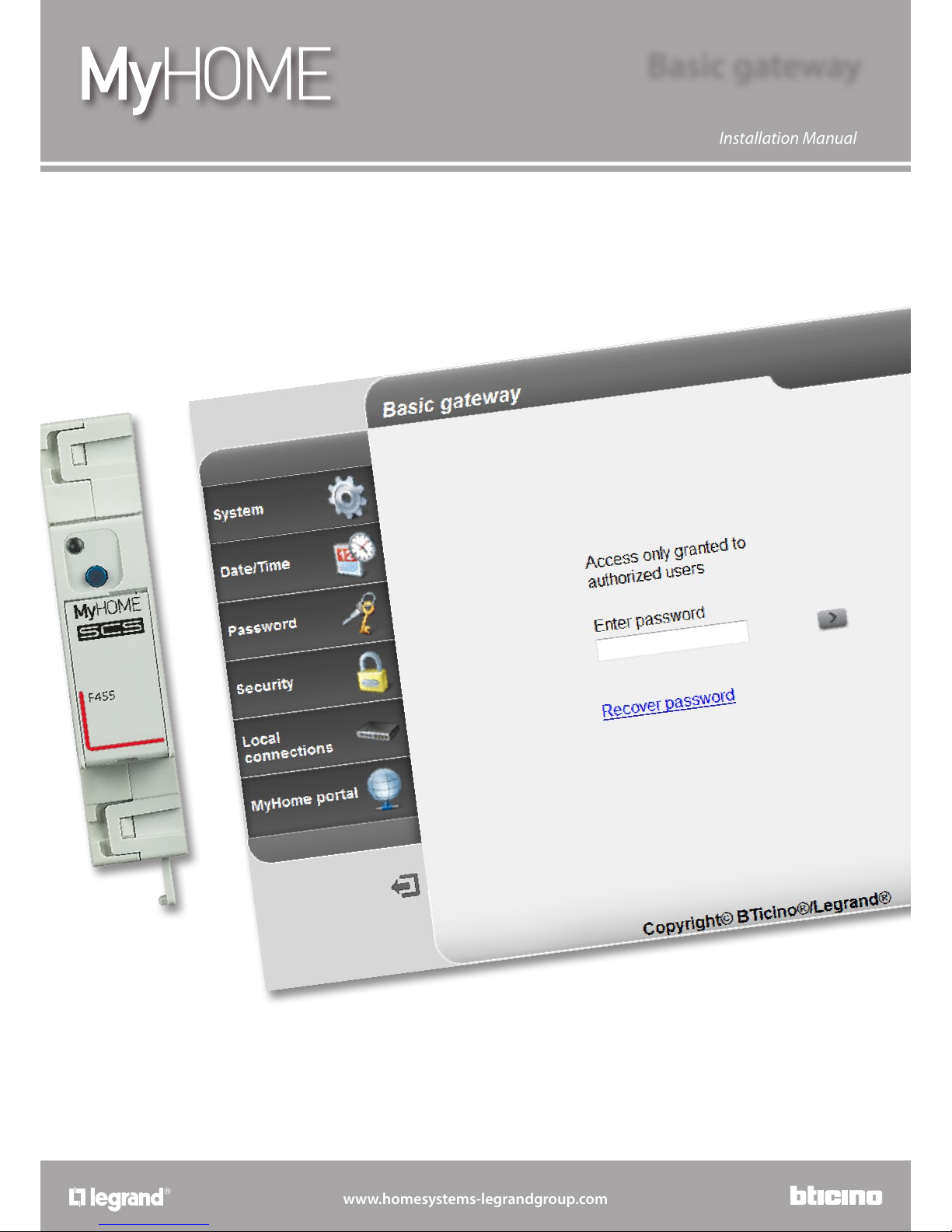

Page 1
www.homesystems-legrandgroup.com
Installation Manual
Basic gateway
F455 - 0 035 94
Page 2
Basic gateway
Installation Manual
Page 3
3
Basic gateway
Installation Manual
Description 4
Warnings and recommendations 4
Main functions 4
Legend 4
Connection 5
Wiring diagrams 5
Configuration 6
Procedure with Windows Vista / 7 / 8 operating system 6
Web Pages 11
Troubleshooting 18
Appendix 18
Technical data 18
Contents
Page 4
Basic gateway
Installation Manual
4
It is important to read this manual carefully before proceeding with the installation.
The guarantee automatically expires for negligence, misuse, tampering by unauthorized
personnel.
Gateway device for the remote and local management of the MyHOME system using the app
(MyHOME Bticino and MyHOME Legrand) and specific software. MHVisual and Supervision Gadget
(in the second case the scenarios can be recalled but not programmed).
Functions managed: Lights, Automation, Temperature control, Energy management.
Functions not managed: Video entry system, Sound system, Anti-intrusion, Advanced
Management of shutters, Lighting, advanced scenarios.
Warnings and recommendations
Main functions

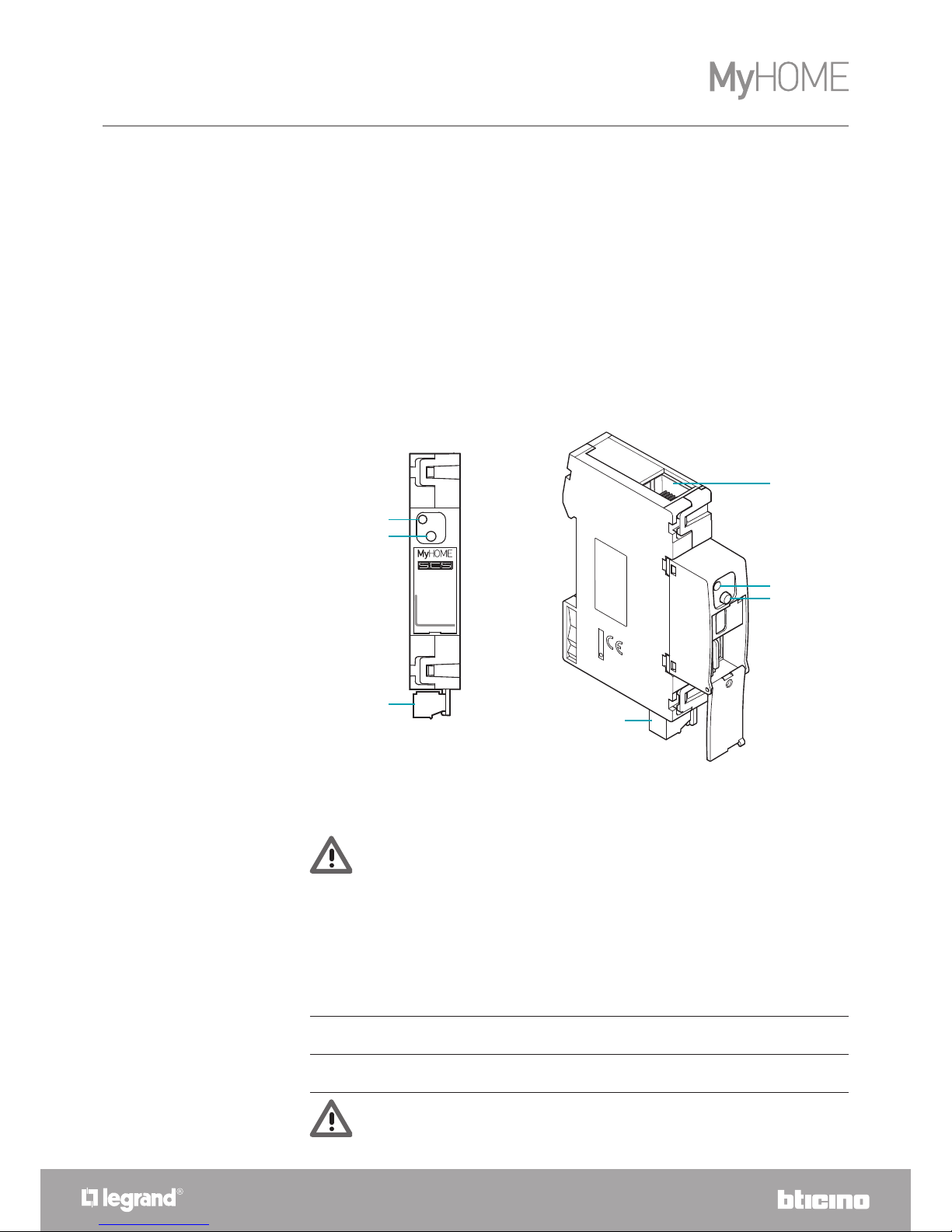

Legend
Description
1. User interface LEDs: see table
2. Reset key:
– To set the fixed default network address, 192.168.1.5, power the device by pressing the
pushbutton for 3 seconds (the LED flashes red, then turns green, and then red again).
– press for 10 seconds to restart the device (green flashing quickly at 0.5 second intervals);
– press for 20 seconds to restart the device and set dynamic IP address selection (green
flashing quickly at 0.25 second intervals)
3. Connection to the SCS/BUS
4. Ethernet connection
F455
1
2
3
2
1
4
3
Table of user interface LEDs
Red LED
flashing slowly and regularly:
no network found;
waiting for an address to be assigned.
Green LED
flashing slowly and regularly:
device in operation.
If the power is disconnected and reconnected again, the device returns to operate using the
parameters set during the configuration.
- The device cannot be used as a development Gateway (SDK) for third-party Apps or as an
integration Gateway (Vantage drivers, etc.); the Gateway F454 must be used);
- It does not support the simultaneous opening of more than 5 sockets;
- It is not guaranteed to work with third-party Apps.
Page 5
Basic gateway
Installation Manual
5

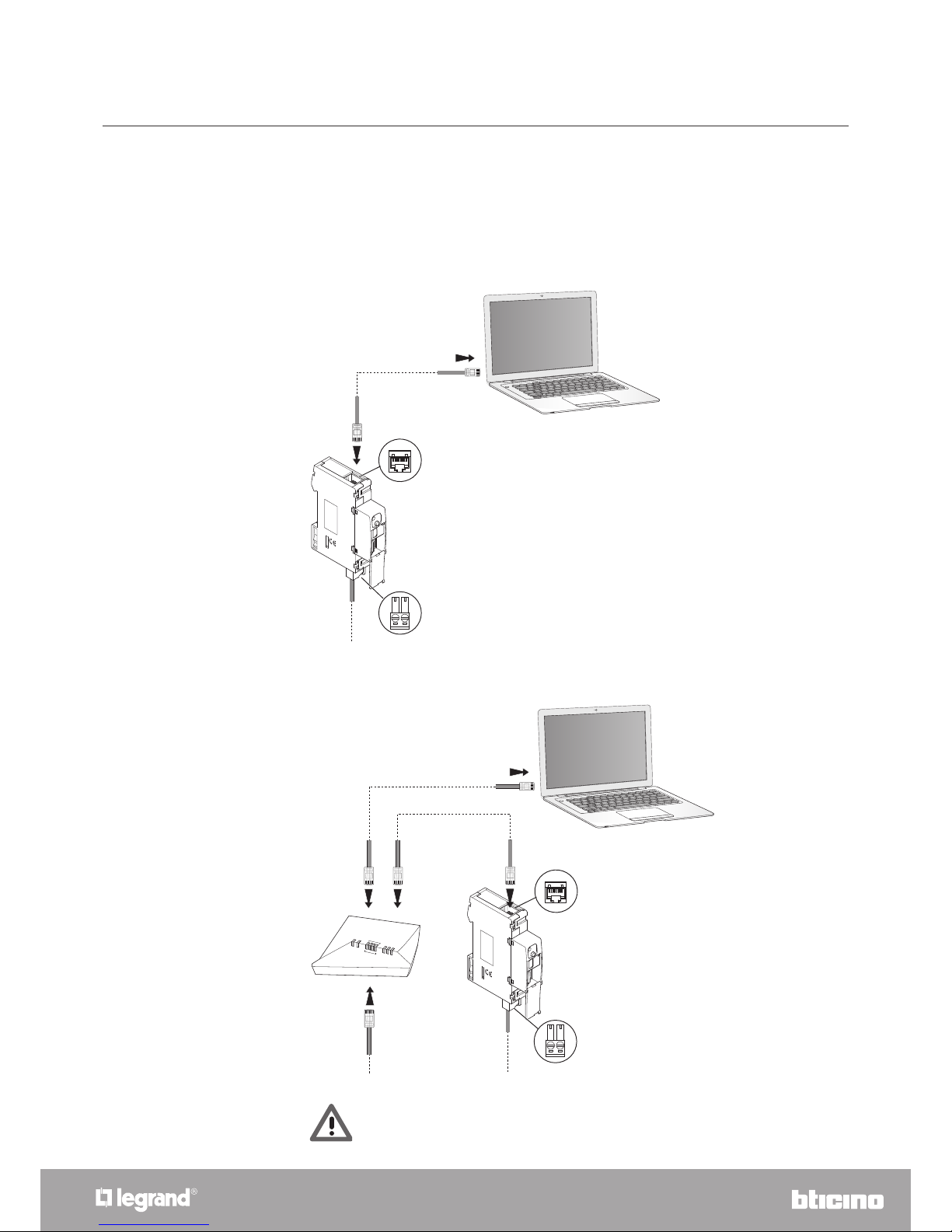

In order to operate, the device must be connected following the diagrams below.
Wiring diagrams
Diagram with direct or crossed cable
Diagram with switch
Connection
BUS
Switch/router BUS
Check that the automatic assigning of the IP address is set in the network parameters on
the PC and the Basic Gateway. Then select the Basic gateway device among the network
resources.
Page 6
Basic gateway
Installation Manual
6

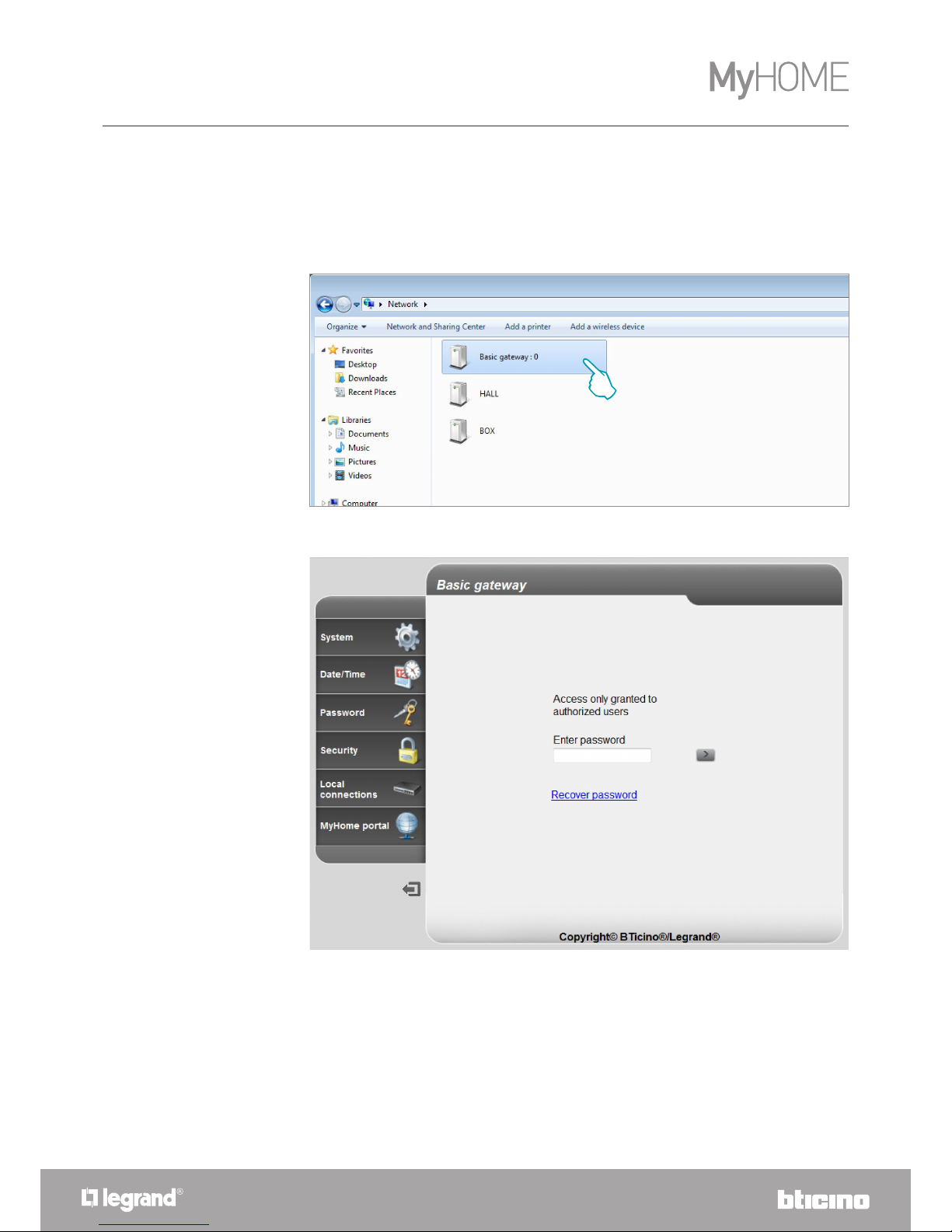

If the device is connected correctly, it will be displayed in the network resources with the name
“Basic gateway”.
Procedure with Windows Vista / 7 / 8 operating system
Configuration
• It is now possible to configure the device using the web pages.
1. Click to display the identification web page.
1
Page 7
Basic gateway
Installation Manual
7

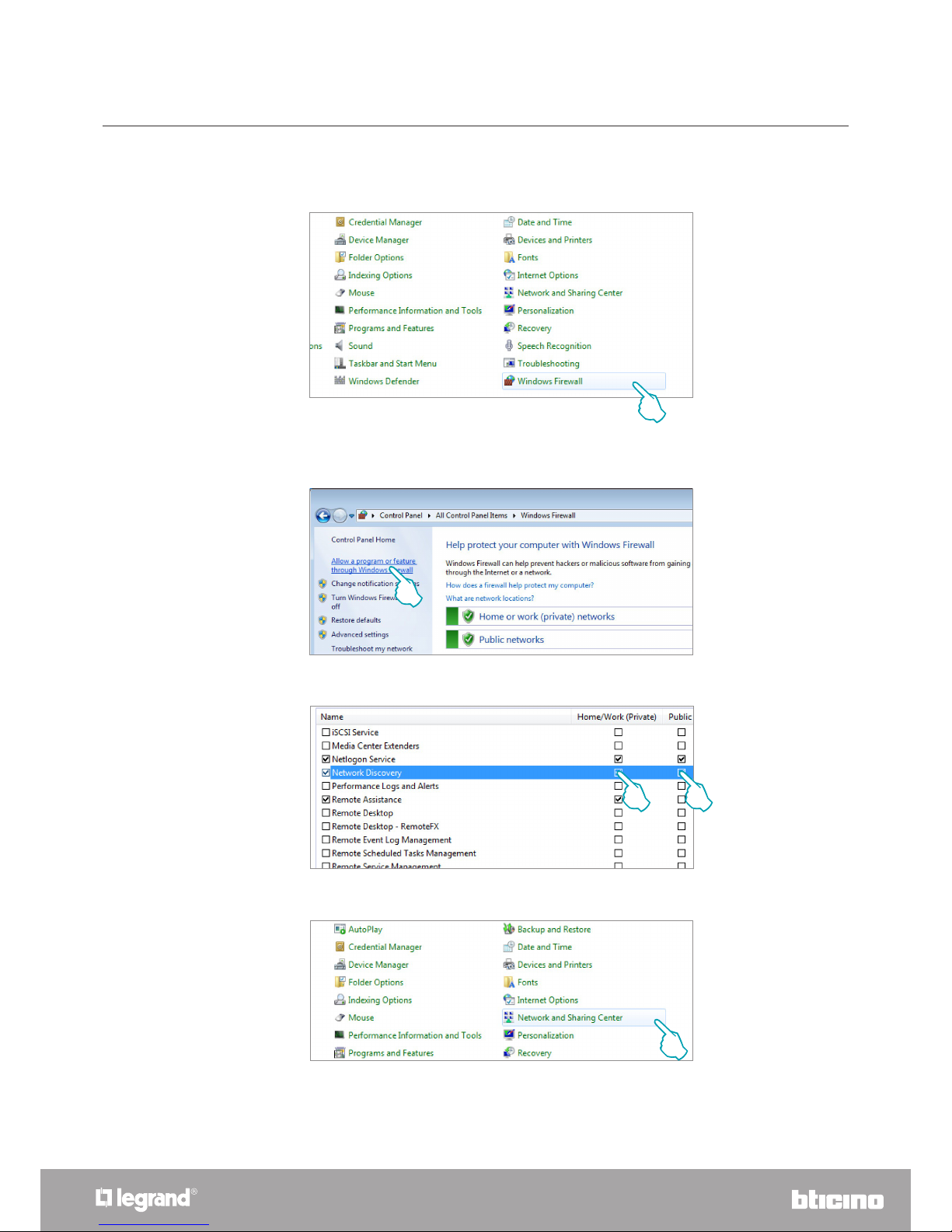

If the device is not automatically recognised by the PC, follow the instructions below. To access the
configuration page and display the IP address of the device, the following parameters must be set:
1
From the menu
Start / Control panel
1. Click “Windows Firewall”.
2. Click “Allow a program or feature through Windows Firewall”.
3. Enable “Private and Public Network Discovery”.
From the menu
Start / Control panel
4. Click “Network and sharing centre”.
2
3 3
4
Page 8
Basic gateway
Installation Manual
8

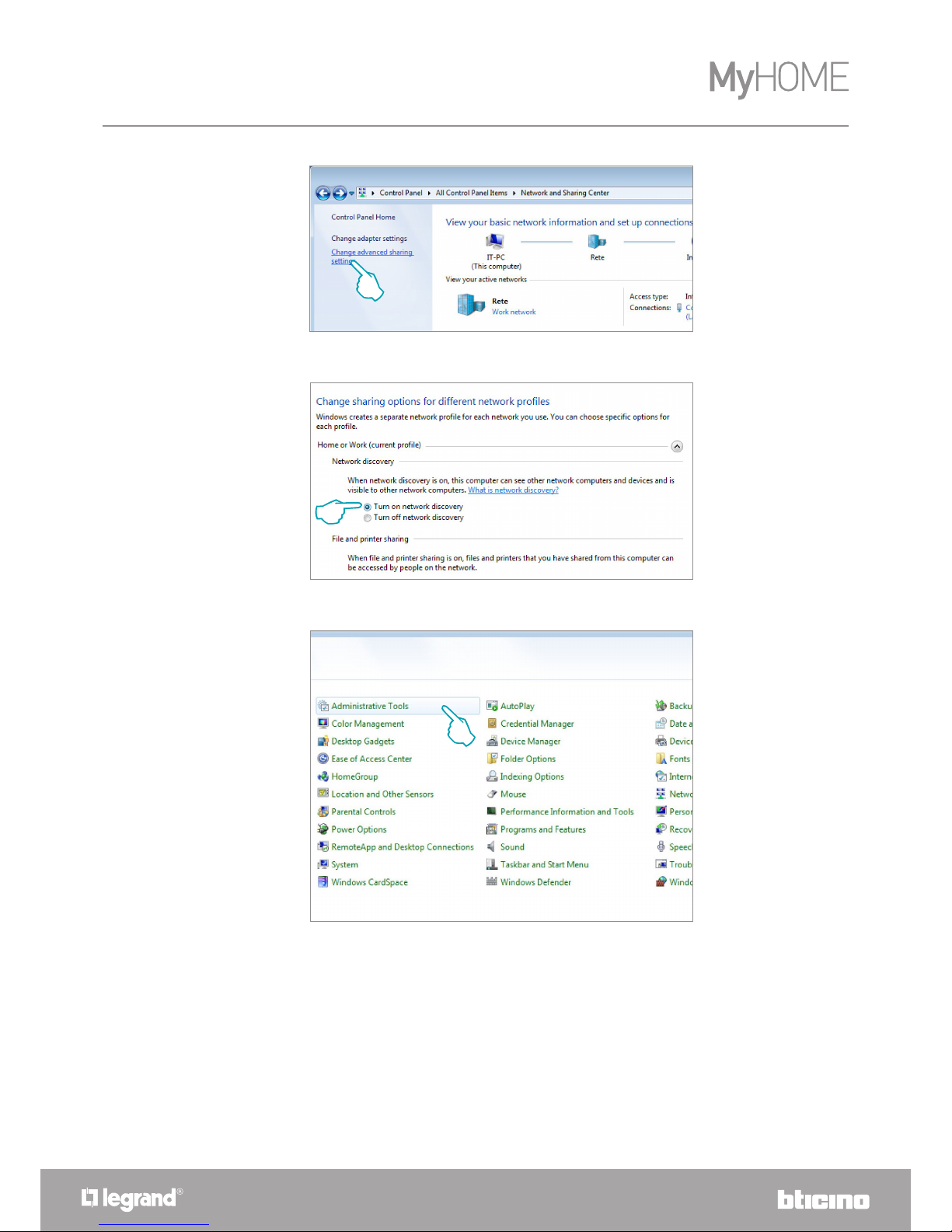

5. Click “Change advanced sharing settings”.
6. Turn on “Network discovery”.
5
6
From the menu
Start / Control panel
7. Click “Administrative tools”.
7
Page 9
Basic gateway
Installation Manual
9

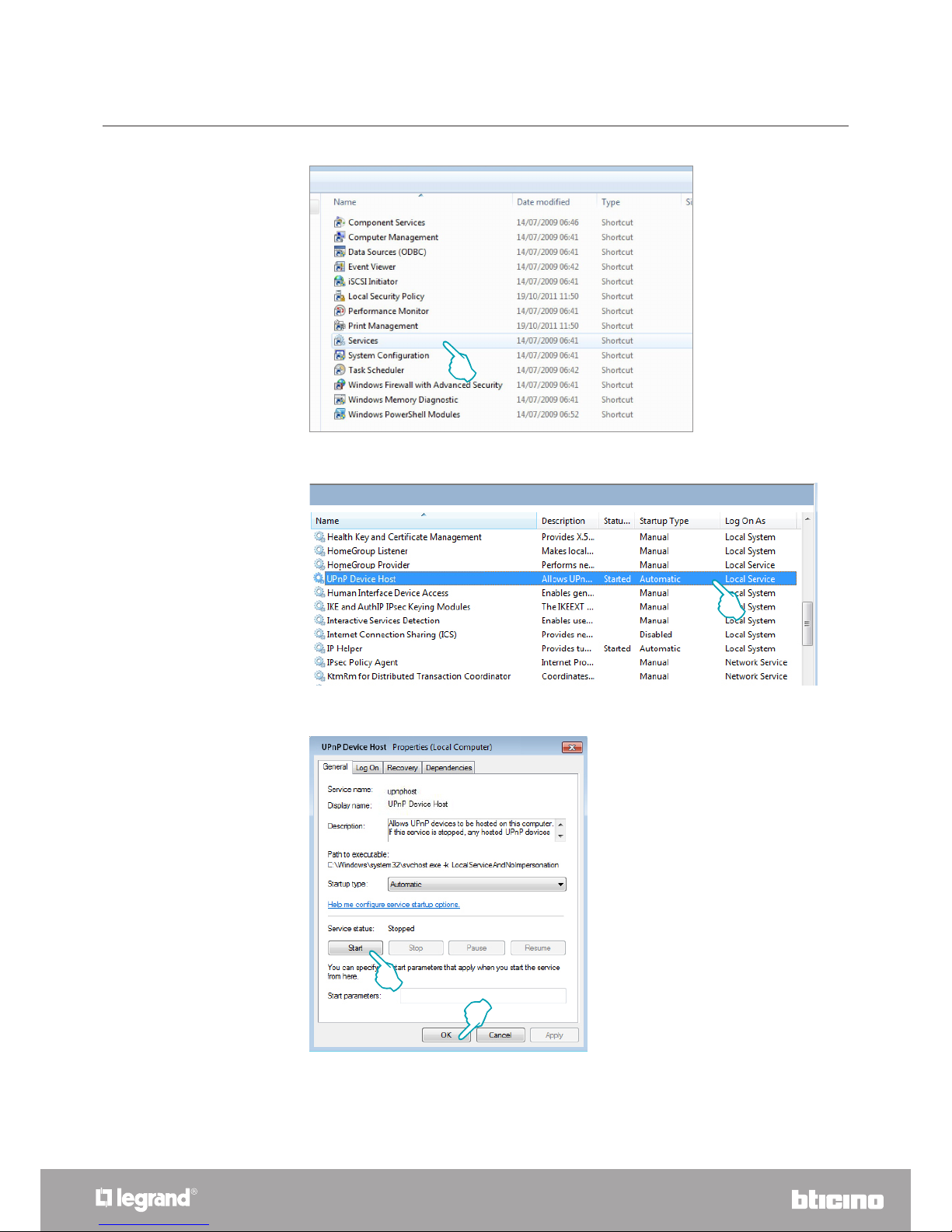

8. Click “Services”.
10. Click “Start”.
11. Click.
9. Set “UPnP Device Host” to Automatic Startup Type, ensuring that it has actually been activated.
8
9
10
11
Page 10
Basic gateway
Installation Manual
10

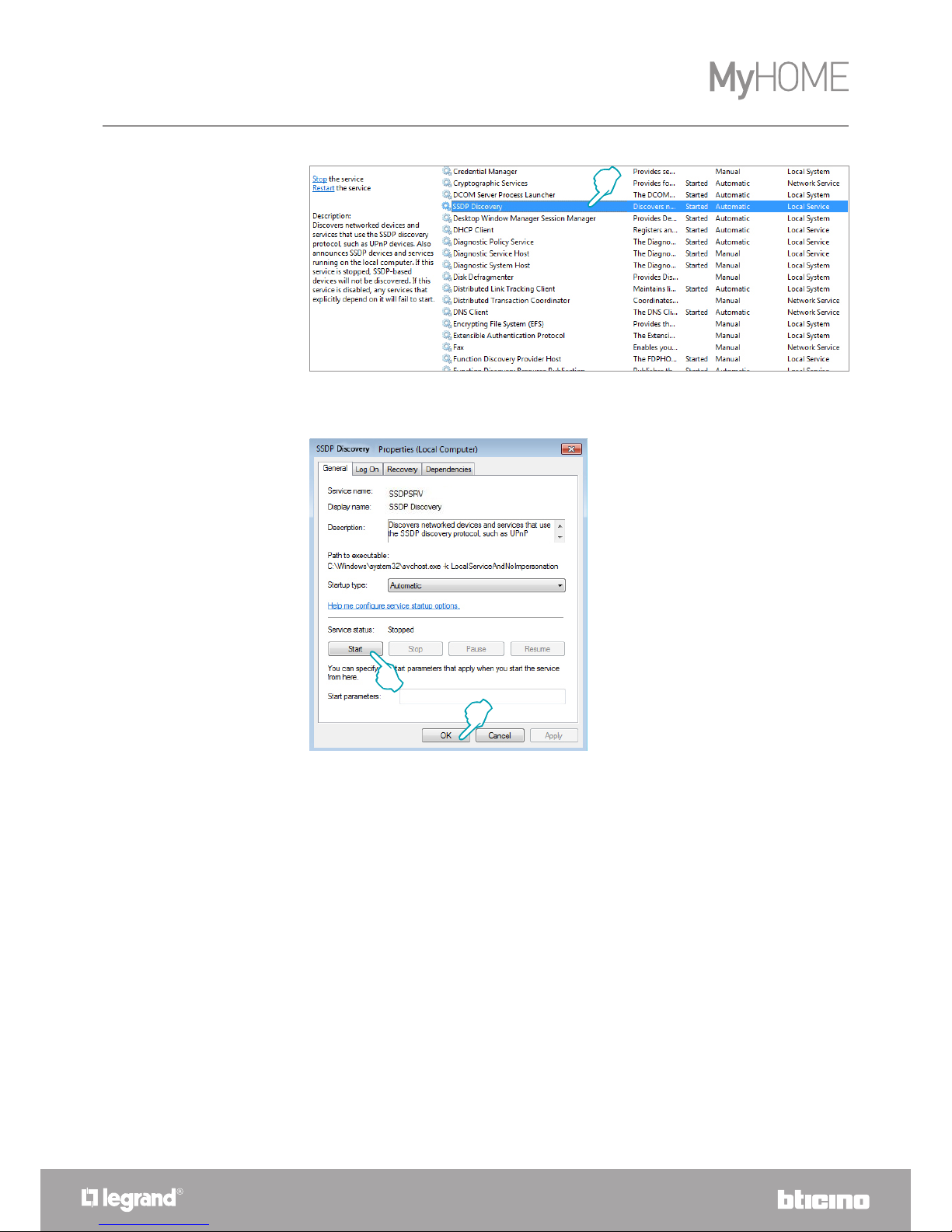

12. Set “SSDP Discovery” to Automatic Startup Type, ensuring that it has actually been activated.
12
13
14
13. Click “Start”.
14. Click.
Page 11
Basic gateway
Installation Manual
11

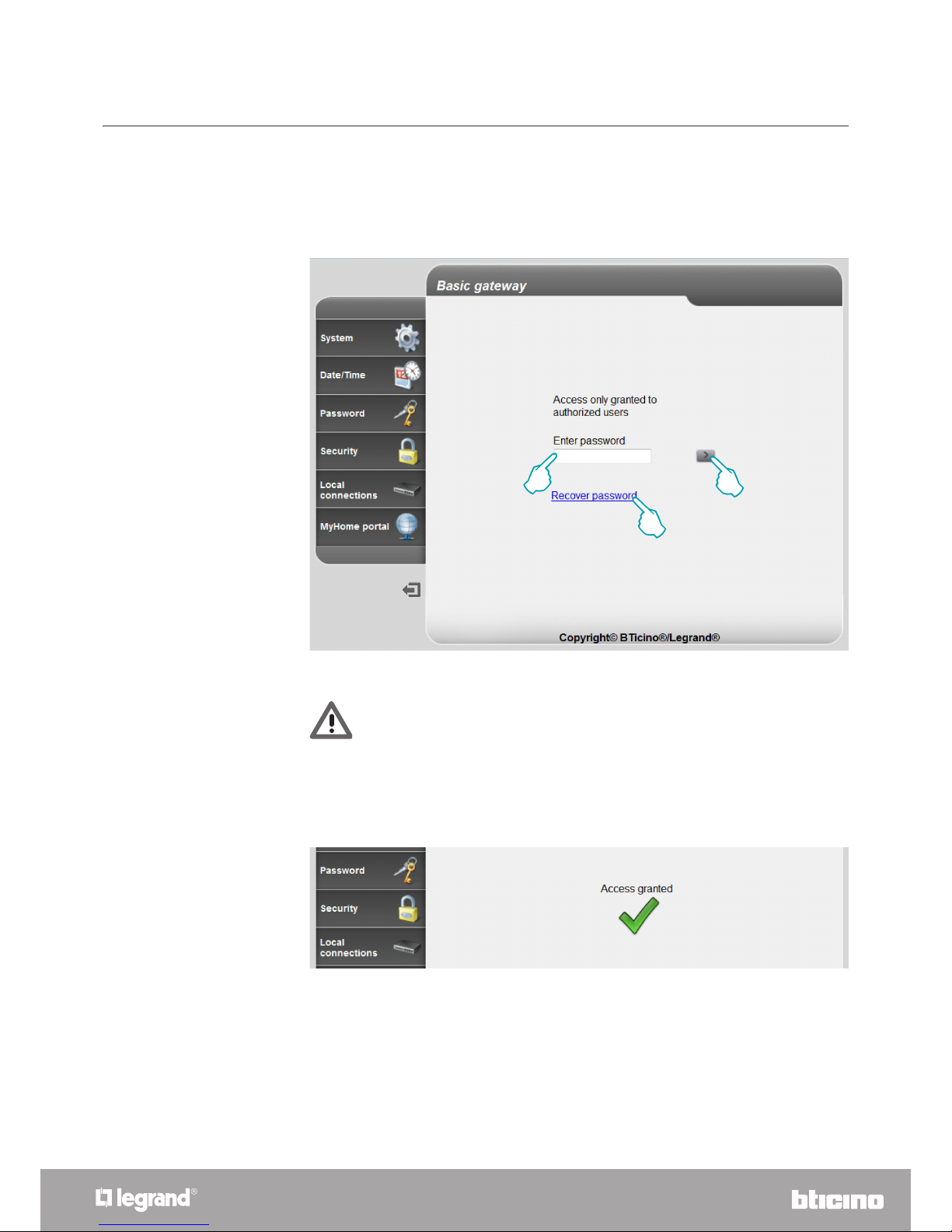

1. Enter the “Password” (default: basic_gw).
2. Click to confirm
3. If you have lost your password, click Recover password to recover it.
Web Pages
Identification
In order to configure the device, you need to identify yourself using the login page.
1
3
2
Warning: depending on the browser used to access the Internet, in order to ensure correct
data display it may be necessary to modify the parameters of the Browser (for example with
Internet Explorer select “Compatibility View”).
If the correct password is entered, the following confirmation message appears:
Page 12
Basic gateway
Installation Manual
12

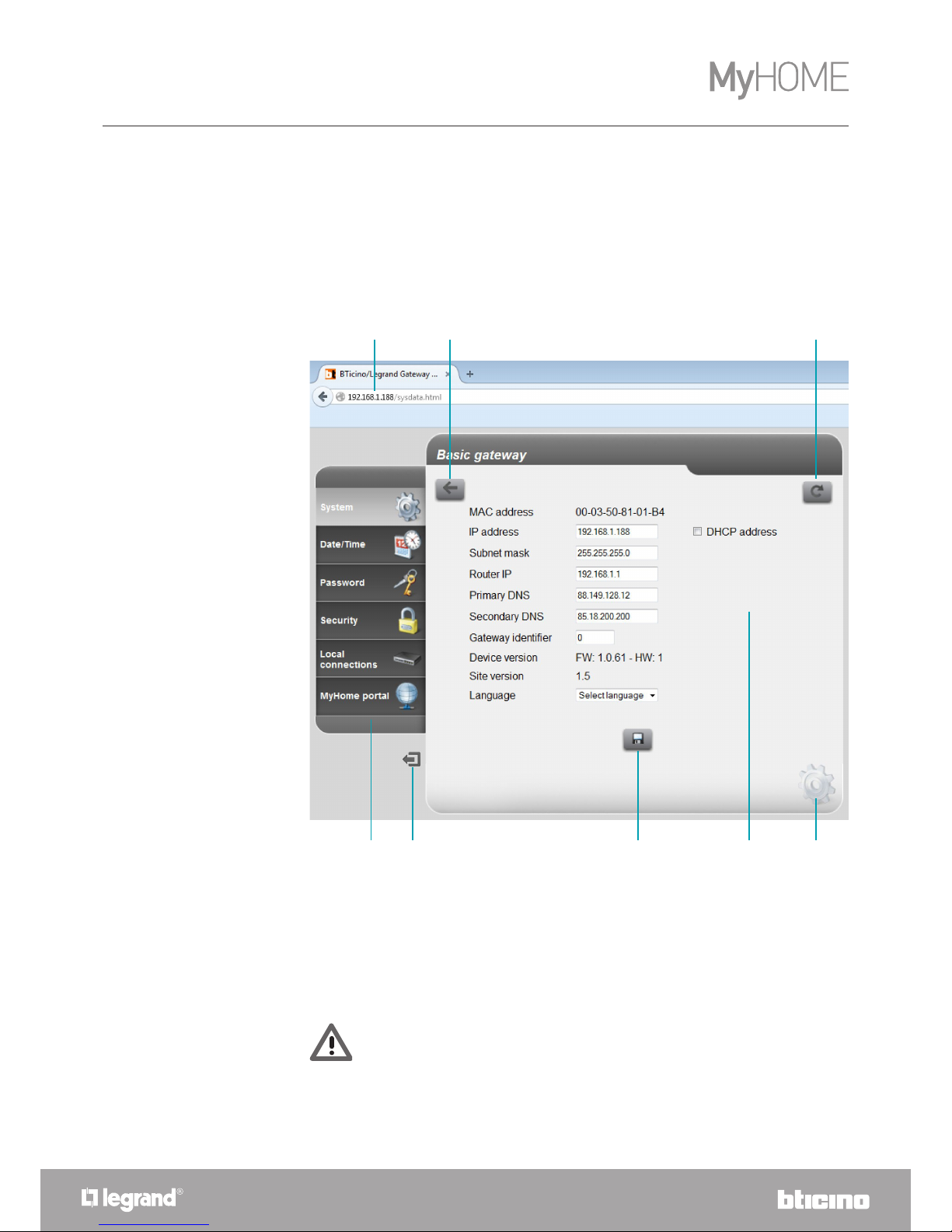

After going through the identification stage, the main page appears, which can be used for the
following configurations:
SYSTEM (language included)
DATE/TIME
PASSWORD
SECURITY
LOCAL CONNECTIONS
1 2 3
45678
1. Device address
2. Previous view
3. Update
4. Configuration icon selected
5. Operating area
6. Save the set parameters
7. Logout
8. Configuration pages
Warning: before changing page, press this pushbutton to save the parameters set.
Note: the configuration page of the MyHOME portal is active but the service is not currently
available with the Basic gateway.
Page 13
Basic gateway
Installation Manual
13

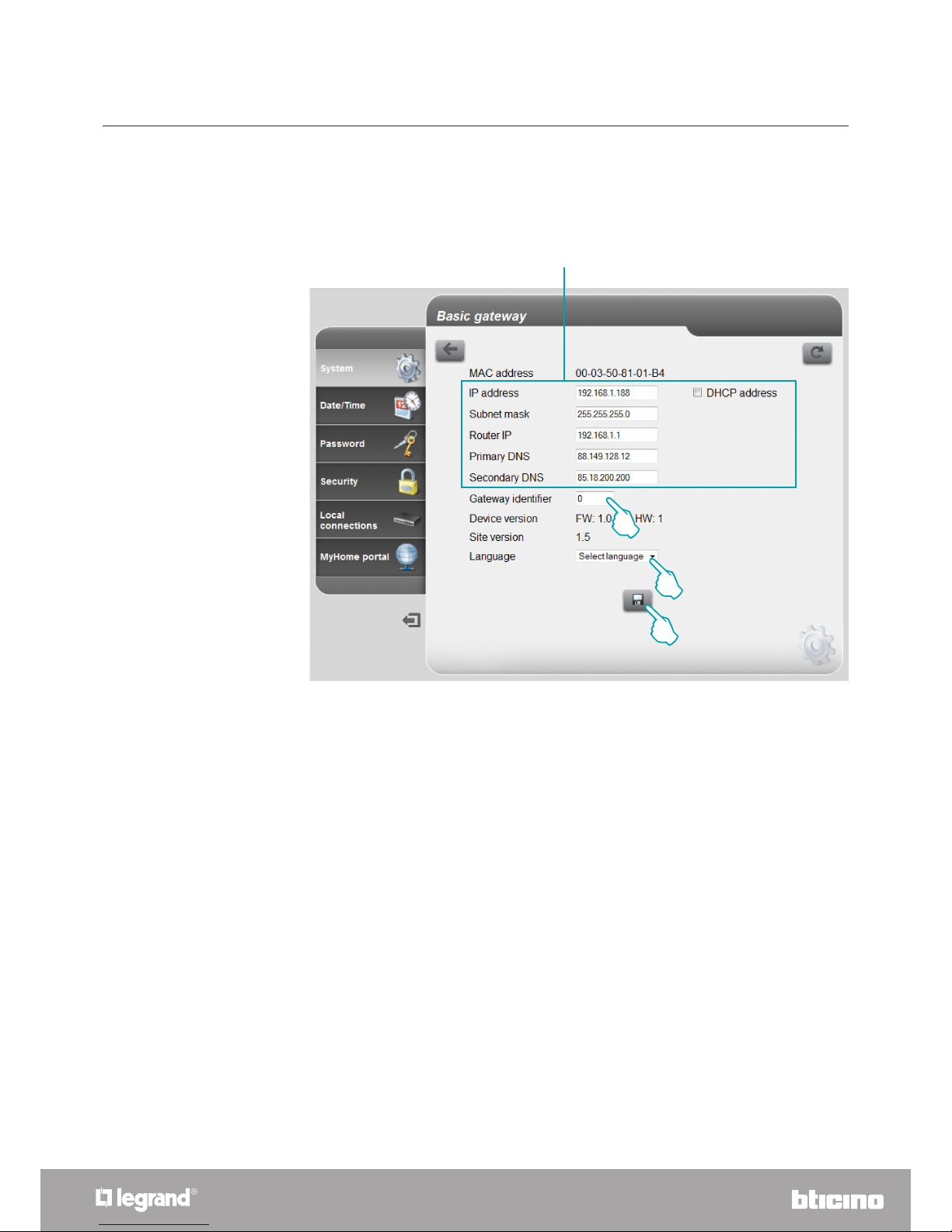

System (language included)
This page can be used to enter the parameters for connection to the Ethernet network and the
web page language. Some device data can also be displayed.
Enter the configuration details in the various sections.
1. Select if the address is a fixed address (in this case enter the parameters below), or a DHCP
dynamic address.
2. Enter a univocal identification number for the device.
3. Select the language of the Web pages.
4. Click to save.
• IP address and Subnet mask: enter the typical parameters of TCP/IP protocol networks,
necessary for the identification of the device within the local network.
• IP router: enter the IP address of the router, if required. If there is a router the field
must be filled in, to ensure the outgoing Services, such as sending e-mails.
• Primary DNS and Secondary DNS: enter the primary and secondary IP addresses of
the Internet Service Provider (ISP) supplied at the moment of the contract subscription.
1
2
3
4
Page 14
Basic gateway
Installation Manual
14

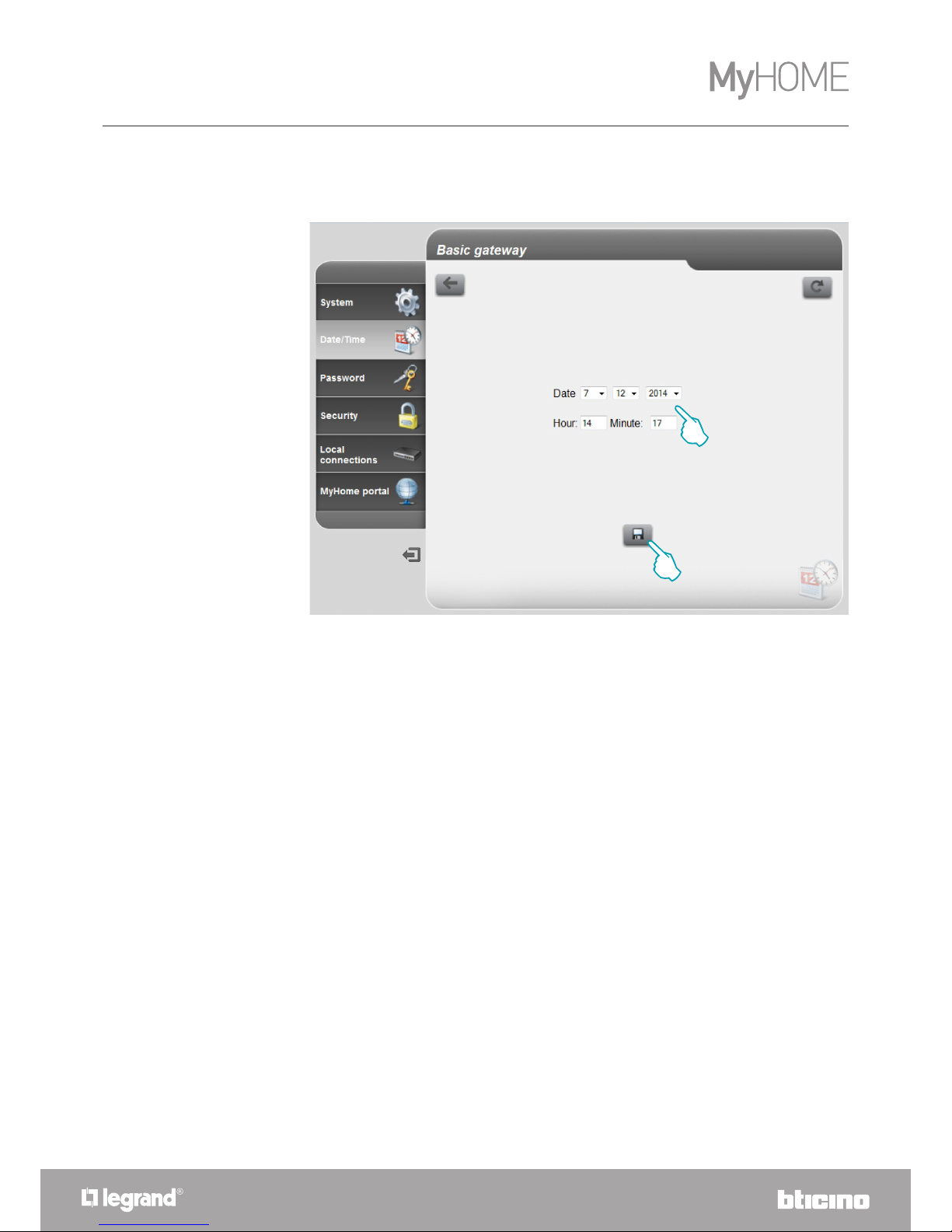

Date/time
In this page the date and time must be set.
1
2
1. Enter the Date and time.
2. Click to confirm.
Page 15
Basic gateway
Installation Manual
15

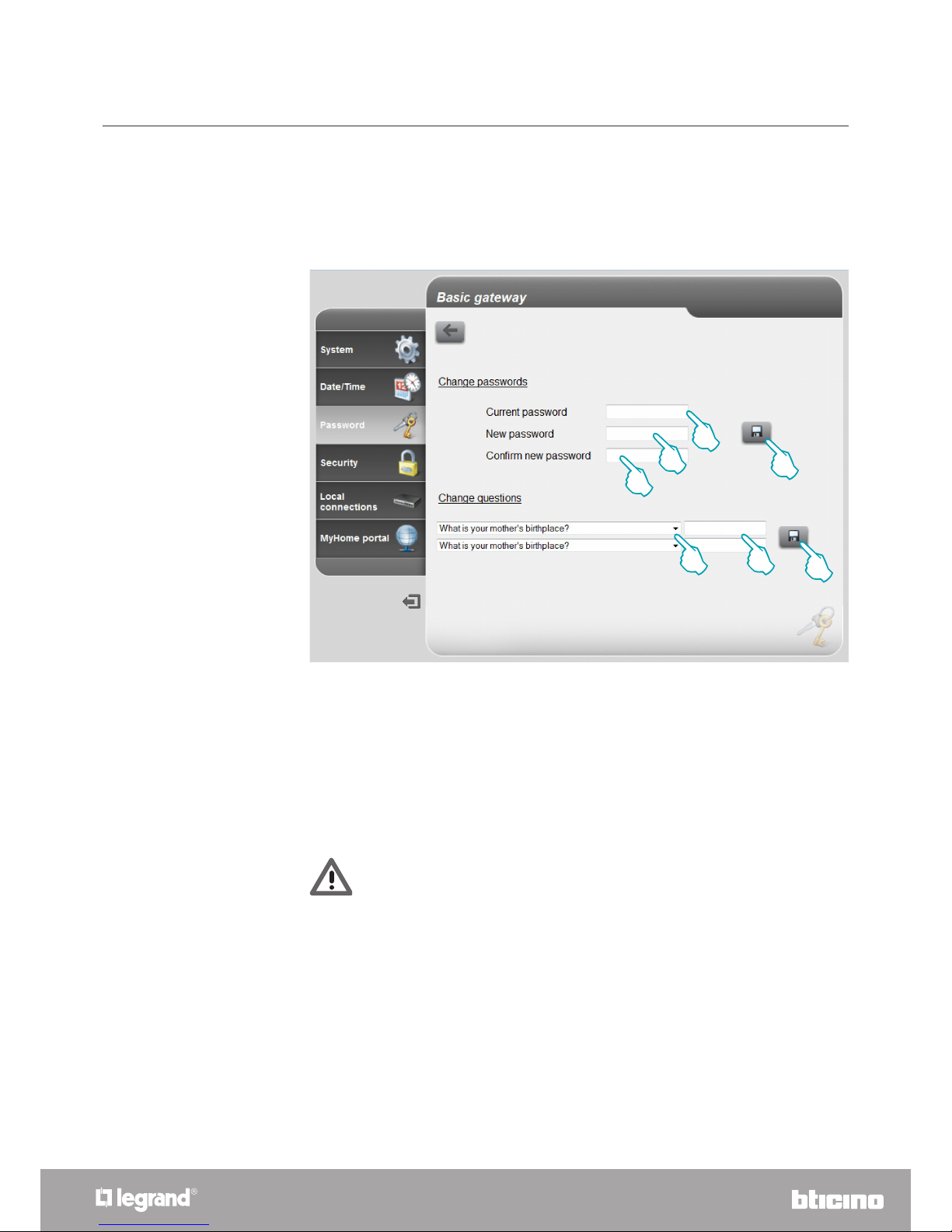

Password
This page can be used to replace the password with a new one (8 to 10 characters) of your choice.
It is mandatory to set questions and consequent answers for security: if you lose the password, you
will be required to answer both questions and as a result the password will be reset to the default
value (basic_gw) allowing you to memorize a new one.
1. Enter the current password.
2. Enter a new password.
3. Re-enter the new password to confirm.
4. Click to confirm.
5. Select the questions.
6. Enter the answers.
7. Click to confirm.
1
6
7
5
2
3
4
Both questions must be set.
Page 16
Basic gateway
Installation Manual
16

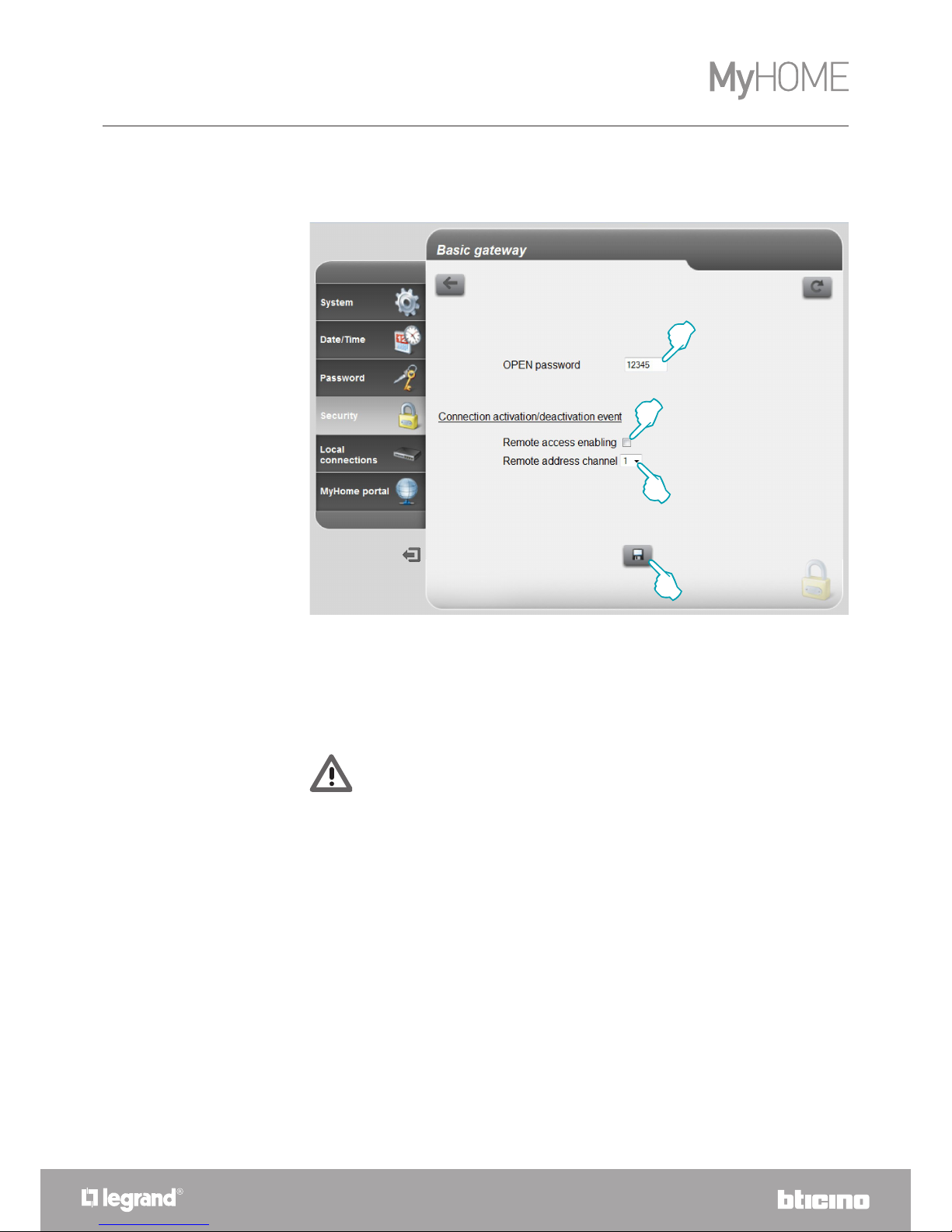

Security
This page can be used to configure the parameters for remote device management.
1. Enter the open password (default 12345).
2. Enable the possibility of activating/deactivating remote access to the device using an auxiliary
channel.
3. Set the activation/deactivation auxiliary channel.
4. Click to confirm.
3
2
1
4
If remote access is disabled, the device can no longer be reached.
The only way to reach it, will be by switching the auxiliary channel.
Page 17
Basic gateway
Installation Manual
17

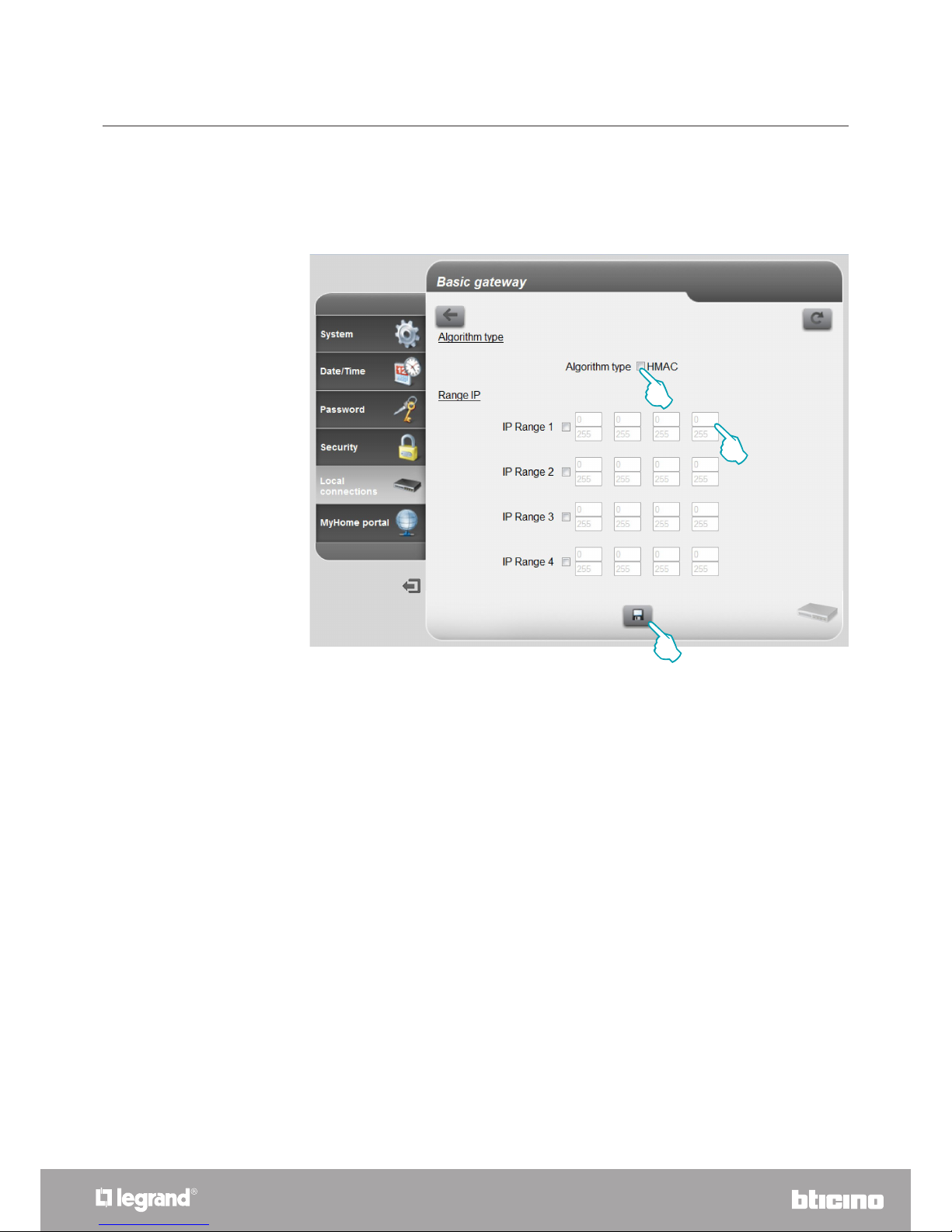

Local connections
This page can be used to set if the device/software performing the authentication should use an
HMAC type algorithm and the range of IP addresses that can access the device without using the
open password.
1. Select if the Authentication algorithm is of the HMAC type.
2. Select the range of IP addresses that will not require an open password for local network
authentication.
3. Click to confirm.
1
2
3
Page 18
Basic gateway
Installation Manual
18
Note: the device has been tested with the following browser versions:
Troubleshooting
Appendix
Technical data
PROBLEM SOLUTION
It is not possible to display
the device in network
resources in case of direct
connection to the PC
Power the device by pressing the reset key until the LED starts
flashing red (the LED flashes red, then turns green, and then
red again): the device will be initialised with the following
parameters:
IP address: 192.168.1.5
IP mask: 255.255.255.0
It is now possible to connect to the device and reconfigure the
parameters.
The device web pages do not
display correctly.
1. Enable “Compatibility View” in the Browser parameters;
2. Delete the Browser history ensuring that “Temporary Files/
Caches” is also selected.
Internet Explorer 8.0.7601.17514
Google Chrome 37.0.2062.124 m
Safari 5.1.7
Mozilla Firefox 32.0.3
Opera 24.0.1558.64
Power supply from BUS 18 – 27 Vdc
Absorption 30 mA (max)
Operating temperature 5 – 40 °C
TECHNICAL AFTER-SALES SERVICE
Legrand SNC only accepts responsibility for perfect device operation if it is installed to the state
of the art respecting the indications of the product installation manual.
www.legrand.com
Page 19
Basic gateway
Installation Manual
19
Page 20
BTicino SpA
Viale Borri, 231
21100 Varese
www.bticino.com
Legrand SNC
128, av. du Maréchal-de-Lattre-de-Tassigny
87045 Limoges Cedex - France
www.legrand.com
Legrand SNC reserves at any time the right to modify the contents of this booklet and to communicate, in any form and
modality, the changes brought to the same.
