DVB-T Mini TV Stick
Quick Installation Guild
Chapter 1 Overview
1.1 Introduction
Important Notice: “All channels are subject to coverage and may be changed from time to time.
Reception may depend on the type and condition of your existing aerial. Aerial upgrade may be
required. Please confirm coverage in your area.” We strongly recommend that you install an outdoors
antenna when you use the DTV receiver indoors.
1.2 System Requirements
Recommended OS system˄Watching TV and recording˅
z 1.7 GHz CPU
z 256 MB RAM (minimum), 512 MB RAM recommended
z Sound card for audio
z One free USB2.0 interface
z CD-ROM (install driver & application)
z Windows 7/Vista/XP
1.3 Package Contents
DVB-T DVB-T Mini TV stickx1
Quick Installation Guide x1
DVB-T Antenna (Optional) x1
Software CD (Driver and Application Software)
Chapter 2 Hardware Connection
Step1.Plug the portable antenna to DVB-T Mini TV Stick
Step2.Plug the DVB-T Mini TV Stick to USB port of your laptop/PC
Chapter 3 How to install driver and software
3.1 Driver Installation:
Step1: OS will remind a new hardware-- “New Hardware Device” was found. Please choose
“Cancel”,
Step2: When CD is inserted, OS will guide you to the setup automatically. Click “Driver Install” or run
Drivers\ Setup.exe,
Step3: Click “Next” to continue installation

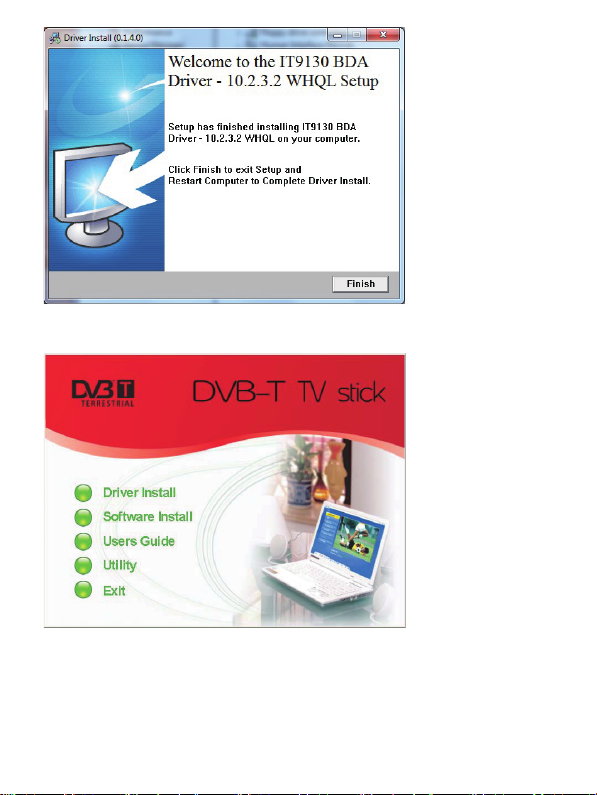

Step4: Click “Finish” to completely install the Driver Software.
3.2 Software installation
Step5: Clic
k “Software install”
Step6: Installation of Total Media, Choose setup language
Step7: Click “Next” to continue installation
Step8: Click “Yes ” and then it will install “Arcsoft TotalMedia”

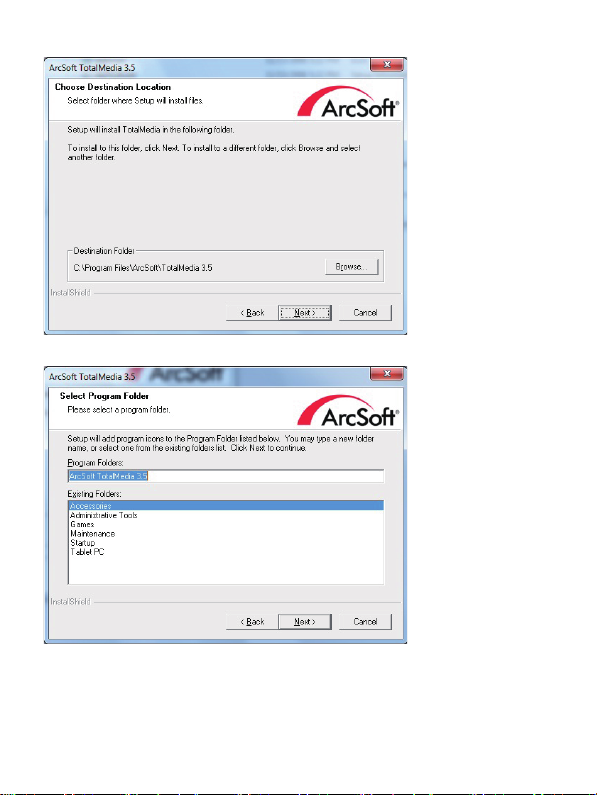

Step9: If you want to change the destination folder, please click “Browse” and click “next”
(Recommended is better)
Step10: Please click “Next”

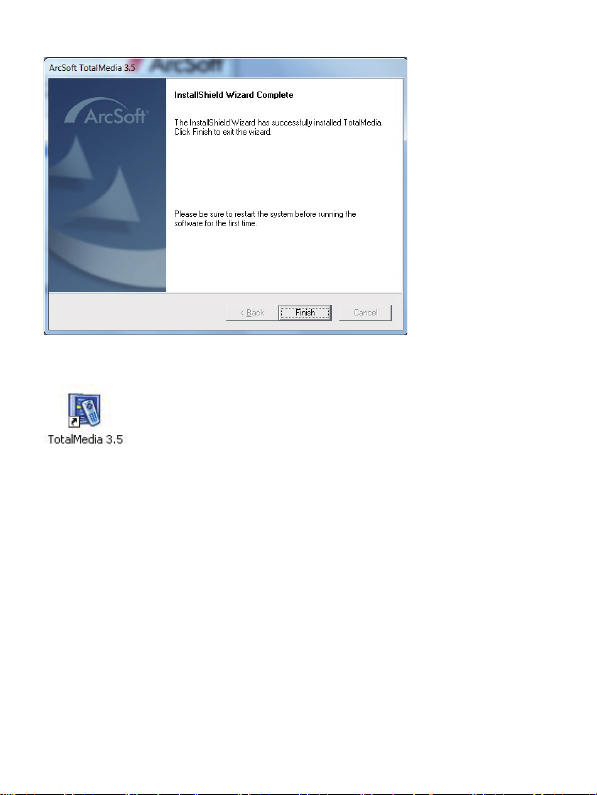

Step11: Click “Finish”, the Arcsoft TotalMedia software is installed on your computer.
Step12: You will see that DVB-T application icons will appear on your desktop.
Step13: When its finished, please check on Control panel, select “System”—“Syste m
properties”—“Device Manager”, you can see one devices which new driver is installed.
IT9135 BDA Device
Note: After finishing the installation and it did not appear on your Device Manager, please try to
re-install the software,
Step14: Arcsoft Total Media
For more information about TotalMedia, please click “?” on the menu bar for help or visit their website
at www.arcsoft.com.
Chapter 4 How to use Remote Control

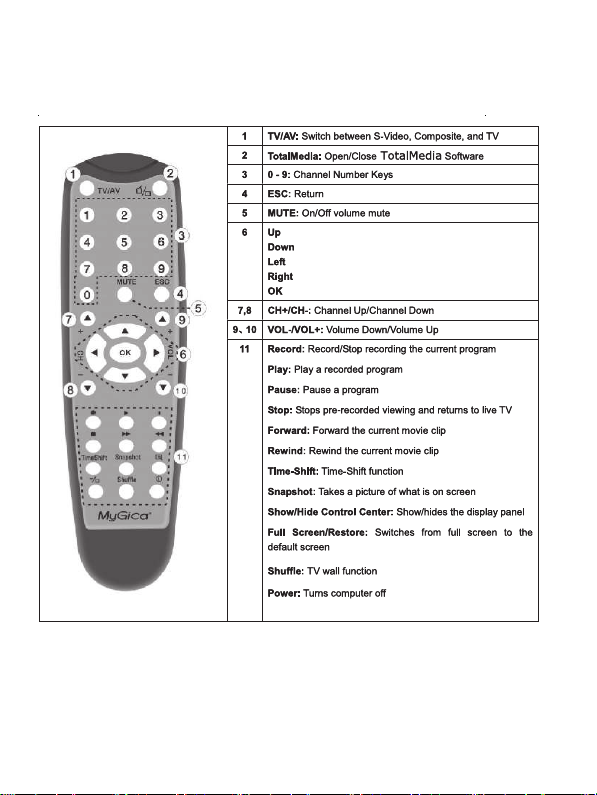

4.1 Remote Control Button List definition
Chapter 5 Frequency Ask Question (FAQ)
1. Can not lock any program channel when auto scan.
1. Please check if there is DVB-T broad casting program in your area;
2. Please check if your signal condition is too weak, try to move the antenna around and re-scan
again, it is better to move the antenna near the window
3. Please check you connect the
4. Please check you select right country in the Total Media software scan function page.
5. Please try to use an outdoor antenna and scan once more.
2. I do find some channels,, but this time I get fewer channels than last time
1. Maybe you moved antenna’s position or angle, try to find the better position and keep the antenna
vertical
2. The weather also can also affect your receiving signal quality, if the weather is bad today, that is
the reason
3. In some new start DVB-T broadcasting area, the provider of DVB-T broadcasting, may change
their broadcasting power from day to day, try to find a best power strength.
4. If you put a CAN of cola on the antenna, that will make signal weak, please move them away.
3. When I watch program, Screen blacked out when playing or freezes on first picture.
Unfortunately, you are in a weak signal condition. You can see that from the Yellow light on the top of
DVB-T TV STICK. The reason is same as question 2.
4. Video pla
Please check the sound card or the volume setting.
5. Remote control does not work
1.Check remote control batteries.
2.Check remote receiver: the light will be on when receive, that is showing it is getting signal.
3.Check if you are in 5m between the DVB-T TV Stick don’t keep to far away.
4.Please point the receive window, that is to say, the angle of the receiving and sending is important
6. Watching TV some time freeze or slow, also audio stroke
1. Please check your PC is not Pentium 3 or 2, DVB-T TV STICK need a high CPU to decoding
2. Please check you VGA driver is properly installed and updated
3. Please don’t run another high CPU loading software such as game and CAD.
ying but Audio failed
DVB-T stream
antenna and tightly
