Android TV Box
ENJOY TV DUAL CORE
ATV520E
User Manual
Thank you for purchasing this MyGica product.
.Before using it, be sure to read the precautions contained in this Us er’s Guide.
.Keep the User’s Guide in a safe place for future reference .
.For the most up-to-date information about this product, visit official website at
http://www.mygica.com
1. Safety Information
Read and understand all instructions before using this product. If damage is caused by
failure to follow the instructions, the warranty does not apply.
1.1 Warning
To reduce the risk of electric shock, DO NOT remove the cover (or back).
DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the
product .
To reduce the risk of fire or electric shock, keep this product away from exposed direct
sunlight, naked flames or heat, large amounts of moisture, dust, and sand.
FCC Note (for U.S.A)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interferenc e to radio or
television reception, which can be determined by turning the equipment off and on.
The user is encouraged to try to correct the interference by o ne or more of the following
measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipm ent and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
- This class B digital product meets all requirements of the Canadian Interference - Causing
Equipment Regulations.
1.2 Precautions
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety
instructions listed below.
Keep these operating instructions handy for future reference.
1.2.1 Read these instructions.
1.2.2 Keep these instructions.
1.2.3 Heed all warnings.
1.2.4 Follow all instructions.
1.2.5 DO NOT use this apparatus near water.
1.2.6 DO NOT clean with any chemical detergent. Clean only with a dr y cloth.
1.2.7 DO NOT block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves, or
other apparatus that produce heat.
2
1.2.9 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where it exits the appara tus.
1.2.10 Only use attachments/accessories specified by the manufacturer.
1.2.11 Use only with the cart, stand , tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used , use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
1.2.12 Unplug this apparatus during lightning storms or when unused for long period of
time.
1.2.13 Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
1.3 Handling Cautions
1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects filled with
liquids, such as vases on the apparatus.
1.3.2 To turn this apparatus off completely, you must pull the power plug out of the wall
socket. Consequently, the power plug must be easily and readily accessible at all times.
1.3.3 DO NOT plug multiple electric devices into the same wall socket. Overloading a socket
can cause it to overheat, resulting in a fire.
1.3.4 Before connecting other components to this player, be sure to turn them off.
1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke, turn
off the power switch immediately and disconnect the power plug from the wall outlet. Then,
contact the nearest customer servic e center for technical assistance. Do not use the
product. Using the product as it is may cause a fire or an electric shoc k.
2. Introduction
2.1 Package Contents
Enjoy TV Dual Core - ATV520E
HDMI Cable
Quick installation Guide
Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A
IR Remote Controller (IR RC)
2.2 Product Features
Dual Core ARM Cortex A9, 1.5GHz, RAM 1G, built in 2G-32G flash memory
Powered by Android 4.2 OS
Built in 802.11b/g/n WIFI module, wireless Internet access
2 USB interface, support mobile HDD, wired/wireless mouse and keyboard operation
RJ45 10/100M Ethernet interface
Support 1080P video playback
HDMI video output, connect to HDTV for HD video playback
3
Support weather, calendar, and desktop clock gadgets
Support 2.4G wireless motion Remote Controller
Support Flash Player 10.2 for hardware decoding, Flash 11.1 for software
decoding ,playback online video
Support music player, picture player and more family enter tainment
Support Micro SD card and Google Chrome browser and virtual private network access
App Installer for application installation from USB/Micro SD card
2.3 Panel Introduction
4
2.4 Remote Controller
Remote control KR34
[01] Power [10] Home
[02] Mouse [11] Switch
[03] Mute [12] Menu
[04] Up [13] Volume +
[05] Left [14] Notifications
[06] Right [15] Page up
[07] Down [16] Volume -
[08] Enter [17] Page down
[09] Exit
Note: Click “Mouse”button once.. Push up/down/left/right to shift the cursor of the mouse
. The remote change to a mouse
Click “Mou se”again.. The remote change back to normal IR remote
5
2.5 Setup Connection
Place ATV520E on a flat platform near the TV, and make sure nothing block the remote
control signal.
2.6 Display when Power Up
2.6.1 After power up, the TV will first show a green robot then change to “android” logo during
loading. When loading is finished, it will go to Home screen.
6
2.6.2 Home Screen display.
3. Settings
Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller to select the
options, the option selected will be highlighted and confirmed by pressing OK key. Same
operation for text input if needed.
Select setting icon then press OK key.
3.1 Wi-Fi
3.1.1 It will automatically scan ambient Wi-Fi networks when select “ON”.
3.1.2 Connect to an available Wi-Fi network. If connect to a secured Wi-Fi network,
corresponding password will have to be entered first. Or if connection fails you will need to
reset password.
3.1.3 Once the connection to a certain Wi-Fi network is done successfully, ATV520E will
connect this Wi-Fi network automatically when restart.
Note: If factory reset, the password of Wi-Fi network have to be reset.
7
3.2 Ethernet
Connect Box and Router by RJ45 network cable.
Press “ON” in Ethernet setting, it will connect to network automatically.
3.3 Data usage
Show data usage information.
3.4 More...
3.4.1 VPN
Build and set VPN
8
3.4.2 Portable hotspot
3.4.2.1 Enable Portable hotspot
3.4.2.2 Set up Wi-Fi hotspot
3.4.2.3 Choose different security way to share your network.
3.4.2.4 Help for any confusion
Note: Wi-Fi and hotspot connection cannot be applied at same time. Disconnect Wi-Fi
and connect Ethernet while using hotspot function.
3.4.3 Proxy settings
Setup proxy server
3.5 Sound
3.5.1 Volumes
Increase or decrease sound volumes
9
3.5.2 Touch Sounds
If Touch sound is enabled, sound will be heard while you move on the remote controller.
3.6 Display
3.6.1 Font size
Change the font size of OSD
3.7 Storage
Shows the storage used of the OS and SD card.
10

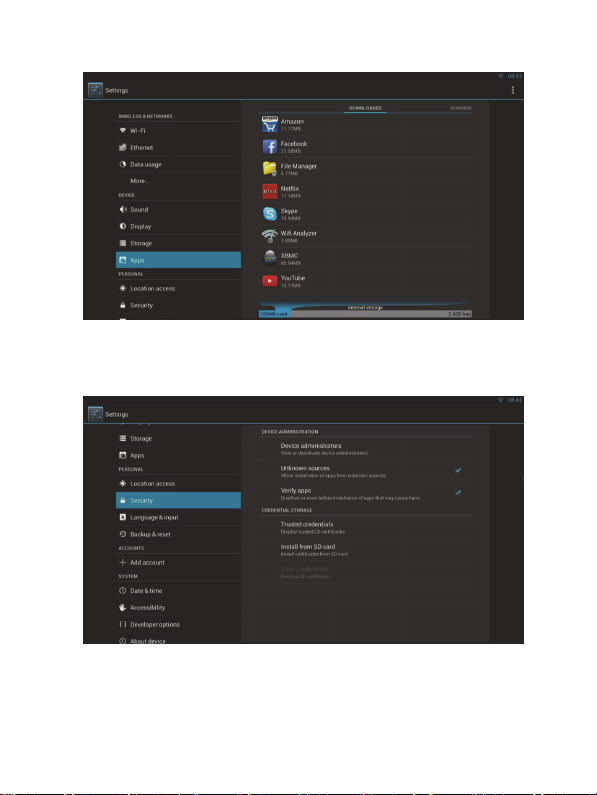

3.8 Apps
List all apps installed.
You can choose an application and force to shut down the app, uninstall the app, clear user
data, move to SD card and clear cache data.
3.9 Security
11

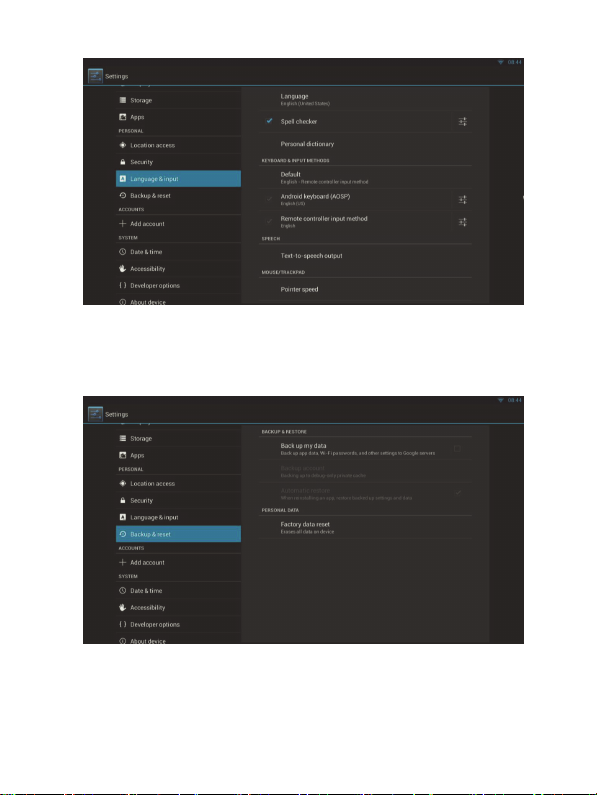

3.10 Language & input
Change OSD language and input method.
The default input method is android standard keyboard.
If you are using our IR remote control, enter into “Default” option and switch to remote
controller input method.
3.11 Backup & reset
Back up my data:
You can backup your application data, Wi-Fi password and other settings.
Factory data res t:
You can reset all the settings and apps to factory default.
Note: You might want to backup important data before resetting the box. Once you choose
to rest to factory default, all data/apps will be deleted.
12

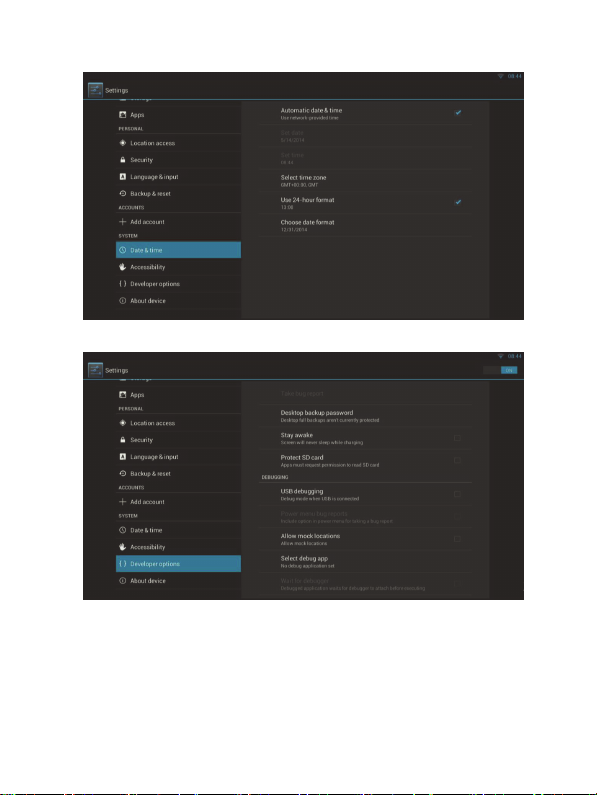

3.12 Date & Time
Set date, time, time zone and time format
3.13 Developer options
If user want to do some debugging on box by ADB, enable USB debugging, you will get ADB
function by Ethernet or Wi-Fi network.
13
3.14 About MediaBox.
Firmware version under build number.
4. Apps Install & Uninstall
On ATV520E, you can install apps from Android Market over the Internet or other sources,
such as other online sources, the internal storage and the USB storage device and SD card
that you have mounted onto ATV5 20E.
You also can manage apps on ATV 520E and Micro SD card, install/uninstall apps, stop
running apps, or select other options.
5. Application Usage
5.1 XBMC Media Center
14
XBMC Media Center allows you to play and view most videos, music such as podcasts from
the internet, and all common digital media files from local and network storage media.
5.1.1 Playback local media files

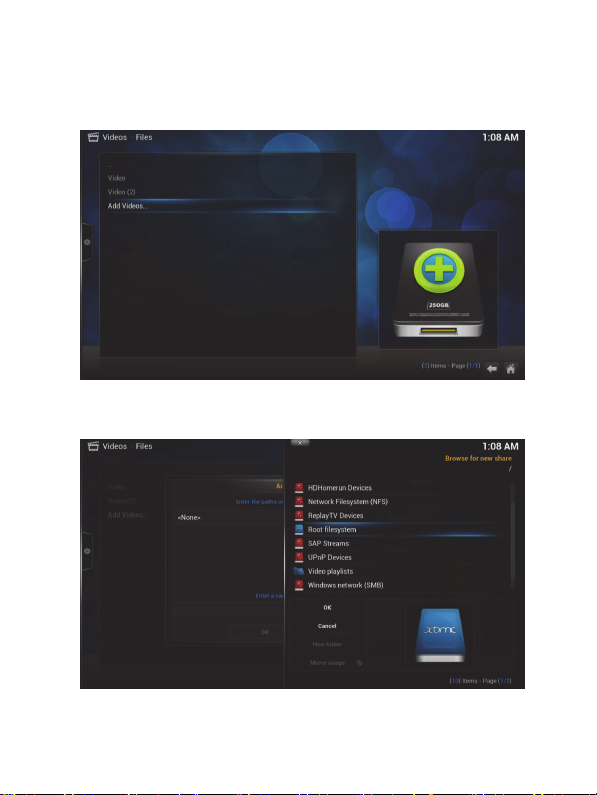

Under Videos (same as Music and Pictures) there are 2 options, Files & Add-ons.
To playback local media files, select ‘Files’ and enter Files interface, as shown in the
picture:
Select ‘Add Videos...’ and a pop up window “Add Video source” will come out. Select
‘Browse’ and a list of devices will come out.
Scroll down to find the ‘Root filesystem’ and select OK, then search for ‘storage’ folder and
select ‘external_storage’ folder, you will see all the devices connected to the player.
15
If your media files are store in SD Card, select ‘sdcard’ folder, if the files are store in USB
drive, select ‘sda’ folder. Once you select the desire folder, select ‘OK’ and you will find out
that folder will be added to the Files list. You can enter that folder and playback media files
you want.
5.1.2 Playback media from internet
XBMC comes with some free internet podcast channel s, to view these channels, goto Videos
(or Music) and select Add-ons.
16
Once you enter Add-ons, you will see a list of different channels. These channels are in
alphabetical order, browse through the list and select the desire channels and start
playback the internet media.
5.2 Local Media
To access media files in your SD card/USB device, simple click on ‘Local Media’ in the
Home screen. There are 3 different f unctions in Local Media.
Picture Player: Playback pictur e files stored in your SD card/USB devices.
Movie Player: Playback movie files stored in your SD card/USB devices.
Music Player: Playback music files stored in your SD card/USB devices.
You can click ‘...’ button to call up the tool menu to change mode, subtitle, audio track, get
information, etc.
17
5.3 Media Center
Media Center lets you enable DLNA or Airplayer function.
DLNA_DMP: DLNA_DMP lets you visit DLNA share folders on other devices in the same
network and playback shared file.
DLNA_DMR: Lets you stream media file from your android mobile device to the player
and display on TV. (Your Android device must have DLNA app)
When you first turn on this function, please restart the box to avoid mal-function.
(Same for if you turn this function off and turn it on again)
AirPlayer: Lets you steam media file from your IOS mobile device to the player and
display on TV.
When you first turn on this function, please restart the box to avoid mal-function.
(Same for if you turn this function off and turn it on again)
Settings: You can setup the box device name on local network.
5.4 My Favorite folder
18
When more and more applications are being installed, it becomes difficult to find the
application you use the most. To help solve this, there is a My Favorite folder on the Home
screen. You can store all your favorite applications in My Favorite folder by highlighting the
application, then holding the OK button of the remote control. A window will pop out asking
if you want to add this app to My Favorite. Click Yes and this app will be stored in My
Favorite Fo lder.
5.5 MyGica RemoteIME Application
5.5.1. Connection:
1. Make sure MyGica Enjoy T V Box and your Android phone/Tablet are connected to the
same network.
2. On MyGica Enjoy TV Box, goto settings > Wi-Fi and click on the router which is currently
connected. (Usually it is the first router on the list with ‘Connected’ under t he router name.)
3. A new window will pop out, showing information about this connection. Please take note
of the IP address.
5.5.2. Install RemoteIME on Android device.
You can download RemoteIME app from our website:
http://www.mygica.com/down.asp?id=2
After you have download and install the app, open RemoteIME on your Android
phone/tablet device. Once the app is open, click on the
for any MyGica Enjoy TV Box on the same network. When the search is finished, it will list
out all the detected MyGica Enjoy TV Box with their IP address. Select the IP address of the
MyGica Enjoy TV Box you want to connect and your Android phone/tablet will become a
remote control of the connected MyGica Enjoy TV Box.
19
button and it will search
If your device cannot find the MyGica Enjoy TV Box, you can click on the
and manually input the IP address of MyGica Enjoy TV Box.
5.5.3. Using RemoteIME
Once properly connected, your Android phone/tablet will become a remote control for
MyGica Enjoy TV Box as shown in the picture:
button
The remote control interface not only has buttons for up/down/left/right, ok, back, home,
menu, and search, the black space on the top actually works as a mouse pad and there are
also the left & right mouse buttons. If you click on the
switch to the keyboard layout as shown in the picture:
button, the interface will
20
6. Firmware Update
You can download the newest firmware from MyGica Official website: www.mygica.com
7. Trouble Shooting/FAQ
7.1 No Pi ctur e
Refer to the TV user manual for how to select the correct video input channel.
7.2 USB Content cannot be read
. The format of USB storage device is not supported
. The supported memory size is 32G maximum.
. Make sure that this player supports these files.
7.3 Remote Controller cannot respond quickly to the pressing of keys
Make sure that batteries have enough power.
7.4 The firmware updating is not complete after a long time
If you update the firmware over the online service, it may take a long time to download the
firmware update files from the server. To save time, update the firmware through the SD
card.
8. Repairs
If you contact us to repair your player, an administration fee may be charged if either:
8.1 An engineer is called out to your home at your request and there is no defect in the
product.
8.2 You bring the unit to a repair center and there is no defect in the product.
We will provide you with the amount of the administration fee before we make a home visit
or begin any work on your player.
We recommend you read this manual thoroughly, search for a solution on line at
www.mygica.com
, or contact MyGica Customer Care before seeking to repair your player.
9. Specification
CPU Dual core ARM CORTEX A9 1.5GHz, 3D engine
GPU Mali 400MP2 @400MHz
RAM 1G DDR3
ROM 4G, built in 2G-32G Flash memory(optional)
OS Android 4.2 OS
Ex-SD Max. 32G
USB USB2.0x2, Support Mobile HDD, wired/wire less mouse and keyboard
HDMI V1.4a
DC Input 5V/2A
SD Slot Max: 32G
21
Video Output H DMI
Audio Output
IR receiver
LAN RJ45 10/100M Ethernet interface
WiFi IEEE 802.1 B/G/N 2.4G,wireless Internet access
Audio Decoder
Video Decoder
Movie Subtitle
Storage System FAT16, FAT32, EXT2, EXT3, NTFS
Size 100 X 100 X 15mm
Net Weight 160g
HDMI
MPEG MP1, MP2, MP3
WMA WMA Ver: 4, 4.1, 7, 8, 9 WMA Pro
Other Audio
Performance Max. 1920x1080 p @ 30fps
MPEG DAT, MPEG, MPG, MPE
MPEG2 MPEG, MPE, MPG, M2V, ISD, TS, VOB
MPEG4 AVI, MOV, MP4, MKV, 3GP, 3GPP, FLC
Divx Divx 3, 4, 5(AVI)，Xvid(AVI)
H.264 AVI, MOV, MP4 , MKV, TS, M2TS, M3T S, M4TS,
H.263 AVI, FLV, 3GP, 3GPP, MOV, MP4, 3G2
VC1 AVI, TS
WMV WMV, AVI
Memory limitation, 8000x8000 pixels
Font Sub-title ASS, SMI, SRT, SSA , TXT
Image Sub-title idx/sub
WAV, OGG, OGA, FLAC, ALAC, Ape, AAC, M4A, AC3,DTS,RM
M5TS, MTS, M4V, FLV
22
10. Trademark Notice
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing LLC in United States and other countries.
23
Loading...
