MyE Smart RemoteTM
User Guide
MyEnergy Domain, Inc
Version 1.0
1.Keys
Smart Remote
1
2
5
① Time/Temperature and humidity
② AC system mode
③ AC set-point UP
① Time/Temperature and humidity
④ AC set-point DOWN
⑤ AC ON/OFF
⑥ Backlight ON/OFF
3
4
6
Toggle between two displaying modes: time display mode, or temperature and
humidity display mode. The default mode is the time display mode.
② AC system mode
Toggle among “Auto” (with a sun & snowflake icon), “Cool” (with a snowflake
icon), “Heat” (with a sun icon), “Dehumidify” (with a water drop icon), “Fan only”
(without any icon).
③ AC set-point UP
Raise the AC set-point by 1C.
④ AC set-point DOWN
Lower the AC set-point by 1C.
2
Smart Remote
⑤ AC ON/OFF
1. Toggle between AC ON and AC OFF.
2. During the network forming, this key acts as a confirmation to join the
HAN (home area network) formed by the smart home gateway.
⑥ Backlight ON/OFF
Toggle between backlight ON and OFF.
②+⑤ HAN Search
Press these two keys together re-initiate the search for HAN (home area
network) formed by smart home gateways. If the Smart Remote is already in a HAN
before this operation, it will exit that HAN first and start a new search.
2.Setup
2.1SmartHomeGateway

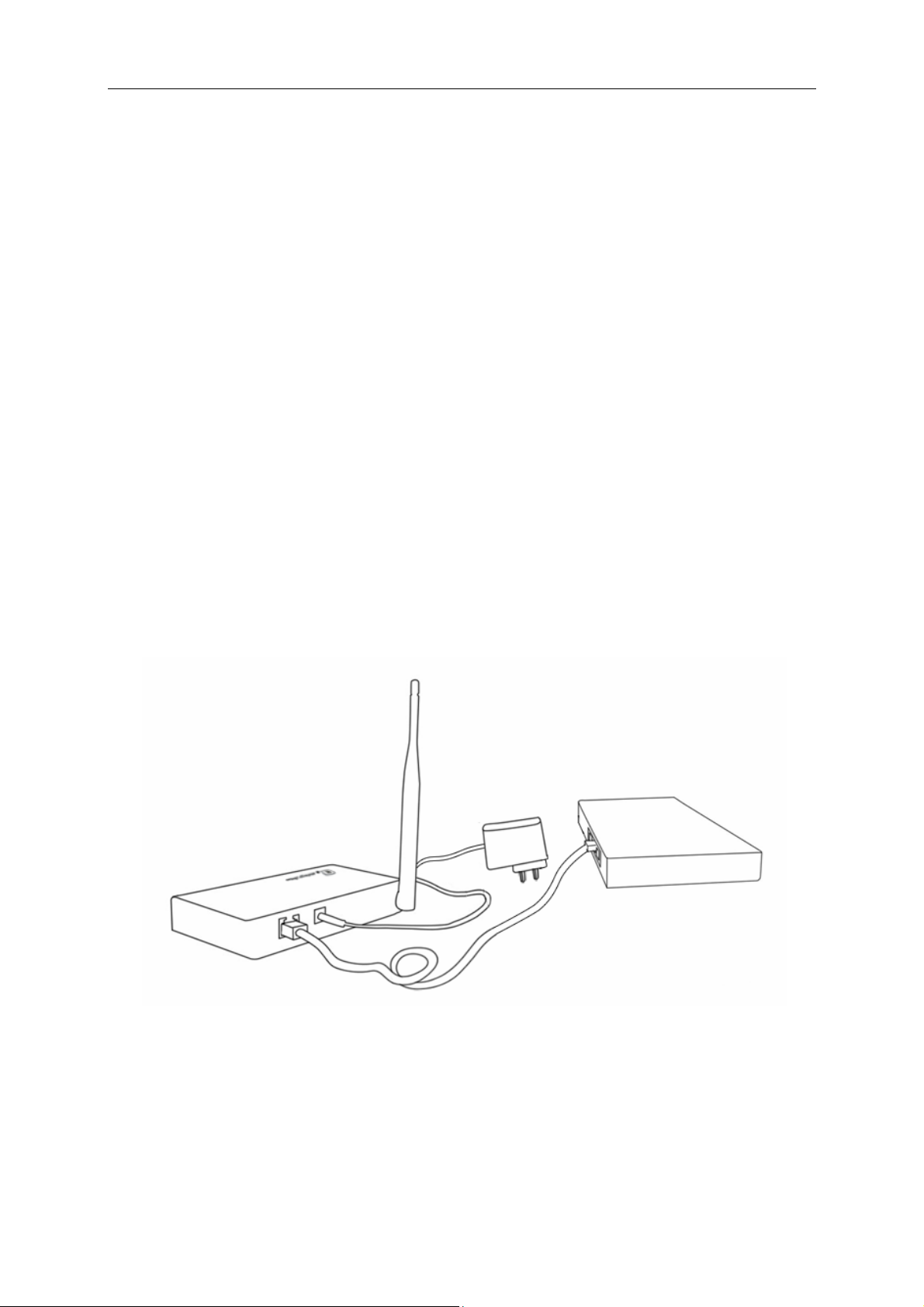

Smart Home Gateway
Internet Router
AC Adaptor
（1） Connect the smart home gateway with the included AC adapter to a power
source.
（2）Connect the smart home gateway with an Ethernet cable to a home internet
router.
3
Smart Remote
2.2Registration
Visit http://www.myenergydomain.com and sign up.
3.Controls
As the smart remote controls home devices (such as TV, audio, automated
curtain, etc) via infrared signal, you need to go through a step to secure the
IR coding of the devices before you can control them. Different types of
IR-controllable devices use different IR coding.
An online guide will walk you through the setup of the IR coding for devices
you would like to control.
AddDevice
On the page of “Smart-ups”，click “Add Device”. A setup guide will appear
as shown below. Specify a smart remote through which the device is to be
controlled. Finish other items, and click “Next”.
The next step is to learn the IR coding of the buttons on the original remote
of your device. In most cases, you only need to learn two buttons: ON and OFF.
4
Smart Remote
Click a button in the figure above to record its corresponding IR coding,
and a dialog box as shown below will pop up. Click “Record”. A display of
“Lr ――” will start flashing on the LCD, waiting for you to point your original
remote to the Smart Remote and press the button of the function you’d like to
record. Once you press the button on your original remote, the Smart Remote will
record it and upload the IR coding to the server. You can verify if the IR coding
has been learned correctly.
Controls
On the page of “Smart-ups”，click the icon of the device you want to control
to bring up the control panel. Click the button which represents the function
you would like the device to operate on, and the device will be set to the
corresponding operation mode.
5
FCC Statement.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this devic e may not cause harmful i nterference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: The manufacturer is not responsib le for any radio or TV interference
caused by unauthoriz ed modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to p art 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential inst allation. This equi pment generates uses and can radiate
radio frequency energy and, if not inst alled and used in accordance with the
instructions, may ca use harmful interference to radio communications.
However, there is no guarant ee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a ci rcuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The users manual or instruction manual for an intentional or unintentional radiator
shall caution the user that changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment. In cases where the manual is provided only in a form other than paper,
such as on a computer disk or over the Internet, the information required by this
section may be included in the manual in that alternative form, provided the user
can reasonably be expected to have the capability to access information in that form.
