MWC-9 900MHz Controller

Operation Manual

MWC-9

Operation Manual

manmwc9

www.myeclubtv.com

CONTENTS

FCC Compliance Statement…………………..…………. 3 Canada Compliance Statement………………………….. 3 Specifications………………………………………….… 3 Controller Orientation (Front / Rear)…………………… 4 Keypad – Key Identification………………………….… 5 Main Features…………………………………………… 5 Display and Icon Identification…………….…………… 6 Programming - Near / Far Reception Setting…………… 6 Programming the Receiver Controller (Auto Programming)… 7 Programming the Receiver Controller (Manual Programming) 7 Attaching the Controller………………………………… 8 Intellijack…………………….………………………….. 9 Special Features…(FitP3)………………..………….….. 10 Special Features…(Auto Off)………………..…………. 10 Warranty Information…………..…………..….……..…. 11 /12

FCC Compliance Statement

NOTE: This equipment has been tested and found to comply with the limits for a class B digital devise pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection agai nst harmf ul interf erenc e when t he e quip ment is o perat ed i n a residential environment. This equipment generates, uses and can radiate radio frequency energy and if not installed an d used in accordance with the instruction manual may cause ha rmful interference to radio communications. Ho wever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer ence to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiver.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet different from that which the receiver is connected.

• Consult your MYE dealer or experienced Radio / TV technician

Canada Compliance Statement

INDUSTRY CANADA COMPLIANCE STATEMENT

(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Product Description

The MYE MWC-9 Receiver allows the user to watch and listen to any TV or other source connected to a 900MHz Transmitter. The user may also listen to the optional MYE FitP3 Music and Podcast Player when docked. The MWC-9 can be powered directly from any standard CSAFE port using a MYE Entertainment CSAFE cable or by an optional 9 Volt AC Adapter. Patent Pending

SPECIFICATIONS

Parameter 900 MHz Receiver Frequency Range 903.000 TO 926.0000 MHz

Input Sensitivity (20 dB SINAD) -85 dBm typical Modulation FM Stereo deviation +/- 75KHz Stereo Separation >25dB Equalization BASS, FLAT,JAZZ, CLASSICAL Audio Frequency Response 20 Hz to 13 kHz Frequency Entry Scroll up/down. Power 3.75 VDC TO +12VDC

CONTROLLER FRONT VIEW

CONTROLLER KEYPAD

HEADPHONE JACK

LCD DISPLAY

HEADPHONE JACK ICON

FITP3 PLAYER DOCK

CONTROLLER REAR VIEW

UPPER LATCH

UPPER LATCH LOCKING SCREW

LOWER LATCH LOCKING SCREW

LOWER LATCH

MYE Wireless 900MHz TV Receiver

Model MWC-9

MWC-9 KEY IDENTIFICATION

DISPLAY WINDOW

FITP3 PLAY / PAUSE

FITP3 SELECT

TV SELECT

CHANNEL UP

FITP3 SKIP FORWARD

VOLUME UP

CHANNEL DOWN

Main Features:

FitP3 Button

Selects audio from the optional FitP3 Player when FitP3 player is docked.

TV Button

Selects audio from TV’s connected to a 900MHz Transmitter

Channel Up/Down Buttons

Selects desired TV number

Volume Up/Down Buttons

Controls V olu me Level Up and Down

MUTE

POWER ON / OFF

VOLUME DOWN

EQ SETTING SELECT

Power Button

Turns Receiver ON/OFF

Mute

Mute ON or OFF

EQ Select

Select between 5 preset EQ tones: Flat, Rock, Jazz, Classical & Bass

DISPLY and ICON IDENTIFICATION

CHANNEL

FREQUENCY

DETECTED IN

AUTO PROGRAM

MODE

FITP3 MODE SELECTED

Programming - Far/Near Reception

This feature provides the ability to set the reception sensitivity of each MYE MWC-9 receiver depending on the proximity between the receiver and transmitter.

Far Mode: majority of installations. Near Mode positioned very close to one or more transmitters. The Near Mode is recommended when receivers are installed between 1 and 5 feet from a transmitter.

CURRENT CHANNEL

MUTE “ON”

FAULTY HEADPHONE JACK

TRANSMITTER TV MODE SELECTED

VOLUME

EQ PRESETS

LEVEL INDICATOR

(Default): The far mode is the most widely used and will accommodate the

: The near mode is used primarily in situations where the MWC-9 receiver is

Far / Near Mode

Note: The factory default is set to “Far” (HI). To change to “Near” mode (LO):

1. Start with the MWC-9 in the OFF position.

2. With the unit OFF, press and hold

3. While holding the Volume UP button, press and release

4. Wait three seconds while continuing to hold Volume UP button until ‘LO’ is appears on the display.

5. To revert back to Far mode simply follow steps 1-4 until “HI” appears on display.

the Volume UP button.

the POWER button.

Programming

The MYE MWC-9 receiver must be programmed to detect and lock in the MYE Entertainment transmitters as well as the other brands of transmitters listed below. The MWC-9 features both “auto” and “manual” program modes. In the auto mode the MWC-9 will automatically search for and program in your transmitters. The manual mode provides the ability to add or erase a specific transmitter channel or unwanted frequency caused by spurious emissions or other local elements.

Auto Program Mode

1. Press Channel Down and Volume UP buttons simultaneously for three seconds until “P-1” appears on the display.

2. Press the “>>” OR “<<” buttons to select one of the following program modes:

P-1 = MYE Entertainment 900MHz Transmitters P-2 = Cardio Theater LCS 900MHz Transmitters P-3 = Cardio Theater / Enercise xTV 900MHz Transmitters P-4 = BroadcastVision 900MHz Transmitters

3. After selecting the Transmitter Mode, press the Play button to auto-scan and lock transmitters.

4. Press the Channel UP or Channel Down buttons to determine all transmitters have been locked in. NOTE: “PRESET” will appear in the display when a transmitter channel is programmed.

5. To exit program mode press the EQ button. The display will blink briefly and the will default to first transmitter channel programmed.

Manual Program Mode (Add or Delete Frequencies)

1. Press Channel Down and Volume UP buttons simultaneously for three seconds until “P-1” appears on the display.

2. Press the “>>” OR “<<” buttons to select one of the following transmitter program modes listed above.

3. Press the EQ button

4. Press CHANNEL UP/DOWN buttons to scroll through all transmitter channels.

5. To add or delete a transmitter channel press the “TV” button. NOTE: “PRESET” will appear in the display when a transmitter channel is programmed.

6. To exit manual program mode press the EQ button. The display will blink briefly and twill default to first transmitter channel programmed.

Atta

ching the Controller

1. Remove the rear mounting cup from the controller by loosening the two screws and opening both metal latches on the back of the controller

2. Attach the rear mounting cup to the desired mounting location by either using the secure clamp or traditional nylon wire ties. Secure Clamp- Insert screws (included)

3. Insert the Control power cable or CSAFE cable through the square opening of the rear mounting cup. (PIC 3)

4. Connect the cable to the data port on the rear of the MYE Controller

5. Plug the power supply to an AC outlet or the CSAFE cable to an active CSAFE port.

6. Rotate the MYE Controller so it is vertical and position on the rear mounting cup

7. Lock the Controller in place by securing both metal clamps and tightening screws.

Shallow Cup with Secure Lock Mounting

PIC 3

Shallow Cup with Nylon Wire Tie Mounting

When CSAFE cables are required for power, USE only MYE Entertainment CSAFE cables with all MYE Entertainment receiver controllers (900 MHz or FM). MYE Entertainment will not be responsible for damage to controllers or CVE when alternate or other brand cables are used.

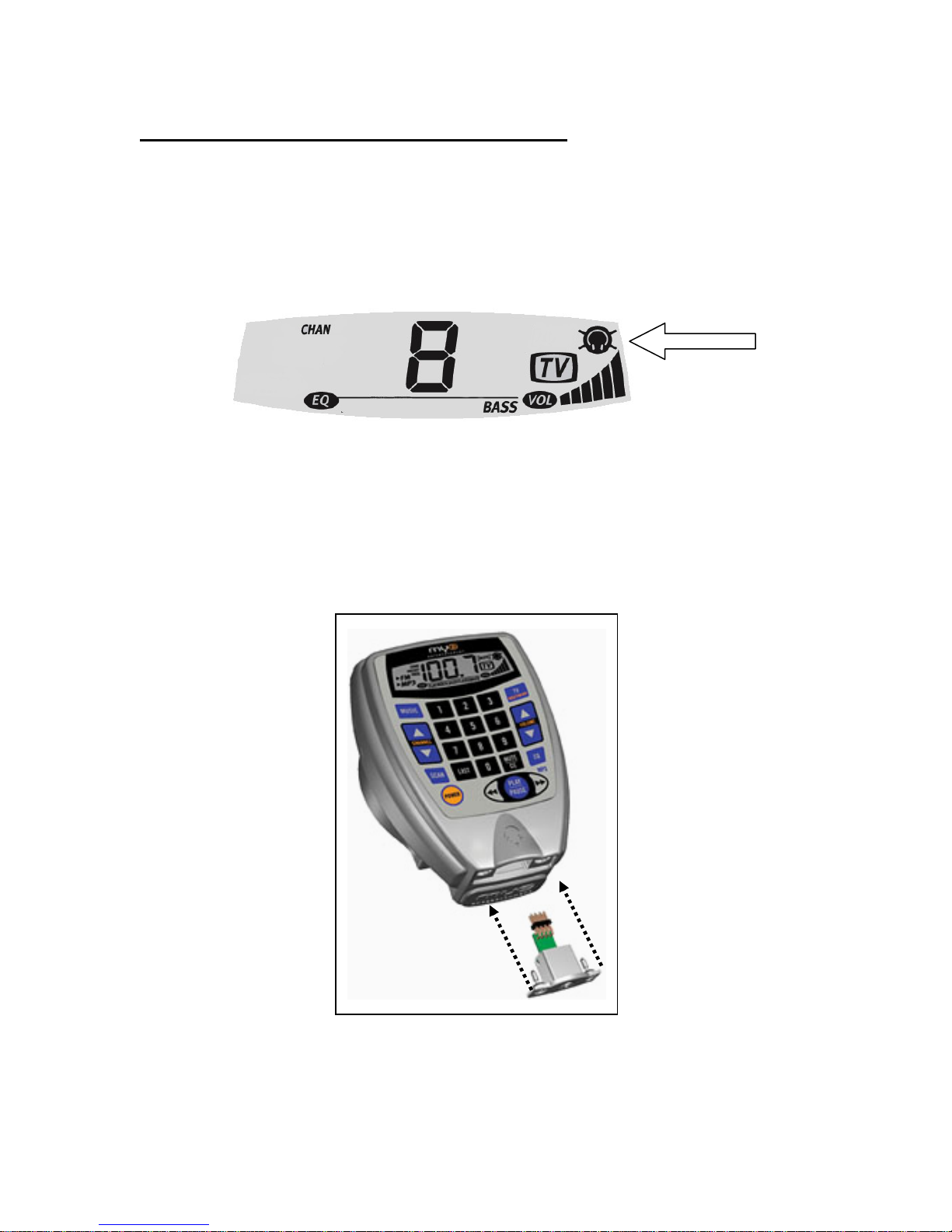

IntelliJack - Self Diagnostic Headphone Jack

The IntelliJack self diagnostic headphone circuit detects when the headphone jack has failed or been damaged. When a faulty headphone jack is detected, a flashing “headphone” icon appears in the LCD display. It will remain on until a new jack is installed and the icon reset.

To Replace the Intellijack:

1. Loosen the two screws evenly on the bottom of the IntelliJack module and remove.

2. Carefully insert new IntelliJack module without bending contact pins.

3. Reset the Icon. Turn MYE Controller OFF then press and hold the “Power” button for 3-4 seconds. When the icon appears again release the Power button.

IMPORTANT NOTICE: Faulty headphones may trigger the fault headphone jack icon. It is important to audibly test the headphone jack prior to replacement. If the headphone jack is deemed OK simply follow step #3 above to reset the faulty headphone jack.

Special Features:

FitP3 Player Feature-

The MWC-9 controller has the ability to receive the MYE Entertainment FitP3 Player. Insert the FitP3 Player into the FitP3 docking port. When the FitP3 Player is docked the MP3 Icon illuminates in the LCD Window

The audio from the Controller, regardless of source will be directed to the headphone jack of the FitP3 Player. The FitP3 Player can now be controlled through the use of the FitP3 Control Keys on your controller.

FitP3 Basic Functions-

Play & Pause Back << Forward >>

Auto OFF Sensor-

The MYE Controller will monitor for the absence of vibration for 10 minutes. Should this occur, the console will automatically power OFF saving energy and extending product lifespan. This feature can be programmed enabled or disabled.

To Enable the Auto OFF Sensor:

1. Press the “Channel Down & Volume” buttons simultaneously for 3-5 seconds unit the word “OFF” is displayed

2. Press the “TV” button to turn the feature ON or OFF

3. Press the “EQ” button to exit.

WARRANTY

PLEASE READ THESE WARRANTY TERMS AND CONDITIONS CAREFULLY BEFORE USING YOUR MYE ENTERTAINMENT PRODUCT. BY USING THE EQUIPMENT, YOU ARE CONSENTING TO BE BOUND BY THE FOLLOWING WARRANTY TERMS AND CONDITIONS.

LIMITED WARRANTY MYE ENTERTAINMENT (MYE) WARRAN TS ALL NEW MYE PRODUCTS TO B E FREE FROM DEFECTS IN MATERIALS AND MANUFACTURERS FOR THE WARRANTY PERIODS SET FORTH BELOW. THE WARRANTY PERIODS COMMENCE ON THE INVOICE DATE OF THE ORIGINAL PURCHASE. THIS WARRANTY APPLIES ONLY AGAINST DEFECTS DISCOVERED WITHIN THE WARRANTY PERIOD AND EXTENDS ONLY TO THE ORIGINAL PURCHASER OF THE PRODUCT. PARTS REPAIRED OR REPLACED UNDER THE TERMS OF THIS WARRANTY WILL BE WARRANTED FOR THE REMAINDER OF THE ORIGINAL WARRANTY PERIOD ONLY. TO CLAIM UNDER THIS WARRANTY, THE BUYER MUST NOTIFY MYE OR YOUR AUTHORIZED MYE ENTERTAINMENT DEALER WITHIN 30 DAYS AFTER THE DATE OF DISCOVERY OF ANY NONCONFORMITY AND MAKE THE AFFECTED PRODUCT AVAILABLE FOR INSPECTION BY MYE ENTERTAINMENT OR ITS SERVICE REPRESENTATIVE. MYE ENTERTAINMENT PRODUCTS DEEMED DEFECTIVE BY A MYE ENTERTAINMENT REPRESENTATIVE WILL BE ISSUED A RETURN AUTHORIZATION NUMBER. MYE ENTERTAINMENT W ILL NOT ACCEPT RETURNS WITHOUT A RETURN AUTHORIZATION NUMBER. MYE ENTERTAINMENT RESERVES THE RIGHT, AT THEIR OPTION, TO REPAIR OR REPLACE THE PRODUCT AFTER VERIFICATION OF DEFECT. PRODUCT THAT FAILS AFTER THE WARRANTY PERIOD EXPIRES WILL BE REPAIRED OR REPLACED AT THE CURRENT PART AND LABOR PRICING AFTER AUTHORIZATION FROM THE CUSTOMER. REPAIRS ARE WARRANTED FOR 90 DAYS. MYE ENTERTAINMENT’S OBLIGATIONS UNDER THIS W ARRANTY ARE LIMITED AS SET FORTH BELOW:

WARRANTY PERIODS AND COVERAGE: MYE ENTERTAINMENT TRANSMITTERS 3 YEAR PARTS, LABOR MYE ENTERTAINMENT RECEIVERS 1 YEAR PARTS, LABOR

CONDITIONS AND RESTRICTIONS: THIS WARRANTY IS VALID ONLY IN ACCORDANCE WITH THE FOLLOWING CONDITIONS: THE WARRANTY APPLIES TO THE MYE ENTERTAINMENT PRODUCT ONLY 1) WHILE IT REMAINS IN THE POSSESSION OF THE ORIGINAL PURCHASER AND PROOF OF PURCHASE IS DEMONSTRATED. 2) IT HAS NOT BEEN SUBJECT TO ACCIDENT, MISUSE, ABUSE, IMPROPER SERVICE, MECHANICAL OR ELECTRICAL NON-MYE ENTERTAINMENT A UTHO RI ZED M ODI FI CATI ON. 3 ) CL AI MS MADE W I THIN T HE W AR RANT Y P ERI OD. THIS WARRANTY DOES NOT COVER DAMAGED OR FAILURE CAUSED BY ELECTRICAL WIRING NOT BEING IN COMPLIANCE WITH ELECTRICAL CODES OR MYE’S OWNER MANUAL SPECIFICATIONS, OR FAILURES TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE AS OUTL INED IN THE OWNER’S MANUAL.

WARRANTIES OUTSIDE THE UNITED STATES AND CANADA MAY VARY. PLEASE CONTACT YOUR LOCAL DEALER FOR DETAILS.

LIMITED WARRANTY SHALL NOT APPLY TO:

1) SOFTWARE UPGRADES.

2) NORMAL WEAR AND TEAR, CONSUMABLES AND COSMETIC ITEMS INCLUDING BUT NOT LIMITED TO LABELS.

3) REPAIRS REFORMED ON MYE PRODUCTS MISSING A SERIAL NUMBER OR WITH A SERIAL TAG THAT HAS BEEN ALTERED, REATTACHED OR DEFACED.

4) SERVICE CALLS TO CORRECT INSTALLATION OF THE PRODUCT OR INSTRUCT OWNERS ON HOW TO USE THE PRODUCT.

5) PICK UP AND DELIVERY INVOLVING REPAIRS

6) ANY LABOR COSTS INCURRED BEYOND THE APPLICABLE LABOR WARRANTY PERIOD

7) THE USER IS CAUTIONED THAT CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER OF THE PRODUCT COULD VOID THE USER’S AUTHORITY TO OPERATE THE PRODUCT.

WARRANTY – cont.

THE WARRANTIES PROVIDED HEREIN ARE THE EXCLUSIVE WARRANTIES GIVEN BY MYE ENTERTAINMENT AND SUPERSEDE ANY PRIOR, CONTRARY OR ADDITIONAL REPRESENTATIONS, WHETHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE THAT APPLY TO ANY PARTS DESCRIBED ABOVE ARE LIMITED IN DURATION TO THE PERIODS OF EXPRESS WARRANTIES GIVEN ABOVE FOR THOSE SAME PARTS. MYE HEREBY DISCLAIMS AND EXCLUDES THOSE WARRANTIES THEREAFTER. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. MYE ENTERTAINMENT ALSO HEREBY DISCLAIMS AND EXCLUDES ALL OTHER OBLIGATIONS OR LIABILITIES, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, WITH RESPECT TO ANY NONCONFORMANCE OR DEFECT IN ANY PRODUCT, INCLUDING BUT NOT LIMITED TO: (A) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY IN TORT, WHETHER OR NOT ARISING FROM THE NEGLIGENCE OF MYE OR ITS SUPPLIERS (WHETHER ACTIVE, PASSIVE OR IMPUTED); AND (B) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY FOR LOSS OF OR DAMAGE TO ANY PRODUCT. THIS DISCLAIMER AND RELEASE SHALL APPLY EVEN IF THE EXPRESSED W ARRANTY SET FORTH ABOVE FAILS OF ITS ESSENTIAL PURPOSE.

FOR ANY PRODUCT DESCRIBED AB OVE THAT FAILS TO CONFORM TO ITS WARRANTY, MYE ENTERTAINMENT WILL PROVIDE, AT THEIR OPTION ONE OF THE FOLLOWING: 1) REPAIR, 2) REPLACEMENT OR 3) REFUND OF THE PURCHASE PRICE.

MYE AND/OR ITS SUPPLIERS SHALL HAVE NO OBLIGATION OR LIABILITY, WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY), TORT (INCLUDING ACTIVE, PASSIVE, OR IMPUTED NEGLIGENCE AND STRICT LIABILITY), OR OTHERWISE, FOR DAMAGE TO THE PRODUCT, PROPERTY DAMAGE, LOSS OF USE, REVENUE OR PROFIT, COST OF CAPITAL, COST OF SUBSTITUTE PRODUCT, ADDITIONAL COSTS INCURRED BY BUYER (BY WAY OF CORRECTION OR OTHERWISE) OR ANY OTHER INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM NON-DELIVERY OR FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. THIS EXCLUSION APPLIES EVEN IF THE ABOVE W ARRANTY FAILS OF ITS ESSENTIAL PURPOSES AND REGARDLESS OF WHETHER SUCH DAMAGES ARE SOUGHT FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY IN TORT OR UNDER ANY OTHER LEGAL THEORY. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONS EQUENTIAL DAMAGES SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

MYE Entertainment, LLC

25129 The Old Road

Suite 305

Stevenson Ranch, Ca. 91381

1-661-964-0217

www.myeclubtv.com
