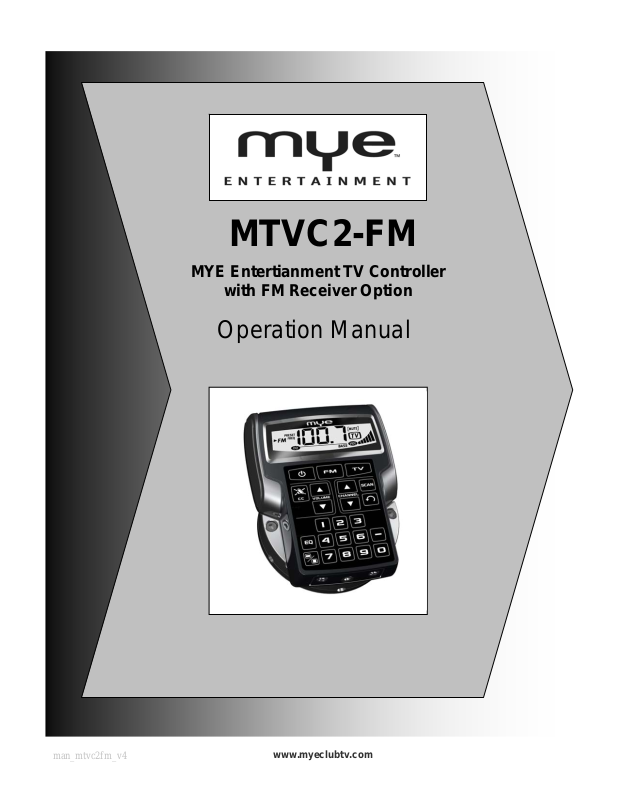

MYE MTVC2-FM Operation Manual
MYE Entertianment TV Controller
MTVC2-FM
with FM Receiver Option
Operation Manual
man_mtvc2fm_v4
www.myeclubtv.com
CONTENTS
FCC COMPLIANCE……………………………………… 2
INDUSTRY CANADA COMPLIANCE………………….. 2
MTVC2 ORIENTATION…………………………………… 3
KEYPAD ORIENTATION………………………………… 4
DISPLAY ORIENTATION……………………………….. 5
SPECIAL FEATURES……………………………………. 5
CHANNEL DEFAULT / AUTO DEFAULT……………… 6
FM RADIO ………………………………………………... 7
SET as a TV CONTROLLER ONLY………………………. 8
SET as an FM RADIO RECEIVER ONLY…………………. 8
ATTACHING THE CONTROLLER……………………… 9
INTELLIJACK……………………………………………… 11
WARRANTY………………………………………………. 12/13
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with the limits for a class B digital devise
pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a residential environment. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instruction manual may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiver.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet different from that which the receiver is connected.
• Consult your MYE dealer or experienced Radio / TV technician
INDUSTRY CANADA COMPLIANCE STATEMENT
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
2
RECEIVER ASSEMBLY - FRONT VIEW
LCD DISPLAY
FRONT FLANGE
FRONT MOUNTING SCREWS
UNSCREW TO RELEASE the
MOUNTING BASE ASSEMBLY.
(PLEASE READ “ATTACHING
THE RECEIVER” PG. 9)
KEYPAD
HEADPHONE JACK
CABLE EXIT HOLES
RECEIVER ASSEMBLY & MOUNTING - REAR VIEW
BAR CODE SERIAL NUMBER
AND RATING LABEL
CSAFE CABLE RJ45 JACK
REAR FLANGE
CABLE BLOCKS
CABLE EXIT HOLES
MOUNTING BASE
USE only MYE Entertainment cables with all MYE Entertainment receiver controllers. MYE Entertainment will not be
responsible for damage to controllers or cardio equipment when alternate cables or po wer adapters are used.
3
MYE Entertainment Digital TV Controller with FM Option
POWER ON/OFF
VOLUME UP
CLOSED CAPTION / MUTE
VOLUME DOWN
EQ SELECT
ASPECT RATIO (DTV)
Model MTVC2-FM
MTVC2-FM KEY IDENTIFICATION
FM RADIO SELECT
TV Select (FM Preset
CHANNEL UP
SCAN
PREVIOUS
CHANNEL DOWN
HOME KEY
DASH KEY
DIRECT ACCESS
Main Features:
POWER
ON/OFF
FM RADIO SELECT
Selects FM mode for audio from FM radio broadcasts.
Volume Up/Down
Controls Volume Level Up and Down
Mute
Toggles between Mute ON/OFF – Closed Caption
ON/OFF (TV mode) and MUTE ON/OFF (FM mode).
EQ Select
Select between 5 preset EQ tones:
Flat, Rock, Jazz, Classical & Bass
ASPECT RATIO
Adjust the picture ASPECT RATIO of TV programs
(DTV mode) (16:9 or 4:3)
DIRECT ACCESS
DIRECT CHANNEL ACCESS (TV mode) or DIRECT
FM FREQUENCY ACCESS (ex: 106.7) (FM mode).
TV
Return to TV mode as a TV controller from
FM mode. Also selects FM PRESET mode
while in FM RECEIVER (ONLY) mode.
Channel Up/Down
Selects up or down TV channel (TV mode)
or FM frequency (FM mode).
Scan
Allows user to SCAN through each
programmed TV channel (TV mode) .
Pauses 5 seconds on each channel until
next KEY PRESS. Also, SCANS to next
available FM radio station. (FM mode)
Previous Channel
Allows user to jump back to the previously
listened to channel
Home Key
Allows user to jump to a preset HOME
channel.
DASH
For DIRECT ACCESS channel selection in
DTV mode.
4
