MyDepots 8308R, B User Manual

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

B series DVR User’s installation and operation Manual

Edition 4.0

Welcome

Thank you for purchasing our DVR! This manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this series DVR features and functions, as well as a detailed menu tree. Before installation and operation please read the following safeguards and warnings carefully!

Important Safeguards and Warnings

Do not place heavy objects on the DVR. Do not let any solid or liquid fall into or infiltrate the DVR. Please brush printed circuit boards, connectors, fans, machine box and so on regularly. Before the dust cleaning please switch off the power supply and unplug it. Do not disassemble or repair the DVR by yourself. Do not replace the components by yourself.

Environment

Please place and use the DVR between 0℃ and 40℃.Avoid direct sunlight. Stay away from heat source. Do not install the DVR in damp environment. Do not use the DVR in smoky or dusty environment. Avoid collision or strong fall. Please insure the DVR level installation in a stable workplace. Please install in ventilated place. Keep the vent clean. Use within the rating input and output scope.

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

Directory

1 Production Introduction ........................................................................................................................................... 4

1.1 Product overview .......................................................................................................................................... 4

1.2 Main functions .............................................................................................................................................. 4

2 Open-package check and cable connections ............................................................................................................ 6

2.1 Open-package check ..................................................................................................................................... 6

2.2 Hard disk installation .................................................................................................................................... 6

2.3 Front panel .................................................................................................................................................... 7

2.4 Rear panel ..................................................................................................................................................... 7

2.5 Audio and video input and output connections ............................................................................................. 8

2.5.1 Video input connections ..................................................................................................................... 8

2.5.2 Video output connections and options ............................................................................................... 8

2.5.3 Audio signal input .............................................................................................................................. 9

2.5.4 Audio signal output ............................................................................................................................ 9

2.6 Alarm input and output connections ............................................................................................................. 9

2.6.1 Alarm input port specification .......................................................................................................... 10

2.6.2 Alarm output port specification ........................................................................................................ 11

2.6.3 Alarm output port relay parameters .................................................................................................. 11

2.7 Speed dome connections ............................................................................................................................. 11

3 Basic operation....................................................................................................................................................... 13

3.1 Turn on ........................................................................................................................................................ 13

3.2 Turn off ....................................................................................................................................................... 13

3.3 Login ........................................................................................................................................................... 14

3.4 Preview ....................................................................................................................................................... 14

3.5 Desktop shortcut menu................................................................................................................................ 15

3.5.1 Main menu ....................................................................................................................................... 15

3.5.2 Video playback ................................................................................................................................. 16

3.5.3 Record Mode .................................................................................................................................... 19

3.5.4 Alarm output .................................................................................................................................... 19

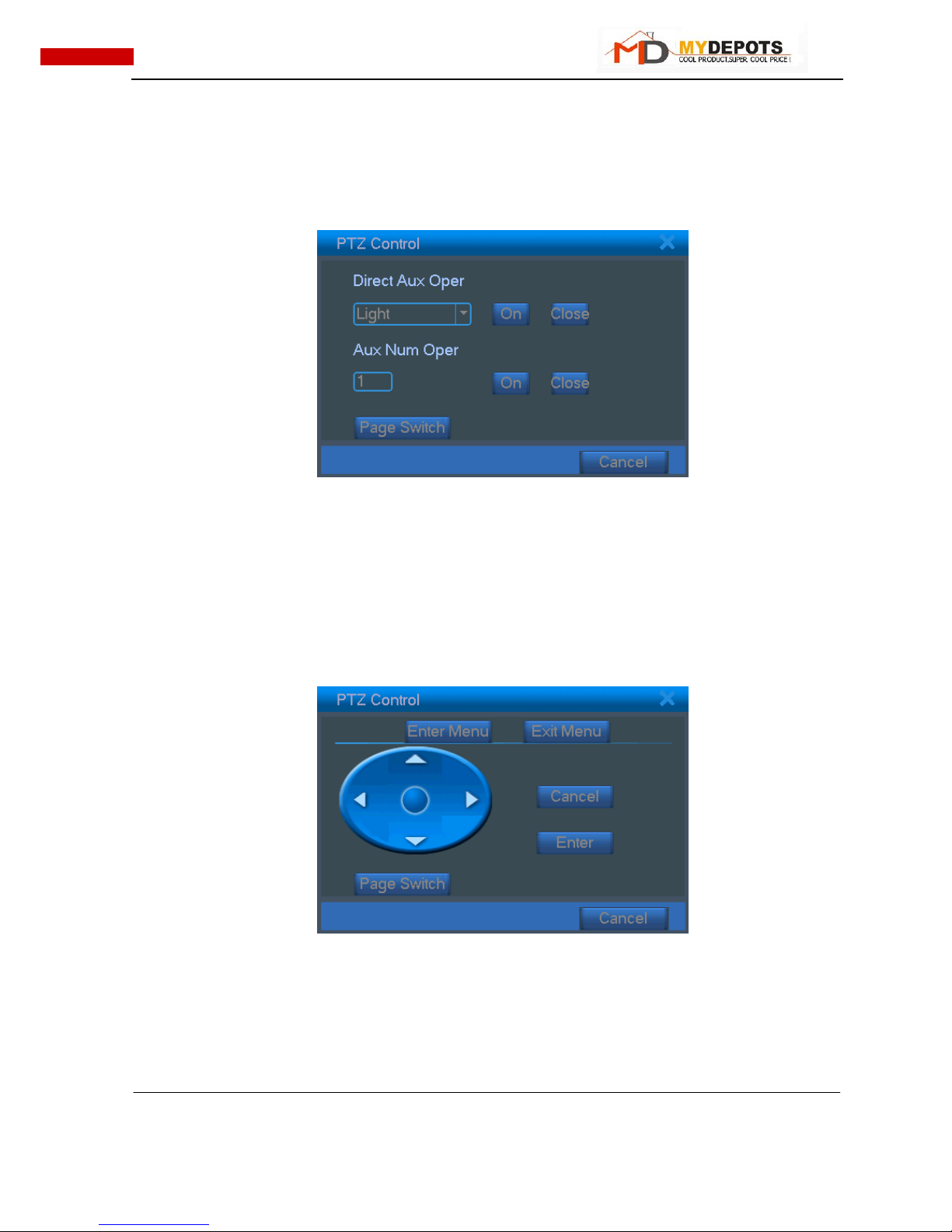

3.5.5 PTZ control ...................................................................................................................................... 20

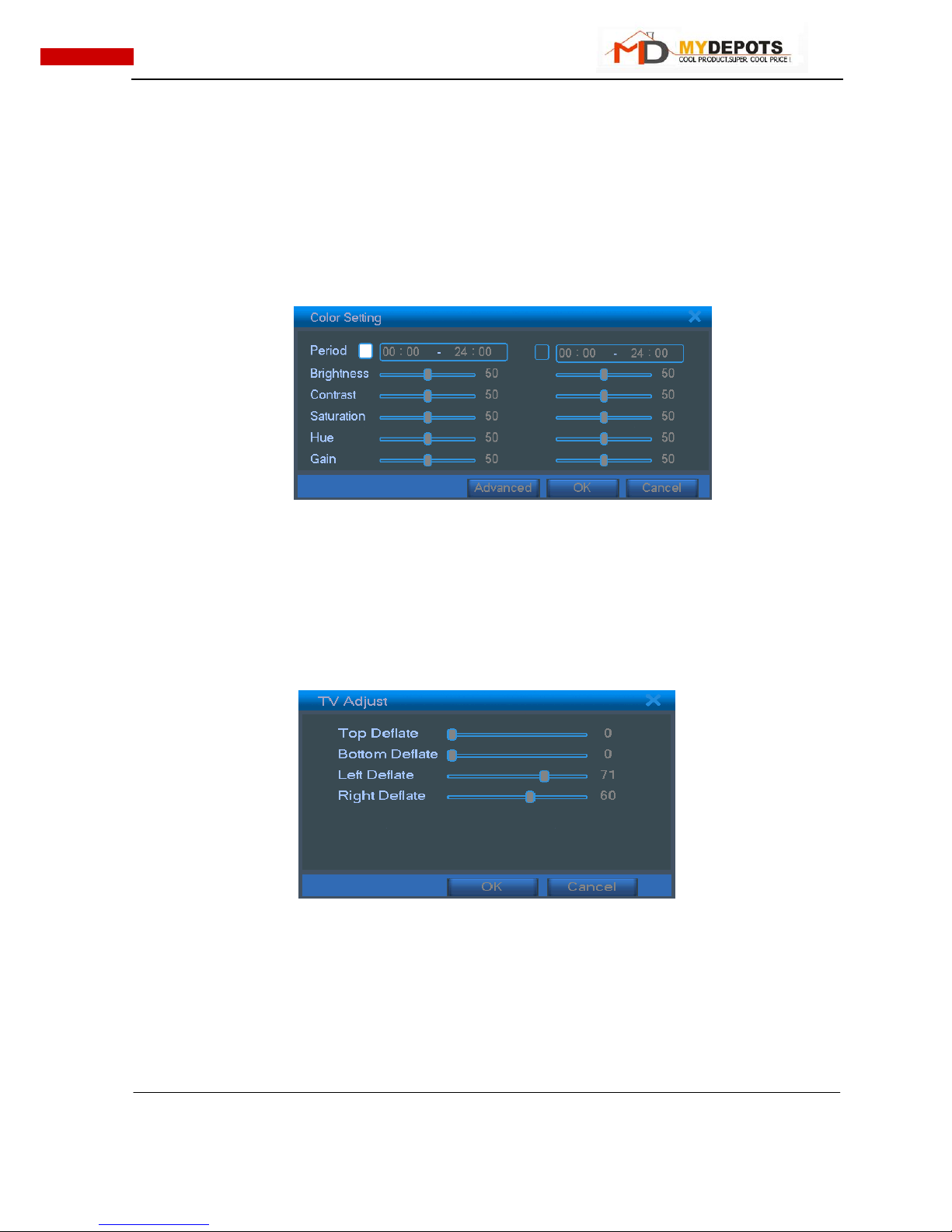

3.5.6 Color setting ..................................................................................................................................... 26

3.5.7 TV adjust .......................................................................................................................................... 26

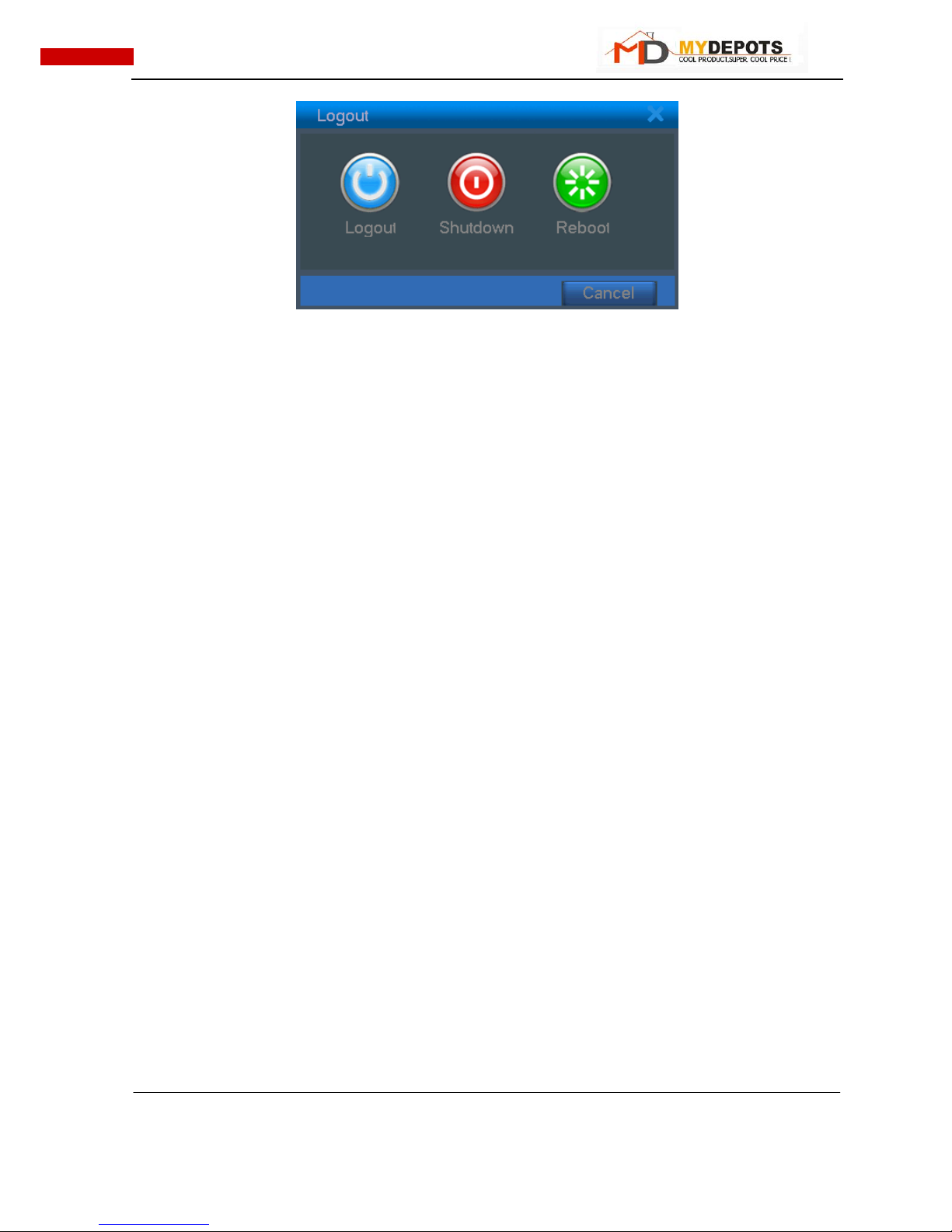

3.5.8 Logout .............................................................................................................................................. 26

3.5.9 Window switch ................................................................................................................................. 27

4 Main menu ............................................................................................................................................................. 28

4.1 Main menu navigation ................................................................................................................................ 28

4.2 Recording function ...................................................................................................................................... 30

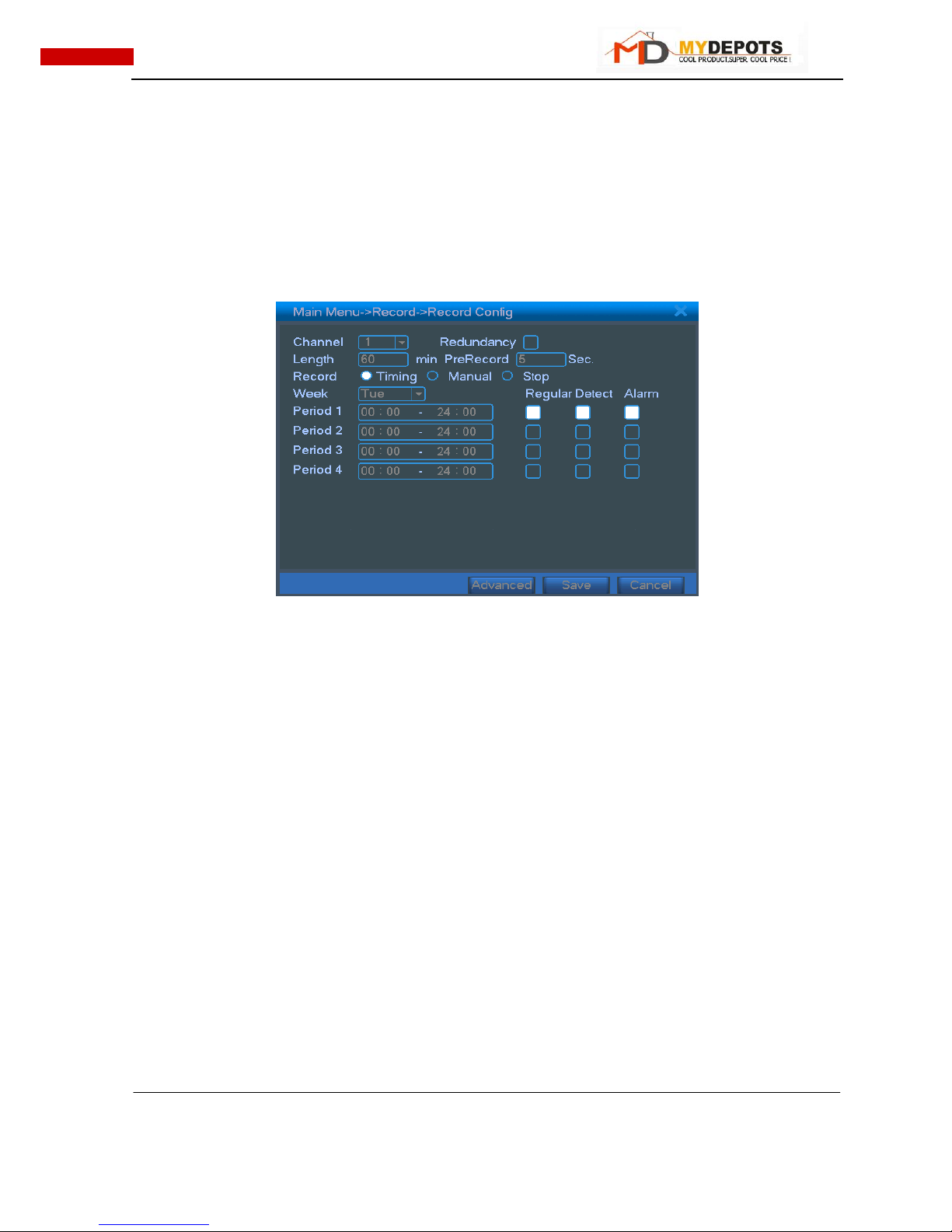

4.2.1 Recording Config ............................................................................................................................. 30

4.2.2 Video playback ................................................................................................................................. 31

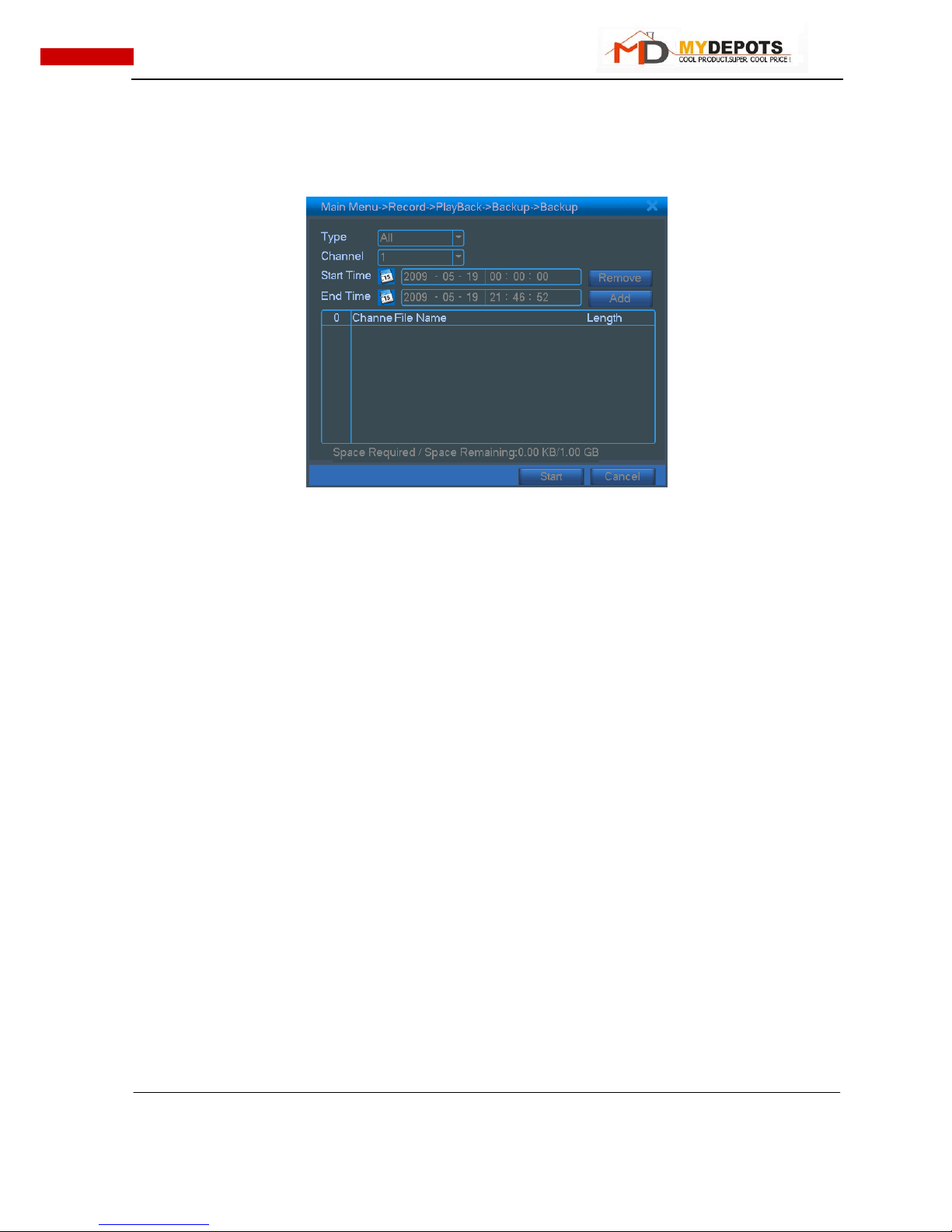

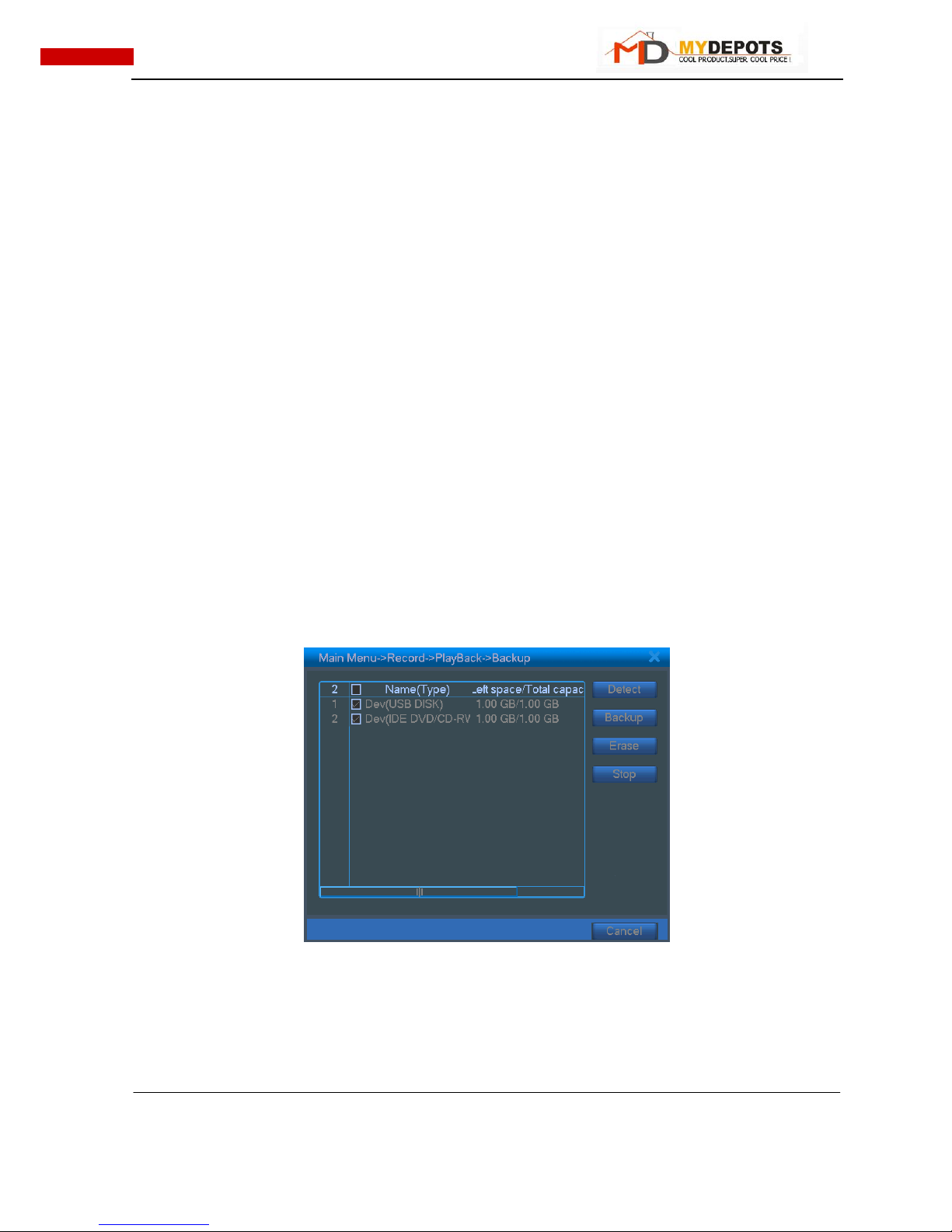

4.2.3 Video backup .................................................................................................................................... 31

4.3 Alarm Function ........................................................................................................................................... 32

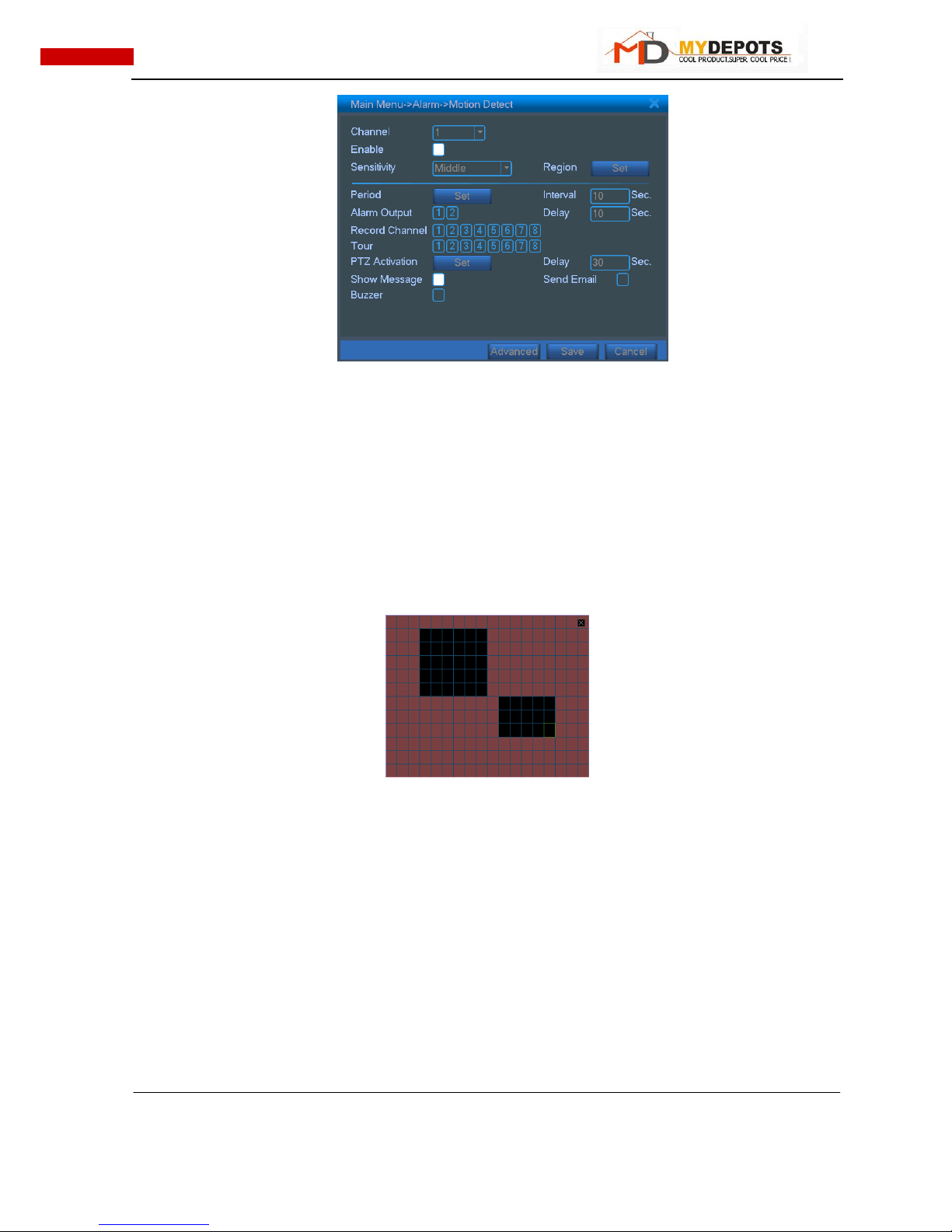

4.3.1 Motion Detect .................................................................................................................................. 32

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

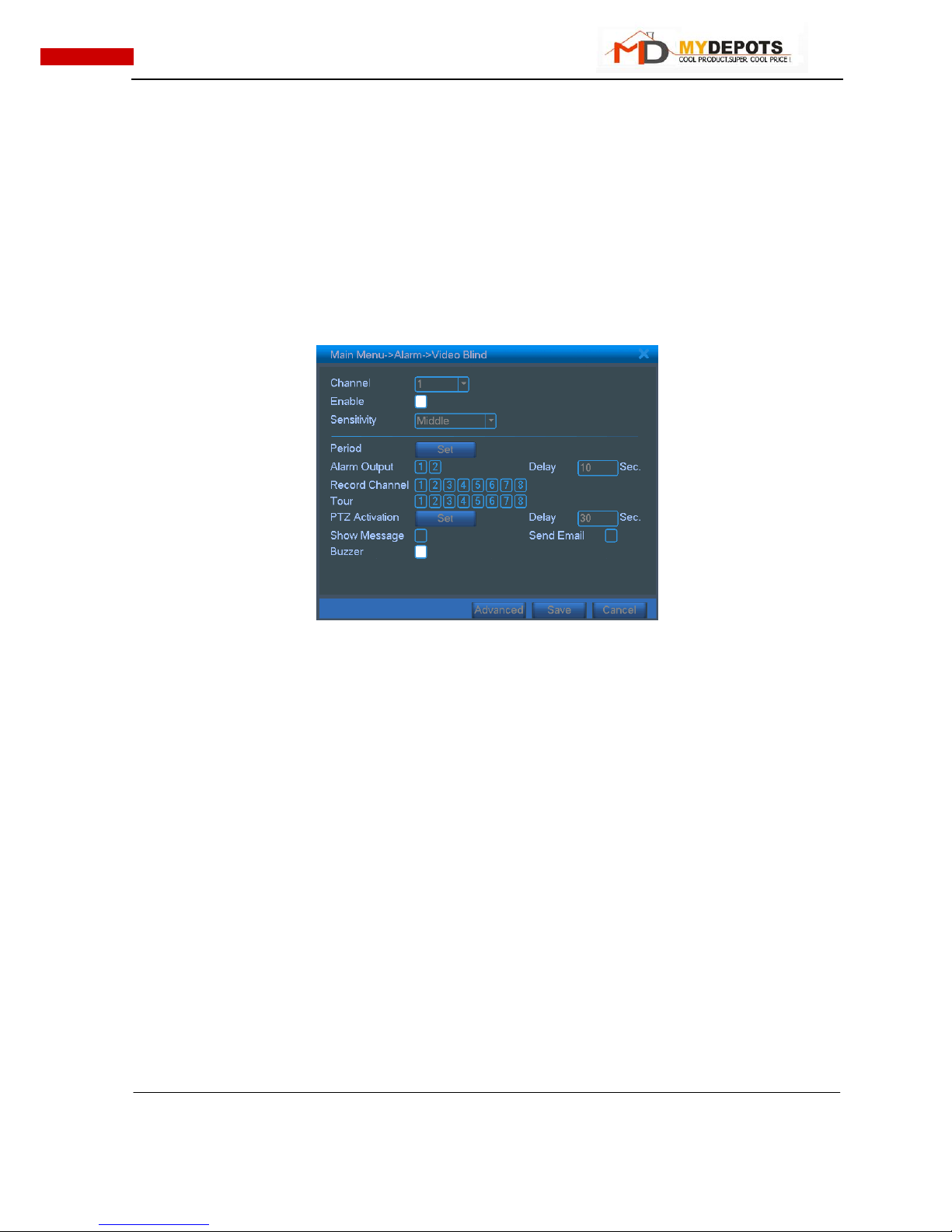

4.3.2 Video Blind ...................................................................................................................................... 35

4.3.3 Video Loss ........................................................................................................................................ 35

4.3.4 Alarm input ...................................................................................................................................... 36

4.3.5 Alarm output .................................................................................................................................... 36

4.3.6 Abnormal .......................................................................................................................................... 37

4.4 System setup ............................................................................................................................................... 37

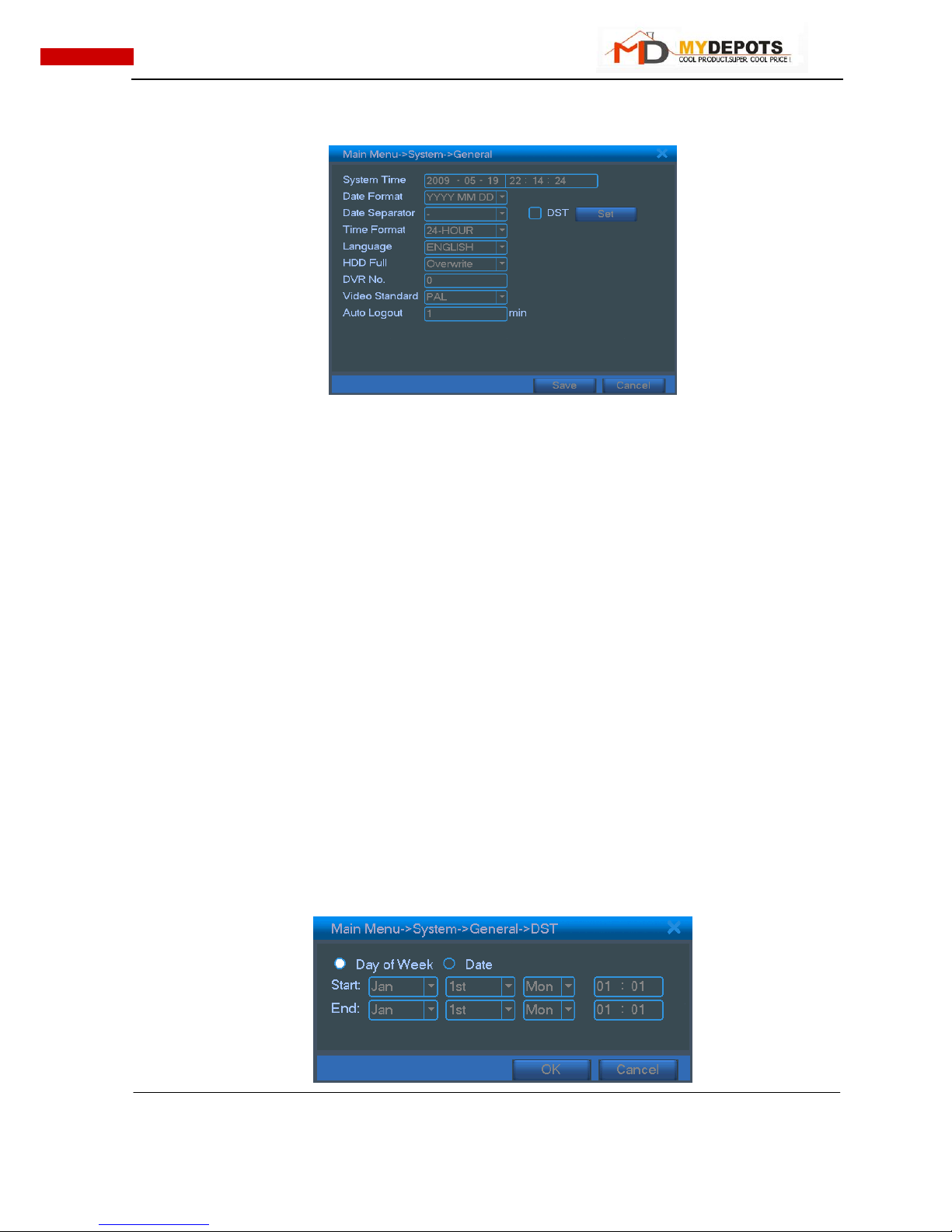

4.4.1 General setup.................................................................................................................................... 38

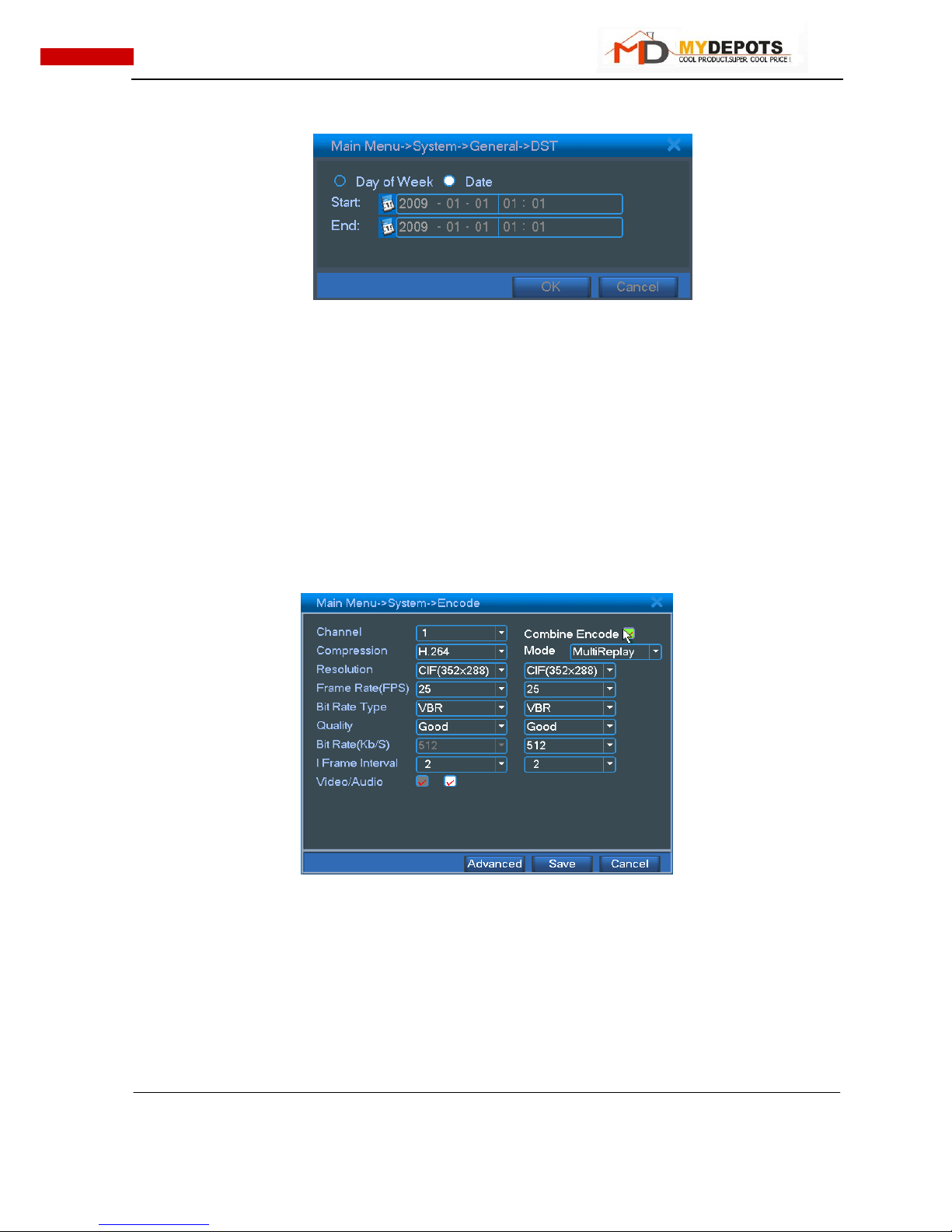

4.4.2 Encode setup .................................................................................................................................... 39

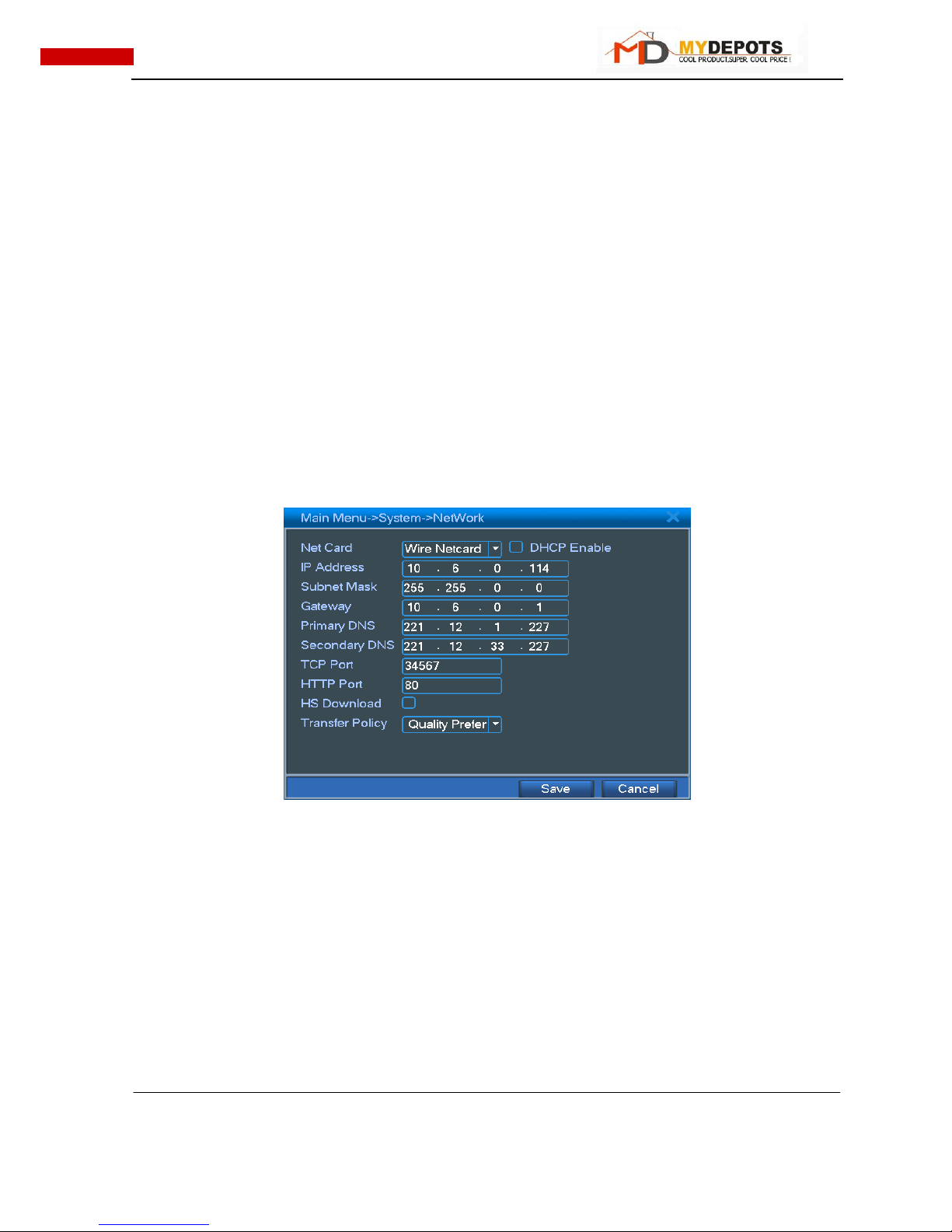

4.4.3 Network setup .................................................................................................................................. 40

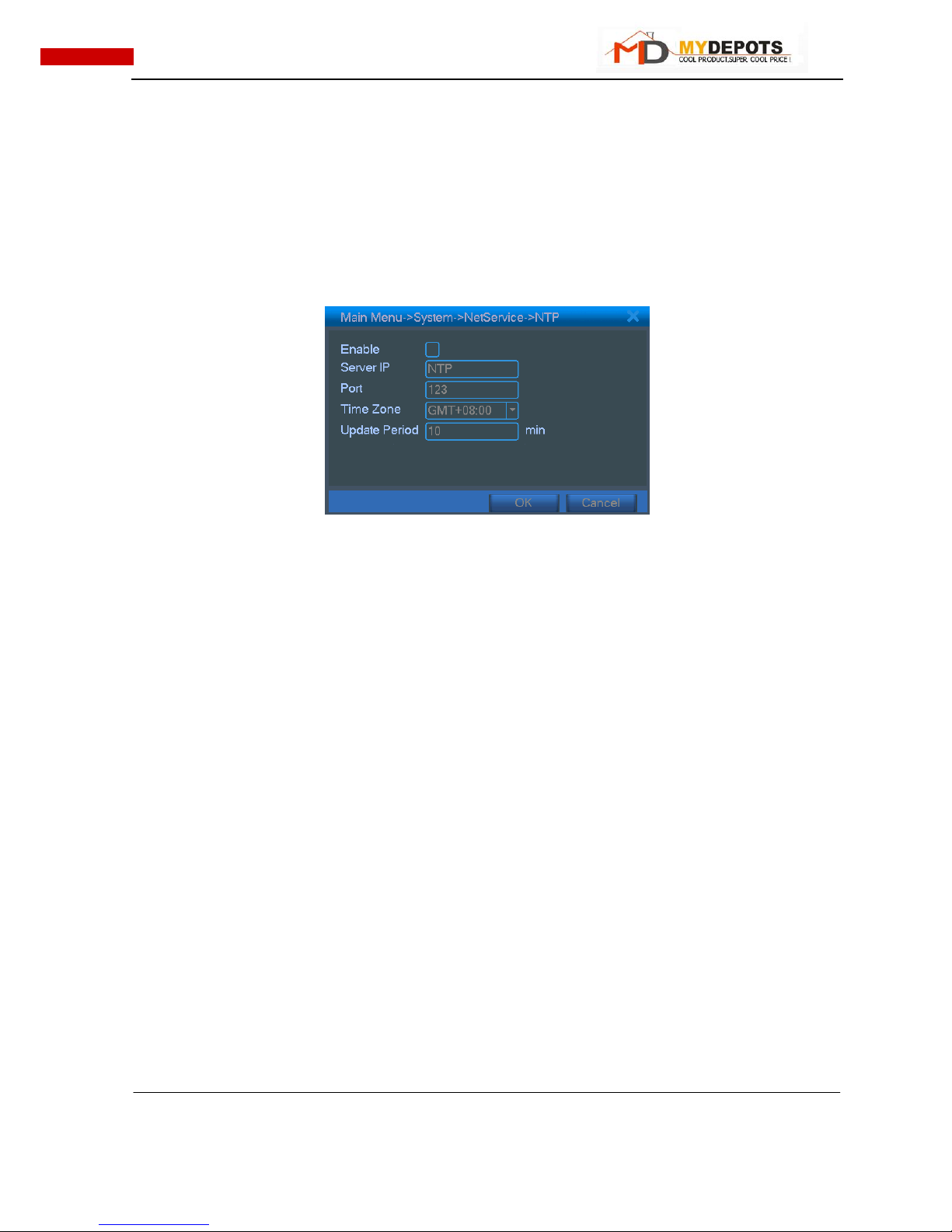

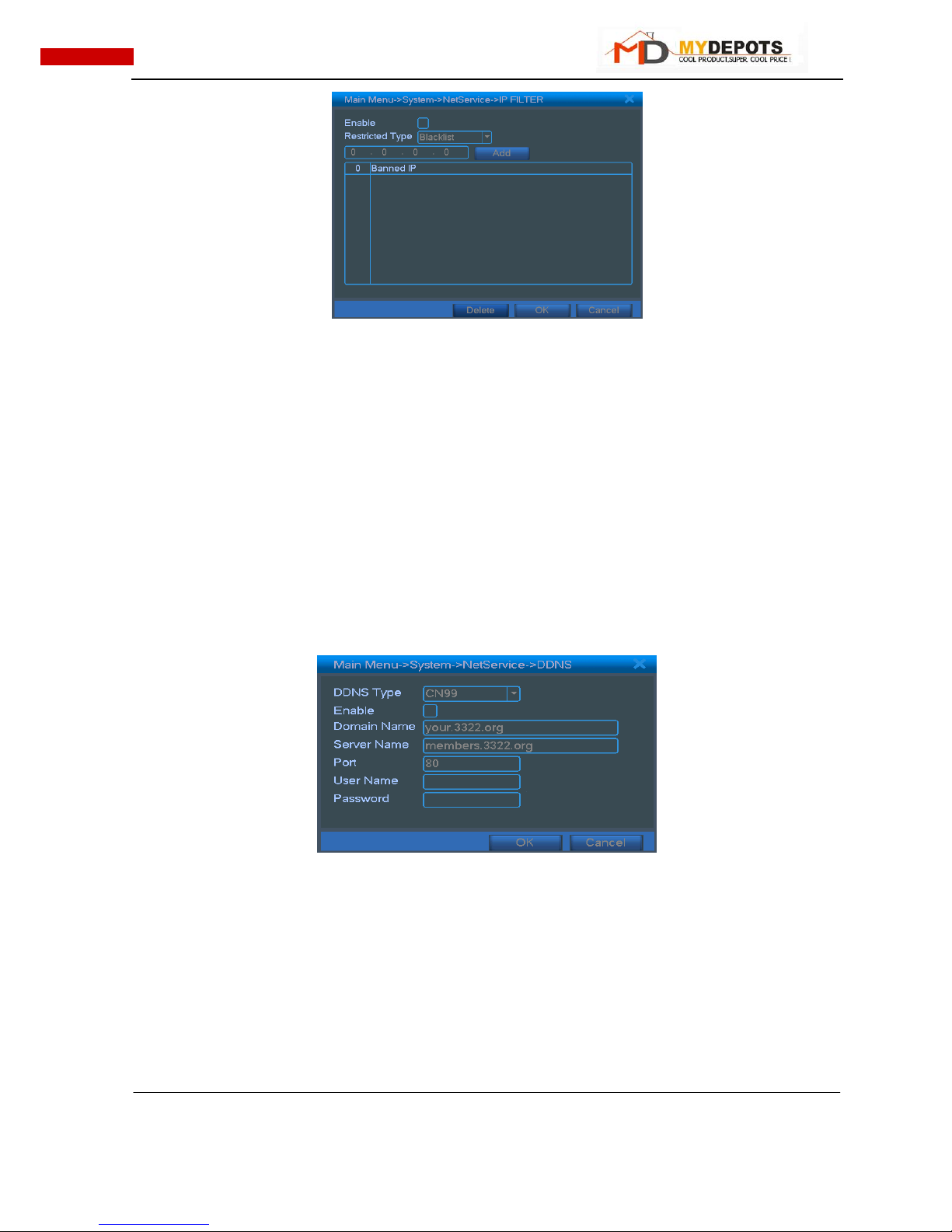

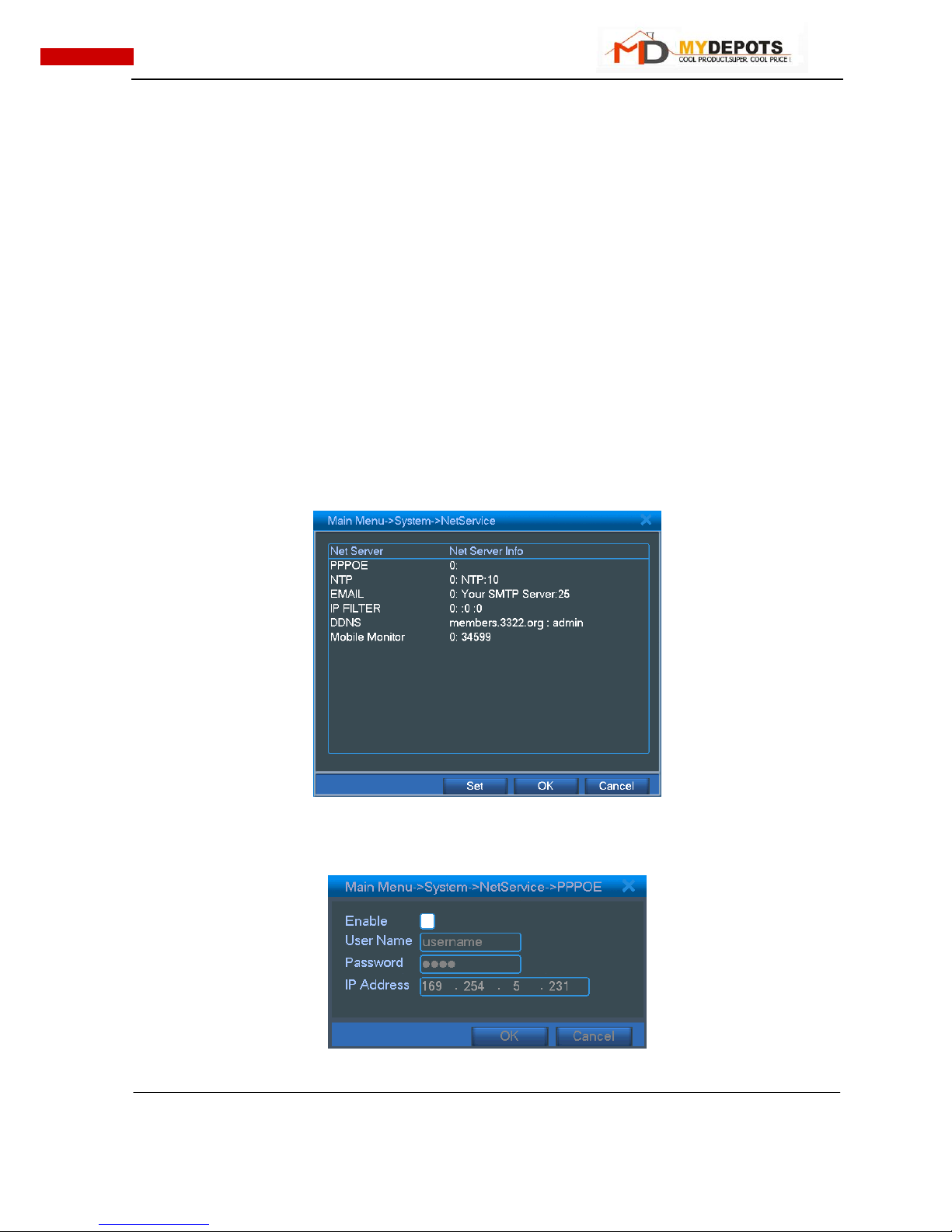

4.4.4 Network service ............................................................................................................................... 41

4.4.5 Output mode ..................................................................................................................................... 45

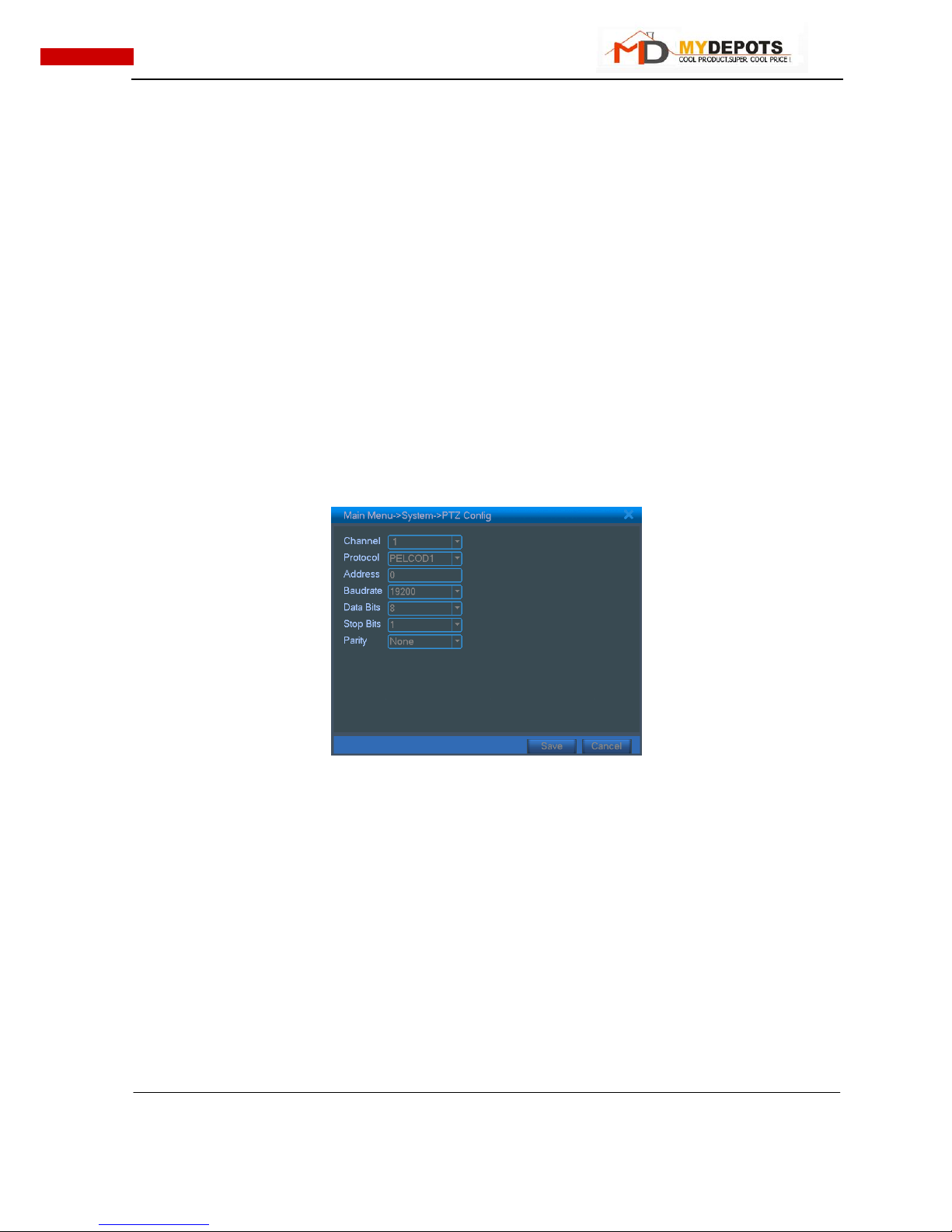

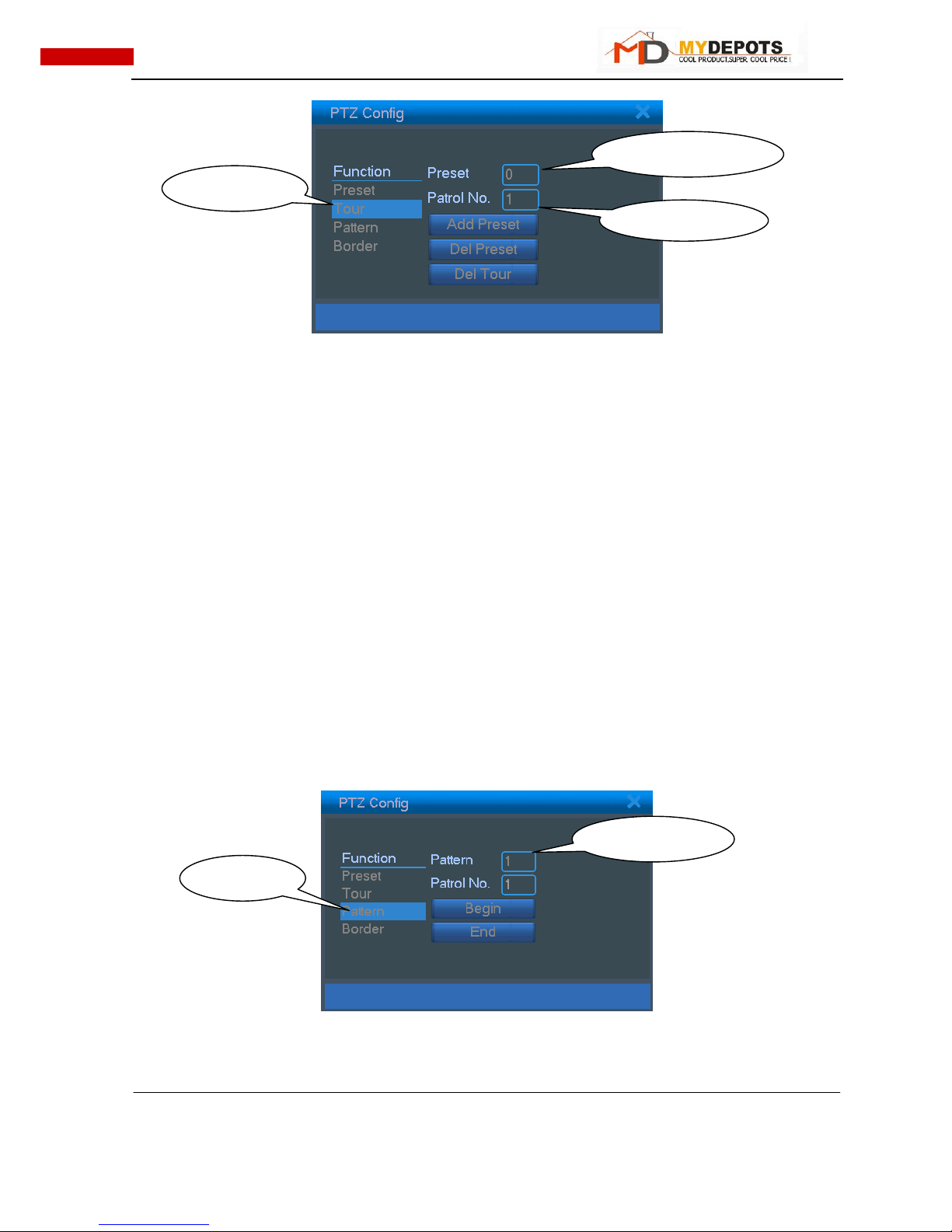

4.4.6 PTZ setup ......................................................................................................................................... 46

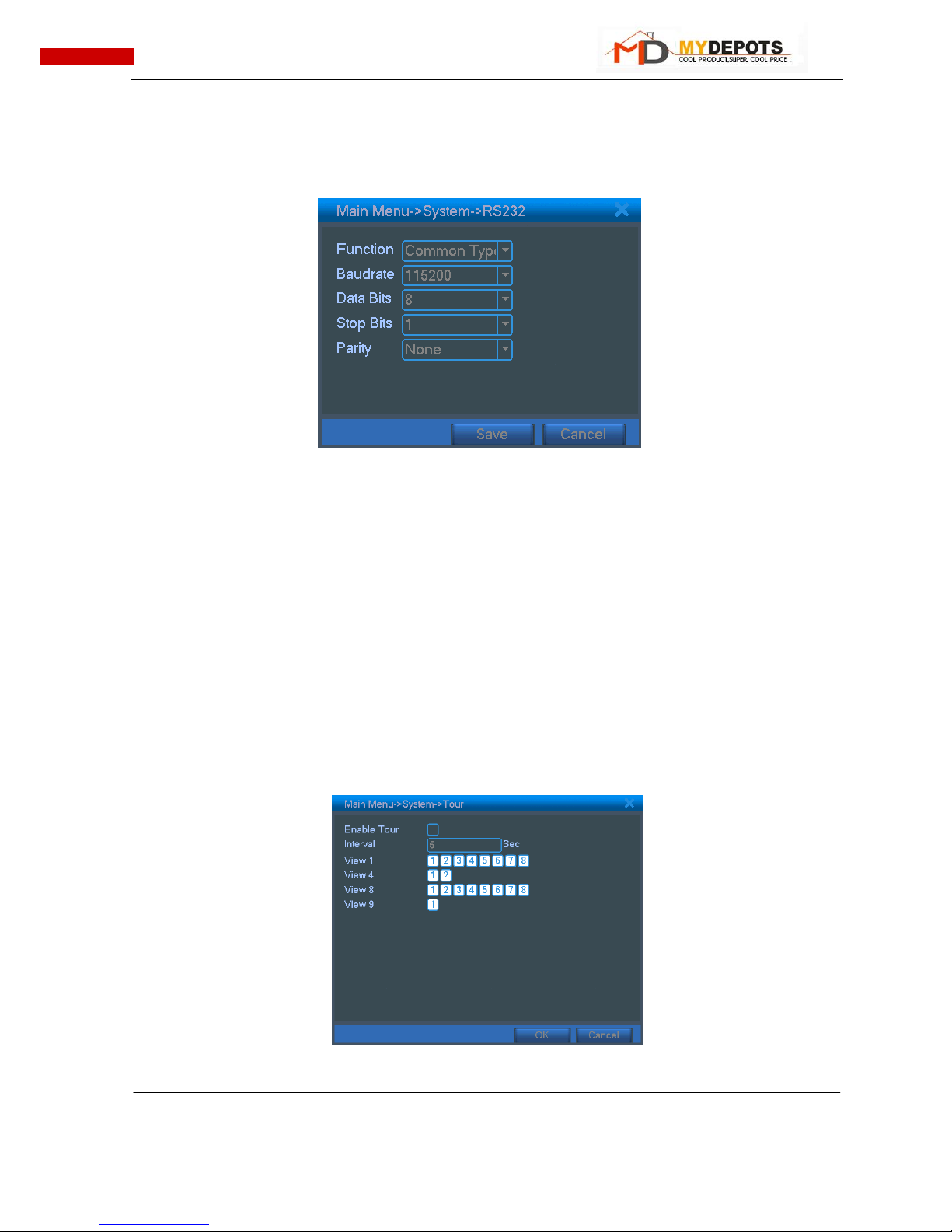

4.4.7 Serial port setup ............................................................................................................................... 47

4.4.8 Patrol setup ....................................................................................................................................... 47

4.5 Management tools ....................................................................................................................................... 48

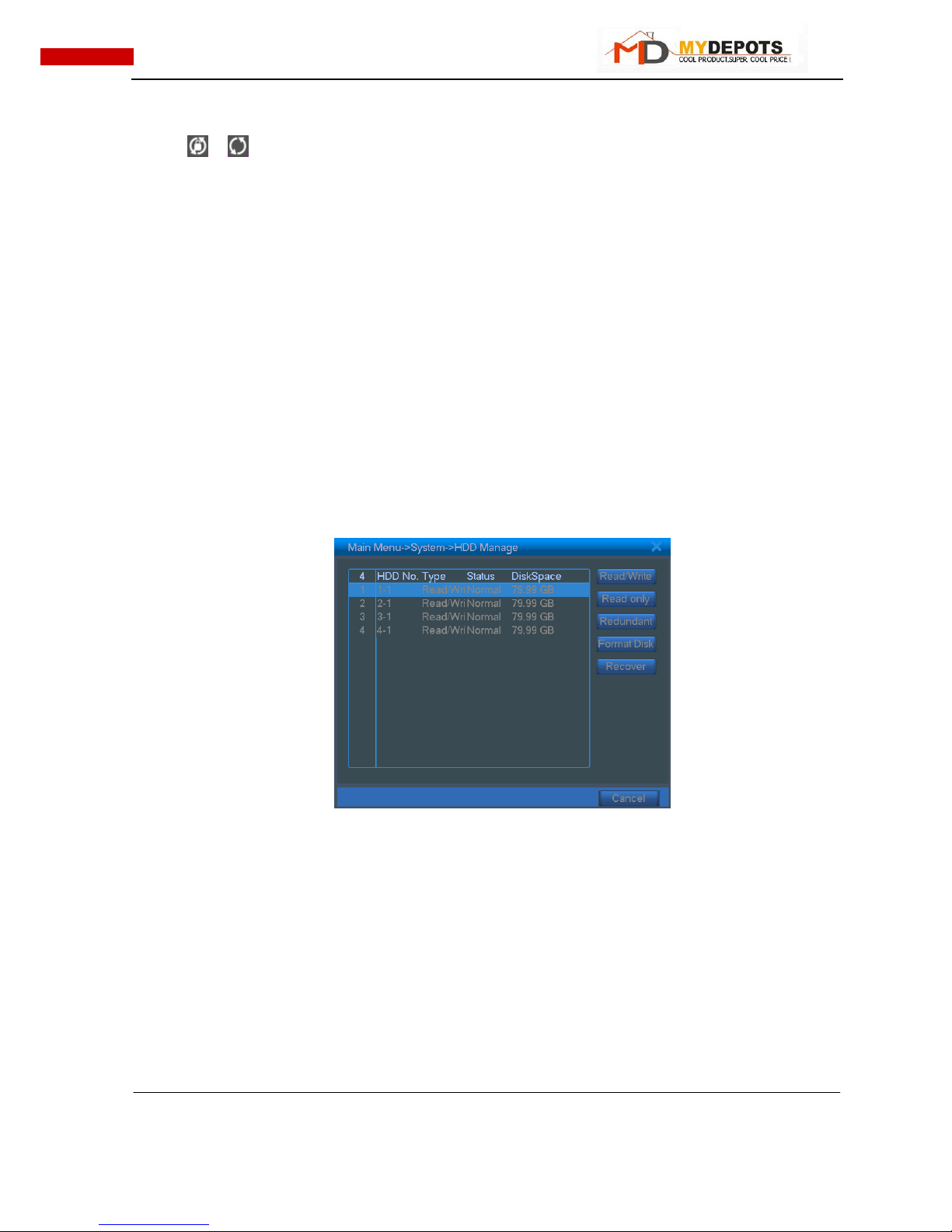

4.5.1 Hard disk management ..................................................................................................................... 48

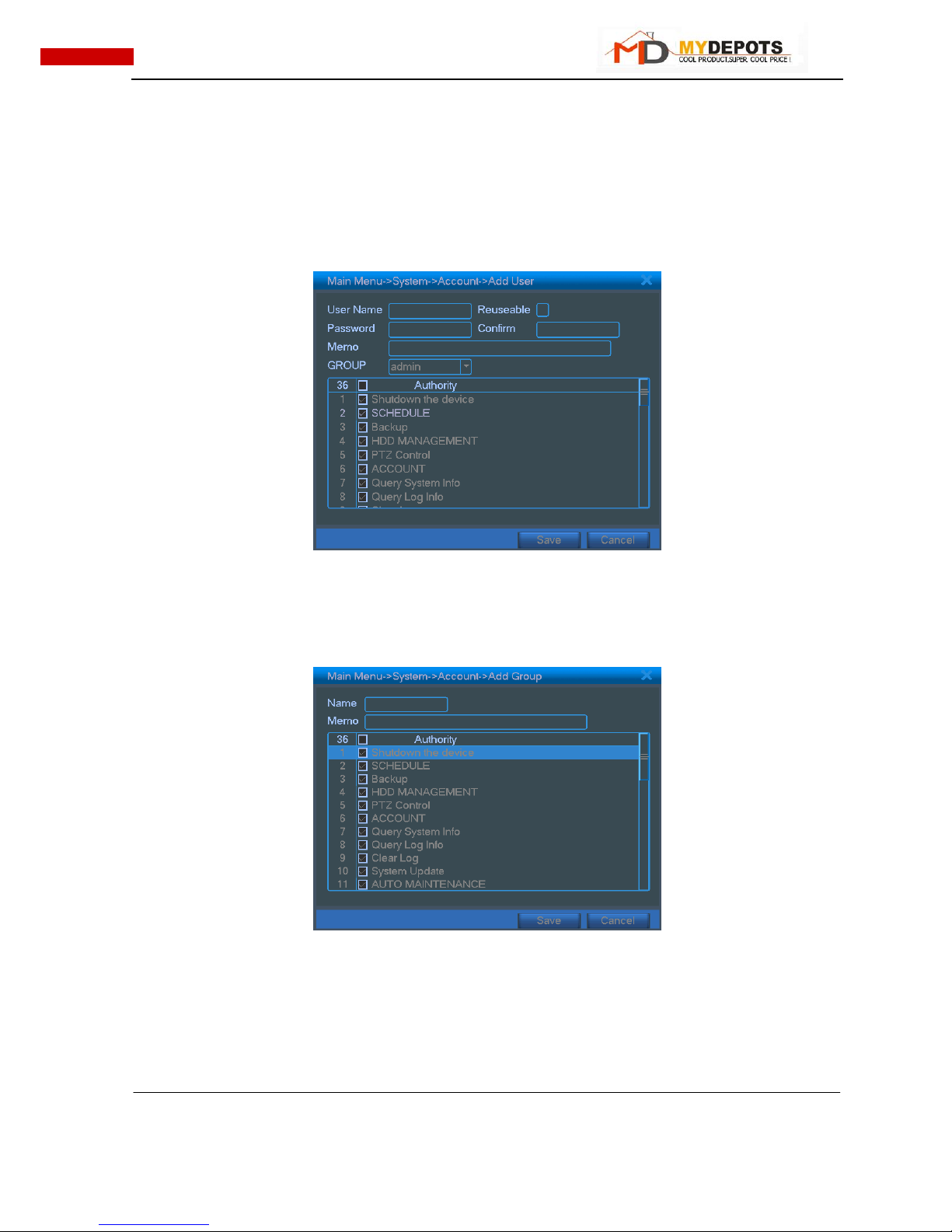

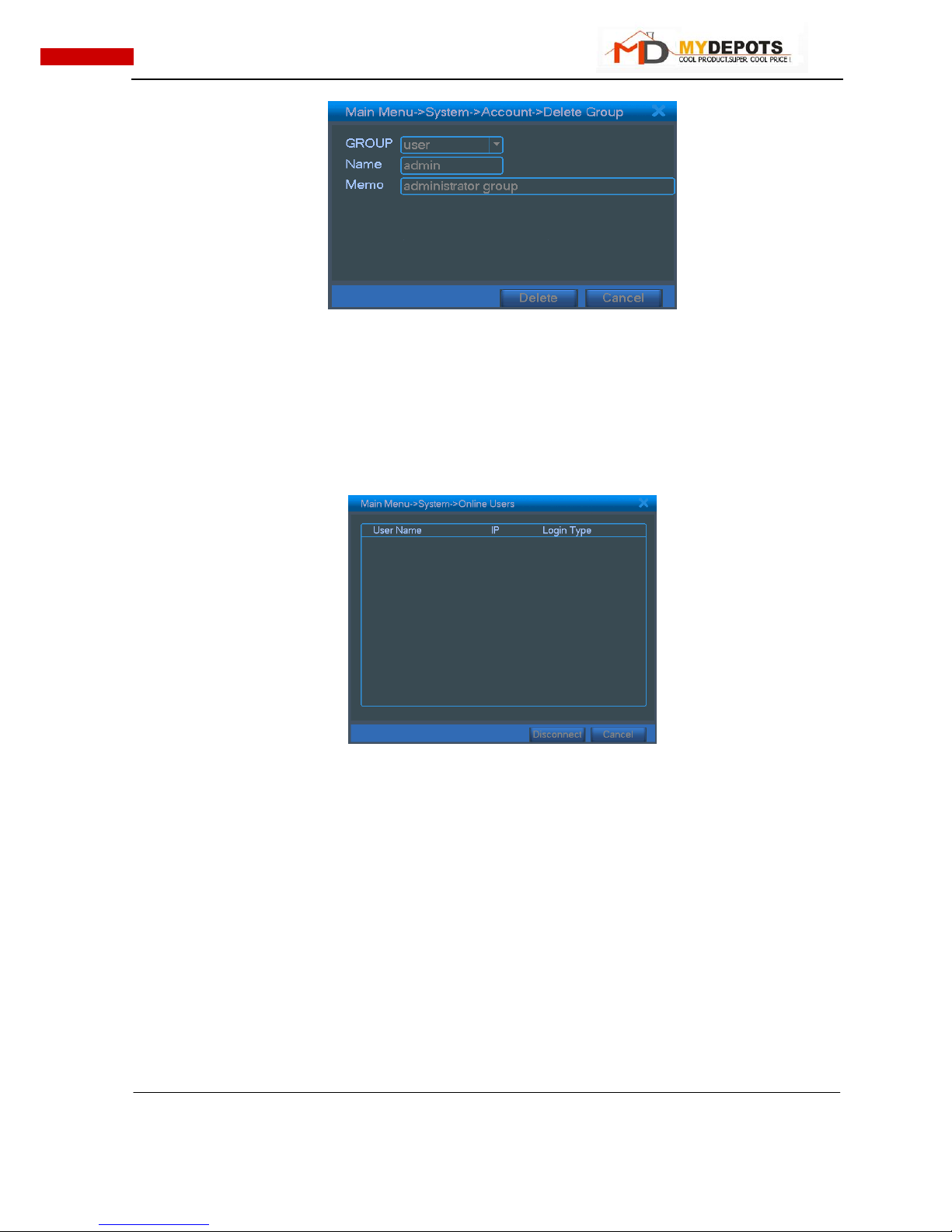

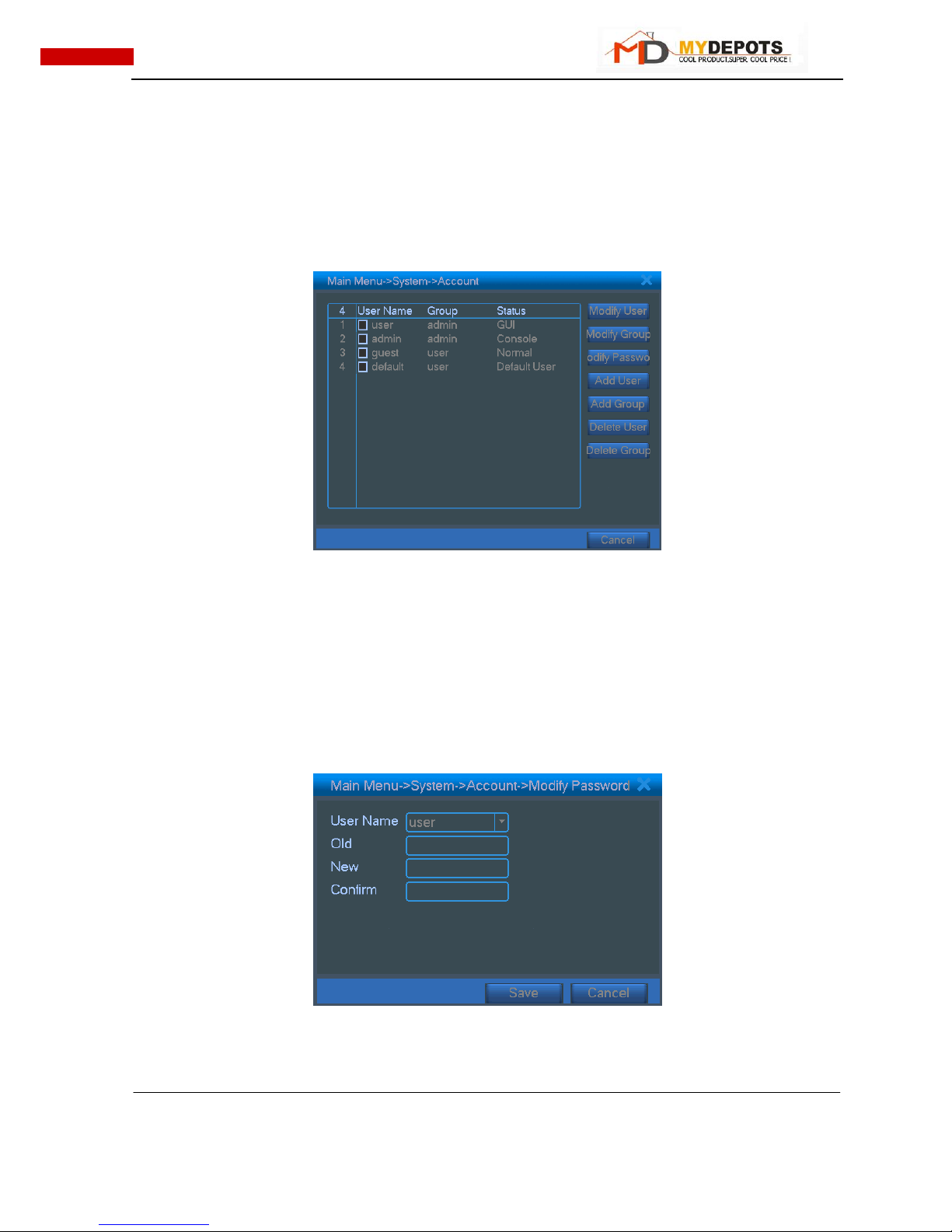

4.5.2 User management ............................................................................................................................. 48

4.5.3 Online user ....................................................................................................................................... 51

4.5.4 TV adjust .......................................................................................................................................... 51

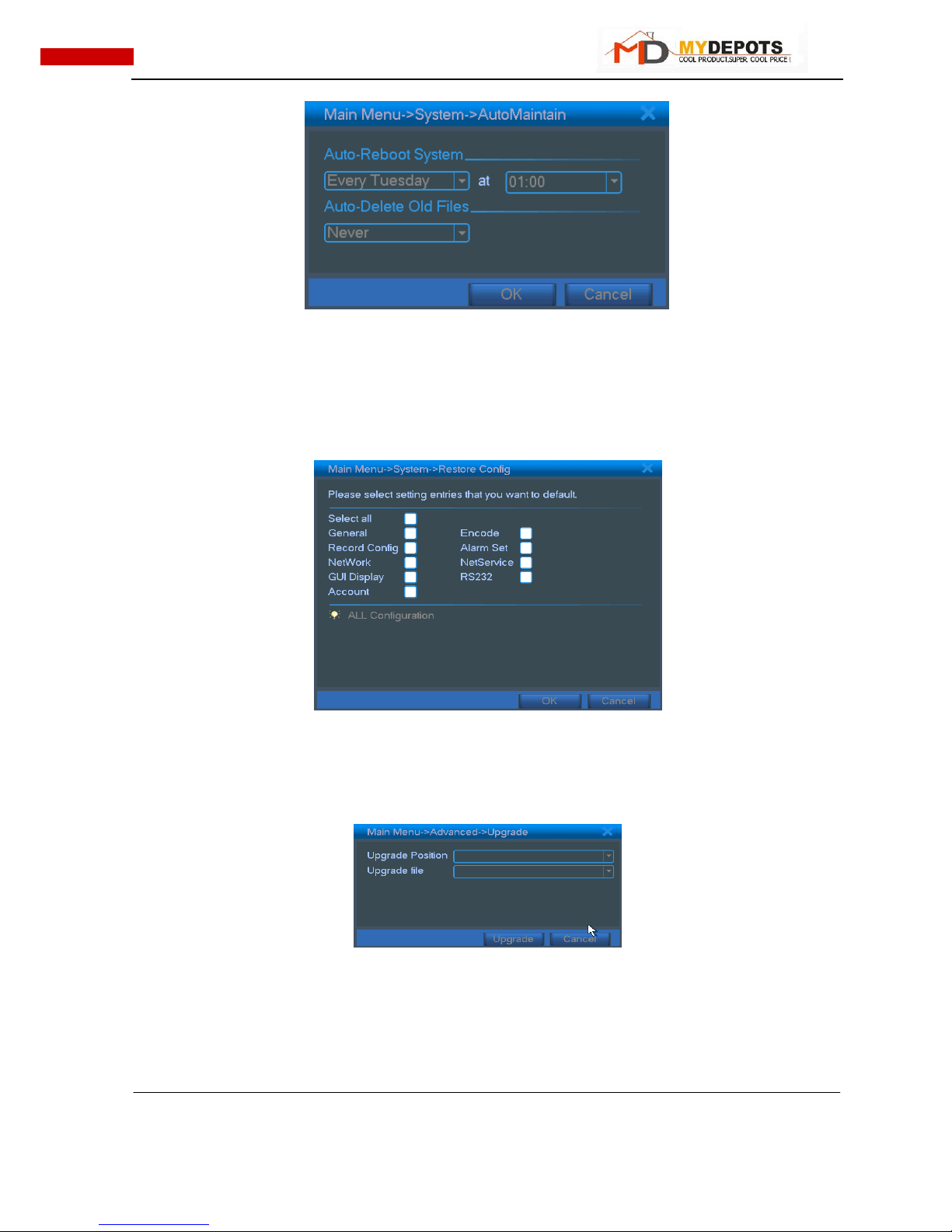

4.5.5 Auto maintenance ............................................................................................................................. 51

4.5.6 Resume default ................................................................................................................................. 52

4.5.7 Upgrade ............................................................................................................................................ 52

4.6 System information ..................................................................................................................................... 53

4.6.1 Hard disk information ...................................................................................................................... 53

4.6.2 Code stream statistics ....................................................................................................................... 53

4.6.3 Log information ............................................................................................................................... 54

4.6.4 Edition information .......................................................................................................................... 54

4.7 Shut down system ....................................................................................................................................... 55

5 FAQ and maintenance ............................................................................................................................................ 56

5.1 FAQ ............................................................................................................................................................. 56

5.2 Maintenance ................................................................................................................................................ 61

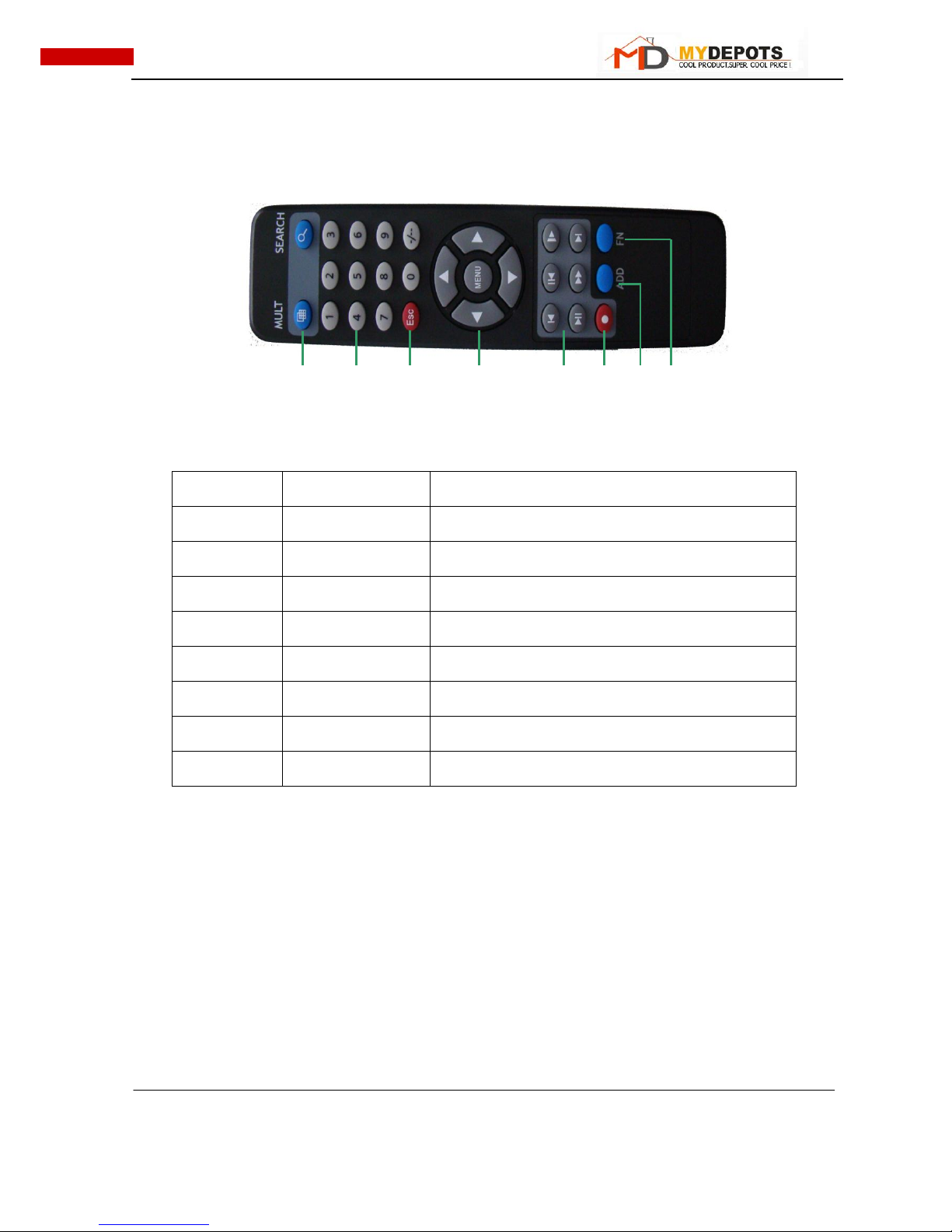

Appendix 1.Remote controller operation .................................................................................................................. 62

Appendix 2.Mouse operation .................................................................................................................................... 63

Appendix 3.Hard disk capability calculation ............................................................................................................ 64

Appendix 4.Technique parameters ............................................................................................................................ 65

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

1 Production Introduction

1.1 Product overview

The series DVR is designed specially for security and defence field which is an outstanding digital surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces standard H.264mp video compressed format and G.711A audio compressed format which insures the high quality image, low error coding ratio and single frame playing. It introduces TCP/IP network technology which achieves the strong network communication ability and telecommunication ability.

The series DVR can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software it achieves the strong network communication ability and telecommunication ability.

The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy and so on.

1.2 Main functions

Real-time surveillance

·analog interface and VGA interface (VGA interface is equipped selectively)

·surveillance function through monitor or display

Storage

·non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and extend the life-span

·special storage format which insures the data safety

Compression

·real-time compression by individual hard disk which insures the audio and video signal stable synchronization

Backup

·through SATA interface and USB interface such as USB equipment, removable hard disk and so on

·through net download the files in the hard disk

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Playback

·individual real-time video recording as well as searching, playback, network surveillance, recording check, downloading and so on

·multi-playback mode

·zoom at arbitrary region

Net operating

·through net tele-surveillance in the real time

·tele-PTZ control

·tele-recording check and real-time playback

Alarm linkage

·multi-route relay alarm output which is convenient for the alarm linkage and light control at the spot

·protecting circuits at the alarm input and output interface which protects the main machine from damage

Communication interface

·RS485 interface which fulfills the alarm input and PTZ control

·standard ethernet network interface which fulfills the telecommuting function

Intelligent operating

·mouse action function

·fast copy and paste operating for the same setting

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

2 Open-package check and cable connections

2.1 Open-package check

When you receive the DVR, please check first .

First, please check whether there is any visible damage to the package appearance. The protective materials used for the package of the DVR can protect most accidental clashes during transportation.

Then, please open the box and get rid off the plastic protective materials. Check whether there is any visible damage to the DVR appearance.

At last, please open the machine crust and check the data wire in the front panel, power wire, the connection between the fan power and the main board.

Front panel and rear panel

 The key function specification in the front panel and the interface specification in the real panel are in

the specification.

 Please check the product type in the front panel whether is accordant with the product type you order.

The label in the real panel is very important for the after service. Please protect it carefully. When you contact us for after service, please provide the product type and serial number in the label.

2.2 Hard disk installation

For the first use，please install the hard disk.

① disassemble the screw ②disassemble the crust ③fix the screw of hard disk

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

④fix the screw of hard disk ⑤connect the data wire ⑥connect the power wire

⑦cover the machine ⑧fix the cover

2.3 Front panel

(1) (2) (3) (4)

(1) power indicator light (2) alarm indicator light (3) remote receiver (4) recording indicator light

2.4 Rear panel

(1) (2)(3)(4)(5)(6)(7) (8) (9)（10）（ 11）

(1) audio input (2) video output (3) video VGA output (4) audio input (5) audio output (6) network interface (7) USB interface (8) power jack (9) power switch (10) external interface (11) grounding

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

2.5 Audio and video input and output connections

2.5.1 Video input connections

The video input port is BNC connector plug. The demand of input signal is PAL/NTSC BNC(1.0V

P-P

,75Ω).

The video signal must be accorded with the state standard which has the high signal to noise ratio, low aberration and low interference. The image must be clear and has natural color in the appropriate brightness.

Insure the vidicon signal stable and credible

The vidicon should be installed in the appropriate location where is away from backlighting and low illumination or adopts the better backlighting and low illumination compensation.

The ground and power supply of the vidicon and the DVR should be shared and stable.

Insure the transmission line stable and credible

The video transmission line should adopt high quality coaxial pair which is chosen by the transmission distance. If the transmission distance is too far, it should adopt shielded twisted pair, video compensation equipment and transmit by fiber to insure the signal quality.

The video signal line should be away from the electro magnetic Interference and other equipments signal lines. The high voltage current should be avoided especially.

Insure the connection stable and credible

The signal and shield lines should be firm and connected credible which avoid false and joint welding and oxidation.

2.5.2 Video output connections and options

The video output is divided into PAL/NTSC BNC(1.0V

P-P

,75Ω) and VGA output(selective configuration).

When replace the monitor by the computer display, there are some issues to notice.

1、Do not stay in the turn-on state for a long time.

2、Keep the computer display normal working by demagnetizing regularly.

3、Stay away from the electric magnetic Interference.

TV is not a credible replacement as a video output. It demands reducing the use time and control the power supply and the interference introduced by the nearby equipments strictly. The creepage of low quality TV can lead to the damage of other equipments.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

2.5.3 Audio signal input

Audio port is BNC connection.

The input impedance is high so the tone arm must be active.

The audio signal line should be firm and away from the electric magnetic Interference and connected credible which avoid false and joint welding and oxidation. The high voltage current should be avoided especially.

2.5.4 Audio signal output

Commonly the output parameter of DVR audio signal is greater than 200mv 1KΩ(BNC) which can connect

the low impedance earphone and active sound box or other audio output equipments through power amplifier. If the sound box and the tone arm can not be isolated, howling phenomena is often existed. There are some methods to deal with the above phenomena.

1、 Adopt better directional tone arm.

2、 Adjust the sound box volume to be under the threshold that produces the howling phenomena.

3、 Use fitment materials that absorb the sound to reduce reflection of the sound.

4、 Adjust the layout of the sound box and the tone arm.

2.6 Alarm input and output connections

１、Alarm input

A. Alarm input is grounding alarm input.

B. Alarm input demand is the grounding voltage signal.

C. When the alarm is connected with two DVRs or connected with DVR and other equipments, it should be

isolated by relay.

２、Alarm output

Alarm output can not be connected with high-power load(no more than 1A).When forming the output loop it

must prevent the big current from relay damage. Use the contact isolator when there is a high-power load

３、PTZ decoder connections

A. The grounding of the PTZ decoder and DVR must be shared otherwise the common-mode voltage will lead to the PTZ control failure. The shielded twisted pair is recommended.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

B. Avoid the entrance of high voltage. Make the layout reasonably. Take precaution from the thunder. C. In the outlying end connect 120Ω resistance paralleled to reduce the inflection and insure the signal quality. D. The 485 AB lines of DVR can not connected with other 485 output equipments paralleled. E. The voltage between the AB lines of the decoder must be less than 5V.

4、Front equipment grounding note

Bad grounding can lead to the burnout of the chip.

5、Alarm input type unlimited

The DVR alarm output port is constant opening type.

(1) (2) (3) (4) (1) alarm input 1 (2) grounding (3) alarm output1 (4) RS485

parameter

meaning

grounding

C1、NO1

Alarm output interface(constant open type)

A、B

485communication interface which is connected with the recording control equipments such as the decoder

2.6.1 Alarm input port specification

1 channels alarm input. Alarm input type unlimited.

The grounding and the com port of the alarm sensor are parallel (The alarm sensor is external power supply) .

The grounding of the alarm and the DVR should be shared.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

The NC port of the alarm sensor must be connected with the DVR alarm input port.

The grounding of the power supply and the alarm sensor must be shared when used in external power supply.

2.6.2 Alarm output port specification

1 channels alarm output. There is external power supply when using the external alarm equipment.

Please refer to the relay relevant parameters to avoid the overload that damages main machine.

2.6.3 Alarm output port relay parameters

Type：JRC-27F

Interface material

silver

rating

(resistance load)

Rating switch capacity

30VDC 2A, 125VAC 1A

maximal switch power

125VA 160W

maximal switch voltage

250VAC, 220VDC

maximal switch current

isolation

Homo-polarity interface

1000VAC 1minute

Inhomo-polarity interface

1000VAC 1 minute

Interface and winding

1000VAC 1 minute

Surge voltage

Homo-polarity interface

1500VAC (10×160us)

Turn-on time

3ms max

Turn-off time

3ms max

longevity

mechanical

50×106 MIN（3Hz)

electric

200×103 MIN (0.5Hz)

Environment temperature

-40~+70℃

2.7 Speed dome connections

1、Connect the 485 lines of the speed dome with the DVR 485 interface.

485interface

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

2、Connect the video line with the DVR video input. 3、Electrify the speed dome.

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

3 Basic operation

Note: The button in gray display indicates nonsupport.

3.1 Turn on

Plug the power supply and turn on the power supply switch. Power supply indicator light shining indicates turning on the video recorder. After the startup you will hear a beep. The default setting of video output is multiple-window output mode. If the startup time is within the video setting time, the timing video recording function will start up automatically. Then the video indicator light of corresponding channel is shining and the DVR is working normally. Note:1. Make sure that the input voltage corresponds with the switch of the DVR power supply.

2. Power supply demands: 220V±10% /50Hz.

Suggest using the UPS to protect the power supply under allowable conditions.

3.2 Turn off

There are two methods to turn off the DVR. Entering [main menu] and choosing [turn off] in the [turn off the system] option is called soft switch. Pressing the power supply switch is called hard switch. Illumination:

1、Auto resume after power failure

If the DVR is shut down abnormally, it can automatically backup video and resume previous working

status after power failure.

2、Replace the hard disk Before replacing the hard disk, the power supply switch in the real panel must be turned off.

3、Replace the battery Before replacing the battery, the setting information must be saved and the power supply switch in the

real panel must be turned off. The DVR uses button battery. The system time must be checked regularly. If

the time is not correct you must replace the battery, we recommend replacing the battery every year and using

the same battery type.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Note: The setting information must be saved before replacing the battery otherwise information will lose.

3.3 Login

When the DVR boots up, the user must login and the system provides the corresponding functions with the

user purview. There are three user settings. The names are admin, guest and default and these names have no password. Admin is the super user purview; guest and default’s permissions are preview and video playback. User admin and guest’s password can be revised, while their permissions can’t be revised; user default is the default login user whose permission can be revised but not its password.

Picture3.1 Login

Password protection: If the password is continuous wrong three times, the alarm will start. If the password is continuous wrong five times, the account will be locked. (Through reboot or after half an hour, the account will be unlocked automatically).

For your system security, please modify your password after first login.

3.4 Preview

You can right click mouse to choose the switch between the windows.

The system date, time and channel name are shown in each viewing window. The surveillance video and the alarm status are shown in each window.

Recording status

Video loss

Motion detect

Camera lock

Table 3.1 Preview icon

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

3.5 Desktop shortcut menu

In preview mode you can right click mouse to get a desktop shortcut menu. The menu includes: main menu,

video playback, video control, alarm output, PTZ control, color setup, TV adjust, shut down system, window switch.

Picture 3.2 shortcut menu

3.5.1 Main menu

When you login, the system main menu is shown as below.

Picture3.3 Main menu

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

3.5.2 Video playback

There are two methods for you to play the video files in the hard disk.

1、 In the desktop shortcut menu.

2、 Main menu>video recording>video playback.

Note: The hard disk that saves the video files must be set as read-write or read-only state.(4.5.1)

Picture3.4 video playback

1. listed files 2. file information 3.file backup option 4. file backup

5. file searching 6. playback control 7. operation hint

【listed files】Look up the listed files that accord with the searching criteria.

【file information】Look up the found file information.

【file backup option】Choose the file to backup .

【file backup】Backup the chosen file. Click the button and operate as followed.

Note: The storage must be installed before the file backup. If the backup is terminated, the already backup can playback individually.

4 36

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 3.5 detect the storage

Detect: Detect the storage connected with the DVR such as hard disk or universal disk. Erasure: Choose the file to delete and click erasure to delete the file. Stop: Stop the backup. Backup: Click backup button and the dialog box is popped up. You can choose the backup file according

to the type, channel and time.

Picture 3.6 recording backup

Remove：Clear the file information.

Add：Show the file information satisfying the set file attributes.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Start/Pause：Click the play button to start the backup and click the pause button to stop the backup.

Cancel：During backup you can exit the page layout to carry out other functions.

【file searching】Search the file according to the searching parameter.

Picture 3.7 file searching

File type: Set the searching file type.

Channel: Set the searching channel.

Start Time: Set the searching time scan.

【playback control】Refer to the following sheet for more information.

Button

Function

Button

Function

Play/pause Backward

Stop Volume

Slow play Fast play

Previous frame

Next frame

Previous file Next file

Circulation

Full screen

Table 3.2 Playback control key

Note: Frame by frame playback is only performed in the pause playback state.

【operation hint】Display the function of the cursor place.

Special functions：

Accurate playback：Input time (h/m/s) in the time column and then click play button. The system can

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

operate accurate playback according to the searching time.

Local zoom：When the system is in single-window full-screen playback mode, you can drag your mouse in the screen to select a section and then left click mouse to realize local zoom. You can right click mouse to exit.

3.5.3 Record Mode

Please check current channel status: “○” means it is not in recording status, “●” means it is in

recording status.

You can use desktop shortcut menu or click [main menu]> [recording function]> [recording set] to enter

the recording control interface.

Picture3.8 recording control interface

【configuration】Record according to the configuration.

【manual】Click the all button and the according channel is recording no matter the channel in any state.

【stop】Click the stop button and the according channel stops recording no matter the channel in any state.

3.5.4 Alarm output

Please check current channel status: “○” means it is not in alarming status, “●” means it is in

alarming status.

You can use desktop shortcut menu or click [main menu]> [alarm function]> [alarm output] to enter the

alarm output interface.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 3.9 alarm output

【configuration】Alarm is on according to the configuration.

【Manual】Click the all button and the according channel is alarming no matter the channel in any state.

【stop】Click the stop button and the according channel stops alarming no matter the channel in any state.

3.5.5 PTZ control

Operation interface is as followed. The functions include: PTZ direction control, step, zoom, focus, iris, setup

operation, patrol between spots, trail patrol, boundary scan, assistant switch, light switch, level rotation and so on.

Note1. Decoder A(B)line connects with DVR A(B)line. The connection is right.

2. Click [main menu] >[system configuration] >[PTZ setup] to set the PTZ parameters.

3. The PTZ functions are decided by the PTZ protocols.

Picture3.10 PTZ setup

【step】Set the PTZ rotation range. Default range: 1 ~ 8.

【zoom】Click / button to adjust the zoom multiple of the camera.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

【focus】Click / button to adjust the focus of the camera .

【iris】Click / button to adjust the iris of the camera.

【direction control】Control the PTZ rotation. 8 directions control is supportive.(4 directions in Front panel is

supportive )

【high speed PTZ】Full-screen show channel image. Left press mouse and control PTZ to rotate orientation.

Left press mouse and then rotate the mouse to adjust the zoom multiple of the camera.

【setup】Enter the function operation menu. 【window switch】Switch between different windows.

Special functions：

1、Preset

Set a location for the preset, calls the preset points, PTZ automatically turns to the setting position

1）Preset option

Set a location for the preset, procedure is as follows:

Step1: in Picture 3.10, click the Direction button will turn into preset position , click the Settings button to enter Picture 3.11.

Step 2: click the Preset button , then write the preset points in the input blank,

Step 3: click Settings button, return the Picture 3.10 Complete setup, that is the preset points and preset position corresponds.

Clear Preset：Input preset points, click Remove button, remove the preset。

Picture 3.11 Preset Settings

2）Preset Point Calls

Preset button

Preset point input blank

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

In Picture 3.10, click Page Shift button, enter PTZ control interface as shown in Picture 3.12. In the

input blank, write the preset points, then click Preset button, PTZ turn to the corresponding preset point.

Picture 3.12 PTZ Control

2、Cruise between Points

Multiple preset points connected cruise lines, call cruise between points, the PTZ run around on the line

1）Cruise Between Points Settings

Cruise lines is connected by multiple preset points, setting procedure is as follows: Step1: In Picture 3.10, the Direction key will turn PTZ to designated location , click Settings button to

enter Picture 3.13,

Step 2: click Cruise buttons, the write proper value into the Cruise Line and Preset Points blank，then

click Add Preset Points button, complete setting (also can add and delete cruise line which has been set up)

Step 3: repeat step1 and step2 , until set out all the preset designated cruise lines。 Remove Preset：Please input preset value in the blank, click Remove Preset button, then remove the

preset points.

Remove Cruise Line：Input the number of cruise line, click Remove Cruise Lines button, then remove

the cruise lines set。

Value input blank

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 3.13 Cruise Between Points Settings

2）The Calls of Cruise between Points

In Picture 3.10, click Page Shift button, enter PTZ control menu as shown in Picture 3.12. Please input the number of cruise in the value blank, then click Cruise between Points button, PTZ begins to work on the cruise line. Click Stop button to stop cruise.

3、Scan

PTZ also can work on the preset scan line repeatedly.

1）Scan setup

Step1：In Picture 3.10, click Setup button ，enter Picture 3.14； Step2：Click Scan button，the input proper value in the scan value blank; Step3：Click Start button, enter Picture3.10，here you can set the following items: Zoom、Focus、

Aperture、Direction and so on. Click Setup button to go back Picture 3.14；

Step4：Click End button to complete setup。Click the right button of the mouse to exit.

Picture 3.14 Scan Setup

2）Scan Calls

Cruise Button

Cruise Line Blank

Preset Points Blank

Scan value blank

Scan Button

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

In Picture 3.10, click Page Shift button, then enter PTZ control menu as shown in Picture 3.12. Please

input the number of scan in the value blank , then click Scan button，PTZ begins to work on the scan line .

Click Stop button to stop.。

4、Boundary Scan

1）Boundary Scan setup

Step1：In Picture 3.10, click Direction button to turn the PTZ to preset direction, then click Setup button

enter Picture 3.15, select the left boundary, return to Picture 3.10;

Step2：Please click direction arrows to adjust PTZ direction, click Setup button enter Picture3.15, then

select the right boundary ,return to Picture 3.10;

Step3: Complete setup, that is the position of left and right boundary

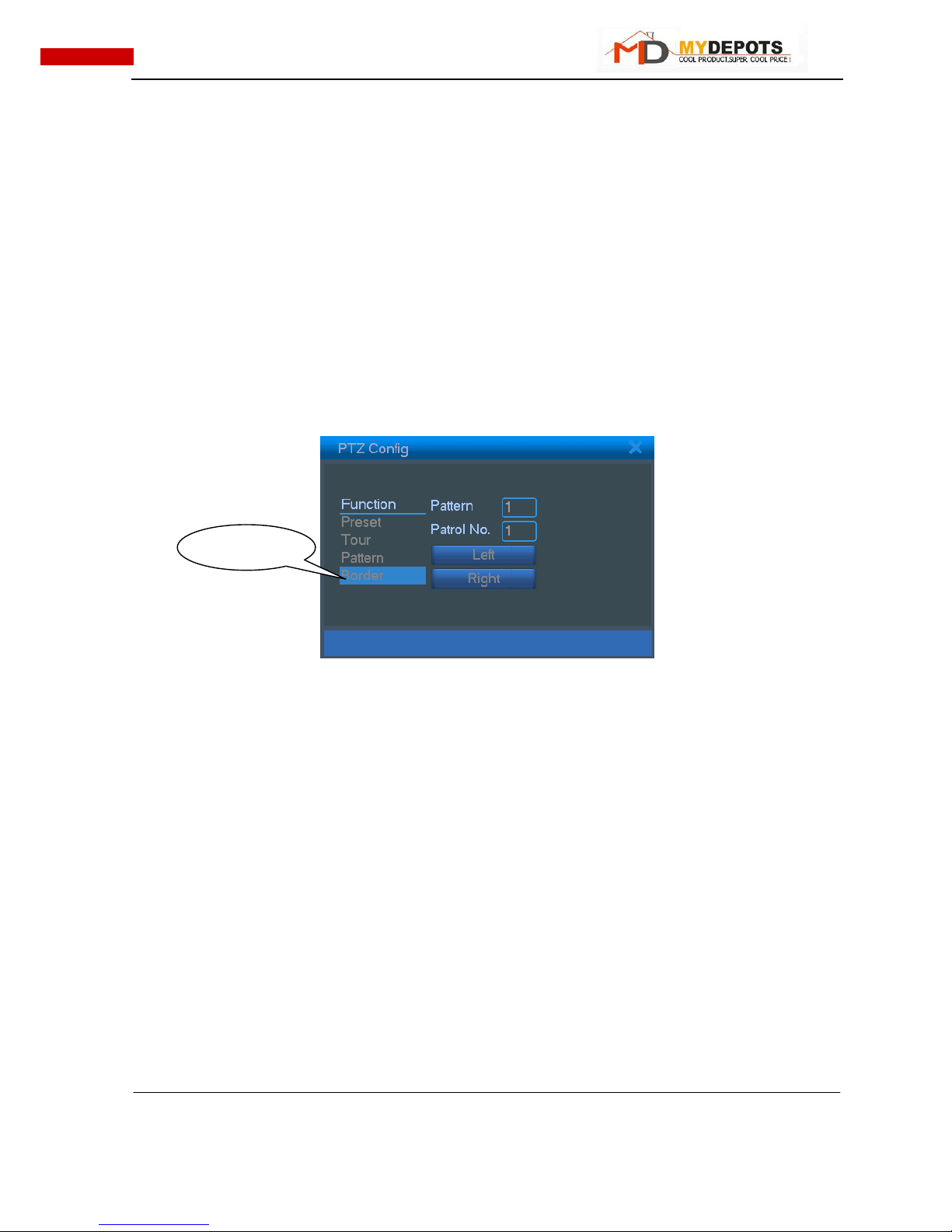

Picture 3.15 Boundary Scan Setup

2）Boundary Scan Calls

In Picture 3.10, click Page Shift button, then enter PTZ control menu as shown in Picture 3.12. Please

input the number of scan in the value blank , then click Scan button，PTZ begins to work on the scan line .

Click Stop button to stop.

5、Horizontal Rotating

Click Horizontally Rotating button, PTZ begins to rotate horizontally (relative to the original position of the camera). Click the Stop button to stop.

6、Rotate

Click on horizontal Rotating button, PTZ turn around.

7、Reset

线扫边界按钮

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

PTZ restart, all the data clears to 0.。

8、Page Shift

In Picture 3.12, click Page Shift button into Picture3.16, setting auxiliary function. Auxiliary number

corresponding to auxiliary switch on the decoder.

Picture 3.16 Auxiliary Function Control

【Intuitive Auxiliary Operation】 choose auxiliary equipment, select Open or Close button, switch

control；

【Auxiliary Number】The operation of corresponding auxiliary switch according to PTZ agreement；【Page Shift】In Picture 3.16，click Page Shift button enter the Picture 3.17 PTZ Main Menu , the menu

itself can be control by the menu control buttons

Picture 3.17 PTZ menu settings

Enter Menu：enter PTZ menu； Exit Menu：exit PTZ menu； Direction Button：the function buttons to choose PTZ menu；

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Confirm/Cancel：to choose PTZ menu

3.5.6 Color setting

Set the selective image parameters (current channel for single window display and cursor place for

multi-window display). You can use the desktop shortcut menu and enter the interface. The image parameters include: tonality, brightness, contrast, saturation. You can set different parameters at different time sections.

Picture 3.18 image color

3.5.7 TV adjust

Adjust TV output area parameters. You can use the desktop shortcut menu or enter [main menu]>

[management tools]> [TV adjust].

Picture 3.19 TV adjust

3.5.8 Logout

Logout, shut down the system or reboot up. You can use the desktop shortcut menu or enter [main menu].

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 3.20 shut down the system

【logout】Quit the menu. Offer password next entrance. 【shut down】Quit the system. Turn off the power supply.

When press the shut down button, there is schedule hint. After three seconds, the system is shut down. Cancel midway is of no effect.

【reboot】Quit the system. Reboot up the system..

3.5.9 Window switch

Preview in single window/four windows/eight windows/nine windows according to the choice.

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

4 Main menu

4.1 Main menu navigation

Main menu

Sub menu

Function

Recording

setup

Set the recording configuration, recording type, recording time section

playback

Set recording look-up, recording play, video file storage

backup

Detect or format backup equipment, back the selective files

Alarm

Motion

detection

Set motion detect alarm channel, sensitivity, area, linkage parameters:

defending time section, alarm output, screen hint, recording, PTZ, patrol

Video

shelter

Set camera mask alarm channel, sensitivity, linkage parameters: defending

time section, alarm output, screen hint, recording, PTZ, patrol

Video

loss

Set video loss alarm channel, linkage parameters: defending time section,

alarm output, screen hint, recording, PTZ, patrol

Alarm

input

Set alarm input channel, equipment type, linkage parameters: defending time

section, alarm output, screen hint, recording, PTZ, patrol

Alarm output

Set alarm mode: configuration, manual, shut down

System

configuration

Common

configuration

Set system time, data format, language, hard disk full time operation, machine

number, video format, output mode, summertime, stay time

code

configuration

Set main(assistant)coding parameter: code mode, resolving ability, frame rate,

code stream control, image quality type, code stream value, frame between

value, video/audio enable

network

configuration

Set basic network parameters, DHCP and DNS parameters, network high speed

download

Network service

PPPOE、NTP、Email、IP purview、DDNS parameter

Output mode

Set channel name, preview hint icon state, transparency, cover area, time title,

channel time fold

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

PTZ

configuration

Set channel, PTZ protocol, address, baud rate, date bit, stop bit, check

Serial port

configuration

Set serial port function, baud rate, date bit, stop bit, check

Patrol

configuration

Set patrol mode and interval time

Management

tools

Hard disk

management

Set appointed hard disk as read-write disc, read-only disc or redundant disc,

clear data, resume date and so on

User

management

Modify user, team or password. Add user or team. Delete user or team.

Online user

Break the connection with the already login user. Lock the account after break

until booting up again.

TV adjust

Adjust TV upside, downside, nearside, starboard distance

Automatic

maintenance

Set automatic reboot system and automatic deleting files.

Resume default

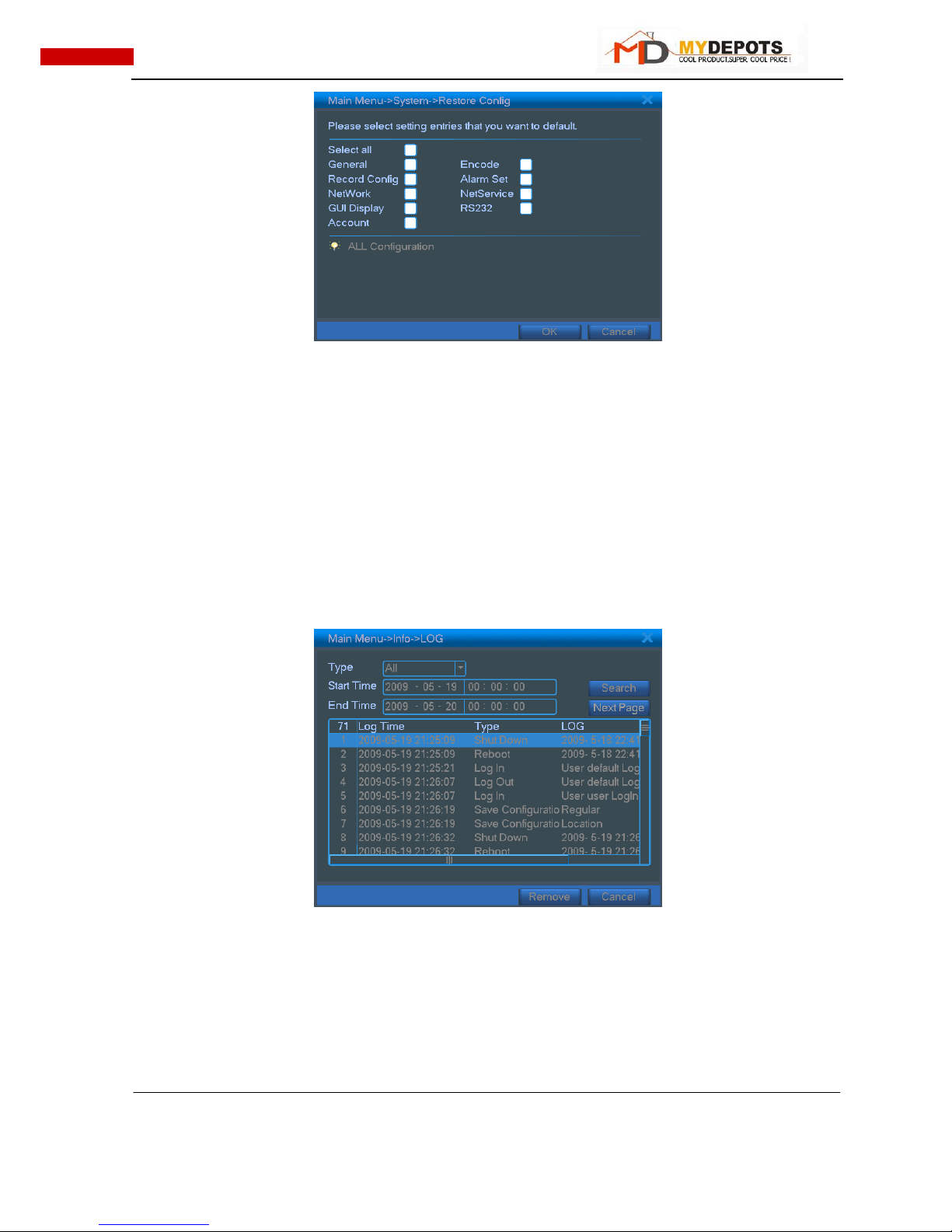

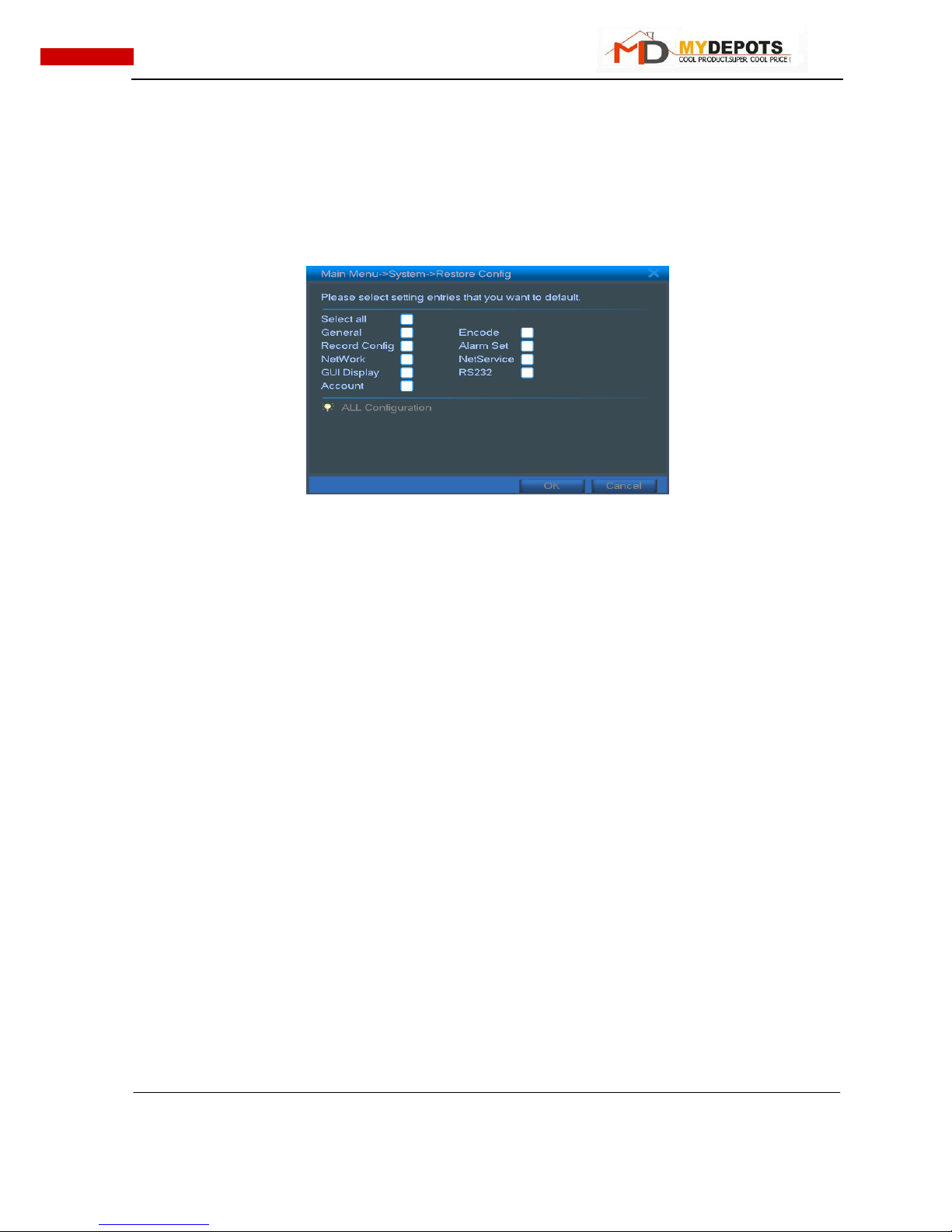

Resume setup state: common setup, code setup, recording setup, alarm setup,

network setup, network service, preview playback, serial port setup, user

management

System

information

Hard disk

information

Display hard disk capability and recording time

Code stream

statistics

Display code stream information

Log information

Clear all log information according to the log video and time

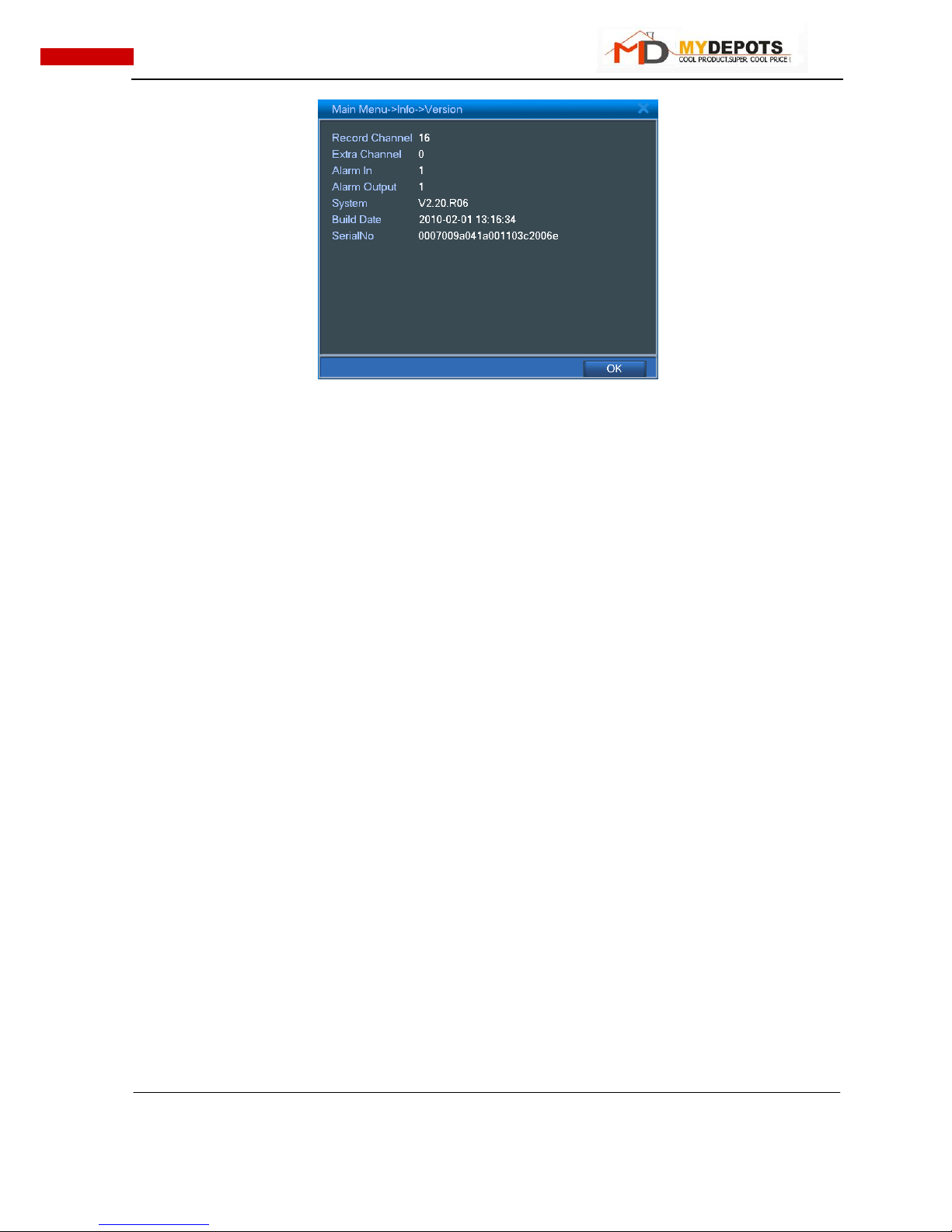

Edition

information

Display edition information

Shut down

Logout, shut down or reboot

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

4.2 Recording function

4.2.1 Recording Config

Set the recording parameters in the surveillance channel. The system is set 24 hours consecutive recording in

the first startup. You can enter [main menu]> [recording function]> [recording setup] to set.

Note：There is at least one read-write hard disk.（refer to chapter 4.5.1）

Picture 4.1 recording setup

【channel】Choose the corresponding channel number to set the channel. Choose the all option to set the

entire channels.

【redundancy】Choose the redundancy function option to implement the file double backup function. Double

backup is writing the video files in two hard disks. When you do the double backup, make sure that there are two hard disks installed. One is read-write disk and the other is redundant disk. (refer to 4.5.1)

【length】Set the time length of each video file. 60minutes is default value. 【prerecording】Record 1-30 seconds before the action. (time length is decided by the code stream) 【recording control】Set video state: configuration, manual or stop.

configuration：Record according to the set video type (common, detection and alarm)and time

section.

manual：Click the button and the according channel is recording no matter the channel in any state.

stop：Click the stop button and the according channel stops recording no matter the channel in any

state.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

【time section】Set the time section of common recording, The recording will start only in the set range. 【recording type】Set recording type: regular, detection or alarm.

regular：Perform the regular recording in the set time section. The video file type is “R”.

detection：Trigger the “motion detect”, “camera mask” or “video loss” signal. When above alarm is

set as opening recording, the “detection recording” state is on. The video file type is “M”.

alarm：Trigger the external alarm signal in the set time section. When above alarm is set as opening

recording, the “detection recording” state is on. The video file type is “A”.

Note：Refer to chapter 4.3 to set corresponding alarm function.

4.2.2 Video playback

Refer to chapter 3.5.2.

4.2.3 Video backup

You can backup the video files to external storage through setup.

Note：The storage must be installed before the file backup. If the backup is terminated, the already backup can playback individually.

Picture 4.2 detect the equipment

【detect】Detect the storage connected with the DVR such as hard disk or universal disk. 【erase】Choose the file to delete and click erasure to delete the file. 【stop】Stop the backup.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

【backup】Click backup button and the dialog box is popped up. You can choose the backup file according to

the type, channel and time.

Picture4.3 file backup

remove：Clear the file information.

add：Show the file information satisfying the set file attributes.

start/pause：Click the play button to start the backup and click the pause button to stop the backup.

cancel：During backup you can exit the page layout to carry out other functions.

4.3 Alarm Function

Alarm functions include: motion detect, camera mask, video loss, alarm input and alarm output.

4.3.1 Motion Detect

When system detects the motion signal that reaches the set sensitivity, the motion detect alarm is on and the

linkage function is turned on.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 4.4 motion detect

【channel number】Choose the set motion detect channel. 【enable】■ means that the motion detect function is on. 【sensitivity】Choose in the six options according to the sensitivity. 【area】Click setup and enter the set area. The area is divided into PAL22X18. Green block means the current

cursor area. Yellow block means the dynamic detect defensive area. Black block means the unfenced area. You can set the area as followed, Drag the mouse and draw the area.

Picture 4.5 set the area

【time section】Trigger the motion detect signal in the set time section. You can set according to week or set

uniformly. Each day is divided into four time sections.■ means the set valid.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

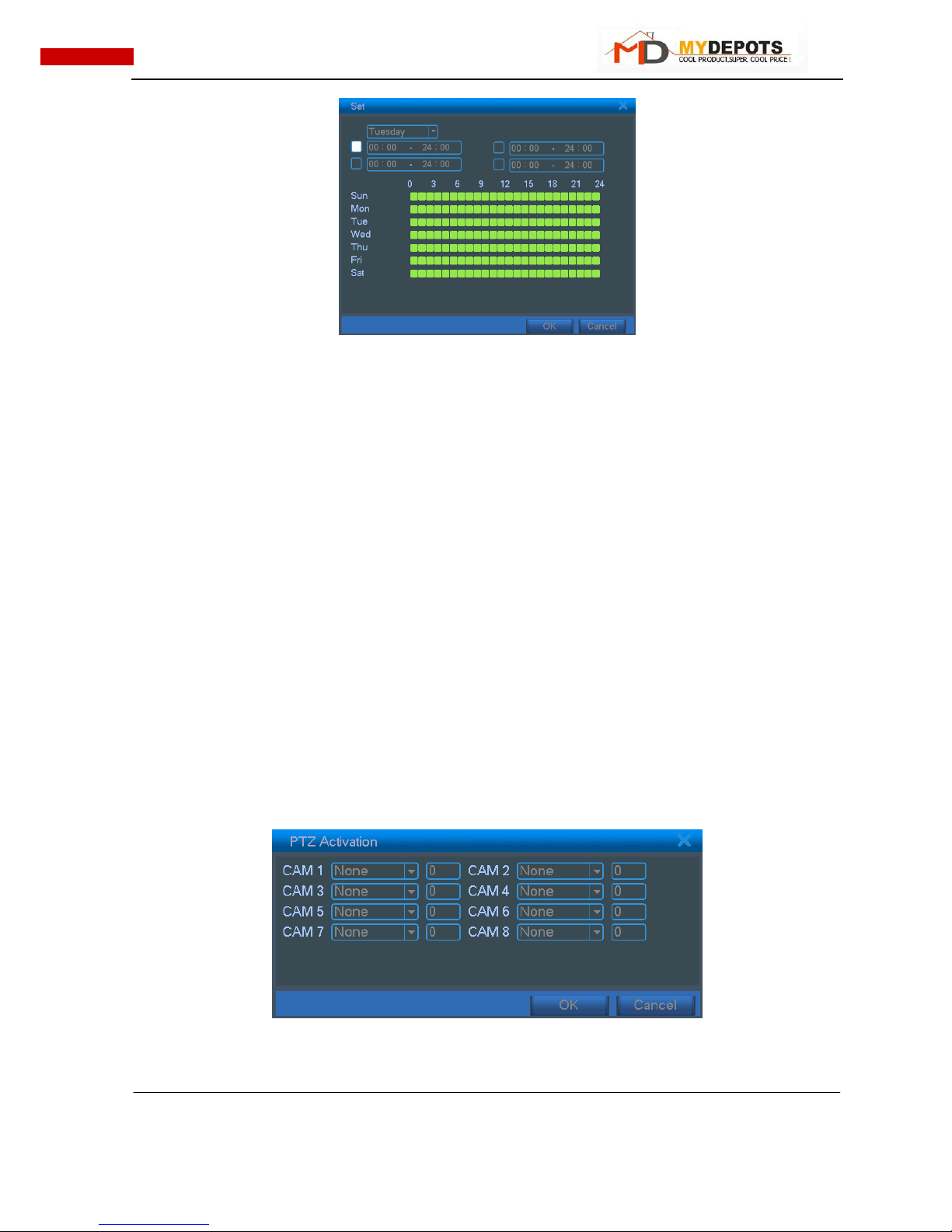

Picture4.6 set the time section

【interval】Only one alarm signal is turned on even there are several motion detect signals in the set interval. 【alarm output】Start the external equipment of corresponding linkage alarm when the motion detect alarm is

turned on.

【delay】Delay a few moments and stop when the alarm state is turned off. The range is 10~300 seconds. 【recording channel】Choose the recording channel (multiple option supportive). Trigger the video signal

when the alarm is turned on.

Note：Set in the [recording setup] and perform the linkage recording. Start detecting video files in the

corresponding time section.

【alternate patrol】■ means that the selective channel is single window alternate patrol preview. The interval

is set in the [system setup] > [alternate patrol].

【PTZ linkage】Set the PTZ linkage when the alarm is turned on.

Note：PTZ linkage is set in the [shortcut menu] >[ PTZ control]. Set the patrol between spots, trail patrol

and so on.

图 4.7 云台联动

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

【screen hint】Pop the alarm information dialog box in the local host computer screen. 【EMAIL】■ means sending an email to user when the alarm is turned on.

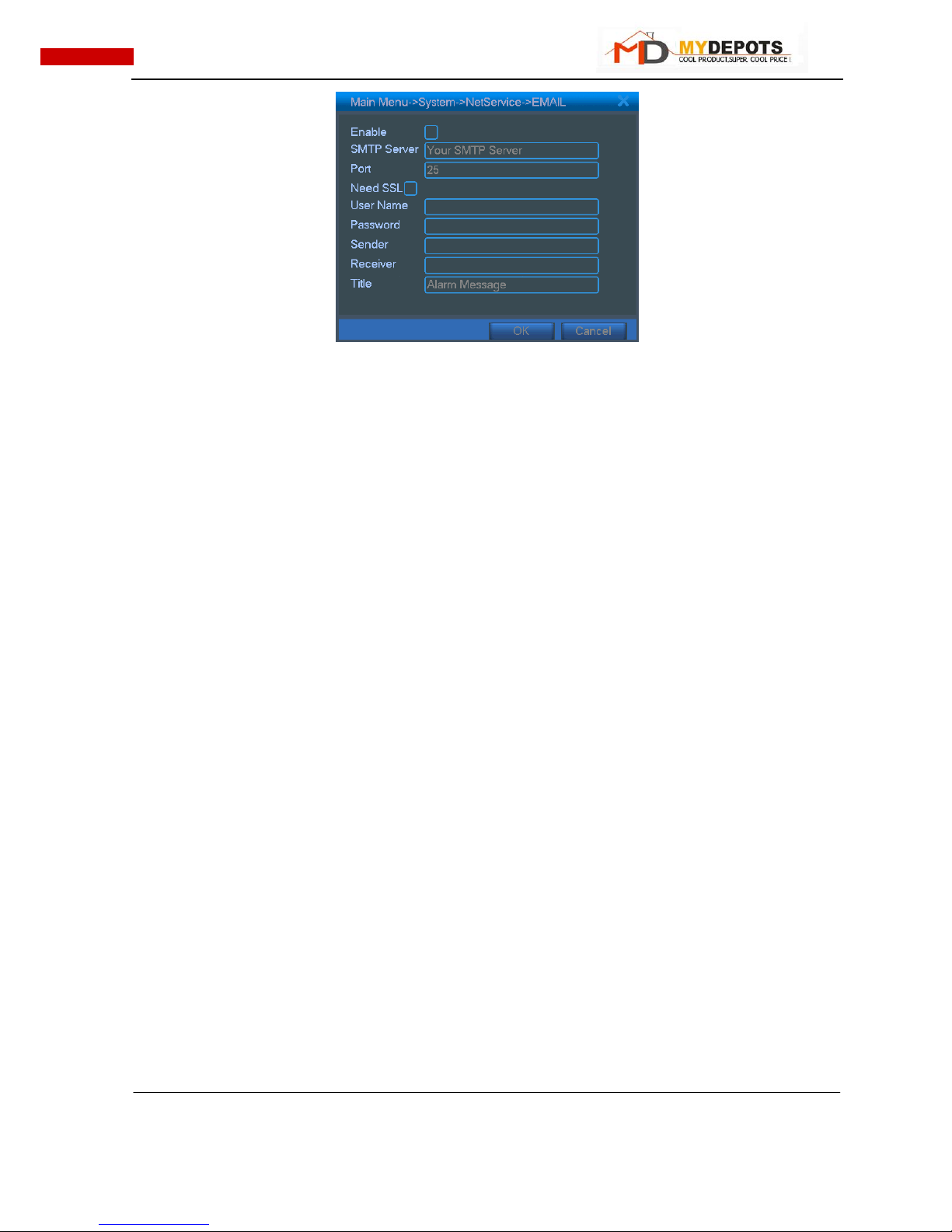

Note：Set in the [network service] and send an email.

4.3.2 Video Blind

When the video image is influenced by the environment such as bad brightness or reaching the set sensitivy

parameter, the camera mask function is turned on and the linkage function is turned on.

Picture 4.8 camera mask

Set method: refer to chapter 4.3.1.

4.3.3 Video Loss

When the equipment can not obtain the channel video signal, the video loss alarm is turned on and the linkage

function is turned on.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

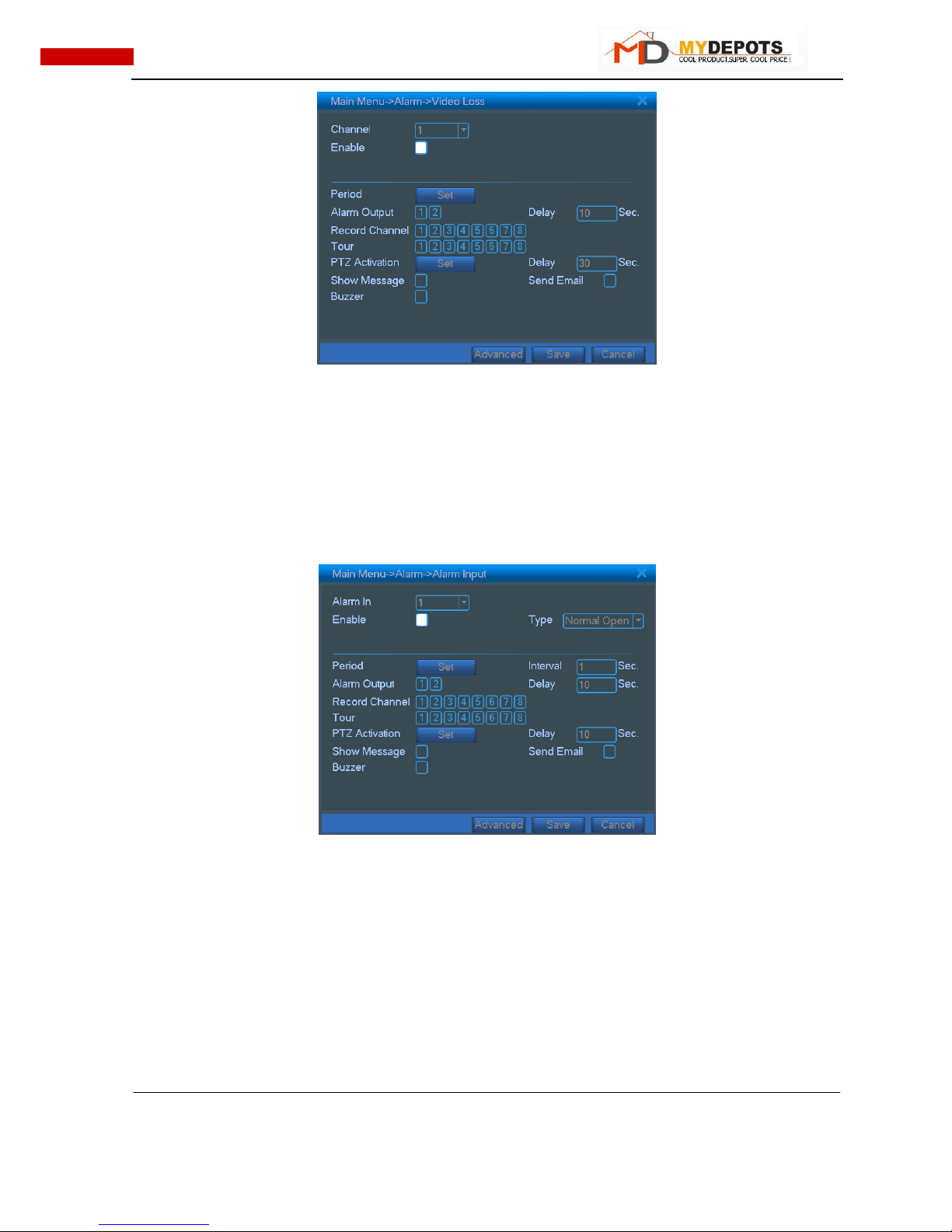

Picture 4.9 video loss

Set method: refer to chapter 4.3.1.

4.3.4 Alarm input

When the equipment obtains the external alarm signal, the alarm function is turned on.

Picture 4.10 alarm input

Set method: refer to chapter 4.3.1.

4.3.5 Alarm output

Refer to chapter 3.5.4.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

4.3.6 Abnormal

Analysing and inspecting current software and hardware of the device: When some abnormal events

happen,the device will make a relative answer such as show message and buzzer.

Picture 4.11 Abnormal

【Event Type】 selecting abnormity you want to inspect 【Enable】 Select it to make sure abnormal function workable 【Show message】 Automatically alarm cue dialog box come out of the main screen 【Buzzer】 Device will have two long nosie “di di” while alarm is happening

4.4 System setup

Set the system parameters such as general setup, code setup, network setup, network service, output mode, PTZ control, serial port setup and alternate patrol setup.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

4.4.1 General setup

Picture 4.12 regular setup

【system time】Set the system data and time. 【data format】Choose the data format: YMD, MDY, DMY. 【list separator】Choose list separator of the data format. 【time format】Choose time format: 24-hour or 12-hour. 【language】English or Chinese. 【hard disk full】Choose stop: Stop recording when the hard disk is full.

Choose cover: Cover the earliest recording files and continue recording when the hard disk

is full.

【number】Only when the address button in the remote controller and the corresponding DVR number is

matched, the remote operation is valid.

【video format】PAL or NTSC. 【latency time】Set the latency time in 0-60. 0 means no latency time. 【summer time】Choose the summer time option and pop the dialog box as followed.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 4.13 summer time (week) setup

Picture 4.14 summer time (data) setup

4.4.2 Encode setup

Set the video/audio code parameter: video file, remote monitoring and so on. Set every independent channel’s

coding parameter in the left part, and set the combination coding parameter in the right part.

Note: Combination coding introduces video compression technique which combines and compresses

multi-channel’s video to a special channel. Its main using: multi-channel playback simultaneously, DUN multi-channel real-time surveillance, mobile surveillance and so on.

Picture 4.15 code setup

【channel】Choose the channel number. 【code format】Standard H.264. 【resolution】Resolution type:D1/ CIF / QCIF. 【frame rate】P：1 frame/s~25 frame/s. 【code stream control】You can choose limited code stream or variable code stream. When you choose the

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

variable code stream there are six image quality options.

【code stream value】Set the code stream value to modify the image quality. The larger code stream value the

better image quality.

Reference range: D1（1000~1500kbps）,CIF（384~1500kbps）, QCIF(64~512kbps)

【video/audio】When the icons are all in reverse displayed, the video file is video and audio multiplex stream.

Combination coding

【combination coding】When the icons are all in reverse displayed, opening combination coding functions. 【mode】multi-channel playback is used in all channels playback simultaneously, and the narrowband

transmission is used in multi-channel real-time remote monitoring simultaneously at narrowband state, especially used in mobile surveillance.

4.4.3 Network setup

Picture4.16 network setup

【network card】You can choose cable network card or wireless network card. 【DHCP Enable】Obtain IP address automatically.

Note：DHCP server is preinstalled.

【IP address】Set the IP address. Default: 192.168.1.10. 【subnet mask code】Set the subnet mask code. Default: 255.255.255.0. 【default gateway】Set the default gateway. Default: 192.168.1.1.

【DNS setup】Domain Name Server. It translates the domain name into IP address. The IP address is offered

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

by network provider. The address must be set and reboot then it works.

【TCP port】Default: 34567. 【HTTP port】Default: 80. 【HS Download】【network transmission strategy】There are three strategies: self-adaption, image quality precedence and

fluency precedence. The code stream will adjust according to the setup. Self-adaption is the tradeoff between the image quality precedence and fluency precedence. Fluency precedence and self-adaption are valid only when the assistant code stream is turned on. Otherwise image quality precedence is valid.

4.4.4 Network service

Choose the network service option and click the set button to configure the advanced network functions or

double click the service button to configure the parameters.

Picture 4.17 network service

【PPPoE setup】

Picture4.18 PPPOE setup

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Input the user name and password that ISP（Internet service provider）provides. After saving it reboot up your system. Then the DVR will build a network connection based on PPPoE. The IP address will change into dynamic IP address after above operation is well done.

Operation：After PPPoE dialing successfully look up the IP address in the [IP address] and obtain the current IP address. Then use this IP address to visit the DVR through user port.

【NTP setup】

Picture4.19 NTP setup

The NTP server must be installed in the PC.

Host computer IP：Input the IP address installed NTP server.

Port：Default: 123. You can set the port according to NTP server.

Time zone：London GMT+0 Berlin GMT +1 Cairo GMT +2 Moscow GMT +3 New Delhi GMT +5

Bangkok GMT +7 Hongkong Beijing GMT +8 Tokyo GMT +9 Sydney GMT +10 Hawaii GMT-10 Alaska GMT-9 Pacific time GMT-8 American mountain time GMT-7 American mid time GMT-6 American eastern time GMT-5 Atlantic time GMT-4 Brazil GMT-3 Atlantic mid time GMT-2.

Update cycle：The same with the NTP server check interval. Default: 10minutes. 【EMAIL setup】

If the alarm is turned on or the alarm linkage photos are taken, send an email about the alarm information and the photos to appointed address.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 4.20 EMAIL setup

SMTP server：Email server address. It could be an IP address or domain name. Domain name can be

translated only it is the correct DNS configuration.

Port：Email server port number.

SSL：Decide whether using Secure Socket Layer protocol to login.

User：Apply the email server user name.

Password：Input the password corresponding to the user.

Sender：Set the email sender address.

Receiver：Send the email to appointed receivers when the alarm is turned on. You can set three receivers at

most.

Theme：You can set as you wish.

【IP purview setup】

When choosing the white list, only the listed IP address can connect the DVR. The 64 IP addressed are supportive in the list.

When choosing the black list, the listed IP address can not connect the DVR. The 64 IP addressed are supportive in the list.

You can delete the set IP address by √ in the options. Note：When the same IP address is in the white and black list at the same time, the black list precedence is higher.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 4.21 IP purview setup

【DDNS】

It is the abbreviation of dynamic domain name server.

Local domain name：Provide the domain name registered by DDNS. Server domain name：Provide the domain name of DDNS. Port：Provide the visit port number of DDNS. User name：Provide the account registered by DDNS. Password：Provide the password registered by DDNS.

When the DDNS is successfully configured and start, you can connect the domain name in the IE address

column to visit.

Note：The DNS setup must be configured correctly in the network setup.

Picture 4.22 DDNS setup

【Mobile Monitor Setup】 To visit the device by mobile, please make a router mapping of this port and use CMS to monitor and

operate it by protocol.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

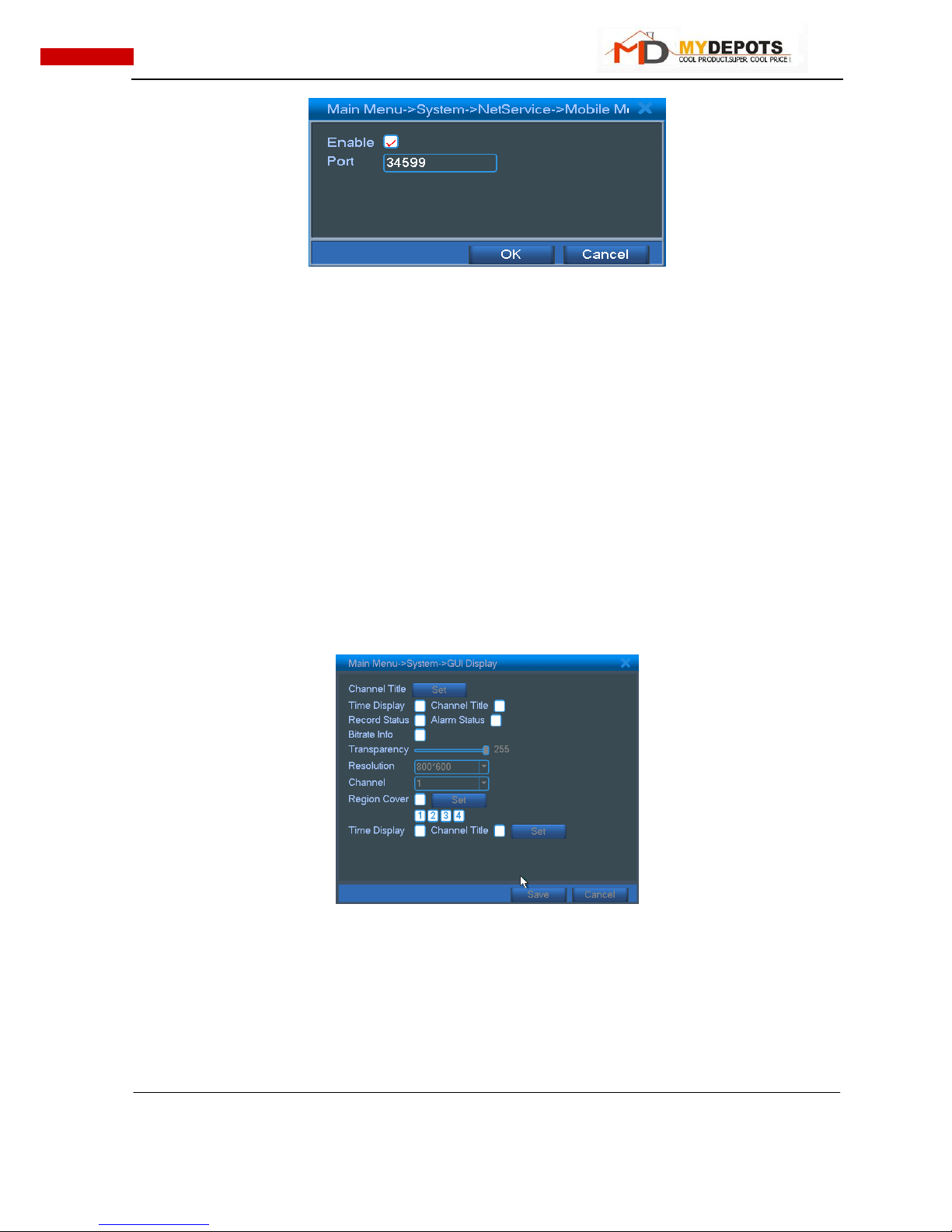

Picture 4.23 Mobile Monitor Setup

【Enable】 Select it to make sure abnormal function workable

【Port】 It’s a port of mobile monitoring which you need to make a router mapping of if want to visit it by

mobile

4.4.5 Output mode

Configure the video output parameters including the front output mode and code output mode.

Front output：In the local preview mode include: channel name, time title, channel title, recording status, alarm status, code stream information, transparency and cover area.

Code output：In the network surveillance and video file mode include: channel name, time title, channel title, recording status, alarm status, code stream information, transparency and cover area.

Picture4.24output mode

【channel name】Click the channel name modify button and enter the channel name menu. Modify the channel name. The 16 Chinese characters and 25 letters are supportive.

【time title】■ means the selective state. Display the system data and time in the surveillance window.

【channel title】■ means the selective state. Display the system channel number in the surveillance window.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

【recording status】■ means the selective state. Display the system recording status in the surveillance window.

【alarm status】■ means the selective state. Display the system alarm status in the surveillance window.

【code stream information】■ means the selective state. The ninth window displays the code stream

information in the nine-window preview status.

【transparency】■Choose the background image transparency. The range is 128~255.

【resolution】■set display resolution.

【channel】■Choose the set code output channel number.

【cover area】■ means the selective state. Click the cover area button and enter the corresponding channel

window. You can cover the arbitrary using mouse.

4.4.6 PTZ setup

Picture 4.25 PTZ setup

【channel】Choose the dome camera input channel.

【protocol】Choose the corresponding dome protocol. (PELCOD as an example)

【address】Set as the corresponding dome address. Default: 1.（Note：The address must be consistent with the

dome address.）

【baud rate】Choose the corresponding dome baud rate length. You can control the PTZ and vidicion. Default:

115200.

【date bit】Include 5-8 options. Default: 8.

【stop bit】Include 2 options. Default: 1.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

【check】Include odd check, even check, sign check, blank check. Default: void.

4.4.7 Serial port setup

Picture 4.26 serial port setup

【serial port function】Common serial port is used to debug and update program or set up specific serial port.

【baud rate】Choose the corresponding baud rate length.

【data bit】Include 5-8 options.

【stop bit】Include 2 options.

【check】Include odd check, even check, sign check, blank check.

4.4.8 Patrol setup

Set the patrol display.  means that the patrol mode is turned on. You can choose the single window, four windows, nine windows, sixteen windows patrol display or single display.

Picture 4.27 patrol setup

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

【interval】Set the patrol switch interval. The set range is 5-120 seconds.

Note： / means turn off/on the patrol.

4.5 Management tools

4.5.1 Hard disk management

Configure and manage the hard disk. The menu displays current hard disk information: hard disk number, input port, type, status and overall capability. The operation include: setup the write-read disk, read-only disk, redundant disk, hard disk format, resume default. Choose the hard disk and click the right function button to execute. Note：write-read disk：The equipment can write or read data.

read-only disk：The equipment can read data but can not write data. redundant disk：Double backup the video files in the write-read disk.

Picture4.28 hard disk management

4.5.2 User management

Manage the user purview. Note：1. The char length is 8 bytes at most for the following user and user team name. The blank ahead or behind

the char string is invalid. The middle blank in the char string is valid. Legal char include: letter, number, underline, subtraction sign, dot.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

2. There is no limit in the user and user team. You can add or delete the user team according to user definition. The factory setup include: user\admin. You can set the team as you wish. The user can appoint the purview in the team.

3. The user management include: team/ user. The team an user name can not be the same. Each user only

belongs to one team.

Picture 4.29 user management

【modify user】Modify the existed user attribute. 【modify team】Modify the existed team attribute. 【modify password】Modify the user password. You can set 1-6 bit password. The blank ahead or behind the

char string is invalid. The middle blank in the char string is valid.

Note：The user who possess the user control purview can modify his/her own or other user password

Picture 4.30 modify password

【add user】Add a user in the team and set the user purview. Enter the menu interface and input the user name

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

and password. Choose the team and choose whether cover using the user. Cover using means that the account can be used by multiple users at the same time.

Once choose the team the user purview is the subclass of the team. We recommend that the common user’s purview is lower than the advanced user.

Picture 4.31 add user

【add team】Add a user team and set the purview. There are 36 different purviews: shut down the equipment,

real time surveillance, playback, recording setup, video file backup and so on.

Picture 4.32 add team

【delete user】Delete the current user. Choose the user and click delete user button. 【delete team】Delete the current team. Choose the team and click delete team button.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 4.33 delete team

4.5.3 Online user

Look up the network user information in the local DVR. You can choose the network user and cut the

connection. Then the user is locked until next boot-strap.

Picture 4.34 online user

4.5.4 TV adjust

Refer to chapter 3.2.7 .

4.5.5 Auto maintenance

The user can set the auto reboot time and auto file deleting time limit.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 4.35 auto maintenance

4.5.6 Resume default

The system resume to the default setup. You can choose the items according to the menu.

Picture 4.36 resume default

4.5.7 Upgrade

Picture 4.37 upgrade

【upgrade】choose USB interface.

【upgrade file】choose the file which needs upgraded.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

4.6 System information

4.6.1 Hard disk information

Display the hard disk state: hard disk type, overall capability, residual capability, the recording time and so

on.

Picture 4.38 hard disk information

Clue：○ means that the hard disk is normal. X means that the hard disk is broken-down.- means that there is

no hard disk. If the user need to change the damaged hard disk, you must shut down the DVR and take up all the damaged hard disks then install a new one.

* behind serial number means the current working disk such as 1*. If the corresponding disk is damaged, the

information will display “？”.

4.6.2 Code stream statistics

Display the code stream（Kb/S）and hard disk capability （MB/H）in real time. It displays as the wave sketch

map.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture 4.39 code stream statistics

4.6.3 Log information

Look up system log according to the set mode. Log information include: system operation, configuration operation, data management, alarm affair,

recording operation, user management, file management and so on. Set the time section to look up and click the look up button. The log information will display as a list. (one page is 128 items) Press Page up or Page down button to look up and press delete button to clear all the log information.

Picture4.40 log information

4.6.4 Edition information

Display the basic information such as hardware information, software edition, issue data and so on.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Picture4.41 edition information

4.7 Shut down system

Refer to chapter 3.5.8.

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

5 FAQ and maintenance

5.1 FAQ

If the problems are not listed, please contact the local service or call the HQ service. We are willing to offer

the service.

1、 The DVR can not boot up normally.

Possible reasons are as followed: 1 The power supply is not correct. 2 Switch power supply line is not in good connection. 3 Switch power supply is damaged. 4 The program updating is wrong. 5 The hard disk is damaged or the hard disk lines are broken. 6 The front panel is damaged. 7 The main board of the DVR is damaged.

2、 The DVR reboots automatically or stops working after boot up a few minutes.

Possible reasons are as followed:

1 The input voltage is not stable or too low. 2 The hard disk is damaged or the hard disk lines are broken. 3 The power of the switch power supply is low. 4 Frontal video signal is not stable. 5 Bad heat radiator or too much dust or bad running circumstance for the DVR. 6 The hardware of the DVR is damaged.

3、 System can not detect hard disk.

Possible reasons are as followed: 1 The hard disk power supply line is not connected. 2 The cables of the hard disk are damaged. 3 The hard disk is damaged.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

4 The SATA port of main board is damaged.

4、 There are no video outputs in single channel, multiple channels and all channels.

Possible reasons are as followed: 1 The program is not matched. Please update the program. 2 The image brightness is all 0. Please resume the default setup. 3 There is no video input signal or the signal is too weak. 4 The channel protection or the screen protection is set. 5 The hardware of the DVR is damaged.

5、 Real-time image problems such as the image color or the brightness distortion.

Possible reasons are as followed: 1 When using the BNC output, the option between the N mode or PAL mode is wrong and the image

becomes black and white.

2 The DVR is not matched the monitor impedance. 3 The video transmission distance is too far or the loss of the video transmission line is too large. 4 The color and brightness setting of the DVR is wrong.

6、 I can not find the video files in local playback mode.

Possible reasons are as followed: 1 The data line of the hard disk is damaged. 2 The hard disk is damaged. 3 Update the different program with the origin program files. 4 The video files to look up are covered. 5 The recording is not on.

7、 The local video is not clear.

Possible reasons are as followed: 1 The image quality is too bad. 2 The reading program is wrong. Reboot up the DVR. 3 The data line of the hard disk is damaged. 4 The hard disk is damaged. 5 The hardware of the DVR is damaged.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

8、 There is no audio signal in the surveillance window.

Possible reasons are as followed: 1 It is not an active tone arm. 2 It is not an active sound box. 3 The audio lines are damaged. 4 The hardware of the DVR is damaged.

9、 There is audio signal in the surveillance window but mo audio signal in the playback state.

Possible reasons are as followed: 1 Setting issues: the audio option is not chosen. 2 The according channel is not connected with the video.

10、 The time is wrong.

Possible reasons are as followed: 1 Setting is wrong.. 2 The battery is in bad connection or the voltage is too low. 3 The oscillation is damaged.

11、 The DVR can not control the PTZ.

Possible reasons are as followed:

1 There is something wrong with the frontal PTZ. 2 The setting, connection or the installation of the PTZ decoder is not correct. 3 The connections are not correct. 4 The PTZ setting of the DVR is not correct. 5 The protocols of the PTZ decoder and the DVR are not matched. 6 The address of the PTZ decoder and the DVR are not matched. 7 When multiple decoders are connected, the far port of the PTZ decoder line A(B) must connect a

120 resistance to reduce the reflection otherwise the PTZ control is not stable.

8 The distance is too far.

12、 The motion detect is not working,

Possible reasons are as followed: 1 The time range set is not correct.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

2 The motion detect area set is not correct. 3 The sensitivity is too low. 4 Limited by some hardware edition.

13、 I can’t login via web.

Possible reasons are as followed: 1 The system is windows 98 or windows me. We recommend updating to windows 2000sp4 or higher

edition or installing the software for low edition.

2 ActiveX is hold back. 3 The edition is not exceeded dx8.1. Update the display card driver. 4 Network connection failure. 5 Network setting issues. 6 Invalid password or user name. 7 The user edition is not matched the DVR program edition.

14、 The image is not clear or there is no image in network preview state or video file playback state.

Possible reasons are as followed:

1 Network is not stable. 2 The user machine is resource limited. 3 Choose the play-in-team mode in the network setup of DVR. 4 The region shelter or channel protection is set. 5 The user has no surveillance purview. 6 The real-time image of the hard disk recording machine itself is not clear.

15、 Network connection is not stable.

Possible reasons are as followed:

1 Network is not stable. 2 IP address is conflicted. 3 MAC address is conflicted. 4 The network card of the computer or the hard disk recording machine is bad.

16、 There is something wrong with the USB backup or writing a CD.

Possible reasons are as followed:

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

1 The rewritable machine and the hard disk are shared the same data lines. 2 The data is too much. Please stop recording and backup. 3 The data exceeds the backup storage. 4 The backup equipment is not compatible. 5 The backup equipment is damaged.

17、 The keyboard can not control the DVR.

Possible reasons are as followed:

1 The serial port of the DVR is not set correctly. 2 The address is not correct. 3 When multiple transformers are connected, the power supply is not large enough. Please give each

transformer individual power supply.

4 The distance is too far.

18、 Alarm can’t be recessional.

Possible reasons are as followed:

1 The setting of the alarm is not correct. 2 The alarm output is turned on manually. 3 The input machine is damaged or the connections are not correct. 4 There are some problems for specific program edition, Please update the program.

19、 Alarm is not working.

Possible reasons are as followed:

1 The setting of the alarm is not correct. 2 The connection of the alarm is not correct. 3 The alarm input signal is not correct. 4 A alarm is connected with two loops synchronously.

20、 The remote controller is not working,

Possible reasons are as followed:

1 The remote control address is not correct. 2 The remote control distance is too far or the angle is too large. 3 The battery is used up.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

4 The remote controller or the front panel of the recording machine is damaged.

21、 The storage time is not enough.

Possible reasons are as followed:

1 Front vidicon quality is bad. The lens is too dirty. The vidicon is in backlighting installation. 2 The hard disk capability is not enough. 3 The hard disk is damaged.

22、 The downloading files can not play.

Possible reasons are as followed:

1 There is no media player. 2 There is no DX8.1 software or higher edition. 3 There is no DivX503Bundle.exe file to play AVI video files. 4 The DivX503Bundle.exe and ffdshow-2004 1012 .exe files must be installed in the windows xp

system.

23、 I can not remember the advanced code or network code in the local menu operation.

Please contact the local service or call the HQ service. We will offer the service according the machine

type and the program edition.

5.2 Maintenance

1 Please brush printed circuit boards, connectors, fans, machine box and so on regularly. 2 Please keep the grounding well done to prevent the video or audio signal interfered and the DVR

from static or inductive electricity.

3 Do not pull out the video signal line or RS-232 port or RS-485 port with the power on. 4 Do not use the TV in the local video output port(VOUT) of DVR. It will damage the video output

circuit easily.

5 Do not turn off the switch directly. Please use the turn-off function in the menu or press the turn-off

button in the panel (3 seconds or longer) to protect the hard disk.

6 Please keep the DVR away from heat resource. 7 Please keep the DVR ventilated for better heat radiator. Please check the system and maintain regularly.

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

Appendix 1.Remote controller operation

（1）（2）（3）（4）（5）（6）（ 7）（ 8）

Serial number

Name

Function

Multi-window button

Same function as Multi-window button in the front panel

Numeric button

Code input/number input/channel switch

【Esc】

Same function as【Esc】button in the front panel

Direction button

Same function as direction button in the front panel

Record control

Control the record

Record mode

Same function as “Record mode”

ADD

Input the number of DVR to control it

Assistant function

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

Appendix 2.Mouse operation

*Take right hand as an example

The mouse in USB connection is supportive.

Operation

Function

Double left click Double click one item in the file list to playback the video

Double click the playback video to zoom in or out the screen

Double click the channel to make it full screen display

double click again to resume the multi-window display

Left click

Choose the according function in the menu

Right click

Pop desktop shortcut menu in preview state

Current shortcut menu in the menu

Press middle button

Add or subtract number in the number setting

Switch the items in the combo box

Page up or down in the list

Move mouse

Choose the widget or move the item in the widget

Drag mouse

Set the motion detect area

Set the cover area

Visionari Limited Liability Company Visionari Copyright(4.0)2010Version http://www.mydepots.com

8308R Serial Network DVR User Manual

Appendix 3.Hard disk capability calculation

Make sure the hard disk installed to install the DVR for the first time. Pay attention to the IDE hard disk lines

connection.

1、 Hard disk capability There is no limit for recording machine. We recommend 120G~250G size to keep better stability. 2、 Overall capability option The hard disk capability formula is:

Overall capability（M）=channel number*time（hour）*capability in an hour（M/hour） The recording time formula is:

Recording time（hour）=

overall capability（M）

Capability in an hour（M/hour）*channel number

The DVR introduces the MPEG4/H.264 compression technology. Its dynamic range is very large so the

hard disk capability calculation is based on the estimation values of each channel creating files in an hour.

Example：

The video files in each channel need 200M capability in an hour. For 4 channels and one month(24hours

a day) the needed hard disk capability is: 4channel*30days*24hours*200M/hour=576G. So it will need one

500G hard disks.

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Appendix 4.Technique parameters

Type

4ch

8ch

16ch

system

Main processor

Industry level embedded microprocessor

Operation system

Embedded LINUX operation system

System resource

synchronous multi-channel recording, synchronous multi-channel sub-code

stream, synchronous multi-channel playback, synchronous network

operation

interface

Operation interface

16 bit true color graphical menu interface, mouse operation supportive

display

1/4image display

1/4/8/9 image display

1/4/8/9/16 image display

video

Video standard

PAL（625string，50 field/s）

Surveillance image

quality

PAL, D1(704×576)

Playback image

quality

PAL, D1(704×576)

Image compression

H.264 mp

Image control

4 options

Recording speed(CIF)

PAL, 100fps

overall

PAL, 200fps overall

PAL,400fps overall

Image motion detect

396(22×18) detection areas, multiple sensitivity

audio

Audio compression

G711A

Talk-back

supportive

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Recording

And

playback

Recording mode

manual >alarm>motion detect>timing

Local playback

1ch playback, multiple channels playback

Recording look-up

mode

Time searching, calendar searching, affair searching, channel searching,

information searching

Storage

And

backup

Hard disk capability

for each channel

Audio: 28.8Mbytes/hour

Video:25～450Mbytes/hour

Recording storage

Hard disk, network

Backup mode

Network, USB

Port

Video input

4 BNC

8 BNC

16 BNC

Video output

1 BNC, 1 VGA

Audio input

4 RCA

Audio output

1 RCA

Alarm input

4ch

8ch

Alarm output

1channel

Network port

RJ45 10M/100M adoptive Ethernet network port

PTZ control port

1 RS485

USB port

2 USB ports

Hard disk port

2 SATA port

other

Power supply

12V/4.15A external power supply

Power consume

<15W (without hard disk)

Working temperature

0℃~＋55℃

Working humidity

10%－90%

Visionari Limited Liability Company Visionari Copyright(1.4)2010Version http://www.mydepots.com

8308R Series Network DVR User Manual

Air pressure

86kpa－106kpa

Size

440(width)x260(depth)x50(height)mm

Weight

5kg（without hard disk）

Installation

Frame installation

MyDepots 8308R, B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
