Layers
M307
™
Pedal
The MXR Layers Pedal blooms with rich, organic
sustain that imbues every strum and pluck with
resonance and depth—pull off chord voicings you
never thought possible, compose transcendent
melodies, orchestrate harmonic ensembles, create
lively stereo pads, and more—all from a standard
MXR housing.
jimdunlop.com/m307

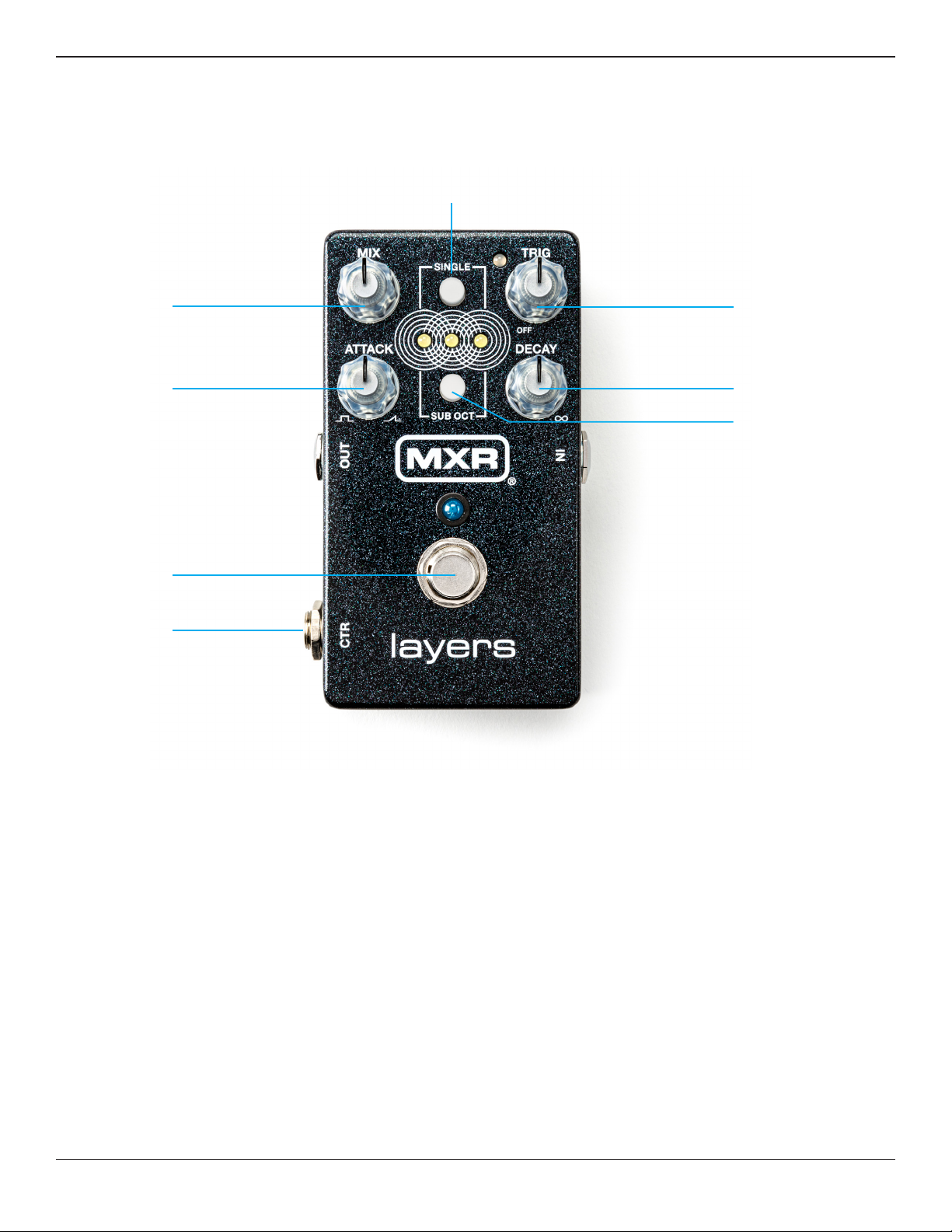

External Controls
5
4
3
6
7
8
2
1
1 CTR jack can be used to connect an expression pedal
or external footswitch or to send a dry output signal when
using Dry/Wet Split mode (see Advanced Operation).
2 FOOTSWITCH governs creation and deletion of sustain
layers. Pressing the footswitch engages a layer. Holding
the footswitch holds a layer indefinitely until released.
Upon release, the layer fades out according to the DECAY
setting. A double tap will clear all layers and put the pedal in
bypass.
3 ATTACK knob sets the attack, or fade in, time of each layer.
4 MIX knob controls the level of the wet signal.
5 SINGLE button limits sustain effect to a single layer. By
default, there are 3 simultaneous layers that overlap with
each other. When SINGLE button is engaged, only one
layer will be active at a time.
6 TRIG knob sets the sensitivity for auto triggering layers
with your pick attacks. When TRIG is in the OFF position
(fully counterclockwise), auto triggering is disabled, and
only the FOOTSWITCH can activate layers. The TRIG LED
is red by default when auto triggering is enabled; when
the input signal exceeds the set threshold, the TRIG LED
will turn green. Note that, for a layer to be triggered, the
signal must exceed the threshold (i.e. the TRIG LED is
green), and the pedal must detect a pick attack.
M307 | MXR® Layers™ Pedal 2
External Controls (cont.)
5
4
3
6
7
8
2
1
7 DECAY knob sets the decay, or fade out, time of each layer.
For a given DECAY setting, higher frequencies will decay
faster than lower frequencies, just like they do for a physical
vibrating string. When TRIG knob is in the OFF position, the
effect signal will automatically bypass once all three layers
have fully decayed. The three layers LEDs and the main
bypass LED will turn off to indicate bypassed status.
8 SUB OCT button transposes new layers down an octave.
Previously created layers will not be affected. This allows
you to have some layers at the normal transposition
and others shifted down an octave. This mode can be
adjusted on the fly using an expression pedal to morph
between different settings (see Advanced Operation).
There is also a setting for only transposing the lowest
frequencies of a layer down an octave (see Advanced
Settings)—useful for adding bass to a layer without
having the whole chord or note transposed down.
M307 | MXR® Layers™ Pedal 3
Basic Operation
Power
®
The MXR
center-negative power supply and can be powered
by the Dunlop ECB003 9-volt adapter or the
MXR® Iso-Brick,™ the Iso-Brick™ Pro, and the IsoBrick™ Mini Power Supplies. This pedal cannot be
powered by a battery.
Layers™ Pedal requires a 9-volt (300mA)
Bypass
The pedal always operates with a buffered analog dry
signal, mixing in the wet signal when the effect is engaged.
This scheme ensures seamless transitions between
engaged and bypassed states.
M307 | MXR® Layers™ Pedal 4
Advanced Operation
USE A KEYBOARD SUSTAIN PEDAL OR
OTHER EXTERNAL SWITCH TO TRIGGER
LAYERS
A keyboard sustain pedal or other external switch can be
used to trigger layers instead of the built-in footswitch if
the built-in footswitch is inaccessible (e.g. during desktop
use) or a different tactile response is desired. First, set
the CTR switch to its TAP/EXP (left) position. Next, run
a standard instrument cable from the external pedal/
switch to the MXR Layers Pedal’s CTR jack. Note that the
external pedal/switch must be a normally-open discrete
switch and not a continuous TRS switch.
USE AN EXPRESSION PEDAL TO BLEND
BETWEEN TWO SETTING CONFIGURATIONS
An expression pedal such as the DVP5 Volume (X)™8
Pedal can be used to toggle and sweep between two
different setting configurations. First, set the CTR switch
to its TAP/EXP (left) position. Next, run a TRS cable from
the expression pedal to Layers Pedal’s CTR jack. Set
rocker to its heel-down position. Adjust knobs, and set
mode buttons as desired. Move rocker to its toe-down
position. Adjust knobs and mode buttons as desired to
a different setting configuration. Moving the rocker back
and forth will transition smoothly between the sounds
created by the two settings.
Note that SINGLE button Advanced Settings are
expression controllable while SUB OCT button Advanced
Settings are not (see Advanced Settings).
STEREO INPUT
To operate in Stereo Input mode, remove the MXR Layers
Pedal’s bottom plate, locate the MONO/STEREO input
switch, and set it to the STEREO (left) position. It is
recommended to also enable Stereo Output when
using the Stereo Input feature.
STEREO OUTPUT
To operate in Stereo Output mode, run a TRS splitter
cable from the Layers Pedal’s OUTPUT jack to your
chosen inputs, and set the CTR switch to its TAP/EXP
(left) position. Next, press and hold the SUB OCT button,
and rotate the DECAY knob fully clockwise to select
Stereo Output mode. Center LEDs will flash to confirm.
To change back to Mono Output mode, follow the same
steps, and rotate the DECAY knob counterclockwise.
With Stereo Output enabled, the three layers will be
panned left, center, and right, represented visually by the
layers LED positions. When modulation is enabled (see
Advanced Settings), it is possible to auto pan the layers
across the stereo field.
DRY/WET SPLIT
The MXR Layers Pedal can split its dry and wet signals
to run each signal into its own effect chain or to operate
within a dry/wet stereo rig. First, set the CTR switch to its
AUDIO (right) position. Run the wet signal from the OUT
jack and the dry signal from the CTR jack to your chosen
inputs. Note: Stereo Input and Stereo Output modes must
be disabled for Dry/Wet Split mode to work properly.
M307 | MXR® Layers™ Pedal 5
Advanced Settings
INTRODUCTION
By pressing and holding the SINGLE or SUB OCT buttons
while adjusting any of the pedal’s knobs, you can finetune various functions. These functions allow you to add
modulation and/or delay to your layers, route your dry signal
through a delay, enable Stereo Output, and more. The MXR
Layers Pedal’s delay and modulation effects are based on
those of the MXR Joshua® Ambient Echo but with darker
tonality to allow your layers to stand out.
CONTROL SINGLE SUB OCT
MIX MODULATION AMOUNT
Sets the depth and rate of the modulation
effect. As the MIX knob is rotated clockwise,
rate increases and depth decreases. Setting
the knob to its minimum position turns the
modulation effect off.
TRIG DELAY TIME
Adjusts time between repeats. Setting the
knob to its minimum position turns the delay
off. Delay regen is tied to the DECAY knob.
ATTACK MODULATION BLEND
The modulation effect consists of chorus
and tremolo. Fully counterclockwise provides
only the chorus effect, while fully clockwise
provides only tremolo. The midpoint setting
provides an equal blend of both. With Stereo
Output enabled, the tremolo effect will pan
layers across the stereo field.
MUTE DRY SIGNAL
Rotate clockwise to mute dry signal or
counterclockwise to restore dry signal.
SINGLE LED will flash to confirm. Note that
no sound will be heard if MIX knob is fully
counterclockwise and that CTR jack will be
completely muted if in dry/wet split mode.
DRY SIGNAL DELAY SEND
Rotate clockwise to increase amount of
dry signal sent to delay effect.
ROOT NOTE SUB OCTAVE
Rotate clockwise to engage Root Note
Sub Octave mode or counterclockwise to
disengage it. SUB OCT LED will flash to
confirm. With SUB OCT button engaged, this
mode will only apply the sub octave effect to
the lowest frequencies of a layer.
DECAY DIFFUSION
Rotate clockwise to add diffusion to the layers
for a textural effect. Fully counterclockwise
turns the diffusion effect off.
SUB OCT TAP TEMPO
Tap SUB OCT button while holding SINGLE
to set delay time.
To return all parameters to their default settings, simply
press and hold SINGLE and SUB OCT buttons for five
seconds—the main LED will flash to confirm.
STEREO OUTPUT
Rotate clockwise to engage Stereo Output
or counterclockwise to disengage it. Center
LEDs will flash to confirm.
N/A
RESTORE DEFAULTS
M307 | MXR® Layers™ Pedal 6
Specifications
Input Impedance 1MΩ
Output Impedance 100 Ω
Maximum Input Level +5 dBV
Noise Floor -97 dBV
Current Draw 300 mA
Power Supply 9 volts DC
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for
help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation. Unauthorized changes or modifications to this product could void the user’s authority to operate the equipment.
M307 | MXR® Layers™ Pedal 7
End-User License Agreement
This End-User License Agreement (“EULA”) is a legal
agreement between (a) you, either as an individual or a single
entity (hereinafter referred to as “You” or “Your”) and (b) Dunlop
Manufacturing, Inc. (“Dunlop”) that governs Your use of any
Software Product, installed on or made available by Dunlop for
use with Your Dunlop product. The term “Software Product”
means the electronic effect installed on or made available by
Dunlop for use with Your Dunlop product and may include
associated medial, printed material and “online” or electronic
documentation.
YOU AGREE TO BE BOUND BY THE TERMS OF THIS EULA
BY USING ANY PART OF THE SOFTWARE PRODUCT AND/OR
THE DUNLOP PRODUCT. YOU ALSO ACCEPT THIS EULA IF
YOU KEEP THE DUNLOP PRODUCT FOR 30 DAYS.
IF YOU DO NOT AGREE TO THE TERMS OF THIS EULA,
DUNLOP IS UNWILLING TO LICENSE THE SOFTWARE TO
YOU. IN SUCH EVENT, YOU MAY NOT USE THE DUNLOP
PRODUCT CONTAINING THE SOFTWARE PRODUCT AND YOU
SHOULD RETURN THE DUNLOP PRODUCT TO YOUR PLACE
OF PURCHASE FOR A FULL REFUND, IF APPLICABLE.
1. GRANT OF LICENSE: Dunlop grants to You the following
individual, personal, non-sub licensable, nonexclusive license
to use one (1) copy of the Software Product, in object code
form only, provided You agree to and comply with all terms and
conditions of this EULA as it may be amended from time to time.
You acknowledge that Dunlop retains ownership of the Software
Product, any portions or copies thereof, and all
rights therein throughout the world.
THE DUNLOP PRODUCT (INCLUDING THE SOFTWARE
PRODUCT CONTAINED THEREIN) IS PROVIDED “AS IS”
AND SUBJECT TO THE WARRANTY DISCLAIMERS AND
LIMITATIONS OF LIABILITY SET FORTH BELOW.
2. RENTAL: You may not copy, rent, lease, distribute, assign
or otherwise transfer rights to the Software Product; use the
Software Product for timesharing or service bureau purposes
or otherwise for the benefit of a third party.
3. TRANSFER: You may permanently transfer the rights granted
to You under this Agreement only as part of a permanent sale
or transfer of the Dunlop product containing the Software
Product, provided You retain no copies, You transfer all of
the Software Product (including all component parts, the
media and printed materials, any upgrades and prior versions,
these licensing terms, and , if applicable, the Certificate(s) of
Authenticity), and only if the recipient agrees to the bound to by
the terms and conditions of this Agreement.
4. RESTRICTIONS: You will only use the Software Product for
lawful purposes and in compliance with all applicable laws. You
hereby agree to defend and indemnify Dunlop against any claim
or action that arises from Your use of the Software Product in
an unlawful manner.
5. LIMITATION ON REVERSE ENGINEERING: You will not,
directly or indirectly, reverse engineer, decompile, disassemble
or otherwise attempt to discover the source code or underlying
ideas or algorithms of the Software Product; modify, translate, or
create derivative works based on the Software Product.
Nothing contained herein shall be construed, expressly or
implicitly, as transferring any right, license or title to You other
than those explicitly granted under this EULA. Unauthorized
copying of the Software Product or failure to comply with the
above restrictions will result in automatic termination of this
Agreement and will constitute immediate, irreparable harm to
Dunlop for which monetary damages would be an inadequate
remedy, in which case injunctive relief will be an appropriate
remedy for such breach.
6. SUPPORT: Dunlop provides the Software Product “AS-IS”
and does not provide support services for it.
7. PROPRIETARY RIGHTS: All intellectual property rights in
the Software Product and user documentation are owned by
Dunlop or its suppliers and are protected by law, including
but not limited to United States copyright, trade secret and
trademark law, as well as other applicable laws and international
treaty provisions. The structure, organization and code of the
Software Product are the valuable trade secrets and confidential
information of Dunlop and its suppliers. You shall not remove
any product identification, copyright notices or proprietary
restrictions from the Software Product or Dunlop product.
8. TERMINATION: This Agreement is effective until terminated.
Dunlop may terminate this Agreement immediately, without
prior notice or liability, if You breach any of the terms or
conditions of this Agreement. All sections of this Agreement
M307 | MXR® Layers™ Pedal 8
End-User License Agreement (cont.)
which by their nature should survive termination will survive
termination, including, without limitations, warranty disclaimers
and limitations of liability. Upon termination of this Agreement for
any reason, You must destroy the Software Product and all of its
component parts.
9. NO WARRANTIES: WARRANTY DISCLAIMER THE
SOFTWARE PRODUCT IS PROVIDED “AS IS” WITHOUT
WARRANTY OF ANY KIND. The Software Product is offered
on an “AS-IS” basis and Dunlop does NOT warrant that the
functions contained in the Software Product will meet Your
requirements or that the operation of the Software Product will
be uninterrupted or error free. You should not use the Software
Product for any applications in which failure could cause any
significant damage or injury to persons or tangible or intangible
property. DUNLOP DISCLAIMS ALL WARRANTIES, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE, AND NON-INFRINGEMENT. THE
ENTIRE RISK OF THE QUALITY AND PERFORMANCE OF THE
DUNLOP SOFTWARE IS WITH YOU. SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
10. LIMITATION OF LIABILITY NOTWITHSTANDING: ANYTHING
CONTAINED IN THIS AGREEMENT OR OTHERWISE,
DUNLOP WILL NOT BE LIABLE WITH RESPECT TO THE
SUBJECT MATTER OF THIS AGREEMENT UNDER ANY
CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER
LEGAL OR EQUITABLE THEORY FOR ANY INCIDENTAL,
CONSEQUENTIAL, EXEMPLARY OR PUNITIVE DAMAGES
OF ANY KIND. SOME STATES AND COUNTRIES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATIONS
AND EXCLUSIONS MAY NOT APPLY TO YOU.
11. EXCLUSIVE REMEDIES: The entire liability of Dunlop, its
parent, affiliates and/or distributors and Your exclusive remedy
for any breach of the EULA or for any other liability relating to
the Software Product and/or the Dunlop product shall be, at
Dunlop’s sole option, (a) return of the amount paid (if any) for
the Software Product and/or the Dunlop product, or (b) repair
or replacement of the Software Product and/or the Dunlop
product that is returned to Dunlop with a copy of Your receipt.
You will receive the remedy elected by Dunlop without charge,
except that You are responsible for any expenses You may
incur (i.e. cost of shipping of the Software Product and/or the
Dunlop product to Dunlop). However, this remedy is unavailable
if failure of the Software Product and/or the Dunlop product
resulted from accident, abuse, misapplication, abnormal use
or a virus.
12. EXPORT RESTRICTIONS: You acknowledge that the
Software Product, or any part thereof, or any process or
service that is the direct product of the Software are of U.S.
origin. You agree to comply with all applicable international and
national laws that apply to these products, including the U.S.
Export Administration Regulations, as well as end-user, enduse and destination restrictions issued by U.S. and/or other
governments.
13. MISCELLANEOUS: The failure of either party to exercise
in any respect any right provided for herein will not be deemed
a waiver of any further rights hereunder. If any provision of this
Agreement is found to be unenforceable or invalid, that provision
will be limited or eliminated to the minimum extent necessary
so that this Agreement will otherwise remain in full force and
effect and enforceable. This Agreement will be governed by and
construed in accordance with the laws of the state of California
without regard to the conflict of law’s provisions thereof. Venue
for any action brought shall be exclusively in the appropriate
state and/or federal court located in San Francisco, California.
Both parties agree that this Agreement is the complete and
exclusive statement of the mutual understanding of the
parties and supersedes and cancels all previous written and
oral agreements, communications and other understandings
relating to the subject matter of this Agreement, and that all
modifications must be in writing and signed by both parties,
except as otherwise provided herein. No agency, partnership,
joint venture, or employment is created as a result of this
Agreement and You do not have any authority of any kind to bind
Dunlop in any respect whatsoever. In any action or proceeding
to enforce rights under this Agreement,the prevailing party will
be entitled to recover costs and reasonable attorneys’ fees. All
notices under this Agreement will be in writing.
M307 | MXR® Layers™ Pedal 9
Loading...
