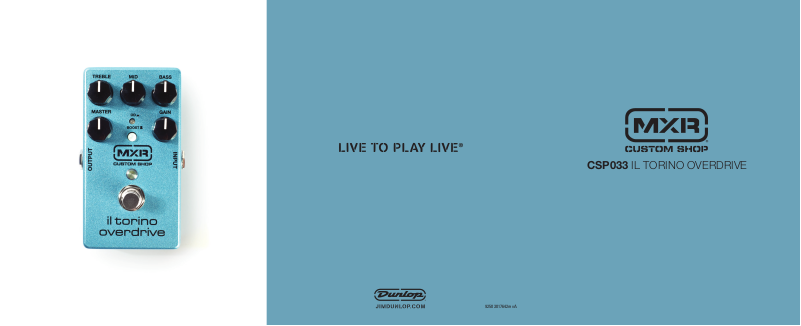

CSP033 IL TORINO OVERDRIVE

CSP033 IL TORINO OVERDRIVE

DESCRIPTION

• MOSFET technology recreates
the gain structure of classic
tube preamps

• Dynamic, touch responsive
overdrive and natural
compression

• Highly tweakable EQ

• Toggle between OD and Boost
modes for sonic versatility

CONTROLS

TREBLE knob cuts or boosts

high frequencies

MID knob cuts or boosts

midrange frequencies
BASS knob cuts or boosts low

frequencies

MASTER knob controls overall

eect volume

OD/BOOST switch toggles

between OD (blue LED) and
Boost (red LED) modes

GAIN knob controls amount

of overdrive

7

FOOTSWITCH toggles
eect on/bypass (white
LED indicates on)

POWER

The MXR Il Torino Overdrive is
powered by one 9-volt battery
(remove bottom plate to install),
a 9-volt AC adapter such as the
Dunlop ECB003/ECB003EU, or
a DC Brick™ power supply.

7

DIRECTIONS

• Run a cable from your guitar to
the Il Torino Overdrive’s INPUT
jack and run another cable from
the Il Torino Overdrive’s OUTPUT
jack to your amplier.

• Start with all controls
at 12 o’clock.

• Turn the eect on by depressing
the footswitch.

• Use the OD/BOOST switch
to select either OD (pushed
in) or Boost Mode (pushed
out). OD Mode provides rich,
natural compression and tubey
saturation. Boost Mode provides
a slightly cleaner sound with
more headroom.

SAMPLE SETTINGS

IL BUSTAMANTE TUTTO E BENEAL FRESCO

• Rotate the MASTER knob
clockwise to increase
overall eect volume or
counterclockwise to decrease it.

• Rotate the GAIN knob clockwise
to increase amount of overdrive
or counterclockwise to decrease
it.

• Rotate the TREBLE knob
clockwise to boost high
frequencies or counterclockwise
to cut them.

• Rotate the MID knob clockwise
to boost midrange frequencies or
counterclockwise to cut them.

• Rotate the BASS knob clockwise
to boost low frequencies or
counterclockwise to cut them.

SPECIFICATIONS

Input Impedance 2.4 MΩ, 1 kHz
Output Impedance 24 kΩ max

Nominal Output Level* -17 dBV

Noise Floor* -100 dBV
Tone Controls
BASS ±9 dB, 40 Hz
MID ±5.5 dB, 600 Hz
TREBLE ±6.5 dB, 10 kHz

Distortion Gain 34 dB to 67 dB, 1 kHz

Bypass Buered

Current Draw 4.7 mA

Power Supply DC 9 volts

*A-weighted, all controls at mid position, Boost ‘ON’
