INSTRUCTION MANUAL
SMART TV BOX
V88 TV Box
от Scishion
User`s Manual
Купить в интернет магазине
ТВ приставок на Андроид
android-tv-pristavka.ru
MXQ PRO 4K
Page 2
Preface
Thank you very much for choosing our TV Box. In order to make it more convenient for you
to use proficiently,we provide you with a user manual. Please read it carefully before
using and properly keep it for reference.
Statements
We have made every effort to provide the most current information about the product.
We do not grant any guarantees as to the contents of the present instruction manual
and disclaim any implied guarantees concerning market value or suitability for specific
purposes.
The information contained here is an instruction intended to enable the correct usage
and maintenance of the receiver.
We reserve the right to introduce amendments changes or translations of the user
manual without prior notification thereof. For this reason we recommend you regularly
visit ourwebsite in order to obtainthelatest information.
Page 3
BOX
02
02
02
03
04
04
05
06
07
07
08
08
09
09
10
11
12
13
14
14
Chapter 1 System Introduction
1. 1 Key Features
1. 2 Environment for System
1. 3 Package Contents
Chapter 2 Remote Controller
2. 1 Introduction of Remote
Chapter 3 System Connection
3. 1 AV Connection
3. 2 HDMI Connection

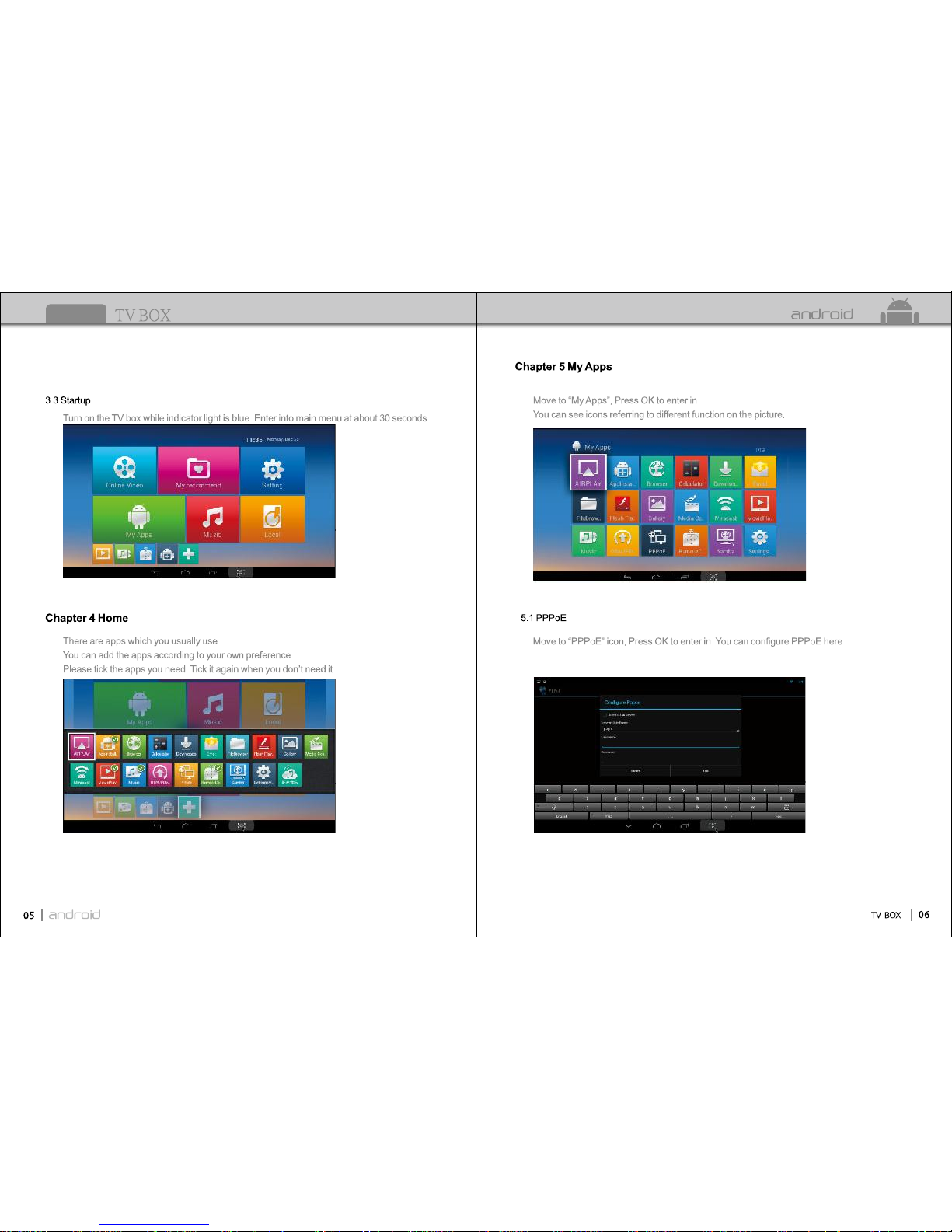

3. 3 Startup
Chapter 4 Home
Chapter 5 Apps
5.1 PPPoE

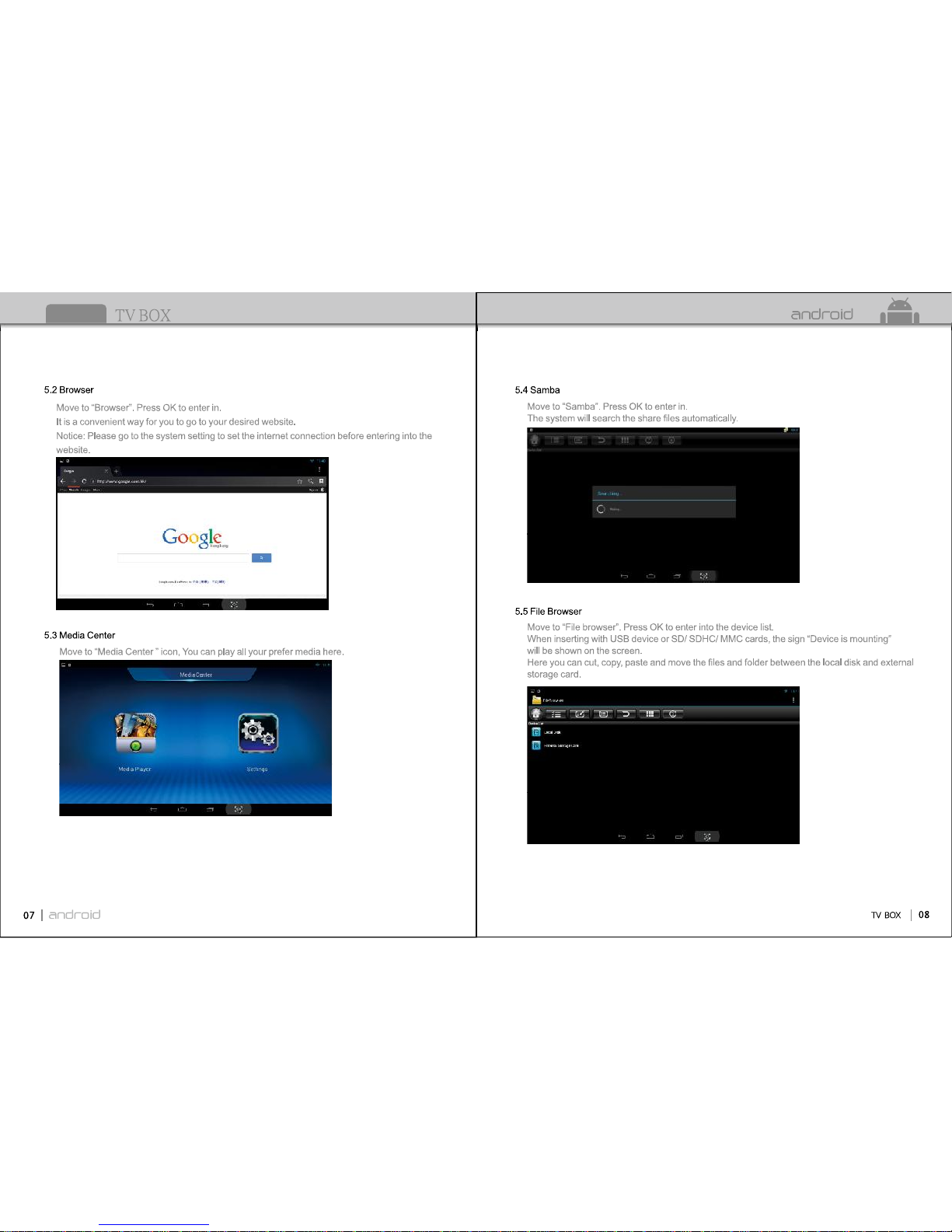

5.2 Browser
5.3 Media Centre
5.4 Samba
5.5 File Browser

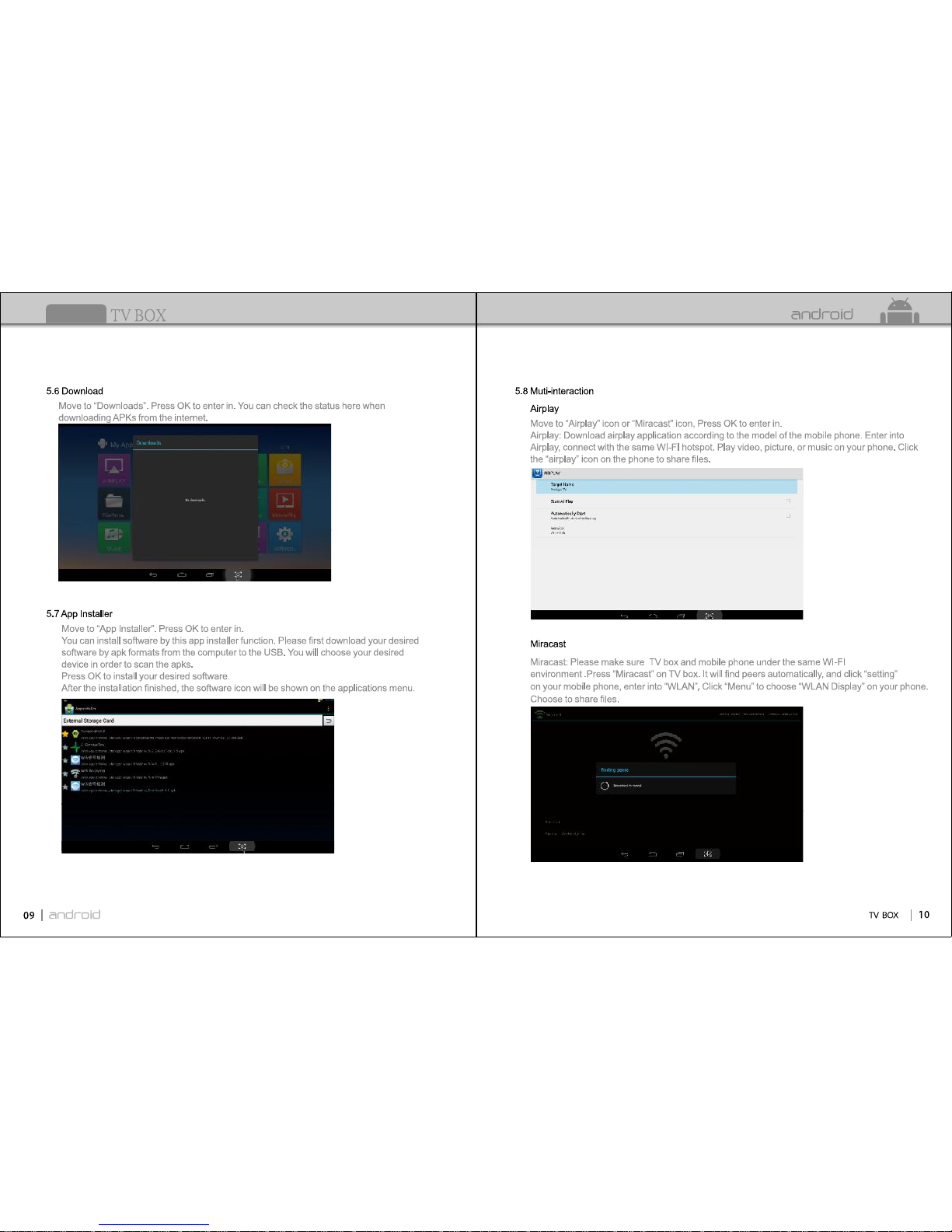

5.6 Download
5.7 App Installer
5.8 Muti-interaction (Airplay/Miracast)

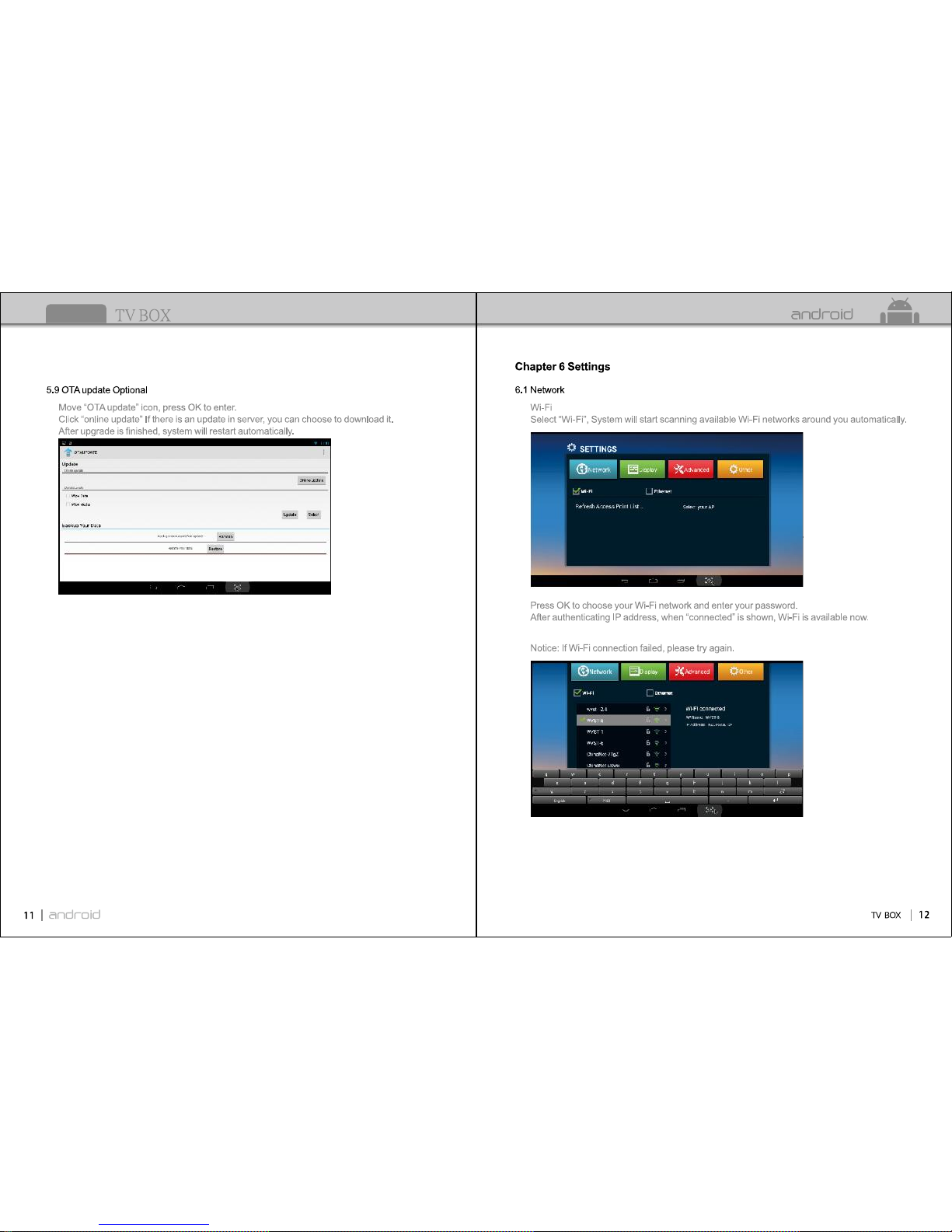

5.9 OTA update
Chapter 6 Settings
6.1 Network
6.2 Display
6.3 Advanced
6.4 Other

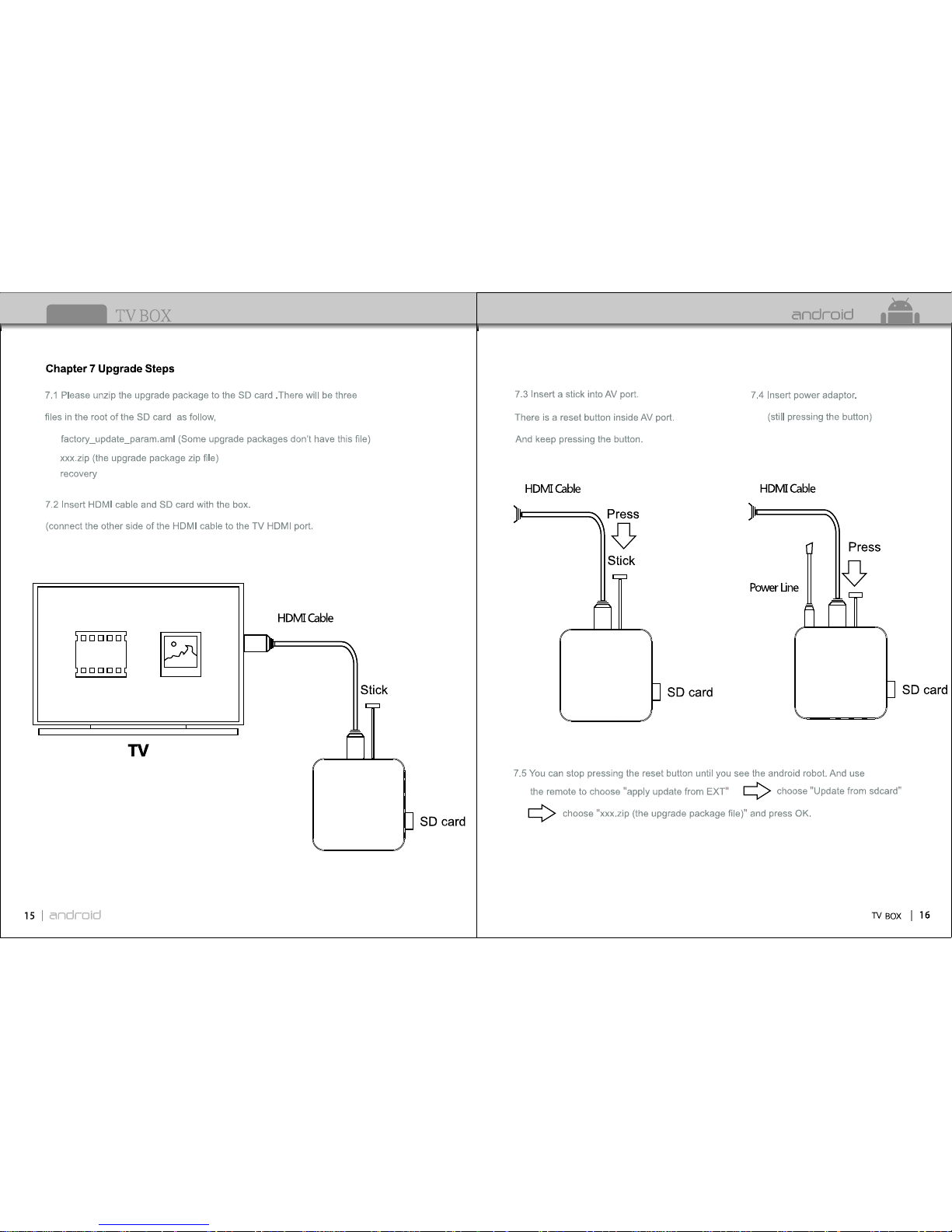

Chapter 7 Upgrade Steps

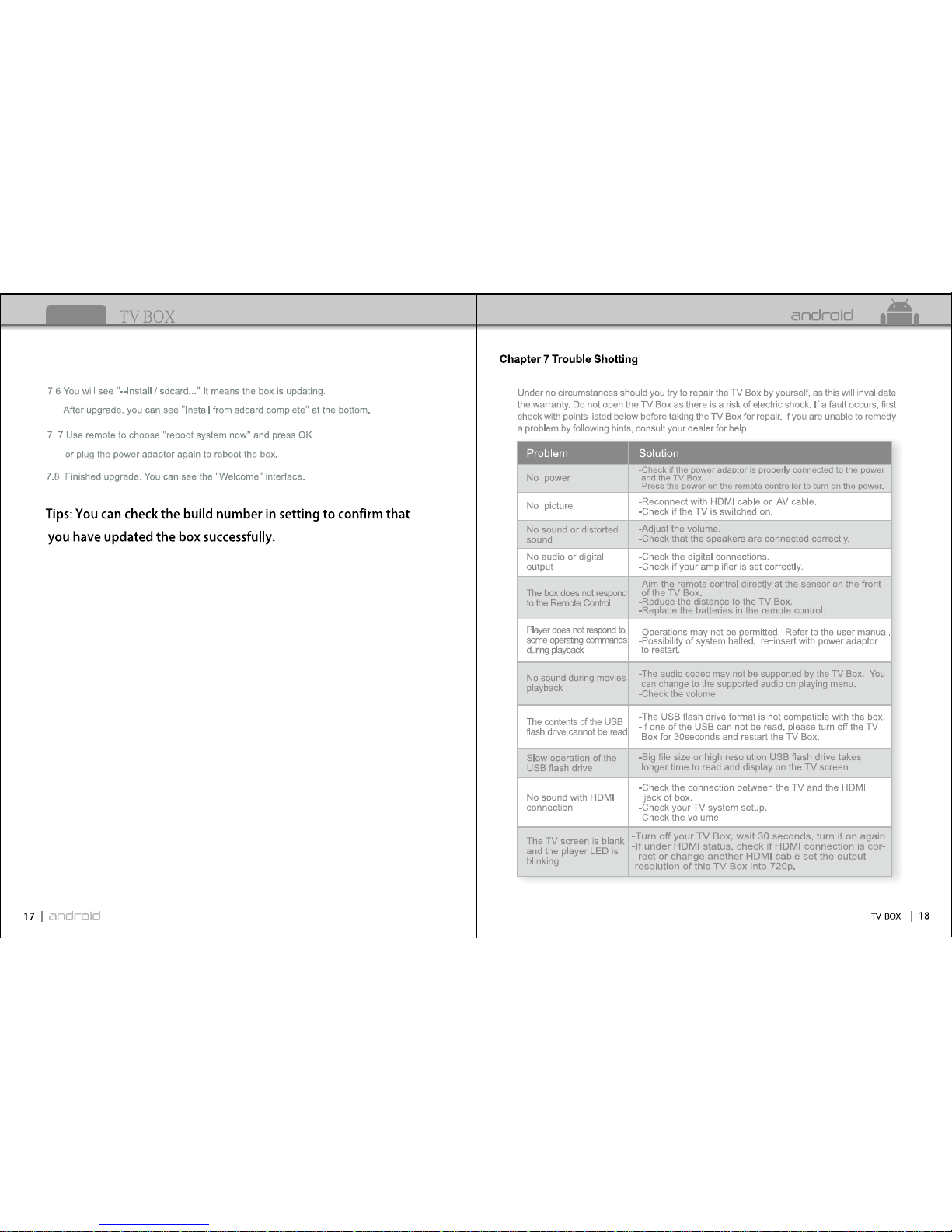

Chapter 8 Trouble Shotting
Chapter 9 Specification
Contents
Chapter 1 System Introduction
1. 1 Key Features
Support many kinds of IPTV and OTT TV programmes.
Support FHD H.265, VC-1, MPEG-2 and many other formats such as MPEG-1
MPEG-2 MPEG-4 DIVX REALMEDIA and so on.
Video formats include hevc avi mpg vob rmvb mkv m2ts ts and so on.
Photo formats include JPEG BMP and PNG up to 80M pixels.
Audio formats include MP3 WMA WAV AAC and so on.
Support SD/SDHC/MMC cards.
Support four USB 2.0 host connectors with maximum output current of 1.5A/5V.
Support standard RJ45 cable network connection and wireless network connection.
Support infrared remote controller operation.
Operation : Temperature limitation: 0--40 ; Humidity limitation: 20--80%.
Storage: Temperature limitation: -20--50 ; Humidity limitation: 10--90%.
1. 2 Environment for System
1. 3 Package Contents
Accessories Quantity
Power adaptor
Remote control
HDMI cable
User manual
TV
TV BOX
Page 4
BOX
Chapter 2 Remote Controller
2. 1 Introduction of Remote
Chapter 3 System Connection
3. 1 AV Connection
3. 2 HDMI Connection
Router
Adaptor cable
Amplifier
USB-3
USB-2
USB-1
SD/MMC
Network cable
Television
USB-4 SPDIF AV HDMI ETHERNET 5V DC
Home Theater Speaker 5. 1 Channel
TV
TV BOX
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
BOX
Chapter 8 Specification
Android TV Box
Android
applications
Main function
Item
Video format
MPEG1/MPEG2/MPEG4/VC-1/H. 264//H. 265
Real Video formats including avi, mpeg, vob, mkv,
ts, m2ts, wmv, rm, rmvb suffixes and so on.
Photo format
Up to 80M pixels
Audio format
Hardware
configuration
Main chipset
Memory
Quad core Cortex A5
Quad-core Mali-450
Storage cards SD/SDHC/MMC card; Voltage: 2.7-3.3V
USB interface
Input interface
Internet interface
Standard RJ45 Internet interface.
Support internal wireless Wi-Fi(some other models
require additional adaptor )
Output interface
Video
CVBS output (AV output),Standard 3.5mm earphone socket.
HDMI interface: HDMI 1.4 standard interface.
Audio
Coaxial digital audio output .
L/R stereo output: standard 3.5mm earphone socket.
Dimension
Weight
Effective distance is more than 6 meters.
Electric
parameters
Video
Audio
Electric power
Range: 1.0V+/-0.1V(75 overload); S/N 55dB
Range: 2.0V+/-0.2V(10k overload); S/N 85dB
Power supply: 5V DC; Current: 2A.
This specification will be modified if necessary without notice.
