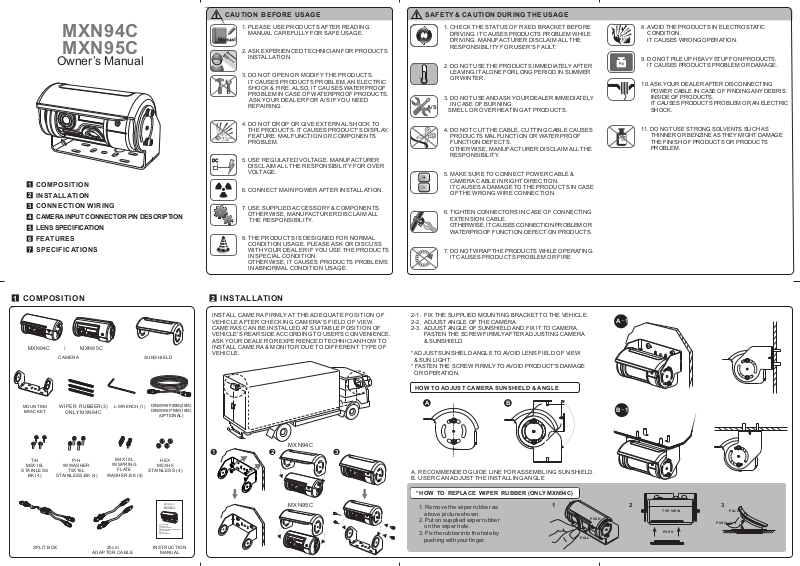

MXN94C
MXN95C
Owner’s Manual
CAUTION B EFORE USAG E
!
1. PLEASE USE PRODUCTS AFTER READING
MANUAL CAREFULLY FOR SAFE USAGE.
Manual
2. ASK EXPERIENCED TECHNICIAN FOR PRODUCTS
INSTALLATION.
3. DO NOT OPEN OR MODIFY THE PRODUCTS.
IT CAUSES PRODUCTS PROBLEM, AN ELECTRIC
SHOCK & FIRE. ALSO, IT CAUSES WATERPROOF
PROBLEM IN CASE OF WATERPROOF PRODUCTS.
ASK YOUR DEALER FOR A/S IF YOU NEED
REPAIRING.
SAFETY & CAUTION DURING THE USAGE
!
1. CHECK THE STATUS OF FIXED BRACKET BEFORE
DRIVING. IT CAUSES PRODUCTS PROBLEM WHILE
DRIVING. MANUFACTURER DISCLAIM ALL THE
RESPONSIBILITY FOR USER’S FAULT.
2. DO NOT USE THE PRODUCTS IMMEDIATELY AFTER
LEAVING IT ALONE FOR LONG PERIOD IN SUMMER
OR WINTER.
3. DO NOT USE AND ASK YOUR DEALER IMMEDIATELY
IN CASE OF BURNING
A/S
SMELL OR OVER HEATING AT PRODUCTS.
8. AVOID THE PRODUCTS IN ELECTROSTATIC
CONDITION.
IT CAUSES WRONG OPERATION.
9. DO NOT PILE UP HEAVY STUFF ON PRODUCTS.
IT CAUSES PRODUCTS PROBLEM OR DAMAGE.
10. ASK YOUR DEALER AFTER DISCONNECTING
POWER CABLE IN CASE OF FINDING ANY DEBRIS
INSIDE OF PRODUCTS.
IT CAUSES PRODUCTS PROBLEM OR AN ELECTRIC
SHOCK.
1
COMPOSITIO N
2
INSTALLATION
3
CONNECTION W IRING
4
CAMERA INPUT CONNECTOR PIN DESCRIPTION
5
LENS SPECIFICATION
6
FEATURES
7
SPECIFICATIONS
1
COMPOSITION
MXN94C / MXN95C
CAMER A SUNSH IE LD
4. DO NOT DROP OR GIVE EXTERNAL SHOCK TO
THE PRODUCTS. IT CAUSES PRODUCT'S DISPLAY,
FEATURE, MALFUNCTION OR COMPONENTS
PROBLEM.
DCDC
5. USE REGULATED VOLTAGE. MANUFACTURER
DISCLAIM ALL THE RESPONSIBILITY FOR OVER
VOLTAGE.
6. CONNECT MAIN POWER AFTER INSTALLATION.
7. USE SUPPLIED ACCESSORY & COMPONENTS.
OTHERWISE, MANUFACTURER DISCLAIM ALL
THE RESPONSIBILITY.
8. THE PRODUCTS IS DESIGNED FOR NORMAL
CONDITION USAGE. PLEASE ASK OR DISCUSS
WITH YOUR DEALER IF YOU USE THE PRODUCTS
IN SPECIAL CONDITION.
OTHERWISE, IT CAUSES PRODUCTS PROBLEMS
IN ABNORMAL CONDITION USAGE.
2

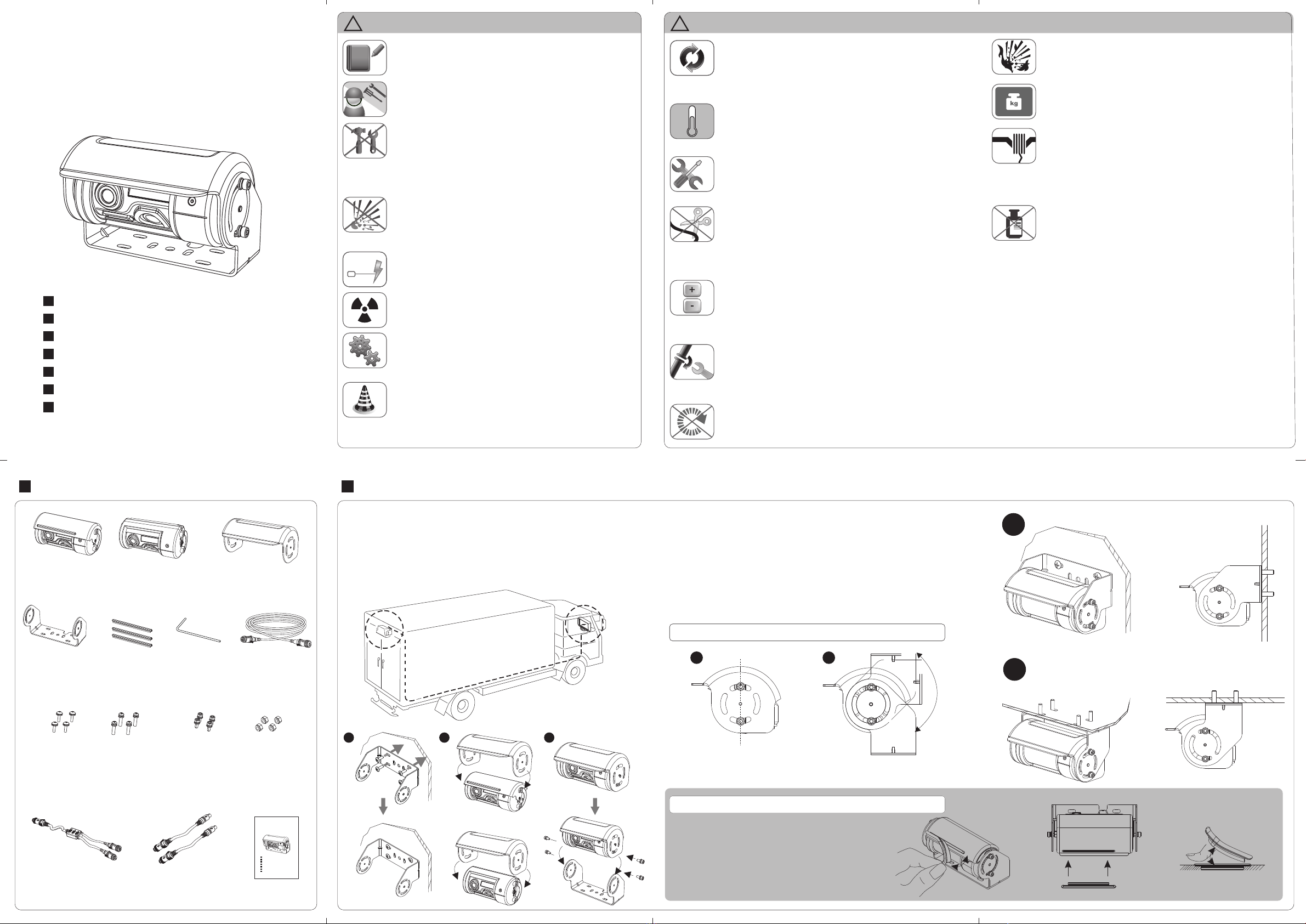

INSTALLATION
INSTALL CA ME RA FIRMLY AT THE ADEQU ATE POSIT IO N OF
VEHI CL E AFT ER CHECKING CAMER A' S FIELD OF VIEW.
CAME RA S CA N BE INSTAL LED AT SUITABLE POSITIO N OF
VEHICLE'S REAR SIDE ACCORDING TO USER'S CONVENIENCE.
ASK YOUR DEALER OR EXPER IENCE D TECHNICIAN HOW TO
INSTALL CA ME RA & MONITO R DUE TO DIFFE RE NT TYPE OF
VEHI CL E.
4. DO NOT CUT THE CABLE, CUTTING CABLE CAUSES
PRODUCTS MALFUNCTION OR WATERPROOF
FUNCTION DEFECTS.
OTHERWISE, MANUFACTURER DISCLAIM ALL THE
RESPONSIBILITY.
5. MAKE SURE TO CONNECT POWER CABLE &
CAMERA CABLE IN RIGHT DIRECTION.
IT CAUSES A DAMAGE TO THE PRODUCTS IN CASE
OF THE WRONG WIRE CONNECTION.
6. TIGHTEN CONNECTORS IN CASE OF CONNECTING
EXTENSION CABLE.
OTHERWISE, IT CAUSES CONNECTION PROBLEM OR
WATERPROOF FUNCTION DEFECT ON PRODUCTS.
7. DO NOT WRAP THE PRODUCTS WHILE OPERATING.
IT CAUSES PRODUCTS PROBLEM OR FIRE
2-1. FIX THE SUPPLIED MOUNTING BRACKET TO THE VEHICLE.
2-2. ADJUST ANGLE OF THE CAMERA.
2-3. ADJUST ANGLE OF SUNSHIELD AND FIX IT TO CAMERA.
FASTEN THE SCREW FIRMLY AFTER ADJUSTING CAMERA
& SUNSHIELD.
* ADJUST SUNSHIELD ANGLE TO AVOID LENS FIELD OF VIEW
& SUN LIGHT.
* FASTEN THE SCREW FIRMLY TO AVOID PRODUCT'S DAMAGE
OR OPERATION.
11. DO NOT USE STRONG SOLVENTS SUCH AS
THINNER OR BENZINE AS THEY MIGHT DAMAGE
THE FINISH OF PRODUCTS OR PRODUCTS
PROBLEM.
A-1
BRACK ET
T/H
M5X16 L
STAI NL ESS
BK (4)
SPLIT B OX 20cm
WIPER RUB BE R( 3)
ONLY MXN 94C
P/H
W/WASHER
T5X16 L
STAI NL ESS,B K (4 )
L-WRE NCH (1)MOUNT ING
M4X10 L
W/SPR IN G
FLATE
WAS HER,B K (4 )
ADAPT OR CABL E
DINWW6P20M(20M)
DINWW6P10M(10M)
(OPTIONAL)
HEX
M5XH5
STAI NL ESS (4)
MXN94C
MXN95C
Owner’s Manual
1
COMPOSITI ON
2
INSTALLATION
3
CONNECTIO N WIRIN G
4
CAMERA INPUT CONNECTOR PIN DESCRIPTION
5
LENS SPECIFICATION
6
FEATURES
7
SPECIFICATI ONS
INSTR UC TION
MANUA L
HOW TO AD JU ST C AMERA SUNS HI EL D & ANGLE
A
B
B-1
MXN9 4C
1
2
3
A. RECOMMENDED GUIDE LI NE FOR ASSEMBLING SUNSHIELD.
B. USER CAN ADJUST THE INSTALLING ANGLE
* HOW TO REPLACE WIPER RUBBER (ONLY MXN94C)
MXN9 5C
1.
Remove the wiper rubber as
above picture shown .
Put on supplied wiper rubber
2.
on the wiper hole.
3.
Fix the rubber into the hole by
pushing with your finger.
1
PUS H
PUL L
2 3
TOP VI EW
PUS H
PUS H
PUL L
Page 2
3 4 5
90
CAM1
CAM2
32
CAM1
120
43
CAM2

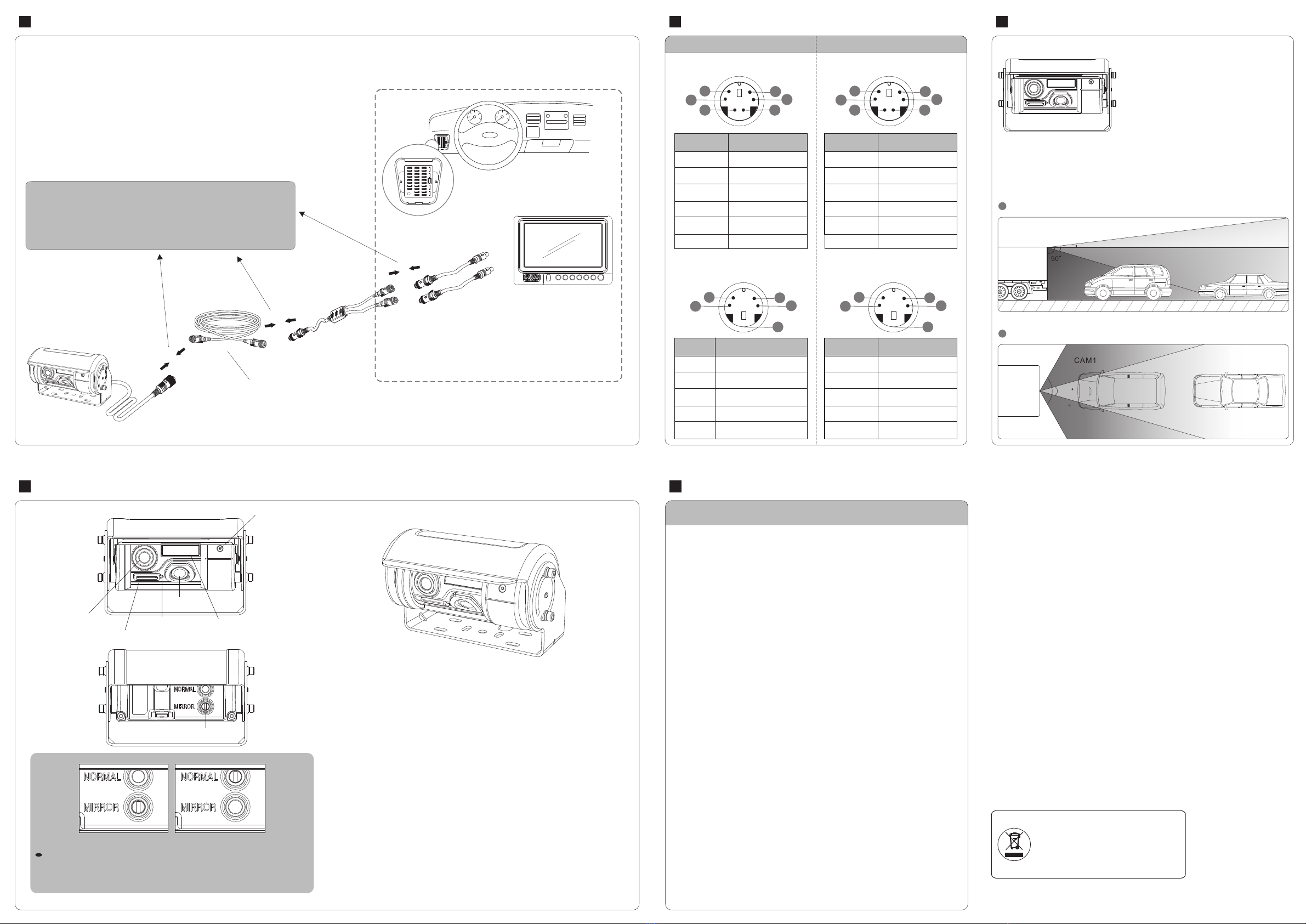

CONNECTION WIRING CAMERA INPUT CONNECTOR PIN DESCRIPTION LENS SPECIFICATION
CONNECT CAMERA & MONITOR AFTER CHECKING
SPECIFICATION OF MONITOR & EXTENSION CABLE.
CONNECT POWER & GROUND WIRE OF MONITOR TO FUSE BOX
OF VEHICLE WHEN YOU CONNECT MONITOR POWER.
* POWER CONNECTION SHOULD BE CHOSEN BY USER
ACCORDING TO POWER SUPPLY CONDITIONS.
CONNECT CAMERA BACK CABLE WITH EXTENSION CABLE
AND THEN CONNECT EXTENSION CABLE WITH MONITOR.
* USE ACID FREE VASELINE OR GREASE INSIDE OF
CONNECTOR BEFORE FIXATION FOR A GUARANTEED LONG
LIFETIME. CONNECT CAMERA BACK CABLE WITH
EXTENSION CABLE FIRMLY AFTER CHECKING MALE &
FEMALE CONNECTOR.
OTHERWISE, IT CAUSES PRODUCTS PROBLEM.
20M CABLE
(OPTIONAL)
1
3
5
Pin No.
1
2
3
4
5
6
3
Pin No.
1
2
3
4
5
MXN94C MXN95C
6P IP CONNECTER6P IP CONNECTER
2
4
6
Description
Shutter/Heating(9V)
Audio
Video 1
Ground
Video 2
Power(12V)
1
3
5
Pin No.
1
2
3
4
5
6
4P DIN CONNECTER4P DIN CONNECTER
1
Description
Shutter/Heating(9V)
Audio
Video 1, 2
Power(12V)
Ground
2
4
5
1
3
Pin No.
1
2
3
4
5
2
6
Description
Heating(9V)
Audio
Video 1
Ground
Video 2
Power(12V)
2
5
Description
Heating(9V)
Audio
Video 1, 2
Power(12V)
Ground
CAM1
DIAGONAL ANGLE : 150 DEGREE
HORIZONTAL ANGLE : 120 DEGREE
4
VERTICAL ANGLE : 90 DEGREE
CAM2
DIAGONAL ANGLE: 53 DEGREE
HORIZONTAL ANGLE : 43 DEGREE
VERTICAL ANGLE : 32 DEGREE
HORI ZO NTAL FIELD OF VIE W
4
VERT IC AL FIE LD O F VI EW
6
FEATURES
CA1
CA2
Light Sensor
Heater
IR LED
Magnet Screw
HOW TO CHANGE MIRROR & NORMAL IMAGE
CHANGE MAGNET SCREW POSITION, MIR OR NOR USING
DRIVER.
MIC
Motorized Shutter Twin View Camera (MXN94C)
Twin View Camera(MXN95C)
1/3" Super HAD CCD
Automatic electronic iris
Ultra low light performance
Extra-wide field of view
Input voltage DC 12V from monitor
Automatic shutter / cleaning function (ONLY MXN94C)
Automatic heating function
Normal / Mirror image switching
Vandal resistant
Water-proof (IP69K)
7
SPECIFICATIONS
Mode l No .
Imag e
Pict ur e El ement
Imag e Si ze
Lens
Sync hr on ization
Hori zo nt al Resolution
Min. Ill um ination
Signal To Noise R at io
Powe r Su pp ly
Powe r Co ns umption
Vibration
Impa ct
IP Factor
Oper at io n Tem p.
Case M at er ial
Weight
Dime ns io ns
Suppli ed Accesorie s
MXN9 4C / M XN 95C
Inte rl in e transfer type CCD
NTSC : 41 0, 000 pixels
PAL: 470,000 pi xe ls
1/3 In ch
CAM1 D ia go nal Angle : 150 degree
Horizo nt al Angle : 120 degree
Vertica l Ang le : 90 degree
CAM2 D ia go nal Angle : 53 degree
Horizo nt al Angle : 43 degree
Vertica l Ang le : 32 degree
Inte rn al
NTSC : Mo re t han 480TV lines
PAL: More than 53 0T V li nes
CAM1 0 L ux .( IR LED ON) W/4 IR LED
CAM2 1 L ux .
Better t ha n 50dB( at AGC off)
DC 12V
Max. 5 .0 W
7G
100G
IP 69K
-30℃ ~80℃(-22℉ ~176℉ )
Wind ow : Cu rved Glass
Body : Alu mi num
Appr ox . 65 0g
114(W) X 57(H) X 59 (D )m m
Sunshield, Mo un ti ng Bracket
Screw Kits, Spl it B ox
Wiper Rubber( ON LY MXN 94 C) ,
20M Cable (Opti on al ), Instructio n Ma nu al
