Page 1

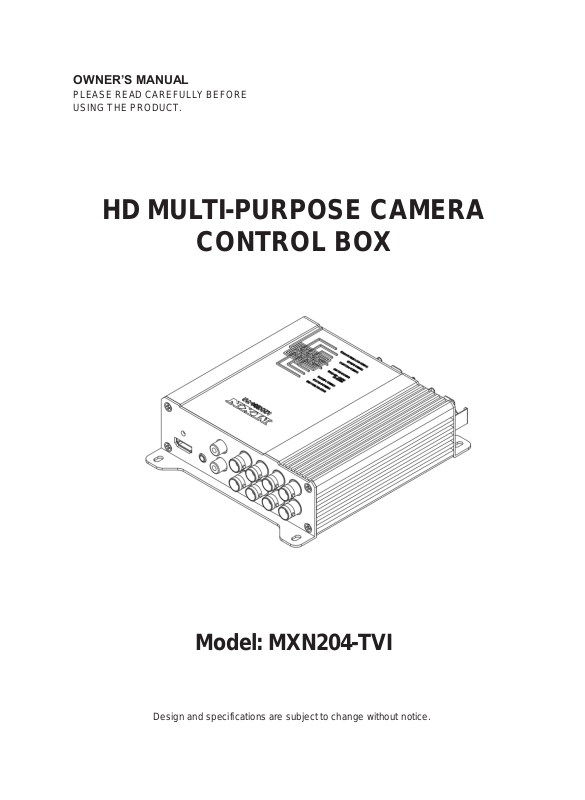

OWNER’S MANUAL
PLEASE READ CAREFULLY BEFORE
USING THE PRODUCT.

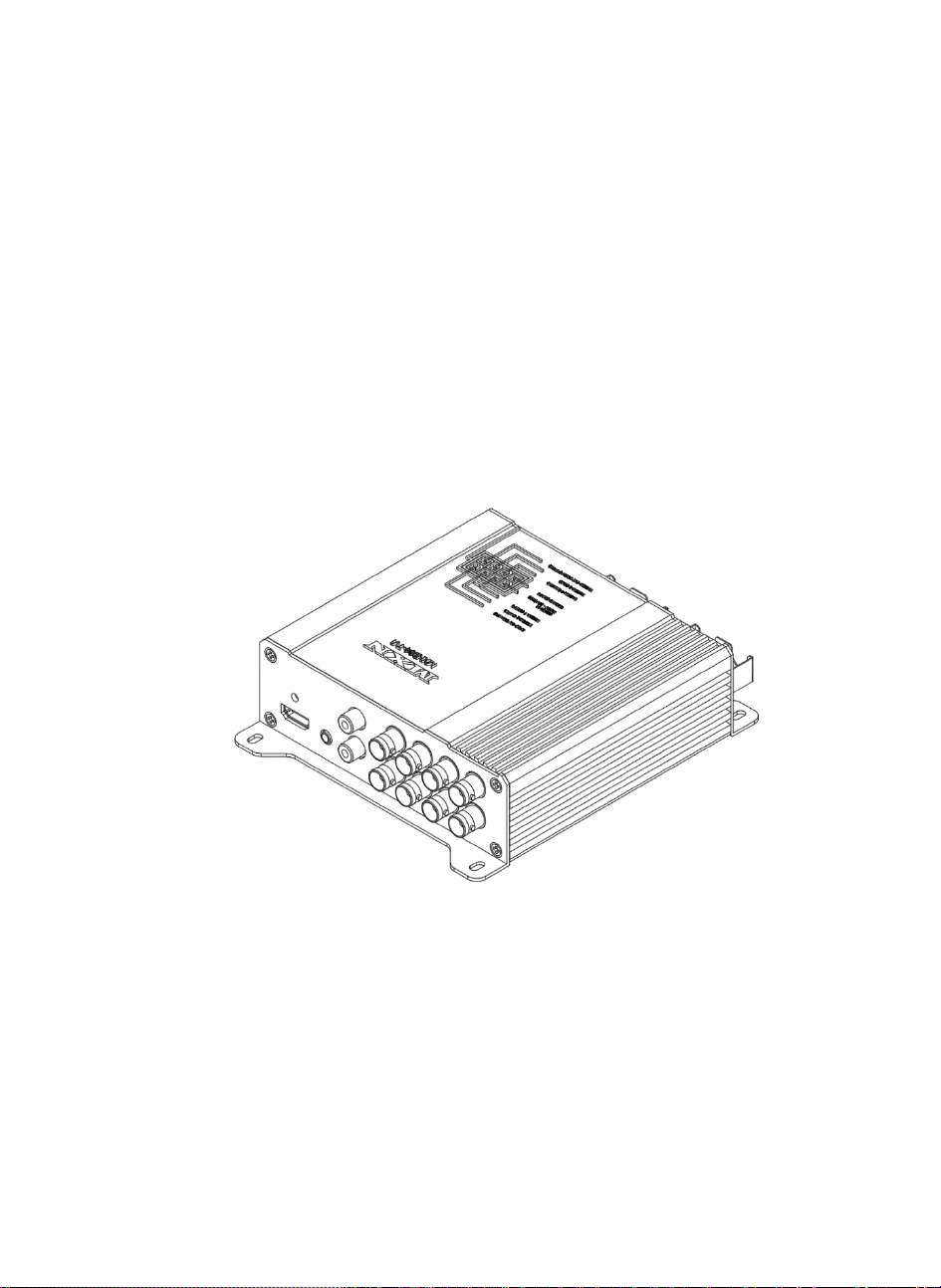

HD MULTI-PURPOSE CAMERA
CONTROL BOX
Model: MXN204-TVI
Design and specifications are subject to change without notice.
Page 2
■ INDEX
PACKAGE CONTENTS
INSTALLATION
CONNECTION
OPERATION
REMOTE CONTROLLER
MENU
FUNCTION
NORMAL/MIRROR
AUDIO
TRIGGER AUDIO
CAMERA TRIGGER
DISTANCE MARKER
DISTANCE MARKER ADJUSTMENT
AUTO PICTURE SCAN
CAMERA NAME
SPEED SWITCH
SPLIT CONFIGURATION
TRIPLE CONFIGURATION
QUAD CONFIGURATION
MANUAL SELECTION
MENU LOCK ON/OFF FUNCTION
SCAN ON/OFF FUNCTION
SPECIFICATIONS
COMMENTS
03
04
05 - 06
07 - 19
07
08
09
10
10
11
11
12
12
13
14
14
15
16
17
18
18
19
19
20
21
2
Page 3

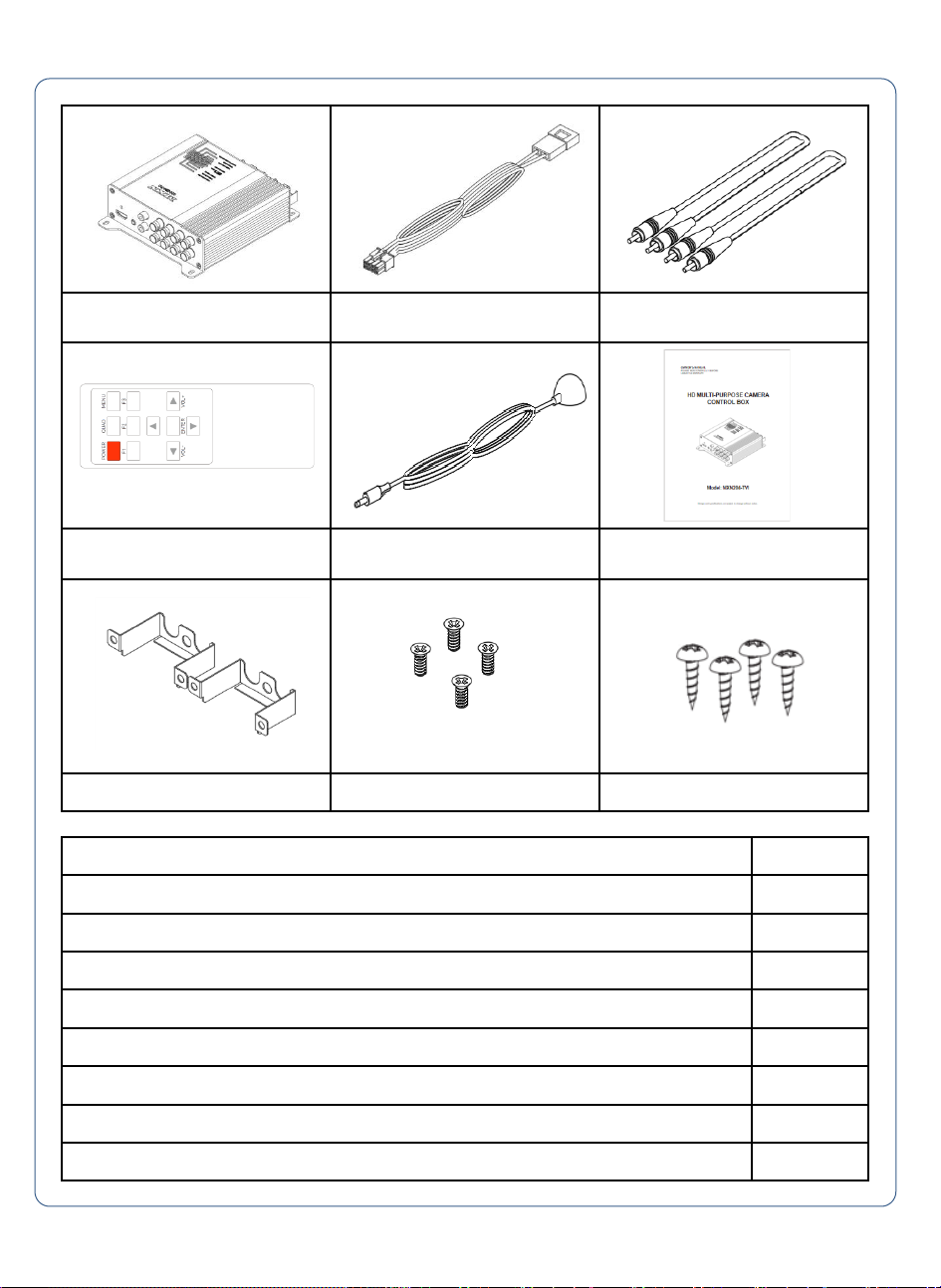

■ PACKAGE CONTENTS
3
CONTROL BOX 1
POWER CABLE 1
RCA CABLE 1
REMOTE CONTROLLER 1
IR RECEIVER 1
MANUAL 1
CABLE BRACKET 2
CABLE BRACKET SCREW ( FH M3X5 ) 4
MOUNT SCREW ( PH M4X30 STAINLESS) 4
CONTROL BOX POWER CABLE RCA CABLE
REMOTE CONTROLLER IR RECEIVER MANUAL
CABLE BRACKET CABLE BRACKET SCREW MOUNT SCREW
Page 4
■ INSTALLATION
4

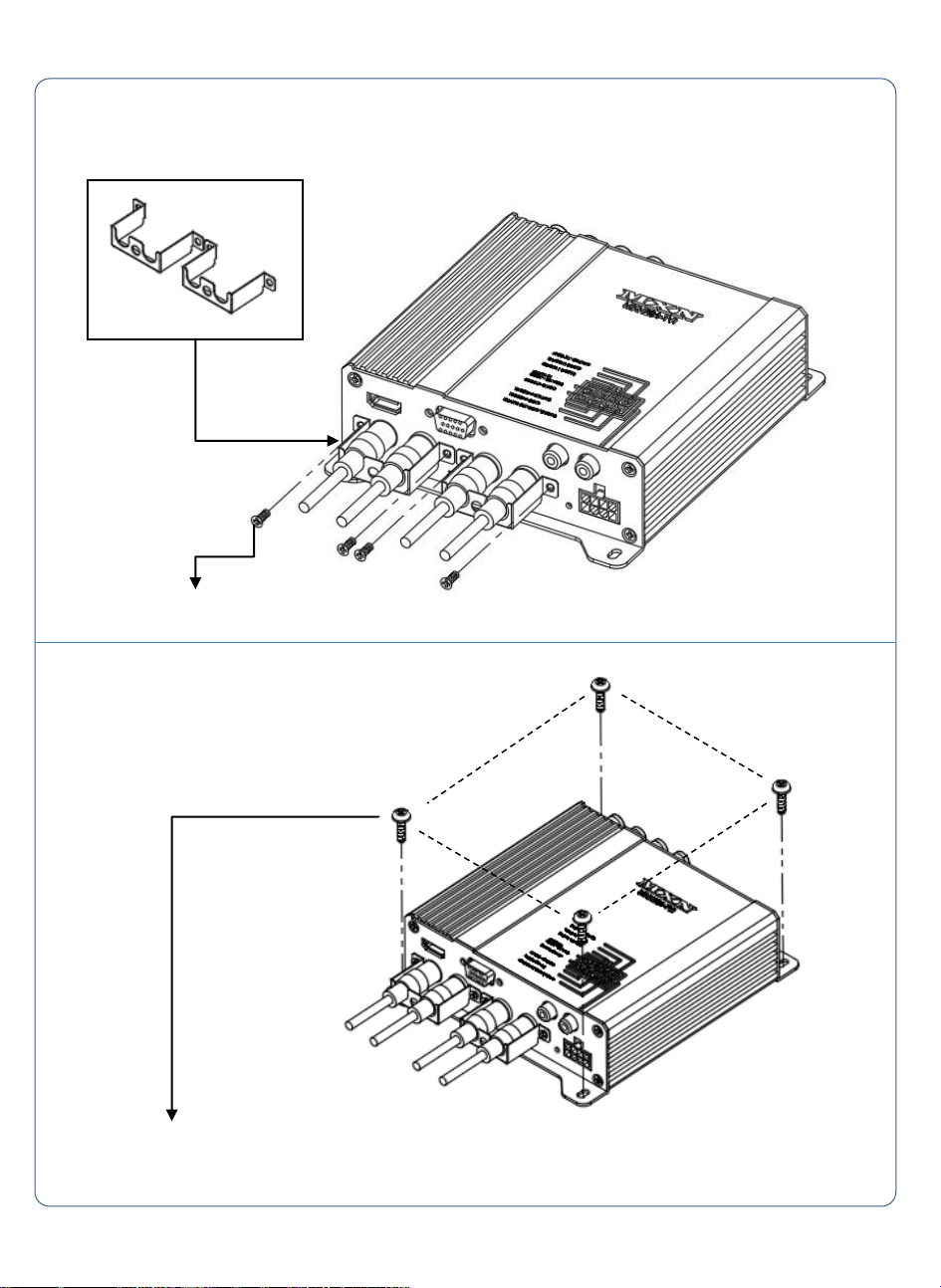

□ Bracket Cable
: Fix the bracket jack with provided screw after connecting the cameras
□ Mounting on the floor, console, etc
★ SCREW : M3 X 5 4EA
★ SCREW : M4 X 30 4EA
Page 5
■ CONNECTION
5
①
②
③
④
⑤
⑥
⑦
⑧

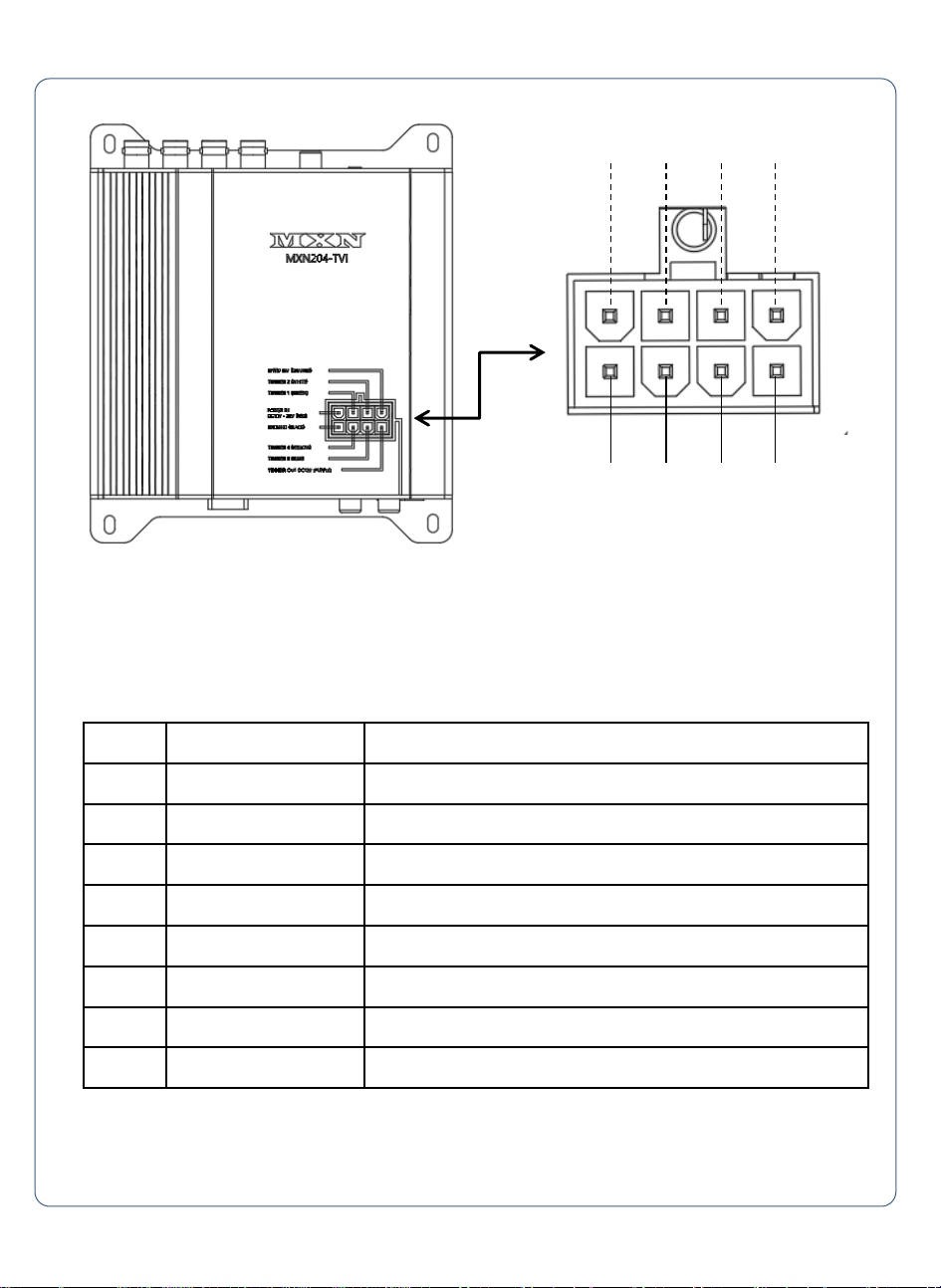

No. WIRE COLOR DESCRIPTION
① RED Power IN DC 10V ~32V
② BLACK Ground
③ GREEN Trigger 1 IN ( Power IN DC 10V ~32V )
④ YELLOW Trigger 4 IN ( Power IN DC 10V ~32V )
⑤ WHITE Trigger 2 IN ( Power IN DC 10V ~32V )
⑥ BLUE Trigger 3 IN ( Power IN DC 10V ~32V )
⑦ ORANGE Speed Switch
⑧ PURPLE Trigger Out DC12V (Max. 500mA)

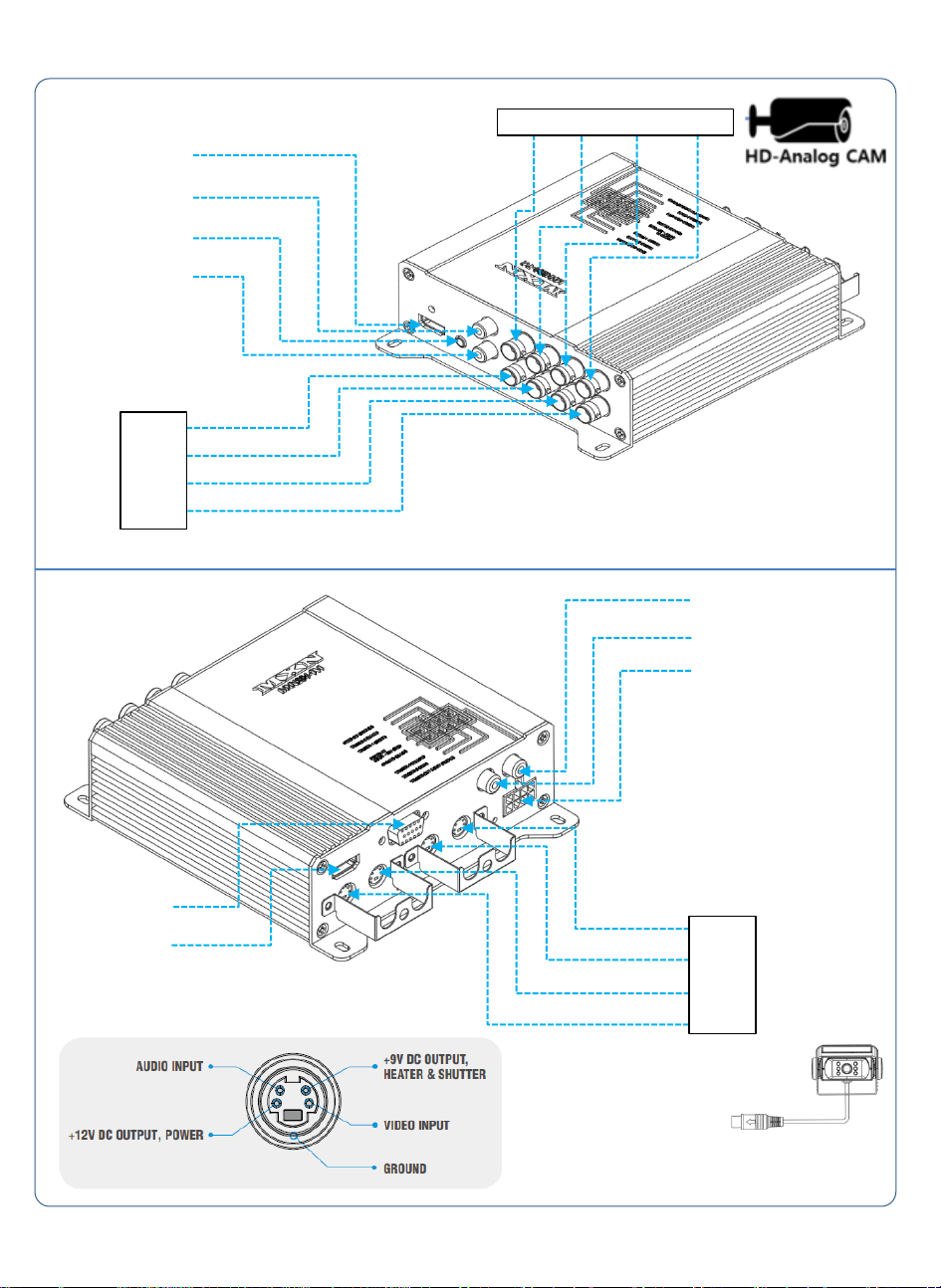

Power & Trigger wire connection
Page 6
6
■ CONNECTION
POWER TRIGGER IN
HDMI OUT
IR-IN
AUDIO OUT
CVBS OUT
CAMERA IN
CAM1CAM2CAM3CAM4
Loop OUT
CAM1
CAM2
CAM3
CAM4
CVBS INPUT
AUDIO INPUT
HDMI INPUT
VGA INPUT
CAMERA IN
CAM1
CAM2
CAM3
CAM4
Page 7
① POWER button
Press POWER button to turn the control box on or off.
When a trigger signal is activated, the control box does not
Respond at the remote control’s signal.
(Please refer to TRIGGER MODE in MAIN MENU for further
information)
Status of RED LED in IR Receiver
STANDBY : LED ON
POWER ON : LED OFF
IR SIGNAL : LED BLINK

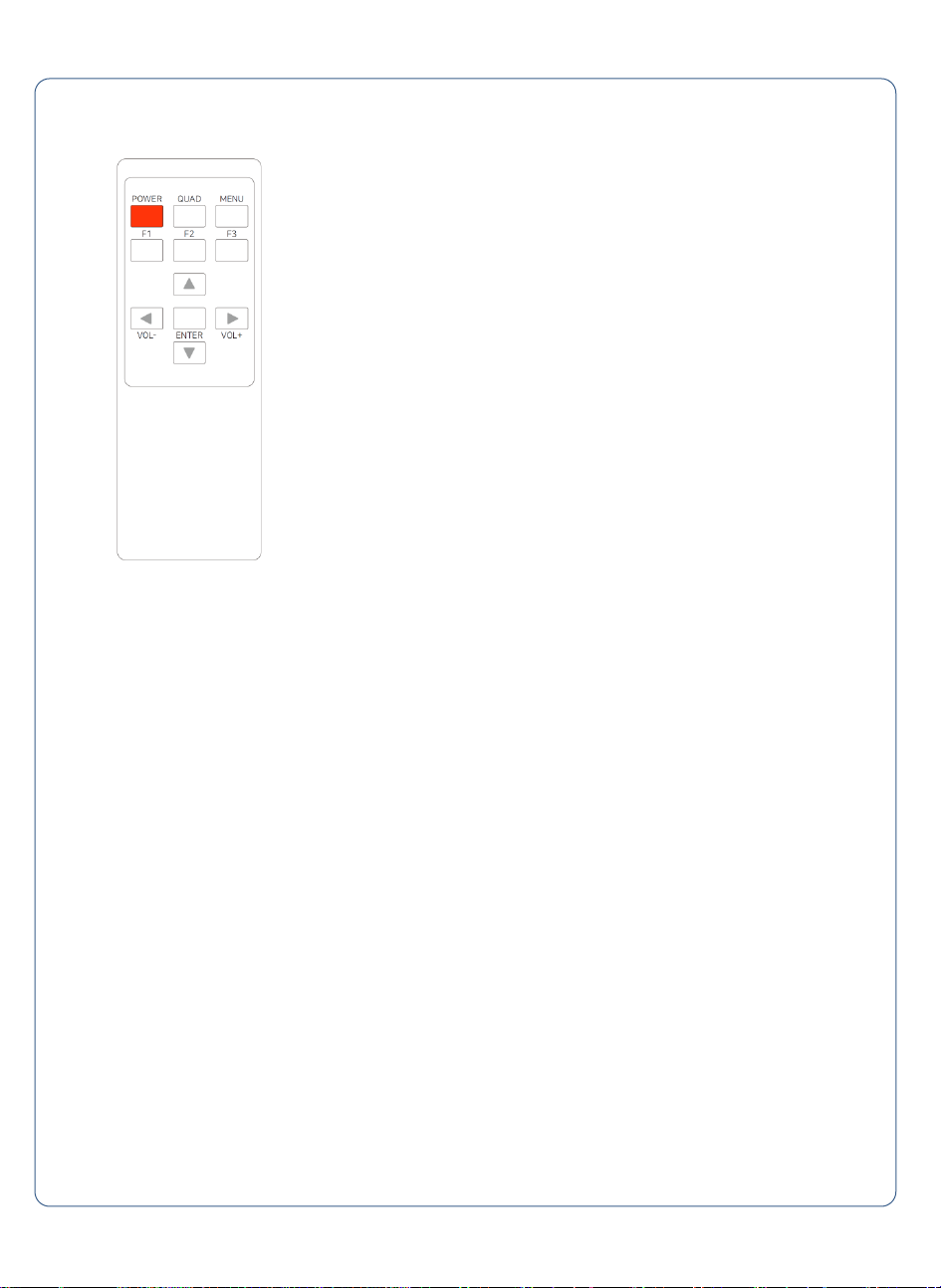

Remote Controller
② MENU button
Press MENU button for control box setting
④ UP/DOWN button
Press UP/DOWN button for moving MENU
⑤ LEFT(VOL-)/RIGHT(VOL+)button
Press LEFT/RIGHT button to change MENU when MENU is on
Press LEFT/RIGHT button to control volume up and down when MENU is off
③ QUAD button
Press QUAD button to display SPLIT4 of CAMERA input
or BNC input
⑥ ENTER button
Press ENTER button to select MENU when MENU is on
Press ENTER button to change display mode as below sequence when MENU is off
CH1 → CH2 → CH3 → CH4 → SPLIT1 → SPLIT2 → TRIPLE → QUAD → CH1…
⑦ F1 button
Press F1 button to select HDMI input
⑧ F2 button
Press F2 button to select VGA input
⑨ F3 button
Press F3 button to select RCA input
7
■ OPERATION
REMOTE CONTROLLER
Page 8
MENU TREE
Change the setting value by pressing the MENU button.
FUNCTION
Set functions on the monitor.
Set the color and brightness on the monitor.
NORMAL/MIRROR
Input video can be reversed
AUDIO
Set the audio ON/OFF.
TRIGGER AUDIO
Set the audio ON/OFF when entering the TRIGGER signal.
CAMERA TRIGGER
When entering the TRIGGER signal, the screen output.
DISTANCE MARKER
DISTANCE MARKER can be set according to the TRIGGER signal input.
AUTO PICTURE SCAN
Set the automatic sequence switching time.
CAMERA NAME
Set the camera name.
SPEED SWITCH
By receiving TACHO signal, you can set the operation at the corresponding frequency.
SPLIT
Display the camera video at the set position on the SPLIT screen.
TRIPLE
Display the camera video at the set position on the TRIPLE screen.
QUAD
Display the camera image on the QUAD screen at the set position.
MANUAL SELECTION
When the SELECTION button is pressed, the output screen is set.
FUNCTION
NORMAL/MIRROR
AUDIO
TRIGGER AUDIO
CAMERA TRIGGER
DISTANCE MARKER
AUTO PICTURE SCAN
CAMERA NAME
SPEED SWITCH
SPLIT
TRIPLE
QUAD
MANUAL SELECTION
8
MENU
■ OPERATION
Page 9
FUNCTION
LANGUAGE
Provide 6 Multi-lingual OSD [ENGLISH, SWEDISH, DANISH, NORWEGIAN, DUTCH, FINNISH].
Select the preferred LANGUAGE.
SYSTEM
Select AUTO/TVI/AHD/NTSC/PAL
VIDEO OUT
Select NTSC/PAL for video output format
CAMERA INPUT
Select DIN-4P/BNC for camera input
DEINTERLACE
Select the DEINTERLACE function for NTSC/PAL video input signals
AUTO POWER
Select monitor activation functions as below.
[AUTO] The Control box remembers the last settings from its memory.
[ON] The Control box is turned on with the 『Power-ON』 mode automatically.
[OFF] The Control box is turned on with the 『Stand-By』 mode automatically.
RESET
Press “>>” button to enter the factory default settings.
SYSTEM INFO
Refers to the system information of the monitor.
LANGUAGE
SYSTEM
VIDEO OUT
CAMERA INPUT
DEINTERLACE
AUTO POWER
RESET
SYSTEM INFO
ENGLISH
AUTO
PAL
DIN-4P
OFF
OFF
>>
VER 1.00
9
FUNCTION
■ OPERATION
NOTE
• VIDEO OUT
- It is recommended to set VIDEO OUT to PAL when using the camera with PAL or 1080P25
- It is recommended to set VIDEO OUT to NTSC when using NTSC or 1080P30.
• Deinterlace ON: No shaky video
- Afterimages and cracked images occur when the object is moving (EVEN/ODD deviation, see the attached image)
- Aliasing is seen on a small split screen due to down scale
- Not available when the MIRROR function is ON (only possible when deinterlace is OFF)
• Deinterlace OFF: Shaky video visible
- No afterimages and cracked images are visible when the object is moving
- Image quality deterioration occurs due to the use of line doubling in large size division
- No cascading effect on small split screens
Page 10
CONTRAST
BRIGHTNESS
COLOR
TINT
50
50
50
50
PICTURE MENU
Press [LEFT/RIGHT] button to adjust the PICTURE of the monitor.
PICTURE MENU is for the settings of PICTURE from CAM1, CAM2, CAM3, CAM4, SPLIT1, SPLIT2, TRIPLE, QUAD mode.
CAM1
CAM2
CAM3
CAM4
NORMAL
NORMAL
NORMAL
NORMAL
NORMAL/MIRROR
Each camera (CAM1/CAM2/CAM3/CAM4) can be switched between NORMAL& MIRROR image.
10
PICTURE & NORMAL/MIRROR
■ OPERATION
Page 11
CAM1 AUDIO
CAM2 AUDIO
CAM3 AUDIO
CAM4 AUDIO
SPLIT
TRIPLE
QUAD
ON
ON
ON
ON
ON
ON
ON
AUDIO
Audio ACTIVATED Mode in normal mode.
When the mode is [ON], audio will be on (activated)
When the mode is [OFF], audio will be off (mute).
TRIG1 AUDIO
TRIG2 AUDIO
TRIG3 AUDIO
TRIG4 AUDIO
SP SW AUDIO
ENTER
ENTER
ENTER
ENTER
ENTER
TRIG1 AUDIO
VOLUME
ON
10
TRIGGER AUDIO
Audio ACTIVATED Mode in Trigger mode.
Choose the trigger and then press [ENTER].
The Audio settings menu will be shown as below.
When the mode is [ON], audio will be
on(activated).
When the mode is [OFF], audio will be off (mute).
The user can adjust the volume.
11
AUDIO & TRIGGER AUDIO
■ OPERATION
Page 12
TRIGGER1
TRIGGER2
TRIGGER3
TRIGGER4
TRIG1. DELAY
TRIG2. DELAY
TRIG3. DELAY
TRIG4. DELAY
CAM1
CAM2
CAM3
CAM4
2
2
2
2
TRIGGER1
TRIGGER2
TRIGGER3
TRIGGER4
MARKER
ON
OFF
OFF
OFF
CAMERA TRIGGER
TRIGGER 1/2/3/4 (Trigger source selection)
Select therequired trigger source at CAM1/CAM2/CAM3/CAM4/SPLIT1/ SPLIT2/TRIPLE / QUAD
REMARK
TRIGGER PRIORITY:TRIGGER 1 > TRIGGER 2> TRIGGER 3 > TRIGGER 4
TRIG. DELAY
When a TRIGGER wire is connected to a pulse DC power signal (e.g.direction indicator lights) then the [TRIGGER
DELAY] function avoids repeating ON/OFF of the monitor.
DISTANCE MARKER
Select ON to have DISTANCE MARKER for CAM1, CAM2, CAM3, CAM4.
DISTANCE MARKER is displayed as the trigger signal is activated
MARKER
Select of DISTANCE MARKER. or ___
12
CAMERA TRIGGER & DISTANCE MARKER
■ OPERATION
Page 13

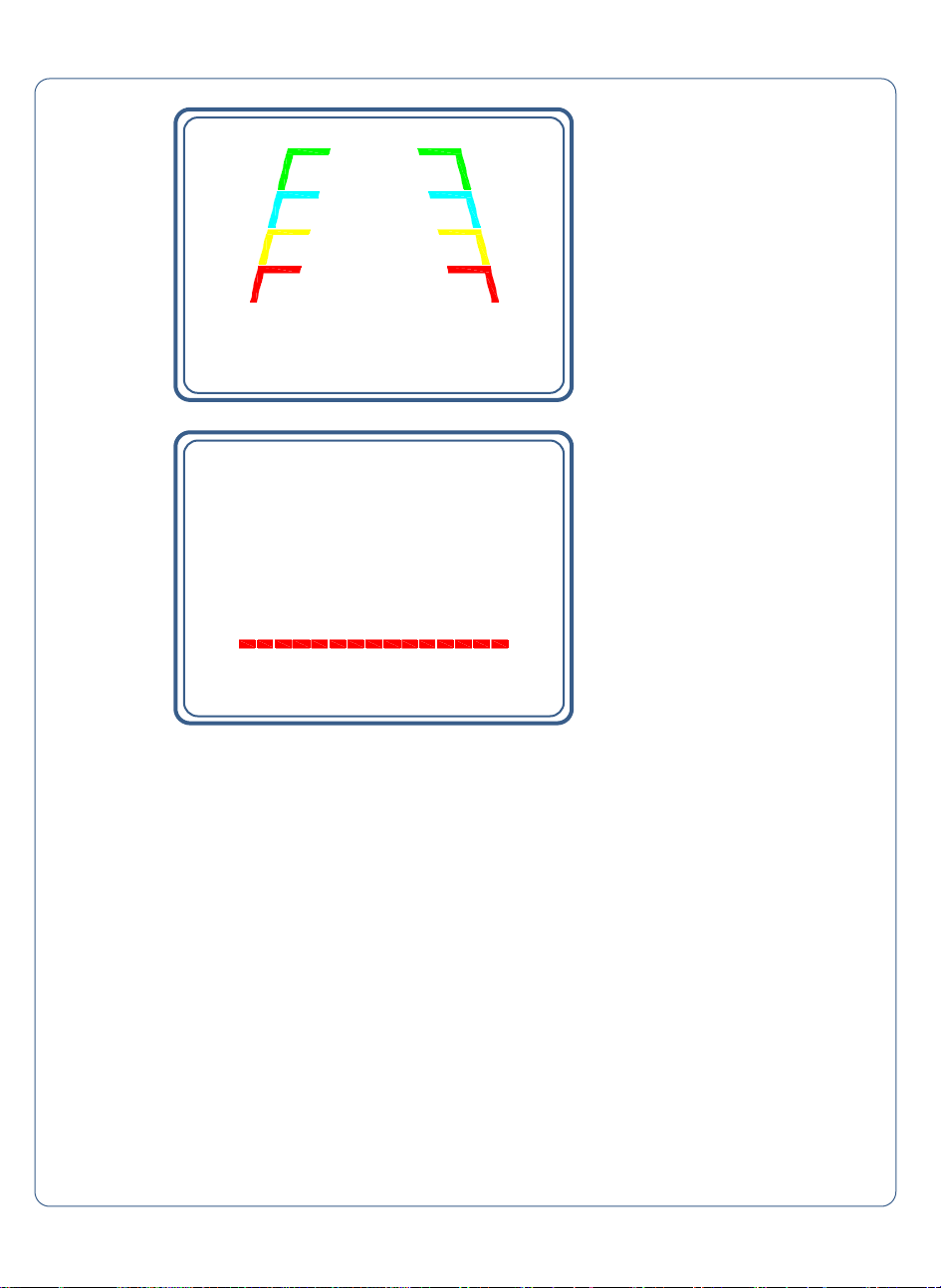

>> Marker A
>> Marker B
DISTANCE MARKER ADJUSTMENT
Users can make adjustments by pressingthe SELECT button in the menu. (It is not available on thesplit mode screen)
Marker A- Parking line
The left/right/both markers will be selected in order each time you press the SELECT button. When the marker is
red itcan be adjusted UP/DOWN or LEFT/RIGHT.
When both distance markers are RED, you can adjust both markers LEFT/RIGHT/UP/DOWN.
When the left distance marker isRED, the left marker can be adjusted LEFT/RIGHT.
When the right distance marker isRED, the right marker can be adjusted LEFT/RIGHT.
Marker B- Horizontal line
Users can adjust the line UP/DOWN.
Users can adjust the horizontal line by pressing [UP/DOWN] buttons.
13
DISTANCE MARKER ADJUSTMENT
■ OPERATION
Page 14
■ OPERATION
AUTO SCAN
CAM1 SCAN TIME
CAM2 SCAN TIME
CAM3 SCAN TIME
CAM4 SCAN TIME
SPLIT1 SCAN TIME
SPLIT2 SCAN TIME
TRIPLE SCAN TIME
QUAD SCAN TIME
OFF
5
5
5
5
5
5
5
5
CAMERA NAME DISPLAY
CAM1 NAME
CAM2 NAME
CAM3 NAME
CAM4 NAME
ON
CAM1
CAM2
CAM3
CAM4

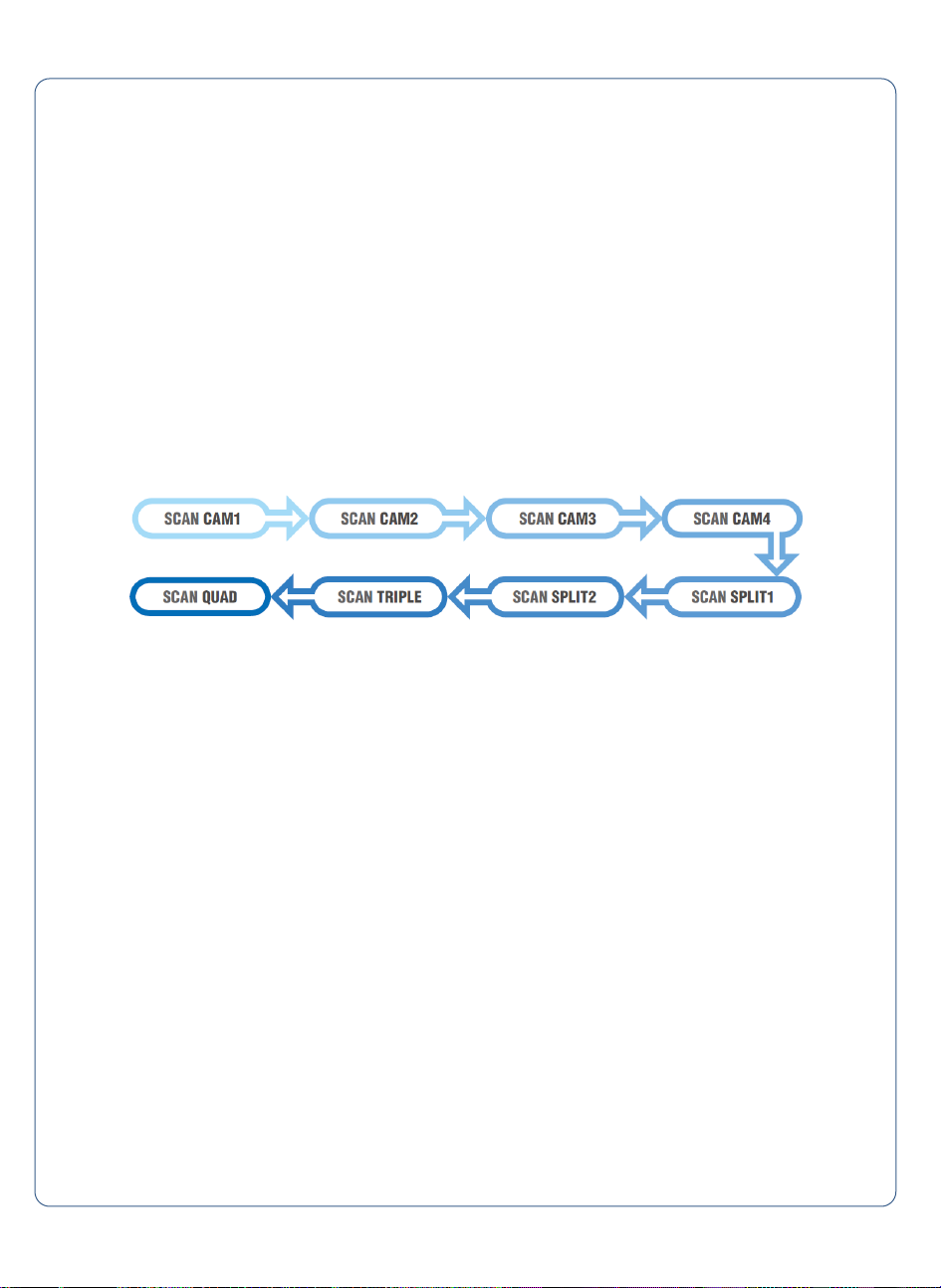

AUTO PICTURE SCAN
Each scanning time of CAM1/CAM2/CAM3 /CAM4/SPLIT1/SPLIT2/TRIPLE/QUAD can be managed.
REMARK
If the SCAN TIME is set as[0], monitor skips its channel during scanning.
Press [UP] button for 4 seconds to ACTIVATE / INACTIVATE auto scanning function.
CAMERA NAME
CAMERA NAME can be selected as CAM1, 2, 3, 4/REAR/LEFT/RIGHT/FRONT.
14
AUTO PICTURE SCAN & CAMERA NAME
Page 15
SPEED SWITCH
FREQUENCY
UNDER FREQUENCY CAM
OVER FREQUENCY DISPLAY
OVER FREQUENCY CAM
OFF
67Hz
CAM3
OFF
CAM1
SPEED SWITCH
The orange wire needs to be connected with the vehicle’s tacho signal and via MENU the SPEED SW ITCH needs to be selected
ON. At FREQUENCY 67Hz setting(and the most common used tacho signal) the selected camera will be displayed during a
speed of 0~33km/h. Select the concerning camera via『UNDER FREQUENCY CAM』(At a different type of tacho signals the
FREQUENCY needs to be adjusted higher or lower than the example)
Over 33km/h(72Hz) the selected camera will be switched OFF automatically. When the speed slows down, then the selected
camera will be switched ON automatically again at 30km/h. Instead of automatic switch OFF at a speed over 33km/h it is also
possible to activate another video source, such as a navigation picture from an optional navigation computer. In this case user
needs to select 『OVER FREQUENCY DISPLAY: ON』 and user needs to select 『OVER FREQUENCY CAM』
In case of TRIGGER activation with the『SPEED SWITCH ON』 mode, then TRIGGERS 1~ 4 will nullify 『SPEED SWITCH』
function.
15
■ OPERATION
SPEED SWITCH
Page 16

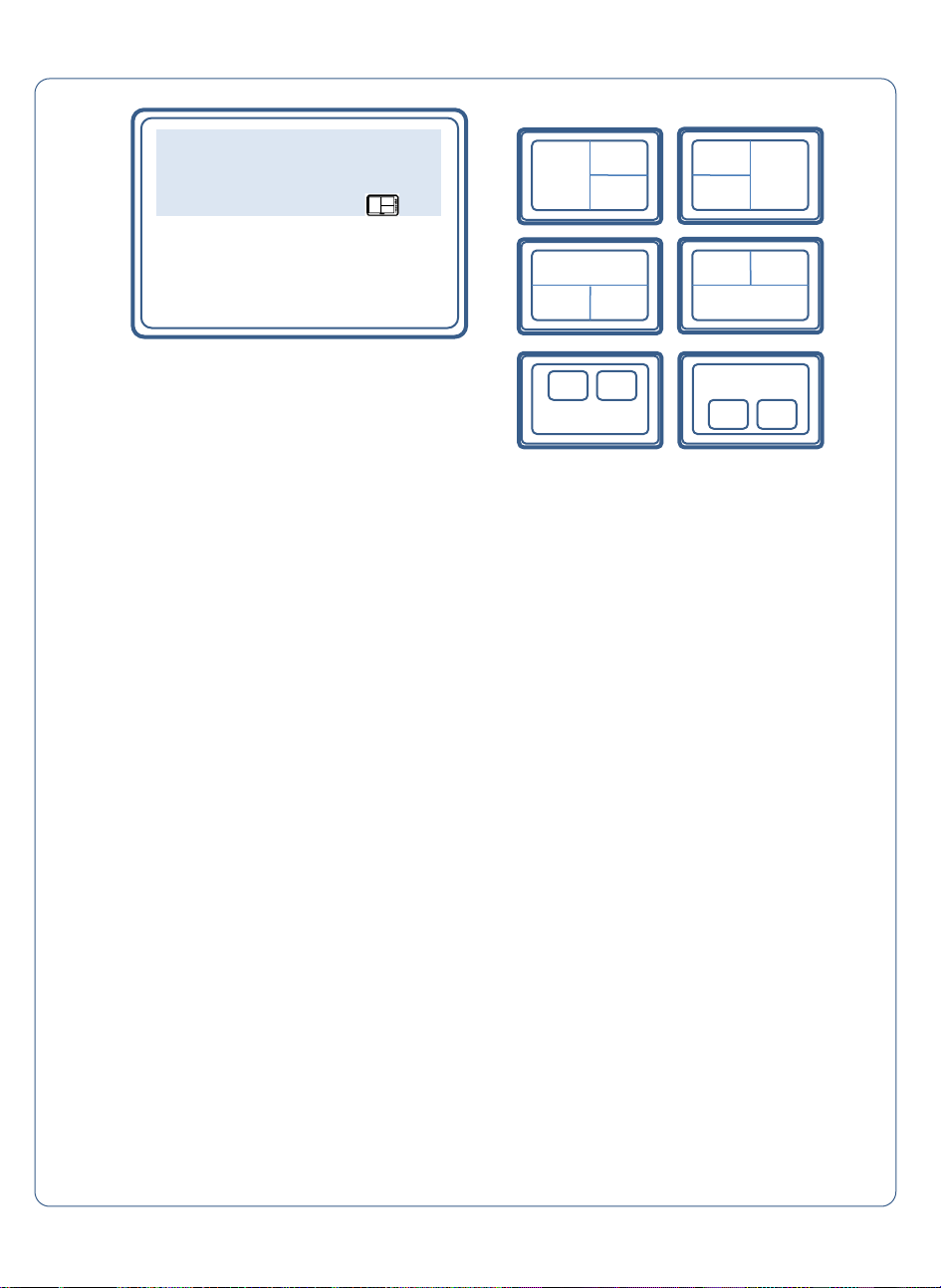

SPLIT1 SOURCE1
SPLIT1 SOURCE2
SPLIT2 SOURCE1
SPLIT2 SOURCE2
AUDIO
MODE
SPLIT1 CROP
SPLIT1 CROP
SPLIT2 CROP
SPLIT2 CROP
CAM1
CAM2
CAM3
CAM4
CAM1
OFF
OFF
OFF
OFF

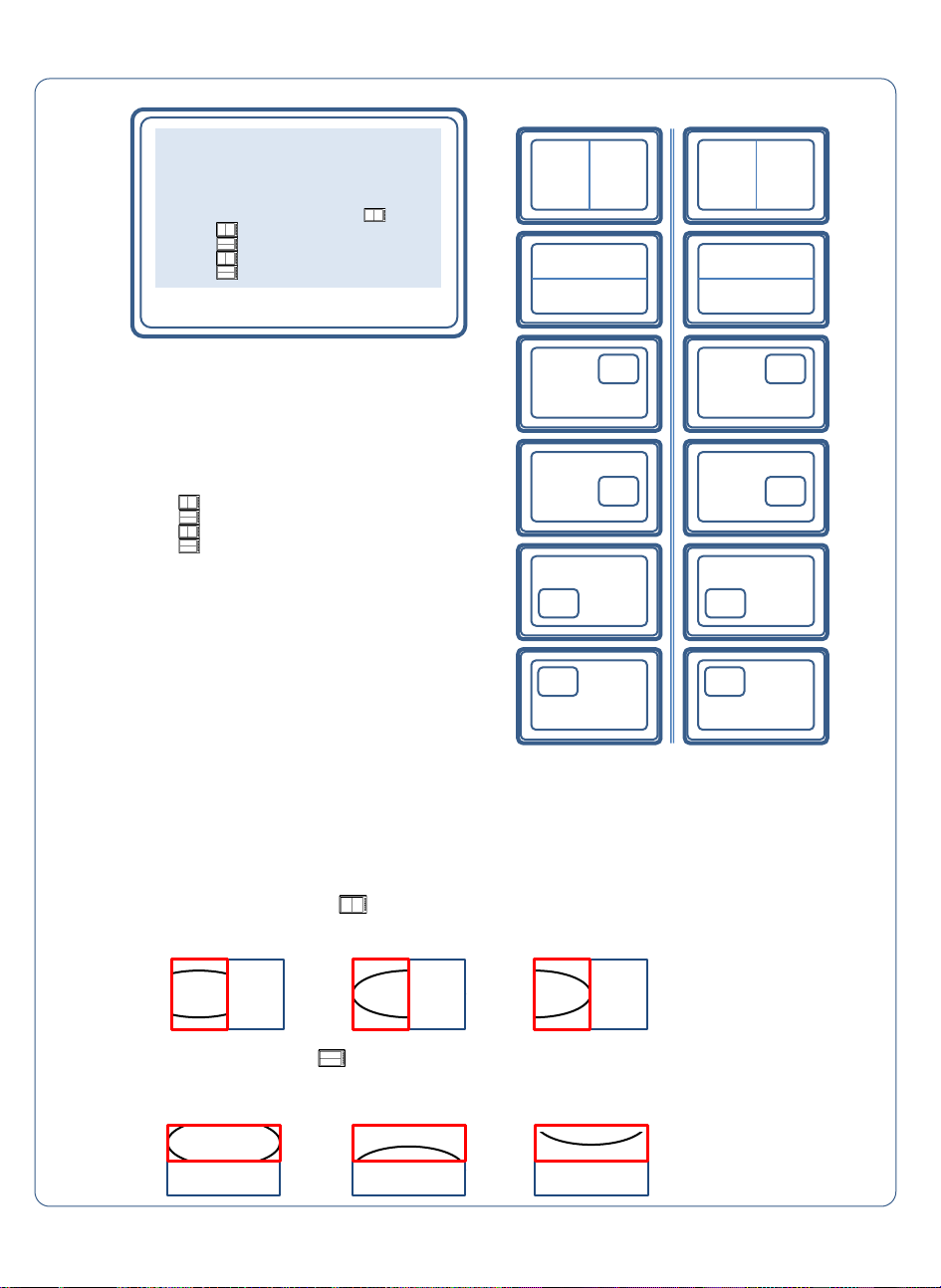

SPLIT configuration:
SOURCE 1 Select S1 Camera(CAM1~CAM4).
SOURCE 2 Select S2 Camera(CAM1~CAM4).
SOURCE 3 Select S3 Camera(CAM1~CAM4).
SOURCE 4 Select S4 Camera(CAM1~CAM4).
AUDIO Select SPLIT of Audio(CAM1~CAM4).
MODE Select SPLIT MODE
SPLIT1 CROP Select Scale or None Scaled Display
SPLIT1 CROP Select Scale or None Scaled Display
SPLIT2 CROP Select Scale or None Scaled Display
SPLIT2 CROP Select Scale or None Scaled Display
16
■ OPERATION
SPLIT CONFIGURATION
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
SPLIT 1
SPLIT 2
- To use CROP mode, turn on in the menu and press the ENTER (SELECT) button to
display a red border on the video of the channel to be adjusted.
* You can enter the adjustment mode only in the CROP mode.
- Press the ENTER (SELECT) button to select the channel (SOURCE1,2) to be adjusted.
Horizontal SPLIT CROP
- Adjust by moving the screen to be displayed in the selected channel using the left/right
keys.
Vertical SPLIT CROP
- Adjust by moving the screen to be displayed using the Up/Down keys in the selected
channel.
Page 17
SOURCE1
SOURCE2
SOURCE3
AUDIO
MODE
CAM1
CAM2
CAM3
CAM1
S1
S2
S3
S1
S2 S3
S1
S2
S3
S1
S2 S3

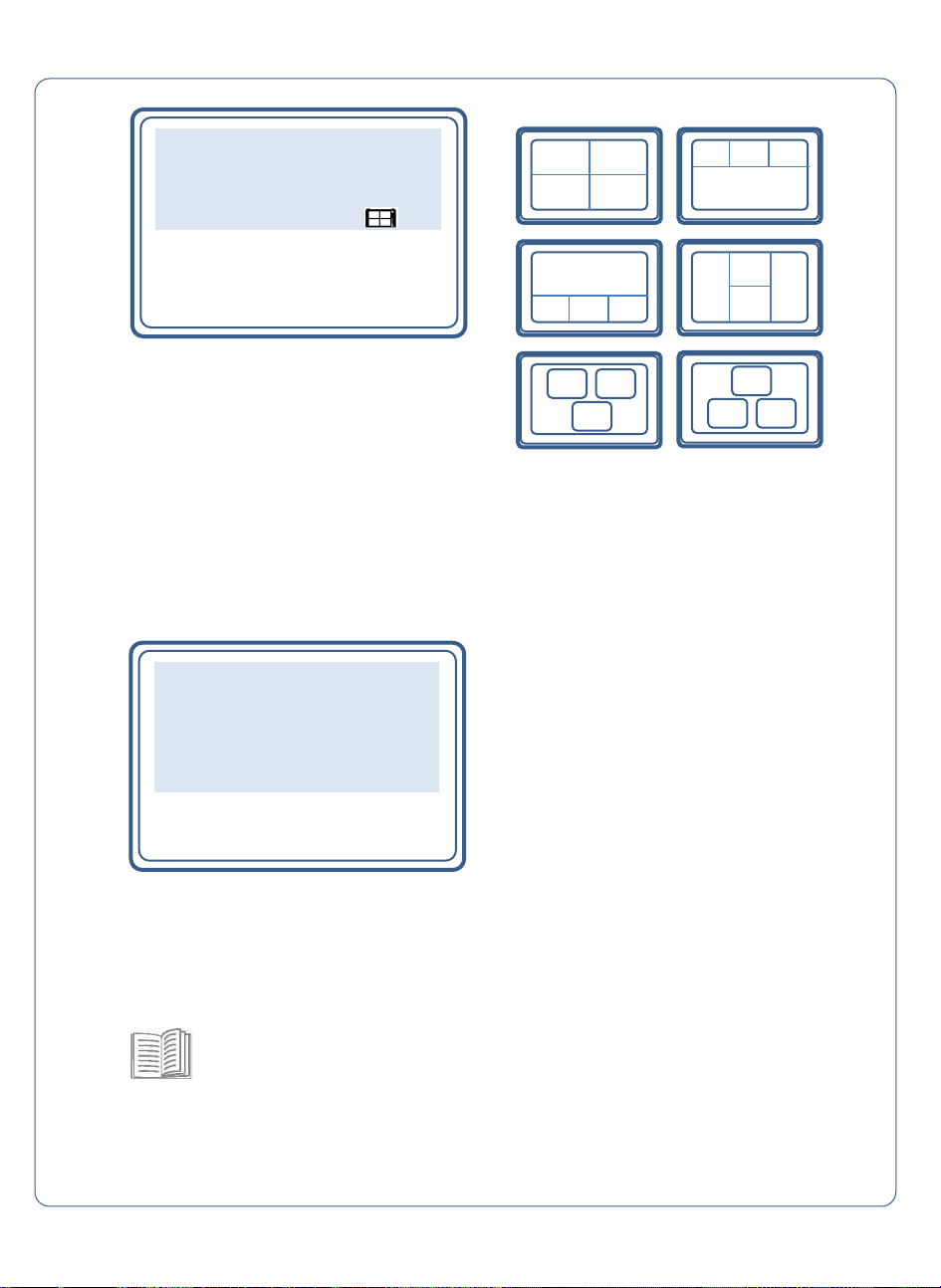

TRIPLE configuration:
SOURCE 1 Select S1 Camera(CAM1~CAM4).
SOURCE 2 Select S2 Camera(CAM1~CAM4).
SOURCE 3 Select S3 Camera(CAM1~CAM4).
AUDIO Select TRIPLE of Audio(CAM1~CAM4).
MODE Select TRIPLE MODE
17
■ OPERATION
TRIPLE CONFIGURATION
S1
S2 S3
S1
S2
S3
Page 18
SOURCE1
SOURCE2
SOURCE3
SOURCE4
AUDIO
MODE
CAM1
CAM2
CAM3
CAM4
CAM1
S1
S2
S3
S4
S1
S2
S3 S4
S1
S2
S3 S4
S3
S2
S1
S4
QUAD configuration:
SOURCE 1 Select S1 Camera(CAM1~CAM4).
SOURCE 2 Select S2 Camera(CAM1~CAM4).
SOURCE 3 Select S3 Camera(CAM1~CAM4).
SOURCE 4 Select S4 Camera(CAM1~CAM4).
AUDIO Select QUAD of Audio(CAM1~CAM4).
MODE Select QUAD MODE
CAM1
CAM2
CAM3
CAM4
SPLIT1
SPLIT2
TRIPLE
QUAD
ON
ON
ON
ON
ON
ON
ON
ON
MANUAL SELECTION
When you manually press the channel select button, only the camera selected ON and the display mode selected ON
are displayed.
Manually pressing the channel select button skips the camera selected OFF and display mode selected OFF.
NOTE
Triggers neglect the MANUAL SELECTION settings. In case of Trigger activation, these ON/ OFF settings will
be ignored.
18
■ OPERATION
QUAD CONFIGURATION & MANUAL SELECTION
S1
S2
S3
S1
S2
S3
S4
S4
Page 19
MENU LOCK ON/OFF FUNCTION
LOCK ON/OFF FUNCTION
The setup menu can be locked to ban any unauthorized users.
LOCK ON mode
At the Power-ON mode, press the [DOWN] button for 10 seconds to activate the LOCK ON function.
When [LOCKED] is displayed on the screen, the user can use only [POWER, SELECT, VOLUME] buttons and the
user can edit settings for the PICTURE menu.
LOCK OFF mode
At the Power-ON mode, press [DOWN] button for 10 seconds to activate the LOCK OFF function.
When [UNLOCKED] is displayed on the screen, the user can use all the functions of the setup menu.
SCAN ON/OFF FUNCTION
At the Power-ON mode, press the [UP] button for 4 seconds to activate the Auto Scan Picture function.
During the Auto Scan Mode, press the [UP] button for 4 seconds to deactivate Auto Scan Picture function.
19
■ OPERATION
MENU LOCK & SCAN ON/OFF FUNCTION
Page 20
SPECIFICATIONS
MODEL : MXN204-TVI
20
Power Input DC 10V~32V
Power Consumption Max. 30Watt
Video System HD-TVI (25fps, 30fps, 50fps, 60fps), AHD (25fps, 30fps)
CVBS-PAL, CVBS-NTSC
Camera Input (4-
pin mini DIN)
4CH, Composite Video 1Vp-p 75Ω (MXN configuration)
Video Input (BNC) 4CH, Composite Video 1Vp-p 75Ω
A/V Input (HDMI) 1CH, Up to 2160p 50/60
A/V Input (RCA) 1CH, Composite Video 1Vp-p 75Ω
1CH, Audio, 150mV RMS 47K
Video Input (D-Sub) 1CH, VGA, R/G/B Video 0.7Vp-p, H/V Sync, I2C
A/V Output (HDMI) 1CH, HDMI 1.3, 1080p 50/60
Video Output (BNC) 4CH, Loop out, Composite Video 1Vp-p 75Ω
A/V Output (RCA) 1CH, Composite Video 1Vp-p 75Ω
1CH, Audio, 150mV RMS 47K
Operating Temperature -25℃ ~ +75 ℃
Storage Temperature -30℃ ~ +85 ℃
Ambient Condition Indoor use only
Vibration 5.5G
Dimension 162 (W) X 43 (H) X 140 (D) mm
Weight 700g
Supplied Accessory Power cable (1)
RCA cable (1)
Remote Controller (1)
IR Receiver (1)
Cable bracket (2)
Screw kits (1)
Manual (1)
Page 21
COMMENTS
21
1. BNC Output(Loop out)
1) In case you connect MXN TVI cameras to the 4-pin mini-DIN inputs,
then the BNC Video output signal (loop out) is TVI 1080P/30fps.
2) In this case, if you use a CVBS monitor, then you can not see the camera
picture from BNC Video out, because CVBS monitors are not compatible
with the TVI signal.
3) In case you use a (MXN) TVI monitor, then you can see the camera picture
via the BNC Video out.
4) In case you connect (MXN) CVBS camera models to the 4-pin mini-DIN inputs,
then a CVBS monitor can be connected to the BNC Video output. (loop out)
2. Camera Input
1) Select DIN-4P or BNC for camera input
2) In case you connect cameras via the BNC input, then "CAMERA INPUT" needs
to be selected as "BNC" and in this case BNC’s input cameras’ video signal will be
looped out via BNC output.
3) In case "CAMERA INPUT" is selected as "DIN-4P", then the 4-pin mini-DIN
input camera's video signal will be looped out via BNC output.
3. HDMI Output
You can see camera pictures from the "CVBS output“ and from the "HDMI output
(connected via PC monitor's HDMI input) at the same moment.
Loading...
