Page 1
Instruction Manual
15” Industrial PC & Surveillance Monitor
- High Resolution 15" Digital TFT LCD Monitor
- Free Input Voltage (DC 12V ~ 30V)
- NTSC/PAL Compatibility
- 4 Camera input : 4-pin mini DIN or 4 BNC Connector
- 4 Triggers function
- 1 A/V input : 2-RCA
- RGB input
- DVI input
- 1 A/V Output : 2-RCA (DVR)
- Single / Split / Triple / Quad Display modes
- Built-in OSD function
- Built-in Speaker
- Manual Backlight Dimmer control
- Button backlight with illuminated knob
Features
Model : MXN1500SQ
* Design And Specifications Are Subject To Change Without Notice.
Page 2
◈ Operation
Instruction Manual
- COLOR TEMP
[ NORMAL / WARM / COOL ]
- LANGUAGE
[ ENGLISH / DEUTCH FRENCH /
ITALIAN / SPANISH / DUTCH ]
- PICTURE MODE
[ STANDARD / MOVIE / VIVID ]
- RECALL
- CONTRAST
- BRIGHTNESS
- HUE
- SATURATION
- SHARPNESS
- H. POSITION
- V. POSITION
- OSD TIMER
- TRANSPARENT
- INFORMATION
- TRIGGER TIME
- TRIGGER PRIO.
- AUTO SCAN
- SCAN TIME
< PICTURE >
< QUAD SETUP >
① ② ③ ④ ⑤ ⑥
SPEAKER
⑦
< OSD >
= HORIZONTAL POSITION
= VERTICAL POSITION
= RESET
< PC >
CAMERA 1 [ CAM1, CAM2, CAM3, CAM4, LEFT, RIGHT, REAR, FRONT]
CAMERA 2 [ CAM1, CAM2, CAM3, CAM4, LEFT, RIGHT, REAR, FRONT ]
CAMERA 3 [ CAM1, CAM2, CAM3, CAM4, LEFT, RIGHT, REAR, FRONT ]
CAMERA 4 [ CAM1, CAM2, CAM3, CAM4, LEFT, RIGHT, REAR, FRONT ]
- CAMERA ID
- TRIGGER SOURCE
TRIGGER 1 [ CAM1, CAM2, CAM3, CAM4, SPLIT1, SPLIT2, SPLIT3, SPLIT4, TRIPLE1, TRIPLE2, QUAD1, QUAD2 ]
TRIGGER 2 [ CAM1, CAM2, CAM3, CAM4, SPLIT1, SPLIT2, SPLIT3, SPLIT4, TRIPLE1, TRIPLE2, QUAD1, QUAD2 ]
TRIGGER 3 [ CAM1, CAM2, CAM3, CAM4, SPLIT1, SPLIT2, SPLIT3, SPLIT4, TRIPLE1, TRIPLE2, QUAD1, QUAD2 ]
TRIGGER 4 [ CAM1, CAM2, CAM3, CAM4, SPLIT1, SPLIT2, SPLIT3, SPLIT4, TRIPLE1, TRIPLE2, QUAD1, QUAD2 ]
[ 0.8SEC ~ 10SEC ]
[ CAM1 / CAM2 / CAM3 / CAM4 ]
[ ON / OFF ]
[ 1S ~ 10S ]
- COLOR TEMP
[ NORMAL / WARM / COOL ]
- CONTRAST
- BRIGHTNESS
※ NOTE
H. POSITION, V. POSITION, CLOCK, PHASE, AUTO ADJUST menu are not available at PC/DVI input mode.
1. POWER
Power ON/OFF
- Stand by mode : Power button is illuminated.
- Power ON mode : All buttons are illuminated.
3. MODE-SEL
Switch INPUT mode
[ CAMERA – VIDEO – PC RGB – PC DVI ]
* At OSD menu : Exit the menu.
4. SPLIT
Switch SPLIT mode
[ SPLIT1 / SPLIT2 / SPLIT3 / SPLIT4 / TRIPLE1 / TRIPLE2 / QUAD1 / QUAD2 ]
* At OSD menu : switch OSD menu / move menu upward
6. UP/DOWN
Volume UP/DOWN
* At OSD menu : adjust setting value
7. BACKLIGHT Adjust BACKLIGHT dimmer (manual)
◈ CAMERA
◈ PC/DVI
2. MENU
Switch OSD menu
- CAMERA / VIDEO [ PICTURE – OSD – QUAD SETUP ]
- PC/DVI [ PC ]
SPEAKER
5. CA-SEL
Switch CAMERA channel
[ CAM1 / CAM2 / CAM3 / CAM4 ]
* At OSD menu : enter menu / move menu downward
Page 3

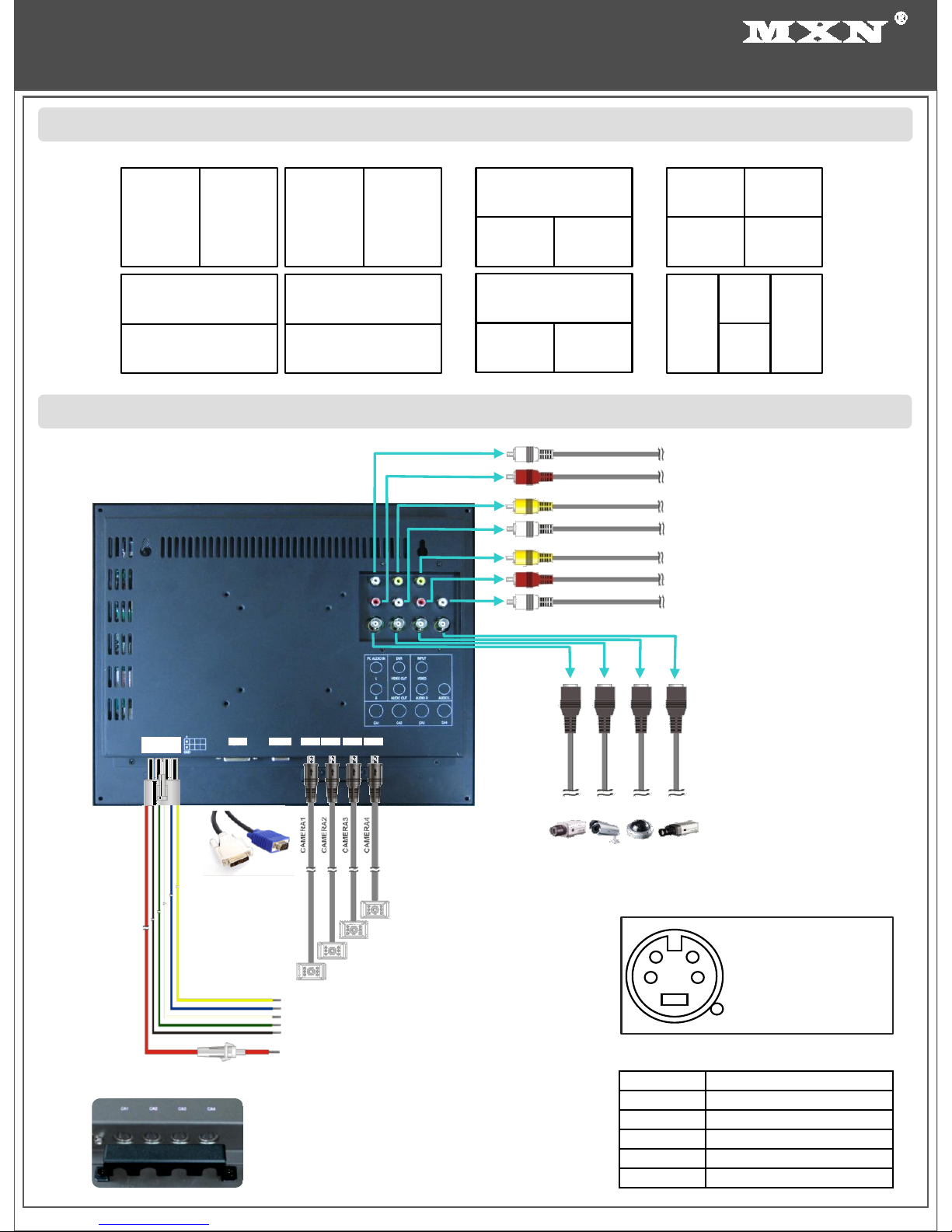

◈ Display mode
Instruction Manual
2 3
1 4
5
1. DC12V Power
2. Audio In
3. N.C
4. Video In
5. Ground
YELLOW
TRIGGER 4
BLUE
TRIGGER 3
WHITE
TRIGGER 2
GREEN
TRIGGER 1
BLACK
GROUND
RED
POWER IN DC (12~30V)
2. Power/Trigger Wire Functions
1. Camera Input Connection (CA1~CA4)
PC Monitor
DVR
VIDEO OUT
AUDIO OUT
VIDEO IN
AUDIO IN(R)
AUDIO IN(L)
PC AUDIO IN(R)
PC AUDIO IN(L)
CA1 CA2 CA3 CA4
CA1 CA2 CA3 CA4
DC INPUT
12~30V
DVI
Ground
Power In DC (12 ~ 30V)
RGB
DVI
RGB
Trigger1
Trigger2
Trigger3
Trigger4
◈ Cable Reinforcement Bracket
Fix the bracket jack with provided screws after
connecting the cameras.
CAM1 CAM2 CAM3 CAM4
CAM1
CAM2
CAM3
CAM4
CAM4
CAM2 CAM3
CAM1
CAM2 CAM3
CAM2
CAM3
CAM1 CAM4
CAM1
CAM3
CAM2
CAM4
< SPLIT MODE > < TRIPLE MODE > < QUAD MODE >
◈ Connections
2. Power/Trigger Wire Functions
1. Camera Input
Connection (CA1~CA4)
Page 4
Instruction Manual
NTSC / PAL
Video System
- 4 Camera Inputs : 4-Pin Mini Din or 4 BNC Connector
- 1 A/V Input : 2-RCA - RGB Input
- DVI Input - 1 A/V Output : 2-RCA (DVR)
Connector
0 ~ 60˚COperating Temperature
DC 12V ~ 30V Input
Power Input
Manual (Adjustable from 100% ~ 0%)Backlight Dimmer
700:1
Contrast Ratio
300 cd/m2
Brightness
Left : 75˚, Right : 75˚, Up : 70˚, Down : 60˚
Viewing Angle
Digital TFT LCD 1024 x 768Resolution
4:3
Aspect Ratio
15 inch / 38 cm Screen Size
Max. 25watt
Power Consumption
355(W) x 300(H) x 44(D)mm
Dimension
5 kgWeight
Accessories

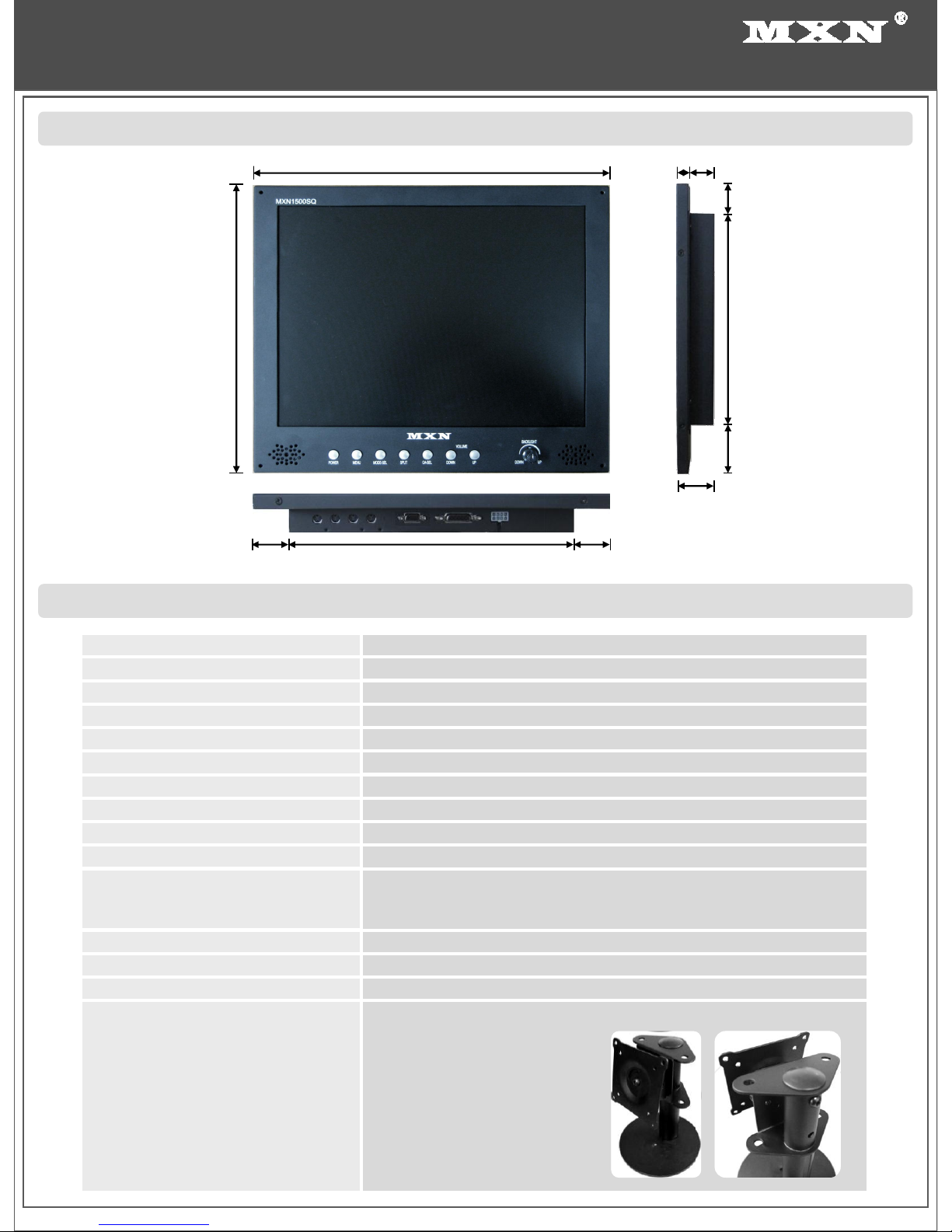

◈ Specifications
◈ Dimensions
300mm
355mm
44mm
224mm
20mm
315mm
20mm
26mm
15mm29mm
50mm
- Heavy duty stand bracket (Option)
- Power cable
- Cable reinforcement bracket
- AC/DC Power Adapter
