MXN MXN10Q-TVI User guide

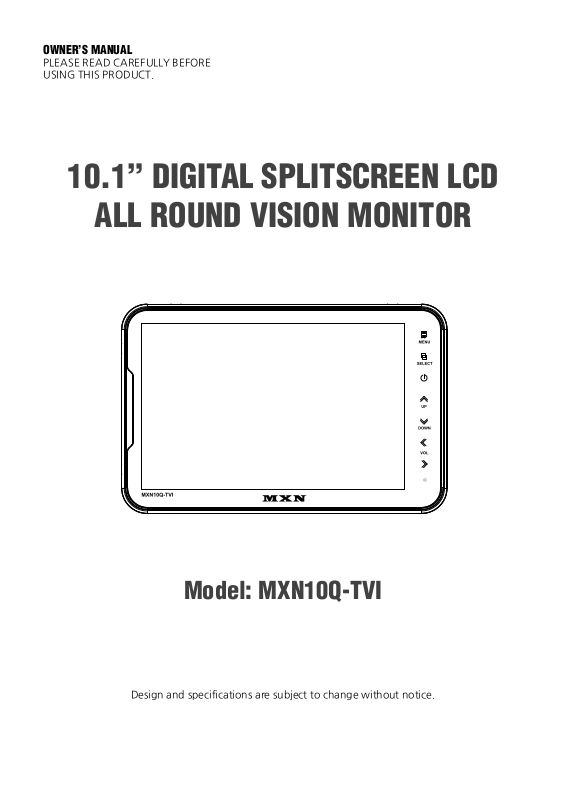

OWNER’S MANUAL

PLEASE READ CAREFULLY BEFORE
USING THIS PRODUCT.

10.1” DIGITAL SPLITSCREEN LCD
ALL ROUND VISION MONITOR

Model: MXN10Q-TVI

Design and specifications are subject to change without notice.

INDEX

PACKAGE CONTENTS

OPERATION

03

04

SYSTEM SETTINGS

MENU STRUCTURE 05

FUNCTION 06

PICTURE MENU 07

NORMAL/MIRROR 07

AUDIO 08

TRIGGER AUDIO 08

CAMERA TRIGGER 09

DISTANCE MARKER 09

MARKER 09

DISTANCE MARKER ADJUSTMENT 10

AUTO PICTURE SCAN 11

CAMERA NAME 11

SPEED SWITCH 12

MENU

SPLIT 13

TRIPLE 13

QUAD 14

MANUAL SELECTION 14

MENU LOCK ON/OFF FUNCTION 15

AUTO PICTURE SCAN ON/OFF FUNCTION 15

CONNECTIONS

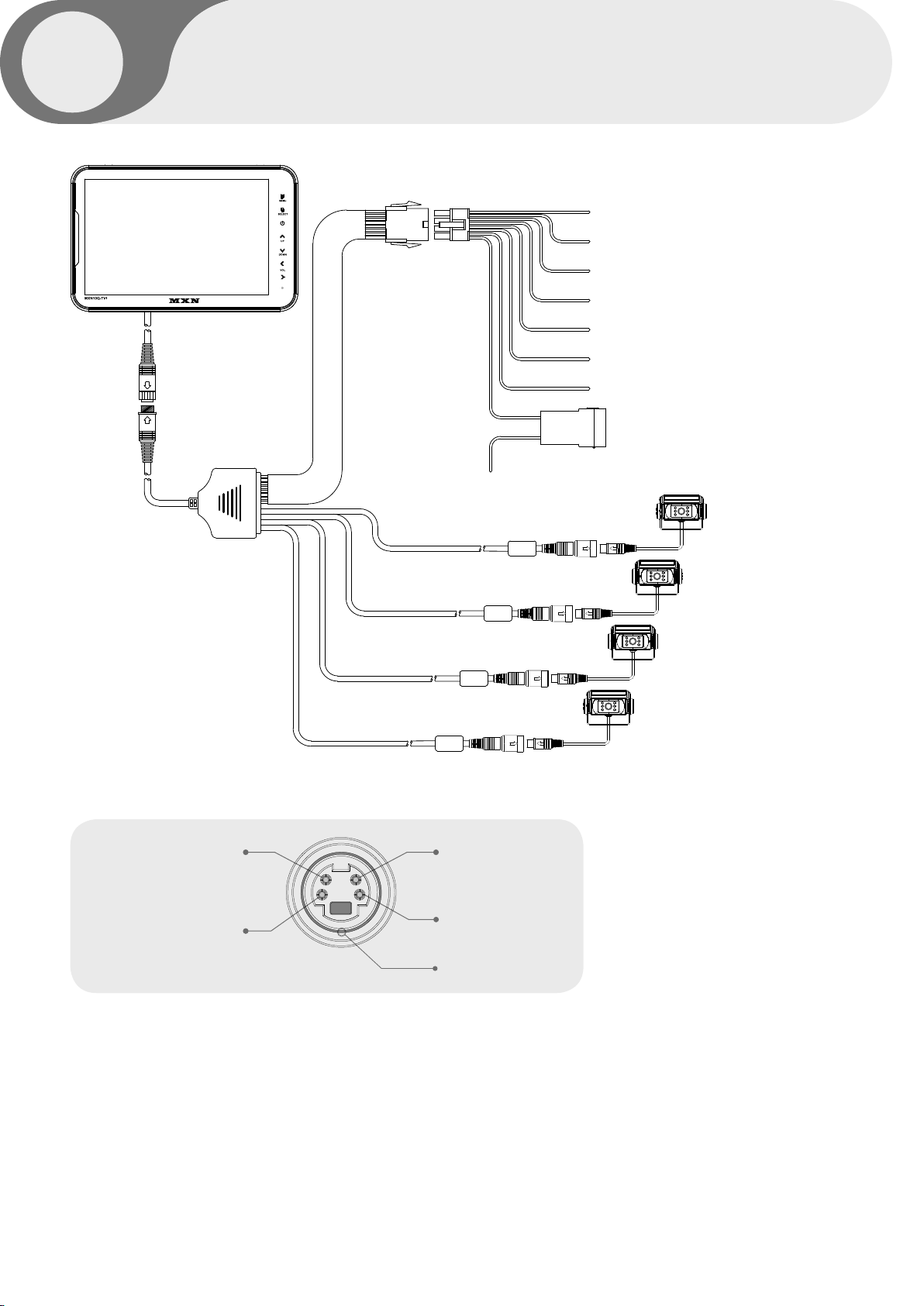

CAMERA INPUT 16

INSTALLATION

BRACKET 17

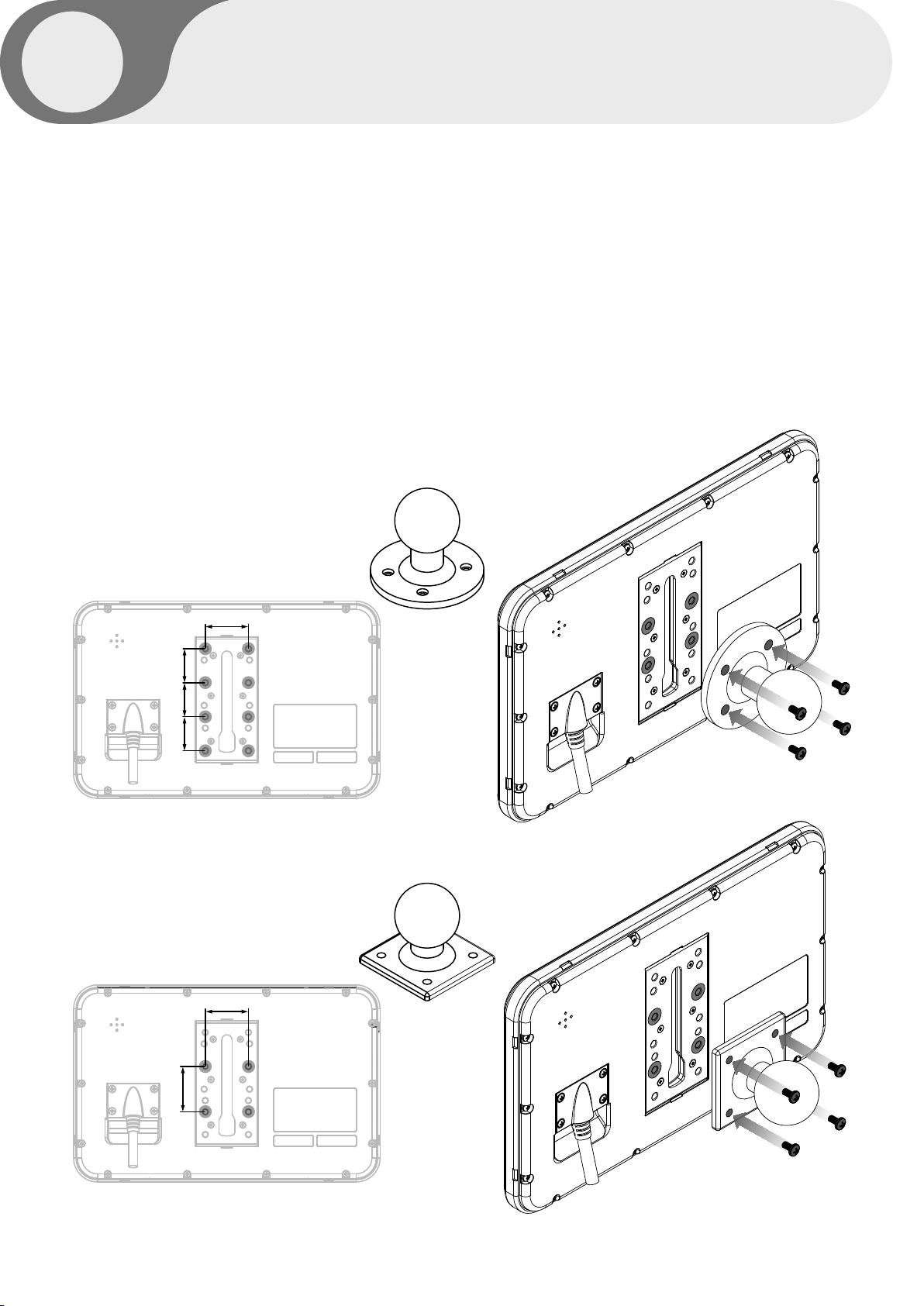

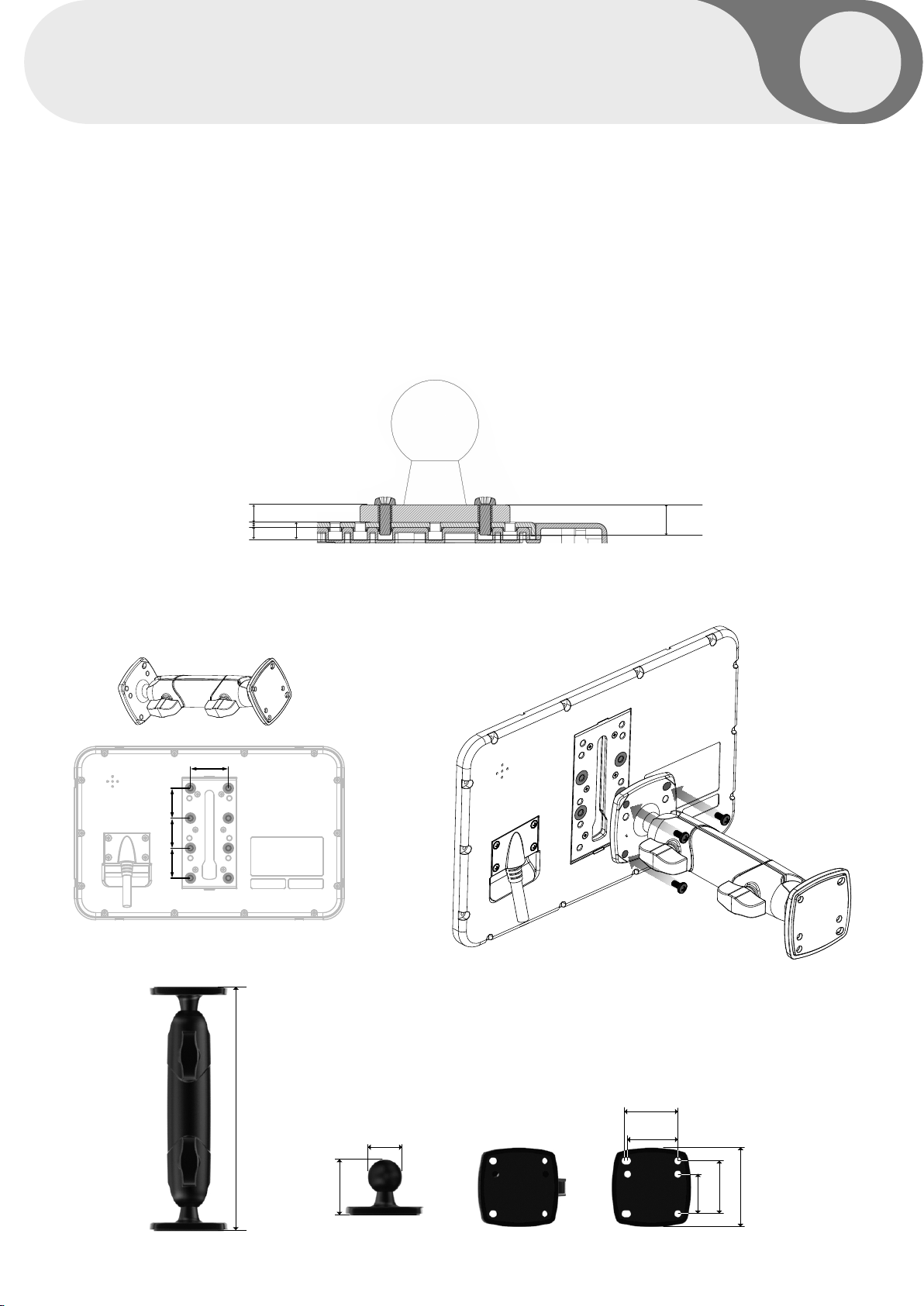

INSTALLATION OF HEAVY DUTY MOUNTING BRACKETS 18

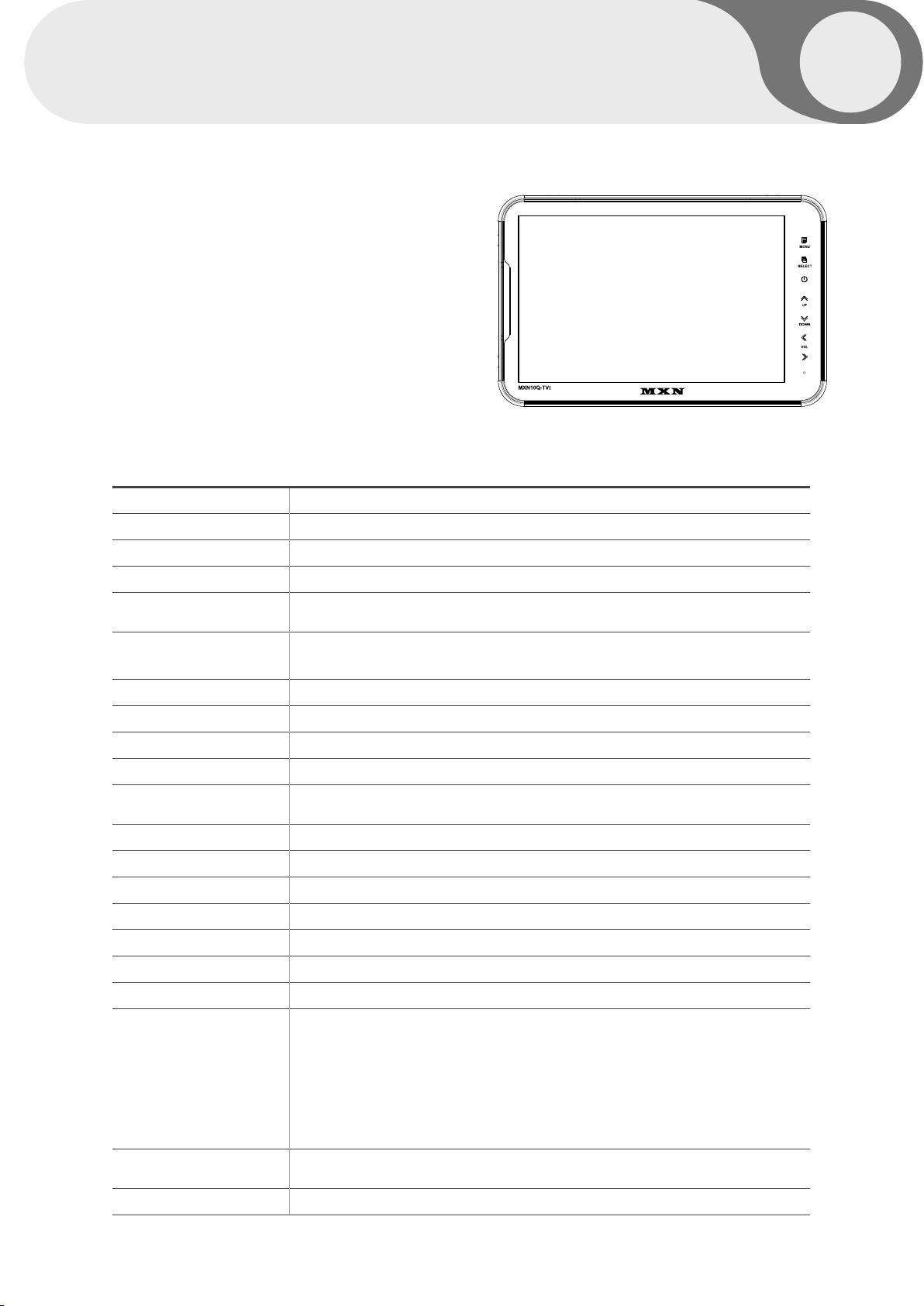

SPECIFICATIONS

19

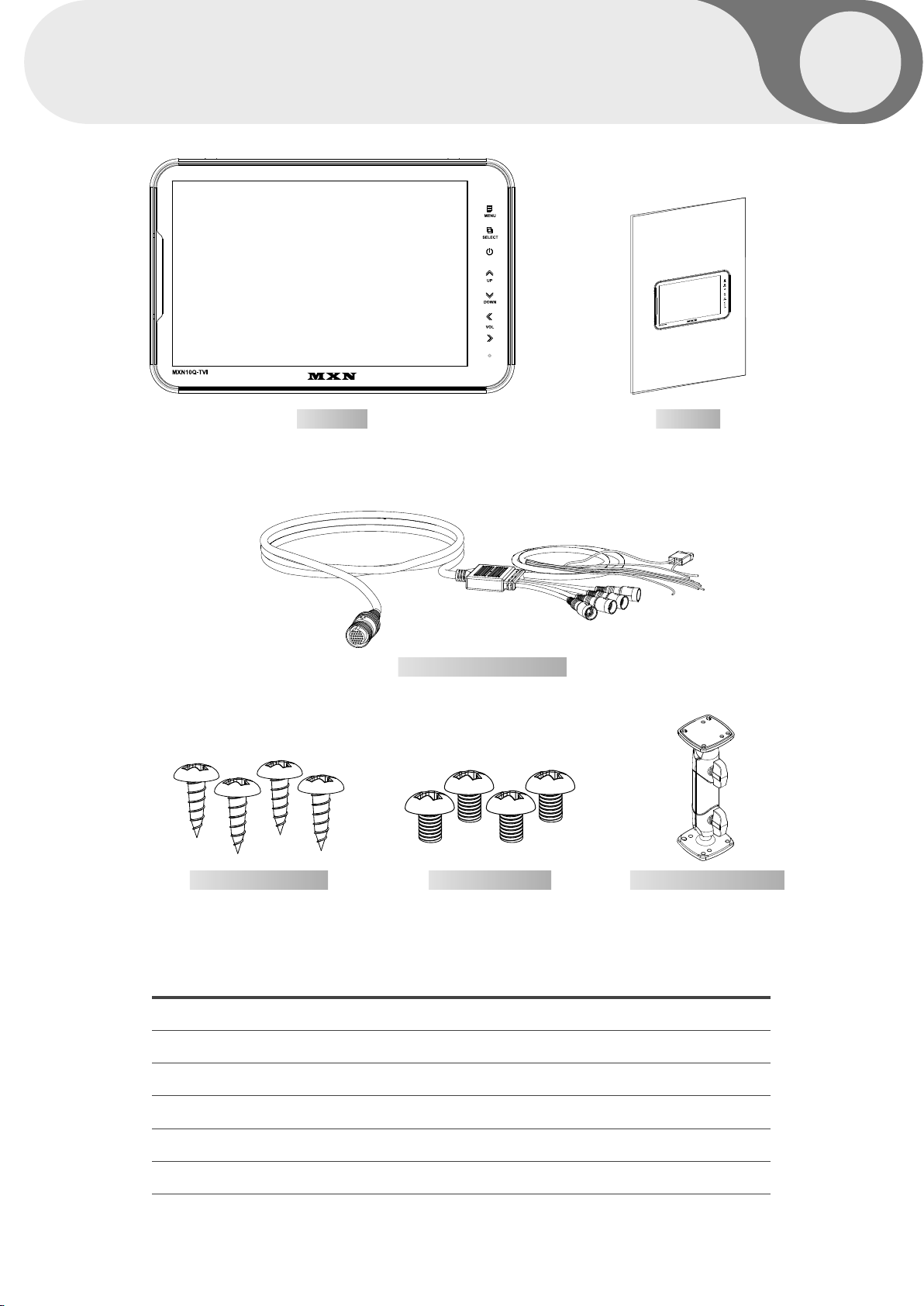

PACKAGE CONTENTS

MONITOR MANUAL

OWNER’S MANUAL

PLEASE READ CAREFULLY BEFORE
USING THIS PRODUCT.

10.1” DIGITAL SPLITSCREEN LCD
ALL ROUND VISION MONITOR

Model: MXN10Q-TVI

Design and specifications are subject to change without notice.

03

03

CAMERA INPUT CABLE

BRACKET SCREWS MOUNT SCREWS HEAVY DUTY MOUNT

ITEM Q’TY

MONITOR 1

CAMERA INPUT CABLE 1

HEAVY DUTY MOUNT 1

MOUNT SCREWS (Machine Screw, M5 / 12mm) PH M5x12 4

BRACKET SCREWS (Tapping Screw, M5 / 25mm) TH 1, M5x25 4

MANUAL 1

MXN10Q-TVI Owner's Manual

04

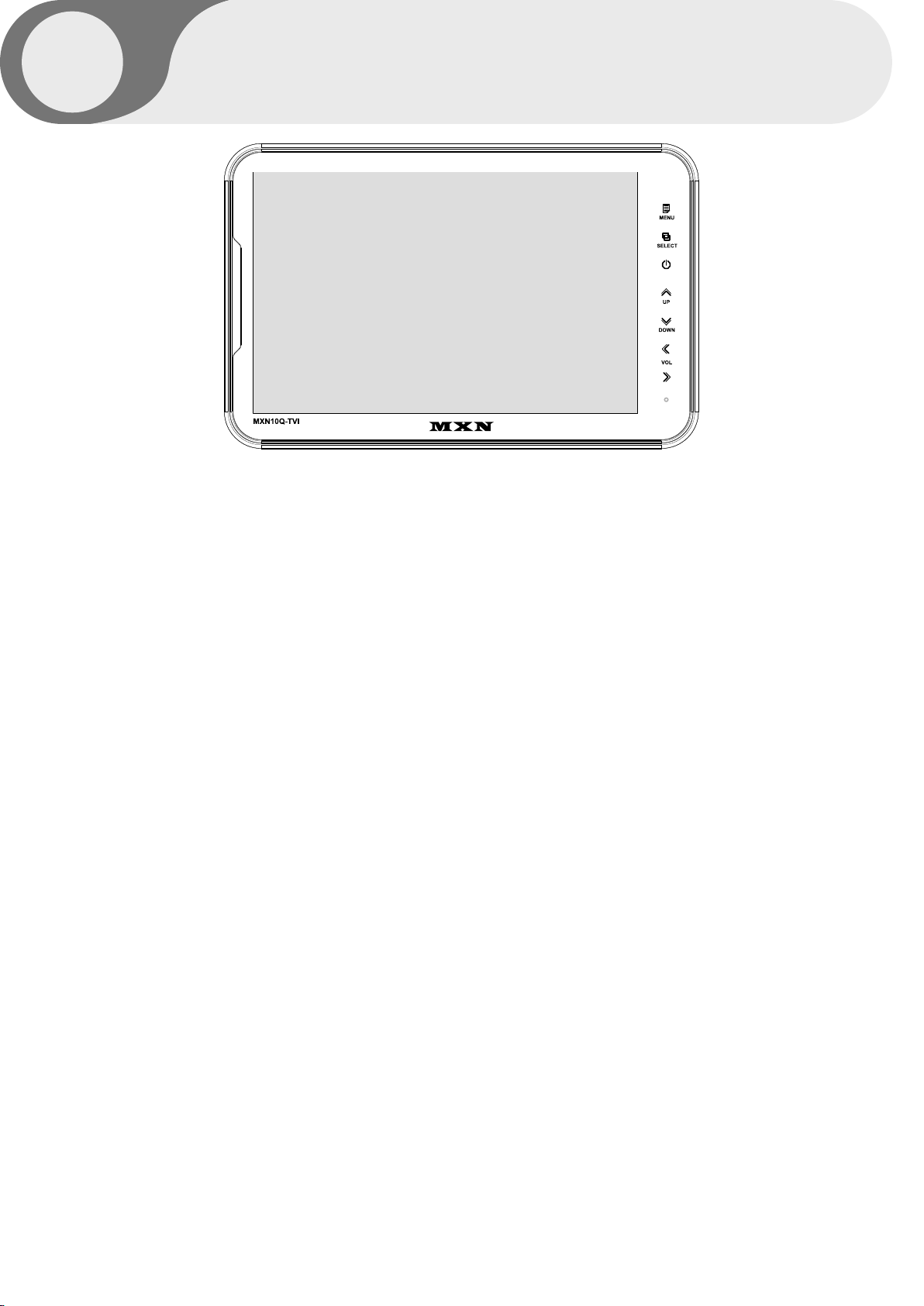

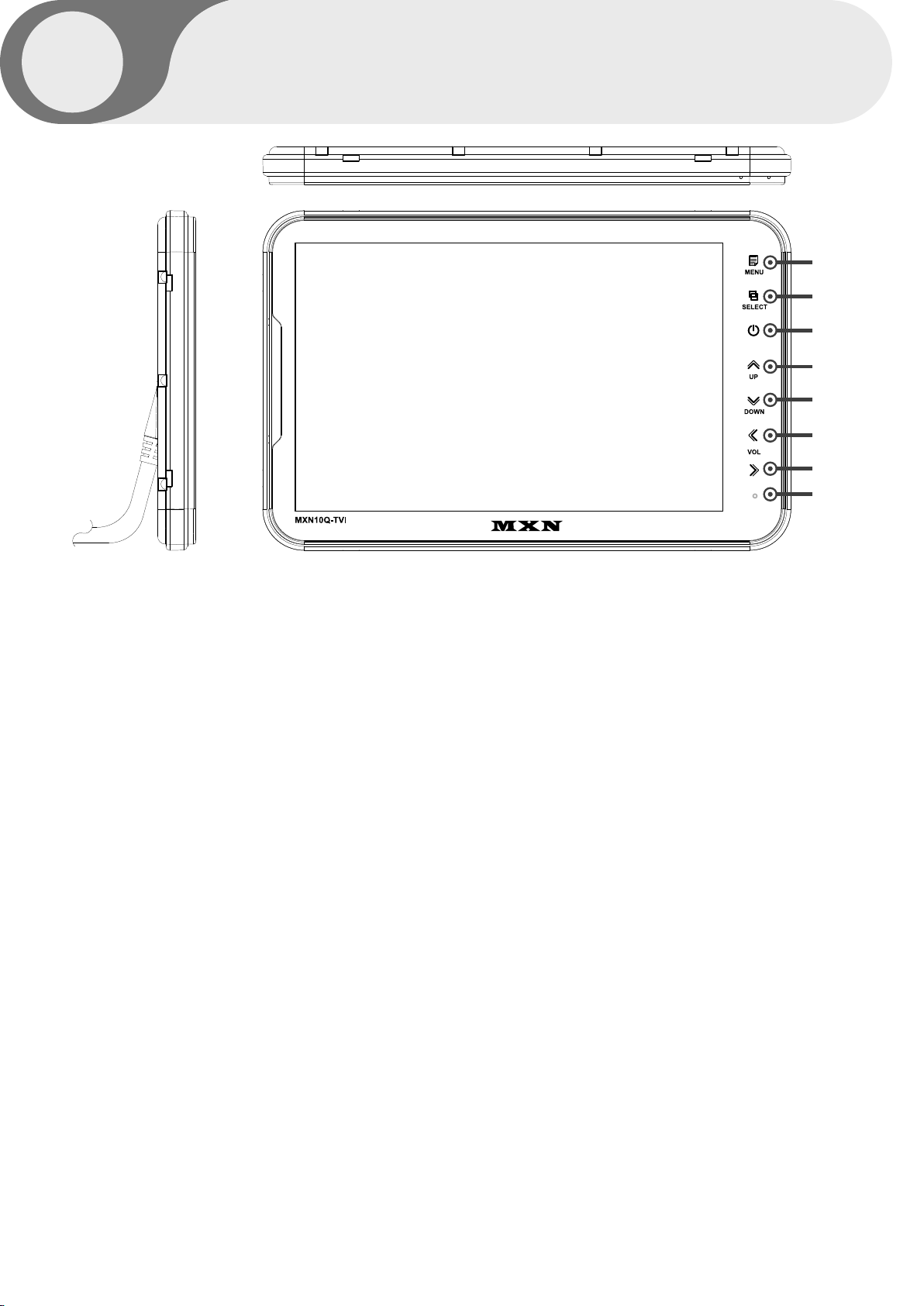

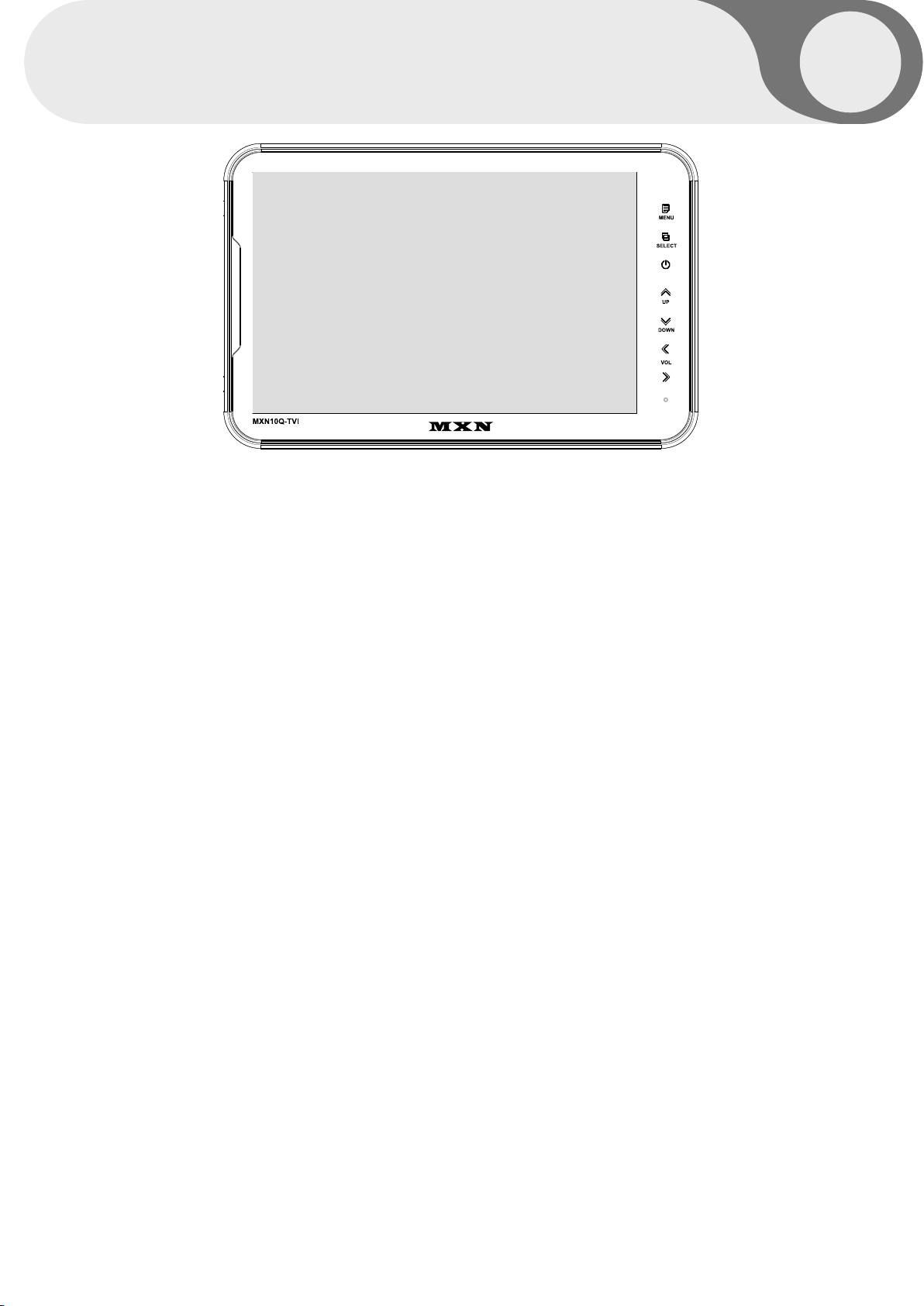

OPERATION

A

B

C

D

E

F

G
H

A. MENU

Press [MENU] button for system settings.

B. SELECT

Press [SELECT] button to select the respective channel.

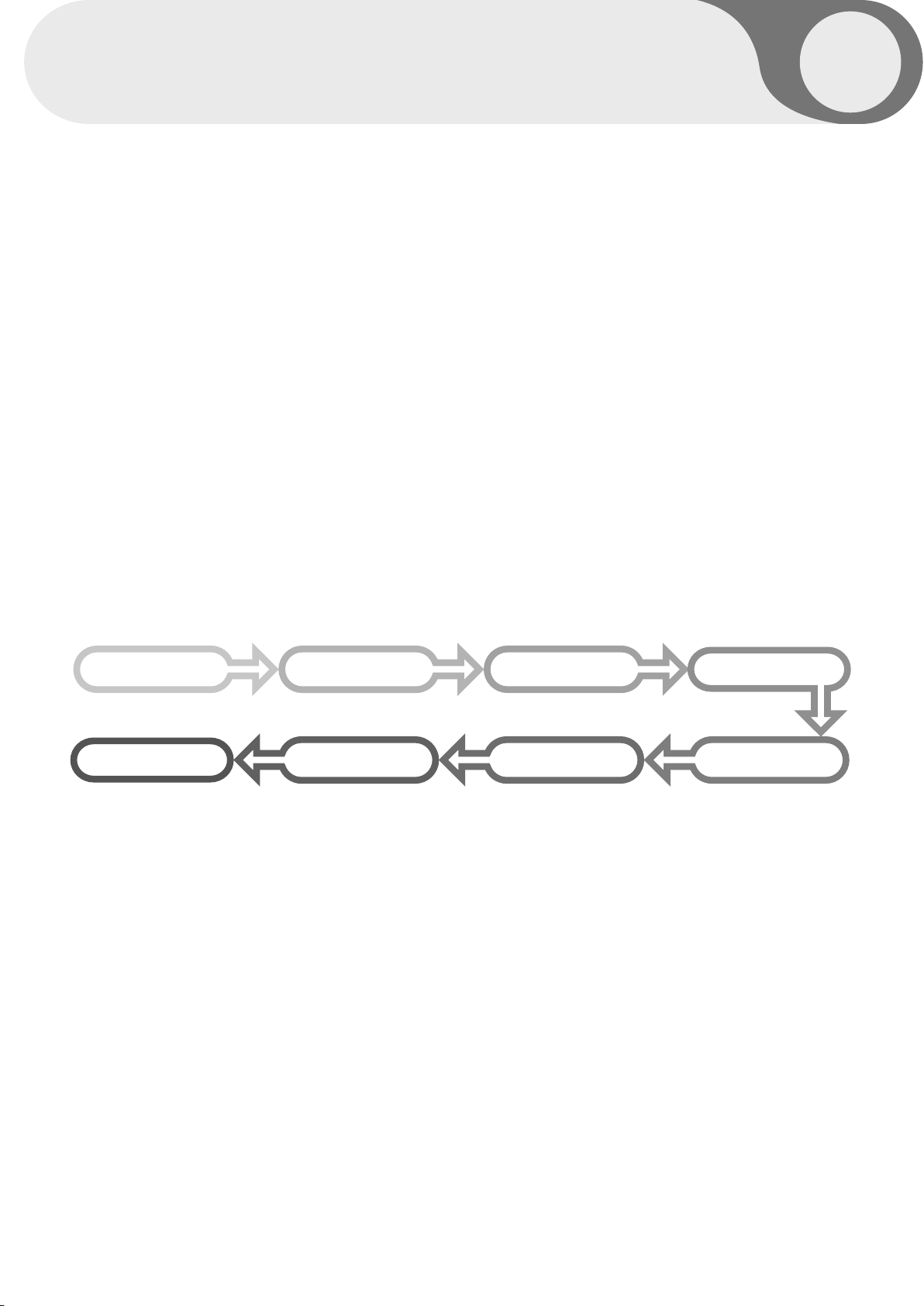

[CAM1 - CAM2 - CAM3 - CAM4 – SPLIT1 – SPLIT2 – TRIPLE – QUAD – CAM1...].

C. POWER

Press [POWER] button to turn on/off the monitor.

D. UP

Press [UP] button to navigate the menu for system settings.

E. DOWN

Press [DOWN] button to navigate the menu for system settings.

F. LEFT

Press [LEFT] button to adjust the monitor volume.

Use [LEFT] button to change OSD setting during system settings.

G. RIGHT

Press [RIGHT] button to adjust the monitor volume.

Use [RIGHT] button to change OSD setting during system settings.

H. DAY/NIGHT SENSOR (CDS)

Automatic brightness control sensor

10.1” HD QUAD LCD MONITOR

SYSTEM SETTINGS

MENU STRUCTURE

05

05

FUNCTION
NORMAL/MIRROR
AUDIO
TRIGGER AUDIO
CAMERA TRIGGER
DISTANCE MARKER
AUTO PICTURE SCAN
CAMERA NAME
SPEED SWITCH
SPLIT
TRIPLE
QUAD
MANUAL SELECTION

Change the setting value by pressing the MENU button.

FUNCTION

Set functions on the monitor.


Set the color and brightness on the monitor.

NORMAL/MIRROR

Input video can be reversed

AUDIO

Set the audio ON/OFF.

TRIGGER AUDIO

Set the audio ON/OFF when entering the TRIGGER signal.

CAMERA TRIGGER

You can adjust the Screen settings with the corresponding TRIGGER signal is on.

DISTANCE MARKER

DISTANCE MARKER can be set according to the TRIGGER signal input.

AUTO PICTURE SCAN

Set the automatic sequence switching time.

CAMERA NAME

Set the camera name.

SPEED SWITCH

By receiving TACHO signal, you can set the operation at the corresponding frequency.

SPLIT

Display the camera video at the set position on the SPLIT screen.

TRIPLE

Display the camera video at the set position on the TRIPLE screen.

QUAD

Display the camera image on the QUAD screen at the set position.

MANUAL SELECTION

When the SELECTION button is pressed, the output screen is set.

MXN10Q-TVI Owner's Manual

06

SYSTEM SETTINGS

LANGUAGE
SYSTEM
DIMMER
DAY BRIGHT
NIGHT BRIGHT
AUTO POWER
BUZZER
RESET

SYSTEM INFO

ENGLISH
AUTO
AUTO
90
50
OFF
ON
>>

VER 1.00

FUNCTION

LANGUAGE

Provide 6 Multi-lingual OSD [ENGLISH, SWEDISH, DANISH, NORWEGIAN, DUTCH, FINNISH].
Select the preferred LANGUAGE.

SYSTEM

Select AUTO/TVI/AHD/NTSC/PAL

DIMMER (Automatic Brightness Control)

Select AUTO or OFF to enable Automatic or Manual brightness control.
REMARK: By activating the DIMMER AUTO function,
the monitor adjusts the brightness according to the environment.

DAY BRIGHT

Select the DIMMER as 『AUTO』, set the value of backlight on DAY mode(0~100).

NIGHT BRIGHT

Select the DIMMER as『AUTO』, set the value of backlight on NIGHT mode(0~100).

AUTO POWER

Select monitor activation functions as below.
[AUTO] The monitor remembers the last settings from its memory.

[ON] The monitor is turned on with the『Power-ON』mode automatically.
[OFF] The monitor is turned on with the『tSand-By』mode automatically.

BUZZER

Select BUZZER sound 『ON』 and 『OFF』.

RESET

Press “>>” button to enter the factory default settings.

SYSTEM INFO

Refers to the system information of the monitor.

10.1” HD QUAD LCD MONITOR

SYSTEM SETTINGS

07

07

CONTRAST
BRIGHTNESS
COLOR
TINT
FISHEYE

50
50
50
50
OFF

PICTURE MENU

Press [LEFT/RIGHT] button to adjust the PICTURE of the monitor.
PICTURE MENU is for the settings of PICTURE from CAM1, CAM2, CAM3, CAM4,
SPLIT1, SPLIT2, TRIPLE, QUAD MODE.

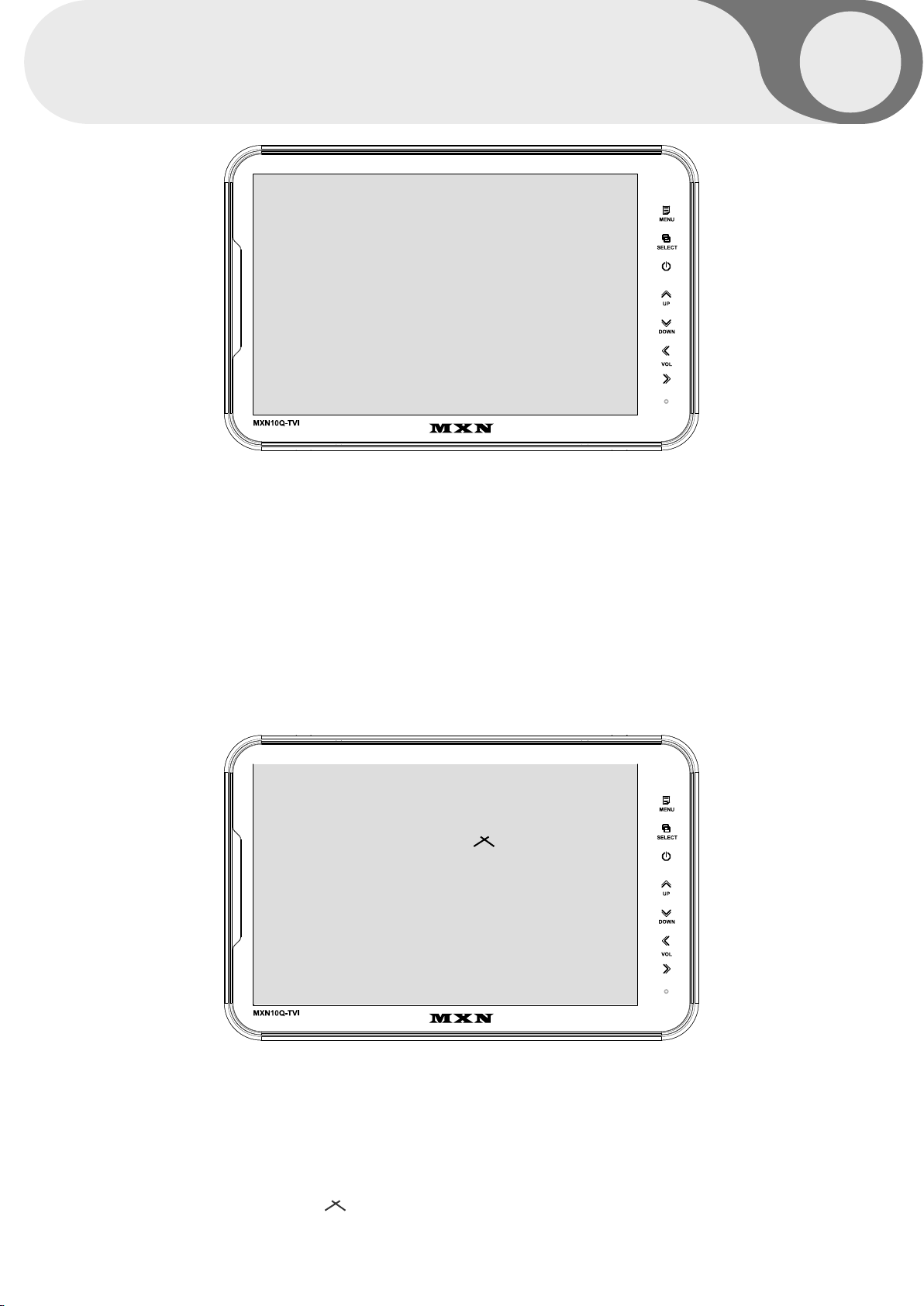

FISHEYE

When using the FISHEYE camera, 『ON』 will calibrate the screen on the FULL screen.

CAM1
CAM2
CAM3
CAM4

NORMAL
NORMAL
NORMAL
NORMAL

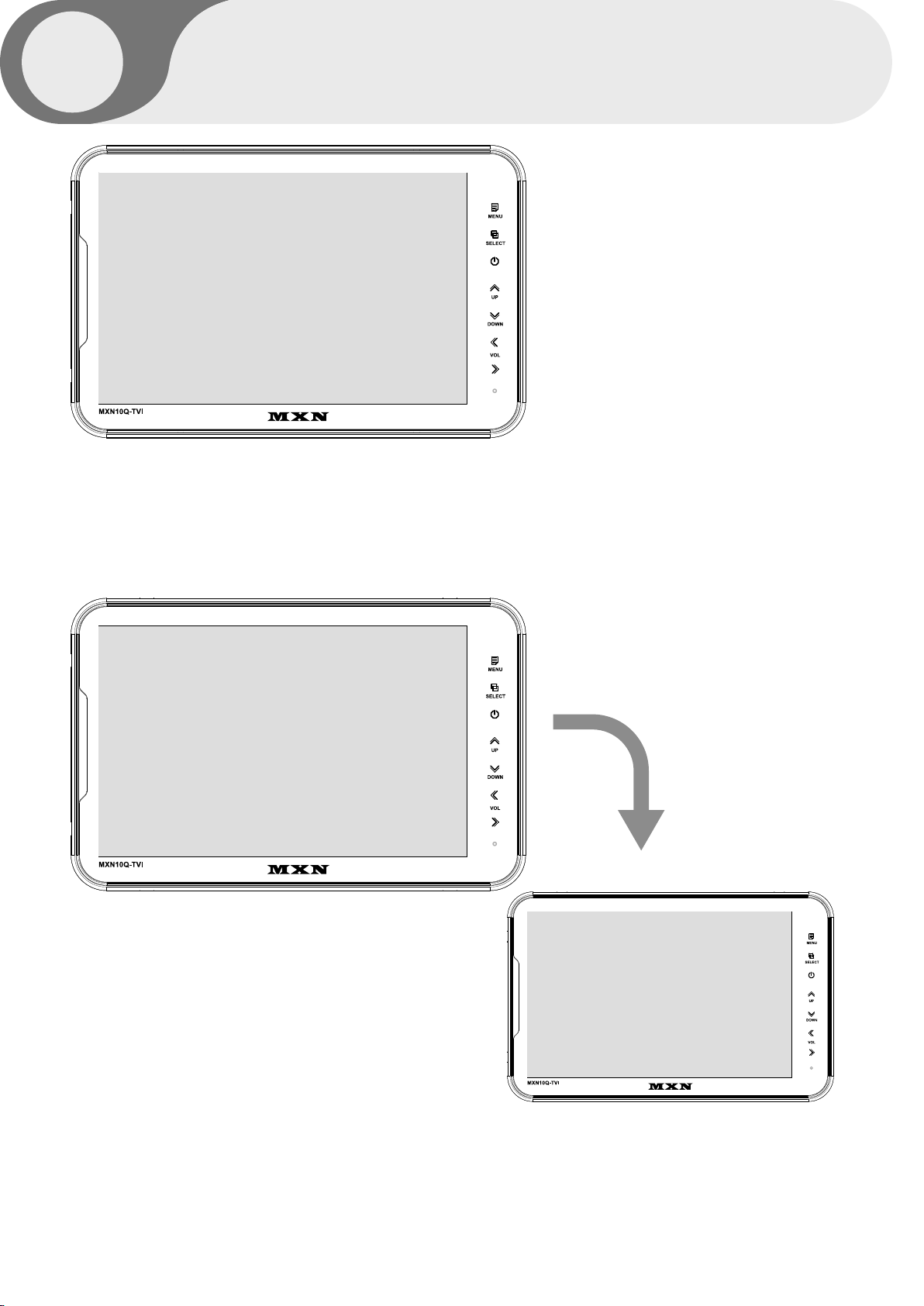

NORMAL/MIRROR

Each camera picture (CAM1/CAM2/CAM3/CAM4) can be switched between
NORMAL& MIRROR image.

MXN10Q-TVI Owner's Manual

08

SYSTEM SETTINGS

CAM1
CAM2
CAM3
CAM4
SPLIT
TRIPLE
QUAD

AUDIO
AUDIO
AUDIO
AUDIO

ON
ON
ON
ON
ON
ON
ON

AUDIO

Audio ACTIVATED Mode in normal mode.
When the mode is [ON], audio will be on (activated)
When the mode is [OFF], audio will be off (mute).

TRIG1
TRIG2
TRIG3
TRIG4
SP SW

AUDIO
AUDIO
AUDIO
AUDIO
AUDIO

ENTER
ENTER
ENTER
ENTER
ENTER

TRIGGER AUDIO

Audio ACTIVATED Mode in Trigger mode.
Choose the trigger and then press [ENTER].
The Audio settings menu will be shown as below.

TRIG1 AUDIO
VOLUME

ON
10

10.1” HD QUAD LCD MONITOR

When the mode is [ON], audio will be on (activated).
When the mode is [OFF], audio will be off (mute).
The user can adjust the volume.

SYSTEM SETTINGS

09

09

TRIGGER1
TRIGGER2
TRIGGER3
TRIGGER4
TRIG1. DELAY
TRIG2. DELAY
TRIG3. DELAY
TRIG4. DELAY

CAM1
CAM2
CAM3
CAM4
2
2
2
2

CAMERA TRIGGER

TRIGGER 1/2/3/4 (Trigger source selection)

Select the required trigger source at CAM1/CAM2/CAM3/CAM4/SPLIT1/SPLIT2/TRIPLE/QUAD

REMARK

TRIGGER PRIORITY: TRIGGER 1 > TRIGGER 2 > TRIGGER 3 > TRIGGER 4

TRIG. DELAY

When a TRIGGER wire is connected to a pulse DC power signal (e.g.direction indicator lights) then the
[TRIGGER DELAY] function avoids repeating ON/OFF of the monitor.

TRIGGER1
TRIGGER2
TRIGGER3
TRIGGER4
MARKER

ON
OFF
OFF
OFF

DISTANCE MARKER

Select ON to have DISTANCE MARKER for CAM1, CAM2, CAM3, CAM4.
DISTANCE MARKER is displayed as the trigger signal is activated.

MARKER

Select of DISTANCE MARKER. or ___

MXN10Q-TVI Owner's Manual

10

SYSTEM SETTINGS

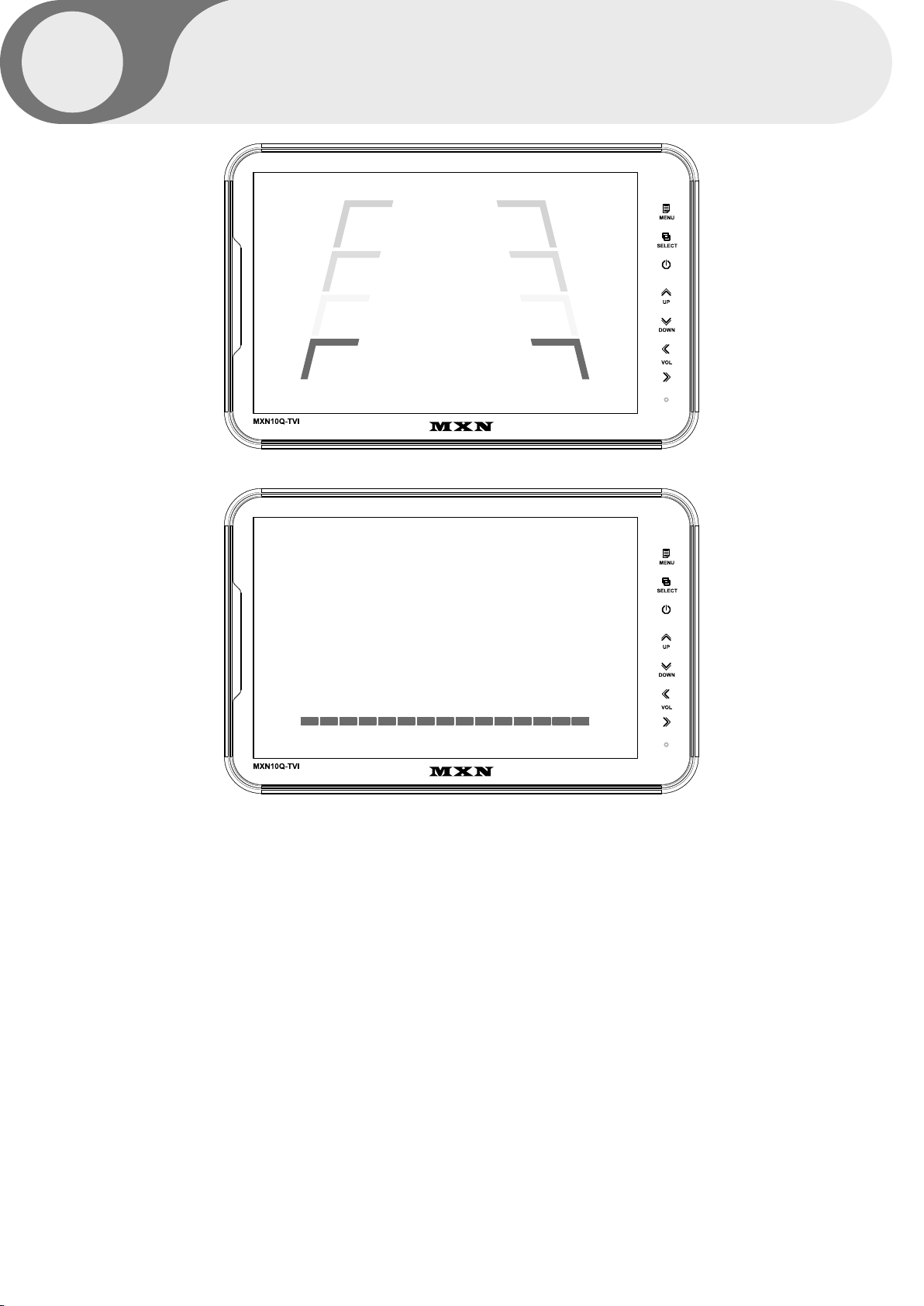

Marker A

>>

Marker B

>>

DISTANCE MARKER ADJUSTMENT

Users can make adjustments by pressing the SELECT button in the menu.

(It is not available on the split mode screen)

Marker A- Parking line

The left/right/both markers will be selected in order each time you press the SELECT button.
When the marker is red it can be adjusted UP/DOWN or LEFT/RIGHT.

When both distance markers are RED, you can adjust both markers LEFT/RIGHT/UP/DOWN.
When the left distance marker is RED, the left marker can be adjusted LEFT/RIGHT.
When the right distance marker is RED, the right marker can be adjusted LEFT/RIGHT.

Marker B- Horizontal line

Users can adjust the line UP/DOWN.

Users can adjust the horizontal line by pressing [UP/DOWN] buttons.

10.1” HD QUAD LCD MONITOR

SYSTEM SETTINGS

11

11

AUTO SCAN
CAM1 SCAN TIME
CAM2 SCAN TIME
CAM3 SCAN TIME
CAM4 SCAN TIME
SPLIT1 SCAN TIME
SPLIT2 SCAN TIME
TRIPLE SCAN TIME
QUAD SCAN TIME

OFF
5
5
5
5
5
5
5
5

AUTO PICTURE SCAN

Each scanning time of CAM1/CAM2/CAM3/CAM4/SPLIT1/SPLIT2/TRIPLE/QUAD
can be managed.

REMARK

If the SCAN TIME is set as[0], monitor skips its channel during scanning.

Press [UP] button for 4 seconds to ACTIVATE / INACTIVATE auto scanning function.

CAM NAME DISPLAY
CAM1 NAME
CAM2 NAME
CAM3 NAME
CAM4 NAME

ON
CAM1
CAM2
CAM3
CAM4

CAMERA NAME

CAMERA NAME can be selected as CAM1, 2, 3, 4/REAR/LEFT/RIGHT/FRONT.

MXN10Q-TVI Owner's Manual

12

SYSTEM SETTINGS

SPEED SWITCH
FREQUENCY
UNDER FREQUENCY CAM
OVER FREQUENCY DISPLAY
OVER FREQUENCY CAM

OFF
67Hz
CAM3
OFF
CAM1

SPEED SWITCH

The orange wire needs to be connected with the vehicle’s tacho signal and via MENU the

SPEED SWITCH needs to be selected ON. At FREQUENCY 67Hz setting (and the most common
used tacho signal) the selected camera will be displayed during a speed of 0~33km/h.
Select the concerning camera via『UNDER FREQUENCY CAM』 (At a different type of tacho

signals the FREQUENCY needs to be adjusted higher or lower than the example)

Over 33km/h (72Hz) the selected camera will be switched OFF automatically. When the speed
slows down, then the selected camera will be switched ON automatically again at 30km/h.
Instead of automatic switch OFF at a speed over 33km/h it is also possible to activate another

video source, such as a navigation picture from an optional navigation computer.

In this case user needs to select 『OVER FREQUENCY DISPLAY: ON』 and user needs to select
『OVER FREQUENCY CAM』

In case of TRIGGER activation during 『SPEED SWITCH ON』 mode,
then TRIGGERS 1 ~ 4 will overrule the 『SPEED SWITCH』 function.

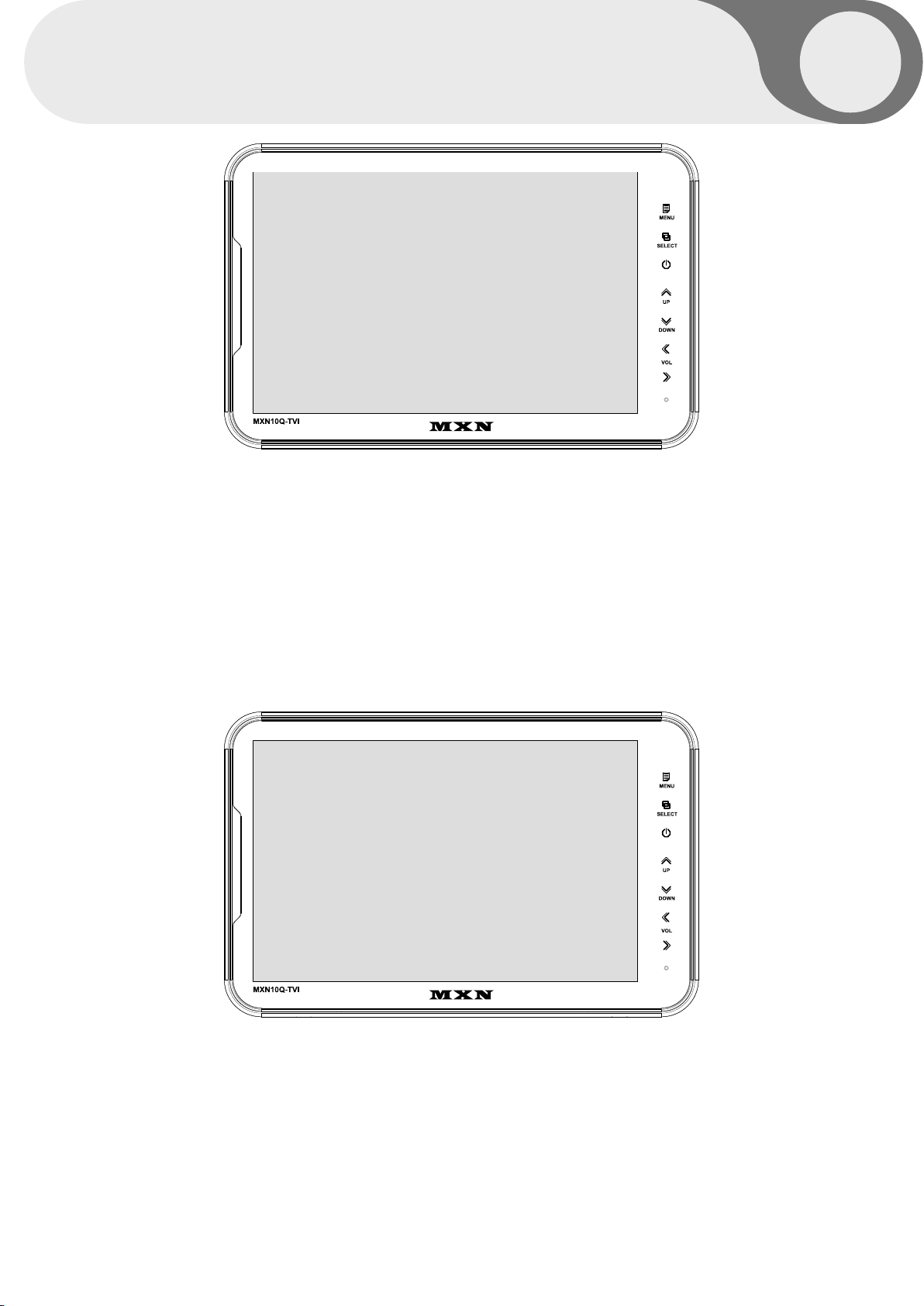

10.1” HD QUAD LCD MONITOR

MENU

13

13

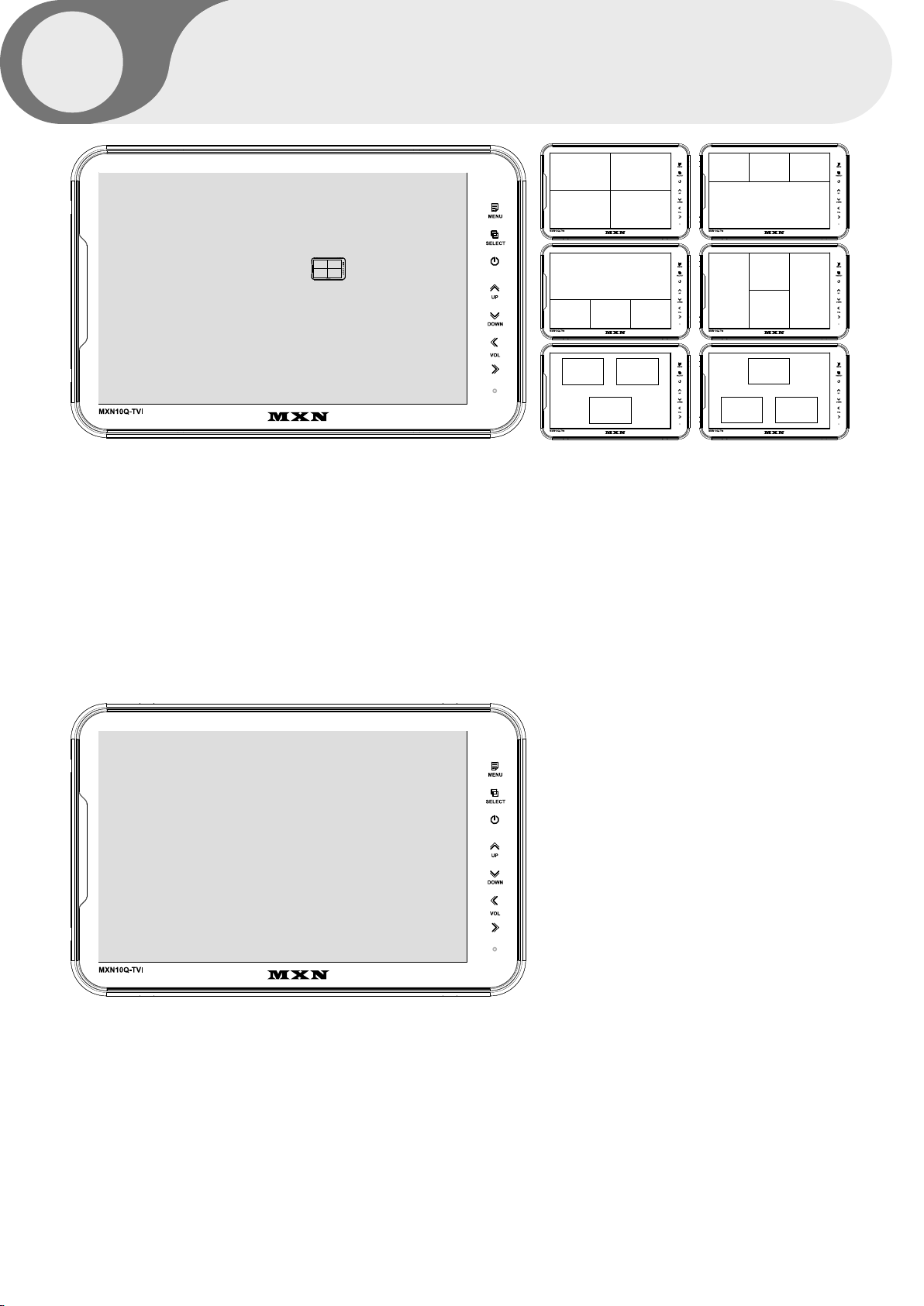

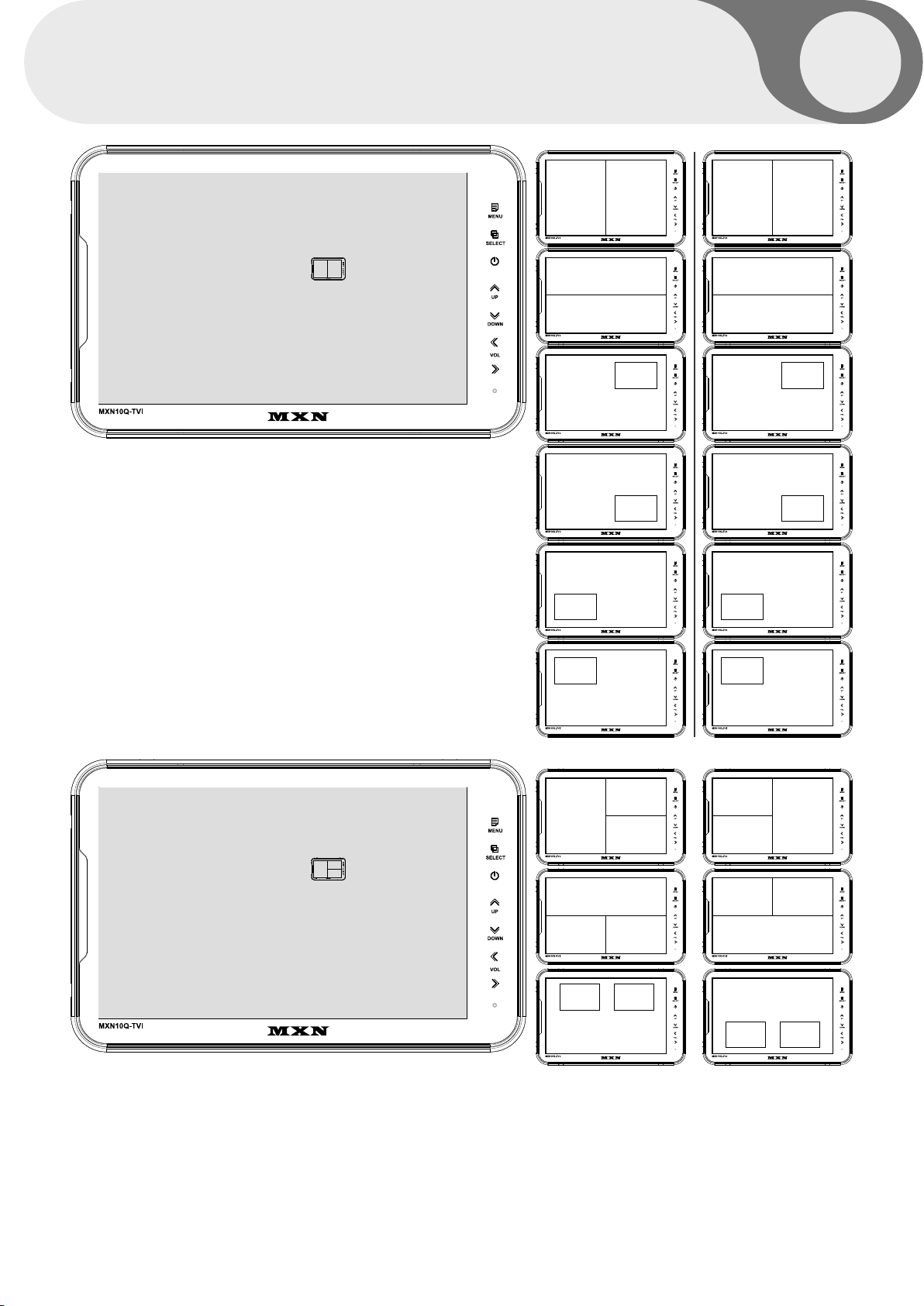

SPLIT 1 SPLIT 2

SPLIT 1
SPLIT 1
SPLIT 2
SPLIT 2
AUDIO
MODE

SOURCE 1
SOURCE 2
SOURCE 1
SOURCE 2

SPLIT configuration

SPLIT 1 SOURCE 1
SPLIT 1 SOURCE 2
SPLIT 2

SOURCE 1
SPLIT 2 SOURCE 2
AUDIO

Select S1 Camera (CAM1~CAM4).

Select S2 Camera (CAM1~CAM4).

Select S1 Camera (CAM1~CAM4).

Select S2 Camera (CAM1~CAM4).

Select SPLIT of Audio (CAM1~CAM4).

CAM1
CAM2
CAM3
CAM4
CAM1

S1

S1

S1

S2

S2 S2

S1

S2

S2

S2

S1

S1

S1

S1

S2

S1

S2

S2

S2

S1

MODE

SOURCE 1
SOURCE 2
SOURCE 3
AUDIO
MODE

Select SPLIT MODE

CAM1
CAM2
CAM3
CAM1

TRIPLE configuration

S2

S1

S2

S2

S1

S1

S1

S2

S3

S3

S3

S2

S2

S3

S2

S2

S1

S1

S3

S1

S1

S3

SOURCE 1
SOURCE 2
SOURCE 3
AUDIO
MODE

Select S1 Camera (CAM1~CAM4).

Select S2 Camera (CAM1~CAM4).

Select S3 Camera (CAM1~CAM4).

Select TRIPLE of Audio (CAM1~CAM4).

Select TRIPLE MODE

MXN10Q-TVI Owner's Manual

14

MENU

SOURCE 1
SOURCE 2
SOURCE 3
SOURCE 4
AUDIO
MODE

QUAD configuration

SOURCE 1
SOURCE 2
SOURCE 3
SOURCE 4

Select S1 Camera (CAM1~CAM4).

Select S2 Camera (CAM1~CAM4).

Select S3 Camera (CAM1~CAM4).

Select S4 Camera (CAM1~CAM4).

CAM1
CAM2
CAM3
CAM4
CAM1

S1 S2

S2

S1

S3

S2

S1

S4

S3

S2 S3 S4

S3

S1

S2

S1

S2

S4

S1

S4

S3

S4S3

S4

AUDIO
MODE

CAM1
CAM2
CAM3
CAM4
SPLIT1
SPLIT2
TRIPLE
QUAD

Select QUAD of Audio (CAM1~CAM4).

Select QUAD MODE

ON
ON
ON
ON
ON
ON
ON
ON

MANUAL SELECTION

When you manually press the channel select button, only the camera selected ON and
the display mode selected ON are displayed.

Manually pressing the channel select button skips the camera selected OFF and

display mode selected OFF.

[ NOTE ]
Triggers neglect the MANUAL SELECTION settings. In case of Trigger activation,
these ON/ OFF settings will be ignored.

10.1” HD QUAD LCD MONITOR

MENU

MENU LOCK ON/OFF FUNCTION

LOCK ON/OFF FUNCTION

The setup menu can be locked to ban any unauthorized users.

LOCK ON mode

At the Power-ON mode, press the [DOWN] button for 10 seconds to activate the LOCK ON function.
When [LOCKED] is displayed on the screen, the user can use only [POWER, SELECT, VOLUME]
buttons and the user can edit settings for the PICTURE menu.

LOCK OFF mode

At the Power-ON mode, press [DOWN] button for 10 seconds to activate the LOCK OFF function.
When [UNLOCKED] is displayed on the screen, the user can use all the functions of the setup menu.

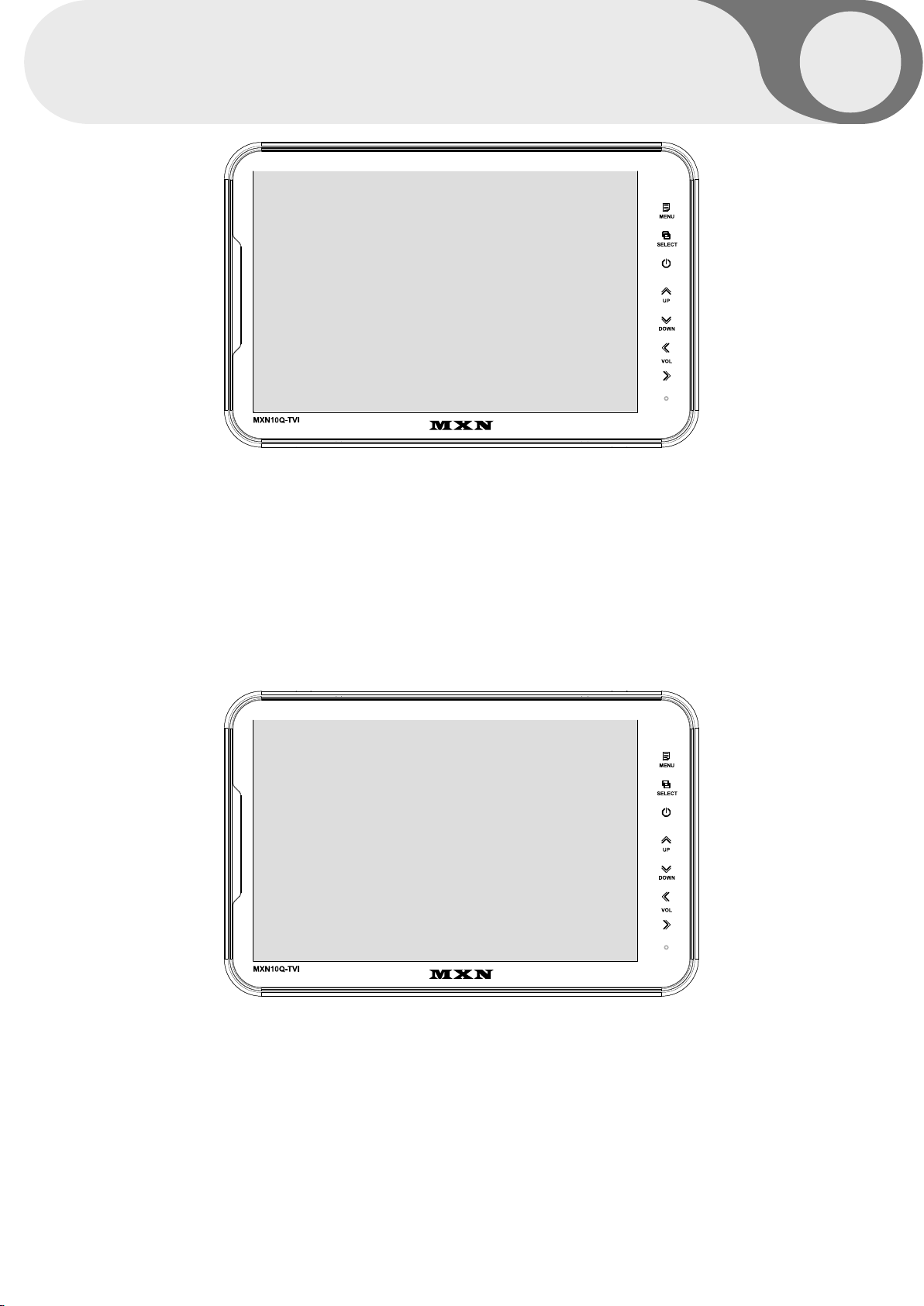

SCAN ON/OFF FUNCTION

15

15

At the Power-ON mode,
press the [UP] button for 4 seconds to activate the Auto Scan Picture function.
During the Auto Scan Mode,
press the [UP] button for 4 seconds to deactivate Auto Scan Picture function.

SCAN CAM1 SCAN CAM2

SCAN CAM3

SCAN CAM4

SCAN SPLIT1SCAN SPLIT2SCAN TRIPLESCAN QUAD

MXN10Q-TVI Owner's Manual

16

CONNECTIONS

MENU

SELECT

UP

DOWN

VOL

Main power 12V/24V DC via ignition (+15) - Red

TRIGGER 1 - Green

TRIGGER 2 - White

TRIGGER 3 - Blue

TRIGGER 4 - Yellow

Speed Switch (TACHO SIGNAL) - Orange

Shutter Memory 12/24V DC (+30) - Brown

Ground - Black

Camera 4 (Option)

CAMERA INPUT

AUDIO INPUT

+12V DC OUTPUT, POWER

CA4

Camera 3 (Option)

CA3

Camera 2 (Option)

CA2

Camera 1 (Option)

CA1

+9V DC OUTPUT,
HEATER & SHUTTER

VIDEO INPUT

GROUND

SHUTTER MEMORY FUNCTION

The function of "Shutter Memory" wire (brown wire) is to close the shutter of shutter camera
when Main +DC Power (+15) at the monitor's red wire is disconnected while the camera's
shutter is OPEN.

The "Shutter Memory" wire does not drain any current from the vehicle's battery within several

seconds after the camera's motorized shutter(s) are closed.

10.1” HD QUAD LCD MONITOR

12mm

7mm

5mm

2mm

60mm

INSTALLATION

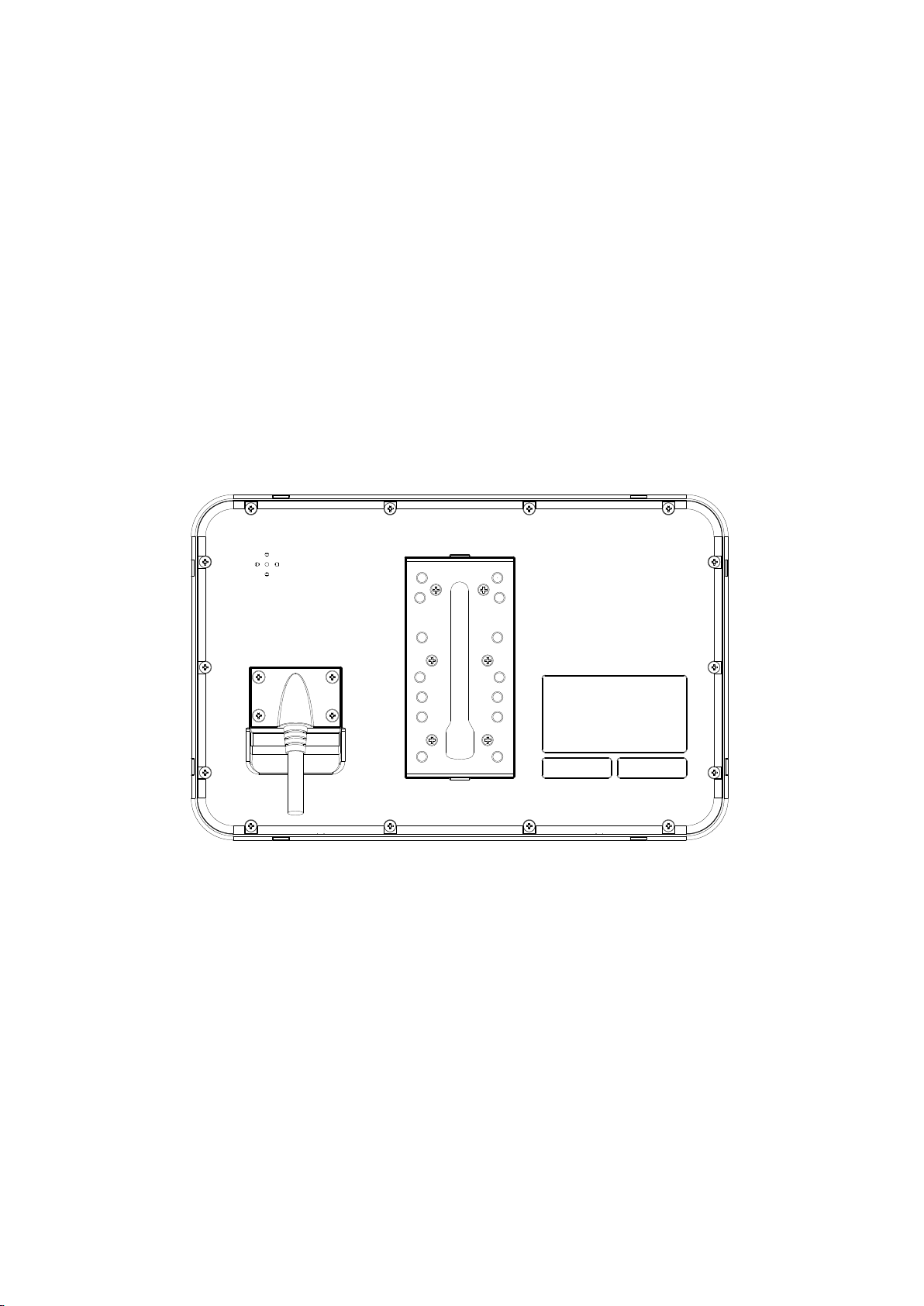

MONITOR installation with Standard Heavy Duty Mount Bracket

Fix the supplied Heavy Duty Mount Bracket into the monitor with the included screws.
Heavy Duty Mount Bracket’s angle fixation can be adjusted by tightening knobs.

[NOTE]

• The screw type : Mount-screw type, M5 (diameter of 5mm).

• The length of screw : Max. 12mm.

• Screw thread : 0.8mm.

Please make it sure to use the proper screws in order to avoid any damage into the monitor.

Screw length : 12mm
(HD Monitor bracket and screws as included)

Heavy Duty Mount Bracket

17

17

[NOTE]

Maximum 7mm insert of screw into the monitor in case another type bracket and/or

screws are being applied. A deeper insert than 7mm will damage the monitor.

Heavy Duty Mount Bracket

38mm

30mm

30 30

7mm

184mm

42mm

26mm

40mm

38mm

40mm

30mm

MXN10Q-TVI Owner's Manual

18

INSTALLATION

Installation of Heavy Duty Mount Bracket

The MONITOR

Please check the availability in advance, then please follow the instructions as below.

[NOTE]

• The screw type : Mount-screw type, M5 (diameter of 5mm).

• The length of screw : Max. 12mm.

• Screw thread : 0.8mm.

Please make it sure to use the proper screws in order to avoid any damage into the monitor.

can be used with different types of

Type A(option)

38mm

HEAVY DUTY MOUNTING BRACKETS.

30mm

30 30

38mm

40mm

Type B(option)

10.1” HD QUAD LCD MONITOR

SPECIFICATIONS

ITEM SPECIFICATIONS

LCD SCREEN SIZE 10.1 Inch Wide IPS Digital TFT LCD Panel

19

19

DIMENSIONS 270(W) x 174(H) x 20(D) mm

DISPLAY DIMENSIONS 216.96 X 135.6 mm

POWER INPUT DC 10V ~ 32V
POWER

CONSUMPTION

VIDEO SYSTEM

SYNC. SYSTEM Internal

BRIGHTNESS 350cd/m2

DISPLAY RESOLUTION WXGA, 1280 X (RGB) X 800

VIEWING ANGLES 178° horizontal / 178° vertical
COLOR

CONFIGURATION
DIMMER Automatic / Manual

SPEAKER IMPEDANCE Max. 8Ω / 1W

OPERATING TEMP. -20°C to + 70°C

STORAGE TEMP. -30°C to + 80°C

IMPACT RATING 5G

CAMERA CONNECTOR 4-Pin mini DIN (MXN configuration)

Max. 24W

HD-TVI (25fps, 30fps, 50fps, 60fps), AHD (25fps, 30fps)
CVBS-PAL, CVBS-NTSC

RGB Stripe

HOUSING Light Black (ABS)

■ Volume

■ Color

ON-SCREEN
DISPLAY CONTROL
FUNCTIONS

SUPPLIED
ACCESSORIES

WEIGHT ± 850g (excluding bracket)

■ CAM 1/2/3/4, Split, Triple,Quad

■ Speed Switch

■ Distance Marker

■ Dimmer

■ Reset

Bracket -1 pce / Screw Kit -1set / Manual / Multi-cable-1 set

■ Brightness

■ Contrast Tint

■ CAM Trigger 1/2/3/4

■ Auto Power

■ Auto Picture Scan

■ Language

MXN10Q-TVI Owner's Manual

OWNER’S MANUAL

PLEASE READ CAREFULLY BEFORE
USING THIS PRODUCT.

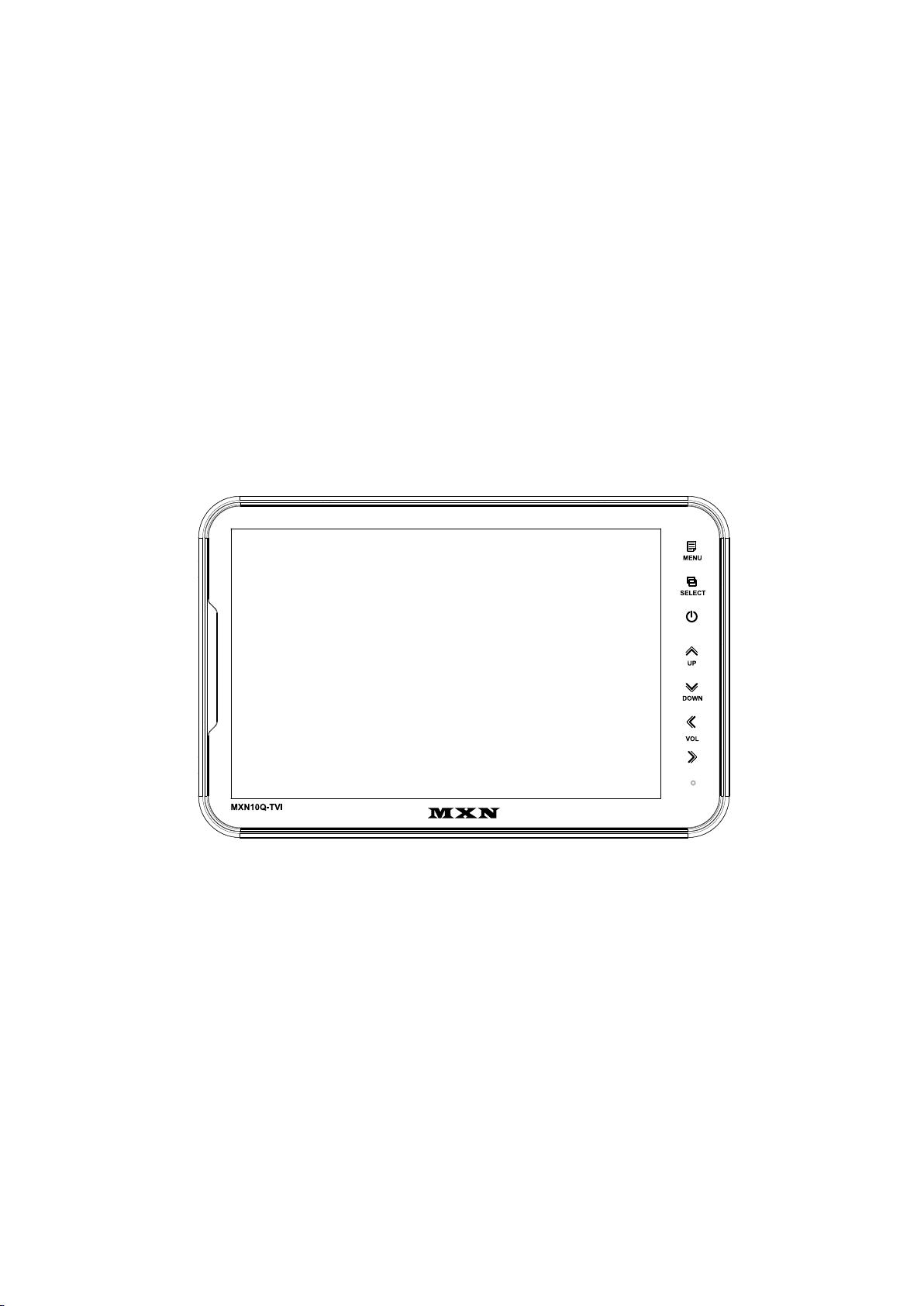

10.1” DIGITAL SPLITSCREEN LCD
ALL ROUND VISION MONITOR

Model: MXN10Q-TVI

Design and specifications are subject to change without notice.
