MXN HD7DM User guide

TFT DIGITAL LCD Monitor

for MXN-HD7DM - Owner’s Manual

·I·N·D·E·X·

PACKAGE CONTENTS 03

OPERATION 04

SYSTEM SETTING 05

FUNCTION 05

PICTURE 06

CAMERA SET UP 06

NORMAL/MIRROR 07

AUTO PICTURE SCAN 07

CAMERA TRIGGER 08

AUDIO 09

TRIGGER AUDIO 09

DISTANCE MARKER ADJUST 10

SCAN ON/OFF FUNCTION 11

LOCK ON/OFF FUNCTION 11

INSTALLATION 12

MONITOR INSTALLATION WITH STAND BRACKET & SUNVISOR 12

INSTALLATION OF HEAVY DUTY MOUNTING BRACKETS 13

CONNECTION 14

CAMERA INPUT 14

SPECIFICATION 15

3

Owner’s Manual

7" TFT DIGITAL LCD Moniter

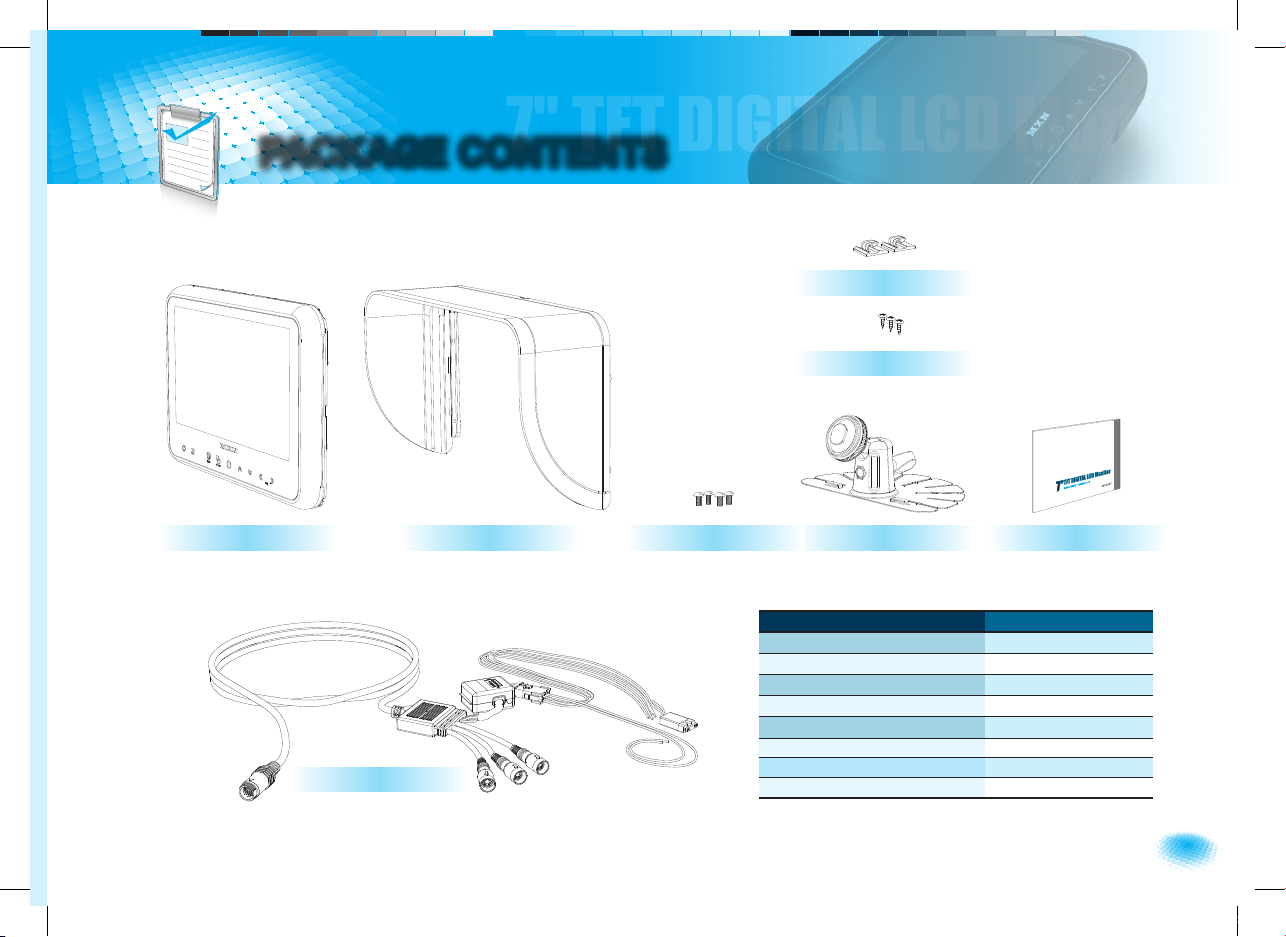

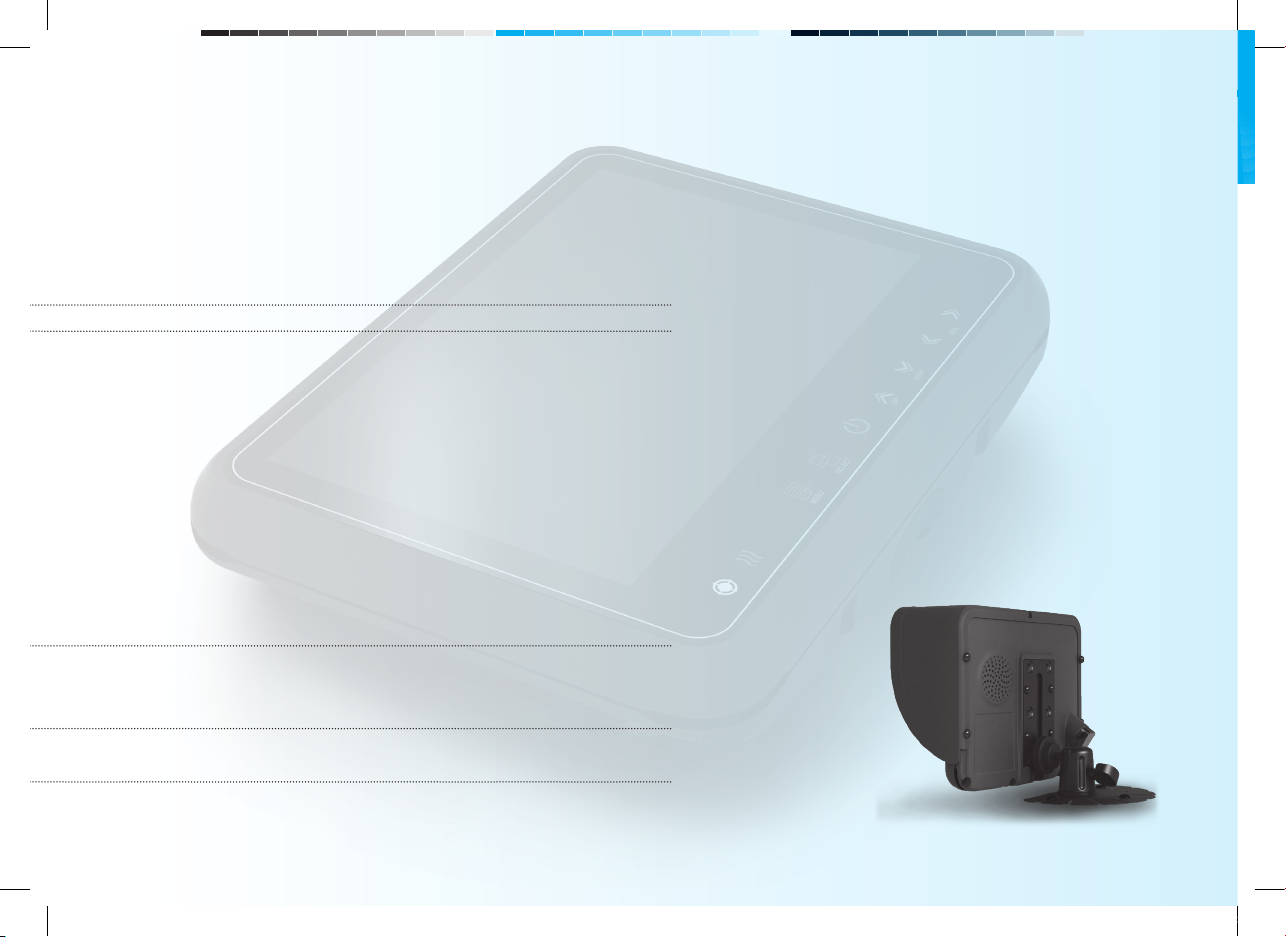

PACKAGE CONTENTS

MONITOR SUNVISOR STAND BRACKET MANUAL

BRACKET SCREWS

SUNVISOR SCREWS

CABLE CLIP

ITEM Q’TY

MONITOR 1

SUNVISOR 1

SUNVISOR SCREW 4

STAND BRACKET 1

BRACKET SCREW 3

CABLE CLIP 2

CAMERA INPUT CABLE 1

MANUAL 1

CAMERA INPUT CABLE

4

7" TFT DIGITAL LCD Moniter

OPERATION

d

b

a

c

f

e

g

h

i

j

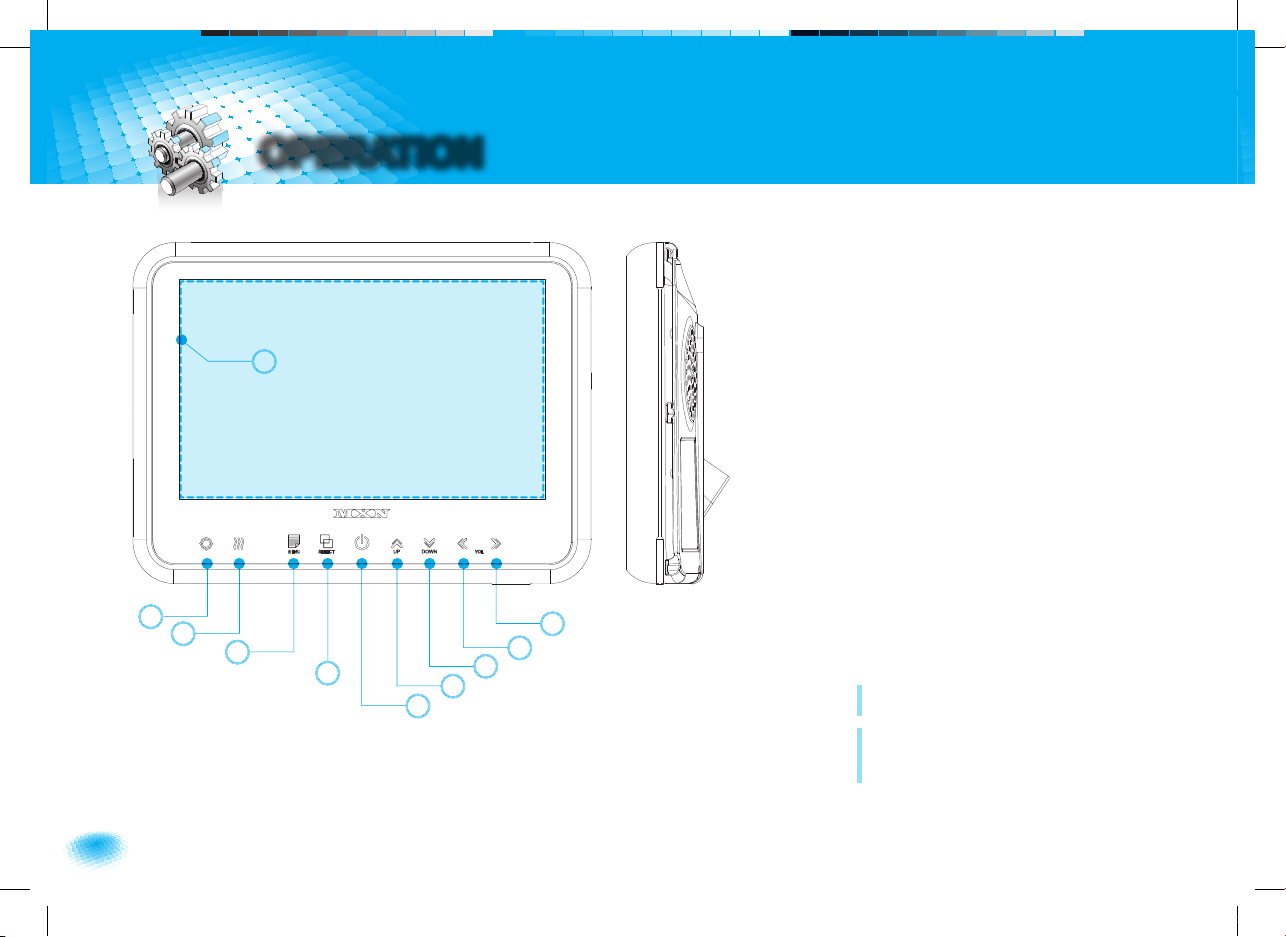

A . DAY/NIGHT SENSOR (CDS)

Automatic brightness control sensor.

B . HEATER LAMP

Orange color will be illuminated in case heater function is
activated.

C . MENU

Press [MENU] button for system setting.

D . SELECT

Press [SELECT] button to select the respective camera channel.
(CAM1-CAM2-CAM3-CAM1..)

E . POWER

Press [POWER] button to turn on/o󰀨 the monitor.

F . UP

G . DOWN

H . LEFT

I . RIGHT

J . VIEW AREA

Press [UP/DOWN] button to navigate the menu for
system setting.

Press [

LEFT/RIGHT] button to adjust monitor volume.
Use [LEFT/RIGHT] button to change OSD setting
during system setting.

5

Owner’s Manual

7" TFT DIGITAL LCD Moniter

SYSTEM SETTING

FUNCTION

DIMMER (Automatic Brightness Control)

Select AUTO or OFF to have Automatic or Manual brightness of the monitor.

REMARK: By activating DIMMER AUTO function, the monitor adjusts the brightness
according to the environment.

NIGHT BRIGHT (Brightness during night conditions)

Select the DIMMER to

『

AUTO

』

and adjust the value of the backlight into the required setting.

During night conditions the backlight will automatically perform brightness according this
setting.

LANGUAGE

Provide 6 Multi -li ngual OSD [ENG LIS H, SWEDISH, DANIS H, NORWEG IAN, DUTCH,
FINNISH].
Select the preferred LANGUAGE.

AUTO POWER

Select monitor activation function as below.

[AUTO]

Monitor keeps the last setting in memory.

[ON]

Monitor starts up

『

Power-ON

』

mode automatically.

[OFF]

Monitor starts up

『

Stand-By

』

mode automatically.

MONITOR HEATER

Select MONITOR HEATER『ON』to have automatic heating function in order to enable
fast picture start during extreme cold weather condition.

FUNCTION

DIMMER AUTO/OFF

NIGHT BRIGHT 50

LANGUAGE ENGLISH/…

AUTO POWER AUTO/ON/OFF

MONITOR HEATER ON/OFF

RESET >

SYSTEM INFO. VER 1.0

Remark: During MONITOR HEATER ON mode,
Heating activates automatically when the temperature of inside monitor is below 0
degree Celcius.
When the temperature of inside monitor is o ver 0 degree Celc ius, heating stops
automatically.

RESET

Press >> button to go the factory default setting.

SYSTEM INFO.

Refers to system information of the monitor.

6

7" TFT DIGITAL LCD Moniter

SYSTEM SETTING

Press [

LEFT/RIGHT

] button to adjust preferred


of the monitor.

TRIG. DELAY

When a

TRIGGER

wire is connected to a pulse DC power signal (e.g. direction

indicator lights) then the [

TRIGGER DELAY

] function avoids repeating

ON/OFF

of the

monitor.

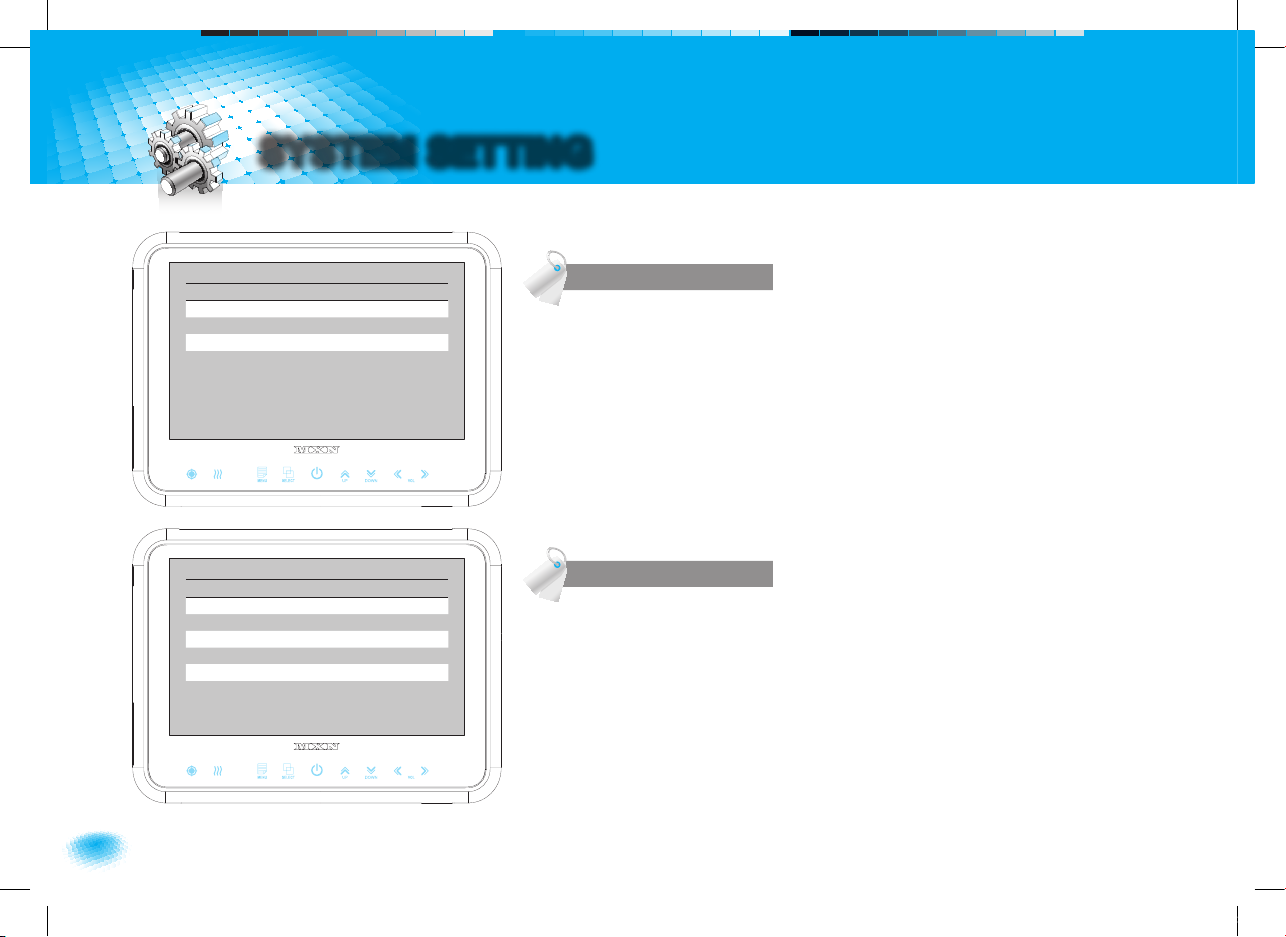

CAMERA NAME

CAMERA NAME

can be selected as

CAM1, 2, 3/REAR/LEFT/RIGHT/FRONT

.


CAMERA SET UP


CONTRAST 50 (0-100)

BRIGHTNESS 50 (0-100)

COLOR 50 (0-100)

TINT 50 (0-100)

CAMERA SET UP

CAM1 TRIG. DELAY

2 SEC (0-9)

CAM2 TRIG. DELAY

2 SEC (0-9)

CAM3 TRIG. DELAY

2 SEC (0-9)

CAM1 NAME

CAM1/REAR/LEFT/RIGHT/FRONT

CAM2 NAME

CAM2/REAR/LEFT/RIGHT/FRONT

CAM3 NAME

CAM3/REAR/LEFT/RIGHT/FRONT

7

Owner’s Manual

7" TFT DIGITAL LCD Moniter

NORMAL/MIRROR

Each camera picture (CAM1/CAM2/CAM3) can be switchable as

NORMAL/MIRROR

image.

UP/DOWN

Camera pictures can be switchable as

UP/DOWN

image.

Each scanning time of CAM1/CAM2/CAM3 can be selected.

REMARK: If the SCAN TIME is set as『0』, monitor skips its channel during the
scanning.

Press [UP] button for 4 seconds to

ACTIVATE/INACTIVATE

auto scanning function.

NORMAL/MIRROR

AUTO PICTURE SCAN

NORMAL/MIRROR

CAM1 NORMAL/MIRROR

CAM2 NORMAL/MIRROR

CAM3 NORMAL/MIRROR

UP/UPSIDE DOWN UP/UPSIDE DOWN

AUTO PICTURE SCAN

AUTO SCAN ON/OFF

CAM1 SCAN TIME 2 SEC (0~9)

CAM2 SCAN TIME 2 SEC (0~9)

CAM3 SCAN TIME 2 SEC (0~9)

8

7" TFT DIGITAL LCD Moniter

SYSTEM SETTING

TRIGGER 1/2/3 (Trigger source selection)

Select the required trigger source at CAM1/CAM2/CAM3.

REMARK

TRIGGER PRIORITY: TRIGGER 1 > TRIGGER 2 > TRIGGER 3

CAM1 DIST. MARKER

Select ON to have distance marker (parking line) for

CAM1

.

Distance marker is displayed as soon as

TRIGGER 1

signal is activated.

SPEED SWITCH

The orange wire needs to be connected with the vehicle’s tacho signal and via

MENU

the

SPEED SWITCH

needs to be selected ON.

At

FREQUENCY

67Hz setting(and most common used tacho signal) the selected

camera will be displayed during a speed of 0~33km/h. Select the concerning camera
via『

UNDER FREQUENCY CH

:』(At di󰀨erent type tacho signals the

FREQUENCY

needs

to be adjusted into higher or lower value than this example)

Over 33km/h (72Hz) the selected camera will be switched

OFF

automatically. When
the speed slows down, then the selected camera will be switched ON automatically
again at 30km/h. Instead of automatic switch

OFF

at a speed over 33km/h it is also

possible to activate another video source, such as a navigation picture from an optional
navigation computer. In this case user needs to select『

OVER FREQUENCY DISPLAY

:

ON

』and user needs to select『

OVER FREQUENCY CH

:』

In case of

TRIGGER

activation during『

SPEED SWITCH ON

』mode, then

TRIGGERS

1~ 3 will overrule『

SPEED SWITCH

』function.

CAMERA TRIGGER

CAMERA TRIGGER

TRIGGER 1 CAM1/CAM2/CAM3

TRIGGER 2 CAM2/CAM3/CAM1

TRIGGER 3 CAM3/CAM1/CAM2

CAM1 DIST. MARKER MARKER ON/OFF

SPEED SWITCH ON/OFF

FREQUENCY 67 Hz

UNDER FREQ. CAM CAM3/CAM1/CAM2

OVER FREQUENCY DISPLAY ON/OFF

OVER FREQ. CAM CAM1/CAM2/CAM3

9

Owner’s Manual

7" TFT DIGITAL LCD Moniter

When the mode is [ON], audio will be on (activated).
When the mode is [

OFF

], audio will be o󰀨 (mute).

The user may adjust the volume.

Audio

MUTE Mode in normal mode.

When the mode is [

ON

], audio will be on (activated)

When the mode is [

OFF

], audio will be o󰀨 (mute).

Audio MUTE Mode in Trigger mode.

Choose the trigger and then push [

ENTER

].

The Audio setting menu will be shown as below.

AUDIO

TRIGGER AUDIO

AUDIO

CAM 1 AUDIO ON/OFF

CAM 2 AUDIO ON/OFF

CAM 3 AUDIO ON/OFF

TRIGGER AUDIO

TRIG 1 AUDIO ENTER

TRIG 2 AUDIO ENTER

TRIG 3 AUDIO ENTER

SP SW AUDIO ENTER

TRIG1 AUDIO

AUDIO ON/OFF

VOLUME 50

10

7" TFT DIGITAL LCD Moniter

SYSTEM SETTING

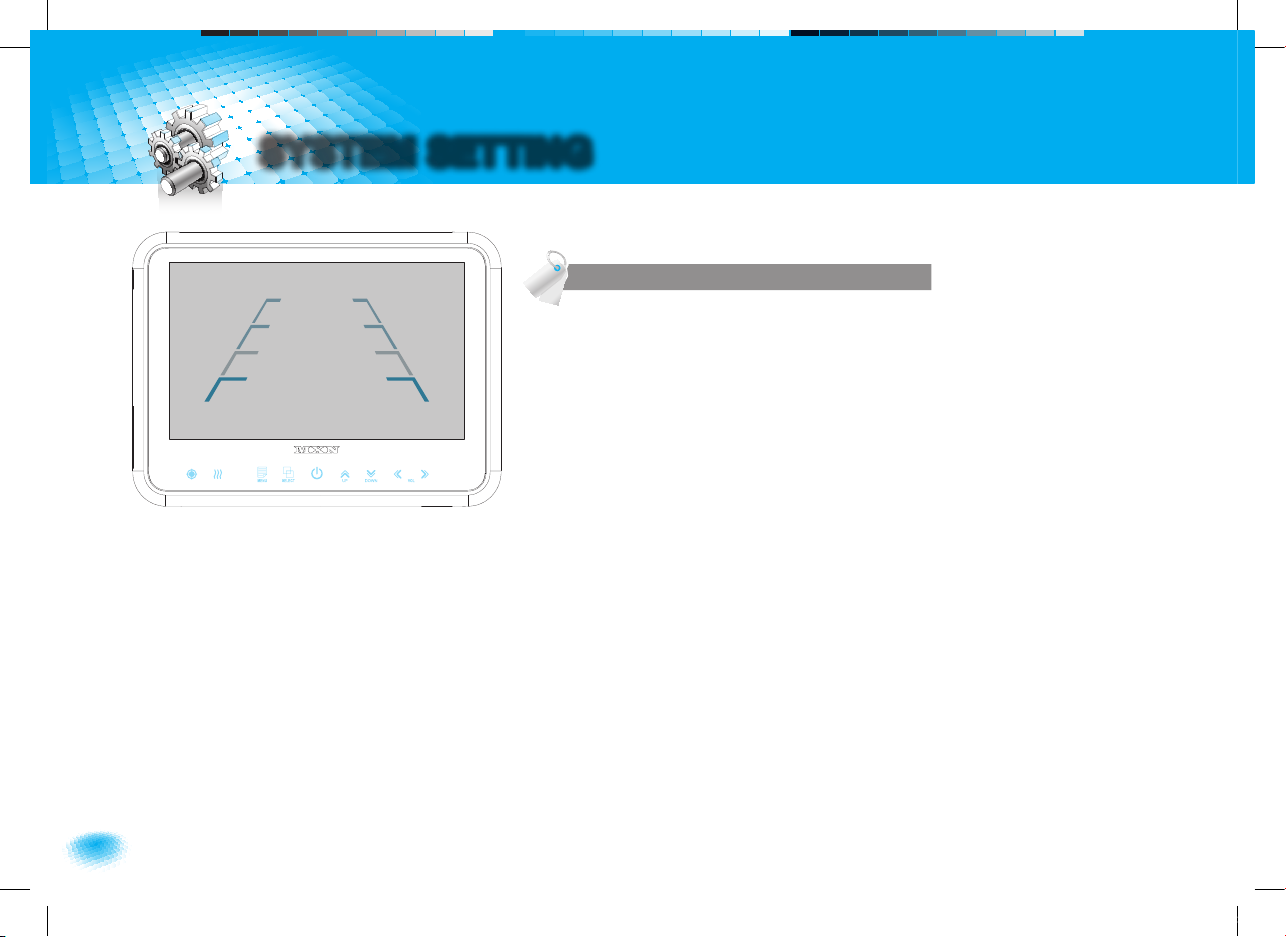

User can adjust location of distance marker.

At Power ON mode, select distance marker by pressing [

UP/DOWN

] buttons.

When color of distance markers is seen as

RED

color, user can adjust the lines

UP/

DOWN

or

LEFT/RIGHT

.

When both color of distance markers are seen as

RED

color, both lines can be

adjusted

LEFT/RIGHT

.

When left color of distance marker is seen as

RED

color, left line of distance marker

can be adjusted

LEFT/RIGHT

.

When right color of distance marker is seen as

RED

color, right line of distance marker

can be adjusted

LEFT/RIGHT

.

DISTANCE MARKER ADJUST

11

Owner’s Manual

7" TFT DIGITAL LCD Moniter

At

Power-ON

mode, hold [UP] buttons pressed for 4 seconds to activate Auto Scan
Picture function.
During the auto scanning mode, press [UP] button for 4 seconds to inactivate Auto
Scan Picture function.

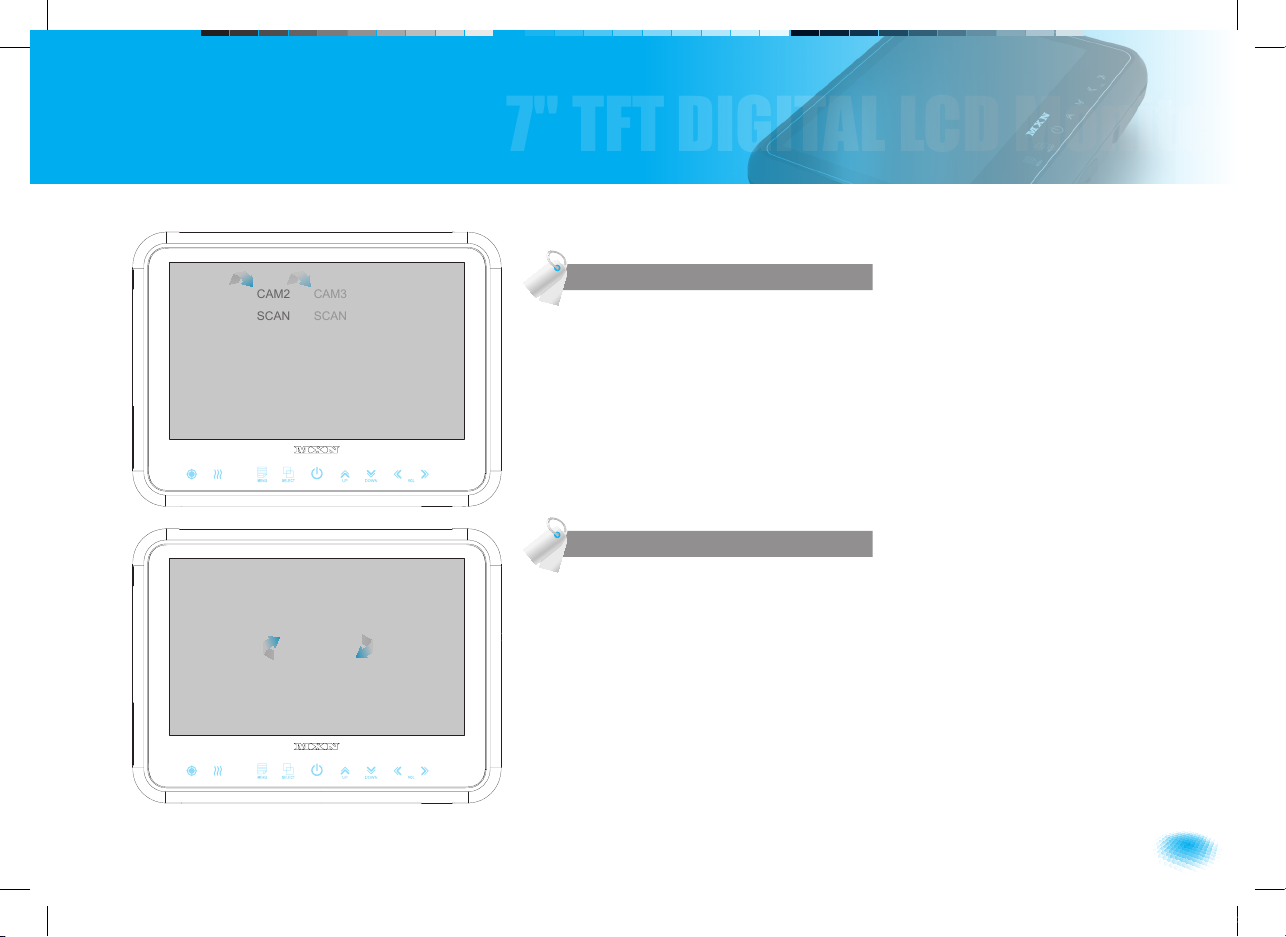

LOCK ON/OFF FUNCTION

The set up menu can be locked as prevention against unauthorized users.

LOCK ON mode

At

Power-ON

mode, hold [

DOWN

] button pressed for 10 seconds to set up

LOCK ON

function.
When [

LOCKED

] is displayed on the screen, user can use [

POWER, SELECT, VOLUME

]

buttons only and use can do setting for


menu.

LOCK OFF mode

At

Power-ON

mode, hold [

DOWN

] button pressed for 10 seconds to set up

LOCK OFF

function.
When [

UNLOCKED

] is displayed on the screen, user can use all functions of the set up

menu.

SCAN ON/OFF FUNCTION

LOCK ON/OFF FUNCTION

CAM1

SCAN

CAM2

SCAN

CAM3

SCAN

LOCKED

UNLOCKED

12

7" TFT DIGITAL LCD Moniter

INSTALLATION

A

ⓐ

ⓑ

B C

D

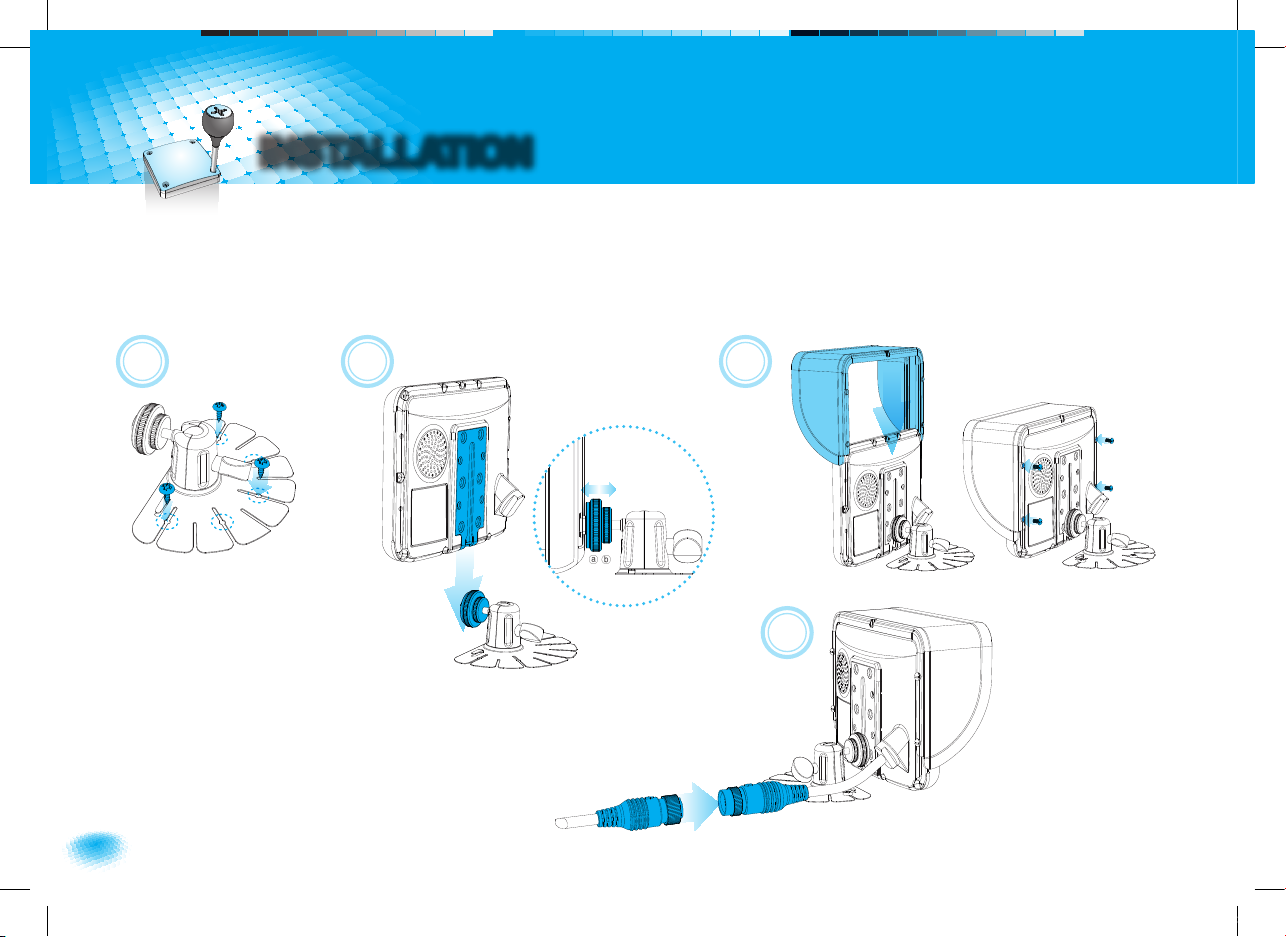

MONITOR INSTALLATION WITH STAND BRACKET & SUNVISOR

Remove a protection tape and attach STAND BRACKET into stand place, then x it with the supplied screws.

Connect STAND BRACKET with monitor and adjust height/angle.
Attach SUNVISOR to the MONITOR and x it with the supplied screws.

Connect CAMERA INPUT CABLE to the MONITOR.

A

B

C

D

13

Owner’s Manual

7" TFT DIGITAL LCD Moniter

TYPE A(option) TYPE B(option)

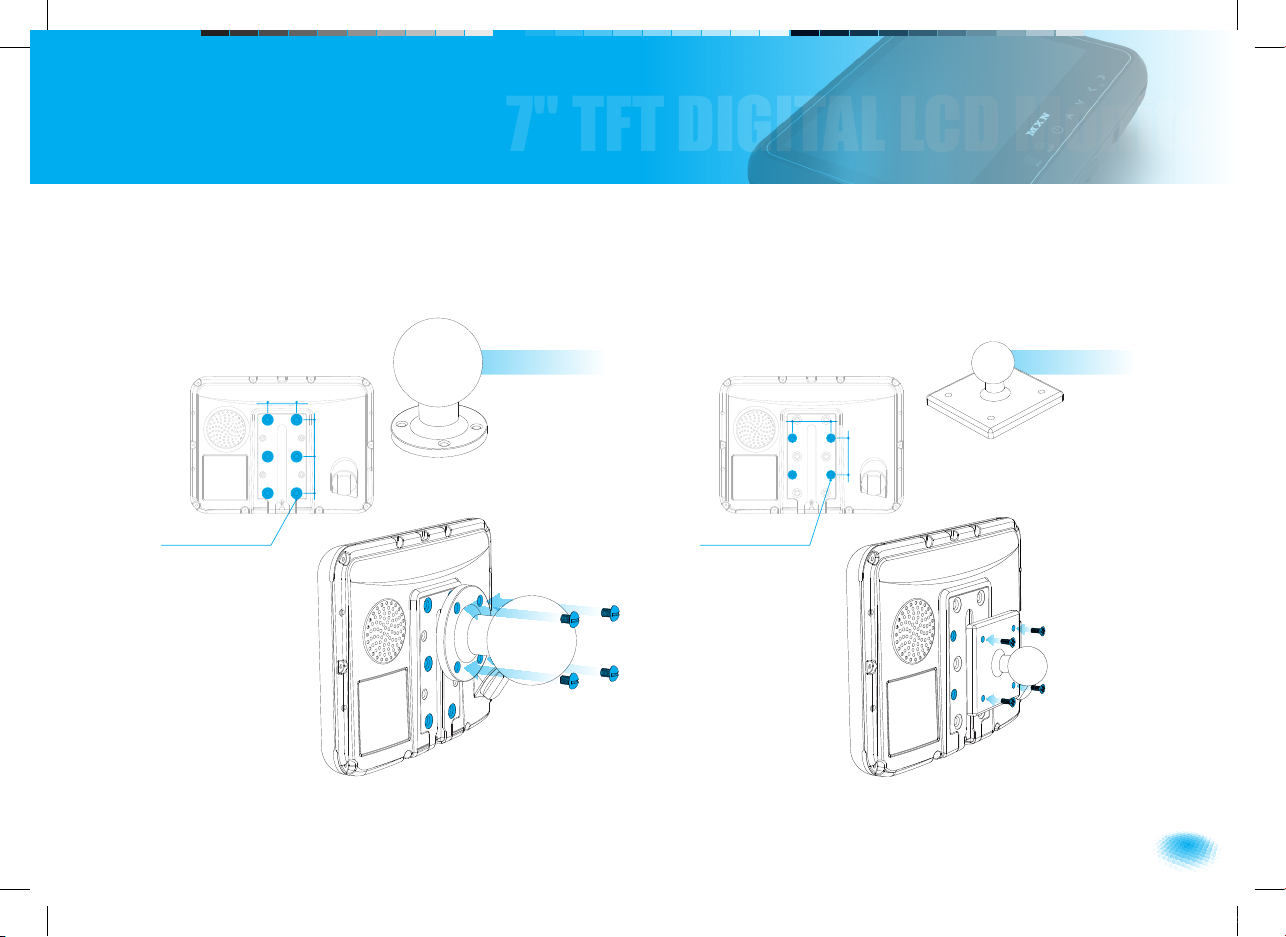

INSTALLATION OF HEAVY DUTY MOUNTING BRACKETS

MONITOR can be connected with di󰀨erent type of heavy duty mounting brackets.

Please check the compatibility in advance, then please follow installation as described below.

FMBK 5×10mm FMs 3.5×10mm

38mm

40mm

30mm

38mm

38mm

14

7" TFT DIGITAL LCD Moniter

7" TFT DIGITAL LCD Moniter

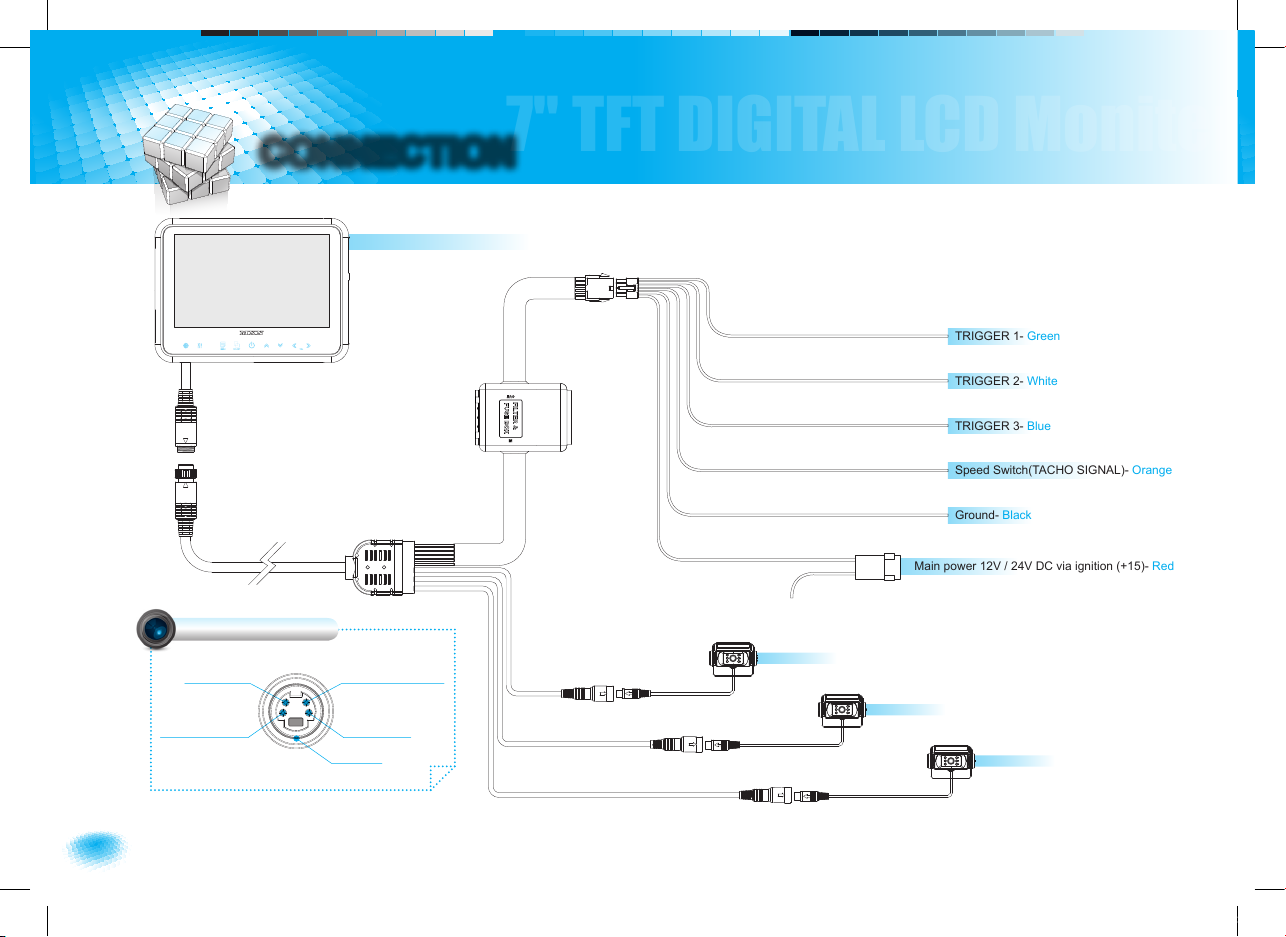

CONNECTION

Camera 1(Option)

Camera 2(Option)

Camera 3(Option)

Speed Switch(TACHO SIGNAL)- Orange

TRIGGER 3- Blue

Ground- Black

TRIGGER 2- White

TRIGGER 1- Green

7” TFT DIGITAL LCD Monitor

Main power 12V / 24V DC via ignition (+15)- Red

AUDIO INPUT

+12V DC OUTPUT,
HEATER & SHUTTER

+12V DC OUTPUT,

POWER

VIDEO INPUT

GROUND

CAMERA INPUT

15

Owner’s Manual

7" TFT DIGITAL LCD Moniter

SPECIFICATION

ITEM SPECIFICATION

LCD Screen Size 7” Wide Diagonal

Dimensions 190(W) × 142(H)× 42.85(D)mm

Display dimensions 152.4 × 91.44mm

Power Input DC 12 to 30 Volt Free Input

Power Consumption 12 Watt Max.

Video System NTSC / PAL / SECAM Auto Detection
Sync. System Internal

Brightness 500 cd/m

2

Display Resolution 800 × 480 pixel

Viewing Angle Top: 50. Bottom: 60. Left: 65. Right: 65.

Color Conguration RGB Stripe

Dimmer Automatic / Manual

Speaker Impedance 8 ohm, 0.3 Watt Max.

Operating Temp. -25°C ~ +75°C

Storage Temp. -30˚C to + 85˚C
Impact Rating 4G

Camera Connector 4-pin mini DIN (MXN conguration)

Housing Soft black(Al12)

ON-Screen Display

Control Functions

Volume · Brightness · Color · Contrast · Tint · CAM Screen 1/2/3 · CAM Trigger 1/2/3 · Heater ·
Speedswitch · Auto Power · Distance marker · Auto Picture Scan · Dimmer · Language · Direction · Reset.

Supplied Accessory Die-Cast Mounting Bracket / 1 pce, Screw Kit / 1set, Manual, Sun Shield / 1 pce, Power cable / 1 set

Weight 790g

TFT DIGITAL LCD Monitor

for MXN-HD7DM - Owner’s Manual
