Mxn ADP-39 User Manual

MAN

MAN

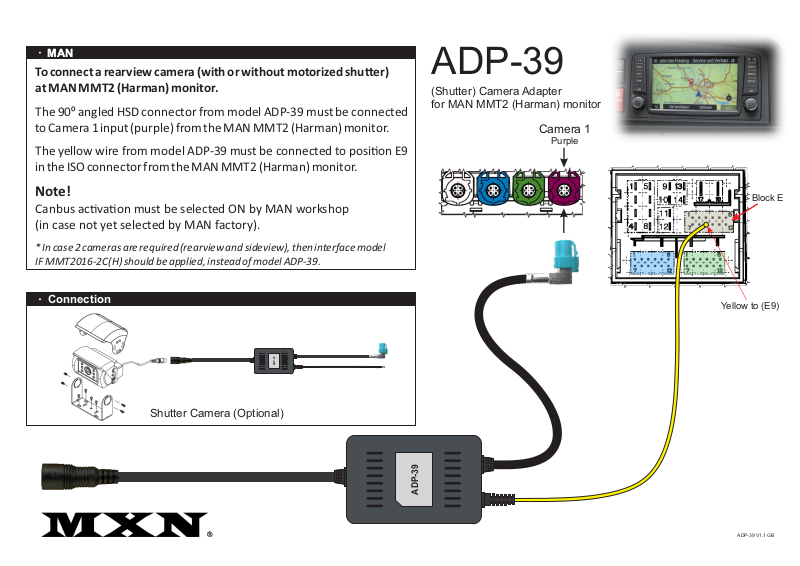

To connect a rearview camera (with or without motorized shuer)
at MAN MMT2 (Harman) monitor.

The 90⁰ angled HSD connector from model ADP-39 must be connected
to Camera 1 input (purple) from the MAN MMT2 (Harman) monitor.

The yellow wire from model ADP-39 must be connected to posion E9
in the ISO connector from the MAN MMT2 (Harman) monitor.

Note!

Canbus acvaon must be selected ON by MAN workshop
(in case not yet selected by MAN factory).

* In case 2 cameras are required (rearview and sideview), then interface model
IF MMT2016-2C(H) should be applied, instead of model ADP-39.

Connection

ADP-39

(Shutter) Camera Adapter
for MAN MMT2 (Harman) monitor

Camera 1

Purple

Block E

Yellow to (E9)

ADP-39

Shutter Camera (Optional)

ADP-39

ADP-39 V1.1 GB
