Mxmoonan Integrated Ultrasonic Processor User Manual

Mxmoonan Amazon Brand Store

- 1 -

Email: [e-mail]

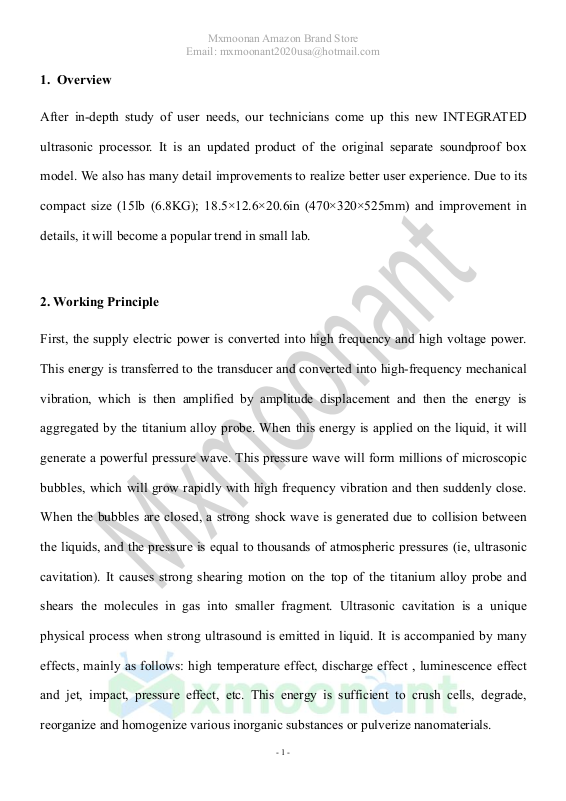

1. Overview

After in-depth study of user needs, our technicians come up this new INTEGRATED

ultrasonic processor. It is an updated product of the original separate soundproof box

model. We also has many detail improvements to realize better user experience. Due to its

compact size (15lb (6.8KG); 18.5×12.6×20.6in (470×320×525mm) and improvement in

details, it will become a popular trend in small lab.

2. Working Principle

First, the supply electric power is converted into high frequency and high voltage power.

This energy is transferred to the transducer and converted into high-frequency mechanical

vibration, which is then amplified by amplitude displacement and then the energy is

aggregated by the titanium alloy probe. When this energy is applied on the liquid, it will

generate a powerful pressure wave. This pressure wave will form millions of microscopic

bubbles, which will grow rapidly with high frequency vibration and then suddenly close.

When the bubbles are closed, a strong shock wave is generated due to collision between

the liquids, and the pressure is equal to thousands of atmospheric pressures (ie, ultrasonic

cavitation). It causes strong shearing motion on the top of the titanium alloy probe and

shears the molecules in gas into smaller fragment. Ultrasonic cavitation is a unique

physical process when strong ultrasound is emitted in liquid. It is accompanied by many

effects, mainly as follows: high temperature effect, discharge effect , luminescence effect

and jet, impact, pressure effect, etc. This energy is sufficient to crush cells, degrade,

reorganize and homogenize various inorganic substances or pulverize nanomaterials.

- 2 -

3.Parts of the Machine

Front

Back

Mxmoonan Amazon Brand Store

Email: [e-mail]

Power Cord

①

Output Socket (connecting power transducer)⑧Temperature Sensor

⑦

②

Sleeve

Power Transducer

③

④

Horn

LCD Screen

⑤

Chassis

⑥

Fuse Holder⑩Power Socket

⑨

- 3 -

4. Electrical Diagram

Mxmoonan Amazon Brand Store

Email: [e-mail]

Mxmoonan Amazon Brand Store

- 4 -

Email: [e-mail]

Transducer

The pressure transducer has a sandwich single screw structure. For different

models, the transducers are equipped with different specifications and

quantities of voltage ceramic sheets.

Fastening Screw

①

Titanium Alloy Horn

④

Electrode Sheet

②

Connecting Screw

⑤

Voltage Ceramic Sheet

③

5. Product Features

■ Automatic resonance point, 24KHz (19-26KHz Automatic Frequency Scanning

and Checking);

■ Automatic amplitude compensation, which can automatically work at the optimal

frequency point and output point according to the fluidity of the sample;

■ Adopt color touch screen controller, all functions are displayed integrated;

■ Scientific design, 10 groups of users store settings and directly implemented on a

single machine;

Mxmoonan Amazon Brand Store

- 5 -

Email: [e-mail]

■ Independent on/off pulse with 3 modes of continuous use, pulse and timed

continuous use.

■ 2D and 3D ultrasound probe design, which greatly improves efficiency and

reduces the loss of the horn compared to conventional ultrasound;

■ The device is equipped with a temperature sensor for temperature-sensitive

sample;

■ Automatic overload protection, over temperature and fault alarm.

■ Small bulb inside the box allows to observe the status of the sample during

processing.

6. Working Conditions

1. Working Temperature: 0～40℃

2. Humidity: ≤85%

T=20℃

（

）

3. Power Supply: 85~240V/50Hz±10%

4. Transducer Temperature: 0～120℃

5. Processing Objects: Solution or solution mixture

Attention!

Do not use it continuously for over 1 hour when processing common sample!

Do not use it continuously for over 30 minutes for ultrasonic processing!

Mxmoonan Amazon Brand Store

- 6 -

Email: [e-mail]

7. Installation and Operation

ON/ OFF②User Group

①

Power Increase

⑤

Current Operating Mode

⑧

⑥

Current Power Percentage Display

Set

③

Current Operating Status

⑨

Current Frequency Display

④

Power Reduce

⑦

Enter

⑩

Operating Steps

The time controller is designed and manufactured by digital circuit and

microcomputer control technology, featured with high precision, good reliability,

strong anti-interference ability and memory function. Its full-scale time control

range is from 1 minute to 99 hours, which can be set according to users’ needs.

Mxmoonan Amazon Brand Store

- 7 -

Email: [e-mail]

Power Connection

The ultrasonic generator must be connected with the ultrasonic transducer before use!

Then hold the sleeve of the transducer with the soundproof box (you can also use a

bracket to fix the sleeve or hold the sleeve with your hand, but you can't touch the

transducer). Immerse the horn head in the solution for 10-15 mm. Turn on the power

switch on the back of the chassis, and the LCD screen works.

User Number

①

Back

⑤

⑥

Save

Power Display

②

Total Running Time

⑦

Temperature Display

③

Pulse ON Time

⑧

Operation Model

④

Pulse OFF Time

⑨

- 8 -

Power Regulation

Mxmoonan Amazon Brand Store

Email: [e-mail]

“

∧

、

”button are the ultrasonic power setting buttons. Press “∧” button to

∨

increase its output power and press “∨”to reduce its output power.

Programming

1. Full digital electronic timer for 1 minute to 99 hours

2. Touch SET to enter the settings interface

3. First, choose your user number and set the parameters.

4. Click Time Setting, input the time you want, press Enter, Time setting is done.

5. After setting up the program, click SAVE to save the program. The next time you

want to use it, you can select the user number directly to call out the set program.

Mxmoonan Amazon Brand Store

- 9 -

Output power(W)

100

200

300

400

650

Sample processing

volume(ml)

0.05-10

0.5-150

10-300

20-500

50-800

Diameter of default

probe(mm)

1.536

8

10

Diameter of default

optional probe(mm)

2 / 3

2 / 6

3 / 8

3 / 6 / 10

3 / 6 / 8 / 13 / 16

Frequency(KHZ)

24 (19-26KHz Automatic Frequency Scanning and Checking)

Email: [e-mail]

Notes

Model function, there are three modes for you to choose: Pulse, Time, Cont

1. Pulse: Pulse is suitable for most users, you can set the working and pausing time,

and effectively avoid overheat of the sample.

2. Time: Ultrasonic processor continues to work until it reaches the set time: This

mode is for samples that are not easy to process and do not sensitive to high

temperature.

3. Cont: As long as the electric power is on, or if you do not stop it, the machine

will run all the time: This mode is for samples that are difficult to process and needs

to be crushed. Attention should be paid that under this mode, the temperature of the

sample and the ultrasonic transducer will increase, and the ultrasonic horn will worn

out quickly.

8. Technical Parameters

Mxmoonan Amazon Brand Store

- 10 -

Output power(W)

800

1200

1500

2000

3000

Sample processing

volume(ml)

100-1200

100-2000

100-2500

100-3000

500-4000

Diameter of default

probe(mm)

1316182025

Diameter of default

optional probe(mm)

3 / 6 / 8 /

10 / 16 /

18

3 / 6 / 8 /

10 / 13

/ 18 /

20

3 / 6 / 8 /

10 / 13 /

18 / 20 /

25

3 / 6 / 8 /

10 / 13 /

16 / 18 /

25

3 / 6 / 8 /

10 / 13 / 16

/ 18 / 30

Frequency(KHZ)

24 (19-26KHz Automatic Frequency Scanning and

Checking)

Email: [e-mail]

9．Maintenance

1. The equipment should be placed in a clean, dry and ventilated place.

2. Handle the transducer gently to prevent the it from breaking.

3. When the oscillator is hot, please use it after cooling.

4. After each use, the power plug should be pulled out and the power supply should

be cut off.

5. The equipment can work under the power supply 85-240V.

6. When the equipment fails to work, please contact us asap. It is forbidden to open

the machine without authorization. (Email: [e-mail]

- 11 -

10.Package List：

Main Machine

1

Probe

1

Lifting Platform,

Anti-skid Cushion

1

Temperature

Sensor

1

Power Cord

1

Cable Line

1

Fuses

3
