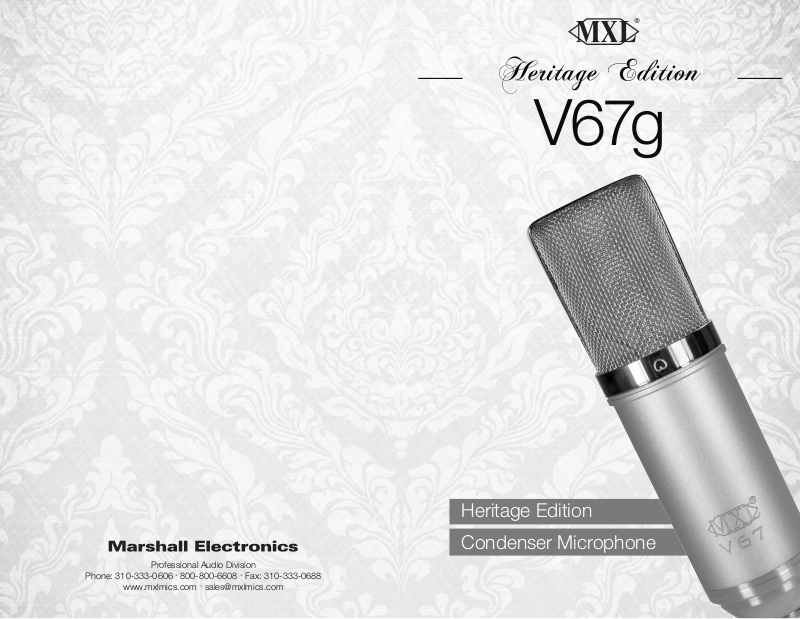

MXL V67G HE User Guide

Heritage Edition

V67g

Professional Audio Division

Phone: [phone] · 800-800-6608 · Fax: [phone]

www.mxlmics.com · [e-mail]

Heritage Edition

Condenser Microphone

Thank you for choosing the MXL V67g HE Condenser microphone. With

0

90

270

180

proper care, this mic will provide many years of satisfaction. To get the best

results, please take a few moments to read this manual.

Enjoy your microphone!

The MXL Team

Shock Mount

The MXL shock mount can shift in shipment. Simply shift the nylon bands
to center the microphone in the assembly. Be sure that the wire clamp
does not rest on the chassis of the mount, as this impairs mechanical
isolation. Slide the mount all the way to the rim of the microphone for the
most secure hold.

General Characteristics

This microphone has a one-inch gold sputtered diaphragm and a fairly
wide fixed cardioid pickup pattern. Large capsule condensers are very
sensitive, readily revealing very subtle sonic details. They also tend to
pick up sounds outside the pattern more than some designs, which can
lead to powerful feedback if you are not careful. We strongly advise
experimentation with placement and isolation requirements with the gain
initially set low to avoid equipment (and ear) damaging surprises!

Contents

Unpack your MXL V67g HE microphone carefully and verify that all of the
following items are included:

•Pop Filter

•MXL V67g HE microphone

•Metal Shockmount

•Silver Flight Case

•Cleaning Cloth

If any of these items are missing or damaged, contact the company from
which you purchased the microphone.

Power Requirement

IMPORTANT - This unit requires phantom power at 48 volts, +/- 4 volts.
Each unit has been thoroughly checked before shipping, so if you hear no
sound, check that the phantom power on your mixer or separate power
supply is switched on!

Specifications

Type Large gold sputtered diaphragm

Frequency Response 30 Hz–20 kHz

Polar Pattern Cardioid

Impedance 200 ohms

Sensitivity 15 MV/pa (-36.5db, odrs=1 V/pa)

Equivalent Noise 20 dB (A-weighted IEC 268-4)

Max SPL for 0.5% THD 130 dB

Power Requirement 48V phantom power (± 4V)

Current Consumption < 3.0mA

Size 47 mm x 184 mm / 1.85 in. x 7.24 in.

Weight 1.3 lbs / 589.67g

Metal Finish Silver Frost Body/Chrome Grill

Polar PatternFrequency Chart

Microphone Cable

The microphone cable can have a profound effect on the sound of
any microphone. Even the finest microphone will sound poor if the
interconnect cable allows noise to enter or causes distortion and loss of
information. We recommend that you use the best microphone cable that
your budget will allow.

Care

Dust and foreign material can degrade the performance of a microphone
over time so always store the unit in its case. For vocals closer than 3”,
use a “popper stopper” or a foam windscreen to avoid getting moisture
on the diaphragm as this can substantially degrade the microphone’s
performance. Store the microphone in its original packaging, or the
included zipper pouch.

Warranty

MXL microphones are guaranteed against defects in materials and
workmanship for one year from the date of purchase. If you encounter
any problem with this unit, promptly contact the company from which
you purchased it for assistance. The original dated sales receipt will
be necessary for any warranty claim. Do not send any unit directly to
us without prior authorization from our service department. Warranty
coverage is limited to repair or replacement (at our option) of the
microphone, and does not cover incidental damages due to use of this
unit, nor damage caused by accidental misuse of this product.
