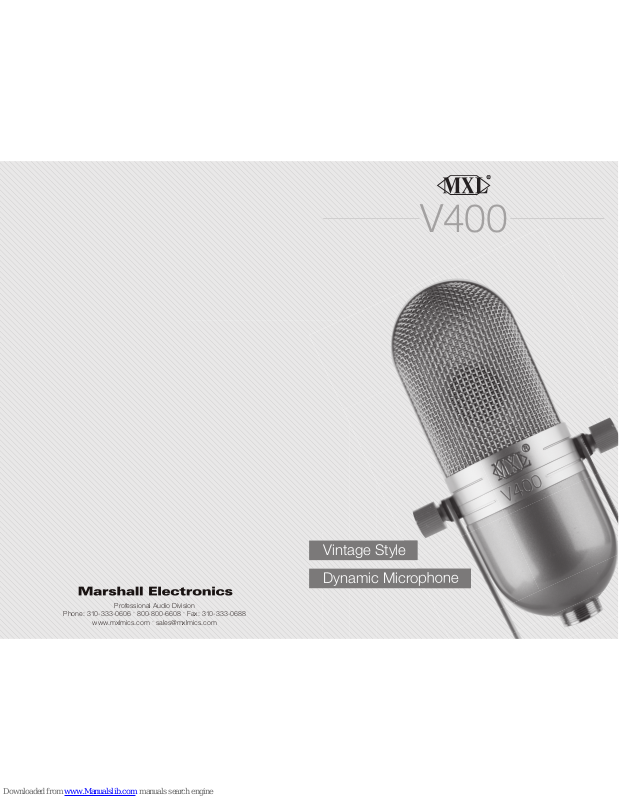

MXL V400 User Manual

Professional Audio Division
Phone: 310-333-0606 · 800-800-6608 · Fax: 310-333-0688
www.mxlmics.com · sales@mxlmics.com
V400
Vintage Style
Specifications
Type Dynamic
Frequency Range 60Hz-15kHz
Polar Pattern Cardioid
Sensitivity -74dB re 1 V/Pa
Impedance 600 ohms
Size 65mm x 180mm/2.56 in x 7.09 in
Weight 1.75 lbs
Finish Gray and Nickel
Polar Pattern Frequency Chart
Thank you for purchasing the MXL V400 Dynamic Microphone. With
proper care, this microphone will give you years of satisfaction. For the
best results, please take a few minutes to review this literature.
The MXL Team
General Characteristics
The V400 is a cardioid dynamic microphone. The cardioid design means it is most sensitive to sound at the front and there is a small lobe of sensitivity at the back of the microphone. It is designed as a live stage microphone, but like most dynamics, it can also be used in the studio. The V400 has a built-in shock mount, integrated windscreen, and a standard 3-pin male XLR connector. Please use a durable tripod or weighted base microphone stand to support the weight of this micro­phone.
Contents
Unpack your MXL V400 microphone carefully and verify that all of the following items are included:
•MXL V400
•Cleaning cloth
If any of these items are missing or damaged, contact the company from which you purchased the microphone.
Microphone Cables
This microphone connects to a preamp or mixer via XLR cable. The microphone cable can have a profound effect on the sound of any microphone. Even the finest microphones will sound poor if the interconnect cable allows noise to enter or causes distortion and loss of information. Use only the best microphone cable your budget will allow. We highly recommend using Mogami® brand cable.
Care
Dust and foreign materials can degrade the performance of a microphone over time so always store the unit in a clean, moisture-free environment. Use a soft, dry cloth to clean the microphone as needed.
0
90270
180
Polar Pattern
V400
Frequency Chart
Warranty
This MXL is guaranteed against defects in material and workmanship for one year from date of purchase. Should you encounter any problem with this unit, promptly contact the company you purchased it from for assistance. The original dated sales receipt will be necessary for any warranty claim. Do not send any unit directly to us without prior authorization from our service department! Warranty coverage is limited to repair or replacement (at our option) of the microphone, and does not cover incidental damages due to use of this unit, nor damage caused by accidental misuse of this product.
0
90270
180
Polar Pattern
