Variable Pattern Tube Microphone
USER MANUAL
USER MANUAL
Page 2
An Introduction to the MXL Revelation
Thank you for choosing the MXL Revelation. Your new Revelation microphone
was designed and engineered in the USA by our world-class team of electrical
and audio engineers and is built for the most critical sound applications.
The newest member of the MXL flagship product family, the Revelation is
an extraordinary studio microphone that delivers the warmth and intimacy
of a tube mic with clarity and punch for balanced recording.
The MXL Revelation features individually selected components, chosen
for their superior sonic capabilities. Examples include the EF86 pentode
tube and balanced transformer output. The MXL Revelation also includes a
variable knob located on the power supply that allows you to choose
the polar pattern that best fits your unique recording situation.
The MXL Revelation will provide many years of outstanding service and the
finest quality recordings attainable. Before you get started, we encourage
you to review this manual. Inside you’ll find some
recording tips, tricks and specific features of the MXL Revelation that will
help you obtain the best possible recording results.
Enjoy your MXL Revelation!
The MXL Team
User Manual
Revelation Features

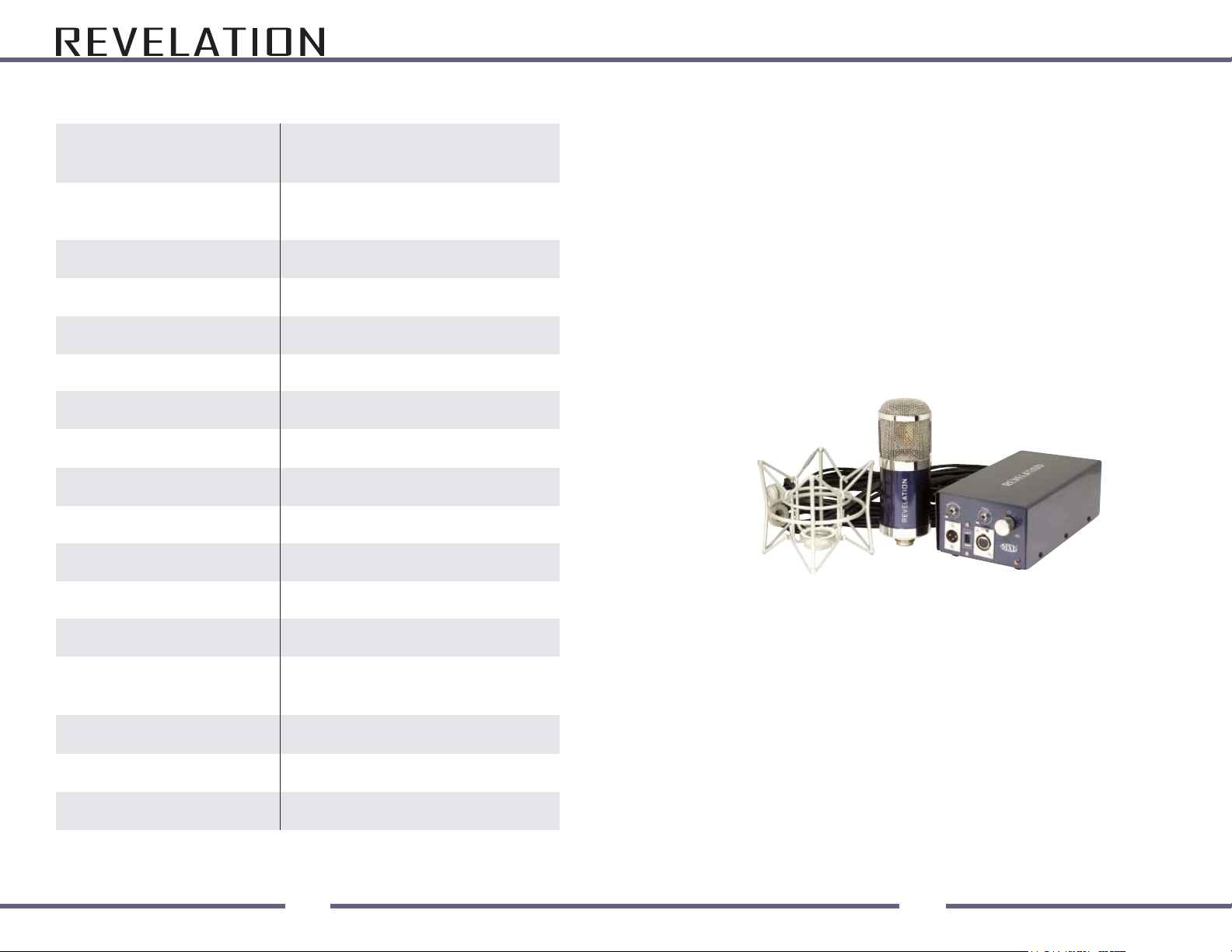

Carefully unpack your MXL Revelation Variable Pattern Tube microphone to verify that
all of the components are included. Your MXL Revelation includes the following:
Revelation Microphone
15ft 7-pin Mogami® cable
15ft XLR Mogami® microphone cable
Revelation power supply
Shockmount
Aluminum flight case
Cleaning cloth
If any of the above items are missing or damaged, contact the company you purchased it from for assistance.
Power Requirements
The MXL Revelation uses an EF86 tube that requires a dedicated power supply unit
(included with your microphone). Even if your mixer has phantom power, it is recommended that you defeat the phantom power as a precautionary measure when it is
not needed to power other mics that you might also be using.
This supply is switchable between 110 volts and 220 volts AC. In North America, the
microphone ships in the 110 volts AC position and in the 220 Volts AC position for
export. However, you always want to ensure that the power supply voltage is correctly
set for your local voltage as permanent damage to the microphone and/or power supply may occur if the incorrect voltage setting is selected. Every Marshall Electronics
MXL microphone has been thoroughly checked before shipping; so if you do not hear
sound, check that the power supply is switched on.
Caution
Do not “hot plug” the mic. Always ensure that the power supply is off when plugging
and unplugging the included 7-pin cable from the microphone to avoid damaging
the microphone and power supply.
Phase Switch
Bass Roll-off
Switch
XLR Mic Output
Ground Lift
Switch
1
2
Variable Pattern
Control Knob
7-pin Mic Cable
Power on LED
Page 3
User Manual
Bass Roll-off Switch
The Revelation power supply features a bass roll-off switch to help reduce proximity effect. Proximity effect is distortion that often occurs when a sound source is too
close to the mic. Some microphone patterns boost bass as you get closer to the
microphone; cardioid mics, for instance, tend to boost bass. The bass roll-off switch
reduces the low frequencies for a more full range sound.
Phase Switch
The Revelation also includes a phase switch which allows you to reverse the polarity
of the microphone signal by 180 degrees. This can help minimize phase issues when
recording with multiple microphones.
Variable Pattern Control Knob
The Revelation features a continuously variable pattern selector located on the Revelation power supply. This knob allows you to alter the polar pickup pattern of the microphone from omni-directional to figure eight, and everything in between. This can be
done with the microphone turned on without causing any damage to the unit; however,
it is recommended that you mute your speakers when changing to a new pattern. To
change the polar pattern, simply rotate the knob to customize the microphone’s pickup
pattern for your specific recording application. After rotating the knob to a new polar
pattern, it will take a few seconds for the capsule to charge back up. During these few
seconds, we recommend muting your speakers because you will hear static. Keep in
mind that there is no single right way to finding the perfect sound. Experimentation with
different patterns in different recording situations will be the key.
One of the most popular polar patterns, a cardioid microphone picks up sound
from the front of the microphone, less sound from the sides, and has good rejection of
sound to the back of the microphone. The cardioid pattern is well suited for situations
when you want to pickup specific sound sources like a guitar within an ensemble and
is recommended for recording applications where the acoustics are good but not
perfect. For instance, a cardioid pattern is less likely to pick up ambient noise from
computers and recording equipment.
An omni-directional microphone picks up sound equally from all sides of the microphone. Omni-directional microphones are recommended for environments with excellent
acoustics as they tend to pick up ambient noise. This pattern is well suited for picking up
sound from a wider recording area. Omni-directional mics are less sensitive to plosives,
handling noise, and proximity effect.
devices improperly share a common ground. The Revelation includes a Ground
Lift switch to help prevent such occurrences. If a ground loop is audible (usually
a 50-60Hz humming noise), the ground lift switch on the front of the power supply
should be set to the ‘lift’ position.
-10dB Pad
The Revelation can be used in very loud sonic environments without significant
distortion. If you hear distortion from the microphone, engage the “-10dB pad”
on the rear of the microphone to the -10dB position. You may also move the
microphone farther away from the sound source.
Shockmount
The Revelation comes with a custom shockmount specifically designed to handle its large
size. Shockmounts decouple the microphone
from the mic stand and the environment and can
minimize floor noise as well as noise induced by
people handling the microphone stand. Shockmounts should be considered “standard equipment” for all recording applications. To mount
the Revelation in the shockmount, first attach
the shockmount to the mic stand. With one hand, hold the Revelation microphone
inside the basket of the shockmount with the threaded base of the mic resting on
the retaining nut at the bottom. With your other hand, rotate the retaining nut until
the microphone is securely attached to the shockmount.
Microphone Cables
The microphone cable can have a profound effect
on the sound of any microphone. Even the finest microphones will sound poor if the interconnect cable
allows noise to enter or causes distortion and loss of
information. We highly recommend exclusively using
the Mogami® cables supplied with your Revelation.
Care
Dust and foreign material can degrade the performance of a microphone over
time so always store the unit in its case.
Commonly referred to as bi-directional, the figure 8 pattern will pick up sounds
from the front and back sides of the microphone with equal sensitivity while maintaining
a large amount of rejection 90° off access. Figure-8 patterns are the most susceptible to
proximity effect and are commonly used in “mid-size” stereo recording setups.
Ground Lift Switch
A ground loop is unwanted interference that can be created when multiple electronic
3
Grill
The Revelation microphone uses a single layer mesh grill. This design minimizes standing waves and harmonic distortion. Because this type of grill
leaves little protection between the user of the microphone and the capsule,
we highly recommend using a pop filter. Use of a pop filter will help protect
your microphone’s sensitive capsule, keeping it free from moisture caused by
saliva and breath condensation.
4
Page 4
User Manual
Recording Tips and Tricks

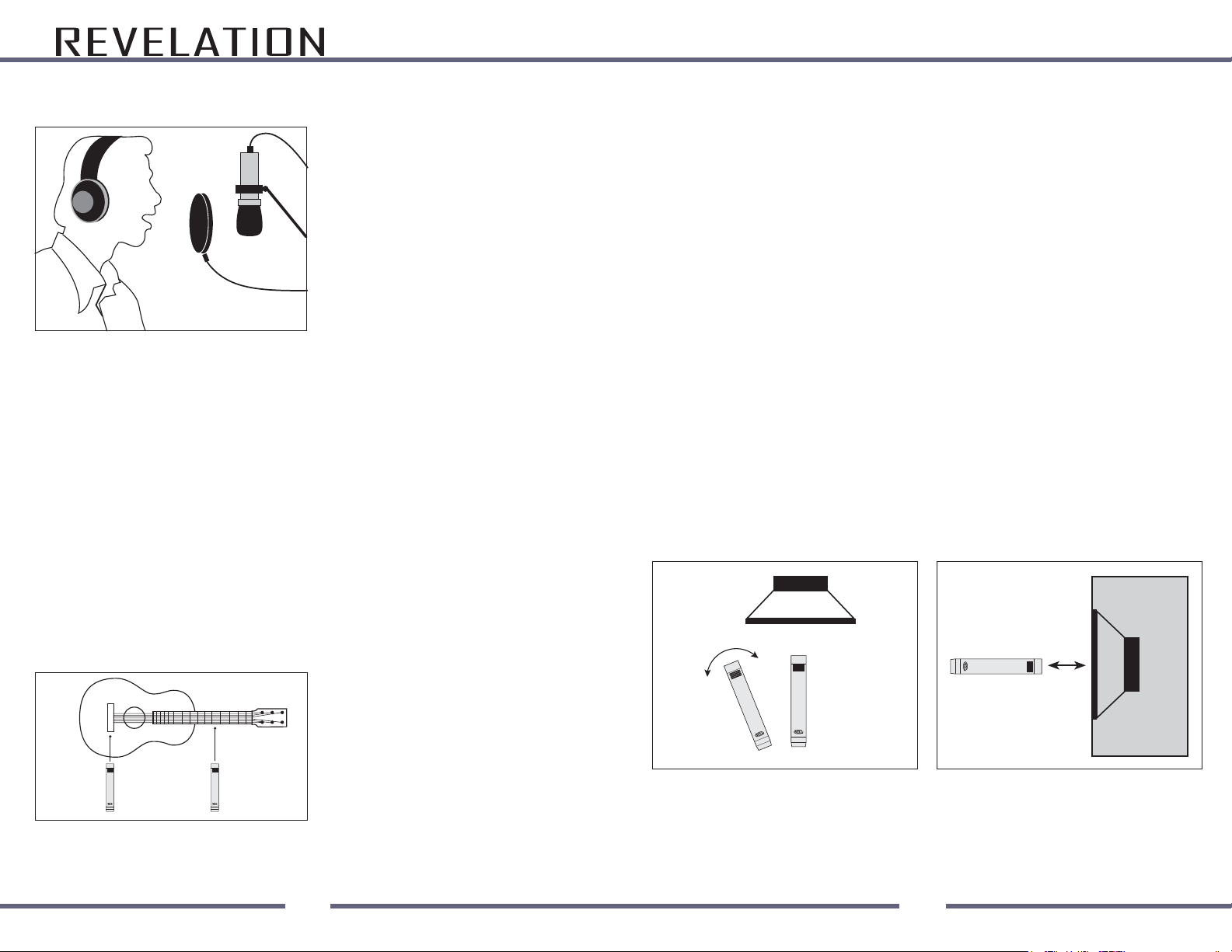

Fig. 1
Vocals and Dialog
Ideally, you want to record vocals in a
relatively “dead” room. If you clap your
hands and get an echo effect, you should
consider adding some carpet, blankets,
drapes, or other sound absorbing materials. On that note, make every effort to
avoid getting too close to the room’s walls.
These hard, reflective surfaces can easily
complicate the recording process. Move
your mic setup toward the room’s center.
Generally, you should position the vocalist roughly 6 - 8 inches away from the microphone. Getting too close to the microphone
tends to increase bass response and can create problems with plosive sounds (i.e., those
popping Ps, Bs, Ds, and Ts). Getting too far away makes the microphone more subject
to picking up room ambience and creates the effect of the vocalist being in a bowl. While
vocalists may need to move about in order to hit those high notes, make every effort to
maintain a constant distance from the microphone, as this will provide the greatest tonal
balance (see Fig. 1). For the most part, the microphone’s axis (or center line) should aim
toward the nose and mouth to obtain the fullest sound. It’s not a bad idea, however, to
experiment angling the microphone slightly away from dead center so as to help minimize
plosives. Further, you should always place a “pop” filter between the vocalist and the
microphone, with the pop filter positioned 3 - 4 inches in front of the microphone. This will
greatly increase your ability to achieve the most natural sounding recordings with minimal
interference from plosive sounds. Fixing plosives with audio editing software often creates
more of a problem than the plosive itself. Use of a pop filter will also protect your microphone’s sensitive capsule, keeping it free from moisture caused by saliva and breath
condensation. Remember—good microphone technique, proper positioning, and use of a
pop filter can make all the difference between a so-so vocal recording and a great one.
Twelfth Fret Placement: Placing the microphone roughly 2 - 4 inches from the twelfth
fret and aimed directly at the strings will generally produce a warm, full bodied sound
with good tonal balance. In addition, the sound hole’s contribution to the sound will
be moderated since the microphone is not pointed directly at it.
Bridge Placement: Similarly, you can position the microphone so it is 3 - 6 inches from the
guitar’s bridge. This will generally produce a somewhat brighter tonal quality. You should
also be prepared to experiment with positioning the microphone slightly off-axis should you
find yourself capturing too much low frequency response from the guitar’s sound hole.
The acoustical characteristics of your room will also have a pronounced effect on your
results. A “live” room will produce an overall “brighter” guitar sound, while a “damped”
room will produce more of a mellow tone. If you have two microphones, you may wish
to experiment using one in close proximity to the guitar as previously described, with
the second microphone on a stand a few feet away to capture the room’s ambience.
Blending the two sources can produce excellent results.
Recording an Amplified (Electric) Guitar
While the electric guitar can certainly be recorded directly, there are times when there
is simply no substitute for the sound of a real amplifier. Guitar amps have particular
gain stages that facilitate the popular “crunch” guitar sound. While digital modeling and
processing systems certainly have their place, they may not have the same level of realism as the sound from an amplifier. A small guitar amp can be just as effective for this
application as a stack, because you don’t necessarily need to “crank” the volume.
Instead, you want to increase the amp’s initial gain to achieve the desired amount of
overdrive.
Fig. 3
Top View
Side View
Fig. 2
Bridge
Placement
microphone in front of the instrument’s sound hole, doing so usually increases low
frequency response to the point of making the instrument sound “boomy.”
12th Fret
Placement
Recording Acoustic Guitar
Your best results for capturing the
acoustic guitar (or any similar stringed
instrument) begin with a properly tuned
instrument and strings that, while not old,
aren’t so new as to create tuning issues
due to stretching. There are two optimum
points for microphone positioning: either
near the bridge or by the twelfth fret.
While it may seem natural to place the
5
Mic is aimed
directly at center
of loudspeaker
Typically, a guitar amp is close miked to achieve the highest direct sound. Placing the microphone roughly 4 inches from the grill, aimed directly at the center of the loudspeaker
will produce the most “edge” to your sound. By angling the microphone slightly off axis
and towards the wall, you can add more “room sound.” Experimentation is a key factor in
achieving the sound you are looking for (see Fig. 3).
Mic is positioned
4” from grill
4”
6
Page 5
User Manual
Placement of the amp is another important factor. If the amplifier sits on a carpeted floor,
you are more likely to reduce the amount of brightness in the sound. Similarly, elevating the amplifier off the floor may result in a loss of low end. If you’re looking for a big
reverberant tone, placing the amp and microphone in the bathroom is another popular
technique. The hard tiles and other reflective surfaces can do wonders for a dull sound.
In this case, move the microphone back a few feet from the loudspeaker and crank it up!
Top View
2
Fig. 4A
Front View

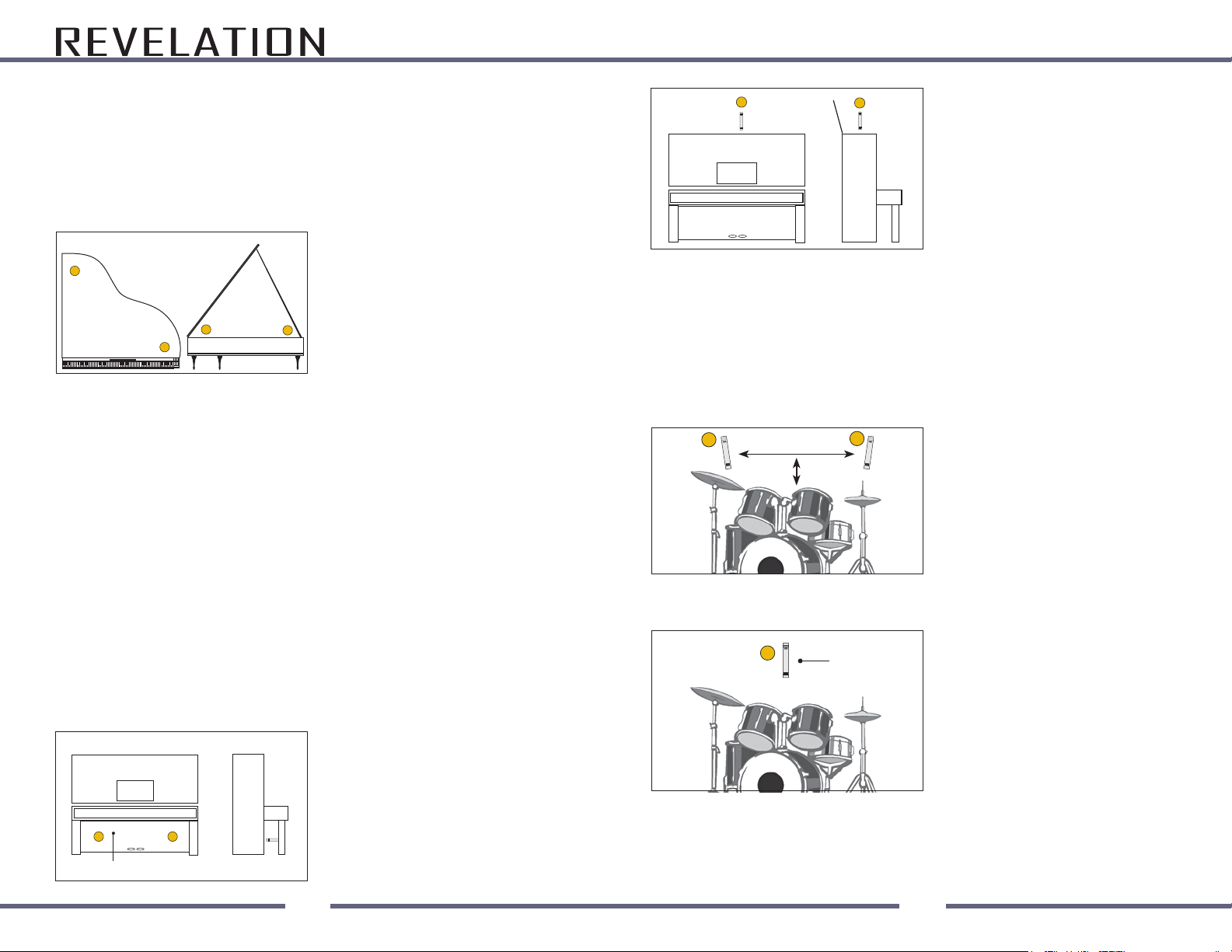

Recording the Piano
The piano is one of the most challeng-
ing instruments to record, and many
problems stem from the quality and
or a single
*
mic here
or a single
mic here
2
1
*
maintenance of the instrument itself.
You’ll obtain the best results by using an
1
instrument that has just been tuned and
is in good mechanical condition.
The piano is generally recorded using
close miking technique. Ideally, you’ll want a minimum of two microphones. Usually, the microphone capturing the higher strings is assigned to the left channel and
the microphone capturing the lower strings is assigned to the right channel in the
final stereo mix, though the stereo spread generally is not hard left and right. While
a single microphone can be used, the lower and upper extremities of the instrument will likely be compromised.
Grand Piano: For the upper strings, position the microphone approximately 8 inches
from the piano hammers (to reduce mechanical noise) and 8 - 11 inches above the
strings, with the Pan position set to left of center. For the lower strings, position the
microphone toward the far end (away from the keyboard) roughly 6 - 12 inches from
the end and 8 - 11 inches above the strings, with the Pan position set to right of center.
Position the piano’s lid at full stick (see Fig. 4A). If you are using a single microphone,
position the microphone approximately 8 inches from the piano hammers (to reduce
mechanical noise) and 8 - 11 inches above the strings - centered over the piano’s mid
point. Pan position should be centered and the piano’s lid should be at full stick.
Upright Piano: With an upright piano, the two microphones are generally placed
either just over the top of the piano with the top open, or you can remove the pia-
no’s front panel beneath the keyboard
Front View
Fig. 4B
Side View
and place the microphones below.
Front Panel Placement: For the upper
strings, position the microphone approximately 8 - 11 inches away from the
strings, with the Pan position set to left
of center. For the lower strings, position
2 1
Front Panel Removed
Mics positioned
8-11” away from strings
the microphone 8 - 11 inches away from
the strings, with the Pan position set to
right of center (see Fig. 4B).
Front View
Fig. 4C
1
Side
View
1
Single Microphone / Open Top: If
you are using a single microphone, it
is generally recommended that you record from above, as placement of the
microphone in the lower center may
interfere with the performer’s ability to
access the pedals and the microphone
will likely pick up excessive pedal and
other mechanical noise. Position the
microphone just over the open top,
centered over the instrument (see Fig. 4C).
Recording a Drum Set
Like the piano, capturing the drums can be quite a challenge, if for no other reason
than the fact that you must be very careful to avoid positioning the microphone(s)
where they could be hit! Ideally you’ll want a minimum of two microphones for this
job, though a single microphone can be employed.
Fig. 5A
Front
View
Front
View
1
2-3 Ft. apart
16-20” above performer’s head
1
2
Fig. 5B
16-20” above
performer’s head
can. If the room is live, the sharp attack transients of the drum kit will only become that much more difficult to capture if the room has hard, reflective surfaces,
resulting in a muddy sound without any real definition. Further, you should always
record the drums dry and add signal processing after the fact.
Stereo Overhead Pair: Position
the two microphones approximately
16 – 20 inches above the performer’s
head, separated laterally by roughly
2 - 3 feet and placed 5 – 6 feet out in
front of the drum kit. Adjust the two
microphone’s Pan position so that
you achieve a good stereo spread,
though generally not hard left and
right (see Fig. 5A).
Single Overhead Microphone: Position the microphone approximately
16 – 20 inches above the performer’s
head - centered in front of the drum
set, and placed 5 - 6 feet out in front.
The microphone’s Pan position
should be centered for mono drums
(see Fig. 5B).
For best results, record the drums in
as acoustically “dead” a room as you
7
8
Page 6
User Manual
Specifications
Variable Pattern Tube Condenser
Type: Microphone
Dual Gold-sputtered, 6 Micron
Diaphragm: Diaphragm
Tube Type: EF86
Output: Transformer Balanced
Frequency Range: 20 Hz-20 kHz
Polar Pattern: Continuously Variable
Sensitivity: -40 dB re 1 V/Pa
Impedance: 140 ohms
Pre-Attenuation Switch: 0 dB, -10 dB
S/N Ratio: 76 dB
Warranty
Marshall microphones are guaranteed against defects in material and workmanship for three
years (except tube which is 90 days) from date of purchase. Should you encounter any problem
with this unit, promptly contact the company you purchased it from for assistance. The original
dated sales receipt will be necessary for any warranty claim. Do not send any unit directly to us
without prior authorization from our service department!
Warranty coverage is limited to repair or replacement (at our option) of the microphone, and
does not cover incidental damages due to use of this unit, nor damage caused by accidental
misuse of this product.
Equivalent Noise Level: -18 dBA (A-weighted IEC 651)
Max SPL for 0.5% THD: 138 dB SPL
High Pass Filter: 12 dB/octave @ 125Hz
Revelation Power Supply Unit
Power Requirements: 110/220 VAC, 50/60Hz
Size: 7 1/2” X 2 1/2” (mic only)
Weight: 2lbs (mic only)
Metal Finish: Dark Violet and Chrome
9
Professional Audio Division, El Segundo, CA
Phone: (310) 333-0606
www.mxlmics.com
Marshall Electronics
(800) 800-6608 Fax: (310) 333-0688
www.mogamicable.com sales@mxlmics.com
10
Page 7
Professional Audio Division, El Segundo, CA
Phone: (310) 333-0606
www.mxlmics.com
R
Marshall Electronics
(800) 800-6608 Fax: (310) 333-0688
www.mogamicable.com sales@mxlmics.com
Loading...
